A Hybrid Approach to Re-Host and Mix Transactional COBOL and Java

Code in Java EE Web Applications using Open Source Software

Philipp Brune

Neu-Ulm University of Applied Science, Wileystraße 1, 89231 Neu-Ulm, Germany

Keywords:

Web Services, Service Orientation, Transaction Processing, COBOL, Java EE, Open Source Software,

Mainframe Computing.

Abstract:

Despite the common notion of mainframe-based transactional COBOL applications being an outdated techno-

logy, in many companies they continue to serve as the IT backbone. Therefore, in the era of big data and

cloud services, these applications need to be transformed towards open, service-oriented architectures to pre-

serve their value. This challenge has been tackled by different strategies so far, ranging from adding web

service layers to existing mainframe applications to various products providing emulation on non-mainframe

platforms. In contrast, in this paper this transformation is considered not as a mere COBOL re-hosting issue,

but from the perspective of integrating COBOL in Java EE-based web applications. An open framework is

demonstrated for executing existing transactional COBOL programs as part of Java EE application servers.

It is build on established Open Source Software (OSS) components and executes on any Un*x-like operating

system, in particular also on the mainframe itself.

1 INTRODUCTION

Despite COBOL is considered an outdated language

by many (Khadka et al., 2014), it still plays an im-

portant role in enterprise application development,

in particular on the mainframe platform (L

ammel

and De Schutter, 2005; Vinaja, 2014) (the term

“mainframe platform” here refers to IBM’s S/390 ar-

chitecture and its descendants, as it is commonly un-

derstood). There exist multiple reasons why it is

neither possible nor desirable to replace it completely

(Suganuma et al., 2008; Sagers et al., 2013; Farmer,

2013; Kiefer, 2017).

Mainframe-based transactional COBOL programs

typically handle the core, value-generating business

processes of many companies and store the related

data. As so-called “Systems of Record” they are typi-

cally hosted on-premise by many companies (Moore,

2011). In the era of big data and cloud-based ser-

vices (Hashem et al., 2015), to preserve their value,

the challenge frequently is to convert these mission-

critical applications into open, service-oriented bac-

kends (Khadka et al., 2015). which could be more ea-

sily integrated e.g. in cloud-based “Systems of Enga-

gement” like mobile apps and web frontends, or into

distributed big data processing applications (Moore,

2011; Tommy et al., 2015).

While various approaches to tackle this chal-

lenge have been proposed and used in research and

practice over the years, the re-engineering of ex-

isting, large-scale transactional COBOL applicati-

ons remains an ongoing topic for most mainframe-

centered IT organizations. Depending on the strategic

role of the mainframe platform within an organiza-

tion, this is usually either achieved by migrating and

re-hosting these applications to other non-mainframe

platforms (e.g. Linux) or by modernizing them on the

mainframe platform, thereby typically making use of

the power and unique features of modern mainframes

(Sagers et al., 2013; Farmer, 2013; Vinaja, 2014).

In any case, transactional COBOL applications re-

quire a transaction processing monitor (TPM) midd-

leware such as IBM’s CICS

(Malaika and Park,

1994) or Fujitsu’s openUTM

to run in, which the-

refore needs to be either present or emulated on any

target platform used for hosting such applications.

Therefore, previous approaches consider the problem

mainly from the COBOL perspective, trying to pro-

vide a replacement or emulation for the traditional

mainframe TPM software (Talati and Lackie, 1999;

White, 2000).

https://www.ibm.com/software/products/de/cics-tservers

http://www.fujitsu.com/de/products/software/middleware/

openseas-oracle/openutm/

Brune, P.

A Hybrid Approach to Re-Host and Mix Transactional COBOL and Java Code in Java EE Web Applications using Open Source Software.

DOI: 10.5220/0006943402390246

In Proceedings of the 14th International Conference on Web Information Systems and Technologies (WEBIST 2018), pages 239-246

ISBN: 978-989-758-324-7

239

In contrast, in this paper the topic is looked at

from the perspective of re-using transactional CO-

BOL code as part of modern Java Enterprise Edi-

ion (EE) web applications. Therefore, in this paper

an open framework build purely on established Open

Source Software (OSS) is proposed and demonstra-

ted, which allows to execute existing transactional

COBOL programs as part of Java EE application ser-

vers. The proposed framework supports all Un*x-

like or Linux operating systems, therefore also the

mainframe itself. It is evaluated using a proof-of-

concept implementation to demonstrate its feasibility.

Recently, Java EE has been handed over to the

Eclipse Foundation to manage its future development,

and therefore re-labeled as Jakarta EE

. However, for

sake of simplicity in this paper still only the term Java

EE is used to denote both Java EE and Jakarta EE.

The rest of this paper is organized as follows: In

section 2 the related work is analyzed in detail, while

section 3 describes the software architecture of the

proposed solution. The latter is evaluated by a proof-

of-concept (PoC) Java EE application presented in

section 4 and tested in a demo experiment illustra-

ted in section 5. We conclude with a summary of our

ﬁndings.

2 RELATED WORK

The modernization of existing transactional COBOL-

based applications by modularization and encapsula-

tion (Sellink et al., 1999) over the years has been pur-

sued using different strategies, and numerous approa-

ches have been proposed, which can be grouped into

three main categories:

• Modernize the existing applications on the

mainframe platform (Sellink et al., 2002), typi-

cally by wrapping COBOL transaction programs

by web service facades or behind modern Web

user interfaces (Sneed, 2001; Lee et al., 2001) and

integrating them in distributed service-oriented

application architectures (Calladine, 2004; Fergu-

son and Stockton, 2005; Rodriguez et al., 2013;

Mateos et al., 2017). This approach is typically

adopted when the unique features of mainfra-

mes such as extremely high availability and out-

standing transaction throughput are inevitably re-

quired for an application (Farmer, 2013; Vinaja,

2014), and well supported by various software

tools from the mainframe vendors (like e.g. the

current versions of their respective TPM products)

https://jakarta.ee/about/

(Bainbridge et al., 2001) as well as from multiple

third-party vendors.

• Re-hosting and subsequent modernization of the

existing COBOL applications on other non-

mainframe platforms (including cloud services),

mainly to reduce the perceived high operating

costs of the mainframe platform (Lancia et al.,

2007; Khadka et al., 2015). This typically re-

quires either the original mainframe TPM midd-

leware (Malaika and Park, 1994) to be available

for these non-mainframe platforms (which is the

case for the major mainframe TPM products) or a

kind of third-party emulation technique to be used

to mimic the functionality of the TPM (Talati and

Lackie, 1999; Apte et al., 2017). The latter has

been tried to achieve over the years by numerous

attempts, ranging from vintage computing enthu-

siasts’ hobby projects

to high-end commercial

offerings

. However, some of these approaches

are not feature-complete, lack development acti-

vity, or rely on proprietary technology. Also legal

issues may affect their success, as many TPM-

retated technologies have been patented over the

decades (Talati and Lackie, 1999; White, 2000;

Lymer et al., 2001; Apte et al., 2017).

• Extraction of the business rules and logic from

the existing COBOL code (e.g. by using spe-

cial analysis tools ), and their subsequent re-

implementation using other languages and plat-

forms (Sneed, 1992; Huang et al., 1998; Sneed,

2001; Bodhuin et al., 2002; Lancia et al., 2007;

Suganuma et al., 2008; Zhou et al., 2010; Mai-

netti et al., 2012; El Beggar et al., 2014). This

approach is widely discussed in the scientiﬁc lite-

rature on legacy systems modernization, but may

be too expensive or riskful for companies in many

cases, since existing mainframe applications are

typically highly critical (Suganuma et al., 2008).

In general, the mainframe platform offers various

unique features like the support for high availability,

vertical scalability and security (Vinaja, 2014). The-

refore, a re-hosting or re-implementtai on other plat-

forms is not be feasible or useful in all cases (Far-

mer, 2013; Vinaja, 2014). In addition, completely

re-writing existing transactional COBOL applications

using modern languages and platforms might be much

too costly compared to modernizing them (Kanter and

Muscarello, 2005).

In modern enterprise application development, the

role of COBOL has been overtaken by Java to a large

http://www.kicksfortso.com

https://www.lzlabs.com/

WEBIST 2018 - 14th International Conference on Web Information Systems and Technologies

240

extend, and Java Enterprise Edition (EE)

applica-

tion servers provide functionalities similar to classical

TPM middleware to the Enterprise Java Bean (EJB)

components deployed in them (Bainbridge et al.,

2001; Lancia et al., 2007). In particular, Java EE ap-

plication servers support distributed transactions and

the 2-phase-commit (2PC) protocol through the Java

Transaction API (JTA)

Since Java EE application servers are similar to

classical TPM middleware to some extend, it could be

an interesting strategy for moderninzing transactional

COBOL appplications to make these programs run in-

tegrated in a Java EE application server as part of a

JTA tranasction. In this scenario, most of the TPM

functionality required to run these programs (such as

transaction handling, resource access, access to mes-

sage queues, user interfaces, etc.) wouldl be pro-

vided by the Java EE application server out of the

box through the default Java EE features. First, a

dedicated TPM middleware for executing transactio-

nal COBOL programs is not necessary in this appro-

ach, thereby avoiding any dependency on proprietary

software components. Only a thin “glue component

layer” is needed to manage the native COBOL execu-

tion for the Java EE application server. Second, since

Java EE is portable and available on most platforms,

in particular also on mainframes, this approach also

supports mainframe-to.mainframe re-hosting, e.g. on

Linux

Since such an approach has not been discussed in

the literature so far, in this paper the question is ad-

dressed how an open software architecture for a re-

spective approach could look like, which uses only

open-source software (OSS) components, and how fe-

asible it is in practice.

3 DESIGN OF THE SOFTWARE

ARCHITECTURE

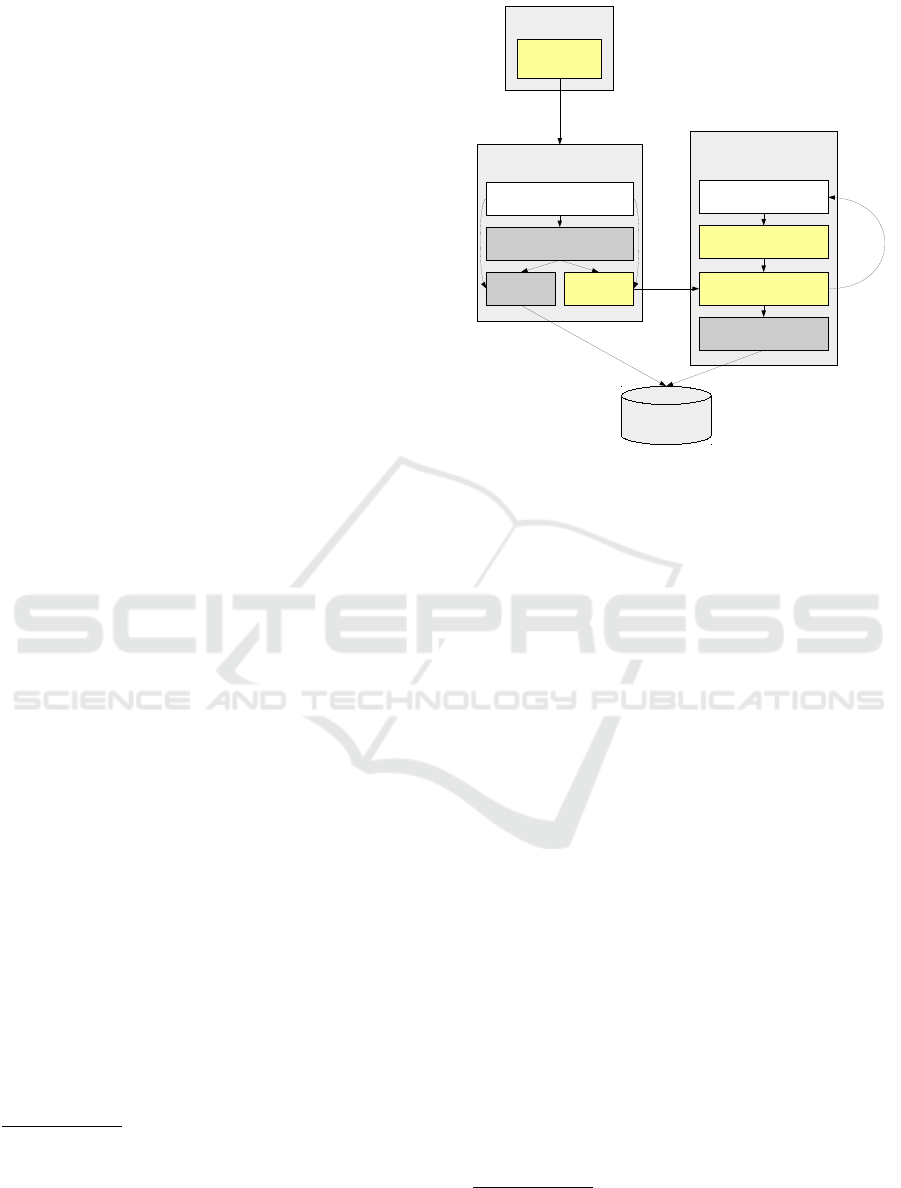

In ﬁgure 1 an overview of the software architecture

of the proposed approach is shown. We refer to it

as the Quick Web-Based Interactive COBOL Service

(QWICS). Its full source code described in the follo-

wing is available as OSS on GitHub

As the major components for the design of its soft-

ware architecture, the following OSS solutions have

been selected following a “best of breed” strategy:

http://www.oracle.com/technetwork/java/javaee/overview/

index.html

http://www.oracle.com/technetwork/java/javaee/jta/

index.html

https://www.openmainframeproject.org/

https://github.com/pbrune1973/qwics

Java EE Application Server

(e.g. JBoss WildFly)

QWICS

COBOL Transaction

Server

Java Persistence API

(JPA)

QWICS

JDBC Driver

Application-specific

EJB

PostgreSQL

DBMS

PostgreSQL

C Client Lib

Server Process

TCP

Connection

(SQL

and

QWICS

Commands,

Data,

JSON

Maps,...)

Modified GnuCOBOL

libcob

GnuCOBOL

Load Modules

Launches

and

executes

COBOL

Load

Modules

in separate

processes

PostgreSQL

JDBC Driver

Web Browser

(Client)

QWICS

JavaScript

Library

WebSockets

Connection

(JSON structures)

Figure 1: Overview of the software architecture of the

proposed approach (called QWICS). The arrows denote

usage/invocation relationships. Yellow boxes describe

the QWICS-speciﬁc components and white boxes the

application-speciﬁc COBOL or Java code. The integration

between the Java and the COBOL code is achieved using a

speciﬁc JDBC driver calling the COBOL server via its own

protocol over a TCP connection.

• The GnuCOBOL compiler

, since it is the most

complete and mature OSS COBOL compiler avai-

lable. In fact, it is a COBOL frontend to the

GNU C compiler, translating COBOL to C ﬁrst

and then compiling the result using the standard

gcc with its high optimization. Therefore, it sup-

ports the same target architectures as gcc, which

indeed covers most existing platforms, including

the mainframe.

• The PostgreSQL relational database system

replacement for the mainframe databases used by

typical transactional COBOL applications. Post-

greSQL has been selected since it fully supports

2PC and distributed transactions (different from

other OSS databases), which is necessary for en-

terprise applications. Also, its BSD license allows

a completely free commercial use, which might be

important for future applications in practice.

• The JBoss WildFly application server

as Java

EE runtime, since it is probably the most establis-

hed and mature OSS Java EE implementation with

a long-time history, used in many critical enter-

https://sourceforge.net/projects/open-cobol

https://www.postgresql.org

http://wildﬂy.org

A Hybrid Approach to Re-Host and Mix Transactional COBOL and Java Code in Java EE Web Applications using Open Source Software

241

int (*performEXEC)(char*, void*) = NULL;

void display_cobfield(cob_field *f, FILE *fp) {

display_common(f,fp);

}

void

cob_display (const int to_stderr,

const int newline, const int varcnt,

...)

{

FILE *fp;

cob_field *f;

int i;

int nlattr;

cob_u32_t disp_redirect;

va_list args;

// BEGIN OF EXEC HANDLER

va_start (args, varcnt);

f = va_arg (args, cob_field * );

if (strstr((char*)f->data,

"TPMI:")) {

char *cmd

= (char*)(f->data+5);

if (varcnt > 1) {

f = va_arg (args,

cob_field * );

}

(*performEXEC)(cmd,(void*)f);

va_end (args);

return;

}

va_end (args);

// END OF EXEC HANDLER

Figure 2: Necessary modiﬁcation to termio.c of GnuCO-

BOL’s libcob runtime library. Only the lines shown need

to be added, no further modiﬁcations are necessary. This

code adds an interception to DISPLAY statements of the

form DISPLAY "TPMI:..., which are used to execute the

EXEC-macros in the original COBOL source.

prise applications in practice.

For the integration of the transactional COBOL

programs in the Java EE container, three main “glue

components” have been designed illustrated in ﬁgure

1. These are kept as lightweight as possible, dele-

gating most of the work (e.g. transaction handling,

database connectivity, ...) to the existing and well-

approved components listed above. This “glue layer”

consists of:

• COBOL Transaction Server: A runtime container

to dynamically load and execute the COBOL load

modules (i.e. executable binaries in mainframe

terminology) created by the GnuCOBOL compi-

ler. It is written in C and for each client ses-

sion executes the COBOL load modules in a se-

parate thread. It is linked against a slightly mo-

diﬁed version of GnuCOBOL’s libcob library,

which now intercepts COBOL DISPLAY state-

ments of the form DISPLAY "TPMI:... and calls

a function in the runtime container for these. The

code fragment in ﬁgure 2 shows the respective ne-

cessary modiﬁcation to libcob’s termio.c source

ﬁle. By means of this mechanism, the original

EXEC ... END-EXEC macros in the code (Ma-

laika and Park, 1994) are converted to DISPLAY

statements by the preprocessor, and then interpre-

ted by the runtime container. This mechanism

provides maximum ﬂexibility compared to the al-

ternative solution of converting the macros to de-

dicated library calls, since e.g. the preprocessor

needs not to be modiﬁed for supporting further

macro statements.

To execute the SQL in the EXEC SQL statements

and the statements send directly by the client, the

runtime container also manages pooled connecti-

ons to the PostgreSQL database by means of Pos-

tgreSQL’s C client library. The EXEC statements

are either transmitted to the client (JDBC driver

in the Java EE application server) or the database

for interpretation. Only statements invoking ot-

her COBOL modules are directly executed by the

transaction server.

• JDBC Driver: A Java Database Connecti-

vity(JDBC)

-compliant driver supporting Non-

XA and XA datasources to handle distributed

transactions. It connects to the COBOL Tran-

saction Server via a TCP connection, acting as a

client to the COBOL programs. The execution of

COBOL programs is controlled by the application

server (e.g. from an EJB) via the JDBC driver

by means of special callable statements and result

sets.

• JavaScript Library: Implements an (optional)

simple web user interface based on the original

TPM’s map deﬁntions (Malaika and Park, 1994),

which are converted beforehand to JavaScript Ob-

ject Notation (JSON) structures by the preproces-

sor (see below). It uses the popular Bootstrap.js

framework

for providing a responsive and mo-

dern look-and-feel suitable for mobiles, and Web-

Sockets to communicate in a stateful manner with

the application server. A stateful session here is

required to mimic the behaviour of the original

text-based terminal sessions.

In addition, a Java EE application (e.g. consisting

of EJB, servlets, JPA, ...) is needed to actually use

http://www.oracle.com/technetwork/java/javase/jdbc/ in-

dex.html

https://getbootstrap.com/

WEBIST 2018 - 14th International Conference on Web Information Systems and Technologies

242

COBOL Code with COPY/EXEC Macros

IDENTIFICATION DIVISION.

PROGRAM-ID. CUSTCHK.

DATA DIVISION.

WORKING-STORAGE SECTION.

COPY QCKSET.

01 ACCTNO PIC X(7).

PROCEDURE DIVISION.

MOVE LOW-VALUES TO QCKMAPO.

EXEC CICS SEND MAP('QCKMAP') MAPSET('QCKSET') MAPONLY

ERASE

END-EXEC

EXEC CICS RECEIVE MAP('QCKMAP') MAPSET('QCKSET')

INTO(QCKMAPI)

END-EXEC.

...

Preprocessed COBOL Code

IDENTIFICATION DIVISION.

PROGRAM-ID. CUSTCHK.

DATA DIVISION.

WORKING-STORAGE SECTION.

01 QCKMAPI.

05 ACCTNOI PIC 9(7).

05 SURNAMEI PIC X(15).

05 FNAMEI PIC X(10).

05 CHGI PIC X(8).

05 MSGI PIC X(20).

01 QCKMAPO.

05 ACCTNOO PIC 9(7).

05 SURNAMEO PIC X(15).

05 FNAMEO PIC X(10).

05 CHGO PIC X(8).

05 MSGO PIC X(20).

01 ACCTNO PIC X(7).

PROCEDURE DIVISION.

MOVE LOW-VALUES TO QCKMAPO.

DISPLAY "TPMI:EXEC".

DISPLAY "TPMI:CICS".

DISPLAY "TPMI:SEND".

DISPLAY "TPMI:MAP".

...

COBOL Preprocessor

cobprep

GnuCOBOL Compiler

cobc

COBOL

Copybooks

COBOL

Load

Module

User Interface MAPSET Definition

QCKSET DFHMSD TYPE=MAP,MODE=INOUT,LANG=COBOL2,STORAGE=AUTO

QCKMAP DFHMDI SIZE=(24,80),LINE=1,COLUMN=1,CTRL=FREEKB

DFHMDF POS=(1,1),LENGTH=3,ATTRB=(ASKIP,BRT), X

INITIAL='QCK'

DFHMDF POS=(1,26),LENGTH=28,ATTRB=(ASKIP,NORM), X

INITIAL='QUICK CUSTOMER ACCOUNT CHECK'

DFHMDF POS=(3,1),LENGTH=8,ATTRB=(ASKIP,NORM), X

INITIAL='ACCOUNT:‘

ACCTNO DFHMDF POS=(3,13),LENGTH=7,ATTRB=(UNPROT,NUM,IC)

...

MAP Preprocessor

mapprep

JSON

Map

Definitions

for

Web UI

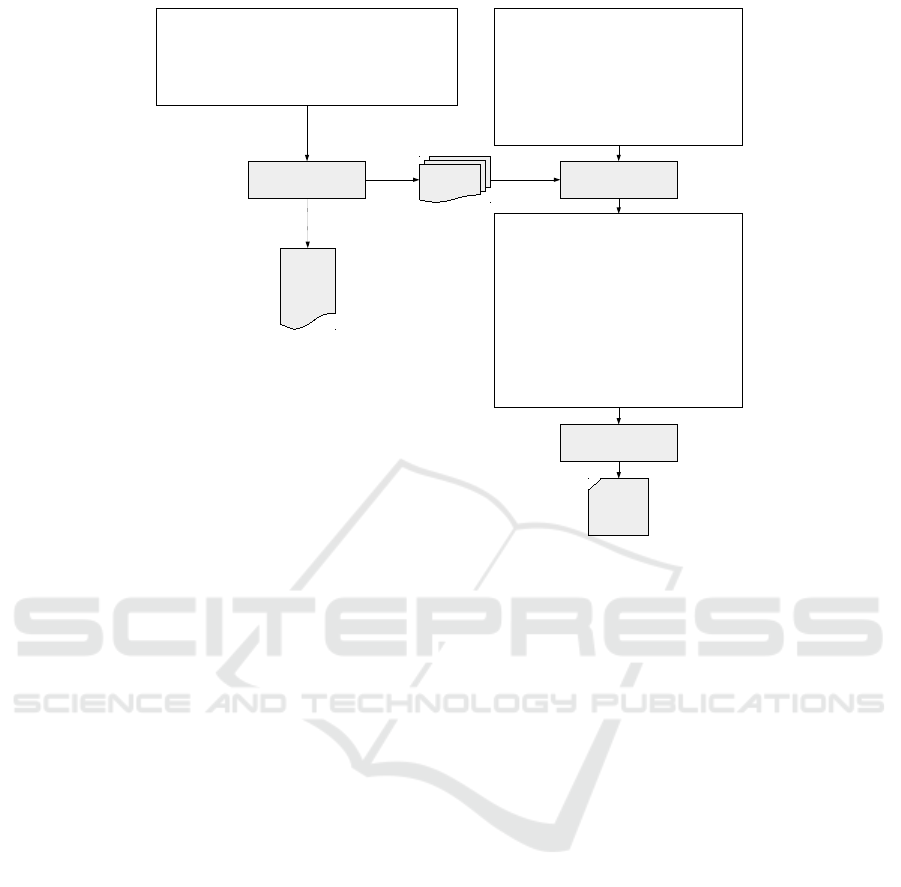

Figure 3: Process of preprocessing the original COBOL source ﬁles and map deﬁnitions for use by QWICS.

and invoke the COBOL programs within (distributed)

transactions via the JDBC driver. Depending on the

customer requirements, these applications can be of

different kind, e.g. implementing web services to be

called by other applications or full web frontends (e.g.

using the above JavaScript library).

Transactional COBOL programs in traditional

mainframe environments are loaded and executed by

a TPM. All input/output (I/O) operations performed

by these programs need to be handled by the TPM, so

it can always keep track of them to handle the (distri-

buted) transactions. Therefore, all necessary I/O ope-

rations (like e.g. executing SQL statements, sending

or receiving data from the screen, etc.) are embedded

in the COBOL code (or that of any other supported

host language) in terms of TPM- and SQL-speciﬁc

EXEC ... END-EXEC macros. These macros are pre-

processed and translated to TPM API calls before the

COBOL program is passed to the COBOL compiler

(Malaika and Park, 1994). In addition, the terminal

UI screen deﬁnitions (so-called maps) references by

these macros are translated beforehand to COBOL va-

riable declarations (so-called copybooks), which need

to be copied into the COBOL code before compilation

during this preprocessing stage as well.

Therefore, to be able to re-use the unmodiﬁed CO-

BOL source codes including these macros, the pre-

sented approach needs to implement an analogous

preprocessing step. The purpose of this COBOL pre-

processing ﬁrst is to convert the EXEC macro state-

ments into real COBOL code (in the proposed ap-

proach, i.e. to the special DISPLAY "TPMI:... state-

ments described above), and second to insert the ne-

cessary variable declarations from the respective CO-

BOL copybooks before compilation.

The overall process is illustrated in ﬁgure 3: Two

preprocessors have been implemented for that pur-

pose, cobprep for COBOL and mapprep for the

map deﬁnitions. Both are written in the C program-

ming language. First, the original map deﬁnitions are

preprocessed, generating the corresponding COBOL

copybooks as well as a JSON representation of the

maps, later usable for web frontends. Currently, the

preprocessor only supports EXEC SQL and EXEC CICS

macros, but it easily could be adapted to support anot-

her TPM’s command syntax. Second, the COBOL

code is preprocessed, including the previously gene-

rated copybooks. The resulting COBOL code then

is passed through the GnuCOBOL compiler to obtain

the ﬁnal executable load modules.

4 PROOF-OF-CONCEPT JAVA

APPLICATION

To test and demonstrate the functionality and in-

terplay of the described components, a Proof-of-

A Hybrid Approach to Re-Host and Mix Transactional COBOL and Java Code in Java EE Web Applications using Open Source Software

243

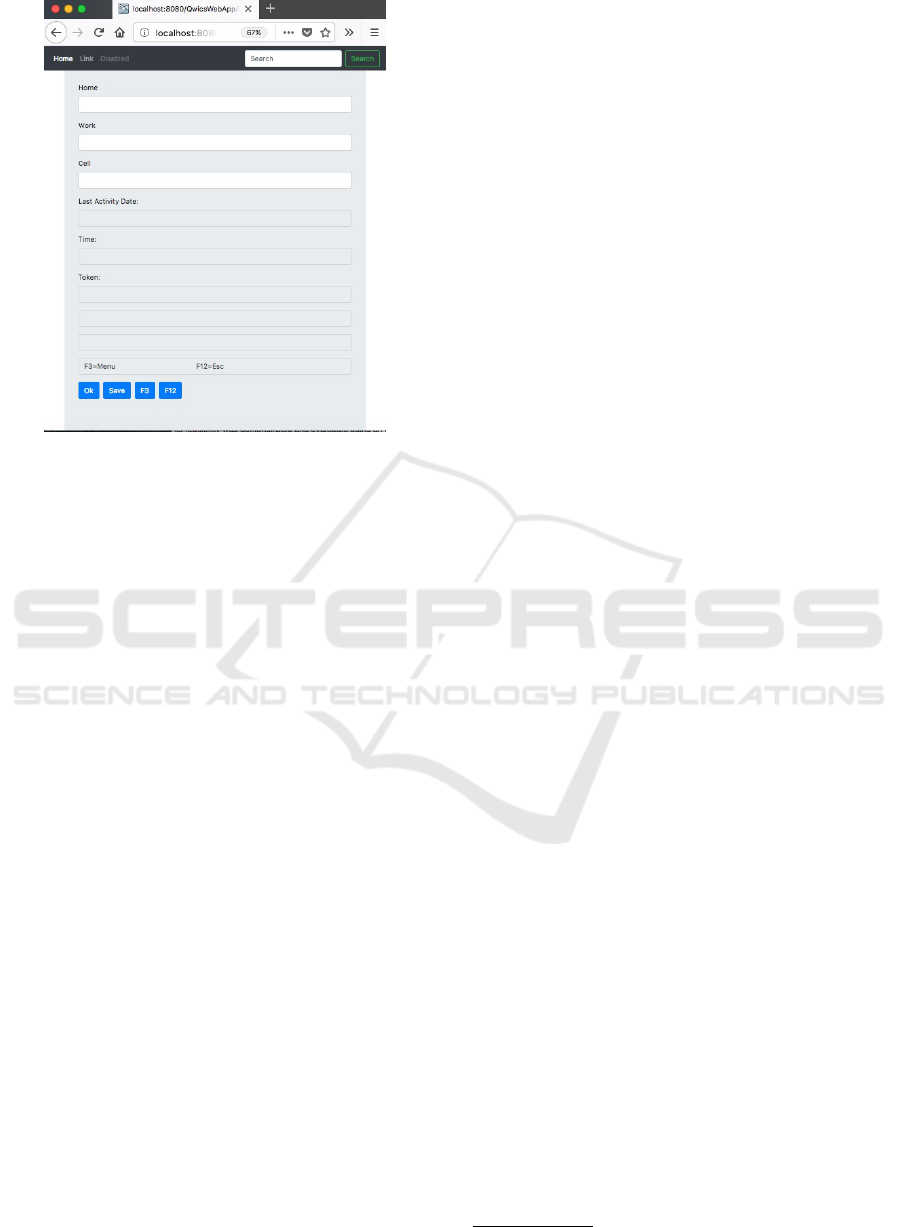

Figure 4: Screenshot of a map screen converted to JSON

and displayed in web page by the JavaScript library.

Concept (PoC) Java EE application was implemented

and deployed in the JBoss WildFly application server.

It consists of a single stateful session enterprise

Java bean (EJB), accessing the COBOL code using a

Java Transaction API (JTA) XA datasource (to sup-

port distributed transactions) and the JDBC driver

described above. The stateful session bean acts as

websocket backend invoked from the JavaScript li-

brary in the web browser. A stateful session bean

is required, since websockets provide a session-based

connection between the browser and the web server.

This is necessary to make the UI behave similar to

the traditional terminal screens. The EJB uses bean-

managed transctions, since websockets require a se-

parate EJB method call for each new message, cor-

responding to UI interactions here. Since transacti-

ons in a TPM may span multiple screen interacti-

ons, this needs to be recovered here using transactions

spanning multiple method calls of an EJB. Therefore,

JTA’s UserTransaction interface is used to control the

begin and end of transactions by the EJB.

5 EXPERIMENTAL EVALUATION

To evaluate the feasibilty of the proposed approach, in

a ﬁrst experiment an existing transactional COBOL

application has been ported to the QWICS environ-

ment. To avoid any bias, a third-party application was

required, written for a real mainframe TPM by de-

velopers not related or known to the authors. There-

fore, a demo COBOL CICS application written by a

consulting company for training purposes and being

available online was selected (SimoTime Technolo-

gies and Services, ).

Of the demo programs provided there (Simo-

Time Technologies and Services, ), the COBOL pro-

grams MN1APP, MN1SQL and CQ2UPD and their

respective map deﬁnitions were used for the experi-

ment, since they allow to test UI menu navigation,

program calls and SQL database access.

First, the COBOL source codes and the respective

map deﬁnitions were processed by the preprocessor

programs,. Afterwards, the COBOL code was compi-

led using GnuCOBOL.To make the code run properly,

the embedded SQL statements in the original COBOL

code had to be slightly adjusted to conform to the Pos-

tgreSQL SQL syntax. Beside this, the code could be

used without further modiﬁcations.

The experiment was carried out two times with

identical results, ﬁrst by running it completely on an

Apple MacBook Air developer laptop using MacOS

X 10.11.6, thus, a BSD Un*x- derivative as opera-

ting system, and second on a IBM zBC12 mainframe

computer running Linux for z Systems to demonstrate

the potential of the approach for a true mainframe-to-

mainframe migration and modernization of existing

transactional COBOL programs. In both cases, all

components as well as the preprocessing were run-

ning on the respective target platforms.

For the experiment, the COBOL programs were

just used keeping the original transactional structure

and with the UI maps just converted 1:1 automatically

to a web UI using the JavaScript library. This was

straightforward and the resulting application works

correct and is usable. Figure 4 shows a screenshot

of the converted UI map of the program CU2UPD in

a web browser, as it is rendered by the JavaScript li-

brary. Due to the responsiveness of the underlying

Bootstrap.js framework, the UI could be also used on

a mobile device.

However, in a real-world scenario one probably

would adopt a more sophisticated re-hosting appro-

ach, e.g. by transforming the UI to a modern, real

web-like GUI or web service API manually or by im-

plementing additional business functionality in Java

and mixing it with the legacy COBOL code or repla-

cing parts of it. But since all this is provided by the

Java EE application server, it will be feasible without

using further non-standard components.

While other existing approaches for re-hosting

and modernizing transactional COBOL applications

focus mainly on moving mainframe workloads to

other (commodity) platforms by achieving full bi-

nary

or at least source-level compatibilty (Talati and

https://www.lzlabs.com/

WEBIST 2018 - 14th International Conference on Web Information Systems and Technologies

244

Lackie, 1999; Apte et al., 2017), this is not the case in

the present approach. It does not intend to provide a

full emulation of mainframe TPM environments and

requires a partial adaption and recompilation of the

existing sources. Instead, the focus here lies on inte-

grating existing COBOL code into Java EE applicati-

ons and modern web technologies.

The performance and scalability of the proposed

approach still need to be evaluated. The runtime per-

formance of the load modules generated by the Gnu-

COBOL compiler and the PostgreSQL database com-

pared to their original mainframe counterparts has not

ben investigated so far, but it presumably will be lo-

wer. Therefore, the presented approach is probably

best suited for smaller and less critical applications.

Nevertheless, further research is needed to actu-

ally evaluate all this in a real-world case study.

6 CONCLUSION

In conclusion, in this paper an open approach was

presented to modernize and re-host existing transacti-

onal COBOL applications within the context of Java

EE application servers using solely Open Source Soft-

ware (OSS) components. In addition, the appproach

allows also to onvert the existing terminal-based user-

interface maps into modern web UI and to mix CO-

BOL and Java code while extending the application.

Its feasibility was demonstrated and evaluated

using an existing third-party COBOL demo applica-

tion originally written for the IBM CICS application

server. However, the described approach should work

for similar transaction processing monitors with some

adaptations as well.

The OSS-only approach allows to host the ap-

plications on any common Un*x-like platform, in-

cluding Linux on the mainframe. Therefore, a

mainframe-to-mainframe migration of existing CO-

BOL applications is possible, preserving the unique

features of the mainframe platform.

While the feasibility of the approach needs to be

further evaluated and demonstrated in practice, the

presented ﬁrst evalution indicates its potential. Furt-

her research is needed to empirically evaluate the ap-

proach and to bring the described proof-of-concept

software artifacts to production quality.

REFERENCES

Apte, A., Negi, A., Rao, V., Pundeer, A., Kulkarni, S.,

Ladha, P., Moghe, S., Rallabandi, V., Shankar, R.,

Dhal, L., et al. (2017). Method and apparatus for mi-

gration of application source code. US Patent App.

15/397,473.

Bainbridge, A., Colgrave, J., Colyer, A., and Normington,

G. (2001). CICS and Enterprise JavaBeans. IBM Sys-

tems Journal, 40(1):46–67.

Bodhuin, T., Guardabascio, E., and Tortorella, M. (2002).

Migrating COBOL systems to the web by using the

mvc design pattern. In Reverse Engineering, 2002.

Proceedings. Ninth Working Conference on, pages

329–338. IEEE.

Calladine, J. (2004). Giving legs to the legacyweb servi-

ces integration within the enterprise. BT Technology

Journal, 22(1):87–98.

El Beggar, O., Bousetta, B., and Gadi, T. (2014). Getting

objects methods and interactions by extracting busi-

ness rules from legacy systems. Journal of Systems

Integration, 5(3):32.

Farmer, E. (2013). The reality of rehosting: Understanding

the value of your mainframe.

Ferguson, D. F. and Stockton, M. L. (2005). Service-

oriented architecture: Programming model and pro-

duct architecture. IBM Systems Journal, 44(4):753–

780.

Hashem, I. A. T., Yaqoob, I., Anuar, N. B., Mokhtar, S.,

Gani, A., and Khan, S. U. (2015). The rise of big

data on cloud computing: Review and open research

issues. Information Systems, 47:98–115.

Huang, H., Tsai, W.-T., Bhattacharya, S., Chen, X., Wang,

Y., and Sun, J. (1998). Business rule extraction techni-

ques for COBOL programs. Journal of Software: Evo-

lution and Process, 10(1):3–35.

Kanter, H. A. and Muscarello, T. J. (2005). Reuse versus

rewrite: An empirical study of alternative software de-

velopment methods for web-enabling mission-critical

COBOL/CICS legacy applications. CICS Legacy Ap-

plications: Fujitsu Software.

Khadka, R., Batlajery, B. V., Saeidi, A. M., Jansen, S., and

Hage, J. (2014). How do professionals perceive legacy

systems and software modernization? In Proceedings

of the 36th International Conference on Software En-

gineering, pages 36–47. ACM.

Khadka, R., Shrestha, P., Klein, B., Saeidi, A., Hage, J., Jan-

sen, S., van Dis, E., and Bruntink, M. (2015). Does

software modernization deliver what it aimed for? a

post modernization analysis of ﬁve software moder-

nization case studies. In Software Maintenance and

Evolution (ICSME), 2015 IEEE International Confe-

rence on, pages 477–486. IEEE.

Kiefer, C. (2017). COBOL as a modern language. https://

digitalcommons.northgeorgia.edu/honors theses/17/.

Accessed: 2018-07-27.

ammel, R. and De Schutter, K. (2005). What does aspect-

oriented programming mean to COBOL? In Procee-

dings of the 4th international conference on Aspect-

oriented software development, pages 99–110. ACM.

Lancia, M., Puccinelli, R., and Lombardi, F. (2007). Fea-

sibility and beneﬁts of migrating towards JEE: a real

life case. In Proceedings of the 5th international sym-

A Hybrid Approach to Re-Host and Mix Transactional COBOL and Java Code in Java EE Web Applications using Open Source Software

245

posium on Principles and practice of programming in

Java, pages 13–20. ACM.

Lee, M.-S., Shin, S.-G., and Yang, Y.-J. (2001). The design

and implementation of Enterprise JavaBean (EJB)

wrapper for legacy system. In Systems, Man, and

Cybernetics, 2001 IEEE International Conference on,

volume 3, pages 1988–1992. IEEE.

Lymer, S. F., Starkey, M., and Stephenson, J. W. (2001). Sy-

stem for automated interface generation for computer

programs operating in different environments. US Pa-

tent 6,230,117.

Mainetti, L., Paiano, R., and Pandurino, A. (2012). Mi-

gros: a model-driven transformation approach of the

user experience of legacy applications. In Internatio-

nal Conference on Web Engineering, pages 490–493.

Springer.

Malaika, S. and Park, H. (1994). A tale of a transaction

monitor. IEEE Data Eng. Bull., 17(1):3–9.

Mateos, C., Zunino, A., Misra, S., Anabalon, D., and Flo-

res, A. (2017). Migration from COBOL to SOA: Me-

asuring the Impact on Web Services Interfaces Com-

plexity, pages 266–279. Springer International Publis-

hing, Cham.

Moore, G. (2011). Systems of engagement and the future

of enterprise IT: A sea change in enterprise IT. AIIM

whitepaper.

Rodriguez, J. M., Crasso, M., Mateos, C., Zunino, A., and

Campo, M. (2013). Bottom-up and top-down co-

bol system migration to web services. IEEE Internet

Computing, 17(2):44–51.

Sagers, G., Ball, K., Hosack, B., Twitchell, D., and Wal-

lace, D. (2013). The mainframe is dead. long live the

mainframe! AIS Transactions on Enterprise Systems,

4:4–10.

Sellink, A., Sneed, H., and Verhoef, C. (1999). Restruc-

turing of COBOL/CICS legacy systems. In Software

Maintenance and Reengineering, 1999. Proceedings

of the Third European Conference on, pages 72–82.

IEEE.

Sellink, A., Sneed, H., and Verhoef, C. (2002). Restruc-

turing of COBOL/CICS legacy systems. Science of

Computer Programming, 45(2-3):193–243.

SimoTime Technologies and Services. The CICS

connection, sample programs for CICS.

http://www.simotime.com/indexcic.htm. Acces-

sed: 2018-02-21.

Sneed, H. M. (1992). Migration of procedurally oriented

cobol programs in an object-oriented architecture. In

Software Maintenance, 1992. Proceerdings., Confe-

rence on, pages 105–116. IEEE.

Sneed, H. M. (2001). Wrapping legacy COBOL programs

behind an XML-interface. In Reverse Engineering,

2001. Proceedings. Eighth Working Conference on,

pages 189–197. IEEE.

Suganuma, T., Yasue, T., Onodera, T., and Nakatani, T.

(2008). Performance pitfalls in large-scale java ap-

plications translated from COBOL. In Companion

to the 23rd ACM SIGPLAN conference on Object-

oriented programming systems languages and appli-

cations, pages 685–696. ACM.

Talati, K. and Lackie, C. W. (1999). Virtual software

machine for enabling CICS application software to

run on unix based computer systems. US Patent

6,006,277.

Tommy, R., Ravi, U., Mohan, D., Luke, J., Krishna, A. S.,

and Subramaniam, G. (2015). Internet of things (IoT)

expanding the horizons of mainframes. In IT Conver-

gence and Security (ICITCS), 2015 5th International

Conference on, pages 1–4. IEEE.

Vinaja, R. (2014). 50 th aniversary of the mainframe com-

puter: a reﬂective analysis. Journal of Computing

Sciences in Colleges, 30(2):116–124.

White, J. W. (2000). Portable and dynamic distributed tran-

saction management method. US Patent 6,115,710.

Zhou, N., Zhang, L.-J., Chee, Y.-M., and Chen, L. (2010).

Legacy asset analysis and integration in model-driven

SOA solution. In Services Computing (SCC), 2010

IEEE International Conference on, pages 554–561.

IEEE.

WEBIST 2018 - 14th International Conference on Web Information Systems and Technologies

246
