Self-adaptive Synchronous Localization and Mapping using Runtime

Feature Models

Christopher Werner, Sebastian Werner, Ren

e Sch

one, Sebastian G

otz and Uwe Aßmann

Software Technology Group, Technische Universit

at Dresden, Dresden, Germany

Keywords:

Self-adaptive Systems, Feature Modeling, Robotics, Slam.

Abstract:

Mobile autonomous robotic systems need to operate in unknown areas. For this, a plethora of simultaneous

localization and mapping (SLAM) approaches has been proposed over the last decades. Although many of

these existing approaches have been successfully applied even in real-world productive scenarios, they are

typically designed for speciﬁc contexts (e.g., in- vs. outdoor, crowded vs. free areas, etc.). Thus, for different

contexts, different SLAM algorithms should be used. In this paper, we propose a feature-based classiﬁcation

of SLAM algorithms and a reconﬁguration approach to switch between existing SLAM implementations at

runtime. By this, mobile robots are enabled to always use the most efﬁcient implementation for their current

contexts.

1 INTRODUCTION

Simultaneous localization and mapping (SLAM) is

a standard problem in robotic software engineering,

which covers the ability of a mobile robot to orient

itself in an unknown environment. The robot has to

perform two tasks simultaneously: it has to discover

its environment (mapping) and has to estimate its own

position in this environment (localization). For this,

various sensors like ultrasonic, cameras, or LIDAR

(light detection and ranging) are used.

Over the last decades, vast amounts of SLAM al-

gorithms have been proposed in the literature, each of

which can be considered as a specialized solution for

a certain application context or certain operation con-

ditions. For example, different algorithms have been

proposed for in- and outdoor scenarios, for static and

dynamic environments, for crowded and sparse areas,

and for surface and underwater scenarios.

Typically, each new SLAM algorithm is develo-

ped from scratch without reusing parts of existing al-

gorithms. In consequence, no common framework

for SLAM algorithms, which allows to (de-)compose

SLAM algorithms, exists yet. Moreover, as SLAM is

used by mobile robots, the operation conditions of the

robot can change at runtime. For example, by leaving

the building, the operation conditions switch from in-

to outdoor.

Thus, a mobile robot should be able to switch its

SLAM algorithm at runtime whenever its operation

conditions change. For this, a unifying framework,

which explicitly covers the commonalities and diffe-

rences between existing SLAM algorithms is requi-

red.

As a result, in this paper, we present such a uni-

fying framework for SLAM algorithms represented

as a feature model based on a commonality and vari-

ability analysis of over 30 existing implementations.

Using this framework, we answer two research ques-

tions:

RQ1) Is it possible to systematically reuse parts of

existing SLAM algorithms?

RQ2) Is it possible to dynamically exchange parts of

existing SLAM algorithms during execution?

Additionally, we present a runtime reconﬁgu-

ration approach, which allows switching between

SLAM algorithms based on this feature model.

We show the general applicability of our approach

by a case study implemented within the GeneralRobot

framework (developed at HTW Dresden).

The remainder of this paper is structured as fol-

lows. In the next section, we introduce a running ex-

ample, which will be used throughout the paper for

illustrative purposes. Next, in Section 3, the unifying

framework is discussed. The dynamic reconﬁguration

approach is captured in Section 4. The evaluation of

our approach is presented in Section 5. We demarcate

our approach from related work in Section 6. Finally,

in Section 7, we conclude the paper and give pointers

for future work.

Werner, C., Werner, S., Schöne, R., Götz, S. and Aßmann, U.

Self-adaptive Synchronous Localization and Mapping using Runtime Feature Models.

DOI: 10.5220/0006945504090418

In Proceedings of the 7th International Conference on Data Science, Technology and Applications (DATA 2018), pages 409-418

ISBN: 978-989-758-318-6

409

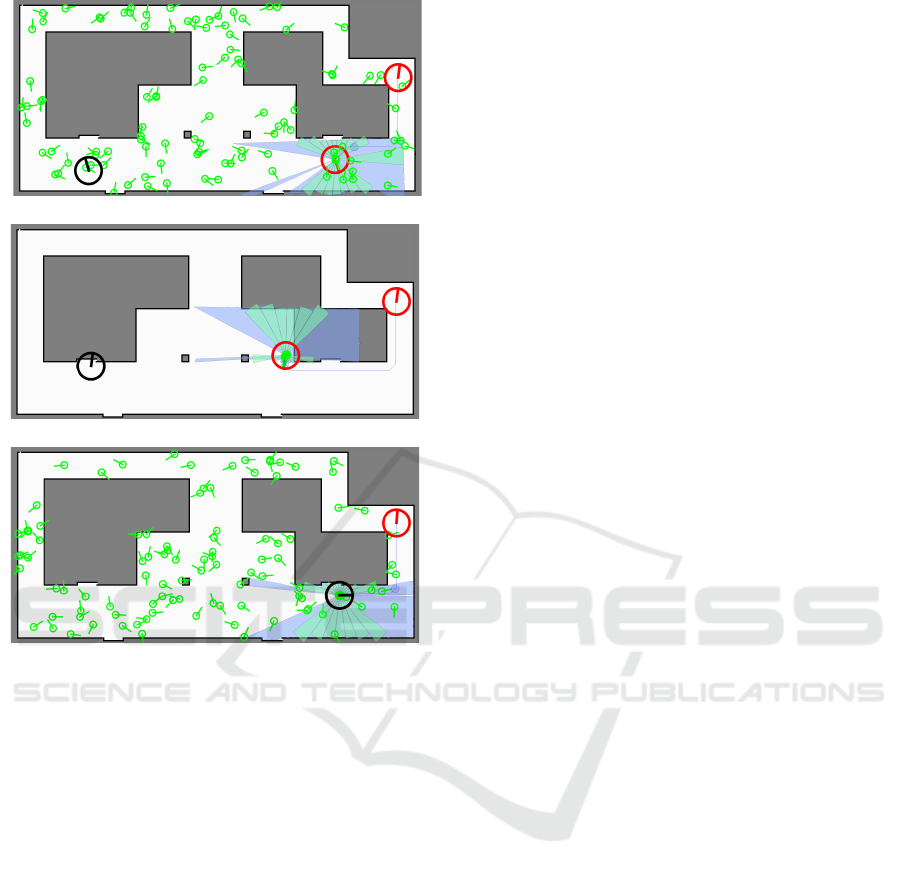

(a) KLD in wrong position with possible positions.

(b) KLD with wrong selected position.

Figure 1: Grid Map of changing particle component.

2 RUNNING EXAMPLE

As our running example a driving robot is considered,

which can be used in small and large rooms as well as

in corridors and outside. For an efﬁcient and accurate

calculation, it is necessary to adapt the SLAM algo-

rithm for area changes. Such adjustments can also

be made on the basis of a low battery level, in which

case an energy efﬁcient algorithm must be selected.

Furthermore, requirements for a SLAM algorithm can

vary, e.g., special areas are only traversed and in ot-

her areas localization must take place with millimeter

precision. For all such situations there are speciali-

zed SLAM implementations and adaptations, which

currently have to be determined manually and imple-

mented in a ﬁxed algorithm.

Our example shows the adjustment of a compo-

nent of the particle ﬁlter and the corresponding parti-

cle number at runtime for a Core SLAM (Steux and

Hamzaoui, 2010), that uses particle based algorithms

for localization in a grid map with a 2D laser scan-

ner. In Figure 1, the process of localization with ap-

proaching a target is visualized for a grid map. At

the beginning in Figure 1(a), the particle ﬁlter KLD

(Kullback-Leibler distance) with a few particles is

used to save energy. The robot is actually at the

bottom left at the beginning. However, the KLD al-

gorithm estimates its position wrongly at the bottom

right. This is an immense deviation, which is due to

the homogeneous map and the used algorithm. In ad-

dition, errors in the robot sensors quickly lead to devi-

ations from the exact position. Throughout the exam-

ple, the target position is selected at the top right, with

a route to be driven drawn as a line from the localized

point to the target. Particles are shown in green, with

most of them already gathered around the estimated

position. In the second step in Figure 1(b), all parti-

cles are gathered around the localized position, thus

the robot is no longer able to ﬁnd its correct position.

To remedy this state, the particle component has to

be replaced at runtime without affecting other compo-

nents or the complete SLAM implementation, which

would lead to a considerable overhead. In Figure 1(c),

this is done by using the Random KLD particle ﬁl-

ter, which randomly distributes particles in space and

then selects the best one. This algorithm is more

computation-intensive but ensures that the localiza-

tion takes up the correct position of the robot again

and that it can still reach its goal.

At this point, it would be possible to switch back

to the KLD particle ﬁlter after a certain time to save

energy and to switch to the Random KLD particle ﬁl-

ter if the position probabilities are too low to perform

a repositioning. If this approach is no longer appli-

cable due to a low battery level, an adjustment of the

maximum number of particles to be reviewed could

achieve further energy savings. This example shows

the applicability of a product family of SLAM algo-

rithms discussed in the next section and the need of

feedback loops for runtime modiﬁcation.

3 A UNIFYING FRAMEWORK

FOR SLAM ALGORITHMS

In the scope of our investigations, we examined 42

SLAM algorithms, comprising both grid- and feature-

based methods, listed in Table 1 along with their es-

sential properties. However, only grid-based SLAM

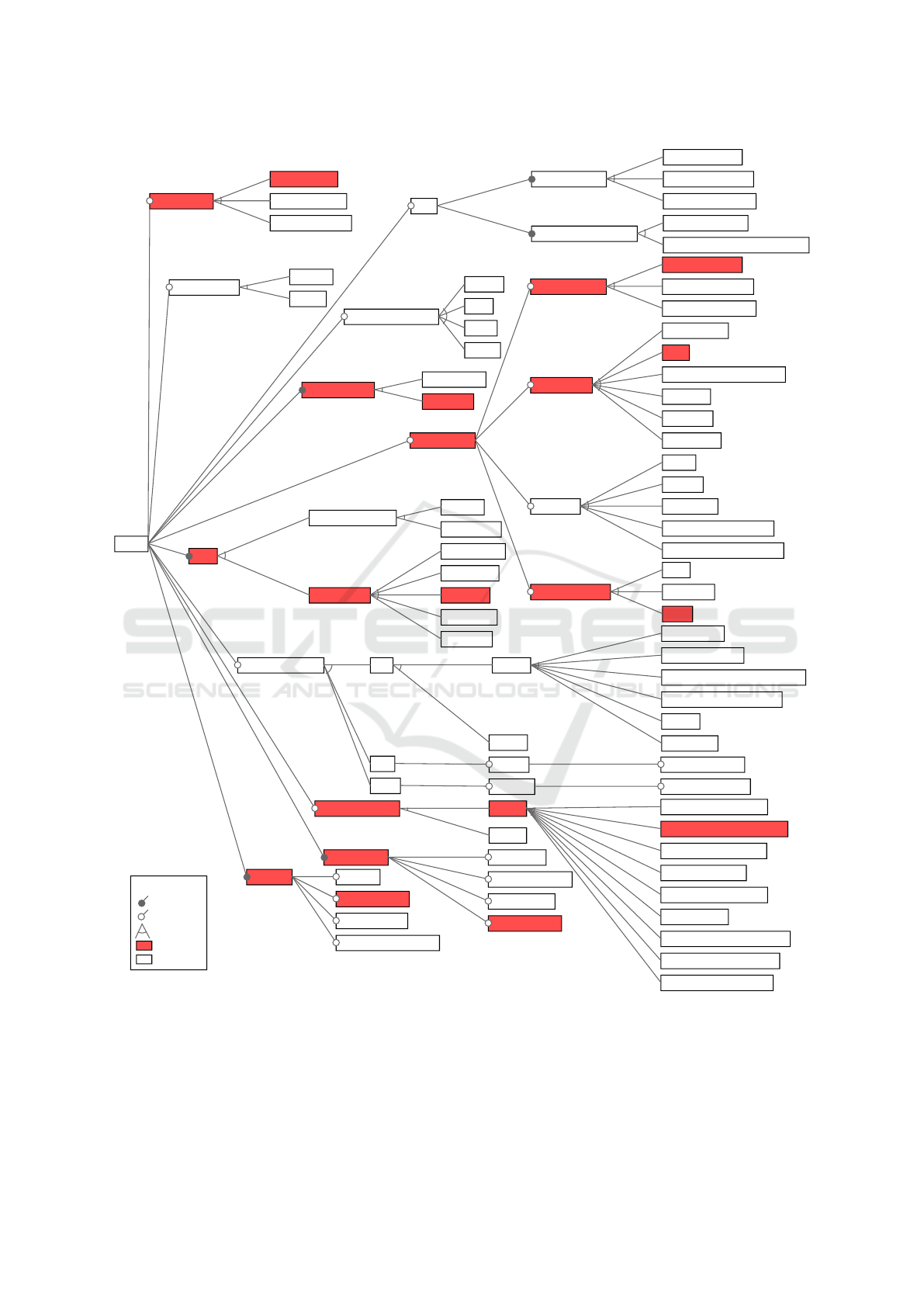

methods are incorporated in the feature model in Fi-

gure 2. The integration of feature-based methods will

be investigated in the future.

To structure Table 1, all SLAM algorithms were

examined for their different properties, for which each

algorithm is implemented. Setting is the basic pro-

EDDY 2018 - Special Session on Adaptive Data Management meets Self-Adaptive Systems

410

Table 1: Features of SLAM algorithms.

Algorithm Map Sensors Feature

Detector

Setting Language

6D SLAM (Quigley et al., 2009) octo map 2D-laser,

D-camera

none outdoor C++

Bearing-only SLAM (Kwok and

Dissanayake, 2003)

feature map camera external indoor n/a

CEKF-SLAM (Wang et al., 2012) feature map camera external indoor,

outdoor

Matlab

Core-SLAM or Tiny-SLAM (Steux and

Hamzaoui, 2010)

grid map laser none indoor C++

D-SLAM (Wang et al., 2007) information

matrix

laser external indoor Mathlab

Dense Visual SLAM (Kerl et al., 2013) pose-sensor

graph

RGBD-

camera

external indoor C++

DP-SLAM (Eliazar and Parr, 2003) distributed

particle grid

map

laser none indoor C++

EKF-SLAM (Thrun et al., 2006) feature map laser,

camera

external indoor,

outdoor

any

EKFmono SLAM (Grasa et al., 2011) feature map camera external outdoor Matlab

ESEIF-SLAM (Walter et al., 2007) graph map,

information

matrix

any external indoor,

outdoor,

underwater

n/a

Fast Incremental Square Root

Information Smoothing (Kaess et al.,

2007)

feature map,

pose graph

any external outdoor n/a

FastSLAM 1.0 (Thrun et al., 2006) feature map,

grid map

laser,

camera

external,

none

indoor,

outdoor

any

FastSLAM 2.0 (Thrun et al., 2006) feature map,

grid map

laser,

camera

external,

none

indoor,

outdoor

any

FootSLAM (Bruno and Robertson, 2011) feature map pedometer none walkable n/a

o-SLAM (K

ummerle et al., 2011) graph map any external indoor,

outdoor

C++

Gmapping (Quigley et al., 2009) grid map laser none indoor C++

Graph-SLAM (Thrun et al., 2006) graph map laser,

camera

external indoor,

outdoor

any

Grid-SLAM (Hahnel et al., 2003) grid map laser none indoor C++

Hector SLAM (Kohlbrecher et al., 2014) grid map RGBD-

camera

optional,

none

indoor C++

HOG-Man SLAM (Grisetti et al., 2010) graph map any external indoor,

outdoor

C++

ICP-SLAM (Tiar et al., 2013) grid map,

pose-sensor

graph

laser none indoor C++

iSAM SLAM (Kaess et al., 2008) feature map,

pose graph

laser external outdoor C++,

OCaml

iSAM2 SLAM (Kaess et al., 2011) feature map,

graph map

laser external indoor,

outdoor

n/a

Java FastSLAM (Oursland, 2014) feature map any external outdoor Java

Loopy SLAM (Ranganathan et al., 2007) feature map,

pose graph

any external outdoor n/a

Linear SLAM (Zhao et al., 2013) feature map,

pose graph

any external indoor,

outdoor

Matlab,

C++

Self-adaptive Synchronous Localization and Mapping using Runtime Feature Models

411

Table 1: Features of SLAM algorithms. (continued).

Algorithm Map Sensors Feature

Detector

Setting Language

Octo SLAM (Fossel et al., 2013) octo map 2D-laser none indoor,

outdoor

C++

Online 6D SLAM (Endres et al., 2012) octo map D-camera none indoor C++

PlaceSLAM (Bruno and Robertson,

2011)

feature map human

input

none walkable n/a

Range-Only SLAM (Blanco et al., 2008) feature map,

grid map

laser none indoor,

outdoor,

underwater

C++

RatSLAM (Ball et al., 2013) topological

map

camera external indoor,

outdoor

C++

RBPF-SLAM (Schroeter and Gross,

2008)

grid map laser none indoor,

outdoor

C++

RT-SLAM (Roussillon et al., 2011) feature map camera external indoor C++

SEIF-SLAM (Thrun et al., 2006) graph map,

information

matrix

laser,

camera

external indoor,

outdoor

any

SeqSLAM (Milford and Wyeth, 2012) image graph camera external outdoor Matlab

SLAM 6D (N

uchter, 2008) octo map D-camera none indoor C++

SLAM++ (Salas-Moreno et al., 2013) feature map,

sparse matrix

RGBD-

camera

external indoor C++

Square Root SLAM (Kaess and Dellaert,

2009)

feature map,

pose graph

camera external indoor n/a

SPA-SLAM (Konolige et al., 2010) sparse matrix laser none indoor C++

Trajectory-oriented EKF

SLAM (G

erossier et al., 2009)

pose-sensor

graph

radar

sensor

none outdoor,

underwater

Matlab,

C++

Vector Field SLAM (Gutmann et al.,

2012)

feature map,

sparse matrix

infrared,

wiﬁ

none indoor n/a

WiSLAM (Bruno and Robertson, 2011) feature map wiﬁ, pe-

dometer

none walkable n/a

perty for which a SLAM process has been designed.

A distinction can be made between indoor, outdoor

or under water, and in the air. However, the diffe-

rence between individual rooms, long corridors, or a

combination of both is also important, as this already

limits the use of different SLAM procedures. For the

acquisition of environmental data, various sensors are

needed, ranging from simple RGB cameras over la-

ser scanners up to RGBD cameras (RGB with depth

information). The storage options of sensor data are

described in the maps column and comprises various

kinds of maps including grid maps, feature maps and

particle-based maps, as show in Table 1.

Grid-based maps are a two-dimensional represen-

tation, where a map is divided into square ﬁelds each

with the status free, occupied, or unknown. An octo

map adds the third dimension to a grid map retai-

ning all other properties. On the contrary, feature-

based maps contain identiﬁed features and their spa-

cial coordinates to derive the position of the robot ba-

sed on those features and their position. For particle-

based maps, particles are assumed to be the estima-

ted positions of the robot, which are randomly derived

from the estimated movements to correct hardware er-

rors. Therefore, each computation for a particle can

work on its own map or use a shared map. Further-

more, graph maps offer the option to store distances

between robot positions and features, as well as bet-

ween both, different features and different robot po-

sitions. Further, visibilities and paths are recorded.

All other map types are special cases of the presen-

ted base types. Those base types differ w.r.t. me-

mory requirements, dimension, and stored informa-

tion. The feature detector column indicates whether

features are required to be detected by an external al-

gorithm. As a last criterion, we list the programming

languages used for the sample implementations, if ap-

plicable.

In Figure 2, you can see the feature model for grid-

based SLAM methods, which is divided into optional

and mandatory elements and can be used to construct

new SLAM algorithms. The Core SLAM (Steux and

Hamzaoui, 2010) is highlighted in red and represents

a valid feature conﬁguration. Core SLAM is a further

EDDY 2018 - Special Session on Adaptive Data Management meets Self-Adaptive Systems

412

development of the Fast SLAM (Thrun et al., 2006)

algorithm and aims for mapping individual rooms. It

is a particle-based process and uses one map for all

particles, whereby several particles are determined for

one position and the likeliest one is used to update the

map. Thereby, the position of the robot is found. As

already shown in Section 2, this method can comple-

tely lose its orientation in homogeneous rooms. Core

SLAM is an example for the adaptation to changing

hardware components, because feature recognition is

not needed anymore contrary to Fast SLAM, but only

2D laser scanner data.

For reasons of clarity, the feature model does not

show dependencies between existing features. For ex-

ample, the corresponding motion data of the robot

is required for updating motion information. In ad-

dition, feature recognition algorithms require camera

images to work correctly. This example shows the de-

pendencies between sensors, their data formats, and

the corresponding algorithms. The described depen-

dencies are considered within our implementation.

Each SLAM algorithm requires Sensors (e.g., La-

ser Scanners, Cameras, Depth Image Cameras, or

RGBD-Cameras) to identify the environment. These

generate Sensor Data, which is stored in different

map formats. The identiﬁed map formats include

Simple Maps such as graph structures, raster images,

or point clouds, as well as DP maps and Particle Lists,

both of which are special Particle Filter Maps. The

Working Mode is critical to the scope of the process,

as Full-SLAM covers both localization and mapping,

whereas Localization does only the former. However,

if an inaccurate SLAM algorithm is used, the SLAM

can distort the maps and render them unusable.

Path Planning does not ﬁt directly into the con-

ﬁguration of a SLAM procedure but is required in

most cases and is therefore integrated in the feature

model with the A-Star and Dijkstra algorithms. All

other available features are optional and assemble the

SLAM algorithm.

The feature Motion Data distinguishes between

different motion models of a robot, where Velocity

Data deﬁnes a forward motion with a circular mo-

tion, and Odometry Data a sequential execution of

rotary and motion movements. The feature EKF (Ex-

tended Kalman Filter) is used to draw conclusions

about the real state caused by faulty measurement and

movement data, based on information about the resi-

lience of the hardware. Algorithms for Feature Gene-

ration are only used for camera recordings and search

for landmarks in them.

A large part of the feature model includes particle-

based features, which are divided into Sample Motion,

Resampling, Clusterer, and Particle Number. All

mentioned features except cluster algorithms have al-

ready been presented in Section 2. Cluster algorithms

are used to close loops within mapping environments.

These algorithms create a closed map and remove in-

correct overlaps of information.

Algorithms for direct determination of the robot

position based on motion and sensor data are summa-

rized in the feature Position Estimate including speci-

ﬁcations of ICP, IDC, and IMRP for 2D and 3D maps.

The last branch of the model includes probabi-

lity models, which determine a probability value for

the current position based on the robot position and

sensor data. In particular, map information and la-

ser lines of the scanner are included for this purpose.

The current feature model contains only raster-based

SLAM methods. However, it offers the possibility to

conﬁgure and create SLAM procedures based on self-

selected properties.

4 RUNTIME

RECONFIGURATION OF SLAM

ALGORITHMS

This section introduces a concept for reconﬁguration

of a SLAM algorithm at runtime, using the feature

model described in Section 3 as a basis for creating

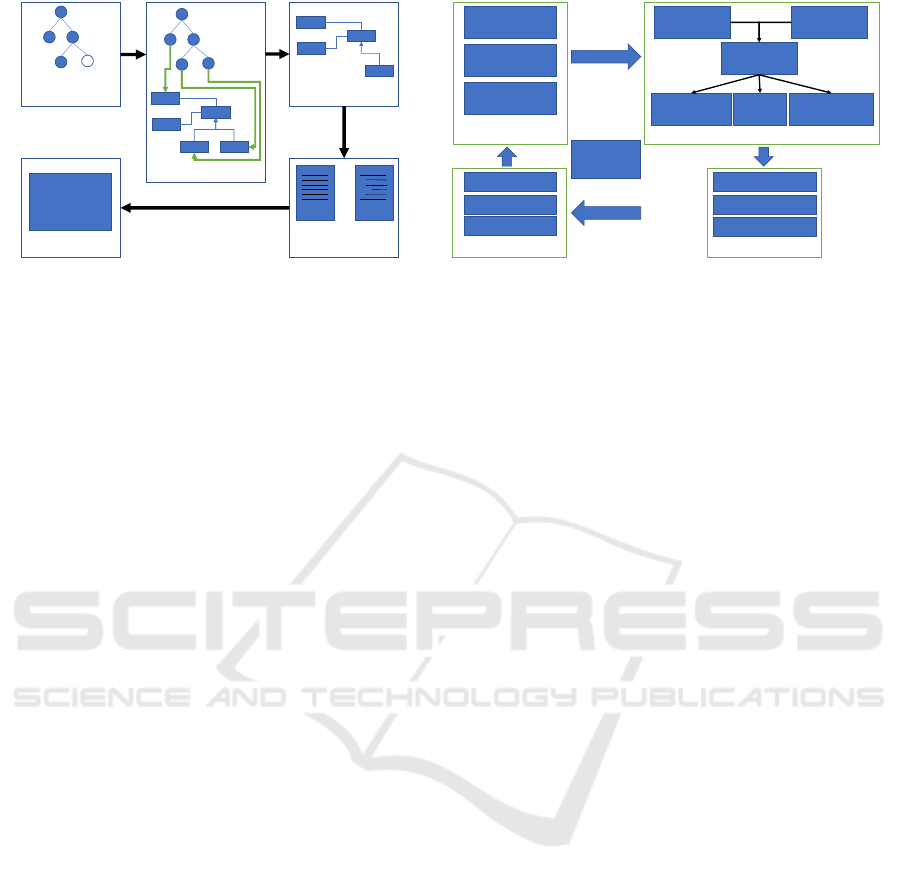

new variants. Figure 3(a) shows the basic process of

static variability modeling, which is taken as the basic

building block for our approach, wherein a new exe-

cutable is created from a variant of the feature tree. To

do this, a solution model must exist for a feature mo-

del that maps all features to elements in this model.

In the mapping phase, a modiﬁed model is created for

the selected variant, from which a conﬁguration and

code is generated. This generated code can be compi-

led and started as an executable program and replaces

the current running model. The process is sufﬁcient

for static reconﬁguration but does not include any in-

formation from the running model and creates over-

head as the complete program is exited and restarted.

This also means that the collected data must be saved

and reloaded. To improve efﬁciency, we extend the

process of static variability modeling by integrating

the MAPE-K feedback loop. MAPE-K contains the

phases Monitor, Analyze, Plan, and Execute. In ad-

dition, the MAPE-K loop contains a knowledge base

that collects data from the running system. With it, the

feedback loop permanently observes the underlying

system and reacts on changes.

Figure 3(b) shows the complete concept for run-

time reconﬁguration of SLAM algorithms. In the mo-

nitor phase, the sensor and robot data are recorded and

Self-adaptive Synchronous Localization and Mapping using Runtime Feature Models

413

Overlapping Histogram

ICP Levenberg Marquardt

KLD

Histogram

SIFT

Trimmed ICP

RGB Image

2D Laser Scan

IDC

Simple Map

History

Full-SLAM

Model-free Sample

Measurement Update

Odometric Update

Likelihood Field II

Sum of Gaussian

Feature generation

Likelihood Consensus OWA

Sensors Camera

Particle ﬁlter

Particle List

Interpolating ICP

Hough

Likelihood Consensus

Octo Map

IMRP-2D

Feature Map

Neighborhood Histogram

Graph Map

SURF

Velocity Sample

Low

Grid Map

Motion Update

Stratiﬁed

Working Mode

Model-free Update

Map

Sensor Data

Motion Data

IMRP

Basic

Particle Number

Likelihood Simple Hybrid

Likelihood Cells Diﬀerence

Laser Scanner

Interpolating IMRP

Pointcloud

ICP IKF

Likelihood RayTracing

Residual

LM-2D

ICP-3D

Particle Filter Map

Dijkstra

Odometric Sample

Interpolating IDC

Model-free Data

Moderate

Random KLD

IDC-2D

Likelihood Field Thrun

ICP Classic

Localization

Velocity Update

High

EKF

Improved proposal distribution

SLAM

Likelihood Table Hybrid

Likelihood MI

Likelihood Model

Harris

Position extimate

Sample Motion

Odometry Data

ICP-2D

LM-3D

RGBD-Camera

Point-Line correspondence ICP

Depth Image

A-Star

Systematic

Path Planning

Clusterer

ICP

Greyscale Image

Depth Image Camera

Resampling

Velocity Data

Multinomial/Low Variance

DP-Map

Legend:

Mandatory

Optional

Alternative

Selected

Concrete

Figure 2: The Feature Model with Core SLAM as selected feature conﬁguration.

passed on to the analysis phase. Therein, the data is

analyzed using various parameters and used to check

the efﬁciency of the currently running SLAM conﬁ-

guration. If the analysis ﬁnds optimization possibi-

lities, a new feature variant is generated. Otherwise,

the running program is not changed. In the case of

optimization, the new feature conﬁguration is map-

ped to a new model and transferred to the planning

phase. This compares the current model with the new

model to determine changes. Based on the identiﬁed

EDDY 2018 - Special Session on Adaptive Data Management meets Self-Adaptive Systems

414

Generalized Code

and Configuration

Feature Tree

Variant

Text Code

Program

Target Model

Mapping

Executable

(a) Static variablility.

Knowledge

Base

Mapping

Plan

New

Model

Running

Model

Compare

Operations

Preprocessing

System

Changes

Postprocessing

generate

Execute

1. Preprocessing

2. System Changes

3. Postprocessing

Monitor

Analyze

Robot State

Sensor Data

…

1. Monitor Data

2. Analyse

3. Generate

Feature Variant

(b) MAPE-K with dynamic runtime reconﬁguration.

Figure 3: Concept for Reconﬁguration.

modiﬁcations, preprocessing steps, system changes,

and postprocessing steps are determined. As a basic

rule, the earlier a change occurs in the feature model,

the more process steps are required for the adapta-

tion. Adapting a particle based on a position estimate

SLAM requires complete parts of the program to be

exchanged, which leads to interruptions in the pro-

cessing. However, switching between different res-

ampling algorithms can be performed within one step

without creating an interruption. In the static varia-

bility modeling, a new executable would have to be

created and started for each new conﬁguration. As

soon as the planning phase has determined the process

sequence, it is transferred to the execute phase. This

phase manages the interruptions for the robot and exe-

cutes the reconﬁguration steps in the predeﬁned order,

e.g., in case multiple algorithms have to be instanti-

ated. Therefore, the feedback loop can modify the

running system based on the monitored runtime data

collected continuously. In the next section, the imple-

mentation of this concept is shown, with the focus on

the plan and execute phase, since the SLAM proce-

dures were examined only for their features. Neither

accuracy nor efﬁciency were considered yet, thus no

analysis algorithm can be derived.

5 EVALUATION BY

IMPLEMENTATION

In this section, the steps to get from one instance of

the feature model to a working, adaptable implemen-

tation are detailed.

We base our work on the component-based frame-

work GeneralRobot developed at the HTW Dresden.

Its main concepts are processors and data containers.

Processors are responsible for a certain computation

and running constantly triggered periodically or upon

new data is available. On the other hand, data contai-

ners only hold data, are read by processors and inform

them about changes. To conﬁgure the used processors

and data containers, GeneralRobot uses a simple con-

ﬁguration ﬁle. We use a properties model describing

key-value pairs to deﬁne used components and their

conﬁguration parameter values.

Getting from a feature conﬁguration to such a pro-

perties model needs a mapping. We use the FeatureM-

apper (Heidenreich et al., 2008) to map each feature

to a set of key-value-pairs. It uses the 150% appro-

ach (Weißleder and Lackner, 2013), i.e., all compo-

nents in the target model are already there and will

be removed based on the feature selection. Using the

FeatureMapper, we can automatically generate a pro-

perties model from a given feature conﬁguration. The

feature conﬁguration is depicted in Figure 4.

To use this properties model, we made slight mo-

diﬁcations to the framework GeneralRobot, e.g., add

methods to update used components or conﬁgura-

tion values, or to modify processors to change sub-

processors in a thread safe way. Generating a new

properties model after a change in the feature model,

the framework compares the current properties with

the new ones and derive reconﬁguration steps. Those

steps can be small, like changing a conﬁguration para-

meter, or bigger adaptations such as exchanging a set

of processors. All changes will be reordered to avoid

unnecessary work, e.g., changing a parameter before

replacing the component using this parameter.

Coming back to the example described in

Section 2, in the following we describe what happens

to change from KLD to Random KLD. The base fea-

ture conﬁguration is depicted in Figure 2 where KLD

is selected. From this, a properties model was crea-

ted and loaded by GeneralRobot. To start reconﬁgu-

ration, the feature KLD deselected and Random KLD

is selected. Then, the FeatureMapper is run again to

generate a new properties model, which now includes

a property using the class RandomKldSampling for

resampling. This model is picked up inside our mo-

Self-adaptive Synchronous Localization and Mapping using Runtime Feature Models

415

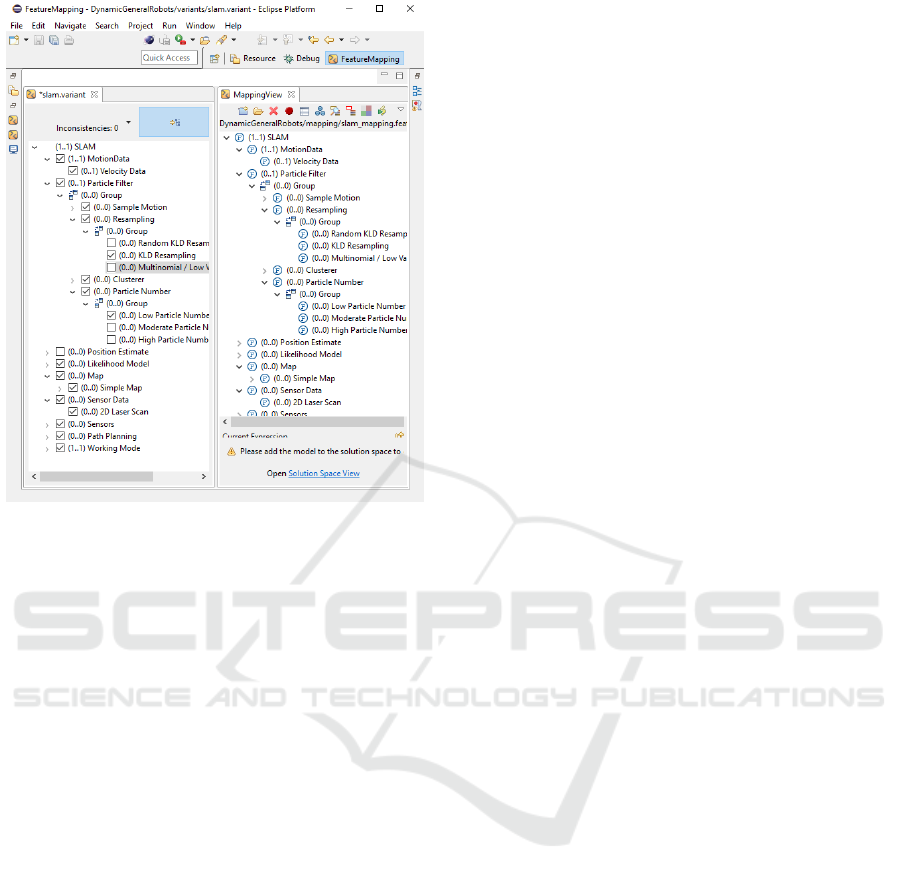

Figure 4: Screenshot of the FeatureMapper view.

diﬁed version of GeneralRobot, where it is compared

to the current properties model to derive the needed

reconﬁguration steps. In this case, the object of type

KldSampling is disabled, i.e., it is stopped and con-

nections to data containers are removed. Afterwards

a new object of type RandomKldSampling is crea-

ted and wired to the same containers. The important

point here is, that because of the separation of con-

cerns followed by GeneralRobot, only the processors

need to be replaced and the data containers are left un-

touched and intermediate data is preserved. The des-

cribed process eliminates the need for shut down and

restart of the running system altogether. Thus, it in-

creases the adaptability and performance of the over-

all system and with it the reuse of common SLAM

functionality.

6 RELATED WORK

In the research area for SLAM, individual algorithms

are usually created, which are optimized for a certain

type of environment or in a partial area of the algo-

rithm, but not frameworks, which combine the ad-

vantages of different SLAM methods. In this section,

we want to present four robot frameworks, which of-

fer several SLAM methods and prescribe ﬁxed inter-

faces for the communication of the subcomponents.

Section 5, our extension to the GeneralRobot Fra-

mework from the HTW Dresden is already presen-

ted, using our feature model to transfer from the sta-

tic basic programming into a dynamic framework for

SLAM algorithms.

The Robot Operating System (ROS) (Quigley

et al., 2009) platform is an open source project, which

deals especially with robot environments. It provi-

des a complete framework with interfaces and imple-

mentations for sensors, robot controllers, localization,

mapping, and control. Two SLAM methods, GMap-

ping (Grisettiyz et al., 2005) and HectorSLAM (Kohl-

brecher et al., 2014) are implemented in ROS. These

are integrated into the ROS platform as complete mo-

dules and not as partial algorithms and can therefore

only be exchanged as a whole. This makes it difﬁcult

to modify and adapt a SLAM algorithm. For ROS,

however, the SLAM algorithms only represent an ex-

tension of the platform. In addition, it is possible to

integrate frameworks such as OpenCV for processing

sensor data such as camera images or laser scanner

data but this does not facilitate the development and

integration of further SLAM methods.

The OpenSLAM (Stachniss et al., 2007) platform

collects a variety of SLAM algorithms and implemen-

tations and makes them available to researchers and

users. Users can publish their SLAM implementati-

ons on an internet platform with a small documen-

tation of the system requirements.These must be sta-

ble but are not linked in any framework or software

product. Due to the large selection of SLAM met-

hods, the platform offers a good opportunity to ana-

lyze the individual algorithms and the structure of the

SLAMs. However, the granularity of the implemen-

tation of SLAM implementations plays a major role

here. This ranges from complete implementation in

one method containing the complete communication

and function algorithms to splitting into several met-

hods. The results are multiple implementations of dif-

ferent algorithms. Therefore, OpenSLAM provides a

good basis for extending the existing software.

The Mobile Robot Programming Toolkit (Claraco,

2008) platform goes one step further than OpenS-

LAM (Stachniss et al., 2007) and offers a complete

framework programmed in C/C++. The framework

prescribes data exchange formats and data structu-

res to which developers must orient themselves wit-

hout any help from the toolkit to create a new adap-

ted algorithm. The framework consists of three parts:

(1) movement planning with different navigation and

control algorithms, (2) computer vision for the analy-

sis of sensor data, and (3) SLAM methods and algo-

rithms. It currently includes Graph, EKF, Fast, RBPF,

and ICP-SLAM implementations but provides those

without usage rules, which transfers a lot of usage

effort to programmers. Furthermore, this platform

EDDY 2018 - Special Session on Adaptive Data Management meets Self-Adaptive Systems

416

offers implementations for communication with har-

dware components such as sensors and robots. With

the functionality and structure of the framework, it of-

fers a good extension point for the current feature tree

and the current implementation.

7 CONCLUSION

In this paper, in Section 3, we presented a novel

feature-based classiﬁcation of SLAM algorithms as a

result of analyzing more than 40 existing algorithms

as shown in Table 1 and Figure 2. Next, in Section 4,

we introduced an approach to switch between SLAM

algorithms at runtime based on this classiﬁcation. We

evaluated our approach using a prototypical imple-

mentation as described in Section 5.

Using the proposed classiﬁcation reusable and ex-

changeable parts of SLAM algorithms are identiﬁed.

In consequence, the variation or exchange of running

SLAM algorithms is enabled. This, in turn, allows to

always use the most adequate algorithm depending on

the current framing conditions (e.g., in- vs. outdoor).

In future, we will extend the feature model and

add results from analyzing feature-oriented SLAM al-

gorithms and other new implemented SLAMs. This

leads to a higher amount of SLAM variants and cre-

ates the needs for extending the implementations of

the plan and execute phases to add adaptable analyze

algorithms for robots.

ACKNOWLEDGMENTS

This work has been funded by the German Re-

search Foundation within the Collaborative Rese-

arch Center 912 “Highly Adaptive Energy-Efﬁcient

Computing”, within the Research Training Group

“Role-based Software Infrastructures for continuous-

context-sensitive Systems” (GRK 1907) and by the

German Federal Ministry of Education and Research

within the project “OpenLicht”.

REFERENCES

Ball, D., Heath, S., Wiles, J., Wyeth, G., Corke, P., and

Milford, M. (2013). OpenRatSLAM: an open source

brain-based SLAM system. Autonomous Robots,

34(3):149–176.

Blanco, J. L., Fernandez-Madrigal, J. A., and Gonzalez, J.

(2008). Efﬁcient probabilistic Range-Only SLAM. In

IEEE/RSJ International Conference on Intelligent Ro-

bots and Systems, pages 1017–1022.

Bruno, L. and Robertson, P. (2011). WiSLAM: Improving

FootSLAM with WiFi. In International Conference

on Indoor Positioning and Indoor Navigation, pages

1–10.

Claraco, J. L. B. (2008). Development of scientiﬁc applica-

tions with the mobile robot programming toolkit. The

MRPT reference book. Machine Perception and In-

telligent Robotics Laboratory, University of M

alaga,

Spain.

Eliazar, A. and Parr, R. (2003). DP-SLAM: Fast, robust

simultaneous localization and mapping without pre-

determined landmarks. In 18th International Joint

Conference on Artiﬁcal Intelligence, volume 3, pages

1135–1142.

Endres, F., Hess, J., Engelhard, N., Sturm, J., and Bur-

gard, W. (2012). Online- 6D-SLAM f

ur RGB-D-

Sensoren. Automatisierungstechnik Methoden und

Anwendungen der Steuerungs-, Regelungs-und Infor-

mationstechnik, 60(5):270–278.

Fossel, J., Hennes, D., Claes, D., Alers, S., and Tuyls, K.

(2013). OctoSLAM: A 3D mapping approach to si-

tuational awareness of unmanned aerial vehicles. In

International Conference on Unmanned Aircraft Sys-

tems, pages 179–188.

Grasa, O. G., Civera, J., and Montiel, J. M. M. (2011). EKF

monocular SLAM with relocalization for laparosco-

pic sequences. In IEEE International Conference on

Robotics and Automation, pages 4816–4821.

Grisetti, G., K

ummerle, R., Stachniss, C., Frese, U., and

Hertzberg, C. (2010). Hierarchical optimization on

manifolds for online 2D and 3D mapping. In IEEE In-

ternational Conference on Robotics and Automation,

pages 273–278.

Grisettiyz, G., Stachniss, C., and Burgard, W. (2005). Im-

proving Grid-based SLAM with Rao-Blackwellized

Particle Filters by Adaptive Proposals and Selective

Resampling. In IEEE International Conference on

Robotics and Automation, pages 2432–2437.

erossier, F., Checchin, P., Blanc, C., Chapuis, R., and

Trassoudaine, L. (2009). Trajectory-oriented EKF-

SLAM using the Fourier-Mellin Transform applied to

Microwave Radar Images. In IEEE/RSJ International

Conference on Intelligent Robots and Systems, pages

4925–4930.

Gutmann, J. S., Eade, E., Fong, P., and Munich, M. E.

(2012). Vector Field SLAM–Localization by Learning

the Spatial Variation of Continuous Signals. IEEE

Transactions on Robotics, 28(3):650–667.

Hahnel, D., Burgard, W., Fox, D., and Thrun, S. (2003). A

highly efﬁcient FastSLAM algorithm for generating

cyclic maps of large-scale environments from raw la-

ser range measurements. In IEEE/RSJ International

Conference on Intelligent Robots and Systems.

Heidenreich, F., Kopcsek, J., and Wende, C. (2008). Featu-

reMapper: Mapping Features to Models. In Compa-

nion of the 30th International Conference on Software

Engineering, pages 943–944. ACM.

Kaess, M. and Dellaert, F. (2009). Covariance re-

covery from a square root information matrix for

data association. Robotics and autonomous systems,

57(12):1198–1210.

Self-adaptive Synchronous Localization and Mapping using Runtime Feature Models

417

Kaess, M., Johannsson, H., Roberts, R., Ila, V., Leonard,

J., and Dellaert, F. (2011). isam2: Incremental smoo-

thing and mapping with ﬂuid relinearization and in-

cremental variable reordering. In IEEE International

Conference on Robotics and Automation, pages 3281–

3288.

Kaess, M., Ranganathan, A., and Dellaert, F. (2007). Fast

Incremental Square Root Information Smoothing. In

20th International Joint Conference on Artiﬁcal Intel-

ligence, pages 2129–2134. Morgan Kaufmann Publis-

hers Inc.

Kaess, M., Ranganathan, A., and Dellaert, F. (2008). iSAM:

Incremental Smoothing and Mapping. IEEE Tran-

sactions on Robotics, 24(6):1365–1378.

Kerl, C., Sturm, J., and Cremers, D. (2013). Dense visual

SLAM for RGB-D cameras. In IEEE/RSJ Internati-

onal Conference on Intelligent Robots and Systems,

pages 2100–2106.

ummerle, R., Grisetti, G., Strasdat, H., Konolige, K., and

Burgard, W. (2011). G

o: A general framework for

graph optimization. In IEEE International Conference

on Robotics and Automation, pages 3607–3613.

Kohlbrecher, S., Meyer, J., Graber, T., Petersen, K., Klin-

gauf, U., and von Stryk, O. (2014). Hector Open

Source Modules for Autonomous Mapping and Navi-

gation with Rescue Robots. In RoboCup 2013: Robot

World Cup XVII, pages 624–631. Springer.

Konolige, K., Grisetti, G., K

ummerle, R., Burgard, W.,

Limketkai, B., and Vincent, R. (2010). Efﬁ-

cient Sparse Pose Adjustment for 2D mapping. In

IEEE/RSJ International Conference on Intelligent Ro-

bots and Systems, pages 22–29.

Kwok, N. and Dissanayake, G. (2003). Bearing-only slam

in indoor environments using a modiﬁed particle ﬁlter.

In Australasian Conference on Robotics and Automa-

tion. University of Queensland.

Milford, M. J. and Wyeth, G. F. (2012). SeqSLAM: Visual

route-based navigation for sunny summer days and

stormy winter nights. In IEEE International Confe-

rence on Robotics and Automation, pages 1643–1649.

uchter, A. (2008). 3D robotic mapping: the simultaneous

localization and mapping problem with six degrees of

freedom, volume 52. Springer.

Oursland, A. (2014). Java FastSLAM. http://

www.oursland.net/projects/fastslam/.

Quigley, M., Conley, K., Gerkey, B., Faust, J., Foote, T.,

Leibs, J., Wheeler, R., and Ng, A. Y. (2009). ROS: an

open-source Robot Operating System. In ICRA works-

hop on open source software, volume 3, page 5.

Ranganathan, A., Kaess, M., and Dellaert, F. (2007). Loopy

SAM. In 20th International Joint Conference on Ar-

tiﬁcal Intelligence, pages 2191–2196. Morgan Kauf-

mann Publishers Inc.

Roussillon, C., Gonzalez, A., Sol

a, J., Codol, J.-M., Man-

sard, N., Lacroix, S., and Devy, M. (2011). RT-

SLAM: A Generic and Real-Time Visual SLAM Im-

plementation. In Computer Vision Systems, pages 31–

40. Springer.

Salas-Moreno, R. F., Newcombe, R. A., Strasdat, H., Kelly,

P. H., and Davison, A. J. (2013). Slam++: Simulta-

neous localisation and mapping at the level of objects.

In Computer Vision and Pattern Recognition, pages

1352–1359. IEEE.

Schroeter, C. and Gross, H. M. (2008). A sensor-

independent approach to RBPF SLAM - Map Match

SLAM applied to visual mapping. In IEEE/RSJ In-

ternational Conference on Intelligent Robots and Sys-

tems, pages 2078–2083.

Stachniss, C., Frese, U., and Grisetti, G. (2007). OpenS-

LAM. http://www.openslam.org.

Steux, B. and Hamzaoui, O. E. (2010). tinySLAM: A

SLAM algorithm in less than 200 lines C-language

program. In 11th International Conference on Con-

trol Automation Robotics Vision, pages 1975–1979.

Thrun, S., Fox, D., and Burgard, W. (2006). Probabilistic

Robotics. The MIT Press.

Tiar, R., Ouadah, N., Azouaoui, O., Djehaich, M., Ziane,

H., and Achour, N. (2013). ICP-SLAM methods im-

plementation on a bi-steerable mobile robot. In IEEE

11th International Workshop of Electronics, Control,

Measurement, Signals and their application to Me-

chatronics, pages 1–6.

Walter, M. R., Eustice, R. M., and Leonard, J. J. (2007). Ex-

actly Sparse Extended Information Filters for Feature-

Based SLAM. The International Journal of Robotics

Research, 26(4):335–359.

Wang, H., Li, C., Lv, H., and Chen, X. (2012). Research on

compressed EKF based SLAM algorithm for unman-

ned underwater vehicle. In 15th International IEEE

Conference on Intelligent Transportation Systems, pa-

ges 1402–1406.

Wang, Z., Huang, S., and Dissanayake, G. (2007). D-

SLAM: Decoupled Localization and Mapping for Au-

tonomous Robots. In Thrun, S., Brooks, R., and

Durrant-Whyte, H., editors, Robotics Research, pages

203–213. Springer.

Weißleder, S. and Lackner, H. (2013). Zwei Ans

atze

zur automatischen modellbasierten Generie-

rung von Testf

allen f

ur variantenreiche Systeme.

Softwaretechnik-Trends, 33(2).

Zhao, L., Huang, S., and Dissanayake, G. (2013). Linear

SLAM: A linear solution to the feature-based and pose

graph SLAM based on submap joining. In IEEE/RSJ

International Conference on Intelligent Robots and

Systems, pages 24–30.

EDDY 2018 - Special Session on Adaptive Data Management meets Self-Adaptive Systems

418
