A Proposal for the Interactive Soniﬁcation of the Human Face

Davide Bonafede, Luca A. Ludovico and Giorgio Presti

Dipartimento di Informatica “Giovanni Degli Antoni”,

Universit

a degli Studi di Milano, Via Celoria, 18, 20133 Milan, Italy

Keywords:

Interactive Soniﬁcation, Human Face, Face Tracking, Facial Expressions, Soniﬁcation Space.

Abstract:

In the context of a broader project addressing the sound description of the aspect and expressions of the human

face, a prototype has been implemented and presented during a scientiﬁc dissemination initiative. The ﬁnal

goal is to employ face-tracking and sound-synthesis techniques in order to strengthen or even replace visual

communication, in particular sonifying facial expressions for visually impaired people. In this work we present

the implementation of a proof of concept and some early results.

1 INTRODUCTION

Soniﬁcation is a technique for communicating infor-

mation which employs sound to describe data and in-

teractions without using vocal signals in order to faci-

litate their interpretation (Hermann et al., 2011).

According to (Hermann, 2008), soniﬁcation has to

meet some fundamental requirements:

• Sound must reﬂect properties or objective relati-

onships of data in input;

• Data transformation must be systematic; namely,

a precise deﬁnition of how sound changes in

function of data has to emerge;

• Soniﬁcation must be reproducible, i.e. sounds re-

sulting from the same data and interactions must

be structurally identical;

• The system must ultimately be designed to be

used with different input data as well as with re-

petitions of the same input data.

The translation of information into sound can be

realized through a number of different techniques, de-

pending on the characteristics of input data, the appro-

ach adopted to process them, and the expected results.

In literature, multiple strategies are presented.

Starting from the simplest technique, it is worth ci-

ting audiﬁcation, namely a way to interpret a one-

dimensional time series as a sound to be reproduced

as audio in order to deliver information to listeners.

Auditory icons are non-verbal sounds familiar to lis-

teners, since they can be encountered in everyday life,

and their meaning intuitively follows from listeners’

experiences. An example is the rumbling sound pro-

duced by a moka pot when coffee is ready. Earcons

are short sound events whose properties are associa-

ted with the parameters of the data to be delivered.

The crucial difference from auditory icons is the lack

of a real relationship between the idea to convey and

the associated sound. An example is the acoustic sig-

nal used on planes to make passengers interact with

ﬂight attendants. So-called parameter-mapping soni-

ﬁcation translates the characteristics of a data set into

sound, mapping them onto acoustic parameters, such

as pitch, velocity, timbre, brightness, etc. By raising

the number of sound attributes, the multidimensiona-

lity of the soniﬁcation increases, too. Possible appli-

cations include sonic plots, e.g. audible skydiving al-

timeters. Finally, model-based soniﬁcation focuses on

how acoustic events are generated in response to user

interactions with a physical model imposed on data,

thus creating an interactive system capable of genera-

ting acoustic signals.

In order to frame our proposal in a clear way, we

will adopt a graphical tool introduced in (Ludovico

and Presti, 2016) and shown in Figure 1: the soniﬁ-

cation space. Such a representation aims at providing

the expected sonic outcome of the soniﬁcation at a

glance. The horizontal axis of the diagram is asso-

ciated with the temporal granularity, and the vertical

axis represents the level of abstraction

of the deli-

vered sound. In the soniﬁcation space, two element

types can be placed: the main feature (i.e. how the so-

niﬁcation appears as a whole), and data bindings (i.e.

how single soniﬁcation parameters are mapped onto

In this context, a low level of abstraction implies sim-

ple sounds without any kind of universally-accepted mea-

ning, as opposed to a high level, which implies complex

and culture-dependent meaningful sounds.

Bonafede, D., Ludovico, L. and Presti, G.

A Proposal for the Interactive Soniﬁcation of the Human Face.

DOI: 10.5220/0006957001630169

In Proceedings of the 2nd International Conference on Computer-Human Interaction Research and Applications (CHIRA 2018), pages 163-169

ISBN: 978-989-758-328-5

163

Audification

Feature Modulation

(sonic plotting)

Symbolic Samples

(symbolic messaging)

Sound events

(asynchronous signaling)

Soundscapes

(holistic description)

Parameter Mapping

Earcons

Auditory Icons

Model Based

Event Based Mapping

Time granularity

Abstraction level

Continuous Regular Asynchronous

Low level

Perceptual

Synesthetic Symbolic

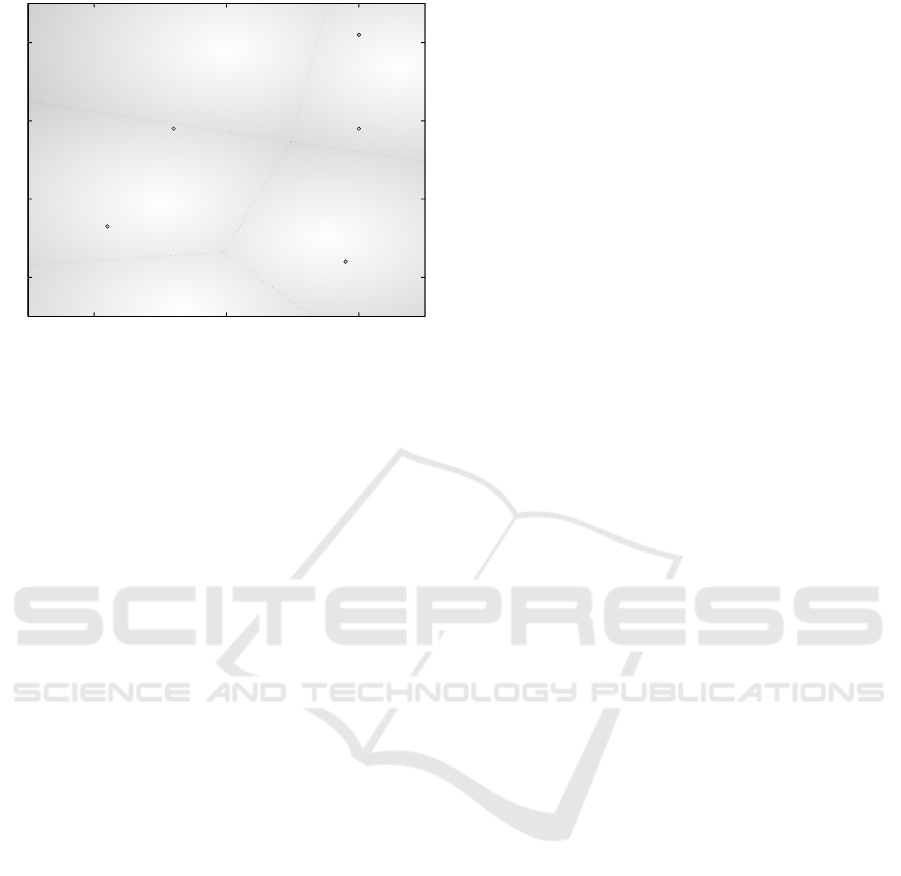

Figure 1: The soniﬁcation space proposed in (Ludovico and

Presti, 2016), showing the position of some traditional so-

niﬁcation techniques.

sound).

For the sake of clarity, you can consider this space

as divided into several areas which cluster soniﬁca-

tion techniques and approaches (see Figure 1). For

example, soundscapes can be found in the area con-

taining the most abstract and continuous results, whe-

reas simple triggered alarms are hosted in the low-

abstraction asynchronous area. Even if some clusters

can be identiﬁed, the soniﬁcation space was desig-

ned to be continuous, and some forms of soniﬁcation

can raise legitimate doubts about their exact position.

Nevertheless, the soniﬁcation space is just a support

tool to represent complex soniﬁcations in a straight-

forward way.

The paper is structured as follows: Section 2 pre-

sents the state of the art; Section 3 provides imple-

mentation details; Section 4 discusses our main de-

sign choices; Section 5 describes the framework in

which an early experimentation took place; and, ﬁ-

nally, Section 6 provides the road map for future

work.

2 STATE OF THE ART ABOUT

HUMAN FACE SONIFICATION

Scientiﬁc literature contains some relevant works de-

aling with human-face soniﬁcation. In this section we

will review the most promising approaches and high-

light the main differences from our proposal.

Reference (Guizatdinova and Guo, 2003) descri-

bes the development and usability evaluation of a

soniﬁcation system for alternative access to facial

expressions through so-called eARmoticons, namely

sound entities that should evoke the emotional fee-

lings of a listener like those a visual image could pro-

duce. The goal is to facilitate communication and in-

terpretation of visual images for people with special

needs. The research discusses an experimental evalu-

ation conducted on volunteers to understand the sen-

sitivity and the response of users to eARmoticons.

Another work shows a visual creativity tool to au-

tomatically recognize facial expressions and track fa-

cial muscle movements in real time in order to pro-

duce sounds (Valenti et al., 2010). The feature vector

thus obtained is used as input to a Bayesian network

which classiﬁes facial expressions into several cate-

gories (e.g., angry, disgusted, happy, etc.). Classiﬁca-

tion results are used along with the feature vector to

generate a combination of sounds that change in real

time depending on facial expressions.

In contrast with our proposal, discussed in detail

in Section 3, the mentioned techniques aim to infer

emotions from raw data and drive soniﬁcation conse-

quently, even when they claim to apply a direct map-

ping of parameters.

The research reported in (Funk et al., 2005) pro-

poses face-detection and optic-ﬂow algorithms to as-

sociate facial movements with sound synthesis in a

topographically speciﬁc fashion. Gesture-to-sound

mappings are oriented to musical performance, also

known as musiﬁcation: facial traits and expressions

are used as a controller that triggers MIDI events to

be sent to synthesis modules. Possible applications

proposed by the authors include: the soniﬁcation of

facial movements as a form of biofeedback to incre-

ase awareness of habitual behavior patterns; a support

tool for physiotherapy in the treatment of facial pa-

ralysis or forms of brain damage which compromise

face or facial expression recognition capabilities; an

assistive technology for the blind. The mentioned use

cases may be in common with ours, but the present

proposal does not aim to produce a musical perfor-

mance as the main feature, even if it uses musiﬁcation

for a particular data binding.

3 IMPLEMENTATION DETAILS

In this section we will provide details about our pro-

posal, concerning the data to be soniﬁed, the algo-

rithms adopted to map facial data onto sound features,

and the technologies employed in the implementation.

3.1 Adopted Technologies

The prototype is mainly based on three components:

(i) a face tracking module, (ii) a set of Pure Data pa-

CHIRA 2018 - 2nd International Conference on Computer-Human Interaction Research and Applications

164

tches, and (iii) the Open Sound Control (OSC) proto-

col to make the mentioned modules communicate.

The deﬁnition of face tracking embraces those

techniques and algorithmic approaches that determine

if an image contains a face and track its position. In

this ﬁeld, a fundamental algorithm is the Active Ap-

pearance Model (AAM), which is able to create a

statistic model of a deformable ﬁgure (Cootes et al.,

2001). This approach has been proﬁtably tested also

in the ﬁeld of face recognition (Edwards et al., 1998).

Once the facial model is available, it is necessary to

strengthen it against factors such as light conditions,

facial expressions, and head orientation. A more ad-

vanced way to obtain facial tracking is to use a three-

dimensional face prototype. We used a non-rigid mo-

del: a 3D mask is calculated from the ﬁrst frame

where the face is detected, and then it is continuously

updated and adapted to expressions and orientation.

Pure Data is an open-source visual programming

language for multimedia. Its main distribution was

developed by Miller Puckette in the 1990s in order

to create interactive computer music and multimedia

works (Puckette et al., 1996). Our application is based

on a set of Pure Data patches receiving data from the

webcam and implementing the algorithms for their

soniﬁcation. The face-tracking module and Pure Data

patches are currently running in a low-budget laptop

computer, but the ﬁnal goal is to embed this system

into a wearable device.

Information exchange among different compo-

nents is based on a standard format. OSC is a music-

oriented protocol widely adopted in computers and

multimedia devices to support communication bet-

ween synthesizers, computing units, and other devi-

ces (Wright, 2005). OSC applications include real-

time sound and media processing environments, web

interactivity tools, software synthesizers, distributed

music systems, and so on.

3.2 Structure of the Application

The application can be roughly divided into two parts,

as shown in Figure 2:

1. a video-capture module, that catches moving ima-

ges from a webcam, tries to identify the pre-

sence of faces and tracks them through a three-

dimensional model;

2. a computation module, that processes the genera-

ted data ﬂow, so as to create, manage, and mani-

pulate sounds accordingly.

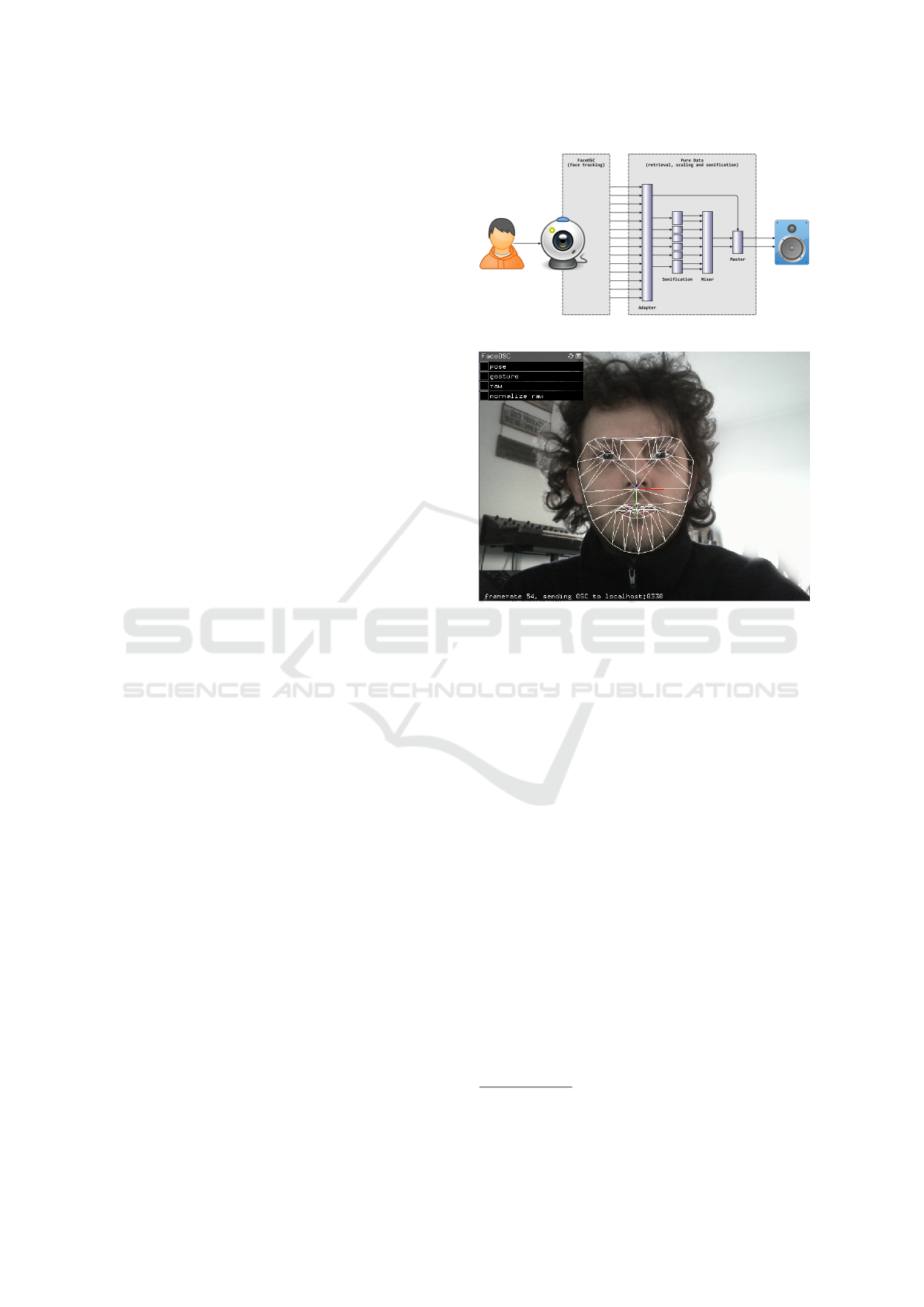

Figure 2 intuitively conveys an important con-

cept: tracking and soniﬁcation activities achieve a

reduction of data dimensionality. Under this per-

spective, stereo mixing corresponds to information

Figure 2: The general schema of the application.

Figure 3: A man’s face with a superimposed 3D mask.

multiplexing, since many data mapping results are

mixed into a stereo soundscape.

The former part, called FaceOSC,

is a C++ open-

source project developed on top of the APIs written by

Jason Saragih. It manages face parameters and their

representation in terms of OSC messages. Apart from

an entry-level computer, the only hardware device in-

volved is the webcam, that typically allows to manage

crucial parameters like saturation, auto-focus, expo-

sure, and frame rate.

When the module is running, it calculates the key

facial parameters of the user in front of the webcam,

identifying also dark areas and shadows. The three-

dimensional model thus obtained is able to follow the

movements of the subject in an adaptive way. This

operation is performed by evaluating the variations of

side lengths for the triangles that constitute the 3D

mask (see Figure 3).

The second part of the application, dealing with

computations and soniﬁcation, was entirely imple-

mented in Pure Data. It can be further subdivided into

4 logical blocks:

1. the adapter module, with a specialized submo-

dule for each group of facial parameters (eyes,

https://github.com/kylemcdonald/ofxFaceTracker/ re-

leases

A Proposal for the Interactive Soniﬁcation of the Human Face

165

mouth and head orientation). It splits the aggre-

gated information from the video-capture module

into specialized data about single facial characte-

ristics, also scaling values to the allowed intervals;

2. the soniﬁcation module, where data are transfor-

med into sound. This central aspect will be de-

tailed in Section 4;

3. the mixer module, where sound levels are mana-

ged independently, like tracks in a traditional au-

dio mixer;

4. the master volume module, which adjusts the

overall soniﬁcation volume, turning sound output

off when no face is recognized and reactivating it

when a face is tracked.

4 SONIFICATION DETAILS AND

DESIGN CHOICES

The soniﬁcation block is the core step of the proposal

where facial data are transformed into sound accor-

ding to many possible algorithms. The global project

will explore the effectiveness of different soniﬁcation

strategies, whereas, in this preliminary work, we are

arbitrarily selecting some of the possibilities.

A key point is that data about facial traits and ex-

pressions will be captured and soniﬁed as they are,

without trying to interpret them (e.g., inferring the un-

derlying emotions), since a priori interpretations may

be considered biased and subjective. In accordance

with (Tanveer et al., 2012), we believe that a visual-

to-auditory domain shift is a better method than emo-

tion inference due to:

(i) complexities in expression-to-emotion map-

ping, (ii) the problem of capturing a multitude of pos-

sible emotions coming from a limited number of fa-

cial movements, (iii) the difﬁculty to correctly predict

emotions due to the lack of ground truth data, and

(iv) cultural differences in expressing emotional nu-

ances.

For these reasons, we prefer to delegate interpre-

tations and inferences to the end user.

The proposed approach takes into account both

static and dynamic aspects of face recognition. Figure

4 shows their logical position within the soniﬁcation

space.

Concerning static parameters, when a face is ﬁrst

recognized, its traits

are evaluated in order to dis-

criminate a face from another. The soniﬁcation of

For traits we intend those features that are independent

from speciﬁc facial expressions, such as the relative posi-

tion of mouth, jaws and eyes.

Audification

Feature Modulation

(sonic plotting)

Symbolic Samples

(symbolic messaging)

Sound events

(asynchronous signaling)

Soundscapes

(holistic description)

Time granularity

Abstraction level

Continuous Regular Asynchronous

Low level Perceptual Synesthetic Symbolic

Facial traits:

music intervals

Eyebrow:

band-pass filter

Mouth:

vowels & formants

Horizontal rotation:

impulse pan

Vertical rotation:

impulse rate

Lateral inclination:

sinewave pan

Facial Expression

Sonification

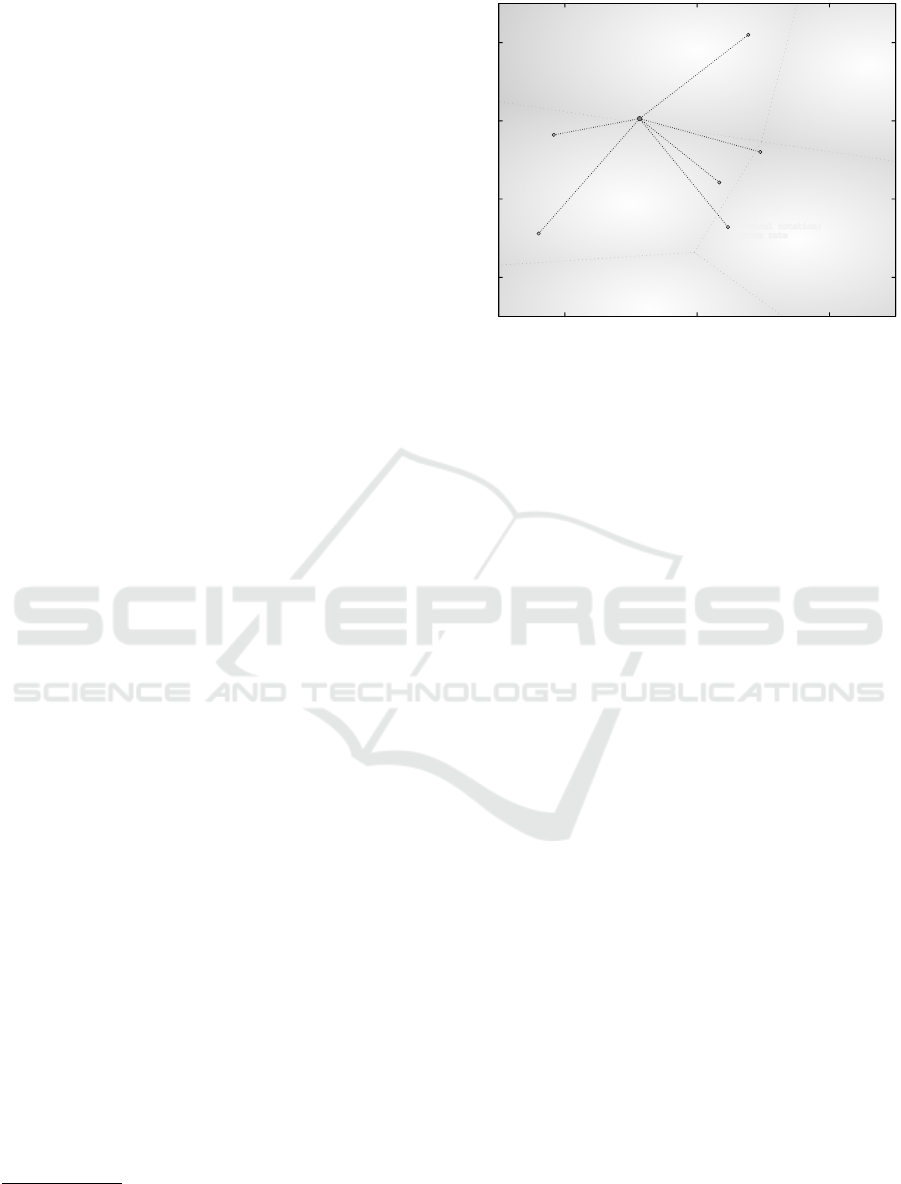

Figure 4: Position of our proposal within the soniﬁcation

space.

these characteristics generates a music background

for the whole duration of the experience referring to

that face. Depending on static facial traits, such pa-

rameters are mapped onto sets of notes from different

musical scales, with variable envelopes and timbres

(e.g., sine or sawtooth waveforms processed by low-

pass ﬁlters). The resulting sound background, asyn-

chronous with respect to face expressions, represents

a soundscape, logically located in the upper-right part

of the soniﬁcation space. This strategy should help

users to discern between different faces, without the

purpose of being unambiguous: similar somatic fea-

tures should result in similar soniﬁcations.

The dynamic parameters we aim to sonify are lin-

ked to the variations produced by eyebrows, mouth,

and head position in space.

The eyebrow height modulates the central fre-

quency of a band-pass ﬁlter applied to a white noise.

Since the mapping is a direct one, this part of the so-

niﬁcation presents a continuous time behavior and a

quite low degree of abstraction.

Concerning the mouth, its width deﬁnes the fun-

damental pitch of a frequency-modulated wave, while

the oral aperture controls both the modulation index

and the cut-off frequency of 4 cascading low-pass ﬁl-

ters applied to the overall wave. The slope of the

ﬁlter curve is directly proportional to the number of

ﬁlters used on the same sound event. This choice re-

sponds to an attempt to describe the resonance of the

oral cavity when acoustic waves are reﬂected inside

it. Mouth soniﬁcation partially falls into model-based

soniﬁcation and partially into parameter mapping so-

niﬁcation. In terms of position in the soniﬁcation

space, it is located in the area of continuous time and

synaesthetic abstraction, since it aims to recall mouth

shape via vowel sounds.

CHIRA 2018 - 2nd International Conference on Computer-Human Interaction Research and Applications

166

Concerning head position in space, vertical ro-

tation is described through a pitched sound repe-

atedly generated, with an increasing reproduction

speed (and, consequently, an increasing pitch) as the

face turns towards the zenith, in order to suggest the

sense of elevation. Horizontal rotation is represented

through an impulsive sound which is activated in the

left channel when the face rotates to the left, and in

the right channel vice versa, with a playback rate di-

rectly proportional to the rotation amount. Finally, la-

teral inclination is represented by a sine wave, whose

source is located in the stereo image depending on

the direction detected. All the mapping techniques

concerning head position and orientation are activated

only when the head is not in a frontal “idle” state (i.e.

only when neither tilt nor rotation are null). These

observations, along with the adoption of modulated

sound events for soniﬁcation, push the mentioned data

bindings towards the asynchronous area, in some ca-

ses more abstract and “synaesthetic” due to the adop-

tion of panning.

The overall sound result of the soniﬁcation beha-

ves much like a model-based one, sometimes resem-

bling a soundscape, sometimes recalling a sonic plot;

nevertheless, it is quite responsive to changes and cha-

racterized by a complex sound texture, which sugge-

sts to place it within the soniﬁcation space as shown

in Fig.4.

Finally, it is worth underlining that the present

work focuses on the conceptual framework, without

taking into account the pleasantness of the soniﬁca-

tion (a non-trivial issue discussed, e.g., in (Hermann

et al., 2015) and (Susini et al., 2012)), nor the is-

sues of information overload and audio channel satu-

ration, particularly relevant for visually impaired pe-

ople. Please note that we are not presenting a mu-

sical instrument nor a gesture-controlled synthesizer,

especially since some facial expressions derive from

autonomic reﬂexes.

The ultimate goal of the global project will be to

let the ﬁnal user customize the experience by selecting

his/her own samples as the source material to be mo-

dulated by the soniﬁcation engine.

5 MeetMeTonight 2016

An early implementation of the prototype was pre-

sented at the stand of the LIM (Laboratory of Music

Informatics, University of Milan) in occasion of the

edition of the European Researchers’ Night,

spe-

ciﬁcally during the Milanese initiative called “Meet-

http://ec.europa.eu/research/researchersnight/

MeTonight 2016” held at the Giardini Indro Monta-

nelli of Milan on September 30 - October 1, 2016.

This free-entrance public event aimed to bring uni-

versity research outside traditional academic environ-

ments, addressing a wide audience ranging from pri-

mary school children to elder people. It was the oc-

casion to achieve an early validation of our approach

thanks to the presence of thousands of heterogeneous

visitors.

The research theme chosen by the LIM for the

2016 edition was soniﬁcation, namely the possibili-

ties offered by sound as an alternative communication

channel to deliver non-audio information. A num-

ber of experiences were proposed to a general au-

dience, including some historical examples of soni-

ﬁcation (e.g., meteorological data, global warming,

pollution levels in Milan, etc.) and a step sequencer

driven by the detection of visitors’ position inside the

stand.

In this context, an area was dedicated to our face

soniﬁcation experience. This space was equipped

with a front webcam to catch the user’s face, two

loudspeakers for audio output, a background screen

(not visible to the user) to let the audience watch the

ongoing computation, and a computer running the re-

quired software hidden “behind the scenes”.

During this experience, the soniﬁcation prototype

described above was tested by a large number of

people, very heterogeneous in age, education level,

technological knowledge, culture and nationality, etc.

(see Figure 5). Moreover, the duration of the event,

spanning over 2 days, 10 hours per day, allowed to

test very different lightning conditions.

Figure 5: People around the installation at MeetMeTonight

2016.

Concerning the video-capture module, the appli-

cation proved to effectively recognize the presence of

a face, without false positives, but it showed three ca-

ses of wrong tracking: the eyebrows of users wea-

http://www.meetmetonight.it/

A Proposal for the Interactive Soniﬁcation of the Human Face

167

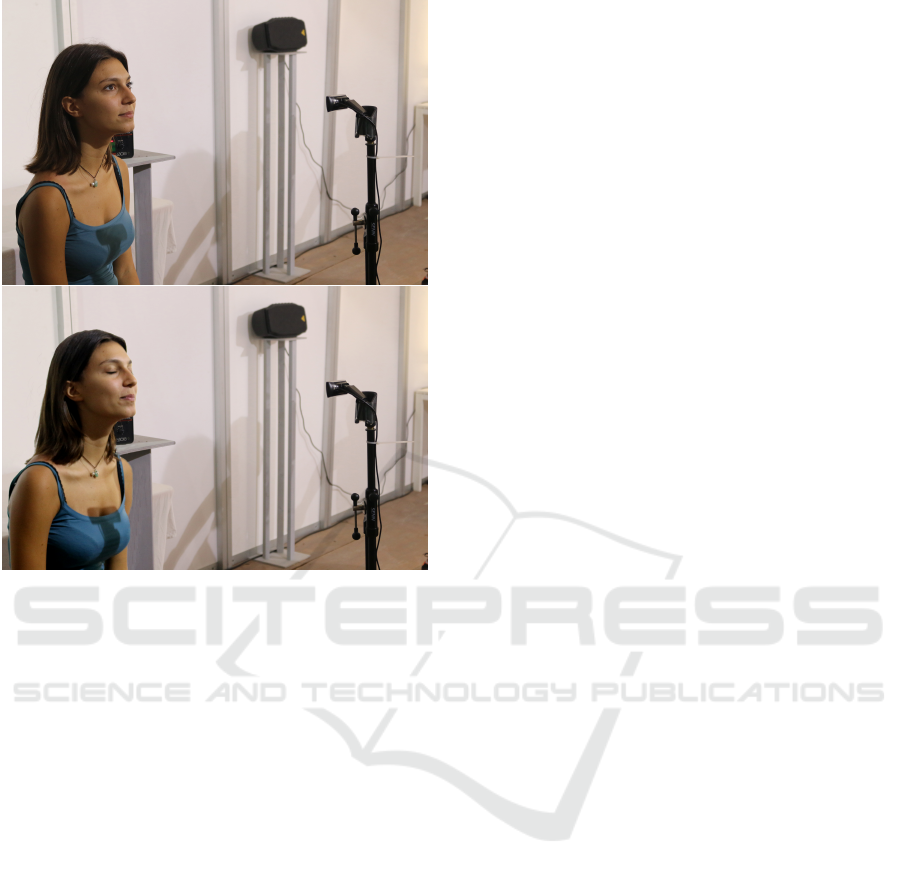

Figure 6: Different facial expressions caught by the we-

bcam and soniﬁed accordingly during a demo session at

MeetMeTonight 2016.

ring glasses, the mouths of bearded faces, and – unex-

pectedly – also in case of overexposure. These pro-

blems, experienced by 30 users out of 150 approx.,

are pushing us to improve the algorithms in use for

this module. In general terms, performances were not

affected by age nor gender differences. The compu-

tation module, on the other hand, proved to be very

robust, and it did not produce glitches nor system fai-

lures.

At MeetMeTonight we did not plan a formal test

phase about the soniﬁcation itself. In any case, as a

side note, we realized that most visitors (both active

users and passive audience) remained positively im-

pressed: reactions ranged from amusement and sur-

prise in hearing a sound description of their own face

to the desire to better understand the underlying pro-

cesses and algorithms.

Users experienced the application in an unsupervi-

sed environment, autonomously experimenting with

different facial expressions (see Figure 6). The LIM

staff was mainly consulted a posteriori, answering

user requests for technical explanations and providing

insights about the soniﬁcation intuitively produced.

The ability quickly developed by most people to

recognize, even if approximately, facial structures and

movements suggests the effectiveness of the map-

ping adopted in our soniﬁcation, but more formal and

extended tests will be conducted when soniﬁcation

techniques have been ﬁne-tuned.

6 CONCLUSION AND FUTURE

WORK

In this paper we have presented an approach towards

face soniﬁcation and an implementation based on we-

bcam face tracking and Pure Data processing. Both

static and dynamic face characteristics have been con-

sidered and soniﬁed accordingly. The goal of such a

prototype, presented during a public event, was to ex-

plore the potential of technologies applied to the ﬁeld

of face soniﬁcation.

Future work will consist in the improvement of

feature selection and soniﬁcation strategies, the admi-

nistration of extensive tests under controlled conditi-

ons, and, consequently, the implementation and tes-

ting of a prototype in a real-world scenario. The test

protocol we are planning to use will include a training

phase, where users have the opportunity to unveil so-

niﬁcation strategies and relationships with their own

movements, followed by a recognition task, consis-

ting in the evaluation of other people’s expressions by

listening the corresponding soniﬁcations.

We aim to investigate the applicability of this pro-

totype to assist visually impaired people, in accor-

dance with the recognition of soniﬁed objects in real

environments that has been proposed, e.g., in (Ribeiro

et al., 2012). In this case, the idea is to adopt soniﬁca-

tion to allow the recognition of human faces, to track

facial expressions, and consequently to let the user in-

fer emotions and reactions.

REFERENCES

Cootes, T. F., Edwards, G. J., and Taylor, C. J. (2001).

Active appearance models. IEEE Transactions on

pattern analysis and machine intelligence, 23(6):681–

685.

Edwards, G. J., Cootes, T. F., and Taylor, C. J. (1998). Face

recognition using active appearance models. In Euro-

pean conference on computer vision, pages 581–595.

Springer.

Funk, M., Kuwabara, K., and Lyons, M. J. (2005). Soni-

ﬁcation of facial actions for musical expression. In

Proceedings of the 2005 conference on New interfa-

ces for musical expression, pages 127–131. National

University of Singapore.

Guizatdinova, I. and Guo, Z. (2003). Soniﬁcation of facial

CHIRA 2018 - 2nd International Conference on Computer-Human Interaction Research and Applications

168

expressions. In New Interaction Techniques ’03, pages

44–51.

Hermann, T. (2008). Taxonomy and deﬁnitions for soniﬁca-

tion and auditory display. In Proceedings of the 14th

International Conference on Auditory Display, Paris,

France June 24 - 27, 2008. International Community

for Auditory Display.

Hermann, T., Hildebrandt, T., Langeslag, P., and Rinderle-

Ma, S. (2015). Optimizing aesthetics and precision

in soniﬁcation for peripheral process-monitoring. In

Proceedings of the 21st International Conference on

Auditory Display (ICAD-2015), pages 317–318.

Hermann, T., Hunt, A., and Neuhoff, J. G. (2011). The

soniﬁcation handbook. Logos Verlag Berlin.

Ludovico, L. A. and Presti, G. (2016). The soniﬁca-

tion space: A reference system for soniﬁcation tasks.

International Journal of Human-Computer Studies,

85:72–77.

Puckette, M. et al. (1996). Pure data: another integrated

computer music environment. Proceedings of the se-

cond intercollege computer music concerts, pages 37–

41.

Ribeiro, F., Flor

encio, D., Chou, P. A., and Zhang, Z.

(2012). Auditory augmented reality: Object soniﬁ-

cation for the visually impaired. In Multimedia Sig-

nal Processing (MMSP), 2012 IEEE 14th Internatio-

nal Workshop on, pages 319–324. IEEE.

Susini, P., Misdariis, N., Lemaitre, G., and Houix, O.

(2012). Naturalness inﬂuences the perceived usabi-

lity and pleasantness of an interfaces sonic feedback.

Journal on Multimodal User Interfaces, 5(3-4):175–

186.

Tanveer, M. I., Anam, A., Rahman, A., Ghosh, S., and Ye-

asin, M. (2012). FEPS: A sensory substitution system

for the blind to perceive facial expressions. In Procee-

dings of the 14th international ACM SIGACCESS con-

ference on Computers and accessibility, pages 207–

208. ACM.

Valenti, R., Jaimes, A., and Sebe, N. (2010). Sonify your

face: facial expressions for sound generation. In Pro-

ceedings of the 18th ACM international conference on

Multimedia, pages 1363–1372. ACM.

Wright, M. (2005). Open sound control: an enabling

technology for musical networking. Organised Sound,

10(3):193–200.

A Proposal for the Interactive Soniﬁcation of the Human Face

169
