Electronic Band Scores and Stage Services Framework

Georg J. Schneider and Dimitri Perepelkin

Computer Science Department, Trier University of Applied Sciences, Main Campus, Trier, Germany

Keywords: Services and Mobility, Application of Mobile Information Systems, Protocols, Standards, Interoperability and

Mobility.

Abstract: The paper describes a framework for the mobile display of electronic sheet music using the UPnP

infrastructure for bands. Based on this architecture, further services can be integrated, like MIDI sounds or

light shows.

1 INTRODUCTION

A cover band, which plays an evening show, usually

has a large set list to satisfy the various musical tastes

of the audience. Additionally they are usually

prepared for song requests from the audience. Each of

these songs consists of several sheets of music. The

same is true for large orchestras playing symphonies

or operas. One of the challenges, which has nothing

to do with mastering the instrument, is the turning of

the sheets during the play. Another defiance is to keep

all these sheets in a straight ordering on the music

stand. A disorder in the sheets can cause a major

problem during a performance. Confusing scores for

different instruments may lead to a similar

catastrophe.

For this reason an electronic version of a score

would be just the right solution for this issue. The

musicians only need a tablet computer. The sheet

music could be stored on the devices or on a central

unit.

The Brussles Philharmonic used this approach as

the first orchestra in 2013. They use a modified

version of neoScores (Gustaf 2018) to display the

sheet music.

Furthermore the score could also move forward as

needed, like a tele prompter, so that the musician will

never have to switch to the next sheet.

However as it concerns an evening performance

of a band, the situation is more various. Different

musicians may join in for certain tunes. They would

need the scores for their instrument or the lyrics,

when the musician is singer.

Additionally the integration of further services in

the system, which belong to the performance, shall be

possible as well. For example the playback of MIDI

sequences, the light show or the playing of videos in

the background shall be flexibly integrated into the

system also.

For this reason we suggest a flexible software

architecture based on the Universal Plug and Play

(short: UPnP) (OCF 2018) protocol in this paper.

Together with services running either on mobile

clients like tablets or on other eventually specialised

devices, an infrastructure for bands can be realized

that nicely adapts to the current situation.

The paper is structured as follows. First we will

discuss several systems targeting a similar domain as

ours. We will sketch related developments using

UPnP. We will also discuss approached towards

electronic sheet music. Afterwards we will give a

short introduction to UPnP. We will then present our

framework. Based on these considerations we will

describe the realization of the system with the help of

the Cling UPnP library. The paper concludes with a

short summary and an outlook to further

developments of our solution.

2 RELATED WORK

Most systems that support similar situations like the

one we are targeting are UPnP based systems that

stream media from a server to different clients using

the UPnP protocol. One example is BubbleUPnP

(BubbleUPnP 2018). The software consists of a

media server and an Android client for rendering

audio and video data to mobile devices.

Another application with similar functionality is

UPnP monkey from Ronald Bruckner. The Android

Schneider, G. and Perepelkin, D.

Electronic Band Scores and Stage Services Framework.

DOI: 10.5220/0006958102690276

In Proceedings of the 14th International Conference on Web Information Systems and Technologies (WEBIST 2018), pages 269-276

ISBN: 978-989-758-324-7

269

app detects media server and media renderer in a

network and can control them individually.

(Sung et. al. 2006) describe an UPnP based

framework for multimedia content delivery with

content adaptation. In our case however the different

versions of the multimedia content belong to the

profile an automatic adaptation or blending of

different versions is not planned in our system.

(Lai et al. 2011) suggest an architecture for an

UPnP-based high performance multimedia content

sharing system. Right now the amount of data of our

application is not that high yet so that a conventional

approach satisfies the needs of our scenario. However

their ideas would be helpful if extensive video shows

will be a topic in the future.

On the other hand systems like Cantabile

(Cantabile 2018) offer possibilities to support life

performances with sound effects and MIDI playback.

The system also offers the managing of set lists.

(Kurth et. al. 2007), (Kurth et. al. 2008) suggest a

digital library framework for managing multimodal

music collections. Their system synchronizes e.g.

playback of scanned sheet music and audio playback

and also offers search capabilities, which are

important for large music collections. Right now the

requirements of our scenario are still clearly arranged

so that an automatic processing of the files is not yet

necessary. Furthermore other media such as light or

video is not part of their consideration yet but might

be an interesting extension of this approach.

A software solution, which supports bands for

their life performances, including possibilities to

integrate services like sheet music, set list

management, midi player, light shows and a flexible

extension of the system with further services is not

known to the authors so far. The above mentioned

systems have extensive functionalities in their

specific domain. However an integrated and easily

expandable system with a low footprint is needed for

the band scenario like the one we are looking at.

For this reason we suggest an architecture based

on the UPnP protocol in order to offer the different

services in the network. With this approach we can

flexibly adapt to different situations and even change

the setting in between.

3 UNIVERSAL PLUG AND PLAY

Universal Plug and Play (OCF 2018) is a protocol for

ad-hoc networking. The protocol uses IP networks

and the HTTP protocol to communicate between

entities. Using the protocol a developer can specify

different entities like devices that offer services and

control points that detect these devices and consume

their services. Devices and services are described in

form of XML files. Therefore arbitrary devices and

services can be defined and a developer is not bound

to prior defined specifications. The implementation of

the services however is proprietary and hence not part

of the protocol. Another important part of the

specification is a discovery mechanism to detect new

devices in a network. Once a device is detected, it can

be queried for the services it offers. As a consequence

the XML specification will be transmitted explaining

details about the services and the way they can be

used. Finally the communication between a control

point and a device is done using SOAP (W3C 2018).

Nevertheless, some often needed devices are

defined by the UPnP task force, like media server and

media renderer.

A physical device can offer different UPnP

devices with a variety of services as well as a control

point. Like that the interaction with the services on

the same physical device or services offered by other

devices on the network is transparent to the control

point.

4 CONCEPT OF THE

FRAMEWORK

The idea of our framework is that it should be possible

to add different services to a network, like electronic

scores, set list management, MIDI controller, light

show but also to make the services adaptable to the

situation. For example a band consisting of a singer,

a guitar player, a bassist and a drummer need an

electronic sheet music service. Each of these

musicians will obviously need a different version of

the sheet music, which demands for adding extra

information to the sheet music, e.g. using metadata

for describing the purpose for example the

instrument. Especially looking at a situation where

one of the musicians is also the singer in one show

where in another show there will be a special guest

only for singing, it is possible that different sheet

music for the same song are needed. Therefore a user

management must be part of the framework as well.

The electronic sheet music shall be rendered for

example on a tablet computer. The tablets again shall

not be dedicated to a specific band member. Whoever

uses the tablet shall specify her role and access the

appropriate information. The sheet music shall

automatically start in parallel on each tablet and scroll

forward as the song continues, so that there is no need

for manual interaction during the song.

WEBIST 2018 - 14th International Conference on Web Information Systems and Technologies

270

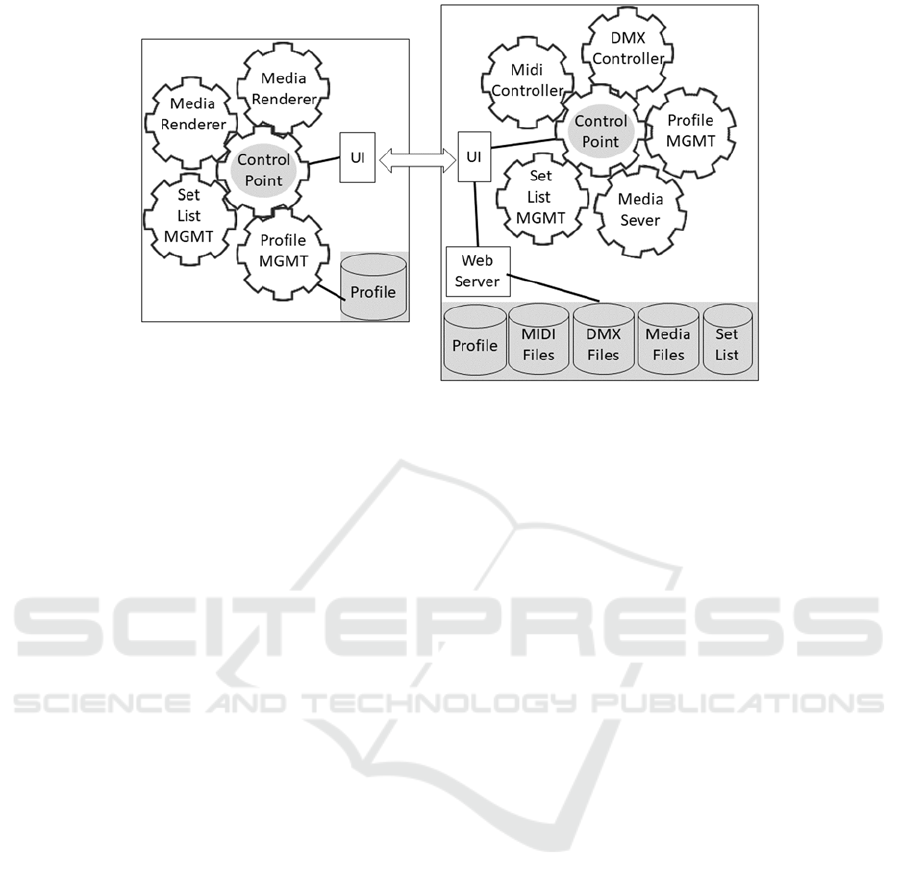

Figure 1: System architecture.

Set list management is another important service

for a band. Usually the band will put together a set list

for a show in beforehand. However situations where

the band wants to adapt to its audience may happen,

especially when we are looking at cover bands. Song

requests from the audience shall also be respected. As

a consequence an easy to use set list handling is

needed. Since every band member may be

approached, each tablet must provide this service and

changes must be communicated immediately to the

devices of the other band members. Each band

member shall also have the possibility to start the

playing of a song. In our case this means that each

tablet must be able to give the signal to the other

devices to begin displaying the appropriate

information and start the other services, which belong

to the playing of the song, i.e. the light show.

Today the use of MIDI samples is a feature, which

is often used by bands. “MIDI is an industry standard

music technology protocol that connects products from

many different companies including digital musical

instruments, computers, tablets, and smartphones.”

(MIDI 2018). Sound effects for example that cannot be

easily produced with an instrument or instruments that

are not part of the band can thus be integrated into the

songs. The playback of these samples must be started

at the right time within the song. A MIDI controller can

therefore be defined as an UPnP device, which

interfaces with the MIDI instruments.

Finally we want to integrate light and video

services to improve the visual appearance of the

show. Media services on the one hand are easy to

integrate, since media server and renderer are already

defined from the UPnP task force, as described in the

precedent section. Since video services are media

services and many video player software already

implement an UPnP interface, the integration is

straightforward. However as it concerns light services,

the situation is different. Light control usually is based

on the DMX protocol (Beuth 2000). DMX stands for

Digital Multiplex. The protocol defines codes that are

interpreted by the light equipment, e.g. like strobe

lights or moving head lights. The DMX protocol can

be wrapped in an UPnP device as well.

Putting the different pieces together we realize a

basic architecture as in figure 1. We see two physical

devices offering different basic services for the band.

In general the assignment from UPnP devices, shown

as gear in the illustration, to the two physical devices

is flexible.

On the left hand side there is an example of a setup,

which could be used for each band member. The

architecture on the right hand side offers some

fundamental services for all band members. Looking

first at the left hand side, two media renderers are

shown. One media renderer will display the lyrics and

the sheet music. The other media renderer is in charge

with the presentation of videos in the background.

Especially this service might also be exploited on

another device since further physical devices can be

added as well and the arrangement of UPnP devices

may be different to any of the illustrated (physical)

devices. The control point uses the services offered by

the devices. In general it is transparent to the control

point if the device resides on the same physical device

or if it is controlled over the internet. The set list

management must be installed on each device where it

shall be possible to modify the set list during a show.

The profile management makes it possible to use an

arbitrary client and log in e.g. as a guitar player or a

Electronic Band Scores and Stage Services Framework

271

singer. Thus the sheet music for this band member can

be rendered on the appropriate device.

On the right hand side a media server is shown.

The media server will stream the appropriate sheet

music to the clients during the show. This allows to

keep all files on one device. Therefore the copying of

files to the other devices is not necessary. The use of

the different devices is more flexible with this

approach. The profile data identify a certain role and

this role can change over time. Also spare devices can

replace defect devices during a show almost

instantaneously. The web server is the central

component to copy files to the device. It provides also

the interface to author the show, to build the set list

and to add light or sound effects to the pieces of

music. On the bottom, the different files that might be

used during the show are shown.

5 IMPLEMENTATION

Tablet computers are an ideal output device for digital

sheet music since they have a decent size and are easy

to transport. Therefore we have implemented our

system for these devices. However, as the architecture

in figure 1 shows on the right hand side, a dedicated

device offers more powerful services, like media

streaming to several devices and it needs more

connection possibilities like DMX or MIDI. For this

reason we have decided to add a laptop computer to

the technical infrastructure.

As it concerns the tablet computers, we have used

Android as the target platform. Therefore we need to

build an app, which renders the information on the

device.

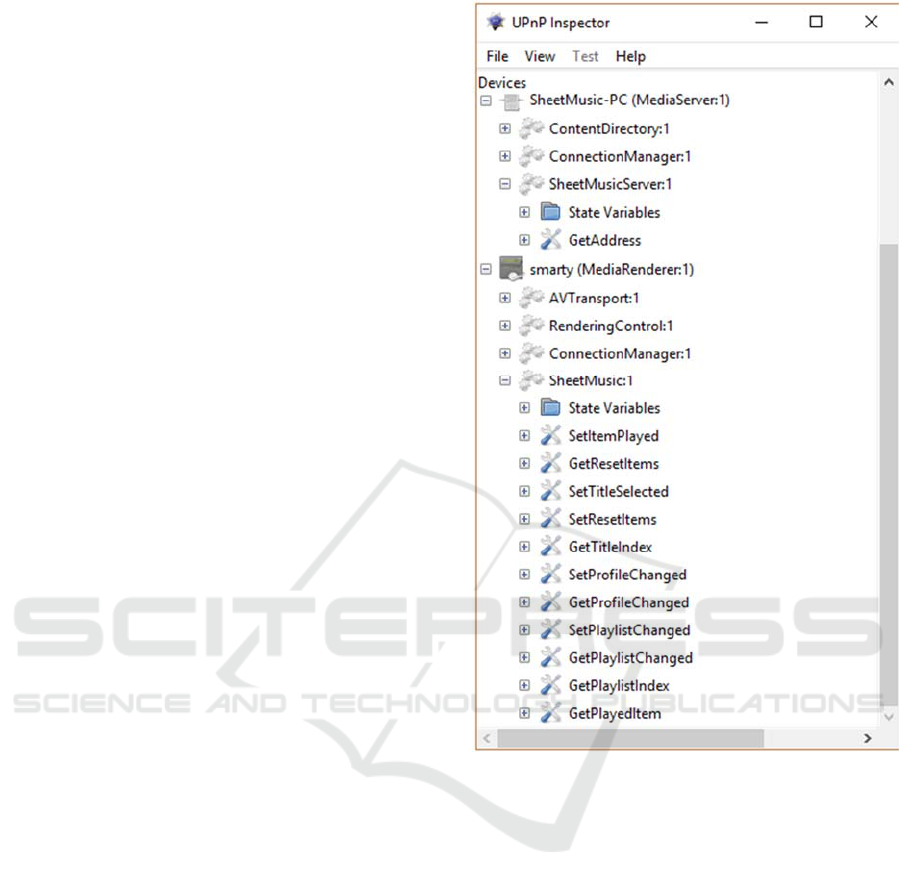

Figure 2 shows the view of an UPnP inspection

tool, which has detected the two devices in the

network. The SheetMusic-PC is the central unit

providing the streaming services. “Smarty” is one of

the tablet computers, which are used to display the

sheet music for the band members. As one can see,

several services are visible like changing the playlist.

The UPnP control points, devices and services are

realized using the Cling UPnP implementation (Line

2018), which is available for Android and Java.

In order to implement an UPnP device with Cling,

the Java class that represents a service is annotated.

We show the procedure giving a simple example,

which only has one state variable “Address” where

the IP address of the data exchange server is stored

and one action “GetAdddress” that returns this

address. They are part of the service

SheetMusicServer, which belongs to the UPnP device

SheetMusic-PC (see figure 2).

Figure 2: UPnP devices.

First the service is declared giving a service type and

a service identifier. This is accomplished with the

appropriate annotations starting with “@Upnp”.

@UpnpService(

serviceId =

@UpnpServiceId("SheetMusicServer"),

serviceType = @UpnpServiceType

(value="SheetMusicServer",

version = 1))

Afterwards we declare the state variable in a similar

way, providing a default value, which is returned

when the value of the state variable cannot be

determined.

@UpnpStateVariables({

@UpnpStateVariable(

name="Address",defaultValue="0")})

WEBIST 2018 - 14th International Conference on Web Information Systems and Technologies

272

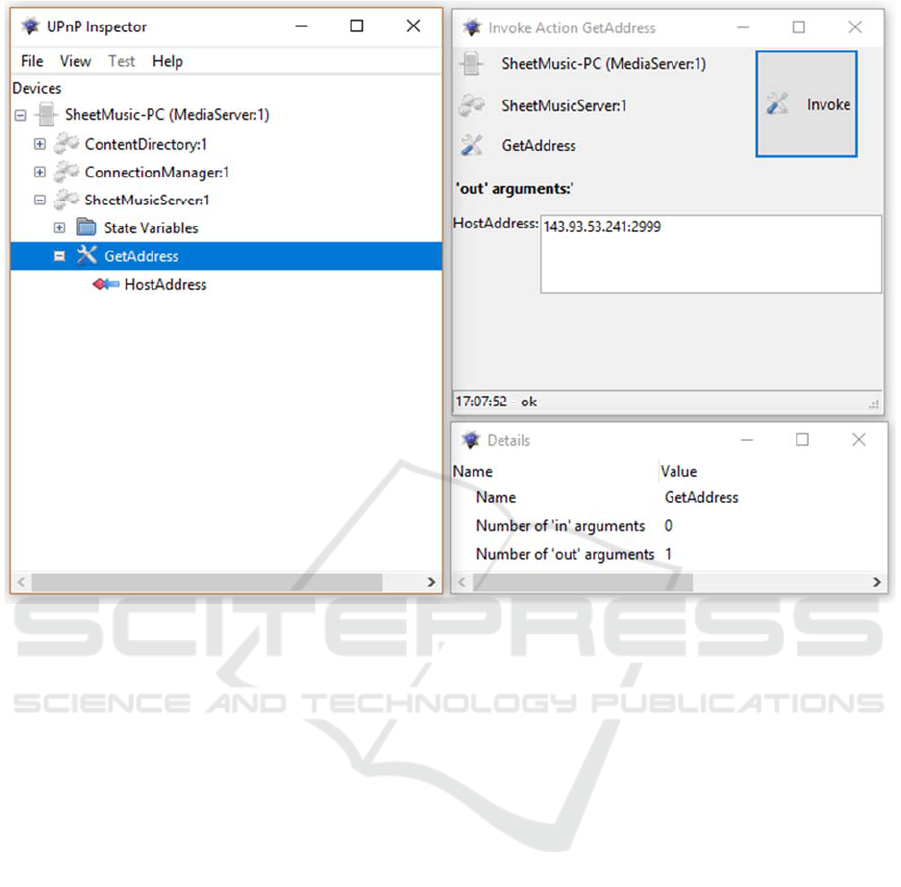

Figure 3: UPnP action invocation.

Finally we declare the action to return the value of the

state variable, followed immediately by the code that

represents the action. In this case the “out” argument

is the host address.

@UpnpAction(out =

@UpnpOutputArgument(

name="HostAddress"))

The Java code returning the address is given below.

The “getter” method accesses the attribute, where the

data is stored.

public String getAddress() {

return address;}

Afterwards the device is created that will contain the

service. First we need to create a unique identity of

the device, which is used for searching the device in

the network.

DeviceIdentity identity =

new DeviceIdentity(

UDN.uniqueSystemIdentifier(

"SheetMusic MediaServer"));

Subsequently we create the service for the device.

The annotated class is used for the creation of this

service.

LocalService<SheetMusicService>

sheetMusicService = new

AnnotationLocalServiceBinder().read

(SheetMusicService.class);

Finally the bits and pieces are put together. The

device is created, which offers the service.

return new LocalDevice(identity,

type, details, createIcon(),

sheetMusicService);

Using this service remotely, a control point would

have to add the following Java code. First the control

point has to find the appropriate service from the

remote UPnP device.

Service service =

device.findService(new

UDAServiceId("SheetMusicServer"));

Electronic Band Scores and Stage Services Framework

273

The desired action, which will be executed is

accessed using the service.

Action action =

service.getAction("GetAddress");

A callback method is defined. It will be executed

when the desired action, which is executed on the

remote side, successfully returns the data.

ActionInvocation invocation = new

ActionInvocation(action);

ActionCallback callback = new

ActionCallback(invocation) {

The success method handles the successful execution

of the action and stores the data received from the

remote UPnP service. The failure method will be

called if there were any problems during the

execution.

public void

success(ActionInvocation

invocation) {

ActionArgumentValue address =

invocation.getOutput("HostAddress")

;

main.setServerAddress(

address.toString());

}

public void failure(…) {…}

};

Finally the service can be executed using the

following command.

upnpService.getControlPoint()

.execute(callback);

Figure 3 shows the view of an UPnP inspection

tool to the UPnP device on the physical device. The

SheetMusic-PC device is displayed as well as the

services. Concerning the SheetMusicServer, the

action and the state variables are visible as well.

Especially the description of the service in the bottom

right corner shows the “in” and “out” arguments of

the “GetAddress” action. Invoking this action from

the tool shows the result of the action. In our case the

host address and the port are displayed in the text field

on the right hand side, to inform the other devices

about where to find the data exchange server.

Finding our device using a general UPnP

inspection tool, which serves as control point, shows

the conformance of the implementation with the

UPnP standard and guarantees a flexible usage of the

components.

Each control point can gather the information of

device and services because the UPnP device

automatically generates the following XML

description and informs the peers about the URL

where to access this description.

The XML file shows the actions offered by a

service, as well as “in” and “out” arguments and

related state variables. Other entities can subscribe for

changes of these state variables and can likewise

react, when changes of these variables occur.

…

<name>GetAddress</name>

<name>HostAddress</name>

Address

</relatedStateVariable>

</argument>

</argumentList>

</action>

</actionList>

<name>Address</name>

<dataType>string</dataType>

</stateVariable>

</serviceStateTable>

Figure 4: Snippet of the generated XML file of the service.

As we can see in figure 4, the action “GetAdress” is

listed together with the argument “HostAddress” as

“out” argument. Furthermore the part under

“serviceStateTable” tells that the change of the

address sends out an event, that interested parties can

subscribe.

6 EXPERIMERNTAL RESULTS

The system has been tested on various occasions from

a band called “El Camino” consisting of the two

artists Albert Niesen and Detlef Roth, both guitar

players and singers. They used the system productive

on stages around Europe. Especially the system

proved to be stable, reactive and user friendly in

demanding environments such as beach clubs.

WEBIST 2018 - 14th International Conference on Web Information Systems and Technologies

274

Figure 5: Picture of “El Camino” performing using the system.

Figure 5 shows a screenshot from one of the

rehearsals. The screen of one of the tablet computers

is displayed on the projection behind the artists. The

display shows the lyrics, where only a part is visible

on the top. Below it shows the chords. On the upper

right corner the elapsed time of the tune is displayed

as well.

7 CONCLUSIONS

We have presented a system architecture together

with an implementation for supporting bands with

electronic scores and further services, which are

relevant for their performances. Based on the UPnP

protocol, the presented system is extensible and may

integrate further services as needed. The paper also

shows the flexible integration and usage of the

implemented services on the example of an UPnP

inspection tool.

The systems has been used in real world scenarios and

it has proved its usefulness in several shows,

especially in rough environments like pubs or beach

clubs. In the future we want to add services for light

shows through and integration of a service for the

DMX protocol.

Right now the MIDI support is not yet realized as

an UPnP device. This will also be a next step in the

implementation of our system.

Additionally a service for selecting suitable

photographs, which relate to the tune and displaying

them as slideshows in the background is planned.

In the future, more sophisticated possibilities to

display and interact with the sheet music may be

desired. The notation of music in an XML format, that

would nicely integrate in our platform could be one

extension (see Good 2001) or even as a means to

generate music (Torrente 2011).

Whereas approaches for real-time music notation

(Lee et. al 2010) target a different scenario, i.e.

integration of laptop performers with instrumental

musicians the approach includes ideas that go beyond

our level of interactivity and may be a promising path

for further extensions of our system.

ACKNOWLEDGEMENTS

The authors thank Albert Niesen (deceased in

December 2017) for his support, ideas and most of all

for his great personality and for being much more

than a colleague.

Electronic Band Scores and Stage Services Framework

275

REFERENCES

Gustaf, 2018. https://www.gogustaf.com.

Beuth, 2000. DIN 56930-2, Beuth Verlag GmbH, Berlin

BubbleUPnP, 2018. http://bubblesoftapps.com.

Cantabile, 2018. https://www.cantabilesoftware.com

Good, M., 2001. MusicXML: An Internet-Friendly Format

for Sheet Music. XML Conference and Expo 2001

Kurth F., Müller M., Fremerey C., Chang Yh, Clausen M.,

2007. Automated Synchronisation of scanned sheet

music with audio recordings. In: Proceedings of the 8th

International Conference on Music Information

Retrieval, 2007, Vienna, Austria.

Kurth F., Damm D., Fremerey C., Müller M., Clausen M.,

2008. A Framework for Managing Multimodal

Digitized Music Collections. In: Christensen-Dalsgaard

B., Castelli D., Ammitzbøll Jurik B., Lippincott J. (eds)

Research and Advanced Technology for Digital

Libraries. ECDL 2008. Lecture Notes in Computer

Science, vol 5173. Springer, Berlin, Heidelberg.

Lai, C. F., Chang, S. Y., Huang, Y. M. Park, J. H., Chao, H.

C., 2011. A portable UPnP-based high performance

content sharing system for supporting multimedia

devices. The Journal of Supercomputing, Vol. 55, Issue

2, Springer, Berlin, Heidelberg.

Lee, S.W., Freemen, J., Collela, A., 2012. Real-Time Music

Notation, Collaborative Improvisation, and Laptop

Ensembles. In: Proc. 12th International Conference on

New Interfaces for Musical Expression, 2012, Ann

Arbor, Michigan, USA.

Line GmbH, 2018. http://4thline.org

MIDI, 2018. https://www.midi.org

OCF, 2018. https://openconnectivity.org/developer/

specifications/upnp-resources/upnp

Sung, J., Kim, D., Song, H., Kim, J., Yong L., Choi, J.,

2006. UPnP based intelligent multimedia service

architecture for digital home network. Proc. of the

Fourth IEEE Workshop on Software Technologies for

Future Embedded and Ubiquitous Systems and Second

International Workshop on Collaborative Computing,

Integration, and Assurance (SEUS-WCCIA’06) .

Torrente, B., Barro Torres, S.J., Dapena, A., Escudero, C.J.,

2011. Defining an XML format for sound synthesis. In:

Proceedings of the 5th International Conference on

Ubiquitous Information Management and

Communication, 2011, Seoul, Republic of Korea.

W3C, 2018. https://www.w3.org/TR/soap/

WEBIST 2018 - 14th International Conference on Web Information Systems and Technologies

276
