Leveraging Conceptual Data Models for Keeping Cassandra

Database Integrity

Pablo Suárez-Otero, Maria José Suárez-Cabal and Javier Tuya

Computer Science Department, University of Oviedo, Campus de Viesques, Gijón, Spain

Keywords: NoSQL, Conceptual Model, Logical Model, Cassandra, Logical Integrity.

Abstract: The use of NoSQL databases has recently been increasing, being Cassandra one of the most popular ones. In

Cassandra, each table is created to satisfy one query, so, as the same information could be retrieved by several

queries, this information may be found in several distinct tables. However, the lack of mechanisms to ensure

the integrity of the data means that the integrity could be broken after a modification of data. In this paper,

we propose a method for keeping the integrity of the data by using a conceptual model that is directly

connected to the logical model that represents the Cassandra tables. Our proposal aims to keep the data

integrity automatically by providing a process that will undertake such maintenance when there is a

modification of the data in the database. The conceptual model will be used to identify the tables that could

have inconsistencies and also assist in resolving them. We also apply this approach to a case study where,

given several insertions of tuples in the conceptual model, we determine what is needed to keep the logical

integrity.

1 INTRODUCTION

Recently, NoSQL databases have been growing in

importance due to the advantages they provide in the

processing of big data (Moniruzzaman and Hossain,

2013). These databases are not meant to replace

relational databases but instead they are intended as

alternatives that could achieve better performance in

some situations (Leavitt, 2010) such as writing and

reading (Li and Manoharam, 2013). Other studies

(Cattell, 2011) have claimed that these improved

results are due to the abandonment of ACID

constraints. Four types of NoSQL databases have

been developed without these constraint (Tauro et al.,

2012): those based on key-values like Dynamo, those

based on documents like MongoDB, those based on

graphs like Neo4J and those based on columns like

Cassandra.

Cassandra is a distributed database developed by

the Apache Software Foundation (Datastax, 2016). Its

characteristics are (Han et al., 2011): 1) a very

flexible scheme where the addition or deletion of

fields is very convenient; 2) high scalability, so if a

single element of the cluster fails, it does not affect

the whole cluster; 3) a query-driven approach in

which the queries are used to organize the data. This

last characteristic means that, in general, each

Cassandra table is designed to satisfy a single query

(Datastax, 2015). This means that the same

information could be retrieved in several queries, so

in each table that satisfies these queries the

information is repeated. This also implies that the

model that represents the tables in Cassandra is a

denormalized model, unlike in relational databases

where it is a normalized model.

Cassandra does not have mechanisms to ensure

the logical integrity of the data, therefore it is needed

to be kept by the developer (Thottuvaikkatumana,

2015). This could lead to inconsistencies within the

data. For example, consider the situation of a

Cassandra database that stores data relating to authors

and their books. This database has two tables, one

created to accomplish the query “books that a given

author has written” (books_by_author) and another

one created to accomplish the query “find information

of a book giving its identifier” (books). Note that the

information pertaining to a specific book is repeated

in both tables. Suppose that, during the development

of a function to insert books in the database, the

developer forgets to introduce a database statement to

insert the book in “books_by_author”, producing an

inconsistency. This example is illustrated in Figure 1:

398

Suárez-Otero, P., Suárez-Cabal, M. and Tuya, J.

Leveraging Conceptual Data Models for Keeping Cassandra Database Integrity.

DOI: 10.5220/0007236303980403

In Proceedings of the 14th International Conference on Web Information Systems and Technologies (WEBIST 2018), pages 398-403

ISBN: 978-989-758-324-7

Insert Book

Books

Book_Id

Book_Title

Books_by_author

Author_Id

Book_Id

Inconsistency

produced: Book was

not inserted in

Books_by_author

Figure 1: Logical integrity broken.

As the number of tables in a database increases,

so too does the difficulty of maintaining the

consistency. This article approaches this problem,

proposing a solution based on a conceptual model

connected to the Cassandra datamodel that

automatically keeps the integrity of the data. The

contributions of this paper are as follows:

1. A method that automatically identifies the

tables that need maintenance of the integrity

and proposes how they may be maintained.

2. An evaluation in a case study of the proposed

method.

This paper is organized as follows. In section 2,

we review the current state of the art. In section 3, we

describe our approach to keep the logical integrity of

the data. In section 4, we evaluate the results of

applying our method to keep the logical integrity in a

case study. The article finishes in section 5 with the

conclusions and the proposed future work.

2 RELATED WORK

Most works that study the integrity of the data are

focused on the physical integrity of the data

(Datastax, 2017). This integrity is related to the

consistency of a row replicated throughout all of the

replicas in the Cassandra cluster. However, in this

paper we will treat the problem of the logical

integrity, which is related to the integrity of the

information repeated among several table.

The official team of Cassandra has studied the

problem of keeping the data integrity by developing

the feature “Materialized views” (Datastax, 2015).

The “Materialized views” are table-like structures

where the denormalization is handled automatically

on the server-side, ensuring the integrity. Usually, in

Cassandra data modelling, a table is created to satisfy

one specified query. However, using this feature, the

created tables (named base tables) are meant to store

data that will be queried in several ways through

Materialized Views, which are query-only tables.

Every modification of the data in a base table is

reflected in the materialized views, it not being

possible to write data directly in a materialized view.

Each materialized view is synchronized with only one

base table, not being possible to have information

from more than one table, unlike what happens in the

materialized views of the relational databases. This

means that if there is a query that involves

information stored in more than one base table, it is

not possible to use Materialized Views to satisfy it,

and the creation of a normal table is required.

Related to the aforementioned problem is the

absence of Join operations in Cassandra. A study

(Peter, 2015) has researched the possibility of adding

the Join operation in Cassandra. This work achieves

its objective of implementing the join by modifying

the source code of Cassandra 2.0 but it still has room

for improvement regarding the performance of the

implementation.

There have also been studies (Chebotko et al.,

2015) that have given a great deal of importance to

the conceptual model, such as where a new

methodology for Cassandra data modelling is

proposed that uses a conceptual model to create the

Cassandra tables in addition to the queries. This is

achieved by the definition of a set of data modelling

principles, mapping rules, and mappings. Regarding

our problem, the work in (Chebotko et al., 2015)

introduces an interesting concept: the use of a

conceptual model that is directly related to the tables

of a Cassandra database, an idea that we will use for

our approach.

The conceptual model is the core of the previous

work (Chebotko et al, 2015) but it is unusual to have

such a model in NoSQL databases. Regarding this,

there have been studies that propose the generation of

a conceptual model based on the database tables. One

of these works (Ruiz et al., 2015) is focused on

generating schemas for document databases but

claims that the research could be used for other types

of NoSQL databases. These schemas are obtained

through a process that, starting from the original

database, generates a set of entities, each one

representing the information stored in the database.

The final product is a normalized schema that

represents the different entities and relationships.

3 KEEPING THE LOGICAL

INTEGRITY

In Cassandra there is no mechanism to ensure the

integrity of the data, and therefore it must be

controlled in the client application that works with the

Cassandra database. We have identified two types of

modifications that can break the logical integrity:

 Modifications of the logical model: When

there is a modification regarding the tables,

Leveraging Conceptual Data Models for Keeping Cassandra Database Integrity

399

such as the creation of a new table or the

addition of columns to an existing table. In

this case, the data integrity is broken because

the information that the new columns must

store may already be found in the database.

 Modification of data: We define a

modification of data as the change of the

values stored in a row in the logical model or

the change of the values of a tuple in the

conceptual model. After a modification of

data in a table, an inconsistency is produced

if the modified data has functional depen-

dencies with other data stored in other tables.

In this work we will focus on the modifications of

data.

3.1 Complete Approach

Firstly, we intend to identify a way to detect the tables

where the logical integrity can be broken with a given

modification of data. To address this problem, we have

decided to use a conceptual model that has a connec-

tion with the logical model (model of the Cassandra

tables). This connection (Chebotko et al, 2015)

provides us a mapping where each column of the

logical model is mapped to one attribute of the concept-

ual model and one attribute is mapped from none to

several columns. We will use this mapping for our

work to determine in which tables an attribute is stored.

This is done through a static analysis of both models.

Our approach is divided in two: the top-down

approach and the bottom-up approach. In the top-

down approach, given a modification of data in the

conceptual model (insertion, update or deletion of a

tuple), we identify in the logical model the insertions,

updates and deletions of rows we must do to keep the

data integrity and how they must be done. In the

bottom-up approach, given a modification of data in

the logical model (insertion, update or deletion of a

row), we identify in the conceptual model, through

the use of the mapping attribute-column, the

attributes mapped to the columns of the row. Finally,

we determine what modification of data are

equivalent in the conceptual model (insertion, update

or deletion of a tuple). Note that the result of the

bottom-up approach, a modification of data in the

conceptual model, is the entry of the top-down

approach. Therefore we can combine both approaches

to provide an automatization for keeping the data

integrity after a modification of data in the logical

model. This combination between both approaches is

illustrated in Figure 2:

Conceptual model

(normalized)

Mapping

Logical model

(denormalized)

Bottom-up

after a

modification of

data in the

logical model

Top-down after a

modification of

data in the

conceptual

model

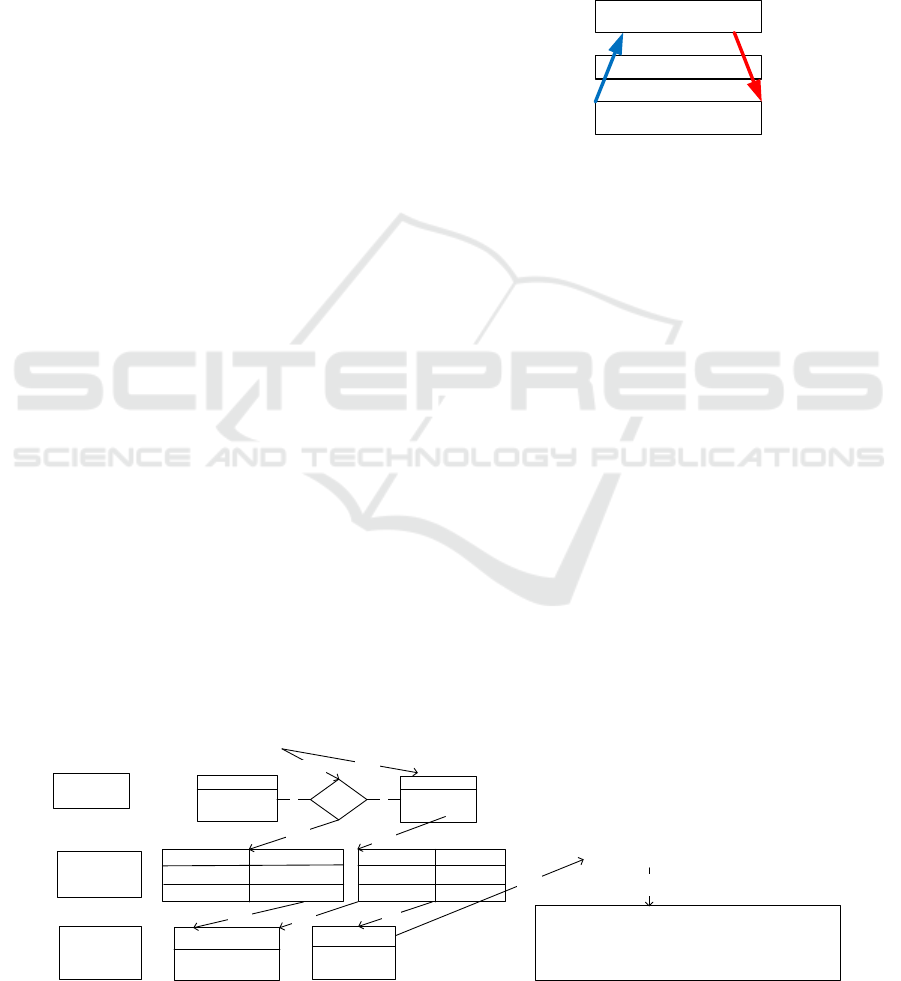

Figure 2: Approaches top-down and bottom-up combined.

In this work, we will detail the process of the top-

down approach in the next section through an

example.

3.2 Top-down Approach

The case in Figure 1 is an example of this approach.

In addition to the tables “books_by_author” and

“books” we also have a conceptual model with the

entities “Author” and “Book” where an author has

written several books. Suppose that we insert a tuple

with the information of a book and the author who

wrote it (step 1). Then, we detect, by means of

attribute-column mapping (step 2), that in both table

there are columns that correspond with the attributes

of the inserted tuple (step 3). In order to keep the data

integrity, we determine (step 4) that we need to insert

in each table a row containing the appropriate

information from the tuple. Finally (step 5) in order

to automate the approach, we translate these

insertions to CQL statements (Apache Software

Foundation, 2017). This is illustrated in Figure 3.

Conceptual

Model

Logical

model

(Cassandra)

Author

name

Book

Title

Books_by_Author

Author_Id

Book_Id

Mapping

Attribute/

Column

Insert Book: Author.Id=’AU001', Book.Id=’LIB001', Book.Title=’TI001'

Attribute

Column

Book.Id

Book.Tit le

Book_Id

Book_Title

Author.Id

Author.name

Attribute

Column

Author_Id

Author_name

INSERT INTO Books_by_Author (Author_Id,

Book_Id) VALUES (‘AU001’, ‘LIB001’);

INSERT INTO Books (Book_Id, Book_Title ) VALUES

(‘LIB001’, ‘TI001’);

We need to insert the id and title of the

book in ‘Books’ and the id of the book and

its author in ‘Books_by_Author”

Writes

1 n

Book_Id

Book_Title

Books

Figure 3: Top-down approach.

APMDWE 2018 - 3rd International Special Session on Advanced practices in Model-Driven Web Engineering

400

We have analysed this approach and in section 4

we show the results of the experimentation of applying

this approach for several insertions of tuples.

4 EVALUATION

This case study (Chebotko et al, 2015) is about a data

library portal. Its conceptual model contains 4 entities

and 5 relationships displayed in Figure 4. On the other

hand, the logical model contains 9 tables and it is

displayed in Figure 5. We have evaluated 126

insertions of tuples in the different entities and

relationships of this conceptual model with the

objective of determining what CQL operations

(INSERT, UPDATE or SELECT) are needed to keep

the integrity.

The tuples inserted always contain values

assigned for the primary key of the entity or, in the

case of the relationships, the primary keys of both

entities related. Optionally, the tuples can also contain

values assigned for the attributes that are not key. For

each entity and relationship we have inserted several

tuples, where each one contains different attributes

with assigned value. In Table 1 a summary of these

insertions is displayed: the number of insertions of

tuples evaluated (in entities and relationships) and

total, average and maximum number of operations

INSERT, UPDATE and SELECT operations needed

to keep the logical integrity in the database.

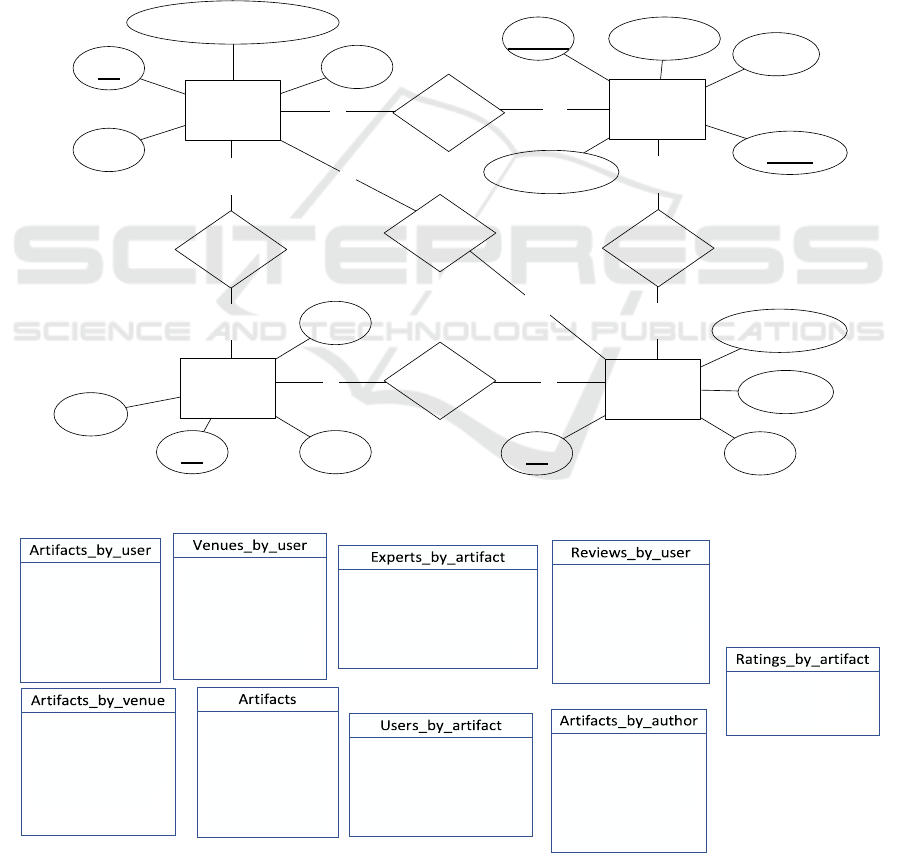

User

Name

Areas_of_expertise

Review

ID Body

Title

Rating

Venue

Name Country

Topics

Year

Artifact

ID Title

Keywords

Authors

Homepage

LikesV

LikesA

Posts

Rates

Features

Figure 4: Conceptual model of the case study.

Venue_name

Venue_year

Artifact_id

Artifact_title

Artifact_authors

Artifact_keywords

Artifact_authors

Venue_year

Artifact_id

Artifact_title

Artifact_keywords

Venue_name

Artifact_id

User_id

User_name

User_email

User_areas_of_expertise

Artifact_id

User_areas_of_expertise

User_id

User_name

User_email

Artifact_id

Num_ratings

Sum_ratings

User_id

Venue_name

Venue_year

Venue_country

Venue_homepage

Venue_topics

User_id

Venue_year

Artifact_id

Artifact_title

Artifact_authors

Venue_name

User_id

Review_rating

Review_id

Review_body

Artifact_id

Artifact_title

Artifact_id

Artifact_title

Artifact_authors

Artifact_keywords

Venue_name

Venue_year

Figure 5: Logical model of the case study.

Leveraging Conceptual Data Models for Keeping Cassandra Database Integrity

401

Table 1: Summary of the results for keeping the data integrity for the inserted tuples.

Operation INSERT Operation UPDATE Operation SELECT

Entiity/Relationships Number of inserted tuples Total Average Maximum Total Average Maximum Total Average Maximum

Artifact 4 12 3 3 8 2 2 18 4,5 9

Review 4 4 1 1 8 2 2 10 2,5 4

User 4 0 0 0 0 0 0 0 0 0

Venue 4 0 0 0 0 0 0 0 0 0

Features 20 60 3 3 40 2 2 90 4.5 9

LikeA 25 135 5.4 6 40 1.6 2 215 8.6 16

LikeV 25 25 1 1 0 0 0 39 1.56 3

Posts 20 20 1 1 40 2 2 50 2.5 4

Rates 20 68 3.4 4 40 2 2 110 5.5 13

Total 126 324 2.57 6 176 1.4 2 532 4.2 16

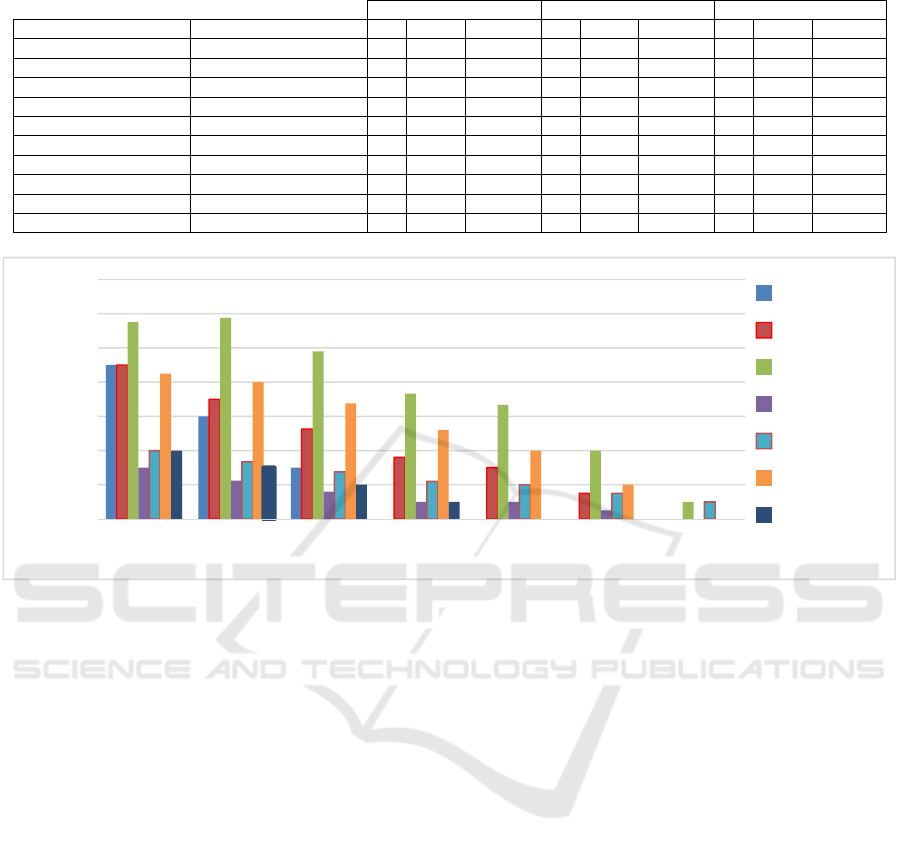

Figure 6: Inverse Relationship between SELECT operations and the number of attribute with assigned value.

The results displayed in Table 1 show that in

general a denormalized datamodel requires to

determine several operations to keep the logical

integrity after a single insertion of a tuple in the

conceptual model. For 126 insertions in the

conceptual model, we needed 324 INSERT

operations, 176 UPDATE operations and 532

SELECT operations to keep the integrity in the

logical model. The particular cases of the insertions

of tuples of Venue and User, where there are no

operations needed, is caused because we cannot insert

the information of these tuples alone in any table of

the logical model. In order to insert the information

of a Venue or a User it needs to be inserted alongside

the information of relationships such as LikesV or

LikesA, respectively.

We have also detected an inverse relationship

between the number of SELECT operations and the

number of attributes with assigned value in the tuple.

The tuples with the information of entities can contain

up to 3 non-key attributes with assigned values while

the ones with information of relationships contain up

to 6 non-key attributes with assigned values (the

combination of the 3 attributes of each entity of the

relationship). This inverse relationship is shown in

Figure 6 where each bar represents the average of

SELECT operations needed for the number of

attributes with assigned value in the tuple. We

observe how the average of SELECT operations

decreases as the number of attributes with assigned

value increases.

5 CONCLUSIONS

Nowadays, the use of NoSQL databases is increasing

due to the advantages that they give to the processing

of big data. When we work with NoSQL databases,

we need to use models due to the complexity of the

data. In this work we have used two models, the

conceptual model and the logical model, for our

objective of keeping the consistency in Cassandra.

Although Cassandra lacks mechanisms to preserve

the integrity of the data, we have proposed in this

article a method that automatically keeps the integrity

of the data using a conceptual model directly

connected to the Cassandra data model (logical

model). We have also observed through

experimentation that, after an insertion of a tuple, in

order to keep the integrity in a logical model with 9

0123456

Average of SELECT

operations

Number of attributes with assigned value

Artifact

Features

LikeA

LikeV

Posts

Rates

Review

APMDWE 2018 - 3rd International Special Session on Advanced practices in Model-Driven Web Engineering

402

tables we needed up to 6 INSERT operations and 16

SELECT. This shows how complex keeping the

integrity of the data can be and that if the number of

tables that store the same information increases, the

complexity of keeping its integrity also increases.

With our automatized method we ensure the data

integrity which helps the developer avoiding potential

defects.

As future work we want to deepen in the bottom-

up approach. We also want to study how to create

conceptual models based just in the logical model in

order that the systems that were not created with a

conceptual model can also use our method.

ACKNOWLEDGMENTS

This work was supported by the projects

TESTEAMOS (TIN2016-76956-C3-1-R) and

PERTEST (TIN2013-46928-C3-1-R) of the Ministry

of Economy and Competitiveness, Spain. It has also

been supported by the project GRUPIN14-007 of the

Principality of Asturias and supported by the ERDF

REFERENCES

Apache Software Foundation. (2017) The Cassandra Query

Language (CQL). [online]. Available at:

http:// cassandra.apache.org/doc/latest/cql/ [Accessed

19-07-2018]

Cattell, R. (2011). Scalable SQL and NoSQL data stores.

ACM Sigmod Record, 39, 4 (December 2010)

Chebotko. A, Kashlev, A., Lu, S. (2015). A Big Data

Modeling Methodology for Apache Cassandra. In

IEEE International Congress on Big Data (BigData'15),

238-245, New York, USA, 2015.

Datastax. (2015) Basic Rules of Cassandra Data Modeling.

[online] Available at https://www.datastax.com/dev

/blog/basic-rules-of-cassandra-data-modeling [Acces-

sed 19-07-2018]

Datastax (2015). New in Cassandra: Materialized Views.

[online] Available at: https://www.datastax.com/dev/

blog/new-in-cassandra-3-0-materialized-views [Acces-

sed 19-07-2018]

Datastax. (2016). Apache Cassandra. [online]. Avialable

at: http://cassandra.apache.org/ [Accesed 19-07-2018]

Datastax. (2017) Data consistency [online]. Available at

https://docs.datastax.com/en/cassandra/3.0/cassandra/d

ml/dmlAboutDataConsistency.html [Accessed 19-07-

2018]

Han, J., Haihong, E., Le, G., Du, J. (2011). Survey on

NoSQL database. In Pervasive computing and

applications (ICPCA), 2011 6th international

conference on (pp. 363-366). IEEE.

Leavitt, N. (2010). Will NoSQL databases live up to their

promise?. Computer, (February 2010), 43, 2.

Li, Y. & Manoharan, S. (2013). A performance comparison

of SQL and NoSQL databases. In Communications,

computers and signal processing, 2013 IEEE pacific

rim conference on (PACRIM ‘13), IEEE, 2013. p. 15-

Moniruzzaman, A. B. M., Hossain, S. A. (2013). Nosql

database: New era of databases for big data analytics-

classification, characteristics and comparison.

Peter. C. (2015). Supporting the Join Operation in a NoSQL

System. Master’s thesis. Norwegian university of

Science and Technology, Norway

Rajanarayanan Thottuvaikkatumana. (2015). Cassandra

Design Patterns, second edition, ed. Packt Publishing

Ltd

Ruiz, D. S., Morales, S. F., Molina, J. G. (2015). Inferring

versioned schemas from NoSQL databases and its

applications. In International Conference on

Conceptual Modeling (ER 2015), 467-480. Springer,

Cham.

Tauro, C. J., Aravindh, S., Shreeharsha, A. B. (2012).

Comparative study of the new generation, agile,

scalable, high performance NOSQL databases.

International Journal of Computer Applications,

48(20), 1-4.

Leveraging Conceptual Data Models for Keeping Cassandra Database Integrity

403
