The Multi-Threaded Analysis of Multiscale Solver

for Viscoelastic Fluids Based on Open FOAM

Yi Liu1, XiaoWei Guo

, Chao Li

, Cheng Kun Wu

, Xiang Zhang

and Canqun Yang

College of Computer, National University of Defense Technology, No. 109 Deya Street, Changsha, China

Keywords: Multi-threaded, Multiscale, Open FOAM.

Abstract: In this paper, we gave performanceanalysis of a multi-threaded multiscale numerical solver based on Open

FOAM. In the multiscale solver, we find that the matrix-vector multiplication is not the most compute-

intensive operations. The discretization of stochastic equation about the Brownian configuration fields

consumes nearly half the time for simulation. Our analysis result could provide valuable guidance for the

parallel performance improvement of multiscale solver based on Open FOAM.

1 INTRODUCTION

Multiscale modelling and simulations(Horstemeyer,

2009)are usually employed to capture important

features of complex fluids at multiple scales of time

or space. In the multiscale simulation of complex

fluids, the macroscopic flow behaviours are

intrinsically governed by the dynamics of

microscopic molecules.And the micro-

macromultiscale methods(Keunings, 2004)couple

the coarse-grained molecular scale kinetic theory

into the macroscopiccontinuum mechanics.A

macroscopic computational model is fast and simple.

Nevertheless, it fails to reproduce many complex

phenomena observed in experiments since the

macroscopic model ignores microscopic details of

molecular dynamics. As a microscopic approach, the

atomistic modelling could provide the most detailed

descriptionof the fluids dynamics, thus leading to

enormous calculations(Guo et al., 2016).However,

the micro-macro multiscale methods directly employ

kinetic theory models in flow simulations, avoiding

potentially inaccurate closure approximations

involved in macroscopic computational model. In

addition, these techniques consume less computing

resources than microscopic approaches.Therefore,

the micro-macro methods for multiscale simulations

have attracted great attention in recent years.

The Brownian configuration fields (BCF)(Hulsen

et al., 1997) is one of the multiscale methods to

model viscoelastic fluids, which made a

breakthrough via the use of correlated local

ensembles. The BCF method uses a uniform number

of configuration fields at fixed spatial positions to

model the dynamics of molecular chains. Not only

does this method ensure a homogeneous polymeric

density in physical space, but also avoids tracking

discrete particles. In a BCF simulation, the motion

of viscoelastic fluids is still governed by the Naiver-

Stocks equation on the macro-scale while the

viscoelastic stress is calculated through solving a

large number of stochastic equations on the micro-

scale and taking the ensemble average as the

macroscopic result. We implemented a multiscale

numerical solver using the BCF methods to

exploring the molecular distributions based on Open

FOAM(Open Source Field Operation and

Manipulation)(Liu et al., 2018).

Open FOAM is an open source toolbox for

solving particle differential equations through the

Finite Volume Method (FVM)(Christopher and

Greenshields, 2015).It is written in C++ and offers a

flexible framework for users to customize and

extend its existing functionality freely. The users

could focus on the mathematical models without

considering the underlying implementation in detail

because of the sufficient abstraction provided by

Open FOAM. Therefore, Open FOAM is widely

accepted in both academic and industrial CFD

(Computational Fluid Dynamics) communities.

Open FOAM is parallelized with general parallel

protocol MPI (Message Passing Interface). To

increase the parallel performance of the Open

FOAM solvers on the high-performance

systems(Yang et al., 2017;Wang et al., 2017), a

hybrid multi-threaded solution was introducedby

Liu(2011), which usesMPI between nodes and

OpenMP directives inside the node.This method is

intended to reduce MPI communications.

However, nearly all the previous studies of the

parallel performance mainly focused on the existing

solvers and seldom mentioned applications extended

from Open FOAM. In this work, we apply this

hybrid multi-threaded strategy on our multiscale

BCF solver to improve the parallel performance on

the high-performance systems. In the remaining of

this paper, we first present the model and the

environment in Section 2. Then, Section 3

introduced the optimization strategies and made

numerical validation. At last, we concluded this

work and draw our conclusions in Section 4.

2 MODEL AND EXPERIMENTAL

CONFIGURATION

2.1 Mathematic Model

From the macroscopic perspective, the motion of the

isothermal and incompressible fluid with density ρ

could be described by the dimensionless momentum

balance equation

and the continuity equation

where ,,



represent the velocity, the pressure,

and the viscoelastic stress of the polymer fluid.

From the microscopic viewpoint, the viscoelastic

stress is calculated by solving a large number of

stochastic equations and the ensemble average is

taken as the macroscopic result. The stochastic

equations is given by

and the viscoelastic stress 



can be calculated by

where is a stochastic process representing the

dumbbell’s configuration vector and  indicates

the spring force.The 3-dimensional Gaussian Wiener

processis used to model Brownian forces and is a

unity matrix. In Equation (4),

,

specifies a spring

dependent constant and



indicates the number of

Brownian configuration fields.

From Equation (1) to (4), the dimensionless

parameters  (Deborah number),  (Reynolds

number) and β(viscosity ratio)are defined as

where 



, 



, 



represent the characteristic density,

velocity and length in macroscopic flow. And 



,



indicate solvent and polymeric viscosity,

respectively.

2.2 Experimental Configuration

The simulation domain of thedesigned solveris a

two-dimensional rectangular box. The viscoelastic

fluid flows into the left boundaries and out of the

right boundaries. The flow geometry is shown as

Figure 1.

0.1

1.0

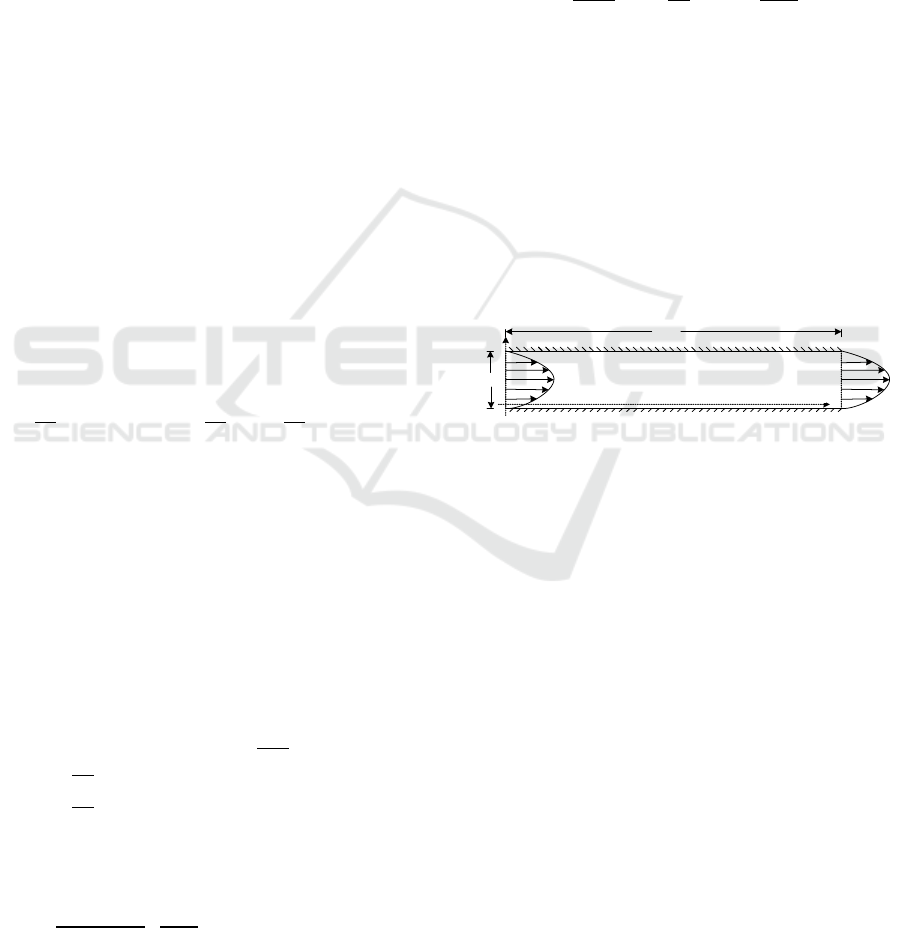

Figure 1: Flow geometry of viscoelastic fluids flow.

In this paper, we solve the BCF model with

modified PISO algorithm in OpenFOAM. Gauss

MINMOD and Gauss linear scheme are applied to

discretize the spatial terms of the equation while

Euler scheme is used for temporal discretization

terms. After the partial differential equation is

discretized using FVM, it can be transformed into a

linear equation. Then we can use the iterative solvers

provided byOpenFOAM to get the solutions at every

time step. Preconditioned conjugate gradient (PCG)

method is used to solve the pressure equation, and

preconditioned biconjugate gradient (PBICG)

method is for other equations(Liu et al., 2018).





∙=



∆



∙



(1)

∙=0

(2)

= ∙  









∙

2



















(3)









,

1  









⊗









(4)

=





















, =









, =













(5)

3 OPTIMIZATION

STRATEGIESAND

VA L I D AT I O N

3.1 Optimization Strategies

The Open FOAM-based viscoelastic solver is

parallelized with MPI parallel communication

interface.The flow chart of MPI programming model

in Open FOAM is shown in Figure 2.

Mesh

MPI Message passing

Subdomain 1

……

Subdomain n

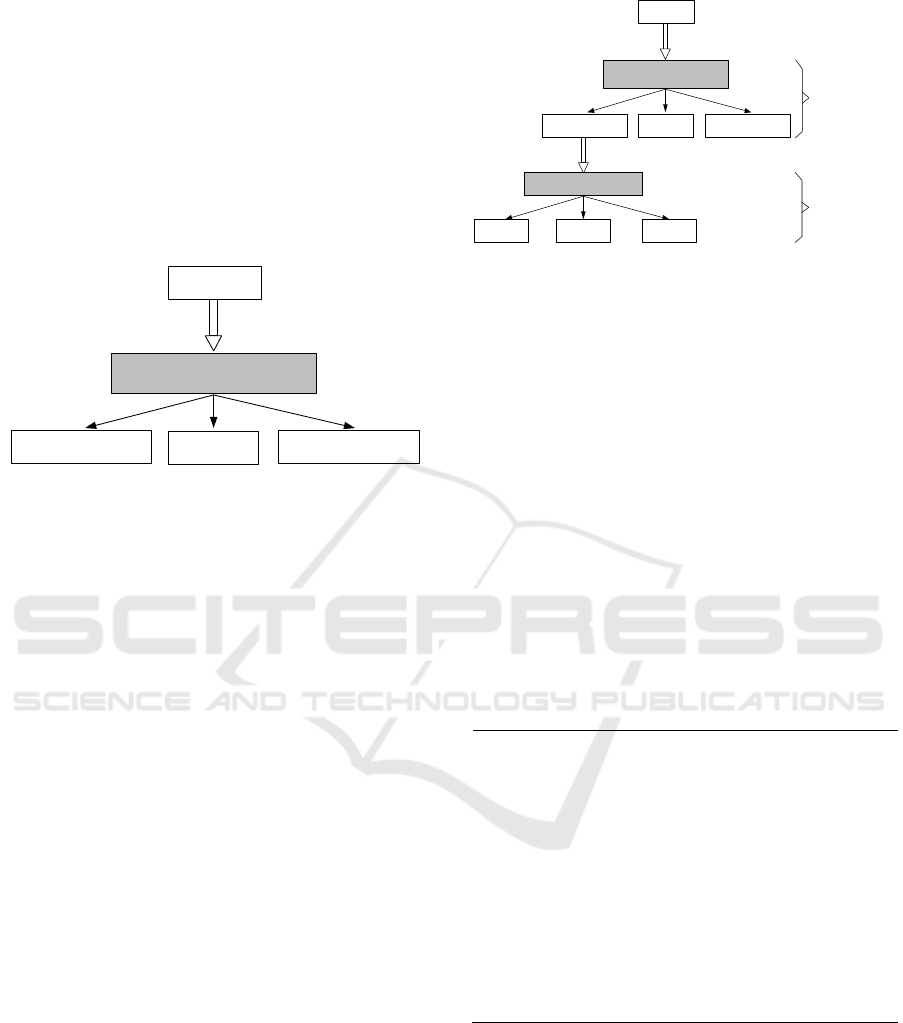

Figure 2: Flow chart of MPI programming in OpenFOAM.

In this model, one global mesh domain is

decomposed into multiple load-balanced

subdomains with the domain partition toolkit

decompose Par in Open FOAM, which solved a big

problem of MPI program. However, each MPI

processjust handles the subdomain on their local

processor. They have to rely on the point-to-point

communication to update boundary field and the

MPI_Allreduce()global communication to calculate

residuals when solving the local linear systems in

PISO algorithm.The communication traffic is

proportional to the number and the area of

subdomains for a specific simulation. Therefore, the

pure MPI-based viscoelastic solver would be easily

jammed by sending and receiving large number of

messages(Culpo, 2011). In such case, a multi-level

parallelism modelincorporating MPI and OpenMP as

in Figure 3 is introduced to exploit more potential

data parallelism in local MPI process(Zou et al.,

2014).

Mesh

MPI Message passing

Subdomain 1

……

Subdomain n

OpenMP directives

Thread 1

……

Thread 1

decomposePar

fvMatrix::solve

CG type

linear solvers

Figure 3: Flow chart of the hybrid parallelism model.

InFigure 3, each MPI process is assigned to an

exclusive compute node to execute. Inside the

compute node, the OpenMP threads are introduced

to optimize the compute-intensive operations in

conjugate gradient type linear solvers, such as cell-

based loops and matrix-vector multiplication of

Amul() and Tmul()(Paride Dagnaa, 2013). We

added OpenMP directives “#pragma omp parallel

for” into these operations without data dependency

and distributed onto cores as independent threads

inside the compute node. However, there is data race

in original matrix-vector multiplication in

OpenFOAM. To eliminate the inevitable data race,

we reorganized the face-based loop to the cell-based

loop as in Algorithm 1 for OpenMP multi-

threading(Zou et al., 2014). The reorganized

fvMatrix::Amul() function is given in Algorithm 1:

3.2 Numerical Validation

We first test our numerical solver on the mesh

( 800 × 80 ) with the number of Brownian

configuration fields 



=800 for 1 process with

different number of threads.Each test has been run

for 5000 time steps. All the tests are executed on a

high-performance cluster with 390 nodes, each with

initMatrixInterfaces

(

…,

si ,…

)

;

#pragma omp parallel fo

for

(

label cell=0;cell<nCells;cell++

)

scalar res=0;

res=diagPtr[cell]∗

siPtr[cell];

for

(

face owned b

current cell

)

res+=lowerPtr[face]∗

siPtr[uPtr[face]];

end for

for

(

face owned b

nei

hbour cells

)

res+=upperPtr[face]∗

siPtr[lPtr[face]];

end for

ApsiPtr[cell]=res;

end for

updateMatrixInterfaces(..., Apsi, ...);

24 Intel Xeon E5-2692 CPU and 64GB of memory.

The version of Open FOAM on the high-

performance cluster is v4.0 and complied with GNU

5.4.0 compiler.

We reorganized the face-based loop to the cell-

based loop and tested the wall time for 1 process

with different number of threads of the multiscale

solver. The results are shown in Table 1.

In order to comp are whether multi-thread

method improves parallel performance more

intuitively, we made a bar chart in Figure 4 with the

data in Table 1 to show the speedup of different

number of threads.

Table 1: The wall time for different number of threads of

the multiscale solver.

Number of threads Wall time(s)

1 2401

2 2367

3 2349

4 2354

5 2369

6 2363

7 2345

8 2356

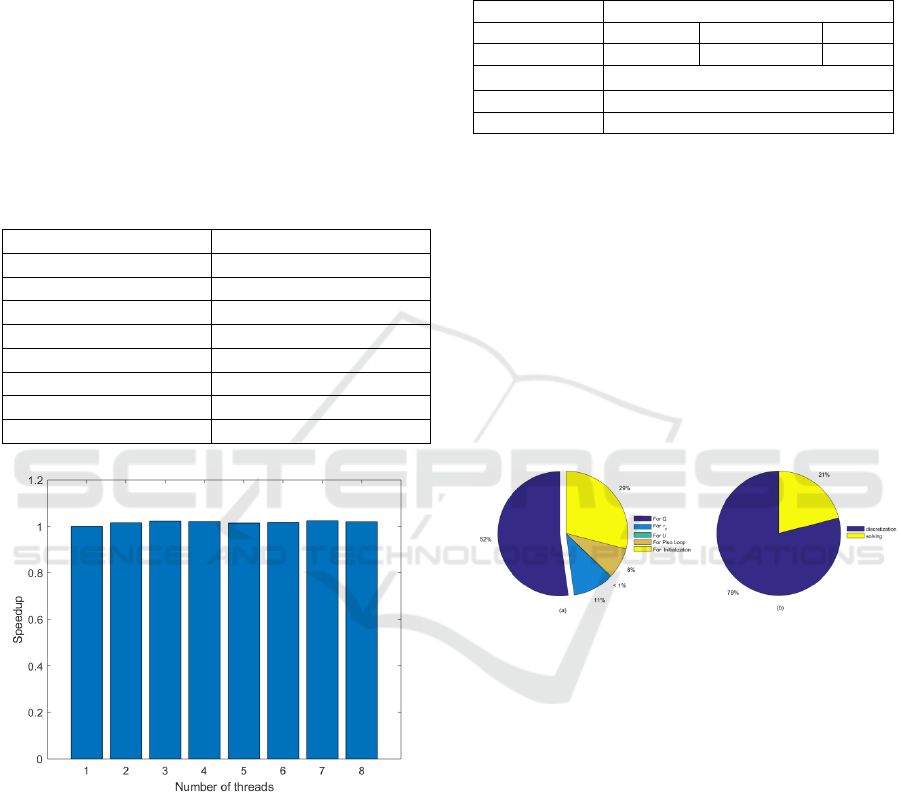

Figure 4: The total speedup of the multiscale solver with

optimized matrix-vector multiplication for different

number of threads.

As Figure 4 shows, the total speedup of the

multiscale solver with optimized matrix-vector

multiplication for different number of threads is

almost equal to 1. It can be concluded that matrix-

vector multiplication in conjugate gradient type

linear solvers is not the compute-intensive

operations in our multiscale BCF solver.

We test the average execution time for 5 main

code segments of the multiscale solver with only 1

process. Furthermore, we test the average execution

time of discretization and solving for .The result of

wall time is shown in Table 2.

Table2: Theaverage execution time for 5 main code

segments in the multiscale solver run with only 1 process.

Code Segment Execution Time(s)

Initialization 673.863 Discretization Solve



1212.09 958.13 253.96





245.75



5.375

PISO LOOP 186.312

According to the data in Table 2, we draw a pie

chart in Figure 5showing the time percent of each

code segment in the multiscale solver. The time

percent of discretization and solving for

 is also

drawn in Figure 5.As Figure 5 shows, half of the

average execution timeof the multiscale solver is

used to solve the Brownian configuration field

.

And the time percent of discretization for

 is 79%

while solving for  21%. The matrix-vector

multiplication would be only used when calling the

function fv Matrix::solve() to solve these variables.

Therefore, optimizing the matrix-vector

multiplication contributes little to the parallel

performance improvement.

Figure 5: The time percent of (a) each code segmentin the

multiscale solver; (b) discretization and solving for .

4 CONCLUSIONS

Through the multi-threaded analysis of the

multiscale numerical solver implemented with BCF

method, we find that the compute-intensive part is

not the matrix-vector multiplicationin conjugate

gradient type linear solvers. The discretization of the

Brownian configuration equations consumes nearly

half the time for simulation. However, the large

number of stochastic equations corresponding to

Brownian configuration fields can be solved

independently. In further study, we consider to

distribute the stochastic equations onto multi-threads

after mesh decomposition to improve the

performance of the parallel algorithm.

ACKNOWLEDGEMENTS

This work was supported by the National Key

Research and Development Program ofChina (No.

2016YFB0200401).

REFERENCES

1. HORSTEMEYER, M. F. 2009. Multiscale Modeling:

A Review.

2. KEUNINGS, R. 2004. Micro-macro methods for the

multiscale simulation of viscoelastic flow using

molecular models of kinetic theory. Rheology

Reviews, 2004, 67-98.

3. GUO, X.-W., XU, X.-H., WANG, Q., LI, H., REN,

X.-G., XU, L. & YANG, X.-J. 2016. A Hybrid

Decomposition Parallel Algorithm for Multi-scale

Simulation of Viscoelastic Fluids. 2016 IEEE

International Parallel and Distributed Processing

Symposium (IPDPS).

4. HULSEN, M. A., HEEL, A. P. G. V. & BRULE, B. H.

A. A. V. D. 1997. Simulation of viscoelastic flows

using Brownian configuration fields. Journal of Non-

Newtonian Fluid Mechanics, 70, 79-101.

5. LIU, Y., YANG, C., WU, C. K., ZHANG, X.,

ZHANG, X. & GUO, X. W. 2018. Exploring the

Molecular Distributions in Dilute Polymer Solutions

Using a Multi-Scale Numerical Solver. Polymers.

6. CHRISTOPHER, J. & GREENSHIELDS. 2015.

OpenFOAM Programmer’s Guide [Online].

Available: http://foam.sourceforge.net/docs/Guides-

a4/ProgrammersGuide.pdf [Accessed 05.09 2018].

7. YANG, X., WU, C., LU, K., FANG, L., ZHANG, Y.,

LI, S., GUO, G. & DU, Y. 2017. An Interface for

Biomedical Big Data Processing on the Tianhe-2

Supercomputer. Molecules, 22, 2116.

8. WANG, W., YANG, X., YANG, C., GUO, X.,

ZHANG, X. & WU, C. 2017. Dependency-based long

short term memory network for drug-drug interaction

extraction. Bmc Bioinformatics, 18, 578.

9. LIU, Y. 2011. Hybrid Parallel Computation of

OpenFOAM Solver on Multi-Core Cluster Systems.

Computer & Information Science.

10. CULPO, M. 2011. Current Bottlenecks in the

Scalability of OpenFOAM on Massively Parallel

Clusters [Online]. Available: http://www.prace-ri.eu

[Accessed 05.09 2018].

11. ZOU, S., LIN, Y. F., CHEN, J., WANG, Q. & CAO,

Y. 2014. The Performance Analysis and Parallel

Optimization of the OpenFOAM-Based Viscoelastic

Solver for Heterogeneous HPC Platforms. Applied

Mechanics and Materials.

12. PARIDE DAGNAA, J. H. 2013. Evaluation of Multi-

threaded OpenFOAM Hybridization for Massively

Parallel Architectures [Online]. Available:

http://www.prace-ri.eu [Accessed 05.09 2018].
