A
R
eview of the Most Adopted Fault Tolerance Approaches for
SRAM based FPGA Real Time Critical Embedded System
Meryem Bouras, Hassan Berbia
ENSIAS, Mohammed V University in Rabat, Agdal Rabat BP 713, Rabat, Morocco
Keywords: ADCS, Fault tolerance, Reliability, SRAM based FPGA, Configuration memory scrubbing
Abstract: Since the downscaling in technology FPGAs became widely used in space embedded systems, due to their
high computing capability, flexibility and easiness of implementation. Especially, SRAM-based FPGAs are
now more adopted and implemented; as processing unit; in digital systems like the ADCS, in nanosatellite.
However, this continuous downscaling made radiation-induced errors become a major concern. Particularly
for SRAMs-based FPGAs, because they are more sensitive to radiations and more prone to soft errors.
Regarding this matter, many approaches were developed and adopted in literature. Our objective is to optimize
the reliability of the ADCS system, by improving the reliability of its SRAM based-FPGA. Therefore, in this
paper we briefly describe the SRAM based FPGA configuration memory. Also, we present the different faults
tolerance approaches proposed in the literature, and we evaluate these approaches by illuminating their
advantages and disadvantages.
1 INTRODUCTION
Attitude estimation and control of a rigid body, in
domain like Aerospace, Aeronautics and Robotics, is
an important subject discussed by the scientific
comity in the last decades. Those domains, especially
Aerospace, requires designing reliable systems, that
provides an accurate estimation of the attitude, space-
saving and autonomy, and therefore less energy
consumption.
Environmental factors significant to space
radiation hazards are: trapped electrons and protons
of the Van Allen radiation belts, transient solar
energetic particles and galactic cosmic rays. These
hazards affect or profoundly damage spacecraft
electronics and microelectronic parts and cause a
limited number of dominant radiation effects. The two
most discussed effects are the Total Ionizing Dose
(TID) it could be contained by shielding, and the
Single event effect (SEE), it is an anomaly caused by
a single energetic particle striking a device.
The SEE phenomenon can be classified into
various types: Single Event Upset (SEU), it is
undesirable change in the logic state of the device.
Single Event Transient (SET), it is one or more
voltages pulses (i.e. glitches) that propagate through
the device, if it results in an incorrect value being
latched in a sequential logic unit, then it is considered
as an SEU. These soft errors can cause flipping of
single bit or more often adjacent bits in the memory.
Single Event Latchup (SEL), it may lead to
permanent damage to the device, and the most
dangerous type is Single Event Burnout (SEB), that
leads to permanent failure. These soft errors affect the
Attitude determination and control system (ADCS)
rigorous spacecraft attitude control and manoeuvres,
influences its reliability and compromise the
satisfactory and the safety of a nanosatellite mission.
As mentioned in the paper (Bouras et al., 2016), our
main objective is to optimize the reliability of this
system, by improving the reliability of its processing
unit. Static Random- Access Memory (SRAM) based
Field-Programmable Gate Arrays (FPGAs) are more
adopted and implemented; as processing unit; in
digital systems like ADCS, because of their low cost,
ability of reconfiguration and higher performance.
However, the continuous downscaling made the
SRAMs-based FPGAs, more sensitive to soft errors
like SEU, because the configuration memory that
defines the circuitry implemented inside them, is
more prone and vulnerable to Single Bit Upset (SBU)
and Multiple Bit Upset (MBU) (Colodro-Conde and
Toledo-Moreo, 2015). Therefore, to protect this
memory, and to minimize these two faults, SBU and
MBU, many approaches were developed and adopted
102
Bouras, M. and Berbia, H.
A Review of the Most Adopted Fault Tolerance Approaches forSRAM based FPGA Real Time Critical Embedded System.
DOI: 10.5220/0009775701020106
In Proceedings of the 1st International Conference of Computer Science and Renewable Energies (ICCSRE 2018), pages 102-106
ISBN: 978-989-758-431-2
Copyright
c
 2020 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved

in the literature. such as, optimized ECC (error
correcting code) (Dutta and Touba, 2007),
Interleaving (Xavier and Kantham, 2013), and
Hamming EDAC (error detection and correction)
cores with SEC-DED (single-error-correction,
double-error-detection) (Lankesh and
Narasimhamurthy, 2015), Scrubbing (readback
scrubbing, ECC scrubbing, CRC scrubbing) (Siegle
and Vladimirova, 2015). These techniques
capabilities have proven to be an effective way to
protect the configuration memory (Colodro-Conde
and Toledo-Moreo, 2015).
In this article we will we briefly describe the
SRAM based FPGA configuration memory. Also, we
will present, define and review state of the art faults
tolerance methods used for detecting and correcting
SBUs and MBUs, and we will give a simple
definition of the approach, that we chose among
them. Then we will present a comparative study of
these methods by illuminating their advantages and
disadvantages.
2 SRAM BASED FPGA
CONFIGURATION MEMORY
The SRAM based FPGA configuration memory can
be affected by radiation effects. However, its ability
to be updated in later design and mission stages, or to
be reconfigured in-flight. Makes it more adopted in
research and space applications. The most susceptible
part of the configuration memory is the Bitstream.
The Bitstream is a set of reprogrammable and volatile
configuration memory bits, responsible for the
configuration of all the SRAM based FPGA
components, such as CLBs, routing, Block RAMs,
DSP blocks and IO blocks. The size of the bitstream
depends on the FPGA device and the considered
application (Xilinx, 2005). The most popular SRAM
based FPGA are Virtex FPGAs series by Xilinx, and
the most adopted in literature is the Virtex 5.
A Virtex-5 FPGA configuration memory or
bitstream is composed of 41 words of 32 bits (1,312
bits). Basically, the FPGA configuration memory
floorplan is organized in rows and columns. Each
column defines a specific type of resource and the
rows divide each column in equal groups of elements.
For example, one row of a CLB column is composed
of 20 CLBs for the Virtex-5 FPGA (Tonfat et al.,
2015). A graphical description of the organization of
the floorplan is shown in Fig.1(fig 4 in (Tonfat et al.,
2015)).

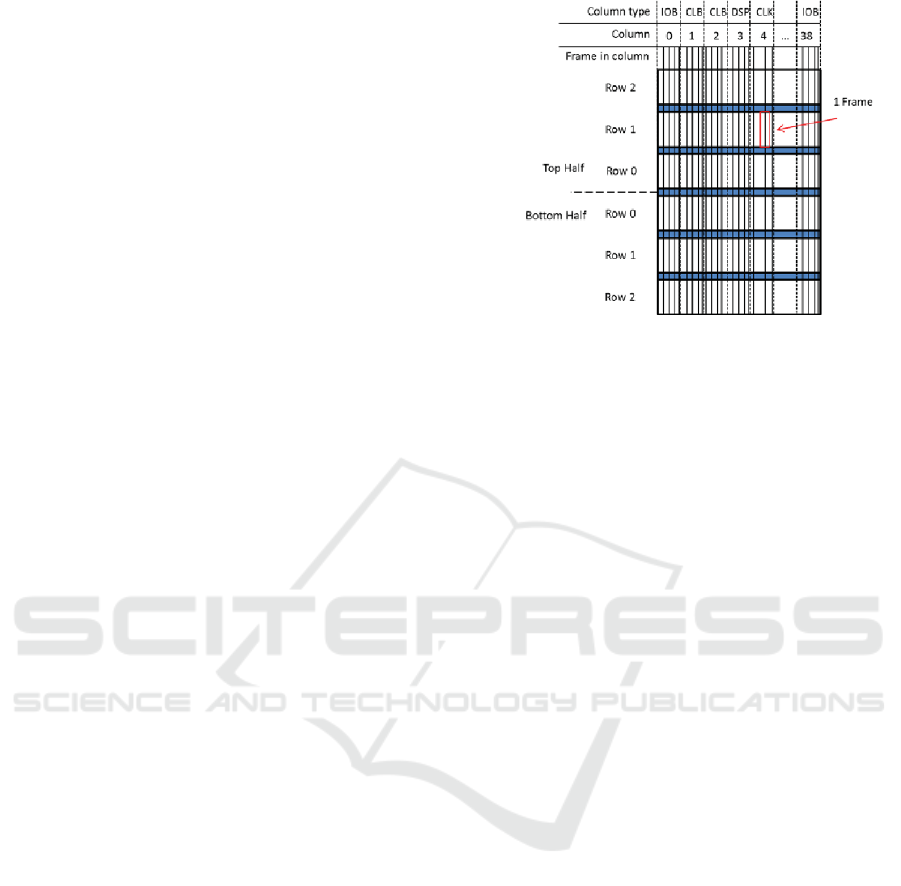

Figure 1: An example of the configuration memory
Floorplan (fig 4 in (Tonfat et al., 2015)).
3 FAULT TOLERANCE
TECHNIQUES
3.1 Related Work
With the continues downscaling in technology,
memory density increases, soft error rate has drawn a
major attention as the numbers of fault in the devices
have increased significantly. Therefore, the tolerance
of SEUs and MBUs effects on SRAM based FPGA
has been an active subject of research, and many
approaches for SEUs mitigation have been
developed. These approaches can be categorized into
SEC-DED (single error correcting-double error
detecting) codes techniques ((Dutta and Touba,
2007), (Xavier and Kantham, 2013), (Lankesh and
Narasimhamurthy, 2015)) and scrubbing techniques
(Colodro-Conde and Toledo-Moreo, 2015), (Siegle
and Vladimirova, 2015), (Legat et al., 2012),
(Wirthlin and Harding, 2016), (Herera-Alzu and
López-Vallejo, 2013)).
Conventional ECC techniques used in memories
cannot correct MBUs caused by SEU (Dutta and
Touba, 2007). Therefore, they proposed in (Dutta and
Touba, 2007), a methodology based on deriving an
error correcting code (ECC) through heuristic search
technique, that can detect and correct the most likely
double bit upsets while minimalizing the mis-
correction probability of the improbable double bit
upsets. The proposed ECC can be used in addition to
bit interleaving or instead of it, to provide better
protection from MBUs. However, it costs little more
A Review of the Most Adopted Fault Tolerance Approaches forSRAM based FPGA Real Time Critical Embedded System
103

than the single error correcting-double error detecting
(SEC-DED) codes commonly used.
Interleaving technique has been used to restrain
MBUs. This technique rearranges cells in the physical
arrangement to separate the bits in the same logical
word into different physical words (Satyanarayana et
al., 2014). However, interleaving technique may not
be practical because, it is complex and requires higher
memory.
Since Interleaving and built-in current sensors
(BICS) have been successful in the case of single
event upset (SEU) (Xavier and Kantham, 2013), in
(Xavier and Kantham, 2013) they present an
alternative approach to protect memories by using
built-in current sensors (BICS) that can deduct errors
by detecting changes in the current. They optimized
the protection by proposing specific error correction
codes (ECC) to protect memories against multiple-bit
upsets. The method was evaluated using fault
injection experiments.
Hamming codes are widely used for the single bit
error correction double bit error detection (SEC-
DED) which occurred during data transmission
process. However, they cannot correct MBUs caused
by SEU. In paper (Lankesh and Narasimhamurthy,
2015), they present an enhanced technique to detect
double adjacent bit errors and to correct all possible
single bit errors in Hamming codes through selective
bit placement technique for memory application. This
technique improves the probability of detecting
double adjacent bit errors and provides a simple
method of detecting double adjacent bit errors as
compared to convolution coding through
interleaving.
The most adopted approach is configuration
scrubbing, this well-known memory scrubbing
technique is adopted to mitigate upsets (SBU and
MBU) in the configuration memory of SRAM-based
FPGAs, by rewriting the configuration data, without
interrupting the normal FPGA operation. The circuit
that performs scrubbing is commonly named
scrubber, there are two types of scrubber, internal and
external scrubber. The scrubbing process of each one
of them, can be implemented in software with high
flexibility but with lower energy efficiency and lower
configuration speed or hardware with high
configuration speed and high energy efficiency. Both
these scrubbers have been proven to be affective
(Colodro-Conde and Toledo-Moreo, 2015), (Siegle
and Vladimirova, 2015), (Brosser et al., 2014), (Legat
et al., 2012), (Wirthlin and Harding, 2016) (Herera-
Alzu and López-Vallejo, 2013). However, each one
of them has his cons and pros, in (Berg et al., 2008)
they give a detailed comparison. The external
scrubber is implemented in external FPGA (Wirthlin
and Harding, 2016). In the opposite, the internal
scrubber, is more effective, with high efficiency, in
matter of time and area because it’s implemented
inside the configuration memory of the SRAM based
FPGA. Beside this classification by implementation
methods, scrubbing can be classified by granularity
(frame level oriented, device oriented, or module
oriented), also it can be classified by correction
mechanisms (blind scrubbing, readback scrubbing)
(Tonfat et al., 2015).
3.2 Configuration Scrubbing
Mechanisms
There are different scrubbing mechanisms (Siegle
and Vladimirova, 2015), such as blind scrubbing,
readback scrubbing. A detailed description is shown
in Fig.2, and a comparison is giving in Table.2. A
more detailed definition and comparison of these
mechanisms can be found in (Siegle and
Vladimirova, 2015).

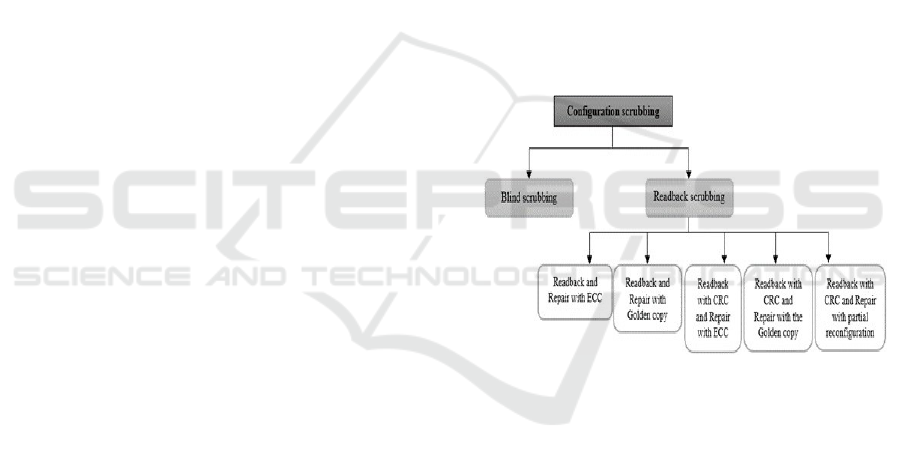

Figure 2: Different Scrubbing mechanisms adopted in
literature.
3.2.1 Blind Scrubbing
Blind scrubbing or Open-loop scrubbing (Herera-
Alzu and López-Vallejo, 2013) is a preventive
mechanism performed without prior detection, to
correct SBU and MBU cyclically through dynamic
partial reconfiguration of the full configuration
memory.
3.2.2 Readback Scrubbing
Readback scrubbing or Closed-loop scrubbing is a
detection-correction technique, that combines both
readback and scrubbing processes. After the
configuration of the FPGA, the efficient data is
loaded and stored as a golden copy in a PROM or
ICCSRE 2018 - International Conference of Computer Science and Renewable Energies
104

flash ROM, then the readback is performed
periodically, then if an upset in the memory is
detected, an on-demand scrubbing is enabled (Siegle
and Vladimirova, 2015), (Legat et al., 2012). These
two processes can be achieved respectively using
different methods such us, Readback and Repair with
ECC which is adopted by Xilinx in most of its FPGAs
(Xilinx, 2005), Readback and Repair with Golden
copy (Herera-Alzu and López-Vallejo, 2013),
Readback with CRC (cyclic redundancy check) and
repair using ECC (Xilinx, 2010) or using the golden
copy or using partial reconfiguration(Yang and
Kwak,
2015).
 Readback and Repair with ECC, the ECC bits
are used to locate the upsets during the
readback, the repairing is also accomplished
frame by frame using ECC. However, the
process is rather complex and only single
upsets can be corrected.
 Readback and Repair with Golden copy which
is the simplest one, the concept relies on the
comparison of readback data against the stored
golden copy. In case there is a difference, the
golden copy is used to scrub the faulty data in
the configuration memory. This method needs
the permanent availability of the golden copy
of the configuration memory, similarly to the
blind scrubbing with the corresponding power
consumption.
 Readback with CRC and Repair with ECC and
the Golden copy or partial reconfiguration is
another possibility, which is to check the CRC
computed value of the efficient data read from
the configuration memory during the readback
process. In case an upset is detected. Once
located, the faulty data is scrubbed with the
corrected data using ECC, the process is
complex. The scrubbing can also be performed
using the golden copy, however it requires
more area. The repairing can also be realised by
partial reconfiguration, which need less time.
4 COMPARISONS OF FAULT
TOLERANCE TECHNIQUES
In this section we provide a simple comparison
between the previous cited faults tolerance
approaches in table 1. Also, we evaluate the
advantages and disadvantages of the different
configuration scrubbing mechanisms adopted in the
literature in table 2.
Table 1: Advantages and disadvantages of Faults tolerance
methods.
Faults tolerance
methods
Advantages Disadvantages
Optimized ECC -Detects and
corrects SBU
-Expensive
than
conventional
ECC
Interleaving -Detects and
corrects SBU
-complex
-requires
higher
memory
-cannot detect
MBU
Interleaving and
built-in current
sensors (BICS)
-Detects and
corrects SBU
-Detects MBU
-Complex
-requires
higher
memory
-expensive
Optimized
Hamming codes
-Detects and
corrects SBU
-Detects MBU
-Less
complex than
interleaving
External
scrubbing
-Detects and
corrects SBU
-Detects MBU
-high
configuration
speed
-high energy
efficiency
-Area
overhead
-Time
overhead
Internal
scrubbing
-Detects and
corrects SBU
-Detects MBU
-high
configuration
speed
-lower energy
consumption
-Less area
overhead
-Less time
overhead
Table 2: Advantages and disadvantages of Scrubbing
mechanisms.
Scrubbing mechanisms Advantages Disadvantages
Blind scrubbing -Corrects
SBU and
MBU
‐Permanent
availability of
the Golden
copy
-High power
consumption
-Time
overhead
- area overhead
Readback
scrubbing
Readback and
Repair with
ECC

-Detects and
corrects
SBU
-Detects
-Complex
-Time
overhead
Readback with -High power
A Review of the Most Adopted Fault Tolerance Approaches forSRAM based FPGA Real Time Critical Embedded System
105

CRC and Repair
with the Golden
copy
MBU consumption
-Time
overhead
-area overhead
Readback with
CRC and Repair
with ECC
-Complex
-Less time
overhead
Readback with
CRC and Repair
with the Golden
copy
-Area overhead
-Less power
overhead
Readback with
CRC and Repair
with partial
reconfiguration
-Less time
overhead
5 CONCLUSIONS
After defining the SRAM based configuration
memory, the soft errors, the different faults tolerance
methods and the advantages and disadvantages of
each one of them. AS a conclusion of this review, we
think that the most used and effective mitigation
technique is scrubbing. We choose to adopt
scrubbing, because with this technique, it is possible
to achieve lower energy consumption, as the
scrubbing is enabled only when a soft error is
detected. In the mean while we are working on
developing an optimized scrubbing approach to
detected and correct faults caused by SEU, to improve
the reliability of the SRAM based FPGA, in purpose
of optimizing the attitude control system.
REFERENCES
Bouras, M., Berbia, H., Nasser, T., 2016. On Modeling
and Fault Tolerance of NanoSatellite Attitude Control
System. In El Oualkadi A., Choubani F., El Moussati
A. (eds) Proceedings of the Mediterranean Conference
on Information & Communication Technologies 2015.
Lecture Notes in Electrical Engineering, vol 380.
Springer, Cham.
Colodro-Conde, C., & Toledo-Moreo, R., 2015. Design
and analysis of efficient synthesis algorithms for
EDAC functions in FPGAs. IEEE Transactions on
Aerospace and Electronic Systems, 51, 3332-3347.
Dutta, A., Touba, N. A., 2007. Multiple Bit Upset Tolerant
Memory Using a Selective Cycle Avoidance Based
SEC-DED-DAEC Code. In 25th IEEE VLSI Test
Symmposium (VTS'07),0-7695-2812-0/07.
Xavier, X. J., Kantham, L., 2013. Multi Bit Upset
Deduction/Correction for Memory Applications.
International Journal of Applied Information Systems
(IJAIS) – ISSN: 2249-0868, Foundation of Computer
Science FCS, New York, USA, Volume 5– No.3,
February 2013.
Lankesh, M., Narasimhamurthy, K.C., 2015. Hardware
Implementation of Single Bit Error Correction and
Double Bit Error Detection through Selective Bit
Placement for Memory. In National Conference
“Electronics, Signals, Communication and
Optimization" (NCESCO 2015). International Journal
of Computer Applications (0975 – 8887)
Siegle, F., Vladimirova, T., 2015. Mitigation of Radiation
Effects in SRAM-Based FPGAs. ACM Comput. Surv.,
vol. 47, no. 2, p. 37, Jan. 2015.
Brosser, F., Milh, E., Geijer, V., Larsson-Edefors, P.,
2014. Assessing scrubbing techniques for Xilinx
SRAM- based FPGAs in space applications. In
Proceedings of the 2014 International Conference on
Field- Programmable Technology, FPT 2014.
Xilinx, 2005. Virtex-II Platform FPGA User Guide, Xilinx
and Inc. UG002 (v2.0) 23 March 2005.
Tonfat, J., Kastensmidt, F.G., Reis, R.A., 2015. Energy
efficient frame-level redundancy scrubbing technique
for SRAM-based FPGAs. In 2015 NASA/ESA
Conference on Adaptive Hardware and Systems (AHS),
1-8.
Legat, U., Biasizzo, A., Novak, F., 2012. SEU recovery
mechanism for SRAM-Based FPGAs. IEEE Trans.
Nucl. Sci., vol. 59, no. 5 PART 3, pp. 2562–2571, Oct.
2012.
Wirthlin, M., Harding, A., 2016. Hybrid Configuration
Scrubbing for Xilinx 7-Series FPGAs. In FPGAs and
Parallel Architectures for Aerospace Applications,
Cham: Springer International Publishing, 2016, pp. 91–
101.
Herrera-Alzu, I., López-Vallejo, M., 2013. Design
techniques for Xilinx Virtex FPGA configuration
memory scrubbers. IEEE Trans. Nucl. Sci., vol. 60, no.
1, 2013.
Berg, M., Poivey, C., Petrick, D., Espinosa, D., Lesea, A.,
LaBel, K. A., Friendlich, M., Kim, H., Phan, A., 2008.
Effectiveness of internal versus external SEU
scrubbing mitigation strategies in a Xilinx FPGA:
Design, test, and analysis. In IEEE Transactions on
Nuclear Science, 2008, vol. 55, no. 4, pp. 2259–2266.
Xilinx, 2010. Xilinx XAPP864 SEU Strategies for Virtex-5
Devices, Application Note, Xilinx and Inc.
Yang, J.-M., Kwak, S. W., 2015. Corrective control for
transient faults with application to configuration
controllers. IET Control Theory Appl., vol. 9, no. 8.
ICCSRE 2018 - International Conference of Computer Science and Renewable Energies
106
