Software Product Line Engineering for Safety-critical Systems

Philipp Lohm

uller and Bernhard Bauer

Institute of Computer Science, University of Augsburg, Universit

atsstr. 6a, 86159 Augsburg, Germany

Keywords:

Software Product Line, Safety-critical Systems, Complexity Reduction, Dependability, Multi-concerns.

Abstract:

Nowadays, modern cars can be conﬁgured by means of a wide range of software conﬁguration options. In this

context, we speak about Software Product Lines (SPLs). In almost every modern automotive vehicle safety-

critical components like, e.g., an Adaptive Cruise Control (ACC) are installed. Some SPLs have different

safety-critical requirements whereas other SPLs have similar requirements. This paper proposes an approach

for the reduction of the complexity of SPLs without loss of safety (aspects) for all participants. For this pur-

pose, a concept has been developed, which clusters products of SPLs with similar safety-critical requirements,

i.e., the set of products of an SPLs, which must still be tested, can be reduced immensely. The paper also

provides an application example how the reduced set can be used in order to perform a Safety, Security and

Timing (SST) based trade-off analysis.

1 INTRODUCTION

In the past few years, safety and security is play-

ing an increasingly important role in various domains

like, the automotive domain. Neglecting safety and

security issues may have fatal consequences. Look-

ing back at the end of the 1960s, the Ford Motor

Company had the objective to develop a fuel-efﬁcient

and cost-effective car, which should be introduced

onto the market at the beginning of the 1970s. Due

to the short time frame, safety checks were skipped

and the resulting damages were much higher than

the supposed cost savings (Ord

nez et al., 2009). In

order to avoid such problems, corresponding coun-

teractive measures were introduced. However, in-

dividual safety and security issues or counteractive

measures can exclude each other. In this regard, it

is necessary to determine the best trade-off. This

approach has already been presented in (Lohm

uller

et al., 2018). Moreover, modern vehicles can be con-

ﬁgured by means of a construction kit. In this context,

there are several millions of conﬁguration sets for the

conﬁguration of a new car. Each conﬁguration set

complies with a product of an SPL and thus different

characteristics. SPLs have advantages and disadvan-

tages: An advantage of an SPL is variability manage-

ment (Buchmann and Greiner, 2018) and that you can

conﬁgure an automotive vehicle individually. (Pohl

et al., 2005) However, in theory each conﬁguration

set is accompanied with immense hazards with re-

spect to safety and security issues, thus it is necessary

to check each conﬁguration/product with respect to

its safety and security. Therefore this paper presents

an approach how to reduce complexity of SPLs taken

safety, security and timing issues into account. This

is achieved by eliminating non safety-critical issues as

well as building equivalence classes on semantically

equivalent elements from the SPL and thus to narrow

the number of conﬁguration sets.

First, Sec. 2 gives an overview over the necessary

basics. In the following section a case study is in-

troduced in order to exemplify the approach of this

paper. The approach dealing with the reduction of

SPLs complexity is presented in Sec. 4. The evalua-

tion proves that the approach is a coherent and versa-

tile concept. Sec. 6 points out the novelty of the ap-

proach and its relation to existing work. Finally, the

paper summarizes the results of this paper and gives

an outlook for future work.

2 BASICS

Since this paper aims at safety-critical systems we

will have a closer look on the necessary theoreti-

cal foundations. Both, safety and security must be

avoided preventively, not to endanger human life. In

general, safety means accident prevention whereas se-

curity means crime prevention. However, security

failures can lead to safety issues, e.g. a hacked autopi-

lot. As already mentioned in Sec. 1 safety and secu-

Lohmüller, P. and Bauer, B.

Software Product Line Engineering for Safety-critical Systems.

DOI: 10.5220/0007246102090216

In Proceedings of the 7th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2019), pages 209-216

ISBN: 978-989-758-358-2

209

rity aspects are often contradictory. On the one side,

safety ensures that human life and environment is pro-

tected against potentially hazardous machines. On

the other side, security makes sure that human beings

cripple the machinery. (Springer, 2016) Let’s take

an example from the automotive environment: Mod-

ern vehicles are equipped with one or more airbags

in order to preserve human life (safety). Moreover,

it must be assured that the functionality of an airbag

can not be triggered remotely by third parties (secu-

rity). In order to protect releasing the airbag, other

measures are necessary, like, e.g., a secure encryption

algorithm. However, if the encryption takes to much

time, this can cause new problems, e.g., delayed trig-

gering (timing) of an airbag which endangers human

life and thus safety. As it can seen, safety, security

and timing may be mutually exclusive.

For this purpose, (Lohm

uller et al., 2018) devel-

oped an approach how to calculate an optimal preven-

tative trade-off between (partly) conﬂicting (multi-)

concerns including safety, security as well as timing.

A quick view on the approach delivers the following:

1. Devise potential alternative solutions, i.e., indi-

vidual decision options by which the trade-off is

calculated.

2. Identify failure modes and transfer it into a struc-

tured Safety Goal Hierarchy Model (SGHM) as

described in (Lohm

uller et al., 2018). The top-

level goal represents a safety goal since it is the

main objective to obtain a system, which is ac-

ceptably safe. The leaves represent the Single

Point of Failures (SPOFs), which are essential for

the next step.

3. Perform a Failure Mode and Effects Analysis

(FMEA) for all SPOFs.

4. Perform a Multi-Criteria Decision Analysis

(MCDA) to calculate the optimal trade-off.

As already indicated in Sec. 1, SPLs enable many

ways of conﬁgurations, e.g., conﬁgurations of a car.

Since there are different deﬁnitions of an SPL, a con-

ﬁguration set or conﬁguration option is meant in this

paper, when speaking about SPLs in this paper. Usu-

ally, the different features of SPLs are modeled by

a Feature Model (FM). FMs, which have been ﬁrst

introduced in the Feature-Oriented Domain Analy-

sis (FODA) (Kang et al., 1990) contain all neces-

sary features, i.e., all conﬁguration options. Thereby,

an FM is modeled and structured hierarchically. For

each (sub-)feature there are several characteristics:

{abstract, concrete}, {mandatory, optional}, {or,

xor} and {requires, excludes}. With exception of the

latter tuple, one characteristic of each tuple must be

selected for each (sub-)feature. A detailed descrip-

tion of the individual characteristics can be found in

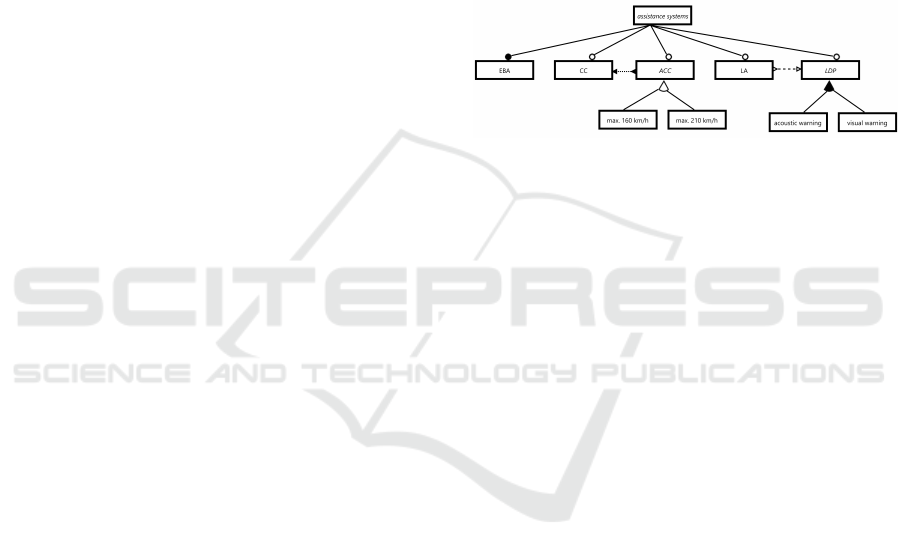

(Lee et al., 2002). Fig. 1 shows an exemplary FM

for conﬁguring assistance systems (legend: abstract

feature, concrete feature). Thereby, you can choose

between ﬁve assistance systems whereas Emergency

Brake Assist (EBA) is mandatory. If an ACC is con-

ﬁgured, the Cruise Control (CC) may not be selected.

The ACC provides two options: either with a maxi-

mum speed of 160 km/h or 210 km/h. Furthermore,

if the Lane Assist (LA) is selected, the Lane Depar-

ture Prevention (LDP) must be selected as well. The

LDP provides two options of which at least one must

be selected: an acoustic and visual warning.

Figure 1: Exemplary FM.

3 CASE STUDY

In this section, a case study is presented to show the

approach of the paper, which will be elaborated in

the next section. Modern automotive vehicles are

equipped with assistance systems, like an ACC or a

LDP. An ACC operates like a cruise control, but

adapts the speed depending on distance of the ve-

hicle driving ahead. Thereby, modern sensor types

like radar (Abou-Jaoude, 2003) or video based sys-

tems (Murray and Jackson, 2006) are used. An LDP

system adjusts the steering behavior as well as ac-

/decelerating to keep the car in its lane. There-

fore, different sensors like an infrared sensor or video

based system are used in order to detect lane mark-

ers (Litkouhi, 2012). From a functional point of

view, ACC and LDP are independent from each other.

Thus, one could assume that ACC as well as LDP

could be tested and analyzed independently from each

other since they are not linked in any way. However,

this assumption has not been scientiﬁcally proven

yet, that’s why further profound research is necessary.

First, an FM is needed covering the entire SPLs of the

conﬁgurable car. Thus, this FM contains an abstract

feature assistance systems including the concrete sub-

features ACC as well as LDP. Since the feature assis-

tance systems is optionally, one sub-feature must be

selected at least. Fig. 2 shows an excerpt from the

FM.

All safety-critical features are tagged with a

boolean ﬂag for SST (legend: safety, security, tim-

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

210

Figure 2: Excerpt from an FM of a car conﬁguration.

ing) in order to trace the individual concerns during

the whole algorithm. Thus, the FM serves as a central

model of control, in which the detailed SST informa-

tion of the individual assistance systems are stored.

Since the assumption was made that the ACC as well

as the LDP could be tested separately, an accurate

review is mandatory checking which system compo-

nents of the features ACC and LDP are concerned in

each case. For this purpose, it is essential to look into

the underlying System Model (SM), which is depicted

in Fig. 3. It shows dependencies between the different

sensor types and assistance systems.

Figure 3: Abstract SM of the case study.

Thereby, one will realize that the ACC uses the

components radar and video whereas the LDP uses

the components infrared and video. Since the compo-

nent video is used from both, the ACC and the LDP,

a separate testing between ACC and LDP is not rea-

sonable, i.e., ACC depends on LDP and vice versa.

Hence, it is the main objective to ﬁnd out these fea-

tures in the FM having a similar level of SST. For this

purpose, a reachability tree is created with the same

hierarchical structure as the source FM. The values of

the nodes correspond to

1. the SST values of the FM (legend: T = true, F =

false) and

2. the Equivalence Class (EC) of the correspond-

ing feature that is equated with the last super-

ordinated abstract feature.

For instance, {{TTT}, AS} means that safety, security

as well as timing is assigned to true. The second value

of the node is assigned to the EC assistance systems.

By means of depth-ﬁrst search, all the distinct

paths of the reachability tree are chosen. The paths

may not contain the FFF value since FFF reﬂects

non safety-critical issues or features. Fig. 4 shows the

underlying reachability tree of the case study. After

the depth-ﬁrst search, the green colored paths must

be tested and analyzed in further steps. The orange

colored nodes are duplicated since they are already

included in other paths and are assigned to the same

EC than other ones. The red colored items are non

safety-critical and must not be considered anymore.

{{TTT}, CC}

{{TTT}, AS}

{{TFF}, AS}

{{FFF}, CC}

{{TFF}, AS}

{{TTT}, AS}

{{FFT}, AS}{{FTF}, AS}

{{FTF}, AS} {{FFT}, AS}

Figure 4: Reachability tree of the application example with

SST tags, equivalence classes and paths to be checked.

As can be seen, by means of the reachability tree

of Fig. 4 LDP has been eliminated for further testings

and analyses, i.e., the complexity has been reduced

to the green paths. This is justiﬁed because both, the

ACC as well as the LDP are assigned to the same EC.

Moreover, the ACC and the LDP have a common used

component: the video based sensor. Furthermore, the

ACC uses a radar sensor whereas the LDP uses an in-

frared sensor. It can thus be concluded that the radar

sensor has similar SST requirements as the infrared

sensor, although they are designed and implemented

differently. It is hence sufﬁcient to test and analyze

the ACC paths. In this speciﬁc case study 3 of 8 paths

need to be elaborated in further steps. Consequently,

a complexity reduction of 62,5% has been guaran-

teed. Since the reachability tree is structurally identi-

cal with the corresponding FM, the relevant features

can be determined easily. Fig. 5 shows the reduced

FM whereas non relevant (SST) features have been

grayed out. This FM can now be used as a basis for

further safety and security analysis.

For instance, the reduced FM may be used sub-

sequently in order to perform a trade-off analysis as

suggested by (Lohm

uller et al., 2018). In this con-

text, there is a linking between the features of the re-

duced FM and the goals/SPOFs of the SGHM in or-

der to eliminate non relevant goals/SPOFs from the

SGHM. Thus, the optimal trade-off can be calculated

by concerning less goals/SPOFs but taking all safety-

Software Product Line Engineering for Safety-critical Systems

211

Figure 5: Reduced FM with relevant SST features.

critical requirements into account. Consequently, the

complexity can also be reduced since less calculation

steps are needed. Fig. 6 shows the matched SGHM.

The meaning of the colors is analogous to Fig. 4.

car

configuration

is acceptably

safe

assistance

systems are acc.

safe, secure and

time optimized

ACC is acc.

safe, secure

and time

optimized

LDP is acc.

safe, secure

and time

optimized

no SST Goal

traffic sign

recog. is acc.

time optim.

data

transmission

is acc. secure

hazard

detection

is acc. safe

obstacle

detection

is acc. safe

blind spot

detection

is acc. safe

data

transmission

is acc. secure

visual

feedback is

acc. time opt.

Figure 6: Simpliﬁed SGHM of the application example.

4 APPROACH

It is aim of the current section to present the concepts

and theoretical backgrounds generally so that the ap-

proach is applicable in various domains and applica-

tion cases, e.g., automotive, avionics or railway. For

this purpose, a concept picture is shown in Fig. 7,

which represents the entire approach in an abstract

manner .

Step 1. As already mentioned in Sec. 2, FMs

have been established for the realization of SPLs

since they have a well-deﬁned hierarchical structure

by nature. The central FM serves as a basis for all

further steps, i.e., each of these steps is performed

by means of the FM. FMs usually map entire

systems, though only parts of them shall be tested

or analyzed normally since they are relevant for

individual departments. Due to the fact that in this

paper SPLs are applied in safety-critical systems

it is mandatory to annotate a boolean SST ﬂag for

each feature. This enables providing information

about which kinds of safety-critical concerns are

involved. However, despite the advantages of feature

modeling, the complexity of such FMs concerning

safety, security and timing issues is hard to deal with

(Pohl et al., 2013). Therefore, the complexity has to

be reduced and thus the effort is manageable.

Step 2. In the previous step, features of the FM

have been selected, which are relevant for individual

departments. It has not been considered that some

features have further dependencies which are not

apparent at ﬁrst sight. That’s why the approach links

the FM and the underlying already existing SM.

The latter is realized similar to an UML component

diagram. Thus, it is determined whether there are

additional subcomponents of the individual system

components of the FM, which must be considered as

well (Li et al., 2018). The link is provided between

the individual (abstract) features and the system

components. Since the linking is bidirectional, the

selection of the corresponding features in the FM are

updated according the dependencies of the system

components and their subcomponents in the FM. In

summary, step 2 extends the selection of the features

(of step 1) since there are commonly used system

components.

Step 3. After updating the FM according to the

dependencies with the SM the actual reduction of

complexity is performed. For this purpose, a reacha-

bility tree is created, which maps the same hierarchi-

cal structure of the FM to a new tree structure contain-

ing all SST annotations including all possible paths of

the SPLs. The reachability tree is needed since it con-

tains only relevant information about the FM, which

is necessary for further calculations. Thus, overhead

is reduced and the upcoming algorithmic processes

are facilitated. The values of the nodes are assigned to

SST annotations as well as the EC of the correspond-

ing features. As already mentioned in Sec. 3 the indi-

vidual ECs refer to the corresponding super-ordinated

abstract feature in the FM. All elements within an

EC, i.e., features are equivalent to each other since

these elements comply with reﬂexivity, symmetry as

well as transitivity (Guta and Kiukas, 2015). It is now

essential to point out all distinct SST requirements.

Essentially, this means that all different paths must be

found starting with the root node. Let us assume there

are paths in the FM, i.e., SPLs like the following:

1. car conﬁguration → assistance systems → ACC

→ detection of maximum permitted speed

2. car conﬁguration → assistance systems → LDP

→ visual warning signal

For both SPLs, the path in the reachability tree

may be the following: {{TTT}, CC} → {{TTT}, CC}

→ {{TTT}, AS} → {{TFF}, AS}. Therefore, it can

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

212

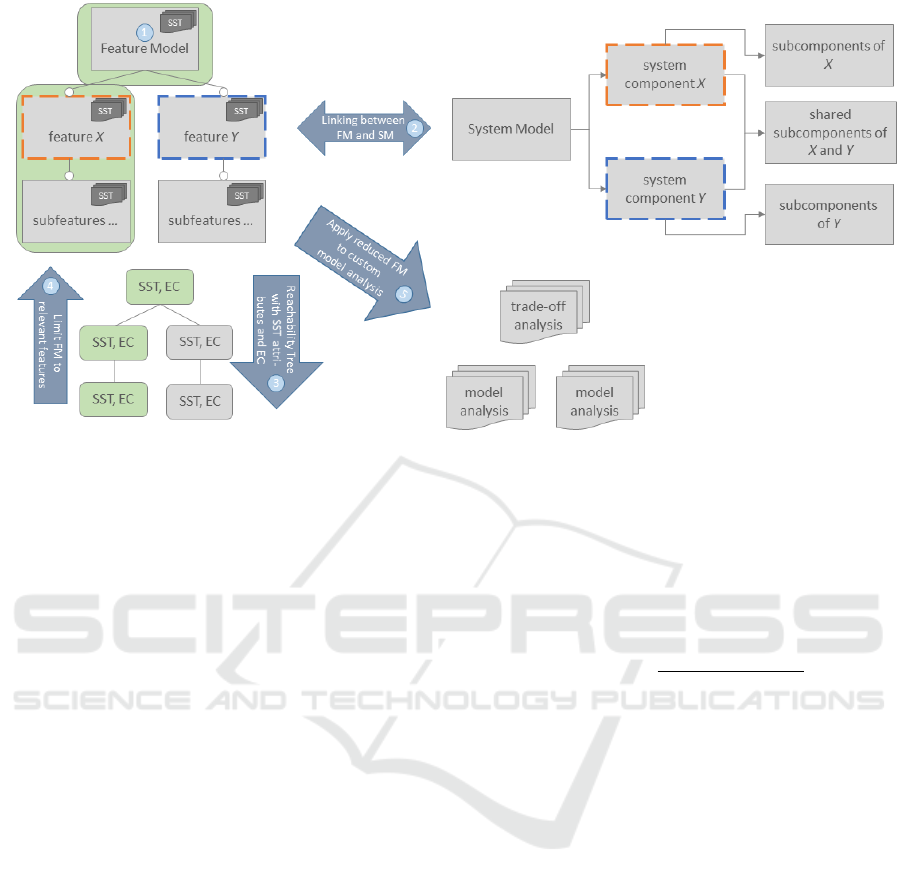

Figure 7: Abstract concept picture of the approach.

be concluded that the detection of maximum permitted

speed as well as visual warning signal have similar

requirements since both elements are within the same

EC (assistance systems) and are just safety-critical,

i.e., it is sufﬁcient to test and analyze just one path. In

order to provide all distinct paths, a depth-ﬁrst search

algorithm is applied for the entire reachability tree.

There are two termination conditions for the calcula-

tion of each path: The current node is

1. non safety-critical, i.e., the SST value is assigned

to FFF or

2. a leaf, i.e., there are no further nodes that must be

checked for this path.

By means of the depth-ﬁrst search it is ensured

that all nodes have been considered and duplicate

paths are eliminated. Since FMs and thus also reach-

ability trees may be very extensive, it is important not

to neglect the complexity of this algorithm. If there

is a reachability tree RT with |V| nodes and |E| edges

the complexity of this algorithm is (Naumov et al.,

2017):

DFS(RT ) ∈ O(|V | +|E|)

Thus, the complexity is linear and acceptable in

time, i.e., no optimizations are necessary. In conclu-

sion, it is clariﬁed to which degree the reduction of

complexity is performed. It is dependent on two fac-

tors:

• total number of leaves: |λ(RT )|

• number of distinct leaves with different predeces-

sors: |δ(RT )|

Thus, the following applies for δ(RT ):

∀x, y ∈ δ(RT ) : π(x) 6= π(y)

whereas π(x) deﬁnes the set of predecessors on

the basis of node x. Finally, the degree of complexity

reduction CR, is deﬁned as follows:

CR(RT ) =

|λ(RT )| − |δ(RT )|

|λ(RT )|

Step 4 and 5. After step 3, the reachability tree

contains all paths, which are safety-critical and must

be processed anymore. To facilitate this, it is manda-

tory to mark the corresponding features in the FM.

The complexity of the FM and thus safety-critical

SPLs is now reduced and can be used as a basis for

model-based calculations, e.g., trade-off optimization

as shown in Sec. 3.

5 EVALUATION

The approach is evaluated by means of a scenario

based evaluation, i.e., the concept is inspected with

respect to some quality attributes on basis of selected

scenarios. The approach is measured by means of the

following quality attributes:

• interoperability: The emphasis is placed on com-

patibility with other components or systems.

When fulﬁlling interoperability, the main func-

tionality of the concept of this paper, i.e., com-

plexity reduction, is accomplished as well, since it

is based on the interaction between different mod-

els and components.

Software Product Line Engineering for Safety-critical Systems

213

• maintainability: The approach of this paper will

be investigated in terms of changeability and

testability.

• adaptability: Finally, it is analyzed whether the

concept is expendable and adaptable.

At this point, it must be mentioned that the con-

cept of this paper has been realized in the form of an

Eclipse plugin by applying EMF

and Sirius

. The

plugin consists of three graphical editors, which en-

able modeling of FMs, SMs and reachability trees.

Each of them are developed in EMF and Sirius, i.e.,

there are three underlying *.ecore meta models at

all. Due to the same modeling environment it en-

ables linkings or transformations between FM ↔ SM,

FM ↔ reachability tree and FM → custom models

or analyses (remember Fig. 7). The logic of the real

complexity reduction is realized in the editor of the

reachability tree.

The evaluation will prove that all the quality at-

tributes, which have been listed above, are fulﬁlled

by the approach of this paper. Thereby, the following

scenarios have been selected:

1. requirements will be changed

2. a feature of the FM is added, deleted or modiﬁed

3. the structure of the SM will be changed

4. the modeling type of the SM is changed

5. consideration of further or other con-

cerns/attributes

The development in industry is proceeding for-

ward with giant strides, thus the requirements may

constantly change. When changing the requirements,

new features will be added or existing features will

be deleted or modiﬁed. Moreover, the SM will be

updated in a parallel process as well. Since the reach-

ability tree maps the structure of the FM, it will be

updated automatically as well. Thus, the interoper-

ability between these models and components is ful-

ﬁlled. Next, changeability must be proven. Since this

scenario make modiﬁcations in the FM and the main-

tenance of the functionality has already been proven

for the quality attribute interoperability, changeabil-

ity is guaranteed. Each complex system has to be

tested in order to avoid errors. As already indicated,

the SM is redundant and the structure of the FM is in-

cluded in similar but another form in the reachability

tree. Thus, the similar models can be tested against

each other for validity and correctness. Hence, it has

been shown that testability is fulﬁlled as well. Taking

into account that changeability and testability is met,

https://www.eclipse.org/modeling/emf/

https://www.eclipse.org/sirius/

maintainability is achieved. The modiﬁcation of the

FM affects just the EMF/Sirius instance model but not

the EMF *.ecore model, i.e., the meta model. The FM

instance model is arbitrary adaptable and expandable

by new functionality like, e.g., adding new features.

In summary, all quality attributes apply to this sce-

nario.

Scenario #1 implies scenario #2 and #3. In this

way, scenario #2 and #3 has already been proven since

scenario #1 has been evaluated.

An SM can be represented by various notations

like, e.g., component diagram, composite structure

diagram or object diagram. The interoperability de-

pends on the interaction between FM, SM and the

reachability tree. For this purpose, the linking be-

tween the features of the FM and the components or

objects of the new SM type must be set. Thus, the

complexity reduction is ensured and interoperability

is fulﬁlled. When changing the type of modeling an

SM, one type of error might occur: The linkings to

the corresponding features have not been set correctly.

The topic of this scenario is that the type of SM mod-

eling can be changed, i.e., changeability is fulﬁlled.

By analogy with scenario #1, testability is accom-

plished since the information of the FM are contained

in the reachability tree as well. Furthermore, the SM

usually provides redundant design. This means that

maintainability is fulﬁlled by changeability and testa-

bility. In keeping with scenario #1, changing mod-

eling type of the SM only relates to instance model

of EMF/Sirius, not to the EMF meta model. That’s

why, the approach is also expendable and adaptable,

i.e., adaptability is met. It has been evaluated that this

scenario fulﬁlls all quality attributes.

The concept of this paper considered the concerns

SST. The following scenario will demonstrate that the

approach is also combinable with other (additional)

concerns or attributes, e.g., reliability. Based on this

new concern, the linkings between the features and

the components of the SM may be updated. The new

concern reliability is annotated in the FM, this ad-

justment also updates the reachability tree since it de-

pends on them. Consequently, interoperability is ful-

ﬁlled. Even though, the considered concerns will be

modiﬁed, it is possible to modify the FM and SM.

This point has already been shown in scenario #1-3,

thus changeability is ensured. Testability is fulﬁlled

as well since the FM and SM is usually designed

redundantly usually. That’s why maintainability is

guaranteed. This scenario covers adapting the con-

cerns, i.e., adaptability is fulﬁlled.

Tab. 1 shows an overview of the quality attributes

and the individual scenarios as listed at the beginning

of this section. As it can be seen, all quality attributes

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

214

Table 1: Overview of the evaluation.

#1 #2 #3 #4 #5

interoperability X X X X X

maintainability X X X X X

portability X X X X X

are fulﬁlled by each scenario, i.e., the concept of this

paper was successfully proven.

6 RELATED WORK

In this section related publications and projects will

be presented and compared with the approach of com-

plexity reduction of SPLs on safety-critical systems.

6.1 Safety-critical Concerns

The MERgE project

, which has been founded by the

ITEA enhances interactions between multi-concerns.

It focusses on safety and security, especially on main-

tenance of quality characteristics during the prod-

uct lifecycle. These include relationships between

them, legacy management, cost reduction and robust-

ness. This project considers various domains, among

them radio communication, automotive and space in-

dustry. (Robinson et al., 2016) However, it has not

been considered that also timing plays an important

role in the context of safety-critical systems. The

MERgE project covers maintenance of safety and se-

curity in the product lifecycle but not in SPLs. Con-

sequently, the reduction of SPL complexity has not

been explained. There are a large number of standards

and norms, which have to be fulﬁlled in a safety-

critical environment. That’s why (Brunner et al.,

2017) developed an approach how to model, docu-

ment and integrate safety and security requirements.

This approach doesn’t consider the timing concern,

just safety and security. Furthermore, there is no SPL

used. Moreover, there is no complexity reduction

in context of equivalent model components. Since

SST requirements are often in contradiction to each

other, (Lohm

uller et al., 2018) developed a method-

ology how to calculate an optimal trade-off. Thereby,

a Multi-Criteria Decision Analysis algorithm as well

as the Goal Structuring Notation - a structured argu-

mentation notation - is used to solve the conﬂicts.

However, integrating SPLs as well as the complex-

ity reduction by forming equivalence classes is not

part of this work. (Lohm

uller et al., 2018) In all

the mentioned publications with safety-critical con-

https://itea3.org/project/merge.html

text the complexity reduction of SPLs does not seem

to have been evaluated scientiﬁcally before.

6.2 Software Product Lines

The work of (Pohl et al., 2005) serves as baseline for

SPLs. In this publication, deﬁnitions and scopes of

SPLs are presented more closer to the reader. How-

ever, there is no reference to SST concerns as well as

complexity reduction of SPLs. In (Pohl et al., 2018)

the complexity of FMs is measured and analyzed by

means of worst case execution analyses in order to

improve state-of-the-art analysis tools. The approach

improves complexity in the context of state-of-the-

art analysis tools whereas this paper is focused on

complexity reduction in safety-critical environment.

Furthermore, there is no proposal for the creation of

equivalence classes in order to cluster semantically

similar features. (Li et al., 2018) propose an approach

to reduce the complexity of FMs. In this paper, the

complexity is reduced by linking the FM with the SM.

However, in our paper equivalence classes are built

in order to reduce complexity. In this way, complex-

ity can be reduced even further. Li et al. achieved a

reduction of 40% whereas the approach of our paper

could reach over 60% in case of our case study. More-

over, we considered safety-critical requirements, like,

e.g., SST whereas Li et al. only considered econom-

ical requirements. In (Hitesh and Kumari, 2018) a

concept has been proposed to optimize feature se-

lection in order to choose the elements that will be

reused most commonly. This procedure is applica-

ble if economic goals, like, e.g., costs play an im-

portant role. However, in our paper safety-critical

requirements must be preferred. In this context, it

may have fatal consequences if only most commonly

reused features will be considered.

7 CONCLUSION AND OUTLOOK

In this paper, an approach has been presented to re-

duce complexity of Feature Models with considera-

tion of Safety, Security and Timing concerns. In this

context, it has been explained that the complexity re-

duction depends on system components of the Sys-

tem Model with respect to Safety, Security and Tim-

ing concerns. Furthermore, an algorithmic has been

developed for detecting substructures of an Feature

Model that have similar SST requirements. For that

purpose, a reachability tree has been used to ﬁnd simi-

lar substructures. It is also applied for ﬁnding suitable

equivalence classes in order to cluster related features.

In conclusion, the Feature Model is reduced accord-

Software Product Line Engineering for Safety-critical Systems

215

ing to Safety, Security and Timing constraints and can

be used for further model analyses. The evaluation

showed that the modiﬁcation of features is possible.

For future work, it might be feasible to integrate a

change impact analysis. Thus, it would be possible to

determine whether a feature or set of features is prof-

itable with regard to a level of complexity reduction.

REFERENCES

Abou-Jaoude, R. (2003). ACC Radar Sensor Technology,

Test Requirements, and Test Solutions. IEEE Transac-

tions on Intelligent Transportation Systems, 4(3):115–

122.

Brunner, M., Huber, M., Sauerwein, C., and Breu, R.

(2017). Towards an Integrated Model for Safety and

Security Requirements of Cyber-Physical Systems.

In 2017 IEEE International Conference on Software

Quality, Reliability and Security Companion (QRS-

C), pages 334–340, Prague, Czech Republic.

Buchmann, T. and Greiner, S. (2018). Managing Variabil-

ity in Models and Derived Artefacts in Model-driven

Software Product Lines. In Proceedings of the 6th In-

ternational Conference on Model-Driven Engineering

and Software Development - MODELSWARD, pages

326–335, Funchal, Madeira, Portugal.

Guta, M. and Kiukas, J. (2015). Equivalence Classes

and Local Asymptotic Normality in System Identiﬁ-

cation for Quantum Markov Chains. Communication

in Mathematical Physics, 335(3):1397–1428.

Hitesh and Kumari, A. C. (2018). Feature Selection Opti-

mization in SPL using Genetic Algorithm. Procedia

Computer Science, 132:1477–1486.

Kang, K. C., Cohen, S. G., Hess, J. A., Novak, W. E.,

and Peterson, A. S. (1990). Feature-Oriented Domain

Analysis (FODA) Feasibility Study. Technical report,

Carnegie Mellon University - Software Engineering

Institute.

Lee, K., Kang, K. C., and Lee, J. (2002). Concepts

and Guidelines of Feature Modeling for Product Line

Software, Engineering. In Proceedings of the 7th In-

ternational Conference, ICSR-7, Austin, USA.

Li, M., Grigg, A., Dickerson, C., Guan, L., and Ji, S. (2018).

A Product Line Systems Engineering Process for Vari-

ability Identiﬁcation and Reduction. ArXiv e-prints.

Litkouhi, B. B. (2012). Lane Departure Warning and

Change Assist System Utilizing Active Materials.

United States Patent. Patent No.: US 8,111,147 B2.

Lohm

uller, P., Fendt, A., and Bauer, B. (2018). Multi-

Concerns Engineering for Safety-Critical Systems.

In Proceedings of the 6th International Conference

on Model-Driven Engineering and Software Devel-

opment - MODELSWARD, pages 504–510, Funchal,

Madeira, Portugal.

Murray, P. and Jackson, D. (2006). Camera Technique for

Adaptive Cruise Control (ACC) Sensor Adjustment.

United States Patent. Patent No.: US 7,121,011 B2.

Naumov, M., Vrielink, A., and Garland, M. (2017). Paral-

lel Depth-First Search for Directed Acyclic Graphs. In

Proceedings of the Seventh Workshop on Irregular Ap-

plications: Architectures and Algorithms, pages 4:1–

4:8, New York, NY, USA.

Ord

nez, L. D., Schweitzer, M. E., Galinsky, A. D., and

Bazerman, M. H. (2009). Goals Gone Wild: The Sys-

tematic Side Effects of Over-Prescribing Goal Setting.

Working Paper.

Pohl, K., B

ockle, G., and van der Linden, F. (2005). Soft-

ware Product Line Engineering: Foundations, Princi-

ples, and Techniques. Springer.

Pohl, R., H

ochsmann, M., Wohlgemuth, P., and Tischer,

C. (2018). Variant Management Solution for Large

Scale Software Product Lines. In Proceedings of the

40th International Conference on Software Engineer-

ing: Software Engineering in Practice, pages 85–94,

New York, NY, USA.

Pohl, R., Stricker, V., and Pohl, K. (2013). Measuring the

Structural Complexity of Feature Models. In Proceed-

ings of the 28th IEEE/ACM International Conference

on Automated Software Engineering, pages 454–464,

Silicon Valley, CA, USA.

Robinson, C. R., Pequery, J., and Michiels, S. (2016).

MERgE: Technology Advancement for Cohesion of

Concerns in System Engineering. In Proceedings of

CERTS 2016: The 1st Workshop on Security and De-

pendability of Critical Embedded Real-Time Systems,

pages 25–30, Porto, Portugal.

Springer, M. (2016). Was ist der Unterschied zwis-

chen Safety und Security? https://www.tuev-

nord.de/explore/de/erklaert/was-ist-der-unterschied-

zwischen-safety-und-security/. accessed June 8th,

2018.

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

216
