Permission-based Risk Signals for App Behaviour Characterization in

Android Apps

Oluwafemi Olukoya, Lewis Mackenzie and Inah Omoronyia

School of Computing Science, University of Glasgow, U.K.

Keywords:

Mobile Systems Security, Privacy Risk, Permission System, Malware Detection.

Abstract:

With the parallel growth of the Android operating system and mobile malware, one of the ways to stay pro-

tected from mobile malware is by observing the permissions requested. However, without careful considera-

tion of these permissions, users run the risk of an installed app being malware, without any warning that might

characterize its nature. We propose a permission-based risk signal using a taxonomy of sensitive permissions.

Firstly, we analyse the risk of an app based on the permissions it requests, using a permission sensitivity index

computed from a risky permission set. Secondly, we evaluate permission mismatch by checking what an app

requires against what it requests. Thirdly, we evaluate security rules based on our metrics to evaluate corre-

sponding risks. We evaluate these factors using datasets of benign and malicious apps (43580 apps) and our

result demonstrates that the proposed framework can be used to improve risk signalling of Android apps with

a 95% accuracy.

1 INTRODUCTION

One of Android’s major security mechanisms for en-

forcing restrictions on the privacy-related data and

speciﬁc device operations that an application can

access is permission control (Barrera et al., 2010; Felt

et al., 2011c). Permissions are requested by appli-

cations as features describing an app’s behaviour, in-

dicating its attempt to interact with the device, local

data or other apps (Enck et al., 2011). Some of the

sensitive device data to which access can be granted

include precise location, SMS messages, phone call

logs, contact list etc., thereby making privacy an im-

portant challenge in the Android permission model.

With the parallel growth of the Android operating sy-

stem and its associated malware (Felt et al., 2011b;

Zhou et al., 2012; Kelly, 2014), one of the ways to

stay protected from mobile malware is by observing

the permissions requested

. However, users do not

fully understand the risks of granting permissions and

the consequent implications (Felt et al., 2012b; Kelley

et al., 2012; King et al., 2011). Users run the risk of

an app being malware during adoption, with no relia-

ble risk signal for characterizing behaviour based on

permission request.

https://www.symantec.com/blogs/threat-intelligence/

persistent-malicious-apps-google-play

However, to assess the risk of installing an app,

users have to rely primarily on community ratings to

identify potentially harmful and inappropriate apps,

even though community ratings typically reﬂect opi-

nions about perceived functionality or performance

rather than actual risks. We propose risk ratings, such

that when users install a new app, they can assess the

risk of the app being malware based on the behavi-

our characterization described by a permission sen-

sitivity index and a permission mismatch, indicated

by checking required against requested permissions.

The main contributions of this work are summarised

below:

• We provide a risky permission set, independent of

typically known malware patterns, using a taxo-

nomy of sensitive permissions. We created a ran-

king of the risks of Android application permissi-

ons by examining protection levels in the Android

Ecosystem, permission category and permissions

with a demoted security level.

• We provide an analysis of permission mismatch

by evaluating the mismatch in the permissions the

app is requesting and the permissions required for

the functioning of the app. The proxy for the

permission an app requires is an analysis of the

permissions other apps with similar functions are

requesting. We then generate security rules that

Olukoya, O., Mackenzie, L. and Omoronyia, I.

Permission-based Risk Signals for App Behaviour Characterization in Android Apps.

DOI: 10.5220/0007248701830192

In Proceedings of the 5th International Conference on Information Systems Security and Privacy (ICISSP 2019), pages 183-192

ISBN: 978-989-758-359-9

183

show the impact and likelihood of these signals.

• We evaluate our approach on two real-world da-

tasets comprising of benign and malware data-

set. The malware dataset contains 33580 apps,

while the benign dataset contains 10000 apps. We

demonstrate that the proposed framework can be

used to improve user awareness about the risks of

the Android permission system and apps. Our ex-

perimental results show that the proposed risk ra-

tings are reliable with a precision of 97.56%, re-

call of 97.01%, and accuracy of 94.72%.

2 RISKY PERMISSION SET

In this section, we introduce our methodology for ex-

ploring permission-induced risk in Android apps.

1. Protection Level: Android provides a protection

level attribute that characterises the level of sen-

sitivity implied in the permissions requested. The

protection level of the user-granted permissions is

deﬁned as: special, dangerous or normal, in order

of decreasing risk. The ﬁrst metric for determi-

ning the impact level of permissions is the default

Android security protection level.

2. Permission Group: To avoid overwhelming

users with complex and technical permission

requests, Android organises permissions into

groups related to a device’s core functionalities.

Under this system, permission requests are hand-

led at the group level and a single permission

group corresponds to several permission declara-

tions in the app manifest. When a user grants a

single permission in a group, subsequent requests

of permissions in the same group are granted wit-

hout user interaction. Our second metric involves

ranking permission groups based on the number

of permissions in the group.

3. Demoted Permissions: Our ﬁnal metric for ran-

king permissions with respect to risk are down-

graded permissions. These are permissions whose

protection levels have been downgraded from hig-

her risk, as they are now being granted by de-

fault. The security implications of these changes

in the Android security state must be considered

in any security solution (Zhauniarovich and Ga-

dyatskaya, 2016).

The revised permission model results in four levels of

sensitive permissions based on the three risk indica-

tors. The taxonomy of sensitive information is pre-

sented in Figure 1.

3 SYSTEM OVERVIEW

Figure 2 provides an overview of the proposed sy-

stem, where an app’s behaviour is characterized by

two risk ratings - its permission sensitivity index and

permission mismatch, in order to explore the risk po-

sed by the app. The permission sensitivity index is

a sensitivity measure of an app based on the indivi-

dual risk of the permissions it requests as determined

by the proposed impact level of Android permissions.

The permission mismatch checks the requested per-

missions of an app against its required permissions.

The proxy for required permissions is an analysis of

what similar apps in the same functional group are re-

questing. The key idea is to compare these presumed

required permissions of an app (inferred from functio-

nal category) with its requested permissions (obtained

from the permission set declared) and estimating any

mismatch between the two. Finally, security rules are

constructed from the risk ratings to characterize an

app behaviour as potentially benign or malicious.

3.1 Permission Sensitivity Index (PSI)

In quantifying sensitive permissions from a security

and privacy perspective, we propose a permission sen-

sitivity index(PSI), which is a function of the permis-

sions requested and their sensitivity level. PSI should

be monotonic such that requesting less sensitive per-

missions reduces the value and vice versa. The over-

whelming evidence indicates that most users do not

understand what permissions mean, even if they are

inclined to look at the permission list (Felt et al.,

2012b; Kelley et al., 2012; King et al., 2011). With

a sensitivity index, users can more easily understand

the risk level of Android permissions and pay more

attention to apps with high-risk values.

One way to approach this is to assign weights pro-

portional to each sensitivity level to capture a numeri-

cal value that ranks the sensitivity of permissions re-

quested with respect to the total number of permis-

sions. In this approach, the PSI is calculated as a

percentage of achieved value with maximal possible

value for the app. While that would prove useful in

some cases, it loses a lot of abstraction in its compu-

tation because it is difﬁcult to determine what an op-

timal weight is. For example, given the request index

of an app, G = [N

, N

] where N

represents

the number of permissions requested in level i. A po-

tential weight vector W = [1, 0.75, 0.5, 0.25] could

be assigned as an ordinal factor that captures the sen-

sitivity of each level. Consider an app A with G

[9,0,0,0], and app B with G

= [9,0,0,15]. By com-

puting the sensitivity index using this approach, app

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

184

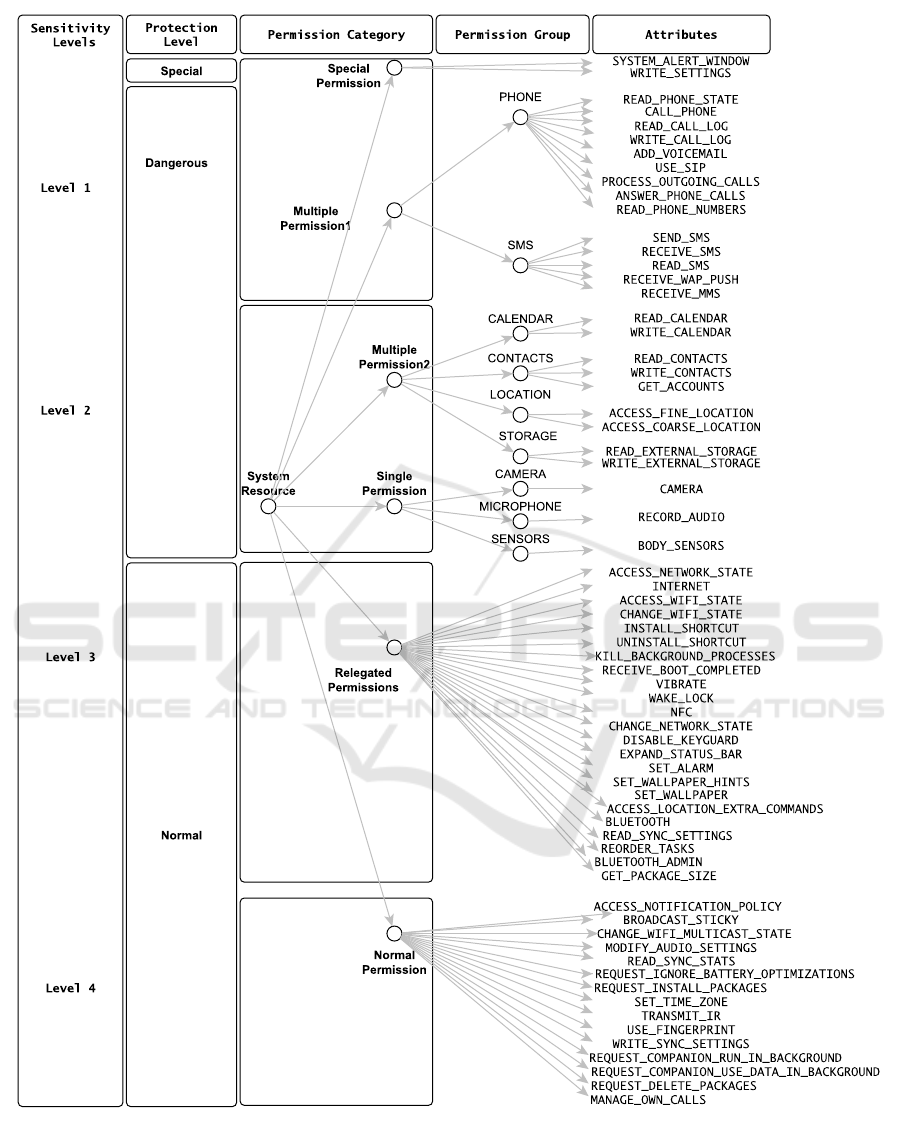

Figure 1: Proposed Impact Levels of Android Permissions (API Level 26).

A is assigned a higher value because all the permissi-

ons requested are in Level 1, while app B is assigned

a lower value because the majority of the permissions

requested are in Level 4, while ignoring the fact that

app A and app B has the same amount of sensitive

permissions in Level 1. This approach does not pre-

sent a true representation of the sensitive permission

request because N

> N

OR N

. Moreover, N

is least-

Permission-based Risk Signals for App Behaviour Characterization in Android Apps

185

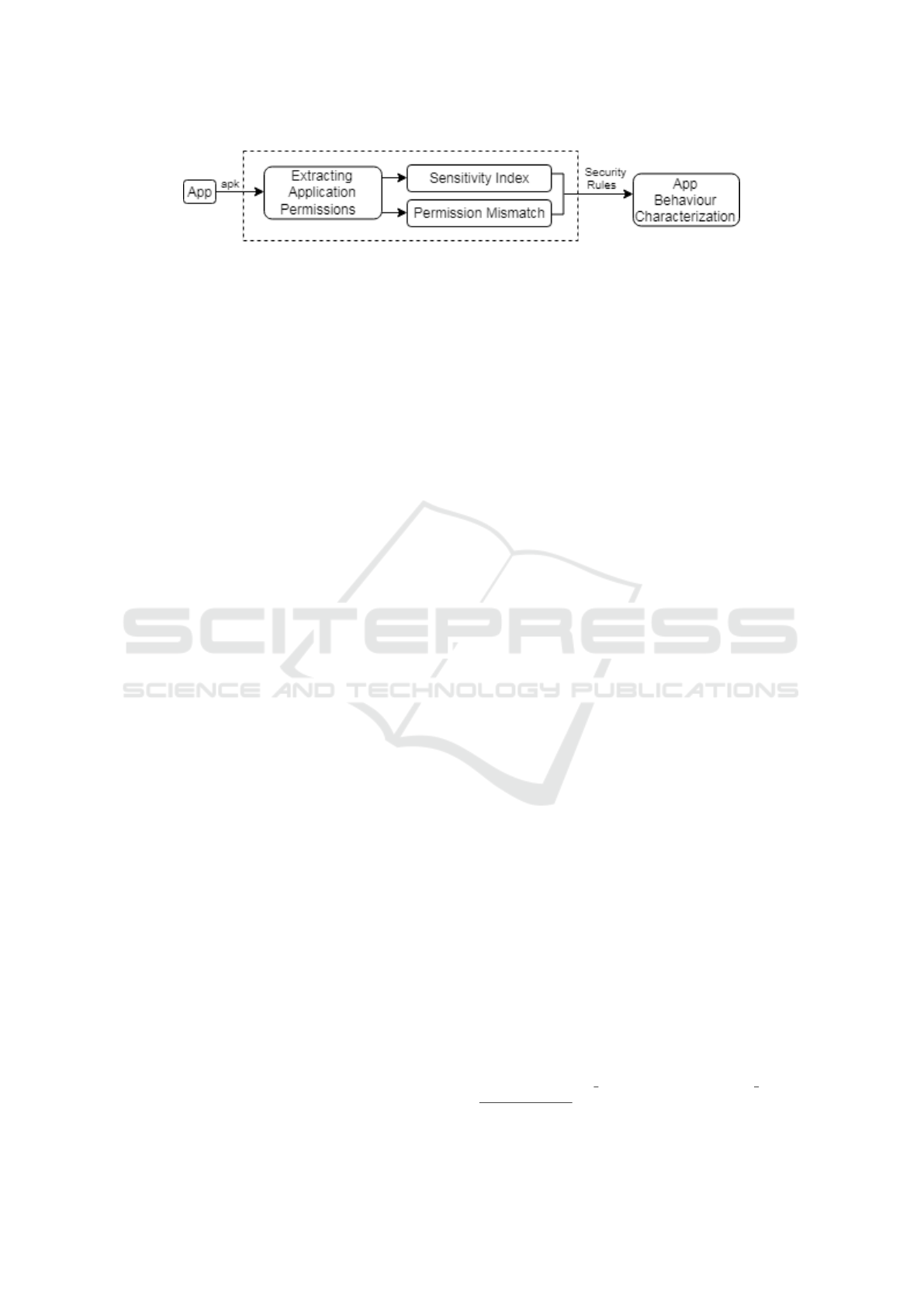

Figure 2: Proposed framework for Exploring Android Permission-Induced Risks.

sensitive with permissions granted automatically.

Hence, a characterisation of the sensitivity index

should, therefore, be a spectrum from where an app

does not require any permission in each level of sen-

sitivity to when it requires all permission in the sen-

sitivity levels. The sensitivity index should be able

to (i) distinguish between an app that requests sensi-

tive permissions and an app that does not. (ii) distin-

guish between apps that request sensitive permissions

in varying quantity, while capturing the sensitivity le-

vels of the permission request. It is observed that the

extreme case of sensitive permission request occurs

when the app requests a large number of sensitive

permissions in Level 1 and Level 2. This guides our

choice of characterisation, as it makes the previous

example of request patterns of [9,0,0,15] and [9,0,0,0]

identiﬁable. Finally, the proposed characterisation of

the PSI is along ﬁve levels of sensitivity - Moderate,

Low and Very Low (distinguishing apps that do not re-

quire sensitive permissions ); High and Extreme (dis-

tinguishing between apps that require sensitive infor-

mation). Table 1 shows the characterization of the PSI

based on the sensitivity of the permissions requested.

In this work, we only consider the permissions provi-

ded by the Android system, although an app can also

deﬁne its own permissions.

3.2 Permission Mismatch

We propose to also evaluate permission risk by deter-

mining the mismatch between requested and required

permissions based on the app category. We seek to

investigate whether there is a mismatch between what

an app is requesting and the functionality(purpose)

of the app. Applications are grouped on distribu-

tion platforms based on the function they provide, e.g.

Health &Fitness, Shopping, Finance etc. The proxy

for requested permissions is the declared permissions,

while the required permissions are evaluated by ana-

lysing permission requests of similar apps within the

same functional category.

The approach to the level of mismatch using the

app-group based approach is to generate a probabi-

lity of occurrence vector, P

, for the permission the

group requires. This serves as the baseline for requi-

red permissions of apps based on their functional ca-

tegories. The vector is of length 66, representing the

set of user-granted permissions. The value of each in-

dex is a function of the number of times apps in the

group requires the permission against the total num-

ber of apps in the group.

To determine the level of mismatch between what

an app is requesting and what it requires, we repre-

sent the permissions it requires and the permissions

its functional group requires in a vector space model.

For each app group, the permission mismatch can be

determined by evaluating the difference in the proba-

bility vector of the occurrence of the permissions in

the app group against the permissions the app is re-

questing. The permission mismatch (M

) is a set of

permissions an app is requesting whose probability of

occurrence in its group is below the critical threshold

value. The level of mismatch L

(Equation 1) is pro-

posed as a measure of the sensitivity index of the set

of permissions in M

= PSI(M

) (1)

The level of mismatch is, therefore, a factor of the

region in which mismatches occur, such that the level

of mismatch is termed low-risk if PSI(M

) = Very

Low, Low, Moderate, and high-risk if PSI(M

) =

High, Extreme. We seek to investigate whether the

level of permission mismatch could provide valuable

insights as to determining the behaviour of an app as

benign or malicious.

4 EVALUATION

We have presented a permission-based framework for

risk signals that characterize an Android app behavi-

our. To evaluate this framework, we investigate the

effectiveness of the risk signals in distinguishing bet-

ween malicious and benign applications.

4.1 Study Subjects

We gathered Android malware samples from VirusS-

hare

, a repository of malware samples to provide se-

curity researchers. The ﬁles downloaded are Android

20140324.zip(Mal V1) & 20130506.zip(Mal V2). All

https://virusshare.com

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

186

Table 1: Characterization of PSI.

PSI Characterisation Interpretation Impact

VERY LOW N

App does not request any permissions

Low-risk

LOW N

=0;N

App request ONLY Level 4 permissions

MODERATE

=0; N

App request ONLY Level 3 permissions

OR Level 3 & Level 4

HIGH

max

[1]

max

[2]

OR N

6=0)

App requests sensitive permissions in Level 1

OR Level 2 OR Both

High-risk

EXTREME

max

[1]

max

[2]

OR N

6=0)

App request large sensitive permissions in

Level 1 AND/OR Level2.

the malapps from VirusShare were approved by Vi-

rusTotal

. We also selected the Drebin dataset, Mal D,

a malicious apps dataset from different malware fa-

milies (Arp et al., 2014). Malware was also collected

from Contagio repository

, Mal C and recent samples

from the Koodous repository

, Mal K. Finally, the An-

droid malware dataset, Mal A(Wei et al., 2017) was

used. For the benign app dataset, we downloaded

10,000 apps from the Top 25 categories from Google

Play. After removing corrupt APK malware ﬁles and

inaccessible ﬁles, the ﬁnal dataset consists of a total

of 43580 apps, with 33580 being malware

. For each

sample, we extract the permissions requested using

the AndroidManifest.xml ﬁle present in the package.

4.2 Validating Sensitive Permission

Categorisation

To validate the risky permission categorisation, we

compare our ranking with alternative ways to ﬁnd im-

pact levels of Android permissions. We compare our

rankings with the study of (Felt et al., 2012a), which

ranks the risk of permissions according to user ra-

tings. In particular, we compare the ten-highest ran-

ked risks for permissions that are still relevant in the

Android permission system with our proposed sensi-

tivity levels. We present the results in Table 2, where

6 out of the 10 highest risks ranked by users corre-

spond to permissions that belong to most sensitive

level in the proposed ranking system, while the ot-

her four risks correspond to permissions in Level 2.

This suggests that the risk metrics used in the propo-

sed impact level permission corresponds to how users

perceive the impact of Android permissions.

Furthermore, we examine if the characterisation

https://www.virustotal.com/en

http://contagiomobile.deependresearch.org/index.html

https://koodous.com/

Result ﬁles are available at https://www.dropbox.com/

sh/62avus8x7oiaq3f/AABi7cdXGxa1qSjgvGmad0qXa?

dl=0

of the impact levels can be used for describing an app.

We observe the PSI of samples in our dataset to check

if its request pattern matches our prediction of high

risk and low-risk apps based on PSI. For an app to

be in the low-risk category, there are two characteris-

tics: it does not require any Android permission (PSI

= Very Low) or it does not require any sensitive per-

mission (PSI = Low or Moderate). Based on the

PSI of the data subjects, 1.78% of malware apps in

the dataset belong to this category, while 16.01% of

benign apps exhibit such behaviour. For an app to

be a high-risk app, it requires sensitive permissions

in Level 1 or Level 2 (PSI = High or Extreme).

None of the apps in the dataset has a Low psi. This

is the behaviour of apps that require the least sensi-

tive permission in proposed systemic ranking of An-

droid permissions (Level 4). This shows that one

way to characterize an app behaviour is through sensi-

tive permission request. We extracted security rules,

(Rules 01, Rules 02) (Table 3) from the PSI of

the data subjects as a form of measure characterizing

the features identiﬁable with each class label (1 for

Benign, -1 for Malware).

Malware apps are characterised by risk level of

high based on the permission request patterns. This

justiﬁes the rationale of using permissions to rank the

risk of Android apps. This further supports the risk in-

dicators used and justiﬁes the hypothesis that the sen-

sitivity of the permissions requested by an app is an

important factor in quantifying the risk factor. This

result is particularly interesting with respect to mal-

ware detection, where apps are ﬁngerprinted by ob-

serving their static features, such as the API calls, in-

tent etc. We argue that the PSI would be an enhan-

cement to static feature generation for malware de-

tection of apps. While Rule 02 is characteristic of

a malware, it is not dominant enough to distinguish a

malware from a benign app. However, it shows a war-

ning signal for the kind of apps that should be investi-

gated. Therefore in ﬁngerprinting an app for malware

detection, reliable static features that can be used as

a warning sign:if(PSI = High-Risk). Thus, low-

Permission-based Risk Signals for App Behaviour Characterization in Android Apps

187

Table 2: Comparison of User Ratings of Impact Level of Android Permissions and proposed systemic ranking.

Permission

User

Rating

Impact

Level

Permission

User

Rating

Impact

Level

CALL PHONE 97.41% 1 READ SMS 94.48% 1

READ PHONE STATE 97.41% 1 RECEIVE SMS 94.48% 1

SEND SMS 96.39% 1 WRITE SETTINGS 94.39% 1

WRITE CONTACTS 95.89% 2 GET ACCOUNTS 93.37% 2

READ CONTACTS 95.89% 2 READ EXTERNAL STORAGE 90.60% 2

risk apps are more likely to be benign, while high-risk

apps are more likely to be malicious.

Existing approaches have categorised risky per-

missions based on the frequency of occurrence in mal-

ware datasets, benign datasets or a combination of

both. We argue that this approach is limited because

it does not emphasise the dynamic complexity and

evolving nature of the Android permission system.

Android keeps modifying permission space by remo-

ving permissions and also limitations based on mal-

ware dataset space. To justify our reasoning, we con-

sider the permission request pattern of our malware

data size and compare it with current state-of-the-

art risky permission sets in (Peng et al., 2012; Wang

et al., 2013; Wang et al., 2014; Sarma et al., 2012;

Enck et al., 2009). In particular, we consider all per-

missions whose probability of occurrence is not zero.

These comparisons show that the permissions consi-

dered by (Enck et al., 2009) are only relevant for 19%

of malware in the dataset, while (Wang et al., 2014)

characterizes 60% request patterns of malware in our

dataset. The reason for the partial characterization of

malware request patterns from these approaches is be-

cause deﬁning risky permission sets in these works

are dataset-dependent.

With the permission sensitivity index, we validate

that when a user installs a new app, they run the risk

of the app being malware and the impact of the risk is

reﬂected in the categorisation of the PSI, even without

knowing existing malware patterns.

4.3 Level of Permission Mismatch

To gain valuable insight into requested versus requi-

red permissions, the probability of occurrence of in-

dividual permissions for each app group is computed

as the proportion of the frequency of the permission

request divided by the total number of apps in the

group. Using the probability of occurrence, with a

critical threshold set at θ

= 20%, produces some in-

tuitive results, such as that location permissions are

frequently required by apps in the Travel&Local and

Maps&Navigation app category. The probability of

occurrence can be used as a baseline for matching an

app’s requested permission with its required permis-

sions based on its functional group.

To investigate the level of mismatch L

in the

malware dataset, some malware metadata such as app

title, app category are required. This is to ensure that

the probability-of-occurrence vector used in the ana-

lysis corresponds to the app category of each malware

app. For 49 app categories, we were able to ﬁnd ex-

actly the same package identiﬁer retrieved from the

apk ﬁles of the malware app on the store.

From the identiﬁed app categories, we investiga-

ted the level of the mismatch with respect to varying

degrees of critical threshold - θ

= [20%, 35%, 30%,

35%, 40%]. We examined the level of mismatch that

occurs with a malware application requesting a sen-

sitive permission that is requested by less than θ

apps in the corresponding benign category. For an

app in the low-risk zone, the permissions reque-

sted closely mirror the permissions required by its

benign counterparts with any mismatch occurring in

less sensitive permission sets (Level 3 and Level 4).

A high-risk app, on the other hand, has permis-

sion mismatches with benign counterparts on sensi-

tive permissions (Level 1 and Level 2). The cor-

relation between the spectrum of critical threshold

against malware that is low-risk and high risk was

found to be strongly negatively and positively cor-

related (R

(θ

, N

lowrisk

= −0.988), R

(θ

, N

highrisk

0.988)). With a set critical threshold, malware apps

tend to request sensitive permissions, rarely required

by their benign counterparts.

To investigate the level of permission mismatch

as a means of distinguishing behaviour, we compare

the level of permission mismatch of each benign app

category with its corresponding malware, at a criti-

cal threshold of 20%. The behaviour is described by

Rules[03-04] in Table 3. We observe that the per-

mission mismatch is indeed distinguishable behavi-

our. While at least 6 out of 10 benign apps do not

have permission mismatches in critical permissions,

at least 6 out of 10 malapps request permissions not

required by other apps in the group, at the 20% thres-

hold.

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

188

4.4 Distinguishable Behaviour

The aim of this section is to investigate whether the

combination of these risk ratings could give further

insight into distinguishing the behaviour of malapps

and benign apps.

4.4.1 PSI and Permission Mismatch

Since we have already shown that low-risk PSI apps

are most likely to be benign with a 90% likelihood,

we proceed to show if the combination of a high-risk

psi and the values for the level of mismatch can pro-

vide further distinguishability. We investigate the li-

kelihoods of the combination of the risk ratings with

respect to the dataset as a means of discriminating be-

tween malapps and benign apps. The results are pre-

sented as Rules 05-06 in Table 3.

With these likelihoods, a high-risk PSI and low-

risk permission mismatch are indicative of a benign

app, while a high-risk PSI and high-risk indicates the

presence of a malicious app. Users do not often pay

attention to the textual description of information re-

lated to the risk of permissions in the current android

permission system (Felt et al., 2012b). We show that

the permission sensitivity index and level of permis-

sion mismatch metrics provide a measure of distin-

guishability between malicious and benign applicati-

ons which can improve user attention and awareness

to the risks of Android permissions and apps.

4.4.2 PSI and Distinguishing Permissions

Malicious app developers might select a misleading

category for the app by joining a group whose mem-

ber apps request more permissions, even if functiona-

lity wise, it does not belong to that group. This thre-

atens the validity of the risk rating produced by the

level of permission mismatch. We, therefore, investi-

gate permissions and combination of permissions that

are characteristic of the dataset to form a compound

risk rating alongside the proposed risk signals. Upon

investigating, we discovered single permissions that

clearly distinguish malware from benign apps. The

single permission, READ PHONE STATE was requested

by 98% of malware in the dataset, while the proba-

bility that a malware does not request read access

to the phone state and full network access

is 0.04. This suggests that most malware needs to

read device and phone data with a full network access.

This also supports our criteria for the proposed ran-

king of Android permissions, where the single per-

mission was assigned to sensitivity Level 1 -

most sensitive level, without a prior knowledge of

malware request pattern. We then proceed to inves-

tigate the likelihood of high-risk PSI apps and per-

mission combinations for reliable risk signalling. The

security rules that characterize the reliability of these

features are presented as Rules 07-09 in Table 3.

4.5 Reliability of Risk Ratings

We proceed to show the reliability of the security ru-

les extracted from the proposed risk ratings in iden-

tifying potential malware. The impact is characteri-

zed by the sensitive permissions requested by the app

(PSI), while the likelihood measures the probability

that the security rule belongs to the class label. The

impact and likelihood of these risk signals are presen-

ted in Table 4.

Based on Table 4, benign apps are characterised

by low-risk and high-risk rating values, while malici-

ous apps are only characterised by high-risk values.

These risk signals can be triggered in identifying po-

tential malware. User attention of the risk to Android

permissions and apps can be improved by utilising the

risk information provided by each rule, such that an

app can be triggered as potential malware based on

its level of impact and likelihood based on the Rules.

To evaluate the reliability of these risk ratings, we

evaluate High-Risk PSI and Permission Rules

with the PSI Rules (see Table 4) on a benign and

malicious app dataset. The benign dataset is downlo-

aded from GooglePlay, while the malware dataset is

Mal A(Wei et al., 2017), which provides an up-to-date

picture of the current landscape of Android malware,

categorized in 135 varieties among 71 malware fami-

lies. The results are presented in Table 5, where the

risk rating achieved an accuracy of 95% in reporting

malapps. This indicates that the rules extracted from

the risk ratings well discriminate malapps from be-

nign apps, and thus, permission requests characterize

the behaviours of Android apps to a certain extent.

While our approach shows a good performance for

reporting malapps, it suffers two limitations that im-

pacted on its accuracy - i) malapps that do not require

any permissions, and ii) malapps that have the same

risk rating as benign apps. In such scenarios, relying

on permission request only is not feasible.

Previous studies have shown that community ra-

tings on distribution platforms are not sufﬁcient to

alert users to the level of privacy risk they are exposed

to when they download an app (Chia et al., 2012). In

conclusion, the risk signals can be used as a privacy

risk indicator to support current forms of community

ratings, such that a recommendation system for An-

droid apps using these risk ratings can be built to as-

sist users in their security evaluation of Android apps.

Permission-based Risk Signals for App Behaviour Characterization in Android Apps

189

Table 3: Security Rules from Risk Ratings.

PSI Rules LMA Rules PSI & LMA

Rule 01

IF(PSI=LOW-RISK)

THEN Class=1[90%]

Rule 02

IF(PSI=HIGH-RISK)

THEN Class=-1[54%]

Rule 03

IF(LMA=LOW-RISK)

THEN Class=1[65%]

Rule 04

IF(LMA=HIGH-RISK)

THEN Class=-1[65%]

Rule 05

IF(PSI=HIGH-RISK)&(LMA=LR)

THEN Class=1[61%]

Rule 06

IF(PSI=HIGH-RISK)&(LMA=HR)

THEN Class=-1[70.00%]

*LR=LOW-RISK, HR=HIGH-RISK

High-Risk PSI and Permissions Rules

Rule 07

IF(PSI=HIGH-RISK)

AND READ PHONE STATE=1

AND ACCESS NETWORK STATE=1

AND INTERNET=1

THEN Class=-1[75%]

Rule 08

IF(PSI=HIGH-RISK)

AND READ PHONE STATE=0

AND ACCESS NETWORK STATE=1

AND INTERNET=1

THEN Class=1[89%]

Rule 09

IF(PSI=HIGH-RISK)

AND READ PHONE STATE=1

AND CAMERA=1

AND READ EXTERNAL STORAGE=1

AND/OR RECORD AUDIO=1

THEN Class=1[82%,93%]

Table 4: Malapp Reporting Rules.

Class Rule Impact Likelihood

Benign 01,08,09 Low-Risk, High-Risk, High-Risk [90%, 89%,[82%, 93%]]

Malicious 06,07 High-Risk, High-Risk [70%,75%]

Table 5: Detection of Malapps Using Risk Signals.

TP FP FN P(%) R(%) A(%)

18110 452 558 97.56 97.01 94.72

TP = True Positive, FP = False Positive, FN = False

Negative, P - Precision, R - Recall, A - Accuracy

As malicious apps have become more complex, more

features need to be explored in order to improve the

capacity of detectors for the detection of novel ma-

lapps. Our analysis results show that the use of the

proposed risk ratings can be effective in reporting ma-

lapps.

5 RELATED WORKS

Usability studies on the effectiveness of the Android

permissions system have indicated that the current

permission system does not help most users make in-

formed security decisions about malware threats (Felt

et al., 2012b). The complexity of Android permission

requests has been investigated (Frank et al., 2012).

(Barrera et al., 2010) used a Self-Organizing Map

(SOM) algorithm to visualise the permission-based

systems of the most popular Android apps. (Felt et al.,

2011a) have presented a permission analysis tool, Sto-

waway, that detects overprivilege in Android apps, a

situation in which an Android app requests more per-

mission than necessary. A study of permission evolu-

tion in the Android ecosystem and its usage was con-

ducted by (Wei et al., 2012). PScout was developed,

as an extension to Stowaway, to extract a permission

speciﬁcation API from Android OS source code with

static analysis (Au et al., 2012). While our methods

also provide a better understanding of permission re-

quest patterns of Android apps, our work examines

the relationship between permission request and their

risk in Android apps as a measure of distinguishing

between malapps and benign apps.

The closest research to our work was reported by

(Enck et al., 2009), (Sarma et al., 2012), (Peng et al.,

2012), (Wang et al., 2013) and (Wang et al., 2014).

Using the permission information as the data source,

the risk presented by an Android app was evaluated by

examining how rare are the permissions request pat-

terns in comparison with the permissions requested

by other apps in the same categories (Sarma et al.,

2012). Probabilistic generative models such as Naive

Bayes could be used for risk scoring and risk ran-

king for apps (Peng et al., 2012). In contrast to the

9 permission rules proposed by Kirin (Enck et al.,

2009), 200 permission detection rules for malapp de-

tection built on risky permissions set were also deve-

loped by (Wang et al., 2014). The common denomi-

nator amongst all these approaches is obtaining fea-

tures from both benign and malicious dataset for ma-

lapp detection. Security rules are then built based on

identiﬁed permission request patterns in the dataset.

This approach is often hindered by the evolving na-

ture of the Android permission system. For example,

2 detection rules in (Enck et al., 2009) refer to per-

missions that are no longer supported. Our approach

develops risk ratings that rely on a proposed impact

level of Android permissions independent of a priori

request patterns that emphasize the complex and dy-

namic nature of the Android permission model. 6 out

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

190

of the 9 proposed security rules are independent of

known malware request pattern, while 3 depends par-

tially on identiﬁed request patterns. Our analysis thus

provides a vision regarding the use of security rules

that are not completely dependent on known permis-

sion request patterns for the detection of malapps.

6 CONCLUSION

We have investigated the feasibility of characterizing

app behaviour using risk ratings from proposed im-

pact levels of Android permission. We demonstrate

that the risk signals can be used to assist layman users

in their security evaluation of Android apps. The ﬁrst

rating is the sensitivity index of the app based on the

impact levels of requested permissions, the second ra-

ting is on its permission request compared to similar

apps, while the last rating is on its permission that

characterizes class label of apps as benign or malici-

ous. Our result demonstrates that the proposed fra-

mework can be used to improve risk signalling of An-

droid apps with a 95% accuracy.

For risk signalling, the ratings provide a measure

of awareness and scrutiny as a user defence against

malicious applications. For malware detection, a de-

tailed knowledge of app behaviour is essential for

signatures. Existing approaches and future analysis

could incorporate these ratings as the ﬁrst phase in

prioritizing, especially when a large dataset of apps is

involved. For future work, we are exploring features

to make the risk ratings adjustable to contextual fac-

tors, such as actual usage of permissions in the source

code.

REFERENCES

Arp, D., Spreitzenbarth, M., Hubner, M., Gascon, H.,

Rieck, K., and Siemens, C. (2014). Drebin: Effective

and explainable detection of android malware in your

pocket. In Ndss, volume 14, pages 23–26.

Au, K. W. Y., Zhou, Y. F., Huang, Z., and Lie, D. (2012).

Pscout: analyzing the android permission speciﬁca-

tion. In Proceedings of the 2012 ACM conference on

Computer and communications security, pages 217–

228. ACM.

Barrera, D., Kayacik, H. G., van Oorschot, P. C., and So-

mayaji, A. (2010). A methodology for empirical ana-

lysis of permission-based security models and its ap-

plication to android. In Proceedings of the 17th ACM

conference on Computer and communications secu-

rity, pages 73–84. ACM.

Chia, P. H., Yamamoto, Y., and Asokan, N. (2012). Is this

app safe?: a large scale study on application permissi-

ons and risk signals. In Proceedings of the 21st inter-

national conference on World Wide Web, pages 311–

320. ACM.

Enck, W., Octeau, D., McDaniel, P. D., and Chaudhuri, S.

(2011). A study of android application security. In

USENIX security symposium, volume 2, page 2.

Enck, W., Ongtang, M., and McDaniel, P. (2009). On light-

weight mobile phone application certiﬁcation. In Pro-

ceedings of the 16th ACM conference on Computer

and communications security, pages 235–245. ACM.

Felt, A. P., Chin, E., Hanna, S., Song, D., and Wagner, D.

(2011a). Android permissions demystiﬁed. In Procee-

dings of the 18th ACM conference on Computer and

communications security, pages 627–638. ACM.

Felt, A. P., Egelman, S., and Wagner, D. (2012a). I’ve got 99

problems, but vibration ain’t one: a survey of smartp-

hone users’ concerns. In Proceedings of the second

ACM workshop on Security and privacy in smartpho-

nes and mobile devices, pages 33–44. ACM.

Felt, A. P., Finifter, M., Chin, E., Hanna, S., and Wagner,

D. (2011b). A survey of mobile malware in the wild.

In Proceedings of the 1st ACM workshop on Security

and privacy in smartphones and mobile devices, pages

3–14. ACM.

Felt, A. P., Greenwood, K., and Wagner, D. (2011c). The

effectiveness of application permissions. In Procee-

dings of the 2nd USENIX conference on Web applica-

tion development, pages 7–7.

Felt, A. P., Ha, E., Egelman, S., Haney, A., Chin, E., and

Wagner, D. (2012b). Android permissions: User at-

tention, comprehension, and behavior. In Proceedings

of the eighth symposium on usable privacy and secu-

rity, page 3. ACM.

Frank, M., Dong, B., Felt, A. P., and Song, D. (2012). Mi-

ning permission request patterns from android and fa-

cebook applications. In Data Mining (ICDM), 2012

IEEE 12th International Conference on, pages 870–

875. IEEE.

Kelley, P. G., Consolvo, S., Cranor, L. F., Jung, J., Sadeh,

N., and Wetherall, D. (2012). A conundrum of permis-

sions: installing applications on an android smartp-

hone. In International Conference on Financial Cryp-

tography and Data Security, pages 68–79. Springer.

Kelly, G. (2014). Report: 97% of mobile malware is on

android. this is the easy way you stay safe. Forbes

Tech.

King, J., Lampinen, A., and Smolen, A. (2011). Privacy: Is

there an app for that? In Proceedings of the Seventh

Symposium on Usable Privacy and Security, page 12.

ACM.

Peng, H., Gates, C., Sarma, B., Li, N., Qi, Y., Potharaju, R.,

Nita-Rotaru, C., and Molloy, I. (2012). Using proba-

bilistic generative models for ranking risks of android

apps. In Proceedings of the 2012 ACM conference on

Computer and communications security, pages 241–

252. ACM.

Sarma, B. P., Li, N., Gates, C., Potharaju, R., Nita-Rotaru,

C., and Molloy, I. (2012). Android permissions: a

perspective combining risks and beneﬁts. In Procee-

Permission-based Risk Signals for App Behaviour Characterization in Android Apps

191

dings of the 17th ACM symposium on Access Control

Models and Technologies, pages 13–22. ACM.

Wang, W., Wang, X., Feng, D., Liu, J., Han, Z., and Zhang,

X. (2014). Exploring permission-induced risk in an-

droid applications for malicious application detection.

IEEE Transactions on Information Forensics and Se-

curity, 9(11):1869–1882.

Wang, Y., Zheng, J., Sun, C., and Mukkamala, S. (2013).

Quantitative security risk assessment of android per-

missions and applications. In IFIP Annual Conference

on Data and Applications Security and Privacy, pages

226–241. Springer.

Wei, F., Li, Y., Roy, S., Ou, X., and Zhou, W. (2017).

Deep ground truth analysis of current android mal-

ware. In International Conference on Detection of In-

trusions and Malware, and Vulnerability Assessment,

pages 252–276. Springer.

Wei, X., Gomez, L., Neamtiu, I., and Faloutsos, M. (2012).

Permission evolution in the android ecosystem. In

Proceedings of the 28th Annual Computer Security

Applications Conference, pages 31–40. ACM.

Zhauniarovich, Y. and Gadyatskaya, O. (2016). Small chan-

ges, big changes: an updated view on the android per-

mission system. In International Symposium on Rese-

arch in Attacks, Intrusions, and Defenses, pages 346–

367. Springer.

Zhou, Y., Wang, Z., Zhou, W., and Jiang, X. (2012). Hey,

you, get off of my market: detecting malicious apps

in ofﬁcial and alternative android markets. In NDSS,

volume 25, pages 50–52.

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

192
