Mobile Devices as Digital Sextants for Zero-Permission Geolocation

Lorenz Schwittmann, Matth

aus Wander and Torben Weis

Distributed Systems Group, University of Duisburg-Essen, 47048 Duisburg, Germany

Keywords:

Geolocation, Tracking, Privacy, Ambient Light Sensor, Mobile Web Security.

Abstract:

Sensors in mobile devices can be used to infer information about a user’s context, most notably the location.

Android apps and websites shown in Firefox for Android allow software to read the ambient light sensor,

gyroscope and accelerometer without asking the user for permission. We show that these three sensors are

sufﬁcient to determine the rough geographical location of a user by turning the mobile device into a digital

sextant. Despite low-quality sensor data, our approach is able to determine the position of the sun and thereby

the geographical area where the user is located. Our approach works even if the user holding the device does

not cooperate in being located or employs location-disguising techniques such as a VPN. We analyze in detail

the different error sources and show in which settings and situations our approach works best. The location

accuracy was at best 146 km with a medium accuracy better than 500 km. Truncating the positional sensor

readings minimizes the privacy threat, while truncation of the ambient light sensor has almost no effect.

1 INTRODUCTION

Geolocation determines the location of a user’s de-

vice in the world. Positioning or geolocating services

are a standard feature offered by smartphones and ot-

her mobile devices. They achieve a high accuracy by

combining satellite navigation (e.g., GPS, Galileo or

GLONASS), cell tower and Wi-Fi triangulation. The

location of a mobile device is synonymous to the lo-

cation of its user and therefore subject to privacy con-

cerns. Thus, operating systems like Android or iOS,

or platforms like web browsers ask for user permis-

sion before giving location access to applications.

Unfortunately, adversaries can utilize side chan-

nels to determine the user’s location without con-

sent. A prominent example is IP address geolocation,

which allows country-level or city-level geolocation

(Triukose et al., 2012). Hiding the IP address pro-

tects from this type of geolocation, for example with

a VPN, proxy server or Tor. Prior work has shown

that freely accessible inertial sensors provide enough

information to infer the trajectory of moving mobile

devices such as acceleration of metro lines (Hua et al.,

2017) or cars in city streets (Han et al., 2012). Even

the phone’s power meter can be used to infer the loca-

tion based on cellular radio power consumption (Mi-

chalevsky et al., 2015). This enables the geolocation

of the user even when hiding the IP address with a

VPN. These approaches have in common that they

require a systematic charting of a given area subject

to speciﬁc features before geolocation becomes pos-

sible.

In this paper, we propose a zero-permission geo-

location method based on mobile sensors, which does

not require prior charting nor user permission. We de-

termine the altitude of the unobstructed sun by crea-

ting a digital sextant based on the ambient light sensor

(ALS) and accelerometer. Combined with a compass,

this allows for geolocation without prior training or

cartography anywhere on Earth where the sun is visi-

ble. However, magnetometers in smartphones used as

compasses are too inaccurate for this purpose, espe-

cially because we cannot expect the user to calibrate

them when they are unaware of being geolocated. Our

method compensates for magnetometer deﬁciencies

by inferring the sun’s movement with time-delayed

measurements, from which we can derive the user’s

location on Earth.

The sensors used by our method are accessible by

Android apps or even websites on Firefox for Android

without requesting user permission. The major chal-

lenge are inaccurate sensor readings by uncalibrated

sensors on consumer devices. Yet, our web-based

implementation achieves an accuracy of better than

500 km in 50% of our measurements. This shows that

malicious websites can perform a country-level geo-

location even when the user employs a VPN to hide

their location.

Schwittmann, L., Wander, M. and Weis, T.

Mobile Devices as Digital Sextants for Zero-Permission Geolocation.

DOI: 10.5220/0007254000550066

In Proceedings of the 5th International Conference on Information Systems Security and Privacy (ICISSP 2019), pages 55-66

ISBN: 978-989-758-359-9

The contributions of this paper include:

1. A novel approach to locate mobile devices wit-

hout any infrastructure support.

2. A systematic evaluation of its accuracy, depen-

ding on latitude and sensor error.

3. An analysis of countermeasures based on reduced

sensor resolution.

The paper is organized as follows: Section 2 mo-

tivates an attack use case. Section 3 provides astrono-

mical background that the attack relies on. Section 4

describes assumptions about the threat model and

Section 5 the geolocation method. Section 6 descri-

bes the implementation and how to handle practical

interferences. Section 7 analyzes the practical appli-

cability, while Section 8 evaluates the location accu-

racy and causes of measurement errors systematically.

Section 9 discusses countermeasures and their effecti-

veness. Section 10 compares our work with related

approaches.

2 USE CASE

Our digital sextant achieves an accuracy suitable for

country-level geolocation. Although this is a coarse

result, it can be used as part of a multi-level appro-

ach to bootstrap a more accurate geolocation method.

There is a number of approaches for location tracking,

which require either the starting point or at least the

approximate area of where the user resides (Li et al.,

2018; ?; ?; ?; ?; Han et al., 2012). Based on an ap-

proximate position, they allow to infer vehicular mo-

vement on a street map or similar approaches. Wit-

hout any prior areal indication at all, there are too

many potential matches and the resources required to

process global map data renders the geolocation at-

tempt infeasible. Our method thus yields the approx-

imate area of the user, which can be then narrowed

down with a computationally-expensive method to a

speciﬁc location.

3 BACKGROUND

Our method is based on knowledge about planetary

movements and celestial navigation combined with

sensors available in smartphones.

3.1 Celestial Navigation

Celestial navigation relies on knowledge about per-

ceived positions of celestial bodies depending on ob-

Object

Altitude

Observer

Local Horizon

Azimuth

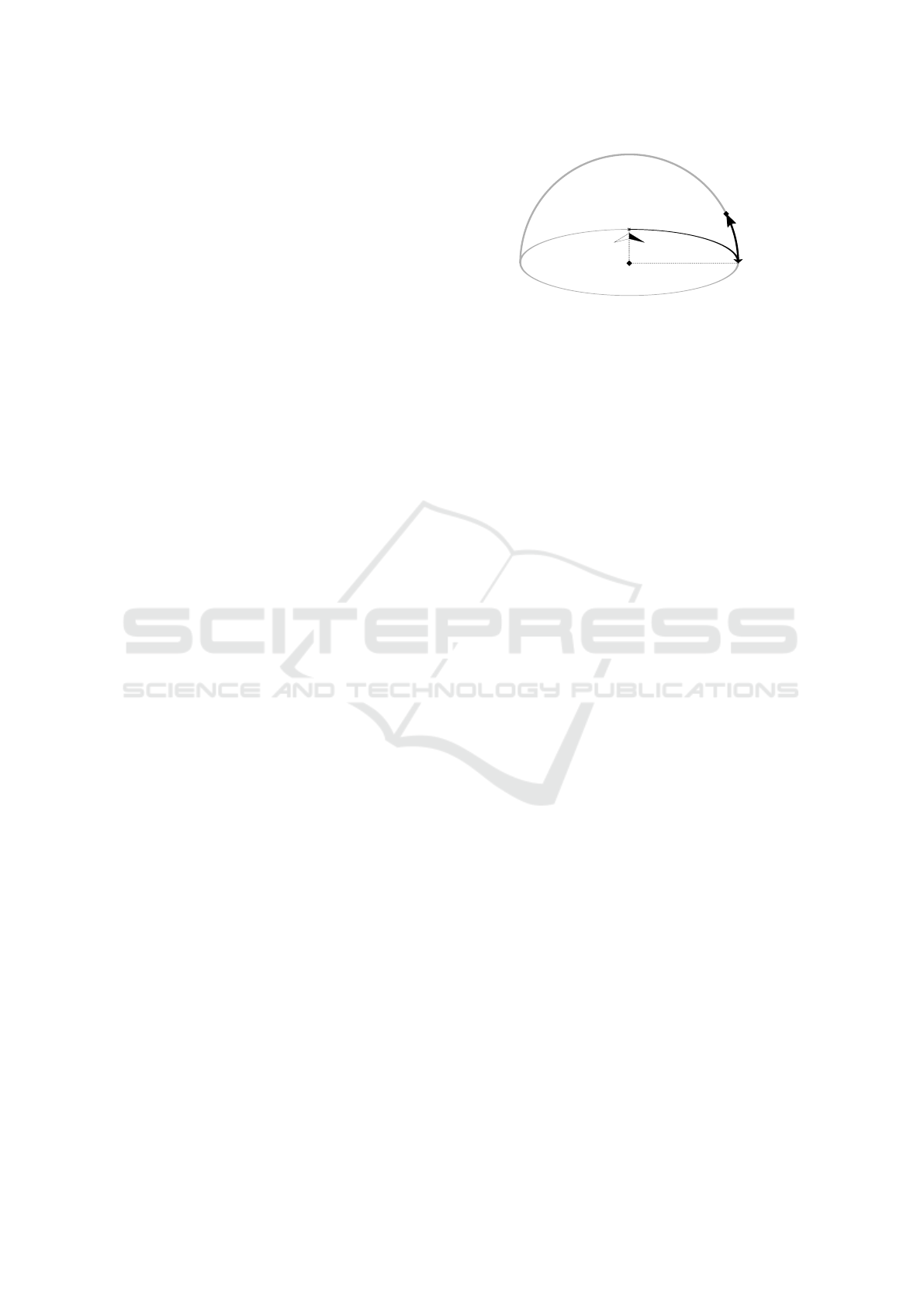

Figure 1: The horizontal coordinate system.

servation time and place on Earth. To describe ce-

lestial positions from a local observer’s perspective,

astronomers use the horizontal coordinate system (Fi-

gure 1). In it, every celestial object can be deﬁned

using two angles: altitude describes elevation from

the observer’s local horizon and azimuth the cloc-

kwise angle between north and that point on the hori-

zon below the celestial body.

Combined with a precise location information of

the observer (latitude/longitude) and time of the ob-

servation, this uniquely deﬁnes a celestial position

and allows for identiﬁcation of that celestial body. In

the opposite case, if horizontal coordinates, time and

celestial body are given, the observer’s location is uni-

quely deﬁned, which we utilize in our method.

3.2 Planetary Movements

While the general model of Earth orbiting the sun

is well-known, various factors have to be taken into

consideration to precisely predict its celestial posi-

tion. Among these are ecliptic (tilt between rotatio-

nal axis and orbital axis), exact orbital period (leap

years/seconds), gravitational inﬂuences, day of year

and time of day. Even then, there is no universal for-

mula to describe celestial bodies precisely. Instead as-

tronomers rely on fundamental ephemeris (i.e., tables

of positions of celestial objects and their movements)

which can be used to predict future positions. These

calculations can be performed by broadly available

astronomic programming libraries such as PyAstro-

nomy (Czesla, 2013) with high accuracy.

3.3 Smartphone Sensors

Due to its brightness the sun is especially suited for

detection using an ambient light sensor (ALS). Usu-

ally, ALS are mounted on the mobile device’s front

near the camera and prefaced by a lens to sample am-

bient light from a wide angle. Silicon photodiodes

used in ALS are sensitive to a broad spectrum of light.

To approximate human perception of illuminance and

restrict that sensor sensitivity to visible light, ﬁltering

techniques are used to ultimately yield illuminance in

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

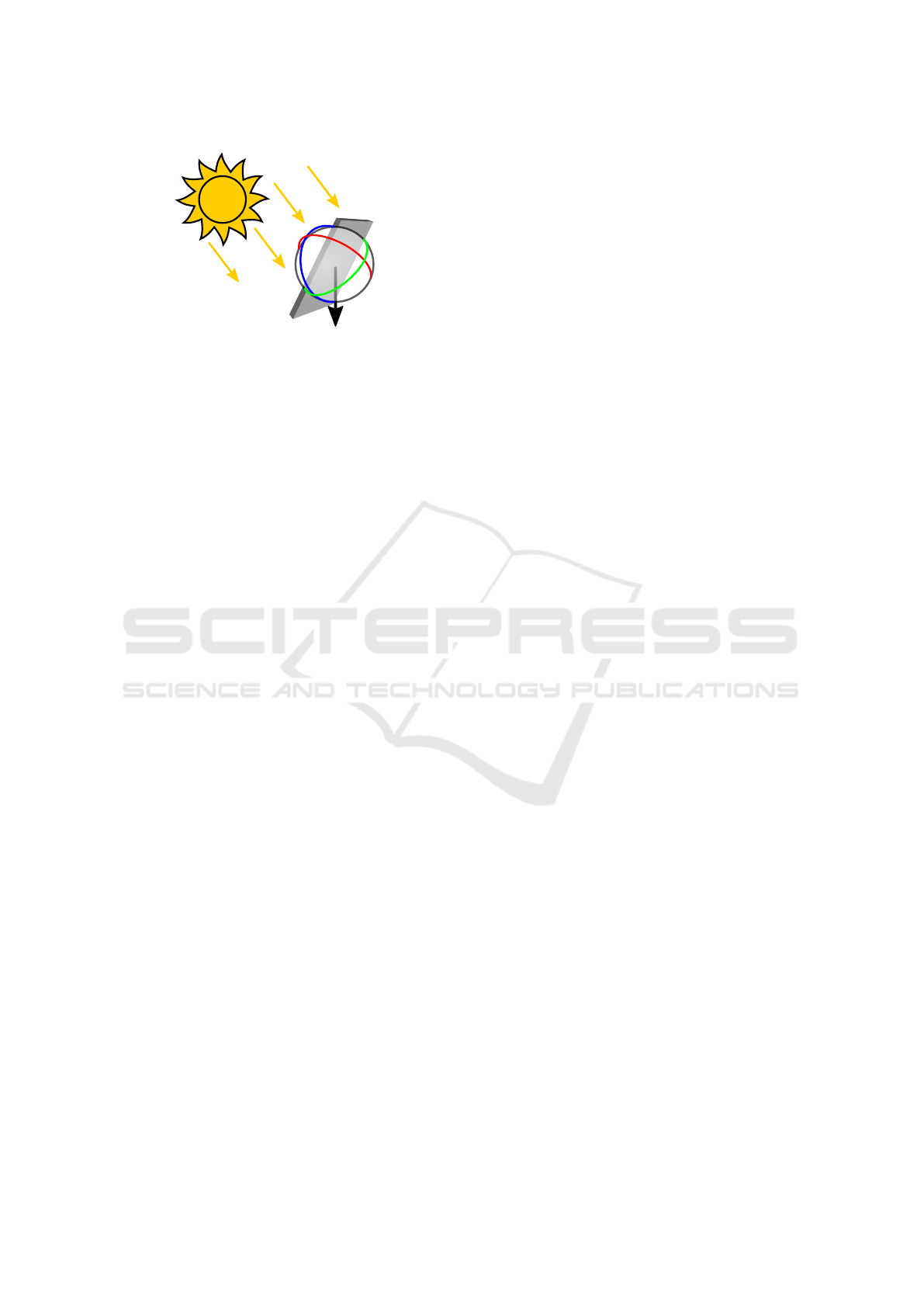

Figure 2: The mobile device records ambient light and po-

sitional sensors.

the photometry unit Lux. Nearly every smartphone

and tablet is equipped with an ALS to adjust screen

brightness, allowing for a sensor-based trade-off bet-

ween screen readability and energy consumption. Be-

sides its user interface usage, ALS readings are also

exposed to applications on Android and in the Web

API without any dedicated permission requirements.

Both APIs yield illuminance as IEEE 754 ﬂoating

points.

4 THREAT MODEL

As illustrated in Figure 2, a user holds their smartp-

hone or another smart device while being exposed to

direct sunlight. The user takes reasonable measures

to hide their location such as using a VPN and the-

reby rendering IP address-based geolocation useless.

Unconscious movements by the user cause the smart

device to be facing in various directions.

An attacker aims to geolocate the user without

their consent. The attacker can execute code without

special permissions on the user’s device, in particu-

lar without access to the geolocation API. The mali-

cious code reads the ambient light sensor, accelero-

meter and magnetometer of the user’s device. This

assumption is met by installing a seemingly harmless

app or simply visiting an HTML5 website, since the

sensors of interest to our method are exposed via Web

APIs (Tibbett et al., 2016; Kostiainen et al., 2017).

We furthermore assume the attacker runs another

measurement on the user’s device after one to six

hours and observes a different position of the sun.

This could be achieved by running the app in back-

ground or because the user visits the website a second

time.

5 METHOD

Our method to locate a mobile device consists of

1. measuring directional ambient light at two points

in time, 2. processing these measurements to ﬁnd out

the sun’s altitude and azimuth, 3. calculating location

candidates and 4. ﬁnally aggregating them to a posi-

tion. We will discuss each step in detail in the follo-

wing sections.

5.1 Measurements

We start by continuously reading accelerometer, mag-

netometer and ambient light sensors with correspon-

ding time stamps. Since Android apps or websites do

not require additional permissions for this, this data

collection can be conducted without the user’s per-

mission or even awareness.

Since our approach does not control the user’s mo-

vement, we merely assume the ambient light sensor

eventually points towards the sun. We refer to this set

of collected sensor readings as one measurement. To

overcome inaccurate magnetometer values, we use at

least two measurements from different points in time,

which will be merged together in Section 5.3.

5.2 Preprocessing

Given a measurement, we want to locate the sun and

calculate its altitude and azimuth.

For this, all sensor readings are transformed to a

horizontal coordinate system. The accelerometer pre-

sents its values as a three dimensional vector (x, y, z)

where z represents the front/back forces acting on

the device. Assuming gravitational force is the main

component, we can use the normal vector of the xy-

plane to calculate the device’s facing direction, which

gives us the altitude in the horizontal coordinate sy-

stem (cf. Figure 1). When interpreted as a compass,

magnetometer readings can be used to determine the

azimuth. As we cannot expect a calibrated mag-

netometer, the resulting azimuth is shifted with an

unknown offset error. We combine these positional

sensors with ALS readings to generate a directed lig-

hting map. An example of such a transformed measu-

rement is shown in Figure 3. The x-axis represents the

(shifted) azimuth as derived from magnetometer rea-

dings while the y-axis shows altitude calculated from

accelerometers. The color corresponds to recorded lu-

minance. Figure 3 therefore shows the path where the

mobile device faced the sky with corresponding color-

encoded brightness.

While this gives us luminance values of the user’s

surroundings, the sun’s position is not directly obvi-

Mobile Devices as Digital Sextants for Zero-Permission Geolocation

50 100 150 200 250 300 350

Altitude in °

Azimuth in °

10k

15k

20k

25k

30k

35k

Illuminance in Lux

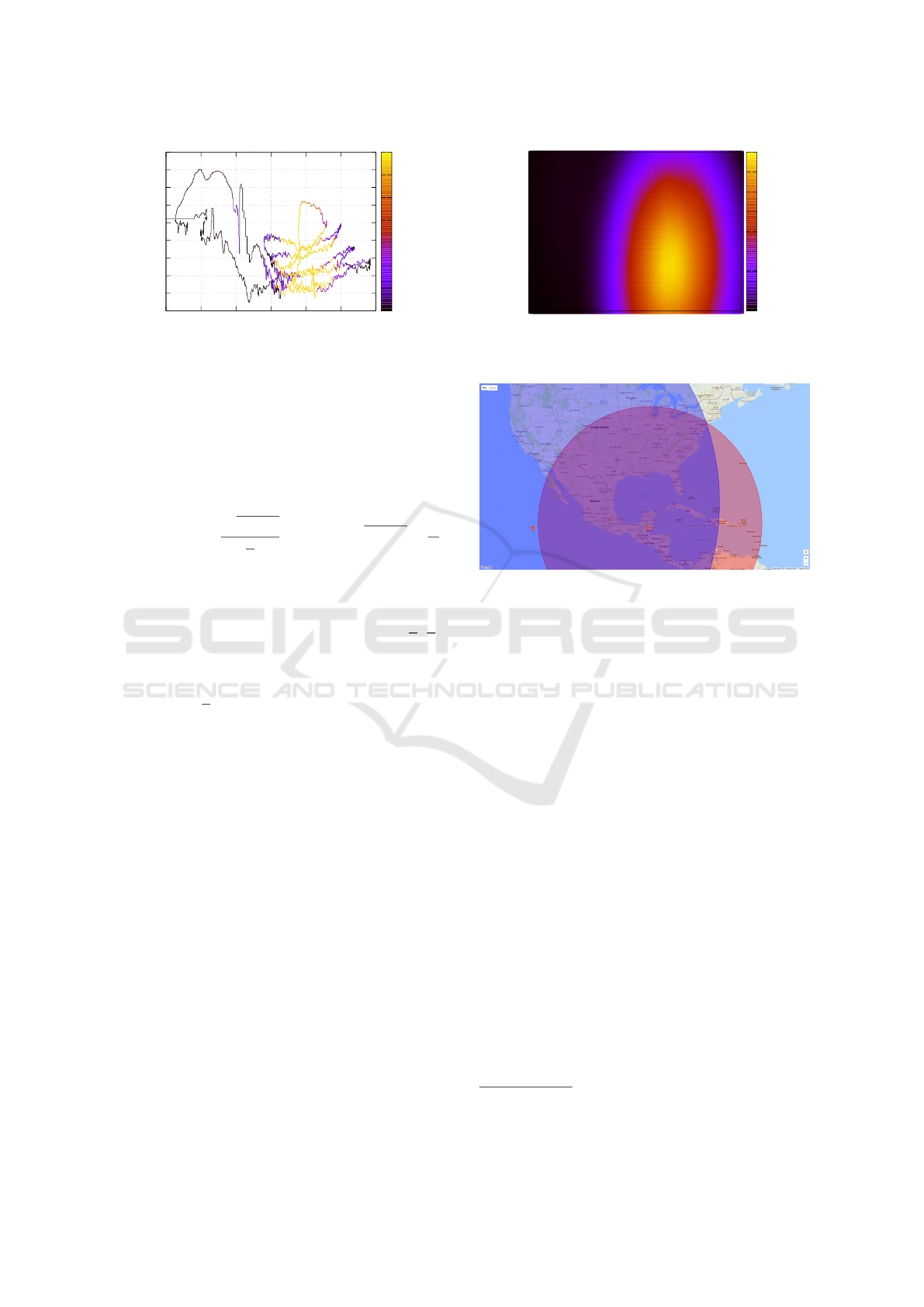

Figure 3: Sensor values transformed to horizontal coordi-

nate system with color encoded illuminance.

ous. We need to ﬁll the areas not passed by the path as

the sun’s center might be there. We therefore interpo-

late a global luminance model using double-powered

inverse distance weighting by applying a convolution

matrix (k

x,y

) of order N with

x,y















1 −

+ y





+ y

0, otherwise.

(1)

We chose this matrix as it has the following pro-

perties: a) elements in the center of the matrix





are weighted with 1, b) as the distance to the center

increases, elements are weighted from 1 to 0 with an

eased function and c) the corners of the matrix outside

of a radius of

from the center are weighted with 0.

We then apply this convolution matrix to our

directed lighting map (Figure 3). For every alti-

tude/azimuth pair, the matrix (k

x,y

) is centered on that

pair and the sum of its weighted neighborhood is the

value of that coordinate pair in a new transformed lig-

hting map. Figure 4 shows an example of this convo-

lution applied to Figure 3. The color in that ﬁgure cor-

responds to interpolated luminance in that direction.

Finally, we estimate the sun’s altitude and azimuth

by ﬁnding the global maximum. We refer to a pair of

estimated altitude and azimuth at point in time t

as an

observation denoted by Obs(t

)

alt

and Obs(t

)

azi

5.3 Location Candidates

One observation deﬁnes the sun’s position non-

ambiguously in the horizontal coordinate system and

therefore the user’s location. However, preliminary

tests showed an error of up to ±40

◦

in azimuth due

to inaccurate magnetometer readings. This is in line

with prior research which reported a compass error

of 10 − 30

◦

on mobile devices (Blum et al., 2012).

We therefore keep the altitude that we derived from

50 100 150 200 250 300 350

Altitude in °

Azimuth in °

10k

12k

14k

16k

Interpolated Illuminance

Figure 4: Interpolated luminance.

Figure 5: Circles deﬁned by two altitude measurements in

New York on 2017-08-06 at 14:00/16:00. Simulated.

the accelerometer, and use observed azimuth only as a

cue. Actual azimuth is determined with a second me-

asurement. Considering only the altitude of the sun,

one observation deﬁnes a set of locations where such

an apparent altitude can be observed at a given time.

Geometrically this set forms a circle on the Earth el-

lipsoid.

Determining perceived altitude and azimuth of a

celestial object from a local observer at a certain point

of time is a standard task of astronomy programming

libraries but requires knowledge of the observer’s po-

sition which is unknown in our approach. However,

we do know the sun’s horizontal position and can the-

refore numerically approximate possible observer lo-

cations. The center of that circle of possible observer

locations is the subsolar point, where the sun is at 90

◦

altitude.

Given two observations at different points in time,

the observed altitude differs and two distinct circles

are deﬁned (Figure 5). Assuming the user is still near

their location from the ﬁrst measurement, we perform

a circle-circle intersection to reduce the number of lo-

cation candidates to two

If this assumption is not met

the user’s position difference adds a linear error to our

approach. Compared with the empirical accuracy of

Mathematically, also zero, one or an inﬁnite number of

intersection points are possible, which is easily detectable.

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

Obs(t

)

azi(t

)

azi(t

)

azi(t

)

azi(t

)

Obs(t

)

azi

Obs(t

)

azi

Obs(t

)

Obs(t

)

azi

Obs(t

)

azi

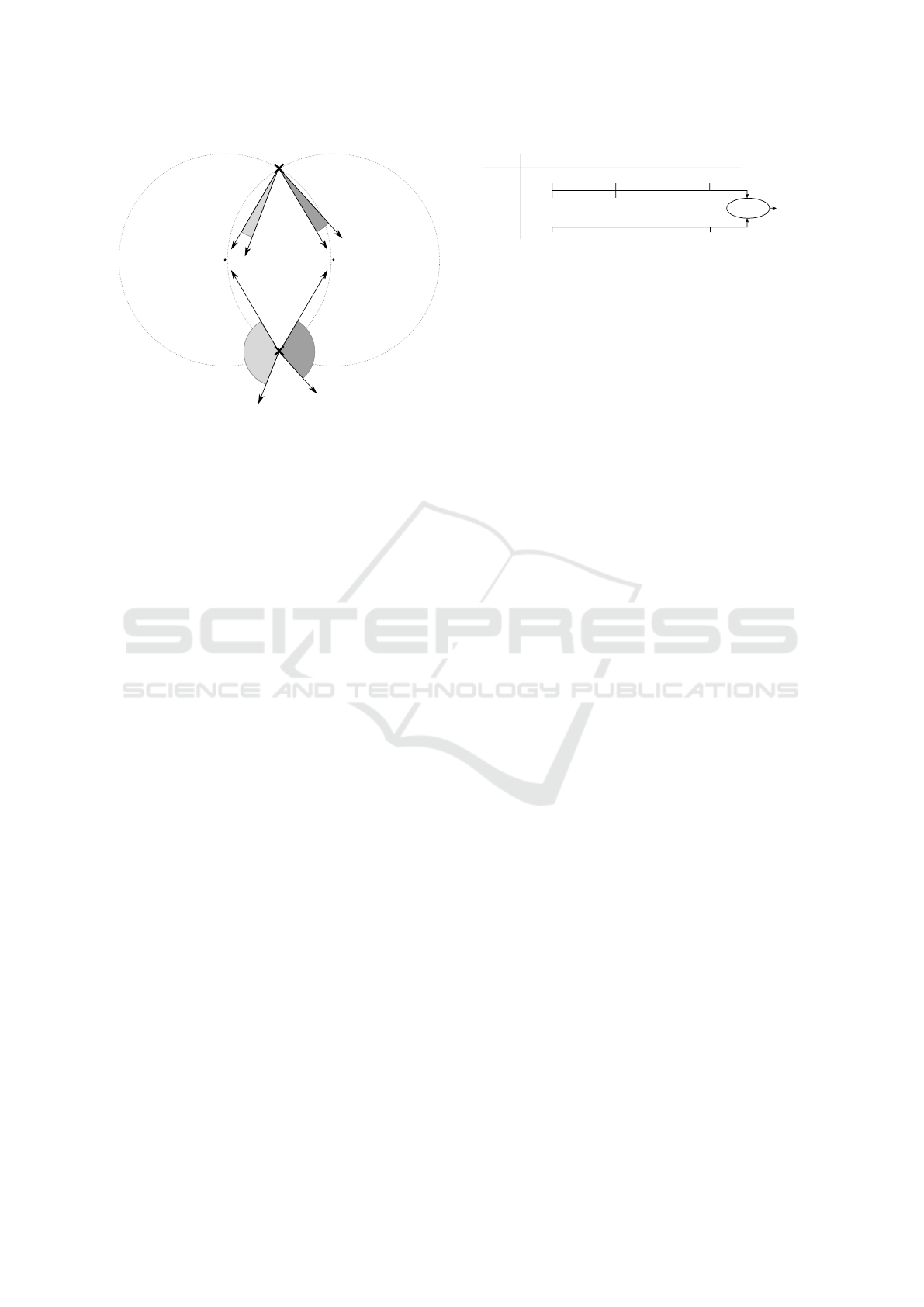

Figure 6: Intersection of location circles.

our approach (cf. Sec. 8) this error is negligible in

most cases.

Figure 6 shows the approach for two observati-

ons Obs(t

) and Obs(t

). Intersecting them yields I

and I

as intersection points and therefore two loca-

tion candidates. To select the correct location out of

these two, we use the magnetometer azimuth readings

Obs(t

)

azi

and Obs(t

)

azi

. Although we argue that the

magnetometer is too inaccurate to represent the azi-

muth, it still points in the general direction and sufﬁ-

ces to make the correct selection out of opposing can-

didates. We therefore calculate the expected azimuth

azi(t

, I

) of both intersection points for both points in

time using an astronomy library. The expected azi-

muth values are then compared to the ones yielded by

the magnetometer readings and the intersection with

least divergence is chosen. In Figure 6, the smaller

azimuth deviation at I

indicates that this is the correct

candidate, because the measured azimuth is closer to

the expected azimuth than at I

. We call the selected

candidate the intersection result.

5.4 Location Aggregation

In the previous section we showed how we compen-

sate azimuth inaccuracies and calculate device locati-

ons. If redundant measurements are available, we can

utilize them to mitigate altitude measurement errors

and thus improve the accuracy of geolocation. Redun-

dant measurements occur when the user keeps using

their mobile device even after we have computed one

observation Obs(t

Figure 7 shows how this redundancy integrates in

the whole approach. Instead of two measurements,

we perform k measurements for both points in time,

which allows us to perform k

circle intersections and

thus yields k

intersection results. We then select the

median latitude and the median longitude of all in-

Obs

)

Obs

)

Obs

)

Obs

)

Obs

)

Obs

)

...

Intersection

Average

Location

...

Intersection

...

... ...

...

... ...

Intersection

...

Figure 7: Increasing accuracy by using redundant observa-

tions.

tersections as the ﬁnal result. We refer to the whole

process as one location determination.

6 IMPLEMENTATION

We use a web-based prototype that collects sensor

data with the Ambient Light Sensor API (Kostiai-

nen et al., 2017) and DeviceOrientation API (Tibbett

et al., 2016). The implementation also records the de-

vice location as reported by the GPS-based Geoloca-

tion API (Popescu, 2016) for evaluation purposes to

determine the accuracy of the digital sextant. The pro-

cessing of the collected data is implemented in Python

and uses PyAstronomy (Czesla, 2013) as astronomy

library.

Dealing with Interferences. Reﬂections may inter-

fere with the result subject to the reﬂecting surface.

In one measurement series we found a light source at

an altitude < 0

◦

, which was due to a reﬂecting win-

dow board. While this is trivial to detect and ﬁlter,

reﬂections from perpendicular surfaces (for example

windows) are more challenging. In this case altitude

is not altered but azimuth will be misestimated and

can lead to an inaccurate location if the angle is large

enough. As a plausibility check we have implemented

a duplicate peak detection: if more than one signiﬁ-

cant light source above a threshold (the sun and its

reﬂection) is found while searching the global maxi-

mum (cf. Section 5.2), the measurement will be mar-

ked as indecisive and rejected.

The sun threshold may vary between mobile devi-

ces due to different sensors used. If the device model

is known (e.g., based on the user agent), the threshold

can be preset subject to the sensor datasheet or to em-

pirical data. If the model is unknown, the threshold

can be set to 95% after collecting sensor data sufﬁ-

ciently long, assuming that the sun has been recorded

eventually.

As our method requires exposure to direct sun-

light, being indoor or under a clouded sky prevents

geolocation. However, these cases can be identiﬁed

trivially as the sun is orders of magnitude brighter

on the Lux scale than other light sources. By pre-

ﬁltering measurements for sunlight exposure we can

avoid mislocating the user in theses cases.

Mobile Devices as Digital Sextants for Zero-Permission Geolocation

5 6 7 8 9 10

Angular delta in °

Time in s

walking

standing

sitting

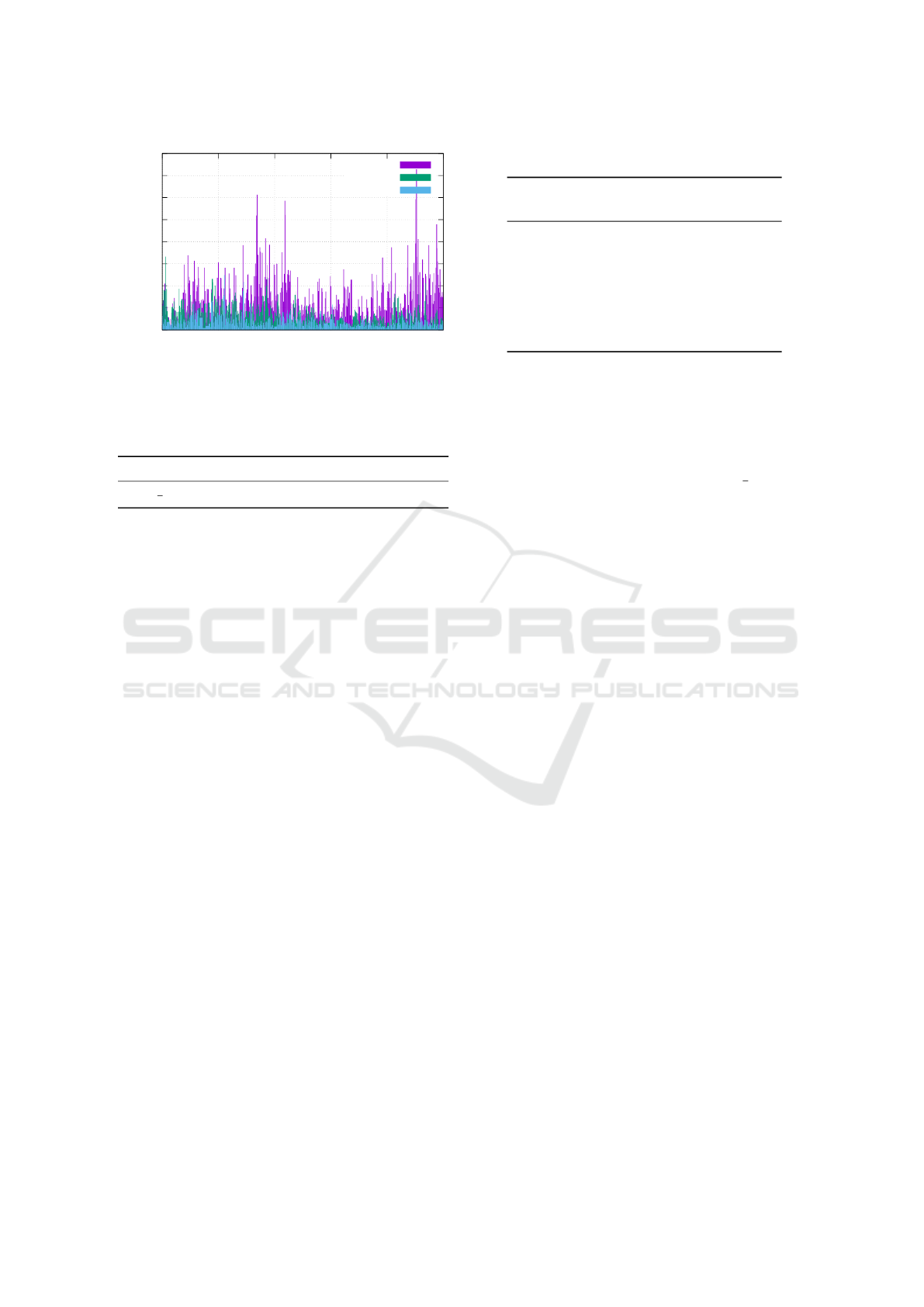

Figure 8: Impact of user behavior on accelerometer rea-

dings.

Table 1: Average angular velocity ω of various data sets.

Table Hand Sit Stand Walk

ω in

◦

10.41 27.44 115.70 157.04 229.80

7 PRACTICAL APPLICABILITY

An essential requirement of our method is to face the

sun, which leads to the question, whether this is rea-

listic during everyday smartphone activities. To pro-

vide an indication for the applicability we performed

the following tests with a Samsung Galaxy S7 running

Firefox for Android 48:

1. Stand with the sun in the back (standing)

2. Walk 25 m towards the sun, turn around and walk

25 m away from the sun (walking)

3. Sit with the sun in the back (sitting).

In each setting the test person looked at the smartp-

hone while touching, scrolling and reading the screen,

which causes the tilting phone to eventually face the

sun. Measurements were 40 seconds long and took

place in Duisburg, Germany on an unclouded day at

11:00, 13:00 and 15:00. Each altitude/azimuth obser-

vation has been repeated k = 5 times, which amounts

to a total of 45 measurements.

7.1 Movement Proﬁles

Figure 8 shows the angular difference between con-

secutive accelerometer vectors (data points) for an

excerpt of each test. We see that during walking

the smartphone moves more than during standing,

and during standing more than during sitting, leading

to different movement proﬁles. The sensor readings

are not only inﬂuenced by user movement, but also

Table 2: Accuracy in each test.

Error Spread

(km) (median/km)

Walk 13:00 1196.53 636.79

15:00 1083.73 424.73

Stand 13:00 808.98 960.48

15:00 777.08 231.13

Sit 13:00 380.24 300.79

15:00 146.43 131.44

by sensor jitter. This is demonstrated with two ot-

her tests: 1) the test person holds the smartphone in

their hand without deliberate movement (hand), 2) the

smartphone rests ﬂat on a table (table). Table 1 shows

the average angular velocities of each test: the phone

resting on the table without any observable movement

measures an angular velocity of ω = 10.41

◦

, showing

that sensor jitter has indeed an inﬂuence.

7.2 Location Determination

We apply our approach to the 11:00 observations of

each test, paired with their corresponding observation

at t

two or four hours later. Table 2 shows the loca-

tion accuracy, i.e., the error of the determined loca-

tion compared with the actual location. We can see

a clear inﬂuence of movement proﬁles on accuracy:

as (unconscious) motions of the user are reduced, the

distance between determined and actual location re-

duces.

We conclude that while motion inﬂuences our ap-

proach, there are plausible scenarios that achieve an

accuracy usable for country-level geolocation, in spite

of sensor noise. A remaining open question is how of-

ten these scenarios occur with everyday smartphone

usage of unaware users. This depends on the users’

habits and we leave it for future work to collect sen-

sor data of multiple persons during everyday activities

to quantify the occasions for our geolocation method.

Based on the observation that too much macro

human movement deteriorates the accuracy, we can

restrict the method to run in situations with low-

movement proﬁles only. This can be achieved by ana-

lyzing angular velocity or by using an existing method

(Kwapisz et al., 2011) to determine the user’s current

activity.

8 SYSTEMATIC EVALUATION

Now that we have an indication for the practical ap-

plicability of our approach, we systematically analyze

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

Table 3: Accuracy comparison of Nexus 7 and Galaxy S7.

Nexus 7

Error Spread

(km) (median/km)

154.1 592.9

174.7 426.1

326.5 208.1

360.9 243.6

456.2 239.5

463.4 258.5

464.3 329.0

527.7 390.6

1 052.4 353.5

1 993.8 487.3

Galaxy S7

Error Spread

(km) (median/km)

388.2 223.0

393.9 274.8

469.9 213.9

487.0 134.9

688.3 177.4

753.3 250.3

763.7 201.7

976.5 169.1

1 023.9 339.7

1 575.0 543.8

various factors that inﬂuence the geolocation accu-

racy. In the following measurements, we hold the mo-

bile device in one hand and tilt it in two dimensions

while pointing at the sun (cf. Figure 2).

We performed 10 location determinations in Duis-

burg, Germany with a Google Nexus 7 (2013) and

a Samsung Galaxy S7 running Firefox for Android

48. First measurements were conducted at noon, the

second ones two hours later at 14:00. Each alti-

tude/azimuth observation has been repeated k = 5 ti-

mes yielding a total of 100 measurements per device.

Our results are shown in Table 3. Column “Er-

ror” shows the error of 10 location determinations be-

tween our method and the true location as recorded by

the Geolocation API. Accuracy ranges from 154.1 km

to 1993.8 km with a median error of 459.8 km for

the Nexus 7. For the S7, the accurancy ranges from

388.2 km to 1575.0 km. While the error range is smal-

ler, the median error is 720.8 km and thus 56% higher

than for the Nexus 7.

Because each location determination consists of

= 25 redundant intersection results, we can exa-

mine the spread of these intermediate results as well.

Column “Spread” shows the median error to the cor-

rect position of all 25 intersection results for each lo-

cation determination. Interestingly, a larger spread

within each location determination does not negati-

vely impact the ﬁnal accuracy. For example, the best

result of the Nexus 7 in the ﬁrst row has the highest

spread of all location determinations for this device.

Systematically, accuracy and spread correlate weakly

with a Pearson correlation coefﬁcient of r = 0.2367

for the Nexus 7. For the S7, this value is signiﬁ-

cantly larger with r = 0.7553. We will discuss dif-

ferences of these devices and possible explanations in

Section 8.2. Since there is no general high correla-

tion between accuracy and spread, we conclude that

our approach is robust and is not easily inﬂuenced by

random measurement errors. In other words, each re-

Sun rays

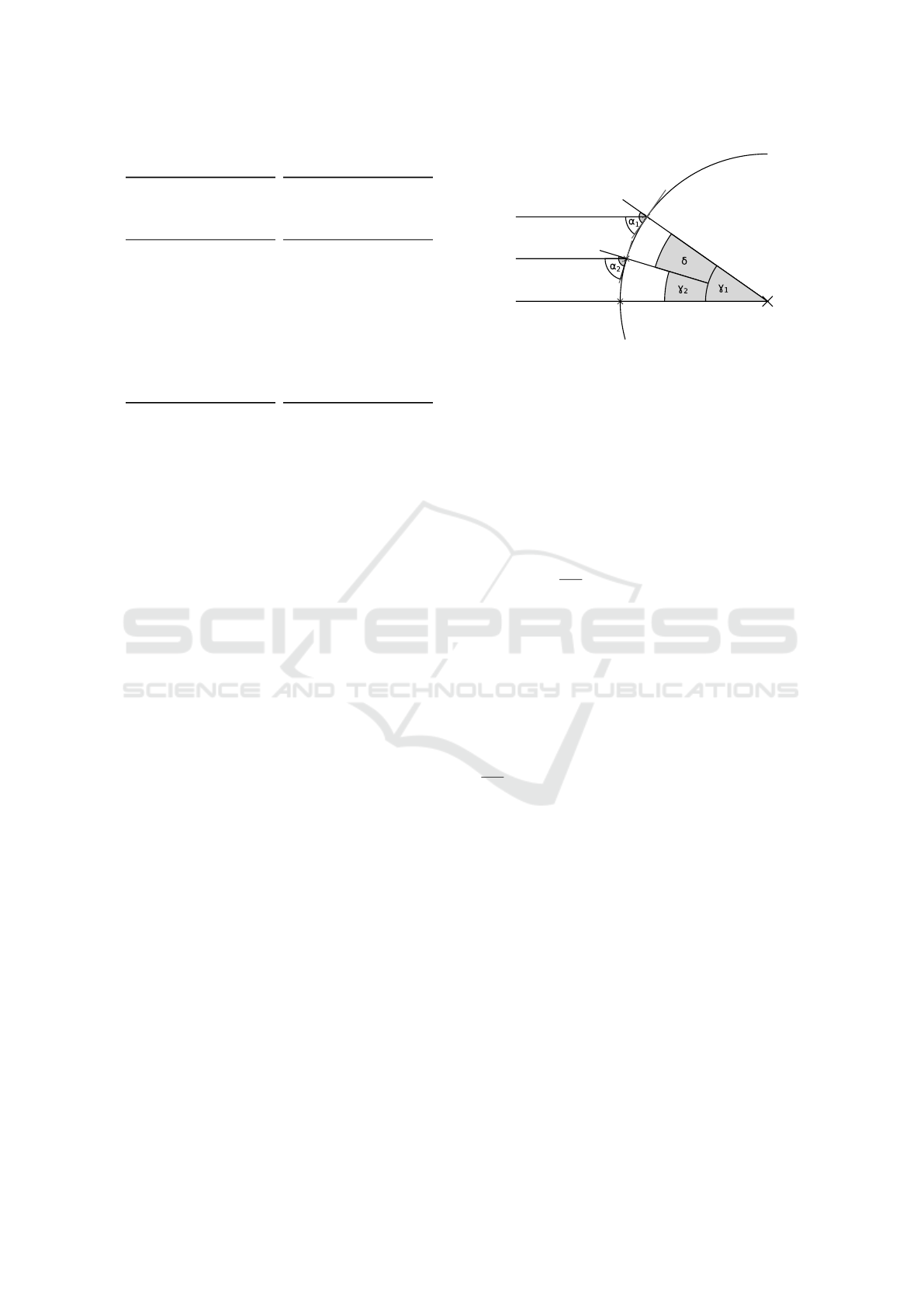

Figure 9: Location error depending on altitude.

dundant measurement contributes to the accuracy and

does not distort the ﬁnal result.

8.1 Effect of Altitude Error

We now analyze the impact of an altitude estimation

error in order to determine the expected results with

more (or less) accurate sensors.

Analysis. Altitude alone—without considering non-

linear inﬂuences of circle intersection—yields a loca-

tion error of

360

◦

circ

for an assumed altitude error of

δ. This can be derived from the Earth cross section di-

agram in Figure 9. Parallel sun rays reach Earth and

are correctly observed at P

with an altitude of α

Angular distance to the subsolar point Z (i.e., angu-

lar radius of the circle) amounts to γ

= 90

◦

− α

corresponding angles. In case there is an altitude es-

timation error and α

= α

+ δ is observed this will

yield an erroneous location P

. Solving these equati-

ons yields an angular distance between P

and P

δ = γ

− γ

which corresponds to a location offset by

360

◦

circ

Simulation. To simulate the non-linear parts above

this lower error bound we created two groups of artiﬁ-

cial observations with a time difference of two hours.

Each simulation initially assumes perfect altitude and

azimuth observations as computed by PyAstronomy

for this time and place. For each group we then ge-

nerate simulated observations with altitude deviations

of ±δ and a probing width of 0.25

◦

. Since we are

considering the worst case impact, we perform our

location determination approach on each pair out of

both groups and then use the maximum location error

as result.

The results are presented in Figure 10 and Fi-

gure 11. The worst case location error is signiﬁcantly

larger than the linear lower bound estimation. We can

also see the worst case gradient grows as altitude de-

viation increases, which means the maximum error is

non-linear. This is due to one circle growing so large

that it almost covers the other shrunken circle com-

Mobile Devices as Digital Sextants for Zero-Permission Geolocation

1000

2000

3000

4000

5000

6000

0 2 4 6 8 10 12 14 16 18

Positional deviation in km

Altitude deviation in degrees

Worst case simulation

δ 360

-1

circ

S7 intersection results

S7 final locations

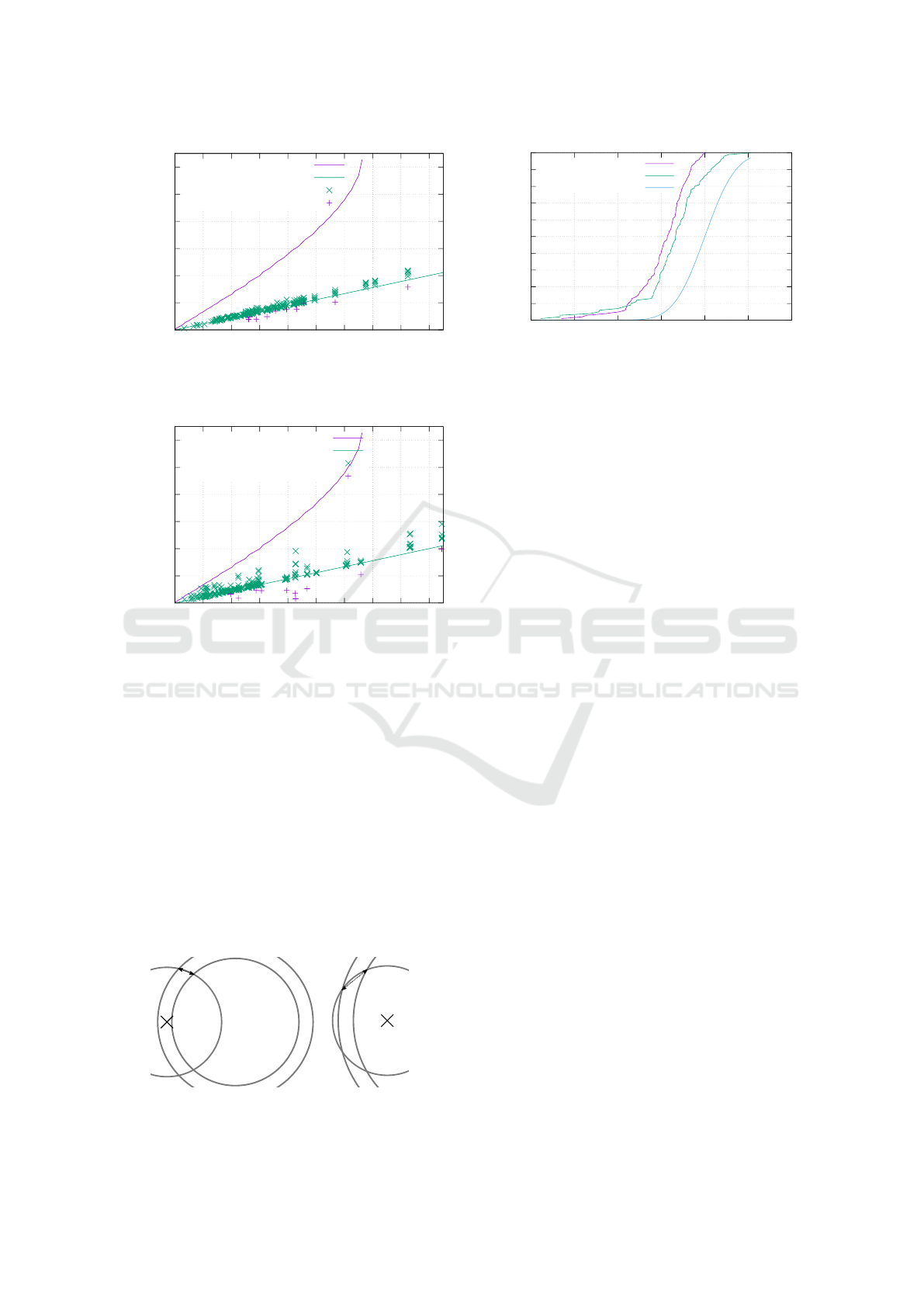

Figure 10: Simulated worst case observations compared to

S7 based measurements.

1000

2000

3000

4000

5000

6000

0 2 4 6 8 10 12 14 16 18

Positional deviation in km

Altitude deviation in degrees

Worst case simulation

δ 360

-1

circ

Nexus 7 intersection results

Nexus 7 final locations

Figure 11: Simulated worst case observations compared to

Nexus 7 based measurements.

pletely. The effect is illustrated in Figure 12. The

small intersection angle cause any additional radius

difference/altitude deviation to yield an even higher

location error. Measurements with altitude deviations

greater than 13.5

◦

are not guaranteed to yield inter-

secting circles causing the result of the function to be

undeﬁned thereafter.

Practical Evaluation. While the error could be very

high in theory, we now examine whether this has hap-

pened during our practical evaluation. Since we know

the correct altitudes in our experimental setup, we can

calculate altitude deviations for the intersection re-

sults (i.e., intersections before calculating a median

Figure 12: Effect of circles intersection angles on distance,

< d

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

-20 -15 -10 -5 0 5 10

Cumulative distribution function

Signed altitude deviation in degree

Nexus 7

Normal distribution

Figure 13: Distribution of signed altitude deviation.

and yielding a ﬁnal position) and ﬁnal positions in

these ﬁgures. For each data point we aggregate the

altitudes of all involved observations as a maximum

to get a worst case view. In terms of location error the

measurements are close to the linear bound. This in-

dicates that the empirical average case is close to the

linear bound and that the theoretical worst case does

not occur in practice. Interestingly, the ﬁnal positions

are below the linear threshold, suggesting that mea-

surement errors cancel each other out and thus redun-

dant measurements produce a more accurate location

result.

8.2 Systematic or Random Error

We now investigate why the results of the two mobile

devices scatter to a different extent and whether the

sensor error is random or systematic.

A difference between Figure 10 and Figure 11 lies

in the vertical spread of intersections. While they

stick to the lower limit in the former they spread more

towards the upper bound in the later. This means the

same absolute altitude deviation has a different impact

on both devices. To analyze this anomaly we took the

sign of the altitude deviation into consideration.

Figure 13 shows a cumulative error distribution

function of the signed altitude error for both devi-

ces. If deviations were merely due to random errors

we would assume a uniform distribution around 0.

Instead there is strong bias towards negative devia-

tions, i.e., measuring the sun at a lower position as

expected. The effect is even stronger on the Galaxy

S7, where we observed almost no positive deviations,

suggesting a device-speciﬁc systematic error. This

distinction also provides an explanation for increased

vertical spread: A positive deviation intersected with

a negative deviation yields a higher location error than

an intersection between two equally signed deviati-

ons. To verify this ﬁnding we removed intersections

with a positive deviation on Nexus 7 and plotted the

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

1000

2000

3000

4000

5000

6000

0 2 4 6 8 10 12 14 16 18

Positional deviation in km

Altitude deviation in degrees

Worst case simulation

δ 360

-1

circ

Nexus 7 intersection results

Nexus 7 final locations

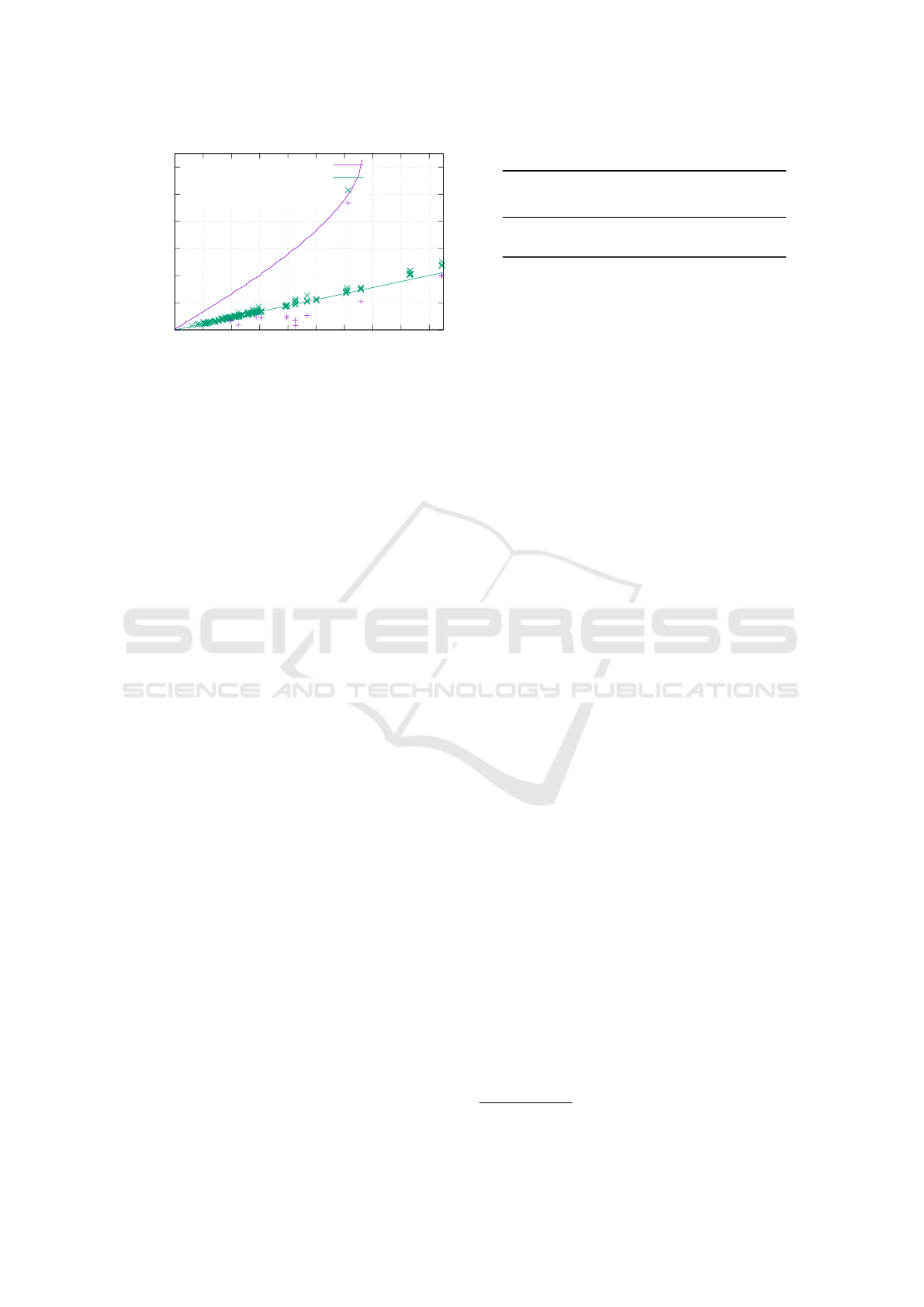

Figure 14: Simulated impact of altitude error on Nexus 7

without negative altitude deviated measurements.

result in Figure 14. The vertical variance has been

drastically reduced, which conﬁrms a device-speciﬁc

systematic error.

This device-speciﬁc difference in altitude devia-

tion also provides a viable explanation for the diffe-

rent correlation coefﬁcient outcomes from Section 8.

Since location determinations performed with the

Nexus 7 contain more outliers in the intersection re-

sults (see Figure 11), the results will have a higher

spread than with the Galaxy S7. We calculate a me-

dian out of these intersections to obtain the ﬁnal po-

sition. Since medians are in general robust against

inﬂuences by outliers, there is no strong correlation

between the spread of a location determination and

its positional deviation on the Nexus 7.

This has implications for our redundancy parame-

ter k. If there is a systematic bias like for the Galaxy

S7, then additional measurements will not increase

the accuracy of our approach. On the other hand a

random error will be compensated by an increase of

k and successive averaging. Telling these errors apart

outside of an experimental setup where no correct al-

titude is known is non-trivial. If a systematic error de-

pended solely on the device model, an attacker could

classify various models and act accordingly. Howe-

ver, analyzing this dependency is outside the scope of

this paper.

8.3 Sensor Sampling Rate

Another difference between both mobile devices is

how often they provide new sensor values. We now

analyze whether this has an effect on our method.

Table 4 shows the sensor frequency per device

across all measurements from Section 8. Concerning

steadiness, the S7 performs better due to its signiﬁ-

cantly lower standard deviation for both the ambient

light and acceleration sensor. This could be due to

the faster processor and the general technological ad-

Table 4: Frequency of sensor readings (Hz).

Nexus 7 Galaxy S7

¯x σ ¯x σ

Light sensor 3.67 1.30 5.61 0.04

Accelerator 192.60 2.37 99.09 0.41

vancements during the 3 years between the release

of both devices. Since our JavaScript implementa-

tion runs inside a web browser on top of a non-real-

time operating system, there are several components

involved being possible causes of this difference. The

frequency of the Nexus 7 light values scatters widely

with a standard deviation of 1.30 from its average of

3.67 Hz. However, this does not seem to affect our

method as the Nexus 7 achieves a better accuracy (cf.

Tab 3). The only sensor values more in favor of the

Nexus 7 are acceleration events per second, which are

nearly twice as frequent on the Nexus 7 than on the

S7. Although this correlates with a higher location

accuracy, it does not provide a plausible explanation.

Our approach uses both accelerometer and ambient

light readings to determine the altitude of the sun.

Even if the accelerometer frequency is doubled and

if the device orientation is more accurate, the lumi-

nance in that direction still lacks behind—especially

when the ambient light sensor has a low sampling fre-

quency.

9 COUNTERMEASURES

As the geolocation method bears the risk of violating

the user’s desire for privacy, we now investigate po-

tential countermeasures. An obvious remedy is to di-

sable sensor access completely for apps and for web-

sites. For example, the Orfox Browser

, a mobile Tor

Browser, restricts the use of any sensors and thus li-

mits the possibilities to leak information to websites.

While this prevents a whole class of sensor-based at-

tacks, it also limits the potential of the Web as an ap-

plication platform. Likewise, iOS does not expose an

API to access ambient light sensor values preventing

our attack on that platform.

Another remedy is to artiﬁcially reduce the sensor

resolution to provide a compromise between privacy

concerns and legitimate use cases. We analyze this

possibility by truncating the sensor data of the Nexus

7 from Section 8, both regarding ALS and accelero-

meter. The truncation consists of rounding sensor rea-

dings to next multiples of a variable sensor truncation

factor ε. This simulates a sensor with a reduced reso-

lution.

https://guardianproject.info/apps/orfox/

Mobile Devices as Digital Sextants for Zero-Permission Geolocation

Table 5: Accuracy with ALS truncated to binary scale.

Nexus 7

Distance Spread

(km) (median/km)

104.7 378.8

230.6 375.7

318.7 176.0

361.2 269.3

382.0 235.6

449.8 366.1

460.8 347.4

487.1 370.0

979.4 628.7

2 736.2 1 112.5

9.1 Ambient Light Sensor

Reducing the ALS resolution has been shown to pre-

vent information leakage in other use cases (Schwitt-

mann et al., 2016). Interestingly, our approach did

not yield signiﬁcantly worse results while iteratively

increasing the truncation factor ε.

In extreme case, we round the ambient light sensor

readings to binary values. Table 5 shows the results

of such a binary truncation. Compared with regular

results from Table 3 the results have shifted: while

the average location error increased slightly by 9%,

some results have become more accurate.

Although this result appears surprising, it is re-

asonable due to how our approach works. The sun

is signiﬁcantly brighter than everything else recorded

like diffuse reﬂections or artiﬁcial lighting. This will

cause all values to become 0 except those measure-

ments directly pointed towards the sun. Our inverse

distance weighting will then yield the center of these

points as the altitude. As potential interferences do

not pass the binarization ﬁlter, some results become

more accurate while others become worse due to a

loss of information.

From these results we conclude that reducing ALS

resolution deﬁnitely does not provide an obstacle for

our approach.

9.2 Accelerometer

Similarly, we simulate the impact of truncating the

3D accelerometer on location accuracy with trunca-

tion factors of ε ∈ {1, 2,3, 4, 5, 6, 7, 8, 9}

. To put

these values into perspective with Earth’s gravitatio-

nal acceleration of 9.81

, the coarsest sensor resolu-

tion in our simulation should only be able to differen-

tiate rotations multiple of 90

◦

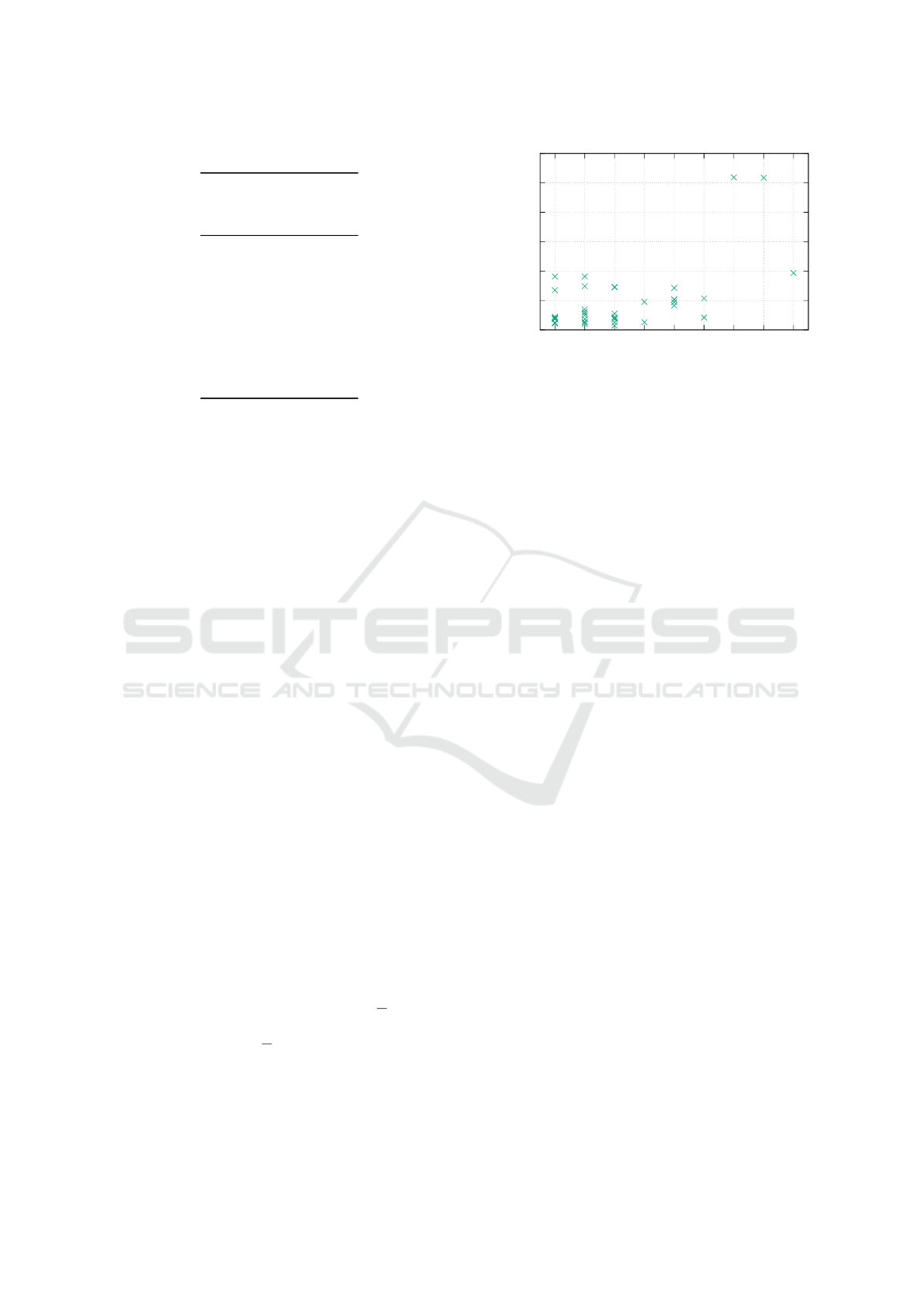

Figure 15 visualizes the simulation output. While

up to ε = 4 the median location error does not become

1000

2000

3000

4000

5000

6000

1 2 3 4 5 6 7 8 9

Positional deviation in km

ε in m/s²

Figure 15: Impact of truncated accelerometer resolution.

signiﬁcantly worse, the number of successful location

determinations drops as ε increases. This is due to ob-

servational circles not intersecting when the altitude

error is too large or due to contradicting global max-

ima caused by the threshold function.

This shows that a truncation of the accelerometer

impairs the geolocation approach, but may still leak

coarse information with a large error to an attacker.

10 RELATED WORK

The user’s location is generally regarded as a privacy-

sensitive information with a large body of research

dedicated to ways of utilizing various available sour-

ces to infer it.

Locating a device by looking up its IP address in a

database is a heuristic implemented by various com-

mercial products. The observation behind this appro-

ach is that Internet service providers distribute IP ad-

dresses in geographical proximity. While this appro-

ach is straightforward once a database has been crea-

ted, it fails when a privacy-aware user employs techni-

ques to obfuscate their IP address (e.g., VPN, proxy

server, Tor).

Powerspy (Michalevsky et al., 2015) derives the

location from the phone power meter, which is avai-

lable without special permissions in the Android API.

Cellular radio power consumption depends on loca-

tion due to obstructions and cellular tower placement

allowing trajectory reconstructions using a dedicated

coverage database. While providing more accurate

results than our approach, it bears additional requi-

rements: both an app has to be installed on the device

and the user has to move in a coverage charted area.

Using camera images is another way of locating

a user. It is feasible (Guan et al., 2013) to determine

positions in a city by reading camera images and in-

ertial sensors. Taking the sun into consideration (Ma

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

et al., 2017) it is possible to locate a user on a map.

Both approaches show remarkable accuracies but re-

quire camera permissions. A privacy-aware user is

unlikely to grant this to a dodgy website or app.

In some scenarios inertial sensors alone provide

enough information to locate users, if users move al-

ong given paths. Metro lines (Hua et al., 2017) have

distinctive accelerations patterns allowing to track

users. ACComplice (Han et al., 2012) uses solely

the accelerometer to identify car trajectories in trai-

ned data. Another approach uses magnetometer and

gyroscope readings (Narain et al., 2016) to locate a

car using publicly available cartographic data without

any training. While this increases practical applicabi-

lity, feasibility on a global scale remains open. Com-

pared to our approach this also requires cartographic

material which might not be available for the subject’s

location.

Wi-Fi BSSID-based approaches are a standard

way of locating smart devices. Even without access

to the operating systems’s BSSID queries, an android

application without location permission can read the

BSSID of the connected access point and perform its

own BSSID lookup on application level (Zhou et al.,

2013). Another side channel discovered by Zhou

et al. consists of the speaker API. Every application

can query whether any other application is currently

playing sounds. Originally designed to provide apps

with means of coordination, this allows to measure

playback duration and deduce announcements made

by a GPS navigation app.

Ambient light has been considered as well for lo-

cation determination. SurroundSense (Azizyan et al.,

2009) looks at a combination of ambient sound, light

and color to acquire ﬁne-grained location ﬁngerprints

to distinguish shops in a mall. Epsilon (Li et al., 2014)

uses visible light beacons that are broadcasting their

position. High frequency pulse width modulations

on LED bulbs makes this ﬂickering indistinguisha-

ble from dimming to the human eye. While both ap-

proaches promote non-malicious use cases, especially

Epsilon is suited to violate the user’s privacy since it

could be implemented using a zero-permission app or

website. However, it would require to deploy an in-

frastructure of beacons to track users.

11 CONCLUSIONS

In this paper we have presented a novel approach to

locate mobile devices using sun-based measurements.

The approach utilizes mobile device sensors that are

accessible on platforms like Android without asking

the user for permission. Unlike related work, a prior

training or cartography of the user’s area is not neces-

sary, as we are relying on the well-known movement

of celestial bodies.

In our experimental evaluation we achieved a me-

dian accuracy of better than 500 km, which is suf-

ﬁcient for country-level geolocation. The location

accuracy will improve with more accurate sensors in

mobile devices. Our analysis has shown that both

random and systematic sensor errors inﬂuence the re-

sult, where the random error portion can be minimi-

zed by utilizing redundant measurements.

For future work we would like to improve our ap-

proach to cope with indirect sunlight. So far we rely

on direct exposure to calculate altitude and azimuth.

With an advanced sky model and sensor calibration it

could be possible to estimate altitude based on a path

not intersecting or tangent to the sun.

Privacy. In line with previous work in this ﬁeld,

our zero-permission geolocation approach once again

shows that it is unforeseeable what high-level infor-

mation might be concluded from seemingly harmless

sensor values. One way to cope with this threat in ge-

neral is to truncate sensor readings by default, which

helps to preserve privacy in several cases while still

providing a value to legitimate applications.

In our case, truncating the ambient light sensor has

almost no effect on location accuracy and thus does

not help. Truncation of the accelerometer worsens

the accuracy and number of location determinations

when rounded to multiples of 4 or more. Such an im-

pairment likely affects legitimate use cases, thus que-

stioning the adequacy of such a tradeoff.

A mitigation strategy might be to ask the user for

permission before allowing sensor access at all—not

for individual sensors as this affects the usability, but

for a group of sensors that are less privacy-invading

than camera or microphone access while still revea-

ling some contextual information about the user, in-

cluding accelerometer, barometer, magnetometer and

ambient light sensor. An important element would be

to disclose to the user what information is being col-

lected and what it is used for. A technical enforce-

ment combined with a documented privacy policy al-

lows users to make an informed choice whether they

approve the disclosure of contextual information.

REFERENCES

Azizyan, M., Constandache, I., and Roy Choudhury, R.

(2009). Surroundsense: Mobile phone localization via

ambience ﬁngerprinting. In Proceedings of the 15th

Annual International Conference on Mobile Compu-

ting and Networking, MobiCom ’09, pages 261–272,

New York, NY, USA. ACM.

Mobile Devices as Digital Sextants for Zero-Permission Geolocation

Blum, J. R., Greencorn, D. G., and Cooperstock, J. R.

(2012). Smartphone sensor reliability for augmented

reality applications. In International Conference on

Mobile and Ubiquitous Systems: Computing, Networ-

king, and Services, pages 127–138. Springer.

Czesla, S. (2013). PyAstronomy. https://github.com/

sczesla/PyAstronomy. Accessed on 2018-05-16.

Guan, T., He, Y., Gao, J., Yang, J., and Yu, J. (2013). On-

device mobile visual location recognition by integra-

ting vision and inertial sensors. IEEE Transactions on

Multimedia, 15(7):1688–1699.

Han, J., Owusu, E., Nguyen, L. T., Perrig, A., and Zhang, J.

(2012). Accomplice: Location inference using acce-

lerometers on smartphones. In Ramakrishnan, K. K.,

Shorey, R., and Towsley, D. F., editors, Fourth Inter-

national Conference on Communication Systems and

Networks, COMSNETS 2012, Bangalore, India, Janu-

ary 3-7, 2012, pages 1–9. IEEE.

Hua, J., Shen, Z., and Zhong, S. (2017). We can track you if

you take the metro: Tracking metro riders using acce-

lerometers on smartphones. IEEE Transactions on In-

formation Forensics and Security, 12(2):286–297.

Kostiainen, A., Langel, T., and Turner, D. (2017).

Ambient light sensor. W3C working draft,

W3C. https://www.w3.org/TR/2017/WD-ambient-

light-20170814/.

Kwapisz, J. R., Weiss, G. M., and Moore, S. A. (2011).

Activity recognition using cell phone accelerometers.

SIGKDD Explor. Newsl., 12(2):74–82.

Li, L., Hu, P., Peng, C., Shen, G., and Zhao, F. (2014). Ep-

silon: A visible light based positioning system. In

11th USENIX Symposium on Networked Systems De-

sign and Implementation (NSDI 14), pages 331–343,

Seattle, WA. USENIX Association.

Li, Z., Pei, Q., Markwood, I., Liu, Y., Pan, M., and Li, H.

(2018). Location privacy violation via gps-agnostic

smart phone car tracking. IEEE Transactions on Vehi-

cular Technology, pages 1–1.

Ma, W. C., Wang, S., Brubaker, M. A., Fidler, S., and Ur-

tasun, R. (2017). Find your way by observing the sun

and other semantic cues. In 2017 IEEE International

Conference on Robotics and Automation (ICRA), pa-

ges 6292–6299.

Michalevsky, Y., Schulman, A., Veerapandian, G. A., Bo-

neh, D., and Nakibly, G. (2015). Powerspy: Location

tracking using mobile device power analysis. In 24th

USENIX Security Symposium (USENIX Security 15),

pages 785–800, Washington, D.C. USENIX Associa-

tion.

Narain, S., Vo-Huu, T. D., Block, K., and Noubir, G.

(2016). Inferring user routes and locations using zero-

permission mobile sensors. In 2016 IEEE Symposium

on Security and Privacy (SP), pages 397–413.

Popescu, A. (2016). Geolocation API speciﬁcation

2nd edition. W3C recommendation, W3C.

https://www.w3.org/TR/2016/REC-geolocation-

API-20161108/.

Schwittmann, L., Matkovic, V., Wander, M., and Weis, T.

(2016). Video recognition using ambient light sensors.

In 2016 IEEE International Conference on Pervasive

Computing and Communications (PerCom), pages 1–

Tibbett, R., Volodine, T., Block, S., and Popescu,

A. (2016). Deviceorientation event speciﬁca-

tion. W3C candidate recommendation, W3C.

https://www.w3.org/TR/2016/CR-orientation-event-

20160818/.

Triukose, S., Ardon, S., Mahanti, A., and Seth, A. (2012).

Geolocating IP Addresses in Cellular Data Networks,

pages 158–167. Springer Berlin Heidelberg, Berlin,

Heidelberg.

Zhou, X., Demetriou, S., He, D., Naveed, M., Pan, X.,

Wang, X., Gunter, C. A., and Nahrstedt, K. (2013).

Identity, location, disease and more: Inferring your

secrets from android public resources. In Proceedings

of the 2013 ACM SIGSAC Conference on Computer

& Communications Security, CCS ’13, pages 1017–

1028, New York, NY, USA. ACM.

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy
