In-depth Feature Selection and Ranking for Automated Detection of

Mobile Malware

Alejandro Guerra-Manzanares, Sven N

omm and Hayretdin Bahsi

Department of Software Science, TalTech University, Tallinn, Estonia

Keywords:

Machine Learning, Mobile Malware, Feature Selection.

Abstract:

New malware detection techniques are highly needed due to the increasing threat posed by mobile malware.

Machine learning techniques have provided promising results in this problem domain. However, feature selec-

tion, which is an essential instrument to overcome the curse of dimensionality, presenting higher interpretable

results and optimizing the utilization of computational resources, requires more attention in order to induce

better learning models for mobile malware detection. In this paper, in order to ﬁnd out the minimum feature

set that provides higher accuracy and analyze the discriminatory powers of different features, we employed

feature selection and ranking methods to datasets characterized by system calls and permissions. These fea-

tures were extracted from malware application samples belonging to two different time-frames (2010-2012

and 2017-2018) and benign applications. We demonstrated that selected feature sets with small sizes, in both

feature categories, are able to provide high accuracy results. However, we identiﬁed a decline in the discrim-

inatory power of the selected features in both categories when the dataset is induced by the recent malware

samples instead of old ones, indicating a concept drift. Although we plan to model the concept drift in our

future studies, the feature selection results presented in this study give a valuable insight regarding the change

occurred in the best discriminating features during the evolvement of mobile malware over time.

1 INTRODUCTION

Mobile phone users are increasingly facing the risks

of malware. McAfee stated that “2018 could be the

year of mobile malware” as they detected 16 million

infections in the third quarter of 2017 alone, twice the

ﬁgure in 2016 (McAfee, 2018). This enormous in-

crease was also conﬁrmed by Kaspersky who identi-

ﬁed an 80% rise in mobile malware attacks (Unuchek,

2018). In addition to these spikes, malware detection

software has been proved to be inefﬁcient in tackling

this threat (Fedler et al., 2013).

Traditional detection approaches based on signa-

tures fail to detect unknown malware due to the im-

proved obfuscation or stealth techniques employed

by malware creators (Fedler et al., 2013). On the

other side, machine learning techniques have been

perceived as a promising approach for detecting pre-

viously unseen malware samples and many studies

have shown that they could provide high detection ac-

curacy (Sahs and Khan, 2012; Yuan et al., 2014; Arp

et al., 2014). These studies created learning models

using dynamic, static or both (namely hybrid) fea-

tures extracted from legitimate applications and mal-

ware samples. Static features such as permissions,

java codes or intent ﬁlters, are extracted directly from

APK ﬁles whereas dynamic features, e.g. system calls

or network trafﬁc patterns, are derived from the in-

teraction of programs with OS or network (Feizollah

et al., 2015).

Feature selection, eliminating irrelevant or redun-

dant features that do not improve the classiﬁcation

performance, is an essential step of machine learning

workﬂow due to three reasons: (1) Representing the

problem domain with high dimensions requires more

data for learning (commonly known as the curse of

dimensionality) and may disturb the accuracy of the

classiﬁer, (2) Models using higher dimensions cannot

be easily interpreted by the experts, which may create

enormous problems in detecting falsely classiﬁed in-

stances or profoundly investigating a cyber incident,

(3) Higher dimensional data requires more computa-

tional resources for constructing and using the learn-

ing model on a mobile device. On the other side,

feature selection could be more complicated in prob-

lem domains where the behaviour of the subjects may

vary in time, i.e., a selected feature set may no longer

have its discriminatory power, which may be one of

the main concerns in malware detection.

In this study, our primary objectives are to iden-

274

Guerra-Manzanares, A., Nõmm, S. and Bahsi, H.

In-depth Feature Selection and Ranking for Automated Detection of Mobile Malware.

DOI: 10.5220/0007349602740283

In Proceedings of the 5th International Conference on Information Systems Security and Privacy (ICISSP 2019), pages 274-283

ISBN: 978-989-758-359-9

tify the minimum feature set that provides higher ac-

curacy, compare the discriminatory powers of feature

categories and analyze the results of models induced

by datasets belonging to different time-frames. For

these purposes, we applied a two-step procedure to

the dataset that is composed by system calls (i.e., a

dynamic behaviour) and permissions (i.e., a static be-

haviour), extracted from malware samples and legit-

imate applications. In the ﬁrst step, we used statis-

tical hypothesis testing methods to identify the fea-

ture set that may have a signiﬁcant contribution to

the classiﬁcation. In the second step, we employed

Fisher’s Score and Gini Index which enabled to rank

the selected features according to their discrimina-

tory power. We in turn induced machine learning

models with different combinations of datasets with

varying feature sets. As Android is the most used

mobile operating system worldwide, we focused on

detection of Android malware (Statista, 2018). For

this research, we formed two malware datasets. ”Old

dataset” which consists of randomly selected apps

from Drebin malware dataset, collected between 2010

and 2012 (Arp et al., 2014).”New dataset” formed by

randomly choosing samples, belonging to years 2017

and 2018, from VirusTotal Academic malware dataset

(VirusTotal, 2018). Third one is called ”legitimate

dataset” which is composed by benign applications.

We utilized various combinations of these datasets for

inducing learning models.

This study shows that feature selection and rank-

ing process can signiﬁcantly reduce the number of

features required in a classiﬁer that provides high ac-

curacy for the detection of mobile malware. We found

that features possessing most discriminatory power in

classiﬁcation may differ as new malware types evolve

over time, indicating a concept drift. Results suggest

that behaviour of mobile malware in terms of system

calls and permissions has become more similar to le-

gitimate apps over time although there are some vari-

ations among the extent of this evolvement in both

feature categories.

Our main contribution is a detailed analysis and

comparison of feature selection and ranking results

obtained for two types of feature categories. One of

the distinctive properties of the present paper is that,

in addition to the optimization of number of predic-

tors, we analyzed the change in selected features that

has occurred due to the evolvement of malware over

time.

This paper is organized as follows: Section 2

presents a review of related literature. Method em-

ployed in the study is described in Section 3. Re-

sults of our experiments are presented and discussed

in Section 4 whereas Section 5 concludes the study.

2 LITERATURE REVIEW

Feature selection and ranking methods have been

used in various machine learning-based malware de-

tection studies. In Yan et al. (2013) discriminatory

power of malware features such as hexdump of bina-

ries, disassembly codes, PE header and system calls

are measured by three ﬁlter methods, i.e., ReliefF,

Chi-squared, F-statistics, and two embedded meth-

ods, i.e., L1 regularized methods, L1-logreg and L1-

SVC. In this study, it is identiﬁed that PE header

and system calls are very beneﬁcial to discern mal-

ware from legitimate software, and that L1 regular-

ized methods with 100 features provided higher de-

tection rates (Yan et al., 2013). In Ahmadi et al.

(2016) discriminatory powers of various static feature

categories are measured and compared by using mean

decrease impurity notion and random forest classiﬁer

in a multi-class malware family classiﬁcation.

Utilization of feature ranking methods is consid-

erably less common in those studies which provide

classiﬁers speciﬁcally for mobile malware detection

(Feizollah et al., 2015). Lindorfer et al. (2015) ap-

plied Fisher’s Score to evaluate the discriminatory

power of dynamic and static feature categories. This

study found out that required permissions and some

dynamic features related to SMS sending and dy-

namic loading of code have higher discriminatory

powers (Lindorfer et al., 2015). Cen et al. (2015),

created a classiﬁer using Regularized Logistic Re-

gression with Lasso Norm for source code features

(java package, class and function levels). Information

Gain, Chi-Square and an embedded method of logis-

tic regression were utilized for feature selection. It

was found that 10% of the features selected by Infor-

mation Gain or Chi-Square are sufﬁcient for high de-

tection rates (Cen et al., 2015). Similarly, in Shabtai et

al. (2012) ﬁlter methods such as Chi-Square, Fisher’s

Score and Information Gain were applied to some

system metric features (e.g., CPU consumption, num-

ber of running processes, battery level) in the early

times of Android.

Pehlivan et al. (2014) applied feature selection

methods such as Information Gain, ReliefF, Correla-

tion Feature Selection (CFS) and consistency-based

selection to permissions with different classiﬁcation

models. Random forest classiﬁer that selected 25 per-

mission features with CFS provided the best accuracy.

In a similar study by Nezhadkamali et al. (2017),

three feature selection methods, L1-based feature se-

lection, Information Gain and Gini Impurity, were

used with permissions. All three methods were tested

using different machine learning algorithms, such as

decision tree, SVM and Random forest. Best results

In-depth Feature Selection and Ranking for Automated Detection of Mobile Malware

275

were obtained using Random Forest as classiﬁcation

algorithm and Information Gain as feature selection

method (Nezhadkamali et al., 2017).

Sing and Hofmann (2017) used three feature se-

lection methods (Chi-Square, Information gain, and

correlation analysis) to select variables and form sys-

tem calls vector. In Ferrante et al. (2016), an embed-

ded feature selection method was used for classifying

the dataset that consisted of features such as system

calls, memory usage and CPU usage. Kim and Choi

(2014) used Linux kernel features related to mem-

ory, CPU and network (summing up to 59 features)

to perform malware detection. This study used an

embedded model to perform feature selection, ending

up eliminating 23 features and using 36 features for

their detection system (Kim and Choi, 2014). In Qiao

et al. (2016) combined API calls and permissions

were processed by two feature selection methods,

one-way analysis of variance (ANOVA) (i.e., a ﬁl-

ter method) and Support Vector Machine—Recursive

Feature Elimination (i.e., a wrapper method). They

ended up with top 300 features from API set and 80

from permissions set (Qiao et al., 2016).

Although previously mentioned studies applied

feature selection methods and some of them provided

considerably detailed analysis about discriminatory

powers of used features, none of them analyses the

character change and its impact on feature selection.

In Hu et al. (2017) concept drift of mobile mal-

ware was modelled with an ensemble learning model

in which the feature selection is based on Information

Gain. In Jordaney et al. (2017) a concept drift detec-

tion method that was based on conformal evaluator is

applied to two cases, a binary classiﬁcation for mobile

malware and a multi-class classiﬁcation for malware.

These studies focus on enhancing the detection per-

formance of classiﬁers with concept drift. However,

they do not provide an in-depth analysis of discrimi-

natory powers of feature categories and their impact

on concept drift.

3 METHOD

We formulated mobile malware detection as a binary

classiﬁcation problem that requires the discrimination

of benign mobile applications from mobile malware

samples. As we were able to obtain labelled data,

supervised machine learning methods were applied.

We followed machine learning workﬂow, that mainly

involves ﬁve steps: (1) Data Acquisition, (2) Data

Cleaning and Preparation, (3) Feature Selection, (4)

Classiﬁer training and Evaluation, (5) Interpretation

(Robert, 2014). Sometimes tuning could be applied to

the trained classiﬁer, but within the framework of the

present study, this step was omitted as it was deemed

as unnecessary.

We tested k-nearest neighbours (kNN), logistic re-

gression, decision tree, and support vector machines

(SVM) for building the classiﬁers, and used Python

programming language and Sci-kit learn library in

our implementation. Data acquisition and feature se-

lection stages are detailed in Sections 3.1 and 3.2.

We covered two types of feature categories in our

datasets: absolute frequency of system calls (numeri-

cal features) encountered during the execution of the

applications and requested Android standard permis-

sions (categorical features).

3.1 Data Acquisition

In this study, we collected 3000 Android x86 architec-

ture compatible applications as the details are given

below:

• 1000 benign applications which were randomly

downloaded by the authors from APKMirror

repository. They were veriﬁed as malware free ap-

plications with VirusTotal AntiVirus engine. Le-

gitimate applications date between April 2017 and

February 2018. Named as ”legitimate dataset” in

this research.

• 1000 malware applications which were randomly

selected from Drebin malware dataset. These

samples date between August 2010 and October

2012 (Arp et al., 2014). We named this dataset as

”old malware dataset”, and refer to each element

in the set as ”old malware”.

• 1000 malware applications which were ran-

domly selected from VirusTotal Academic mal-

ware dataset. This dataset, shared by VirusTo-

tal, dates between the end of 2016 and beginning

2018 (VirusTotal, 2018). We named this dataset

as ”new malware dataset”, and refer to each ele-

ment in the set as ”new malware”.

Android requested permissions were directly ex-

tracted from AndroidManifest.xml ﬁle, included in

every application APK ﬁle, using Android Asset

Packaging Tool (aapt). The recent Android distribu-

tion, Android 8.0, deﬁnes 147 Android standard per-

missions. A permission proﬁle vector that is com-

posed of the data regarding the presence/absence of

each Android standard permission was created for

each application.

As the collection of system calls requires to run

the application itself, we used an Android emulation

environment and Android Debug Bridge (ADB) to in-

stall, execute, monitor, log and uninstall each applica-

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

276

tion. During the execution, strace tool was attached to

the main process to obtain the ﬁrst 2000 system calls.

212 distinct system calls are deﬁned in Bionic x86

library. A frequency vector that included the num-

ber of each system call made by the application was

formed from the logged data. Prior research have

demonstrated that malware could be effectively dis-

criminated with a reduced amount of system calls ac-

quired during the application’s boot up and that acqui-

sition of the ﬁrst 2000 system calls provided the best

detection results (Vidal et al., 2017).

Although we selected malware samples from two

different time-frames, composing two different mal-

ware datasets, we used only one benign dataset com-

prised of recent applications. In this study, we fo-

cused on the analysis of change in selected features

according to the evolvement of malware with respect

to recent benign applications. This approach is in

line with malware detection practices happening in

the ﬁeld as mobile phones are usually not compat-

ible with older applications due to frequent operat-

ing system and hardware changes and also changes

in applications’ installation requirements but the de-

tection systems usually include signatures of all mal-

ware samples including the old ones. The impact of

the evolvement in benign applications will also be an-

alyzed in the context of concept drift within our future

studies.

3.2 Feature Selection and Ranking

We employed a two-step procedure that consists of

conducting statistical hypothesis testing for feature

selection and applying feature ranking method. The

former one chooses the features which signiﬁcantly

differ between the two classes (i.e., legitimate and

malware), and the latter one orders the features ac-

cording to their discriminatory power. Order provided

in this step is necessary to optimize the number of

features used as predictors and describe behavioural

evolvement of malware belonging to different time-

frames.

There are three feature selection techniques that

can be widely utilized in identifying the features (Ag-

garwal, 2015). Filter techniques evaluate the suit-

ability of a feature by using a statistical criterion

which can be applied irrespective of the classiﬁcation

method used. Wrapper techniques iteratively extend

the feature set and evaluate the accuracy of each iden-

tiﬁed set in a classiﬁcation model. Embedded tech-

niques also evaluate suitability of the feature set with

respect to a particular classiﬁcation model, but unlike

the wrapper one, they attempt to prune the features

within the classiﬁcation process itself. Since wrapper

and embedded techniques have higher computational

complexity, we utilized ﬁlter techniques in the second

step.

It is important to emphasize that feature categories

used in this study, system calls and permissions, do

not have the same data type. System calls are nu-

meric values (i.e., amount of calls issued for each sys-

tem call) and permissions are categorical (i.e., permis-

sion request was present/absent for each standard per-

mission). In both steps, we employed different tech-

niques that are more appropriate for each feature cat-

egory and its data type. The procedure was performed

as follows:

• Step 1: Feature selection by statistical hypothesis

testing

– System Calls. System calls which differ be-

tween malicious and legitimate applications in

terms of mean values were selected. To per-

form statistical hypothesis testing Welch’s Test

was used. This test provides more reliable re-

sults for the cases of unequal variances (Welch,

1947). The statement of the null (base) hypoth-

esis H

is that mean values of for the number

of system calls among ﬁrst 2000 calls are the

same for legitimate µ

and malicious µ

appli-

cations, and the statement of the alternative hy-

pothesis H

is that mean values are different.

: µ

= µ

: µ

6= µ

– Permissions. As these features are categor-

ical, we employed χ

(chi-squared indepen-

dence test) which can answer the question if

two categorical variables are related or not. The

statement of the null hypothesis is that there is

no relation between the particular permission

and class of the application. The statement of

the alternative hypothesis is that there is a rela-

tion between particular permission and class.

• Step 2. Feature ranking by Fisher’s Score and

Gini Index

– System Calls. Fisher’s Scores of system calls

with mean values that differ signiﬁcantly be-

tween malicious and legitimate applications

were computed (i.e., higher Fisher’s score val-

ues indicate higher discriminatory power).

– Permissions. As permissions are categorical,

Gini Index suited better for ordering these fea-

tures (i.e., lower values of the Gini Index indi-

cate higher discriminatory power).

At ﬁrst glance, a two step procedure may seem un-

necessary. One may suggest ordering features with re-

In-depth Feature Selection and Ranking for Automated Detection of Mobile Malware

277

spect to only their p-values, computed during the hy-

pothesis testing step. It should be noted here that lin-

ear relationship between the values of Fisher’s Score

and p-values is not strong enough to lead exactly to

the same feature orderings. Simulations performed

by the authors demonstrated that for numeric values

Fisher’s Score based selection led to better orderings

with respect to classiﬁer accuracy. This fact justi-

ﬁes a two-step feature selection procedure for system

calls. Regarding permissions, p-values and Gini In-

dex based selection procedures did not lead to sufﬁ-

cient difference in detection accuracy. Nevertheless,

a two-step selection procedure was used for the sake

of method coherence.

In relation to classiﬁer training, one has to choose

desired number of predictors either on the basis of

Fisher’s Score values or Gini Index values. Note

that there are no universal or generic valid thresh-

olds for Fisher’s Score and Gini Index values indicat-

ing suitability or unsuitability of a particular feature.

Based on the outcomes of the feature selection pro-

cess, we provided our expert judgement to determine

the thresholds, selected the sets and veriﬁed their pre-

diction performance by creating and testing the learn-

ing model.

4 RESULTS & DISCUSSION

4.1 Results of Feature Selection and

Ranking

We applied feature selection and classiﬁcation meth-

ods to two different compound datasets: First one

(namely L/O) includes 1000 legitimate and 1000 old

malware samples, and second one (namely L/N) is

composed by 1000 legitimate and 1000 new malware

samples. Let us remind that each particular system

call was treated as a numeric feature which results

in 212 numeric features. Each particular permission

was treated as a categorical feature (set or unset),

which leads to 147 categorical features. Following

the feature selection procedure described in Section

3.2, Welch’s test demonstrated that for L/O dataset,

38 numeric features differed signiﬁcantly between the

legitimate and malicious applications for level of sig-

niﬁcance α = 0.05, whereas this number was 43 for

L/N dataset. In a similar manner, for the same level

of signiﬁcance, χ

ﬁltered out 85 permissions for L/O

dataset and 79 permissions for L/N dataset.

In the feature ranking step, Fisher’s Score and

Gini Index values were computed for numeric and

categorical features respectively. This allowed or-

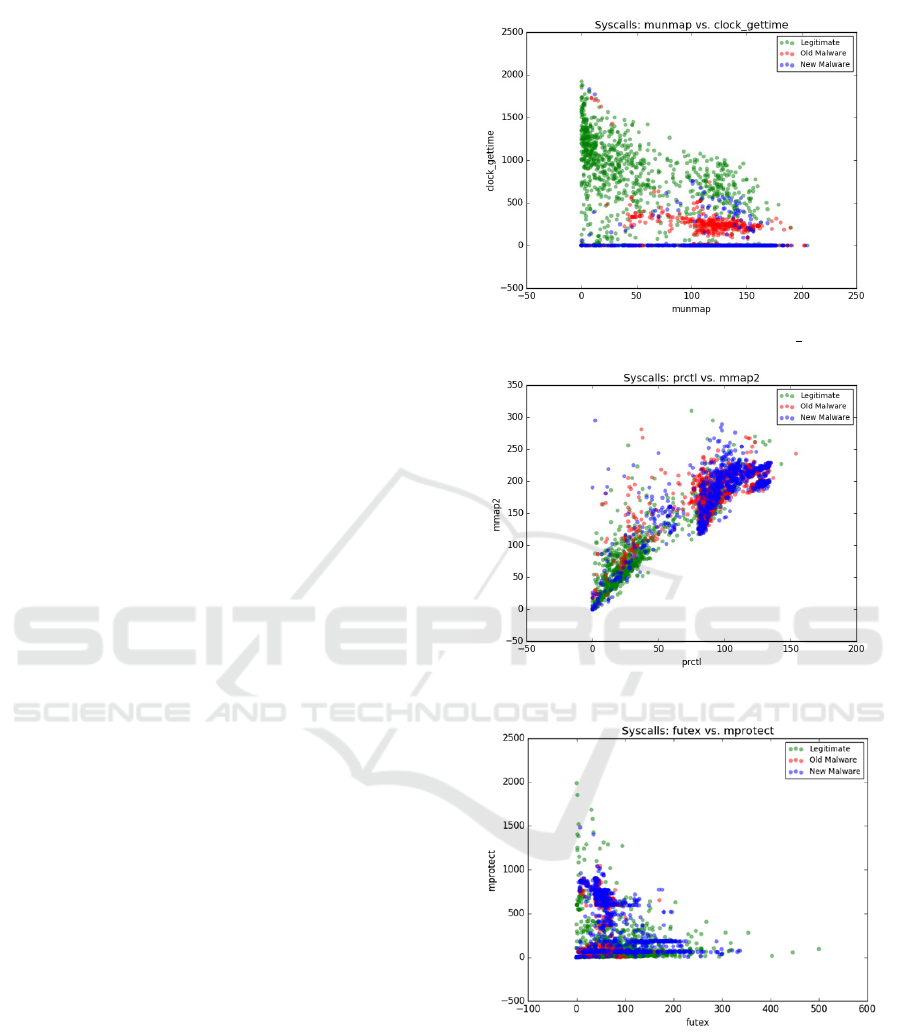

Figure 1: Scatter plot munmap vs clock gettime.

Figure 2: Scatter plot prctl vs mmap2.

Figure 3: Scatter plot futex vs mprotect.

dering the features with respect to their discrimina-

tory power. As mentioned before, there is no speciﬁc

threshold on any of the methods performed to select

or discard any particular feature, only data knowl-

edge and expertise helps in this selection step. As all

Fisher’s Score (F) values were relatively low, we se-

lected those system calls having F > 0.15. Regarding

permissions, all Gini Index (G) values were relatively

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

278

Table 1: System Calls and Fisher’s Score Values.

System Call L/O L/N

clock gettime 0.84 1.11

munmap 0.75 0.57

readlinkat 0.69 0.59

connect 0.67 0.52

mmap2 0.63 0.47

prctl 0.61 0.53

madvise 0.54 0.48

ppoll 0.31 0.25

sigaction 0.29 0.30

sigaltstack 0.23 0.21

openat 0.22 0.16

mprotect 0.15< 0.19

futex 0.30 0.15<

rt sigprocmask 0.24 0.15<

epoll create1 0.23 0.15<

eventfd2 0.22 0.15<

getppid 0.22 0.15<

clone 0.21 0.15<

sendto 0.19 0.15<

recvfrom 0.18 0.15<

close 0.17 0.15<

getdents64 0.15 0.15<

Table 2: Permissions and Gini Index Values.

Permission L/O L/N

access network state 0.46 0.41

wake lock 0.45 0.39

install packages 0.42 0.41

read phone state 0.32 0.45

get accounts >0.47 0.47

system alert window >0.47 0.46

get tasks >0.47 0.45

mount unmount ﬁle systems >0.47 0.44

vibrate >0.47 0.44

access ﬁne location 0.47 >0.47

bind remoteviews 0.47 >0.47

use ﬁngerprint 0.47 >0.47

camera 0.47 >0.47

bluetooth 0.46 >0.47

read logs 0.44 >0.47

send sms 0.43 >0.47

read contacts 0.43 >0.47

read external storage 0.33 >0.47

high so we selected those with G < 0.47. System calls

possessing higher discriminatory power are listed, to-

gether with their Fisher’s Score values, in Table 1.

Similarly, Table 2 gives the selected permissions with

their Gini Index values.

As a result of the second step, 21 features were se-

lected for L/O dataset and 12 for L/N dataset among

the system calls (11 of them were common in both

datasets). All common system calls in L/N except

clock_gettime have lower Fisher’s Score values.

Furthermore, there is only one additional discrimi-

natory system call, mprotect, which has a relatively

low score, that has been developed in the course of

time (appears as potentially discriminatory feature in

L/N dataset but not in L/O dataset). Based on that,

it can be argued that separability between legitimate

and new malware is less obvious, meaning that system

call behaviour of malware has become more similar

to legitimate as time has passed. Additionally, it can

also be argued that beyond this separability fact, new

malware has not developed a robust novel character.

Scatter plot graph given in Figure 1 shows an eas-

ily recognizable well-deﬁned decision boundary that

is formed by two of the most discriminatory system

calls, clock_gettime and munmap2. As shown, old

malware is gathered in a cluster which is located be-

tween legitimate and new malware regions. On the

other side, decreased separability formed by system

calls with relatively less Fisher’s Score values, such

as prctl and mmap2, is demonstrated in Figure 2. Al-

though most of legitimate and new malware samples

form their own clusters which can be separable from

each other, boundaries are not so clear when com-

pared to the graph given in Figure 1. Figure 3 shows

the graph for two system calls having lower scores

such as futex and mprotect. It is observed that de-

spite some condensed regions occupied by one class,

boundaries between old malware, new malware and

legitimate apps mostly disappear.

According to Fisher’s Score values, it can be de-

rived that system calls that possess best discrimina-

tory power are related to socket connection, process

management or ﬁle operations. However, best pre-

dictor is the one which is related with clock time,

showing the most different behaviour between mal-

ware and legitimate applications.

Based on Gini Index values (see Table 2)

and the established threshold value, we identi-

ﬁed that 13 permissions in L/O possess greater

discriminatory power whereas 9 permissions have

greater power in L/N (among the 147 permis-

sions in total). New malware gained more

separability from legitimate applications in fea-

tures such as wake_lock, access_network_state,

install_packages. They exceeded the threshold

value in an additional ﬁve features which were below

that value in old malware. On the other side, it has

become closer to legitimate apps in 10 features (for

instance, read_phone_state, camera, send_sms, or

read_contacts). It can be argued that total discrimi-

natory power of new malware has diminished to some

In-depth Feature Selection and Ranking for Automated Detection of Mobile Malware

279

extent due to a reduction in the number of selected

features, but in contrast to system calls, it gained new

character.

Android OS has mainly three protection levels that

determine policies for granting permissions to mobile

apps: (1) Normal permissions which are automati-

cally given to applications without explicit consent of

the user, (2) Dangerous permissions that require ex-

plicit consent of the users to be granted, (3) Signa-

ture permissions which require that the app that uses

the permission must have the same certiﬁcate as the

app that deﬁnes the permission (Google, 2018). Fea-

tures with greater discriminatory capabilities, which

are identiﬁed by Gini Index in our study, do not be-

long to a single level. Among the 18 listed features

in Table 2, only 7 of them belong to the dangerous

level. This result indicates that malware and legiti-

mate apps can also differ in permissions which do not

seem risky.

It is important to note that, in our context, gain-

ing character or having more discriminatory power

means that the referenced dataset can better discrimi-

nate malware from legitimate apps by using the corre-

sponding feature. It does not show that, for instance,

malware uses that speciﬁc system call or permission

more (or less) frequently than a legitimate app. How-

ever, as we utilized the same legitimate dataset, it is

evident that the change in discrimination capabilities

relies on the change of malware behaviour over time.

Table 3: Classiﬁcation with System Calls.

# of features

L/O L/N

accuracy accuracy

Single Best Feature

0.87 0.89

3 Best Common Features

0.90 0.88

6 Best Common Features

0.91 0.89

All 11 Common Features

selected in both datasets

0.93 0.89

All 22 Selected Features 0.97 0.91

All 212 Features 0.97 0.93

4.2 Veriﬁcation of Selected Features

with Classiﬁers

In order to verify the results obtained in Section 4.1,

we built and tested classiﬁers with selected feature

clock gettime

clock gettime, readlinkat, and munmap

clock gettime, readlinkat, munmap, connect, prctl and

mmap2

clock gettime, readlinkat, munmap, connect, prctl,

mmap2, madvise, ppoll, sigaction, sigaltstack, openat

sets, grouping them in varied sizes. Recall that the ﬁl-

ter methods that we use in this study treat each feature

separately while measuring its discriminatory power,

meaning that these sets do not guarantee higher accu-

racy due to, for instance, possible correlations among

the selected features. This veriﬁcation study is needed

to show the validity of our ﬁndings.

We trained and tested k- Nearest Neighbours

(kNN), Logistic Regression, Decision Tree, and Sup-

port Vector Machines (SVM) machine learning algo-

rithms to the datasets. Among these methods, deci-

sion tree model demonstrated best accuracy results,

therefore, this method was chosen for further analy-

sis. Then decision tree model was applied to L/O and

L/N datasets. As shown in Table 3, we computed ac-

curacy value for different decision tree classiﬁers as

a performance metric (i.e., accuracy is computed as

the ratio of correctly classiﬁed samples to the total

samples), using 5-fold cross-validation with varying

feature set sizes for system calls. Corresponding con-

fusion matrix of each classiﬁer is given summarized

in Table 4.

Table 4: Confusion Matrices for the Classiﬁcation of Sys-

tem Calls.

# of features Actual(L)/ Actual(M)/ Actual(L)/ Actual(M)/

Pred(L) Pred(M) Pred(M) Pred(L)

Single Best L/O 265 265 29 41

3 Best L/O 261 279 31 29

6 Best L/O 293 259 25 23

11 Common L/O 299 262 24 15

22 Selected L/O 303 276 10 11

All (212) L/O 295 290 8 7

Single Best L/N 300 234 27 39

3 Best L/N 263 266 39 32

6 Best L/N 259 269 37 35

11 Common L/N 282 254 32 32

22 Selected L/N 272 268 36 24

All (212) L/N 279 281 19 21

Results of decision tree classiﬁer model regard-

ing system calls show that just a single feature,

clock_gettime (highest Fisher’s score value), was

capable of discriminating malware from legitimate

apps (in both L/O and L/N datasets) with an accu-

racy over 87 %. However, this feature provided better

classiﬁcation in L/N, which is in line with the higher

Fisher’s Score value of this feature in this dataset. In

all other classiﬁer models built, selected features pro-

vided better outcomes in L/O dataset, justifying that

similarity of system calls behaviour between a legit-

imate app and malware is getting less obvious over

time.

Accuracy results of classiﬁers increase as bigger

feature set is covered in both datasets. Just the 22 se-

lected features are enough to give the same accuracy

performance than using all system calls (212) in L/O

dataset. However, a similar point is not achieved in

L/N dataset, indicating a decrease in the discrimina-

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

280

tory power of the selected features. It can be derived

from the confusion matrices given in Table 4 that clas-

siﬁers are, in general, well-balanced in terms of false

positive and false negative results, which are repre-

sented in the table as ”Actual(L)/Predicted(M)” and

”Actual(M)/Predicted(L)” respectively. Note that L

refers to legitimate whereas M means malware. How-

ever, results of the best feature in L/O and L/N are

slightly more skewed to false negatives whereas the

classiﬁers with all 11 common features in L/O and all

22 selected features in L/N are more inclined to false

positives.

Results regarding the application of decision tree

classiﬁer model to permissions are given in Table 5.

Best feature provided accuracy values, 0.79 and 0.73,

in L/O and L/N datasets respectively. These values

are lower compared to the detection performance of

best system call predictor. As shown, accuracy value

in L/O was greater than in L/N. This fact was ex-

pected as the Gini Index score of the best feature in

L/O dataset has a lower value than in L/N dataset,

i.e. that it has more discriminatory power. Accu-

racy of the classiﬁer that uses all selected features, in

both datasets, reaches almost the same value obtained

when all permissions are used, showing the effective-

ness of feature selection in permissions.

Table 5: Classiﬁcation with Permissions.

# of features

L/O L/N

accuracy accuracy

Single Best Feature

0.79 0.73

4 Common Selected

Features in both datasets

0.86 0.85

All 18 Selected Features 0.94 0.92

All 147 features 0.95 0.92

Accuracy values of L/N were slightly lower than

values of L/O when common or all selected permis-

sions were used. This result suggests that as time has

passed, separability between malware and legitimate

applications has partly decreased regarding permis-

sions.

Confusion matrices of classiﬁers built for permis-

sions are summarized in Table 6. It can be extracted

that most of classiﬁers are not well-balanced com-

pared to the ones built on the basis of system calls.

Results of the best and four common features in L/O

are skewed to false negatives, but remaining ones are

more balanced. L/N dataset provided unbalanced out-

comes in each classiﬁer. Best feature in L/N gave

more false positives and remaining ones were inclined

read phone state for L/O and wake lock for L/N

access network state, wake lock, install packages and

read phone state for L/O and L/N

to false negatives.

Table 6: Confusion Matrices for the Classiﬁcation of Per-

missions.

# of features Actual(L)/ Actual(M)/ Actual(L)/ Actual(M)/

Pred(L) Pred(M) Pred(M) Pred(L)

Single Best L/O 271 201 30 98

4 Common L/O 262 248 23 67

18 Selected L/O 284 280 19 17

All (147) L/O 281 290 14 15

Single Best L/N 186 253 117 44

4 Common L/N 281 227 29 63

18 Selected L/N 274 274 19 33

All (147) L/N 284 268 20 28

When outcomes of system calls and permissions

are compared, it can be argued that their amount of

loss regarding discriminatory power in L/N is differ-

ent. All selected system calls in L/N gave an accuracy

value of 0.91, showing a decline from 0.97 which was

obtained in L/O. This value, 0.91, is below the accu-

racy result, 0.93, which was obtained in L/N when all

system calls were used for the classiﬁcation. On the

other side, accuracy value declines from 0.94 to 0.92

for all selected permissions, which indicates a lower

amount of loss than selected system calls. Accuracy

value of 0.92, is equal to the result obtained by all

permissions in L/N. Recall that, in Section 4.1, we

identiﬁed a decrease from 21 to 12 in the number of

system calls which exceeded the selection threshold

in L/O and L/N datasets. Out of 12 system calls, just

only two of them have higher Fisher’s score in L/N.

Contrarily, decline in permissions goes from 13 to 9,

and more features, 5 of them, have higher discrim-

ination capability in L/N. These ﬁndings support the

results obtained in Section 4.1 so that system calls and

permissions lost part of their discriminatory power in

L/N, being the loss in system calls greater than the

loss in permissions.

It is important to highlight here that our results re-

garding the change in selected feature sets indicate a

concept drift. Comparison between system calls and

permissions given above provides initial insights into

the extent of this phenomenon. However, more com-

plete derivations can be drawn with modelling the

drift in the classiﬁer. As we focus on feature selec-

tion and ranking in this paper, we postponed this mod-

elling effort to our future work.

Table 7 demonstrates detection performance of a

mixture of system calls and permissions (hybrid de-

tection approach). Classiﬁer was constructed using

decision tree model within a 5-fold cross-validation

setting. As can be seen, in both datasets, detection

rates were higher compared to their previously built

respective single type classiﬁers, using only static or

only dynamic features.

clock gettime and read phone state for L/O and

In-depth Feature Selection and Ranking for Automated Detection of Mobile Malware

281

Table 7: Classiﬁcation with System Calls and Permissions

(Hybrid).

# of features

L/O L/N

accuracy accuracy

Best Two Features

0.90 0.89

4 + 11 Common Selected

Features in both datasets 0.95 0.92

18 + 22 Selected Features 0.97 0.94

All Features (212 + 147) 0.98 0.94

5 CONCLUSION & FUTURE

WORK

Detection of mobile malware remains a signiﬁcant

challenge due to the rapidly evolving nature of the

threat. Machine learning techniques have provided

solutions to handle this problem. Although they have

provided promising results, there is a room for im-

provement of the classiﬁers by the utilization of fea-

ture selection to obtain better classiﬁcation accuracy,

present the results in a more interpretable way and re-

duce required computational resources.

In this paper, we applied a feature selection and

ranking procedure that consists of two consecutive

steps, statistical hypothesis testing and ﬁlter feature

selection method. The former enables us to select the

features while the latter ranks them according to their

discriminatory power. We used system calls and per-

missions as the feature categories due to their proven

success in various research studies. Detection perfor-

mance of selected features was evaluated in decision

tree based classiﬁers. In order to analyze the impact of

the changing behaviour on feature selection process,

we induced classiﬁers with malware samples belong-

ing to different time frames.

This study shows that a small number of selected

features, such as 3-6 features, provide relatively high

accuracy results. Even a single system call, the

one possessing best Fisher’s Score value in our fea-

ture domain, clock_gettime, provided accuracy val-

ues over 87%. We identiﬁed that 10-12% of the

features are able to provide a discriminatory power

which is very close to the power of using all features

in both feature categories (system calls and permis-

sions). Moreover, we identiﬁed that system calls and

permissions of new malware samples are more sim-

ilar to legitimate apps than the old ones. This result

suggests a concept drift in these features. Addition-

ally, feature rankings and classiﬁer outputs indicate

that system calls have lost more discriminatory power

clock gettime and wake lock for L/N

over time compared to permissions.

In this paper, we concentrated on feature selection

and its implications on accuracy of machine learn-

ing classiﬁers. Findings regarding concept drift can

be better explored and enhanced by precisely mod-

elling this learning aspect in the classiﬁer itself. Fea-

ture sets used in the classiﬁers could be enhanced by

adding other static or dynamic categories. Also, re-

quired length of collection’s time period for dynamic

attributes such as system calls could be further inves-

tigated.

REFERENCES

Aggarwal, C. (2015). Data Mining: The Textbook. Springer

International Publishing.

Arp, D., Spreitzenbarth, M., H

ubner, M., Gascon, H., and

Rieck, K. (2014). Drebin: Effective and Explainable

Detection of Android Malware in Your Pocket. In Pro-

ceedings 2014 Network and Distributed System Secu-

rity Symposium, number February.

Cen, L., Gates, C. S., Si, L., and Li, N. (2015). A probabilis-

tic discriminative model for android malware detec-

tion with decompiled source code. IEEE Transactions

on Dependable and Secure Computing, 12(4):400–

412.

Fedler, R., Sch

utte, J., and Kulicke, M. (2013). On the Ef-

fectiveness of Malware Protection on Android. Tech-

nical report, Fraunhofer, AISEC.

Feizollah, A., Anuar, N. B., Salleh, R., and Wahab, A. W. A.

(2015). A review on feature selection in mobile mal-

ware detection. Digital Investigation, 13:22–37.

Google (2018). Permissions overview. Retrieved

from: https://developer.android.com/guide/topics/

permissions/overview.

Kim, H.-H. and Choi, M.-J. (2014). Linux kernel-based fea-

ture selection for android malware detection. In Net-

work Operations and Management Symposium (AP-

NOMS), 2014 16th Asia-Paciﬁc, pages 1–4. IEEE.

Lindorfer, M., Neugschwandtner, M., and Platzer, C.

(2015). Marvin: Efﬁcient and comprehensive mobile

app classiﬁcation through static and dynamic analy-

sis. In 2015 IEEE 39th Annual Computer Software

and Applications Conference, volume 2, pages 422–

433.

McAfee (2018). McAfee Mobile Threat Report Q1

2018. Retrieved from: https://www.mcafee.com/es/

resources/reports/rp-mobile-threat-report-2018.pdf.

Nezhadkamali, M., Soltani, S., and Hosseini Seno, S. A.

(2017). Android malware detection based on overlap-

ping of static features. In 7th International Confer-

ence on Computer and Knowledge Engineering (IC-

CKE 2017), October 26-27 2017, Ferdowsi University

of Mashhad.

Qiao, M., Sung, A. H., and Liu, Q. (2016). Merging per-

mission and api features for android malware detec-

tion. In 2016 5th IIAI International Congress on Ad-

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

282

vanced Applied Informatics (IIAI-AAI), pages 566–

571. IEEE.

Robert, C. (2014). Machine learning, a probabilistic per-

spective. Taylor & Francis.

Sahs, J. and Khan, L. (2012). A Machine Learning Ap-

proach to Android Malware Detection. In 2012 Eu-

ropean Intelligence and Security Informatics Confer-

ence, pages 141–147.

Statista (2018). Mobile os market share 2017. Retrieved

from: https://www.statista.com/statistics/266136/

global-market-share-held-by-smartphone-operating-

systems/.

Unuchek, R. (2018). Mobile Malware Evolution 2017. Re-

trieved from: https://securelist.com/mobile-malware-

review-2017/84139/.

Vidal, J. M., Orozco, A. L. S., and Villalba, L. J. G. (2017).

Malware detection in mobile devices by analyzing se-

quences of system calls. International Journal of

Computer, Electrical, Automation, Control and Infor-

mation Engineering, 11(5):606 – 610.

VirusTotal (2018). How to use VirusTotal Com-

munity - VirusTotal. Retrieved from: https:

//www.virustotal.com/es/documentation/virustotal-

community/.

Welch, B. L. (1947). The generalization ofstudent’s’ prob-

lem when several different population variances are

involved. Biometrika, 34(1/2):28–35.

Yan, G., Brown, N., and Kong, D. (2013). Exploring

discriminatory features for automated malware clas-

siﬁcation. In International Conference on Detection

of Intrusions and Malware, and Vulnerability Assess-

ment, pages 41–61. Springer.

Yuan, Z., Lu, Y., Wang, Z., and Xue, Y. (2014). Droid-Sec

: Deep Learning in Android Malware Detection. In

Sigcomm 2014, pages 371–372.

In-depth Feature Selection and Ranking for Automated Detection of Mobile Malware

283
