Finding Classification Zone Violations with

Anonymized Message Flow Analysis

Michael Meinig

, Peter Tröger

and Christoph Meinel

Hasso-Plattner-Institute (HPI), University of Potsdam, 14482 Potsdam, Germany

Beuth University of Applied Science, 13353 Berlin, Germany

Keywords: Anonymity, Log Analysis, Security Awareness, Threat Awareness, Threat Modelling.

Abstract: Modern information infrastructures and organizations increasingly face the problem of data breaches and

cyber-attacks. A traditional method for dealing with this problem are classification zones, such as ‘top secret’,

‘confidential’, and ‘unclassified’, which regulate the access of persons, hardware, and software to data

records. In this paper, we present an approach that finds classification zone violations through automated

message flow analysis. Our approach considers the problem of anonymization for the source event logs, which

makes the resulting data flow model sharable with experts and the public. We discuss practical implications

from applying the approach to a large governmental organization data set and discuss how the anonymity of

our concept can be formally validated.

1 INTRODUCTION

Information security is one of the crucial topics for

modern industry and governmental organizations.

Malicious attacks on industrial companies and

governmental organizations can cause high annual

damage. In 2017, the spending for IT security

therefore increased dramatically, but at the same time,

an all-high number of cyber-attacks and data breaches

was reported (ENISA, 2018). Illegal knowledge

transfer and economic sabotage are no longer a rare

individual event, but a mass phenomenon. There are

thousands of critical security incidents per year that

produce an accumulated loss of billions of data

records (RBS, 2018). Haystax Technology reported

in 2017 that the largest threat for a company are

managers with insider access rights, followed by

consultants/suppliers and regular employees

(Haystax Technology, 2017).

A common approach for dealing with sensitive

data is the concept of information classification

(European Commission, 2001). Different data items,

such as paper documents and computer files, are

classified according to their security sensitivity. The

grouping takes place by the notion of classification

zones, such as ”TOP-SECRET”, “SECRET”,

”RESTRICTED”, and “UNCLASSIFIED”. All data

items in an organization, their storage facilities and

the persons accessing them are categorized according

to this scheme. The daily procedures and the IT

infrastructure are now obligated to regulate the read

and write access to data items in a way that their

classification zone is taken into account. The

necessary access control and monitoring can happen

through software mechanisms, such as discretionary

access control, electronic authentication procedures

and automated security audits, or through more

classical security means such as physical separation

and entrance guards.

Given the fact that modern industries and

institutions are forced to link their data silos and IT

systems in complex networks, with some of them

being constantly accessible from the Internet, it

becomes increasingly harder to enforce classification

zones and their protection. Several recent examples

show that the detection and avoidance of

classification zone violations become an increasingly

relevant topic in the security community:

 In May 2015, the German federal parliament IT

infrastructure was heavily attacked. Offices of

parliament members were infiltrated and remotely

searched for classified information (Zeit, 2015).

 A former external collaborator of the NSA was

sued for a data theft of 50 Terabyte over a time

period of 20 years, which is seen as the largest

theft of classified governmental material of all

times (WP, 2016).

284

Meinig, M., Tröger, P. and Meinel, C.

Finding Classiﬁcation Zone Violations with Anonymized Message Flow Analysis.

DOI: 10.5220/0007352602840292

In Proceedings of the 5th International Conference on Information Systems Security and Privacy (ICISSP 2019), pages 284-292

ISBN: 978-989-758-359-9

 In 2017, the credit office Equifax was attacked for

stealing sensitive personal information of more

than 147 million American people. The data

breach leaked information such as name, driver

license details and the social security number,

which are important identity properties in the

USA (Forbes, 2017).

1.1 Problem and Approach

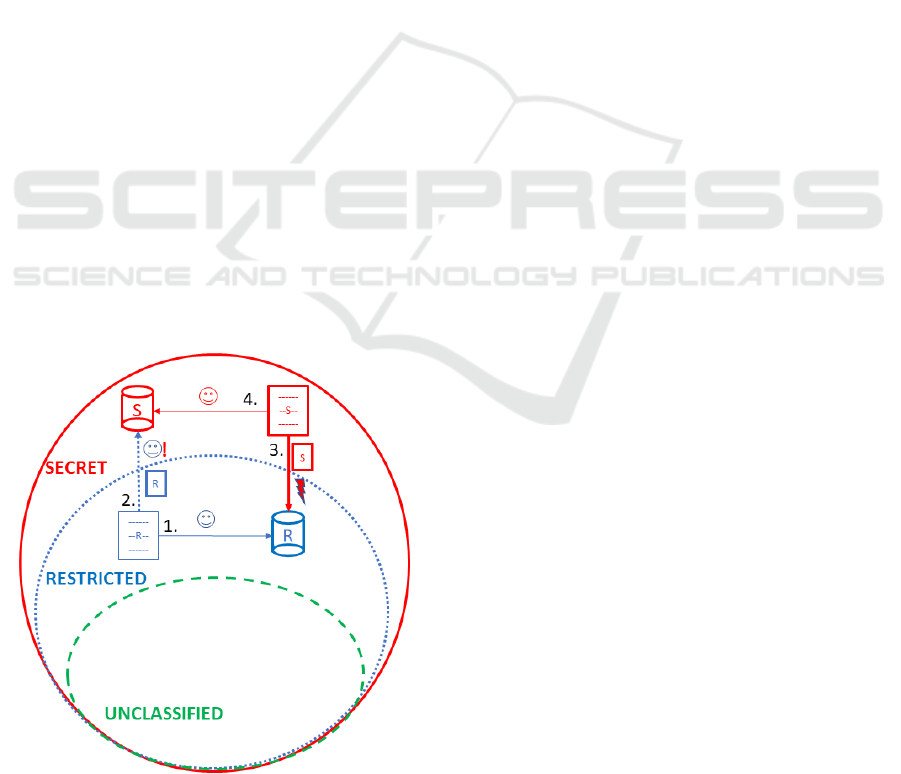

Figure 1 shows the potential security threats for an

infrastructure that relies on the idea of classification

zones. Given the example of three protection

categories (unclassified, restricted, secret), it can be

seen that they include each other, e.g. every

unclassified information can be treated the same way

as a secret information, but not the other way around.

There are 4 possible information flows that can now

take place:

The first flow of information stores a lowly

classified document on a lowly classified server,

which is an allowed activity. The second possible

flow of information stores a lowly classified

document on a highly classified server. This flow of

information is only allowed in one direction, an

information backflow must be avoided. This is

typically achieved with a data diode (Genua, 2016).

The third flow of information attempts to transfer a

highly classified document to a lowly classified

server. This information flow is prohibited. The

fourth flow of information stores a highly classified

document on a highly classified server, which is again

an allowed activity.

Figure 1: Classification zones - information flows and

threats.

Given that general principle, the following

security threats exist:

 Information flows from high to low zone

 Uncontrolled information flows from low to high

zone (backflow problem - 2nd flow of information

in figure 1)

 Information flows between uncategorized

external stakeholders and internal servers

It should be noted that ‘unclassified’ is not equal to

an unrestricted read or write access for external

parties. The overall classification zone infrastructure

is still treated as a closed ecosystem.

The problem scenario can be easily extended with

human stakeholders, which also belong to a particular

classification zone. They can be treated as a special

kind of ‘server’ that gets read and write access to

some classified document.

In this paper, we discuss our work on a practical

approach for identifying classification zone violation

as security threat. The investigation is performed

based on protocols of past information flows in the

organization, here given as simple textual log files

from message exchange servers. The huge original

raw data set is converted to an information flow

model, which can be generated and investigated once,

periodically, manually, or in an automated fashion.

The goal of this investigation is to find weak security

spots and unknown attack vectors in the

infrastructure.

A unique property of our work is the

anonymization of the source data. This is a common

expectation in organizations with mandatory

classification zones, but is generally the opposite of

open security research. The anonymization demand

also normally prevents the collaboration with third-

party consultants, or forces them to sign strong legal

non-disclosure agreement (NDA) contracts. In our

attempt, we try to tackle both issues at the same time.

2 RELATED WORK

The detection of classification zone violations, or

suspicious activities in general, is a classical topic in

security research and practice. One early example

from the 80s is the Haystack system (Smaha, 1988),

which was intended to detect intrusions in Air Force

systems based on atypical system usage. The authors

already considered the problem of an “event

horizon”, meaning that the monitoring data needed to

be reduced before further processing.

Modern computer systems constantly generate

large amounts of event logs. These protocols are

Finding Classiﬁcation Zone Violations with Anonymized Message Flow Analysis

285

intended for system administrators to understand the

current system status and to pinpoint system

downtime issues.

The usage of log files for finding dependability

incidents is a classical topic in high-performance

computing. In the past, there were attempts to use

pattern discovery (Hellerstein et al., 2002), data

mining (Stearley, 2004), (Vaarandi, 2004),

(Yamanishi et al., 2005), clustering (Vaarandi, 2003),

support vector machines (Bose et al. 2013), (Fronza,

2013), or decision tree learning (Reidemeister et al.,

2013) for analyzing massive amounts of original log

data. Oliner et al. (Oliner et al., 2008), for example,

used the information entropy of message terms for

finding failure-related events in HPC logs. Nearly all

of these approaches focus on reliability events, such

as hardware component failures, which are indicated

through severity markers in the log files. This makes

these approaches not directly applicable for our

classification zone problem, but the available ideas

for log information reduction can be directly applied

(Cheng, 2015), (Azodi, 2014), (Sapegin, 2013),

(Pantola, 2010). We also utilize security meta-data in

the log analysis, something that is not commonly

available in HPC-alike systems.

One part of our approach is the conversion of log

data to data flow representations. The latter is a well-

known tool in the security community. A classical

approach for this is are data flow diagrams or similar

techniques such as flowcharts (Gane, 1977),

(DeMarco, 1978), (Yourdon, 1989). Data flow

diagrams are well known for their application within

the STRIDE threat modeling methodology by

Microsoft (Swiderski and Snyder, 2004). Another

example is the work by Schmidt et al. who used data

flow analysis for ranking security issues in

automotive software architectures (Schmidt et al.,

2014). Meinig et al. described the notion of extended

data flow diagrams, which can help to express the

relation between infrastructure components and

classification zones (Meinig and Meinel, 2018).

The resulting data flow information can be

investigated by sophisticated algorithms, so that

security threats can be found automatically and at

run-time. Data flow analysis in the security context is

already applied for system calls made by applications

(Li et al., 2008), network traffic (Su et al., 2018),

(Tzur-David et al., 2009), (Hofstede, 2018), virtual

runtime engines (Feng et al., 2010), program binaries

(Chen et al., 2011), or program code (Baca, 2010).

For this publication, we focus on the generation of

data flow diagrams that can be inspected by human

auditors from inside and outside the organization.

3 FROM EVENT LOGS TO DATA

FLOW ANALYSIS

Given the demand for both anonymity and useful

security analysis results, we created an approach that

combines the following steps (see also Figure 3):

1. Event log sanitizing

2. Evaluation of message paths

3. Model Generation (Anonymization of source

data, while keeping relevant security information

and translation into a data flow model)

We applied the approach to the following data set

from a large governmental organization:

 Unstructured raw logs about network

communication for a set of servers

(see Figure 2)

o Time range: 01/16 - 11/16

o One folder per server

o Multiple text files per folder, each covering a

particular time span

o Log entries per file in text column format

o Per log entry: Timestamp, unique message

identifier, send / receive operation, data size

 List of nodes and their security classification

Content and type of the exchanged data is a

confidential information in itself and can therefore

not be shared in the analysis result.

Figure 2: Raw log data.

3.1 Event Log Sanitizing

We developed a set of Python scripts that parse the

original log files linearly and generate a database of

node communication activities. This step removes

invalid and incomplete information items, such as log

entries with missing message classification

information or invalid timestamps. Both problems

were discussed with the administrators of the infra-

Folder Name: Server S

File Name: 2016-01-01XXX.log

###########################################

01 00:02:12 Data received from Server S

YYY Bytes XXXMessage-ID-ABC

01 00:02:12 Forwarded to Server S

XXXMessage-ID-ABC

01 00:02:12 Data send to Server S

YYY Bytes XXXMessage-ID-ABC

###########################################

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

286

Figure 3: Steps to detection of classification zone violations.

structure and justified with implementation bugs, and

not with a potential attempt for cleaning the logs from

an earlier attack. The result of this normalization step

is a set of records, as shown in Table 1, were each

provides the following information:

 Column 1: Date

 Column 2: Time

 Column 3: Node generating the log entry

 Column 4: Data operation performed by the

referenced node (send / relay / receive)

 Column 5: Data size of the message

 Column 6: Peer node

 Column 7: Unique message identifier

Table 1: Set of records.

Date Time

Server

Name

Data

Direction

Byte Size

Server

Name

Message

2016-01-01 00:02:12 S

Received

fro

YYY S

ABC

2016-01-01 00:02:12 S

Rela

to S

ABC

2016-01-01 00:02:12 S

Send to YYY S

ABC

… … … …

It must be noted here that message sending comes

in two flavors: Sending triggered by the node itself,

and sensing triggered due to relaying of a received

message. This leads to the fact that a single receive

activity may be reasoned by one of them, which is not

directly visible from the entry. For that reason, we

need to consider the message path as a whole.

3.2 Evaluation of Message Paths

Given the set of records about direct node-to-node

interaction, we are now detecting message paths that

may cross relay nodes. This can be easily done by

clustering single transfer activities based on the

unique message identifier. This is again implemented

with a set of Python scripts, since the amount of log

data makes such an approach still feasible. For larger

data sets, according scalable analysis tools based on

NoSQL databases can be applied.

The result is a set message transfers, where each

transfer has a set of participating nodes. This can be

the starting point for a multitude of analysis steps. In

the approach here, we continue by only relying on the

pure node-to-node message frequency statistics.

Together with the given node security classification,

this leads to a dataset that describes the interaction

frequency of nodes in different, or the same,

classification zone. Together with the overall amount

of messages, it is now possible to generate the graph

representation for further analysis.

Figure 4 shows an example for the resulting data

file. It allows to determine the path of every message

through the network.

3.3 Model Generation

The next step is to create a representation for the

message flow data that can be shared with external

parties.

The visualization of the identified information

exchange flows is done with the secure data flow

diagram (DFDSec) approach (Meinig and Meinel,

2018). It supports the representation of classification

zones in an extended data flow diagram. The model

consists of five elements: processes, external entities,

data stores, data flows and security classification

zones.

Processes are entities that perform activities by

operating on incoming data and potentially

generating an output. In our example data set, this

relates to the different servers in their role as message

sender, receiver, or relay.

Finding Classiﬁcation Zone Violations with Anonymized Message Flow Analysis

287

Figure 4: Message paths.

External Entities are actors outside the modeled

system which are the source or destination of

information. They may be part of different security

classification zone or a complete own one.

Data stores can contain information but perform

no further processing that may lead to new or

forwarded messages. Given the fact that the raw log

data only describes active entities, and not passive

storage facilities, we do not utilize the concept of data

stores with the experiment.

Data flows are information flows among

classification zones, processes, external entities and

data stores. The most interesting ones cross

classification zones and must therefore be

investigated more specifically with respect to security

threats.

Classification zones are the specific security level

that includes processes, data flows, data stores, and

external entities. They are drawn as dashed circles

around other elements in the data flow diagram.

We generate the DFDSec diagram automatically

from the message exchange data generated in the last

step. This is done by producing a single GraphML file

per data set. This file is modified by an auto-layout

algorithm for determining the model element

positions in the final picture.

One of the targets of our work is the anonymized

and pseudonymized representation of sensitive

information in a security model. We therefore take the

following anonymization steps:

 The timestamp of the message exchange is not

used in the model generation (column 1 & 2).

 Server names are translated in pseudonyms

(column 3).

 Message size and message identifier are not used

in the model generation (column 5 & 7).

 Data flows between processes are attributed with

the fraction of message exchanges they

contributed to the overall amount of data

exchange.

In order to reduce model complexity in practice, we

omit data exchanges between nodes in the same

classification zone that contributes less than 1% to the

overall traffic. We argue here that for a potential

attacker, high-traffic nodes are more valuable than

sparsely used servers. One obvious reason is that

successful cryptographic attacks mostly rely on the

availability of larger message flow probes.

Message transfers that cross classification zones

are not capped, since each single message transfer

may indicate a potential security breach.

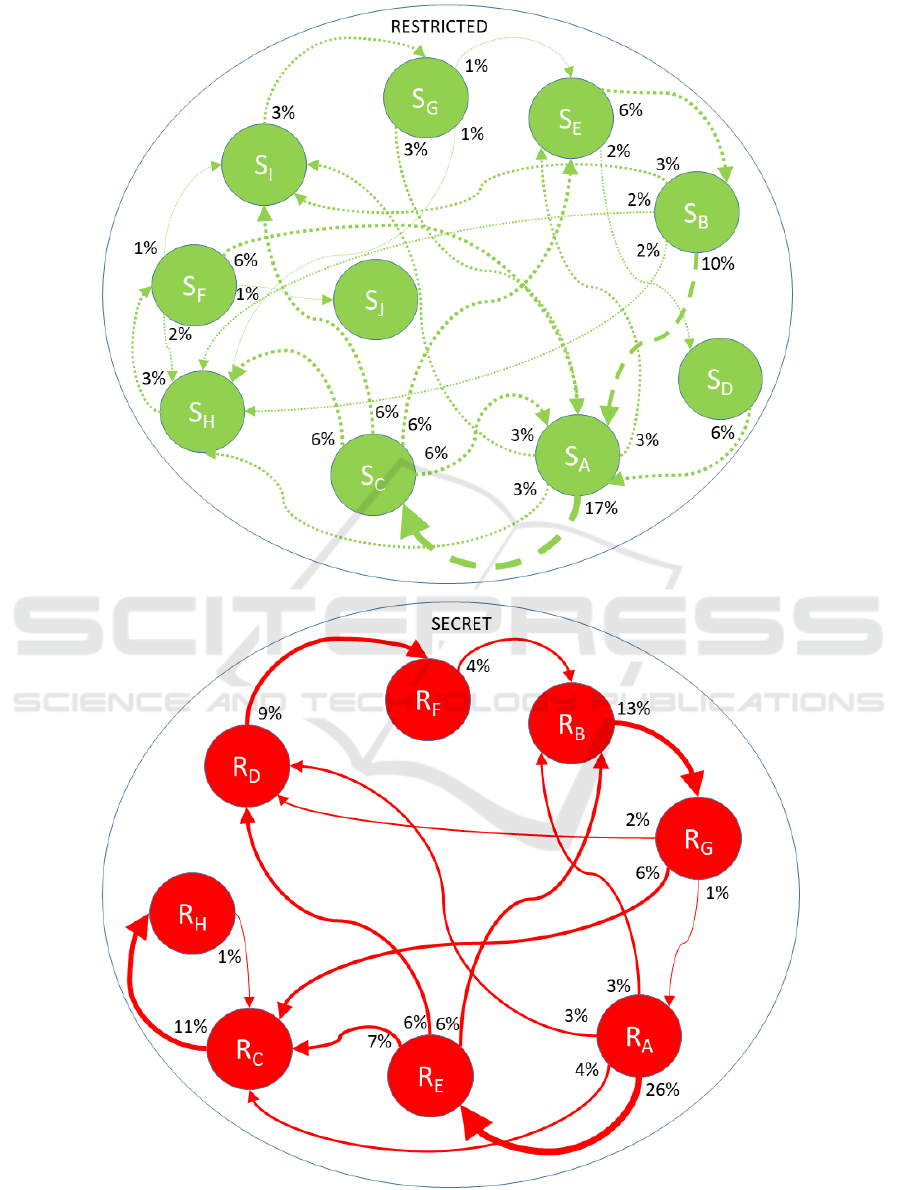

Figure 5 shows a DFDSec diagram generated

from the real-world data set in a governmental

organization. It can be seen that there are two

different classification zones in real use,

RESTRICTED and SECRET. Each classification

zone contains several operational nodes (sender,

receiver or relay servers). Between these nodes there

are information flows. Within the utilized data set, it

turned out that message exchanges crossing a

classification zone border did not take place. For the

given governmental system, this is the expected and

correct mode of operation.

When a DFDSec analysis shows a zone crossing,

it depends on the kind of source and destination zone,

as discussed in Section 1.1, that it is a problem. A

typical approach would be the repeated investigation

of the issue over time, for example by generating

multiple DFDSec models periodically and compare

them. This would clarify if the classification zone

crossing is a regular effect at normal business hours

with an expectable message frequency, or if this is an

anomaly in the system operation. The analysis can

also consider specific attributes of the participating

nodes, such as their role in the organization.

For the given data set, it turned out that the most

important operational node is S

. 26 percent of the

traffic goes away from this node and 28 percent of the

traffic goes in.

In the classification zone SECRET, the most

important operational node is R

. 36 percent of the

traffic is leaving this node. By contrast, this node has

hardly any incoming connection.

From an attacker point of view, these two nodes

seem to be the most interesting. Most of the

information flows start or end here, so they have the

highest potential for gathering classified information.

From the defender's point of view, IT security

measures must be primarily taken on these two nodes.

One idea would be to design these important nodes

redundantly, so that, for example, in hierarchical

organizations, they no longer act as single relay for

messages. This would diffuse classified information

over multiple paths in the organization, which makes

it harder for an attacker to identify the relevant nodes

in the system that are worth an attack.

Message-ID: [List of Server Connections ]

ABC: [‘Server S

 Server S

’,

‘Server S

 Server S

’,

‘Server S

 Server S

’ ]

…: […  … ]

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

288

Figure 5: DFDSec.

Finding Classiﬁcation Zone Violations with Anonymized Message Flow Analysis

289

The most important information flow happens in

the classification zone RESTRICTED. The

connection S

- S

is responsible for 17 percent of the

message flows, followed by the connection S

- S

10 percent. The most important information flow in

the classification zone SECRET is the connection R

- R

at 26 percent, followed by the connection R

at 13 percent and the connection R

- R

at 11

percent.

From the point of view of an attacker, these

connections are those that are eligible for a man-in-

the-middle, e.g. by compromising switches and

routers on the network path between the two nodes.

From a defensive point of view, it would be therefore

worth considering whether to redistribute traffic

differently in order to avoid connections that are

particularly busy, e.g. load sharing (Eager et al.,

1986), or to harden the connection network

accordingly.

4 ANONYMITY

Security analysis that relies on unfiltered classified

data produces again a classified entity. It can rarely

be made available directly to third parties. The

challenge in the daily work is therefore to share such

data without jeopardizing the disclosure of classified

infrastructure details on the one hand, and not limiting

the usefulness of the effort too much on the other

hand.

While the DFDSec approach helps to make

stripped results still useful, it remains an open

question if the classified infrastructure knowledge is

truly protected. It is not enough to reduce the

published data set and hope for the best, instead, an

objective and repeatable verification must be

performed to validate this property.

One possibility for the evaluation of an

anonymization approach was described by Samarati

and Sweeney. Their model is called k-anonymity. A

published data set is declared to have k-anonymity

when identifying information for a single node, such

as a server name, is indistinguishable from at least k-

1 similar entities (Samarati, 1998), (Sweeney, 2002).

A larger k means a higher degree of anonymization.

The result is the confidence of 1 / k that a correct

linking of correlating classified knowledge is not

possible.

The model was later extended by the idea of l-

diversity (Machanavajjhala, 2007) and t-closeness

(Li, 2007). These extensions and the original

approach prevent the possibility of de-

anonymization, which could result from an unsorted

matching attack, temporal attacks, or complementary

release attacks (Ganta et al., 2008). These extensions

fixed specific problems of k-anonymity such as the

homogeneity attack or the background knowledge

attack (Machanavajjhala, 2007).

For the approach described in this paper, we

improve the k-anonymity by omitting 5 of the 7

original data columns. Only the sending server and

receiving server are kept in their original meaning. k

is determined here by the smallest number of server

connections between two servers in the message flow

data set. From the viewpoint of anonymization

attacks, our approach covers the following security

threats:

In unsorted matching attacks, the data columns

are separated and disclosed in the same ordering. This

allows the original data to be restored. This attack is

prevented in our concept by only publishing two of

the original columns. In addition, the sorting in the

published graph representation is based on the node-

to-node message frequency, which can vary. This

automatically changes the order of the entries.

The temporal attack exploits the fact that data

collections are dynamic. Adding, modifying, or

removing entries can affect the k-anonymity of the

analysis result. This attack is prevented by not

changing the shared attributes (pseudonym server

names) when publishing updated or extended analysis

results. Subsequent versions of a DFDSec diagram

therefore must re-use the same server pseudonyms as

before.

In the case of the complementary attack, different

releases of subsets of the base file may result in

different anonymizations, each corresponding to k-

anonymity. By combining the respective

publications, the k-anonymity is canceled again. This

attack is prevented by having all subsequent versions

of an analysis result based on the original one. This is

guaranteed by always using the same column

attributes (inbound, outbound server) and column

contents for unmodified data. The only changing

variable for updated DFDSec should be the message

frequency and the set of processes being modelled.

Homogeneity attacks rely on the idea that there are

groups of data items, here model elements, that all

have the same sensitive attribute. This attack is

prevented in our concept by simply not using the

sensitive attributes (e.g. message ID or server name)

for the final published model. Additional diversity, as

proposed in (Machanavajjhala, 2007), is therefore not

needed.

The background knowledge attack exploits the

fact that an attacker can unambiguously allocate data

content despite k-anonymity through additional

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

290

knowledge. In our approach background knowledge

is not made possible by omitting all sensitive

attributes and by the physical separation of classified

and anonymized public information. We publish only

data necessary for external support, following the

filter-in-principle described in (Pang and Paxson,

2003).

5 CONCLUSIONS AND FUTURE

WORK

In this paper, we discussed an approach to identify

classification zone violations by the means of

automated message exchange analysis. The

determination of critical information flows leads to

the identification of sensitive operational nodes that

are high-risk targets for security attacks. Since the

raw data logs and the analysis results are classified

information by themselves, we propose a

straightforward anonymization approach for the

original data. We discussed the potential for well-

known anonymization attacks.

Our analysis of one year of real-world data

showed that the system under investigation is in good

health. Classification zone violations could not be

identified. The visualization with reduced DFDSec

diagrams turned out to be a feasible method for

governmental organizations with high demands on

data protection. The use of anonymized DFDSec

models allows for sharing the analysis results with

external security consultants and management

personal that has a low security classification.

This paper is part of ongoing project work inside

the governmental organization. Future work will

focus on performing more advanced analysis, such as

an anomaly detection that considers the time axis of

the message exchange patterns or better consideration

of message semantics. It is also planned to migrate

these techniques from a pure offline analysis to online

monitoring infrastructure.

REFERENCES

Azodi, A., Jaeger, D., Cheng, F., Meinel, C., 2014. Event

Normalization Through Dynamic Log Format

Detection, ZTE Communications.

Baca, D., 2010. Identifying Security Relevant Warnings

from Static Code Analysis Tools through Code

Tainting, International Conference on Availability,

Reliability and Security, IEEE, Krakow, Poland, DOI:

10.1109/ARES.2010.108.

Bose, R. P. J. C., van der Aalst, W. M. P., 2013.

Discovering signature patterns from event logs, IEEE

Symposium on Computational Intelligence and Data

Mining (CIDM), IEEE, Singapore, Singapore, DOI:

10.1109/CIDM.2013.6597225.

Cheng, F., Sapegin, A., Gawron, M., Meinel, C., 2015.

Analyzing Boundary Device Logs on the In-Memory

Platform, Proceedings of the IEEE International

Symposium on Big Data Security on Cloud.

Chen, Z., Wang, X. J., Zhang, X. X., 2011. Dynamic Taint

Analysis with Control Flow Graph for Vulnerability

Analysis, First International Conference on

Instrumentation, Measurement, Computer,

Communication and Control, IEEE, Beijing, China,

DOI: 10.1109/IMCCC.2011.66.

DeMarco, 1978. T. Structured Analysis and System

Specification, Yourdon Press, New York, NY.

Eager, D.L., Lazowska, E.D., Zahorjan, J., 1986. Adaptive

Load Sharing in Homogeneous Distributed Systems,

IEEE Transactions on Software Engineering, Vol. SE-

12, pp. 662-675.

ENISA, 2018. ENISA Threat Landscape Report 2017, Final

version 1.0 ETL 2017, www.enisa.europa.eu.

European Commission, 2001. Commission Decision of 29

November 2001 amending its internal Rules of

Procedure (notified under document number C(2001)

3031), 2001/844/EC, ECSC, Euratom.

Feng, B., Zhang, M., Xu, G., Niu, X., 2010. Runtime

protecting system for java applications with dynamic

data flow analyzing, 2nd International Conference on

Future Computer and Communication, IEEE, Wuha,

China, DOI: 10.1109/ICFCC.2010.5497460.

Forbes, 2017. Equifax's Enormous Data Breach Just Got

Even Bigger, https://www.forbes.com/.

Fronza, I., Sillitti, A., Succi, G., Terho, M., 2013. Failure

prediction based on log files using Random Indexing

and Support Vector Machines, Journal of Systems and

Software, Volume 86, Issue 1, p. 2-11, Elsevier Science

Inc., New York, NY, USA, DOI:

10.1016/j.jss.2012.06.025.

Gane, C. and Sarson, T. 1977. Structured Systems Analysis

and Design, Improved Systems Technologies, Inc., New

York, NY.

Ganta, S., Kasiviswanathan, S., Smith, A. 2008.

Composition attacks and auxiliary information in data

privacy, in Proceedings of the 14

ACM SIGKDD

International Conference on Knowledge discovery and

data mining (KDD 2008), ACM, New York, NY, USA,

p. 265-273, DOI: 10.1145/1401890.1401926.

Genua gmbh, 2016. Datendiode vs-diode, Munich,

Germany, webpage accessed 09.10.2018,

https://www.genua.de/.

Haystax Technology, 2017. Insider Attacks - Industry

Survey, http://haystax.com/.

Hellerstein, J. L., Ma, S., Perng, C.-S., 2002. Discovering

actionable patterns in event data, IBM Systems Journal,

Volume 41, Issue 3, p. 475-493, DOI:

10.1147/sj.413.0475.

Hofstede, R., Pras, A., Sperotto, A., Dreo-Rodosek, G.,

2018. Flow-Based Compromise Detection: Lessons

Finding Classiﬁcation Zone Violations with Anonymized Message Flow Analysis

291

Learned, IEEE Security & Privacy, Volume 16, Issue 1,

p. 82 - 89, IEEE, DOI: 10.1109/MSP.2018.1331021.

Li, N., Li, T., Venkatasubramanian, S., 2007. t-Closeness:

Privacy Beyond k-Anonymity and l-Diversity, In:

International Conference Data Engineering, Vol. 7, p.

106–115.

Li, P., Park, H., Gao, D., Fu, J., 2008. Bridging the Gap

between Data-Flow and Control-Flow Analysis for

Anomaly Detection, Annual Computer Security

Applications Conference (ACSAC), IEEE, Anaheim,

CA, USA, DOI: 10.1109/ACSAC.2008.17.

Machanavajjhala, A., Kifer, D., Gehrke, J.,

Venkitasubramaniam, M. 2007. l-diversity: Privacy

beyond k-anonymity In: ACM Transactions on

Knowledge Discovery from Data, Vol. 1, ACM.

Meinig, M. and Meinel, C., 2018. Securing the Flow - Data

Flow Analysis with Operational Node Structures, In

Proceedings of the 4th ICISSP - Volume 1: ICISSP,

ISBN 978-989-758-282-0, p. 241-250. DOI:

10.5220/0006570302410250.

Oliner, A. J., Aiken, A., Stearley, J., 2008. Alert Detection

in System Logs, Eighth IEEE International Conference

on Data Mining, IEEE, Pisa, Italy, DOI:

10.1109/ICDM.2008.132.

Pang, R. and Paxson, V., 2003. A high-level programming

environment for packet trace anonymization and

transformation. In Proceedings of the 2003 Conference

on Applications, Technologies, Architectures, and

Protocols for Computer Communications

(SIGCOMM’03). ACM, New York, NY, 339–351,

DOI: 10.1145/863955.863994.

Pantola, V. A., Yatco, F. R., Pineda, J. D., 2010.

Normalization of Logs for Networked Devices in a

Security Information Event Management System, DOI:

10.13140/RG.2.1.4170.1202.

Reidemeister, T., Jiang, M., Ward, P. A. S., 2011. Mining

unstructured log files for recurrent fault diagnosis, 12th

IFIP/IEEE International Symposium on Integrated

Network Management (IM 2011) and Workshops,

IEEE, Dublin, Ireland, DOI:

10.1109/INM.2011.5990536.

Risk Based Security, 2018. Data Breach Quick View

Report, https://pages.riskbasedsecurity.com/.

Samarati, P., Sweeney, L. 1998. Protecting Privacy when

Disclosing Information: k-Anonymity and Its

Enforcement through Generalization and Suppression,

Tech. rep. SRI-CSL-98-04, SRI Computer Science

Laboratory, Palo Alto, CA.

Sapegin, A., Jaeger, D., Azodi, A., Gawron, M., Cheng, F.,

Meinel, C., 2013. Hierarchical Object Log Format for

Normalisation of Security Events, Proceedings of the

9th International Conference on Information Assurance

and Security (IAS 2013). IEEE CS, Tunis, Tunisia.

Schmidt, K., Tröger, P., Kroll, H., Bünger, T. et al., 2014.

Adapted Development Process for Security in

Networked Automotive Systems, SAE Int. J. Passeng.

Cars Electron. Electr. Syst. 7(2):516-526, DOI:

10.4271/2014-01-0334.

Smaha, S. E., 1988. Haystack: an intrusion detection

system, [Proceedings 1988] Fourth Aerospace

Computer Security Applications, IEEE, Orlando, FL,

USA, USA, DOI: 10.1109/ACSAC.1988.113412.

Stearley, J., 2004. Towards informatic analysis of syslogs,

IEEE International Conference on Cluster Computing

(IEEE Cat. No.04EX935), IEEE, San Diego, CA, USA,

DOI: 10.1109/CLUSTR.2004.1392628.

Su, L., Yao, Y., Li, N., Liu, J., Lu, Z., Liu, B., 2018.

Hierarchical Clustering Based Network Traffic Data

Reduction for Improving Suspicious Flow Detection,

17th IEEE TrustCom/ 12th IEEE BigDataSE, IEEE,

New York, USA, DOI: 10.1109/TrustCom/

BigDataSE.2018.00108.

Sweeney, L. 2002. k-anonymity: a model for protecting

privacy, International Journal on Uncertainty,

Fuzziness and Knowledge-based Systems, 10 (5), p.

557-570.

Swiderski, F. and Snyder, W., 2004. Microsoft Professional

Threat Modeling, Microsoft, ISBN 0-7356-1991-3.

Tzur-David, S., Dolev, D., Anker, T., 2009. MULAN:

Multi-Level Adaptive Network Filter, In: Chen Y.,

Dimitriou T.D., Zhou J. (eds) Security and Privacy in

Communication Networks, SecureComm 2009, vol 19.

Springer, Berlin, Heidelberg.

Vaarandi, R., 2003. A data clustering algorithm for mining

patterns from event logs, Proceedings of the 3rd IEEE

Workshop on IP Operations & Management (IPOM

2003) (IEEE Cat. No.03EX764), IEEE, Kansas City,

MO, USA, DOI: 10.1109/IPOM.2003.1251233.

Vaarandi, R., 2004. A Breadth-First Algorithm for Mining

Frequent Patterns from Event Logs, In: Aagesen F.A.,

Anutariya C., Wuwongse V. (eds) Intelligence in

Communication Systems, Lecture Notes in Computer

Science, vol 3283. Springer, Berlin, Heidelberg, DOI:

10.1007/978-3-540-30179-0_27.

Washington Post, 2016. Government alleges former NSA

contractor stole ‘astonishing quantity’ of classified data

over 20 years, webpage accessed 31.03.2018,

https://www.washingtonpost.com/.

Yamanishi, K., Maruyama, Y., 2005. Dynamic syslog

mining for network failure monitoring, Proceedings of

the eleventh ACM SIGKDD international conference

on Knowledge discovery in data mining, p. 499-508,

ACM, Chicago, Illinois, USA, DOI:

10.1145/1081870.1081927.

Yourdon, E. 1989. Modern Structured Analysis, Yourdon

Press, Upper Saddle River, NJ.

Zeit, 2015. Bundestags-Hack - Merkel and the Fancy Bear,

webpage accessed 19.04.2018, https://www.zeit.de/.

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

292
