DFEAM: Dynamic Feature-oriented Energy-aware Adaptive Modeling

Fumiya Tanaka, Kenji Hisazumi and Akira Fukuda

Kyushu University, Fukuoka, Japan

Keywords:

Embedded System, Self-adaptive Software, Model-driven Development, xtUML, Feature-oriented.

Abstract:

There is an increasing demand for reducing the power consumption in the ﬁeld of embedded-system develop-

ment. A development methodology, which can change software’s power consumption according to the power

consumption of the hardware, can help fulﬁll this requirement. However, there will be a trade-off between

the power consumption and service quality, which must be balanced for efﬁcient operation. In this paper, we

propose dynamic feature-oriented energy-aware adaptive modeling (DFEAM), which develops self-adaptive

software through model-driven development for achieving a proper balance between the power consump-

tion and quality of service (QoS). In this method, the application itself decides its behavior, according to the

power-consumption situation, by linking the feature model describing the variability of the application with

the description of its behavior, using the executable and translatable uniﬁed modeling language (xtUML).

For achieving a satisfactory QoS for variations that are complex and dependent on variable points, a model is

created to quantify the QoS values, which is then used as an index of comparison for ﬁnding the optimum vari-

ation. We conducted case studies on applications with multiple variable points, and evaluated them using the

GQM model. The results of the evaluation showed that the adaptation incorporated provided the maximum

software quality under the given power limitations, thus verifying the usefulness of the proposed DFEAM

method.

1 INTRODUCTION

Size limitations and high manufacturing costs are

common issues in embedded-system development. In

the case of battery-driven devices, the battery size is

restricted by the hardware size. This scales down

the battery storage capacity and shortens the operat-

ing time. The operating time is also shortened when

the embedded system provides multiple functions and

is used in many types of scenarios. In this context,

the power consumption needs to be reduced, as much

as possible, to meet the uptime requirements. How-

ever, this will lead to a tradeoff between the power

consumption and the quality of service (QoS). In em-

bedded software development, there is a need to re-

duce the power consumption while, simultaneously,

improving the QoS.

Self-adaptive software (Mac

ıas-Escriv

a et al.,

2013; Mens et al., 2017; Weyns et al., 2012) de-

velopment is one of the solutions to this challenge.

Self-adaptive software can change its behavior ac-

cording to the runtime circumstances, and is widely

recognized to be effective in dealing with complex

and dynamic software requirements. As the runtime

circumstances change constantly, a developer can-

not describe the best behavior, during the develop-

ment phase. The application software in an embed-

ded system should automatically behave in a manner

appropriate for the current environment, because not

all possible patterns can be anticipated in the design

phase.

In this research, we propose a modeling method

named dynamic feature-oriented energy-aware adap-

tive modeling (DFEAM), which realizes self-adaptive

software that achieves both reduction of power con-

sumption and maintenance of QoS. The proposed

method has two main elements: the behavior model

and the adaptation concept.

The remainder of this paper is organized as fol-

lows. The related studies on self-adaptation using

models are described in Section 2. In Section 3, the

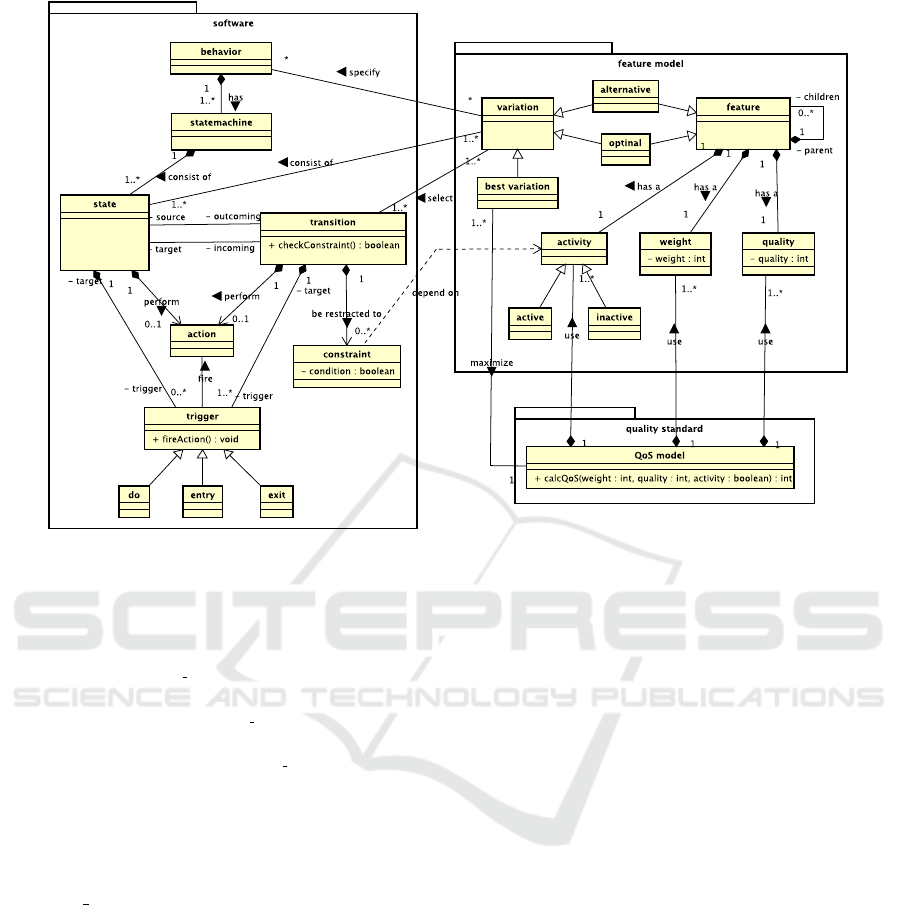

proposed method is explained using a meta model.

The content of a case study and its evaluation are ex-

plained in Section 4, and ﬁnally, the outline of this

research is summarized in Section 5.

The contribution in this paper is the proposal of

the self-adaptive software development methodology

to solve the trade-off between the power limitation of

application and QoS, which is a problem in embedded

system development.

290

Tanaka, F., Hisazumi, K. and Fukuda, A.

DFEAM: Dynamic Feature-oriented Energy-aware Adaptive Modeling.

DOI: 10.5220/0007370802900297

In Proceedings of the 7th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2019), pages 290-297

ISBN: 978-989-758-358-2

$POUFYU

.PEFM

7BSJBCJMJUZ

.PEFM

"EBQUBUJPO

1PMJDJFT

$PNQTJUJPO

.PEFM

8FBWJOH

.PEFM

(BUIFS$POUFYU

*OGPSNBUJPO

"OBMZ[F$POUFYU

*OGPSNBUJPO

&YFDVUF

"EBQUBUJPO1PMJDZ

(FOFSBUFB

3FDPOGJHVSBUJPO

1MBO

(FOFSBUF84#1&-

$PEF

)PU%FWFMPQNFOU

$POUFYU

.POJUPS

&YFDVUJPO

&OHJOF

8BTBOZ4-"

WJPMBUFE

"EBQUFE

7BSJBCJMJUZ

.PEFM

"EBQUFE

$PNQPTJUJPO

.PEFM

%FTJHO5JNF

3VOUJNF

$POGJHVSBUJPO

(FOFSBUPS

.PEFM#BTFE3FDPOGJHVSBUPS

6TFT

-JOLT

6QEBUFT

"OBMZ[FT

2VFSJFT

:FT

"EBQUT

&YFDVUFT

Figure 1: Overview of MoRE-WS (Alfred et al., 2014).

2 RELATED WORKS

In this section, we describe research on self-adaptive

research using models and research on power-aware

modeling.

In (Alfred et al., 2014), MoRE-WS, which is a

framework for dynamic adaptation of web services,

was proposed. This framework adapts web services

by combining multiple models including a variable

model. The framework supports the modeling of

adaptive models at design time and performs adaptive

execution at runtime. Figure 1 shows an overview of

the MoRE-WS framework. The upper part of Figure 1

shows the support provided by the framework dur-

ing the design phase. MoRE-WS supports the mod-

eling of feature models and web-service conﬁgura-

tion models, including those with variability, at de-

sign time and the generation of adaptation rules. The

variable feature model is mapped to the web-service

conﬁguration model, and the service conﬁguration is

changed according to the conﬁguration of the feature

model. At runtime, the framework adapts the models

modeled during design time, according to the adapta-

tion rules and context changes detected by the context

monitor. Properties of the web-service operation are

handled in the context. Figure 1 shows the adapta-

tion ﬂow. The adaptation is realized by generating a

reconﬁgured plan of the variable feature model, ac-

cording to the changes in the context, and reﬂecting it

on the code of WS-BPEL.

In (Abdallah et al., 2017), a model-driven power

consumption reduction approach in SoC (System-on-

Chip) design has been proposed. In SoC design, re-

ducing power consumption is a major concern. How-

ever, a method known as an effective method is re-

quired to decide architecture conﬁguration and power

management technology at an early stage of design.

They model power estimation parameters and dy-

namic power management to obtain power results at

an early stage of design. By generating and simulat-

ing a power-aware simulation code from the model,

it is possible to obtain the power result at the design

time. In the proposed method, they model an applica-

tion model describing the dynamic behavior of an ap-

plication in an activity diagram and a power manage-

ment model that summarizes architecture parameters

and algorithms. After that, each model is converted

into C++ simulation code and then linked. power re-

sults at the early stage of design can be obtained by

simulation, power consumption estimation and analy-

sis. Power consumption is estimated from the power

management model using a known power character-

istic model of processor.

In the related research that we have mentioned so

far, it is realizing the application at the time of execu-

tion or the application for the electric power by using

the model. However, QoS-aware and energy-aware

self adaptation method using xtUML has not yet been

proposed.

3 DFEAM

We propose a method that can realize self-adaptation,

based on the power consumption and software quality,

using xtUML. Based on model-driven architecture.

It is capable of testing at the design stage and per-

formance measurement and strongly supports model-

driven development. The system speciﬁcations de-

scribed by xtUML can be converted into source code,

irrespective of the platform.

A methodology for self-adaptive software devel-

opment, based on the power consumption, using a

model-driven development and xtUML has already

been proposed (Tanaka et al., 2017). In this method,

the application itself can decide the behavior accord-

ing to the power-consumption situation by linking the

feature model describing the variability of the appli-

cation with the description of behavior, using xtUML.

However, it is not possible to compare the qualities

of the complicated variations and ﬁnd the variation

that can solve the tradeoff between power consump-

tion and quality. Therefore, in DFEAM method, we

create a quantitative QoS model to compare the qual-

ity of variations and use it as an indicator of optimal

variation determination.

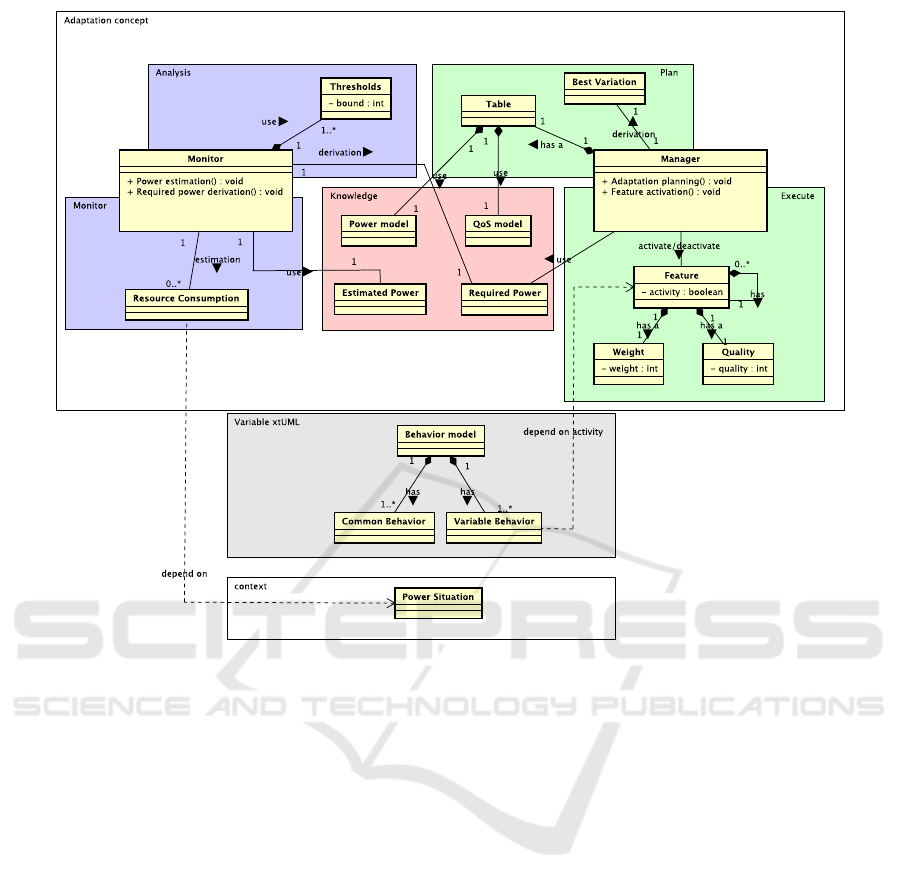

The system composition of the proposed method

is shown in Figure 2. The proposed method consists

of two elements: behavior models based on xtUML

and self-adaptation concept based on the concept of

MAPE-K (Kephart and Chess, 2003). MAPE-K is a

control loop model and includes a monitor, an ana-

lyzer, a planning component, and an execution com-

ponent. In the DFEAM concept, Monitor mainly per-

forms the role of the monitor and analyzer, and Man-

ager performs the role of the planning and execution

components. The Monitor and Manager are described

DFEAM: Dynamic Feature-oriented Energy-aware Adaptive Modeling

291

Figure 2: System composition of DFEAM.

by xtUML, and translated into source code by using

model-driven approach. In this section, we will ex-

plain the development procedure at design time by

DFEAM and the adaptation ﬂow at runtime with the

system conﬁguration of Figure 2.

3.1 Procedure

We will describe the self-adaptive software develop-

ment procedure using DFEAM. It is assumed that the

requirements of the application are determined for de-

velopment.

3.1.1 Variability Analysis

First, we analyze the variability of the application that

realizes the requirement and express it with a feature

model. The feature model assigns features to soft-

ware functions and describes the variable functions at

runtime as variable features. The feature model con-

sists of common features, Alternative features, Op-

tional features and Parameterized features. The Al-

ternative feature is a feature that selects one, and the

Optional feature is a feature that selects valid or in-

valid. The Parameterized feature is a feature having

continuous values as variable points. Since there are

Alternative features with Parameterized features and

multiple choices, there arises a problem that innumer-

able variations are present.

3.1.2 xtUML Description

Next, we describe a behavior model (Fig. 2:Behavior

model) with xtUML. The behavior model consists of

Common Behavior and Variable Behavior. Applica-

tion behavior is represented by continuous state tran-

sitions. Common operations not based on variations

are described by one state transition without branch.

On the other hand, the variable operation needs to be

described so that only the state transition which re-

alizes the behavior selected by the variable point is

executed. We use a state transition diagram with vari-

able points for associating features with states. It can

set the guard conditions for state transitions, and the

state transitions according to the active features can

be managed by them. In the variable behavior part,

we set a state for each variable point to realize the

guard conditions. In the transition management state,

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

292

Figure 3: A state machine description at variable point.

a conditional branch is described in an action lan-

guage, and similar to the guard condition, state transi-

tion management corresponding to the active feature

is realized. Figure 3 shows a description of the state

machine diagram at the variable point related to Op-

tional feature. When encryption feature is active, a

state transition start encryption is ﬁred. On the other

hand, the feature is inactive, another state transition

start communication is ﬁred.

The power consumption monitor (Monitor) and

the variable point manager (Manager), which are

components of the adaptive concept, are also written

in xtUML. First, in xtUML, one variable point class

holds the status of all the variable points held by the

application. The status of the variable point changes

according to the context. Therefore, a mechanism for

determining the optimum variation from the dynamic

power consumption is necessary. The role of the vari-

able point manager is to determine the optimum vari-

ation based on the required power consumption de-

rived by the monitor and is to update the status of the

variable point according to the estimated power con-

sumption. This manager is handled as another class

in xtUML. The power consumption monitor, which

is another component is a mechanism for acquiring

the dynamic power consumption. The monitor per-

forms the role of deriving the required power con-

sumption of the software (Required Power) according

to power limitation (Thresholds). It is described as

part of the state machine diagram held by the variable

point manager class. We use a simple state machine

for power consumption monitoring and describe be-

haviors to periodically collect resource consumption

of devices (Resource Consumption). It obtains the

estimated power consumption (Estimated Power) at

runtime by using the power consumption estimation

model prepared beforehand from the resource con-

sumption.

3.1.3 Search for Optimum Variation

After describing by xtUML, we create a model for

ﬁnding indices for searching for optimal variation.

The main novelty of this method is that it is possi-

ble to add QoS consideration to self adaptation by

comparing the quality of each variation by creating

a QoS model on a common scale. Figure 4 shows

the relationship between the software and the factors

affecting its quality. This is a metamodel of the man-

ager’s planning and execution action in Figure 2. The

QoS depends on the feature’s weight, quality func-

tion, and activity. The feature’s activity affects the

application’s behavior via the transition constraint.

The QoS model (QoS model) is created using

weights (Weight) and quality functions (Quality) for

each variable feature. The weight is a value indicat-

ing how important the variable function correspond-

ing to the variable point is as the function of the appli-

cation. Quality function is a function expressing the

inﬂuence of variable point on QoS. We normalize the

effect on software quality by variability change from

0 to 1. These weights and quality functions are val-

ues whose designers arbitrarily reﬂect the degree of

importance and the degree of inﬂuence on the qual-

ity in service of variable functions. The QoS model

is created by reﬂecting the tree structure of the fea-

ture tree with weights and quality functions. In this

model, the QoS value of the entire application is ob-

tained by following the tree recursively from root to

leaf. The formulation reﬂecting the tree structure will

be described below.

We deﬁne the QoS value for a feature tree whose

root is feature k as Q

, therefore a QoS value of the

entire application is Q

root

. Feature k has n

number

of child features (n

≥ 0). When feature k has any

child feature, we specify its child feature as feature

k i (1 ≤ i ≤ n

). QoS model for the entire application

is as follows.

root

∑

i=1

root i

root

: the QoS value for entire application

root i : i th child of root feature

In addition, variable feature k has variability v

weight w

and quality function F

). The domain

of v

and the expression of F

depend on the type

of feature. The quality functions F

) of the Alter-

native feature and Parameterized feature are a func-

tion arbitrarily set by the developer. The function of

the Optional feature is a function that returns 0 or 1.

For simplicity we assume that the Parameterized fea-

ture is a leaf of the feature tree. We formulate each

DFEAM: Dynamic Feature-oriented Energy-aware Adaptive Modeling

293

Figure 4: A metamodel of relation between application and quality standard.

of the variable features with the characteristics Com-

mon, Alternative, Optional and Parameterized.

Com : Q

∑

i=1

k i

Al t : Q

= w

) + Q

k v

= {1, 2, ...n

}

Opt : Q

= F

)(w

∑

i=1

k i

) v

= {0, 1}

Par : Q

= w

) (v

≥ 0)

: the QoS for a feature k tree

k i : i th child of feature k

: the wight of feature k

) : the quality function of feature k

Next, we create a power model to estimate the

power consumption of each variation. This model is

a polynomial with each variable point as a parame-

ter. We perform model ﬁtting using a realistic number

of variations obtained by randomly changing values.

The formula for creating a Power model for an appli-

cation with n variable points v

is as follows.

Power = C +

∑

i=1

We describe the procedure of searching for the op-

timal variation. First, QoS value and estimated power

consumption of all variations are obtained using QoS

model and Power model. Next, all the variations

are sorted by the estimated power consumption and

grouped by the estimated power consumption within

a certain range. The range depends on the power con-

sumption required at runtime. The developer extracts

variations with the highest QoS value in the group for

the group in which the variation corresponding to the

range exists in the group. For the extracted repre-

sentative variation group, if there are other variations

with a higher QoS value with lower power consump-

tion, the variation is excluded from the representative

variation group. The ﬁnally obtained variation is used

for self application.

3.2 Adaptation Flow

We describe the behavior change ﬂow of an applica-

tion developed using DFEAM at runtime. At runtime,

the power consumption monitor operates in parallel

with the behavior of realizing the application. The

power consumption monitor periodically estimates

the power consumption at the time of execution by ac-

quiring the resource consumption, and the power con-

sumption required for the application is determined

from the estimated power consumption and the power

limit. The variable point manager selects variations

that meet the requirements from the adopted varia-

tions and updates the status of variable points. Since

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

294

the state transition permitted by changing the status

of the variable point changes, the operation of the ap-

plication also changes. Therefore, it is possible to

change the behavior of the application according to

the power consumption. In addition, the behavior at

that time is changed so as to be optimal in the QoS

value according to the deﬁned criteria.

4 CASE STUDY

We do case studies to demonstrate the usefulness of

DFEAM. We modeled the variability xtUML using

BridgePoint. BridgePoint can automatically generate

code from xtUML and is utilized as a tool in model-

driven development. In BridgePoint, developers de-

scribe class diagrams and can set state machines in

classes where behavior exists. Furthermore, if there

is behavior within the state, the detailed behavior can

be described by using an action language.

4.1 Case Study Design

We designed an application that acquires and stores

simple environmental information, as a case study.

The outline of the application is presented below.

The application obtains environmental infor-

mation using a temperature sensor or an illumi-

nance sensor operating on a battery-driven de-

vice. The sensing intervals of both sensors are

the same. The environmental information is

obtained by converting the acquired data into

temperature and illuminance and adding a time

stamp. The information is accumulated locally

on the device and is sent to the server after a cer-

tain number of sensing operations. The server

holds the data transmitted from the device and

provides services using real-time environmental

information. It is conceivable that the server

communicates with a plurality of devices.

4.2 Implementation

The feature model of the case study is shown in Fig-

ure 5. We describe behavior model, power consump-

tion monitor and variable point manager with xtUML.

We set the weights and quality functions for the

variable features of the application as shown in Ta-

ble 1. For SensingInterval, TransmitSize, Brightness,

it is deﬁned by the step function shown in (a)∼(c) of

Figure 6. When VP Number is i, the variable point

value is v

, the weight is w

, and the quality function is

Figure 5: Feature model in case study.

), the QoS model in the case study is determined

as follows. Incidentally, the expression is described

in three parts.

part1

= F

){w

+ F

)(w

+ w

))

)}

part2

= w

)

part3

= F

)(w

+ w

))

max

∑

i=1

root

part1

+ Q

part2

+ Q

part3

max

Next, we create a power model to estimate the

power consumption of each variation. We perform

model ﬁtting using 80 kinds of variations obtained by

randomly changing values. The power model equa-

tion is shown below.

Power = C +

∑

i=1

The procedure for ﬁnding the optimum variation is

as follows. First, we obtain QoS values and estimated

power consumption of all variations using QoS model

and Power model. Since the quality function of the

parameterized feature is discretized when setting the

quality function, the number of variations that can be

selected practically is 180 in total. A scatter diagram

of QoS values and estimated power consumption of

180 all variations is shown in Fig. 7.

Next, all the variations are sorted by the estimated

power consumption and grouped by the estimated

power consumption within a certain range. In this

case study, 26 groups were created every 0.001 A, and

there were variations corresponding to the range of 7

groups among them. The table 2 shows the result of

extracting the variation with the highest QoS value for

the group with variations in the group. From the ta-

ble, variations of #4 and #6 show that variations with

DFEAM: Dynamic Feature-oriented Energy-aware Adaptive Modeling

295

Table 1: Weight and quality function.

VP Number 1 2 3 4 5 6 7

VP Name Communication Encryption SensingInterval KeySizes TransmitSize Display Brightness

Weight 10 8 7 6 5 3 1

Quality 0/1 0/1 Fig. 6(a) 0.5/0.8/1 Fig. 6(c) 0/1 Fig. 6(b)

Figure 6: Quality function.

Figure 7: Scatter diagram of QoS and estimated power.

Table 2: Variations with the highest QoS value in each

group.

# Power QoS

1 0.27193 0.380

2 0.27294 0.815

3 0.27344 0.90

4 0.27896 0.885

5 0.27960 0.995

6 0.29599 0.835

7 0.29685 1.0

higher QoS values with lower power consumption ex-

ist in other groups. Since these variations are varia-

tions that do not satisfy the requirement of operating

with maximum QoS under limited power, these are

excluded. As a result, ﬁve variations were selected as

optimal variations under speciﬁc limited power. The

ﬁve triangular points of the Figure 7 are the ﬁve vari-

ations obtained as a result of the search.

5 EVALUATION

In this section, we evaluate the usefulness of the

DFEAM using the GQM model (Basili et al., 1994),

for the ﬁve variations obtained in the case study. The

GQM model is a measurement framework, which es-

tablishes a clear target and associates metrics neces-

sary for achieving a goal. As many previous software

measurements have used the GQM model, we decided

that it would be suitable for the evaluation in our re-

search (Alfred et al., 2014; Chen et al., 2003). Table 3

shows the GQM model used for evaluation. Q1 in-

dicates the trade-off between the power consumption

and QoS, for the ﬁve variations selected, and it con-

ﬁrms whether the premise of trade-off optimization is

satisﬁed or not. By conﬁrming this, it can be shown

that the arbitrary QoS model used in this method is

valid. To estimate Q1, we use the estimated power

consumption (M1) and QoS value (M2) of each vari-

ation. Q2 meets the requirement to develop software

that provides the maximum QoS under a certain lim-

ited power. We use the QoS value (M 3) of each vari-

ation to evaluate Q2.

Figure 7 shows the estimated power and QoS val-

ues of all variations. In Figure 7, the ﬁve triangle

points represent the selected variations. For Q1, we

can see that the QoS value is higher for variations

with larger power consumptions than in the ﬁgure,

and the trade-off relationship between the power con-

sumption and service quality does not disappear in the

selected ﬁve variations. Therefore, the prerequisite

for the optimization of the trade-off relation, which is

the main aim of this method, is satisﬁed, and it can

be said that the selected variation group is a reason-

able group. Furthermore, with respect to Q2, since the

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

296

Table 3: GQM model.

Goal Question Metrics

Adaptation is appropriate Is there a trade-off in the selected variation group?(Q1) Estimated power(M1)

QoS value(M2)

Does it provide maximum QoS under limited power? (Q2) QoS value(M3)

trade-off relationship of the selected variation group

can be conﬁrmed, the higher the power consumption

is, the higher the QoS value will be. Therefore, QoS is

also the maximum when selecting one variation that

uses the maximum power consumption under a lim-

ited power. From the above results, it can be said that

Q1-2 is achieved and appropriate adaptation is pos-

sible. Thus, we show that this method is useful as a

self-adaptation methodology to optimize the tradeoff.

In this case study, it is shown that the runtime vari-

ation determined using DFEAM provides the max-

imum QoS at the priority deﬁned under the power

limitation. However, it is impossible to show how

much effect is expected for the demand of power-

consumption reduction. In addition, DFEAM arbi-

trarily determines the importance of functions by tak-

ing the developers’ use cases of applications into con-

sideration. Therefore, the selected variations are sub-

ject to the constraints of the developers and use cases.

6 CONCLUSION

First, we stated that embedded systems have restric-

tions on the hardware in many cases and according

to these restrictions. It is necessary to reduce the

power consumption to meet the operating time re-

quirements. However, there is a tradeoff between

power consumption and QoS, and there are demands

for solutions to balance these, in software develop-

ment. In this research, we proposed a self-adaptive

modeling method, DFEAM, which realized software

that performed self-adaptation to solve this trade-off,

using model-driven development based on xtUML.

The proposed method modeled an executable model

that performed self-adaptive behavior to solve a trade-

off by searching for an optimal variation using a self-

adaptive concept incorporating the concept of MAPE-

K and a model showing quantitative QoS. In a case

study, this method was applied to applications with

multiple variable points and evaluated using the GQM

model. From the evaluation, it was observed that ap-

propriate adaptation had been made to provide the

maximum software quality under the given power

limitations. Therefore, it can be said that the DFEAM

is useful as a self-adaptive method to optimize the

trade-off between the power consumption and the

QoS.

ACKNOWLEDGEMENTS

This work was supported by JSPS KAKENHI Grant

Number 15H05708.

REFERENCES

Abdallah, F. B., Trabelsi, C., Atitallah, R. B., and Abed,

M. (2017). Model-Driven Approach for Early Power-

Aware Design Space Exploration of Embedded Sys-

tems, volume 87.

Alfred, G. H., Pelechano, V., Mazo, R., Salinesi, C., and

Diaz, D. (2014). Dynamic adaption of service compo-

sitions with variability models, volume 91.

Basili, V. R., Caldiera, G., and Rombach, H. D. (1994).

Goal question metric paradigm. In Encyclopedia of

Software Engineering 1, pages 528–532.

Chen, T., Far, B. H., and Wang, Y. (2003). Development of

an intelligent agent-based gqm software measurement

system. In Proceedings of the ATS 2003 Conference,

pages 188–197.

Kephart, J. and Chess, D. (2003). The vision of autonomic

computing, volume 36.

Mac

ıas-Escriv

a, F. D., Haber, R., del Toro, R., and Her-

nandez, V. (2013). Self-adaptive systems: A survey of

current approaches, research challenges and applica-

tions, volume 40.

Mens, K., Capilla, R., Hartmann, H., and Kropf, T.

(2017). Modeling and Managing Context-Aware Sys-

tems’ Variability, volume 34.

Tanaka, F., Hisazumi, K., Ishida, S., and Fukuda, A. (2017).

A methodology to develop energy adaptive software

using model-driven development. In Proceedings of

the 2017 IEEE Region 10 Conference (TENCON),

pages 769–774.

Weyns, D., Iftikhar, M. U., Gil, D., and Ahmad, T. (2012).

A survey of formal methods in self-adaptive systems.

In C3S2E, pages 67–79.

DFEAM: Dynamic Feature-oriented Energy-aware Adaptive Modeling

297
