A Decentralized Solution for Combinatorial Testing of Access Control

Engine

Said Daoudagh

1, 2

, Francesca Lonetti

and Eda Marchetti

Istituto di Scienza e Tecnologie dell’Informazione ”Alessandro Faedo”, CNR, Pisa, Italy

University of Pisa, Pisa, Italy

Keywords:

Access Control Systems, Web Service, Testing.

Abstract:

In distributed environments, information security is a key factor and access control is an important means

to guarantee conﬁdentiality of sensitive and valuable data. In this paper, we introduce a new decentralized

framework for testing of XACML-based access control engines. The proposed framework is composed of

different web services and provides the following functionalities: i) generation of test cases based on combi-

natorial testing strategies; ii) decentralized oracle that associates the expected result to a given test case, i.e. an

XACML request; and ﬁnally, iii) a GUI for interacting with the framework and providing some analysis about

the expected results. A ﬁrst validation conﬁrms the efﬁciency of the proposed approach.

1 INTRODUCTION

Nowadays, the management of (personal) data be-

comes extremely important in many distributed en-

vironments, especially when it involves data that are

subject to different regulations depending on the con-

text in which they are stored or accessed.

A key means for guaranteeing conﬁdentiality and

security of data is represented by access control

mechanisms, which grant or deny access to the re-

sources according to subjects attributes and speciﬁc

environment conditions. A standard language for

specifying policies ruling these accesses is the eX-

tensible Access Control Markup Language (XACML)

(OASIS, 2013), an XML-based standard language

proposed by OASIS. It relies on the Policy Decision

Point (PDP) evaluation engine in order to grant or

deny the access based on the deﬁned XACML poli-

cies. Testing of this component is very important

to assure its robustness and accuracy and avoid se-

curity ﬂaws of the access control system. Testing of

PDP usually consists of probing the PDP with a set of

XACML requests and checking its responses against

the expected decisions.

Many approaches exist in literature using combi-

natorial techniques in order to generate such sets of

XACML requests (Bertolino et al., 2013; Martin and

Xie, 2006). These techniques have been proven to

be effective in revealing faults of the PDP and im-

proving its effectiveness in terms of mutation score or

code coverage (Martin et al., 2006; Bertolino et al.,

2014). As well known in literature, the main draw-

back of these combinatorial approaches is the high

number of derived combinations that prevent their use

in real contexts. Speciﬁcally, the execution of a large

set of combinatorial requests represents a challeng-

ing task, mainly due to the oracle problem: determin-

ing the correct result that should be expected from the

PDP for each test request.

Existing XACML-based test generation tech-

niques leverage combinatorial methods such as

AETG (Cohen et al., 1997), able to support n-way

coverage of inputs, and to reduce the total number

of combinations. Even though they allow to gener-

ate less test cases and are proven to be effective in

terms of fault detection, the number of derived test

cases could remain unmanageable when applied to

XACML policies due to the generally high number

of policy attributes.

In general, test suite parallelization can be adopted

to speed-up tests execution. However, this has a lim-

ited usage in practice because of the effort required

to deal with concurrent issues (Candido et al., 2017).

The advancements on cloud and parallel computing

solutions offer unlimited storage as well as virtualized

resources and shared infrastructures. These can help

to eliminate required computational resources as well

as to reduce the execution time of large test suites in

a cost-effective manner. To overcome the computa-

tional cost of combinatorial testing, recent proposals

126

Daoudagh, S., Lonetti, F. and Marchetti, E.

A Decentralized Solution for Combinatorial Testing of Access Control Engine.

DOI: 10.5220/0007379401260135

In Proceedings of the 5th International Conference on Information Systems Security and Privacy (ICISSP 2019), pages 126-135

ISBN: 978-989-758-359-9

(Tsai et al., 2015; Tsai and Qi, 2016) leverage cloud

environments to: partition the testing tasks; allocate

these testing tasks to different processors in the cloud

platform for test execution; and then collect results.

Our proposal goes in this direction and provides

an efﬁcient decentralized and costly effective frame-

work for the overall testing process of the access con-

trol evaluation engine

The main contributions of our proposal deal with:

• A general solution able to leverage parallel com-

putational resources in order to use all the power

of combinatorial approaches for the generation of

XACML requests. Speciﬁcally, our solution al-

lows to execute all XACML policy attributes com-

binations without the need of applying test suites

reduction techniques for cost saving purposes;

• A decentralized framework for the PDP oracle

problem. Well-known approaches for automated

XACML oracle derivation rely on voting mecha-

nisms such as that of (Li et al., 2008). Speciﬁcally,

the authors of (Li et al., 2008) propose to imple-

ment a PDP automated oracle through voting, i.e.

collect responses of more than one PDP engine

for the same request and choose as correct deci-

sion value the most frequent one. This approach

has a high computation and implementation cost.

Our decentralized framework is able to reduce this

cost by leveraging parallel resources. In litera-

ture, an alternative solution for automated PDP

testing oracle derivation is XACMET (Bertolino

et al., 2018). It represents a more complex model

based approach that requires a formal model of

the XACML policy that could be not available in

real contexts.

The proposed framework allows cost saving of the

overall testing process by reducing the time needed

of all the main phases of the PDP testing that are:

test cases generation, test case execution and oracle

derivation. Moreover, efﬁcient testing of all possible

combinations of the policy values might provide rea-

sonably high assurance of the PDP.

It is out of scope of the paper to compare the cost

reduction of a parallel solution with respect to that of

a not distributed one, neither to show the effectiveness

of our solution with respect to the application of test

suites reduction techniques.

The rest of this paper is structured as follows. Sec-

tion 2 presents an overview of XACML based access

control systems. Section 3 presents the distributed ar-

chitecture of our solution, whereas Section 4 shows its

In this paper, we focus on testing of XACML 3.0 based

access control engines but our solution can be easily gener-

alized to other access control speciﬁcation language.

application to a simple access control evaluation en-

gine. Section 5 brieﬂy presents related work whereas

Section 6 draws conclusions and gives hints for future

works.

2 BACKGROUND

XACML (OASIS, 2013) is a de facto standard-

ized speciﬁcation language that deﬁnes access

control policies and access control decision re-

quests/responses in an XML format. An XACML

policy deﬁnes the access control requirements of a

protected system. An access request aims at access-

ing a protected resource and is evaluated against the

policy, then the access is granted or denied. The

main components of an access control systems ar-

chitecture are the Policy Enforcement Point (PEP)

and the Policy Decision Point (PDP). A PEP inter-

cepts a user’s request, transforms it into an XACML

format and transmits it to the PDP. As showed in

Figure 1, the PDP evaluates the request against the

XACML policy and returns the access response (Per-

mit/Deny/NotApplicable/ Indeterminate). The PAP

(Policy Administration Point) writes policies and

make them available to the PDP, whereas the PIP

(Policy Information Point) acts as a source of attribute

values.

Brieﬂy, an XACML policy has a tree structure

whose main elements are: PolicySet, Policy, Rule,

Target and Condition. The PolicySet includes one or

more policies. A Policy contains a Target and one or

more rules. The Target speciﬁes a set of constraints on

attributes of a given request. The Rule speciﬁes a Tar-

get and a Condition containing one or more boolean

functions. If a request satisﬁes the target of the policy,

then the set of rules of the policy is checked, else the

policy is skipped. If the Condition evaluates to true,

then the Rule’s Effect (a value of Permit or Deny) is

returned, otherwise a NotApplicable decision is for-

mulated (Indeterminate is returned in case of errors).

More policies in a policy set and more rules in a pol-

icy may be applicable to a given request. The Pol-

icyCombiningAlgorithm and the RuleCombiningAl-

gorithm deﬁne how to combine the results from mul-

tiple policies and rules respectively in order to derive

a single access result.

We show in Figure 3 an example of XACML pol-

icy.

A Decentralized Solution for Combinatorial Testing of Access Control Engine

127

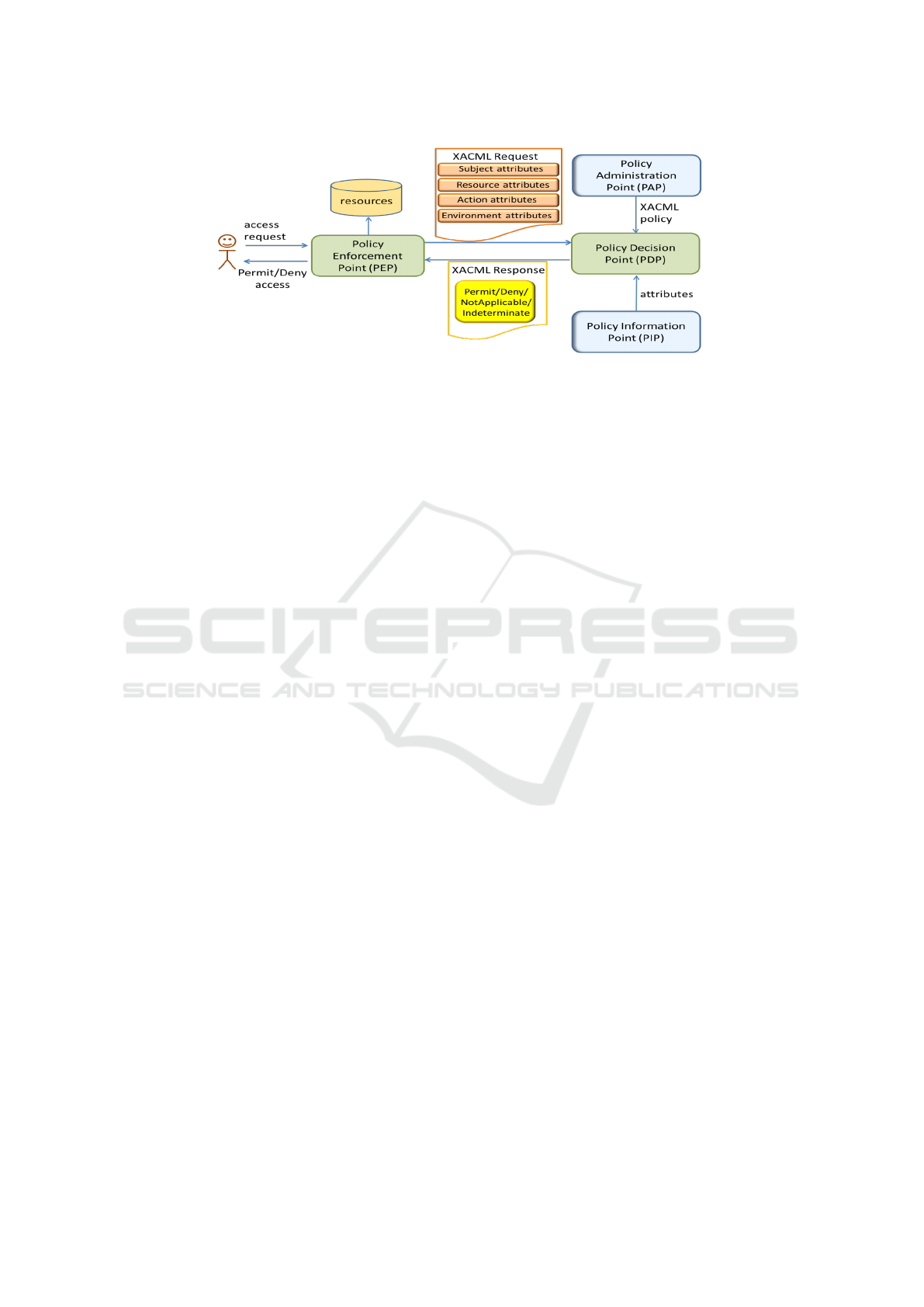

Figure 1: XACML Architecture.

3 ARCHITECTURE

Considering the problem of testing of the access con-

trol engine, here we propose a decentralized solution.

Thus, we describe the distributed architecture con-

ceived for the generation, execution, and testing re-

sults collection able to improve the quality of PDP

testing and drastically reduce its computational cost.

In particular, we focus on XACML 3.0 based access

control engine and we target the application of mas-

sive combinatorial testing for assessing the correct-

ness and robustness of the PDP.

The considered architecture includes the follow-

ing components:

• XACMLClient: it is the entry point of the

proposed architecture. It includes a GUI for

user interaction with four distinct operations: i)

loading of an XACML policy (or a set of policies)

and selection of the test strategy to be used for the

generation of test cases, i.e. XACML requests; ii)

retrieving of already uploaded XACML policies;

iii) retrieving of the XACML requests associated

with a given policy for a speciﬁc test strategy;

iv) execution of the set of requests, visualization

of the results obtained, i.e. the authorization

decisions associated with each request, and

computation of ﬁnal verdict (pass/fail) of each

test case.

• XACMLgenerator WS: it is in charge of

automatically generating a set of XACML 3.0

requests from an XACML policy according

to a combinatorial testing strategy through a

distributed approach. XACMLGenerator WS

provides a set of policy testing strategies, that

users can select through the XACMLClient. They

have been included either by directly implement-

ing the corresponding algorithm or by integrating,

wherever possible, the associated test case gener-

ation tool. Among them, in this paper we focus on

the Multiple Combinatorial testing strategy.

Very brieﬂy, the Multiple Combinatorial testing

strategy relies on the combinatorial approaches of

subject, resource, action and environment values

taken from the XACML policy (Bertolino et al.,

2010; Bertolino et al., 2013). It is out of the scope

of this paper to focus on the deﬁnition of test

strategies. The XACMLGenerator WS has been

voluntarily conceived to be independent from

the test strategies adopted. The only mandatory

constraints are that the strategies considered

are based on XACML language and there exist

a tool or at least a detailed speciﬁcation that

lets the implementation and the integration into

the XACMLGenerator WS. In case for a given

XACML policy, the set of test cases for the

selected test strategy was already generated,

the XACMLGenerator WS is also in charge of

retrieving the required data.

• XACMLPDP WS: it is the component in charge

of executing the test cases on the PDP under test.

By means of a MapReduce approach, the set of

test cases id divided into sub sets, each one hav-

ing a similar complexity, and distributed over dif-

ferent instances of PDP under test. The test re-

sults, i.e. the authorization decisions, computed

by the PDP under test, are ﬁnally collected into

a speciﬁc database managed by the XACMLTest-

ingDB component.

• XACMLOracle WS: for each XACML request,

derived by a given policy, the XACMLOracle

WS derives the correct authorization decision.

Speciﬁcally, through a map reduce approach,

the set of test cases is divided into subsets each

one having a similar complexity, and distributed

to groups of different PDPs. Each group is

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

128

composed by an odd number of PDPs, different

from the one under test. From a practical point

of view, each PDP in each group receives a set

of policies and their corresponding subset of

XACML requests. It executes them, derives

the authorization decisions, and sends back

the collected results. The XACMLOracle WS

collects for each request all the authorization

decisions derived by the different PDPs in each

group, and associates the correct authorization

decision with the decision value most frequently

received. The correct authorization decisions are

ﬁnally collected into a speciﬁc database managed

by the XACMLTestingDB component. If for a

given XACML policy, the set of correct autho-

rization decisions for the selected test strategy

was already generated the XACMLOracle WS is

also in charge of retrieving the required data.

• XACMLComparator WS: for each XACML

request, the XACMLComparator retrieves the

corresponding test result, computed by the

XACMLPDP WS, and the correct authorization

decision, computed by XACMLOracle WS and

checks if they are equal. In this case a pass

value verdict is associated to the request, fail

otherwise. The ﬁnal verdicts are ﬁnally collected

into a speciﬁc database managed by the XACML-

TestingDB component.

• XACMLRouter Servlet: according to the

operation chosen by the user through the

XACMLClient, it forwards the request to the

appropriate web service.

• XACMLTestingDB: it is the manager of the dif-

ferent databases that allows for the persistence of

test activity data.

Figure 2 shows the relationships between the dif-

ferent components of the proposed framework. As

shown in the ﬁgure, the communication between

XACMLClient and the services takes place through

an intermediary node, proxy / router, which forwards

the client’s request to the appropriate service based on

the content of the request. Communications with all

services require secure communication able to guar-

antee the identity of the parties involved. Interactions

with XACMLTestingDB database are not exposed to

SQL Injection attacks. We used the so-called Pre-

pared SQL statement in order to prevent SQL Injec-

tion attacks. Prepared Statements are static prevention

techniques that attempt to prevent SQL Injection by

allowing developers to accurately specify the struc-

ture of an SQL query, and pass the parameters values

to it separately such that any unsanitary user-input is

not allowed to modify the structure and the semantic

of the query. The developed services take SQL In-

jection attacks into account and the interactions with

XACMLTestingDB, that provide parameters supplied

by XACMLClient, are managed via Java Prepared-

Statement.

4 APPLICATION EXAMPLE

In this section, we provide an example of application

of the proposed framework for testing a policy eval-

uation engine. For this example, we asked to four

groups of three students of a secure software engi-

neering course to realize a simpliﬁed version of a pol-

icy execution engine. Each group received the same

small subset of functionalities to be implemented into

a Java prototyped engine based on XACML 3.0 speci-

ﬁcation. At the end, one of the realized PDP has been

randomly selected as SUT (System Under Test) and

called SUTPDP. The other three PDPs have been used

as oracle and called Oracle1, Oracle2 and Oracle3 in

the remaining of the section. Even if the realized ver-

sion of PDPs were very simple and limited due to the

small set of functionalities implemented, the applica-

tion of a combinatorial testing approach may require

considerable amount of time and effort. Thus a de-

centralize testing framework could be a valid solution

for decreasing the testing cost and increasing the ﬁnal

PDP quality and security.

For better quantify the cost reduction, the evalu-

ation of the proposed approach has been performed

considering four different research questions:

• RQ1 Generation Cost: Is the distributed frame-

work able to reduce the time for test cases gener-

ation?

• RQ2 Execution Cost : Is the distributed frame-

work able to reduce the time for test cases execu-

tion?

• RQ3 Oracle Derivation Cost: Is the distributed

framework able to reduce the time for the correct

authorization decisions derivation?

• RQ4 Verdict Computation Cost: Is the dis-

tributed framework able to reduce the time for ver-

dicts computation?

In the remaining part of this section the details about

the application example execution and the investiga-

tions about the above research questions are provided.

A Decentralized Solution for Combinatorial Testing of Access Control Engine

129

Figure 2: System Architecture.

4.1 Testing Environment Set-up

For the investigation of the target research we asked

the master students to develop also a set of policies

example to be used for testing the SUTPDP. A total

amount of 100 access policies has been pre-included

into XACMLTestingDB, each one targeting a set of

different either functionalities, or subjects, resources

or activities, or hierarchical structures. The simpli-

ﬁed listing in Figure 3 represents one of the developed

policies example. The policy example is composed

by one XACML Policy containing a Target and three

XACML rules:

• The Target speciﬁes that the XACML policy is ap-

plicable to the foo resource;

• The ﬁrst Rule states that the bar1 action can

be performed only by the user bob on resource

foo/foo1;

• The second Rule says that the user alice can ac-

cess to resource foo/foo2 only in bar2 mode;

• And ﬁnally, the third Rule denies all the accesses

which are not allowed explicitly and represents a

default XACML rule.

The experiment has been executed using the 20

working stations available in the university laboratory,

which can be considered similar in the overall perfor-

mance

. In particular, the execution of the combinato-

rial testing of the SUTPDP has been logically divided

into three steps:

To run the experiment we used 10 working stations

having a Core i7-4790 (4.0GHz) Intel processor machine

with eight virtual CPUs and 16GB of memory, running

Ubuntu 14.04 (64-bit version) and 10 working stations hav-

ing a Core i7-4700 (4.2GHz) Intel processor machine with

eight virtual CPUs and 16GB of memory, running Ubuntu

14.04 (64-bit version).

Policy . . . . . . . . . . . . root element

rule-combining-

algorithm:ﬁrst-applicable

permit-overrides

Target . . . . . . . . . Sample Policy rules the

access to foo resource

AnyOf . . . . . . . Or Operator

AllOf . . . . resource = foo

Rule . . . . . . . . . . . RuleId = rule1, Effect =

Permit

Target . . . . . . The bar1 action can be

done by bob on resource

foo/foo1

AnyOf . . . . Or Operator

AllOf resource = foo/foo1

AllOf action = bar1

Condition . . subject = bob

Rule . . . . . . . . . . . RuleId = rule2, Effect =

Permit

Target . . . . . . and The bar2 action can be

done by alice on resource

foo/foo2

AnyOf . . . . Or Operator

AllOf resource = foo/foo2

AllOf action = bar2

Condition . . subject = alice

Rule . . . . . . . . . . . default: deny all, which is

not allowed explicitly.

RuleId = rule3, Effect =

Deny

Figure 3: An XACML policy.

1. Generation of test case from the policies set;

2. Parallel execution of the test cases on:

• The SUTPDP, and

• The three different oracles (Oracle1, Oracle2

and Oracle3) for the correct authorization de-

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

130

cision identiﬁcation;

3. Derivation of the ﬁnal verdicts.

Considering the generation of the test cases, through

the XACMLClient graphical interface the Multiple

Combinatorial testing strategy has been selected

and applied in parallel to each of the 100 policies gen-

erating the corresponding set of test cases. This oper-

ation generated a set of around 50,000 test requests

considering all the access policies available. As an

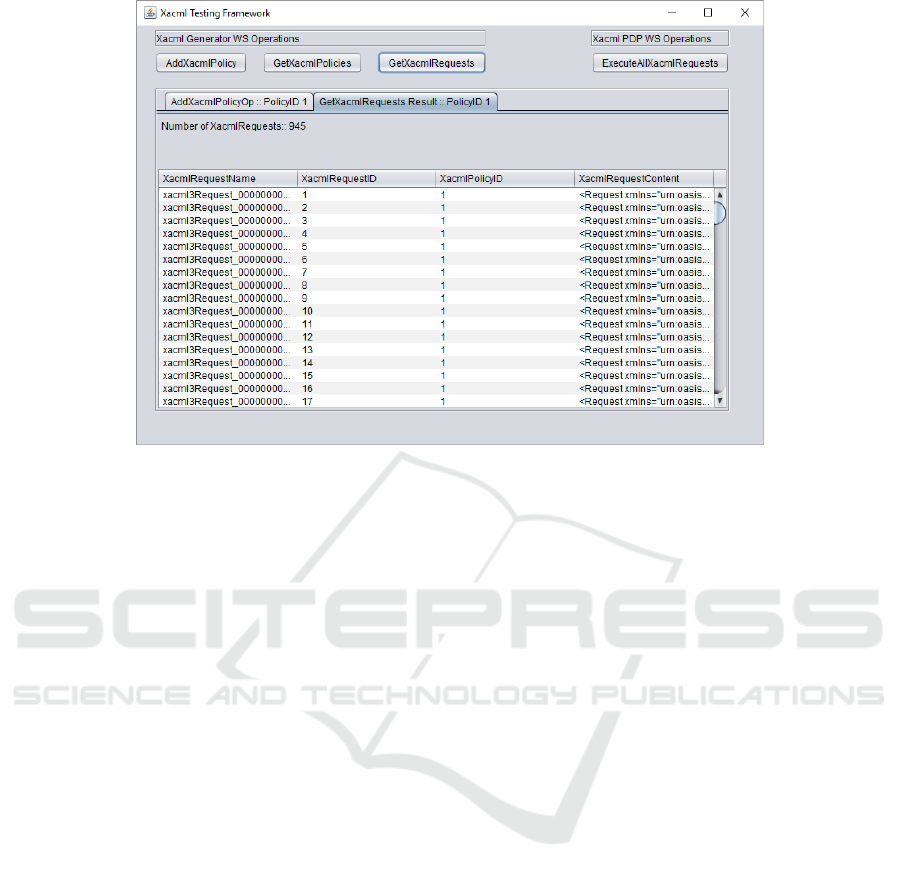

example, for the access policy of listing depicted in

Figure 3 a total amount of 945 requests has been gen-

erated through the operation GetXacmlRequests, as

summarized in Figure 4.

From a practical point of view, in this case the

XACMLGenerator WS distributes the 100 policies

over all the 20 working stations, thus each one re-

ceived a group of 5 policies to be used for executing

the Multiple Combinatorial testing strategy.

In parallel, through the XACMLClient graphical

interface and speciﬁcally using the operation Exe-

cuteAllXacmlRequests, each policy and the relative

set of test cases:

• Have been executed on the SUTPDP through

XACMLPDP WS;

• Have been used for correct authorization deﬁni-

tion by using the XACMLOracle WS.

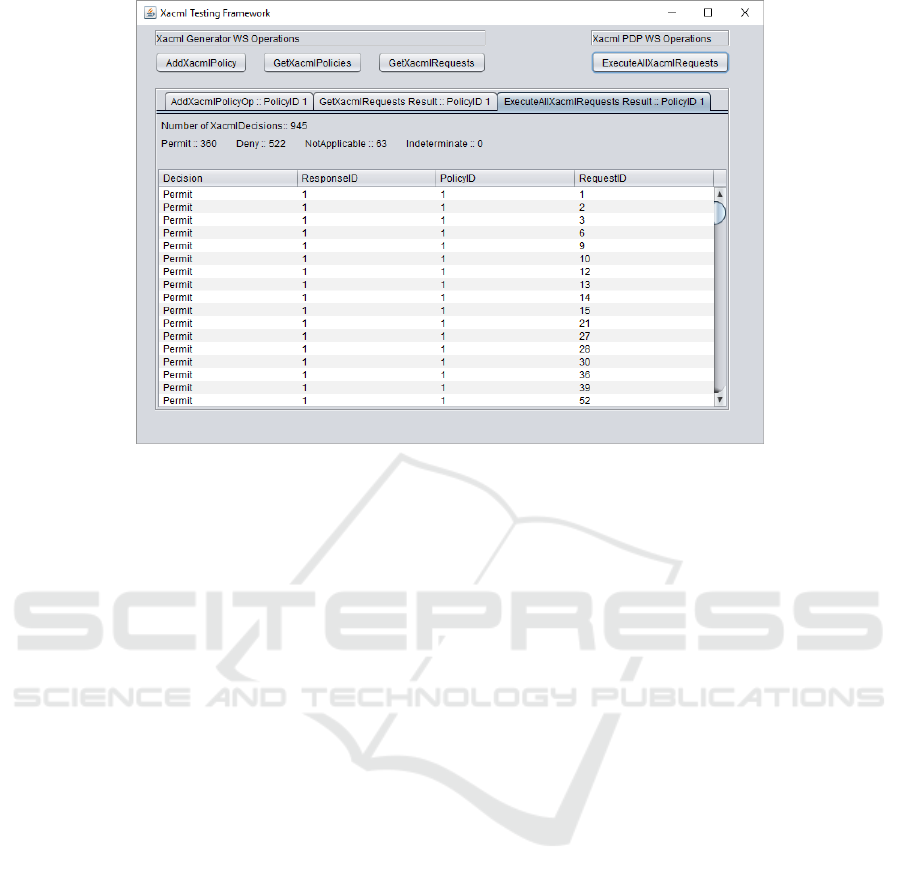

Figure 5 shows an extract of the derived SUTPDP

decisions for the test set relative to the policy of listing

in Figure 3.

For the parallel execution of the test cases on the

SUTPDP and on the three different oracles, the 20

working stations has been divided as in the following:

• 5 of them have been randomly selected and as-

signed to the SUTPDP testing. In this case,

XACMLPDP WS instantiated a version of the

SUTPDP on each of the 5 machines and selected

for each of them around 10,000 test cases trying

uniform load balancing.

• The remaining 15 have been divided into 5 groups

of 3 working stations each. Through XACMLO-

racle WS, Oracle1, Oracle2 and Oracle3 PDPs

have been deployed on the different machines of

each group. The 50,000 test cases have been suc-

cessively divided into 5 sets of around 10,000

each and executed in parallel on Oracle1, Oracle2

and Oracle3 so to collect the authorization deci-

sions and ﬁnally compute the correct ones.

Finally, through the XACMLComparator WS the

ﬁnal verdict for each of the 50,000 test case has been

derived. Due to the simplicity of the operation a sin-

gle working station has been used for this task.

Even if the SUTPDP implemented a subset of

functionalities, a ﬁnal amount of 127 fail verdicts

have been highlighted. These were due to an incor-

rect implementation of a rule combining algorithm

and a speciﬁc set up of the environment condition in

the SUTPDP that have been successively corrected.

In the next subsections, detailed results for each

of the proposed research questions are reported and

discussed.

4.2 RQ1: Generation Cost

In this section, we investigate the cost of test cases

generation. Thus, supposing that each test case has

potentially the same impact on the overall testing ef-

fort, the generation time becomes directly connected

with the number of test cases generated: i.e. the size

of a test suite represents also its cost. In the experi-

ment reported in this paper (Section 4.1) the possibil-

ity of executing the Multiple Combinatorial test-

ing strategy in a distributed way on the 20 working

stations, lets the test generation completion in around

5.30 minutes. By a more detailed analysis of the

data collected during the experimentation, consider-

ing the different nature of the XACML policies, the

application of the Multiple Combinatorial testing

strategy requires on average from 30 to 80 seconds;

therefore, the execution of a group of 5 policies re-

quires on average from 150 to 400 seconds. Indeed

the differences were manly due to the complexity of

the policies analyzed, the performance of the working

stations and the communications delay. With these es-

timations, an idea of the reduction of the time required

for test generation, in case less then 20 working sta-

tions, were used can be derived.

For aim of completeness, we repeated the exper-

iment of test case generation on a randomly selected

working station and it took around 1.5 hours. In this

case, the test generation time was not affected by

communication delay. Comparing the distributed so-

lution with the not distribute one a positive answer to

the research question RQ1 can be collected, i.e. the

distributed framework is able to reduce time for test

case generation.

For aim of completeness it is important to notice

that:

• Because of the didactic nature of the experiment,

the policies developed by the students were quite

simple in the structure and in the number of val-

ues used for subjects, resources, actions and en-

vironment attributes. Therefore, the computation

time required for the test cases generation could

be also tolerable for the not distributed solution

A Decentralized Solution for Combinatorial Testing of Access Control Engine

131

Figure 4: Result of GetXacmlRequests Operation.

even if around 16 times greater than the computa-

tion time in the distributed one.

• The test case generation can be performed one and

for all for the entire policies set. Once available

the test suite can be reused several times in differ-

ent experimentations. Consequently, the test gen-

eration cost would be only the time for test cases

retrieval.

4.3 RQ2: Execution Cost

For investigation of the execution cost as in the previ-

ous section, we suppose that each test case has poten-

tially the same impact on the overall testing execution

time. Thus the execution cost becomes directly con-

nected with the size of a test suite. Considering the

experiment set up of Section 4.1, the test cases execu-

tion on the SUTPDP has been performed in parallel

on 5 working stations for a total amount of around

3.5 minutes. Of course, this estimation can vary by

augmenting or diminishing the number of working

stations dedicated to the SUNPDP testing. For hav-

ing a clearer idea, an estimation of the number of test

cases executed in each minute of testing has been de-

rived from the data collected. In the experiment, the

tests executed per second varies from 40 to 60, con-

sequently the total amount of time necessary for exe-

cuting 10,000 test cases could vary from around 4.20

to 2.8 minutes. As in the previous section, the differ-

ences were manly due to the complexity of the poli-

cies analyzed, the performance of the working sta-

tions, and the communications delay.

As for the previous question, for aim of complete-

ness, we repeated the experiment of test case gener-

ation on a randomly selected working station and it

took around 16 minutes. In this case, the test gener-

ation time was not affected by communication delay.

Comparing the distributed solution with the not dis-

tribute one, a positive answer to the research question

RQ2 can be collected, i.e. the distributed framework

is able to reduce the time for test cases execution.

4.4 RQ3: Oracle Derivation Cost

For investigation of the evaluation cost as in the previ-

ous section, we suppose that each test case has poten-

tially the same impact on the overall testing execution

time. Thus the evaluation cost becomes directly con-

nected with the size of a test suite.

Considering the experiment set up of Section 4.1,

the test cases execution on the three versions of or-

acle has been performed in parallel on 5 groups of

three oracles each. Because the number of tests to be

executed (10,000) and the oracles performance were

similar to that of the SUTPDP, the time necessary

for the derivation of correct authorization decision for

each test case does not evidence important differences

from the execution time. Indeed, the total amount was

around 3.7 minutes. In this case the differences were

manly due the communications delay.

For aim of completeness we repeated the experi-

ment on a randomly selected working station. In this

case we deployed one per time the different oracle

versions on the working station, we collected the au-

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

132

Figure 5: Result of EvaluateAllXacmlRequests Operation.

thorization decision sets and then we compared them

for deriving the correct authorization decisions set. In

practice, we repeated the execution of all the 50,000

test cases on an oracle version for three times. With-

out considering the time necessary for the different

oracles instantiation, the total amount of time neces-

sary for the correct authorization decisions set was 49

minutes.

Comparing the distributed solution with the not

distribute one a positive answer to the research ques-

tion RQ3 can be collected, i.e. the distributed frame-

work is able to reduce the time for oracle derivation.

For aim of completeness it is important to notice that

the correct authorization decisions can be performed

one and for all for the entire test suite. Once available,

correct authorization decisions can be reused several

times in different experimentations. Consequently the

test evaluation cost would be only the time for data re-

trieval.

4.5 RQ4: Verdict Computation Costs

For investigation of the verdict computation cost, as in

the previous section, we consider the size of the test

suite. Actually this operation is just a binary com-

parison between two values: the authorization deci-

sion computed by the SUTPDP with the correct one.

Due to the simplicity of the operation and the number

of data compared, mainly the cost of this operation

depends on the data retrieval for the different DBs.

Comparing the distributed solution with the not dis-

tribute one, no difference can be noticed, therefore no

answer can be given to research question RQ4.

5 RELATED WORK

This work spans over several research directions, in-

cluding: combinatorial approaches for test case gen-

eration and testing of the PDP.

Combinatorial Approaches for Test Cases Gener-

ation. In combinatorial testing, test cases are de-

signed to execute combinations of input parameters

(Nie and Leung, 2011). Because providing all combi-

nations is usually not feasible in practice, due to their

extremely large numbers, combinatorial approaches

able to generate smaller test suites for which all com-

binations of the features are guaranteed, are pre-

ferred. Among them, common approaches rely on

t-way combinatorial criteria of input parameters (Co-

hen et al., 1997; Kuhn et al., 2013) and include sup-

port for constraints and variable-strength tests (NIST,

2016). Other approaches review existing solutions for

the oracle problem for combinatorial testing includ-

ing crash testing, embedded assertions, and model

checker-based test generation (Kuhn et al., 2008).

In combinatorial testing, some tools exist (Aggar-

wal et al., 2016; Sabharwal and Aggarwal, 2017) that

are able to identify interaction faults in the source

code using for instance data ﬂow techniques (Sabhar-

wal and Aggarwal, 2017). They are able to generate a

test set for only the failure triggering interactions with

A Decentralized Solution for Combinatorial Testing of Access Control Engine

133

the aim of reducing the test set size without much af-

fecting the fault detection capability. Differently from

these works, the advantage of our proposal is the pos-

sibility to exploit parallel computational resources to

generate a large set of test cases without applying test

suite reduction techniques.

In the context of XACML based access control

systems, combinatorial test cases generation strate-

gies are proposed for testing on the one side the

XACML policy speciﬁcation and on the other that

the PDP behavior conforms to the policy speciﬁca-

tion. Among them, the Targen tool (Martin and Xie,

2006) generates test inputs using combinatorial cov-

erage of the truth values of independent clauses of

XACML policy values. A more recent tool is X-

CREATE (Bertolino et al., 2013) that provides dif-

ferent strategies based on combinatorial approaches

of the subject, resource, action and environment val-

ues taken from the XACML policy for deriving the

access requests. Among the X-CREATE generation

strategies, we selected in this paper Multiple Combi-

natorial strategy for deriving test suites used to val-

idate the effectiveness of the proposed approach. It

allows combinations of more than one subject, re-

source, action and environment values and automat-

ically establishes the number of subjects, resources,

actions and environments of each request according

to the complexity of the policy structure. Other works

(Xu et al., 2012; Xu et al., 2015) focus on model

based testing and apply combinatorial analysis to the

elements of the model (role names, permission names,

context names) or pairwise combinations of tokens of

a predicatetransition net to derive test cases. Finally,

ACPT tool (NIST, 2018) uses combinatorial testing

with model checking to produce tests for access con-

trol policies. To overcome the computational cost

of combinatorial testing, recent solutions (Tsai et al.,

2015; Tsai and Qi, 2016) rely on cloud environments

where a large number of processors and distributed

databases are adopted to perform large combinatorial

tests execution in parallel. Differently from our pro-

posal, these approaches use concurrent test algebra

execution and analysis for identifying faulty interac-

tions and reducing combinatorial tests, moreover they

are not speciﬁcally tailored to access control systems.

Testing of the PDP. Test oracle automation has

been for long time investigated in literature and still

remains a challenging problem (Barr et al., 2015). In

the context of access control systems, few proposals

address PDP testing aiming to automatically check

whether the test outputs are correct. The authors of

(Li et al., 2008) propose to simultaneously observe

the responses from different PDPs on the same test

inputs, so that different responses can highlight pos-

sible issues. Although effective, the proposal is quite

demanding, because it requires using different PDP

implementations. Our approach is in line with this

proposal, but it uses a distributed solution. A differ-

ent approach proposed in (Bertolino et al., 2018) deals

with PDP testing providing a completely automated

model-based oracle derivation proposal for XACML-

based PDP testing.

6 CONCLUSIONS

In this paper, we proposed a new decentralized frame-

work for testing of XACML-based access control en-

gines. The main advantages of the proposed solu-

tion are: i) reducing the computational costs of the

generation and execution of large combinatorial test

suites without the adoption of test suites reduction

techniques; ii) providing a decentralized and cost ef-

fective automated oracle for the PDP testing.

The application of the proposed distributed solu-

tion to a simple application example showed its effec-

tiveness in reducing the cost of all the main phases

of the testing process: test cases generation, test case

execution and oracle derivation. Speciﬁcally, for the

policy example showed in the paper, the cost saving

was of around 90% (total testing process time was

of 12,5 minutes for our solution against 155 minutes

of a common single working station). This time sav-

ing is mainly due to the efﬁcient decentralized oracle

derivation that represents the most challenging task

of the testing process. Our solution allows to reduce

testing costs also when test cases and correct autho-

rizations decisions are already available. In this last

case, the cost gain was around 78% (total testing pro-

cess time was of 3,5 minutes for our solution against

16 minutes of a common single working station).

As threat to validity, we have to observe that these

time measures are dependent on the computational

powers of the used working stations and the schedul-

ing of the test task on the different working stations.

In the future, we plan to investigate more about

efﬁcient scheduling approaches dealing with power

constraints of different working stations as well as

to address scalability issues related to the proposed

framework. We would like also to study the relation-

ship between the cost saving and the performance of

the proposed approach in terms of fault detection ef-

fectiveness.

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

134

ACKNOWLEDGEMENTS

This work has been partially supported by the GAUSS

national research project (MIUR, PRIN2015, Con-

tract2015KWREMX).

REFERENCES

Aggarwal, M., Sabharwal, S., and Dudeja, S. (2016). FTCI:

A Tool to Identify Failure Triggering Combinations

for Interaction Testing. Indian Journal of Science and

Technology, 9(38).

Barr, E. T., Harman, M., McMinn, P., Shahbaz, M., and

Yoo, S. (2015). The oracle problem in software test-

ing: A survey. IEEE Transactions on Software Engi-

neering, 41(5):507–525.

Bertolino, A., Daoudagh, S., Lonetti, F., and Marchetti,

E. (2018). An automated model-based test oracle

for access control systems. In Proceedings of 13th

IEEE/ACM International Workshop on Automation of

Software Test, Gothenburg, Sweden. May 28-29.

Bertolino, A., Daoudagh, S., Lonetti, F., Marchetti, E., Mar-

tinelli, F., and Mori, P. (2014). Testing of polpa-

based usage control systems. Software Quality Jour-

nal, 22(2):241–271.

Bertolino, A., Daoudagh, S., Lonetti, F., Marchetti, E., and

Schilders, L. (2013). Automated testing of extensible

access control markup language-based access control

systems. IET Software, 7(4):203–212.

Bertolino, A., Lonetti, F., and Marchetti, E. (2010). Sys-

tematic XACML Request Generation for Testing Pur-

poses. In Proc. of 36th EUROMICRO Conference

on Software Engineering and Advanced Applications

(SEAA), pages 3 –11.

Candido, J., Melo, L., and d’Amorim, M. (2017). Test

suite parallelization in open-source projects: a study

on its usage and impact. In Proceedings of the 32nd

IEEE/ACM International Conference on Automated

Software Engineering, pages 838–848. IEEE Press.

Cohen, D. M., Dalal, S. R., Fredman, M. L., and Patton,

G. C. (1997). The AETG system: An approach to

testing based on combinatiorial design. IEEE Trans.

on Soft. Eng., 23(7):437–444.

Kuhn, D. R., Kacker, R. N., and Lei, Y. (2013). Introduction

to combinatorial testing. CRC press.

Kuhn, R., Lei, Y., and Kacker, R. (2008). Practical com-

binatorial testing: Beyond pairwise. It Professional,

10(3).

Li, N., Hwang, J., and Xie, T. (2008). Multiple-

implementation testing for xacml implementations. In

Proceedings of the 2008 workshop on Testing, analy-

sis, and veriﬁcation of web services and applications,

pages 27–33. ACM.

Martin, E. and Xie, T. (2006). Automated test generation

for access control policies. In Supplemental Proc. of

ISSRE.

Martin, E., Xie, T., and Yu, T. (2006). Deﬁning and measur-

ing policy coverage in testing access control policies.

In Proc. of ICICS, pages 139–158.

Nie, C. and Leung, H. (2011). A survey of combinatorial

testing. ACM Computing Surveys (CSUR), 43(2):11.

NIST (2016). Automated Combinatorial Testing for

Software. https:csrc.nist.govprojectsautomated-

combinatorial-testing-for-softwaredownloadable-

tools.

NIST (2018). Access Control Policy Test (ACPT).

https:csrc.nist.govprojectsautomated-combinatorial-

testing-for-softwaredownloadable-tools#acpt.

OASIS (2013). eXtensible Access Control Markup

Language (XACML) Version 3.0. http:docs.oasis-

open.orgxacml3.0xacml-3.0-core-spec-os-en.html.

Sabharwal, S. and Aggarwal, M. (2017). A novel approach

for deriving interactions for combinatorial testing. En-

gineering Science and Technology, an International

Journal, 20(1):59 – 71.

Tsai, W.-T. and Qi, G. (2016). Integrated fault detec-

tion and test algebra for combinatorial testing in taas

(testing-as-a-service). Simulation Modelling Practice

and Theory, 68:108–124.

Tsai, W.-T., Qi, G., and Hu, K. (2015). Autonomous de-

centralized combinatorial testing. In IEEE Twelfth In-

ternational Symposium on Autonomous Decentralized

Systems (ISADS), pages 40–47. IEEE.

Xu, D., Kent, M., Thomas, L., Mouelhi, T., and Le Traon, Y.

(2015). Automated model-based testing of role-based

access control using predicate/transition nets. IEEE

Transactions on Computers, 64(9):2490–2505.

Xu, D., Thomas, L., Kent, M., Mouelhi, T., and Le Traon,

Y. (2012). A model-based approach to automated test-

ing of access control policies. In Proceedings of the

17th ACM symposium on Access Control Models and

Technologies, pages 209–218. ACM.

A Decentralized Solution for Combinatorial Testing of Access Control Engine

135
