Detection of Student Teacher’s Intention using Multimodal Features in a

Virtual Classroom

Masato Fukuda, Hung-Hsuan Huang and Toyoaki Nishida

Center for Advanced Intelligence Project, RIKEN, Kyoto University, Yoshida-honmachi, Sakyo-ku, Kyoto, Japan

Keywords:

Intention Detection, Multimodal Interaction, Educational Application, User Assessment.

Abstract:

The training program for high school teachers in Japan has less opportunity to practice teaching skills. As a

new practice platform, we are running a project to develop a simulation platform of school environment with

computer graphics animated virtual students for students’ teachers. In order to interact with virtual students

and teachers, it is necessary to estimate the intention of the teacher’s behavior and utterance. However, it is

difﬁcult to detection the teacher’s intention at the classroom only by verbal information, such as whether to ask

for a response or seek a response. In this paper, we propose an automatic detection model of teacher’s intention

using multimodal features including linguistic, prosodic, and gestural features. For the linguistic features, we

consider the models with and without lecture contents speciﬁc information. As a result, it became clear that

estimating the intention of the teacher is better when using prosodic / non-verbal information together than

using only verbal information. Also, the models with contents speciﬁc information perform better.

1 INTRODUCTION

According to the fundamental policy for development

of educational human resources, published by Board

of Education of Tokyo in 2007, the environment of

school education problems is getting more complex

and diverse with the evolvement of the whole soci-

ety. Along with this situation, it is getting more and

more difﬁcult for teachers to adopt themselves to the

problems which do not occur dozens of years ago.

Trainees and novice teachers are demanded to accu-

mulate their experience and to improve their knowl-

edge before the actual deployment to schools.

In order to deal with the diversity of problems, stu-

dent teachers need not only knowledge but also re-

peated practice to learn from experience. In Japan,

however, the training of teachers mainly relies on

classroom lectures in colleges and is compensated

with the practice for a relatively short period, say only

two to three weeks in actual schools. Even though

there may be some chances for practicing teaching

skills in the class of teacher-training course in the col-

leges, these practices are usually conducted by peer

role-playings in small number of participants and are

far from real situations where they have to face dozens

of teenagers. The teacher-training programs in Japan

obviously lacks the practice in teaching skill and the

admission of classes. The result is, many young

teachers left their jobs in the ﬁrst year due to frus-

tration and other mental issues.

In our ongoing project, we are developing virtual

classroom systems based on multiple virtual agent

as students for training or assessment on educational

skills of student teachers(Fukuda et al., 2018)(Fukuda

et al., 2017). Student teachers, or the trainees can in-

teract with the virtual students in this immersive and

realistic virtual classroom and practice their teaching

and admission skills. The virtual students are oper-

ated by an operator the examination investigator from

remote with a dedicated interface.

In order to improve the current Wizard-of-Oz

(WOZ) prototype system to be an autonomous one,

automatic and real-time assessment on the trainee is

a mandatory function for the system. The virtual stu-

dents can then automatically react to the trainee ac-

cording to the assessment results. Automatic assess-

ment can be considered as an association from the

trainee’s behaviors to the values of teaching skill met-

rics. Better understanding of the trainee’s intention

during the teaching practice will provide valuable in-

formation of the assessment process. The informa-

tion of trainee’s intention can be also used to drive the

virtual students’ reactions as a real-time interactive

system. This paper presents an automatic detection

model for the student teacher’s intention using multi-

modal features (linguistics, prosody, and gesture).

170

Fukuda, M., Huang, H. and Nishida, T.

Detection of Student Teacher’s Intention using Multimodal Features in a Virtual Classroom.

DOI: 10.5220/0007379901700177

In Proceedings of the 11th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2019), pages 170-177

ISBN: 978-989-758-350-6

 2019 by SCITEPRESS – Science and Technology Publications, Lda. All rights reser ved

This support-vector-machine (SVM) model is de-

rived from the dataset gathered in actual teaching

practice sessions with the virtual classroom prototype.

The paper is organized as the follows: section 2 intro-

duces the related works, section 3 describes the virtual

classroom in more details and the procedure of data

collecting experiment, section 4 describes the detec-

tion model, and ﬁnally section 5 concludes this paper.

2 RELATED WORKS

Studies of CG agents enabled emotional interactions

between humans and computers using modalities that

we use in daily life. There are other research groups

who are developing virtual classroom systems for

teacher training. All available system is wizard-of-

oz (WOZ) style systems, that is, the virtual students

are controlled by a human instructor rather than an au-

tonomous behavior model. This comes from the dif-

ﬁculty in creating the model to generate realistic and

believable behaviors of the virtual students in the di-

versity of the situations occur in schools. TeachLivE

(Barmaki and Hughes, 2015) is a WOZ system where

the trainee interacts with ﬁve virtual students whom

are controlled by an operator and are shown on a large

size display. Breaking Bad Behaviours (Lugrin et al.,

2018)(Lugrin et al., 2016) is another teacher training

system featuring a virtual reality (VR) environment.

This is another WOZ style system where the instruc-

tor controls the level of overall disruption of a 24-

student class with a slide bar and can assign one of six

bad behaviors to individual virtual students. Neither

of these systems have provided automatic assessment

feature on the performance of the student teachers yet.

Although the purpose and the requirements are differ-

ent, public speaking is an activity related to teaching

in a classroom. Automatic assessment method using

multimodal features, prosody, gesture use, and eye

contact is proposed in a environment with virtual au-

diences (Chollet et al., 2015)

In the tasks of classifying dialogue acts, multi-

modal features are also proved to improve the per-

formance of the classiﬁers. Petukhova and Bunt

(Petukhova and Bunt, 2011) investigated the possibil-

ity of automatic classiﬁcation on dialogue acts with

lexical and prosodic information. The RoboHelper

project uses lexical, syntactic, utterance, gesture, and

location features to classify dialogue acts based on

an elderly-at-home data corpus(Chen and Eugenio,

2013)(Di Eugenio and

Zefran, 2015). Ribeiro et al.

(Ribeiro et al., 2015) investigated the inﬂuence of the

context (N-gram with previous tokens) in predicting

dialogue acts. Liu et al. (Liu et al., 2017) used a com-

bination of CNN (convolution neural network) and

RNN (recurrent neural network) to automatically ex-

tract context information in classifying dialogue acts.

3 MULTIMODAL DATA CORPUS

OF TEACHING REHEARSAL

3.1 Virtual Classroom Training

Platform

The setup of the virtual classroom prototype is shown

in Figure 1. This system is comprised of two front

ends, one is a simulated classroom for the trainee,

the other one is the interface for the system opera-

tor / investigator. The virtual classroom is projected

on a life-size large screen (roughly 100 inches) while

one trainee stands in front of it and practice his/her

teaching skill with the virtual students. The trainee’s

rehearsal is captured by a WebCam and is displayed

at the operator’s interface in real-time. The operator

can control atmosphere of the virtual classroom us-

ing this interface in reacting to the performance of

the trainee. Every virtual student’s motion is always

synchronized between the trainee interface and opera-

tor interface. That virtual classroom was created with

Unity 3D game engine. For the CG models of stu-

dents, we adopted Taichi Character Pack freely avail-

able at Game Asset Studio.

3.2 Data Collection Experiment

In order to collect the dataset as the ground truth for

the detection model development, an experiment of

actual rehearsal sessions was conducted. Nine stu-

dents of our college (computer science and engineer-

ing) were recruited as the participants of the eval-

uation experiment. All of them are in the teacher-

training course in our university or work as a cram

school teacher with some degree of teaching experi-

ence. We issued the materials for high-school level

mathematics to the participants and asked them to pre-

pare a lecture up to 10 minutes prior to the experi-

ment. The themes are about the computation of the

area of circle or triangle. The subject, mathematics

was chosen because all of the subject major in com-

puter science, and we expect that more whiteboard-

writing movements can be observed. During the ex-

periment, the participants were organized to three

groups. For each group, every participant made a lec-

ture while the other two members in that group played

the operator role at the same time.

Detection of Student Teacher’s Intention using Multimodal Features in a Virtual Classroom

171

!"#$%&"'

"%()*%+

,+-.%)"-+

/0&%)"

1%23(4

50+"#(6'

36(77+--4

!"#$%&"'

"%()*%+

Figure 1: Setup of the virtual classroom prototype. Left: trainee interact with the virtual students projected on a large-size

screen. Right: operator controls the virtual students with the view point from the rear of the virtual classroom.

3.3 Teaching Intentions

In the experiment, each participant made a lecture

between ﬁve to 10 minutes, and the average dura-

tion was 457.2 seconds. In order to analyze student

teacher’s intention during the rehearsal sessions, an

intuitive analysis unit is an utterance. The utterances

are then segmented from the original audio track with

a silent period, 200 ms as boundaries. Table 1 shows

the summary of the utterances of all of the partici-

pants. This indicates that the subjects spoke less than

half of the time (41.5%) during the experiment. While

during other time, they may write something on the

whiteboard or waited the virtual students to react to

his / her instructions.

Table 1: Summary of the utterances collected in the data

corpus.

Participant Number Duration S.D.

P1 143 1.34 0.88

P2 246 1.46 0.93

P3 236 1.24 1.18

P4 250 1.55 1.21

P5 152 0.90 1.49

P6 138 1.49 1.19

P7 122 1.49 0.83

P8 86 1.90 1.24

P9 120 1.47 1.27

Average 166 1.43 1.13

According to our knowledge, there is no avail-

able annotation scheme dedicated to teaching inten-

tions. Therefore, a dedicated scheme has to be de-

ﬁned for further analysis on the corpus. The lec-

tures conducted in a classroom is practically an in-

teractive communication between the teacher and the

students. Such an annotation scheme can be con-

sidered as a set of domain-speciﬁc dialogue acts.

There have been a number of dialogue act coding

schemes proposed in the ﬁeld of computational lin-

guistics and dialogue systems. For example, SWBD-

DAMSL (Dialog Act Markup in Several Layers)

(Core and Allen, 1997)(Jurafsky, 1997), MRDA

(Meeting Recorder Dialog Act) (Shriberg et al.,

2004), and AMI (Augmented Multi-party Interaction)

(Carletta et al., 2006). However, the schemes are usu-

ally bound to a speciﬁc data corpus (e.g. MRDA for

the ICSI corpus (Janin et al., 2003)) and task. Al-

though the schemes like DAMSL is considered for

general purpose and is widely used, there was no stan-

dardized scheme for general dialogue act annotation.

Standardization facilitates the sharing of data and

data process methods. Recently, there is a researcher

oriented activity in promoting a standardized dialogue

act scheme for general purpose as an international

ISO standard, ISO 24617-2 (Bunt et al., 2017). This

standard inherited the existing DIT++ scheme (Bunt,

2009)and simpliﬁed it. This ISO standard deﬁnes a

multi-dimension scheme with eight dimensions:

Auto-Feedback, Allo-Feedback, Time Management,

Turn Management, Own Communication Manage-

ment, Partner Communication Management, and So-

cial Obligations Management in addition to the task

dimension. Upon these dimensions, 30 dimension-

speciﬁc communicative functions and 26 general-

purpose ones are deﬁned.

In this work, we basically followed the deﬁni-

tions of DIT++ / ISO 24617-2 with the modiﬁcations

in reﬂecting the nature of classroom lectures. The

main modiﬁcations were made on the task dimension.

Since the interaction occur during a lecture is basi-

cally the information providing from the teacher to the

students. This communicative function is supposed to

be the majority of the teacher’s utterances by the na-

ture of a lecture, it should be divided to more detailed

classes to deeper insight of the interaction. How the

student teacher explains the lecture materials to the

students is an important factor in evaluating the stu-

dent teacher’s skill. Considering the subjects taught

in high schools, we assume that the explanation can

ICAART 2019 - 11th International Conference on Agents and Artiﬁcial Intelligence

172

be classiﬁed into two categories. The materials which

can be sufﬁciently explained orally, and the materials

which will be more comprehensive if supplemented

with pictorial information. The resulted deﬁnitions of

teaching intention are listed as the follows:

Information-Providing-Oral: the teacher is ex-

plaining some concept or is describing some truth

which is sufﬁciently comprehensive only by oral

explanation. Most parts of the subjects like

Japanese language or history are supposed to be

taught in this way.

Information-Providing-Pictorial: the teacher is

explaining some concept which is more compre-

hensive if pictorial information is also provided.

For example, the shape / size of something or the

spacial relationship of objects. Many concepts of

the subjects like mathematics or physics are sup-

posed to be taught in this way. Non-verbal behav-

iors like drawing a diagram on the whiteboard or

performing iconic gestures are often accompany

with this intention.

Instruct: the teacher is instructing the students to do

some actions. For example, “wake up” .

Auto-Feedback: the teacher is giving feedbacks to

the requests from the students. For example,

“yes”, “what”, and ”OK, I see”.

Allo-Feedback: the teacher is requesting feedbacks

from the students. For example, “is there any

question” .

Communication Management: the teacher is say-

ing something not directly relevant to the subject

but is trying to manage the ﬂow of lecture or main-

tain the interests of the students. Fillers and jokes

are also included in this intention.

By following the deﬁnitions above, one of the au-

thors annotated the whole corpus. Table 2 shows the

annotation results.

Table 2: Distribution of the intention labels. Each inten-

tion class is represented by an abbreviation. The columns

“Num.”, “Dur.”, and “S.D.” denote the number of in-

stances, duration in seconds, standard deviation of duration

and percentage, respectively.

Intention Num. Dur. S.D. %

Info-Pictorial 570 1.39 1.14 38.2

Info-Oral 342 1.71 1.39 22.9

Auto-Feedback 195 0.72 0.57 13.1

Instruct 144 1.52 1.33 9.6

Allo-Feedback 138 1.00 0.90 9.2

Commun-Man 104 0.86 0.94 7.0

Total 1,493

4 AUTOMATIC DETECTION

WITH MULTIMODAL

FEATURES

This section describes the multimodal model in au-

tomatically classifying teaching intentions described

in last section. Multimodal features and context in-

formation have been shown effective in classifying

dialogue acts in previous studies(Chen and Euge-

nio, 2013)(Di Eugenio and

Zefran, 2015)(Liu et al.,

2017)(Petukhova and Bunt, 2011)(Ribeiro et al.,

2015). In our speciﬁc context, lecture rehearsal, the

student teachers are supposed to make explanations

ton the lecture materials, write text or draw diagrams

on the whiteboard. In order to capture the student

teacher’s intentions in these activities, the contents of

the materials, the voice tone in the presentation, and

the use of body postures, gestures and whiteboards

are supposed to be relevant. Therefore, linguistic,

prosodic, and gestural features are adopted in the mul-

timodal learning process.

4.1 Linguistic Features

In analyzing the contents of the lecture rehearsal ses-

sions, the technique, bag of words (BoW) is adopted.

First, the words used in the data corpus are extracted

with Japanese morphological analyzer, Mecab (Ku-

dou, 2013) from the transcripts of the corpus. With

this analysis, Japanese words are segmented and con-

verted to their basic forms. The part-of-speech in-

formation can also be obtained as the metadata of

extracted words. As the results, 604 words are ex-

tracted as the initial set of candidate words. In or-

der to compose effective BoW vectors of words, the

words representative the characteristics of a certain

data class and distinguish it from other classes should

be selected from the candidate words. Most com-

mon and not-meaningful words in a language, or so-

called stop words are therefore needed to be ﬁltered

out from the set of candidate words. In the case of

Japanese language, there is not good general purpose

dictionary of stop words, therefore, we ﬁlter out the

categories of parts of speech which do not convey

signiﬁcant information (particle, conjunction, auxil-

iary verb, the attributive form of a verb, and adverb).

A customized Mecab-compatible dictionary which is

frequently updated with new Japanese words, mecab-

ipadic-NEologd

is adopted for the word reference.

This is because the younger generation often use ab-

breviated forms and slang in their casual conversa-

tion. The size of candidate word is then reduced to

https://github.com/neologd/mecab-ipadic-neologd

Detection of Student Teacher’s Intention using Multimodal Features in a Virtual Classroom

173

452 words after this ﬁltering.

In order to determine the “important words”

which distinguishes one data class from the others, the

popular technique in text process, TF-IDF (term fre-

quency - inverse document frequency) is adopted. TF-

IDF algorithm weights the words which frequently

appear in one document but less frequently appear

in other documents as the important words in distin-

guishing that document from the others. By taking

account into the context of this work, we then con-

sider the collection of the sentences belonging to one

teaching intention as a “document” and apply TF-IDF

algorithm on the six documents to score the candidate

words.

For capturing the contents of the materials, an

issue needs to be considered is the generality of

the model. If more contents speciﬁc information is

adopted, the accuracy is supposed to get higher, but

the generality will become lower, due to the over-

ﬁtting of the training data. In considering the trade-off

of this issue, we analyzed the accuracy with varying

weights of content-speciﬁc features. The next step is

then to determine the word clusters in the sense of

their meanings in the distributed representations gen-

erated by Word2vec (Mikolov et al., 2013) models.

A CBOW (Continuous-Bag-of-Words) model is con-

structed from the word set in last step with window

size 15. In order to distinguish general words from

context-speciﬁc words, we then applied 2-Nearst-

Neighbors clustering to the word vectors. Table 3

shows the top-12 results of the clustering in the order

of TF-IDF values . Although not completely sepa-

rated, contents related words (mathematics) are ba-

sically assigned to cluster B (66 words) while the

other words are basically assigned to cluster A (386

words). It can be noticed that the top word in clus-

ter B, ﬁller “uh” is not a mathematic relevant word.

This seems to come from the following situation that

is frequently observed in the corpus: when the stu-

dent teachers are starting to draw something on the

whiteboard while explaining a mathematical concept,

they often started with a “uh” before the drawing it-

self. This co-occurrence may cause this result.

The next issue is the determination of the size of

the bag of words, the larger the size, the accuracy is

supposed to be higher, but the model will be more

ﬁtting to the contents, that is, the model will be less

general. For determine the element words in the BoW

vector, all the candidate words are sorted in separate

queues of each intention class in the order of TF-IDF

values. The words are selected in the round-robin

and top-ﬁrst manner, i.e. the word which has high-

est TF-IDF value among the six words in the head

of the six queues of the intention classes, one by one.

Table 3: 2-NN clustering results of the words.

Cluster A Cluster B

Word TF-IDF Word TF-IDF

yes 0.89 uh 0.76

no problem 0.68 (number) 0.56

sleep 0.60 area 0.48

understand 0.44 multiply 0.29

wake up 0.44 cm 0.25

request 0.33 circle 0.23

good 0.30 rectangular 0.20

wrong 0.28 here 0.17

thank 0.21 half 0.17

(misbehavior) 0.21 become 0.16

do 0.16 high 0.14

sorry 0.16 matter 0.13

The selection from a certain queue stops after n words

are selected from that queue. Consequently, the size

of the BoW vector is n x 6 where n words are se-

lected from the queue of each intention class. We then

conducted an experiment to determine an appropriate

n. Two types of BoW vectors are generated and are

used to train SVM (Support Vector Machine) mod-

els to classify intention classes. One is so-called L

model where the full set of candidate words (cluster

A + B) are used, and the L

model where only the

words in cluster A are used. The full set L

model is

supposed to be more content dependent , and the L

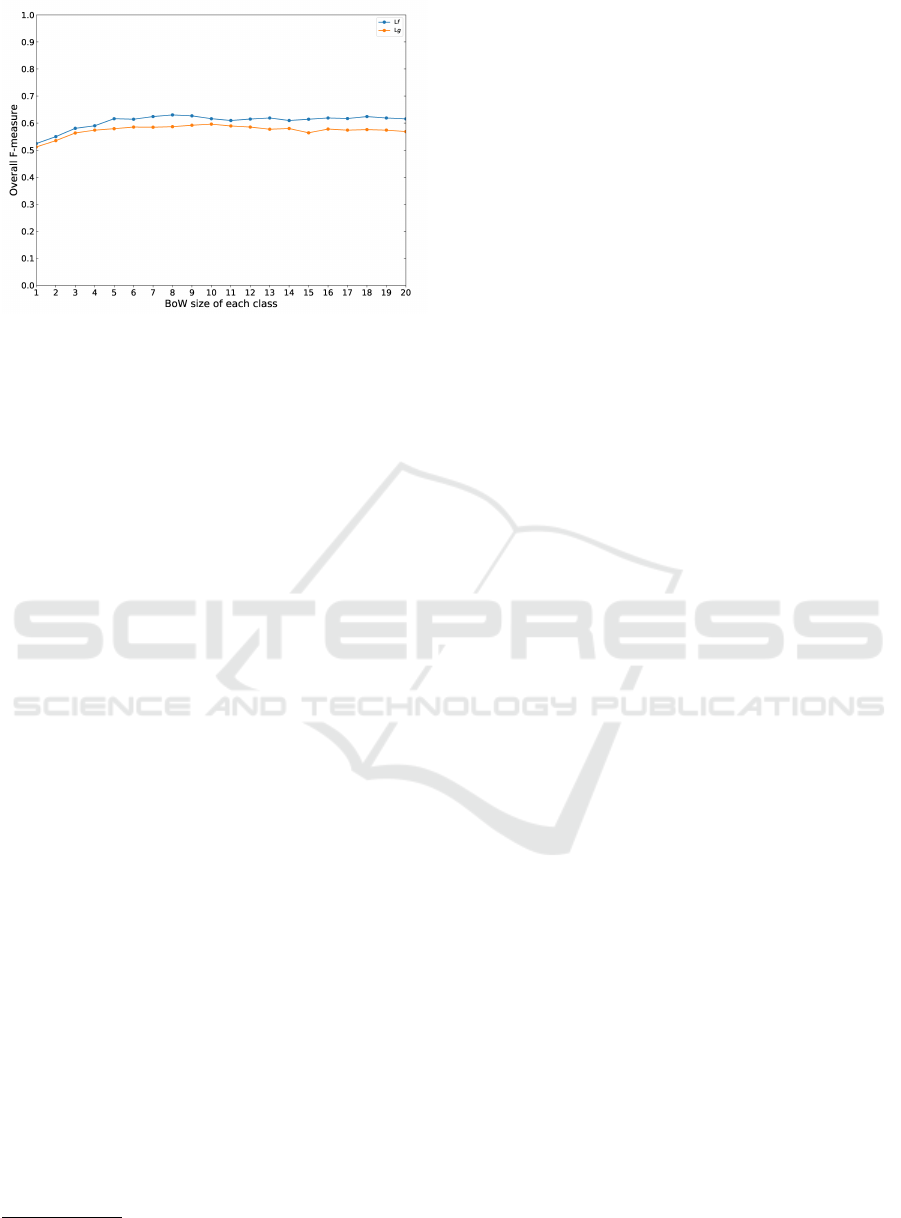

model is supposed to be more general. Figure 2 de-

picts the performance of these two models regarding

to the value of n. The experiments were conducted

with the same procedure as the ones described in later

section. The results are cross validated in leave-one-

subject-out manner, and F-measure values are the mi-

cro average of the results. From the observation on

the results, L

models always performs slightly better

than the L

models, the performance increases when

n increases but get to level when n is large enough.

Finally, the following features are selected as the lin-

guistic feature set:

•

Uni-grams of part of speech in ﬁve categories,

noun, verb, adjective, interjection, and ﬁller.

• BoW vector selected in the procedure described

above with the size, 48 words (n = 8).

4.2 Prosodic Features

Voice prosody conveys nuance in additional to lan-

guage. The same sentence can be interpreted into

multiple ways when it is spoken in different tones.

For example, when someone raise the end of one ut-

terance, it probably should be interpreted as a ques-

tion. Therefore, prosodic information is expected to

be also effective in the classiﬁcation of teaching inten-

tions. The prosodic features used are extracted with

ICAART 2019 - 11th International Conference on Agents and Artiﬁcial Intelligence

174

Figure 2: Classiﬁcation performance of L

and L

models

regarding to the value of the BoW size of each class (n).

the phonetic analyzer, Praat (Paul and David, 2018)

at the sampling rate 100 Hz. As a result, the follow-

ing features are adopted in the prosody feature set.

• Average of pitch (F

)

• Average of intentsity

• Range of pitch (difference between maximum and

minimum)

• Range of intensity

• Ratio between the pitch of second and ﬁrst half of

a sentence

• Ratio between the intensity of second and ﬁrst

half of a sentence

4.3 Gestural Features

Among the proposed teaching intentions, Providing-

Information (pictorial) is the explanation about ab-

stract concept with shape and size, it is supposed to

be more comprehensive if complemented with iconic

gestures or the drawings on the whiteboard. There-

fore, a feature set capturing the gestural behaviors of

the student teachers should provide the cues in iden-

tifying this intention class. 18 joint positions in two-

dimensional coordinates (X, Y) were extracted with

the tool, OpenPose

at the same frame rate of the

video corpus (29.97 fps). In order to distinguish inten-

tional gestures and whiteboard drawings from noises,

the area scanned by the ends of two hands (the wrists)

is supposed to provide effective cues. Finally, the fol-

lowing features are chosen in this part where all coor-

dinate values are transformed to a uniﬁed coordinate

system (the center of the waist as the origin).
