The Impact of Diverse Execution Strategies on Incremental Code

Updates for Wireless Sensor Networks

Kai Lehniger and Stefan Weidling

IHP - Leibniz-Institut f

ur innovative Mikroelektronik, Im Technologiepark 25, 15236 Frankfurt (Oder), Germany

Keywords:

Wireless Sensor Networks, WSN, Code Update, Over-the-air, Incremental Reprogramming, Delta, Page-

based, Low-power.

Abstract:

Wireless Sensor Networks (WSNs) may require code updates for a variety of reasons, such as ﬁxing bugs,

closing security holes or extending functionality. WSNs typically have limited resources available and wireless

updates are costly in terms of energy and can lead to early battery failure. The idea of incremental code

updates is to conserve energy by reusing the existing code image on the node and disseminating only a delta

ﬁle that is generated by differencing algorithms, which can be used to reconstruct the new image. Beyond

these differencing algorithms, there are other strategies to minimize the delta, e.g., reconstructing only the

changed parts of the image. This paper points out possible implications of diverse execution strategies and

gives suggestions. In addition to the usual delta size, the impact on the ﬂash memory was considered. The

presented results can be used to select a ﬁtting strategy for a given use case.

1 INTRODUCTION

WSNs consist of many low-cost, low-power devices

with harsh resource restrictions, such as limited en-

ergy in the form of a battery or limited processing

power. Despite these limitations, nodes in ﬁeld op-

eration must provide update functionality for adding

features or ﬁxing bugs.

Incremental code updates attempt to consume as

little energy as possible by calculating the differences

between two program images and compiling them as

instructions summarized as delta ﬁle. This ﬁle is then

disseminated across the network and executed by the

corresponding nodes.

The research ﬁeld of incremental reprogramming

strategies is well studied, with approaches such as

R3diff (Dong et al., 2013) to generate delta ﬁles.

Common to all publications is that they try to min-

imize the size of the delta ﬁle, because over-the-air

dissemination of the delta ﬁle is considered the main

drain of energy. This assumption was possible be-

cause the execution of the delta ﬁle was equivalent for

the different approaches. After the image has been re-

ceived, it has been completely constructed either on

an external memory or in a separate part of the inter-

nal memory and then copied to its destination.

Meanwhile, alternative delta execution techniques

have been introduced in recent publications, for ex-

ample, by Kachman and Balaz (2016b). These ap-

proaches try to eliminate the overhead that occurs

when an image is completely reconstructed before be-

ing copied in place, especially the parts that have not

changed.

Beyond the differencing algorithms, Lehniger

et al. (2018) have proposed an approach that has the

same goal of minimizing the delta but taking a dif-

ferent path. Namely, a good order is searched for the

pages in ﬂash memory in which they are to be up-

dated.

A major consequence of these diverse execution

strategies is a different treatment of the internal ﬂash

memory, which affects its lifetime and energy con-

sumption. Kachman and Balaz (2016a) have already

considered other metrics for comparison.

This paper tries to support the understanding of

the state of the art in this research area by pointing out

possible implications of diverse execution strategies

and giving suggestions. In addition to the usual delta

size, the impact on the ﬂash memory is examined. It

also studies the impact of the page update order on the

diverse execution strategies.

The rest of this paper is structured as follows.

Section II describes various incremental code update

strategies and categorizes them. Three strategies are

described in detail as case studies in Section III. Sec-

tion IV discusses the possible implications of the

Lehniger, K. and Weidling, S.

The Impact of Diverse Execution Strategies on Incremental Code Updates for Wireless Sensor Networks.

DOI: 10.5220/0007383400300039

In Proceedings of the 8th International Conference on Sensor Networks (SENSORNETS 2019), pages 30-39

ISBN: 978-989-758-355-1


pre-processing

Differencing

algorithm

Delta

dissemination

Execution

Strategy

delta delta

new


new


PC side

Medium

Sensor node side

Delta generation Reprogramming

old image

new image

old image

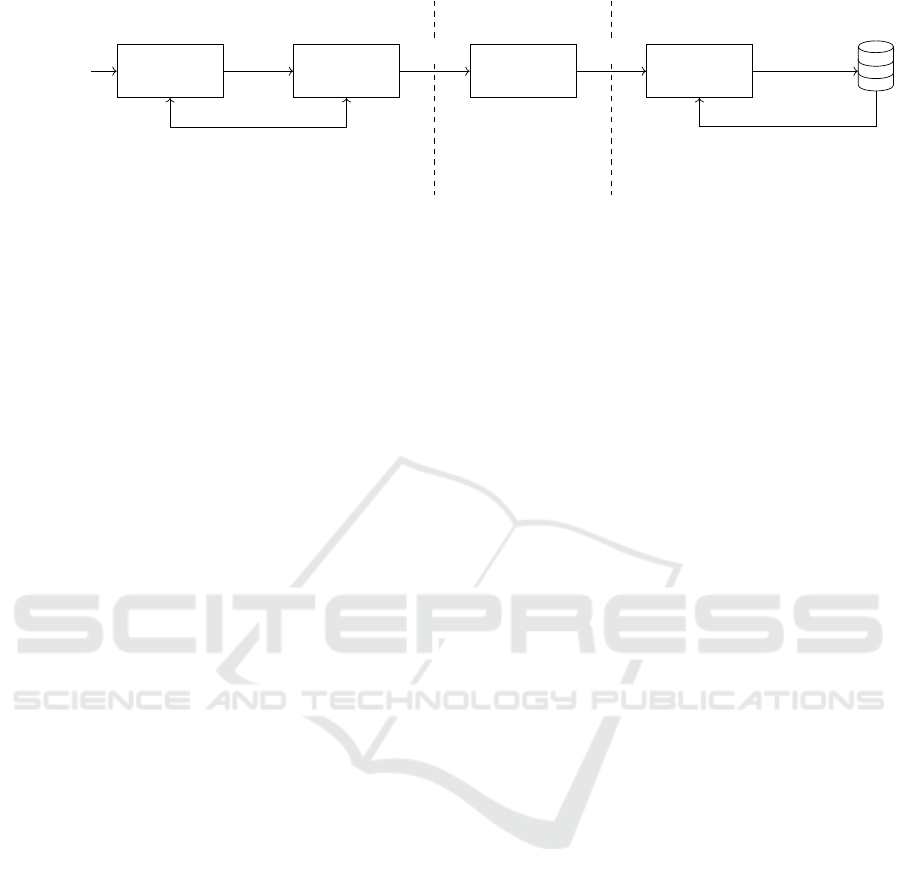

Figure 1: General reprogramming scheme.

strategies with respect to the lifetime of the nodes.

The trade-off between dissemination costs and exe-

cution costs is evaluated in Section V and Section VI

concludes this paper.

2 STATE OF THE ART

The general idea of an incremental code update is to

reuse the image already installed on the node. In nor-

mal updates/patches, large parts of the code base re-

main unchanged compared to the previous program

version. This applies to the application itself, but

more to other parts of the binary ﬁle, such as the op-

erating system, drivers, or libraries.

Figure 1 shows the main steps during the code

update progress, namely delta generation, dissemina-

tion, and reprogramming. Within the ﬁrst step, pre-

processing the image is optional. The idea behind the

optimization techniques during the preprocessing is to

increase the similarity between the two program im-

ages before the actual delta is generated. This can be

done in several ways. Koshy and Pandey (2005) add

slop regions between functions to compensate func-

tion growth. Zephyr (Panta et al., 2009, 2011) and

Hermes (Panta and Bagchi, 2009) use indirection ta-

bles to reduce the changes that occur to pointers due

to function relocation. Hermes uses the indirection ta-

ble to replace the pointers to the indirection table with

the actual function address to minimize the runtime

overhead.

The actual delta generation is done by a differenc-

ing algorithm. This algorithm and its execution strat-

egy on the node are closely related. Therefore, they

are described together. The target of the ﬁrst step is a

delta ﬁle. This ﬁle generally consists of copy and add

instructions. Copies are used to move code to new

positions, while add operations add code blocks that

were not present in the old binary ﬁle. However, the

algorithms themselves can be categorized according

to their execution strategy.

The ﬁrst category of algorithms relies on an out-

of-place execution strategy. They try to ﬁnd a se-

quence of instructions to completely build the new

image, either in a separate location in internal mem-

ory or in external memory, while leaving the origi-

nal image untouched. The ﬁrst representative of this

category was based on Rsync (Tridgell, 1999), an al-

gorithm used to exchange binary ﬁles over a low-

bandwidth link. It slices the binary into blocks and

compares its signatures to ﬁnd unmatched blocks.

This resulted in block-based algorithms (Jeong, 2003;

Jeong and Culler, 2004) for WSNs, where Jeong and

Culler (2004) changed the Rsync algorithm to bet-

ter handle code shifts. Byte-level algorithms (Brown

and Sreenan, 2006; Dong et al., 2011, 2010b,a) make

use of the fact that both image versions are known

to the host PC. They differ in ﬁnding the differences:

RMTD (Brown and Sreenan, 2006) uses dynamic pro-

gramming, DASA (Dong et al., 2011) sufﬁx arrays,

R3diff (Dong et al., 2013) footprints, and Dong et al.

(2010a) Longest Common Subsequences (LCSs).

The second category of algorithms is character-

ized by an in-place execution strategy. Instead of

reconstructing the images, these algorithms focus on

”ﬁxing” changes. Kachman and Balaz (2016b) point

out that for small code changes, many instructions

only reconstruct unchanged parts. Their differencing

algorithm only updates non-matching segments in the

memory. A similar idea, but at the page level, was im-

plemented by Lehniger et al. (2018). Instead of one

delta for the complete image, a delta for each page is

generated. However, the focus of this approach was

not on the differencing algorithm, but how to mini-

mize the overall delta size. This is done by ﬁnding

a good order for the internal ﬂash memory pages in

which they are to be updated.

The remaining part of the general reprogramming

scheme is brieﬂy summarized as it is beyond the

scope of this paper. During the dissemination step,

the delta is split into packets and sent over the air to

the sensor nodes. at the receiving node, all packets are

stored and checked for completeness and correctness.

The Impact of Diverse Execution Strategies on Incremental Code Updates for Wireless Sensor Networks

3 CASE STUDIES

Before discussing the implications of the two cate-

gories of algorithms, it is necessary to better under-

stand the differences between the pursued strategies.

For this reason, this section presents three different

approaches to an incremental code update as case

studies.

The ﬁrst algorithm, R3diff, was proposed by Dong

et al. (2013) and is optimal in terms of the delta size.

It compares two binary ﬁles at the byte-level. The

second algorithm, Delta Generator (DG), proposed by

Kachman and Balaz (2016b), is an in-place strategy

which reconstructs non-matching segments. The third

and last algorithm presented in this section was re-

cently proposed by Lehniger et al. (2018). This algo-

rithm was introduced as an in-place strategy that fol-

lowed a different approach than Kachman and Balaz.

3.1 R3diff: Optimal Reconstruction

R3diff (Dong et al., 2013) is a classic out-of-place al-

gorithm that achieves a minimal delta. The proposed

algorithm calculates an opt

, a minimum delta size

for a given image I for the index i. To get the opti-

mal size of an image, opt

|I|

is calculated. A method

ﬁndk is described to ﬁnd the smallest index k such

that [k, i − 1] is a segment in the old image. For the

calculation of opt

, opt

and opt

are introduced with

opt

= min(opt

, opt

). opt

describes the minimum

delta size if the last instruction was an add, and opt

if it was a copy. The two can be computed as follows:

opt

= min(opt

i−1

, opt

i−1

+ α + 1)

opt

(

LARGE INT EGER, i f k > i − 1

opt

+ β, otherwise

With this exhaustive approach and some additional in-

formation, it is possible to construct a delta ﬁle that is

minimal for a given α and β, where α = size of an add

instruction (without payload) and β = size of a copy

instruction.

As a result, the algorithm has a O(n

) time and

O(n) space complexity, where n is the combined

length of the two images.

D6 5C C2 43 29 3E 4B 16 00 13 4F 14 D2

D6 B1 13 82 42 3E 4B 41 00 13 29 3E 42

0 1 1 1 1 0 0 1 0 0 1 1 1

old

new

XOR

Figure 2: Example for calculating non-matching segments.

3.2 DG: Non-matching Segments

In 2016, Kachman and Balaz (2016b) described their

optimized differencing algorithm DG. By recon-

structing non-matching segments instead of the full

image, they were able to achieve a smaller delta ﬁle

size. These non-matching segments are determined

by a byte-wise XOR of the two images. An exam-

ple is given in Figure 2. Each block of consecutive

1’s, in the result string of the XOR, is a non-matching

segment. For each segment, the instructions are gen-

erated separately. LCSs are used to create copy in-

structions. The remaining bytes are added with add

instructions. copy instructions must be executed be-

forehand to prevent their source data from being over-

written by add instructions. For this, the instructions

are rearranged. The paper also describes optimization

techniques to further reduce the size of the delta.

However, it does not generate an optimal delta.

Looking at the byte strings ”axb” and ”cxd”, a diff

would ﬁnd two non-matching segments, and therefore

two add instructions would be generated. Each of the

add instructions has a size of 6 bytes for a 16-bit ar-

chitecture. On the other hand, a single add instruction

that adds all three bytes has only the size of 8 bytes

and saves 4 bytes. Since the optimization techniques

focus only on already generated instructions and do

not take into account unchanged parts of the image,

this optimization cannot be found.

More important than the differencing algorithm it-

self was the different execution strategy required to

perform the update. Unfortunately, that was not part

of the work. No description has been given for up-

dating the non-matching segments. The fact that ﬂash

memory in general can not be written randomly was

completely ignored.

3.3 Page Updates

To write a single byte (or sequence of bytes) to ﬂash

memory requires several steps. First, a copy of the

block in main memory is needed. Then the operation

can be executed on this copy. After that, the block

in the ﬂash memory must be erased and the modiﬁed

copy can then be written to the ﬂash. This would put a

tremendous burden on the ﬂash memory itself as each

instruction execution of an in-place strategy forces a

read-write cycle of a ﬂash memory block. Of course,

the copy of the block may be cached in main memory

until another memory block needs to be written. In

the best case, each block must be written only once.

The algorithm of Lehniger et al. (2018) addresses

this problem. Instead of updating segments, it updates

a complete page. Pages are described as the smallest

SENSORNETS 2019 - 8th International Conference on Sensor Networks

Table 1: Overview of possible implications of different code update executions strategies.

better ←−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−→ worse

Instruction size

R3diff

next position is

given implicitly

Page-based

extra header, but smaller values

destination for each instruction

Number of

instructions

only non-matching segments

Page-based

only pages

R3diff

always complete image

Delta size

R3diff

ﬁnds optimum for

complete image

only delta for non-matching

segments, but no optimizations

between non-matching segments

Page-based

page update can override

useful data, depends highly on

choosen differencing algorithm

ﬂash memory

usage

Page-based

each block is written once

R3diff

each block is written

once, but external ﬂash

is used for image construction

multiple block writes

may be necessary

Node recovery

possibilities

R3diff

old image is valid until new image has been built

DG, Page-based

in-place execution

might corrupt image

block of memory that can be erased from the ﬂash

memory.

If a page has been changed in the new image ver-

sion, a delta for this page is created. The concrete

delta algorithm is unspeciﬁed. The main problem

with this algorithm is that replacing a page in place

could overwrite much of the data that would other-

wise have been used for copying. Therefore, a heuris-

tic has been proposed to ﬁnd an update order for the

pages minimizing this overwritten data.

4 THE IMPLICATIONS OF THE

DIFFERENT EXECUTION

STRATEGIES

In this section, various implications of the different

execution strategies are discussed in more detail. Ta-

ble 1 gives a brief overview. These implications in-

directly lead to larger delta sizes, shortened lifetimes,

or even node failures.

Encoding Particularities: All featured algorithms

use copy and add instructions. In general, the param-

eters for these instructions are set. Of course, all in-

structions require some sort of opcode. To copy data,

a source address, a destination address, and a length

are needed. An add instruction requires a destination

address and the payload. In addition, the length of the

payload is needed to distinguish the bytes from the

next instruction.

Due to the different execution of the instructions,

the encoding of the instructions differs. R3diff gen-

erates the complete image. In this way, the destina-

tion address is implicitly the end of the currently built

part of the image. This saves a parameter for each

instruction compared to DG. However, because DG

ﬁxes only changed parts of the image, the total num-

ber of instructions is smaller. It can be stated that for

more differences in the two image versions, i.e., more

instructions in the delta, the advantage of DG should

be smaller.

The other part of the delta is the header. The

header contains only information necessary for the

execution strategy to correctly interpret the delta and

is minimally different between R3diff and DG com-

pared to the size of the remainder of the delta ﬁle.

However, if a page-based approach is used, each of

the page delta ﬁles has a header. Having a lot of small

changes, i.e., changing many pages with a very small

number of instructions, adds a lot of overhead to the

headers.

Increased Delta Size Due to Instruction Execution

Dependencies: The biggest difference between an

in-place and an out-of-place execution strategy lies in

the dependency of the instruction execution. While

an out-of-place execution leaves the original image

untouched until all instructions have been executed,

an in-place execution mutates the image with each in-

struction. This must be taken into account when gen-

erating a delta ﬁle. This consideration includes, for

example, executing copy instructions before adding

instructions as described in subsection 3.2. However,

this may not be sufﬁcient as copy instructions them-

selves may depend on each other.

Copy instructions work with two memory areas:

the source area, the part of memory from which the

data is copied, and the destination area, the part of the

memory where the data is copied to. If the destina-

tion area of an instruction i overlaps the source area

The Impact of Diverse Execution Strategies on Incremental Code Updates for Wireless Sensor Networks

of an instruction j, the correct execution depends on

instruction i, that is, instruction i’s execution must not

be scheduled prior to j’s execution because it would

corrupt j’s source area.

While this issue is not covered by Kachman and

Balaz (2016b), it can be easily solved by modeling

these dependencies in a directed graph, where each

copy instruction is represented as a node and edges

represent dependencies. Topological sorting of the

nodes is a valid schedule for the copy instructions.

However, cyclic dependencies must be resolved sep-

arately, i.e., solving the feedback vertex set problem

for the graph that is NP-hard (Karp, 1975).

Another approach might be to associate the in-

structions execution order and the generated instruc-

tions with the certainty of the changes that the other

instructions have already made at the source. This

had to be done by the algorithm described in subsec-

tion 3.3, because the dependencies are even bigger.

Instead of source and destination areas of single in-

structions, complete pages are updated, and each copy

instruction that is used to update a page has source

areas. These dependencies are too complex to han-

dle with the previous approach because of too many

conﬂicts. By shifting the dependency problem into

page order with the described heuristic by Lehniger

et al. (2018) and generating instructions thereafter, no

instruction reordering is necessary; not even copy in-

structions need to be executed before add instructions.

Increased Execution Times and Power Consump-

tion due to Excessive Flash Memory Access:

While the approach of Kachman and Balaz (2016b)

ensures that only changed parts of the binary are en-

coded, it is still necessary to erase and rewrite every

changed block of memory in the ﬂash memory. On

the other hand, if an image is constructed in the ex-

ternal ﬂash memory and written to the internal ﬂash

when the delta is completely decoded, mass erasure

for the full ﬂash memory is possible (if supported).

Using a mass-erase or deleting individual memory

blocks can affect execution time and power consump-

tion. However, the various execution strategies may

otherwise affect the lifetime of the node.

Shortened Flash Memory Lifetime Due to Exces-

sive Write Access: While ﬂash memory reads are

harmless to the ﬂash memory, write operations slowly

decrease its lifetime. This can be more harmful than

energy consumption, as nodes with empty batteries

can be collected and reused, while damaged ﬂash

memory is much harder to replace or compensate for.

An execution strategy that allows for smaller delta

ﬁles and saves energy, even if the various memory

erase mechanics are taken into account, can still result

in a shorter lifetime of the node if it heavily consumes

the ﬂash.

While Lehniger et al. (2018) limiting the erase and

write cycles to 1 per memory block, the algorithm of

Kachman and Balaz (2016b) may require several cy-

cles for individual blocks.

Of course, there are techniques to minimize the

burden on ﬂash memory. For example, it is possible

to reorder the delta instructions to favor consecutive

operations on the same block. In this way, it is possi-

ble to perform multiple operations before the memory

block is written to the ﬂash. However, the reordering

is either limited by the dependencies between the op-

erations or has a negative affect on the size of the delta

ﬁle.

Hardware-level and software-level techniques,

such as caching and paging (Hennessy and Patter-

son, 2011; Panda et al., 2001; Mittal, 2014; Gracioli

et al., 2015), for minimizing memory access are well

researched. Paging algorithms have been developed

to manage the pages of main memory. If there are

no free pages left and a process needs more memory,

a page must be swapped out and written to the hard

drive. This can be adapted to the problem of the delta

execution. Multiple memory blocks can be cached in

main memory, and if the cache is full and a new block

needs to be modiﬁed, a block is written to the ﬂash.

The big advantage of the delta execution compared to

memory access of processes is that the order of oper-

ations is known. Therefore, an optimal strategy can

be found.

However, the main memory in microcontrollers is

small and blocks can consume large parts of it. It

may be impossible to have a cache with more than

one handful of blocks, which limits this method.

Node Recovery Possibilities: Recovery mecha-

nisms during the update process are necessary for

safety and security reasons. During this process, there

are several points for checks to ensure its correctness.

Whenever a check fails, a recovery mechanism be-

comes active, either to repeat the step hoping to com-

plete the update, or to return the node to its pre-update

state.

These mechanisms often include hash calculations

and re-transmissions of certain parts of the delta. For

this purpose, the node must be able to perform these

actions, i.e., the image must still be intact. After parts

of the image have been overwritten, it can no longer

be assumed that routines will function properly until

the update is complete.

While overwriting the image is the ﬁnal step dur-

ing the execution of an out-of-place update, it will

SENSORNETS 2019 - 8th International Conference on Sensor Networks

start earlier during an in-place update. For example,

there is no way

to verify the correctness of the de-

coded image in an in-place update without overwrit-

ing parts of the old image, because the execution of

the ﬁrst instruction already causes alteration. An at-

tacker could use this vulnerability to manipulate an

update so that it does not detect the manipulation be-

fore it can not be recovered. Therefore, security as-

pects should be considered before deciding on an ex-

ecution strategy.

5 TEST METHODOLOGY

When comparing different delta generation algo-

rithms, it is common to use a real application and

apply changes of different sizes to it. This can start

with changing a constant and can end with replacing

the entire application with another. The test cases can

then be ordered by their impact on the image, i.e., the

number of bytes that have changed.

However, the number of changes in the code does

not directly match the changes in the image. Mod-

ern compilers can perform many complex optimiza-

tion techniques that can marginalize changes. For ex-

ample, encapsulating some functionality in a function

may still result in the exact same binary if the com-

piler decides to inline this function.

On the other hand, small changes that affect the

size of a function or even a single base block can

lead to large code shifts and pointer alterations that

go along with it.

These inconsistencies due to the indirection called

Of course, it would be possible to create a copy of the

image and perform the update on the copy. However, this is

essentially a transformation to an out-of-place update.

compiler make it very difﬁcult to create test cases

that consistently scale in one or more desired metrics.

This could be the already mentioned byte change,

but also metrics like the image size or the number of

shifts.

To control all these metrics, this paper uses im-

ages generated in addition to images based on real

applications. The images are generated as a random

byte sequence based on different hardware platforms

that differ in ﬂash size and even in address space size.

Based on an generated or compiled image, code shifts

and mutations of different sizes can be applied.

Of course, all semantics and dependencies be-

tween the bytes for generated images and changes are

lost. Instead of a shifted function only a few bytes are

shifted. Instead of a changing constant or a pointer,

only randomly selected bytes are altered. A shift does

not mean that pointers are altered elsewhere, as is the

case with a function shift. However, the algorithms

studied do not consider any of this information. It

is still possible to get examples that are impossible

with real world applications, such as large code shifts

without alterations. However, it is still interesting to

see how the algorithms react to those cases and scale

to ﬁnd advantages and disadvantages.

Another advantage is the ability to create many

similar image pairs for testing to eliminate the possi-

bility that any random structure will undesirably favor

an algorithm.

6 RESULTS

For the tests, we used randomly generated images

ranging in size from 1kB up to 64kB (up to 128kB

for time measurements). We have made changes to

Figure 3: Delta ﬁle sizes in bytes for different percentages of shifted code and 2% mutations.

The Impact of Diverse Execution Strategies on Incremental Code Updates for Wireless Sensor Networks

Figure 4: Distribution of copy and add instructions for different algorithm combinations and code shifts.

these images as described in the previous section. The

applied changes refer to the size of the image, begin-

ning with no code shifts, up to 90% code shifts. For

random mutations, 2% were used because code shifts

already introduce new code when the remaining areas

are ﬁlled. For charts, data from the 16kB images was

used. However, the results for other image sizes are

similar.

The algorithms of section 3 have been imple-

mented. Since the page-based approach does not de-

ﬁne a concrete differencing algorithm, both R3diff

and DG were used. In addition, three different page

sizes are examined: 128 bytes (e.g., ATmega32U4

microcontroller), 256 bytes, and 512 bytes (e.g.,

MSP430F5438A microcontroller).

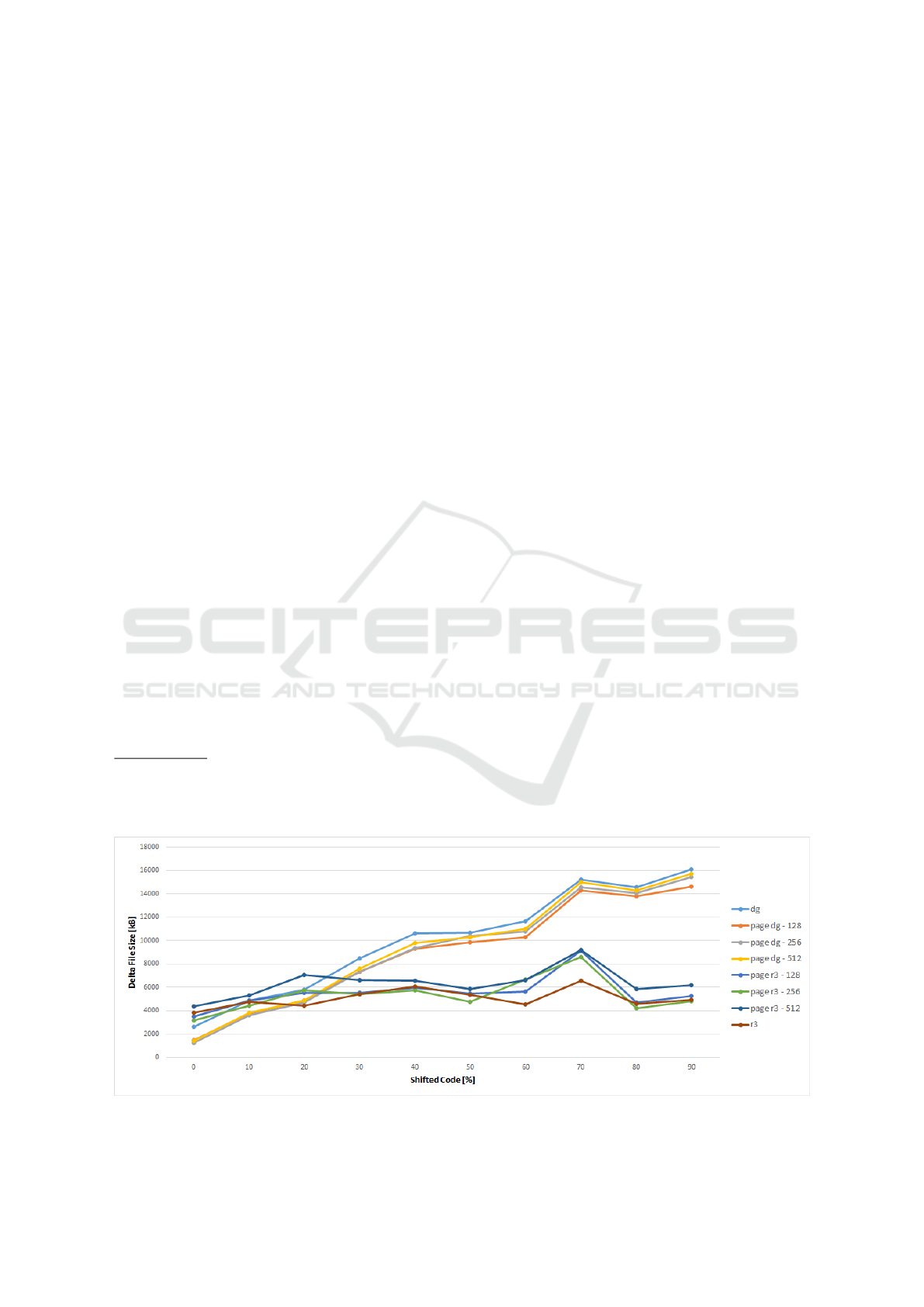

Figure 3 shows the different delta sizes in bytes

in perspective to an increasing code shift rate. First,

it can be stated that the differencing algorithms itself

performs relatively the same, regardless of whether

the page-based approach has been integrated or not,

or how large the page size is. Second, while DG

performs very well when small changes occur, the

delta ﬁles become signiﬁcantly larger as more data is

shifted compared to R3diff.

Although the effect of page size, as mentioned

earlier, is low, there are differences. Especially DG

can be improved because of the better encoding. For

R3diff, the results for the different page sizes vary

more, but 256 bytes give the best results. This is

because it is possible to encode offsets and lengths

with only one byte

. While this also applies to 128-

byte pages, the header overhead is larger, resulting

in worse delta ﬁles. For larger microcontroller ad-

dress spaces, three or four bytes are needed to encode

an offset or a length. Then the beneﬁts will be even

greater. Also DG is more affected because its instruc-

tion has an additional parameter that beneﬁts from the

better encoding.

The reason why DG worsens with larger deltas

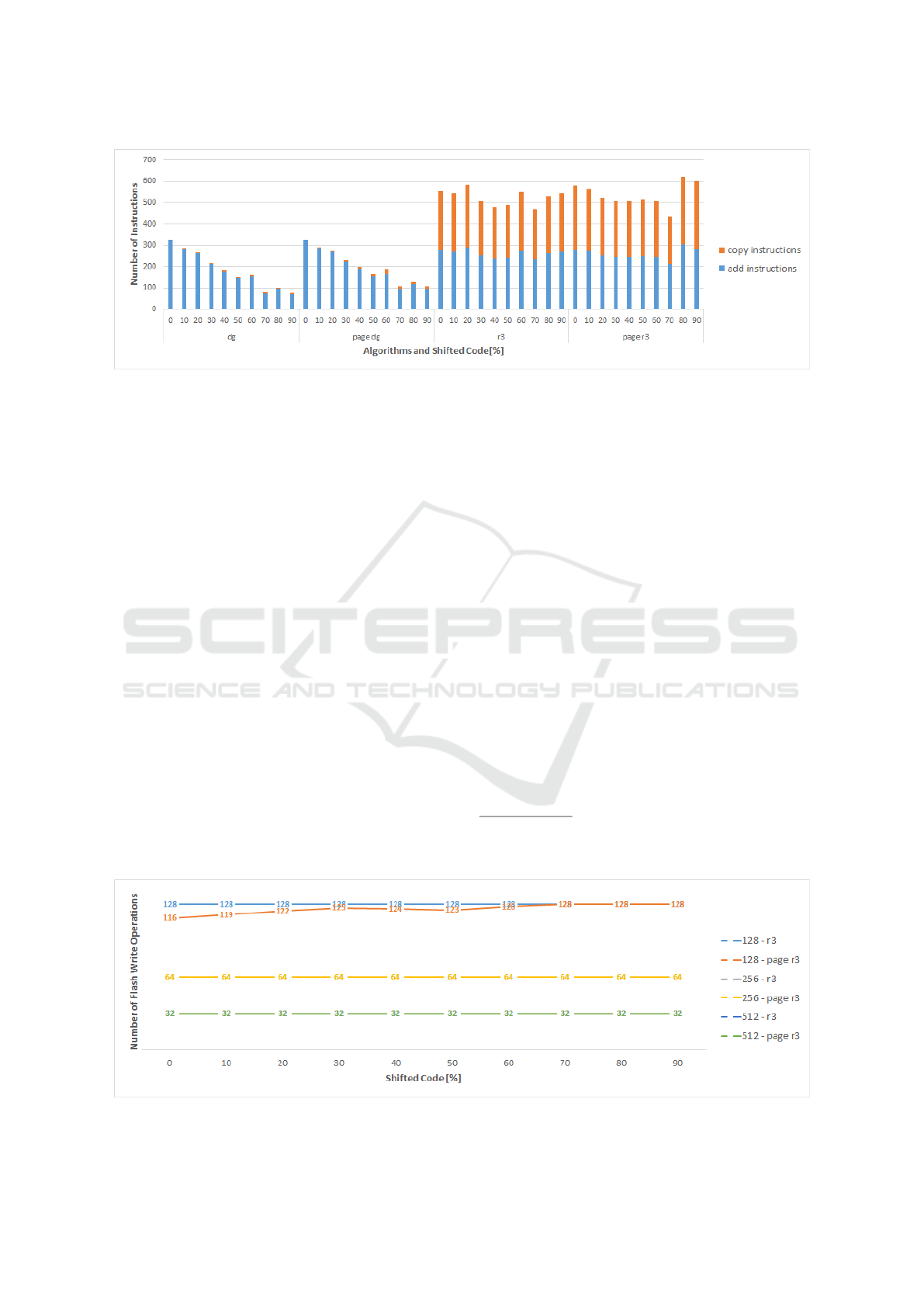

can be seen in Figure 4. This ﬁgure shows the number

of add and copy instructions used in the delta ﬁle. In

general, DG uses far fewer instructions, as this was

the main intent for the development of this algorithm.

More noteworthy is the decreasing number of add in-

structions with increasing code shifts for DG and the

overall low number of copy instructions. Combined

Lengths of 256 can be encoded with 0 because a copy

of 0 bytes is meaningless.

Figure 5: Page writes fro R3diff with and without page approach.

SENSORNETS 2019 - 8th International Conference on Sensor Networks

Figure 6: Page writes for DG with and without page approach.

with the fact that the DG delta ﬁle gets very large,

it can be concluded that DG is unable to optimize

for many small changes. Instead, it only generates

a bunch of some-byte add instructions for each non-

matching segment. With increasing code shifts, these

non-matching segments grow together and the total

number of add instructions decreases, and the algo-

rithm can also use a few copies. However, the num-

ber of bytes added with one add instruction increases

dramatically. In the end, almost the entire image is

rebuilt with add instructions.

Looking at page write operations for the internal

ﬂash, there are almost no differences for R3diff (see

Figure 5). With R3diff, each page is written exactly

once when the reconstructed image is ﬂashed. In its

paged counterpart, only the affected pages are written.

Due to the page size and the changes in the images

due to the 2% mutations, all pages are affected for

page sizes of 256 and 512. Only for the small 128

byte pages some pages remain unchanged.

For DG, an instruction execution caching mecha-

nism has been implemented. One page can be kept in

main memory. If successive instructions write data to

the same page, this will only be done in main mem-

ory. Only when the cache needs to be ﬂushed, a write

operation is performed in ﬂash memory. If no cache

is used, each instruction would result in at least one

page write.

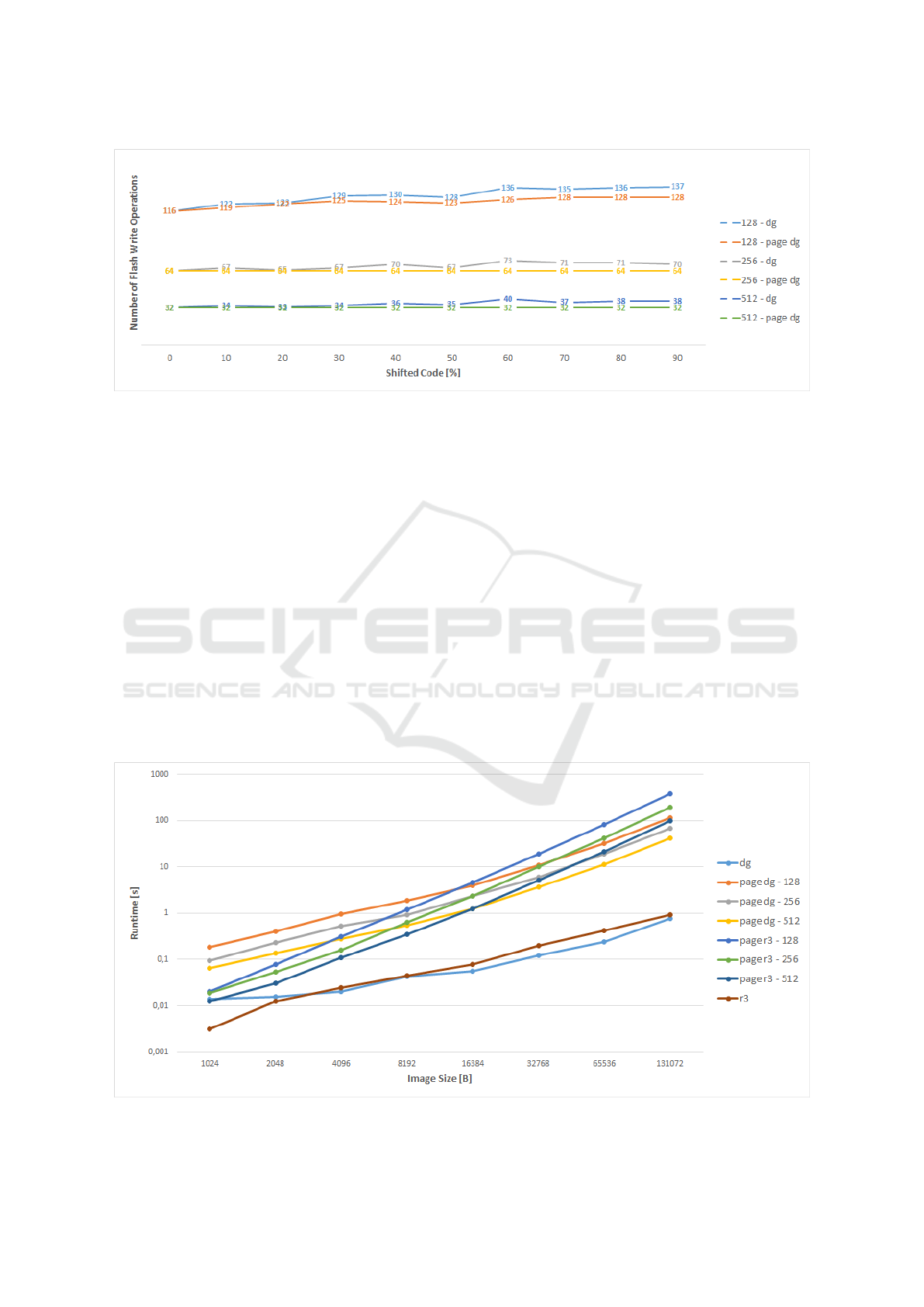

Figure 6 shows the results for these cached op-

erations. Some pages need to be written more than

once because of dependencies, although the impact

of these dependencies is far less than expected. In

any case, more page writes are required by DG than

by R3diff. It should be noted that the 2% mutations

Figure 7: Algorithm runtimes for different image sizes in seconds.

The Impact of Diverse Execution Strategies on Incremental Code Updates for Wireless Sensor Networks

that are randomly distributed are not suitable for DG

because they affect almost all pages and negate the

beneﬁts that DG has. With increasing code shifts, de-

pendencies on the instructions cause the instructions

to reorder, increasing page writes.

Despite all the advantages and disadvantages of

the algorithms, time can be a limiting factor. Figure 7

shows the average runtime of all algorithms for differ-

ent image sizes. Both scales are logarithmic. While

the basic algorithms itself scale with a similar com-

plexity (O(n

) for non-paged and O(n

) for paged al-

gorithms), the page algorithms are one to three orders

of magnitude slower. This is because the algorithms

have to be executed for each page, but the input size is

only halved. Larger images have more pages, which

increases the distance during runtime. A positive fact

is that the delta calculation for each page can be done

independently after the page order has been calculated

leaving much potential for parallelization.

7 CONCLUSION

This paper studied the implications of diverse execu-

tion strategies for incremental code updates. These

range from larger delta ﬁles through shortened life-

times to node failures. While the original idea of in-

cremental code updates is to conserve energy by prop-

agating only a delta ﬁle generated by differencing al-

gorithms, the effects on the sensor node’s ﬂash mem-

ory are also relevant.

To study the impact of these diverse execution

strategies on incremental code updates, the ﬂash

memory accesses were included in the consideration,

in addition to the usual delta size.

First, it could be observed that the differencing

algorithms themselves behave relatively the same re-

gardless of whether the page-based approach was in-

tegrated or not, or how big the page size is. Although

the effect of the page size is low, there are differences

between the different execution strategies, for exam-

ple, through better encoding of offsets and lengths.

With larger address spaces of microcontrollers, the

differences may be even greater.

After all, the runtime of an algorithm is also cru-

cial and can be a limiting factor. Page-based algo-

rithms are one to three orders of magnitude slower,

but it should be mentioned that the delta computation

for each page could be parallelized after the page up-

date order is determined, which could speed up the

runtime.

In conclusion, while a reduced delta size can min-

imize transmission costs, reducing ﬂash access may

also increase the lifetime of sensor nodes by not un-

necessarily wearing the ﬂash memory. And the code

update execution strategy is critical. In the future,

with growing complexity for embedded systems, al-

gorithms must be able to handle larger images. Due to

the recent trends for general-purpose processors with

stagnating clock rates and increasing number of cores,

algorithms that can be parallelized are highly beneﬁ-

cial for those future applications.

ACKNOWLEDGEMENTS

This work was supported by the Federal Ministry

of Education and Research (BMBF) under research

grant number 03IPT601X.

REFERENCES

Brown, S. and Sreenan, C. (2006). Updating software in

wireless sensor networks: A survey. Technical report,

Dept. of Computer Science, National Univ. of Ireland,

Maynooth.

Dong, W., Chen, C., Liu, X., Bu, J., and Gao, Y. (2011). A

lightweight and density-aware reprogramming proto-

col for wireless sensor networks. IEEE Transactions

on Mobile Computing, 10(10):1403–1415.

Dong, W., Liu, Y., Chen, C., Bu, J., and Huang, C. (2010a).

R2: Incremental reprogramming using relocatable

code in networked embedded systems. In IEEE IN-

FOCOM 2010. IEEE.

Dong, W., Liu, Y., Wu, X., Gu, L., and Chen, C. (2010b).

Elon: enabling efﬁcient and long-term reprogram-

ming for wireless sensor networks. ACM SIGMET-

RICS Performance Evaluation Review, 38(1):49–60.

Dong, W., Mo, B., Huang, C., Liu, Y., and Chen, C. (2013).

R3: Optimizing relocatable code for efﬁcient repro-

gramming in networked embedded systems. In INFO-

COM, 2013 Proceedings IEEE, pages 315–319. IEEE.

Gracioli, G., Alhammad, A., Mancuso, R., Fr

ohlich, A. A.,

and Pellizzoni, R. (2015). A survey on cache manage-

ment mechanisms for real-time embedded systems.

ACM Computing Surveys (CSUR), 48(2):32.

Hennessy, J. L. and Patterson, D. A. (2011). Computer ar-

chitecture: a quantitative approach. Elsevier.

Jeong, J. (2003). Node-level representation and system sup-

port for network programming.

Jeong, J. and Culler, D. (2004). Incremental network pro-

gramming for wireless sensors. In IEEE Communica-

tions Society Conference on Sensor and Ad Hoc Com-

munications and Networks (SECON), pages 25–33.

Kachman, O. and Balaz, M. (2016a). Effective over-the-

air reprogramming for low-power devices in cyber-

physical systems. In Doctoral Conference on Com-

puting, Electrical and Industrial Systems, pages 284–

292. Springer.

SENSORNETS 2019 - 8th International Conference on Sensor Networks

Kachman, O. and Balaz, M. (2016b). Optimized differenc-

ing algorithm for ﬁrmware updates of low-power de-

vices. In 19th IEEE International Symposium on De-

sign and Diagnostics of Electronic Circuits Systems

(DDECS), pages 1–4. IEEE.

Karp, R. M. (1975). On the computational complexity of

combinatorial problems. Networks, 5(1):45–68.

Koshy, J. and Pandey, R. (2005). Remote incremental link-

ing for energy-efﬁcient reprogramming of sensor net-

works. In Proceeedings of the Second European Work-

shop on Wireless Sensor Networks, pages 354–365.

Lehniger, K., Weidling, S., and Sch

olzel, M. (2018).

Heuristic for page-based incremental reprogramming

of wireless sensor nodes. In 2018 IEEE 21st Interna-

tional Symposium on Design and Diagnostics of Elec-

tronic Circuits & Systems (DDECS). IEEE.

Mittal, S. (2014). A survey of techniques for improving en-

ergy efﬁciency in embedded computing systems. In-

ternational Journal of Computer Aided Engineering

and Technology, 6(4):440–459.

Panda, P. R., Catthoor, F., Dutt, N. D., Danckaert, K.,

Brockmeyer, E., Kulkarni, C., Vandercappelle, A.,

and Kjeldsberg, P. G. (2001). Data and memory op-

timization techniques for embedded systems. ACM

Transactions on Design Automation of Electronic Sys-

tems (TODAES), 6(2):149–206.

Panta, R. K. and Bagchi, S. (2009). Hermes: Fast and en-

ergy efﬁcient incremental code updates for wireless

sensor networks. In IEEE INFOCOM 2009, pages

639–647. IEEE.

Panta, R. K., Bagchi, S., and Midkiff, S. P. (2009). Zephyr:

Efﬁcient incremental reprogramming of sensor nodes

using function call indirections and difference compu-

tation. In Proc. of USENIX Annual Technical Confer-

ence.

Panta, R. K., Bagchi, S., and Midkiff, S. P. (2011). Efﬁcient

incremental code update for sensor networks. ACM

Trans. Sen. Netw., 7(4):30:1–30:32.

Tridgell, A. (1999). Efﬁcient algorithms for sorting and

synchronization. PhD thesis, Australian National Uni-

versity Canberra.

The Impact of Diverse Execution Strategies on Incremental Code Updates for Wireless Sensor Networks
