Detecting and Tracking Surgical Tools for Recognizing Phases of the

Awake Brain Tumor Removal Surgery

Hiroki Fujie

, Keiju Hirata

, Takahiro Horigome

, Hiroshi Nagahashi

, Jun Ohya

, Manabu Tamura

Ken Masamune

and Yoshihiro Muragaki

Department of Modern Mechanical Engineering, Waseda University, 3-4-1, Ookubo, Shinjuku-ku, Tokyo, Japan

Department of Mathematical and Physical Sciences, Japan Women’s University, 2-8-1, Mejirodai,

Bunkyo-ku, Tokyo, Japan

Faculty of Advanced Technology and Surgery, Tokyo Women’s Medical University, 8-1, kawada-cho,

Shinjuku-ku, Tokyo, Japan

Keywords: Computer Vision, Multiple Object Tracking, Detection, Data Association, Convolutional Neural Network,

Data Augmentation, Awake Brain Tumor Removal Surgery.

Abstract: In order to realize automatic recognition of surgical processes in surgical brain tumor removal using

microscopic camera, we propose a method of detecting and tracking surgical tools by video analysis. The

proposed method consists of a detection part and tracking part. In the detection part, object detection is

performed for each frame of surgery video, and the category and bounding box are acquired frame by frame.

The convolution layer strengthens the robustness using data augmentation (central cropping and random

erasing). The tracking part uses SORT, which predicts and updates the acquired bounding box corrected by

using Kalman Filter; next, the object ID is assigned to each corrected bounding box using the Hungarian

algorithm. The accuracy of our proposed method is very high as follows. As a result of experiments on spatial

detection. the mean average precision is 90.58%. the mean accuracy of frame label detection is 96.58%.

These results are very promising for surgical phase recognition.

1 INTRODUCTION

In modern operating rooms, the number of sensors

such as cameras has increased and the state of the art

medical instrument and equipment have been

introduced, which causes the advancement of

surgeries. The achievement of a system that

recognizes the situation in the operating room is

desired. Operation room monitoring system, staff

scheduling management etc are required as functions

of the surgical situation recognition system. As

another function, it is important to recognize surgical

phases such as what kind of actions and/or tasks the

doctors currently perform. This is needed for making

surgical work efficient. Many studies have been

conducted to recognize surgical phases based on

image information that can be obtained from cameras

used for the surgery.

The MICCAI 2016 Modeling and Monitoring of

Computer Assisted Interventions Workflow

Challenge in conjunction with the MICCAI

conference held a contest for surgical phase

recognition from videos acquired by a laparoscopic

camera in cholecystectomy surgery. This community

has started thinking the importance of automated

surgical phase recognition.

Various attempts have been made to recognize the

surgical workflows or phases by using various

information such as the signal of the binary

measurement device (Padoy et al., 2012), the RFID

tag (Bardram et al., 2011), the data acquired via

sensors of the tool tracking device (Holden et al.,

2014) and the survey robot (Lin et al., 2005).

However, since the amount of information obtained

from the surgery through the above-mentioned

sensors is huge, collecting these signals requires

almost manual annotation and installation of

additional equipment, which tends to increase in

unnecessary workloads.

Therefore, recent studies consider to identify

workflows based on video data collected during daily

surgical operations. However, it is very difficult to

automatically recognize the surgical phase from

video scene only. Therefore, in early studies, research

190

Fujie, H., Hirata, K., Horigome, T., Nagahashi, H., Ohya, J., Tamura, M., Masamune, K. and Muragaki, Y.

Detecting and Tracking Surgical Tools for Recognizing Phases of the Awake Brain Tumor Removal Surgery.

DOI: 10.5220/0007385701900199

In Proceedings of the 8th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2019), pages 190-199

ISBN: 978-989-758-351-3

to extract visual features manually from images was

conducted (Blum et al, 2010) (Lalys et al, 2012)

(Klank et al, 2008). Recently, with the development

of convolutional neural network (CNN), for various

image recognition tasks CNN is used. Studies using

CNN have also been proposed in the field of surgical

phase recognition (Twinanda et al, 2017). Many

studies based on CNN(Raju et al, 2016) (Sahu et al,

2016) use the data set of M2CAI tool to recognize

equipment and process at the frame level.

On the other hand, the surgical phase is a kind of

continuous function on time domain. Therefore, it is

essential to utilize temporal information for accurate

phase recognition so as to effectively extract

continuous dynamics. Specifically, surgical phase

recognition was achieved by Twinanda et al. They

constructed a 9-layer CNN for visual features and

designed a 2-level hierarchical HMM for modelling

temporal information (Twinanda et al, 2017).

Also, as a result of the development of a long-

short term memory (LSTM) network, it is possible to

model nonlinear dependence of long - range temporal

dependence. SV-RCNet (Jin et al, 2018), one of the

cutting-edge research on phase recognition of

surgical operations using LSTM, proposed to learn

both spatial (visual) information and temporal

information.

This paper aims at achieving automatic analysis

of surgical phases using intraoperative microscopic

video images as one of the operator supporting

functions of the project of the intelligent operating

room (SCOT) (Okamoto et al, 2017) for the awake

brain tumor removal surgery. This surgery removes

brain tumor, preserving maximal brain functions; for

this, the doctors communicate with awaking patients

during the surgery. Difficulties in this surgery are

caused by differences in individual patients’ brains.

As a result, the surgical phases becomes complicated;

therefore, only experienced doctors can perform this

surgery. It is difficult for surgical staffs other than the

experienced doctor to confirm the surgical situations

and predict the next surgical step; consequently, the

flow of the operation is stagnant. In order to solve

the above problems, phase recognition is also

required in surgical removal of waking brain tumor.

However, in brain tumor removal surgery, it is

difficult to recognize phases by frame-level

annotation like the conventional method. This is

because brain tumor removal surgery uses multiple

tools for each phase and the same tool, are also used

in different phases; namely, the phases and the tools

used do not have a one-to-one relationship.

Therefore, in the brain tumor removal surgery, in

order to recognize the phase, it is important to focus

on detailed information of the tool: specifically,

temporal motion information of the tool, the pose of

the tool, the type of the tool, and the like.

TSSD (Chen et al., 2018) is an object detection

method using spatial information and time series

information. However, it is not practical to perform

learning using both spatial and temporal information

like Chen et al.’s method, because an enormous

human annotation work is necessary for recognizing

phases of surgical operations. Therefore, in order to

use temporal information, this paper utilizes a fast

conventional tracking method and deep learning

method, but not LSTM.

2 DATA SET

None of data set for recognizing surgical tools of

awake brain tumor removal surgery has been

disclosed. Hence, We gave spatial annotation

(bounding box) to surgical tools in frames of videos

of actual awake brain tumor removal surgery

performed at Tokyo Women's Medical University

Hospital, and constructed a new data set that enables

higher level phase recognition.

Our dataset consists of 8 brain tumor removal

surgeries’ videos recorded at 30 fps. We pick up the

frames every 15 fps, randomly select 11175 frames

and labeled the 11175 frames with spatial bounding

boxes as tool candidates. The 11175 frames consist of

7755, 2270, 1150 frames for training, validation, and

test, respectively. The surgical tools included in the

data set are Bipolar, Electrode, Scissors, Suction tube,

Forceps, Clippers, which are mainly used for brain

tumor removal surgery. The number of annotated

instances per tool category is shown in Table 1.

Figure 1 shows an example of each tool in the data set.

The frequency of using surgical tools greatly varies

depending on tumor location, grade and so on.

Therefore, when learning is performed using n cross

validation method for each patient, bias could occur

in the current data set; therefore n closs validation is

not used in this paper.

Table 1: Number of annotated frames for each tool.

Tool

Number of annotated instance

Bipolar

5789

Electrode

2226

Scissors

1533

Suction tube

10207

Forceps

945

Clippers

896

Total

21596

Number of frame

11175

Detecting and Tracking Surgical Tools for Recognizing Phases of the Awake Brain Tumor Removal Surgery

191

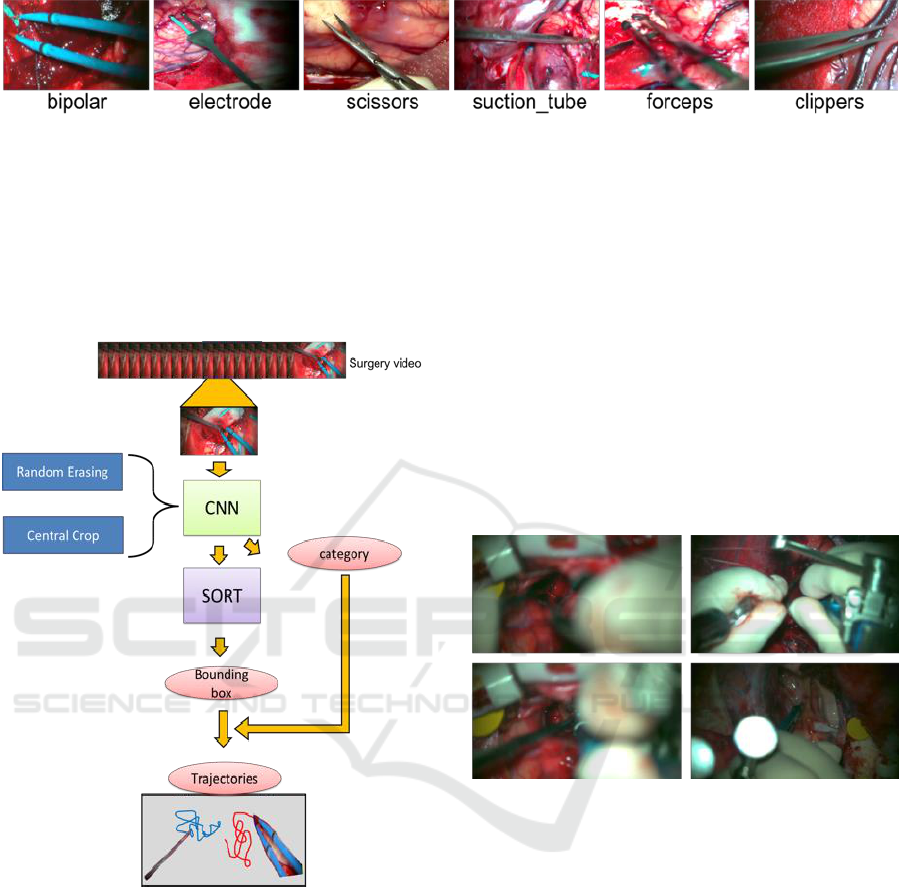

Figure 1: List of six surgical tools used in brain tumor removal surgery.

3 PROPOSED METHOD

The proposed method is composed of two parts: a

detection part and a tracking part. Figure 2 shows an

outline of the proposed method of this research.

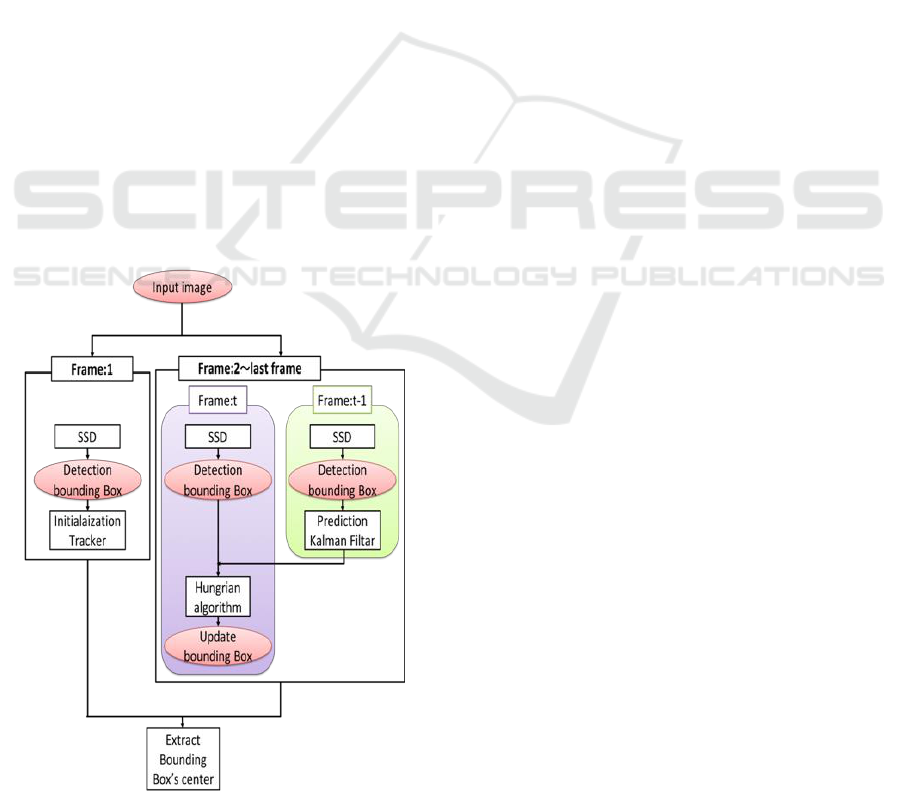

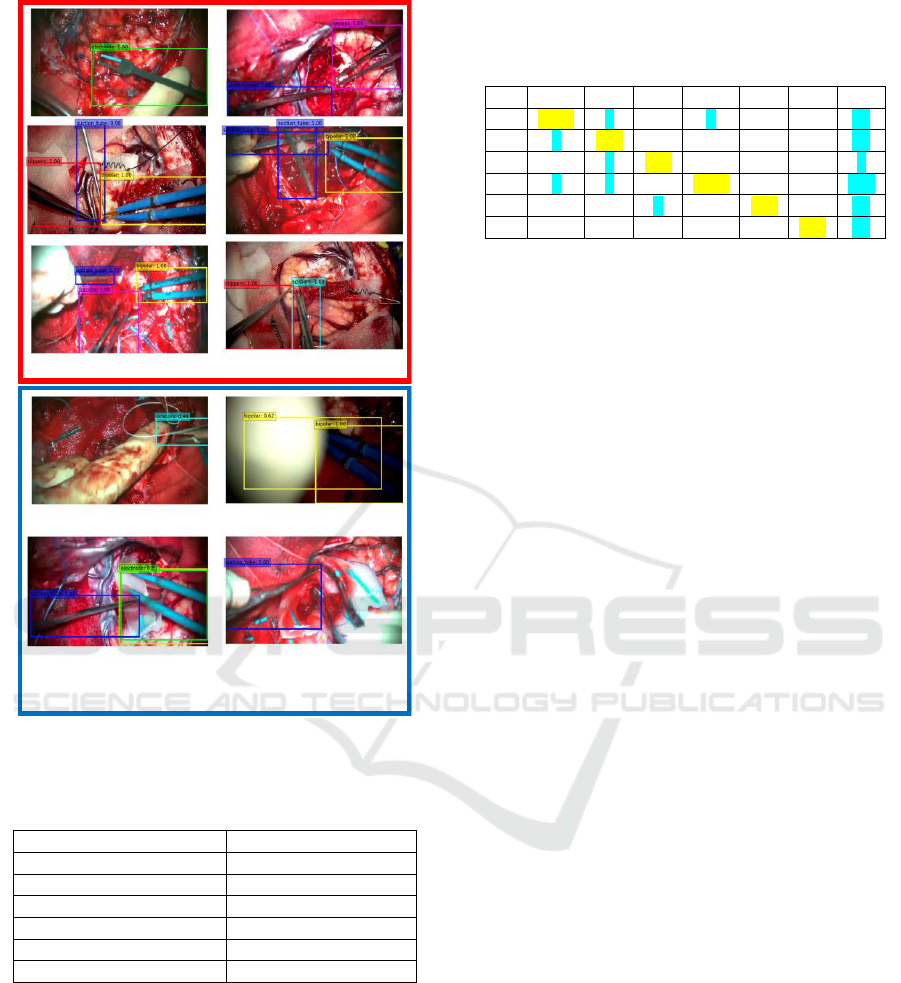

Figure 2: Diagram of the proposed method.

3.1 Detection

Firstly extract the motion of a surgical tool, we detect

and classify the surgical tool. We can obtain a

candidate bounding box and its corresponding

category of the surgical tool as the output of applying

SSD (Liu et al, 2016) to a frame of the surgical video.

3.1.1 Data Augmentation

Here, before learning the data set, we execute data

augmentation to improve the robustness against

actual environmental changes that could occur at

surgical sites. We conduct central cropping and

random erasing (Zhong et al, 2017), and reinforced

our original data set. In addition to the data

augmentation originally provided by SSD, and

reinforced our data set.

3.1.2 Random Erasing

In actual surgery videos, there are frames in which

occlusions occur, and they make it difficult to detect

surgical tools accurately (Figure 3). The main reason

for the occurrence of occlusions is that the surgeon’s

hands appear between the microscope and the

surgical tool, or multiple tools overlap, etc.

Figure 3: Frame in which occlusion occurs.

In order to solve such a problem, we use random

erasing to improve robustness against the occlusions

in the data set and prevent over-fitting. Object

detection is important in this research. It is supposed

to detect instances of semantic objects of a particular

class in an image. Therefore, we use object-aware

random erasing. The width and height of image be W

× H (pixels) respectively. Thus, the region of the

image is S = W × H (pixels). The area of the erased

area is randomly initialized to 



, where 



 is in

the range between the minimum sl and maximum sh.

The aspect ratio of the erased rectangular area is

randomly initialized to re between r1 and r2.

Parameters of the erasing area are sl=0.05, sh=0.1,

r1=3, r2 = 1/r1.

Here, let the coordinates bounding box of the top

left and the bottom right of the ground truth be (xmin,

ymin) and (xmax, ymax), respectively. Similarly, the

ICPRAM 2019 - 8th International Conference on Pattern Recognition Applications and Methods

192

coordinates of the erased area are expressed as (xe,

ye) (xe_max, ye_max). In this method, an erased area

is generated so as to satisfy the condition expressed

by Eqs. (1) and (2), rather than creating an erased area

in the bounding box of the ground truth.

xmin<xe_max  xe < xmax

(1)

ymin<ye_max  ye < ymax

(2)

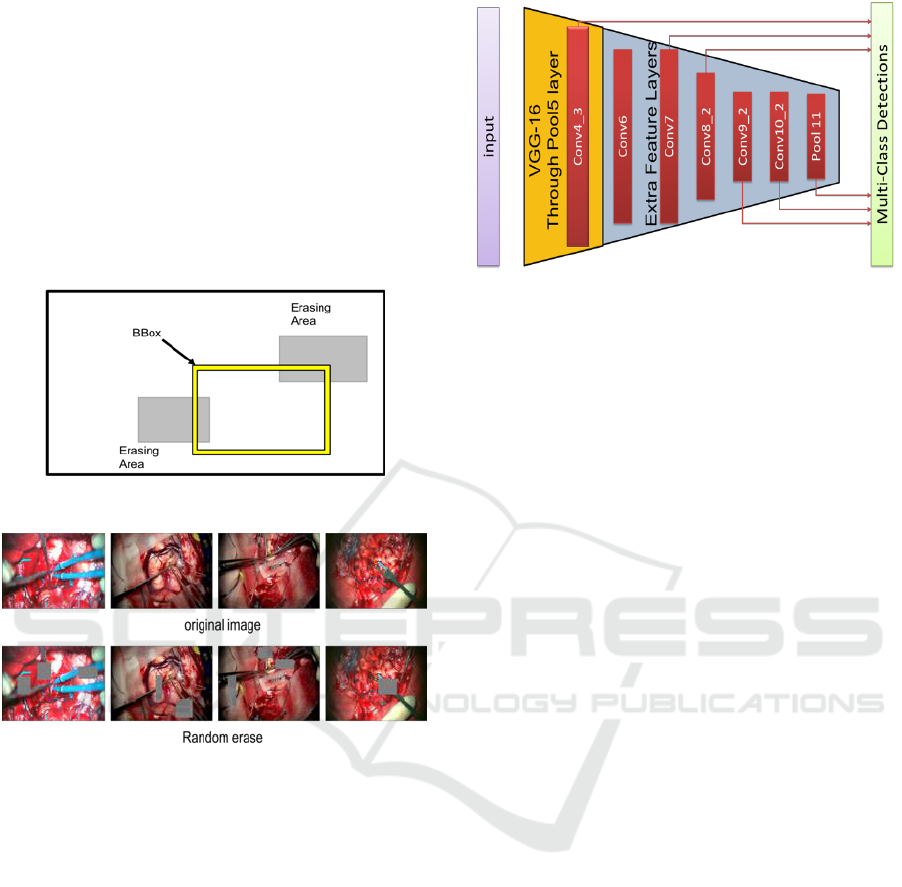

A generation model diagram of the generated erased

area is shown in Figure 4, and an actual image is

shown in Figure 5.

Figure 4: Model of random erasing generation.

Figure 5: Example of applying random erasing to images.

The upper row is the original image which are cut out from

the surgical video. The lower row is an image in which

erased areas are generated for each original image.

3.1.3 Training

We use SSD for spatial detection of surgical tools.

SSD is one of the-state-of-arts of object detection

network. For the base network of SSD, we use VGG-

16 convolutional neural network (Simonyan et al,

2014), which extracts powerful visual features. The

base VGG-16 uses the model pre-trained and

initialized by ILSVRC CLS-LOC dataset

(Russakovsky et al, 2015), and we fine-tune the

model by Dataset that we created. The architecture of

SSD network is shown in Figure 6.

We finetune-tune the VGG-16 network and

optimize the performance of the model using

probabilistic gradient descent with initial learning

rates of   



, 0.9 momentum, 0.0005 weight

decoy.

Figure 6: The architecture of SSD network.

3.2 Tracking

We track the surgical tools to detect how they are

moving. In this paper, we do not use a method that

requires large amounts of sequential time series data

such as LSTM. The reason is that it takes a huge

amount of human labor to build and self-tune our own

data set for a network that combines a region proposal

network such as SSD and LSTM.

Therefore, we use Alex's SORT (Bewley et al,

2016) which combines the famous Kalman Filter

(Kalman et al, 1960) and Hungarian algorithm (Kuhn,

1955) as one of the cutting-edge tracking methods for

real-time tracking.

3.2.1 Kalman Filter Estimation Model

The Kalman filter is one of the most stable filters that

can be estimated by predicting and updating the state

of the tracking object (Tracker). Here, the Kalman

filter is used to propagate the identity of the detected

bounding box to the next frame.

Since the predicted state of the current frame

is compared with that of the next frame, a better result

is obtained from the position of the detected object.

The displacement between each bounding box in

frames is approximated by a linear constant velocity

model, which is not related to the motion of other

objects and cameras. The state of each target is

modeled as follows.

 



      





(3)

where x and y are the center coordinates of each

bounding box, and scales s and r represent the scale

(area) and aspect ratio of the bounding box

respectively.

Detecting and Tracking Surgical Tools for Recognizing Phases of the Awake Brain Tumor Removal Surgery

193

3.2.2 Assign Detection and Tracker

In tracking multiple objects, the data assignment

process is needed. In our tracking system we use

Hungarian algorithm for data association.

Each detection is estimated by predicting a new

position by a Kalman filter (tracker). It is calculated

using the IOU matrix between the bounding box of

the tracker and the bounding box detected in the

current frame.

The minimum IOU (Intersection over union) is set

as the threshold value in order to reject the assignment

in which the overlap of each bounding box is less than





. In this paper, 



= 0.3.

3.2.3 Tracking System

Figure 7 shows a detailed model of the tracking

system.

In order to do the tracking, the algorithm

initializes the tracker using only detected position

information in the first frame of the video. Next, from

the 2nd to final frames, a Kalman filter is applied to

the tracker of the (t-1)-th frame, to predict the t-th

frame, and the prediction of the t-th tracker is

matched with the t-th detection of the Hungarian

algorithm. By using the Hungarian algorithm, the

processing of the bounding box is classified into three

patterns shown below according to the relationship

between tracker and detection.

Figure 7: Our tracking system diagram.

(ⅰ) Matched

In this case, Both results from the tracker and the

detection match. The Kalman filter correction process

is performed to help the system model work better in

the next sequence.

(ⅱ) Unmatched detection

There is the tracker, but there is no corresponding

detection. In this case the tracker is removed. This is

mainly used when the object leaves the image and

deletes the ID unique to the object.

(ⅲ) Unmatched tracker

The detection exists, and there is no corresponding

tracker. In this case we create a tracker that

corresponds to the detection. This is mainly used

when an object enters the image and creates a unique

ID for the object.

By combining (ⅱ) and (ⅲ), in the tracking system,

the tracker is not deleted immediately after the tracker

is hidden, the tracker is deleted only when no tool is

detected in two consecutive frames, and the object ID

is assigned to the corresponding tracker. By

recognizing the object ID, it is considered that the

individual tool can be accurately identified and the

tracking can be performed more accurately.

4 EXPERIMENTS AND RESULTS

In this chapter, we evaluate the method of tracking

surgical tools using our data set we created. In the

detection section (Sec. 4.1) we quantitatively evaluate

the validity of our data augmentation, the task of

spatial detection and frame level presence detection

of surgical tools. In the tracking section (Sec. 4.2), we

evaluate the trajectory of each tool qualitatively.

Note that we have received approval by the ethics

review committee of Tokyo Women's Medical

University (1955－R2).

4.1 Detection

We use SSD for object detection. First of all, in order

to confirm the validity of data augmentation, all

layers of VGG-16 are fine-tuned for repeating 250 K

times with 8 mini batch sizes. The learning rate is

initialized to 



, and it decreases by 10 times at

100K, 150K, 200K iterations. Total training time was

approximately 8 days on an NVIDIA GeForce

1080Ti. Finally, the parameters of the model in this

system were learned 150,000 times with batch size

ICPRAM 2019 - 8th International Conference on Pattern Recognition Applications and Methods

194

24. The learning rate is initialized to   



, and it

decreases by 10 times at 100K iterations. Total

training time was approximately 10 days on an

NVIDIA GeForce 1080Ti.

4.1.1 Effectiveness of Data Augmentation

We verified the effectiveness of our data

augmentation method. The learning conditions are as

follows. ①Default: the data set described in Section

2. ②CCrop: central cropped data set. ③RE: random

erasing data set. Table 2 summarizes the conditions.

Table 2: Number of annotated frames for each tool.

condition

Train frames

Test frames

Default

7755

1150

CCrop

23418

3296

31020

457

󰈆 Default

First, we compare the results of testing under each

condition using default test data of our data set. Table

3 summarizes the results.

Table 3: vs Default Test each condition.

Tool

default

CCrop

Bipolar

89.78

90.72

Electrode

99.38

94.81

99.66

Scissors

97.77

96.61

96.41

Suction tube

89.47

89.22

90.35

Forceps

86.78

85.59

90.11

Clippers

95.58

94.00

90.67

Mean AP

93.02

91.67

92.99

From Table 3, the mean AP (Average Precision)

for default is the most accurate. In case of central crop,

the average precision of all tools decreased. On the

other hand, random erasing reduced the mean AP by

0.02%, but this reduction is ignorable. In addition, for

all tools other than scissors and clippers, it can be seen

that the average precision of all have improved.

󰈇 Central Crop

Next, we verify using the dataset to which the data

enlarged and cutted off by central crop are added. The

results are shown in Table 4.

As shown in Table 4, the accuracy is improved in

all the tools in the test data for CCrop, although the

improvement is very small. Therefore, performing the

central crop tends to be effective against the

environmental change due to the magnification

change of the microscopic image.

Table 4: vs Central Crop Test Data.

Tool

default

CCrop

Bipolar

90.60

90.64

Electrode

89.54

90.02

Scissors

90.54

90.72

Suction tube

89.49

90.13

Forceps

89.76

90.07

Clippers

89.95

90.30

Mean AP

89.98

90.32

On the other hand, as the reason why the

improvement in accuracy was insignificant is that the

ratio of cutting to the original image is [0.8, 0.9] this

time; it is considered that the image does not change

significantly and the accuracy does not improve.

󰈈 Random Erasing

Finally, we verify test data with high occlusion

level(RE test in Table. 2 .) as shown in Figure 3. The

results are shown in Table 5. However, clippers are

excluded, because there was no scene in which the

clippers were hidden significantly in the surgery

video.

Table 5: vs Random Erasing Test Data.

Tool

Default

Bipolar

89.86

89.70

Electrode

70.15

66.80

Scissors

46.56

69.35

Suction tube

80.00

84.00

Forceps

81.90

87.68

Clippers

Mean AP

73.69

79.51

From Table 5, accuracy improvement can be seen

in all the tools except Bipolar and Electrode, and the

average accuracy increased by 5.82%. In particular,

Scissors gained dramatically by about 23%. Figure 8

shows some results of detection using the weights of

Default and RE, respectively. (The visual-threshold is

the value of the score : 0.6.)

By doing RE we can successfully detect, classify

and localize surgical tools. Figure 8(a)-(c) show that

the detection is improved. In Figure 8(a), in the

Default, the suction tube existing in the upper left

cannot be detected, but it can be detected in the RE.

In Figure 8(b), the suction tube (the area surrounded

by the red color) existing in the upper left of both

Default and RE is detected as forceps. However,

when comparing the two, RE shows that the score of

forceps classification is lower. (Default: 0.97 > RE:

0.86). In Figure 8(c), two suction tubes overlap in the

lower right corner of the image. In Default it is found

that only one can be detected and bounding box is

Detecting and Tracking Surgical Tools for Recognizing Phases of the Awake Brain Tumor Removal Surgery

195

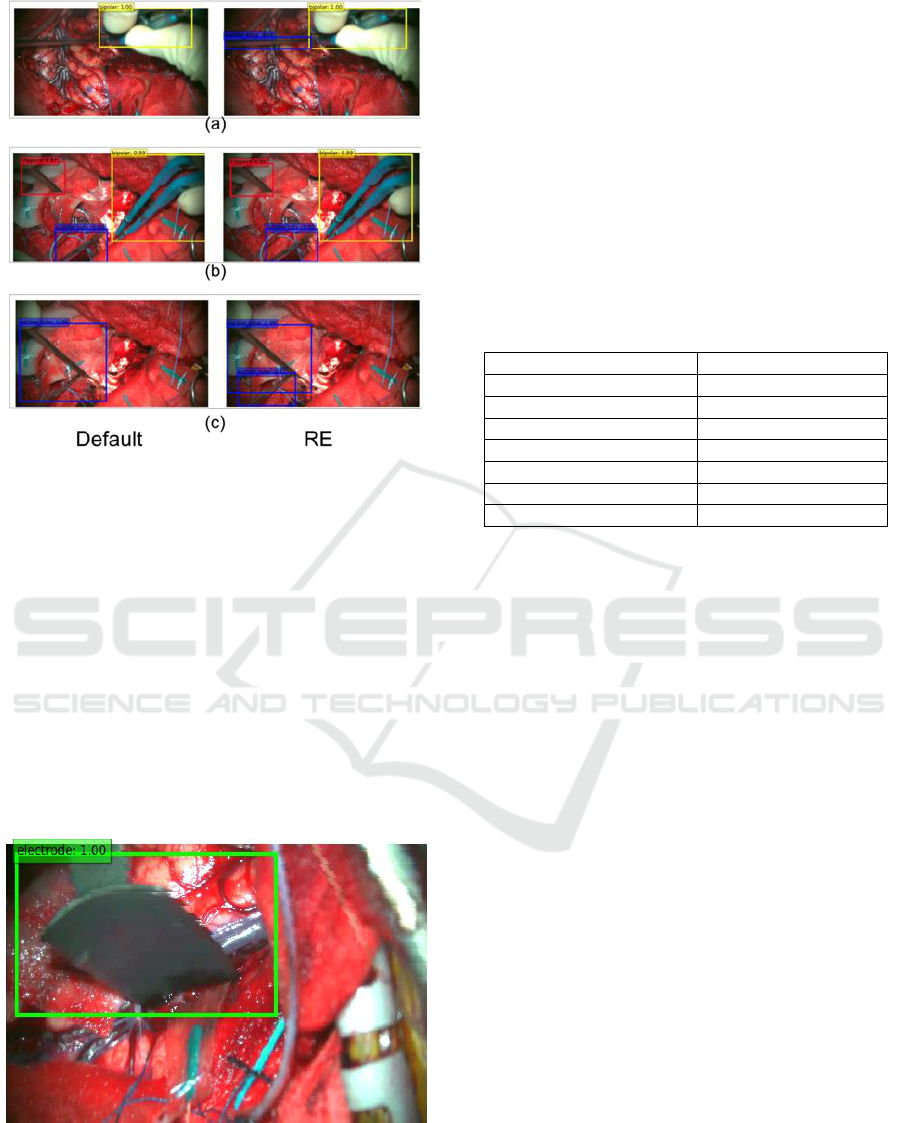

Figure 8: Example of detection result in frame where

occlusion occurs.(Left: Default weight, Right : RE weight).

redundant. In RE, two suction tubes can be detected

and bounding box can be localized more accurately.

However, for Electrode the score drops by 3.35%.

The reason for this is that the shapes of electrodes

excluding the tips and of the surgical tool called brain

spatula, which is not to be classified in this paper,

look very similar to each other. An example of

erroneously recognizing the brain spatula as electrode

is shown in Figure 9.

From the above result, it was found that random

erasing is very effective to the image data set acquired

from an environment like the awake brain tumor

removal surgery where occlusions frequently occcur.

Figure 9: Example of misrecognition that brain spatula as

electrode.

4.1.2 Spatial Detection

To the best of our knowledge, this study first

performed robust localization and classification

according to the actual environment of the surgical

tool with actual brain tumor removed video. We

analyze the movement of the surgical tools in more

detail.

Table 6 shows the performance when using the

average accuracy (AP) for spatial detection of the

surgical tool of brain tumor removal surgery in this

study.

Table 6: Spatial detection average precision (AP) per-class

and mean average precision (Mean AP) in All Dataset.

Tool

Bipolar

90.71

Electrode

90.55

Scissors

90.74

Suction tube

90.18

Forceps

90.72

Clippers

90.57

Mean AP

90.58

Mean AP is 90.58, showing overall good performance.

Figure 10 shows some examples of detection results.

Images surrounded by a red thick frame are these that

can be detected correctly. It can be seen that,

irrespective of class and quantity, existing tools are

successfully detected. In addition, although two

suction tubes in the second row are overlapped, it can

be detected accurately. This also indicates that the

random erasing is effective. Next, the images

surrounded by the blue frame is an incorrectly

detected image. Figure 10(a) is a misdetection of

forceps as scissors. It is considered that this is due to

the similar shape of the tip portion. Figure 10(b)

bipolar appeared in the right part of the image is false

positive. Our system misunderstood that surgeon’s

left hand has the tool(bipolar). Figure 10(c) also

misrecognized bipolar as electrode. Figure 10(d)

shows that forceps existing right in the image is

unrecognized. Since we set visual threshold = 0.6 and

the value of confidence was less than the threshold,

the forceps couldn’t found. Overall our model has

strong accuracy in spatial detection.

4.1.3 Frame Level Presence Detection

Next, in this subsection we calculate the detection

accuracy at the frame level. We computed the

accuracy based on whether the visual threshold of the

detected object is greater than 0.6 for each frame.

The accuracy is shown in Table 7, and the confusion

matrix is shown in Table 8.

ICPRAM 2019 - 8th International Conference on Pattern Recognition Applications and Methods

196

Figure 10: Example of detection result in frame.

Table 7: Flame label detection accuracy per-class and mean

accuracy in All Dataset.

Tool

Accuracy

Bipolar

98.19

Electrode

97.79

Scissors

97.79

Suction tube

94.85

Forceps

95.89

Clippers

94.98

From Table 7, we can see that the detection

accuracy by our approach demonstrates high

performance.

Empty cells in the confusion matrix in Table 8

shows that the value is 0. Yellow cells give correct

detections. False detections are indicated in blue. The

right most column named “RE” in the table indicates

reject, and it is a set of things which cannot be

detected and which are lower than the threshold in the

first place.

Table 8: Confusion matrix. (T0:Biolar, T1: Electrode, T2:

Scissors, T3: Suction tube, T4: Forceps, T5: Clippers, RE:

reject.).

1679

620

443

2891

152

303

265

4.2 Tracking

In this section, we show that the bounding box

obtained from the model of the SSD that we have

metastasized and learned is stabilizing the locus

corrected by SORT. The method qualitatively

evaluates the trajectory of the center coordinates of

the bounding box by comparing it with the presence

or absence of SORT.

4.2.1 Detection and Tracker Assignment

The proposed method performs detector and tracker

assignment by using Hungarian method. In trajectory

extraction, this method can delete erroneous

detections and avoid unnecessary their assignment to

the tracker. An example of this deletion is shown in

Figure 11. In Figure 11, on the right side of Figure

11(a), multiple bounding boxes are detected at the tip

of the electrode. On the other hand, on the left Figure

11(a), using SORT, only one bounding box is

generated at the electrode, because a paint of

electrodes was not detected in the previous frame and

there is no corresponding tracker, the single bounding

box was deleted. For Figure 11(b) and Figure 11(c),

erroneous detection is also suppressed for the same

reason.

4.2.2 Trajectory

Figure 12. shows an example of trajectory extraction

using SORT. By using SORT, a smooth trajectory

compared with “not using SORT” is obtained. The

difference between with and without SORT can

clearly be demonstrated by movies, while not clear in

still images such as Figure 12.

Correct detections

Incorrect detections

(a) (b)

Detecting and Tracking Surgical Tools for Recognizing Phases of the Awake Brain Tumor Removal Surgery

197

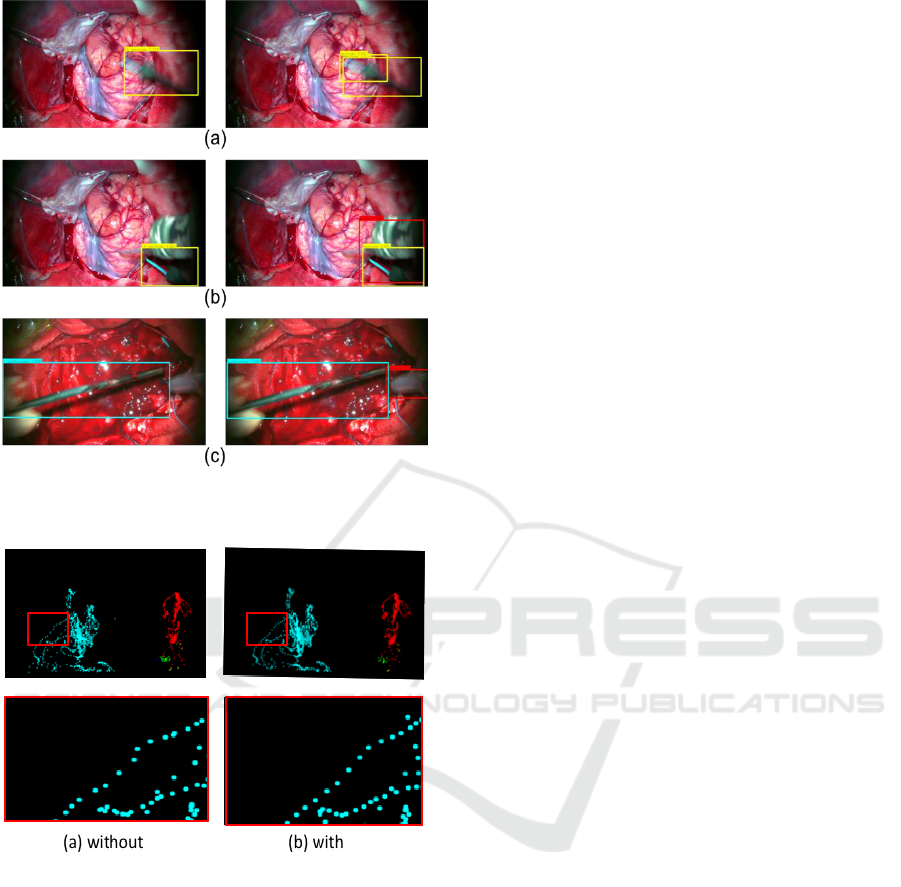

Figure 11: Delete detection with no corresponding

tracker.( Left: SORT, Right: without SORT).

Figure 12: Trajectory.

5 CONCLUSIONS

This paper has proposed a method for detecting and

tracking surgical tools from microscope video of

brain tumor removal surgery. The proposed method

consists of a detection part and tracking part. In the

detection part, object detection (SSD) is performed

for each frame in surgery video, and the category

(tool) and bounding box are acquired. The

convolution layer strengthens the robustness using

Data Augmentation. The tracking part uses SORT,

which predicts and updates the acquired bounding

box to which the object ID is assigned.

Experiments using 3751 frames is conducted.

Main results are as follows.

1. Spatial detection’s mean AP is 90.58%.

2. Frame label detection’s mean accuracy is

96.58%.

The future work of this research is as follows.

󰈆 In order to deal with unrecognized result,

preprocess for CNN should be improved.

󰈇 More advanced recognition system will be

studied which utilizes the content obtained from

the time series data trajectory and class

information of each tool.

󰈈 Using RFID tags the classification accuracy will

be improved. We get information on the

currently used surgical tools. We can improve the

classification of actual surgical tools using

acquired sensor information. In particular , we

believe the above-mentioned method is effective

for detecting tools with similar appearances

(clipper, forceps, scissors).

Furthermore, we plan to conduct research to

identify the surgical phase.

REFERENCES

Bardram, J. E., Doryab, A., Jensen, R. M., Lange, P. M.,

Nielsen, K. L., and Petersen, S. T., 2011. Phase

recognition during surgical procedures using embedded

and body-worn sensors. In IEEE Int. Conf. Pervasive

Comput. Commun. (PerCom), 45–53.

Bewley, A., Ge, Z., Ott, L., Ramos, F. and Upcroft, B. 2016,

Simple online and realtime tracking, in 2016 IEEE

International Conference on Image Processing (ICIP),

3464–3468.

Blum, T., Feußner, H. and Navab, N., 2010, Modeling and

segmentation of surgical workflow from laparoscopic

video. in Proc. Int. Conf. Med. Image Comput.-Assist.

Intervent., 400–407.

Chen, X., Yu, J. and Wu., Z. 2018, Temporally Identity-

Aware SSD with Attentional LSTM. arXiv:

1803.00197.

Okamoto, J., Masamune, K., Iseki, H. and Muragaki, Y.

2017, Development concepts of a Smart Cyber

Operating Theater (SCOT) using ORiN technology.

Biomed Tech (Berl)., 63, 31-37.

Holden, M. S. et al., 2014. Feasibility of real-time workflow

segmentation for tracked needle interventions. IEEE

Trans. Biomed. Eng., 61(6), 1720–1728,.

Jin,Y. et al. 2018, SV-RCNet : workflow recognition from

surgical videos using recurrent convolutional network.

IEEE T-MI 37(5), 1114–1126

Kalman R. E. et al. 1960, A new approach to linear filtering

and prediction problems. Journal of basic Engineering,

82(1), 35–45.

Klank, U., Padoy, N., Feussner, H. and Navab, 2008, N.

Automatic feature generation in endoscopic images. Int.

ICPRAM 2019 - 8th International Conference on Pattern Recognition Applications and Methods

198

J. Comput. Assist. Radiol. Surgery, vol. 3(3–4), 331–

339.

Kuhn, H. W. 1955, The hungarian method for the

assignment problem, Naval research logistics

quarterly,2(1-2), 83–97.

Lalys, F., Riffaud, L., Bouget, D. and Jannin, P., 2012. A

framework for the recognition of high-level surgical

tasks from video images for cataract surgeries. IEEE

Trans. Biomed. Eng., 59(4), 966–976.

Lin, H. C., Shafran, I., Murphy, T. E., Okamura, A. M.,

Yuh, D. D. and Hager, G. D., 2005. Automatic

detection and segmentation of robot-assisted surgical

motions. in Proc. Int. Conf. Med. Image Comput.-

Assist. Intervent., 802–810.

Liu,W., Anguelov,D., Erhan, D., Szegedy, C., S. C., Reed,

Fu, Y. and Berg, A. C. 2016, SSD: Single shot multibox

detector. in Proc. Eur. Conf. Comput. Vis., Amsterdam,

Netherlands, 21–37.

Padoy, N., Blum, T., Ahmadi, S.-A., Feussner, H. , Berger,

M.-O. and Navab, N., 2012. Statistical modeling and

recognition of surgical workflow. Med. Image Anal.,

16(3), 632–641.

Raju, A., Wang, S. and Huang. J. 2016, M2CAI Surgical

Tool Detection Challenge Report.

Russakovsky, O., Deng, J., Su, H., Krause, J., Satheesh, S.,

Ma, S., Huang, Z., Karpathy, A., Khosla, A., Bernstein,

M., Berg, A.C., Fei-Fei, L. 2015, Imagenet large scale

visual recognition challenge. IJCV.

Sahu, M., Mukhopadhyay, A., Szengel, A. and Zachow, S.

2016, Tool and Phase recognition using contextual

CNN features. arXiv:1610.08854

Simonyan, K. and Zisserman., A. 2014, Very deep

convolutional networks for large-scale image

recognition. arXiv:1409.1556.

Tool Presence Detection Challenge Results. http:

//camma.u-strasbg.fr/m2cai2016/index.php/tool-

presence- detection-challenge-results.

Twinanda, A. P., Shehata, S., Mutter, D., Marescaux, J.,

Mathelin, M. de. and Padoy, N. 2017, Endonet: A deep

architecture for recognition tasks on laparoscopic

videos. IEEE Trans. Med. Imag., 36(1), 86–97.

Zhong, Z., Zheng, L., Kang, G., Li, S. and Yang, Y. 2017,

Random erasing data augmentation.

arXiv:1708.04896.

Detecting and Tracking Surgical Tools for Recognizing Phases of the Awake Brain Tumor Removal Surgery

199
