Model Driven Data Management in Healthcare

David Milward

Department of Computer Science, Oxford University, Parks Road, Oxford, U.K.

Keywords:

ISO11179, Metadata, Model Driven Engineering, UML.

Abstract:

Healthcare research depends on the availability of data that is of high quality, that is easy to query, consistent

and current. Traditionally, healthcare data has relied on multiple diverse datasets being integrated by do-

main experts. These integration processes are executed with a high degree of human involvement, integrating

datasets can be time-consuming and can result in the introduction of errors into the data. This paper describes

work to build an integration toolset for healthcare datasets based on the ISO11179 Standard for metadata reg-

istries. It describes issues encountered whilst implementing the standard and shows how these short-comings

were overcome by using techniques from the ﬁeld of Model Driven Engineering (MDE).

1 INTRODUCTION

A fundamental problem in the UK and elsewhere

is how to make clean data from heterogeneous

healthcare datasets available to researchers easily

and quickly. Much of this information is from re-

search sources such as clinical trials and electronic

patient records, however currently researchers can

spend more time wrangling and cleaning the data

than is spent in analysis, some reports put this at be-

tween 60-80% of time taken in analysis tasks (Press,

2016). Analysis generally involves python and R

scripts which are unique to the researcher that wrote

them, if new information is not in the form that the re-

searcher anticipated then the text has to be re-written,

and checked for accuracy. In an ideal world data

would be input to a data warehouse in a form that

allows the same query to be run repeatedly, because

the data that comes into the repository is guaranteed

to be in the same format, and if the format changes

the dataset and query can be updated to take account

of this without a lengthy script re-write.

One approach to tackling this problem is the use of

the standardized dataset, the idea being is that a set of

data items are deﬁned in the standard, and all report-

ing of any such data-items is made to conﬁrm to the

standard. This will enforce some simple rules such

as a patient identiﬁer in the NHS needs to be an inte-

ger of a certain length, conforming to a certain set of

rules, very often encoded with a regular expression.

This approach helps enormously, but its application

hasn’t been entirely successful to date for several rea-

sons. Firstly, it is impossible currently to mandate

that everyone uses the same standard, or set of stan-

dards. Secondly, some standards are strong in some

areas and weak in others. Thirdly standards evolve.

There are currently a number of different data

standards in healthcare, each one having emerged

from a different specialist area, such as pathology

or pharmaceutical research. If data from heteroge-

neous datasets are presented in one, and only one

of these standards, but for instance, in different for-

mats, some being in XML, some in CSV and some in

RDF, then they can relatively easily be fused with data

from other datasets conforming to the same standard.

Where data standards have clinically endorsed map-

pings between them, then data from different datasets

can easily be merged. Where data is available in

datasets which do not comply with a common stan-

dard, then a set of mappings needs to be made to

merge that data. This is normally carried out using

standard Extract, Load and Transform (ETL) tech-

niques.

Some dataset standards, such as the OMOP CDM

(OHDSI, 2018) claim the title of Common Data

Model (CDM), and aim to be the only dataset def-

inition for the whole industry. In addition, there

are many datasets that have been built up within re-

search organisations or within particular clinical spe-

cialist areas that are in use throughout the U.K.’s Na-

tional Health Service (NHS). Certain of these clinical

datasets were used in this investigation, in particular

COSD, FHIR, SNOMED CT and the NHS Data Dic-

tionary.

Milward, D.

Model Driven Data Management in Healthcare.

DOI: 10.5220/0007391101050116

In Proceedings of the 7th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2019), pages 105-116

ISBN: 978-989-758-358-2

105

This research started out to discover better ways of

integrating datasets, in particular if automated tech-

niques using metadata could be applied to manag-

ing, wrangling and cleaning data used in clinical data

analytics. Some work had already gone into ap-

plying the ideas in ISO/IEC 11179, the ISO stan-

dard for metadata registries, and so initially this was

adopted as a way forward in the research program.

We built and tested the interchange of several datasets

using an ISO11179 compliant metadata registry with

mixed results, we examined problems which arose,

and then built a revised metadata registry built on

model driven engineering principles. Repeating the

same experiments we found that the improved meta-

data registry performed more efﬁciently, and was eas-

ier for clinicians and healthcare business analysts to

use. We achieved the main research goals of identify-

ing automated techniques for using metadata to man-

age, wrangle and clean dataset far more efﬁciently

than the techniques previously being used. We then

looked at the problems we had with the ISO11179

standard, and examined what improvements can be

made to the ISO11179 standard to make it more work-

able and effective in achieving the purposes stated in

ISO/IEC11179-1:2015E.

This paper is split into several sections; the section

on related work details previous research efforts to

achieve interoperability between heterogeneous clini-

cal datasets ISO11179 and Model Driven Engineering

techniques. In the section called Background the na-

ture of the problem is described in detail, including

a short summary of some of the main dataset stan-

dards encountered in the course of this research. In

the section titled ISO11179: ISO Standard for Meta-

data Registries the ISO11179 approach to interop-

erability is examined. The next section Evaluation

evaluates the effectiveness in applying ISO11179 to

clinical dataset management. A review of the re-

sults is given in the next section Results, ﬁrstly of the

overall research effort, and secondly on the role of

ISO11179. Lastly, there is a section outlining Con-

clusions and suggesting future work. The main con-

tributions of this research are as follows: ﬁrst, pro-

viding a set of techniques for automating the man-

agement of datasets using metadata, and more speciﬁ-

cally using tools built around a metadata registry, sec-

ond, providing a record of experiences in applying

the ISO11179 to medical dataset management; third,

identifying shortcomings in the ISO11179 metadata

registries standard; fourth, identifying ways to over-

come these shortcomings using model driven engi-

neering principles, and last, the design of an improved

metamodel for healthcare metadata registries.

2 RELATED WORK

The work described in this paper has been informed

by work carried out by colleagues at the University

of Oxford on the CancerGrid project (Davies et al.,

2014), where an ISO/IEC 11179-compliant metadata

registry was developed as detailed in (Davies et al.,

2015). Initially the test software for these studies was

developed using the eXist XML database, but it was

found to have problems scaling once the number of

data elements increased over about 10,000, and so

new work was carried out to build a more scalable

metadata registry using java-based web frameworks.

One of the earliest efforts to apply the princi-

ples of ISO11179 in practice was the caBIG initia-

tive by the National Cancer Institute in the USA,

(Kunz et al., 2009); they built a software develop-

ment kit which allows developers to build web ser-

vice stubs around data elements, (Komatsoulis et al.,

2008), however it doesn’t appear to have been widely

adopted. Indeed there are very few examples of

ISO11179 metadata registries in practice, one study

has used semantic web technology to integrate meta-

data registries, Sinaci and Erturkmen (Sinaci and Er-

turkmen, 2013) describe a semantic metadata registry

framework where Common Data Elements (CDEs)

are exposed as Linked Open Data resources. CDEs

are described in the Resource Description Framework

(RDF), and can be queried and interlinked with CDEs

in other registries using the W3C Simple Knowledge

Organization System (SKOS). An ISO11179 ontol-

ogy has been deﬁned as part of the framework, and

the Semantic MDR has been implemented using the

Jena framework.

Metadata Registries, such as those conforming to

the ISO11179 standard, can help to solve the problem

of data incompatibility, provenance and compliance,

as is indicated in studies such as those conducted by

Ulrich et al. (Ulrich et al., 2016). In this study a hy-

brid architecture consisting of an ISO 11179-3 con-

formant MDR server application for interactively an-

notating and mediating data elements and the transla-

tion of these data elements into Fast Health Interop-

erabililty Resources (FHIR) (HL7-FHIR-Foundation,

2017) resources was used to manage data for the

North German Tumor Bank of Colorectal Cancer.

Tao et al. (Tao et al., 2011) present case studies in

representing HL7 Detailed Clinical Models (DCMs)

and the ISO11179 model in the Web Ontology Lan-

guage (OWL); a combination of UML diagrams and

Excel spreadsheets were used to extract the meta-

models for fourteen HL7 DCM constructs. A criti-

cal limitation of this approach is that the transforma-

tion from metamodels to their ontological representa-

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

106

tion in OWL is based on a manual encoding. Leroux

et al. (Leroux et al., 2012) use existing ontologies to

enrich OpenClinica forms.

Model driven engineering techniques have also

been applied to healthcare problems, Schlieter

et al. (Schlieter et al., 2015) record their experience

gained from using model-driven engineering to im-

plement an application for path-based stroke care;

amongst the lessons learned they recommend using

existing ontological models where possible, and being

prepared to reconcile a heterogeneity of models from

the various stakeholders under a common metamodel.

Atanasovski(Atanasovski et al., 2018) presents a for-

mal meta-model used to specify healthcare process

management in an electronic health record system us-

ing FHIR and OpenEHR. Marcos et al.(Marcos et al.,

2013) describe the implementation of an OpenEHR

system to enable interoperability in clinical trial data

using OpenEHR archetypes. Archetypes are part of a

domain speciﬁc language (DSL) which in turn is part

of the OpenEHR standard, discussed in more detail in

the next section, but are described in detail in (Costa

et al., 2011) The problems with integrating data en-

coded using different datasets and terminologies are

clearly identiﬁed by Jian (Jian et al., 2007), and so-

lutions using OpenEHR technology are put forward

in (Mart

Anez-Costa et al., 2010).

In the Model Driven Health Tools

(MDHT) (Open-Health-Tools, 2008) project, the

HL7 Clinical Document Architecture (CDA) stan-

dard (Dolin et al., 2006) for managing patient records

is implemented using Eclipse UML tools (Eclipse-

Foundation, 2018). MDHT supports only the CDA

standard, whereas the Model Catalogue can interop-

erate with any metadata standard. The CDA standards

are large and complex: Scott and Worden (Scott and

Worden, 2012) advocate a model-driven approach

to simplify the HL7 CDA, supported by three case

studies: the NHS England ‘InteroperabilityToolkit’,

a simpliﬁcation of US CDA documents, and the

Common Assessment Framework project for health

and care providers in England.

3 BACKGROUND

As mentioned earlier one goal of this work was to

discover more efﬁcient ways of integrating healthcare

data from heterogenous datasets. During the course of

this work a number of standardised datasets were en-

countered, some being local standards, some National

(such as the Cancer and Outcomes Dataset, managed

by NHS England) and some International (such as

SNOMED CT and OpenEHR).

The challenge here is to build a metadata registry

that can easily store data speciﬁcations from all these

varying datasets and standards, to store and make this

information available for other applications which are

able to transform the data from one dataset to another.

This section is designed to give the reader a brief in-

sight into the variability of these datasets.

These healthcare data standards have evolved over

the last 30 years, mostly starting in particular commu-

nities focusing on speciﬁc healthcare sub-domains,

such as pathology or laboratory testing. Some evolved

to address local problems, such as deﬁning standard

formats to send laboratory results back to clinicians,

and some started with the broader goals of unifying

global healthcare records with one common standard.

Each dataset has a slightly different way of looking

at data, is used in a slightly different way reﬂecting

the different sub-domains and cultures that the dataset

evolved from. For instance LOINC is widely used in

laboratories carrying out clinical testing. SNOMED

CT aims at being a clinical terminology which has

terms to be used in the whole of the healthcare do-

mains, however in the sub-domain of laboratory test-

ing LOINC has more granularity, and so there is a

need for mapping between the two data standards.

The data standards that are used in the healthcare

domain, having evolved from speciﬁc sub-domains,

tend to use the language adopted by that sub-domain,

and very often the rules of how meaningful sentences

are constructed in the area of laboratory testing for

instance, are not exactly the same rules as are used

in general English. So while these areas look to pro-

vide terminologies, the use of these terminologies can

differ from standard to standard.

In some standards, such as SNOMED CT terms

are designated as pre and post co-ordinated. Pre-

coordinated terms are terms that have compound

terms combined in advance to arrive at a speciﬁc des-

ignation, with a speciﬁc identiﬁer.

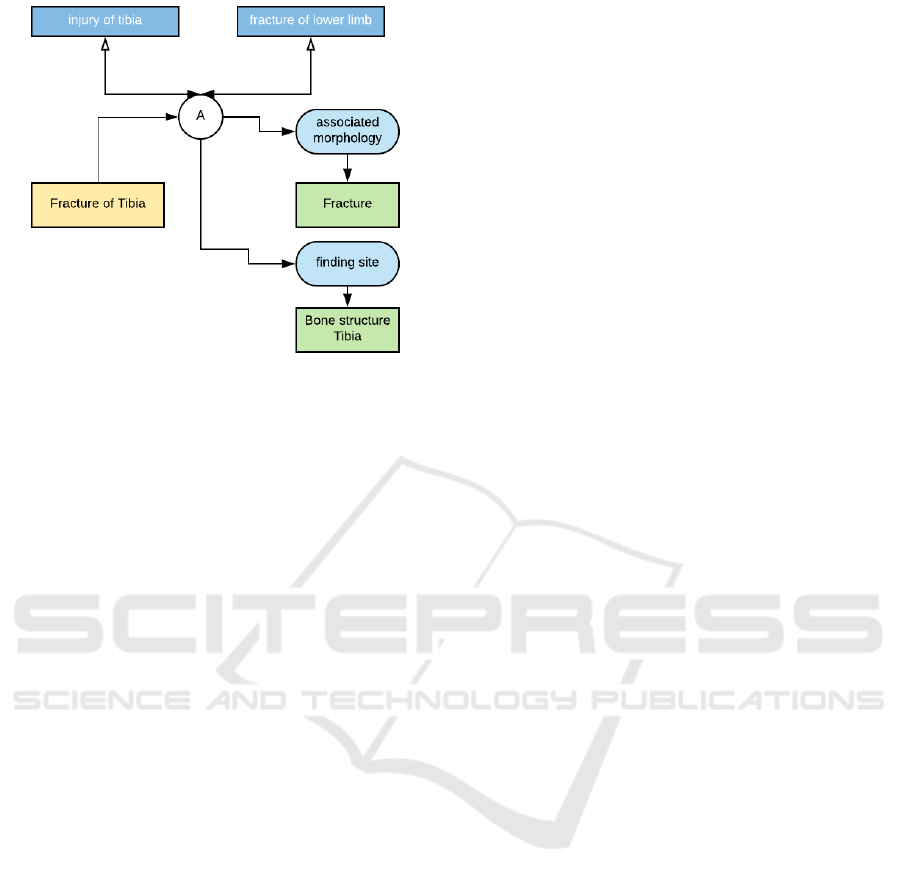

This is illustrated in Figure 1 using the normative

example, taken from the ITSDSO website, showing

the two different ways of expressing a fractured tibia.

The pre-coordinated term, ID-31978002, expresses

the idea of a ”fractured tibia”, whereas the post-

coordinated terms of tibia, ID-12611008 and frac-

ture, ID-125605004 are coordinated during the actual

diagnosis, to form the resultant concept ”fractured

tibia” using the set of SNOMED-CT post-coordinated

terms.

SNOMED-CT is at core maintained as a formal

ontology using the Web Ontology Language (OWL),

and thus the coordination can be carried out using de-

scription logic, as illustrated in (Stevens and Sattler,

2013), and (Rector and Iannone, 2012).

Model Driven Data Management in Healthcare

107

Figure 1: An Illustration of Pre- and Post-Coordinated

Terms in SNOMED CT.

In most healthcare centres today, it is much more

likely to be carried out by other patient record and

clinical diagnosis tools as appropriate, and a mapping

made from the tools’ own dataset to the SNOMED-

CT standard. This throws light on another issue

faced in the process of data collection from hetero-

geneous sources: that the data very often needs to

be transformed, normally using standard ETL pro-

cesses. Datasets that use post-coordinated terms lead

to less ﬂexibility in such transformations, since the

terms used (in this case the post-coordinated Frac-

ture of Tibia as opposed to the pre-coordinated Frac-

ture and Bone Structure Tibia) may not all have di-

rect analogues in the dataset deﬁnitions of the data

sources. It is more likely, though not guaranteed, that

a better partial mapping can be made from the pre-

coordinated terms since there are going to be more of

them than from the post-coordinated terms.

3.1 Healthcare Standard Datasets

The data standards being used in healthcare originate

from different specialist areas, use different formats

and have many overlaps, resulting in a number of dif-

ferent viewpoints over which standards are more or

less useful. This section gives an overview and brief

review of some of the main standards encountered,

key considerations from a modelling point of view are

hierarchy depth, granularity, restraints and constraints

and data element relationships. Whilst the domain of

Healthcare might appear to be a single domain to the

outsider, it is split into a number of sub-domains, who

in turn have evolved different process, different ap-

plications and even different uses of language to de-

scribe the work being carried out in the subdomain.

These factors are reﬂected in the differences between

different datasets, and all contribute to making inter-

operability a complex problem to solve.

3.1.1 SNOMED and Semantic Technologies

The systemized nomenclature of medicine

(SNOMED) began life as the systemised nomencla-

ture of pathology (SNOP) in 1965, originated by the

College of Pathologists(CAP) in the US.

At core SNOMED CT is a set of terms, which

are attached to formally deﬁned concepts, and each is

given a code. It enables different medical conditions

to be given a unique reference, which due to the hier-

archical nature of the core ontology allows clinicians

to go into the appropriate amount of detail. SNOMED

CT has a deep hierarchy of terms, and include pre and

post-coordinated terms, as discussed.

3.1.2 HL7 and FHIR

Health Level 7 is a set of International standards per-

taining to information usage and interoperability in

healthcare, produced by Health Level 7 International

and adopted by both the American National Standards

Institute (ANSI) and the International Standards Or-

ganization (ISO). HL7 has been around for almost 30

years, and in essence it is a set of messaging stan-

dards, deﬁnitions and resources, including Version

2.x Messaging Standard, Version 3.x Messaging Stan-

dard, Clinical Document Architecture (CDA), Con-

tinuity of Care Document (CCD), Structured Prod-

uct Labelling (SPL), Clinical Context Object Work-

shop (CCOW) and Fast Healthcare Interoperability

Resources (FHIR).

3.1.3 Read Codes

Read codes are the standard clinical terminology sys-

tem developed by Dr James Read in the 1980’s for

use in the United Kingdom. There are 2 forms of read

codes, a 4-byte version (the original version), a 5-byte

version 2, and version 3 also called Clinical Terms

3 or CTV3. This latter vocabulary was merged with

the US origin SNOMED-RT to form SNOMED-CT.

CTV3 was mandated for use across the NHS in 1999,

it currently consists of a vocabulary of about 200,00

data terms, together with tables that capture various

hierarchies of elements.

3.1.4 International Classiﬁcation of Diseases

(ICD)

The International Classiﬁcation of Diseases(ICD) is

managed by the World Health Organization (WHO),

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

108

the authority for health matters in the United Na-

tions.[2] The ICD is a health care classiﬁcation sys-

tem, it’s primary purpose is to provide a set of di-

agnostic codes for diseases and disease classiﬁcation.

This includes nuanced classiﬁcations of a wide vari-

ety of items such as signs, symptoms, abnormal ﬁnd-

ings, complaints, social circumstances, and external

causes of injury or disease.

3.1.5 OpenEHR - ISO EN 13606

OpenEHR is an open standard for electronic health

records, which is deﬁned by the international standard

ISO13606 (ISOTC215, 2008). From the perspective

of data management the standard provides a reference

model and a number of archetypes, which describe

datasets from a clinical perspective and templates,

which provide instantiations of those archetypes for

speciﬁc use cases. The standard covers not only an

architecture deﬁnition, but also a domain speciﬁc lan-

guage for storing, managing and querying healthcare

records.

3.1.6 OMOP CDM

The Observational Medical Outcomes Partnership

(OMOP) Common Data Model(CDM) came out of

work started in 2008 by a public-private partnership

in the USA, between the FDA and the pharmaceutical

industry to research the utility of using existing health

care databases to evaluate safety issues relating to cur-

rently approved and available drugs.

3.1.7 LOINC

The Logical Observation Identiﬁers Names and

Codes (LOINC), was started in 1994 with goal of

codifying laboratory specimens and tests in a clinical

context. It is designed as a data standard for labora-

tory tests and results, anything that can be observed

or tested in relation to a patient’s healthcare. Part

of LOINC can be used for normal observations, and

part of it for laboratory results. It is at core a large

terminology, more detailed in many areas of pathol-

ogy than SNOMED CT. It is very often used in con-

junction with both SNOMED CT and HL7, so that

messages sent requested laboratory tests may be cod-

iﬁed in HL7 using LOINC, and responses may use

SNOMED in addition to LOINC.

3.1.8 NHS Data Dictionary

The NHS Data Dictionary is maintained by NHS Dig-

ital as a UML model, however it is publicly avail-

able as either HTML ﬁles, viewable on a website, or

as XML/XSD ﬁles which can be downloaded. The

model is relatively straightforward, and is used for

most of the reporting carried out by NHS Digital in

the UK.

4 ISO11179: ISO STANDARD FOR

METADATA REGISTRIES

Metadata can be recorded using a metadata registry;

a metadata registry (MDR) is a toolkit which allows

deﬁnitions of datasets to be stored, curated and man-

aged. Metadata is usually deﬁned as data about data;

this is an unfortunate deﬁnition, in that it can be inter-

preted in a variety of ways. Our work relates to data

management and for most data management purposes

it is normally taken to mean data which deﬁnes the

structure of data, although data about the governance,

provenance and other aspects of that data can also be

relevant, and thus included in a metadata registry. By

storing the deﬁnitions of every data element and also

the relationships between data elements in a metadata

registry a map of all the data elements and data ﬂows

in an organization or domain can be created. Such a

map can be used to manage, understand and curate

the datasets being used. The ISO standard 11179 is a

standard for metadata registries, although this desig-

nation is extended in the body of the standard.

The ISO11179 (ISOJTC1, 2015) standard, was is-

sued in 2015, is composed of 6 parts:

• ISO/IEC 11179-1:2015 Framework (referred to as

ISO/IEC 11179-1)

• ISO/IEC 11179-2:2005 Classiﬁcation

• ISO/IEC 11179-3:2013 Registry metamodel and

basic attributes

• ISO/IEC 11179-4:2004 Formulation of data deﬁ-

nitions

• ISO/IEC 11179-5:2015 Naming and identiﬁcation

principles

• ISO/IEC 11179-6:2015 Registration

The standard is comprehensive, however we are only

considering some key aspects of Part 3 in this re-

search. Part 7 called Datasets, is planned and is cur-

rently under review. This introduces a metamodel for

datasets into the standard, however this was not read-

ily available at the time that this research was carried

out, and is not considered here. To quote from the

standard itself:

ISO/IEC 11179 addresses the semantics of

data, the representation of data and the reg-

istration of the descriptions of that data. It is

Model Driven Data Management in Healthcare

109

through these descriptions that an accurate un-

derstanding of the semantics and a useful de-

piction of the data are found.

The purpose of ISO/IEC 11179 is to promote the fol-

lowing:

• standard description of data

• common understanding of data across organiza-

tional elements and between organizations

• re-use and standardization of data over time,

space, and applications

• harmonization and standardization of data within

an organization and across organizations

• management of the components of descriptions of

data

• re-use of the components of descriptions of data

Part 3 of the standard provides a registry meta-

model, speciﬁed using UML diagrams, and it was

thus chosen as the starting point for building this im-

plementation. There is a warning at the beginning

of Part 3, stating that this part prescribes a concep-

tual model, not a physical implementation This part

of ISO/IEC 11179 also prescribes a list of basic at-

tributes (see clause 12) for situations where a full con-

ceptual model is not required or not appropriate. The

other 5 parts were used to inform the core metadata

registry metamodel as speciﬁed in ISO11179: Part 3.

4.0.1 Part 3 - Registry Metamodel and Basic

Attributes

The objectives of the metadata registry metamodel are

deﬁned, in the standard, as:

• Providing a uniﬁed view of the concepts, terms,

value domains and value meanings

• promoting a common understanding of the data

described

• providing the speciﬁcation at a conceptual level to

facilitate the sharing and reuse of the contents of

the implementations

The standard continues to split the metamodel up into

6 packages, Basic, Registration, Concepts, Binary re-

lations, Data description and Identiﬁcation, Designa-

tion and Deﬁnition.

In section 4 it is pointed out that clauses 7-9 are

needed to implement a Concept Systems Registry,

clause 10 will allow the implementation of an Ex-

tended Concept Systems Registry, and clause 11

speciﬁes a metadata registry, whereas an extended

metadata registry will implement all clauses 7-11.

Our initial scope was to implement an extended meta-

data registry as described in clauses 7-11.

4.0.2 Data Description Package

This package speciﬁes a metamodel for handling

data, and although it references other packages which

are mostly dealing with the more administrative as-

pects of registering metadata, it primarily puts for-

ward a conceptual metamodel for handling data.

Hence for the purposes of data interoperability it is

the most relevant part of the standard.

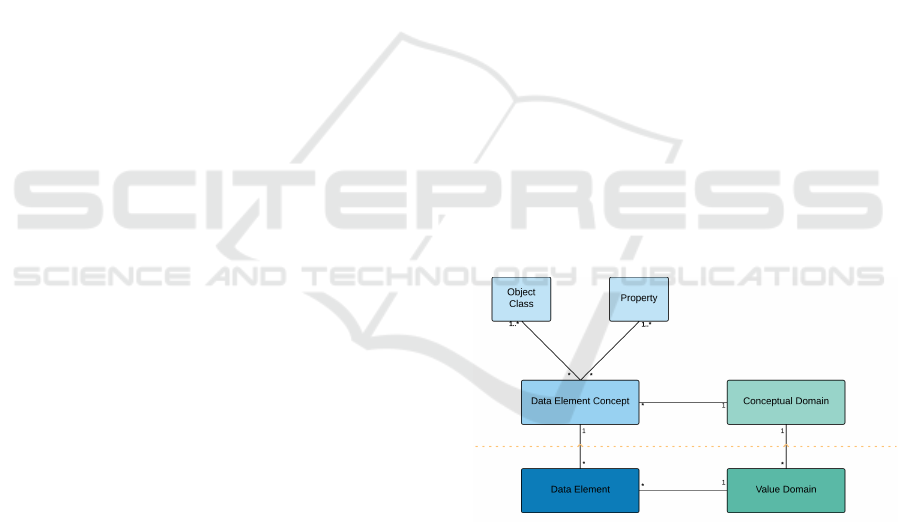

The core model given for data description in

ISO11179 is that reproduced in Figure 2, it shows the

linkage between a Data Element, a Value Domain,

a Conceptual Domain and a Data Element Concept.

The area above the dotted red line is deﬁned as the

semantic or conceptual level, whereas the area below

the red dotted line is deﬁned as the representational

level. The assumption is that the Data Element and

Value Domain are objects which are being registered

and classiﬁed, as per the processes deﬁned in other

parts of the standard.

This arrangement can be illustrated by the idea of

a visit to the doctor, we can deﬁne a concept called

reason for visit to healthcare centre and call this a

data element concept, and from this we would imple-

ment a data element called reason for attendance and

perhaps represent that with a set of enumerated codes,

each representing a different reason. In ISO11179

structuring we would split the data element concept

into an object class: Person, and a property: Reason

for clinic attendance.

Figure 2: ISO 11179 Data Description.

4.0.3 Evaluation of ISO/IEC11179(2013)Part 3

Part 3 of the standard, titled Registry Metamodel and

basic attributes, and revised in 2013, was taken as the

reference point for building the Metadata Registry im-

plementation. In reviewing the standard several prob-

lems came to light, especially with regard to imple-

mentation, and especially with regard to any kind of

conformity. These are listed as:

• ISO11179 introduces representational items, such

as Conceptual Domain, Data Element, Data El-

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

110

ement Concept, etc, indicating that they are part

of the standard or ideal metadata registry meta-

model with no indication of how the ISO11179-

compliant models so deﬁned are generated, used

or related, nor how data can be transformed into

this particular model or what the actual advantage

is over any other metamodel/model.

• Partial UML models are speciﬁed at different lev-

els of granularity, with no explicit connection to

show how they relate.

• The text does not allow an overall model to be

built with any degree of certainty of whether or

not it conforms to the standard.

• Basic types used in the metamodel include types

which in most computer science contexts would

be viewed as derived types, this makes implemen-

tation needlessly difﬁcult and confusing.

• The introduction asserts that metadata registry is

speciﬁed in the form of a conceptual data model,

however, despite references to other standards,

and a brief explanation in Appendix E, no deﬁni-

tive explanation of what is meant by conceptual

data model is provided.

• The examples provided are very concept speciﬁc,

for instance, the example of country codes works

for concepts which are used as a list, but many

concepts used in healthcare are not used in such a

straightforward fashion.

• Many concepts and terms are described, some are

speciﬁed, and some speciﬁcations overlap with

other deﬁnitions; for instance value domains are

speciﬁed with the same deﬁnition that is used to

describe data types.

• The UML models provide a great deal of detail

for each sub-section of a metadata registry, how-

ever no system diagram or clear description is pro-

vided, it is therefore impossible to build a working

system based on the UML diagrams alone, con-

siderable interpretation is required, which detracts

from the speciﬁcation provided.

The standard is declared as being a standard for meta-

data registries, and although it contains a lot of dis-

parate ideas on the subject of interoperability which

can be applied to a metadata registry, no core set of

deﬁnitions, core language or metamodel was found

that could be used as a measure for conformance.

Standards by deﬁnition should be conformed to, and

whilst conformance is mentioned, it is lacking a clear

set of deﬁnitions which can be used as a measure-

ment for conformity. Therefore the goal of building

an ISO11179 conformant metadata registry was aban-

doned early on, when it became apparent that clear

objective conformance criteria were not present in the

standard, despite the subject of conformance being

discussed. That said, there is much in the standard

document which can be usefully incorporated into the

design of a metadata registry, and development con-

tinued with a view to include those aspects of the stan-

dards which could be shown to be beneﬁcial to the

construction of a metadata registry.

5 IMPLEMENTATION

In the initial design work, the UML diagrams con-

tained in Part 3 section 11 was taken to be the basic

metamodel around which the core metadata registry

would be built.

As detailed here, this very quickly became un-

workable, mostly as a result of user’s being unable

to translate data structures into the form dictated by

the ISO11179 metamodel.

5.1 Implementation of ISO11179 UML

Metamodel

Initially work began by implementing the UML mod-

els as speciﬁed in the standard (part 3, section 11),

however when the initial prototype was run, many

pieces of information were identiﬁed as being loaded

more than once. Due to the model provided, there is

an overlap of the conceptual structure of the meta-

model, and the logical structure of the metamodal, al-

though no such reference is available in the standard

itself. Initially a basic domain model was built, using

a Grails 2.4.3 toolkit, using the following basic repre-

sentational items shown in the ﬁrst column of Table 2

The work was then shown to analysts and clin-

icians experienced in building healthcare datasets,

with a view to having them enter suitable datasets

and then take part in developing the data set curation

functionality around the ISO11179 conformant meta-

model.

5.2 Concerns over ISO11179

Conformance

The ﬁrst major problem was in specifying exactly

what metadata should be input into the prototype

metadata registry, in particular how to translate or

transform existing models or meta-models into the set

of constructs deﬁned and discussed in the standard.

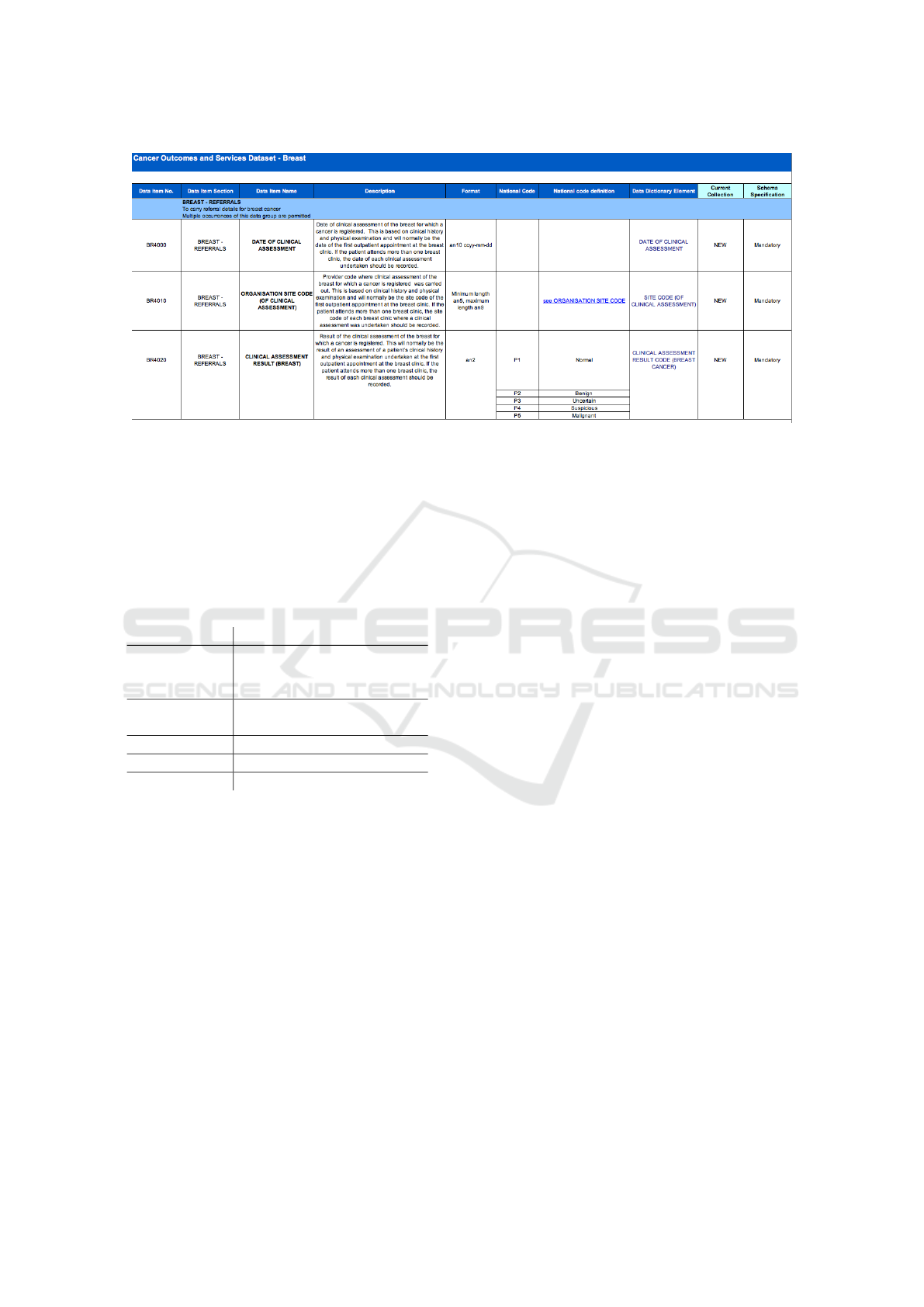

To illustrate this issue, consider taking a data item

from an existing medical dataset, in this case COSD,

as shown in Figure 3.

Model Driven Data Management in Healthcare

111

Figure 3: COSD Dataset Excerpt.

Using ISO11179 we take the date of clinical as-

sessment as a data element, however it would be spec-

iﬁed with the patient details, since conceptually one

would need to describe the context of the data item,

this results in a data element which has an object prop-

erty of patient as an integral part of the construct. This

is illustrated in Table 1

Table 1: ISO11179 Cancer Referral Representation.

ISO Artefact Description

Data Element Patient and Date of clinical

Assessment in form ccyy-

mm-dd

Data Element

Concept

Patient and Date of clinical

Assessment

Value Domain Date in form ccyy-mm-dd

Object Class Patient

Property Diagnosis Date

However if one is trying to enter the metadata for

the Date of Clinical Assessment shown in the ﬁrst row

of Figure 3, there is an immediate disparity in that no

object class is speciﬁed, available or immediately ob-

vious from the spreadsheet. There is mention of the

outpatient or patient in the description, however it is

not in the view of the analyst preparing the dataset

of any signiﬁcance, and therefore was not included

in a separate column. Therefore there is immediately

a dilemma, do we enter outpatient, patient or simply

leave the object property blank? The next issue is the

idea of having the data element, if we drop the Pa-

tient from the name and then call the data element

Date of Clinical Assessment, what then is the Data

Element Concept? and how is it different from the

description of the Data Element? Should the Data El-

ement Concept include the patient? There is no obvi-

ous answer, and from a user perspective it appears that

a simple set of dataset metadata, i.e. column headings

on a spreadsheet, are being transformed into some-

thing more complex in order to manage them, but that

management can only be carried out by experts versed

in ISO/IEC11179.

5.2.1 User Difﬁculties

In the ﬁrst few weeks of trying to enter standard ex-

isting healthcare datasets into the prototype metadata

registry many objections were encountered from users

experience with existing healthcare datasets, of the

kind documented in the previous section. Metadata

was seen to be entered twice or three times need-

lessly, the difference between the description of a

Data Element and a Data Element Concept was not

understood. Likewise the difference between a Value

Domain and a Data Type whilst apparent in theory,

was in practice not apparent, since the models being

generated were not implementation speciﬁc. There-

fore a representation of a set of numerical values

would in nearly all cases be represented by the same

data type, for instance the date of clinical assess-

ment would have a value domain of date and a data

type of date, which would then be implemented in

a particular system as appropriate, e.g. text string,

org.joda.time.format.DateTimeFormat as appropriate

by the system concerned.

5.3 Update to Meta-model

After a few weeks it was decided to update the meta-

model, at ﬁrst, the number of ISO11179 elements was

reduced, however this still didn’t gain any traction

with users, who found the system confusing, counter-

intuituve, time-consuming and needing a lot of extra

work to understand the new language constructs in-

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

112

troduced by the standard. As a result the development

went through a two iterations to arrive at the current

model, the initial prototype we refer to as version 0.x,

the second as 1.x and the third as 2.x. The third, has

been fairly successful as is being used at over 7 hos-

pital trusts and healthcare research centres in the UK

currently. The changes in core constructs are shown

in Table 2.

Table 2: Metamodel Domain Constructs.

ISO Artefact (v.0.x) Iteration 2 (v.2.x)

Described Concep-

tual Domain

Object Class DataClass

Property -

Data Element Con-

cept

Data Element DataElement

DataType DataType

Value Domain -

Described Value Do-

main

Enumerated Value

Domain

EnumeratedType

Permissible Value -

Enumerated Concep-

tual Domain

Relations Relationship

- RelationshipMetadata

- RelationshipType

Classiﬁcation -

Concept System

Concept -

Classiﬁable Item CatalogueElement

Measurement Unit MeasurementUnit

Measure Class -

Dimensionality -

- Asset

- AssetFile

- ExtensionValue

- Mapping

- DataModel

- DataModelPolicy

- PrimitiveType

- ReferenceType

- Tag

- ValidationRule

The ﬁrst iteration resulted in version 1.x of the

metadata registry, which went into service in Ge-

nomics England in 2015, however it met with many

criticisms from users, and a complete overhaul was

undertaken. This time a different approach was used,

and the basic metamodel redeveloped, informed more

by feedback from data analysts than reliance on the

ISO/IEC11179 standard. The domain metamodel was

developed using XText, which allowed for the fast

iterative development of the metamodel, using the

Eclipse toolkit. Once this was established the domain

model was implemented using the Grails framework

(v2.5.6), which allowed much of the existing code-

base to be re-used.

5.3.1 MDML: A DSL for Metadata

Management

Revising the core metamodel required examining a

wide range of existing healthcare datasets, such as

the ones mentioned in the introduction, and review-

ing the conceptual background, language, context and

purposes to which they were being used. Various

modelling methodologies were examined, however

the ECore/XText framework provided a relatively

straightforward way of testing ideas quickly. A gram-

mar was developed using XText which was called the

Metadata Management Language (MDML), and from

this the most recent metadata registry was developed.

When building this there were a number of fea-

tures or requirements, that the Healthcare professions

we dealt with required. These were absent in the

ISO/IEC11179 standard, and are listed below:

• The ability to group data elements, in particular

handle hierarchical groupings which are so com-

mon in most datasets.

• The ability to manage, compare and map groups

of models as well as individual data elements.

• The ability to uniquely identify particular data el-

ements, groupings, and identify a publishing state,

i.e. is the dataset a draft, a current dataset, a su-

perseded (but still used)dataset.

Some of these issues are touched upon in the stan-

dard, for instance data elements can be grouped us-

ing the construct of object property, however there is

no notion of layers of grouping. With SNOMED CT

there are 13 layers of hierarchy, with links between

layers, and this kind of structure needs to be modelled

and managed with the metadata registry.

The XText domain model included all the con-

structs from column 3 of Table 2, and provided a

grammar which was then used to generate a set of

domain objects, which in turn were able to repre-

sent the various healthcare datasets being used. The

core enabled the automatic generation of grails do-

main classes using the code generation capabilities

of XText. For illustrative purposes we show the key

metadata registry structure in Figure 4.

Model Driven Data Management in Healthcare

113

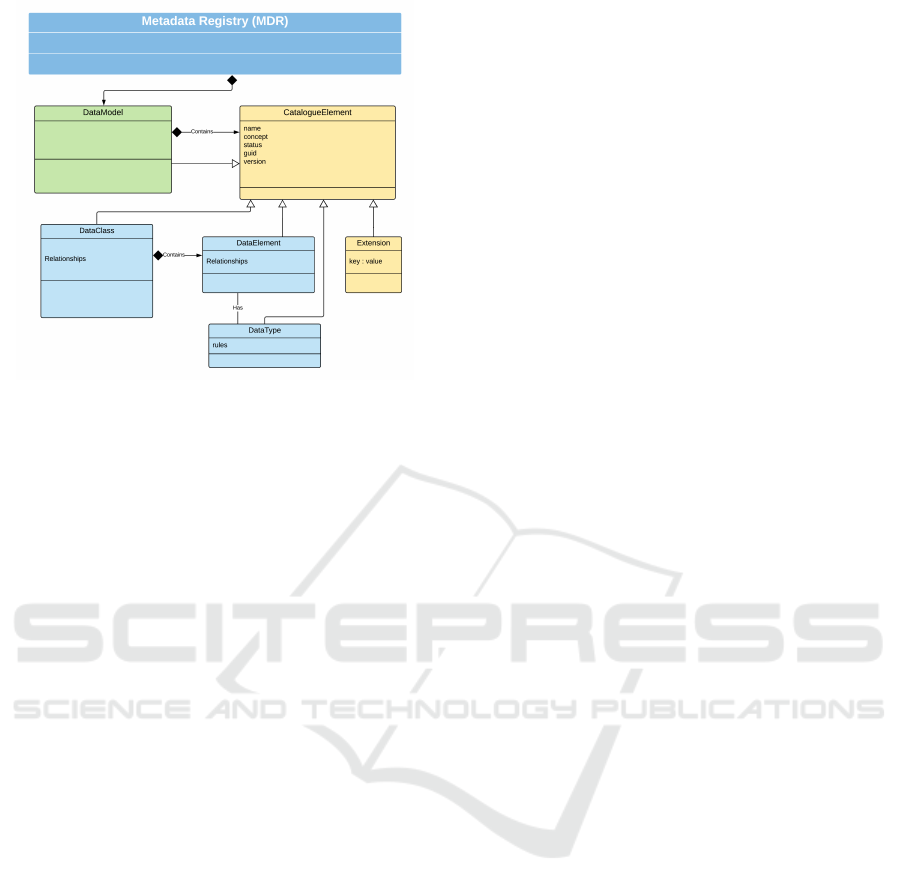

Figure 4: Core MDR (Ecore) Metamodel.

The structure illustrated here allows the metadata

registry to capture data elements, which is at the core

of the standard. It also allows each element to have

a status, which allows it to conform to the publishing

aspects of the standard. By making each item in the

registry a class inheriting from an abstract Catalogue

Element each data element is captured by a unique

identiﬁer and a status relating to its publishing status.

In the ISO standard metamodel the data element is the

primary artefact under consideration, however there is

no obvious direction on how groups of data elements

should be handled.

In practice data elements appear in groups,

whether spreadsheets, database tables or CSV ﬁles.

In the data analysis business, groups of data need to

be brought together and to do this datasets need to

be mapped and transformed. In our ﬁrst and second

models it was easy to generated lists of data elements,

however they were nearly always grouped using sev-

eral layers of hierarchy into different entities, which

made mapping and transformation difﬁcult.

Further a DataModel is able to add in any num-

ber of extensions, which can be used to augment par-

ticular data elements for instance to mark them as

user interface items so that user interfaces can be au-

tomatically generated. In addition imports can be

added from other DataModels, so that new datasets

can be created using data elements from several dif-

ferent datasets. This metamodel evolved over a period

time in order to solve the problems of integrating data

from a wide variety of heterogeneous sources, it is

closely based around UML/Ecore, but is in essence a

domain speciﬁc language or metamodel for data inte-

gration.

5.3.2 Core Elements of MDML

The main constructs of DataClasses, DataElements

and DataTypes are common to most technical spaces,

and can be used to group and manage data elements

in way that is easy for data analysts and developers

to grasp. Metadata can then be attached to any of

these core elements, so that security classiﬁcations,

and governance directives, found in other parts of the

ISO11179 standard can easily be added to particular

DataElements or DataClasses.

AT core MDML provides a metamodel, in essence

a language for data structures, which allows addi-

tional metadata to be added on through a simple

mechanism of extension values and tags. It allows

datasets to be grouped and classiﬁed in a ﬂexible

and manageable way, so that one registry could hold

several common healthcare metamodels, say FHIR,

OMOP and LOINC, and build local models based on

all three. There is a clear identiﬁcation system built

into the language which means that each version is

separately identiﬁed, so that any mappings between

FHIR and OMPOP for instance will be detailed to

particular versions of the datasets.

There is a clear publishing cycle built into the

metamodel, which allows change for draft models,

but not for ﬁnalized models, therefore data elements

in ﬁnalized models can be imported into other (draft)

datamodels, but no new elements can be imported in

currently ﬁnalized models. This is an important man-

agement feature, derived from the ISO standard which

has been built into the language.

6 RESULTS

By using the metadata registry Genomics England

was able to specify exactly what data they required

from UK Hospital Trusts by building their own data

models centrally online. The other organizations are

then able to use these models to verify that outbound

data is valid, and thus ensuring that data won’t be re-

turned.

The main technique used is to import a new

dataset into the metadata registry, normally in csv or

excel format, to conﬁgure a mapping using XML, and

then import the dataset deﬁnition into the metadata

registry directly. From this new model a number of

artefacts such as spreadsheets and XML Schema ﬁles

could be generated from one source. This eliminated

any doubt arising from spreadsheets which were dis-

seminated after meetings. Instead the meetings could

be held online, and the changes were immediately vis-

ible to all parties. Spreadsheets and XML ﬁles could

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

114

then be generated for local form or code generation,

and rules could be attached to data elements and data

types which could be automatically downloaded via a

REST interface, rather than by disseminating spread-

sheets and documents.

The MDML based metadata registry has been in

use for the past 2 years at Genomics England, as well

as at 7 other NHS Hospital Trusts in London. It’s core

use is to manage datasets which are used by Genomics

England to specify dataset requirements, a dataset or

model is deﬁned in the metadata registry, this is then

used to automatically generate output speciﬁcations

as excel, XML or as Case Report Forms. The latter is

a speciﬁcation for generating forms in the Open Clin-

ica system, but which can automatically be loaded

into Open Clinica to generate both the forms and data

repository to store the data. Rules, embedded into the

DataTypes as regular expressions, or as groovy code,

are then used to validate datasets.

Data curation, which previously was carried out

using excel spreadsheets, and involved regular phys-

ical meetings between data managers and clinical

leads from all over the UK now takes place online.

The models which are generated are given a unique

identiﬁer, and once all parties agree to issue a new

model it is ﬁnalized thus preventing further change

to that version of the model. At any point in time

the model, and it’s history can be referred to online,

removing doubt and ambiguity over what the con-

stituents are, further the model can be accessed using

a REST interface, making it available for code gener-

ation utilities remotely. The results of using the meta-

data registry and toolkit are listed below:

• Reduction in time and effort in creating and cu-

rating datasets over spreadsheets and document-

based techniques.

• Ability to clearly access the current version of a

dataset and verify that it is the correct version, us-

ing unique identiﬁers.

• Ability to generate artefacts based on the data-

model, such as forms, XML and XML Schemas

automatically.

• Ability to validate data against the model au-

tomatically using rules stored against individual

data elements.

• Ability to map between different datasets in a de-

tailed and precise fashion, again with the use of

unique identiﬁers.

7 DISCUSSION

By applying MDE principles a metadata registry was

built that satisﬁed the requirements of this research

organisation for managing heterogeneous dataset. At

the beginning of the work, much time and effort was

put into implementing the international standard for

metadata registries which is either lacking in clar-

ity, or un-informed by the healthcare use cases that

were encountered in this research effort. Whilst much

in the standard was informative and relevant to the

more general issue of data integration, the clear lack

of a consistent metamodel or language around which

to build a metadata registry was a great disappoint-

ment. Metadata registries are becoming common-

place in enterprise architecture today, especially since

automatic management of large datasets, big data, is

extremely difﬁcult without them. So it was very dis-

appointing that applying the ISO/IEC11179 standard

proved so difﬁcult in this instance. It must be pointed

out that the shortcomings found and described in this

paper only relate to 2 or 3 clauses in a standard which

is several hundred pages in length, however they did

cause signiﬁcant problems in our development effort

and it is hoped that clariﬁcations and improvements

to the standard will be made in due course.

8 CONCLUSION

There were a number of problems which arose from

attempting to build a metadata registry which com-

plies with the ISO/IEC11179 standard in the early

stages, these have been documented, and steps taken

to correct the problems encountered. In the course

of correcting these problems a model driven engi-

neering approach was taken, and an effective set of

tools were built based around a revised metamodel

for metadata management. The open source toolkit

(MetadataWorks, 2018) developed from this research,

has proved very effective, being used to simplify and

speed up the work of data curation, data-wrangling

and data-cleaning. In addition an MDE-based toolkit

was built which provided a REST interface and al-

lowed third parties to carry out automated data vali-

dation. Future work on extending the model is antic-

ipated, in particular to produce automated tool chains

which can generate both the input forms, repositories

and mapping capabilities for heterogeneous datasets.

Model Driven Data Management in Healthcare

115

ACKNOWLEDGEMENTS

I would like to acknowledge the help of Adam Mil-

ward, Kathy Farndon, Amanda O’Neill and Samuel

Hubble at Genomics England, and Jim Davies,

Charles Crichton, Steve Harris and James Welch at

the University of Oxford.

REFERENCES

Atanasovski, B., Bogdanovic, M., Velinov, G., Stoimenov,

L., Dimovski, A. S., Koteska, B., Jankovic, D.,

Skrceska, I., Kon-Popovska, M., and Jakimovski, B.

(2018). On deﬁning a model driven architecture for

an enterprise e-health system. Enterprise Information

Systems, 12(8-9):915–941.

Costa, C. M., Men

A¡rguez-Tortos, M., and Fern

A¡ndez-

Breis, J. T. (2011). Clinical data interoperability based

on archetype transformation. Journal of Biomedical

Informatics, 44(5):869 – 880.

Davies, J., Gibbons, J., Harris, S., and Crichton, C. (2014).

The cancergrid experience: Metadata-based model-

driven engineering for clinical trials. Science of Com-

puter Programming, 89:126–143.

Davies, J., Gibbons, J., Milward, A., Milward, D., Shah, S.,

Solanki, M., and Welch, J. (2015). Domain-speciﬁc

modelling for clinical research. In SPLASH Workshop

on Domain-Speciﬁc Modelling.

Dolin, R. H., Alschuler, L., Boyer, S., Beebe, C., Behlen,

F. M., Biron, P. V., and Shvo, A. S. (2006). HL7 Clin-

ical Document Architecture, release 2. Journal of the

American Medical Informatics Association, 13(1):30–

39.

Eclipse-Foundation (2018). Eclipse mdt uml2 tools.

https://eclipse.org/modeling/mdt?project=uml2//.

HL7-FHIR-Foundation (2017). Fast health interoperability

resources. https://www.hl7.org/fhir//.

ISOJTC1 (2015). Io11179 international stan-

dard for metadata registries. http://metadata-

standards.org/11179//.

ISOTC215 (2008). Health informatics – electronic health

record (ehr) standard. http://www.en13606.org/.

Jian, W.-S., Hsu, C.-Y., Hao, T.-H., Wen, H.-C., Hsu, M.-

H., Lee, Y.-L., Li, Y.-C., and Chang, P. (2007). Build-

ing a portable data and information interoperability

infrastructure framework for a standard taiwan elec-

tronic medical record template. Computer Methods

and Programs in Biomedicine, 88(2):102 – 111.

Komatsoulis, G. A., Warzel, D. B., Hartel, F. W., Shanbhag,

K., Chilukuri, R., Fragoso, G., de Coronado, S.,

Reeves, D. M., Hadﬁeld, J. B., Ludet, C., et al.

(2008). caCORE version 3: Implementation of a

model driven, service-oriented architecture for seman-

tic interoperability. Journal of Biomedical Informat-

ics, 41(1):106–123.

Kunz, I., Lin, M.-C., and Frey, L. (2009). Metadata

mapping and reuse in caBIG. BMC Bioinformatics,

10(Suppl 2):S4.

Leroux, H., McBride, S., Lefort, L., Kemp, M., and Gib-

son, S. (2012). A method for the semantic enrich-

ment of clinical trial data. In Health Informatics:

Building a Healthcare Future Through Trusted In-

formation; Selected Papers from the 20th Australian

National Health Informatics Conference (HIC 2012),

volume 178, page 111. IOS Press.

Marcos, M., Maldonado, J. A., Mart

Anez-Salvador, B.,

Bosc

A¡, D., and Robles, M. (2013). Interoperabil-

ity of clinical decision-support systems and electronic

health records using archetypes: A case study in clini-

cal trial eligibility. Journal of Biomedical Informatics,

46(4):676 – 689.

Mart

Anez-Costa, C., Men

A¡rguez-Tortosa, M., and

Fern

A¡ndez-Breis, J. T. (2010). An approach for

the semantic interoperability of iso en 13606 and

openehr archetypes. Journal of Biomedical Informat-

ics, 43(5):736 – 746.

MetadataWorks (2018). Metadata exchange (open source)

toolkit. https://github.com/MetadataConsulting/-

ModelCataloguePlugin//.

OHDSI (2018). Ohdsi common data model. https://www.

ohdsi.org/data-standardization/the-common-data-

model//.

Open-Health-Tools (2008). Model driven health tools.

https://projects.eclipse.org/proposals/model-driven-

health-tools.

Press, G. (2016). Cleaning big data: Most-time-consuming,

least enjoyable data science task. Forbes.

Rector, A. and Iannone, L. (2012). Lexically suggest, logi-

cally deﬁne: Quality assurance of the use of qualiﬁers

and expected results of post-coordination in snomed

ct. Journal of Biomedical Informatics, 45(2):199 –

209.

Schlieter, H., Burwitz, M., Sch

onherr, O., and Benedict, M.

(2015). Towards model driven architecture in health

care information system development. In 12th In-

ternational Conference on Wirtschaftsinformatik (WI

2015).

Scott, P. and Worden, R. (2012). Semantic mapping to

simplify deployment of HL7 v3 Clinical Document

Architecture. Journal of Biomedical Informatics,

45(4):697–702.

Sinaci, A. A. and Erturkmen, G. B. L. (2013). A federated

semantic metadata registry framework for enabling

interoperability across clinical research and care do-

mains. Journal of Biomedical Informatics, 46(5):784

– 794.

Stevens, R. and Sattler, U. (2013). Post-

coordination: Making things up as you go along.

http://ontogenesis.knowledgeblog.org/1305.

Tao, C., Jiang, G., Wei, W., Solbrig, H. R., and Chute, C. G.

(2011). Towards Semantic-Web Based Representation

and Harmonization of Standard Meta-data Models for

Clinical Studies. AMIA Summits on Translational Sci-

ence Proceedings, 2011:59–63.

Ulrich, AK, K., P, D.-H., JK, H., and J, I. (2016). Metadata

repository for improved data sharing and reuse based

on hl7 fhir. Studies in Health Technology and Infor-

matics, 228:162–166.

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

116
