Enhancing Business Process Modelling with Data Protection

Compliance: An Ontology-based Proposal

Cesare Bartolini

, Antonello Calabró

and Eda Marchetti

University of Luxembourg, Interdisciplinary Centre for Security, Reliability and Trust (SnT), Luxembourg

Istituto di Scienza e Tecnologie dell’Informazione “A. Faedo”, Consiglio Nazionale delle Ricerche (CNR)

Keywords:

Business Processes, BPMN, General Data Protection Regulation (GDPR), Privacy by Design, Legal Ontolo-

gies, LegalRuleML.

Abstract:

The research and industrial environments are struggling to identify practical approaches to highlight the (new)

duties of controllers of personal data and foster the transition of IT-based systems, services, and tools to comply

with the GDPR. In this paper, we present a solution for enhancing the modelling of business processes with

facilities to help evaluate the compliance with the GDPR. The proposal is based on a model describing the

constituents of the data protection domain: a structured form of the legal text, an ontology of data protection

concepts, and a machine-readable translation of the GDPR provisions. An example of application is also

provided.

1 INTRODUCTION

The technical evolution of the last decades has signif-

icantly changed the environment in which data pro-

tection rules operate, in particular by blurring the dis-

tinction between the controller and the data subject,

thus making it difﬁcult to understand how to apply

those rules (Van Alsenoy et al., 2009). The General

Data Protection Regulation (GDPR) aims to bring

such rules on par with technology (Reding, 2010) and

harmonize them across the European Union. Fur-

ther objectives are to enhance individuals’ rights, give

them more control over their personal data, simplify

the regulatory environment for businesses, and set the

foundation for the Digital Single Market (European

Commission, 2015).

The GDPR raises concerns for the development of

software systems that can provide services compliant

with it, and in line with the novel principle of data

protection by design

Unfortunately, designing systems compliant with

data protection rules is no easy task.

Within computer science, data protection is of-

ten referred to as privacy and considered a subset of

the security domain (Pﬂeeger et al., 2015; Massacci

et al., 2005). However, privacy and data protection

GDPR, Article 25.1.

mean different concepts in legal doctrine. There is

indeed an overlapping between the two terms, as pri-

vacy measures can contribute to the protection of per-

sonal data, but privacy alone does not fulﬁll the GDPR

requirements.

Problems may become more stringent due to the

layering of the different services. A signiﬁcant

amount of them could be located in different parts of

the world, especially in the United States, and thus

not subject to the GDPR (Jaeger et al., 2009).

To facilitate the introduction of GDPR require-

ments in software design processes, automating the

enforcement of its requirements is very important. A

crucial step is therefore to try and rewrite the GDPR

requirements into a machine-readable representation.

Indeed the automated processing of the GDPR can

support compliance,

in the sense of assisting in the design, develop-

ment, maintenance, and veriﬁcation of a system in

order to comply with the GDPR requirements, in-

cluding the detection of possible violations, with the

objective to minimize the risk of sanctions being is-

sued by the supervisory authority. The integration

of compliance-supporting approaches in development

tools and methodologies is an application of the data

protection by design principle.

In view of developing and adopting supporting ap-

proaches in the development process, industrial or-

Bartolini, C., Calabró, A. and Marchetti, E.

Enhancing Business Process Modelling with Data Protection Compliance: An Ontology-based Proposal.

DOI: 10.5220/0007392304210428

In Proceedings of the 5th International Conference on Information Systems Security and Privacy (ICISSP 2019), pages 421-428

ISBN: 978-989-758-359-9

 2019 by SCITEPRESS – Science and Technology Publications, Lda. All r ights reserved

421

ganizations are nowadays moving towards the use of

Business Process Model and Notation (BPMN) (Ob-

ject Management Group, 2011). As highlighted

in (Fleac

a et al., 2016), the main beneﬁts of BPMN

commonly rely on the possibility of having a clear

and standard notation for creating a description of

processes (in terms of participants and activities) and

develop executable frameworks for the overall man-

agement of the process itself. Directly integrating the

GDPR requirements into the business process execu-

tion represents a key aspect both for privacy manage-

ment and validation.

Existing works (Bertoli et al., 2013; Calabró et al.,

2015) focus on deﬁning key performance indicators

(KPIs), including time-based and cost-based parame-

ters, to assess the BPMN execution. Conversely, this

paper presents an approach that uses the legal model

of the GDPR to enrich a business process with an-

notations that express data protection requirements.

In other words, the business process will be extended

with appropriate connectors to introduce the legal re-

quirements, as they are expressed in the data protec-

tion model. The immediate beneﬁts can be summa-

rized as follows:

• controllers of personal data would have a clearer

view of their duties with respect to data protection

in the context of their business;

• the auditors would have a ﬁrst-look model to ver-

ify the GDPR requirements implementation;

• supervisory authorities would have a structured

approach to detect potential violations.

Concerning the structure of the paper, Section 5

provides a survey of existing literature concerning le-

gal models for data protection and privacy, and exist-

ing techniques to express legal requirements in soft-

ware engineering. Section 2 presents the legal rep-

resentation of data protection legislation, explaining

how to describe data protection rules by coordinat-

ing three separate models to express the concepts, the

legal text, and the rules, respectively. Section 3 in-

troduces the extension of business processes to ac-

commodate data protection rules. An example in Sec-

tion 4 shows how the proposed approach can be used.

Finally, Section 6 gives a set of conclusions and the

envisioned future work.

2 BACKGROUND

The present work aims at integrating the legal model

for the GDPR into a business process. It is true

that there are many possible ways in which the two

might be integrated, depending on the speciﬁc pur-

pose. Whatever the purpose and means of the integra-

tion, it is founded on two building blocks:

• the legal model of the GDPR;

• the model of the business process.

2.1 Modelling the GDPR

Modelling legal texts is a major problem that faces

many difﬁculties due to the necessary interpretation

of legal provisions. Additionally, the development

of a machine-readable model of a law is hindered by

the fact that the law can be viewed from several per-

spectives. Among the currently available proposals

for modelling the GDPR, in this paper we refer the

DAPRECO model, which is based on the interaction

of three main components: i) a structured representa-

tion of the legal text; ii) a conceptual model describ-

ing the legal terms used in data protection legislation;

iii) a machine-readable translation of the normative

provisions.

Each of these components is built using a speciﬁc

format, and the full GDPR model derives from the

integration of all three. For the sake of completeness,

a brief description of the components is shown below.

The structured representation of the legal text

consists of the annotation of the legal text using spe-

ciﬁc tags to identify the various parts of the Regu-

lation (e.g., chapter, article, paragraph, and so on).

In the DAPRECO project, this is done by using the

Akoma Ntoso

language, an XML format designed

for structuring legal texts (Palmirani and Vitali, 2011).

Each part of the legal text is uniquely identiﬁed by an

index, so that, using appropriate Uniform Resource

Identiﬁers (URIs) containing anchors to the correct

identiﬁers, it is possible to reference speciﬁc provi-

sions, or combinations thereof, within the legal text.

This referencing can be done from external ﬁles as

well.

The second component is the conceptual model

based on a legal ontology (Benjamins et al., 2005),

which is a speciﬁc type of ontology speciﬁcally de-

signed to represent concepts in the legal domain.

Ontologies can be formalized using several pos-

sible models. In the DAPRECO project, the concep-

tual model of the GDPR has been modeled using the

OWL language (World Wide Web Consortium, 2012).

OWL is a knowledge representation language that has

several expression formats (called syntaxes), some of

which are XML tagsets.

The legal ontology for the GDPR is called

PrOnto (Palmirani et al., 2018b; Palmirani et al.,

http://www.akomantoso.org/.

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

422

2018a), which stands for Privacy Ontology, since its

purpose is to support not only the GDPR concepts,

but also other data protection legislation and privacy.

The third and ﬁnal component of the DAPRECO

GDPR model is the machine-readable translation of

the legal provisions. As the legal text is written in nat-

ural language, the obligations, permissions and pro-

hibitions contained therein must be formalized in a

machine-readable format. In DAPRECO, to express

the legal rules of the GDPR, a set of logic formulæ

was used. The founding logic is called Reiﬁed In-

put/Output (RIO) logic (Robaldo and Sun, 2017),

which is an extension of Input/Output logic (Makin-

son and van der Torre, 2000) with the addition of reiﬁ-

cation (Davidson, 1967). The DAPRECO logic for-

mulæ are the result of an interpretation of the legal

provisions. The interpretation was performed with

the assistance of legal experts, but still it is subject

to be overcome by more authoritative sources (such

as court decisions or opinions of supervisory author-

ities). The logic formulæ in DAPRECO have been

formalized using the LegalRuleML language (Palmi-

rani et al., 2011), which has the very purpose of ex-

pressing legal provisions. The formulæ follow an if-

then structure, i.e., when the preconditions are met (if

part), a legal consequence follows (then part). The le-

gal consequence could be an obligation, permission,

or prohibition.

2.2 Business Processes at a Glance

A Business Process (BP) usually refers to any struc-

tured collection of related activities or tasks that are

carried out to accomplish the intended objectives of

an organization. Tasks within a BP may represent

steps that can be performed either manually by a hu-

man, or automatically by an IT system (Gerth, 2013).

A business model can be represented using one of

the available Business Process Modeling Languages

(BPMLs) (van der Aalst et al., 2003). In this paper

BPMN is the formalism chosen to represent business

models. BPMN is the de facto standard for process

modeling. It is indeed a rich and expressive language

(but also a complex one) used for the tasks associ-

ated with process modeling (Recker, 2010). BPMN

has four categories of graphical elements that can be

used to build the diagrams: Flow Objects are asso-

ciated with the actions that can be performed in a BP

and make up the behavior of the BP. They consist of

Events, Activities, and Gateways. Connecting Ob-

jects can be used to connect elements to each other

in three different ways: Sequence Flows, Message

Flows, and Associations. Swimlanes provide the ca-

pability of grouping the primary modelling elements.

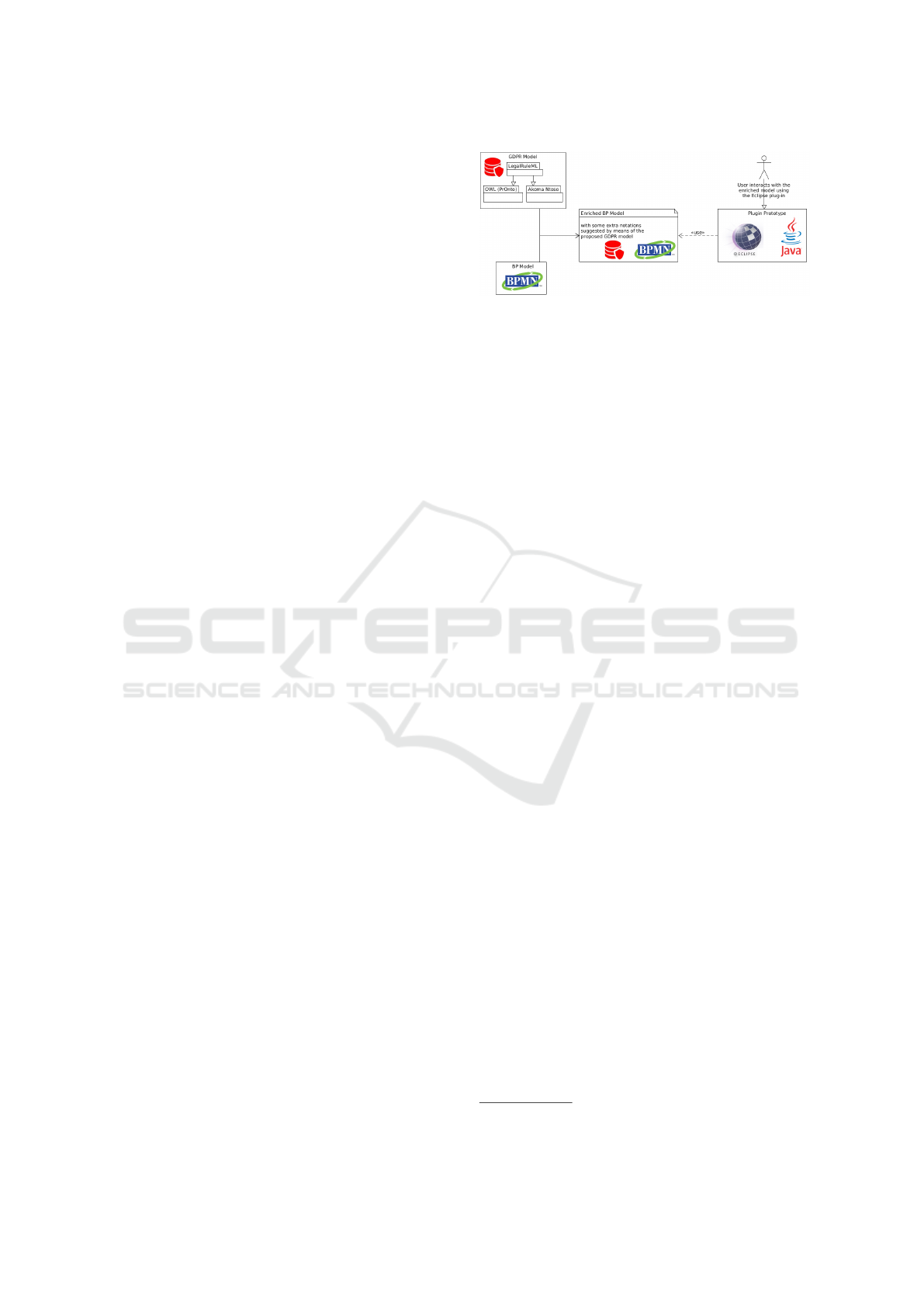

Figure 1: Approach overview.

Swimlanes have two elements through which mod-

ellers can group other elements: Pools and Lanes.

Artifacts are used to provide additional information

about the process that does not affect the ﬂow.

3 APPROACH OVERVIEW

As BPMN is designed to be an extensible language,

it can be used to create extensions for new artifacts in

the BPMN diagrams. Thanks to this feature, this sec-

tion explores the possibility of extending BPMN with

artifacts that support the proposed GDPR model, and

provides some highlights on how such an extension

could be done.

The ideal combination between the GDPR model

and BPMN would consist in introducing BPMN ac-

tivities that represents actions relevant for the protec-

tion of personal data. For example, when collecting

personal data, compliance requires that there is a le-

gal basis that makes the processing lawful, such as the

data subject’s consent

. Additionally, the data subject

must have preemptively been provided with a con-

sistent amount of information. These three activities

(collecting personal data, obtaining consent, and pro-

viding information) are all related to the GDPR, even

though only the collection is an actual processing of

personal data, and they are represented in the consid-

ered PrOnto ontology (see subsection 2.1) as OWL

classes, speciﬁcally subclasses of the Action class.

This provides a clearer perspective on the activities

related to personal data processing.

The idea of this paper is not only to extend the

BPMN with the concepts expressed in the PrOnto on-

tology, but also to provide a support to evaluate com-

pliance through a structured approach to verify the

GDPR requirements implementation and detect po-

tential violations.

Figure 1 shows an overall description of the ap-

proach adopted. The ﬁrst box on the top left repre-

sents the GDPR Model made up of several components

already described in subsection 2.1.

GDPR, Article 6.

Enhancing Business Process Modelling with Data Protection Compliance: An Ontology-based Proposal

423

First off, classes in the ontology are referenced

by the LegalRuleML formulæ, which in turn model

GDPR provisions. The formulæ therefore provide a

connection between the BPMN activities and the pro-

visions that affect them, both in text (via the Akoma

Ntoso document) and in the deontic rule. In this way,

the extended model can provide assistance both to the

legal expert and to the software designer. Addition-

ally, the connection is not textual but semantic (as it

is based on an ontology), so it is possible to further

enrich it by leveraging on the relations between the

ontological entities, by means of metadata and con-

nections to other sources.

The integration of BPMN and the GDPR model

(see box Enriched BP Model in Figure 1) also al-

lows to clearly assign tasks to the various stakehold-

ers, for example by highlighting the duties of the pro-

cessor with respect to the controller, or the activities

of the data protection ofﬁcer. From a visual perspec-

tive, it can assist in identifying the GDPR prerequi-

sites (with reference to the example above, the duties

to request consent and to provide information to the

data subject). Additionally, a BPMN is not only a

static visual diagram, but also a formal model that

can be executed by appropriate engines. This fea-

ture can be exploited for GDPR compliance. Refer-

ring again to the above example, the execution engine

could keep track of the fact that the data subject has

consented to the processing, and when personal data

are to be collected, the engine might prevent from ex-

ecuting further if it cannot verify that prerequisite.

3.1 Sample Implementation

In this section, we present a proposal for the infras-

tructure enriching the Business Process with anno-

tations able to express data protection requirements.

Among the several available tools for developing BP

models, the proposal of this paper relies on Eclipse

Plug-In technologies

. In particular, the implemen-

tation is a plugin of the Eclipse BPMN2 Modeler

running on top of recent versions of Eclipse (tested

on 4.7 and subsequent versions)

. Note that the pro-

posed plugin would be only an example of a possible

integration between BPMN and the GDPR model.

Developers of a BP can exploit the plugin facili-

ties to enrich their design with tasks speciﬁcally con-

ceived to model processing activities that involve per-

sonal data. The generic Task has been extended so

as to support annotations extracted from the ontology.

https://www.eclipse.org/.

https://www.eclipse.org/bpmn2-modeler/.

An ongoing version of the presented plugin can be

found at https://github.com/guerret/lu.uni.eclipse.bpmn2/.

This new task, called Data Protection Task and recog-

nized by a distinctive graphical appearance (marked

with a red icon), has been instantiated with the op-

erations and related properties extracted from the on-

tology speciﬁcation (see Figure 2). Moreover, a new

tab called Data Protection has been included in the

palette area of the BPMN2 Modeler interface (see

Figure 3).

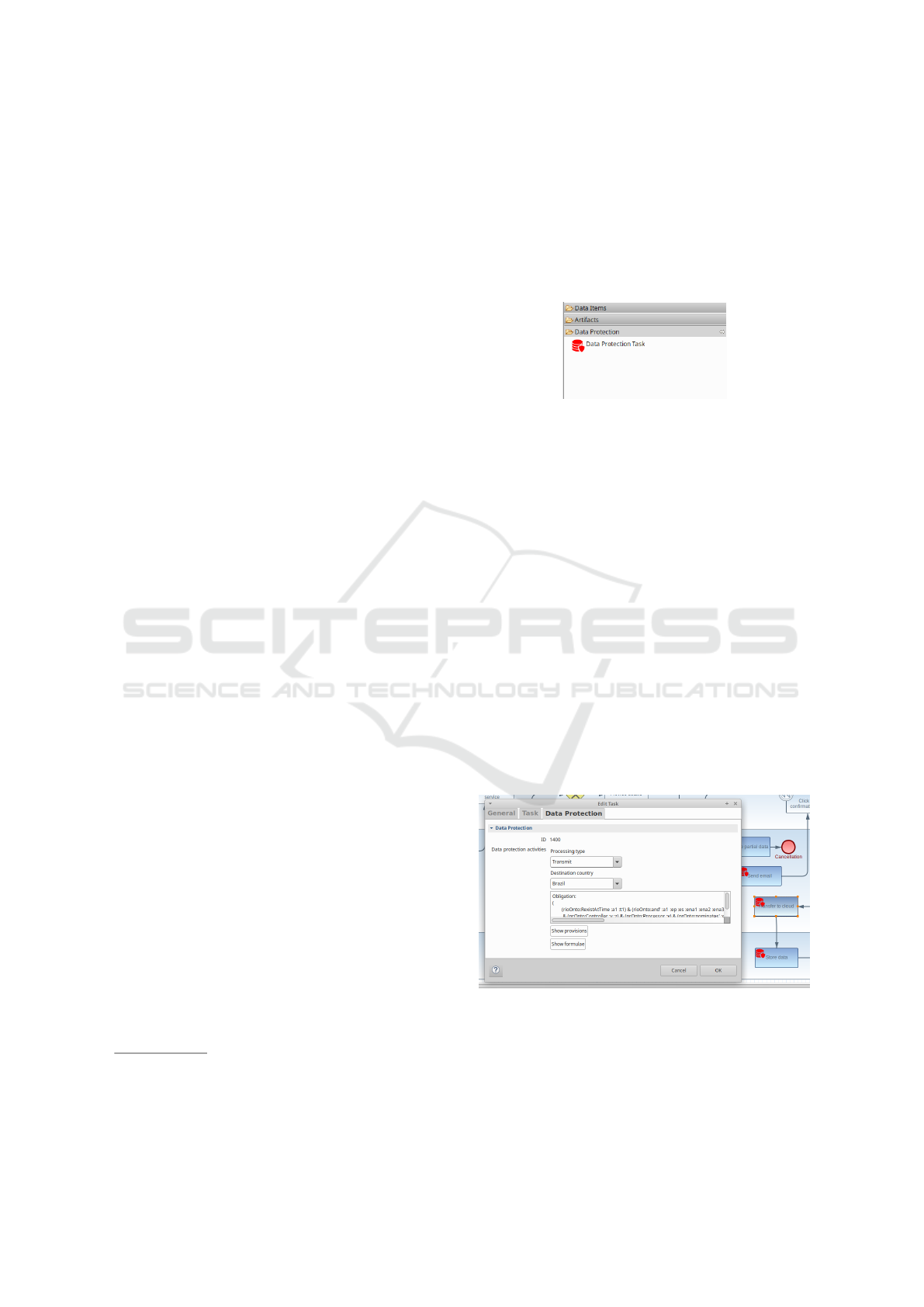

Figure 2: Speciﬁc tasks for Data Protection.

Figure 2 shows the properties of the interface of

the data protection tasks. In particular, the ﬁrst drop-

down menu allows user to select the speciﬁc activity

retrieved from the ontology.

For example, a data protection task which repre-

sents a data transmission has a Processing type Trans-

mit, and refers to the Transmit class (a subclass of the

Action class) in the PrOnto ontology. Likewise, from

the perspective of the ontology, a BPMN task of the

Transmit type represents an individual of the Trans-

mit class. The PrOnto ontology can also be used to

retrieve the relevant information that can be used as

parameters of the task.

More speciﬁcally, in the properties window called

Data Protection, all the obligations involving the

Transmit action are listed, while the select drop-down

menu labelled Destination country can accommodate

the information relative to the country towards which

the data should be transferred.

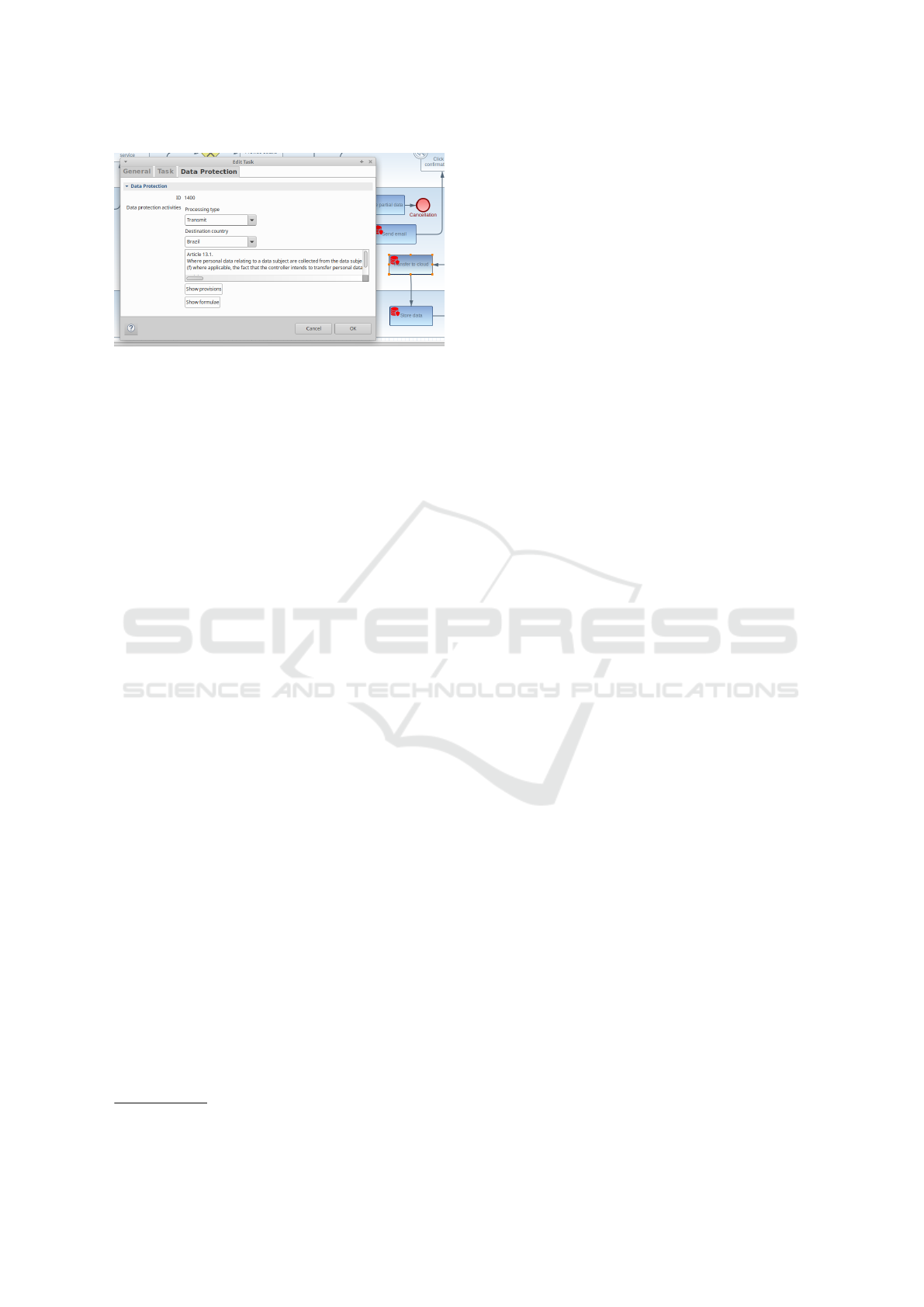

Figure 3: Obligations related to the Data Protection Task:

Action.

Section 4 will show an example of usage of the

new Data Protection Task Transmit, delving into the

technical details of its application.

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

424

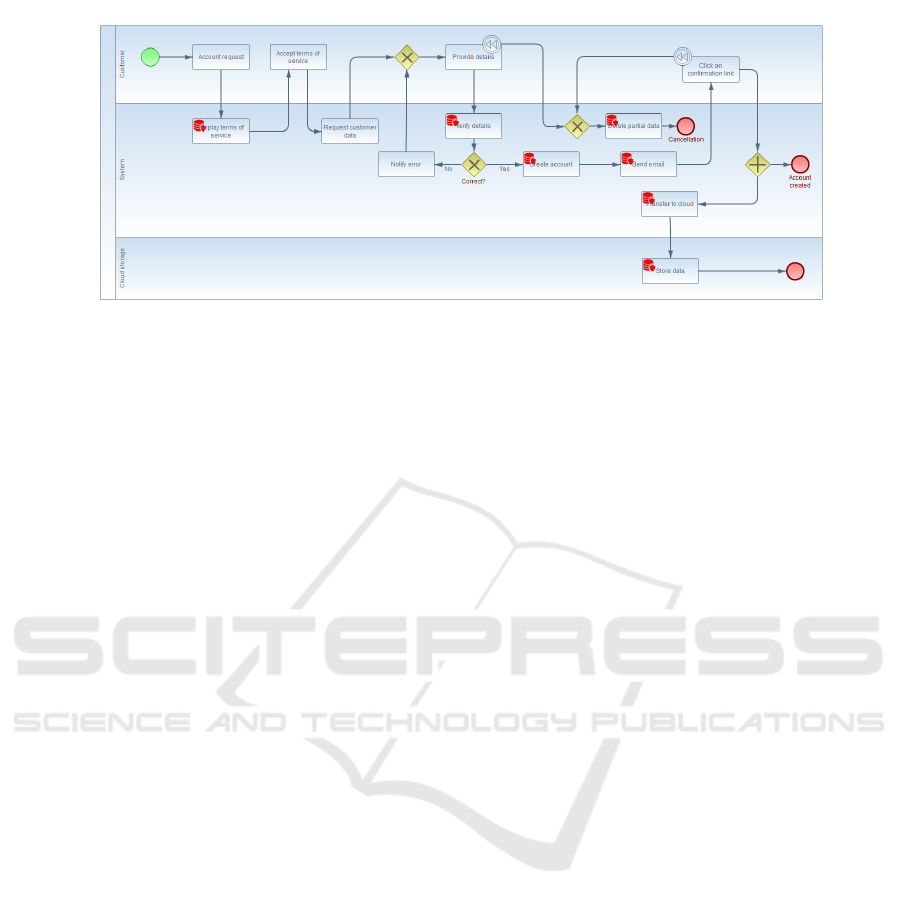

Figure 4: BPMN process example.

4 APPLICATION EXAMPLE

In this section, we provide an application example of

the proposed infrastructure. Figure 4 shows a real-

istic, albeit invented, BPMN process for the creation

of a user account for a service that relies on cloud

storage. The collaboration diagram shows three par-

ticipants, each having a respective role in the GDPR:

the customer is the data subject, the service provider

is the controller, and the cloud storage provider is a

processor.

Several tasks in the lanes of the controller and pro-

cessor are the extended data protection tasks, as they

entail some activity that is related to data process-

ing regulations. In particular, Display terms of

service is such an activity, despite not involving an

actual processing of personal data, because the terms

of service must comprise the information pursuant to

GDPR Articles 13 and 14. The use of a data pro-

tection task thus emphasizes the need to include such

information in the terms of service. In the absence of

such information, any processing would be unlawful.

All other data protection tasks in the diagram involve

some processing activity (such as collecting, reading,

storing, transmitting, or deleting personal data) as per

the deﬁnition in GDPR Article 4(2).

Considering the described scenario, we focus, for

example, on the Transfer to cloud activity (exe-

cuted by System). According to Article 4(2) of the

GDPR, the transmission of personal data is a pro-

cessing activity, which requires a set of safeguards

to ensure that the data subject’s rights are properly

protected. Such safeguards include, for example, the

need to inform the data subject about the categories of

recipients to which the data might be sent. Addition-

ally, in case the data are to be transmitted to a country

outside the European Union, the transmission is law-

ful only if it is supported by adequate measures (an

adequacy decision by the Commission, binding cor-

porate rules, or an express authorization).

Figure 3 displays one possible use of integrating

the BP with the underlying GDPR model. In this ex-

ample, the tool is used to extract all the logic formulæ

(in RIO logic format) that are pertinent for that type

of action.

Though the one in Figure 4 is a basic example,

it shows the connection between the various compo-

nents of the GDPR model. In particular, the various

data protection tasks are mapped to classes in PrOnto

that are subclasses of an Action class. The Transfer

to cloud action is mapped to the Transfer class in

PrOnto, with IRI https://w3id.org/ontology/pronto#

Transmit, or, using preﬁxes, prOnto:Transmit. This

IRI is also used in the RIO formulæ. The Legal-

RuleML ﬁle contains XML Rel elements with an

attribute iri pointing to that PrOnto class. Conse-

quently, in the speciﬁc example, the XML tag will be

<ruleml:Rel iri=”prOnto:Transmit”/>.

The sample implementation then retrieves from

the LegalRuleML ﬁle all the relevant formulæ, i.e.,

those that contain a reference to that class in the if

part of the formula (as shown in Figure 3). These

are all the applicable rules in case a Transmit action

must be put into place. In particular, the formulæ con-

taining an obligation show what requirements must be

met before, during or after (depending on the speciﬁc

provision) the transmission for it to be lawful.

Without delving into excessive details, consid-

ering the Transmit to cloud action, the ﬁrst re-

currence of the prOnto:Transmit predicate con-

nects both to the Internationalized Resource Iden-

tiﬁer (IRI) GDPR:art_13__para_1__content__list_1_

_point_f, where the GDPR preﬁx represents the URI

of the Akoma Ntoso serialization of the GDPR, and to

a set of statements (statements44 in the LegalRuleML

ﬁle) that contain the logic model of the rules in RIO

logic.

Enhancing Business Process Modelling with Data Protection Compliance: An Ontology-based Proposal

425

Figure 5: GDPR Text obtained navigating Akoma Ntoso

serialization.

By navigating to the identiﬁer in the Akoma Ntoso

ﬁle, as shown in Figure 5, it is possible to retrieve the

exact text of the GDPR provision that concerns the

transmission, i.e., Article 13.1(f).

The extended BP can also be used more exten-

sively to ﬁlter the rules. In other words, the applicable

formulæ can depend on speciﬁc parameters, which

might be instantiated by the designer or passed at run-

time during the execution of the BP. In the speciﬁc

example, a transmission of personal data is subject

to a number of safeguards in case the personal data

must be transmitted towards a third country (outside

the European Union), whereas such warranties are not

needed if the recipient is located in a Member State

The different requirements are exempliﬁed in the im-

plementation by adding a parameter to a Transmit op-

eration, with the Destination country. If the country

belongs to the European Union, then a reduced set of

formulæ will be displayed, as some provisions are not

applicable and therefore not required for the purpose

of GDPR compliance.

5 RELATED WORK

Due to the complexity and the importance of the

GDPR application, in recent years a lot of attention

has been devoted to the clariﬁcation of data protection

principles, policies and regulations (IT Governance

Privacy Team, 2017). At the same time, many sup-

porting tools and applications have been developed to

assist users in producing reports on GDPR compli-

ance (Ferrara and Spoto, 2018).

Notwithstanding these important contributions,

the integration of data protection rules into the

commonly-used BPs is still an emerging challenge.

Automatic assistance and guidance in the implemen-

tation of GDPR requirements is a key factor for its

See GDPR, Articles 46–ff.

successful and effective application. To this end, re-

cent proposals are mainly focusing on the improve-

ment of privacy management, on the assessment of

GDPR compliance, and on the integration of the

GDPR into BPs. A complete overview of the active

research ﬁelds about the GDPR application and im-

plementation is out of the scope of this paper, as is

an exhaustive literature survey of the most recent pro-

posals. We will hereafter focus on the research activ-

ities closest to our proposal, and highlight the main

improvements provided of our solution.

Considering privacy management, there are sev-

eral proposals in literature focusing on the inclusion

of mandatory GDPR privacy aspects into the adopted

business process (Notario et al., 2017; Buchmann and

Anke, 2017; Sokolovska and Kocarev, 2018). These

consider accountability and consent collection aspects

in particular. The proposal of this paper is to extend

these approaches including all of the GDPR require-

ments, not only those speciﬁcally related to the pri-

vacy ones.

Concerning the assessment of GDPR applications,

several proposals focus on (model-based) approaches

for privacy and security analyses in all stages of sys-

tem development (Ahmadian et al., 2018; Bieker

et al., 2018; Gonçalves et al., 2017). Other propos-

als (Basin et al., 2018; Duncan, 2018) target auditing

with respect to the GDPR.

The proposal of this paper attempts to ease the as-

sessment of GDPR requirements, by explicitly inte-

grating them in the business process. Few proposals

addressing the integration of the GDPR into BPs are

currently available. An attempt to manually merge the

GDPR formalisation into a speciﬁc business process

has been provided by (Heuck et al., 2017). In (Ra-

madan et al., 2017), a model-based security engineer-

ing framework is presented for supporting a GDPR-

compliant system design and implementation.

The proposal of this paper is to automate the

GDPR requirements into BPMN speciﬁcation and su-

pervising activities that are qualiﬁed as the processing

of personal data such as collection and transmission.

6 CONCLUSIONS

The GDPR represents a signiﬁcant breakthrough in

the digital economy, and brings a lot of changes to the

way online services are delivered. This scenario calls

for a new approach in the development of software

systems, where legal requirements must be accounted

for, just like the other requirements that a system must

respond to. This work focuses on data protection re-

quirements in particular, proposing a framework that

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

426

allows to express legal requirements from the GDPR

into a Business Process. The legal requirements are

modelled according to approaches used in legal in-

formatics, such as legal ontologies. The integration

of the two domains of legal informatics and business

processes allows to not only express the legal require-

ments, but also associate them with speciﬁc activities

that entail the processing of personal data. This con-

nection can be used at all stages of the Software De-

velopment Life Cycle (SDLC): from the analysis of

the requirements to the design, from development to

testing, from deployment to monitoring.

The present work is a preliminary step to integrate

legal requirements into the SDLC. Expressing the le-

gal requirements is an added value by itself, as the BP

can be used to coordinate activities in the organization

and assign speciﬁc tasks with the related legal duties.

However, this work needs to be thoroughly extended

and validated with real case studies before it can un-

leash its full potential. For one, the logic formulæ

expressing obligations, permissions and prohibitions

still require supporting tools and methodologies.

ACKNOWLEDGMENTS

This work has been partially funded by the Lux-

embourg National Research Fund (FNR) CORE

project C16/IS/11333956 “DAPRECO: DAta Protec-

tion REgulation COmpliance”.

REFERENCES

Ahmadian, A. S., Strüber, D., Riediger, V., and Jürjens,

J. (2018). Supporting privacy impact assessment by

model-based privacy analysis. In Proceedings of the

The 33

ACM/SIGAPP Symposium On Applied Com-

puting (SAC). ACM.

Basin, D., Debois, S., and Hildebrandt, T. (2018). On pur-

pose and by necessity. In Proceedings of the Twenty-

Second International Conference on Financial Cryp-

tography and Data Security (FC).

Benjamins, V. R., Casanovas, P., Breuker, J., and Gangemi,

A., editors (2005). Law and the Semantic Web, volume

3369 of Lecture Notes in Computer Science. Springer,

Berlin, Heidelberg.

Bertoli, P., Dragoni, M., Ghidini, C., Martuﬁ, E., Nori,

M., Pistore, M., and Di Francescomarino, C. (2013).

Modeling and monitoring business process execu-

tion. In Service-Oriented Computing, pages 683–687.

Springer.

Bieker, F., Martin, N., Friedewald, M., and Hansen, M.

(2018). Data protection impact assessment. In

Hansen, M., Kosta, E., Nai-Fovino, I., and Fischer-

Hübner, S., editors, Privacy and Identity Manage-

ment, volume 526 of IFIP Advances in Informa-

tion and Communication Technology, pages 207–220.

Springer.

Buchmann, E. and Anke, J. (2017). Privacy patterns

in business processes. In Eibl, M. and Gaedke,

M., editors, Proceedings of the 47. Jahrestagung der

Gesellschaft für Informatik (INFORMATIK), pages

793–798. Gesellschaft für Informatik.

Calabró, A., Lonetti, F., and Marchetti, E. (2015). Moni-

toring of business process execution based on perfor-

mance indicators. In The Euromicro Conference series

on Software Engineering and Advanced Applications

(SEAA).

Davidson, D. (1967). The logical form of action sentences.

In Rescher, N., editor, The Logic of Decision and Ac-

tion, chapter III, pages 81–120. University of Pitts-

burgh Press.

Duncan, B. (2018). Can EU general data protection regula-

tion compliance be achieved when using cloud com-

puting? In Proceedings of the Ninth International

Conference on Cloud Computing, GRIDs, and Virtual-

ization (CLOUD COMPUTING), pages 1–6. IARIA.

European Commission (2015). A digital single market strat-

egy for europe.

Ferrara, P. and Spoto, F. (2018). Static analysis for GDPR

compliance. In Ferrari, E., Baldi, M., and Baldoni, R.,

editors, Proceedings of the Second Italian Conference

on Cyber Security (ITASEC).

Fleac

a, E., Fleac

a, B., and Maiduc, S. (2016). Process mod-

eling as key technique for embedding the practices

of business process management in organization. In

International Conference on Exploring Services Sci-

ence, pages 89–99. Springer.

Gerth, C. (2013). Business Process Models, volume 7849

of Lecture Notes in Computer Science. Springer.

Gonçalves, A., Correia, A., and Cavique, L. (2017). Data

protection risk modeling into business process analy-

sis. In Gervasi, O., Murgante, B., Misra, S., Borruso,

G., TorreAna, C. M., Rocha, M. A., Taniar, D., Ap-

duhan, B. O., Stankova, E., and Cuzzocrea, A., edi-

tors, Computational Science and Its Applications â

A¸S

ICCSA 2017, volume 10404 of Lecture Notes in Com-

puter Science, pages 667–676. Springer.

Heuck, E., Hildebrandt, T. T., Lerche, R. K., Marquard,

M., Normann, H., Strømsted, R. I., and Weber, B.

(2017). Digitalising the general data protection reg-

ulation with dynamic condition response graphs. In

Proceedings of the 15

International Conference on

Business Process Management (BPM), pages 124–

134.

IT Governance Privacy Team (2017). EU General Data

Protection Regulation (GDPR). IT Governance Pub-

lishing, second edition.

Jaeger, P. T., Lin, J., Grimes, J. M., and Simmons, S. N.

(2009). Where is the cloud? First Monday, 14(5).

Makinson, D. and van der Torre, L. (2000). Input/output

logics. Journal of Philosophical Logic, 29(4):383–

408.

Massacci, F., Prest, M., and Zannone, N. (2005). Us-

ing a security requirements engineering methodol-

Enhancing Business Process Modelling with Data Protection Compliance: An Ontology-based Proposal

427

ogy in practice. Computer Standards & Interfaces,

27(5):445â

A¸S–455.

Notario, N., Ciceri, E., Crespo, A., Real, E. G., Catallo,

I., and Vicini, S. (2017). Orchestrating privacy en-

hancing technologies and services with BPM tools. In

Proceedings of the 12

International Conference on

Availability, Reliability and Security (ARES). ACM.

Object Management Group (2011). Business process model

and notation.

Palmirani, M., Governatori, G., Rotolo, A., Tabet, S., Bo-

ley, H., and Paschke, A. (2011). Legalruleml. In

Olken, F., Palmirani, M., and Sottara, D., editors,

Rule-Based Modeling and Computing on the Semantic

Web, volume 7018 of Lecture Notes in Computer Sci-

ence, pages 298–312. Springer, Berlin, Heidelberg.

Palmirani, M., Martoni, M., Rossi, A., Bartolini, C., and

Robaldo, L. (2018a). Pronto: Privacy ontology for le-

gal compliance. In Proceedings of the 18

European

Conference on Digital Government (ECDG). Forth-

coming.

Palmirani, M., Martoni, M., Rossi, A., Bartolini, C., and

Robaldo, L. (2018b). PrOnto: Privacy ontology for

legal reasoning. In Kö, A. and Francesconi, E., edi-

tors, Electronic Government and the Information Sys-

tems Perspective, volume 11032 of Information Sys-

tems and Applications, incl. Internet/Web, and HCI,

pages 139–152. Springer.

Palmirani, M. and Vitali, F. (2011). Akoma-ntoso for legal

documents. In Legislative XML for the Semantic Web,

volume 4 of Law, Governance and Technology Series,

pages 75â

A¸S–100. Springer, Dordrecht.

Pﬂeeger, C. P., Pﬂeeger, S. L., and Margulies, J. (2015).

Security in Computing. Prentice Hall, ﬁfth edition.

Ramadan, Q., Salnitriy, M., Strüber, D., Jürjens, J., and

Giorgini, P. (2017). From secure business process

modeling to design-level security veriﬁcation. In Pro-

ceedings of the ACM/IEEE 20

International Con-

ference on Model Driven Engineering Languages and

Systems (MODELS), pages 123–133. IEEE.

Recker, J. (2010). Opportunities and constraints. Business

Process Management Journal, 16(1):181–201.

Reding, V. (2010). The upcoming data protection reform

for the european union. International Data Privacy

Law, 1(1):3â

A¸S–5.

Robaldo, L. and Sun, X. (2017). Reiﬁed input/output logic.

Journal of Logic and Computation, 27(8):2471–2503.

Sokolovska, A. and Kocarev, L. (2018). Integrating tech-

nical and legal concepts of privacy. IEEE Access,

6:26543–26557.

Van Alsenoy, B., Ballet, J., Kuczerawy, A., and Dumortier,

J. (2009). Social networks and web 2.0. Identity in the

Information Society, 2(1):65â

A¸S–79.

van der Aalst, W. M. P., Hofstede, A. H. M. t., and Weske,

M., editors (2003). Business Process Management,

volume 2678 of Lecture Notes in Computer Science.

Springer-Verlag.

World Wide Web Consortium (2012). Owl 2 web ontology

language document overview. W3c recommendation.

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

428
