Behavioral Biometric Authentication in Android Unlock Patterns

through Machine Learning

José Torres

, Sergio de los Santos

, Efthimios Alepis

and Constantinos Patsakis

Telefónica Digital España, Ronda de la Comunicación S/N, Madrid, Spain

Department of Informatics, University of Piraeus, Karaoli & Dimitriou 80, Piraeus, Greece

Keywords:

Android, Authentication, Biometrics.

Abstract:

The penetration of ICT in our everyday lives has introduced numerous automations, and the continuous need

for communication has made mobile devices indispensable. As a result, there is an ever-increasing deployment

of services for which users need to authenticate. While the use of plain passwords is the default, many applica-

tions require higher standards of security, such as drawn patterns and ﬁngerprints, used mostly to authenticate

users and unlock their smart devices. In this work we propose a biometrics-based machine learning approach

that supports user authentication in Android to augment native user authentication mechanisms, making the

process more seamless and secure. Our evaluation results show very high rates of success, both for authenti-

cating the legitimate user and also for rejecting the false ones. Finally, we showcase how the proposed solution

can be deployed in non-rooted devices.

1 INTRODUCTION

Smartphones have radically changed the way of mod-

ern living providing communication to users at any

time and place, as well as access to an unlimited num-

ber of services and online applications. As a result,

these smart devices store and process vast amounts

of sensitive information, ranging from personal, to ﬁ-

nancial and professional data. Despite the introduc-

tion, by a signiﬁcant number of software companies

and also from the mobile OSes, of several biometric-

based authentication mechanisms such as ﬁngerprints

and face recognition, only a small fragment of users

actually uses them. The reasons behind this lack of

adoption can be attributed to several factors including

skepticism regarding who may process this “unique”

and personal data, the impact of this data been leaked,

as well as their usability and efﬁciency. As a result,

the vast majority of smartphone users are still using

the well-known PIN/Pattern authentication method,

with the “pattern” method being the most used user-

authentication method for smartphone unlocking to

date (Malkin et al., 2016).

An important aspect that has to be considered in

this direction is that due to their use, this authentica-

tion method has several drawbacks. The most obvious

one is that since users have to continuously authen-

ticate to the device, quite often the PIN/Pattern that

users tend to have is relatively “easy”. Moreover, due

to the way that users have to perform the authentica-

tion, shoulder surﬁng cannot be avoided. Even by ex-

cluding shoulder surﬁng attacks, other methods could

be utilized in order for an attacker to gain informa-

tion about the victim’s pattern, such as malicious apps

with ”drawing over other apps” permissions and ana-

lyzing ﬁnger traces on smartphone screens attacks.

Towards this direction, smartphone locking and

consequently unlocking is an issue that has drawn

much attention from all over the world, since it in-

volves private user data and consequently affects user

rights. Indeed, back in 2016, in the “Apple - FBI en-

cryption dispute”, (Wikipedia, 2018), the FBI asked

Apple to create and electronically sign new software

that would enable the FBI to unlock a work-issued

iPhone 5C, which was recovered from one of the

shooters of the San Bernardino terrorist attack in De-

cember 2015, in California. Nevertheless, it has to

be outlined that modern smartphones have increased

their security and may now wipe the device once

many failed authentication attempts are made.

Main Contributions. This paper focuses on provid-

ing a robust solution that utilizes user behavioural

biometrics through Machine Learning to improve

smartphone locking solutions. This approach can be

adapted to a variety of other use cases, such as smart-

phone app and resource locking and two-factor au-

thentication. The presented evaluation study not only

provides proof about the signiﬁcance of our proposed

approach but also gives evidence about the protection

levels of speciﬁc lock patterns that are frequently used

146

Torres, J., Santos, S., Alepis, E. and Patsakis, C.

Behavioral Biometric Authentication in Android Unlock Patterns through Machine Learning.

DOI: 10.5220/0007394201460154

In Proceedings of the 5th International Conference on Information Systems Security and Privacy (ICISSP 2019), pages 146-154

ISBN: 978-989-758-359-9

by users. Moreover, contrary to related work we de-

tail how the proposed mechanism can be deployed in

stock Android devices without the need to root the

device.

Organisation of This Work. The rest of this work is

structured as follows. In the next section, we present

the related work regarding locking pattern in smart-

phones. Section 3 details the problem setting and the

use case that this paper addresses, while Section 4 il-

lustrates our proposed solution. Then, in Section 5

we detail the Machine Learning core of the developed

system. Section 6 presents the evaluation experiment

that was conducted, along with its results. Finally,

Section 7 summarises our contributions and proposes

future work.

2 RELATED WORK

In what follows we provide a brief overview regarding

research on smartphone protection through its lock-

ing mechanisms and more speciﬁcally using the lock-

ing pattern. The authors have included works that

reveal this topic’s scientiﬁc signiﬁcance, in terms of

user statistics, studies on the theoretic security level

of the mechanism in question, as well as attacks fo-

cusing on bypassing secure pattern lock screens.

As stated in (Malkin et al., 2016), to prevent unau-

thorized access to smartphones, their users can enable

a “lock screen” which may require entering a PIN or

password, drawing a pattern, or providing a biomet-

ric, such as users’ ﬁngerprints. In the survey con-

ducted by (Malkin et al., 2016), involving more than

8.000 users from eight different countries, the prevail-

ing method for locking a smartphone is considered the

smartphone pattern, used in almost half of all users of

the survey (48% of all locking mechanisms).

Nevertheless, in (Aviv et al., 2010), the authors

examine the feasibility of “smudge” attacks on touch

screens for smartphones and focus their analysis on

the Android lockscreen pattern. Alarmingly, their

study concludes that in the vast majority of settings,

partial or complete patterns are easily retrieved. In-

deed, the authors of (Aviv et al., 2010) managed to

partially identify 92% of Android patterns and fully

in 68% of their attempts, using camera setups.

As stated in (Aviv et al., 2017), Android unlock

patterns are considered as the most prevalent graphi-

cal password system to date. The same researchers ar-

gue that human-chosen authentication stimuli, such as

text passwords and PINs, are easy to guess and there-

fore investigate whether an increase in the unlock pat-

tern grid size positively affects the security level of the

mechanism in question.

In (Meng, 2016) two user studies were conducted

with a total of 45 participants to investigate the impact

of multi-touch behaviours on creating Android unlock

patterns. While focusing mainly on the issue of us-

ability, the author proposes increasing the number of

touchable points and improving the rules of unlock

pattern creation.

As shown in (Kessler, 2013), a mathematical for-

mula for the exact number of patterns is not known

yet, even for the simplest case of the unlock patterns,

namely, the 3x3 grid. The authors of (Lee et al., 2017)

and (Lee et al., 2016) respectively calculated in their

works the lower and upper bounds of Android unlock

patterns, thus providing a theoretical estimation of the

unlock patterns’ corresponding security level.

In (Canfora et al., 2016) readers will ﬁnd a very

interesting approach where the authors propose a con-

tinuous and silent monitoring process based on a

set of user speciﬁc features, namely device orien-

tation, touch and cell tower. Other kinds of pro-

tection techniques regarding user authentication in-

clude the works of (Nicholson et al., 2006) where

the authors propose authentication token-based mech-

anisms to identify legal users, (Dunphy et al., 2010)

where graphical password systems are utilized and

(Luca et al., 2012) where the authors propose a novel

application, where the user draws a stroke on the

touch screen as a input password utilizing touch pres-

sure, touch ﬁnger size and speed. While this work is

the most similar to our work, our experiments have

much higher percentages of accuracy, while our ap-

proach is based on ﬁnger movements on the screen.

Arguably, only a very limited number of smartphone

devices to date support ﬁnger pressure data calcula-

tions.

After a thorough investigation of the related scien-

tiﬁc literature, we have come up with the conclusion

that even though there is a growing interest towards

the direction of securely locking, and consequently

unlock attacks to, smartphones, we did not ﬁnd signif-

icant scientiﬁc attempts, other that (Luca et al., 2012),

in the direction of improving the already adopted un-

lock mechanism of the smartphone pattern utilizing

machine learning and behavioral biometric user data,

as described in this paper.

3 PROBLEM SETTING

As already discussed, smartphone locking is very

common to the majority of smartphone users to date.

In this section, we further analyze the problem of

securing sensitive personal data that involve smart-

phones, going a step further than the actual access to

Behavioral Biometric Authentication in Android Unlock Patterns through Machine Learning

147

a physical device. We argue that modern smartphone

users not only want to secure their mobile device but

in many cases, there are also speciﬁc applications and

data that need to be strongly secured. In order to un-

derstand this argument, a use case is described.

Let us assume that Alice has an Android device

which has several applications, some of which re-

quire strong authentication, e.g. banking applica-

tions. Moreover, Alice may often share her device

with daughter Carol to let her play or browse the In-

ternet. Android may support more than one users.

However, this feature is not often used due to usabil-

ity issues and because in the case of Carol, shoulder

surﬁng cannot be avoided.

Due to her job, Alice comes in contact with many

people on a daily basis, and quite often she has to un-

lock her device in front of them. Therefore, Alice

fears that her unlock PIN/pattern (and possibly other

credentials) may have been disclosed through shoul-

der surﬁng. Moreover, Alice would like to have con-

trol of some web pages and apps to avoid possible

issues, from posting something inappropriate on a so-

cial network to messing with her bank account.

Based on the above, Alice wants to be able to au-

thenticate on a device easily, avoiding shoulder surf-

ing attacks. Additionally, Alice wants to be able to

share her device with Carol, yet lock some apps and

possibly web pages so that her daughter cannot access

them. In terms of implementation, we opt for a light

solution so that the device must not be rooted but use

existing and native mechanisms.

We argue that the above could be solved by pro-

viding some context awareness to an app that controls

access to the device. In this case, context awareness

refers to the ability of an app to infer:

• Which user has authenticated.

• Which are the running apps.

• Which web page the user wants to browse.

From the questions above, only the ﬁrst one can be

answered. Regarding running applications, Google

has removed the getRunningTasks method of

ActivityManager as of API level 21 to avoid apps

surveying users and more importantly to prevent

malicious apps from timely overlaying other apps

(e.g. banking) and harvesting credentials. While

in the literature there are several ways to determine

the foreground app (Chen et al., 2014; Bianchi

et al., 2015; Alepis and Patsakis, 2017), yet all

of them have been deprecated in AOSP. Never-

theless, Google as of Android Lollipop, allows

developers to use two methods to get usage statis-

tics or detect the foreground app. More precisely,

they may either use the UsageStatsManager API

which requires the PACKAGE_USAGE_STATS system

permission and allows an app to collect statistics

about the usage of the installed apps, or use the

AccessibilityService API which requires the

BIND_ACCESSIBILITY_SERVICE system permission.

Notably, both these permissions are “more than

dangerous” permissions. In the ﬁrst case though,

Android does not allow apps to derive anything

else apart from aggregated statistics about the us-

age of the installed apps. In this regard, an app

that has been granted this permission may collect

aggregated usage data for up to 7 days for daily

intervals, up to 4 weeks for weekly intervals, up to

6 months for monthly intervals, and ﬁnally up to

2 years for yearly intervals, always depending on

the chosen interval. In the second case, using the

AccessibilityService, which includes handling

the onAccessibilityEvent() callback and check-

ing whether the TYPE_WINDOW_STATE_CHANGED

event type is present, one may determine when the

current window changes. It is important to note that

Google has warned developers about this permission,

that she will remove apps from the Play Store if

they use accessibility services for “non-accessibility

purposes” (Android Police, 2017).

Finally, regarding web pages, it is worthwhile

to notice that since Nougat apps may not access

any content of /proc/ beyond /proc/[pid]/ where

[pid] is their own pid. Therefore, access to

/proc/net/tcp6 is not possible which would allow

an app to infer the domain that another app tries to ac-

cess. Hence, the only available ways to intercept the

network usage seem to be by re-routing the network

trafﬁc through a local proxy or a VPN. Either of these

cases introduces its own security and trust constraints.

For instance, the use of a local proxy implies that self-

signed certiﬁcate must be installed with the latter trig-

gering a security notiﬁcation in Android and implying

further trust issues. In both cases (local proxy/VPN)

one has access to all the user’s unencrypted trafﬁc.

4 PROPOSED SOLUTION

In this section, we describe our proposed solution re-

garding the resulting application. It should be noted

that the backend of our app implements a speciﬁc

use case of our online service, also called “SmartPat-

tern”, which works as an authorization/authentication

mechanism of a service that allows protecting any ex-

ternal resource through “Smart Patterns” (using an

API, Oauth2 or JWT). At present, the app focuses

on securely locking speciﬁc apps inside the Android

ecosystem. The OS itself could adopt the described

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

148

underlying approach and use it for locking the An-

droid devices more “securely”. Indeed, we have de-

veloped an Android app that once installed and initial-

ized, can be used as a “locking” mechanism, allow-

ing access to smartphone owners in speciﬁc resources

inside their smartphone and correspondingly denying

access to fake ones.

All resources inside the Android OS are han-

dled through corresponding OS apps or third-party

apps. In this sense, private resources can also be

present within speciﬁc apps, such as ﬁle-managers,

chat applications and photo gallery applications.

Our approach utilizes the provided by the OS

UsageStatsManager API and handles it to recognize

the foreground app successfully. Then, after the app’s

initialization, its users may choose from a list of in-

stalled and pre-installed apps, in their device, that they

need to be securely locked.

More precisely, through the UsageStatsManager

API, we have managed to successfully recognize the

foreground app, contrary to Android documentation

that states that this API is used only for “Usage data

that is aggregated into time intervals: days, weeks,

months, and years”, (Developers Android, 2018). In

our approach, we check for newly created lists of

UsageStats in regular time intervals, taking only

the latest INTERVAL_DAILY records into considera-

tion. Then, looping through the retrieved list, the

most recent record in terms of the timestamp is kept

which corresponds to the foreground app’s package

name. Using this approach, we manage to “segregate”

the initially “aggregated” results and detect the user’s

foreground application.

Then, our app starts working in the background,

as a service, silently monitoring each launched app.

Whenever the service recognizes a launched app that

is selected by the user to be securely locked, our app

presents a full-screen Android activity, “hiding” it,

and thus protecting the app in question. This “protect-

ing” screen can only be bypassed if the user authenti-

cates himself, through our novel smart pattern mech-

anism. As it will be further analyzed in the follow-

ing section, the pattern mechanism not only checks

whether the correct pattern is being drawn, but also

whether the user who is drawing the pattern can be

authenticated from his behaviour while drawing the

pattern, through the machine learning core underly-

ing module.

The secure screen provided by our app cannot be

bypassed, since even when it is minimized or closed,

the running service will continuously keep on re-

launching it, having detected a “protected” app in the

foreground. A possible attack on our app could be an

attempt to uninstall it. This can also be easily pro-

tected, by additionally monitoring the “settings” of

the device through our application, denying access to

the app uninstallation panel.

Our proposed secure locking/unlocking mecha-

nism has been designed to be as much “lightweight”

and “robust” in using it as possible. Both for sup-

porting user experience (UX) and also for providing

the end user with a mechanism that is very close to

the one that he is used to. Indeed, after some run-

ning several experiments with real hardware devices

(not emulators) our results have shown that the entire

authentication process, after the user has drawn a pat-

tern in the app, is completed on an average of 100-180

milliseconds, clearly not “slowing down” the authen-

tication process.

In each case, the work presented in this paper

does not focus only to the app being the ﬁnal “prod-

uct”, but to the underlying approach, which has been

made to further secure smartphones and sensitive re-

sources from malicious users. As a result, the pro-

posed solution could be used in an increasing number

of even more use cases, such as two-factor authentica-

tion with increased levels of security. Thus, its eval-

uation results, presented in the following sections are

also considered as of great importance in terms of its

scientiﬁc contribution.

5 MACHINE LEARNING CORE

To work with drawn patterns, we need to initially es-

tablish an encoding of the associated data. Besides,

this encoding must include information about how the

user enters the pattern; not only the drawing path, that

would enable the Machine Learning (ML) system to

learn about a set of pattern inputs and allow for suc-

cessful predictions.

5.1 Pattern Design and Encoding

To encode the information provided by the unlock

pattern, we have established an enriched pattern path

(pattern + times) as an array of vectors (one by each

existing point in the pattern). According to that, the

representation of the resulting, “enriched” pattern will

meet the following structure:

[(X

, Y

, t

), (X

, Y

, t

), ..., (X

, Y

, t

)]

where X

represents the row number of the point re-

garding the virtual matrix where the pattern is en-

tered, Y

represents the column number and t

the time

elapsed since the last point was reached (it will be 0

for the ﬁrst point). Clearly, (X

, Y

) 6= (X

i+1

, Y

i+1

)∀i ∈

Behavioral Biometric Authentication in Android Unlock Patterns through Machine Learning

149

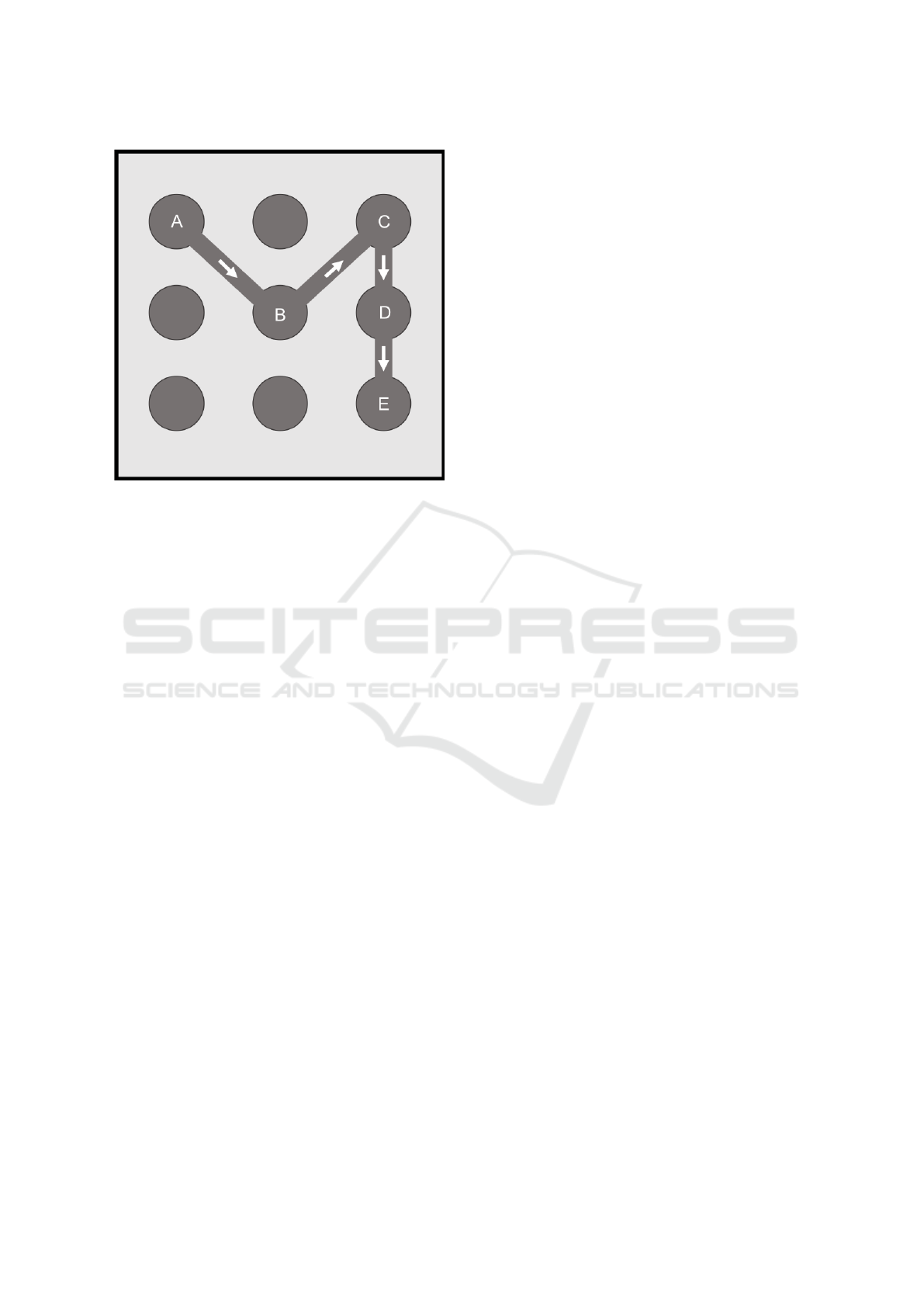

Figure 1: Example of a pattern input.

(1, n−1). According to this encoding, the pattern pre-

sented by Figure 1 will be encoded as follows:

[(1, 1, 0), (2, 2, t

), (1, 3, t

), (2, 3, t

), (3, 3, t

)]

5.2 ML Algorithms Selection and

Speciﬁcations

Once the enriched pattern representation is deﬁned, it

should be possible to generate a model for each user to

predict whether each one of the future patterns intro-

duced in the application actually belongs to the “gen-

uine” user. Therefore, and after checking the shape

of the pattern, the next step focuses mainly on ex-

act “timing” extraction of the drawn pattern, generat-

ing a feature vector composed by each point’s times-

tamp representation in the drawn pattern. Continuing

with the same above example, we could have different

valid inputs for the pattern shown by Figure 1 such as:

[(1, 1, 0), (2, 2, 0.22), (1, 3, 0.15), (2, 3, 0.43), (3, 3, 0.50)]

[(1, 1, 0), (2, 2, 0.17), (1, 3, 0.15), (2, 3, 0.41), (3, 3, 0.57)]

[(1, 1, 0), (2, 2, 0.20), (1, 3, 0.12), (2, 3, 0.40), (3, 3, 0.54)]

[(1, 1, 0), (2, 2, 0.21), (1, 3, 0.16), (2, 3, 0.40), (3, 3, 0.53)]

[(1, 1, 0), (2, 2, 0.23), (1, 3, 0.14), (2, 3, 0.42), (3, 3, 0.53)]

After extracting only the time values, the corre-

sponding result will be the following:

[0, 0.22, 0.15, 0.43, 0.50]

[0, 0.17, 0.15, 0.41, 0.57]

[0, 0.20, 0.12, 0.40, 0.54]

[0, 0.21, 0.16, 0.40, 0.53]

[0, 0.23, 0.14, 0.42, 0.53]

Using this known and valid pattern features vec-

tors, it is then possible to generate a dataset to build

a ML model, able to predict whether an entered pat-

tern belongs to the real user or not. In this case, it

seems not straightforward to implement a supervised

strategy, mainly because it is not possible to learn in-

correct pattern inputs. However, it is possible to use

some One Class Supervised algorithms (such as One

Class Support Vector Machine, SVM) or another un-

supervised ML approaches like clustering. In our case

and for the purposes of this study, we have used both,

namely a One Class SVM and also the Clustering ap-

proach through an implementation of the K-means al-

gorithm.

5.2.1 One Class SVM Implementation

Using the One Class SVM algorithm, we have found

it possible to learn how to distinguish the valid en-

riched patterns from other, invalid ones, using a train-

ing dataset only composed by valid samples (only one

class). As output, the algorithm will return a binary

result (usually 1 and -1), although the result may vary

depending on the implementation, language, etc., de-

pending on the sample that has been classiﬁed as valid

(similar to valid samples used to train the model) or

invalid.

5.2.2 K-means Implementation

In this case, after a dimensionality reduction using

PCA, we have used different conﬁgurations for the

K-means algorithm. Nevertheless, after analyzing the

results, we have come up with the ﬁndings that the

best results have been obtained using 3 and 5 clusters

in number respectively. The method used for identi-

fying the most representative pattern for the user con-

sists of clustering the training set samples and then

selecting the main cluster, that is the one that contains

more samples. During the algorithm’s ﬁnal step we

have been able to predict whether an enriched pattern

belongs to the user by checking whether it has been

positioned into the main cluster of the trained model.

Figure 2 illustrates both the training and the test-

ing phase, where the main cluster is “C1”.

6 EVALUATION EXPERIMENT

In this section, we describe the settings of the exper-

iment that has been conducted to evaluate the effec-

tiveness of the resulting app. The experiment involved

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

150

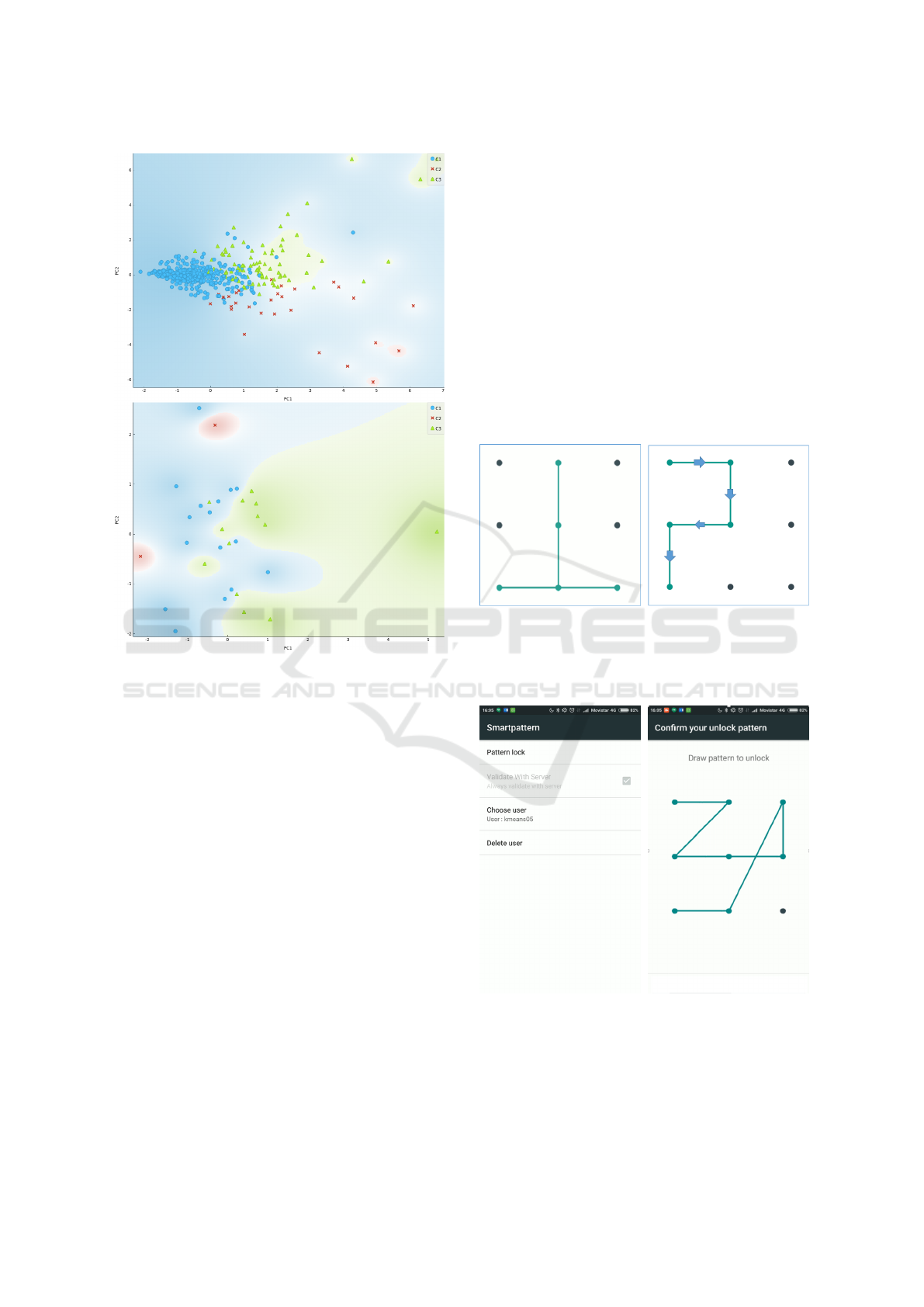

Figure 2: Clustering samples at test (top) and training (bot-

tom) phase.

64 users, as well as 6 supervisors in a total of 70 par-

ticipants, including 2 phases of evaluation. The ﬁrst

phase involved 54 users and the 6 supervisors, while

the second phase involved 10 users and the same su-

pervisors of phase 1.

Speciﬁcally, 54 of the evaluation users tested the

app’s effectiveness of the smart-pattern approach, not

being able to be “broken” by other users. Respec-

tively, 10 of the evaluation users tested the app’s user-

friendliness and focused in its efﬁciency by consider-

ing interaction complexity and minimum false posi-

tives.

At this point we should make a short discussion

about the different types of user patterns both in terms

of complexity that translates into the number of points

the users’ use and also in terms of complexity that

translates in differentiations while drawing the actual

pattern, namely quick or slow ﬁnger movements and

also intended “strategic” pauses of the user in spe-

ciﬁc parts of the pattern. Our experiment revealed that

these criteria are quite signiﬁcant since both the num-

ber of points of the patterns and also the timings in-

volved affect both the effectiveness of the underlying

algorithm to reject the false users, but also the sys-

tem’s effectiveness in minimizing false positives of

real users. Indeed, as expected, a smart pattern be-

comes more effective in terms of security as the num-

ber of points increases, while users’ atomic timings

while drawing their patterns is of equal or even greater

importance in terms of app safeguarding.

The following ﬁgures illustrate some drawn pat-

terns that have been used for the evaluation of the

smart pattern app. More speciﬁcally, Figures 3a and

3b represent the initial, simple patterns of the exper-

iment. Of course, the actual patterns that take the

timings of the drawn patterns into consideration can-

not be visualized in any ﬁgure, since for this purpose,

video ﬁles should be utilized. Figures 4a and 4b illus-

trate screenshots while using the resulting app.

(a) Pattern without direction

data.

(b) Pattern with direction

data.

Figure 3: Simple patterns used in the ﬁrst two steps of the

evaluation study.

(a) App settings (b) Drawing Pattern

Figure 4: Screenshots from the app.

Behavioral Biometric Authentication in Android Unlock Patterns through Machine Learning

151

6.1 First Phase of the Experiment (54

Users)

Settings: The experiment included a tablet and a

smartphone for each evaluator user. The tablet was

displaying the instructions and corresponding videos

for the users. The smartphone had the app installed to

be tested. A supervisor was also monitoring the whole

process, both for helping and most importantly not-

ing the evaluation results of the experiment. The su-

pervisor was noting for each phase and user attempt,

whether the users’ attempts were successful (allow-

ing access to the user) or not (denying access to the

user). All the supervisors’ results were afterwards

transferred to a database for further processing and

visualization.

Steps: This experiment phase involved 5 steps,

each one corresponding to the 4 levels of smart-

pattern complexity within the evaluation experiment,

while there was a ﬁfth step where the users had more

“help” to pass the smart pattern test successfully. In

each one of the 5 steps, each user made 10 subsequent

attempts to pass the corresponding smart pattern chal-

lenge. More speciﬁcally, step 1 involved an experi-

ment with the user trying to pass the pattern screen

successfully by only seeing an image of the correct

pattern, having no motion directions. Step 2 involved

the user trying to pass the smart pattern screen suc-

cessfully by only seeing an image of the correct pat-

tern, accompanied with small arrows in the image,

indicating the correct direction. However, the users

had no indication of the “way” the real users’ ﬁn-

gers moved, trying to pass the pattern screen. Step

3 involved the user trying to pass the pattern screen

successfully by watching a video of the pattern be-

ing drawn by the actual real users of the smartphone,

using a common, yet of medium complexity, pattern.

Step 4 involved the user trying to successfully pass the

pattern screen by watching a video of the pattern be-

ing drawn by the actual real users of the smartphone,

using a difﬁcult (of higher complexity ) pattern. Fi-

nally, step 5 was almost identical to the fourth step

of the evaluation, while there was additional help to

the users by giving them the opportunity to watch the

video of unlocking the screen one more time to mem-

orize the correct pattern even better.

6.2 Second Phase of the Experiment (10

Users)

Settings: This phase involved 10 users using their

own mobile, android powered smartphone, where

they downloaded, installed and consequently used the

app. The app was downloaded from a web link. A su-

pervisor was also monitoring the whole process, both

for helping purposes and also to note down the results

of the evaluation experiment. All the supervisors’ re-

sults were transferred to a database for further pro-

cessing and result visualization.

The users followed instructions about how to cre-

ate their personal pattern and subsequently “train” the

model. After successfully creating their patterns the

users made 10 subsequent attempts to unlock the app.

The supervisor noted the number of successful un-

locks by each user.

6.3 Results of the Evaluation

Experiment

The collected results were merged and analyzed to

produce the core of our evaluation experiment. As

described above, each user in the ﬁrst phase made in

total 50 attempts to successfully pass each one of the

ﬁve smart pattern challenges. As for the evaluation

results, the 54 evaluation users of the ﬁrst phase made

2700 attempts in total. After the analysis of the re-

sults, from the total of 2700 user attempts, 2530 of

them were unsuccessful, meaning that our proposed

system had 93.7% success in denying access to unau-

thorized users. Respectively, in the second phase of

the experiment, 10 users made 10 attempts to unlock

the app using their own personal trained model of the

smart pattern app. In total, they made 100 attempts,

where 86 of them have been successful. As a result,

our proposed approach reached a percentage of 86%

in successfully “recognizing” the app’s genuine user

and consequently accepting his/her access to the app.

For each basic pattern attempt for the attacker, the

SmartPattern app blocked the attempts illustrated in

percentages in Figure 5. As a next step of analyz-

ing the results of the evaluation study, each one of

the ﬁve steps is also discussed. We may easily note

that the percentage of the SmartPattern app’s secu-

rity increases, the more “complex” the drawn pat-

tern is. This result might seem expected, however,

in our study the complexity level could be translated

not only in terms of “more points” but also in terms

of “timing pauses”, meaning that if the real user had

a more “unique” way of drawing the pattern, then this

would increase its security level. Another very in-

teresting observation deriving from our study is that

malicious users having knowledge only for the “ﬁnal

drawing” and not of the way, in terms of consequent

points, that it was drawn did not have much success

in “guessing” the correct way of unlocking the pat-

tern. Finally, another signiﬁcant result of the study is

that in the cases of the more complex drawn patterns

and consequently their more complex involved tim-

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

152

Pattern 1 Pattern 2 Pattern 3 Pattern 4 Pattern 5

100

98.00

96.40

71.08

97.92

99.06

97.00

35.00

65.00

60.00

93.00

83.00

90.00

76.00

93.00

59.00

Blocked attempts

K means 5 clusters K means 3 clusters One class SVM

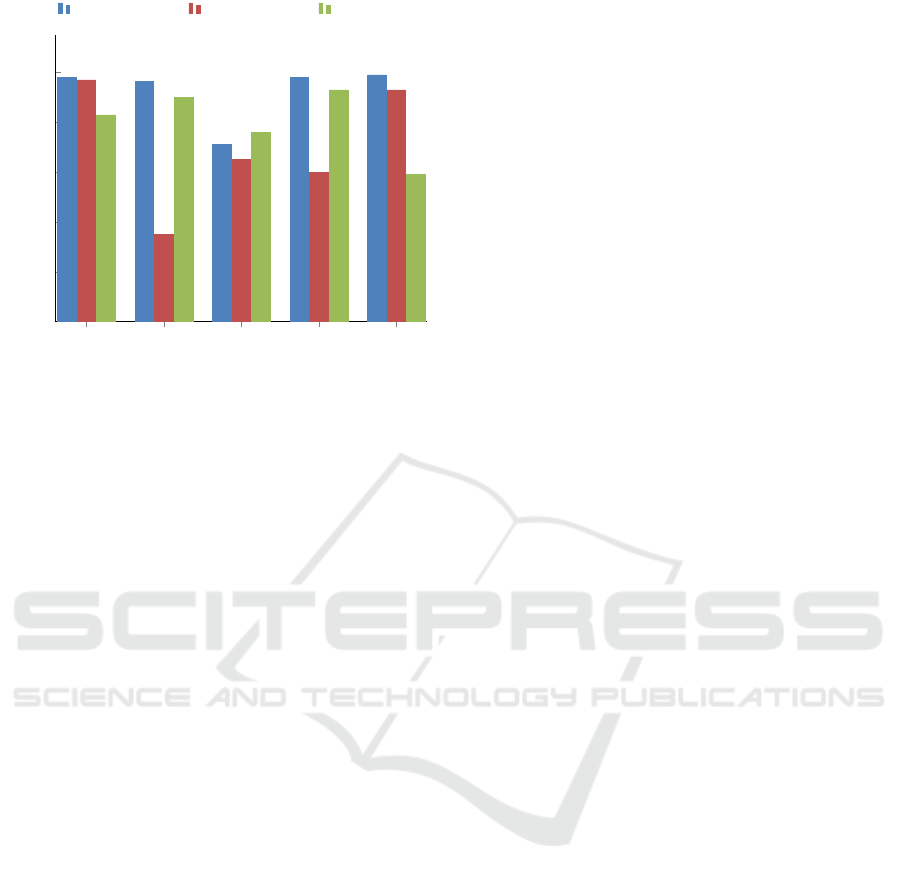

Figure 5: Attempts blocked by SmartPattern when other

users try to unlock the mobile phone.

ing biometrics, even when the “attackers” had more

“help” by watching the pattern being drawn more

times in videos, their unlock attempts where still un-

successful in their vast majority. These results have

been quite encouraging, indicating that our research

pointed in a good direction, actually providing im-

provements in the smartphones’ unlocking mecha-

nisms.

7 CONCLUSIONS

In this paper, a novel locking mechanism for Android

smartphones that utilizes Machine Learning and user

biometric data has been presented. Our approach can

be incorporated in many application domains, rang-

ing from providing more security to mobile devices

when locking them, to speciﬁcally securing targeted

“sensitive” resources and also improving 2FA with-

out the need to root the device. The evaluation results

have shown a 93.7% success rate in denying access to

unauthorized users and a 86% success rate in allowing

access to the real users of the app. This little “lower”

success percentage of the resulting app can be justi-

ﬁed since it was the authors’ primary objective, when

calibrating the ML backend, to maximize user protec-

tion, even if this resulted in lower “user friendliness”

level.

Our evaluation experiments have provided us with

strong evidence that our approach is very success-

ful in “distinguishing” genuine and malicious users

through the way they draw lock screen patterns. The

paper’s results also provide the scientiﬁc literature

with valuable evidence about the efﬁciency of com-

mon patterns in securely protecting the smartphones.

In the future we plan to develop apps correspond-

ing to other use cases, such as the implementation

of an app for 2FA purposes using our ML biometric

backend, to further improve the protection level of the

smartphone users.

ACKNOWLEDGMENTS

This work was supported by the European Commis-

sion under the Horizon 2020 Programme (H2020), as

part of the OPERANDO project (Grant Agreement no.

653704) and the University of Piraeus Research Cen-

ter.

REFERENCES

Alepis, E. and Patsakis, C. (2017). Trapped by the ui:

The android case. In International Symposium on

Research in Attacks, Intrusions, and Defenses, pages

334–354. Springer.

Android Police (2017). https://www.androidpolice.com/

2017/11/12/google-will-remove-play-store-apps-

use-accessibility-services-anything-except-helping-

disabled-users/.

Aviv, A. J., Gibson, K. L., Mossop, E., Blaze, M., and

Smith, J. M. (2010). Smudge attacks on smartphone

touch screens. In Miller, C. and Shacham, H., edi-

tors, 4th USENIX Workshop on Offensive Technolo-

gies, WOOT ’10, Washington, D.C., USA, August 9,

2010. USENIX Association.

Aviv, A. J., Kuber, R., and Budzitowski, D. (2017). Is big-

ger better when it comes to android graphical pattern

unlock? IEEE Internet Computing, 21(6):46–51.

Bianchi, A., Corbetta, J., Invernizzi, L., Fratantonio, Y.,

Kruegel, C., and Vigna, G. (2015). What the app

is that? deception and countermeasures in the an-

droid user interface. In Proceedings of the 2015 IEEE

Symposium on Security and Privacy, pages 931–948.

IEEE Computer Society.

Canfora, G., Notte, P. D., Mercaldo, F., and Visaggio, C. A.

(2016). Silent and continuous authentication in mo-

bile environment. In Callegari, C., van Sinderen,

M., Sarigiannidis, P. G., Samarati, P., Cabello, E.,

Lorenz, P., and Obaidat, M. S., editors, Proceedings of

the 13th International Joint Conference on e-Business

and Telecommunications (ICETE 2016) - Volume 4:

SECRYPT, Lisbon, Portugal, July 26-28, 2016., pages

97–108. SciTePress.

Chen, Q. A., Qian, Z., and Mao, Z. M. (2014). Peeking into

your app without actually seeing it: Ui state inference

and novel android attacks. In 23rd USENIX Security

Symposium (USENIX Security 14), pages 1037–1052,

San Diego, CA. USENIX Association.

Developers Android (2018). https://developer.android.com/

reference/android/app/usage/UsageStatsManager.

Behavioral Biometric Authentication in Android Unlock Patterns through Machine Learning

153

Dunphy, P., Heiner, A. P., and Asokan, N. (2010). A closer

look at recognition-based graphical passwords on mo-

bile devices. In Cranor, L. F., editor, Proceedings of

the Sixth Symposium on Usable Privacy and Security,

SOUPS 2010, Redmond, Washington, USA, July 14-

16, 2010, volume 485 of ACM International Confer-

ence Proceeding Series. ACM.

Kessler, G. C. (2013). Technology corner: Calculating the

number of android lock patterns: An unﬁnished study

in number theory. JDFSL, 8(4):57–64.

Lee, J., Seo, J. W., Cho, K., Lee, P. J., Kim, J., Choi,

S. H., and Yum, D. H. (2016). A visibility-based up-

per bound for android unlock patterns. IEICE Trans-

actions, 99-D(11):2814–2816.

Lee, J., Seo, J. W., Cho, K., Lee, P. J., and Yum, D. H.

(2017). A visibility-based lower bound for android

unlock patterns. IEICE Transactions, 100-D(3):578–

581.

Luca, A. D., Hang, A., Brudy, F., Lindner, C., and Huss-

mann, H. (2012). Touch me once and i know it’s you!:

implicit authentication based on touch screen patterns.

In Konstan, J. A., Chi, E. H., and Höök, K., editors,

CHI Conference on Human Factors in Computing Sys-

tems, CHI ’12, Austin, TX, USA - May 05 - 10, 2012,

pages 987–996. ACM.

Malkin, N., Harbach, M., Luca, A. D., and Egelman, S.

(2016). The anatomy of smartphone unlocking: Why

and how android users around the world lock their

phones. GetMobile, 20(3):42–46.

Meng, W. (2016). Evaluating the effect of multi-touch be-

haviours on android unlock patterns. Inf. & Comput.

Security, 24(3):277–287.

Nicholson, A. J., Corner, M. D., and Noble, B. D. (2006).

Mobile device security using transient authentication.

IEEE Trans. Mob. Comput., 5(11):1489–1502.

Wikipedia (2018). https://en.wikipedia.org/wiki/FBI\%E2\

%80\%93Apple_encryption_dispute/.

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

154
