Trust Dynamics: A Case-study on Railway Sensors

Marcin Lenart

1,2,3

, Andrzej Bielecki

, Marie-Jeanne Lesot

, Teodora Petrisor

and Adrien Revault d’Allonnes

Thales, Campus Polytechnique, Palaiseau, France

Sorbonne Universit

e, CNRS, Laboratoire d’Informatique de Paris 6, LIP6, F-75005 Paris, France

Student Scientiﬁc Association AI LAB, Faculty of Automation, Electrical Engineering,

Computer Science and Biomedical Engineering, AGH University of Science and Technology, Cracow, Poland

Universit

e Paris 8, LIASD EA 4383, Saint-Denis, France

Keywords:

Trust Dynamics, Trust, Information Quality, Railway Sensors.

Abstract:

Sensors constitute information providers which are subject to imperfections and assessing the quality of their

outputs, in particular the trust that can be put in them, is a crucial task. Indeed, timely recognising a low-trust

sensor output can greatly improve the decision making process at the fusion level, help solving safety issues

and avoiding expensive operations such as either unnecessary or delayed maintenance. In this framework, this

paper considers the question of trust dynamics, i.e. its temporal evolution with respect to the information ﬂow.

The goal is to increase the user understanding of the trust computation model, as well as to give hints about how

to reﬁne the model and set its parameters according to speciﬁc needs. Considering a trust computation model

based on three dimensions, namely reliability, likelihood and credibility, the paper proposes a protocol for

the evaluation of the scoring method, in the case when no ground truth is available, using realistic simulated

data to analyse the trust evolution at the local level of a single sensor. After a visual and formal analysis,

the scoring method is applied to real data at a global level to observe interactions and dependencies among

multiple sensors.

1 INTRODUCTION

Information provided by sensors plays a major role

in decision making, especially in automated systems.

Therefore assessing the quality of their outputs, in

particular the trust that can be put in them, is a cru-

cial task. Indeed, there are many situations where

sensors can fail and not produce correct informa-

tion, e.g. due to communication problems, interfer-

ence, difﬁcult operating conditions or calibration is-

sues. Timely recognising untrustworthy information

can increase the usefulness of decision-aid systems,

improve safety and avoid expensive operations such

as either unnecessary or delayed maintenance. To

avoid these issues information can be scored so as to

evaluate its quality level, which is a major topic tack-

led by many authors.

Information Scoring. Information Quality Scoring

has a non-trivial deﬁnition for which no consensus

exists, see e.g. (Batini and Scannapieco, 2016). It is

most often decomposed into several dimensions, each

of them focusing on different characteristics of the

considered piece of information, its source or its con-

tent.

An information scoring model can thus be deﬁned

by the individual dimensions it considers and the ag-

gregation procedure used to combine them. More

than 40 different dimensions have been described in

the literature, see e.g. (Sidi et al., 2012). Some ex-

amples for instance include: relevance and truthful-

ness (Pichon et al., 2012); reliability, certainty, cor-

roboration, information obsolescence and source re-

lations (Lesot et al., 2011) or trustworthiness, proﬁ-

ciency, likelihood and credibility (Besombes and Re-

vault d’Allonnes, 2008). Note that a given dimension

name can also have several interpretations and numer-

ical measures to assess them, further enriching the va-

riety of information quality models.

Among the various deﬁnitions of information

quality, trust plays a speciﬁc role: it interprets the no-

tion of quality as the level of conﬁdence that is put in

a piece of information. As with information quality

scoring in general, existing trust models vary in the

Lenart, M., Bielecki, A., Lesot, M., Petrisor, T. and d’Allonnes, A.

Trust Dynamics: A Case-study on Railway Sensors.

DOI: 10.5220/0007394800470057

In Proceedings of the 8th International Conference on Sensor Networks (SENSORNETS 2019), pages 47-57

ISBN: 978-989-758-355-1

understanding of the concept it measures and there-

fore in the dimensions used for its representation and

in their aggregation procedure. Some models for in-

stance include conﬁdence, reliability and credibility

(Young and Palmer, 2007); dynamic credibility (Flo-

rea et al., 2010) or reliability, competence, plausibility

and credibility (Revault d’Allonnes and Lesot, 2014).

Information Quality Dimensions for Sensors.

Sensors constitute a speciﬁc case of information

providers that are as well subject to imperfections:

they also require to measure the quality of their out-

puts, for instance to allow nuanced processing and

exploitation of their results. Dedicated models have

been developed to take into account their speciﬁci-

ties (Pon and C

ardenas, 2005; Guo et al., 2006; Flo-

rea and Boss

e, 2009; Destercke et al., 2013; Lenart

et al., 2018). As in the general information quality

case, they are usually deﬁned by a list of individual

dimensions and an aggregation procedure. The most

common dimensions, brieﬂy presented below, are re-

liability, contextual reliability and credibility.

Reliability focuses on the ability of a sensor to

perform its required functions under some stated con-

ditions for a speciﬁed time. It is an a priori as-

sessment of the source quality, which can be difﬁ-

cult to measure. Existing approaches for instance ex-

ploit meta-information about the sensors (Florea and

Boss

e, 2009; Destercke et al., 2013) or evaluate its

past accuracy, relying on expert evaluation of its pre-

vious outputs (Florea et al., 2010; Blasch, 2008). The

latter in particular requires the availability of ground

truth to assess the correctness of these previous sensor

outputs.

Contextual reliability adapts reliability depending

on the task the sensor is used for and thus the context

of each piece of information. An example is proposed

in (Mercier et al., 2008) where reliability scoring is

modiﬁed to enrich it with its context, thus different

situations can result in different output qualities for a

given sensor. The idea is to create a vector of reliabil-

ity values that are used in different scenarios.

Credibility is usually understood as the level of

conﬁrmation of the considered piece of information

by other, independent, pieces of information. Most

models of credibility can be seen as variations of a

common approach which consists in considering how

many different pieces of information agree with the

evaluated one (Pon and C

ardenas, 2005; Guo et al.,

2006; Florea et al., 2010)

This paper considers a speciﬁc trust scoring

model, (Lenart et al., 2018), referred to as ReLiC

from hereon and described in Section 2, which relies

on reliability, likelihood and credibility.

Trust Dynamics. There have been several studies

on the issue of trust evolution, examining the succes-

sive values trust can take: trust depends on the in-

formation ﬂow and on the way previous pieces of in-

formation have been scored (Jonker and Treur, 1999;

Falcone and Castelfranchi, 2004; Cvrcek, 2004).

(Jonker and Treur, 1999) argue that a new piece

of information which inﬂuences the degree of trust

is either trust-positive, i.e. it increases trust to some

degree, or trust-negative where trust is decreased to

some degree. The degree to which trust is changed

differs depending on the used model. They distin-

guish between two types of trust dynamical models:

a trust evolution function considering all previous in-

formation and a trust update function storing only the

current trust level and having the ability to include

the next information. However, (Falcone and Castel-

franchi, 2004) challenge these deﬁnitions, claiming

that this only stands for trust computed as a single di-

mension.

(Mui, 2002) proposes an asymmetrical approach

for the increase/decrease trust rate, which is inspired

by the approach observed in humans: i.e. trust in-

creases slowly but decays rapidly. This asymmetrical

behaviour is also arguably important from a practical

point of view, for many implications (see the case of

malicious attacks in the security domain (Duma et al.,

2005)).

Objectives and Outline. The ﬁrst goal of this pa-

per is to increase user’s understanding of a dynamic

trust computation model, namely the ReLiC model re-

called in Section 2. ReLiC assesses trust by aggregat-

ing three dimensions, which opens the possibility for

different trust behaviours that highly depend on the

type of quality problem at hand. By analysing these

behaviours it is possible to highlight important trust

evolutions for each encountered problem this show-

ing the user how trust reacts in different scenarios.

Note that, in the expression of trust evolution, trust

is actually successively computed for different pieces

of information and it is not a description of the trust-

worthiness of the source which can be updated by in-

cluding more information. Evolution is understood at

a general level, for the successive messages of a given

sensor.

The second goal is to propose a methodology to

evaluate any quality scoring method, with two im-

portant features. First, the methodology is based on

real data from a given application domain, it is cru-

cial as most of the models are not universal and are

designed only for data from the speciﬁc domain in-

cluding speciﬁc attributes. Second, contrary to most

related works, this method does not use ground truth

SENSORNETS 2019 - 8th International Conference on Sensor Networks

but only statistical properties derived from the data.

This property can be very beneﬁcial as ground truth

is often expensive or impossible to obtain.

Using a visual and formal study of trust be-

haviours we differentiate key trust evolution types that

can occur. We ﬁrst focus on a controlled evaluation of

the ReLiC method in the case of railway data showing

its capabilities of highlighting possible quality prob-

lems. Then, the method is applied to a real dataset,

named MoTRicS2015 and described in Section 3.2, to

observe the propagation of trust among multiple sen-

sors.

The paper is organised as follows: Section 2 de-

scribes the ReLiC model used in this paper. Sec-

tion 3 presents in more details the proposed method-

ology for trust dynamics evaluation where the con-

ducted studies are divided into the following three

sections: the visualisation of single sensor trust evo-

lution is proposed in Section 4 to evaluate the scoring

method and illustrate its trust evolution, then a formal

analysis is presented on the ReLiC in Section 5. Fi-

nally the real data is used to test the trust propagation

on multiple sensors in Section 6. Section 7 concludes

the paper and discusses future research directions.

2 THE ReLiC MODEL

This section details the information quality model for

sensors (Lenart et al., 2018), from hereon referred to

as ReLiC, on which the study conducted in this paper

is based. ReLiC differs from related work by aiming

to be as self-contained as possible: no ground truth

is needed and all necessary meta-information can be

extracted from the data. Also, the method can be used

in real time as it computes trust dynamically using

only currently available information.

After making explicit the required data structure

and used notations, this section describes in turn each

of the three dimensions as well as their aggregation.

Data Structure. The ReLiC method proposes to

score pieces of information corresponding to sensor

temporal outputs stored as successive log entries for

which the following attributes are available: a date, a

time, a sensor ID and an output message. An example

of the entries from such a log ﬁle is given Table 1 (ﬁrst

four columns) for a single sensor with ID S1, which

outputs two messages: occupied and clear.

In addition, the ReLiC model requires a state tran-

sition graph and a network of sensors. The state tran-

sition graph represents admissible consecutive log en-

tries for one sensor, deﬁning valid transitions: a node

corresponds to the sensor’s output message, an edge

Table 1: Input data structure and output trust scores.

Date Time Sensor ID Message Trust

11.03.2015 07:24:53 S1 occupied 0.9

11.03.2015 07:25:40 S1 occupied 0.3

11.03.2015 08:23:18 S1 occupied 0.7

11.03.2015 08:24:08 S1 clear 0.7

11.03.2015 09:15:23 S1 occupied 0.8

11.03.2015 09:16:08 S1 clear 0.8

11.03.2015 09:39:45 S1 occupied 0.8

11.03.2015 09:40:29 S1 clear 0.8

11.03.2015 10:22:14 S1 occupied 0.8

11.03.2015 10:23:03 S1 clear 0.9

between two nodes indicates that it is possible to have

these two subsequent states (see Section 3.2 and Fig-

ure 2).

The sensor network is a graph whose nodes rep-

resent the sensors and an edge between two nodes in-

dicates that these sensors are correlated, in the sense

that, due to their physical geographical proximity, the

activity of the ﬁrst one is related to the other one: their

messages are expected to be correlated (see Figure 1).

Notations. Throughout the paper, L denotes the

complete set of log entries and L

the set of log en-

tries produced by sensor s. The notation l corre-

sponds to one log entry deﬁned as a vector contain-

ing three values: l.fullDate corresponding to date and

time, l.sensor to the sensor ID and l.message to the

provided piece of information describing the sensor’s

state. The set of all sensors is denoted by S and the

set of all time stamps by T .

Reliability. The ﬁrst dimension used in the ReLiC

model scores the source independently of its current

message, thus focusing on the speciﬁcs of a sensor to

assess an a priori trustworthiness level.

The ReLiC method proposes to consider recent er-

rors produced by the sensor based on the assumption

that an error message suggests a problem with the sen-

sor. Formally, it is deﬁned as:

r : S × T −→ [0, 1]

(s, w) 7−→ 1 −

|error(recent(L

, w))|

|recent(L

, w)|

(1)

where recent : L × T → P (L) provides the set of the

w latest entries produced by sensor s: w deﬁnes a time

window that should depend on the sensor’s output fre-

quency. In the experiments described in Sections 4

and 6, w is set to 20 based on the preliminary exper-

imental studies which consider density of messages.

error : L → P (L ) is the function which extracts the

set of error entries in this set.

Trust Dynamics: A Case-study on Railway Sensors

S1 S2 S3 S4 S5

S6 S7 S8 S9

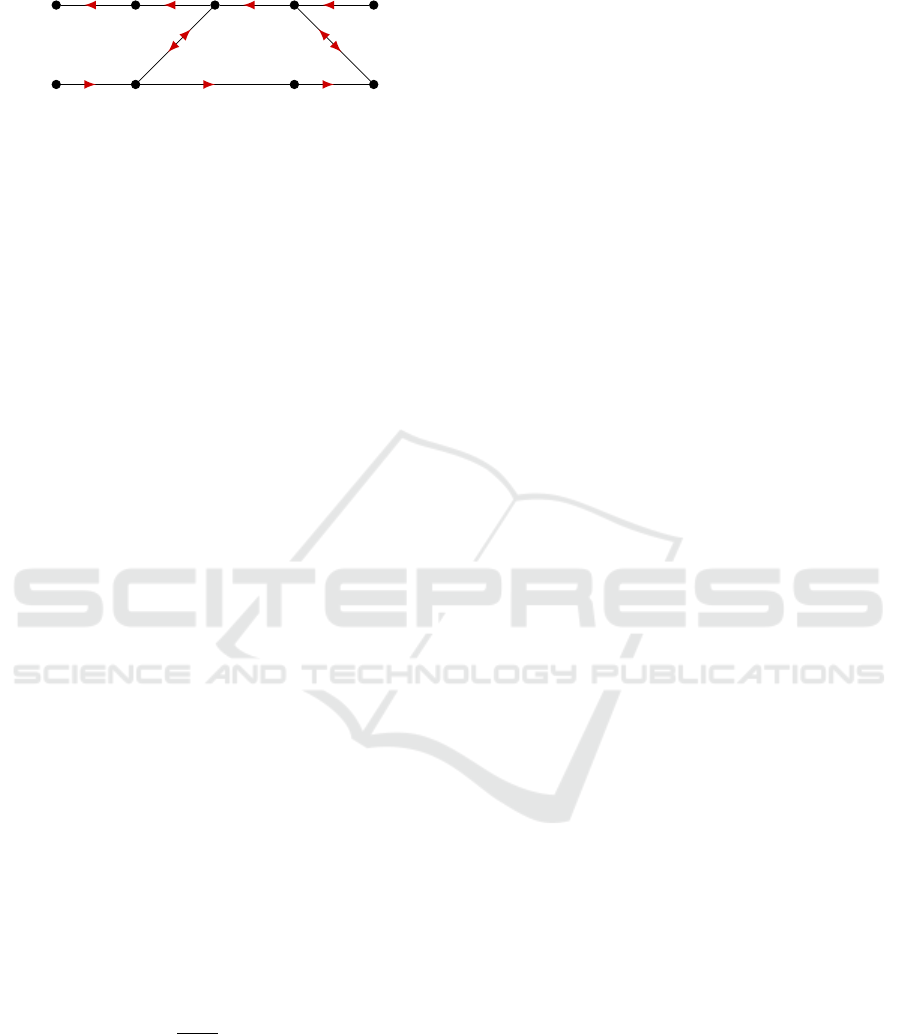

Figure 1: An example of a small sensor network, extracted

from the real data MOTRIcS2015 (see Section 3.2).

Likelihood. The second dimension measures

whether the considered log entry is in line with its

expected possible value, independently of its source,

based on the state transition graph. More precisely,

it examines whether the message ﬂow is compatible

with the model or not. The formal deﬁnition of

lkh : L → [0, 1] is:

lkh(l) =











trust(prv(l)), if l.message compatible

with prv(l).message

1 −trust(prv(l)), otherwise

(2)

where prv : L → L returns the single log entry l

provided by the same sensor just before the current

entry l and l.message is compatible with l

.message

when that state transition exists in the model.

Credibility. The third dimension exploits informa-

tion from other sensors to conﬁrm or deny the consid-

ered entry, also independently of its source. More pre-

cisely, the ReLiC method considers validations and

invalidations taken from the sensor neighbours, where

the neighbourhood is deﬁned by the sensor network,

as illustrated in Figure 1.

Formally, the credibility function cr is deﬁned as:

cr : L −→ [0, 1]

l 7−→ agg

(agg

(con f (l)), agg

(in f (l)))

(3)

where con f : L → P (L) returns a set of entries that

conﬁrm l; in f (l) : L → P (L) returns a set of entries

that contradict l. agg

and agg

are the aggregation

operators applied to the trust scores of their set of

logs. In (Lenart et al., 2018), they are set to be the av-

erage. The agg

operator combines the respective re-

sults provided by agg

and agg

; (Lenart et al., 2018)

sets it as agg

(c, i) =

c+1−i

Trust. The ﬁnal step is to aggregate the three pre-

vious dimensions. (Lenart et al., 2018) proposes to

score trust in two steps: it ﬁrst combines reliability

and likelihood with a conjunctive operator and it then

integrates credibility. The proposed deﬁnition is:

tr : L −→ [0, 1]

l 7−→ α ·r(l.sensor, l. f ullDate) · lkl(l)+

(1 −α) · cr(l)

(4)

where the parameter α ∈ [0, 1] weighs the desired in-

ﬂuence of each of the two parts of this equation. In the

experiments described in Sections 4 and 6, α is set to

0.75. The value is proposed in (Lenart et al., 2018)

so as to put more inﬂuence on the two dimensions

describing the source and the piece of information it

produces.

As mentioned before, the trust value with its com-

ponents does not depend on a ground truth for an a

priori setup. This separates the ReLiC method from

other approaches taken in the literature.

3 PROPOSED EXPERIMENTAL

METHODOLOGY

This section describes the methodology for the study

of trust dynamics proposed in the paper, discussing

the relevance of data simulation, the considered tools

as well as the proposed experimental protocol applied

to obtain the results presented in Sections 4 and 6.

3.1 Proposed Protocol

The ability to validate a quality scoring method is

a crucial and difﬁcult task as, most often, different

methods use different dimensions which might be

more relevant in one domain and less in other. Usu-

ally, validation is done by using ground truth to com-

pare results provided by the method with the expected

ones. However, the access to ground truth is often dif-

ﬁcult, expensive or sometimes even impossible.

To address this issue, we propose to use realisti-

cally simulated data, based on the real data set we

consider. This approach has two major advantages

apart from making ground truth unnecessary. First,

it gives the ability to create multiple scenarios which

happen rarely in real data or did not happen yet. Sec-

ond, it gives the ability to use data from the same do-

main as the real data which, as mentioned before, is

important with general quality evaluation systems.

Data Simulation. Creating a synthetic database

helps with controlling the type of introduced quality

problems, their intensity, distribution and it allows to

cover a larger spectrum of problems. This opens the

possibility to review different quality problem scenar-

ios to check how the considered method behaves.

SENSORNETS 2019 - 8th International Conference on Sensor Networks

We thus propose to create a synthetic log entries

set by randomly modifying a certain amount of origi-

nal entries, to introduce quality problems in the data.

The modiﬁcations consist in replacing the message

that an entry carries with a different one in the pos-

sible set of messages thus creating a noisy dataset.

Then, the original data serves as a ground truth for

future validation.

For a given set of log entries, the simulation mod-

iﬁes a certain percentage of the entries produced by a

sensor with different distributions.

Analysis Methodology. The analysis of trust dy-

namics consists in studying the difference between

two consecutive trust values, which we denote

∆(tr) = trust

− trust

in the following. By intro-

ducing noise to one of the sensors we can study how

∆(trust) changes as well as ∆(r), ∆(lkl) and ∆(cr).

First, a visual analysis of local dynamics considers

the level of decrease in simulated entries and its later

recovery to observe the effectiveness of the ReLiC

method in recognising quality problems and to illus-

trate its trust evolution behaviours in these situations

in Section 4. Then, a formal study of the formulas

used to score each dimension is performed to observe

theoretical dependencies and explain previously ob-

served behaviours in Section 5.

Finally, the ReLiC method is used to compute

trust for real data and to observe the global trust dy-

namics of information from multiple sensors interact-

ing with each other in Section 6. A new visualisation

scheme is proposed for plotting the trust evolution for

all available sensors simultaneously. This can easily

show how neighbouring sensors can inﬂuence each

other.

The presented method as well as the proposed

experimental methodology apply to any information

produced by event-based sensors, even though this

study focuses on railway data.

3.2 The MoTRicS2015 Real Data

Data Presentation. In this paper we consider a

dataset called MoTRicS2015 which stems from the

rail signalling domain and incorporates different

kinds of monitoring devices such as axle counters or

point machines. It consists of entries which store the

information about asynchronous events produced by

the devices located on the railway tracks. We consider

one of the stations covered in MoTRicS2015 and its

surrounding tracks for one year of available data. In

the experiments, only one type of sensor is evaluated,

the axle counter (AC). This device provides informa-

tion about a train entering a speciﬁc part of track or

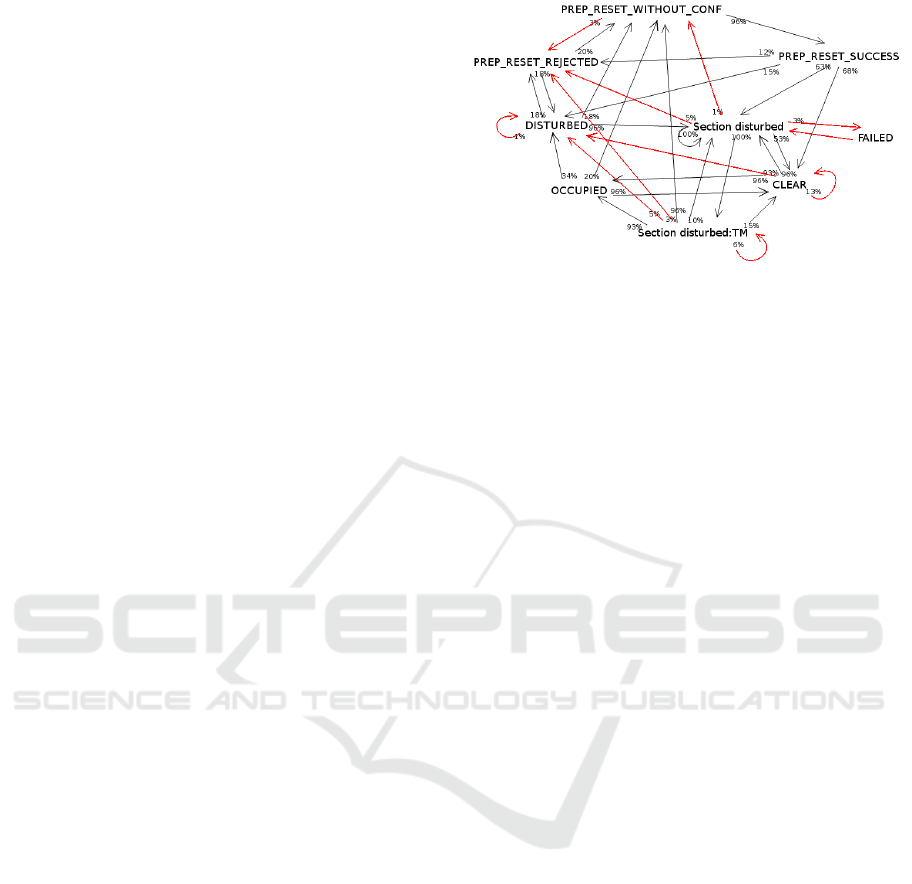

Figure 2: State transition graph, extracted from the real data

MoTRicS2015 (see Section 3.2).

leaving it. It constitutes an event-based type of infor-

mation. Multiple devices of this type show the move-

ment of a train and are needed for safety passage.

In the considered part of the railway there are 60

AC providing 1,142,302 log entries within one year

time.

State Transition Graph Extraction. In the ab-

sence of a theoretical model we propose to build the

state transition graph automatically from the data.

First, for each AC, its log entries are extracted and

their unique messages are used as nodes in a graph.

The transition between two nodes is created if the

two subsequent messages can be found in the anal-

ysed entries. This transition graph is created for ev-

ery AC in the data thus amounting to 60 such graphs.

Next, they are aggregated into a global graph with

the aim of keeping a maximum number of nodes and

transitions. Each transition is weighted by the pro-

portion of AC that have this transition (the percent-

ages shown in Figure 2). Some connections above

the threshold were removed when their temporal fre-

quency (percentage of occurencies per AC) is below

a given threshold of 10%.

The result of this data extraction is shown in Fig-

ure 2, where the red connections are the removed

ones. The main nodes indicate that a train entered the

track section (occupied), a train left the track section

(clear) or different error states (the other messages).

4 ILLUSTRATIVE EXAMPLE

This section analyses the trust evolution at a local

level, when a single sensor has quality problems. It

analyses the visual representation of its trust evolu-

tion, in particular different types of trust decreases as

well as the later increases leading to get back to the

previous trust degree, called recovery.

Trust Dynamics: A Case-study on Railway Sensors

Two noise distributions are considered: in the ﬁrst

case, noise is uniformly distributed in the whole pe-

riod; in the second case, burst noise is considered, i.e.

noise concentrated within a short time period. To il-

lustrate the results, the ﬁrst case is denoted as C1 and

the second as C2.

4.1 Considered Visualisation

By altering the original data we can observe how the

trust value evolves for a given sensor. It is possible to

analyse not only the level of decrease but also what

happens immediately after trust decreases in a simu-

lated entry.

Figures 3 to 10 present the trust evolution over

time, as well as the evolution of the three considered

dimensions. Fig. 3 to 6 correspond to the uniform

noise distribution, Fig. 7 to 10 the concentrated one.

The trust evolution is shown on Fig. 3 and 7, reliabil-

ity on Fig. 4 and 8, likelihood on Fig. 5 and 9 and

credibility on Fig. 6 and 10.

In each graph, the x-axis represents time measured

as the log entry number, the y-axis represents the con-

sidered dimension (trust, reliability, likelihood and

credibility). The graphs only show the noisy sensor,

all the others in the data set being left intact and hav-

ing a trust value of 1 over the considered interval.

A simulated entry change is highlighted by a ver-

tical line. Additional information about the applied

modiﬁcation is provided by the line colour:

• blue: occupied modiﬁed to clear

• orange: occupied modiﬁed to one of the error

states

• violet: clear modiﬁed to occupied

• green: clear modiﬁed to one of the error states

Note that, for the analysis, not all of the error states

are considered when introducing noise, but only two

of the most common ones.

4.2 Observations

This section comments the trust evolution and then of

its components: reliability, likelihood and credibility.

Trust. The ﬁrst important observation is that all si-

mulated entries indeed have a decreased trust value,

which is a ﬁrst validation of the proposed method. A

clear example of this decrease is provided by case C1,

entry 146: it illustrates the level of single decrease

for a non-error noise and the recovery taking place

afterwards, where trust increases but not instantly.

This behaviour is desired (see Section 1), where the

trust evolution patterns are asymmetrical, with fast

decreases and slow recoveries.

We can observe that the amplitude can vary, up to

−0.92 (C1, entry 95) followed by a quick recovery

next (∆(tr) = 0.83). In the case of denser noise, more

ﬂuctuations can be observed comparing to the noise

distributed more sparsely (entries 8-54, C1). This be-

haviour is further studied with the burst noise trust

evolution illustrated in graphs 7-10.

Here, an interesting fact can be highlighted: as in

C1 (entries 90-105) the trust level highly ﬂuctuates

differentiating the noisy parts from the unchanged en-

tries. This shows that even in the dense noise sce-

nario the ReLiC method can successfully ﬁnd the pe-

riods where the sensor works properly. Again, trust

can quickly recover thanks to credibility which is very

high since all neighbouring sensors are working cor-

rectly and are able to conﬁrm the correct message.

Reliability. Figures 4 and 8 show the evolution of

reliability. As expected, reliability decreases after

simulated error-type entries (orange and green lines)

and this decrease remains for 20 entries, which is in

line with the window parameter of the recent func-

tion (see Equation 1). Note that in the considered

part of data, there is no simulated error messages. We

can observe a “stair-like” behaviour where reliability

encounters another error entry or recovers from one.

Other types of entry modiﬁcations (blue and violet)

do not impact reliability in any way, as expected.

Likelihood. Figures 5 and 9 show the evolution of

likelihood. We can observe that, for C1, its shape is

highly similar to that of trust, with a very small de-

lay of one time stamp: the simulated entries appear

to be usually compatible with the previous messages,

making the likelihood equal to the trust value of the

previous message (see Equation 2). However, this is

not the case with the concentrated noise represented

in C2, where compatibility is not observed anymore,

leading to more contrasted behaviours.

These ﬁgures also illustrate the case where noise

does not break the possible sequence of messages

with the previous entry and does not contribute to

lowering the trust value (e.g. entry 9 in C1). How-

ever it disrupts the next entry as there is no connec-

tion from the noisy message to the normal one. It is

observed here as a likelihood decrease after the high-

lighted noise (e.g. entries 11 or 155 in C1). That can

also be the cause, apart from reliability, to further de-

crease trust instead of recovering it.

Credibility. The two examples of credibility evolu-

tion are illustrated in Figures 6 and 10. Most of the

SENSORNETS 2019 - 8th International Conference on Sensor Networks

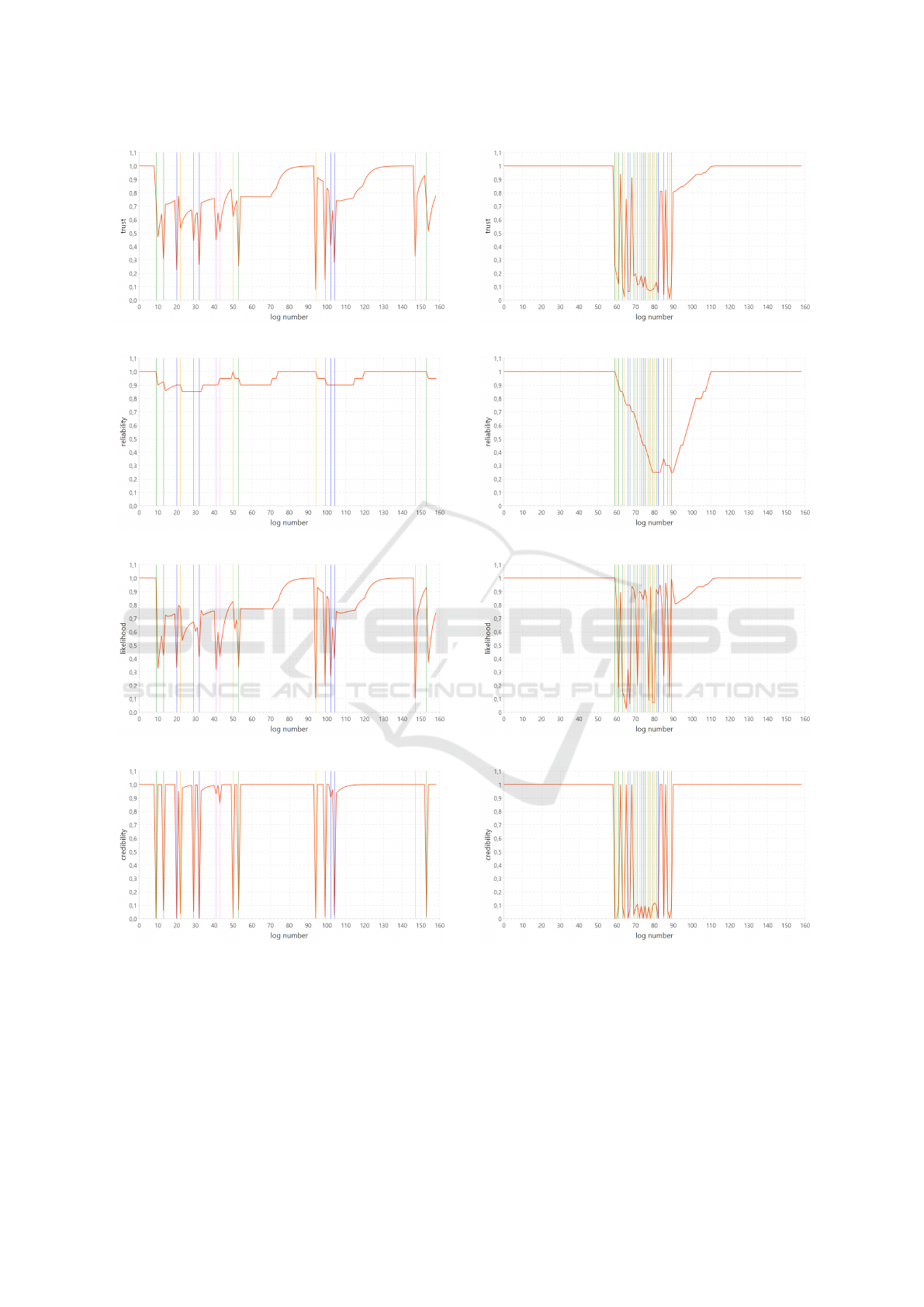

Figure 3: C1, uniform noise distribution: trust.

Figure 4: C1, uniform noise distribution: reliability.

Figure 5: C1, uniform noise distribution: likelihood.

Figure 6: C1, uniform noise distribution: credibility.

time, credibility stays close to 1 or 0. As already

stated, in this local level study, a single sensor has

noisy entries, the neighbouring sensors do not have

modiﬁed entries. Therefore, their trust is usually close

to 1. This causes such an instant decrease in credibil-

ity in short time. This behaviour is especially high-

lighted in C2 where credibility is instantly high when

the message is not simulated even though it is in the

Figure 7: C2, concentrated noise distribution: trust.

Figure 8: C2, concentrated noise distribution: reliability.

Figure 9: C2, concentrated noise distribution: likelihood.

Figure 10: C2, concentrated noise distribution: credibility.

middle of high dense noise.

However we can observe that credibility is not af-

fected by one of the modiﬁcation types or it is in small

level, i.e. the change from clear to occupied, repre-

sented by the violet line (e.g. entry 146 in C1). This

behaviour is strange as this only happens in clear to

occupied transition and does not in occupied to clear.

It is caused by an improper conﬁrmation recognition

Trust Dynamics: A Case-study on Railway Sensors

made possible due to the fact that occupied state is

produced shortly before clear.

5 FORMAL STUDY OF THE

TRUST EVOLUTION

This section analyses the trust behaviour by studying

the equations deﬁning each dimension, as well as the

ﬁnal aggregation into the trust value. By analysing

each dimension separately, we want to emphasise the

extent of their ability to modify trust over time. In ad-

dition, by combining the analysis of each dimension,

we investigate the largest possible trust decrease.

In the following, the notion of ∆(trust) is com-

puted as a difference between the trust value of the

current sensor output trust(r

, lkl

, c

) and the trust

value of the previous sensor output trust(r

, lkl

, c

)

which shows the level of decrease or recovery for

trust. Formally it is then:

∆(trust) = trust(r

, lkl

, c

) − trust(r

, lkl

, c

)

= α ·r

· lkl

+ (1 −α) · c

− (α ·r

· lkl

+ (1 −α) · c

)

where α ∈ [0, 1] and reliability depends on ﬁxed win-

dow of w > 0 previous entries (see Section 2).

Reliability Analysis. Let us consider the inﬂuence

of reliability independently of other dimensions by

making lkl and c constants, then:

∆(trust) = trust(r

, lkl, c) −trust(r

, lkl, c)

= α ·lkl · (r

− r

)

= α ·lkl · ∆(r)

i.e. the evolution of trust is expressed as the level of

reliability change multiplied by α · lkl. Therefore, re-

liability has the biggest impact when likelihood is set

to its maximum value, lkl = 1.

Reliability strongly depends on the “recent” func-

tion which returns w previous entries of the same sen-

sor. Within those w entries we denote the number of

error entries e and regular entries m, e+m = w. When

considering the next entry we discard the oldest one.

This gives us two possibilities, if both entries belong

to the same group (error or regular), then the change

in reliability is 0, ∆(r) = 0. If they belong to different

groups, we have two possibilities as well: either the

latest entry is an error (m decreases and e increases

by 1) or it is a regular message (m increases and e

decreases by 1), in that case, the change in reliability

can be a decrease:

∆(r) =

w −(e + 1)

−

w −e

= −

or recovery:

∆(r) =

w −(e − 1)

−

w −e

Considering this behaviour of reliability and by

setting constant lkl = 1, we can narrow the possible

trust evolution to three values:

∆(trust) ∈



−α ·

, 0, α ·



We can notice only one decrease and recovery

level for reliability, that explains the previously de-

scribed behaviour in Figures 4 and 8 where the relia-

bility evolution has a stair-like behaviour.

Likelihood Analysis. To study the inﬂuence of

likelihood on trust, let us consider r and c as con-

stants, then:

∆(trust) = trust(r, lkl

, c) −trust(r, lkl

, c)

= α ·r · (lkl

− lkl

)

= α ·r · ∆(lkl)

Again, we can observe that the trust evolution is pro-

portional to likelihood, with multiplicative factor α ·r,

which means that the biggest decrease happens with r

as maximum value, r = 1.

Even though there are no dependencies from the

previous likelihood value to the current one, we can

highlight some interesting properties. Let us consider

three consecutive entries l

, l

and l

with constant

reliability and credibility where either both transitions

are valid according to the considered state transition

graph or not.

In the ﬁrst case, according to the ReLiC model,

lkl(l

) = trust(l

) and lkl(l

) = trust(l

), which leads

∆

(trust) = tr(l

) − tr(l

) = α · r · (lkl

− lkl

)

= α ·r · (tr(l

) − tr(l

)) = α · r · ∆

(trust)

Thus we can observe that if the information ﬂow ap-

pears as likely, then trust continues its previous de-

crease or recovery multiplied by α · r. Since α ∈ [0, 1]

and r ∈ [0, 1], that makes each following decrease or

recovery equal or slower: |∆

(trust)| 6 |∆

n−1

(trust)|.

On the other hand, when the two consecutive

pieces of information are not compatible with the

model, lkl(l

) = 1 − trust(l

) and lkl(l

) = 1 −

trust(l

), leading to

∆

(trust) = −α · r · ∆

(trust)

We can see that in a case where pieces of informa-

tion are considered as unlikely, likelihood reverses the

trend of trust, changing decreasing to recovery and

vice versa. This observation shows that in continuous

quality problems, detected by likelihood, a ﬂuctua-

tion behaviour can be observed, where the trust evolu-

tion can consist in alternated decreases and increases.

Again, since it is multiplied by α · r, where α ∈ [0, 1]

SENSORNETS 2019 - 8th International Conference on Sensor Networks

and r ∈ [0, 1], |∆

(trust)| 6 |∆

(trust)| which creates

the oscillation of equal or decreasing magnitude. This

type of behaviour was indeed observed in Figure 3

(see Section 4.2).

Credibility Analysis. The credibility dimension is

deﬁned independently from the previous two dimen-

sions and its scoring is based entirely on the compar-

ison of the considered piece of information with the

ones provided by different sensors. When consider-

ing r and lkl as constant, it holds that

∆(trust) = trust(r, lkl, c

) −trust(r, lkl, c

)

= (1 −α) · (c

− c

)

= (1 −α) · ∆(c)

We can notice that constant r and lkl are irrelevant

when analysing the impact of credibility on trust dif-

ference. The evolution of trust is proportional to cred-

ibility’s, with multiplicative factor (1 − α). However,

there is no correlation between the previous credibil-

ity value and the current one, nor with any previous

dimension. This can be observed by analysing credi-

bility’s formula which only aggregates messages from

other sources. Therefore ∆(c) is only limited by cred-

ibility value itself which is in [0, 1] range. Then, by

including (1 − α) factor, the possible trust evolution:

∆(trust) ∈ [α − 1, 1 − α].

6 TRUST DYNAMICS OF

MULTIPLE SENSORS IN REAL

DATA

The analysis from the previous sections shows the

ability of the ReLiC method to highlight possible

quality problems at a local level (single sensor). In

this section we analyse the global behaviour of the

trust evolution and how different trust levels impact

other sensors based on the MoTRicS2015 real dataset

from railway domain (see Section 3.2). Indeed, the

ReLiC method gives an opportunity to observe how

a sudden decrease in trust for one sensor can im-

pact other ones and their trust computation. However,

to observe this possible propagation to neighbouring

sensors, we need a way to illustrate trust level for all

sensors in one chart.

In the following we describe our approach to il-

lustrate results provided by all sensors at once in Sec-

tion 6.1 to later use it as a tool to analyse and interpret

the results in Section 6.2.

6.1 Proposed Visualisation

The trust values are computed for the 60 axle coun-

ters, each having around 25 000 entries in the dataset

(see Section 3.2). In order to compare the trust dy-

namics for all of them we propose the following RGB

visualisation.

RGB Chart. The chart uses time on the x-axis and a

sensor ID on the y-axis. Using time instead of an entry

line number in the x-axis allows an easy comparison

of trust values between multiple sensors. The trust

values are represented by a colour between yellow,

representing the highest trust, and red representing the

lowest trust. White spaces indicate the lack of entries

within that time for the corresponding line.

Trust Temporal Aggregation. The trust values

presented in the chart are aggregated within an a pri-

ori speciﬁed time window t. A higher t allows to dis-

play a bigger time frame, however a lower t displays

a more detailed view.

In MoTRicS2015, sensors produce a low number

of entries per hour which makes t = 1h a good com-

promise between displaying a large time frame and

important details.

A conjunctive behaviour is desired for this aggre-

gation operator. Indeed we want to strongly highlight

the decrease in trust value within the data. The cur-

rently proposed function is the minimum, which pri-

oritises the lowest trust value.

The procedure for visualising trust values as an

RGB chart is as follows: entries produced by the same

sensor are grouped together. For each group, trust val-

ues within the same hour are aggregated to create a

pair (d, tr), where d is a date and hour for this aggre-

gation and tr is an aggregated trust value. Each trust

value is then translated to a colour between red and

yellow. Then, for each group, their pairs are plotted

in the RGB chart.

Sensor Order. The order of the displayed sensors

is another issue. One possibility is to choose the ﬁrst

sensor and use for the next one its neighbour. This

gives an opportunity to observe a behaviour which af-

fects multiple neighbouring sensors.

All 60 sensors can be divided into three groups.

The ﬁrst two represent ACs in the same set of tracks,

for trains going in each direction, the third set con-

tains the rest which mostly corresponds to backup

tracks on the platform. To keep an understandable

quantity of data, these backup sensors are omitted

for simplicity in this study, the remaining ones cor-

respond to 39 sensors in total.

Trust Dynamics: A Case-study on Railway Sensors

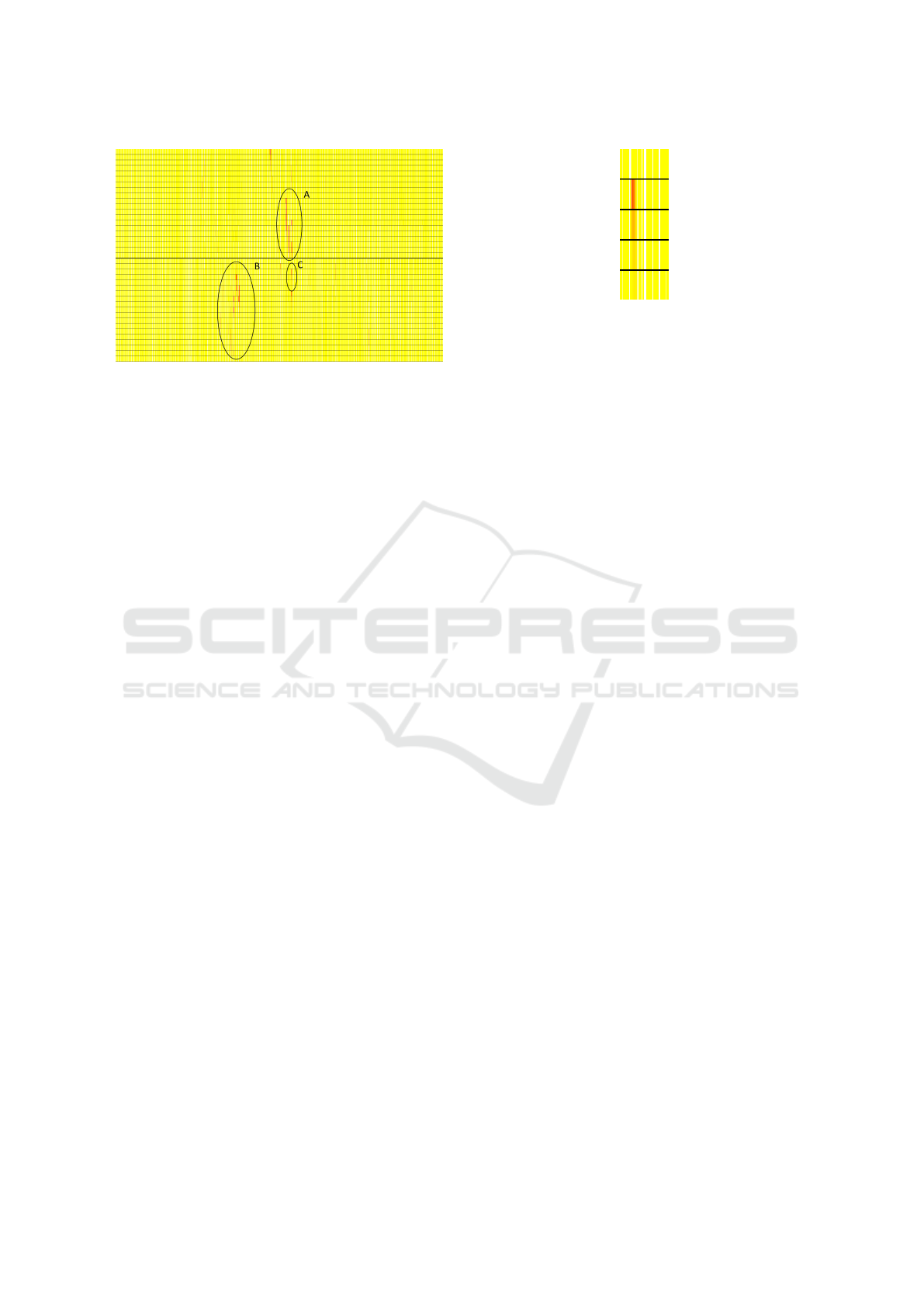

Figure 11: Trust value evolution for 39 sensors of the real

data MOTRIcS2015.

Figure 11 shows the obtained results, the thicker

black line indicates that two sensors are not neigh-

bours. The chart width is limited to 3000 hours which

corresponds to approximately 4 months out of 1 year

available data.

6.2 Results

We can ﬁrst observe that sensors do not report activity

all the time, there are hours where there is lack of any

activity for numerous sensors showed as white spaces.

We can also see that even though the beginning of

the chart looks trustworthy, some major quality prob-

lems are later encountered, visualised as low trust in-

formation across multiple sensors (groups A and B)

which are further discussed below. In addition, we

can notice multiple smaller sites where the trust value

is low (e.g. C group), this behaviour is analysed later.

Global Issues. Different problems with readings

from sensors can be caused by external sources, for

instance, power outages, software updates or global

system failures. Usually that kind of problems can be

observed for many sensors at the same time.

In Figure 11, the A & B groups of trust decreases

are similar for many sensors in the same time. Such

a behaviour can indeed indicate some external prob-

lems which inﬂuence many neighbouring sensors at

the same time and raise alerts for a domain expert.

Trust Decrease Propagation. The analysis of the

dynamic trust scoring method shows its dependency

on other sources scored by the credibility dimension

(see Section 2). In the considered AC case, the credi-

bility score directly depends on the trust value of one

of its neighbours. By deﬁning conﬁrming and con-

tradicting information, the neighbouring sensors have

an impact to the trust of the evaluated log entry which

can be increased or decreased. As shown in Section

Figure 12: Trust decrease propagation to multiple sensors.

4, the sensor can provide low trust message due to

some quality issues, thus starting a phenomenon of

low trust propagation among neighbours. Figure 12

presents the enlarged version of the C portion in Fig-

ure 11, where an important trust decrease occurs in

one of the sensors.

This visualisation shows that the low-trust in this

sensor messages, as expected, affects the neighbour-

ing ones in this time window. The reason for this is

that the initial trust decrease disrupts a further chain

of conﬁrmations. The neighbour either lacks the ex-

pected conﬁrming entry or has to consider a low-trust

one. In either case, it causes the propagation of trust

decrease to the neighbouring sensor. The level of trust

decrease is lesser in each new sensor. The difference

is controlled by the a priori set α value (see Equa-

tion 4). By manipulating this constant, it is possible to

change the level of low trust propagation to the neigh-

bour, which also affects the number of sensors that are

affected by the original trust decrease.

In Figure 11 we can observe many similar sin-

gle trust decreases. As this dataset was not prepro-

cessed by an expert, its quality is unknown before-

hand and possible quality problems can be encoun-

tered. While most of the time trust is high on this

dataset, our method points out several low-trust en-

tries. This can be used as an alert procedure for the

operational system indicating a drift in quality either

in the data collection process (data loggers) or the sen-

sors themselves.

7 CONCLUSION AND

PERSPECTIVES

Understanding the process of trust assessment is a

much needed feature for a sensor-based decision-

aid system: low-trust sensor information may be ex-

cluded from fusion or maintenance scheduling, but

this is conditioned by the validation of the scoring

as well. This can be tackled by studying the dynam-

ics of trust over time for a single sensor, as well as

for multiple sensors simultaneously. In this paper we

SENSORNETS 2019 - 8th International Conference on Sensor Networks

have analysed this dynamics in a three-dimensional

scoring framework, where the contributions of each

independent dimension to the global trust score were

considered, both at formal and experimental levels.

We proposed a methodology based on simulated data,

obtained by noise injection in real data which makes

it possible to perform an experimental study of the

considered trust model in the absence of an available

ground truth for the real data. We have shown that the

expected evolution of trust based on its deﬁnition in-

deed occurs when different types of faulty messages

are injected in the data. Moreover, we have experi-

mentally illustrated the propagation of trust decreases

in a network of neighbouring sensors on a real-world

dataset without ground truth. Future work includes

ﬁeld-expert validation of the models extracted from

the data as well as the usability of the different ob-

tained trust levels and recovery delays.

REFERENCES

Batini, C. and Scannapieco, M. (2016). Data and Informa-

tion Quality. Springer International Publishing.

Besombes, J. and Revault d’Allonnes, A. (2008). An exten-

sion of STANAG2022 for information scoring. In Int.

Conf. on Information Fusion, FUSION’08, pages 1–7.

Blasch, E. (2008). Derivation of a reliability metric

for fused data decision making. In IEEE National

Aerospace and Electronics Conference, pages 273–

280.

Cvrcek, D. (2004). Dynamics of reputation. In 9th Nordic

Workshop on Secure IT-systems (Nordsec04), pages

1–14.

Destercke, S., Buche, P., and Charnomordic, B. (2013).

Evaluating data reliability: An evidential answer with

application to a web-enabled data warehouse. IEEE

Trans. Knowl. Data Eng., 25(1):92–105.

Duma, C., Shahmehri, N., and Caronni, G. (2005). Dy-

namic trust metrics for peer-to-peer systems. In Proc.

of the 16th Int. Workshop on Database and Expert Sys-

tems Applications, pages 776–781. IEEE.

Falcone, R. and Castelfranchi, C. (2004). Trust dynamics:

How trust is inﬂuenced by direct experiences and by

trust itself. In Proc. of the 3rd Int. Joint Conf. on

Autonomus Agents and Multiagent Systems (AAMAS

2004), pages 740–747. IEEE.

Florea, M. C. and Boss

E. (2009). Dempster-Shafer

Theory: combination of information using contextual

knowledge. In Int. Conf. on Information Fusion, FU-

SION’09, pages 522–528. IEEE.

Florea, M. C., Jousselme, A.-L., and Boss

E. (2010). Dy-

namic estimation of evidence discounting rates based

on information credibility. RAIRO-Operations Re-

search, 44(4):285–306.

Guo, H., Shi, W., and Deng, Y. (2006). Evaluating sen-

sor reliability in classiﬁcation problems based on evi-

dence theory. IEEE Trans. on Systems, Man, and Cy-

bernetics, Part B (Cybernetics), 36(5):970–981.

Jonker, C. M. and Treur, J. (1999). Formal analysis of

models for the dynamics of trust based on experi-

ences. In European Workshop on Modelling Au-

tonomous Agents in a Multi-Agent World, pages 221–

231. Springer.

Lenart, M., Bielecki, A., Lesot, M.-J., Petrisor, T., and

d’Allonnes, A. R. (2018). Dynamic trust scoring of

railway sensor information. In International Confer-

ence on Artiﬁcial Intelligence and Soft Computing,

pages 579–591. Springer.

Lesot, M.-J., Delavallade, T., Pichon, F., Akdag, H.,

Bouchon-Meunier, B., and Capet, P. (2011). Propo-

sition of a semi-automatic possibilistic information

scoring process. In Procs. of the 7th Conf. of the

European Society for Fuzzy Logic and Technology

(EUSFLAT-2011) and LFA-2011, pages 949–956. At-

lantis Press.

Mercier, D., Quost, B., and Denœux, T. (2008). Reﬁned

modeling of sensor reliability in the belief function

framework using contextual discounting. Information

Fusion, 9(2):246–258.

Mui, L. (2002). Computational models of trust and rep-

utation: Agents, evolutionary games, and social net-

works. PhD thesis, MIT.

Pichon, F., Dubois, D., and Denoeux, T. (2012). Relevance

and truthfulness in information correction and fusion.

Int. Jour. of Approximate Reasoning, 53(2):159 – 175.

Pon, R. K. and C

ardenas, A. F. (2005). Data quality infer-

ence. In Proc. of the 2nd Int. Workshop on Information

quality in information systems, pages 105–111. ACM.

Revault d’Allonnes, A. and Lesot, M.-J. (2014). Formalis-

ing information scoring in a multivalued logic frame-

work. In Proc. of the 15th Int. Conf. on Informa-

tion Processing and Management of Uncertainty in

Knowledge-Based Systems, (IPMU 14). Part I, pages

314–324. Springer.

Sidi, F., Panahy, P. H. S., Affendey, L. S., Jabar, M. A.,

Ibrahim, H., and Mustapha, A. (2012). Data quality:

A survey of data quality dimensions. In Proc. of Int.

Conf. on Information Retrieval Knowledge Manage-

ment, pages 300–304.

Young, S. and Palmer, J. (2007). Pedigree and conﬁdence:

Issues in data credibility and reliability. In Int. Conf.

on Information Fusion, FUSION’07.

Trust Dynamics: A Case-study on Railway Sensors
