Smart Like a Fox: How Clever Students Trick Dumb Automated

Programming Assignment Assessment Systems

Nane Kratzke

ubeck University of Applied Sciences, M

onkhofer Weg 239, 23562 L

ubeck, Germany

Keywords:

Automated, Programming, Assignment, Assessment, Education, MOOC, Code injection, Moodle, VPL.

Abstract:

This case study reports on two ﬁrst-semester programming courses with more than 190 students. Both courses

made use of automated assessments. We observed how students trick these systems by analysing the version

history of suspect submissions. By analysing more than 3300 submissions, we revealed four astonishingly

simple tricks (overﬁtting, evasion) and cheat-patterns (redirection, and injection) that students used to trick

automated programming assignment assessment systems (APAAS). Although not the main focus of this study,

it discusses and proposes corresponding counter-measures where appropriate. Nevertheless, the primary intent

of this paper is to raise problem awareness and to identify and systematise observable problem patterns in a

more formal approach. The identiﬁed immaturity of existing APAAS solutions might have implications for

courses that rely deeply on automation like MOOCs. Therefore, we conclude to look at APAAS solutions

much more from a security point of view (code injection). Moreover, we identify the need to evolve existing

unit testing frameworks into more evaluation-oriented teaching solutions that provide better trick and cheat

detection capabilities and differentiated grading support.

1 INTRODUCTION

We are at a transition point between the industrialisa-

tion age and the digitisation age. Computer science

related skills are a vital asset in this context.

One of these basic skills is practical programming.

Consequently, the course sizes of university and col-

lege programming courses are steadily increasing.

Even massive open online courses (Pomerol et al.,

2015) – or MOOC – are used more and more sys-

tematically to convey necessary programming capa-

bilities to students of different disciplines (Staubitz

et al., 2015). The coursework consists of program-

ming assignments that need to be assessed. Since the

submitted assignments are executable programs with

a formal structure, they are highly suited to be as-

sessed automatically. In consequence, plenty of auto-

mated programming assignment assessment systems

(APAAS) evolved and showed that “automatic ma-

chine assessment better prepares students for situa-

tions where they have to write code by themselves

by eliminating reliance on external sources of help

(Maguire et al., 2017).” We refer to (Romli et al.,

2017), (Caiza and Alamo Ramiro, 2013), (Ihantola

https://orcid.org/0000-0001-5130-4969

et al., 2010), (Douce et al., 2005), and (Ala-Mutka,

2005) for an overview of such tools.

In plain terms, APAAS solutions are systems that

execute injected code (student submissions). The

problem is that code injection is known as a severe

threat from a security point of view. Code injection

is the exploitation of a runtime environment that pro-

cesses data from potentially untrusted sources (Su and

Wassermann, 2006). Injection is used by an attacker

to introduce code into a vulnerable runtime environ-

ment to change the course of intended execution. We

refer to (Halfond and Orso, 2005), (Ray and Ligatti,

2012), and (Gupta and Gupta, 2017) for an overview

of such kind of attacks.

Of course, such code injection vulnerabilities are

considered by APAAS solutions. Let us take the

Virtual Programming Lab (VPL) (Rodr

ıguez et al.,

2011b) as an example. VPL makes use of a jail system

that is built around a Linux daemon to execute sub-

missions in a controlled environment. Student sub-

missions are executed in a sandbox that limits the

available resources and protects the host. This sand-

box strategy is common for almost all APAAS solu-

tions.

However, it is astonishing that APAAS solutions

like VPL overlook the cheating cleverness of students.

Kratzke, N.

Smart Like a Fox: How Clever Students Trick Dumb Automated Programming Assignment Assessment Systems.

DOI: 10.5220/0007424800150026

In Proceedings of the 11th International Conference on Computer Supported Education (CSEDU 2019), pages 15-26

ISBN: 978-989-758-367-4

 2019 by SCITEPRESS – Science and Technology Publications, Lda. All r ights reserved

On the one hand, APAAS solutions protect the host

system via sandbox mechanisms, and APAAS sys-

tems put much effort in sophisticated plagiarism de-

tection and authorship control of student submissions

(Rodr

ıguez et al., 2011a), (del Pino et al., ).

However, the grading component can be cheated

by much more straightforward means in various

ways which makes these solutions highly suspect

for (semi-)automated programming examinations that

contribute to certiﬁcate a certain level of program-

ming expertise like it must be done in MOOCs. Al-

though this paper provides some solutions to curtail

the problem, the primary intent of this paper is a more

descriptional and analytical one. Many evaluation

solutions in this domain space are often just “hand

made”. This paper intends to raise problem aware-

ness and to identify and systematise observable prob-

lem patterns in a more formal approach. According to

a literature review and the best of the author’s knowl-

edge, no similar studies and comparative evaluations

exist. Nevertheless, cheat and trick patterns are (un-

consciously) known by many programming educators

but have been systematised rarely – especially not in

the context of automatic evaluations.

Let us take Moodle as an example. Moodle is

an Open Source E-Learning system adopted by many

universities and colleges. If an institution runs Moo-

dle, a reasonable choice for an APAAS solution is the

Virtual Programming Lab (VPL) because of its con-

venient Moodle integration. However, one thing we

learned throughout this study is, how astonishing sim-

ple it is to trick VPL. Let us take Listing 1 as a very

illustrating example.

Listing 1: Point injection attack.

System . o ut . p r i n t l n ("Grade :=>> 100");

System . e x i t ( 0);

If placed correctly in a student submission, these

both lines will grade every VPL submission with full

points. This “attack” will be classiﬁed in this paper

as an “injection attack” and can be easily adapted to

every other programming language and APAAS so-

lution. Three more patterns are explained that have

been observed throughout two programming courses.

Therefore, the remainder of this paper is outlined

as follows. We will present our methodology to iden-

tify student cheat-patterns in Section 2. Section 3

will present observed cheat-patterns and derives sev-

eral insights on what automated evaluation tools could

consider preventing this kind of cheating. Section 4

will address threats of internal and external validity of

this study and provide some guidelines on the gener-

alizability and limitations of this paper. We conclude

our ﬁndings in Section 5 and present some fruitful re-

search opportunities.

2 METHODOLOGY

We evaluated two ﬁrst semester programming Java

courses in the winter semester 2018/19:

• A regular computer science study programme

(CS)

• An information technology and design focused

study programme (ITD)

Both courses were used to search for student sub-

missions that intentionally trick the grading compo-

nent. However, plagiarism is excluded in this study

because a lot of other studies have already anal-

ysed plagiarism detection (Liu et al., 2006), (Burrows

et al., 2007), (Rodr

ıguez et al., 2011a), (del Pino et al.,

). Table 1 provides a summarized overview of the

course design and Figure 1, and Figure 2 present the

corresponding student activities, and results.

Table 1: Course overview.

CS ITD

Students 113 79

Assignments (total) 29 20

Number of bunches 11 6

Assignments per bunch (avg) 3 3

Time for a bunch (weeks) 1 2

Groups 7 6

Students per group (avg) 18 12

Student/advisor ratio (avg) 6 6

All assignments were automatically evaluated by

the VPL Moodle plugin (version 3.3.3). We followed

the general recommendations described by (Thi

ebaut,

2015). Additionally, we developed a VPL Java tem-

plate to minimise repetitive programming of the eval-

uation logic. The template was used to check the

conformance with assignment-intended programming

styles like recursive or functional (lambda-based) pro-

gramming, avoidance of global variables and so on.

To minimise Hawthorne and Experimenter effects we

only applied minor changes to this template through-

out the study (see Section 4).

The assignments were organised as weekly

bunches but all workable from the very beginning. To

foster continuous working weekly deadlines were set

for the bunches. In case of ITD the “base speed” was

a bit slower (two weeks per bunch). Except for this

“base speed,” all students could work on their sub-

missions in their own pace in the classroom, at home,

on their own, in groups or any other form they found

personally appropriate.

CSEDU 2019 - 11th International Conference on Computer Supported Education

Figure 1: Students interactions with VPL. Circle size is rel-

ative to the observed maximum of interactions. Times of

weekly programming laboratories are marked.

All students joined one time a week a program-

ming laboratory session of 90 minutes with the op-

portunity to ask advisors and student tutors for help

and support. To solve more than half of all assign-

ments qualiﬁed to take part in a special VPL-test to

get a 10%-bonus for the written exam. However, this

study does not cover the “bonus-”test nor the written

exam.

2.1 Illustrating Assignment

Some basic Java programming knowledge must be as-

sumed throughout this paper. The continuous exam-

ple assignment for this paper shall be the following

task

. A method countChar() has to be programmed

that counts the occurrence of a speciﬁc character c in

a given String s (not case-sensitive).

The following example calls are provided for a

better understanding of the intended functionality.

• countChar('a', "Abc") → 1

• countChar('A', "abc") → 1

• countChar('x', "ABC") → 0

• countChar('!', "!!!") → 3

A reference solution for our “count chars in a

A catalogue of all assignments (German) used for this

study can be found here: https://bit.ly/2WSbtEm

Figure 2: Observed submission and workload trends (last

CS submission in calendar week 03 was not mandatory).

string” problem might be the following implementa-

tion of countChar().

Listing 2: Reference solution (continuous example).

int c o u n tC h a r (char c , String s ) {

s = s . t o L ow e r C as e ( );

c = C h a r a cte r . t o Lo w e r Ca s e ( c );

int i = 0;

for (char x : s . t oC h a r A rr a y ()) {

if ( x == c ) i + +;

}

return i ;

}

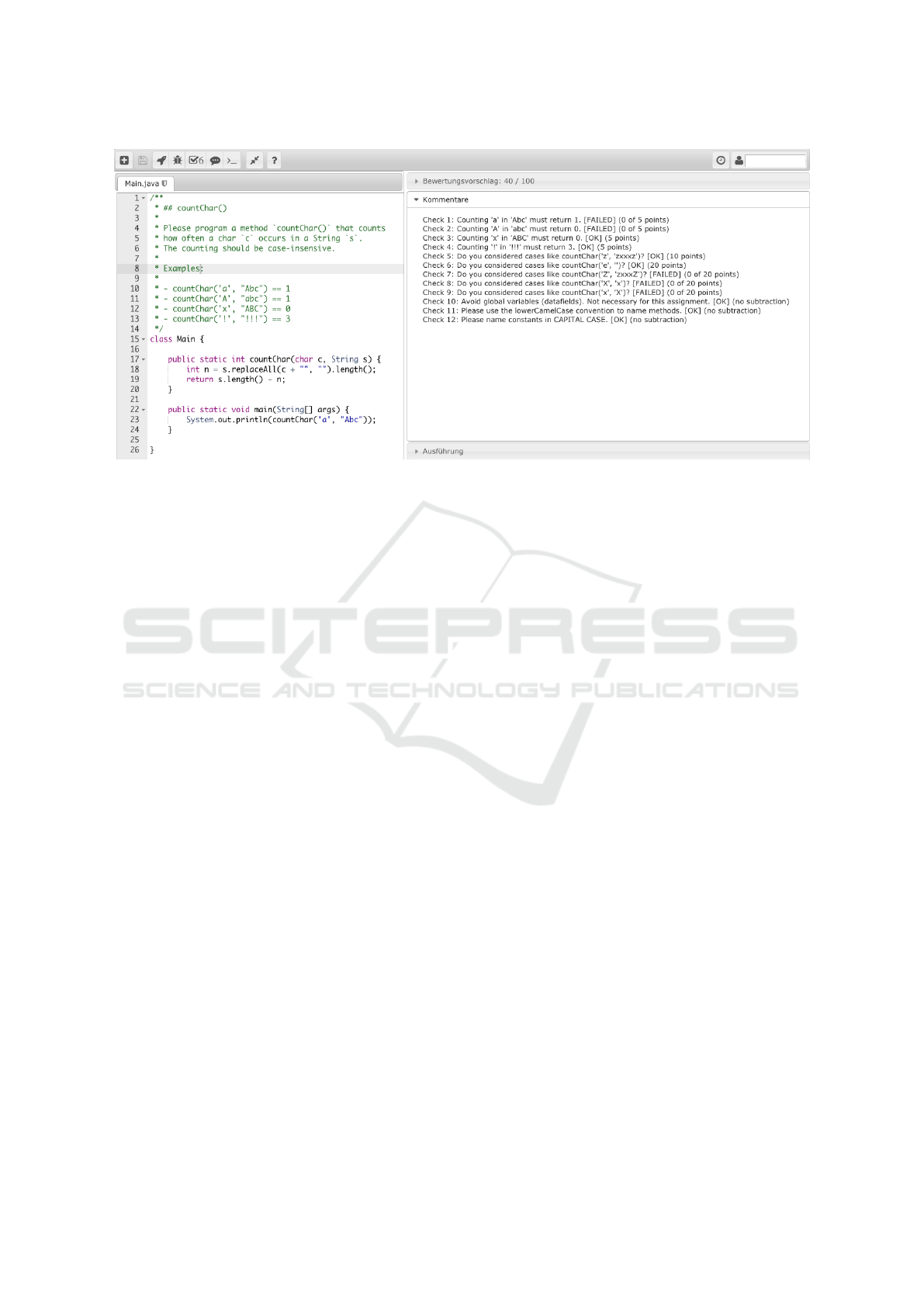

Figure 3 shows an exemplifying VPL screenshot

from a students perspective.

2.2 Searching for Cheats

Our problem awareness emerged with the (acciden-

tal) observation of Listing 3 in an intermediate student

submission.

Listing 3: (Accidental) observed student inspection code.

System . o ut . p rintln (

System . g e t P ro p e rt i e s ()

);

In Java, the getProperties() method reveals the

current set of underlying system properties. It con-

Smart Like a Fox: How Clever Students Trick Dumb Automated Programming Assignment Assessment Systems

Figure 3: VPL screenshot (on the right evaluation report presented to students).

tains information like the Java installation directory,

the Java version, the Java classpath, the operating sys-

tem, and the user account. This line of code con-

tributed absolutely nothing to solve the respective as-

signment. It did not even occur in the ﬁnal submis-

sion. It was just an intermediate outcome to inspect

the underlying conﬁguration of the electronic evalua-

tion component. Although the revealed data is harm-

less for the integrity of the jails server, this one line

of code shows that students understand how to make

use of such “code injection attacks” to ﬁgure out how

the electronic evaluation component could be com-

promised.

To minimise Hawthorne and Experimenter effects

(Campbell and Stanley, 2003) neither the students

nor the advisers in the practical programming courses

were aware that student submissions were analysed

to deduce cheating patterns. Even if cheating was de-

tected this had no consequences for the students. It

was not even communicated to the student or the ad-

visers.

Furthermore, students were not aware that the ver-

sion history of their submissions and therefore even

intermediate cheating experiments (that did not make

it to the ﬁnal submission) were logged.

However, not every submission was inspected for

understandable effort reasons. Therefore, the follow-

ing submission samples were investigated to search

systematically for cheat-patterns in every calendar

week.

• S1: TOP 10 of submissions with great many trig-

gered evaluations (parameter optimization?)

• S2: TOP 10 of submission with a great many ver-

sions (cheating experiments?)

• S3: TOP 10 of submissions with astonishingly

less average points across all triggered evaluations

but full points in the ﬁnal submission (what causes

such “boosts”?)

• S4: Submissions with unusual (above 95% per-

centile) many condition related terms like if,

return, switch, case, &&, and || (parameter op-

timization?)

• S5: Submissions with unusual terms like

System.exit, throw, System.getProperties,

:=>> that would stop program execution or have a

special meaning in VPL or Java but are unlikely to

contribute to a problem solution (APAAS attack?)

• S6: Ten further random submissions to cover un-

intended observation aspects.

Table 2 summarizes the results quantitatively.

Within these six samples, cheat and trick patterns

were identiﬁed mainly by a manual but a script-

supported observation. VPL submissions were down-

loaded from Moodle and analysed weekly. We de-

veloped a Jupyter-based (Kluyver et al., 2016) quan-

titative analysis and submission data model for this

dataset. Each student submission was represented

as an object containing its version and grading his-

tory that references its student submitter and its corre-

sponding study programme. The analytical script and

data model made use of the well known Python li-

braries statistics, NumPy (Oliphant, 2006), matplotlib

(Hunter, 2007), and the Javaparser library (Smith

et al., 2018). It was used to identify the number of

submissions and evaluations, points per submission

versions, timestamps per submission version, occur-

rences of unusual terms, and so on. Based on this

quantitative data, the mentioned samples (S1 - S5)

were selected automatically and randomly in case of

S6. The script was additionally used to generate Fig-

CSEDU 2019 - 11th International Conference on Computer Supported Education

Table 2: Detected cheats.

Week

Assignments (CS)

Assignments (ITD)

Submissions

Sample (

∑

S1, ..., S6)

Overﬁtting

Redirection

Evasion

Injection

41 3 4 629 72 4 4

42 3 - 298 53 15 2

43 3 3 486 65 11 3

44 - - - - - - - -

45 3 3 446 55 5

46 3 - 231 54 3 3 2

47 2 3 315 55 6

48 1 - 66 44 8 2

49 3 3 363 66 6 1

50 3 - 192 47 5 7

XMas - - - - - - - -

02 3 4 280 57 2 3 1

03 2 - 38 38 1 11

∑

31 20 3344 570 66 6 31 2

ures 1, 2, and 4. Additionally, the source codes of

the sample submissions were exported weekly as an

archived PDF document. However, the scanning for

cheat-patterns was done manually within these doc-

uments. Sadly, this dataset cannot be made publicly

available because it contains non-anonymous student-

related data.

It turned out, that primarily the sample S4 was a

very effective way to detect a special kind of cheat

that we called overﬁtting (see Section 3.1). Other

kinds of cheats seem to occur equally distributed

across all samples. However, the reader should be

aware that the search for cheat-patterns was quali-

tatively and not quantitatively. So, the study may

provide some hints but should not be taken to draw

any conclusions on quantitative cheat-pattern distri-

butions (see Section 4).

3 OBSERVED CHEAT-PATTERNS

The observed student cheat and trick patterns will be

explained by the small and continuing example al-

ready introduced in Section 2.1.

Most students strived to ﬁnd a solution that ﬁts

the scope and intent of the assignment (see Figure 4).

So, their solutions showed similarities to this refer-

ence solution - although different approaches exist to

solve this problem (see Figure 3 for a non-loop based

approach). However, a minority of students (approx-

imately 15%) make use of the fact that a “dumb au-

tomata” grades. Accordingly, we observed the fol-

lowing cheating patterns that differ signiﬁcantly from

the intended reference solution above (see Figure 4):

• Overﬁtting solutions (63%)

• Redirection to reference solutions (6%)

• Problem evasion (30%)

• Injection (1%)

Especially overﬁtting and evasion tricks are “poor-

mans’ weapons” often used by novice programmers

as a last resort to solve a problem. Much more alarm-

ing redirection and injection cheats occurred only in

rare cases (less than 10%). However, how do these

tricks and cheats look like? How severe are they?

Moreover, what can be done against it? We will in-

vestigate these questions in the following paragraphs.

3.1 Overﬁtting Tricks

Overﬁtted solutions strive to get a maximum of points

for grading but do not strive to solve the given prob-

lem in a general way. A notable example of an over-

ﬁtted solution would be Listing 4.

Listing 4: Overﬁtting solution.

int c o u n tC h a r (char c , String s ) {

if ( c == ’a’ & & s . equ a l s ("Abc"))

return 1;

if ( c == ’A’ & & s . equ a l s ("abc"))

return 1;

if ( c == ’x’ & & s . equ a l s ("ABC"))

return 0;

if ( c == ’!’ & & s . eq u a l s ("!!!"))

return 3;

// [...]

if ( c == ’x’ & & s . eq u a l s ("X"))

return 1;

return 42;

}

This solution maps merely the example input pa-

rameters to the expected output values. The solu-

tion is completely useless outside the scope of the test

cases.

What Seems to be Ineffective to Prevent Overﬁt-

ting? The problem could be solved, by merely hid-

ing the calling parameters and expected results in the

evaluation report. However, this would result in in-

transparent grading situations from a students per-

spective. A student should always know what the rea-

son is to refuse points.

Another option is to detect and penalise such kind

of overﬁttings. A straightforward – but not perfect

– solution would be to restrict the amount of al-

lowed return statements. That makes overﬁtting

more complicated for students but still possible as

Smart Like a Fox: How Clever Students Trick Dumb Automated Programming Assignment Assessment Systems

Figure 4: Observed cheat-pattern frequency (sums may not add up exactly to 100% due to rounding).

Listing 5 shows. This submission reduced the amount

of return statements simply by replacing if state-

ments with more complex logic expressions. How-

ever, the return avoidance does not change the over-

ﬁtting at all.

Listing 5: Return avoidance.

int c o u n tC h a r (char c , String s ) {

if ( c ==’a’ && s . e q u a l s ("Abc")) ||

( c ==’A’ && s . equals ("abc")) ||

( c ==’x’ && s . equals ("X"))

return 1;

// [...]

if ( c ==’x’ && s . e q u a l s ("ABC"))

return 0;

}

What Can be Done to Prevent Overﬁtting? Ran-

domised tests make such overﬁtted submissions inef-

fective. Therefore, our general recommendation is to

give a substantial fraction of points for randomised

test cases. However, to provide some control over

randomised tests, these tests must be pattern based to

generate random test cases targeting expected prob-

lems (e.g., off-by-one errors, boundary cases) in stu-

dent submissions. We refer to (Romli et al., 2017) for

further details. E.g. for string-based data we gained

promising results to generate random strings merely

by applying regular expressions (Thompson, 1968)

inversely. However, the reader should be aware that

current unit testing frameworks like JUnit do not pro-

vide much support for randomised test cases.

3.2 Redirection Cheats

Another shortcoming of APAAS solutions can be

compiler error messages that reveal details of the eval-

uation logic. In the case of VPL, an evaluation is pro-

cessed according to the following steps.

1. The submission is compiled and linked to the

evaluation logic.

2. The compiled result is executed to run the checks.

3. The check results are printed in an APAAS spe-

ciﬁc notation on the console (standard-out).

4. This output is interpreted by the APAAS solution

to run the automatic grading and present a kind of

feedback to the submitter.

This process is straightforward and provides the

beneﬁt that evaluation components can handle almost

all programming languages. If one of the steps fails,

an error message is generated and returned to the sub-

mitter as feedback. This failing involves typically to

return the compiler error message. That can be prob-

lematic because these compiler error messages may

provide unexpected cheating opportunities.

Let us remember. The assignment was to program

a method countChar(). Let us further assume that a

student makes a small spelling error like to name the

method countChars() instead of countChar() – so

just a trailing s is added. That is a general program-

ming error that happens fast (see Listing 6).

Listing 6: A slightly misspelled submission.

int c o u nt C h a r S (char c , String s ) {

int i = 0;

for (char x : s . t oC h a r A rr a y ()) {

if ( x == c ) i + +;

}

return i ;

}

If this submission would be submitted and eval-

uated by an APAAS solution, this submission would

likely not pass the ﬁrst compile step due to a simple

naming error. What is returned is a list of compiler

error messages like this one here that shows the prob-

lem:

CSEDU 2019 - 11th International Conference on Computer Supported Education

Checks.java:40: error: cannot find symbol

Submission.>>countChar<<(’a’, "Abc") ==

Solution.countChar(’a’, "Abc")

The compiler message provides useful hints to

correct a misspelt method name, but it also reveals

that a method (Solution.countChar()) exists to

check the student submission. The reference solu-

tion can be assumed to be correct. So, compiler error

messages can reveal a reference solution method that

could be called directly. A student can correct the

naming and redirects the submitted method directly

to the method that is used for grading. Doing that,

the student would let the evaluation component eval-

uate itself which will provide very likely full points.

A notable example would be Listing 7.

Listing 7: Redirection submission.

int c o u n tC h a r (char c , String s ) {

return S o l u t ion . c o u n t Ch a r (c , s );

}

This is categorized as a redirection cheat. Stu-

dents can gain insights systematically into the evalua-

tion logic by submitting non-compilable submissions

intentionally.

What Seems to be Ineffective to Prevent Redirec-

tion? APAAS solutions could avoid returning com-

piler error messages completely. However, this would

limit the necessary debug pieces of information for

students.

One could return blanked compiler error messages

that do not reveal sensitive information. However, to

blank out relevant parts of compiler error messages is

language speciﬁc and can be very tricky to be solved

in general. What is more, with every update or new

release of a compiler, corresponding error messages

can change. All this would have been to be checked

with each compiler update. That seems not a prag-

matic approach.

One could avoid to generate the expected results

by a reference solution and provide them as hard-

coded values in the evaluation logic. However, this

would limit opportunities to generate test cases in

a pattern-based approach, and we already identiﬁed

randomised test cases as appropriate countermeasure

to handle overﬁtting cheats. So, this is not the best

solution.

What are the Problems to Prevent Redirection?

The submission should be executed in a context that

by design cannot access the grading logic. In a perfect

world, the student logic should be code that deseri-

alises input parameters from stdin, passes them to the

submitted function, and serialises the output to stdout.

The grading logic should serialise parameters, pipe

them into the wrapped student code, deserialise the

stdout, and compare it with the reference function’s

output. However, this approach would deny making

use of common unit testing frameworks for evalua-

tion although it would effectively separate the sub-

mission logic and the evaluation logic in two different

processes (which would make most of the attack vec-

tors in this setting ineffective). However, to the best

of the author’s knowledge no unit testing frameworks

exist that separate the test logic from the to be tested

logic into different processes.

In case of a class-based object-oriented language,

one can overcome this problem using abstract classes.

It is to demand that the submission must be derived

from a given abstract class with abstract methods to be

overwritten by the student’s methods. The evaluation

logic calls the abstract class and the evaluation code

can be thus compiled in advance. Compilation errors

can now only refer to the submitted code, not to the

evaluation code. However, our experiences showed

that this approach tends to explode in more complex

object-oriented contexts with plenty of classes and de-

pendencies.

Furthermore, we have to consider the pedagogical

aspect here. For the abstract class-based solution, we

need the concept of an abstract class from day one of

the course. According to our experiences, especially

novice (freshman) programmers have plenty of prob-

lems understanding the concept of an abstract class at

this level.

Another approach is to scan the submission for

questionable calls like Solution.x() calls. If such

calls are found, the submission is downgraded to zero

points. That is our approach after we have identi-

ﬁed this “attack vector.” Additionally, we deny to

make use of getClass() calls and the import of the

reflection package. Both would enable to formu-

late arbitrary indirections. However, this makes it

necessary to apply parsers and makes the assignment

speciﬁc evaluation logic a bit more complicated and

time-intensive to program. We show at the end of the

following Section 3.3 how to minimise these efforts.

3.3 Problem Evasion Tricks

Another trick pattern is to evade a given problem

statement. According to our experiences, this pat-

tern occurs mainly in the context of more sophisti-

cated and formal programming techniques like recur-

sive programming or functional programming styles

with lambda functions.

So, let us now assume that the assignment is still to

Smart Like a Fox: How Clever Students Trick Dumb Automated Programming Assignment Assessment Systems

implement a countChar() method, but this method

should be implemented recursively. A reference so-

lution might look like in Listing 8 (we do not consider

performance aspects due to tail recursion):

Listing 8: Recursive reference solution.

int c o u n tC h a r (char c , String s ) {

s = s . t o L ow e r C as e ( );

c = C h a r a cte r . t o Lo w e r Ca s e ( c );

if ( s . i s E mpty ()) return 0;

char head = s. c h a r A t (0);

String rest = s . subs t r i n g (1);

int n = head = = c ? 1 : 0;

return n + c o unt C h a r (c , r e st );

}

However, sometimes student submissions only

pretend to be recursive without being it. Listing 9 is a

notable example.

Listing 9: Problem evasing solution.

int c o u n tC h a r (char c , String s ) {

if ( s . i s E mpty ()) return 0;

return c o u n tC h a r (c , s , 0 );

}

int c o u n tC h a r (char c , String s ,int i ){

for (char x : s . t oC h a r A rr a y ()) {

if ( x == c ) i + +;

}

return i ;

}

Although countChar() is calling (an overloaded

version of) countChar() which looks recursively, the

overloaded version of countChar() makes use of a

for-loop and is therefore implemented in a fully im-

perative style.

The same pattern can be observed if an assign-

ment requests functional programming with lambda

functions. A lambda-based solution could look like

in Listing 10.

Listing 10: Lambda reference solution.

(c , s ) -> S t r e a m . of ( s . t oC h a r A r r a y ())

. f i l t e r ( x - > x == c )

. c o unt ();

However, students take refuge in familiar pro-

gramming concepts like loops. Very often, submis-

sions like in Listing 11 are observable:

Listing 11: Lambda problem evasion.

(c , s ) -> {

int i = 0;

for (char x : s . t oC h a r A rr a y ()) {

if ( x == c ) i + +;

}

return i ;

};

The (c, s) -> { [...] }; seems functional

on the ﬁrst-hand. But, if we look at the implemen-

tation, it is only an imperative for loop embedded in

a functional looking context.

The problem here is, that evaluation components

just looking on input-output parameter correctness

will not detect these kinds of programming style eva-

sions. The just recursive- or functional-looking solu-

tions will generate the correct results. Nevertheless,

the intent of such kind of assignments is not just to

foster correct solutions but although to train speciﬁc

styles of programming.

What Can be Done to Avoid Problem Evasion?

Similar to redirection cheats, submissions can be

scanned for unintended usage of language concepts

like for and while loops. In these cases, the submis-

sion gets no points or is downgraded. However, this

makes it necessary to apply parsers and makes the as-

signment speciﬁc evaluation logic a bit more compli-

cated and time-intensive to program. To simplify this

work, we are currently working on a selector model

that selects nodes from an abstract syntax tree (AST)

of a compilation unit to detect and annotate such kind

of violations in a pragmatic way. The approach works

similarly like CSS selectors selecting parts of a DOM-

tree in a web context. Listing 12 is an illustrating ex-

ample. It effectively detects and annotates every loop

outside the main()-method.

Listing 12: Selector based inspection.

inspec t ("Main.java", a st ->

ast . select ( M ETHOD , "[name!=main]")

. s e l e c t ( FOR , F OREACH , W H I L E )

. a n n o tat e ("no loop")

. e x i s t s ()

);

3.4 Point Injection Cheats

All previous cheat-patterns focused the compile, or

the execution step, and try to formulate a clever sub-

mission that tricks the evaluation component and its

checks. Instead of this, injection cheats target inten-

tionally the grading component. Injection cheats re-

CSEDU 2019 - 11th International Conference on Computer Supported Education

quire in-depth knowledge about what speciﬁc APAAS

solution (e.g., VPL) is used, and knowledge about the

internals and details how the APAAS solutions gener-

ate intermediate outcomes to calculate a ﬁnal grade.

We explain this “attack” by the example of VPL.

However, the attack can be easily adapted to other

APAAS tools. VPL relies on an evaluation script that

triggers the evaluation logic. The evaluation logic has

to write results directly on the console (standard-out).

The grading component parses and searches for lines

that start with speciﬁc preﬁxes like

• Grade :=>> to give points

• Comment :=>> for hints and remarks that should

be presented to the submitter as feedback.

VPL assumes that students are not aware of this

knowledge. It is furthermore (somehow inherently)

assumed that student submissions do not write to the

console (just the evaluation logic should do that) – but

it is possible for submissions to place arbitrary output

on the console and is not prohibited by the Jails server.

So, these assumptions are a fragile defence. A quick

internet search with the search terms "grade VPL"

will turn up documentation of VPL explaining how

the internals of the grading component are working

under the hood. So, submissions like Listing 13 are

possible and executable.

Listing 13: Injection submission.

int c o u n tC h a r (char c , String s ) {

System . o ut . p r i n t ("Grade :=>> 100");

System . e x i t ( 0);

return 0; // for compiler silence

}

The intent of such a submission is merely to inject

a line like this

Grade :=>> 100

into the output stream to let the grading component

evaluate the submission with full points.

What Can be Done to Avoid Injection Attacks? In

a perfect world, the student code should not have ac-

cess to the streams that are sent to the evaluation com-

ponent. However, in the case of VPL, exactly this case

cannot be prevented.

Nevertheless, there are several options to handle

this problem. In our case, we developed a basic eval-

uation logic that relies on a workﬂow assuring that

points are always written after a method has been

tested. Additionally, we prohibited to make use of the

System.exit() call to assure that submissions could

never stop the execution on their own. So, it might

be that situations occur on the output stream with in-

jected grading statements.

Grade :=>> 100 (injected)

Grade :=>> 0 (regular)

However, the regular statements are always fol-

lowing the injected ones due to the design of the ex-

ception aware workﬂow. Because VPL only evaluates

the last Grade :=>> line, the injection attack has no

effect. However, this is a VPL speciﬁc solution. For

other systems the following options could be consid-

ered (if stdout access of the student submission cannot

be prevented):

• The APAAS could inject a ﬁlter for System.out

to avoid or detect tainted outputs.

• System.out statements could be handled like

unintended language concepts. That would

be very similar like handling problem eva-

sion cheats. However, this could deny

System.out.println() statements even for de-

bugging which could interfere with a pragmatic

workﬂow for students. Therefore, these checks

should be somehow limited making it necessary to

apply parsers, running complex call-chain analy-

sis. All this makes the assignment speciﬁc evalua-

tion logic much more complex and time-intensive

to program.

• The APAAS could redirect the console streams

(standard out and standard error) to new streams

for the submission evaluation. That would ef-

fecitively separate the submission logic streams

from the evaluation logic streams and no stream

injections could occur.

In all cases, APAAS solutions must prevent that

student submissions can stop their execution via

System.exit() or similar calls to bypass the control

ﬂow of the evaluation logic. In our case, we solved

this by using a Java SecurityManager – it is likely

to be more complicated for other languages not pro-

viding a virtual machine built-in security concept. For

these systems parser-based solutions (see Section 3.3)

would be a viable option.

4 THREATS OF VALIDITY

We consider and discuss the following threats of in-

ternal and external validity (Campbell and Stanley,

2003) that apply to our study and that might limit its

conclusions.

4.1 Internal Validity

Internal validity refers to whether an experimental

condition makes a difference to the outcome or not.

Smart Like a Fox: How Clever Students Trick Dumb Automated Programming Assignment Assessment Systems

Selection Bias: We should consider that the target

audience of both analysed study programmes differs

regarding previous knowledge on programming. A

noteworthy fraction of CS students gained basic pro-

gramming experience before they start their computer

science studies. In case of the ITD programme, a

noteworthy fraction of students handle programming

courses as a “necessary evil.” Their intrinsic motiva-

tion focuses mainly on design-related aspects. Ac-

cordingly, only a tiny fraction has some pre-study

programming experience. Because we only searched

qualitatively and not quantitatively for cheat-patterns,

this is no problem. However, it is likely that in the

CS group more cheating can be found than in the ITD

group mainly due to more mature programming skills.

So be aware, the study design is not appropriate to

draw any conclusions on which groups prefer or can

apply what kind of cheat-patterns.

Attrition: This threat is due to the different kinds of

participants drop out of the study groups. Each pro-

gramming course has a drop-off rate. The effect can

be observed in both groups by a decrease of submis-

sions over time (see Figure 2). However, this study

searched only qualitatively for cheat-patterns. For this

study, it is of minor interest whether observed cheat-

patterns occur in a phase with a high, medium, or low

drop-off rate. However, in phases with a maximum of

submissions, some cheats could have been overseen.

So, the study does not proclaim to have identiﬁed all

kinds of cheat-patterns.

Maturation: A development of participants oc-

curred in both groups (e.g. we see a decrease of the

“poor-man cheat” overﬁtting in Table 2). All students

developed a better understanding of the underlying

grading component and improved their programming

skills during their course of actions. Therefore, it is

likely that more sophisticated forms of cheating (like

redirection and injection) occurred with later submis-

sions. That is what Table 2 might indicate. However,

we searched only qualitatively for cheat-patterns. For

this study, it was of minor interest whether observed

cheat-patterns occur in the ﬁrst, second, or third phase

of a programming course. The study design is not ap-

propriate to draw any conclusions on aspects of what

kind of cheat-pattern occur at what level of program-

ming expertise.

4.2 External Validity

External validity refers to the generalisability of the

study.

Contextual Factors: This threat occurs due to spe-

ciﬁc conditions under which research is conducted

that might limit its generalisability. In this case, we

were bound to a Moodle-based APAAS solution. The

study would not have been possible outside this tech-

nical scope. We decided to work with VPL because

it is the only mature-enough open source solution for

Moodle. Therefore, the study should not be taken to

conclude on all existing APAAS systems. However, it

seems to be worth to check existing APAAS solutions

whether they are aware of the four identiﬁed cheat-

patterns (or attack vectors from a system security per-

spective).

Hawthorne Effects: This threat occurs due to par-

ticipants’ reactions to being studied. It alters their

behaviour and therefore the study results. There-

fore, students were unaware that their submissions

were analysed to identify cheat-patterns. However,

if unaware cheat-patterns were identiﬁed subsequent

checks may have been added to the grading compo-

nent. So, it is likely that repetitive cheating hardly oc-

curred. Because of the qualitative nature of the study,

we do not see a problem here. However, because of

this internal feedback loop, the study should not be

taken to draw any conclusions on the quantitative as-

pects of cheating.

5 CONCLUSION

We have to be aware that (even ﬁrst-year) students are

clever enough to apply intentionally basic cheat injec-

tion “attacks” into APAAS solutions. We identiﬁed

highly overﬁtted solutions, redirection to reference

solutions, problem evasion and even APAAS spe-

ciﬁc grading statement injections as cheat-patterns.

Likely, this list is not complete.

For VPL and Java programming courses a

template-based solution was used that has been inten-

tionally developed to handle such kind of cheats. We

evaluated this approach in two programming courses

with more than 3300 submissions of more than 190

ﬁrst-year students. Although this template-based ap-

proach is pragmatic and working, several further

needs can be identiﬁed:

• Better overﬁtting prevention mechanisms al-

ready mentioned by (Romli et al., 2017).

• Better mechanisms to detect the undesired usage

of programming language concepts like loops,

global variables, speciﬁc datatypes, return types,

and more.

• Better mechanisms to detect, handle, and prevent

possible tainted outputs of submissions that could

CSEDU 2019 - 11th International Conference on Computer Supported Education

potentially be used for APAAS speciﬁc grading

injections.

To handle these needs it seems necessary

1. to randomise test cases,

2. to provide additional practical code inspection

techniques based on parsers,

3. and to isolate the submission and the evaluation

logic consequently in separate processes (at least

the console output should be separated).

As far as the author oversees the APAAS land-

scape, exactly these features are only incompletely

provided. APAAS solutions are a valuable asset to

support practical programming courses to minimise

routine work for advisers and to provide immediate

feedback for students. However, as was shown, these

systems can be cheated quite easily. If we would use

them – for instance in highly hyped MOOC formats –

for automatic certiﬁcation of programming expertise,

the question arises whether we would certiﬁcate the

expertise to program or to cheat and what would

this question mean for the reputation of these courses

(Alraimi et al., 2015)?

In consequence, we should look at APAAS so-

lutions much more from a security point of view –

in particular from a code injection point of view.

We identiﬁed the need to evolve unit testing frame-

works into more evaluation-oriented teaching solu-

tions. Based on the insights of this study we are

currently working on a Java-based unit testing frame-

work intentionally focusing educational contexts. Its

working state can be inspected on GitHub (https:

//github.com/nkratzke/JEdUnit).

ACKNOWLEDGEMENTS

The author expresses his gratitude to Vreda Pieterse,

Philipp Angerer, and all the anonymous reviewers for

their valuable feedback and paper improvement pro-

posals. What is more, posting a preprint of this pa-

per to the Reddit programming community had some

unique and unexpected impact. This posting gener-

ated hundreds of valuable comments, a 95% upvoting,

and resulted in more than 40k views on ResearchGate

(in a single day). To answer all this constructive and

exciting feedback was impossible. I am sorry for that

and thank this community so very much.

To teach almost 200 students programming is

much work, involves much support, and is not a one-

person show. Especially the practical courses needed

excellent supervision and mentoring. Although all of

the following persons were (intentionally) not aware

of being part of this study, they all did a tremendous

job. Therefore, I have to thank the advisers of the

practical courses David Engelhardt, Thomas Hamer,

Clemens Stauner, Volker V

olz, Patrick Willnow and

our student tutors Franz Bretterbauer, Francisco Car-

doso, Jannik Gramann, Till Hahn, Thorleif Harder,

Jan Steffen Krohn, Diana Meier, Jana Schwieger, Jake

Stradling, and Janos Vinz. As a team, they managed

13 groups with almost 200 students, and explained,

gave tips, and revealed plenty of their programming

tricks to a new generation of programmers.

REFERENCES

Ala-Mutka, K. M. (2005). A survey of automated assess-

ment approaches for programming assignments. Com-

puter Science Education, 15(2):83–102.

Alraimi, K. M., Zo, H., and Ciganek, A. P. (2015). Under-

standing the moocs continuance: The role of openness

and reputation. Computers & Education, 80:28 – 38.

Burrows, S., Tahaghoghi, S. M. M., and Zobel, J. (2007).

Efﬁcient plagiarism detection for large code reposito-

ries. Softw., Pract. Exper., 37:151–175.

Caiza, J. C. and Alamo Ramiro, J. M. d. (2013). Automatic

Grading: Review of Tools and Implementations. In

Proc. of 7th Int. Technology, Education and Develop-

ment Conference (INTED2013).

Campbell, D. T. and Stanley, J. C. (2003). Experimental and

Quasi-experimental Designs for Research. Houghton

Mifﬂin Company. reprint.

del Pino, J. C. R., Rubio-Royo, E., and Hern

andez-

Figueroa, Z. J. A Virtual Programming Lab for Moo-

dle with automatic assessment and anti-plagiarism

features. In Proc. of the 2012 Int. Conf. on e-Learning,

e-Business, Enterprise Information Systems, and e-

Government.

Douce, C., Livingstone, D., and Orwell, J. (2005). Auto-

matic test-based assessment of programming: A re-

view. J. Educ. Resour. Comput., 5(3).

Gupta, S. and Gupta, B. B. (2017). Cross-site scripting

(xss) attacks and defense mechanisms: classiﬁcation

and state-of-the-art. International Journal of System

Assurance Engineering and Management, 8(1):512–

530.

Halfond, W. G. J. and Orso, A. (2005). Amnesia: Analysis

and monitoring for neutralizing sql-injection attacks.

In Proceedings of the 20th IEEE/ACM International

Conference on Automated Software Engineering, ASE

’05, pages 174–183, New York, NY, USA. ACM.

Hunter, J. D. (2007). Matplotlib: A 2d graphics environ-

ment. Computing In Science & Engineering, 9(3):90–

95.

Ihantola, P., Ahoniemi, T., Karavirta, V., and Sepp

a, O.

(2010). Review of recent systems for automatic as-

sessment of programming assignments. In Proceed-

ings of the 10th Koli Calling International Conference

Smart Like a Fox: How Clever Students Trick Dumb Automated Programming Assignment Assessment Systems

on Computing Education Research, Koli Calling ’10,

pages 86–93, New York, NY, USA. ACM.

Kluyver, T., Ragan-Kelley, B., P

erez, F., Granger, B., Bus-

sonnier, M., Frederic, J., Kelley, K., Hamrick, J.,

Grout, J., Corlay, S., Ivanov, P., Avila, D., Abdalla, S.,

and Willing, C. (2016). Jupyter Notebooks – a pub-

lishing format for reproducible computational work-

ﬂows. In Loizides, F. and Schmidt, B., editors, Posi-

tioning and Power in Academic Publishing: Players,

Agents and Agendas, pages 87 – 90. IOS Press.

Liu, C., Chen, C., Han, J., and Yu, P. S. (2006). Gplag: de-

tection of software plagiarism by program dependence

graph analysis. In KDD.

Maguire, P., Maguire, R., and Kelly, R. (2017). Us-

ing automatic machine assessment to teach computer

programming. Computer Science Education, 27(3-

4):197–214.

Oliphant, T. (2006). A Guide to NumPy. Trelgol Publishing.

Pomerol, J.-C., Epelboin, Y., and Thoury, C. (2015).

What is a MOOC?, chapter 1, pages 1–17. Wiley-

Blackwell.

Ray, D. and Ligatti, J. (2012). Deﬁning code-injection at-

tacks. SIGPLAN Not., 47(1):179–190.

Rodr

ıguez, J., Rubio-Royo, E., and Hern

andez, Z. (2011a).

Fighting plagiarism: Metrics and methods to measure

and ﬁnd similarities among source code of computer

programs in vpl. In EDULEARN11 Proceedings, 3rd

Int. Conf. on Education and New Learning Technolo-

gies, pages 4339–4346. IATED.

Rodr

ıguez, J., Rubio Royo, E., and Hern

andez, Z. (2011b).

Scalable architecture for secure execution and test of

students’ assignments in a virtual programming lab.

In EDULEARN11 Proceedings, 3rd Int. Conf. on Ed-

ucation and New Learning Technologies, pages 4315–

4322. IATED.

Romli, R., Mahzan, N., Mahmod, M., and Omar, M. (2017).

Test data generation approaches for structural test-

ing and automatic programming assessment: A sys-

tematic literature review. Advanced Science Letters,

23(5):3984–3989.

Smith, N., van Bruggen, D., and Tomassetti, F. (2018).

JavaParser: visited. Leanpub.

Staubitz, T., Klement, H., Renz, J., Teusner, R., and Meinel,

C. (2015). Towards practical programming exercises

and automated assessment in massive open online

courses. In 2015 IEEE International Conference on

Teaching, Assessment, and Learning for Engineering

(TALE), pages 23–30.

Su, Z. and Wassermann, G. (2006). The essence of com-

mand injection attacks in web applications. SIGPLAN

Not., 41(1):372–382.

Thi

ebaut, D. (2015). Automatic evaluation of computer pro-

grams using moodle’s virtual programming lab (vpl)

plug-in. J. Comput. Sci. Coll., 30(6):145–151.

Thompson, K. (1968). Programming techniques: Regular

expression search algorithm. Communications of the

ACM, 11(6):419–422.

CSEDU 2019 - 11th International Conference on Computer Supported Education
