Bridging XML and UML - An Automated Framework

Arthur Kühlwein

, Sebastian Reiter

, Wolfgang Rosenstiel

and Oliver Bringmann

FZI Forschungszentrum Informatik, 76131 Karlsruhe, Germany

Eberhard Karls Universität Tübingen, 72076 Tübingen, Germany

Keywords:

Extensible Markup Language, Uniﬁed Modeling Language, XML Schema Deﬁnition.

Abstract:

A large variety of data is serialized and exchanged using XML. Model-driven activities can beneﬁt from XML

data, as shown by various approaches to IP-XACT and UML integration. However, these approaches are

inherently time consuming, error-prone, and inﬂexible due to the manual effort involved. We propose an

automated framework for integrating arbitrary XML data into UML models using an automatically generated

UML proﬁle corresponding to the structure of the XML data. User-deﬁned XML-to-UML mappings further

enhance this integration. Our approach mitigates the aforementioned issues while providing the same beneﬁts.

1 INTRODUCTION

During the last decade, model-driven engineering

(MDE) has increasingly gained traction in both re-

search and industry. Among modeling languages,

the Uniﬁed Modeling Language (UML) (OMG, 2015)

and its derivates are certainly the most prominent

representatives. UML allows modeling of software

structure and behavior and is widely used in the soft-

ware engineering domain. In MDE, it forms the ba-

sis for a large host of model-driven methodologies,

frameworks, and tools. To specialize the language for

speciﬁc domains, UML supports extending its meta-

model via so-called proﬁles. An example is the pro-

ﬁle for Modeling and Analysis of Real Time Sys-

tems (MARTE) (OMG, 2011), which targets embed-

ded real-time systems and augments the expressive-

ness of UML with detailed timing and hardware plat-

form speciﬁcations.

The Extensible Markup Language (XML) (W3C,

2008) is a widely used textual human- and machine-

readable data serialization and exchange format.

Well-formed XML data always conforms to a cer-

tain structure. Although not obligatory, this structure

can be made explicit in an XML Schema Deﬁnition

(XSD) (W3C, 2012a,b). If no XSD exists, one can be

automatically inferred from the structure of the XML

data (Bex et al., 2007).

A variety of information is represented in the

XML format, ranging from simple web service data

Such as the Web Services Description Language

to complex network conﬁgurations

and system de-

scriptions

. This includes ad-hoc formats used ex-

clusively within a company or even a single depart-

ment, but also standardized formats, such as the IEEE

1685 (IP-XACT) standard (IEEE, 2010), which pro-

vides detailed XML-based descriptions of intellectual

property (IP) and is widely used in industry.

There is much to be gained from bridging the

worlds of XML and UML by augmenting UML mod-

els with XML data.

In the embedded systems domain, a number

of proposals exist for leveraging synergies between

XML and UML. For example, approaches for using

IP-XACT together with UML and MARTE models

have been proposed, aiming at enhancing code gener-

ation, model-driven analyses, and HW/SW codesign.

While the framework is applicable to arbitrary XML

data, we utilize examples for bridging IP-XACT and

UML in order to facilitate comparison.

However, the existing approaches for briding IP-

XACT and UML still include varying degrees of man-

ual effort, making them inherently tedious, error-

prone, and time consuming, as well as hindering col-

laboration and communication among the users of

XML and UML, increasing development time. These

adverse effects are aggravated if the structure of the

XML format changes, which can potentially happen

frequently in the case of ad-hoc or in-house formats.

(WSDL)

Such as libvirt’s Network XML Format, or the Network

Conﬁguration Protocol (NETCONF)

Such as AUTOSAR system conﬁguration descriptions

378

Kühlwein, A., Reiter, S., Rosenstiel, W. and Bringmann, O.

Bridging XML and UML - An Automated Framework.

DOI: 10.5220/0007470403780385

In Proceedings of the 7th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2019), pages 378-385

ISBN: 978-989-758-358-2

In addition, validation of the XML data is not consid-

ered, i.e. whether the data in the XML conforms to

the constraints given in the corresponding XSD.

In this paper, we propose a framework for the au-

tomated integration of XML data of arbitrary XML

schemas into UML models, creating a uniﬁed UML

and XML data base. This single source of data can

serve as a pivot for collaboration, enabling quick

round-trip engineering and promoting codesign.

In particular, changes made to XML descrip-

tions, such as IP-XACT, can quickly be reﬂected

in the UML side, which opens up new possibilities

with respect to model-based activities, such as anal-

yses, model-to-model or model-to-text transforma-

tions, code generation in particular, and simulations.

By specifying mappings between XSD and UML

elements, UML models can be created from complex

XML data. Using our approach, UML can also be

used as a frontend for editing arbitrary XML data

with validation according to the constraints given in

the corresponding XSD.

The remainder of this paper is structured as fol-

lows. In Section 2, we discuss related work. Section 3

presents our main contribution, the automated frame-

work. In Section 4, we illustrate our contribution with

a typical industrial use case based on IP-XACT and

MARTE. Finally, we conclude our work in Section 5.

2 RELATED WORK

There exists a large body of research on the repre-

sentation of XML schemas in UML. For instance, see

(Bernauer et al., 2004) for an overview.

However, to the best of our knowledge, no prior

work addressing the integration of arbitrary XML

data into UML models exists. As mentioned in the

introduction, there have been numerous approaches

at integrating IP-XACT and UML in the ﬁeld of

model-driven embedded software and hardware de-

velopment, since IP-XACT and UML, in particular

MARTE, have a complementary relationship with re-

spect to the information they provide. In the follow-

ing, we will outline these approaches.

Initial efforts created dedicated UML proﬁles

which enabled integrating IP-XACT data to some de-

gree. Arpinen et al. (2008) presented a codesign

framework based around their TUT-Proﬁle. Their

framework allows structural hardware platform de-

signs created in UML to be exported to IP-XACT de-

signs. A similar approach was employed by Revol

et al. (2008), who developed the ESL proﬁle, which

creates a bridge between the hardware resource model

of MARTE and IP-XACT. In their proposed method-

ology, the hardware platform is modeled by using

MARTE together with their proﬁle. The model

can then be exported to IP-XACT designs and Sys-

temC code. Khan et al. (2008a, 2009) proposed

to use MARTE models to create IP-XACT descrip-

tions, which they enrich with timing information pro-

vided by MARTE. Khan et al. (2008b) embedded IP-

XACT descriptions in MARTE using a custom pro-

ﬁle. Schattowksy et al. (2009) created a comprehen-

sive UML proﬁle for IP-XACT which effectively al-

lows UML to be used as a frontend for editing and

managing IP-XACT data. Weissnegger et al. (2017)

also extended MARTE with a custom proﬁle for IP-

XACT data to create detailed models of hardware

platforms, from which they generate virtual proto-

types.

An approach similar to the one we propose was

presented by Tallec et al. (2011). IP-XACT descrip-

tions are extracted from SystemC code, which then

are used to synthesize MARTE models. Transforma-

tion of MARTE models back to IP-XACT descrip-

tions is proposed as well, in which additional infor-

mation provided by the MARTE model is stored in

IP-XACT vendor extensions. However, their trans-

formations do not use the entire IP-XACT standard,

abstracting away some information.

Herrera et al. (2012) introduced a framework

for the automatic generation of executable models

enabling early design space exploration. In their

proposed framework, IP-XACT descriptions of the

hardware platform are automatically generated from

MARTE models. Their framework does not integrate

IP-XACT data into the MARTE models.

Ochoa-Ruiz (2013) proposed a high-level method-

ology for IP-XACT and MARTE codesign that intro-

duces transformation rules between both standards.

However, his work does not cover all aspects of IP-

XACT and MARTE and abstracts from certain con-

cepts.

All these approaches have a number of drawbacks.

The custom proﬁles that enable IP-XACT and UML

codesign are hand-crafted and mostly based on older

versions of the IP-XACT standard. This implies that

refactoring these proﬁles to conform to the most re-

cent version of IP-XACT has to be done manually in

a tedious and error-prone process. Most approaches

only integrate parts of the IP-XACT standard or ab-

stract away from it, leaving out potentially important

information. In addition, the codesign direction of

a large portion of these approaches is unidirectional,

prohibiting round-trip engineering.

With our framework, custom proﬁles for XML

handling can be generated automatically and easily

adapted to evolutions of the underlying XSDs. The

Bridging XML and UML - An Automated Framework

379

generated proﬁle reﬂects the XSD in its entirety. By

using our proposed XSD to UML mapping speciﬁ-

cation, abstractions of XML elements in the UML

model can be created. Finally, our framework sup-

ports round-trip engineering by providing export of

integrated XML data from UML models.

In principle, a large number of these approaches

can at least in part be implemented or emulated us-

ing our framework, making it a meta-framework in a

sense. We illustrate this point in our use case in Sec-

tion 4.

3 AN AUTOMATED

FRAMEWORK FOR

INTEGRATING XML INTO

UML

In this section, we present our main contribution,

which is an automated framework for integrating

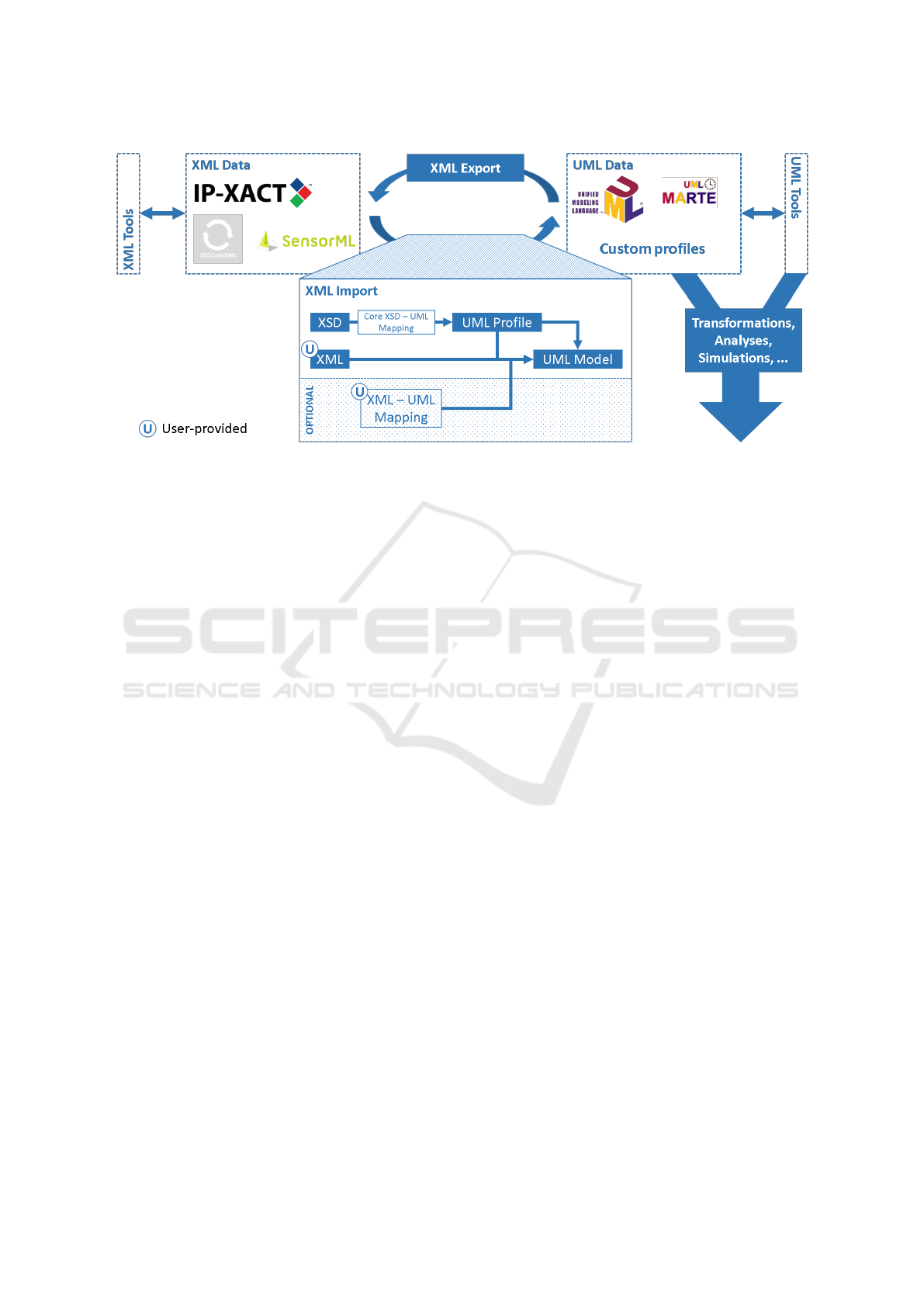

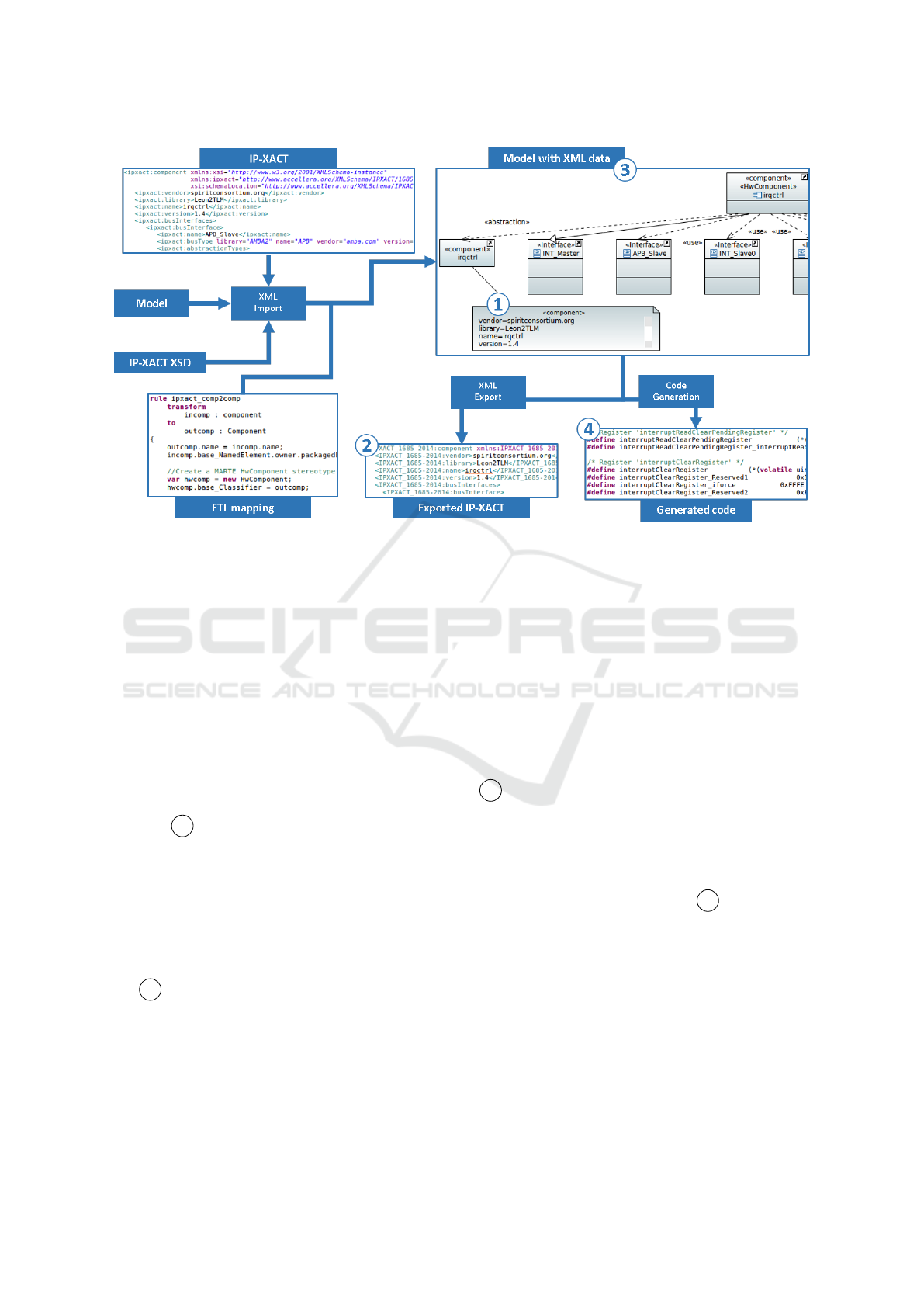

XML data into UML models. Fig. 1 gives a con-

ceptual overview of our framework.

XML ﬁles in speciﬁc formats, such as IP-XACT,

are created and edited by their corresponding tools.

Analogously, UML data, which may include elements

from standard or custom proﬁles is created and edited

by speciﬁc UML tools.

Both the XML and the UML data are assumed

to be well-formed, i.e. they conform to metamodels,

which can be either explicit or implicit. In the case of

XML this metamodel is described by an XSD. UML

models conform to the Meta Object Facility (MOF)

OMG (2016) architecture, in which UML proﬁles can

be considered a metamodel as well.

To forster a seamless usage between both formats,

import and export capabilites are required. Since we

regard UML as the core model, integration of XML

data into the UML model requires an import.

Given an XML ﬁle, its data is imported into a

UML model by creating a UML proﬁle correspond-

ing to the XSD of the XML. New stereotyped UML

elements are then created in the model, corresponding

to the XML entities in the XML ﬁle. The stereotype

applications contain the data in the XML ﬁle.

We chose to apply the stereotypes to UML classes,

because they can be nested. This allows us to reﬂect

the XML element hierarchy in the UML model.

Optionally, an additional user-deﬁned mapping

from XML data to existing UML elements can be pro-

vided. This enables the usage of the XML data with

existing metamodels and modeling methodologies. In

the remainder of this paper, we always refer to this

kind of user mapping if we use the term mapping, un-

less explicitly stated otherwise.

The UML elements containing the XML data can

be exported into valid XML again.

With the exception of the speciﬁcation of the user-

deﬁned mapping and the XML ﬁle, all of the afore-

mentioned steps are automated. In the following, we

will discuss the speciﬁc aspects of our framework in

detail.

3.1 XML Import

The data contained in the XML ﬁles is imported into

a UML model by means of an automated process.

Central to this process is the core mapping of XSD

to UML elements, which is used to generate a UML

proﬁle that reﬂects the structure of the XSD. This core

mapping is outlined in Table 1.

XSD entities are mapped to stereotypes, attributes

of mapped stereotypes, primitive data types, or enu-

merations.

XSD elements are mapped to stereotypes. If the

element is contained by another element, i.e. not at

the root level of the XSD, an additional attribute in

the stereotype mapped to the containing element is

created. This attribute is of the type of the stereotype

mapped to the contained element.

XSD attributes are mapped to attributes of the

stereotype mapped to the containing element.

If an XSD complex type is derived from a sim-

ple type, a primitive data type is created in the UML

proﬁle. Otherwise, a new stereotype is created.

XSD simple types with enumeration facets are

mapped to UML enumerations. Otherwise, they are

Table 1: Core XSD to UML mapping.

XSD Condition UML

element

root-level stereotype

otherwise stereotype and at-

tribute of containing

mapped stereotype

attribute attribute of contain-

ing mapped stereo-

type

complexType

derived from simple

type

primitive data type

otherwise stereotype

simpleType

has enumeration

facet

enumeration

otherwise primitive data type

constraints OCL constraints

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

380

Figure 1: Overview of our proposed automated framework for integrating XML into UML.

mapped to UML primitive data types.

XSD allows the speciﬁcation of constraints on

XSD elements and their attributes, and any piece of

XML data that conforms to an XSD must adhere to

these constraints. In order to facilitate data validation,

constraints in the XSD are mapped to correspond-

ing Object Constraint Language (OCL) (OMG, 2014)

constraints on the mapped elements in the generated

UML proﬁle.

Inheritance relationships between XSD elements

are reﬂected via generalizations between the corre-

sponding stereotypes in the proﬁle.

For identiﬁcation of the UML proﬁle with the cor-

responding XSD, we assign the namespace Uniform

Resource Identiﬁer (URI) of the UML proﬁle to the

one targeted in the XSD. It is possible that a given

XML ﬁle does not conform to a particular XSD, in

which case the XSD can be automatically inferred

from the XML data.

Using the UML proﬁle, appropriately stereotyped

classes in the model are created from the XML data,

i.e. we map XML elements to stereotyped UML ele-

ments. For each XML element instance, we generate

a UML class with the appropriate stereotype. The at-

tributes and references of the stereotypes are set to the

values contained in the XML. The stereotyped classes

are nested according to the hierarchy of the corre-

sponding XSD elements. This import fully integrates

the XML data into the UML model, enabling access

to all contained data from within the model.

If required, this integration can be reﬁned by pro-

viding a user-deﬁned mapping between XML and

UML elements. Depending on the expressivity of the

mapping language, models can be created from arbi-

trarily complex XML data. For instance, one could

easily imagine UML network topology diagrams be-

ing created from a single XML network topology de-

scription, such as the one described by Balon (2008).

This mapping is strictly additive, meaning that the

mapped model elements are created in addition to the

model elements representing the imported XML data.

In other words, the model contains two additional sets

of model elements after the XML import: stereotyped

classes representing the XML data and model ele-

ments created according to the provided mapping.

Of course, the mapping could directly transform

the former elements, which would avoid data duplica-

tion and synchronization issues. However, this could

result in data loss and would make the export of the

integrated XML data more difﬁcult, particularly when

the imported data is aggregated. We thus argue that an

additive mapping is better suited for our framework.

Once the XML data has been imported, the aug-

mented UML model can be used to drive advanced

model-based activities, such as code generation, anal-

yses, simulations, or veriﬁcations. Unless a custom

solution is implemented, these activities usually can-

not work with the model elements of the UML proﬁle

generated from the XSD, but instead require model

elements from another proﬁle. In this case, the map-

ping can be used to create the appropriate elements

from the XML data. For instance, we can map to

stereotypes from the MARTE proﬁle, enabling tools

utilizing this proﬁle to work with the XML data, as

demonstrated in Section 4.

3.2 XML Export

Because the import integrates the XML data com-

pletely, the UML elements containing the XML data

Bridging XML and UML - An Automated Framework

381

can be exported into XML that conforms to the XSD.

For this, the XML data is reconstructed from the

stereotypes and the values contained in them. This

enables round-trip engineering and codesign, and al-

lows UML to be used as a frontend for editing and

validating XML data.

In this case however, the original XML data and

its imported UML representation may become mis-

aligned when users perform a modiﬁcation of one part

without synchronizing the other part appropriately.

3.3 Automation

As mentioned earlier, our framework is almost com-

pletely automated. The only part requiring manual

effort is the speciﬁcation of the user-deﬁned mapping

between XML and UML elements.

The generation of a UML proﬁle that corresponds

to a given XSD is a relatively straightforward task.

For instance, detailed mappings between XSD and

the Ecore

metamodel have been described in (EMF,

2004). From this Ecore representation of the XSD, a

UML proﬁle can be easily generated.

In case an XML ﬁle does not conform to a par-

ticular XSD, many approaches exist for automatically

generating an XSD from the structure of the XML.

Such an approach is described in (Bex et al., 2007),

for instance.

The generation of UML elements from XML data

and the generation of XML data from its UML repre-

sentation can be easily automated as well.

3.4 Proof-of-Concept Implementation

To demonstrate the technical feasibility of our au-

tomated framework, we have created a proof-of-

concept implementation based on the Eclipse Mod-

eling Framework (EMF

) and the Papyrus Modeling

Environment

Given an XML ﬁle, the XML importer engine ﬁrst

generates an Ecore model of the corresponding XSD

using the XSD conversion integrated into EMF. From

this Ecore model, a UML proﬁle is built. If the XML

ﬁle does not conform to an XSD, it is automatically

generated using Wizools.org XSD Gen

This proﬁle is then loaded and applied to the UML

model in the Papyrus Modeling Environment.

EMF automatically extracts value restrictions

from the XSD and converts them to corresponding

validation rules in the generated Ecore model. These

https://wiki.eclipse.org/Ecore

https://www.eclipse.org/modeling/emf/

https://www.eclipse.org/papyrus/

https://github.com/wiztools/xsd-gen

validation rules have the same power as OCL con-

straints and are recognized and enforced by the Pa-

pyrus Modeling Environment in the UML model. En-

forcing the validation rules guarantees that any modi-

ﬁcation of the XML data from within UML is confor-

mant to the XSD.

Users can specify the import location within the

UML model in our implementation. Once the pro-

ﬁle is applied to the UML model, our implementa-

tion adds a stereotype application corresponding to

the root-level element in the XML ﬁle to the selected

model element, and stereotyped classes correspond-

ing to the sub-elements in the XML ﬁle are created as

children of the selected model element. The attributes

of the applied stereotypes are then ﬁlled with the val-

ues from the XML data.

In our implementation, users have the option of

speciﬁying the mapping between the XML elements

and UML elements for the XML import. Our current

implementation facilitates this mapping using the Ep-

silon Transformation Language (ETL) (Kovolos et al.,

2008). The ETL transformation is executed after

the XML data has been imported, because the ETL

model-to-model transformation cannot work on the

XML data directly, but instead requires the generated

UML proﬁle.

Export of the integrated XML data from UML to

XML is implemented using the standard XML serial-

ization of EMF.

4 USE CASE: IP-XACT AND

MARTE

In this section, we present a use case which will il-

lustrate two points. We show that we can import IP-

XACT data into a MARTE model using the proof-

of-concept implementation of our framework without

loss of data, demonstrating its technical feasiblity. We

also show how our framework is able to emulate some

of the existing approaches for integrating IP-XACT

and UML. In particular, we refer to (Schattowksy

et al., 2009), (Khan et al., 2008a), and (Khan et al.,

2008b), which propose manual approaches for inte-

grating IP-XACT and UML. Our framework is able

to create similar UML models.

Our use case represents a typical scenario in em-

bedded software development. At a large semicon-

ductor manufacturer, ﬁrmware for a new embedded

device is being developed. This device will contain

commercial off-the-shelf IPs from various external

manufacturers. A basic MARTE model of the device

has been created and IP-XACT descriptions of the IPs

have been supplied, which now need to be integrated

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

382

Figure 2: Augmenting our MARTE model with IP-XACT data.

into the model.

To integrate the external IPs into the UML model,

their IP-XACT descriptions are imported using our

framework. Fig. 2 illustrates this integration process.

For the XML import, users need to specify the

XML ﬁle containing the data and the XSD it con-

forms to. The appropriate UML proﬁle is generated

accordingly. The proﬁle is then applied to the UML

model, so the stereotypes from the generated proﬁle

are available to the model. Finally, the corresponding

stereotyped UML elements are created from the XML

data.

As a result of the import in our example, a class

with a «component» stereotype is created in the model

(number 1 in Fig. 2), which holds the information

of the IP-XACT description.

This direct import is similar to the approach de-

scribed in (Schattowksy et al., 2009). For instance,

the «component» stereotype of the generated proﬁle is

corresponding to the «IP-XACT_Component» stereo-

type of the proﬁle proposed by the authors. The IP-

XACT data can now be edited using the UML editor

and exported into valid IP-XACT XML again (num-

ber 2 in Fig. 2). But in contrast to the aforemen-

tioned approach, data validation is provided by our

framework due to the EMF validation rules extracted

from the XSD. For instance, the well-formedness

rules for IP-XACT port names are enforced by the

data validation.

To fully integrate the IP into the MARTE model,

an ETL mapping has to be speciﬁed.

Utilizing this mapping, appropriate MARTE

model elements are created from the imported XML

data.

In our example, the mapping creates a MARTE

«HwComponent» for each IP-XACT «component».

The IP has a number of bus interfaces, which are also

included in the model. For this, the mapping is ex-

tended to create required interfaces for slave ports and

provided interfaces for master ports. This mapping

emulates some aspects of the approaches proposed in

(Khan et al., 2008a) and (Khan et al., 2008b).

The result of this mapping can be seen in number

3 in Fig. 2. To indicate that the «HwComponent»

has been created from the IP-XACT component, an

abstraction relationship is used.

The MARTE model now contains information

about the register map of the imported IP. From this

model, C headers for register access of the IP can be

generated, as illustrated in number 4 in Fig. 2.

The integration of the XML data into the UML

model is completely automated. The only part re-

quiring manual effort is the speciﬁcation of the addi-

tional mapping. In contrast, the approaches outlined

in Section 2 would ﬁrst require manual analysis of the

XSD in order to handcraft an appropriate UML pro-

ﬁle that is capable of reﬂecting the XML data. Then,

the XML data would need to be integrated using this

proﬁle, either manually or with a bespoke importer

that reads the XML and generates the corresponding

stereotyped UML elements in the model.

This entire process is time-consuming, tedious,

Bridging XML and UML - An Automated Framework

383

and error-prone.

It is also extremely inﬂexible, because this entire

process has to be started again if XML data in an-

other format is going to be included or in case the

XSD changes. While it can be argued that the fre-

quency of such changes is usually in the order of years

or even decades in case of heavily standardized for-

mats such as IP-XACT, other formats may undergo

changes more frequently.

Each time such a change occurs, existing ap-

proaches require the manual updating of the proﬁle,

any custom code that is responsible for handling the

XML import, as well as code that works on the model,

such as code generators.

In our approach, the parts requiring manual effort

are now restricted to the speciﬁcation of the mapping

and any code that works on the imported model. The

rest is handled automatically.

With respect to ﬂexibility, our approach also al-

lows the quick integration of any data expressed

in a non-XML data format that can be automati-

cally transformed into XML. For instance, consider

the JavaScript Object Notation (JSON

), which is a

prominent alternative to XML and the data format

used by some electronic design automation tools. Us-

ing our framework, this data can be quickly integrated

into a UML model. The data is ﬁrst converted to

XML

The corresponding XSD is then inferred, and the

data is imported into the model using our framework.

All these steps are performed automatically.

5 SUMMARY AND

CONCLUSIONS

We presented a framework for automatically integrat-

ing arbitrary XML data into UML models. XML data

is integrated by creating a UML proﬁle that corre-

sponds to the XSD to which the XML conforms. In-

stances of the appropriately stereotyped classes are

then created in the UML model and their values are

set according to the XML data. Users have the op-

tion to reﬁne this integration by specifying an XML

to UML mapping, which is automatically executed at

the end of the import. The integrated XML data can

be exported to valid XML from the UML model. Val-

idation of the XML data is ensured by corresponding

OCL constraints in the UML proﬁle.

https://www.json.org/

A number of implementations exist, for example

https://github.com/lukas-krecan/json2xml

The integration of XML data in UML models of-

fers a number of beneﬁts. For instance, advanced

model-based analyses and simulations, as well as

more comprehensive code generation can be per-

formed from a single UML model augmented with

XML data. Such a model can also serve as a pivot

for collaboration between users of XML- and UML-

based data, promoting communication and accelerat-

ing codesign. In addition, UML can be used as a fron-

tend for editing and validating XML data.

We demonstrated the technical feasibility of our

framework with a proof-of-concept implementation,

which we based on the Eclipse Modeling Framework,

the Papyrus Modeling Environment, and the Epsilon

Transformation Language. We also presented an in-

dustrial use case in which we integrate IP-XACT de-

scriptions into MARTE models using our framework,

illustrating its potential usage and the beneﬁts it pro-

vides compared to existing approaches. Mainly, our

framework greatly reduces manual effort and provides

a much larger degree of ﬂexibility.

Since the imported XML data can be edited in

UML, one major issue of our approach is data con-

sistency. The original XML data and its imported

UML representation may become misaligned in case

of modiﬁcations. In addition, if a mapping between

XML and UML is applied, the mapped data needs to

be kept consistent with the UML representation of the

XML data. We will investigate how the data consis-

tency issue can be addressed, since our current ap-

proach does not provide any consistency enforcement

mechanism.

In future work, we will also further explore po-

tential mappings between XML and UML, as we be-

lieve these mappings can pave the way for new pow-

erful model-driven methodologies that utilize UML

models augmented with XML data. This will include

mappings on the level of individual attributes and ref-

erences, as our current mappings are restricted to the

level of individual elements.

Our investigations will also address the question

of how this mapping can be extended to the generation

of the UML proﬁle from the XSD, so in addition to

the stereotypes reﬂecting the XSD elements, the pro-

ﬁle may contain additional stereotypes that aggregate

or abstract from the data of the XSD elements in some

way. This kind of mapping would enable our frame-

work to fully emulate some of the approaches men-

tioned in Section 2, making it a true meta-framework.

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

384

ACKNOWLEDGEMENTS

This work has been partially supported by the Ger-

man Federal Ministry of Education and Research

(BMBF) in the ITEA3 project COMPACT under

grant 01|S17028C. The authors are responsible for the

content of this publication.

REFERENCES

Arpinen, T., Salminen, E., Hännikäinen, M., and Hämäläi-

nen, T. D. (2008). Model-driven Approach for Auto-

matic SPIRIT IP Integration. In PProceedings of the

Fifth International UML-SoC DAC Workshop.

Balon, S. (2008). A standard XML Format for a Network

Topology Representation. http://totem.run.monte

ﬁore.ulg.ac.be/doc/UserGuide/node4.html.

Bernauer, M., Kappel, G., and Kramler, G. (2004). Rep-

resenting XML Schema in UML – A Comparison of

Approaches. In ICWE 2004: Web Engineering, pages

440–444.

Bex, G. J., Neven, F., and Vansummeren, S. (2007). Infer-

ring XML Schema Deﬁnitions from XML Data. In

Proceeedings of the 33rd International Conference on

Very Large Data Bases, pages 998–1009.

EMF (2004). XML Schema to Ecore Mapping. https://

www.eclipse.org/modeling/emf/docs/overviews/XML

SchemaToEcoreMapping.pdf.

Herrera, F., Posadas, H., Villar, E., and Calvo, D. (2012).

Enhanced IP-XACT Platform Descriptions for auto-

matic Generation from UML/MARTE of fast Perfor-

mance Models for DSE. In 15th Euromicro Confer-

ence on Digital System Design, pages 692–699.

IEEE (2010). IEEE Standard for IP-XACT, Standard Struc-

ture for Packaging, Integrating, and Reusing IP within

Tool Flows. Technical report.

Khan, A., Mallet, F., André, C., and Simone, R. (2008a).

MARTE Timing Requirement and SPIRIT IP-XACT.

Khan, A., Mallet, F., André, C., and Simone, R. (2008b).

Modeling SPIRIT IP-XACT with UML MARTE.

Khan, A., Mallet, F., André, C., and Simone, R. (2009). IP-

XACT Components with abstract Time Characteriza-

tion. In 2009 Forum on Speciﬁcation & Design Lan-

guages, pages 1–6.

Kovolos, D. S., Paige, R. F., and Polack, F. A. C. (2008).

The Epsilon Transformation Language. In ICMT

2008: Theory and Practice of Model Transformations,

pages 46–60.

Ochoa-Ruiz, G. (2013). A high-level Methodology for auto-

matically generating dynamically reconﬁgurable Sys-

tems using IP-XACT and the UML MARTE Proﬁle.

PhD thesis, Université de Bourgogne.

OMG (2011). UML Proﬁle for MARTE: Modeling and

Analysis of Real-Time Embedded Systems. Techni-

cal report.

OMG (2014). Object Constraint Language. Technical re-

port.

OMG (2015). OMG Uniﬁed Modeling Language

(OMG

UML). Technical report.

OMG (2016). OMG Meta Object Facility (MOF) Core

Speciﬁcation. Technical report.

Revol, S., Taha, S., Terrier, F., Clouard, A., Gerard, S.,

Radermacher, A., and Dekeyser, J.-L. (2008). Uni-

fying HW Analysis and SoC Design Flows by Bridg-

ing Two Key Standards: UML and IP-XACT. In Dis-

tributed Embedded Systems: Design, Middleware and

Resources, pages 69–78.

Schattowksy, T., Xie, T., and Müller, W. (2009). A UML

frontend for IP-XACT-based IP management. In Pro-

ceedings of the Conference on Design, Automation

and Test in Europe, pages 238–243.

Tallec, J.-F. L., DeAntoni, J., Simone, R., Ferrero, B.,

Mallet, F., and Maillet-Contoz, L. (2011). Combin-

ing SystemC, IP-XACT and UML/MARTE in Model-

based SoC Design. In Workshop on Model Based En-

gineering for Embedded Systems Design.

W3C (2008). Extensible Markup Language (XML) 1.0

(Fifth Edition). Technical report.

W3C (2012a). W3C XML Schema Deﬁnition Language

(XSD) 1.1 Part 1: Structures. Technical report.

W3C (2012b). W3C XML Schema Deﬁnition Language

(XSD) 1.1 Part 2: Datatypes. Technical report.

Weissnegger, R., Pistauer, M., Schachner, M., Kreiner, C.,

Römer, K., and Steger, C. (2017). SaVeSoC - Safety

aware Virtual Prototype Generation and Evaluation of

a System on Chip. In Proceedings of the Sympo-

sium on Model-driven Approaches for Simulation En-

gineering.

Bridging XML and UML - An Automated Framework

385
