Towards Model-driven Veriﬁcation of Robot Control Code using

Abstract Syntax Trees in Production Systems Engineering

Kristof Meixner

, Dietmar Winkler

, Petr Nov

and Stefan Bifﬂ

Christian Doppler Laboratory for Security and Quality Improvement in the Production System Lifecycle,

TU Wien, Vienna, Austria

Czech Institute of Informatics, Robotics, and Cybernetics, Czech Technical University in Prague, Czech Republic

Information & Software Engineering Group, Institute of Information Systems Engineering, TU Wien, Vienna, Austria

Keywords:

Production Systems Engineering, Industrial Robots, Veriﬁcation and Validation, Engineering Models,

Abstract Syntax Tree.

Abstract:

Context. In Production Systems, software components are often tightly connected to deﬁned hardware device

types like robots. Different types of robots, even from the same vendor, often use vendor-speciﬁc programming

languages. Therefore, the exchange of devices or device types, e.g., during system evolution, is challenging

and needs new or adapted control software and repeated veriﬁcation and validation process steps, even if the

software behavior remains unchanged. Models aim at supporting these veriﬁcation and validation tasks during

system evolution. Objective. This position paper aims at providing a veriﬁcation and validation process ap-

proach with models for supporting automation systems maintenance and evolution processes. For evaluation

purposes, we report on a feasibility study with a focus on two selected robot types in the context of Produc-

tion Systems Engineering (PSE). Method. We use the Abstract Syntax Tree (AST) concept as a foundation for

generating models as the basis for human-based veriﬁcation and validation. Based on two generated AST vari-

ants, related to old and new software control code, human experts can compare the behavior of the expected

system to verify and validate the code. Results. First results showed the feasibility of the AST concept to

support human-based veriﬁcation and validation in the context of PSE maintenance projects on a structural

level. Conclusion. Although the human-based veriﬁcation and validation process is feasible and promising on

a structural level, the complexity of AST for large-scale models needs to be addressed by tool support to over-

come complexity levels of the production system and limitations of human-based veriﬁcation and validation.

1 INTRODUCTION

The increasing share of software code in PSE projects

require appropriate testing approaches (Schafer and

Wehrheim, 2007) to evaluate the expected behav-

ior of the production system. A production system

typically includes production resources, like robots,

shuttles, conveyors, or speciﬁed tools to produce a

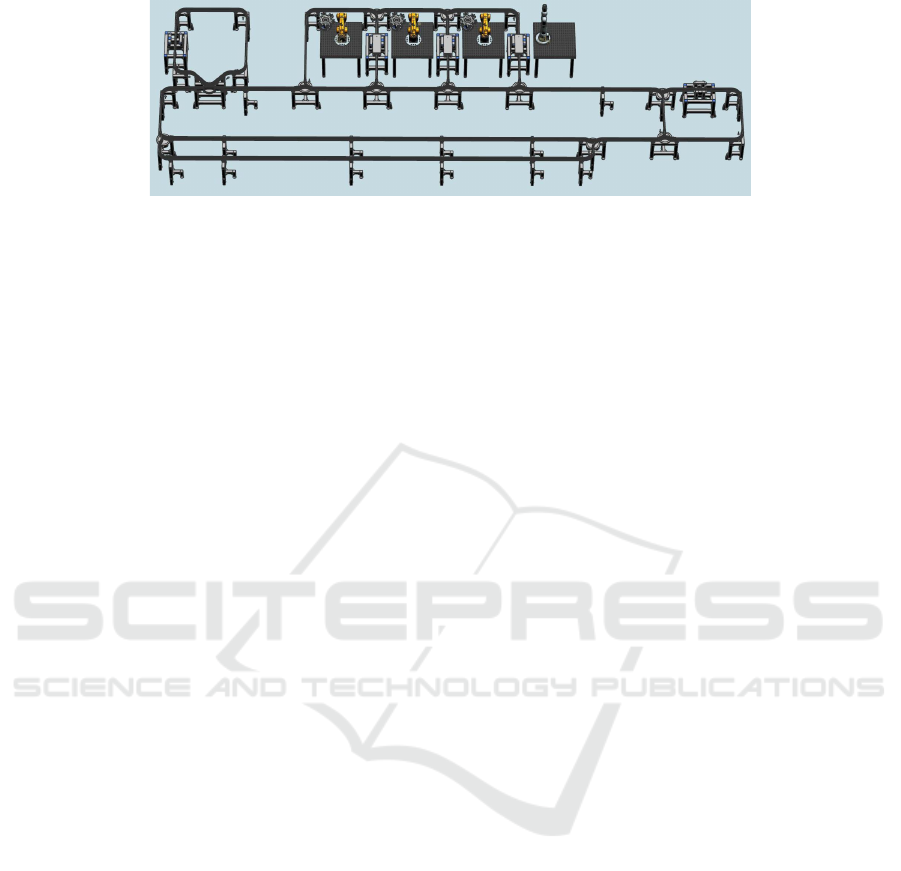

product (Chan and Spedding, 2003). Fig. 1 shows

a schematic overview of a production system with a

rail conveyor and four robots, located at the Czech

Technical University in Prague

. During the engineer-

ing of production systems typical engineering pro-

cesses, such as waterfall-like or V-model like pro-

cess approaches are applicable (Wasson, 2015). Com-

mon process steps include requirements elicitation

and systems design, system construction, implemen-

Testbed 4.0: www.ciirc.cvut.cz/testbed

tation, test and commissioning as well as operation

and maintenance (Winkler et al., 2017). Maintenance

engineers execute tasks like regular services, repair,

or evolution of the system in the system maintenance

phase. In PSE, individual devices often use vendor-

speciﬁc programming languages to implement the re-

quired logical behavior of the device, e.g., of a robot.

In practice, we observed various programming lan-

guages even for robots manufactured by the same ven-

dor. Thus, during the evolution of the system, e.g., ex-

changing a robot or upgrading it from one version to

another, control code must be manually rewritten, ver-

iﬁed and validated. Therefore, these human-based ac-

tivities are time-consuming and error-prone and could

lead to signiﬁcant downtimes of the system. Nev-

ertheless, a structured human inspection task based

on models can help to improve this process (Aurum

et al., 2002).

402

Meixner, K., Winkler, D., Novák, P. and Bifﬂ, S.

Towards Model-driven Veriﬁcation of Robot Control Code using Abstract Syntax Trees in Production Systems Engineering.

DOI: 10.5220/0007484104020409

In Proceedings of the 7th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2019), pages 402-409

ISBN: 978-989-758-358-2

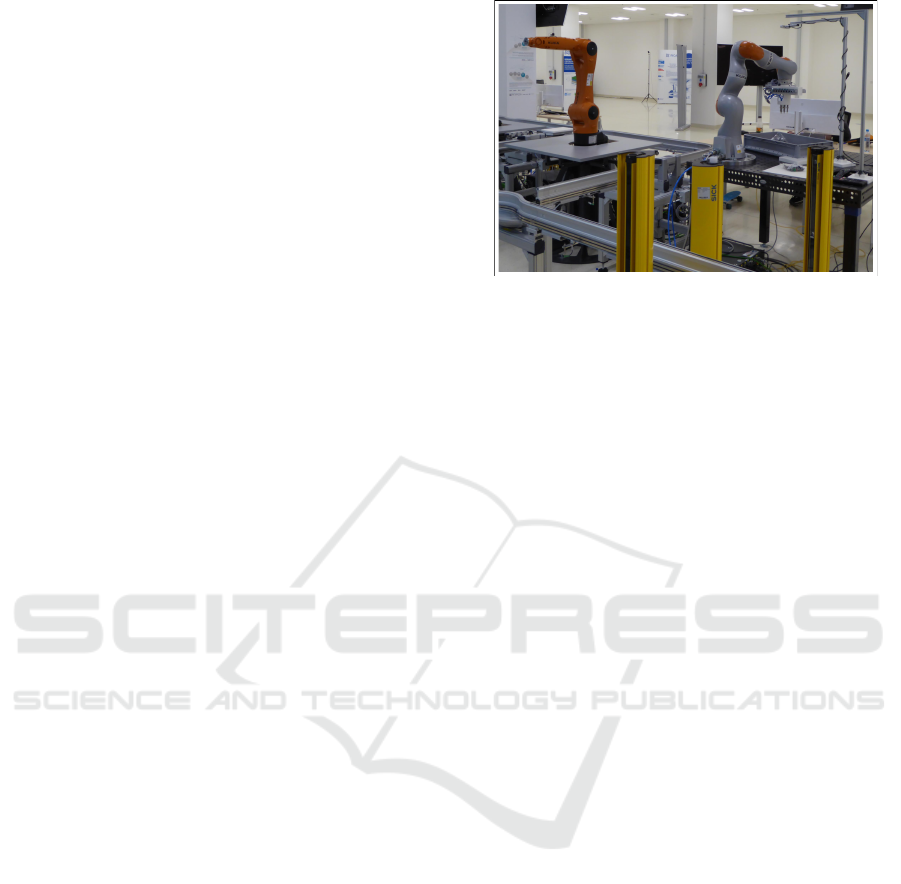

Figure 1: Industry 4.0 Testbed used as a use-case.

In this position paper, we address the key ques-

tion, how to verify and validate the behavior of

the system of different robot control code imple-

mentations to improve system maintenance and evo-

lution and to support quality assurance experts and

engineers in their veriﬁcation and validation process.

Therefore, we propose a model-driven veriﬁcation

and validation approach that makes the evaluation of

software control code more effective and efﬁcient.

Furthermore, we conceptually evaluate the proposed

approach in a feasibility study in a real-world indus-

try setting, i.e., exchanging a robot in an existing pro-

duction system within a system evolution project.

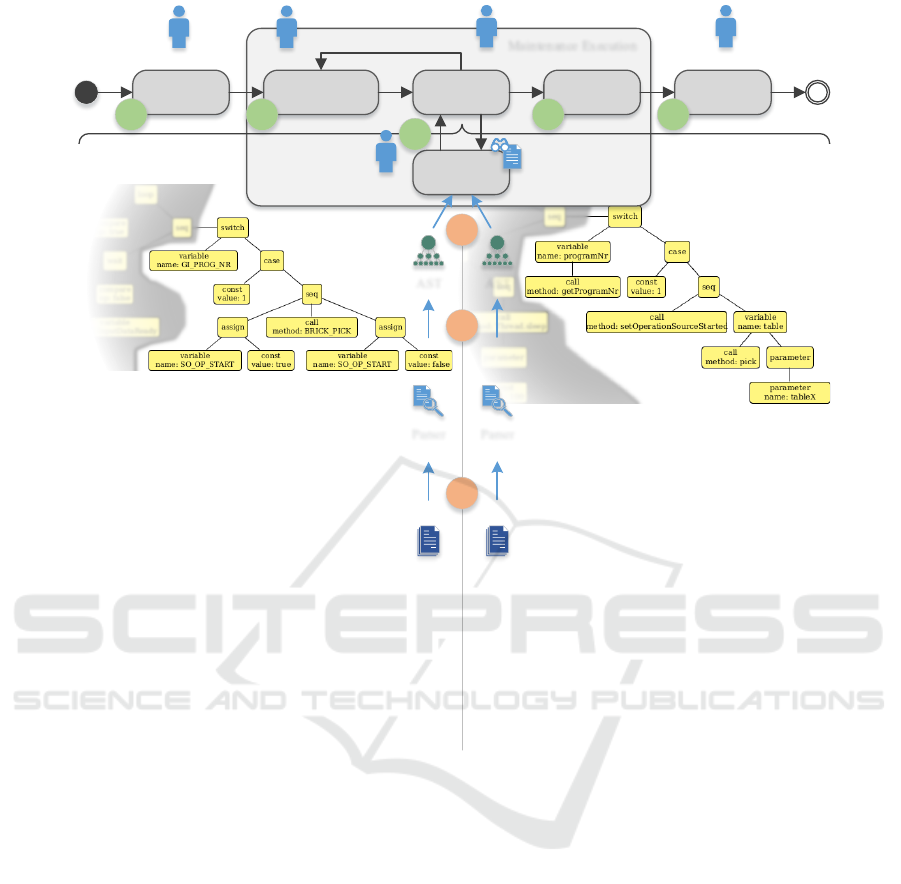

The key idea is to abstract from the software con-

trol codes and evaluate generated abstract representa-

tions in a human-based review process step: (a) au-

tomatically generate AST models based on existing

software control code, i.e., an AST model based on the

previous version of the robot control code and an AST

model based on the newly written control code; and

(b) compare both AST variants for deviations in the

code structure. As both robot control programs aim

to address similar requirements and system behavior,

both AST variants have to follow a similar structure,

depending on the programming language. Deviations

could represent defects that need to be addressed be-

fore the deployment of the modiﬁed system. Note that

in the ﬁrst step of this initial prototype, the compar-

ison task solely relies on human experts, i.e., a qual-

ity assurance engineer, who actually perform the ver-

iﬁcation and validation process step as part of a hu-

man inspection process. In the future of this research,

this process step is planned to be supported by tools.

Furthermore, we need to mention that the AST model

should be based on a shared model that uses generic

resp. common concepts (Winkler et al., 2017), to sup-

port a uniﬁed representation that allows implement-

ing tools that can be used for a variety of control lan-

guages.

To demonstrate the feasibility of the proposed ap-

proach, we use the “Industry 4.0 Testbed”, a testing

facility for evaluating new approaches and methods in

the context of the 4th industrial revolution (Bifﬂ et al.,

2016). The most conspicuous part of the Industry 4.0

Testbed is a monorail transportation system Montrac,

see Fig. 1. On this rail system, several shuttles trans-

port small pallets with material, semi-products and ﬁ-

nal goods from and to industrial robots. The system is

equipped with three KUKA KR Agilus robots and one

KUKA LBR iiwa robot (www.kuka.com), performing

production operations according to a given production

plan. Both types of robots use different programming

languages. Even if two robots of different types ex-

ecute a similar operation from the physical point of

view (similar systems behavior), their programs are

different concerning the programming language and

the program structure. If the production system con-

ﬁguration changes, i.e., by exchanging one robot type

by another robot type, it is necessary to re-program

the robotic program. It requires signiﬁcant human ef-

fort not only for re-programming but also for testing.

This position paper represents a starting point for

supporting engineers to make PSE projects more ef-

ﬁcient and effective. In this paper, we focus on the

veriﬁcation and validation process of robot software

code in the context of a system evolution process.

2 RELATED WORK

This section presents related work on PSE, models

used in the PSE domain, and ASTs as an represen-

tation of source code.

2.1 Production Systems Engineering

Production systems typically consist of mechatronic

objects and incorporate multiple engineering disci-

plines within the product life cycle (Moser et al.,

2012). Engineers of different disciplines use various

programming languages and various models for prob-

lem description and problem-solving. Synchroniza-

tion of related subsystems is typically executed by ap-

plying a bunch of interfaces that overcome technical

and semantic heterogeneity of tools and data models

Towards Model-driven Veriﬁcation of Robot Control Code using Abstract Syntax Trees in Production Systems Engineering

403

(Winkler et al., 2017).

In context of a production system, the control

logic is typically implemented by a Programmable

Logic Controller (PLC). A family of PLC program-

ming languages is standardized as IEC 61131. Based

on this standard, PLC are normally programmed with

Structured Text, a programming language comparable

with PASCAL, ladder diagrams based on relay logic,

or function block diagrams (Collins, 2007). However,

there are numerous extensions and variations that are

vendor-dependent. Another standardization effort in

the frame of a standard PLCopen is trying to bridge

the gap between various PLC programming imple-

mentations

. Higher levels than PLCs are frequently

implemented with Python, C#, or Java, data acquisi-

tion can be implemented in the C language.

Industrial robotics typically utilizes proprietary

languages. For example, the robot vendor KUKA

(www.kuka.com) uses the language KRL for the tra-

ditional industrial robots, which represents the most

signiﬁcant part of KUKA portfolio, whereas the new

advanced type of cooperative robots uses the Java lan-

guage. Due to the use of a large set of different pro-

gramming languages in PSE, the veriﬁcation and val-

idation of correct operations and correct systems be-

havior are challenging. This is also an issue during

maintenance and evolution, and even minor updates

or changes of the system during production system

life-cycle implies high testing effort and costs.

Therefore, new approaches are needed for veriﬁ-

cation of robot control code in PSE to be able to ver-

ify that corresponding code snippets in different lan-

guages are equivalent from the behavior point of view.

2.2 Models and Data Integration in PSE

Models for production systems can be represented in

various formats, such as XML-based representations,

one of the most commonly used data formats.

AutomationML

(Drath et al., 2008) is an XML-

based and standardized data format (IEC 62714) for

representing engineering knowledge in the area of

process automation and control. AutomationML aims

at integrating a set of growing standardized data rep-

resentations such as CAEX for plant topology infor-

mation (IEC 62424), COLLADA

for geometry and

kinematic information and PLCopen XML for logic

information.

The process of data integration in industrial au-

tomation is standardized in ISA-95 (Unver, 2012).

PLCOpen: www.plcopen.org/

AutomationML: www.automationml.org

COLLADA: www.khronos.org/collada

ISA-95 (resp. IEC 62264) and focuses on verti-

cal integration of automation tools and data mod-

els within the automation pyramid. However, ISA-

95 does not provide a communication language but

rather a methodology to deﬁne data models for the in-

tegration of MES and ERP systems.

Semantic models for industrial systems can be

represented in an OWL

ontology according to the

standard ISO 15926 (Kim et al., 2011). Although

the standard originally addressed issues in the oil and

gas industry, the concepts are applicable also in other

types of production systems. The original version of

the standard utilized EXPRESS language, but due to

its limited tool support, the OWL system description

was added, see online at the POSC Caesar Associa-

tion

for details.

2.3 Abstract Syntax Tree

Control software is written in various programming

languages including general-purpose ones such as

Python, C# , or Java; or particular specialized lan-

guages for robot, PLC, and other device program-

ming. As each of such programming languages uses

its speciﬁc syntax, the engineers implementing the

software need to understand these characteristics.

An Abstract Syntax Tree (AST) abstractly repre-

sents the essential formal structure of a software arti-

fact, by leaving out parts of the code which are spe-

ciﬁc to the programming language, like indention or

parentheses (OMG, 2011) (Jones, 2003).

As example, Fig. 3 shows on the middle left-hand

side parts of an AST of a switch-case statement that

switches a variable GI_PROG_NR. This abstract repre-

sentation of source code can support developers, who

are not familiar with a particular programming lan-

guage, to understand the behavior of a program.

To generate an AST out of source code, the code

ﬁrst needs to be parsed with a parser for the spe-

ciﬁc language, like ANTLR (Parr and Quong, 1995),

and, afterward, be translated to a particular AST for-

mat. This format can either be a visual represen-

tation such as GraphML (Brandes et al., 2001) or

a model representation format such as EMF (Stein-

berg et al., 2008) for further processing of the AST. A

model representation, which has also be proven to be

successfully used for program analysis in the indus-

trial context (Grimmer et al., 2016), is the Abstract

Syntax Tree Model (ASTM) of the Object Manage-

ment Group (OMG) (OMG, 2011). Other approaches

were to parse the source code directly to an ontology

(Atzeni and Atzori, 2017) aiming at the generation of

OWL: www.w3.org/OWL

PCA: www.posccaesar.org/wiki/ISO15926inOWL

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

404

linked data from source code and querying these data

structures.

Using such a representation of a AST supported by

proper tools can help developers and engineers to efﬁ-

ciently analyze code from different programming lan-

guages or even different domains. Therefore, this ap-

proach seems to be promising in PSE for effective and

efﬁcient veriﬁcation and validation of different robot

control code variants.

3 RESEARCH ISSUES

Based on the need for veriﬁcation and validation sup-

port, discussions with industry experts, and related

work, we identiﬁed the following research questions.

RQ.1 How can a maintenance process support the

veriﬁcation and validation of software control code

for different programming languages? After engi-

neering the production system, the second big phase

in the PSE life-cycle is the Operation & Maintenance

phase that includes control and change activities of

the production system during its run-time and aims

at optimizing the production processes (L

uder et al.,

2017). In this phase, for example, worn off parts of a

production system such as robots need to be replaced

in a maintenance, modernization, or evolution project.

In the context of this paper we focus on exchanging

a robot type within a production system (using dif-

ferent programming languages) without changing the

behavior of the system. Thus, RQ.1 focuses on identi-

fying processes that enable the veriﬁcation of control

software that is implemented in different program-

ming languages.

RQ.2 To what extent is the AST capable of sup-

porting PSE developers during the veriﬁcation and

maintenance process? An AST represents the formal

structure of a program without the speciﬁcs of a pro-

gramming language, like indentation or punctuation

rules. The AST itself can be contained in a partic-

ular model or represented in different ways such as

tree structure, a graph-like visualization or an ontol-

ogy. However, programs in different languages can

also have different visualizations due to the particu-

lar keywords, method calls or the program structure.

Thus, RQ.2 focuses on characteristics that allow eval-

uating how an AST is capable of supporting engineers

during the veriﬁcation process within a system main-

tenance project.

KUKA KR Agilus

KUKA LBR iiwa

Figure 2: Two types of robots in Industry 4.0 Testbed.

4 ILLUSTRATIVE USE CASE

In this section, we introduce an illustrative use case,

i.e., the “Industry 4.0 Testbed” that serves as a foun-

dation for illustrating the solution approach in the

context of a maintenance project. Fig. 2 illustrates the

use case including two different robot types within a

production system.

These two robot types consist of a KUKA KR Ag-

ilus and a KUKA LBR iiwa robot (see www.kuka.com

for more details). The key characteristics of the in-

volved robot types are: The KUKA KR Agilus robot

type is a fast industry robot frequently used in high-

performance environments such as car assembling in

the automotive industry sector. For safety and secu-

rity reasons, barriers, such as a cage or optical sen-

sors, are needed to prevent physical damage or human

injuries. KUKA KR Agilus uses the vendor-speciﬁc

KUKA WorkVisual IDE and the programming lan-

guage KRL. Fig. 3 shows a source code example of

KRL on the bottom left hand side.

The second robot type is a KUKA LBR iiwa, which

is able to cooperate with humans and its environment

and, thus, should not do any harm. Therefore, there

is no need for a safety zone, like a cage or optical

sensors. For programming, this robot type uses the

KUKA Sunrise Workbench IDE that is build on top of

the Eclipse Framework and Java as a programming

language.

The underlying use case focuses on a maintenance

and evolution project with the goal to exchange the

KUKA KR Agilus robot with the modern KUKA LBR

iiwa robot. The beneﬁts of this evolution project

include: (a) that humans can cooperate with robot,

e.g., put raw material into the manufacturing line

or hand-over the ﬁnal products without considering

robot safety zones; and (b) that humans can continu-

ously check the quality of semi-products and the man-

ufacturing process as they can inspect the robot from

Towards Model-driven Veriﬁcation of Robot Control Code using Abstract Syntax Trees in Production Systems Engineering

405

a small distance (even within the safety zone).

Because both robot types should have similar

system behavior but use different programming lan-

guages, engineers have to rewrite, verify and validate

the robot control code from KRL (KUKA KR Agilus)

environment to Java (KUKA LBR iiwa) environment.

To support engineers in doing these cost-intensive

tasks, this position paper focuses on the veriﬁcation

and validation activity of engineers to ensure similar

system behavior for both robot types, i.e., whether or

not the original software control code in KRL behaves

similarly to Java implementation.

5 SOLUTION APPROACH

This section explains our solution approach for a

human-based maintenance process in a PSE environ-

ment that is based on an abstract model of the control

logic source code.

In the Maintenance & Operation phase of an

PSEs, engineers, among other activities, need to re-

new and modernize engineering units (L

uder et al.,

2017) such as robot arms, which also means that the

type of the unit can change. In this case, a challenge

during the maintenance phase is to verify that the

functional behavior of the unit to be replaced equals

that of the newly installed unit. We, therefore, pro-

pose a structured maintenance process that enables a

model-based validation and veriﬁcation of the control

code that replaces the old control code.

Fig. 3 shows an overview and the main parts of our

solution approach and is divided into two sections.

The upper part of the ﬁgure explains our proposal for

a human-centered maintenance process for PSE in-

cluding the relevant activities, labeled in green from

A to E, that have to be executed by different stake-

holders. The lower part of the ﬁgure shows, labeled

in orange from 1 to 3, the steps that we implemented

to derive an AST model, which can be used for val-

idation and veriﬁcation, from snippets of the control

logic source code of the two robot arms introduced in

Section 4 and their ASTs which are used in the main-

tenance process.

In (L

uder et al., 2017) the authors sketched some

general activities and corresponding artifacts that are

relevant during the Maintenance phase of a produc-

tion system, however, a process for maintenance ac-

tivities is only scarcely described. To address this is-

sue, we developed a structured process for the main-

tenance of software and control code in the PSE do-

main, which is based on a general software mainte-

nance process (Yau et al., 1988) and a process for

testing software (ISO 29119, 2013). The process is

shown as activity diagram in the upper part of Fig. 3

and described in the following.

• First, the process is started with a Maintenance

Planning activity, labeled with A in the ﬁgure,

where a Planner deﬁnes the objectives of the

phase and identiﬁes necessary tasks to be done.

This can be, for example, the modernization of

a worn off robot arm that also requires a re-

scheduling of the production plan due to tem-

porarily missing resources. The next three activi-

ties (B to D) are part of a subprocess called Main-

tenance Execution.

• Second, the tasks identiﬁed in the planning activ-

ity need to be prepared and executed in the Main-

tenance Implementation activity (B) by Develop-

ers of different domains. This phase includes, for

example, the implementation of the robot behav-

ior for the new robot type.

• The third phase (C) is divided into two tasks. On

the one hand, the Validation & Veriﬁcation task, is

executed by a Quality Assurance Engineer, which

aims at checking the validity and quality of the

implementation. On the other hand, this phase

contains, in our case, a Human Inspection of the

AST model to check the correctness of the behav-

ior. If this Human Inspection fails, it is fed back

to the Validation & Veriﬁcation task which reports

the issue back to the developers and starts a new

Maintenance Implementation cycle.

• In the Deployment activity (D), after the Valida-

tion & Veriﬁcation task was completed success-

fully, the code artifacts are deployed to the con-

trol nodes, and the replacement units are installed

in the production system.

• The ﬁnal activity (E) of our Maintenance Process

is the Operation task that includes the startup of

the production system with the new conﬁguration

and checks whether everything works as expected

after maintenance and is executed by the Opera-

tions team.

To support the Validation & Veriﬁcation, the task

of the Maintenance Process we chose a model-based

approach that exploits the AST of the implemented

control codes. The goal was to leave out irrelevant

parts of the control code and concentrate on the struc-

tural parts that represent the behavior of the programs.

This abstract representation of code as models should

enable engineers, without the speciﬁc knowledge of

the particular programming languages, to easier in-

spect whether the behavior of the programs is sim-

ilar. For our approach, we decided to utilize the

language-independent ASTM (OMG, 2011) provided

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

406

ParserParser

Maintenance

Planning

Maintenance

Implementation

Deployment Operation

Validation &

Verification

Maintenance Execution

...

LOOP

WAIT FOR InputDataReady

SWITCH GI_PROG_NR

CASE 1

SO_SOURCE_OP_START = TRUE

BRICK_PICK()

SO_SOURCE_OP_START = FALSE

CASE 2

SO_TARGET_OP_START = TRUE

BRICK_PLACE()

SO_TARGET_OP_START = FALSE

...

DEFAULT

ENDSWITCH

ENDLOOP

...

while(read) {

while(!getDataReady()) {

Thread.sleep(100);

}

switch (getProgramNumber()) {

case 1:

setOperationSourceStarted();

table.pick(tX, tY, tZ, tA);

unsetOperationSourceStarted();

break;

case 2:

setOperationTargetStarted();

shutle.place(sX, sY, sZ, sA);

unsetOperationTargetStarted();

break;

...

default: break;

}

...

ASTAST

ParserParser

ASTAST

Human

Inspection

Source

Code

Source

Code

A B

D E

Planner Dev

QA Ops

Figure 3: Maintenance process for PSE and creation of AST model from robot control code.

by the OMG. This model establishes a Generic Ab-

stract Syntax Tree that provides common concepts for

modeling programming languages. Furthermore, it

introduces a Speciﬁc Abstract Syntax Tree (SAST) for

particular languages. However, to this point in time,

the SAST needs to be implemented individually or at

least a mapping needs to be provided for a particular

programming language. This model allows a ﬂexible

creation of models from source code and addition-

ally includes an EMF description that easily allows

using the model in software applications. To create

the model-based AST visualizations of control codes

the following steps are necessary.

• In a ﬁrst step, labeled 1 in Fig. 3, the Source Code

is parsed by a Parser speciﬁc to the particular pro-

gramming language of the control code. For this

step either a parser exists, or it has to be created

with the help of a parser framework.

• The second step, labeled 2, translates resp. maps

the internal model of the parser to the common

AST model, which is in our case the ASTM.

• The last step, labeled 3, includes the visualization

of the language-independent ASTM in a proper

format, like GraphML, and the provision to the

Quality Assurance team that executes the Human

Inspection.

6 EVALUATION

To show the feasibility and evaluate our approach we

selected a prototypical case for the exchange of the

two robot arms introduced in Section 4 during a pro-

duction system maintenance phase.

We, therefore, ﬁrst parsed the control code for

each of the robot arms, that is shown at the bottom

of Fig. 3. While the code on the left hand is a snippet

of the KUKA KR Agilus robot, which is programmed

Towards Model-driven Veriﬁcation of Robot Control Code using Abstract Syntax Trees in Production Systems Engineering

407

using the KRL language, the snippet on the right hand

is a similar part of the KUKA LBR iiwa robot code,

which is implemented in Java. The parsing mod-

els can then mapped to a Java implementation of the

ASTM, which we created from the provided EMF de-

scription with the help of the Eclipse IDE. Using the

ASTM allowed us not only to run several checks on

the model to compare the ASTs, but also to visualize

the models with the same methods and frameworks.

The visualization of the ASTs displayed in Fig. 3 at

the label 2 was done using GraphML and the freely

available editor yEd

. We were then able to visually

compare the ASTs of the two robot control codes that

were implemented in the two different programming

languages.

Table 1: Identifying strengths and weaknesses of differ-

ent approaches. ++ = high, - - = low, × = not supported,

= supported, Code = Effort for Code Implementation,

V & V = Validation and Validation, AST = Abstract Syntax

Tree.

As Is

AST

Based

AST Tool

Supported

Effort

Code ++ ++ ++

V & V ++ + -

Engineering

Knowledge

Code ++ - - -

V & V ++ - - -

Separation

of Roles

Code ×

V & V ×

After the implementation, we compared the tradi-

tional approach of comparing the control code with

our AST-based approach. The results of our ﬁndings

are summarized in Table 1 and act as a basis for a

conceptual evaluation that also includes a future ver-

sion of our approach that includes tool support for

the comparison. The table groups the traditional ap-

proach As Is, our AST-based approach and our AST-

based with improved tool support, as well as the three

categories (a) Effort that is invested for writing as well

as validating and verifying the control code, (b) En-

gineering Knowledge, which is needed for the com-

parison of the code and the validation and veriﬁca-

tion, and (c) Separation of Roles, which means how

well the different identiﬁed roles involved are sepa-

rated during the maintenance process.

The Effort to write the control code for the robot

arms remains high, resp. does not change, for all

three approaches. However, the Effort to validate and

verify the control code is slightly better in our ap-

proach than in the actual approach of code compar-

ison. We expect the Effort to be even lower when

yEd Graph Editor: www.yworks.com/products/yed

the AST-based approach is supported by tools. The

Engineering Knowledge in the actual approach needs

to be high to compare the old with the new behavior

of the robot arm. Using our approach the details of

the programming languages are omitted which sim-

pliﬁes the comparison and lowers the effort. Once

again, with proper tool support, we expect the effort

to be even lower. The Separation of Roles is given

in our AST-based and the tool-supported AST-based

approach, however, in the current approach the devel-

oper of the code and the quality assurance engineer

are strongly intertwined.

7 DISCUSSION AND

CONCLUSION

This section discusses the ﬁndings of the solution ap-

proach and the evaluation in the context of the re-

search questions and presents the limitations. The

main goal of this position paper is to support engi-

neers in the veriﬁcation and validation process within

a maintenance process of a PSE project.

With the focus on RQ.1, we explained that al-

though robots are constructed as universal and ﬂex-

ible devices, changing from one type to another can

mean to re-program the entire control code of the

robot. Therefore, a maintenance process in the PSE

domain have to include software code construction

and veriﬁcation and validation. The adapted main-

tenance process builds on a AST approach to com-

pare different abstract representations of the related

software control code. The veriﬁcation and validation

of software control code for different programming

languages can signiﬁcantly reduce time and costs for

testing and commissioning of the new robot.

Addressing the research question RQ.2, we found

out that an AST is a suitable formalism for veriﬁcation

and maintenance process. However, it is not enough

to compare the corresponding ASTs structurally (i.e.,

from the syntax point of view). To conduct a robust

comparison, the corresponding ASTs have to be rather

analyzed and compared in a complex way including

knowledge about the semantics of the languages be-

hind. This fact poses a main limitation of the pro-

posed method. Furthermore, more complex software

control code will result in more complex AST mod-

els which could hardly be handled by humans, also

because of the possibility of a differing structure of

the models. Therefore, tool support is needed to sup-

port human inspection in the veriﬁcation and valida-

tion task.

Limitations of the approach includes semantic

meaning of AST models, derived from software con-

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

408

trol code and the complexity of result AST represen-

tations which require tool support for searching, ﬁl-

tering, and similarity detection. Further limitations

focus on the evaluation where we present some pre-

liminary investigations on in a small use case by using

small code snippets. In the context of this position pa-

per, the further investigation remains for future work.

Therefore, as future work, we plan to investigate

in more detail the beneﬁts and limitations of the pro-

posed approach, including automated tool support.

Furthermore, we plan to address such a semantic com-

parison of corresponding ASTs. Finally, we will focus

on considering languages of other robot vendors such

as ABB or FANUC.

ACKNOWLEDGEMENTS

The ﬁnancial support by the Christian Doppler Re-

search Association, the Austrian Federal Ministry for

Digital and Economic Affairs and the National Foun-

dation for Research, Technology and Development is

gratefully acknowledged. The research done by Petr

Nov

ak has been supported by the DAMiAS project

funded by the Technology Agency of the Czech Re-

public.

REFERENCES

Atzeni, M. and Atzori, M. (2017). Codeontology: Rdf-

ization of source code. In International Semantic Web

Conference, pages 20–28. Springer.

Aurum, A., Petersson, H., and Wohlin, C. (2002). State-of-

the-art: software inspections after 25 years. Software

Testing, Veriﬁcation and Reliability, 12(3):133–154.

Bifﬂ, S., L

uder, A., and Winkler, D. (2016). Multi-

Disciplinary Engineering for Industrie 4.0: Semantic

Challenges and Needs, pages 17–51.

Brandes, U., Eiglsperger, M., Herman, I., Himsolt, M.,

and Marshall, M. S. (2001). Graphml progress report

structural layer proposal. In International Symposium

on Graph Drawing, pages 501–512. Springer.

Chan, K. and Spedding, T. (2003). An integrated mul-

tidimensional process improvement methodology for

manufacturing systems. Computers & Industrial En-

gineering, 44(4):673 – 693.

Collins, K. (2007). PLC programming for industrial au-

tomation. Exposure.

Drath, R., Luder, A., Peschke, J., and Hundt, L. (2008).

Automationml-the glue for seamless automation engi-

neering. In ETFA 2008., pages 616–623. IEEE.

Grimmer, A., Angerer, F., Prahofer, H., and Grun-

bacher, P. (2016). Supporting program analysis for

non-mainstream languages: Experiences and lessons

learned. In 2016 IEEE 23rd Int. Conf. on Software

Analysis, Evolution, and Reengineering (SANER),

pages 460–469. IEEE.

ISO 29119 (2013). INTERNATIONAL STANDARD ISO

/ IEC / IEEE Software and systems engineering —

Software testing — Part 2: Test processes.

Jones, J. (2003). Abstract syntax tree implementation id-

ioms. In Proceedings of the 10th conference on pat-

tern languages of programs (plop2003), pages 1–10.

Kim, B. C., Teijgeler, H., Munc, D., and Han, S. (2011). In-

tegration of distributed plant lifecycle data using ISO

15926 and Web services. Annals of Nuclear Energy,

38:2309–2318.

uder, A., Schmidt, N., Hell, K., R

opke, H., and Zawisza, J.

(2017). Identiﬁcation of Artifacts in Life Cycle Phases

of CPPS, pages 139–167. Springer International Pub-

lishing, Cham.

Moser, T., Mordinyi, R., and Winkler, D. (2012). Ex-

tending mechatronic objects for automation systems

engineering in heterogeneous engineering environ-

ments. In Emerging Technologies & Factory Automa-

tion (ETFA), 2012 IEEE 17th Conf. on, pages 1–8.

IEEE.

OMG (2011). Architecture-driven Modernization : Ab-

stract Syntax Tree Metamodel. [Online; 2018-11-12].

Parr, T. J. and Quong, R. W. (1995). Antlr: A predicated-ll

(k) parser generator. Software: Practice and Experi-

ence, 25(7):789–810.

Schafer, W. and Wehrheim, H. (2007). The challenges of

building advanced mechatronic systems. In Future of

Software Engineering (FOSE ’07), pages 72–84.

Steinberg, D., Budinsky, F., Merks, E., and Paternostro, M.

(2008). EMF: eclipse modeling framework. Pearson.

Unver, H. O. (2012). An isa-95-based manufacturing intel-

ligence system in support of lean initiatives. The In-

ternational Journal of Advanced Manufacturing Tech-

nology, pages 1–14.

Wasson, C. S. (2015). System engineering analysis, design,

and development: Concepts, principles, and prac-

tices. John Wiley & Sons.

Winkler, D., Sabou, M., and Bifﬂ, S. (2017). Improving

quality assurance in multidisciplinary engineering en-

vironments with semantic technologies. In Kounis,

L. D., editor, Quality Control and Assurance, chap-

ter 8. IntechOpen, Rijeka.

Yau, S. S., Nicholl, R. A., Tsai, J.-P., and Liu, S.-S. (1988).

An integrated life-cycle model for software mainte-

nance. IEEE Transactions on Software Engineering,

14(8):1128–1144.

Towards Model-driven Veriﬁcation of Robot Control Code using Abstract Syntax Trees in Production Systems Engineering

409
