Towards Privacy-aware Software Reuse

Iris Reinhartz-Berger

, Anna Zamansky

and Agnes Koschmider

Department of Information Systems, University of Haifa, Haifa, Israel

Institute AIFB, Karlsruhe Institute of Technology, Karlsruhe, Germany

Keywords: Reuse, Privacy, Variability Analysis, Compliance.

Abstract: As software becomes more complex, reusing and integrating artifacts from existing projects that may be taken

from open or organization-proprietary repositories is becoming an increasingly important practice. This

practice requires an in-depth understanding of the projects to be reused and particularly their common and

variable features and their non-functional requirements. Different approaches have been suggested to analyze

similarity and variability of different kinds of artifacts (mainly, requirements and code), e.g., clone detection

and feature mining. These approaches, however, mainly address functional aspects of the software artifacts,

while mostly neglecting aspects dictated by non-functional requirements. The recent progress with the

General Data Protection Regulation (GDPR) highlights the importance of handling privacy concerns in

software development. However, existing approaches do not directly refer to privacy challenges in software

reuse. In this paper we propose integrating these two lines of research and introduce a privacy-aware software

reuse approach. Particularly, we suggest to extend VarMeR – Variability Mechanisms Recommender – which

analyzes software similarity based on exhibited behaviors and recommends on polymorphism-inspired reuse

mechanisms, with privacy awareness considerations. These considerations are reflected in “privacy levels” of

the reused artifacts.

1 INTRODUCTION

Software reuse has the potential to increase

productivity, reduce costs and time-to-market and

improve software quality (Lim, 1994). Applying this

practice requires an in-depth understanding of the

projects to be reused and particularly their common

and variable features – functions and qualities.

Different approaches have been suggested to analyze

similarity and variability of different kinds of

artifacts. Clone detection approaches, for example,

propose textual, lexical, metric, tree/graph, and other

comparisons, for detecting segments (primarily of

code) that are similar according to some definition of

similarity (Rattan et al. 2013). Feature mining

includes detection – extraction of relevant

information from the input artifacts and analysis – use

of the information to infer, design and organize

partitions that cluster the functional features of the

input artifacts (Assunção et al., 2017). The artifacts

are mainly requirements and code.

In previous work a high-level approach was

suggested for analyzing reuse opportunities based on

behaviors rather than specific implementations

(Zamansky and Reinhartz-Berger, 2017). The

approach, named VarMeR – Variability Mechanisms

Recommender – has been developed for analyzing

and visualizing similarity relationships across

software products, which potentially may form

product lines (Reinhartz-Berger and Zamansky,

2018). It is based on an ontological framework of

software behavior (Reinhartz-Berger et al., 2015) and

introduces three polymorphism-inspired mechanisms

(parametric, subtyping, and overloading). The

analysis outcomes are visualized as graphs whose

nodes are the products (or parts of them) and the

edges represent the potential appropriateness of

applying the different polymorphism-inspired

mechanisms.

The aforementioned approaches, including

VarMeR, mainly address functionality, while mostly

neglecting aspects dictated by non-functional

requirements. Particularly, privacy concerns are not

explicitly considered when recommending on reuse

opportunities. The General Data Protection

Regulation (GDPR), in application since May 25th

2018, imposes organizations to consider privacy

throughout the complete development process. Due to

448

Reinhartz-Berger, I., Zamansky, A. and Koschmider, A.

Towards Privacy-aware Software Reuse.

DOI: 10.5220/0007566204480453

In Proceedings of the 7th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2019), pages 448-453

ISBN: 978-989-758-358-2

the increasing attention that privacy compliance has

been receiving, through GDPR, this position paper

suggests making software reuse explicitly aware of

privacy compliance. More concretely, we suggest to

extend VarMeR with analyses that are based on

privacy considerations that reflect the “privacy

levels” of the components recommended for reuse.

The rest of this paper is organized as follows.

Section 2 reviews the relevant literature on privacy

metadata (patterns and metamodels), while Section 3

briefly reviews VarMeR. Section 4 elaborates on the

main contribution – a suggestion for privacy-aware

software reuse. Finally, Section 5 summarizes and

refers to the future work.

2 PRIVACY - PATTERNS AND

METAMODELS

Privacy-by-design (Cavoukian, 2011) refers to the

simple idea of embedding privacy within the design

of a new technological system, rather than trying to fix

problems afterwards, when often it is too late. To

support privacy-by-design, Hoepman (2014)

introduced eight privacy design patterns: minimize,

hide, separate, aggregate, inform, control, enforce, and

demonstrate. These patterns provide an

implementation of the legal notion of data protection,

bridging the gap between data protection requirements

set out in law, and system development practice

(Danezis et al., 2015). For instance, the most basic

privacy design strategy is data minimization, which

states that the amount of personal information that is

processed should be minimal (Gürses et al., 2011). The

realization of each privacy design pattern, however,

requires using different privacy techniques, which

challenges the fulfilment of the legal notion of data

protection. For instance, privacy impact assessment

approaches support realizing the minimize design

pattern. Anonymization techniques are recommended

to realize the aggregate design pattern, which states

that personal information should be processed at the

highest level of aggregation and with the least

possible detail in which it remains useful. These eight

privacy design patterns are compliant with the GDPR

and can be considered as requirements for the design

of privacy-by-design systems.

Privacy Level Agreements (PLAs) aim to

standardize the way cloud providers describe their

data protection practices. They are considered as a

way to implement GDPR. D’Errico and Pearson

(2015) suggest an ontology-based model for

representing the information disclosed in PLAs in

order to support different automatic analyses, such as

service offering discovery and comparison.

Diamantopoulou et al. (2017) presented a GDPR-

based metamodel for PLAs to support privacy

management, based on analysis of privacy threats,

vulnerabilities and trust relationships in information

systems, whilst complying with laws and regulations.

While most of the literature consider privacy on a

technological level, some works refer to the

organizational level. For instance, Feltus et al. (2017)

introduced a privacy metamodel and discuss and

demonstrate how the metamodel may support

management of the privacy in enterprises involved in

interconnected societies, by integrating the privacy

metamodel with the systemic business ecosystem.

Further related work on the organizational level can

be found in Tom et al. (2018) where a GDPR model

is introduced aiming to provide a simple, visual

overview to aid process implementers in

understanding the associations between different

entities in the GDPR. The model is positioned as part

of a larger approach for developing organizational

privacy policies and extracting compliance rules.

All these approaches generally refer to “privacy

awareness” while developing software. We suggest

specifically percolating privacy concerns when

making reuse decisions. Although such an approach

can be applied on different reuse methods, we decided

to apply it first to VarMeR, which goes beyond clone

detection and feature mining, and actually

recommends on reuse opportunities through three

polymorphism-inspired reuse mechanisms.

3 VarMeR

VarMer (Reinhartz-Berger et al., 2015; Zamansky

and Reinhartz-Berger, 2017; Reinhartz-Berger and

Zamansky, 2018) follows a three step process,

depicted in Figure 1. In the first step, the exhibited

behaviors are extracted from the input artifacts (e.g.,

object-oriented code), each of which may belong to a

different software product (P

...P

). A behavior is

represented via two descriptors: shallow – which

refers to the interface of the behavior, including its

name, the parameters passed, and the returned type,

and deep – which refers to the transformation done by

the behavior to the state variables, manifested by the

attributes used and the attribute modified.

In the second step, the extracted behaviors are

compared using a similarity measure (e.g., based on

semantic nets or statistical techniques (Mihalcea et

al., 2006)). This way a similarity mapping between

the behavior constituents (namely, parameters and

Towards Privacy-aware Software Reuse

449

returned type for the shallow descriptor and attribute

used and attribute modified for the deep descriptor) is

applied. Three cases are of interest:

1. USE – the similarity mapping is bijection (each

constituent of behavior 1 has exactly one

counterpart in behavior 2 and vice versa).

2. REF (abbreviation for refinement) – at least one

constituent in behavior 1 has more than one

counterpart in behavior 2.

3. EXT (abbreviation for extension) – at least one

constituent in behavior 1 has no counterpart in

behavior 2.

Based on the comparison results, the following

polymorphism-inspired mechanisms can be

recommended in the third step (see Table 1):

1. Parametric polymorphism for similar behaviors

in terms of both shallow and deep descriptors.

2. Subtyping (inclusion) polymorphism for similar

behaviors in terms of shallow descriptors and

refined or extended behaviors in terms of deep

descriptors.

3. Overloading for similar behaviors in terms of

shallow descriptors and different behaviors in

terms of deep descriptors.

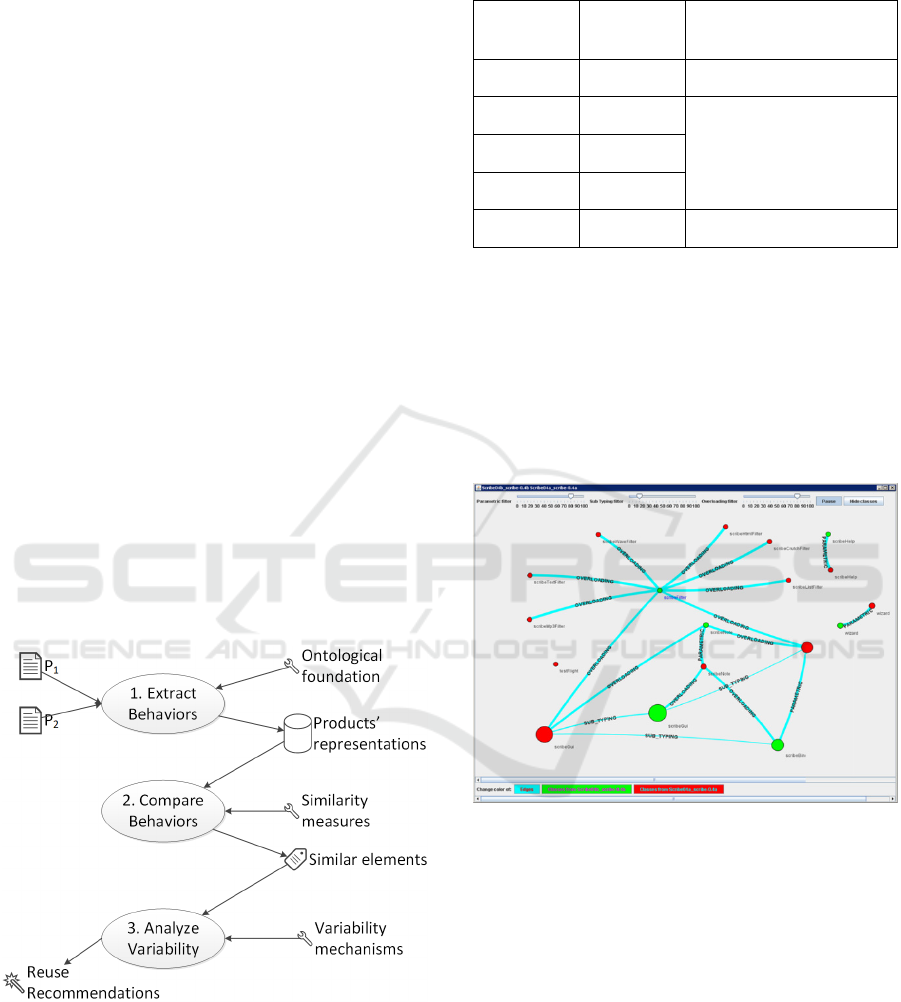

Figure 1: VarMeR process.

Table 1: Characteristics of Polymorphism-Inspired

Mechanisms.

Shallow Deep

Polymorphism-Inspired

mechanism

USE USE Parametric

USE REF Subtyping

USE EXT

USE REF+EXT

USE None Overloading

The outcomes of VarMeR are visualized as

graphs whose nodes are the products (or parts of

them) and the edges represent the potential

appropriateness of applying the different

polymorphism-inspired mechanisms. Each product is

visualized in a unique color. An example of VarMeR

outcomes is shown in Figure 2. The components of

two products (depicted in red and green) are

compared.

Figure 2: A snapshot of VarMeR comparing two products.

One important application of the VarMeR

approach, described in (Reinhartz-Berger and

Zamansky, 2018), is for supporting decisions

concerning turning a set of potentially similar

products into a product line, or in other words

measuring product-line ability of a set of products

(Berger et al., 2014). The idea is to consider various

subgraphs of VarMeR as potential core assets,

namely, reusable artifacts that can be used by

different products in the line. This is done analyzing

different characteristics: the number of products in

the potential core assets (i.e., the number of colors in

the sub-graph), and the number of parametric,

overloading and subtyping relations.

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

450

After setting the minimal number of products in a

core asset to m, we define the m-color behavioral

similarity degree of a sub-graph G’=(V’, E’) that is

composed of at least m colors as a triplet (PS, SS,

OS), where:

PS =





()

is the parametric similarity degree,

SS =







()

is the sub-typing similarity degree,

OS =







()

is the overloading similarity degree,

G’

, S

G’

, O

G’

are the numbers of parametric,

subtyping and overloading edges in G’, respectively,

k=|V’| is the number of nodes in the sub-graph.

The 3-color behavioral similarity degree of the

sub-graph G

in Figure 3 is (1, 0, 0), indicating on a

3-colored “maximally parametric” asset. For G

the

behavioral similarity degree is lower, (0.33, 0, 0.67),

indicating on a “less parametric” and “more

overloading” 2-colored asset.

Figure 3: Example of product-line ability metrics.

4 PRIVACY AWARENESS

The main idea behind our suggested approach is

preferring reuse of components that are more

complaint with privacy regulations. To this end, we

suggest refining the process described in Figure 1 as

shown in Figure 4.

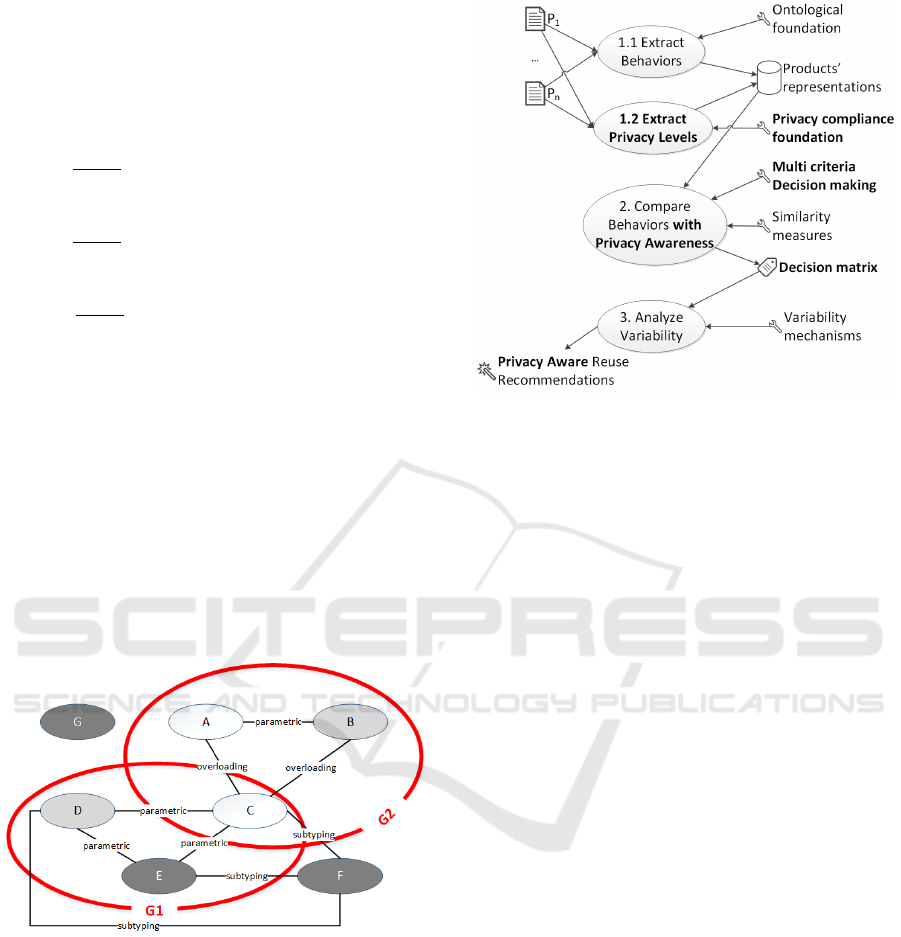

Figure 4: Privacy-aware VarMeR process.

We first introduce the notion of privacy levels into

the context of software reuse. Privacy level of a

software component (class, operation, project, etc.) is

metadata concerning the privacy compliance of this

component. The documentation of privacy levels may

be done manually, semi-automatically, or

automatically (if appropriate tools are developed),

and may follow any privacy compliance foundation

(such as the design patterns and metamodels reviewed

in Section 2).

We can then extend the VarMeR approach to

address the information on privacy levels in the

following way (see step 1.2 in Figure 4). Each node

in VarMeR will exhibit privacy metadata – a vector

of elements of the form p:x, where p is some privacy

compliance principle, pattern, meta-element, or

requirement, and x is its value for the certain node. x

may be Boolean indicating whether the principle

holds or not. Alternatively, it may be of some other

well-ordered (and so comparable) type, indicating the

degree of compliance. In the context of the eight

privacy design patterns (Hoepman, 2014), the vector

can look as follows: <minimize: true, hide: true,

separate: false, aggregate: false, inform: true, control:

true, enforce: true, demonstrate: true> (see Figure 5).

The challenge now is combining the information

on privacy levels with existing analysis of VarMeR

on behavioral similarity, leading to useful metrics that

can guide reuse decisions (product-line ability in our

case). Intuitively, we would like to be able to identify

those subgraphs which represent similar enough

elements, but also have high enough privacy levels.

When focusing on behavioral considerations of

similarity, an intuitive ordering is imposed on the

similarity degrees: the more parametric the subgraph

Towards Privacy-aware Software Reuse

451

is, the more similarity it contains. However, with

privacy levels involved, the ordering is not so trivial.

This requires more sophisticated methods for

weighing the different alternatives and choosing the

most appropriate ones.

Figure 5: VarMeR equipped with privacy metadata.

One particularly relevant approach here is multi-

criteria decision making (MCDM) (Velasquez and

Hester, 2013), which allows to explicitly weigh and

evaluate multiple non-comparable criteria in decision

making. A typical outcome of MCDM is a decision

matrix shown in Figure 6. The matrix is constructed

after given m different alternatives that should be

judged against n chosen criteria. The cell xij in the

matrix holds the evaluation given to alternative i with

respect to criterion j, and is usually computed

according to a weight assigned to each criterion.

Figure 6: The structure of a multi-criteria decision matrix.

In the context of our problem, the above approach

can be applied as follows (see step 2 in Figure 4). The

alternatives A

,…,A

are the different sub-graphs

which can potentially form core assets in a product

line. The criteria they are judged against can be

related to behavioral parameters (e.g., PS, OS, SS as

defined above), as well as criteria reflecting privacy

levels. Just to give a simple concrete example,

consider Figure 7 which adds privacy levels on top of

Figure 3. Assume p1, p2, p3 are three privacy design

patterns, e.g., minimize, aggregate, and hide,

respectively. + indicates following the pattern and –

indicates violating it.

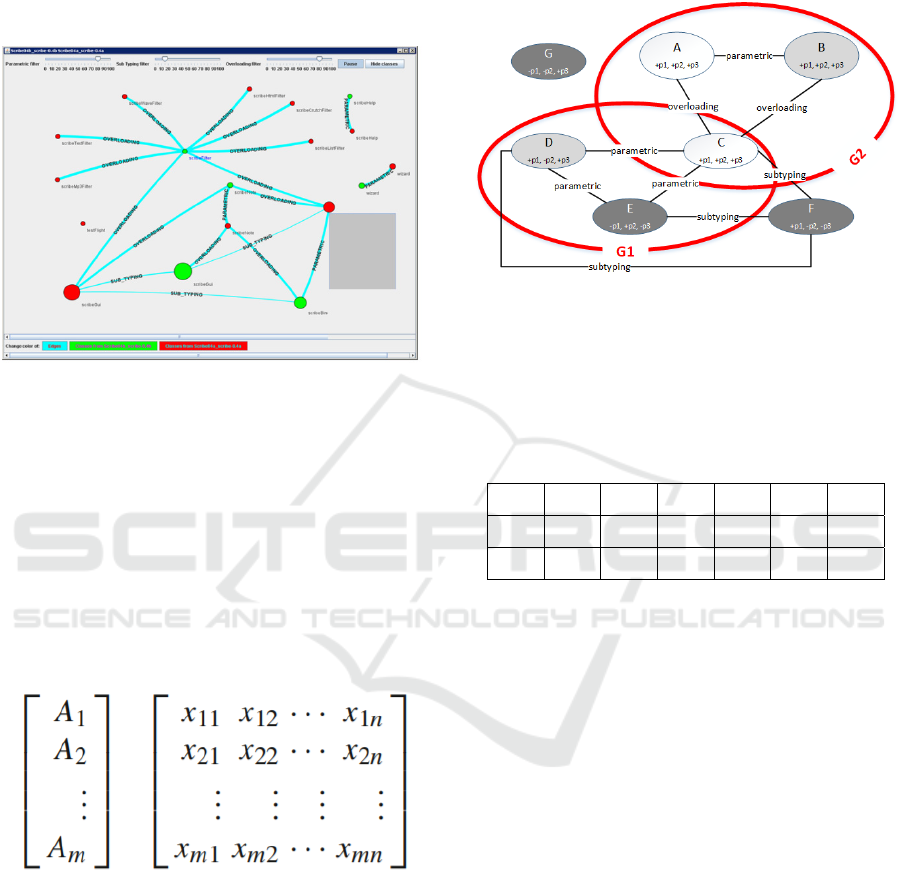

Figure 7: Example of privacy levels.

Suppose that the privacy level of the sub-graph is

computed by applying a logical AND operation on all

of its nodes. Then the decision matrix in Table 2 is

obtained.

Table 2: Example of a multi-criteria decision matrix.

PS SS OS P1 P2 P3

G1 1 0 0 0 0 0

G2 0 0.33 0.67 1 1 1

We can see that while on the behavioral level G1

is rated higher than G2, taking privacy considerations

into account changes the picture. This simple

example demonstrates how reuse decisions may be

affected by privacy considerations and justify the

need for the privacy-aware software reuse suggested

and demonstrated in this paper.

5 SUMMARY AND FUTURE

WORK

The research fields of software reuse and of privacy

have so far been going in orthogonal directions. In

this position paper we have proposed a concrete

framework for combining the two fields of research.

This combination is of increasing importance due to

the continuous GDPR efforts, which bring about

dramatic changes in the way software will be

developed in organizations, while at the same time,

software reuse practices are increasing both from

organization-proprietary repositories, and from open

source repositories, where the tracking of privacy

meta-data is even more challenging.

 Minimize

 Hide

 Separate:

 Aggregate:

 Inform

 Control

 Enforce

 Demonstrate

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

452

The idea behind the proposed framework is to

integrate reuse decisions made on the basis of

VarMeR’s behavioral analysis of software artifacts

with privacy considerations. More concretely, we

demonstrated how taking privacy considerations

explicitly into account can affect product-line ability

decisions. This raises several interesting challenges

for future research. First of all, we proposed the

notion of privacy level meta-data – what it should

include, and how it should be represented is a

challenging question, in light of the fact that more and

more privacy design patterns for software developers

are emerging. We intentionally left the notion of

privacy levels in this paper very abstract to open the

door for discussions on the nature of this metadata.

Secondly, we envision the extension of VarMeR

approach to the setting of software search and

integration decisions, where again privacy

considerations can be an important factor. To this

end, a query language is needed to support querying

a repository of software components and

recommending on the most suitable ones in terms of

behavioral similarity and privacy considerations.

To summarize, our goal here was to bring to

attention the fact that privacy considerations matter

for reuse decisions, and reuse decisions affect privacy

compliance. This circle deserves further discussion,

which will hopefully be started by this position paper.

REFERENCES

Assunção, W. K., Lopez-Herrejon, R. E., Linsbauer, L.,

Vergilio, S. R., & Egyed, A. (2017). Reengineering

legacy applications into software product lines: a

systematic mapping. Empirical Software Engineering,

22(6), 2972-3016.

Berger, C., Rendel, H. and Rumpe, B. (2014). Measuring

the Ability to Form a Product Line from Existing

Products. Proceedings of the Fourth International

Workshop on Variability Modelling of Software-

intensive Systems (VaMoS).

Cavoukian, A. (2011). Privacy by design in law, policy and

practice. A white paper for regulators, decision-makers

and policy-makers.

Danezis, G., Domingo-Ferrer, J., Hansen, M., Hoepman, J-

M., Le Métayer, D., Tirtea, R., Schiffner, S. (2015).

Privacy and Data Protection by Design - from policy to

engineering. CoRR, abs/1501.03726, arXiv.org/

D’Errico, M., & Pearson, S. (2015, March). Towards a

formalised representation for the technical enforcement

of privacy level agreements. In 2015 IEEE

International Conference on Cloud Engineering (IC2E)

(pp. 422-427). IEEE.

Diamantopoulou, V., Angelopoulos, K., Pavlidis, M., &

Mouratidis, H. (2017). A Metamodel for GDPR-based

Privacy Level Agreements. In ER Forum/Demos (pp.

285-291).

Feltus, C., Grandry, E., Kupper, T., & Colin, J. N. (2017).

Model-driven Approach for Privacy Management in

Business Ecosystem. In MODELSWARD (pp. 392-

400).

Gürses, S., Troncoso, C. & Diaz, C. (2011). Engineering

privacy by design. In Conference on Computers,

Privacy & Data Protection (CPDP 2011).

Hoepman, J. H. (2014, June). Privacy design strategies. In

IFIP International Information Security Conference

(pp. 446-459). Springer, Berlin, Heidelberg.

Lim, W. C. (1994). Effects of reuse on quality, productivity,

and economics. IEEE software, (5), 23-30.

Mihalcea, R., Corley, C., and Strapparava, C. (2006).

Corpus-based and knowledge-based measures of text

semantic similarity. American Association for Artificial

Intelligence (AAAI’06), pp. 775-780.

Rattan, D., Bhatia, R., and Singh, M. (2013). Software

clone detection: A systematic review. Information and

Software Technology, 55(7), 1165-1199.

Reinhartz-Berger, I., Zamansky, A., & Kemelman, M.

(2015). Analyzing variability of cloned artifacts: formal

framework and its application to requirements. In

International Conference on Enterprise, Business-

Process and Information Systems Modeling (pp. 311-

325). Springer, Cham.

Reinhartz-Berger, I., & Zamansky, A. (2018). A Behavior-

Based Framework for Assessing Product Line-Ability.

In International Conference on Advanced Information

Systems Engineering (pp. 571-586). Springer, Cham.

Tom, J., Sing, E., & Matulevičius, R. (2018, September).

Conceptual Representation of the GDPR: Model and

Application Directions. In International Conference on

Business Informatics Research (pp. 18-28). Springer,

Cham.

Velasquez, M., & Hester, P. T. (2013). An analysis of multi-

criteria decision making methods. International

Journal of Operations Research, 10(2), 56-66.

Zamansky, A., & Reinhartz-Berger, I. (2017). Visualizing

Code Variabilities for Supporting Reuse Decisions. In

Symposium on Conceptual Modelling Education (pp.

25-34).

Towards Privacy-aware Software Reuse

453
