Extracting Primary Objects and Spatial Relations from Sentences

Neha Baranwal, Avinash Kumar Singh and Suna Bensch

Department of Computing Science, Umeå University, Umeå, Sweden

Keywords: Natural Language Grounding, Spatial Relation Extraction, Hobb’s Algorithm, Human-robot Interaction,

NLTK, Google Speech, Stanford Parser.

Abstract: In verbal human-robot interaction natural language utterances have to be grounded in visual scenes by the

robot. Visual language grounding is a challenging task that includes identifying a primary object among

several objects, together with the object properties and spatial relations among the objects. In this paper we

focus on extracting this information from sentences only. We propose two language modelling techniques,

one uses regular expressions and the other one utilizes Euclidian distance. We compare these two proposed

techniques with two other techniques that utilize tree structures, namely an extended Hobb’s algorithm and

an algorithm that utilizes a Stanford parse tree. A comparative analysis between all language modelling

techniques shows that our proposed two approaches require less computational time than the tree-based

approaches. All approaches perform good identifying the primary object and its property, but for spatial

relation extraction the Stanford parse tree algorithm performs better than the other language modelling

techniques. Time elapsed for the Stanford parse tree algorithm is higher than for the other techniques.

1 INTRODUCTION

If robots are to work with and for humans in everyday

life, they have to be equipped with advanced language

and verbal communication capabilities which visual

language grounding is a crucial part of.

Visual language grounding is mapping verbal

utterances to visual scenes and includes an analysis of

the verbal utterance that involves identifying a

primary object among several objects, identifying the

properties of objects and their spatial relations.

Additional difficulties are that every human has

their own demands on communication and their own

ways of speaking. For example, a specific request or

command can be verbalized and uttered in many

different ways by different persons. To handle this

problem, it is required that the coordination between

human and robot is very effective and the interaction

quality is high (Dautenhahn, 2007), (Bensch et al.,

2017), (Baranwal, 2017). For example, to understand

a command like “Give me the red cup left of the

book”, a robot must be able to identify the primary

object and its property (i.e. “red cup”) as well as the

other object in the command (i.e. “book”) and the

spatial relation between these two objects (i.e. “left

of”). In this paper we propose two language

modelling techniques, one is computational

modelling based on regular expressions and another

one is Euclidian distance based. In the first technique,

the extraction algorithm is created with the help of

regular expressions and a flat tree structure using

NLTK (Bird and Loper, 2004) is generated, while the

technique based on Euclidian distance is used for

relation extraction between words and the

identification of the primary object together with its

property (PPO) is done with the help of rules applied

after pos tagging.

These two proposed language modelling

techniques are further compared with tree-structure

based algorithms. We have considered four cases of

sentences as follows:

1. Sentences containing a single object such as

“Give me the red cup”.

2. Sentences containing two objects and one spatial

relation in between these two objects such as

“Pick up a book which is left of the yellow bottle”.

3. Sentences containing multiple objects and

multiple spatial relations, where we distinguish

the following cases:

3.1 Each object contains at least one spatial relation

such as in “Give me a cup which is left of book on

the table”.

3.2 One object contains more than one spatial relation

252

Baranwal, N., Singh, A. and Bensch, S.

Extracting Primary Objects and Spatial Relations from Sentences.

DOI: 10.5220/0007570002520259

In Proceedings of the 11th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2019), pages 252-259

ISBN: 978-989-758-350-6

such as in “Pick up an orange which is behind the

book and right of red cup”.

For all techniques Google speech is used for speech-

to-text conversion. We have solved all the four test

cases in this paper and achieved 98% accuracy for

PPO for all techniques, but the tree structure and

Euclidean distance based algorithm perform better for

subject object relation extraction. The overall

architecture is illustrated in Figure 1.

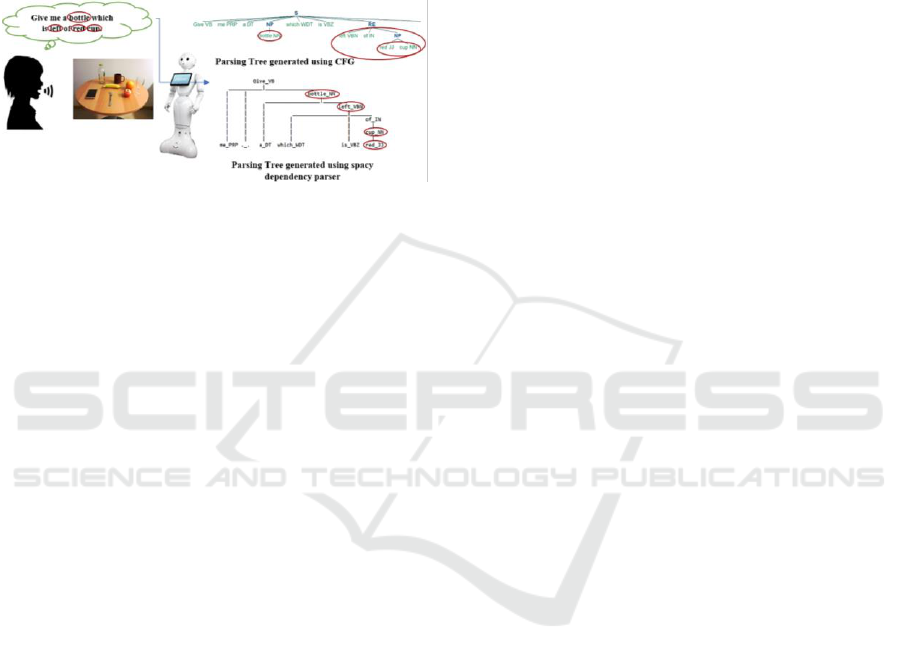

Figure 1: Illustration of the proposed overall architecture.

Verbal utterances given by the human are analysed with our

proposed language modelling techniques for further

mapping to visual scenes.

The structure of the paper is as follows: Section 2

gives a literature overview of previous work on

relation extraction and language grounding. In

Section 3, all the four language modelling techniques

are explained. Experimental results and analysis are

discussed in Sections 4 and 5. In Section 6, the paper

is concluded towards different language modelling

techniques.

2 BACKGROUND

Most of the work has been done on name entity-based

relation extraction or on language grounding. Golland

et al., (2010) proposed a game theoretic model for

language grounding where they tried to identify the

spatial relation between objects. It is a “speak and

tell” approach where a speaker generates an utterance

containing an actual object and the listener tries to

guess the object. If both objects are equal, then it is a

success otherwise fail. They have evaluated their

experiment with some constraints and achieve 78%

accuracy. These constraints have been released in

paper (Guadarrama et al., 2013) by using a

probabilistic approach, in which a primary object and

their spatial relationship with other objects is

extracted from a visual scene. This information is

combined with semantic parsing of sentences using

template matching and a probabilistic approach. They

achieve an accuracy about 84%. Olszewska (2017)

built human/robot dialogues based on semantically

meaningful instructions like the directional spatial

relations represented by the clock model. Explainable

AI is used for language grounding (Hendricks et al.,

2018). In this method features extracted from visual

and language module are provided to LSTM and

apply 2-layer neural network to obtained the final

score of grounding. In papers (Alomari et al., 2017;

Alomari et al., 2016) grounding is performed using a

robot control language (RCL) tree where visual

learning is done with the help of color, shape and

location feature obtained from an object. Direction

and distance between pair of objects is extracted as a

relation feature and finally the action performed by

the robot is extracted from the video clip. These

features are clustered based on their category and

mapped with words using RCL tree. Preprocessing

and word extraction from sentences is done using

NLTK toolkit (Bird and Loper, 2004). In name entity-

based approach they tried to extract the relation

between person and organization, organization and

city etc. Open relation extraction approach is

proposed by (Banko and Etzioni, 2008; Banko et al.,

2007) where lexico-syntactic patterns is used to build

a relation independent model. Conditional random

field (CRF) is used for classifying a relational token.

Very less work is done on primary entity and their

relation extraction with other objects with respect to

our day to day life objects like knife, mango, bottle

etc. In this paper we are proposing and analyzing

different language modelling techniques extracting

above mentioned components from sentences. This

work will be extended to ground primary objects and

their relations in visual scenes, paving the way for

effective human-robot interaction where the human

commands the robot that specifically acts as helper in

our daily life.

3 LANGUAGE MODELLING

TECHNIQUES

The proposed language modelling techniques consist

of two modules, namely speech-to-text conversion

(explained in Section 3.1 below) and the algorithmic

part of language modelling (explained in Sections 3.2,

3.3, 3.4, 3.5 below). The algorithmic part of language

modelling uses regular expressions, Euclidian

distance, an extended Hobb’s algorithm based on

dependency parses and Stanford phrase structure

parses. All four techniques have few common steps

such as word tokenization, preprocessing, pos tagging

and chunking but they differ in the extraction part.

Extracting Primary Objects and Spatial Relations from Sentences

253

3.1 Speech-to-Text-Conversion

Google speech engine (Honnibal, 2016; Google LLC,

2014) is used to record natural language instructions

by a human to a Pepper robot. The speech signals are

recorded at 16000 Hz frequency using the pyaudio

function. The FLAC encoding is used for lossless

conversion. All the utterances are recorded in a closed

environment where speech-to-text conversion errors

are negligible.

3.2 Language Modelling using Regular

Expressions

The initial steps are word tokenization, pos tagging

and chunking using the NLTK toolkit. To achieve the

goal of PPO and spatial relation extraction, we design

regular expression that are used to build syntactic

subtrees. In Table 1, the left column contains labels

of syntactic categories and the right column contains

the regular expressions. We use Table 1 to build

syntactic subtrees where the categories in the left

column are the labels of the roots of the subtrees and

the categories in the right column are the labels of the

children. The category NP stands for noun phrase or

adjective with noun, VP stands for verb phrase and

RE/REL stands for Spatial/Positional Phrase. The

input to our algorithm is a string s of the following

form: w

(tg

) w

(tg

) ... w

(tg

), where w

is a word

and tg

is its tag. For example, give(VB) me(PRP)

leftmost(JJS) red(JJ) apple(NN). We now scan the n

tags of s and try to find a tag tg

that occurs in a regular

expression in the right column of Table 1. For

example, given the sequence of tags VB PRP JJS JJ

NN, we see that JJ and NN occur in the regular

expression in the first row of Table 1. If a tag tg

occurs in a regular expression, we construct a subtree

st as follows: the category in the left column becomes

the root label of the subtree st, and w

(tg

) becomes its

child label. For example, given red(JJ) apple(NN),

the root of the subtree st is labelled by NP and its

children are labelled red(JJ) and bottle(NN).

Then, using NLTK a flat tree t is constructed,

where the root node is labelled by S and its direct

children are labelled by the words and tags in the

input string s and the root label of subtree st (which

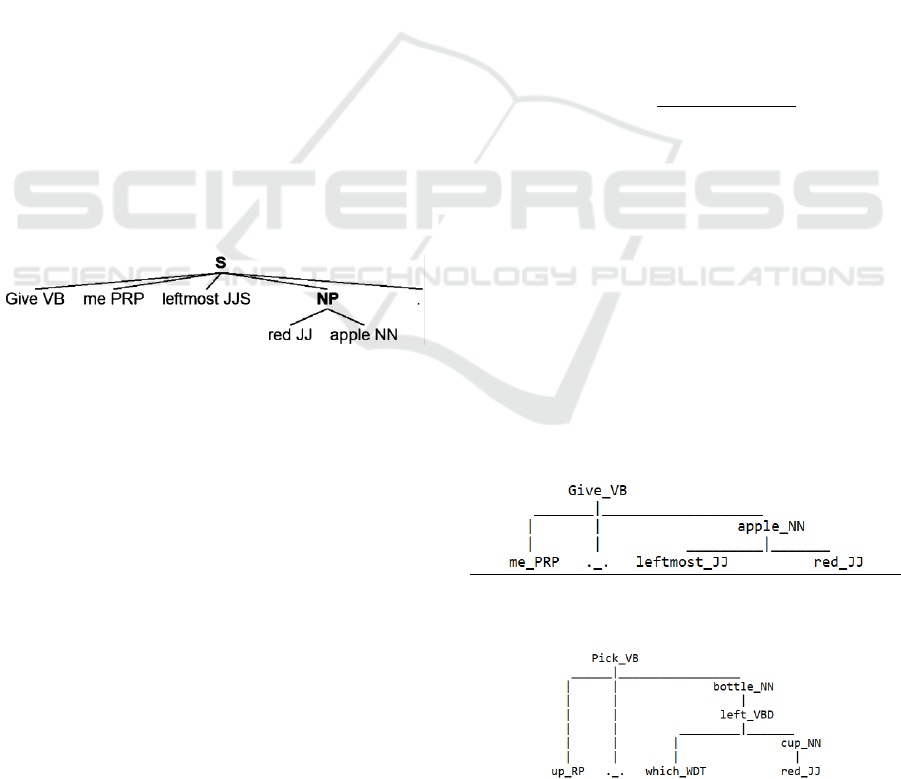

has children as explained above). A pictorial example

is given in Figure 2.

Once the tree t is constructed, we start traversing

tree t in breath first manner for PPO and spatial

relation extraction.

Input: Input to the algorithm is a tree t (such as the

one given in Figure 1 and 2).

Table 1: Syntactic categories and regular expressions for

building syntactic subtrees. As usual, the symbol * denotes

occurrence of any entity including zero, the symbol |

denotes alternative, and the symbol ? denotes possible

presence of an entity.

<JJ>?<NN>|<NN*>+

REL

<VP><IN|TO|RP>|<IN|TO><NP>|

<VP*><DT><NP>

<VB.*><NP| REL |CLAUSE>+$

CLAUSE

Table 2: This table contains all words expressing

spatial/positional information that are wrongly identified as

noun phrases in the syntactic trees of the algorithm in

Section 3.2.

Spatial/Positional Information

Left

Right

Among

Behind

Leftmost/ Extreme left

Rightmost/ Extreme Right

Middle/Center

In front of

Between

After

Within

Top

Bottom

Middle/Center Left

Middle/Center Right

1- Traverse tree t starting at the root node and

identify all nodes labelled with NP.

2- If there is one single NP node n in t:

2.1 Traverse the branches of the subtree rooted at NP

and identify all leaf nodes n

, n

, ..., n

. Let the

node n

labelled with NN be the primary object.

Let all other nodes n

, n

, ..., n

k-1

, that are labelled

with JJ be the properties of the primary object.

2.2 Traverse tree t starting at the root node and

identify the spatial or positional information

tagged with JJ or JJS given in Table 2.

3- If, in tree t, there are k NP nodes np

, np

, ..., np

k≥2, (as in Figure 3), then we store all labels of

their children w

JJ, w

NN, etc. in an NP-list [e

..., e

] as follows: all labels of all children of one

NP-node np

are one element e

in the NP-list. For

example, for two different NP nodes with children

ICAART 2019 - 11th International Conference on Agents and Artiﬁcial Intelligence

254

red(JJ) cup(NN) and blue(JJ) mug(NN),

respectively, we store as one element red(JJ)

cup(NN) and blue(JJ) mug(NN) as another

element in the NP-list.

Primary Object Identification:

3.1 Find all nodes n in the tree t labelled NP. Check

whether elements e

of the NP-list occur in Table

2 or not. If e

occurs in Table 2, remove e

from the

NP-list and store it in a relation list called R.

(Table 2 contains words that we want to eliminate

because these words are spatial relation words

which we do not want labelled NP).

3.2 After removing all e

as explained above, the NP-

list will contain the remaining words e

. From this

list choose the first e

and let it be primary object

associated with its property (if present).

Relation Extraction:

3.3 Traverse the tree t and find a node n

labelled RE

or REL. Let the subtree rooted at RE or REL be sr

(as given in Figure 3).

3.4 Traverse the subtree sr and find a node labelled

with NP. Let snp be the subtree rooted at NP. If

the leaf node in snp is not the primary object, then

let the spatial relation represented in sr be the

spatial relation of the object represented in the

subtree snp. Furthermore, the object and spatial

relation represented in sr are in relation to the

primary object in tree t.

Figure 2: Parse tree generated using regular expressions for

sentences having one single object.

3.3 String based Model using Euclidian

Distance

As above the NLTK toolkit is used for word

tokenization and POS tagging. This approach solves

all the test cases with a single algorithm discussed

below under relation extraction.

Input: Let the input be s, where s is of the form w

(tg

)

(tg

) ... w

(tg

), where w

is a word and tg

is a tag.

If Input s has only One Object (i.e. One NN Tag):

1- For w

(NN) in s, check if w

occurs in Table 2.

2- If w

occurs in Table 2, place w

into the relation

list R.

3- Else w

is considered as primary object.

4- Let w

(NN) be the primary object in input s. If w

(JJ), then w

i-1

is the property of w

5- Search the closest w

(VB) or w

(JJS) to w

6- If w

(VB) or w

(JJS) occur in Table 2, consider w

as the spatial relation to the primary object w

If Input s has Multiple Objects (i.e. NN Tags):

Primary Object Identification:

7- Step 1 and 2 are same for multiple objects.

8- If w

does not occur in Table 2, place w

into an

object list O and apply Step 4 for all w

9- If w

i-1

with tag JJ is not in Table 2, w

i-1

is the

property of the object w

and we store w

(JJ)w

(NN) in a list e as one element, e = [e

1…………

], with e

= w

JJ w

NN.

10- The first element of list e is the primary object

with its property.

Relation Extraction:

11- Search all verbs w

(tagged w

VB, w

VBD,

VBN, w

VBZ, w

VBG) in list e.

12- If w

is in Table 2, place it into the relation list R.

13- Find out the distance between the elements of the

relation list R and the object list e except the

primary element:

d(R, e)=

√

∑

(𝑅

𝑖

− 𝑁𝑁

𝑖

)

𝑛

𝑖=1

14- Select the minimum distance relation treated as a

relation of primary object with respect to another

object.

3.4 Dependency Parser based

Language Model (Reformulated

Hobb's Algorithm)

In this approach language modelling is done after

generating the parsing tree for a sentence. A parsing

tree is generated using Spacy dependency parser

(Spacy Inc.) (see Figures 3 and 4) where stop words

(e.g. is, am, are, the, was, were, of) are removed using

the NLTK toolkit.

Figure 3: Parse tree generated using Spacy dependency

parser for a sentence having a single object.

Figure 4: Parse tree generated using Spacy dependency

parser for a sentence having two objects.

Extracting Primary Objects and Spatial Relations from Sentences

255

The Spacy dependency parser is a syntactic parser

useful for sentence boundary detection. After parsing,

a reformulated Hobb’s algorithm is applied to extract

the primary object, its property and spatial relations.

In 1977, Hobbs (Hobbs, 1978; Lappin and Leass,

1994) proposed two pronominal anaphora resolution

algorithms, where one is syntax based and the other

one is semantic based. The syntax based approach is

applied in this paper which is redeveloped to extract

the primary object, its property and spatial relations

with other objects from a sentence. This algorithm

solves all the three cases simultaneously. The

reformulated Hobb’s algorithm is discussed below:

Input: Let t be an input dependency tree. All nodes

are labelled by labels of the form x_CAT, where x is

a word and CAT is a syntactic category (such as in

the example displayed in Figures 3 and 4).

1- Traverse the tree t in breath first manner (left-

right) and identify all words w

having tag NN (w

NN) and check whether w

occurs in Table 2. If

yes, store the word w

into relation list R, else

proceed.

2- If there is only one single node n labelled x_NN:

3.1 Let n be the primary node.

3.2 Traverse all the children of n from left to right

and identify all nodes n

labelled with x_JJ

(representing adjectives).

3.3 If x in label x_JJ occurs in Table 2, store x in R.

3.4 Else x is the property of the NN node.

3- If there is more than one node labelled NN:

Primary Object Identification:

3.1 Begin with the lowest x_NN node in t and

traverse all its branches and find all nodes

labelled x_JJ and x_V, where V = {VB, VBD,

VBN, VBZ, VBG}.

3.2 If x in label x_JJ or x_V occur in Table 2, store x

into R.

3.3 Else x in label x_JJ is the property of x in x_NN.

3.4 Again, go up the tree and repeat Steps 3.1, 3.2

and 3.3.

3.5 This process continues until we hit the node

labelled x_NN which is closest to the root. This

x in x_NN node is called primary element and x

in x_JJ is called its property.

Relation Extraction:

3.6 Begin with lowest x_NN node in t and go up the

tree and find x_V, V = {VB, VBD, VBN, VBZ,

VBG} or x_NN node.

3.7 If x in label x_NN or x_V occur in Table 2, then

denote x as spatial relation (R).

3.8 This spatial relation (R) is a relation between the

primary object and the object considered in Step

3.6

3.9 Repeat Step 3.6, 3.7 and 3.8 until the primary

object is identified.

3.5 Stanford Parse Tree based

Language Model

Input: Let t be an input parsing tree produced by the

phrase structure Stanford parser (Marneffe et al.,

2006). All inner nodes in t are labelled by tags and the

leaf nodes of t are labelled by words (such as in the

example displayed in Figures 5 and 6).

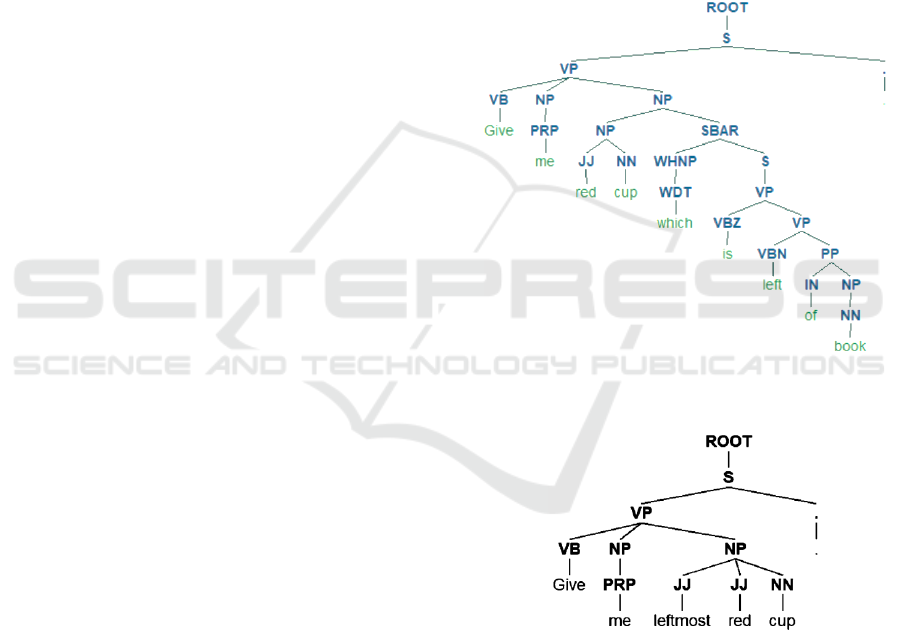

Figure 5: Parse tree generated using Stanford parser for a

sentence having two objects.

Figure 6: Parse tree generated using Stanford parser for a

sentence having a single object.

1- Begin with the root node and traverse all branches

of t in breath first manner and find all NP nodes.

2- If there is only one single NP node n:

2.1 Traverse the branches of the subtree rooted at NP

and identify adjectives (JJ) and the name of

objects (NN).

2.2 If the child x of JJ or NN occur in Table2 store x

into the spatial relation list R.

ICAART 2019 - 11th International Conference on Agents and Artiﬁcial Intelligence

256

2.3 Else child x of NN is the primary object and

child x of JJ its property.

3- If there is more than one node labelled NP:

Primary Object Identification:

3.1 Start with lowest NP node in t and traverse its

children. If there is an NN node, store it into the

object list O together with its property (if

present); the steps are same as in 2.1, 2.2 and 2.3.

3.2 Traverse up the tree and repeat Step 3.1.

3.3 The object list contains all the objects associated

with its property in last in first out manner.

3.4 The last object is called primary object.

Relation Extraction:

a) Sentence Having Two Objects:

3.5 Begin with lowest NP node in t, go up the tree t

and find the VP or PP node.

3.6 If there is a VP or PP node, traverse left children

below VP and PP node.

3.7 If the children are in Table 2, store them in the

relation list (R).

3.8 This spatial relation (R) is a relation between the

primary object and the last NP node discussed in

Step 3.5.

3.9 Go up the tree and repeat Steps 3.5, 3.6, 3.7 and

3.8.

b) Sentence Having More than Two Objects:

Case1: One Object Is Associated with One Spatial

Relation

3.10 Begin with lowest NP node in t, go up the tree

and find the VP, PP or NP node.

3.11 If VP, PP or NP node is present, traverse left

children.

3.12 If the children are in Table 2, store them in the

relation list (R).

3.13 This spatial relation (R) is a relation between the

primary object and the last NP node defined in

3.10.

3.14 Go up the tree and repeat Steps 3.10, 3.11, 3.12

and 3.13 until the primary object is identified.

Case 2: One Object has more than One Spatial

Relation

3.15 All the steps are same as Case 1 except Step

3.11.

3.16 Step 3.11 is replaced with traversing all the

children of VP, PP or NP nodes in breath first

manner.

4 EXPERIMENTAL SETUP

We have considered the COCO dataset (Tsung-Yi et

al., 2014) which contains objects eligible for a table

top environment. Experiments have been performed

on 200 sentences where 40 sentences had a single

object and 160 sentences had 2 or more than 2 objects.

10 subjects have been considered for dataset

collection. Primary object with their property and

relation was extracted manually for validation

purpose. We have also performed our experiment on

strands dataset (Alomari and Dukes, 2016). This is a

language grounding dataset having two parts one

containing images and other containing sentences

describing actions. We have considered 200

sentences from the language grounding dataset.

Parsing trees were generated using regular

expression with the NLTK toolkit, Spacy dependency

parser and Stanford parser, for all three categories of

sentences (single object, two objects with single

relation and multiple objects with multiple relations)

as shown in Figures 2-6. The process flow of breath

first approach is shown in Figure 7.

5 RESULTS AND DISCUSSION

Out of in total 200, 196 sentences have correct

extraction of the primary object with their properties

but only 171 sentences have correct extraction of

relation of primary object with another object in case

of language modelling using regular expression. It

fails to predict the relations like “middle left” or very

complex sentences like “Could you possibly help me

and get me my black phone kept on the extreme left

bottom of the table”. In this sentence the modelling

technique extracts “left bottom" but is unable to

extract term “extreme”. The extended Hobb’s

algorithm successfully identifies these kinds of

relations. Out of 200 sentences, 175 sentences have

correct extraction of relation. This method fails in

case of sentences like “May I have that mug? That

red one” because we get two parsing trees using

Spacy one for “May I have that mug" and another for

“That red one”. The Euclidian-distance based

algorithm fails to identify relations having the same

distance with two objects. Among all the Stanford

parser based algorithm performs better. On the strand

sentence dataset (Alomari and Dukes, 2016) all the

methods provide 97.2% accuracy on PPO and 93.1%

with CCG, 94.4% with Euclidian, 94% with extended

Hobb’s and 95.3% with Stanford in case of relation

extraction.

Comparative analysis between all the modelling

techniques on in house dataset is shown in Figure 8

and the time elapsed by all four algorithms is shown

in Table 3.

After analyzing Table 3, we observe that tree

traversing takes longer time than the regular-expression

Extracting Primary Objects and Spatial Relations from Sentences

257

Figure 7: Process flow of language modelling using regular

expressions.

based approach and string based approach (Euclidian

distance).

Figure 8: Comparative analysis between all language

modelling techniques investigated in this paper.

Table 3: Time elapsed by all four algorithms considered in

this paper.

Method

Time Elapsed (Sec.)

Regular Expression

0.00983

Euclidian Distance

0.00968

Extended Hobb’s Algorithm

0.10251

Stanford parsing

0.91921

6 CONCLUSION

Four approaches for language modelling were

performed where we proposed two new approaches.

One is a string based approach (Euclidian distance)

and another is regular expression based. These two

approaches are further compared with two other tree

traversing based approaches. All the methods work

good for the extraction of primary object and their

property but the Stanford parser based algorithm

works better than others in case of relation extraction.

In such cases where the sentences having clear

instructions of object to object relation, the regular

expression based algorithm performs good but fails to

identify if the sentences are complex. The best result

was achieved with the Stanford parser based

algorithm, giving an accuracy of 98% for primary

object with property, and 92.4% for relation. The time

elapsed with the Stanford parser based method is

higher than others. Among all we observe that

Euclidian distance based method performs good with

minimum CPU time. This work is planned to be

further extended with anaphora resolution to deal

with multi sentences such as “The close yellow bowl,

the cup next to it and the green bowl next to it”.

ACKNOWLEDGEMENTS

This research was made possible by the research

funding from the Swedish Kempe foundation for

Neha Baranwal and Avinash Kumar Singh.

REFERENCES

Alomari, M., Duckworth P., Hawasly, M., Hogg D. C.,

Cohn, A. G., 2017. Natural language grounding and

grammar induction for robotic manipulation

commands. In Proc. of the First Workshop on

Language Grounding for Robotics, pp. 35-43. ACL.

Alomari, M., Duckworth P., Gatsoulis Y., Hogg D.C., and

A.G. Cohn, 2016. Unsupervised Natural Language

Acquisition and Grounding to Visual Representations

for Robotic Systems. Workshop on Cognitive

ICAART 2019 - 11th International Conference on Agents and Artiﬁcial Intelligence

258

Knowledge Acquisition and Applications (Cognitum

2016), IJCAI 2016.

Alomari, M., Dukes, K., 2016. Extended train robots.

Dataset. Uni. of Leeds. https://doi.org/10.5518/32

Banko, M., Etzioni, O., 2018.The tradeoffs between open

and traditional relation extraction. In Proc. of ACL-08:

HLT, pp. 28–36. ACL.

Banko, M., Cafarella, M.J., Soderland, S., Broadhead, M.,

Etzioni, O., 2007. Open information extraction from the

web. In Proc. of the 20th Int. Joint Conf. on Artificial

Intelligence, pp. 2670–2676.

Baranwal, N., 2017. Development of a Framework for

Human-Robot interactions with Indian Sign Language

Using Possibility theory. Int. J. of Social Robotics, 9:

563-574. Springer.

Bensch, S., Jevtić A., Hellström T., 2017. Interaction

Quality in Human-Robot Interaction. In Proc. of the 9th

Int. Conf. on Agents and Artificial Intelligence

(ICAART) 2017, Volume 1, pp. 182-189.

Bird, S., Loper E., 2004. NLTK: the natural language

toolkit. In Proc. of the ACL 2004 on Interactive poster

and demonstration session, p. 31. ACL.

Dautenhahn, K., 2007. Socially intelligent robots:

dimensions of human–robot interaction. Philosophical

Transactions of the Royal Society of London B:

Biological Sciences 362, no. 1480: 679-704.

Golland, D., Percy L., Klein, D., 2010. A game-theoretic

approach to generating spatial descriptions. In Proc. of

the 2010 conf. on empirical methods in natural

language processing, pp. 410-419. ACL.

Google LLC, 2014. https://cloud.google.com/speech-to-

text/

Guadarrama, S., Riano, L., Golland, D., Gouhring, D., Jia,

Y., Klein, D., Abbeel, P., Darrell, T., 2013. Grounding

spatial relations for human-robot interaction. In

Intelligent Robots and Systems (IROS), 2013 IEEE/RSJ

Inter. Conf. pp. 1640-1647. IEEE.

Hendricks, L. A., Ronghang H., Trevor D., Akata, Z., 2018.

Grounding visual explanations. arXiv preprint

arXiv:1807.09685.

Hobbs, J. R. 1978. Resolving pronoun references. Lingua

44, no. 4: 311-338.

Honnibal, M., 2016. "Introducing spaCy". explosion.ai.

https://spacy.io/api/dependencyparser.

Lappin, S., Leass, H.J., 1994. An algorithm for pronominal

anaphora resolution. Comp. Ling. 20, no. 4: 535-561.

Marneffe, D., Catherine, M., MacCartney, B. Manning C.,

2006. Generating typed dependency parses from phrase

structure parses. Proc. of LREC. Vol. 6. No. 2006.

Olszewska, J. I., 2017. Clock-model-assisted agent's spatial

navigation. Proc. of the 9th Int. Conf. on Agents and

Artificial Intelligence (ICAART), Volume 2, 687--692.

Tsung-Yi, L., Maire, M., Belongie, S., Hays, J., Perona, P.,

Ramanan, D., Dollár, P., Zitnick, C.L., 2014. Microsoft

coco: Common objects in context. European

conference on computer vision, pp. 740-755. Springer.

Extracting Primary Objects and Spatial Relations from Sentences

259
