Using Reactive-System Modeling Techniques to Create

Executable Models of Biochemical Pathways

Hadas Lapid, Assaf Marron, Smadar Szekely and David Harel

Weizmann Institute of Science, Rehovot, Israel

Keywords:

Scenario-Based Modeling, Behavioral Programming, Computational Biology, Separation of Concerns,

Metabolic Networks, Live Sequence Charts, LSC, Krebs Cycle, Citric-Acid Cycle.

Abstract:

Scenario-based modeling (SBM) is an emerging approach for creating executable models of complex reactive

systems. In addition to its use in software and system development, SBM has been shown to serve well in

modeling biological processes. In this position paper, we show that SBM can be used effectively in modeling

biochemical pathways at the molecular level, complementing existing biochemical modeling techniques. One

of the key beneﬁts of these SBM models is in helping professionals and students better conceptualize and

understand such complex processes.

1 INTRODUCTION

Scenario-based modeling (SBM) is an emerging ap-

proach for creating executable models of complex re-

active systems. In addition to its promise in software

and system engineering, SBM has been shown to be

valuable in modeling biological processes, in particu-

lar, the behavior of cells and organs (see, e.g., (Kam

et al., 2008)). In this paper, we use the LSC language,

the PlayGo tool, and an added reaction-speciﬁcation

template to argue that (a) modeling techniques for

reactive systems can (also) be used to create valu-

able executable models of biochemical pathways at

a molecular level, complementing, e.g., differential

equations, and stochastic algorithms; (b) pure mod-

eling tools can be augmented with domain-speciﬁc

layers that allow domain professionals (e.g., biolo-

gists) to create models using little or no program-

ming; (c) combining well-encapsulated functional

modules to yield rich networks, aligns well with com-

mon engineering principles; and (d) this modeling ap-

proach, especially when enhanced with visualization,

can help students, engineers, and domain profession-

als in the otherwise-difﬁcult process of learning and

understanding the operation of a given system, com-

ponent, or natural phenomenon.

In Section 2, we introduce SBM and the LSC lan-

guage. In Section 3, we expand on the motivation and

intended contribution of the research and discuss ex-

isting biochemical pathway modeling techniques. In

Section 4, we describe and provide examples for our

technique. In Section 5 we elaborate on extending the

modeling of a single pathway into a network of con-

nected pathways, and in Section 6 we assess the ca-

pabilities of the supporting prototype tool and discuss

next steps and future research directions.

2 SCENARIO MODELING AND

THE LSC LANGUAGE

In scenario-based modeling (SBM) (Damm and

Harel, 2001; Harel and Marelly, 2003; Harel et al.,

2012), also termed scenario-based programming

(SBP) and behavioral programming (BP), one can

create executable models of reactive systems from

modules, called scenarios, each of which focuses on

a separate facet of overall system behavior, as man-

ifested in a collection of mandatory, allowed, and

forbidden behaviors. SBM is event-based, where

all behaviors are abstracted as a sequence of trig-

gered events. The behaviors described by the sce-

narios are reactions (in terms of system events or

sequences thereof) to events and conditions (or se-

quences thereof) in the system and its environment.

The collective model can then be directly executed

(in a process termed play-out), which enables the

construction of simulators or even of ﬁnal system

components. Scenario-based programming in the

LSC language is implemented in the Play-Engine

and the PlayGo development and execution environ-

454

Lapid, H., Marron, A., Szekely, S. and Harel, D.

Using Reactive-System Modeling Techniques to Create Executable Models of Biochemical Pathways.

DOI: 10.5220/0007572504540464

In Proceedings of the 7th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2019), pages 454-464

ISBN: 978-989-758-358-2

ments (Harel and Marelly, 2003; Harel et al., 2010).

A key advantage of SBM is incrementality: new

and reﬁned requirements, and new knowledge about

the system and its environment, can often be added as

additional scenarios, with little or no change to exist-

ing ones. In addition to executability and incremen-

tality, beneﬁts of using SBM include the alignment

of the code structure with the requirements, the intu-

itiveness and ease of understanding of the SBM speci-

ﬁcations (see, e.g., (Gordon et al., 2012), amenability

to compositional veriﬁcation (see, e.g., (Harel et al.,

2013)) and even conciseness of the speciﬁcation (see,

e.g.,(Harel et al., 2015)). The approach was ﬁrst

introduced in (Damm and Harel, 2001; Harel and

Marelly, 2003), with the graphical language of live se-

quence charts (LSC) and the Play-Engine tool. It was

subsequently generalized and implemented in stan-

dard procedural languages, such as Java, C++ and

JavaScript, in domain-speciﬁc languages (DSLs) such

as the SML language in the SCENARIOTOOLS envi-

ronment, and has recently been embedded in the Stat-

echarts visual language (Marron et al., 2018).

An SBM execution environment plays out an

SBM speciﬁcation by running all scenarios in paral-

lel and consulting all of them at each decision point

of the composite system, as follows. It ﬁrst starts all

scenarios, using threads, processes, co-routines, as-

pects, and other implementation-speciﬁc techniques.

It then synchronizes all scenarios. When at a syn-

chronization point, each scenario presents a declara-

tion of a set of events that it requests, i.e., events

that the scenario asks to be considered for trigger-

ing, events that the scenario blocks, i.e., events whose

triggering it forbids, and events that the scenario nei-

ther requests nor blocks, but asks to be notiﬁed when

they occur. The play-out mechanism then selects an

event that is requested by some scenario and is not

blocked by any scenario (termed an enabled event),

and notiﬁes all scenarios that requested that event or

are waiting for it. These scenarios then resume execu-

tion, and can change their state accordingly, including

presenting new declarations of requested, blocked and

waited-for events. All resumed scenarios are then re-

synchronized (among themselves and with all scenar-

ios that were not resumed) and the process repeats.

When no event is enabled, the system waits for an

external environment event. Sensor and actuator sce-

narios use lower level APIs to interface with the real

environment (like cameras, switches, and motors in

manufacturing equipment or in autonomous vehicles)

or to connect to simulators of systems or of natural

phenomena. These scenarios translate environment

events and conditions into behavioral ones and trans-

late behavioral events into their intended effect on the

environment.

In the LSC language, scenarios are depicted in

enriched sequence diagrams (see example in Fig. 5).

Speciﬁcally, vertical lifelines represent objects in the

system, and events are messages exchanged between

the objects, and are depicted as arrows between life-

lines. Events are marked as hot or cold (colored red

and blue respectively) distinguishing must vs. may

execution modalities and inducing hot/cold modali-

ties on the relevant scenario states. A general live-

ness condition states that the system must eventually

be in a cold state. Solid vs. dashed arrows distinguish

requested events from those that are only waited-for,

i.e., monitored. By default, the execution order in sce-

narios is strict, hence all system events mentioned in

a scenario are forbidden from occurring out of order

when the scenario is in a hot state. When an event

does occur out of order or a required condition is

false, if the current scenario state is cold, the scenario,

or a sub-chart within a scenario, is exited. Whenever

the ﬁrst monitored event in a scenario occurs (this is

termed a minimal event), a new instance of the sce-

nario is created, driving the programmed reaction.

3 ON MODELING

BIOCHEMICAL PATHWAYS

A series of chained biochemical reactions occurring

inside a living cell, whereby the output, or product,

of one reaction serves as the input, or substrate, of

another reaction, is called a biochemical pathway, or

metabolic pathway. For example, consider the well

known citric-acid cycle, a.k.a, Krebs cycle, shown in

Fig 1, which is comprised of a series of ten reactions,

where the output of each one is used as input to a

subsequent one (hence the term “cycle”). The path-

way is further complicated by the existence of several

reverse (‘undo’) reactions, as well as the existence

of source — that is, constant supply of certain sub-

stances, arriving from other pathways — and drain

— constant removal or exploitation of accumulating

output substances by other cellular mechanisms.

Though straightforward at the single reaction

level, capturing the dynamic logical processing of an

ensemble of many reactions, which are linked in mul-

tiple ways, requires a substantial effort. We argue

that the LSC language described above, which was

originally developed for software engineering, can be

used in a new paradigm for modeling metabolic path-

ways. We demonstrate the approach by implementing

a model of the citric acid cycle in LSC and showing

that SBM of this complex biochemical pathway can

provide intuitive and deeper understanding of the pro-

Using Reactive-System Modeling Techniques to Create Executable Models of Biochemical Pathways

455

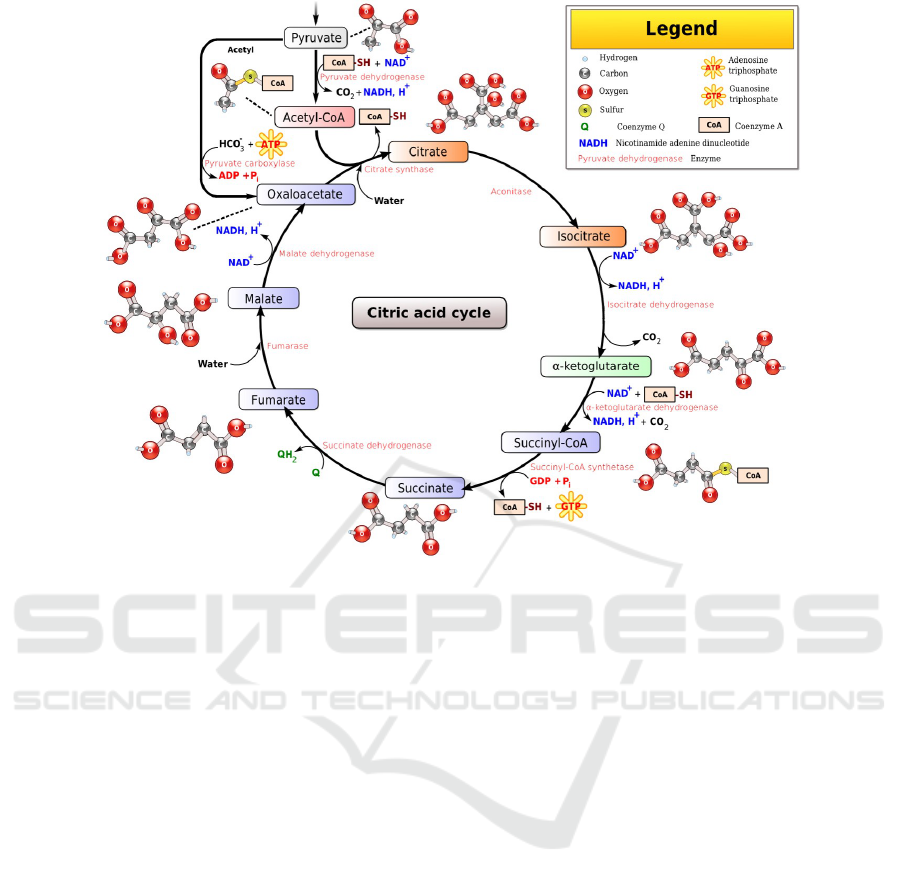

Figure 1: The Citric Acid Cycle (cf. Wikipedia: Narayanese, WikiUserPedia, YassineMrabet, TotoBaggins [GFDL

(www.gnu.org/copyleft/fdl.html) or CC BY-SA 3.0 (creativecommons.org/licenses/by-sa/3.0)], via Wikimedia Commons).

cess and of its underlying principles. We also describe

a pathway-modeling support layer (PMSL), which in-

cludes, among others a speciﬁcation template. The

PMSL enables the modeling of new pathways in-

crementally and intuitively, one reaction at a time,

by specifying for each reaction its input substrates,

output products, facilitating enzyme, and a few con-

straints; i.e., required environmental conditions. The

PMSL also provides the automatic LSC code genera-

tion from template speciﬁcations.

The modeling method supports visualization of

the implemented reaction network at multiple levels.

The (static) speciﬁcation’s live-sequence charts pro-

vide the reader with a procedural view of each re-

action. At run time (play-out), one can observe the

coordinated progression of all scenarios. And, after

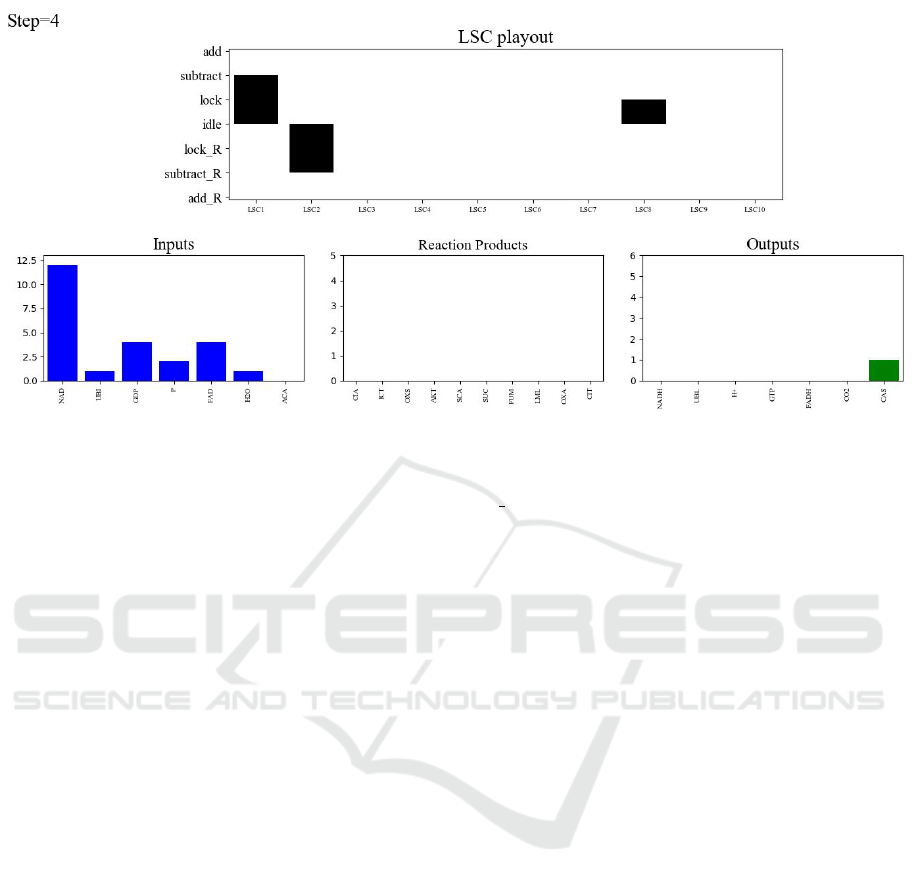

the run, visualization of the simulation log enables

coarser-grain quantitative observation of the dynam-

ics of the system and of participating substances.

3.1 Related Modeling Techniques

Below we brieﬂy review common techniques for

modeling metabolic pathways, including: Constraint-

Based Modeling (CBM) (see, e.g., (Becker et al.,

2007), Stochastic Simulation Algorithms (SSAs)

(see, e.g., (Gillespie, 1976)) and Rule-Based Model-

ing (RBM) (see, e.g., (Sneddon et al., 2011)).

CBM. CBM provides a numeric steady-state so-

lution for a set of ordinary differential equations that

fully describes a set of chemical reactions, includ-

ing inﬂux and efﬂux exchange of chemical substances

between the system and its environment. (Schellen-

berger et al., 2011). CBM provides a quantitative, an-

alytic solution for the system’s steady-state composi-

tion but does not provide mechanistic modeling of the

reaction dynamics along the time axis.

SSAs. SSAs iteratively compute the quantitative

changes a system undergoes over time, assuming a

well-stirred, closed system at thermal equilibrium,

based on reaction-occurrence probabilities and reac-

tion rates derived from the theory of statistical ther-

modynamics. At each iteration, the model updates the

molecular quantities, as implied by the occurrence of

one reaction in an inﬁnitesimal time interval.

The SSA method relies on initial quantities, on re-

action probabilities and on reaction rate constants. In

SSA, each reaction occurs as an atomic function, ac-

cording to its probability of occurrence. In nature,

there could be a situation where two reactions com-

pete for a common input substance. One reaction

binds an input molecule (say, of type S

), preventing

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

456

the use of this individual molecule by a competing re-

action that is active at the same time, and which may

have bound other input molecules (say, of type S

One of these reactions will be carried out successfully,

while the other (the second one in our example) will

either release the bound substance (of type S

), or be

delayed until another molecule of the necessary type

) is available. In SSA, where reactions occur se-

rially, each one as complete unit of execution, whose

order is determined only by probability values, this

aspect of parallel chemical dynamics which compete

for common resources is not directly addressed. In-

stead, under some conditions reactions will occur if

and only if all inputs are available for binding. If an

input is missing the reaction halts and becomes a rate-

limiting factor in the metabolic pathway (and in the

simulation dynamics).

RBM. Rule-Based Modeling aims to handle the

obstacles of binding multiplicity, and the growing

combinatorial complexity in large biochemical sys-

tems. Additionally, it is aims to overcome the knowl-

edge gap between exact mechanistic solutions of

chemical reactions and the growing need for large-

scale calculations of biochemical systems, which may

lack the parameters needed for full analytic solution.

While both CBM and SSA provide quantita-

tive solutions without actually tracking individual

molecules as they (or their parts or atoms) become

parts of various substances, RBM differs from SSAs

in that it simulates reaction dynamics from the molec-

ular perspective. In RBM, each molecule is repre-

sented by a system object, which obeys to a set of

conditions (i.e., rules) over the molecule’s biochem-

ical reactivity. This enables molecular ID tracking

throughout the simulation.

BioNetGen is an RBM language used for model

speciﬁcation (Faeder et al., 2009). As such, system

rules that apply to all molecular objects are possible

by time-dependent global functions. i.e., at a cer-

tain time point, the rule actions occur. This makes

the system rules independent of the system dynamics.

In contrast to CBM, SSA and RBM, scenario-based

modeling (SBM) enables time-dependent simulation

of a set of system reactions and conditions that apply

to the entire system simultaneously, while also capa-

ble of tracking individual molecules. SBM enables

dynamic allocation and deallocation of molecules by

the system’s scenarios. This allocation/deallocation

can be activated by a change in the system’s molecular

quantities, e.g., the elimination of a speciﬁc molecule

quantity can lead to allocation of a new molecule at a

desired quantity. Formation of a new substance can be

triggered by other molecules (namely, chained reac-

tions), by reaching a quantitative threshold of another

substance or, externally, by reaching a pre-determined

simulation time. In addition, global reaction guards

can be implemented in a way similar to other sim-

ulation scenarios. This enables formalization of in-

hibitory and regulatory biochemical reactions. SBM

enables reactive, time-dependent simulation, capable

of molecular tracking, and is not conﬁned to equilib-

rium constraints. It combines the advantages of RBM

in terms of simulation time-dependency, molecular

tracking and coarse-grain approximations.

4 LSC MODELING OF

BIOCHEMICAL PATHWAYS

4.1 Individual Reaction Process

Fig. 2 represents a process, whereby an enzyme binds

a substrate (or multiple substrates) as well as co-

enzyme molecules, breaks certain chemical bonds and

forms others, and thus changes the substrates into

products. Soon after product formation, the bound as-

sembly of enzyme and products molecules separates

back into the solution, making all of them available

for further reactions

Biochemical reactions obey the following rules:

1. The substrates and the enzyme must be present

and available for binding. (At this point, we ig-

nore the aspect of spatial molecular proximity.)

2. Total substrate concentrations must be larger than

the total product concentrations. (In our model

we assume full diffusion and treat quantities, i.e.,

molecule counts, as equivalent to concentration.

There can be additional concentration/quantity-

related conditions that restrict speciﬁc reactions,

e.g., that the concentration of a particular output

product is signiﬁcantly lower than that of a partic-

ular input substance.)

3. When binding occurs, the molecular components

involved become unavailable for further interac-

tions with the environment.

4. When all required conditions are met, an enzy-

matic complex is formed, and then turns into free

enzyme and products at a speciﬁc reaction rate.

4.2 Specifying Reaction Characteristics

A preliminary activity in modeling a pathway is

specifying all participating molecule types — i.e,

The biochemical concept of a by-product is treated here

as a product, and a co-enzyme is treated as an input substrate

that is also as an output product.

Using Reactive-System Modeling Techniques to Create Executable Models of Biochemical Pathways

457

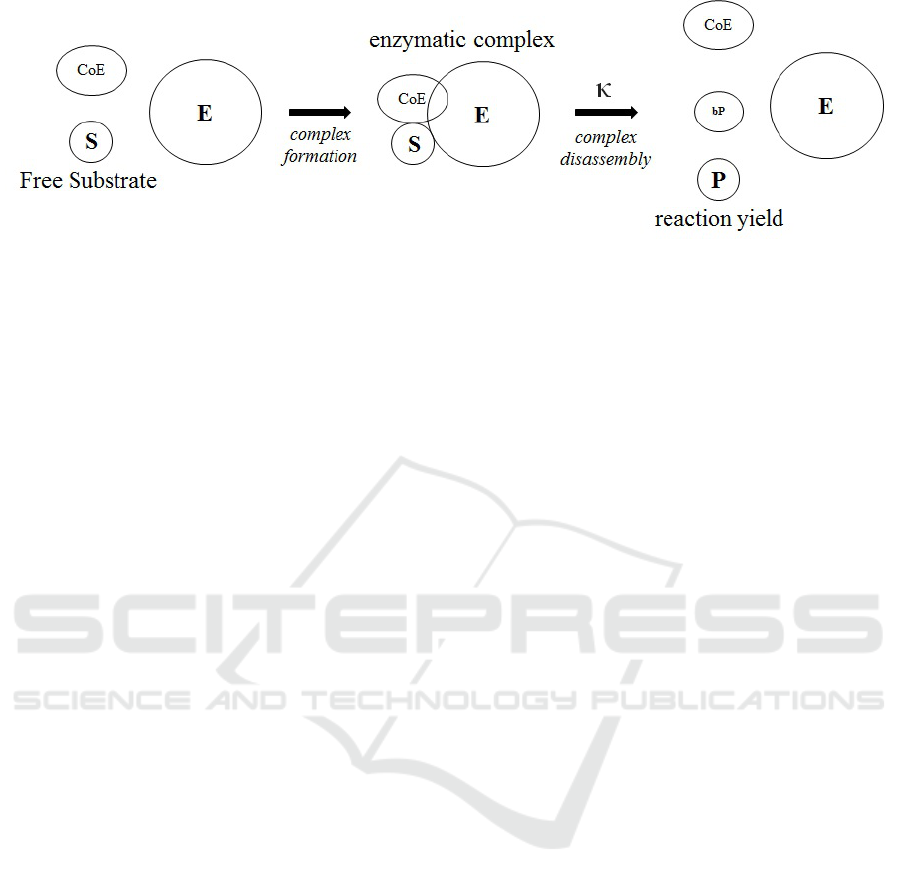

Figure 2: A schematic diagram of a biochemical reaction.

substrates, products, and enzymes — in the data

model. The PMSL provides a class named Molecule,

and the modeler speciﬁes one object instance for

each molecule type (see Fig. 3). For example, the

substances appearing in the LSC in i.e., Citrate,

CisAconitate, H2O, and Aconitase appear as object

instances in the model. The Molecule class has an in-

teger attribute quantity for the number of molecules

of each molecule type, as well as common methods

for adding to and subtracting from this attribute.

Since there is a great similarity among the pro-

gressions and conditions of different reactions, the

PMSL provides a reaction-speciﬁcation template,

which accommodates the biologist’s view, and from

which LSC speciﬁcations are generated automati-

cally. The template is coded in the form of a single

Java method call, createLine(rName,s1,s2,s3,

p1,p2,p3,p4,e,rRate) with the following reaction

parameters:

• rname: a reference name for the reaction; it will

become the name of the generated LSC.

• s1-s3: a list of up to three substrates

• p1-p4: a list of up to four products.

• e: the enzyme, and

• rRate: a reaction-rate parameter, relative to other

reactions in the model

For example, the method call createLine(Line1,

Citrate,,,CisAconitate,H2O,,,Aconitase,5) spec-

iﬁes the reaction commonly considered as the ‘ﬁrst’

reaction in the cycle, where Citrate turns into

CisAconitate and water, with the mediation of the

Aconitase enzyme, during ﬁve (synthetic) time ticks.

The citric-acid cycle is classically comprised of

ten reactions. Three of these are associated with ad-

ditional reverse reactions, that is, ones that are sym-

metric to the ‘original’ forward reactions in that they

work with the same substances but in the opposite di-

rection: using the same enzyme, the substrate input

and the product output of the reverse reaction are, re-

spectively, the product output and substrate input of

the forward reaction. In our model, reverse reactions

are modeled as ordinary reactions. By convention,

we give them the same name as the forward reaction,

but with the letter R appended (yielding in our case

Line1R, Line2R, and line9R) (see Fig. 4).

The generic common conditions that are enforced

in all reaction LSCs generated by the PMSL include:

• MIN(S1,S2,S3) > MIN(P1,P2,P3,P4), where

S1-S3, and P1-P4 stand for the quantities of the

respective substances s1-s3 and p1-p4.

• MIN(S1,S2,S3) > 0, i.e., minimal quantities

must exist for each input substrate and

• E>0, i.e., at least one molecule of the enzyme e

must exist in the system.

Reaction-speciﬁc guards are presently coded man-

ually in the model, inside the createLine method,

associating with speciﬁc line names concise condi-

tions such as P

< a ∗ S

for a given constant a, the

quantity of a particular input S

, and the quantity of

a particular output, P

. Given the common structure

of these conditions, they can be added to the template

reaction method call in the future.

As part of the PMSL, the methods of the Molecule

class maintain an array for each molecule type, where

each array cell represents the availability and binding

status of individual molecules of this type.

When a scenario given by an LSC attempts to per-

form a particular reaction, it ﬁrst calls the Molecule

class method lock, to acquire each concrete individ-

ual input molecule and enzyme required by the reac-

tion. If such a molecule exists, this is indicated by a

corresponding status in the array. If the reaction con-

cludes successfully, the quantities of some molecules

are decreased, and the corresponding array cells prac-

tically ‘disappear’. If the reaction is aborted, e.g.,

when some prerequisite conditions are not met, the

locked molecules are unlocked and become available

for future attempts of this and other reactions.

Upon successful completion of reactions, product

quantities are increased, and cells are added to the cor-

responding molecule- type arrays.

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

458

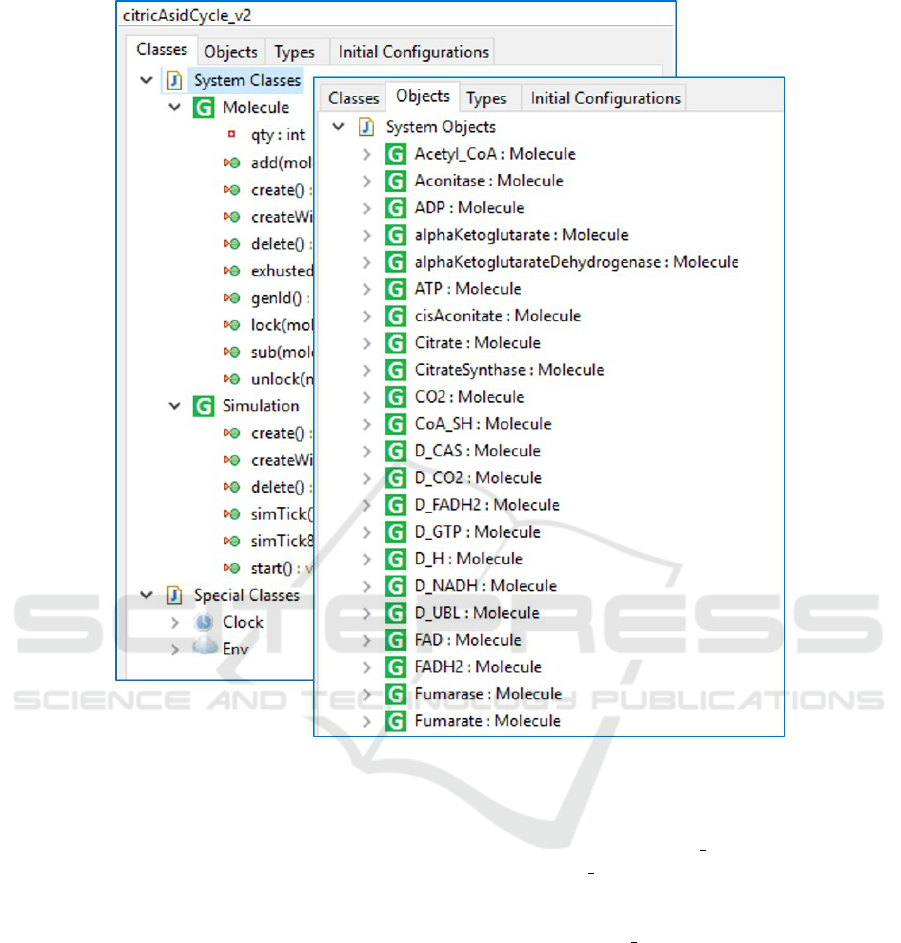

Figure 3: Deﬁnition of the Molecule class and its instances (the participating substances) in the PlayGo tool.

The locking function also marks the cell with a

unique reaction process id, so that when a reaction

attempt fails, all and only the molecules that were

locked by this particular attempt are released. This

indicator also enables seeing all the molecules associ-

ated with a given reaction instance at a given time.

Pathways are often circular, i.e., some outputs of

the ‘last’ reaction are inputs of the ‘ﬁrst’ one. How-

ever, in reality, there must be a constant supply, i.e.,

sourcing, of certain input substances that are not pro-

duced by other reactions in the pathway, and removal,

or draining, of product substances that are not con-

sumed by reactions in this pathway. In the cell,

the sourcing supply often comes from the output of

other pathways (e.g., protons) or from the environ-

ment (e.g., water), and the drain is consumed by other

pathways (e.g., ATP), or is released into the environ-

ment (e.g., Carbon Dioxide).

In order to model an individual pathway, we

model Source and Drain reactions similarly to mod-

eling a general reaction using the reaction template.

Drain reactions are composed of an input substrate

and a dummy enzyme, ‘D name’. Upon reaction

activation, ‘D name’ binds the input and subtracts

its molecular quantity. Source reactions are speci-

ﬁed with outputs, but with no inputs, again, using a

dummy enzyme, ‘S name’. Source and drain scenar-

ios are activated externally using a simulation time

trigger. In the future, these LSC scenarios can be

triggered also by the crossing of molecular quantity

thresholds or by other system conditions.

The LSC concept of a cold violation (see (Damm

and Harel, 2001)) is used to abort reactions when re-

action conditions are not satisﬁed.

After specifying all reactions as createLine()

method calls in the Java source ﬁle for each of the

reactions, the modeler compiles the ﬁle and runs the

resulting PMSL module. This generates an LSC for

each reaction (see, e.g., Fig. 5), and additional com-

mon LSCs, such as the ones triggering simulation

Using Reactive-System Modeling Techniques to Create Executable Models of Biochemical Pathways

459

Figure 4: Specifying the citric-acid cycle in the PSML template.

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

460

clock ticks for coordinating reaction rates.

All scenarios are designed to be fully concur-

rent in order to more closely simulate the real-world

metabolic processes. Since in LSC semantics events

occur one at a time, the execution of scenarios is ac-

tually interwoven, rather than being fully concurrent.

A copy of each scenario begins whenever a simu-

lation time tick occurs. Unique identiﬁers for individ-

ual molecules of each kind are obtained, and these are

then locked. When no molecules exist to be locked,

an event exhausted is triggered. If this event occurs

out of order in any scenario it forces the main subchart

(scoped block) of the scenario to be exited, proceed-

ing with code that releases the obtained locks.

All reaction guards are then checked. If the condi-

tions are not met, again the subchart is exited and the

obtained locks are released.

When all guard conditions are met, substrate

quantities are subtracted. The reaction then waits for

the speciﬁed number of time ticks. Then, the quan-

tities of the reaction’s products are increased, and

the molecule array is internally adjusted to reﬂect the

availability of these new array cells, which represent

individual molecules. Finally, all remaining locked

molecules (e.g. enzyme) are released.

4.3 Flow Visualization

The simulation is run by playing out the

scenarios in PlayGo (see example video

at https://youtu.be/jPMggD6PoOg): all scenarios

are instantiated and synchronized; at a given synchro-

nization point, the composite system state (termed

the system cut), is implied by the current state (cut)

of each of the scenarios, which, in turn, is implied

by the currently-active location in each lifeline of

the scenario. When an event occurs, all affected

scenarios make their respective transitions, resulting

in a new system cut.

As part of the pathway simulation infrastructure

the system produces an event log. With every key

event, like add and sub, an event-log record is writ-

ten to an external ﬁle. The ﬁle is then used for pro-

ducing dynamic quantity and state visualization (us-

ing the Python FFmpeg package), as shown in Fig. 6

and in the second part of the above video.

The upper panel shows LSCs activity: the hori-

zontal axis represents the ten citric-acid cycle reac-

tion scenarios; the vertical axis represents each sce-

nario’s progress; ‘positive’ bars (above idle level)

represent forward-reactions activity (substrate lock

or subtract, or product add); ‘negative’ bars (be-

low idle level) represent progress of the reverse re-

actions. Note that during execution the simulation en-

gine treats all reactions in the same way and, in par-

ticular, it does not distinguish between forward and

reverse reactions. The distinction in the visualization

relies purely on the naming convention we applied.

The bottom panels in Fig. 6 represent the molecu-

lar quantities, and provide the user with a quantitative

sense of the progress of the system’s behavior. For

convenience, and speciﬁcally for this application, we

have separated all the molecular substances partici-

pating in the cycle into three groups: inputs, interme-

diate products and outputs.

The simulation starts with only input molecules.

During a run, one can observe how progress of the

LSCs adds intermediate molecular products. Eventu-

ally, the system accumulates output products. When

source and drain reactions are not modeled, at some

point, the system runs out of required inputs and is

jammed with products. When source and drain are

added, at the appropriate reaction rate, the reactions

should, in principle, proceed indeﬁnitely (see, e.g.,

the demonstration movie).

5 PATHWAY

INTERCONNECTION

So far, we have discussed a single model, including

the ten basic reactions of the citric-acid cycle, the

three reverse reactions, and the source and drain re-

action. Clearly this principle can be applied to other

pathways.

Of particular interest is the connection of two sep-

arate pathways. Consider, for example, the Pyruvate

cycle attached to the main citric-acid cycle (see top

left part of ﬁg 1). This cycle produces some of the

inputs consumed by the citric-acid cycle, modeled

above as source reactions. Conversely, some sub-

stances produced by drain reactions of the Pyruvate

cycle are consumed as inputs of the Citric-acid cy-

cle. When modeling the two cycles together, one

needs to simply include the reactions of both in a

single sequence of createLine() speciﬁcations, re-

move source and drain reactions that become redun-

dant in this composition, adjust the reaction rates into

a common relative scale and provide quantitative up-

date to the initial conditions of the system molecules.

6 DISCUSSION AND FUTURE

WORK

We have demonstrated an initial, yet readily general-

izable, approach for modeling biochemical pathways,

Using Reactive-System Modeling Techniques to Create Executable Models of Biochemical Pathways

461

Figure 5: An LSC for a Krebs cycle reaction.

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

462

Figure 6: Simulation visualization snapshot. The top panel depicts the current state of each of the ten reaction LSCs

listed on the X axis. The Y axis shows each reaction’s progression: from idle to lock— locking enzyme and substrates,

to subtract—reducing quantities of inputs, to add—increasing output quantities. Reverse reactions occupy the same X-

axis location as their forward counterpart with Y-axis states marked R, below the idle state. The bottom panel tracks the

quantities of substances: initial inputs, intermediate reaction products and outputs that must be drained. The ﬁgure captures

the run relatively early, hence most of the inputs are still available (only ACA was depleted), and only one product (CAS) has

been produced. The intermediate-product chart is empty, since the ones that were produced were already consumed.

characterized by the following properties:

Incrementality. The scenarios for the various re-

actions exist in the speciﬁcation ‘side-by-side’, with-

out directly referencing each other. More reactions

can be added in the same manner, when new discov-

eries and/or reﬁnements are made, or to model inter-

action with other pathways.

Clarity. First, each scenario on its own depicts

in a readily-understandable way the main aspects of

what is known to happen in a reaction. Additional

aspects can be added within the scenario or in separate

ones. Second, concise speciﬁcation of the entire cycle

in only a few lines further facilitates mental grasping

of the orchestrated operation of the pathway.

Generality of Constraints. The LSC language

enables programming, separately, essentially any con-

straint (Turing-computable, of course) that a sys-

tem can impose on any of its components. System

constraints can be implemented inside an ordinary

(pathway-speciﬁc) LSC, or in the reaction template

that translates to LSCs. Each such constraint can then

affect all LSCs without the need to explicitly specify

direct LSC-to-LSC communication. This ﬂexibility is

not normally available in modeling methods.

Ease of Conceptualization. The inter-

dependencies between biochemical reactions are

embedded in the compositional semantics of the

underlying LSC language; i.e., parallel execution of

multiple reactions, repeated synchronization, trigger-

ing of events that are requested and not blocked, etc.

Once these general principles are understood, the

pathway-speciﬁc dependencies are easily understood

implicitly, without the need to depict them explicitly.

That is, there are no especially constructed connec-

tors between LSCs that depict such composition and

dependencies. We believe that combined with the

intuitive syntax of individual LSCs (and, of course,

of the reaction template), this enables the formation

of a cognitive representation of how a particular

biochemical pathway works, and, moreover, it makes

it possible to understand the principles that drive

similar pathways.

Ease of Visualization. The abstraction of com-

plex behaviors as a sequence of events enables the

creation of process visualizations over multiple di-

mensions (some of which were shown above): pro-

gram progression and state changes, quantitative de-

piction, tracing the state of a particular molecule or

set thereof, etc.

Additional research and development is needed

in several areas: (i) A wide variety of pathways

need to be modeled in order to more deeply demon-

strate the commonality and generality of the princi-

ples of the approach; (ii) multiple pathways should

be combined in a single model to demonstrate SBM

modeling of complex networks; (iii) empirical stud-

Using Reactive-System Modeling Techniques to Create Executable Models of Biochemical Pathways

463

ies with human-observable measures are needed, to

more rigorously substantiate the claim that human au-

diences indeed beneﬁt from the approach; (iv) the

model should be extended to accommodate multiple

instances of scenarios, each instance working (in par-

allel) on a different set of molecule instances; (v) the

reaction rates should be enhanced, and reaction prob-

abilities added to the reaction LSCs; (vi) following

the above (and depending on their success), physi-

cal spatial location attributes and a diffusion model

should be added to the molecules; (vii) the scalabil-

ity of the system should be enhanced to support much

larger quantities.

7 CONCLUSION

We have shown that the scenario-based approach to

modeling can be successfully applied in the domain

of modeling and simulating biochemical pathways.

We have argued that it offers capabilities that seem

promising in the learning process of students, and

in improving the ability of various audiences to un-

derstand speciﬁc biochemical pathway dynamics, and

biochemistry concepts in general.

ACKNOWLEDGEMENT

This research was supported by grants from the the

German-Israeli Foundation for Scientiﬁc Research

(GIF), The Minerva Foundation and the Israel Science

Foundation (ISF).

REFERENCES

Becker, S., Feist, A., Mo, M., Hannum, G., Palsson, B.,

and Herrgard, M. (2007). Quantitative prediction of

cellular metabolism with constraint-based models: the

cobra toolbox. Nature protocols, 2(3):727.

Damm, W. and Harel, D. (2001). LSCs: Breathing life into

message sequence charts. J. on Formal Methods in

System Design, 19(1):45–80.

Faeder, J., Blinov, M., and Hlavacek, W. (2009). Rule-based

modeling of biochemical systems with bionetgen. In

Systems biology, pages 113–167. Springer.

Gillespie, D. (1976). A general method for numerically

simulating the stochastic time evolution of coupled

chemical reactions. Journal of computational physics,

22(4):403–434.

Gordon, M., Marron, A., and Meerbaum-Salant, O. (2012).

Spaghetti for the main course? observations on natu-

ralness of scenario-based programming. 17th Annual

Conference on Innovation and Technology in Com-

puter Science Education.

Harel, D., Kantor, A., Katz, G., Marron, A., Mizrahi, L.,

and Weiss, G. (2013). On composing and proving cor-

rectness of reactive behavior. EMSOFT.

Harel, D., Katz, G., Lampert, R., Marron, A., and Weiss, G.

(2015). On the succinctness of idioms for concurrent

programming. In Proc. 26th Int. Conf. on Concur-

rency Theory (CONCUR), Madrid, Spain.

Harel, D., Maoz, S., Szekely, S., and Barkan, D. (2010).

PlayGo: towards a comprehensive tool for scenario

based programming. In ASE.

Harel, D. and Marelly, R. (2003). Come, Let’s Play:

Scenario-Based Programming Using LSCs and the

Play-Engine. Springer.

Harel, D., Marron, A., and Weiss, G. (2012). Behav-

ioral programming. Communications of the ACM,

55(7):90–100.

Kam, N., Kugler, H., Marelly, R., Appleby, L., Fisher, J.,

Pnueli, A., Harel, D., Stern, M., and Hubbard, E.

(2008). A scenario-based approach to modeling devel-

opment: A prototype model of c. elegans vulval fate

speciﬁcation. Developmental biology, 323(1):1–5.

Marron, A., Hacohen, Y., Harel, D., M

ulder, A., and Ter-

ﬂoth, A. (2018). Embedding Scenario-based Model-

ing in Statecharts. In Model-driven Robot Software

Engineering workshop (MORSE), in MoDELS.

Schellenberger, J., Que, R., Fleming, R., Thiele, I., Orth,

J., Feist, A. M., Zielinski, D., Bordbar, A., Lewis, N.,

Rahmanian, S., et al. (2011). Quantitative prediction

of cellular metabolism with constraint-based models:

the cobra toolbox v2. 0. Nature protocols, 6(9):1290.

Sneddon, M., Faeder, J., and Emonet, T. (2011). Efﬁcient

modeling, simulation and coarse-graining of biologi-

cal complexity with nfsim. Nature methods, 8(2):177.

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

464
