IFVM Bridge: A Virtual Machine for IFML Models Execution in

Combination with Domain Models

Sara Gotti and Samir Mbarki

MISC Laboratory, Faculty of Science, Ibn Tofail University, Kenitra, Morocco

Keywords: Interaction Flow Modeling Language IFML, Model Execution, Mda, Bytecode, Virtual Machine, Model

Interpretation, Model Compilation, User Interfaces, Front End, Content Dependency, Input-Output

Dependency.

Abstract: Many software systems are executable on various computing devices. No one denies that each of these devices

has its own user interfaces. Nevertheless, this trend of computing everywhere is not accompanied by a solution

that can be used to abstractly express the content, user interaction and control behavior of the software

application front end without focusing on the implementation platform. Applying the concept of abstract

models to user interfaces become a necessity. Accordingly, OMG adopted (in March 2013) the new

Interaction Flow Modeling Language (IFML) for abstractly describing the system front end. It ensures

executability in order to be mapped into executable applications for different kind of devices. In this paper,

we propose a new model driven development approach to execute the logical description of UIs components

and their interactions captured with IFML. We define IFVM, a virtual machine for executing IFML models

with focus on the content-dependent navigation specification for passing parameters between the

ViewElements, and the Data binding specification to specify the source of the published content.

1 INTRODUCTION

In the last few years, there has been an extensively

increase in the complexity of computer systems in

order to guarantee an efficient production respecting

the time to market. Besides, technologies are widely

evolving. In order to benefit from technological

advances, it is necessary to adapt the applications to

these technologies. But this operation is expensive for

companies because it is often necessary to rewrite the

code entirely. To solve this issue, several approaches

have been proposed, in the context of model driven

engineering (MDE), to software design and

implementation via what we call models. Among

these proposals we cite model driven architecture

(MDA) (Blanc and Salvatori, 2005); it is the object

management group’s (OMG) vision of MDE.

Therefore, modeling has been used more and more to

try to control system's complexity to easily produce

valid software.

Consequently, MDE has recently been presented

in the building of software back-end through the

UML language. However, several practical questions

arise when dealing with the building the system's

front-end. It should be noted that with the emergence

of devices and technological platforms, front-end

development become a complex task in which several

requirement, perspectives, and disciplines intersect

(Brambilla et al., 2014). So, to guarantee this trend of

computing everywhere, it is recommended to create a

platform independent representation for expressing

user design and interaction to facilitate the generation

and the execution on different computing platforms

and technologies. To answer all these questions and

needs, OMG group has adopted a solution in March

2013 as a standard which is the Interaction Flow

Modeling Language (IFML) (Omg.org, 2018).

IFML is a modeling language used for expressing

user interactions and front-end behavior of software

systems regardless the implementation specific issue

of their realization. IFML was designed considering

many rules in which we site implementability which

means that it supports code generation via model

transformations and code generators. In other words,

it could be mapped to executable applications for

multiple devices.

In this present study, a new technique for

executing IFML model is suggested. we propose a

design of IFML virtual machine for directly executing

IFML models without code generation in the hope of

Gotti, S. and Mbarki, S.

IFVM Bridge: A Virtual Machine for IFML Models Execution in Combination with Domain Models.

DOI: 10.5220/0007581604890494

In Proceedings of the 7th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2019), pages 489-494

ISBN: 978-989-758-358-2

489

elaborating interactive graphical user interfaces. the

proposed IFVM (IFML Virtual Machine) considers

not only the UI general structure, but also the

different types of events that could be triggered as

well as the caused navigations between the views

especially the content-dependent ones.

The remainder of the paper is organized as

follows. We start out, in section 2, with the related

work on model execution approaches. In section 3,

we explore conceptual modeling of Human Computer

Interactions (HCIs) by presenting the user interface

description language IFML and its executability. The

section 4 is devoted to the proposed process of IFVM

virtual machine for executing IFML models. Future

works are presented in section 5. Section 6 concludes

the paper.

2 RELATED WORK

In this work and in related references, it was observed

that many researches have been proposed for directly

executing models, without code generation, as those

based on UML for the design of the back-end. Here

(Gotti and Mbarki, 2016), the authors discuss many

proposed works in this field through a comparative

study.

The literature on front-end development shows a

variety of model-based approaches for GUIs

generation. As for (Frajták, Bures and Jelinek, 2015),

authors discuss the automatic generation of

automated application front-end from the IFML

model. (Laaz et al., 2018) studied many other related

solutions or tools for modeling IFML by providing a

comparative analysis while considering various

criteria.

Besides, other model driven solutions, based on

IFML, were emerged for the development of code

generators by affording extension for the IFML

language, among these solutions we cite (Brambilla,

Mauri and Umuhoza, 2014).

(Gotti and Mbarki, 2016) offer a new utilization

of IFML language in the software modernization

field. they propose an architecture-driven

modernization (ADM) based approach to obtain

knowledge of the structure and behavior of source

code by generating three independent platform

combined models: KDM to capture the knowledge

discovery, IFML to extract the structure of the

presentation and TaskModel for tasks aspect needed

for the construction of the future user interface (UI).

However, to the authors' best knowledge, most of

the previous studies do not take into account the

IFML executability, while we refer to our previous

work (Gotti and Mbarki, 2016), the focus is different.

Although several solutions have suggested code

generation of IFML, little or no one have proposed a

direct execution of IFML without code generation

except (Gotti and Mbarki, 2016).

Nevertheless, in this paper, we explore the

possibility of executing IFML models by providing a

new model driven design of a virtual machine called

IFVM for directly executing the abstract models.

3 CONTEXT

A human can control and communicate with a

machine by means of what we call Human-Computer

Interaction (HCI). Engineers in this field are studying

how humans interact with computers or with each

other using computers, as well as how to design

systems that are ergonomic, efficient, easy to use, or

more generally adapted to their context of use.

Quite recently, considerable attention has been

paid to the new trend of computing everywhere in the

modern communication. It consists of the merging of

various technologies to allow people to work

everywhere in different devices. There is a need to

adapt the UIs with their context of use, i.e., plasticity

(Jean-Sébastien, Gaëlle and Jean-Marie, 2006). To

solve this issue many solutions have been proposed.

We focus on those model-based that permit plasticity

by elaborating platform independent models

describing the UIs and then it could be easy to

generate the implementation via model

transformations and code generators.

In fact, abstract modeling of UIs become a

necessity to adapt platforms and technologies

changes. So, the answer of how to permit UIs

presentation at a high level of abstraction is by

defining a language for abstractly describing the UIs

regarding many criteria as described here (Selic,

2003). We call this language a User Interface

Description Language (UIDL) (Orit et al., 2008).

OMG in its turn has adopted IFML in March 2013

as its vision of UIDL. IFML is designed to capture the

user interaction, the content and the control behavior

of the software systems front-end.

3.1 IFML Language

IFML allows the system modeler to design the

structure of the general view part of the system in

terms of ViewContainers with navigation relations,

and what ViewContainers could contain in terms of

ViewComponents. ViewComponents enable content

display and data entry, they could be associated with

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

490

a ContentBinding to express the source of the

displayed content.

IFML ensure the events management that could

be produced by user interactions, by actions in the

application or by the system.

Events engender actions that could change the

state of the UI and they can be associated with

ParameterBinding that expresses the input-output

dependency between the ViewElements.

Many aspects that could help understanding

IFML language are presented in (Brambilla et al.,

2014). we focus on the IFML language definition

aspect through the IFML metamodel artifact, and the

IFML executability aspect.

The IFML meta-model is the best definition

artifact presented to describe the IFML language. It is

divided into three packages: The Core package, the

Extension package, and the DataTypes package, as

shown in Figure 1.

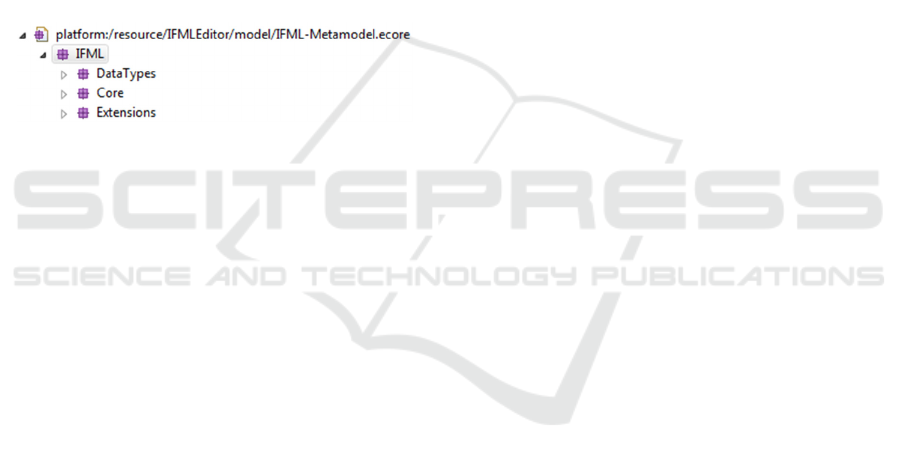

Figure 1: IFML Packages.

The Core package contains the abstract and general

concepts for building the infrastructure of the

language such as InteractionFlowElements,

InteractionFlows, and Parameters. These defined

concepts are extended by concrete concepts in the

extension package to treat more complex behaviors.

The IFML metamodel incorporates the basic data

types defined in the UML metamodel into the third

DataTypes package. It specializes some UML

metaclasses as the origin for IFML meta-classes, and

presumes that the IFML domain model is represented

in UML.

the IFML model admits IFMLModel as a top level

metaclass for including the InteractionFlowModel;

that affords the general ViewElements, action and

events of the system, and the Domain model; that

specifies the main objects, their attributes and

associations.

Model driven development processes start by

elaborating models and then generate executable code

(such as C, C++, Ada, Java, Forth, even VHDL)

through a series of model transformations and code

generators. To ensure this automatic generation, it is

recommended to use executable models.

To execute models, i.e. generate executable code

from it, they must have a complete definition in terms

of executability respecting two kinds of elements as

described in (Eric et al., 2011) which are: the static

part; that could define the static view elements of a

model, and the dynamic part; that describes behavior

of the model.

IFML has been designed with executability

aspect. This is obtained through model

transformations and code generators already exist that

ensures an easy mapping between conceptual IFML

constructs and executable applications for various

platforms and devices.

User interaction, within a view, produces events

that could affect the state of the views and then

execute actions that could signal another event and

that are what the execution semantics of IFML.

The IFML execution semantics describes any

IFML diagram as a machine that takes as input the

interaction of the user and updates the state of the

interface for the user to continue the interaction.

3.2 Content and Input-Output

Dependency

Actually, the specification of the content and

navigation aspects plays an important role in the

description of the system front end. This is done

through the using of ViewContainers, Events and

NavigationFlows.

First, we consider the content dependency

allowing the display of a data in the interface. In fact,

the content to be published within ViewComponents

could be provided from a different source. It is then

important to identify the source of the content in each

publishing ViewComponent. We use for this purpose

the DataBinding concept associated with

ViewComponent element.

The DataBinding concept expresses the source of

the retrieved content from objects of the domain

model. It ensures the automatic generation of data

from classes and attributes of UML Class diagrams,

Entity-Relationship models, ontologies, or other

elements.

Figure 2 shows an example of a simple

DataBinding. The “MovieList” ViewComponent

retrieves its content from the “Movie” entity of the

domain model of type UML Class model.

Besides, ViewComponents may allow user

interaction that could produce a navigation, this

navigation results in changing the content of

ViewComponent to display other ones. We talk about

the content dependent navigation specification

expressed by means of Event and NavigationFlow

view elements.

IFVM Bridge: A Virtual Machine for IFML Models Execution in Combination with Domain Models

491

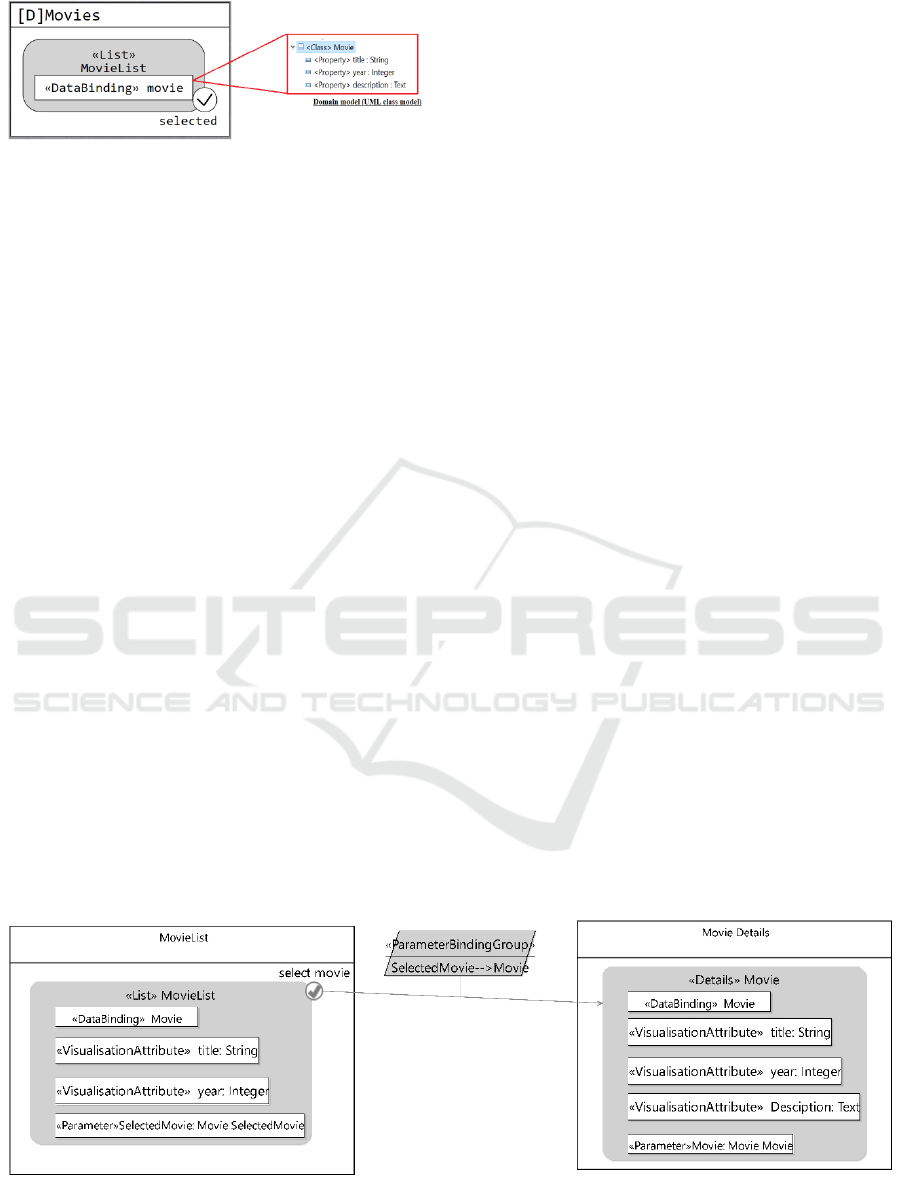

Figure 2: DataBinding for Movie List content.

This specification permits the expression of the

dependency in which one ViewComponent publishes

content that relies on a precedent ViewComponent

content after a user interaction is performed. This

dependency is expressed by associating one or more

ParameterBinding specifications to the

NavigationFlow.

For example, as shown in Figure 3, a user accesses

a list of movies published inside the List

ViewComponent. He may select one object of the

movie list and reach another ViewComponent that

displays the detailed information of the selected

movie.

4 APPROACH OVERVIEW

This present paper presents a modest contribution to

overcome front end development problems. It

proposes a new approach for model execution based

on the definition of a virtual machine for the

implementation of abstract UIs definition with IFML.

The approach exploits the IFML language as the input

for the virtual machine to cover the content and the

user interactions of the software front end, as well as

the binding to external sources for extracting

information. We choose the acronym IFVM for

designate the proposed IFML Virtual Machine.

Figure 4 illustrates the general process of the

approach. It can be seen that we present a model

driven process that allows the execution of IFML

models. During this process, the focus of attention

was on the two concepts provided by IFML which are

the DataBinding and the content dependent

navigation described in section before.

For building the virtual machine, several technics

are suggested to ensure automatic execution of the

IFML models. As can be seen from Figure 4, the

process encompasses two major units: (i) the

compilation unit and (ii) the interpretation unit. We

suggest to merge the two concepts of implementation

which are the compilation and the interpretation to

benefit from their advantages.

In general, the hybrid approach of an interpretive

compiler allows fast execution (Aggarwal, K. Singh

and Jain, 2014), since it is based on virtual machine

instructions of bytecode that has simple format to be

quickly analyzed by an interpreter.

4.1 Compilation Unit

Here we start the process of execution, in a first stage,

by elaborating the IFML model conforming to IFML

metamodel. It captures the general structure and

behavior of the different views of the system. As well,

it will be accompanied with a UML model

referencing the domain model that provides the

content to be displayed in the interface.

Figure 3 gives an example of an IFML model

expressing two views associated with a

NavigationFlow for a movies manager system. As

depicted in the figure, there are two windows, one for

listing the set of movies, and a second one for

publishing the details of the selected movie. The first

window uses the List ViewComponent to display the

movies list including some parameters:

 DataBinding referencing the Movie UML class

(see Figure 5),

Figure 3: Example of List and Details ViewComponents of movies manager app.

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

492

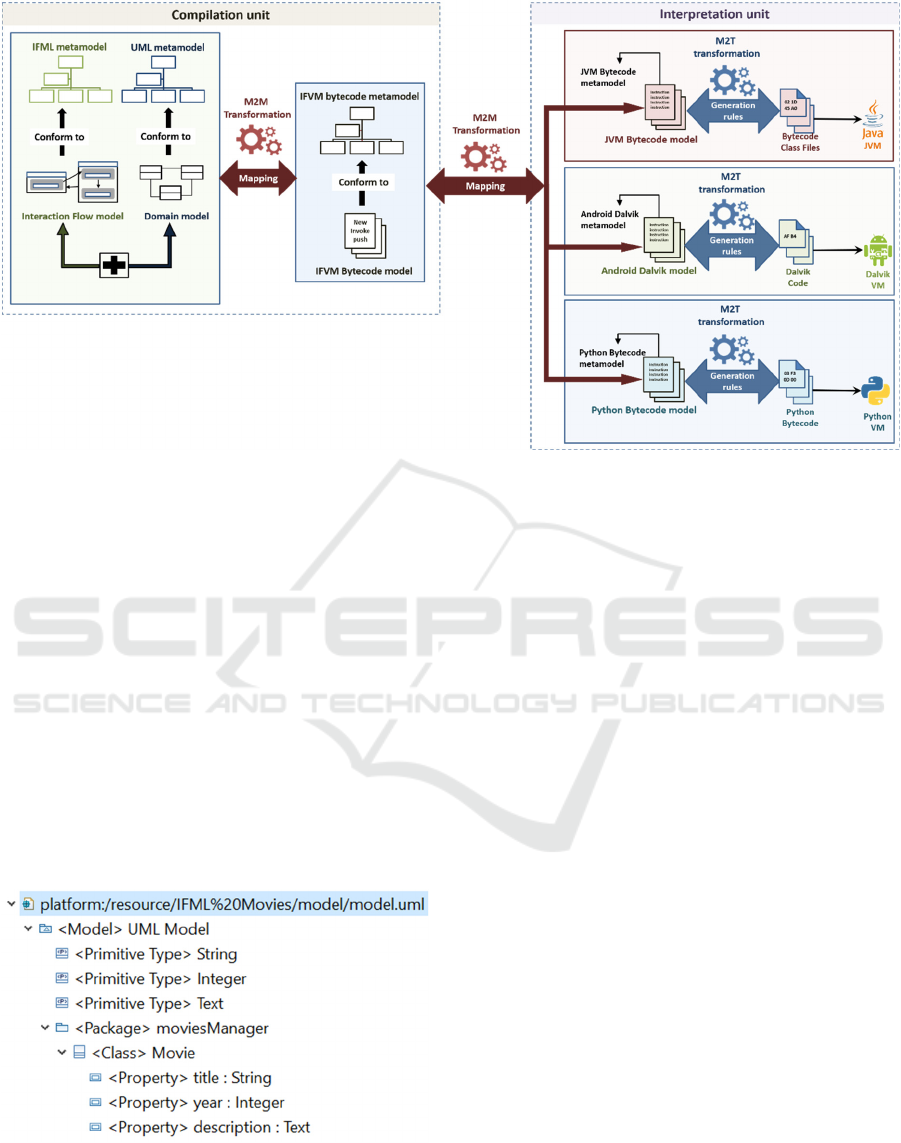

Figure 4: IFVM Process.

 VisualisationAttribute to locate the data to be

shown in the interface,

 Parameter including the value of the selected

movie,

The second window is devoted to the display of

detailed information of the selected movie from the

“MovieList” ViewComponent including some

parameters as well.

The NavigationFlow is associated with a

parameterBindingGroup that contains the declaration

of an input–output dependency between the two

windows. The value of the parameter

“SelectedMovie” (output of the “MovieList”

ViewComponent) is associated with the value of the

parameter “Movie” (input of the “MovieDetails”

ViewComponent).

Figure 5: Example of UML domain model for movies

concepts.

The purpose of this present work is to express the

bytecode model elements in a bytecode format to be

interpreted by a corresponding virtual machine in

order to obtain the machine instructions understood

by a computer's processor. Actually, there are a plenty

of virtual machine architectures available on the

market. However, in this paper we propose a new

definition, through a metamodel, of IFVM bytecode

form for the desired IFVM virtual machine. It has a

similar syntax of Java bytecode with additional

instructions for expressing events and navigations for

example.

So, once the IFML and the UML models are built,

we launch a M2M transformation that maps their

elements to elements of IFVM bytecode model.

4.2 Interpretation Unit

IFVM has been chosen as an abstract intermediate

form in order to permit its representation in the other

forms of bytecode. So, after the execution of the

compilation unit, that is to say getting the IFVM

bytecode model, we begin the interpretation unit

dedicated to firstly mapping via a M2M

transformation the IFVM model to the other models

of bytecode of existing virtual machines; the JVM

bytecode model, the android Dalvik model and the

Python bytecode model, in order to gain optimization

and portability.

After getting the three bytecode models, we

launch a model to text transformation, in a second

IFVM Bridge: A Virtual Machine for IFML Models Execution in Combination with Domain Models

493

time, for each generated bytecode model in order to

generate the corresponding bytecode files.

Finally, the Bytecode files will be then treated by

their corresponding virtual machines to be executed.

5 FUTURE WORK

On the basis of the IFVM process, we will build a

framework based on the proposed process to enable

the automatic front end execution of a system. It will

provide both a textual and graphical model editor for

designing the IFML and UML models. We will

elaborate our own IFVM bytecode metamodel with

all the required instructions according to bytecode

instruction set of the existing virtual machines.

Compilation will be done via a model to model

transformation designed with QVTo language

(Omg.org, 2016). In the interpretation unit we launch

a second M2M transformation that will be designed

with QVTo as well. For the model to text

transformation, we will opt for a code generation

using the open source Acceleo (Eclipse.org, 2005).

Finally, we will extend the framework to support

additional bytecode forms for other existing virtual

machines.

6 CONCLUSION

In this position paper, we presented a model driven

process for automatically executing the abstract

representation of user interfaces with content

provided by domain models. Our contribution reveals

the possibility of building and maintenance of

software front end easier and less expansive via

transformations and model tools in comparison to the

code driven contributions.

REFERENCES

Blanc, X. and Salvatori, O. (2005). MDA en action. Paris:

Eyrolles.

Brambilla, M., Fraternali, P., Elliot, S., Herbert, K.,

Kumaraguruparan, P. and Rogers, M. (2014).

Interaction flow modeling language.

Omg.org. (2018). The Interaction Flow Modeling

Language. [online] Available at: https://www.omg.org/

ifml/ [Accessed 22 Nov. 2018].

Gotti, S. and Mbarki, S. (2016). UML Executable: A

Comparative Study of UML Compilers and

Interpreters. In: Information Technology for

Organizations Development (IT4OD).

Frajták, K., Bures, M. and Jelinek, I. (2015).

Transformation of IFML Schemas to Automated Tests.

In: Conference on research in adaptive and convergent

systems.

Laaz, N., Wakil, K., Mbarki, S. and N.A. Jawawi, D.

(2018). Comparative Analysis of Interaction Flow

Modeling Language Tools. Journal of Computer

Science, 14(9).

Brambilla, M., Mauri, A. and Umuhoza, E. (2014).

Extending the interaction flow modeling language

(ifml) for model driven development of mobile

applications front end. In: International Conference on

Mobile Web and Information Systems.

Gotti, Z. and Mbarki, S. (2016). Java Swing Modernization

Approach Complete Abstract Representation based on

Static and Dynamic Analysis. In: ICSOFT-EA.

KENITRA.

Gotti, S. and Mbarki, S. (2016). Toward IFVM Virtual

Machine: A Model Driven IFML Interpretation. In:

ICSOFT-EA.

Jean-Sébastien, S., Gaëlle, C. and Jean-Marie, F. (2006).

Models at runtime for sustaining user in-terface

plasticity. In: Models@ run. time workshop (in

conjunction with MoDELS/UML 2006 conference).

Selic, B. (2003). The pragmatics of model-driven

development. IEEE Software, 20(5), pp.19-25.

Orit, S., Robert JK, J., Mark, G. and K., L. (2008). User

interface description languages for next generation user

interfaces. In: CHI'08 Extended Abstracts on Human

Factors in Computing Systems.

Eric, C., Cyril, B., Alexandre, F. and F., B. (2011).

Contracts for model exe-cution verification. In:

European Conference on Modelling Foundations and

Applications.

Aggarwal, A., K. Singh, D. and Jain, S. (2014). A Hybrid

Approach of Compiler and Interpreter. International

Journal of Scientific & Engineering Research, 5(6).

Omg.org. (2016). About the MOF Query/View/

Transformation Specification Version 1.3. [online]

Available at: https://www.omg.org/spec/QVT/About-

QVT/ [Accessed 23 Nov. 2018].

Eclipse.org. (2005). Acceleo | The Eclipse Foundation.

[online] Available at: https://www.eclipse.org/acceleo/

[Accessed 23 Nov. 2018].

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

494
