Flexible Access Control and Conﬁdentiality over Encrypted Data for

Document-based Database

Maryam Almarwani, Boris Konev and Alexei Lisitsa

Department of Computer Science, University of Liverpool, Liverpool, U.K.

Keywords: Document Database, Querying over Encrypted Data, Access Control, Conﬁdentiality.

Abstract:

In this paper, we present a SDDB scheme regarding document-based store that satisﬁes three security re-

quirements: conﬁdentiality, ﬂexible access control, and querying over encrypted data. The scheme is inspired

by PIRATTE and CryptDB concepts. PIRATTE is a proxy for sharing encrypted ﬁles through a social net-

work between the data owner and the number of users and the ﬁles are decrypted on user side with the proxy

key, whereas in CryptDB, it is proxy between a database and one user to encrypt or decrypt data based on

user’s queries. The scheme also improves CryptDB security and provides the possibility of sharing data with

multi-users through PIRATTE concept which is used to verify authentication on the proxy side.

1 INTRODUCTION

Databases often contain sensitive data such as per-

sonal and governmental information. The security

protection of such data has to address threats coming

from both external and internal adversaries. While

access control is commonly used to alleviate external

threats, encryption is applied to prevent data leaks to

both external and internal (e.g. curious administra-

tors) attackers. Using encryption is not without is-

sues. In order to query encrypted data, either they

have to be decrypted, making possible data leaks, or

special methods for querying encrypted data with lim-

ited querying power and efﬁciency have to be used.

The authors of (Ferretti et al., 2013) identiﬁed

three requirements for secure databases: (i) Conﬁ-

dentiality, (ii) Enforcement access control, and (iii)

Querying over encrypted data. Several systems satis-

fying some of these requirements have been proposed.

In the context of relational databases CryptDB system

(Popa et al., 2011) addresses requirements (i) and (iii),

while DBMask (Sarfraz et al., 2015) deals with all (i)-

(iii). For NoSQL databases the requirements (i) and

(iii) are discussed, e.g. in (Xu et al., 2017) (document-

based DB) and (Aburawi et al., 2018) (Graph DB).

Recent years saw rise in popularity (Tre, ) of var-

ious NoSQL datamodels and DBMSs, as they able to

store and process huge amounts of structured and un-

structured information effectively. There are four ba-

sic types of NoSQL databases: (1).Key-value store,

(2).Document-based store, (3).Column-based store,

(4).Graph-based store. According to October 2018

ranking (ran, ) document-based store (MongoDB) oc-

cupies the 1st rank of NoSQL database used. No

comprehensive solutions for secure document-based

stores addressing all requirements (i)-(iii) have been

proposed so far to the best of our knowledge.

In this paper, we propose a particular scheme

SDDB (Secure Document DataBase) for implement-

ing secure NoSQL document-based databases. In

this schema to satisfy (i)-(iii) we adopt CryptDB ap-

proach for querying encrypted data, originally pro-

posed for relational DB and SQL (Popa et al., 2011),

for the case of document-based databases. We further

combine it with improved ﬁne-grained access control

originated in PIRATTE scheme (Jahid and Borisov,

2012).

The rest of the paper is organized as follows. Sec-

tion 2 presents background of CryptDB and PIRATTE

systems. Section 3 presents details of Secure Docu-

ment Database (SDDB) scheme. Section 4 outlines a

case study of an application of SDDB scheme. Per-

formance and security of the SDDB are discussed in

Section 5. Section 6 presents related work. Finally,

Section 7 concludes the paper.

2 BACKGROUND

This section presents some background for CryptDB

and PIRATTE concepts used in our proposal.

606

Almarwani, M., Konev, B. and Lisitsa, A.

Flexible Access Control and Conﬁdentiality over Encrypted Data for Document-based Database.

DOI: 10.5220/0007582506060614

In Proceedings of the 5th International Conference on Information Systems Security and Privacy (ICISSP 2019), pages 606-614

ISBN: 978-989-758-359-9

CryptDB (Popa et al., 2011) is the ﬁrst practical

database system which supports SQL queries over en-

crypted data. It functions as a proxy between the

database and the user by rewriting a query to exe-

cute querying over encrypted data on DBMS without

revealing plaintext and forwarding the encrypted re-

sult receiving from DBMS to the user side after de-

crypting. It uses different encrypted techniques de-

pending on the data type and operation such as Ran-

dom(RND) and Deterministic(DET). These types are

implemented using onion layers as depicted below in

Figure 1. CryptDB lacks the capacity to enforce ﬁne-

grained access control of cells and columns. CryptDB

only enforces row access by using a proxy-based ref-

erence monitor due to encrypting each column data

by the one key. Also, users on CryptDB cannot en-

able sharing their data with a group of users.

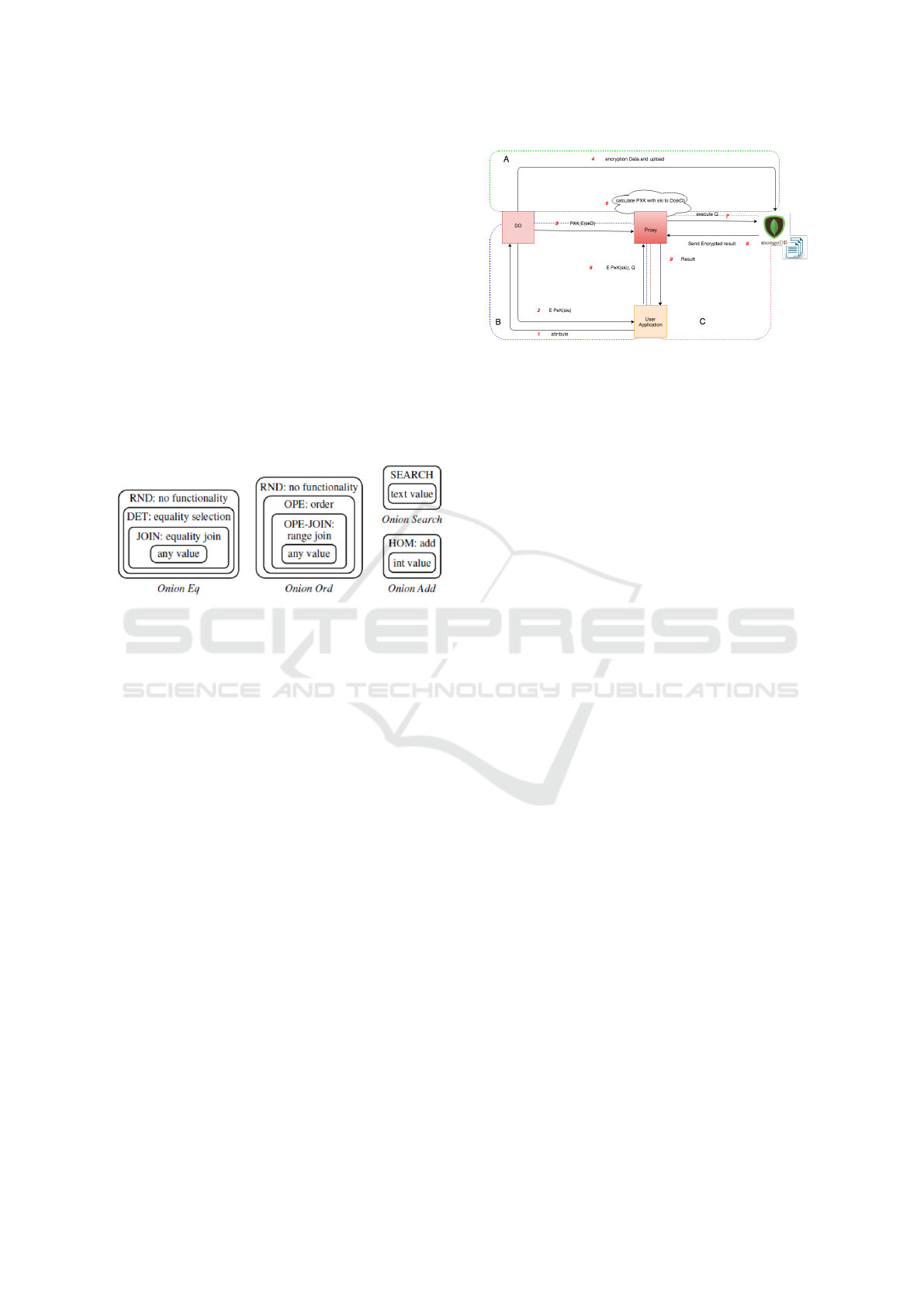

Figure 1: Onion encrypted layer in CryptDB(Popa et al.,

2011).

To mitigate CryptoDB limitations and adopt it

for document based DB, we suggest using ad-

vanced cryptographic primitives such as cipher-policy

attributed based encryption(CP-ABE) (Bethencourt

et al., 2007). Jahid and Borisov proposed the PI-

RATTE scheme (Jahid and Borisov, 2012) in which

CP-ABE is integrated with user revocation mecha-

nism using a proxy that handles attributes and user

revocation to allow dynamic users. The data owner

in PIRATTE issues user secret keys and a proxy key

once, but for user revocation, only the proxy key is

updated.

3 SDDB SCHEME

This section presents an overview of SDDB scheme,

i.e., system requirements, architecture, threat model,

SDDB workﬂow and its algorithms.

3.1 SDDB Requirements

Our proposed design satisﬁes the following require-

ments :

Figure 2: SDDB Scheme Architecture.

• C1: Querying over Encrypted Data. The

scheme is able to perform operations and queries

over encrypted data without revealing the data.

• C2: Flexible Access Control. Users have access

to parts of the data based on data owner’s policy

and the policy can be changed if it is necessary.

• C3: User Revocation Support. The scheme can

revoke the users based on data owners requests, so

they cannot access the data after that.

• C4: No Re-encryption Data. Data does not need

to be re-encrypted in the case of an user revoca-

tion.

• C5: No Re-distributed Key. Keys don’t need to

be re-distributed in the case of an user revocation.

• C6: Multi-user Sharing Support. Based on data

owner’s policy (parts of ) data can be accessed by

multiple users.

• C7: Security and Performance Trade-off. The

scheme allows conﬁguring for better security or

performance.

3.2 SDDB Architecture

Figure 2 illustrates the proposed that includes four en-

tries: Data Owner (DO), User Application, Proxy, and

DBMS Server. Their interaction can be described as

follows:

1. DO is the authority responsible for establishing

access privileges for her/his data which will be

called access policy(AP) in the rest of the paper.

For example, DO may be a user who shares his

or her data through applications. This entity uses

a different keys to encrypt different parts of the

data depending on the AP and uploads them to

the DBMS server. It creates the secret keys for

each access policy (AP) and distributes the secret

keys to the users. Then, the proxy veriﬁes authen-

ticated user who can access the data.

Flexible Access Control and Conﬁdentiality over Encrypted Data for Document-based Database

607

2. User Applications are users who request data

sharing for the DO. The users send their attributes

to the DO and receive their secret keys using

which they identify themselves to the proxy for

accessing parts of the data and executing their

queries.

3. Proxy is the intermediate server between DO, user

application, and DBMS. It is responsible for veri-

fying the right access for each user and rewriting

queries to be executed on the encrypted data.

4. DBMS server is a server that provides database

services such as storage and retrieval. It is respon-

sible for storing encrypted data and executing the

query without revealing the plaintext data (if pos-

sible).

3.3 Threat Model

• DO: It is trusted and remains ofﬂine after encrypt-

ing and uploading the encrypted data and dis-

tributes the keys to the users unless a new user

requests permission or until a user access rights is

removed by the owner.

• User Applications: It is untrusted. Therefore, the

proxy must verify them before allowing them to

access and query the data. Proxy and DO do not

share decryption keys with them.

• Proxy: It is semi-trusted. It obtains encrypted

keys and cannot decrypt data alone.

• DBMS server: It is semi-trusted and thus cannot

obtain the keys to decrypt inner layer.

3.4 Data Format and Query Language

While SDDB scheme can be implemented for var-

ious document-based DBs, we consider MongoDB

environment as a primary target. We brieﬂy outline

here the data storage format and the query language

for MongoDB that will be needed for understand-

ing of the rest of the paper. Firstly, MongDB repre-

sents its data in binary-encoded format called BSON.

BSON is an extension for JSON with additional data

types, such as date and binary, and embedding fea-

ture. It provides high-efﬁciency of encoding and de-

coding with different languages and can be found

a more detailed information at http://bsonspec.org/.

Secondly, MongoDB query language has its own syn-

tax compatible with JSON structure and is nearly as

powerful as SQL. For example, a database contains

a collection (table) called ”people” that consists of

three ﬁelds (columns) represented by SQL and Mon-

goDB query as shown in Figure 3. Some examples of

MongoDB querying below on the previous example

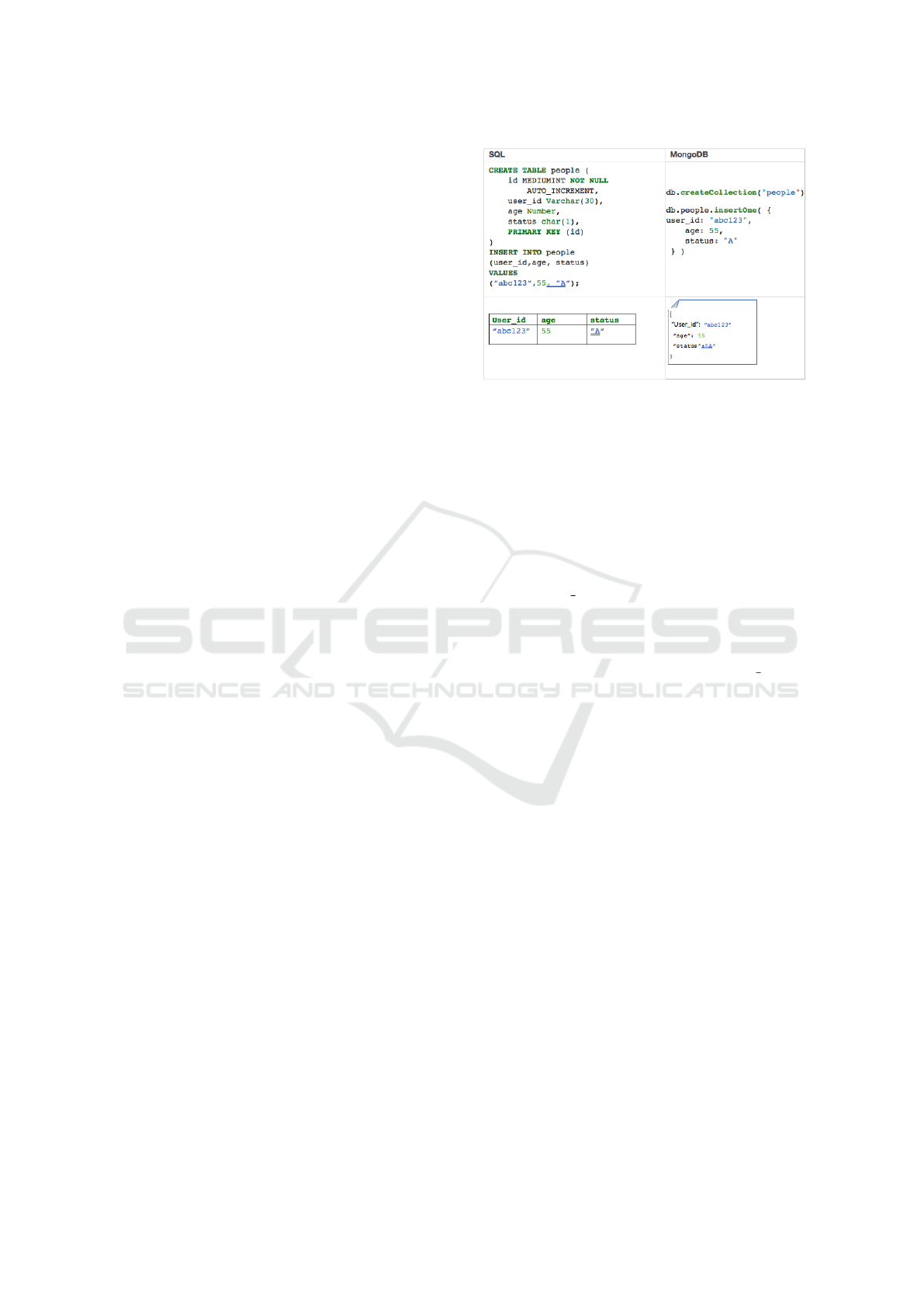

Figure 3: SQL vs MongoDB Structure.

and for more types of queries in details see at https:

//www.tutorialspoint.com/mongodb/index.htm./.

1. Find all Documents in the collection:

db . p e op l e . f i n d ( { } )

2. Find all Documents on the collection containing

user-id=”abc123”:

db . p e op l e . f i n d

( { ” u s e r i d ” : ” abc12 3 ”})

3. Update age on all Documents in the collection

containing user-id=”abc123” to 56:

db . p e op l e . UpdateMany ( {” u s e r i d ” :

” abc 123 ”} , {\ $ s e t : {” age ” : 5 6 } } )

3.5 SDDB Workﬂow Overview

The DO has documents that are written in BSON for-

mat, and the data sharing between the Data owner and

the users is achieved in four stages.

1. Data Encryption (Stage A). This stage includes

system initialization and encrypting data and up-

loading it. The DO issues access policy (AP) ,that

holds attributes to determine who users can ac-

cess data, for each group of documents. It then

issues secret keys such as public key and proxy

key based on PIRATTE SETUP algorithm and

onion key for each AP based on algorithms used

in such as AES-CBC and Homomorphic Encryp-

tion based on CryptDB SETUP algorithm. Then,

the DO uses the secret keys, i.e. master key, col-

lection key, document key, onion key and layer

key, for encrypting data for several onions and

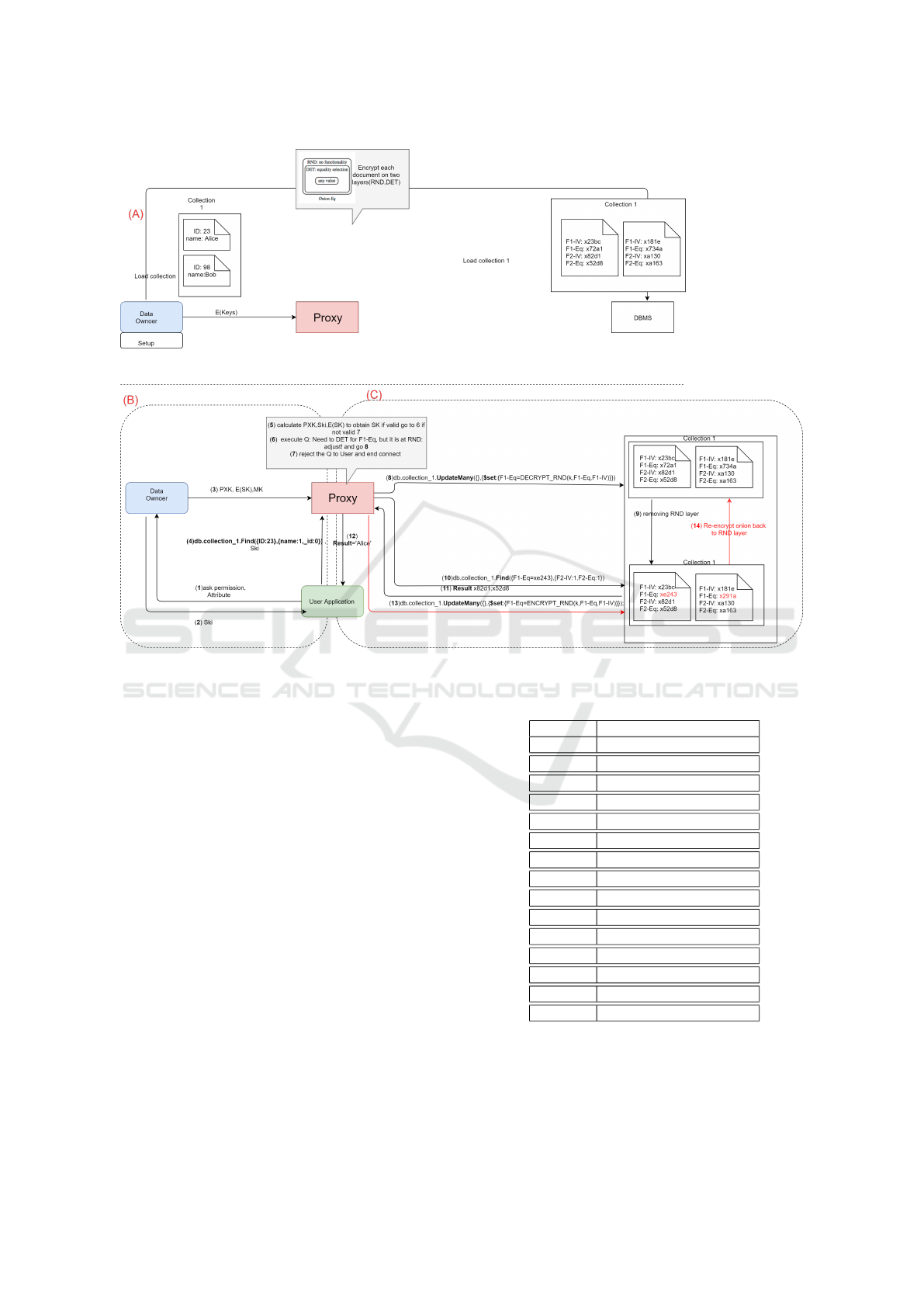

layers, as shown in ﬁgure 3(A) similar to SQL-

aware Encryption on CryptDB. To optimize per-

formance, the DO does not have to encrypt all the

documents in all onions and layers and instead

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

608

chooses the appropriate onions and layers as per

the level of sensitivity of DO’s data and desired

queries. The DO then encrypts the secret keys us-

ing the public key and sends them to proxy with

the proxy key.

2. Flexible Access Control (Stage B). This stage is

from enforcing access control step for PIRRATTE

but it executes on the proxy side. It is responsible

for verifying a user. Users send their attributes

to the DO to obtain users’ secret keys. Users

then send their secret key, attributes, and query to

proxy. Proxy, in turn, combines the proxy key, the

encrypted secret data’s secret keys, and the users’

secret keys to obtain data secret keys,as shown

in ﬁgure 3(B). If the proxy obtains correct secret

keys, it will move to the next stage(C) otherwise

the users’ query will be rejected.

3. Data Query and Retrieval (Stage C). This stage

is from querying and retrieving data steps for

CryptDB system. At this stage, a query is exe-

cuted and high security is provided, as shown in

ﬁgure 3(C). Proxy rewrites the query according

to the layer that can be executed on it, for which

some querying may require adjustment layer be-

fore the user query is executed. Back to the pre-

vious example on 2.3 section, if the collection en-

crypted on two layers (RND, DET see section 5

for details of these algorithms), therefore, query 1

will be executed immediately on RND layer but

query 2 will be executed after peeling off RND

layer. Some queries cannot be executed on en-

crypted data and this case will not be discussed in

this paper left for future work. Then, the proxy

sends user query to DBMS which executes it and

sends the encrypted result. Proxy decrypts the

encrypted result and sends it back to the user.

For higher security, we suggest that the proxy re-

encrypts the peeling layers after each query or

user session ends.

4. Revoked Users (Optional). This stage is exactly

from revocation step for PIRATTE. This stage is

executed if the DO wants to revoke a user. The

DO will update only the proxy key without affect-

ing other users in the system.

3.6 SDDB Algorithms

An SDDB scheme can be outlined by nine algorithms,

which is taken from PIRATTE and CryptDB algo-

rithms. These algorithms are classiﬁed according to

which stage they are used in, as follows:

• Stage A Algorithms. The algorithms of this cat-

egory are taken as follows:

(i)AttrGen(),KeySetup(),ProxyKeySetup() from

PIRATTE scheme.

(ii)LayerKeySetup() and EncKey() from

CryptDB.

– AttrGen (). Data Owner deﬁnes sets of at-

tributes and generates access policy (AP) for

each set of attributes.

– KeySetup (). Data Owner generates Public

Key (PK) and Master Key (MK) for each ac-

cess policy.

– LayerKeySetup (). Data Owner runs setup

function for each encryption algorithm, such

as AES, using it to encrypt data for each ac-

cess policy in order to obtain secret layers keys

(SLK).

– ProxyKeySetup (PK, MK, AP). Data Owner

generates Proxy Key (PXK) by PK and MK for

each AP to decrypt (SKL).

– EncKey (PK, K). Data Owner encrypts SKL

and MK by PK.

• Stage B Algorithms. The algorithms of this cate-

gory are taken from PIRATTE.

– KeyGen (MK, AP). DO generates a set of se-

cret keys for ’i’ users (SKi) from MK corre-

sponding to AP.

– DecKEY (E, PYX, SKi). Proxy decryptes se-

cret keys.

• Stage A and B Algorithm. The algorithm of this

category is taken from CryptDB.

– LayerEnc (SLK, D). Data Owner or Proxy

runs Encryption function for each encryption

algorithm by using data (D) and SLK to obtain

decryption data(C).

• Stage C Algorithm. The algorithm of this cate-

gory is taken from CryptDB.

– LayerDec (SLK, C). Proxy runs Decryption

function for each of the encryption algorithms

by using C and SLK to obtain data (D).

4 CASE STUDY

In this section, it is assumed that the DO has a set of

data consisting of one collection that comprises two

documents, each with two ﬁelds. These two ﬁelds,

ID and Name, are integer and string data type respec-

tively and Q1 will be executed through MongoDB

querying language for both without-SDDB and with-

SDDB.

Q1 : ( db . c o l l e c t i o n −1. f i n d ( { ID : 2 3 } ,

{name : 1 } ) )

Flexible Access Control and Conﬁdentiality over Encrypted Data for Document-based Database

609

Figure 4: Case Study.

4.1 Without-SDDB

This scenario is used in case the system does not pro-

vide encryption of data or veriﬁed access. DO up-

loads the data in DBMS as Plaintext and assumes that

access privileges are granted to users by sending its

password (PW) to them. Therefore, the user uses PW

with Q1 through user application that, in turn, sends

it to the DBMS server to execute and then returns the

result to the user, where Name=Alice is matched to

ID=23.

4.2 With-SDDB

This scheme can be divided into cases based on

classes of computation required by the application’s

queries. For example, in this case study, as the ap-

plication requires queries(insert,delete,update,select)

with equality operation, the data is encrypted consid-

ering onion equality between two layers, RND and

DET, as shown in ﬁgure 4.

The table 1 shows the notations that will be used

in this case study. If the DO wishes to share the data

Table 1: Scheme’s Notations.

Notation Description

DO Data Owner

Ui Users or user applications

KUi Key for user i

DET Deterministic Algorithm

RND Random Algorithm

AP Access policy

PK Public key

MK Master key

CK Collection key

DK Document Key

OK Onion Key

RND

RNDLayerKey

DET

DET LayerKEy

PXK Proxy key

Qi User’s or Proxy’s Query

with the Ui and only allow for equality computation,

the system will have to be followed in four stages.

1. Data Encryption (Stage A)

1.1 System Initialization. For this sub-

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

610

stage, Do runs AttrGen, Key-

Setup,LayerKeySetup,ProxyKEySetup,EncrKey

once for documents.The DO creates AP, for ex-

ample (Doctor AND Surgery Department), and

establishes the keys for PK, MK, CK, DK, OK,

LKRND , LKDET, and PXK according to each AP

and encrypts all previous keys, except PK and

PXK by PK (i.e. EPK(MK), EPK(CK),EPK(DK),

EPK(OK), EPK(LKRND),EPK(LKDET)), and sends

them with PXK and AP to the proxy and store

in-memory, as shown in table 2.

Table 2: Scheme Keys.

AP (Doctor AND Surgery Department)

MK EPK(MK)

CK EPK(CK)

DK EPK(DK)

OK EPK(OK)

LKRND EPK(LKRND)

LKDET EPK(LKDET)

PX PXK

1.2 Data Encryption and Upload. DO runs Lay-

erEnc and uses MK, CK, DK, OK, and LKs to

encrypt the data in an equality onion and upload

it to BDMS.

2. Flexible Access Control (Stage B)

2.1 User Registration. Ui sends their attributes to

the DO to obtain KUi. For example, assume

U1 and U2 are Doctor and Surgery Department,

and U3 is a Nurse and Surgery Department.

The DO runs KeyGen to create KU1 and KU2

and sends it to U1 and U2, respectively, and re-

jects the U3 request that does not satisfy AP.

2.2 Verifying User. For example, U1 sends KU1

with his/her attributes and Q1 to the proxy

which runs DecKey. Before executing Q1, the

proxy must verify the user’s authentication to

obtain the secret keys. The proxy calculates

PXK and KU1 with each encrypted key to ob-

tain MK, CK, DK, OK, and LKs.

3. Data Query and Retrieval (Stage C)

The proxy follows the following steps:

3.1 Examines the current layer of ID ﬁeld and its

suitability to Q1 if Q1 requires DET layer and

the current is RND.

3.2 Decrypts the ﬁeld (i.e. F1-Eq) corresponding to

ID by issuing a query Q2 and sends it to DBMS

by LayerDec.

Q2 : ( db . c o l l e c t i o n −1. updateMany (

$ {} , { $ s e t =F1−Eq =DECRYPT RND(

k , F1−Eq , F1−IV } ) )

3.3 Rewrites Q1 query by replacing the constants

with the corresponding value on DET and

swaps the ﬁelds corresponding to the DB ﬁelds

as Q3 for executing it on the DBMS server, af-

ter which the result F2-Eq, F2-IV is sent to the

proxy.

Q3 : db . c o l l e c t i o n −1. f i n d ( { F1−Eq=

xe243 } , { F2−IV : 1 , F2−Eq : 1 } )

3.4 Decrypts F2-Eq twice in RND and DET on

the proxy side by LayerDec, as the F2-Eq

ﬁeld is still in RND, to obtain the result

(name=”Alice”) and send it to U1.

3.5 Returns F1-Eq to RND to obtain higher secu-

rity by issuing an opposite query Q4 to Q2 by

LayerEnc.

Q4 : db . c o l l e c t i o n −1. updateMany ( { } ,

{\ $ s e t =F1−Eq=ENCRYPT RND(

k , F1−Eq , F1−IV ) } )

4. Revoked Users (Optional)

This is an optional step that is executed if the DO

wants to revoke the user. For this, the DO only

updates PXK and resends it. For example, to re-

voke U1, PXK is updated without having to data

re-encryption or key distribution and without af-

fecting the rest of the users. After that, U1 sends a

query to a proxy after revocation that its requests

cannot be executed because he/she has lost au-

thentication and rejected.

5 DISCUSSION

In this section, there will be a discussion regarding the

security and performance of the two previous mod-

els in the case study, as well as studies inspired by

it. Finally, we brieﬂy compare our scheme with some

existing works. In term of security, in the without-

SDDB model, if the DBMS server is exposed to com-

promise or curiosity, it will reveal plaintext data be-

cause it is not encrypted. In addition, it is likely that

the adversary will be able to obtain the password and

impersonate the data owner to manipulate the data.

Therefore, this requires a secure channel to exchange

it.

In the with-SDDB example, the DBMS server

does not reveal the information except where it is de-

tected based on the encryption algorithm in the cur-

rent layer used, such as equal in DET. Therefore,

the decryption layer will be returned to high-security

layers other than CryptDB. In this model, there is

also no need to share encryption keys because dif-

ferent keys are used for both user authentication and

Flexible Access Control and Conﬁdentiality over Encrypted Data for Document-based Database

611

Table 3: Comparison of our scheme with some existing work.

(Popa et al., 2011) (Xu et al., 2017) (Aburawi et al.,

2018)

(Sarfraz et al.,

2015)

(Ferretti et al.,

2013)

(Pirretti et al.,

2006)

SDDB

C1 X X X X X X X

C2   X X X X X

C3    X  X X

C4    Only user’s group

belong

 X X

C5    Only user’s group

belong

 X X

C6 X X X X X X X

C7 X X X X X  X

DB Relational DB Document DB Graph DB Relational DB Relational DB  Document DB

PS X  X X X  In the future

Notes.{X} :satisﬁes. {X} : does not satisfy. {} : Out of scope the paper.

data encryption, according to access privileges other

than CryptDB. PIRATTE runs decryption data on the

user’s side and is not trustworthy and therefore, this

permission is given to the proxy in our scheme. In

the case that the adversary is able to obtain the keys,

they cannot impersonate the data owner by associat-

ing these keys with the user’s attributes and the Proxy

Key. Furthermore, in the case that the proxy is ex-

posed or compromised, there will not be a leakage of

data because it cannot decrypt keys alone.

In terms of performance, the without-SDDB

model can execute any type of query or computations

at high speed. Meanwhile, the with-SDDB model

provides only desired queries based on the type of al-

gorithm used, as a result of reducing the number of

layers in CryptDB to meet the level of sensitivity of

the data owner and the application requirements. In

addition, the size of the encrypted data is constant, as

opposed to PIRATTE that increases reliance on AP.

The PIRATTE concept in this scheme is thus used in

the veriﬁcation of access and not for the data encryp-

tion. Therefore, SDDB provides a trade-off between

security and performance. Finally, table 3 shows the

properties of our scheme in comparison with some

existing works, that is further explained in detail in

Section 6. The reported properties include C1-C7 the

database type (DB) and practical status (PS) which

means scheme has been implemented and evaluated.

6 RELATED WORK

CryptDB (Popa et al., 2011) as explained on back-

ground section is secure system worked on relational

database for SQL queries over encrypted data. In term

of its security, in the case of a proxy attack, only data

for users who are logged in at that time will be vul-

nerable to leakage.

With regards to NoSql, CryptMDB(Xu et al.,

2017)is a practical encryption system on MongoDB

that employs an additive homomorphic asymmetric

cryptosystem to encrypt data. It applies the proxy

concept at the top of MongoDB, setting it to only per-

form an additive operation over encrypted data.

CryptGraphDB (Aburawi et al., 2018) is a sys-

tem that executes queries to encrypted data stored in

graph store (i.e. Neo4j database) through the transfer

CryptDB concept. It provides traversal-aware encryp-

tion adjustment (using dynamically adjusting encryp-

tion layers) that is synchronised with the query exe-

cution - unlike static adjustment which precedes exe-

cution - thereby offering increased security(Aburawi

et al., ).

The previous studies focuses on conﬁdentiality

and querying over encrypted data while (Ferretti et al.,

2013) and (Sarfraz et al., 2015) also focuses on ac-

cess control for relational database. In (Ferretti et al.,

2013) the data owners encrypt data by SQL-aware en-

cryption on CryptDB without the need to a proxy and

store it as relational database over a cloud. Then they

pass the encryption keys to Database administrator

who has the authority to access all the data over the

cloud and in turn responsible for distributing the keys

to users based on legitimate access.

DBmask(Sarfraz et al., 2015) is the system that offers

ﬁne-grained access control built on attribute-based

group key management(AB-GKM) scheme, in which

users have attributes that should satisfy data policies

to grant access and execute SQL queries over en-

crypted data based on user permissions. The sys-

tem’s architecture is inspired by CryptDB and uses

the proxy that ﬁlters clause queries that do not execute

over encrypted data, instead execute on in-memory

from the proxy side. The DBmask system has been

implemented through two schemas: (1) DBmask-

SEC offers maximum security, (2) DBmask-PER of-

fers the best performance. The limitation is that ac-

cess policy groups belongs to each cell are revealed

to DBMS.

AB-GKM adds an extra column corresponding

for each column in a table to determine the group

belongs to a cell and this requires ﬁxed data struc-

ture format as relational database as well as in case

of database attack, an adversary will reveal the cells

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

612

belonging to the same group. Consequently, it is

important to ﬁnd an adequate mechanism for non-

relational database and provides property to hide ac-

cess control from the database side. However, in

2005, Sahai and Waters proposed attribute-based en-

cryption (ABE)(Sahai and Waters, 2005), which is

a type of public key encryption, that uses user iden-

tity for encrypting and decrypting data to access con-

trol of document data. ABE can further be classi-

ﬁed into two types: key-policy-ABE(KP-ABE) and

ciphertext-policy-ABE(CP-ABE). In 2006, Goyal de-

veloped KP-ABE (Goyal et al., 2006) and stated that

the ciphertext is associated with a set of attributes with

the secret key associated with access policy (AP). A

user can decrypt data only if the corresponding at-

tributes of ciphertext satisﬁes the AP of a user’s key.

The disadvantage of this type of ABE is that the Data

Owner cannot determine which users can decrypt the

data. Therefore, KP-ABE is not suitable for applica-

tions which share data. However, in 2007, Bethen-

court developed CP-ABE (Bethencourt et al., 2007)

and stated that the cipher-text is associated with ac-

cess policy (AP) with the secret key associated with a

set of attributes to overcome the disadvantage of KP-

ABE and more suitable for applications. Both KP-

ABE and CP-ABE lack user revocation mechanism.

Though previous studies such as in (Pirretti et al.,

2006; Boldyreva et al., 2008; Liang et al., 2013) have

noted that revocation mechanism has been added to

CP-ABE, it requires either key re-distribution or data

re-encryption. In 2012, Jahid and Borisov proposed

the PIRATTE scheme (Jahid and Borisov, 2012) to

address these limitations as explained on background

section.

7 CONCLUSIONS

This paper presents the main idea of Secure Docu-

ment Database (SDDB) scheme satisfying three main

security database requirements, which are conﬁden-

tiality, ﬂexible access control and querying over en-

crypted data for a document-based store. Future work

will concentrate on the choice of encryption primi-

tives appropriate to construct onions. Then, SDDB

will be implemented on the MongoDB and trade-off

between security and performance will be evaluated.

ACKNOWLEDGMENTS

Maryam Almarwani was supported by Royal Em-

bassy of Saudi Arabia. Alexei Lisitsa was partially

supported by EPSRC funded RAI Hub FAIR-SPACE

(EP/R026092/1).

REFERENCES

Db-engines ranking. https://db-engines.com/en/ranking.

Accessed: 2018-11-14.

Nosql, rdbms - explore - google trends.

https://trends.google.com/trends/explore?date=all

&q=NoSQL,RDBMS. Accessed: 2018-07-14.

Aburawi, N., Coenen, F., and Lisitsa, A. Traversal-aware

encryption adjustment for graph databases.

Aburawi, N., Lisitsa, A., and Coenen, F. (2018). Querying

encrypted graph databases. In Proceedings of the 4th

International Conference on Information Systems Se-

curity and Privacy, ICISSP 2018, Funchal, Madeira -

Portugal, January 22-24, 2018., pages 447–451.

Bethencourt, J., Sahai, A., and Waters, B. (2007).

Ciphertext-policy attribute-based encryption. In Secu-

rity and Privacy, 2007. SP’07. IEEE Symposium on,

pages 321–334. IEEE.

Boldyreva, A., Goyal, V., and Kumar, V. (2008). Identity-

based encryption with efﬁcient revocation. In Pro-

ceedings of the 15th ACM conference on Computer

and communications security, pages 417–426. ACM.

Ferretti, L., Colajanni, M., and Marchetti, M. (2013). Ac-

cess control enforcement on query-aware encrypted

cloud databases. In 2013 IEEE 5th International Con-

ference on Cloud Computing Technology and Science

(CloudCom), pages 219–219. IEEE.

Goyal, V., Pandey, O., Sahai, A., and Waters, B. (2006).

Attribute-based encryption for ﬁne-grained access

control of encrypted data. In Proceedings of the 13th

ACM conference on Computer and communications

security, pages 89–98. Acm.

Jahid, S. and Borisov, N. (2012). Piratte: Proxy-based

immediate revocation of attribute-based encryption.

arXiv preprint arXiv:1208.4877.

Liang, K., Fang, L., Susilo, W., and Wong, D. S. (2013). A

ciphertext-policy attribute-based proxy re-encryption

with chosen-ciphertext security. In Intelligent Net-

working and Collaborative Systems (INCoS), 2013 5th

International Conference on, pages 552–559. IEEE.

Pirretti, M., Traynor, P., McDaniel, P., and Waters, B.

(2006). Secure attribute-based systems.

Popa, R. A., Redﬁeld, C., Zeldovich, N., and Balakrish-

nan, H. (2011). Cryptdb: protecting conﬁdentiality

with encrypted query processing. In Proceedings of

the Twenty-Third ACM Symposium on Operating Sys-

tems Principles, pages 85–100. ACM.

Sahai, A. and Waters, B. (2005). Fuzzy identity-based

encryption. In Annual International Conference on

the Theory and Applications of Cryptographic Tech-

niques, pages 457–473. Springer.

Sarfraz, M. I., Nabeel, M., Cao, J., and Bertino, E. (2015).

Dbmask: ﬁne-grained access control on encrypted re-

lational databases. In Proceedings of the 5th ACM

Flexible Access Control and Conﬁdentiality over Encrypted Data for Document-based Database

613

Conference on Data and Application Security and Pri-

vacy, pages 1–11. ACM.

Xu, G., Ren, Y., Li, H., Liu, D., Dai, Y., and Yang, K.

(2017). Cryptmdb: A practical encrypted mongodb

over big data. In Communications (ICC), 2017 IEEE

International Conference on, pages 1–6. IEEE.

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

614
