Generic Framework for Evaluating Commutativity of Multi-Variant

Model Transformations

Sandra Greiner and Bernhard Westfechtel

Chair of Applied Computer Science I, University of Bayreuth, Universit

atsstrasse 30, 95440 Bayreuth, Germany

Keywords:

Model-driven Software Engineering, Model Transformations, Software Product Lines, Multi-Variant Model

Transformations, Annotative Approaches, Evaluating Commutativity.

Abstract:

Multi-variant model transformations (MVMTs) aim at automatically propagating variability annotations

present in software product lines (SPL) when executing state-of-the-art model transformations. Variability

annotations are boolean expressions used in annotative SPL engineering (SPLE) for expressing in which prod-

ucts model elements are visible. Developing the SPL in a model-driven way requires various model repre-

sentations, e.g., database schemata for data storage or Java models for the code generation. Although model

transformations are the key essence of model-driven software engineering (MDSE) and can be used to gen-

erate these representations from already existing (model) artifacts, they suffer from not being able to handle

the variability annotations. Thus, the developer is forced to annotate target models manually contradicting the

goal of both disciplines, MDSE and SPLE, to increase productivity. Recently, approaches have been proposed

to solve the problem using, e.g., traces, to propagate annotations without changing the transformation itself.

For evaluating the outcome all of the approaches require the transformation to commute w.r.t. the derived

products. Although the criterion is the same, a common framework for testing it does not exist. Therefore,

we contribute a generic framework allowing to evaluate whether the target model of arbitrary (reuse-based)

MVMTs was correctly annotated according to the shared commutativity criterion.

1 INTRODUCTION

Only recently, multi-variant model transformations

(MVMTs) have gained popularity combining two dis-

ciplines: software product line engineering (SPLE)

and model transformations, required in model-driven

software engineering (MDSE) .

SPLE is centered around the paradigms of orga-

nized reuse and variability for increasing productiv-

ity when developing a set of closely related prod-

ucts. A common development process is composed of

two phases: In domain engineering the platform com-

prising the superimposition of the products is devel-

oped. In contrast, in application engineering products

are derived from the platform and prepared for deliv-

ery (Pohl et al., 2005). Feature models (Kang et al.,

1990) are a common means to express the discrimi-

nating factors of the software as features. In annota-

tive approaches (Apel et al., 2009) a superimposition

of the products is developed and the artifacts are asso-

ciated with variability annotations which are boolean

expressions over the features. Below we refer to these

expressions as annotations. By (de-)selecting features

in a feature conﬁguration ﬁnal products can be ﬁltered

from the superimposed platform where all elements

the annotation of which cannot be satisﬁed under the

given feature conﬁguration are removed from the su-

perimposed model.

Model transformations, on the other hand, are the

heart of MDSE (Stahl et al., 2006). The various

realizations allow for transforming a source (input)

model to a target (output) representation. Transfor-

mations are categorized with respect to the supported

transformation modes: model-to-model (M2M) or

model-to-text (M2T) transformations, creating either

a new model representation or text (e.g., source code

from templates), in-place or out-place transforma-

tions (having the source model or a different model as

target, respectively) as well as batch or incremental

and unidirectional or bidirectional transformations.

During the transformation execution many tools per-

sist the information of corresponding source and tar-

get elements in so-called traces.

In model-driven SPLE (Czarnecki et al., 2005;

Buchmann and Schw

agerl, 2012; Heidenreich et al.,

2008) models are the main development artifacts. Ap-

Greiner, S. and Westfechtel, B.

Generic Framework for Evaluating Commutativity of Multi-Variant Model Transformations.

DOI: 10.5220/0007585701550166

In Proceedings of the 7th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2019), pages 155-166

ISBN: 978-989-758-358-2

155

plying an annotative approach in model-driven SPLE

means that model elements are associated with anno-

tations. In order to automatically convert one type

of model of the product line into another representa-

tion, typically model transformations are used. For

instance, when developing the SPL a UML class di-

agram (OMG, 2017) may capture the structure of the

platform. From the UML representation source code

needs to be created. Despite the fact that model trans-

formations allow to perform this task, they are un-

aware of the annotations attached to the model ele-

ments. Consequently, a state-of-the-art model trans-

formation can create the target model but neglects the

annotations. Annotating the target model manually

is a laborious and error-prone task contradicting the

general purpose of MDSE and SPLE to increase pro-

ductivity. Thus, the task calls for transformations al-

lowing to automatically propagate annotations from

the source to the target representation. Solutions sup-

porting this task are referred to as multi-variant model

transformations.

Recently, different automations to solve the prob-

lem of propagating annotations have been published.

Most of them try to (re)use already existing (single-

variant) transformations and to propagate the annota-

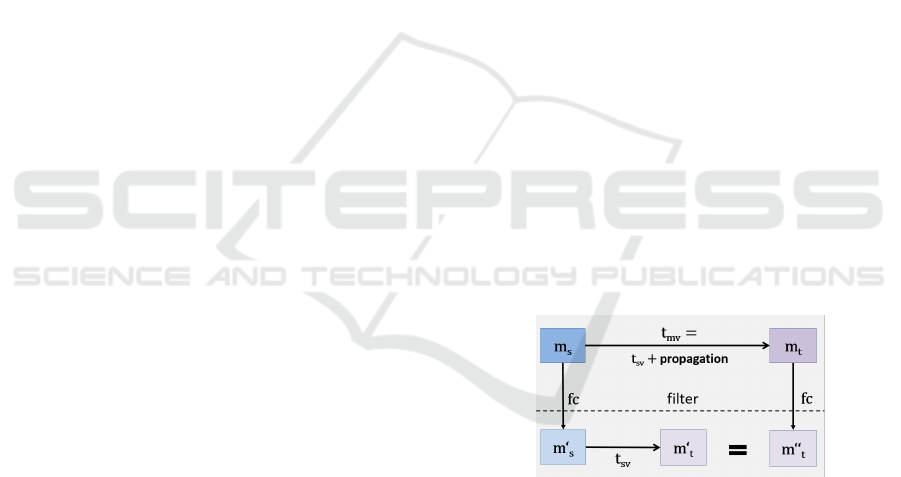

tions orthogonally. The solutions are said to be cor-

rect whenever the same products can be derived from

the annotated target model as would have been created

when deriving the products from the source model

and transforming them afterwards. This required

property is called commutativity. While some ap-

proaches are formally proven to fulﬁll this correctness

criterion (Westfechtel and Greiner, 2018; Taentzer

et al., 2018; Str

uber et al., 2018), others verify the

criterion in their speciﬁc use cases (Salay et al., 2014;

Greiner and Westfechtel, 2018; Greiner et al., 2017).

Although all of the approaches have the same correct-

ness criterion in common, there is no general frame-

work to evaluate commutativity, yet. For this reason,

in this paper we contribute a generic evaluation frame-

work allowing, on the one hand, for executing reuse-

based approaches and, on the other hand, to evalu-

ate whether the annotations of the target model are

valid with respect to the ﬁltered products. The frame-

work generalizes the way of how (domain) models

and feature models are represented and how the mod-

els are ﬁltered. Furthermore, since models can be

represented differently, the comparison mechanism is

also generalized for arbitrary model types. In this way

the framework is able, e.g., to evaluate a trace-based

MVMT (creating models as targets) or, quite differ-

ently, approaches producing text instead of models as

output. Moreover, product lines created by different

tools should be testable. Last but not least, the frame-

work not only provides the answer whether commuta-

tivity is achieved but points out where violations have

taken place. Consequently, it allows to detect misbe-

havior and to correct wrong annotations or to improve

the transformation approach.

In the following section we provide background

information on multi-variant model transformation

and motivate why a generic framework for their eval-

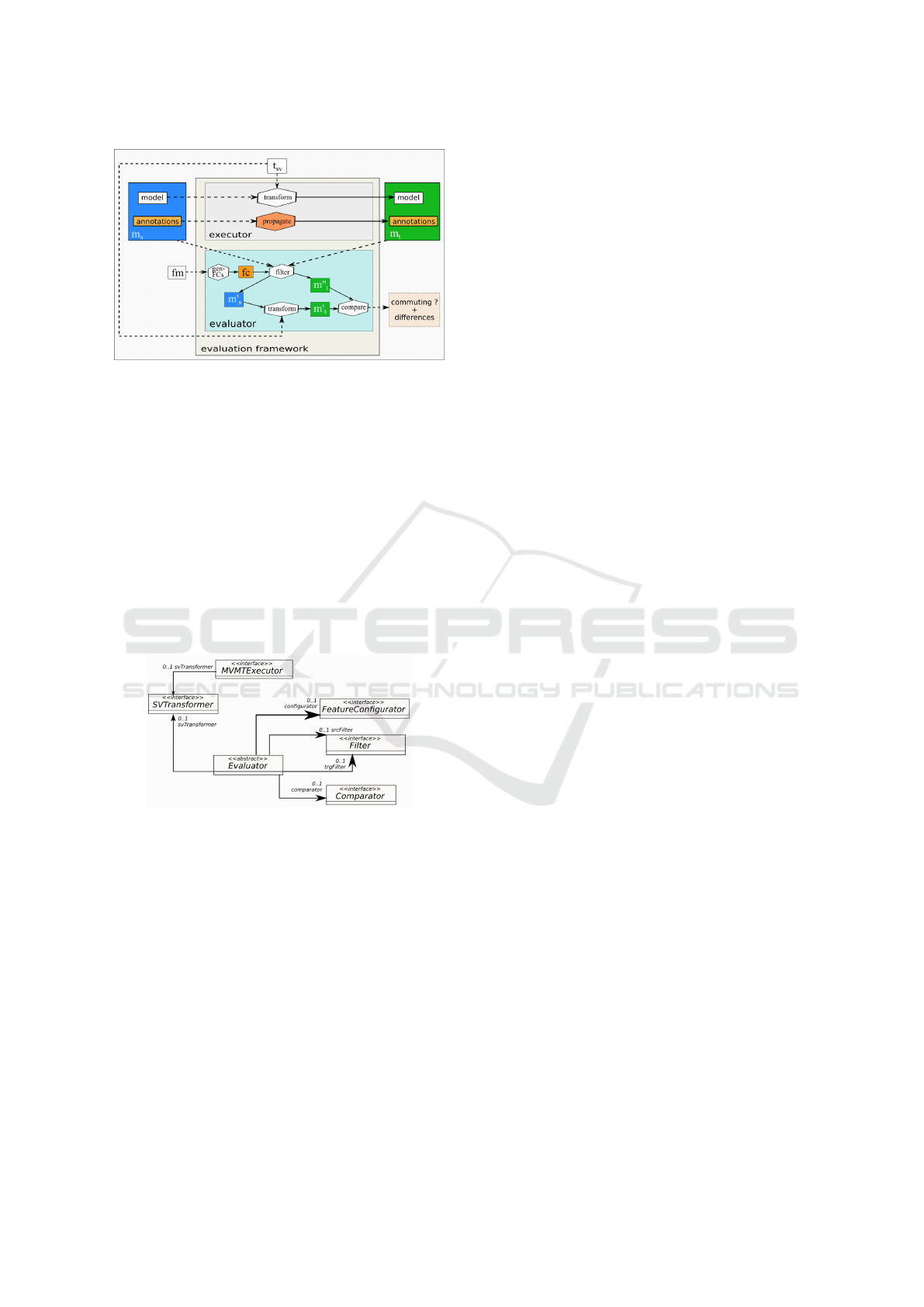

uation is required. In Section 3 the architecture of

the framework is described and one realization is pre-

sented in the following example. Finally, related work

is shortly discussed and a conclusion is drawn.

2 BACKGROUND AND

MOTIVATION

The importance and need for MVMT has already

been motivated in various publications, e.g., (Salay

et al., 2014; Schw

agerl et al., 2016; Greiner and

Westfechtel, 2018; Westfechtel and Greiner, 2018;

Taentzer et al., 2018). This section provides details

and categorizes the existing approaches. Based on

the commonalities of the approaches we determine re-

quirements for our framework to support the evalua-

tion of reuse-based approaches. Furthermore, the sec-

tion presents correctness criteria to evaluate the out-

come of the executed MVMT.

2.1 Existing Approaches

Different approaches for automating the annotation of

model elements exist, which can be roughly catego-

rized in black-box and white-box solutions depend-

ing on the fact whether no or all internals (i.e., the

contents of the transformation) are exploited, respec-

tively. All of them, however, have in common that

existing transformations or the existing tool environ-

ments are reused to some extent.

Lifting (Salay et al., 2014) is one approach chang-

ing the semantics of the execution engine and is de-

ﬁned for graph transformations but was also applied

in out-place transformations with a graph-like DSL

(Famelis et al., 2015). However, lifting requires to

know the contents of the transformation speciﬁcation

and to enumerate all rules. Likewise, another solution

based on higher order transformations in ATL trans-

formations (Sijtema, 2010) is speciﬁc to the language

ATL (Jouault et al., 2008) and not generally applica-

ble. While both approaches are based on reusing ex-

isting technology, both work on the contents of each

speciﬁcation and are, thus, categorized as white-box

solutions.

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

156

In contrast, pure black-box approaches do not in-

tervene in the functionality of the reused transforma-

tion engine. Instead, they exploit the existing technol-

ogy and the created artifacts during the transformation

for propagating the annotations from the source to the

target model orthogonally to the transformation.

Firstly, in (Buchmann and Greiner, 2018) this

behavior is supported by using the provided DSL

MySync allowing to specify corresponding elements

in the source and target models. The single-variant

transformation is executed as it stands and afterwards,

the annotations are propagated to the corresponding

elements as stated in the mappings. This approach

works so far only for metamodels conforming to the

Ecore meta-metamodel. Moreover, it requires the

user to manually specify the corresponding elements

for each new kind of input or output metamodel.

Another approach to achieve the behavior is trace-

based propagation as proposed in (Westfechtel and

Greiner, 2018). A generic trace model serves as in-

terface for different kinds of traces. Annotations of

source elements are applied to their corresponding

target elements as recorded in the trace. It is a generic

approach since it is independent of the applied trans-

formation language and the input and output meta-

model. The approach only requires a trace to be per-

sisted. Therefore, in general it supports numerous

transformation tools, like the ATL/EMFTVM (Wage-

laar et al., 2012), medini QVT (ikv++ technologies,

2018) or QVT-d (Willink, 2017), Bxtend (Buchmann,

2018) and eMoﬂon (Leblebici et al., 2014).

Please note: Traces vary with respect to the granu-

larity of the persisted information. As stated in (West-

fechtel and Greiner, 2018) at least three categories can

be distinguished: incomplete, generation-complete

and complete traces. The ﬁrst category only stores

one source and one target element in so called cor-

respondence graphs, being the key element in triple

graph grammars (TGGs) (Sch

urr, 1994). In these re-

alizations further dependent elements are determined

from the basic mappings. In contrast, generation-

complete traces persist all source and all target ele-

ments of a rule application whereas complete traces

distinguish the elements of the target model with

respect to the fact whether they have already been

present before applying a rule (context elements) or

they have been created due to applying a rule. De-

pending on the granularity of the trace, the propaga-

tion of annotations may have to be adapted. The au-

thors give a formal proof on commutativity in the case

complete traces are used and the transformation rules

adhere to the underlying computational model.

Quite differently, if the transformation lan-

guage supports aspect-oriented programming (Kicza-

les et al., 1997), a generic aspect could be provided

to transfer the annotations (Greiner and Westfechtel,

2018). The aspect should attach the annotation of the

element triggering its execution to the created target

element. In the cited approach this behavior is imple-

mented for the Xpand language (Klatt, 2007) support-

ing M2T transformations only. Thus, annotations are

integrated as preprocessor directives and products ﬁl-

tered by using a preprocessor. While the approach is

speciﬁc to the language Xpand (language-dependent),

it can be categorized as black-box approach since

transformation rules are not analyzed.

2.2 Correctness Criteria

For evaluating the validity of the target models of

the MVMTs, a commutativity criterion has been pos-

tulated, among others, in (Westfechtel and Greiner,

2018; Greiner et al., 2017). This criterion is used for

evaluating the quality of the annotations of the target

model. As seen in Figure 1, it is based on comparing

the outcome on the level of application engineering,

i.e., the products. After executing the MVMT (t

at ﬁrst, both, the annotated source model m

and the

annotated target model m

, are ﬁltered by the same

feature conﬁguration fc. The ﬁltered target model

should equal the model m

created when trans-

forming the ﬁltered source model m

with the same

single-variant transformation t

used in t

. This

property needs to hold for all valid feature conﬁgura-

tions. Then, the transformation is said to commute.

Figure 1: Commutativity criterion for evaluating the valid-

ity of the target model m

of a multi-variant model trans-

formation t

by ﬁltering the superimposed models by all

valid feature conﬁgurations fc.

To this end, the validity of the ﬁltered target mod-

els is ensured in the following way: It is assumed the

source model m

is valid and correctly annotated such

that each derived product m

is valid as well. Fur-

thermore, with a valid model m

as input t

creates

a valid target model m

. Since m

should equal m

it is ensured that m

is valid. If all ﬁltered products

are valid, the superimposed target model m

semantically correct, too.

Generic Framework for Evaluating Commutativity of Multi-Variant Model Transformations

157

2.3 Error Measurement

For measuring the quality of the annotations attached

to the target model m

, an absolute error and one

taking the affected model elements into account can

be computed. In total, the error can be measured

by counting the number of feature conﬁgurations in

which commutativity is violated and by comparing it

to the number of all valid feature conﬁgurations:

Deﬁnition 1 (Absolute Error) . Let n be the num-

ber of all valid feature conﬁgurations and let v be the

number of feature conﬁgurations in which a strategy

violates commutativity with v ≤ n. Then, the absolute

error err

abs

can be computed in the following way:

err

abs

This error rate is rather rigorous since it counts

a feature conﬁguration as wrong as soon as there is

one difference between the models m

and m

. For

that reason, the error could be relaxed by consider-

ing the number of differences between m

and m

and comparing it to the number of elements in the

multi-variant target model m

. Summing these error

rates up and dividing them by the number of valid fea-

ture conﬁgurations gives a hint on the overall error in

terms of the affected elements (severity of the error).

Deﬁnition 2 . Let n be the number of all valid fea-

ture conﬁgurations. Let |m

| be the cardinality of m

i.e., the number of annotated elements in the target

model. Let further diff be the number of differences

between m

and m

. Then, the severity error err

sev

is calculated as follows:

err

sev

i=1

(

#diff

)

Both error rates allow to infer the quality of the

MVMT with respect to fulﬁlling commutativity.

2.4 Consequences for the

Transformation Framework

As seen in Section 2.1 a wide variety of MVMT re-

alization approaches exists but yet there is no com-

mon means to evaluate the quality of the outcome

with respect to achieving commutativity. Thus, there

is a strong need for a framework evaluating whether

the approaches fulﬁll commutativity. Such framework

should respect at least the following requirements:

1. R1: Reuse-based Execution. For supporting the

various approaches for generating a multi-variant

target model, the execution needs to be replace-

able. The framework should provide an inter-

face for triggering already existing transforma-

tions. This interface needs to completely abstract

from the different kind of transformations that are

possible, i.e., in- or out-place, uni- or bidirec-

tional, batch or incremental transformations and

of kinds of input and output models. Alongside,

the propagation of the annotations needs to be re-

garded and interchangeable.

2. R2: Genericity. The following components of

the framework are necessary to be generic allow-

ing an interchange of the different MVMT ap-

proaches but also of the SPLE tools and their spe-

ciﬁc capabilities:

• the representations of the input and output mod-

els

• the single-variant transformation

• the kind of the feature model

• the ﬁlter working with the feature model, its

conﬁgurations and the different kinds of repre-

senting annotations

• the comparison mechanism for the target prod-

ucts m

and m

; as a consequence of having

different kinds of model representations

Consequently, not only different MVMT ap-

proaches can be evaluated but also heterogeneous

SPLE tools may be supported.

3. R3: Availability of Results. The framework is

supposed to provide the results to the user. In the

case commutativity is violated, the errors should

be made available. If the locations of the vio-

lations are visible, the user can ﬁx them or ﬁx

the transformation which was misbehaving. Ad-

ditionally, the error values can be used to compare

the quality of the different approaches.

3 FRAMEWORK

This section describes the evaluation framework for

MVMTs by giving an overview on the framework fol-

lowed by details on its two main components and their

possible realizations.

3.1 Architectural Overview

First of all, as depicted in Figure 2 the framework is

composed of two main parts: The executor (gray box)

performs the multi-variant model transformation. It

receives the multi-variant source model m

and the

reused single-variant transformation t

in order to

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

158

Figure 2: Schematic overview on the realization of the eval-

uation framework.

create the annotated target model m

. The evaluator

(light blue box), the second part, subsequently ver-

iﬁes whether a commuting model transformation is

achieved with the target model created by the execu-

tor. Next, both parts are illustrated in greater detail.

The most important generic interfaces and classes

are captured in Figure 3. It highlights the relation-

ships between the elements and shows which parts

of the framework are replaceable to evaluate differ-

ent MVMT approaches. Please note: both, the execu-

tor and evaluator are realized orthogonally. For that

reason, it is possible to run the execution or the eval-

uation only.

Figure 3: Simpliﬁed overview on the main exchangeable

interfaces and abstract classes of the framework.

3.2 MVMT Execution

The task of the executor is to run the reused single-

variant transformation t

and to invoke the respective

mechanism to propagate the annotations to the target

model. Thus, the executor is an interface offering the

two tasks depicted in Figure 2: The transformation

and the propagation. For this reason, the executor ex-

pects an SVTransformer to create the target model.

The propagation needs to be provided according to the

respective approach in the executor realization. Next,

we introduce one realization of the MVMTExecutor

interface for trace-based propagations.

As mentioned above, one possibility for propa-

gating annotations is a trace-based approach. We

provide an implementation of the generic executor

interface using traces for the propagation. It uses

the generic trace model proposed in (Westfechtel and

Greiner, 2018) and thus, requires a replaceable con-

verter to convert an arbitrary trace resource into afore-

mentioned general trace model.

Then, the trace-based MVMT can take place: In

the ﬁrst step, the provided SVTransformer executes

the reused transformation speciﬁcation. Based on the

resulting trace model, in the second part of the exe-

cution, annotations of the source are attached to the

target elements. In the case a (generation-)complete

trace was written, the annotations of all source and all

context elements are combined in a conjunction and

attached to all target elements. In the case of incom-

plete traces, only the annotations of 1:1 mappings are

propagated to the single target element, leaving the

target model partially without annotations.

One alternative realization using aspects (Greiner

and Westfechtel, 2018) should be mentioned as well.

It is meant to demonstrate the ﬂexibility of the frame-

work. Instead of the strict two-step procedure de-

scribed above, the execution only consists of a sin-

gle invocation of the workﬂow executing the single-

variant transformation together with the aspect.

Quite alike, other MVMT approaches, like us-

ing a matching mechanism, like MySync, could be

executed. Besides the multi-variant source model,

only a transformer for the single-variant transforma-

tion needs to be provided and the propagation mecha-

nism needs to be invoked.

3.3 MVMT Evaluation

After the execution of the MVMT, all remaining steps

of the commutativity diagram are supported in the

framework by the evaluator. The evaluation of com-

mutativity consists of different steps which should be

interchangeable. Therefore, all of the parts described

next are generic interfaces.

Feature Conﬁgurations. At ﬁrst, the feature model

must be provided to a generic interface FeatureCon-

ﬁgurator. It generates all valid feature conﬁgurations

with respect to the mandatory and optional features

or further restrictions stated in the model. The fea-

ture model is a generic parameter of the interface for

supporting different feature model types which com-

monly vary among the SPLE tools. So far, we provide

a realization for generating all feature conﬁgurations

for feature models conforming to the syntax of the

Famile tool environment (Buchmann and Schw

agerl,

2012) to the framework.

Generic Framework for Evaluating Commutativity of Multi-Variant Model Transformations

159

Filters. Given the feature conﬁguration, the ﬁlter

comes into play. The ﬁlter receives an annotated

model and the feature conﬁguration. It removes all

elements from the model the annotation of which can-

not be satisﬁed under the given conﬁguration and per-

sists the resulting single-variant model as one product

of the SPL. In the framework the ﬁlter is as well a

generic interface offering this task and, thus, allowing

for providing different concrete realizations of the ﬁl-

ter mechanism. While the ﬁlter receives the same fea-

ture conﬁguration during the evaluation, the represen-

tations of the input models (source and target model)

may vary, e.g., when the target model is a text repre-

sentation.

One not regarding ﬁlters: In SPLE model ﬁlters

can vary with respect to their capabilities to ensure

consistent ﬁltered products. Two kinds of model ﬁl-

ters can be distinguished: a ﬂat ﬁlter, always remov-

ing the elements where the annotation evaluates to

false, and a hierarchical ﬁlter which takes dependen-

cies inside the model into account and propagates se-

lection states accordingly. For instance, in a spanning

containment tree a hierarchical ﬁlter will remove chil-

dren from the product if their parent is not included

in the conﬁguration. Furthermore, ﬁlters can vary on

how to handle model elements missing an annotation.

Besides others, one strategy includes such elements in

all conﬁgurations regardless of the ﬁlter.

Moreover, if the target of the transformation is text

instead of a model ﬁlter, typically a corresponding

preprocessor will be needed to remove deselected text

fragments. Then, the feature conﬁguration must be

turned into a preprocessor ﬂag ﬁle and the target is a

new source code project.

Comparison. Before ﬁnally comparing the two

single-variant target models, the ﬁltered source model

needs to be transformed. Here, the same single-

variant model transformation is used as the one gener-

ating the multi-variant target model. Thereafter, it is

possible to compare both target models m

and m

using a comparator. The Comparator is a generic in-

terface allowing for different comparison mechanism,

e.g., for comparing two models or simply two strings,

when the models are represented as text. Accordingly,

the outcome may vary as well, e.g., being a difference

model or a string when comparing text ﬁles.

For the comparison of two models our framework

includes an implementation of the generic Compara-

tor interface making use of the EMFCompare frame-

work (Brun and Pierantonio, 2008). The result of

comparing two models is a difference model showing

matching and mismatching elements. Furthermore, it

provides the total number of differences between the

two models. The framework persists the difference

model for the given feature conﬁguration and uses the

number of differences to compute the absolute and the

severity error. The latter values are ﬁnally written to

a ﬁle including the overall statistics values.

Evaluator. To this end, the framework provides an

abstract evaluator executing all the single steps in one

method as described in Algorithm 1. At ﬁrst, for a

given feature model all valid feature conﬁgurations

are created and persisted. Then, all products are ﬁl-

tered by the two ﬁlters for the multi-variant source

and target model. Then, the source products are trans-

formed by the single-variant transformer. The subse-

quent comparison is executed by an instance of the

Comparator which allows for different kinds of input

models and comparison results as mentioned above.

The resulting comparison data and the computed er-

rors both can be written to ﬁles after the evaluation.

On the whole, the required components postulated

in Section 2.4 are fulﬁlled in the following way:

• R1: Reuse Transformation. For the multi-

variant as well as the single-variant transforma-

tions we provide an interface SVTransformer.

It offers a single method transform allowing to

specify the direction and whether the transforma-

tion should be executed in batch or incremental

mode. The second part of the executor, the propa-

gation, can be deﬁned for each MVMT approach

and can be invoked in the realization of the execu-

tor interface.

• R2: Genericity. First of all, no assumptions on

the kind of in- and output models are made allow-

ing for exchangeable representations. By further

using the following interfaces and parameters the

framework supports the replacement by compo-

nents speciﬁc to the respective MVMT approach:

– an interface SVTransformer the realization of

which invokes the respective reused single-

variant transformation

– a generic parameter for the feature model for

allowing different representations

– a generic interface FeatureConﬁguratior

where based on the type of feature model all

valid feature conﬁgurations can be created

– a generic interface Filter receiving the multi-

variant model (or source code), the feature con-

ﬁguration and the path for the ﬁltered product

– a generic interface Comparator allowing for

changing the comparison method and the re-

spective outcome

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

160

Algorithm 1: Process for evaluating commutativity.

1: procedure EVALUATE(fm, m

, m

)

2: in fm  feature model as generic parameter

3: in m

, m

 multi-variant source and target model as generic parameter

5: List fcs = configurator .generateAllValidFC(fm)  creating all feature conﬁgurations

6: List filteredSrc = srcfilter.ﬁlterProducts(fcs, m

)  ﬁlter m

by all conﬁgurations

7: List filteredT rg = trgfilter.ﬁlterProducts(fcs, m

)  ﬁlter m

by all conﬁgurations

8: List transf T rg = svT ransformer.transform(f ilteredSrc)  transform all source products

9: comparator.compareProducts(f ilteredT rg, transfT rg)  Compares the ﬁltered target products

with the corresponding transformed ones

All of the interfaces are provided to the generic

evaluator which ﬁnally uses them in the overall

evaluation.

• R3: Availability of Results. The output is written

to ﬁles, stating the differences and the measured

error values.

4 EXAMPLE

The goal of the evaluation framework is to verify

whether an MVMT commutes. As mentioned before

different approaches exist to implement MVMTs. In

the following we provide an example in which the

framework is used to verify the correctness of a

trace-based propagation. The example is intended

to demonstrate the behavior and functionality of the

framework and to show how the single parts work.

Due to space and illustration reasons we focus on de-

scribing one real world use case demonstrating the

evaluation framework in action.

4.1 UML2Java Use Case

First of all, our scenario is a trace-based MVMT

transforming an UML class diagram into the

MoDisco Java model (Bruneliere et al., 2010). From

the resulting model MoDisco generates correspond-

ing Java source code. This is a necessary task to be

performed during the model-driven development of a

product line in order to implement its structural parts.

Our test scenario is centered around developing a

Graph product line as described in (Lopez-Herrejon

and Batory, 2001). The feature model – as presented

on the left hand side of Figure 4 – consists of the

mandatory features GraphProductLine, Nodes and

Edges. A Search mechanism is optional to the

Graph being exclusively either BFS or DFS. In ad-

dition, one or more of the proposed Algorithms can

be selected. Nodes can be Colored and edges may be

Weighted or Directed or both.

The corresponding UML class diagram (domain

model) consists of classes and associations in order

to realize the Graph product line. In total, it com-

prises 139 model elements including operations and

properties. The annotated model is depicted in the

tree representation of the Ecore editor on the left of

the MVMT transformation in Figure 4. In the edi-

tor the annotation is placed behind the respective ele-

ment. There are the mandatory classes Graph, Node,

Edges and the optional classes Color, Search, Al-

gorithm and Cycle, each annotated with the cor-

responding features. The class Adjacency is used

when a search mechanism is selected and, thus, an-

notated correspondingly. Regarding the relationships

between the classes, it must be noted that edges and

nodes are connected either with one association in the

case undirected graphs are desired (edgesToNodes)

or with two associations, outEdgesToTarget and in-

EdgesToSource, for recording the target and source

node or the outgoing and incoming edges, respec-

tively. The associations are annotated accordingly.

While the search mechanisms are realized as opera-

tions, the Weighted feature is respected with a prop-

erty in the class Edge. Properties and operations are

hidden in Figure 4 due to space reasons.

The single-variant transformation creating a Java

model from the UML class diagram is a reused BX-

tend transformation as described in (Buchmann and

Greiner, 2016). The transformation creates for each

UML association a class declaration in the Java model

capturing the two association ends as ﬁeld declara-

tions. For each UML class a Java class declaration

is created and a compilation unit which is necessary

to represent the corresponding Java ﬁle that is created

by the MoDisco source code generation. Moreover, a

parameterized type is created for each UML classiﬁer

in order to represent types with multiplicities greater

than one. The Bxtend trace however, records only

main correspondences, i. e., for example the UML

Generic Framework for Evaluating Commutativity of Multi-Variant Model Transformations

161

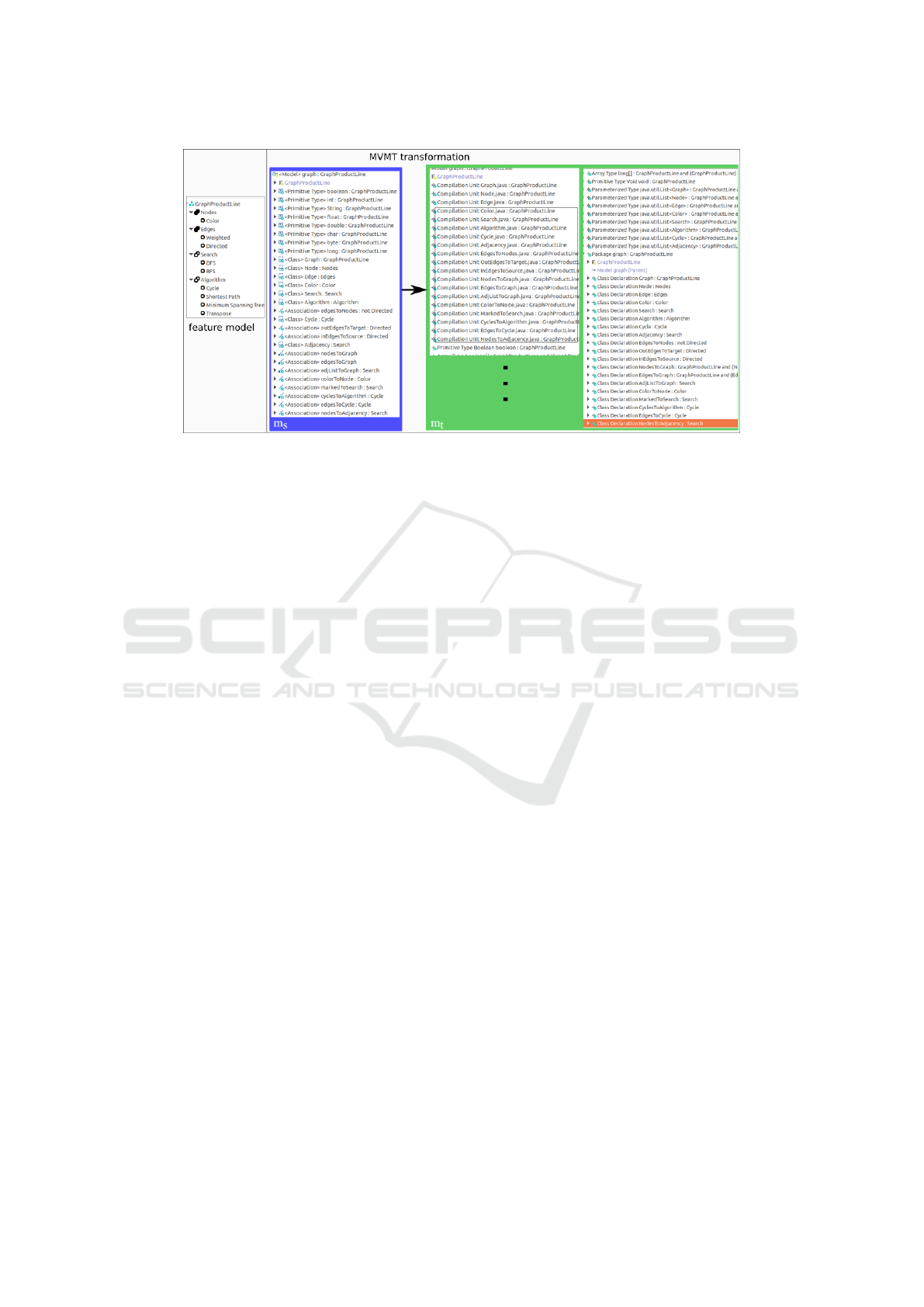

Figure 4: Transforming an annotated UML class diagram (left) into a multi-variant Java source code model. The annotations

are boolean expressions over the featurs stated in the feature model on the left.

class and the Java class declaration or the UML asso-

ciation and the created class declaration. Additional

created elements are left from the trace.

In our framework we can execute this transforma-

tion by using an executor for trace-based approaches.

The single-variant transformer is a BXtendTrans-

former invoking the respective BXtend transforma-

tion and providing access to its trace. As mentioned

in Section 2.1, traces vary with respect to their con-

tents. BXtend only stores 1:1 mappings in a corre-

spondence graph. For that reason, after executing the

transformation, the trace propagation starts by assign-

ing the annotations of the single source element to the

single target element as stated in the trace. For ex-

ample, a class declaration receives the annotation of

the UML class. However, a certain number of ele-

ments in the target model remains expecting an an-

notation, like the corresponding compilation units or

parameterized types. Their annotations are assigned

by applying the most promising propagation strategy

proposed in (Greiner and Westfechtel, ): In a par-

tially annotated model the annotation of the container

is combined with the one of the contained elements

and assigned. The resulting annotated target model

is depicted in its tree representation on the right side

of Figure 4: The corresponding elements mentioned

in the trace are assigned the correct annotations. The

compilation units and parameterized types receive the

annotation of their container, which is the Java Model

element.

In the subsequent step the evaluator is run. Here,

we employ an implementation where the generic pa-

rameters are set to the kind of feature models and ﬁl-

ter present in the SPL tool Famile (Buchmann and

Schw

agerl, 2012). The source and target model are

considered to be stored in Ecore resources. Finally,

the provided comparator triggers a model comparison

with the EMFCompare framework (Brun and Pieran-

tonio, 2008). While this comparison framework of-

fers a number of strategies for differencing two mod-

els, e. g., by using UUIDs, we invoke the basic mode

of matching properties of the model elements. As

mentioned in Section 3.3 the result of this compari-

son is a difference model along with the number of

differences. Counting the differences the total and the

severity error are computed and ﬁnally written to a

statistics ﬁle.

Running the evaluation in above scenario, ﬁrst, a

feature conﬁgurator for Famile feature models creates

all valid feature conﬁgurations for the Graph feature

model, i. e., 180 conﬁgurations. Thereafter, the multi-

variant source and target model and the conﬁgurations

are input to a ﬁlter invoking the Famile ﬁlter. Please

note: We employ the default ﬁlter of the Famile tool,

i.e., a hierarchical one which propagates selection

states. Next, the source products are transformed by

the same BXtendTransformer having been used in

the MVMT execution. Finally, the model comparator

tries to ﬁnd matches between the transformed target

products and the ﬁltered target products. As last step,

the absolute and the severity errors are computed and

persisted to a difference ﬁle together with statistic val-

ues for all feature conﬁgurations.

Figure 5 presents excerpts of the resulting ﬁles in

our scenario. The statistics ﬁle (diff.csv) lists in the

ﬁrst column the number of the feature conﬁguration

and in the second column the number of differences

and states the error rates on the bottom. While the

severity error is already high (44.8%), the absolute

error reveals there is at least one difference in each

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

162

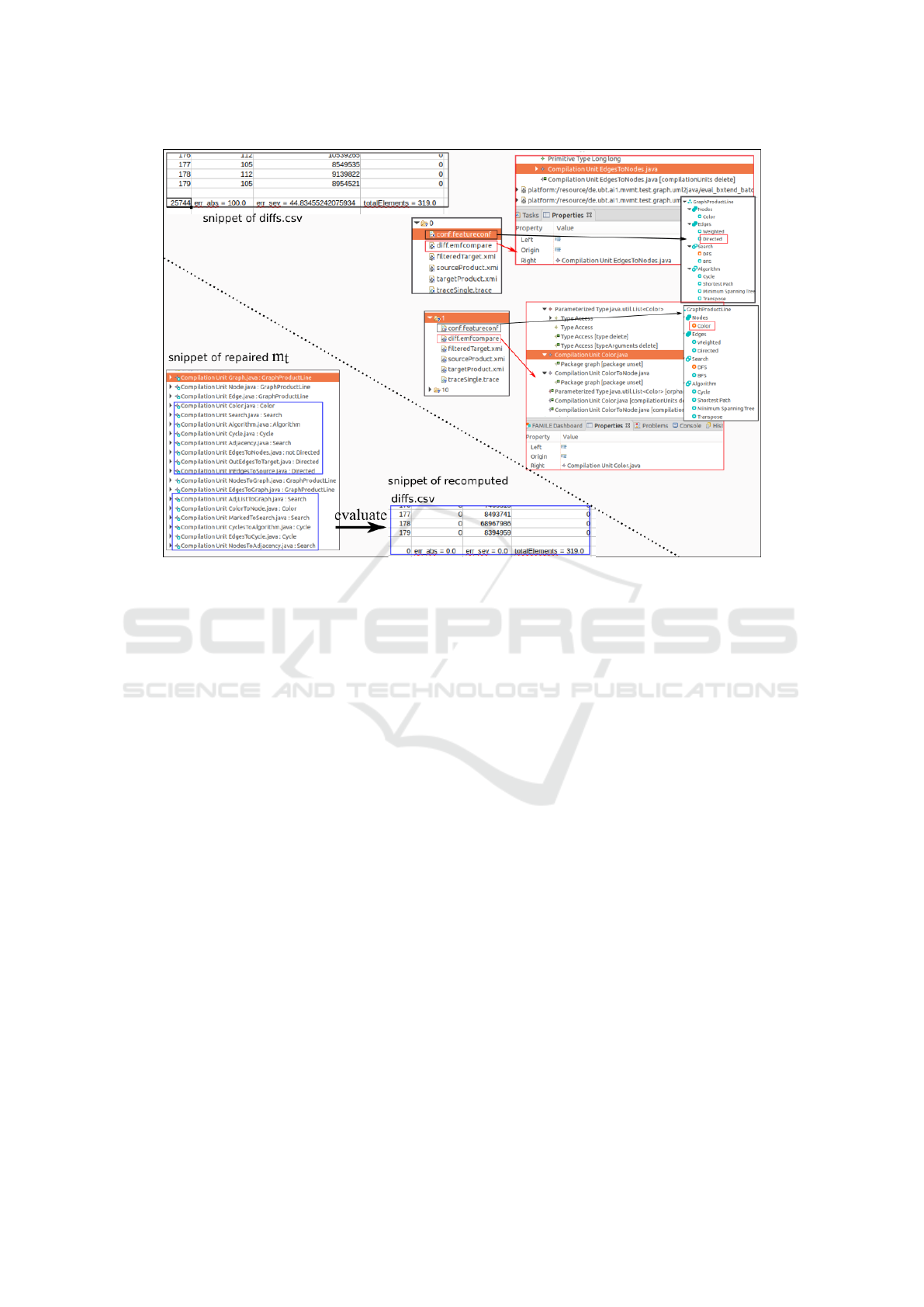

Figure 5: Results of ﬁrst evaluation run (upper right) and after ﬁxing the obvious errors (lower left).

product.

Having a look at the difference models of the

ﬁrst two conﬁgurations only reveals that the com-

pilation units for the class declarations edgesToN-

odes, inEdgesToSource and outEdgesToTarget

are present in the ﬁltered target product (m

) but have

no corresponding element in the left model of the

comparison, i. e., in the transformed product (m

Likewise, in the second conﬁguration the compilation

unit and the parameterized type for the class Color

are included in the ﬁltered target although the feature

is not selected.

Both errors and similar ones are caused by the

trace-based MVMT transformation that needs to ﬁnd

annotations for elements not mentioned in the trace.

In the BXtend trace for the UML class, only the cre-

ated class declaration is recorded and all addition-

ally created elements, like the compilation units are

not. Thus, they receive their annotation in a post-

processing step. The annotation is composed of the

annotation of its container and its contained elements.

Since there are no contained elements for compilation

units, the attached annotation is the one of its con-

tainer, the Java model (GraphProductLine), which

is a mandatory feature.

By only looking at the two conﬁgurations we can

explain why we have a mismatch in each product in

the example. In our product line there are two ele-

ments that are mutually exclusive. Either an edge con-

nects two nodes without further information, in the

case of an undirected graph or it records the source

and the target node in two separate associations which

are resembled by two classes and corresponding com-

pilation units in the target model. Accordingly, an-

notating the compilation units with the root feature

leads to an error when a directed graph is selected

and the compilation unit for the edgesToNodes class

is included and vice versa in the case of an undi-

rected graph when the two speciﬁc compilation units

for recording source and target nodes are part of the

product.

Since the differences are made available, we can

ﬁx the obvious errors manually. In our scenario we

need to change the annotation of the compilation units

and parameterized types corresponding with abstract

type declarations being annotated with an optional

feature, e. g., those of the compilations units of the

class Color or of the association classes edgesToN-

odes and its two partners. In total, a number of 18

elements out of the 319 elements need to receive the

more ﬁne-granular annotation as seen in snippets on

the bottom of Figure 5, e. g, the compilation unit for

the class color is annotated with the feature Color.

With our evaluation framework it is possible to run

the evaluation again without executing the transfor-

mation beforehand. Running the evaluation with the

source and the modiﬁed target model, leads to 100%

commutativity where no differences at all are found

Generic Framework for Evaluating Commutativity of Multi-Variant Model Transformations

163

between the transformed and the ﬁltered target prod-

ucts. On the bottom of Figure 5 the resulting differ-

ence ﬁle is shown with the computed error rates.

5 DISCUSSION

Summing it up, as illustrated by the example our pro-

vided framework allows for evaluating the commuta-

tivity criterion for MVMTs. From above descriptions

the main beneﬁts become obvious: First of all, by

making the differences available, erroneous behavior

in the transformation may be detected. This allows

the MVMT developer to ﬁx errors in the annotated

target model. Furthermore, instead of ﬁxing errors,

the developer can draw conclusions on improving the

propagation approach. Moreover, the limitations of

propagation approaches are detected. The scenario

shows that with above approach automation may be-

come impossible in real-world applications. Nonethe-

less, the example also reveals that errors may be ﬁxed

with a very small amount of effort (only 0.05% of all

annotations need to be changed).

On its downside, when transformations are not

commuting, it may become necessary to correct the

annotations manually as a quick ﬁx. In future work

the task to ﬁnd the correct annotation for a wrongly

annotated model element could be automated. For ex-

ample, the errors could be analyzed or compared to

the corresponding feature conﬁguration and the ones

where the same model element is not causing a prob-

lem.

Although not demonstrated in the example but

mentioned in the framework overview, most impor-

tantly the framework allows to evaluate the commu-

tativity for different MVMT approaches by provid-

ing replaceable components for the single evaluation

steps: The framework abstracts from the kind of fea-

ture models, the ﬁlters and their outcome. The in-

put and output models do not have to conform to the

Ecore metamodel but could also be String or other

representations. Moreover, the comparison is gener-

alized for different model representations and for the

comparison outcome.

One note regarding scalability: Although the

demonstrated example is a real-world transformation,

on instance level it is still relatively small in terms of

the number of annotated model elements and of op-

tional features. In the case of product lines with a

large number of optional features the brute force test

requiring the generation of all feature conﬁgurations

may become very expensive. Then, it is questionable

whether all valid feature conﬁguration can still be cre-

ated in a feasible amount of time. However, the mech-

anism how to create feature conﬁgurations is also ex-

changeable and could be adapted, e.g., by using sam-

pling or optimized satisﬁability solvers for ﬁnding the

valid feature conﬁgurations.

6 RELATED WORK

Transforming product lines has gained popularity in

the last few years. Thereby, the term “multi-variant

model transformation” may be interpreted differently:

transformation of multi-variant models, the focus

of our work, and multi-variant transformation of

models, as addressed in (Str

uber and Schulz, 2016;

Str

uber et al., 2018). In addition, transformations of

product lines (Taentzer et al., 2017), covering both

feature and domain models, goes beyond the scope of

our work in which we evaluate the transformation of

artifacts in a single software product line. Moreover,

the tool presented in (de Lara et al., 2018) allows for

summarizing families of (slightly varying) transfor-

mations into a product line which is not the focus of

our work.

In contrast, our generic evaluation engine allows

for transforming one kind of model representing a

product line into another (also necessary) represen-

tation in the same product line automatically and for

validating the resulting annotated target model. Since

we seek for generic approaches to extend an SVMT to

an MVMT, the framework abstracts from the reused

single-variant transformation, the way of how features

are provided and how the multi-variant models are ﬁl-

tered and ﬁnally, of how the target products are com-

pared.

A number of different strategies to transform a

multi-variant source model into a multi-variant tar-

get model have already been discussed in Section 2.1.

To the best of our knowledge, so far there is no

common means to evaluate the quality of the re-

sulting target models. In addition, solutions which

are formally proven (Westfechtel and Greiner, 2018;

Taentzer et al., 2018; Str

uber et al., 2018) ensure

the transformation behaves correctly, if the underly-

ing computational model is satisﬁed. However, if the

computational model is violated, our framework helps

to ﬁnd out where the transformation fails and why in

order to improve the MVMT solution for supporting

more (general) use cases.

7 CONCLUSION

All in all, this paper introduces a generic evaluation

framework for multi-variant model transformations

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

164

generating an annotated target model from a given

annotated source model in an SPLE scenario. It al-

lows for reusing arbitrary single-variant transforma-

tions and deﬁning the propagation of annotations in

its execution component. The following evaluation

abstracts from all remaining evaluation steps. It is

possible to interchange the kind of feature model and

thus, how all feature conﬁgurations are determined, as

well as how the products are ﬁltered and ﬁnally com-

pared.

To the best of our knowledge, it is the ﬁrst realiza-

tion not speciﬁcally trimmed for evaluating one ap-

proach but abstracting from different possibilities to

create the target model. In this way it offers the pos-

sibility to evaluate different reuse-based MVMT pro-

posals. Furthermore, by making violations to com-

mutativity available to the user, the user is able to ﬁx

erroneous parts in the resulting model or to improve

the transformation approach.

In the future the framework can be used to conduct

large case studies on different MVMT approaches

based on varying (real-world) transformation scenar-

ios. The ﬁndings may provide deeper insights in the

strengths and weaknesses of the single solutions and

allow to ﬁnd optimizations.

REFERENCES

(2017). Uniﬁed Modeling Language (UML). Object Man-

agement Group, Needham, MA, formal/17-12-05 edi-

tion.

Apel, S., Janda, F., Trujillo, S., and K

astner, C. (2009).

Model Superimposition in Software Product Lines. In

Theory and Practice of Model Transformations, Sec-

ond International Conference, ICMT 2009, Zurich,

Switzerland, June 29-30, 2009. Proceedings, pages 4–

19.

Brun, C. and Pierantonio, A. (2008). Model differences

in the eclipse modelling framework. UPGRADE,

IX(2):29–34.

Bruneliere, H., Cabot, J., Jouault, F., and Madiot, F. (2010).

MoDisco: a generic and extensible framework for

model driven reverse engineering. In Proceedings

of the IEEE/ACM international conference on Auto-

mated software engineering, ASE ’10, pages 173–

174, New York, NY, USA. ACM.

Buchmann, T. (2018). BXtend - A Framework for (Bidi-

rectional) Incremental Model Transformations. In

Proceedings of the 6th International Conference on

Model-Driven Engineering and Software Develop-

ment, MODELSWARD 2018, Funchal, Madeira - Por-

tugal, January 22-24, 2018., pages 336–345.

Buchmann, T. and Greiner, S. (2016). Bidirectional model

transformations using a handcrafted triple graph trans-

formation system. In Software Technologies, 11th In-

ternational Joint Conference, ICSOFT 2016, Lisbon,

Portugal, July 24-26, 2016, Revised Selected Papers.,

pages 201–220.

Buchmann, T. and Greiner, S. (2018). Managing Vari-

ability in Models and Derived Artefacts in Model-

driven Software Product Lines. In Proceedings of the

6th International Conference on Model-Driven Engi-

neering and Software Development, MODELSWARD

2018, Funchal, Madeira - Portugal, January 22-24,

2018., pages 326–335.

Buchmann, T. and Schw

agerl, F. (2012). FAMILE: tool

support for evolving model-driven product lines. In

Joint Proc. co-located Events at 8

ECMFA, CEUR

WS, pages 59–62, Lyngby, Denmark.

Czarnecki, K., Antkiewicz, M., Kim, C. H. P., Lau, S., and

Pietroszek, K. (2005). Model-driven software prod-

uct lines. In Companion to the 20th Annual ACM

SIGPLAN Conference on Object-Oriented Program-

ming, Systems, Languages, and Applications, OOP-

SLA 2005, October 16-20, 2005, San Diego, CA, USA,

pages 126–127.

de Lara, J., Guerra, E., Chechik, M., and Salay, R. (2018).

Model transformation product lines. In Proceedings

of the 21th ACM/IEEE International Conference on

Model Driven Engineering Languages and Systems,

MODELS 2018, Copenhagen, Denmark, October 14-

19, 2018, pages 67–77.

Famelis, M., Lucio, L., Selim, G. M. K., Sandro, A. D.,

Salay, R., Chechik, M., Cordy, J. R., Dingel, J.,

Vangheluwe, H., and Ramesh, S. (2015). Migrating

automotive product lines: A case study. In Theory

and Practice of Model Transformations - 8th Interna-

tional Conference, ICMT 2015, Held as Part of STAF

2015, L’Aquila, Italy, July 20-21, 2015. Proceedings,

pages 82–97.

Greiner, S., Schw

agerl, F., and Westfechtel, B. (2017). Re-

alizing multi-variant model transformations on top of

reused ATL speciﬁcations. In Pires, L. F., Hammoudi,

S., and Selic, B., editors, Proceedings of the 5th In-

ternational Conference on Model-Driven Engineering

and Software Development (MODELSWARD 2017),

pages 362–373, Porto, Portugal. SCITEPRESS Sci-

ence and Technology Publications, Portugal.

Greiner, S. and Westfechtel, B. On determining variabil-

ity annotations in partially annotated models. In Pro-

ceedings of the Thirteenth International Workshop on

Variability Modelling of Software-intensive Systems,

VaMoS 2019, Leuven, Belgium, February 6-8, 2019.

(in press).

Greiner, S. and Westfechtel, B. (2018). Generating multi-

variant java source code using generic aspects. In

Proceedings of the 6th International Conference on

Model-Driven Engineering and Software Develop-

ment, MODELSWARD 2018, Funchal, Madeira - Por-

tugal, January 22-24, 2018., pages 36–47.

Heidenreich, F., Kopcsek, J., and Wende, C. (2008). Fea-

tureMapper: Mapping features to models. In Com-

panion Proc. 30

ICSE, pages 943–944, Leipzig, Ger-

many. ACM.

ikv++ technologies (2018). medini QVT. ikv++ technolo-

gies. http://projects.ikv.de/qvt.

Jouault, F., Allilaire, F., B

ezivin, J., and Kurtev, I. (2008).

Generic Framework for Evaluating Commutativity of Multi-Variant Model Transformations

165

ATL: A model transformation tool. Sci. Comput. Pro-

gram., 72(1-2):31–39.

Kang, K. C., Cohen, S. G., Hess, J. A., Novak, W. E.,

and Peterson, A. S. (1990). Feature-oriented do-

main analysis (FODA) feasibility study. Technical Re-

port CMU/SEI-90-TR-21, Carnegie-Mellon Univer-

sity, Software Engineering Institute.

Kiczales, G., Lamping, J., Mendhekar, A., Maeda, C.,

Lopes, C., Loingtier, J.-M., and Irwin, J. (1997).

Aspect-oriented programming. ECOOP’97–Object-

oriented programming, pages 220–242.

Klatt, B. (2007). Xpand: A closer look at the model2text

transformation language. Language, 10(16):2008.

Leblebici, E., Anjorin, A., and Sch

urr, A. (2014). Devel-

oping emoﬂon with emoﬂon. In Theory and Practice

of Model Transformations - 7th International Confer-

ence, ICMT 2014, Held as Part of STAF 2014, York,

UK, July 21-22, 2014. Proceedings, pages 138–145.

Lopez-Herrejon, R. E. and Batory, D. S. (2001). A stan-

dard problem for evaluating product-line methodolo-

gies. In Proceedings of the Third International Con-

ference on Generative and Component-Based Soft-

ware Engineering, GCSE ’01, pages 10–24, London,

UK. Springer.

Pohl, K., B

ockle, G., and van der Linden, F. (2005). Soft-

ware Product Line Engineering: Foundations, Princi-

ples and Techniques. Springer, Berlin, Germany.

Salay, R., Famelis, M., Rubin, J., Sandro, A. D., and

Chechik, M. (2014). Lifting model transformations

to product lines. In 36th International Conference on

Software Engineering, ICSE ’14, Hyderabad, India -

May 31 - June 07, 2014, pages 117–128.

Sch

urr, A. (1994). Speciﬁcation of graph translators with

triple graph grammars. In Graph-Theoretic Concepts

in Computer Science, 20th International Workshop,

WG ’94, Herrsching, Germany, June 16-18, 1994,

Proceedings, pages 151–163.

Schw

agerl, F., Buchmann, T., and Westfechtel, B. (2016).

Multi-variant model transformations - A problem

statement. In ENASE 2016 - Proceedings of the 11th

International Conference on Evaluation of Novel Ap-

proaches to Software Engineering, Rome, Italy 27-28

April, 2016., pages 203–209.

Sijtema, M. (2010). Introducing variability rules in atl

for managing variability in mde-based product lines.

Proc. of MtATL, 10:39–49.

Stahl, T., V

olter, M., Bettin, J., Haase, A., and Helsen, S.

(2006). Model-driven software development - tech-

nology, engineering, management. Pitman.

Str

uber, D., Peldszus, S., and J

urjens, J. (2018). Taming

Multi-Variability of Software Product Line Transfor-

mations. In Fundamental Approaches to Software En-

gineering, 21st International Conference, FASE 2018,

Held as Part of the European Joint Conferences on

Theory and Practice of Software, ETAPS 2018, Thes-

saloniki, Greece, April 14-20, 2018, Proceedings.,

pages 337–355.

Str

uber, D., Rubin, J., Arendt, T., Chechik, M., Taentzer, G.,

and Pl

oger, J. (2018). Variability-based model trans-

formation: formal foundation and application. Formal

Aspects of Computing, 30(1):133–162.

Str

uber, D. and Schulz, S. (2016). A Tool Environment for

Managing Families of Model Transformation Rules,

pages 89–101. Springer International Publishing,

Cham.

Taentzer, G., Salay, R., Str

uber, D., and Chechik, M. (2017).

Transformations of software product lines: A gen-

eralizing framework based on category theory. In

20th ACM/IEEE International Conference on Model

Driven Engineering Languages and Systems, MOD-

ELS 2017, Austin, TX, USA, September 17-22, 2017,

pages 101–111.

Taentzer, G., Salay, R., Str

uber, D., and Chechik, M.

(2018). Transformation of software product lines.

In Tichy, M., Bodden, E., Kuhrmann, M., Wagner,

S., and Steghfer, J.-P., editors, Software Engineering

und Software Management 2018, pages 51–52, Bonn.

Gesellschaft fr Informatik.

Wagelaar, D., Iovino, L., Ruscio, D. D., and Pierantonio,

A. (2012). Translational semantics of a co-evolution

speciﬁc language with the EMF transformation virtual

machine. In Theory and Practice of Model Transfor-

mations - 5th International Conference, ICMT 2012,

Prague, Czech Republic, May 28-29, 2012. Proceed-

ings, pages 192–207.

Westfechtel, B. and Greiner, S. (2018). From single-

to multi-variant model transformations: Trace-based

propagation of variability annotations. In Proceedings

of the 21th ACM/IEEE International Conference on

Model Driven Engineering Languages and Systems,

MODELS 2018, Copenhagen, Denmark, October 14-

19, 2018, pages 46–56.

Willink, E. D. (2017). The micromapping model of com-

putation; the foundation for optimized execution of

eclipse qvtc/qvtr/umlx. In Theory and Practice of

Model Transformation - 10th International Confer-

ence, ICMT 2017, Held as Part of STAF 2017, Mar-

burg, Germany, July 17-18, 2017, Proceedings, pages

51–65.

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

166
