Location Privacy Assured Internet of Things

Ismail Butun and Mikael Gidlund

Department of Information Systems and Technology, Mid Sweden University, 851 70 Sundsvall, Sweden

Keywords:

Security, Mix-Zone, Location Obfuscation, IoT, Preserving, Context-awareness, Vulnerabilities, Trust,

End-device.

Abstract:

Internet of Things (IoT) is in the booming age of its growth, therefore a vast amount of applications, projects,

hardware/software solutions, and customized concepts are being developed. The proliferation of IoT will

enable location-based services to be available everywhere for everyone, and this will raise a large number

of privacy issues related to the collection, usage, retention, and disclosure of the user’s location information.

In order to provide a solution to this unique problem of IoT, this paper proposes Location Privacy Assured

Internet of Things (LPA-IoT) scheme, which uses the concepts of Mix-Zone, location-obfuscation along with

context-awareness. To the authors’ best knowledge, the proposed LPA-IoT scheme is the ﬁrst location-based

privacy-preserving scheme for IoT that provides ﬂexible privacy levels associated with the present context of

the user.

1 INTRODUCTION

The Internet of Things (IoT)

is revolutionizing the IT

sector. According to predictions, by the end of 2020,

20 billion IoT devices are expected to exist and seam-

lessly connect each other on the global Internet (Ko-

cakulak and Butun, 2017).

A mobile ecosystem is characterized by devices

that usually contain very sensitive personal (and busi-

ness) data including contacts, communication pat-

terns, and the whereabouts of the user. Hence, one

of the major privacy impacts of cyber-security solu-

tions for this ecosystem is the potentially very high

sensitivity of attribute disclosure. Similarly, these de-

vices contain information that can easily re-identify

their users depending on some preexisting pattern of

events such as calendar events, etc.

A somehow similar consideration holds for the

IoT ecosystem considering that, for example, home

automation systems may continuously detect home

activities; health-care related IoT systems may reveal

medical conditions, and IoT installations in smart en-

vironments may include cameras or other systems that

can directly or indirectly identify users performing ac-

tivities in speciﬁc places revealing also their location

This work was supported partially by grants: 20201010

(SMART Project) of the European Regional Fund (ERUF),

and 20150367 (TIMELINESS Project) of the Swedish

Knowledge Foundation (KKS).

information at given times. In order to assess the pri-

vacy of the users in IoT, algorithms need to be de-

signed. However, following unique properties of the

IoT make it challenging to design and difﬁcult to de-

vise algorithms accordingly. Therefore, they create

problems to be solved, especially the ones related to

privacy (Vasilomanolakis et al., 2015):

• Uncontrolled environment: Users (and in some

cases devices) are mobile, IoT devices are phys-

ically accessible (especially for adversaries) in

public places and ﬁnally, there is no trusted au-

thority deﬁned for IoT devices to resume safe op-

eration.

• Heterogeneity: IoT consists of various types of

things (devices), services and users.

• Scalability: IoT introduces a highly scalable and

ﬂexible network architecture, which may be trou-

ble for the algorithms that are considering stable

network conditions.

• Constrained Resources: Some of the IoT things

(things and devices are used interchangeably

throughout the manuscript) are very tiny and have

limited battery power (just as in the case of sen-

sors of WSNs). In order to resume a long life-

time, these devices should be running light-weight

algorithms, crafted in accordance with the sleep-

wakeup cycles of the devices. These tiny de-

vices have also limited communication (small

Butun, I. and Gidlund, M.

Location Privacy Assured Internet of Things.

DOI: 10.5220/0007587906230630

In Proceedings of the 5th International Conference on Information Systems Security and Privacy (ICISSP 2019), pages 623-630

ISBN: 978-989-758-359-9

623

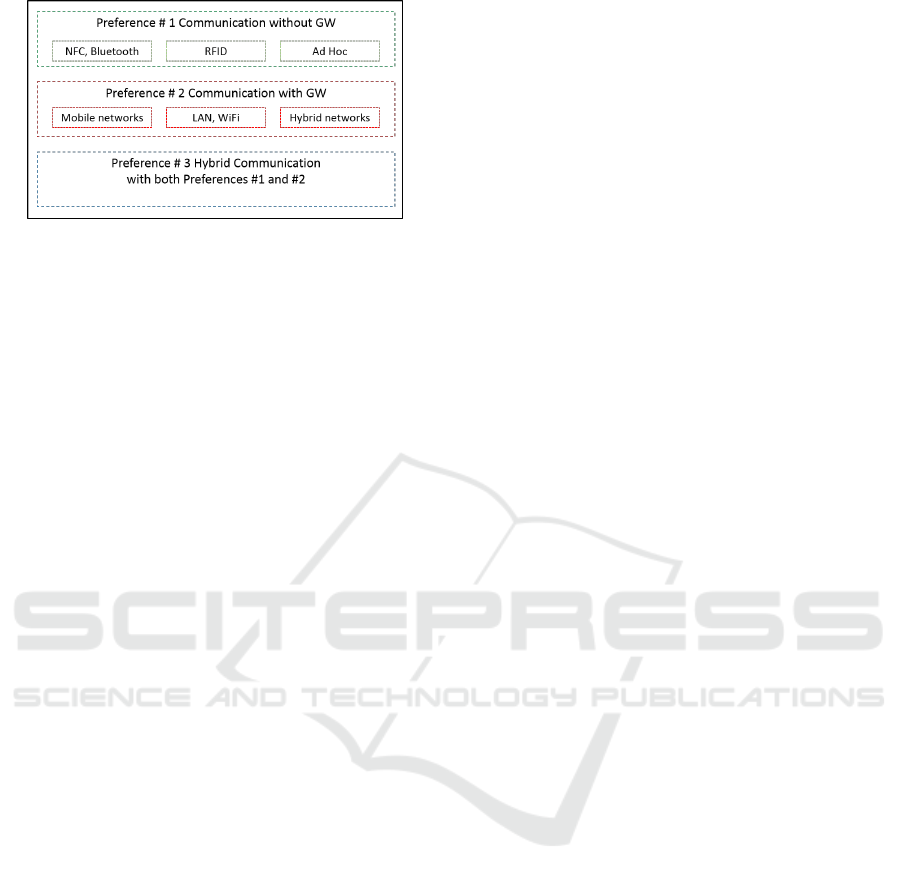

Figure 1: Communications methods in IoT.

area wireless coverage, low data rate, etc.) and

computation (small size of RAM, low processing

speed, etc.) resources. This limited energy, com-

munication, and computation resources would in-

evitably dictate design criterion of IoT privacy al-

gorithms/methods/techniques/etc.

Interactions between the things of IoT are

achieved via a communication network. Hence, IoT

consists of heterogeneous participants; communica-

tion in between those devices is a non-trivial task, as

it requires multiple protocols to be involved as shown

in Fig. 1 (Elkhodr et al., 2013). This heterogeneous

nature and distributed architecture of IoT gives rise to

numerous security and privacy concerns as summa-

rized as follows (Daubert et al., 2015):

• Identity Privacy (Visibility). Who is the data

generator? Disclosure of the user identities

throughout their IoT interactions should be ob-

structed.

• Location Privacy (Where). Where is the data

taken from? The physical location of the IoT

users should be preserved so that they will not be

tracked.

• Footprint Privacy (Knowledge). Can informa-

tion be extracted from the data being transferred in

all layers? Acquisition of large amounts of micro-

data should not reveal private information about

the users.

• Query Privacy (Interests). What was the con-

tent of the query? Proﬁling of the users should be

obstructed.

• Ownership Privacy (Who). Who is the owner

of the data? Data stored in databases or trans-

ferred to third parties should not reveal informa-

tion about who was the owner of the data (which

can be used for commercial advertising or busi-

ness purposes, e.g. quote for the next health in-

surance agreement).

Over decades, location privacy was a big concern

for the users in mobile cellular systems as well as the

Internet. As mentioned in (Beresford and Stajano,

2004), Internet Engineering Task Force even formed a

special group working only on this issue (Geographic

Location/Privacy Working Group). As IoT becom-

ing the next phenomenon in technology just like as

Internet, location privacy of the nodes and users will

be a primary concern in some speciﬁc scenarios, es-

pecially the ones related to the critical infrastructures

(e.g. location of a valve in a pipeline or location of a

critical actuator in a nuclear power plant) and military

operations (e.g. position of the friendly forces).

The proliferation of IoT will enable location-

based services (LBS) to be available everywhere for

everyone, and this will raise a large number of privacy

issues related to the collection, usage, retention, and

disclosure of the user’s location information (Minch,

2015). Therefore, in order IoT to have profound

business and societal impacts in our rapidly changing

world, location-aware privacy enhancing technolo-

gies should be added immediately. This paper aims

at providing that.

In order to provide a solution to this unique prob-

lem of IoT, this paper proposes Location Privacy As-

sured Internet of Things (LPA-IoT) scheme, which

uses the concepts of Mix-Zone along with location-

obfuscation and context-awareness. Mix-Zone pro-

vides a masked ID (called pseudonym) for each user

whenever users enter a predetermined location zone.

No one other than the server knows which pseudonym

belongs to which user in the zone. Therefore, from

outsider’s point of view, the imprecise location of the

individual is known (i.e. inside the Mix-Zone) but

the precise location is hidden. Similarly, in location-

obfuscation, instead of pseudonyms, the precision

level of the user’s location (that is mostly generated by

GPS receiver) is altered (degraded) by an algorithm

and then fed to the outsiders. Both of these meth-

ods have beneﬁts as well as difﬁculties. For example,

Mix-Zone needs some certain number of users to be

in the zone to efﬁciently mask them. On the other

hand, location-obfuscation suffers from communica-

tions and processing costs related to the generation of

extra levels of (depending on the precision) location

information, and also from the handling of that infor-

mation by the server.

In the proposed LPA-IoT scheme, there is a prede-

termined threshold level at which the location hiding

algorithm changes phase from Mix-Zone algorithm to

location-obfuscation algorithm. So that, all the time,

location privacy of the users are assured. To the au-

thors’ best knowledge, the proposed LPA-IoT scheme

is the ﬁrst location-based privacy-preserving scheme

for IoT that provides ﬂexible privacy levels associated

with the present context of the user. Besides, the pro-

posed scheme works in a dynamic fashion to provide

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

624

best cost efﬁciency.

The structure of this article is as follows: Sec-

tion 2 contains a literature review regarding location

privacy in IoT. Section 3 overviews location privacy

and presents ﬂaws of the existing proposals in the lit-

erature. Section 4, where proposed LPA-IoT scheme

is presented and discussed follows this. Finally, the

article ends with Section 5, which is comprised of

conclusions and future work.

2 RELATED WORK

There are solutions in the literature related to provid-

ing speciﬁc or generic privacy for IoT (data-footprint

privacy (Rajagopalan et al., 2011), user conﬁgurable

privacy enforcement (Henze et al., 2014), relationship

of the user privacy and trust (Butun, 2017)), but these

works do not establish location-privacy for IoT. Here,

authors will present most of the important work re-

lated to location-privacy in the literature (some are

proposed for IoT, the rest are proposed for mobile and

vehicular networks) categorized as follows:

2.1 Context-awareness

The relation in between privacy and context-

awareness for IoT is discussed in (Medaglia and Ser-

banati, 2010). It is concluded that the users may re-

sume two basic operational modes, which are public

and private. Based on the context information (Where

are we? What we are doing?), privacy can be tuned

in: Public operation mode is selected when objects

(things) advertise their presence and provide their ser-

vices to all nearby devices. However, in private oper-

ation mode, previously stated functionalities are pro-

vided to only very well known (trust wise) neighbors

only.

2.2 Location

Masking/Cloaking/Obfuscation

Location obfuscation has also known as masking or

cloaking, is a method used for protecting location-

privacy of the users by generalizing (substituting

or altering) the location information. Authors of

(Elkhodr et al., 2013) used this method, along with

context-awareness to provide location-privacy to gen-

eral objects (users) of IoT by using data obfuscation

techniques.

In (Elkhodr et al., 2013), authors showed how data

obfuscation technique could be used to hide precise

location information from the unintended parties. In

their methodology, they provide three different types

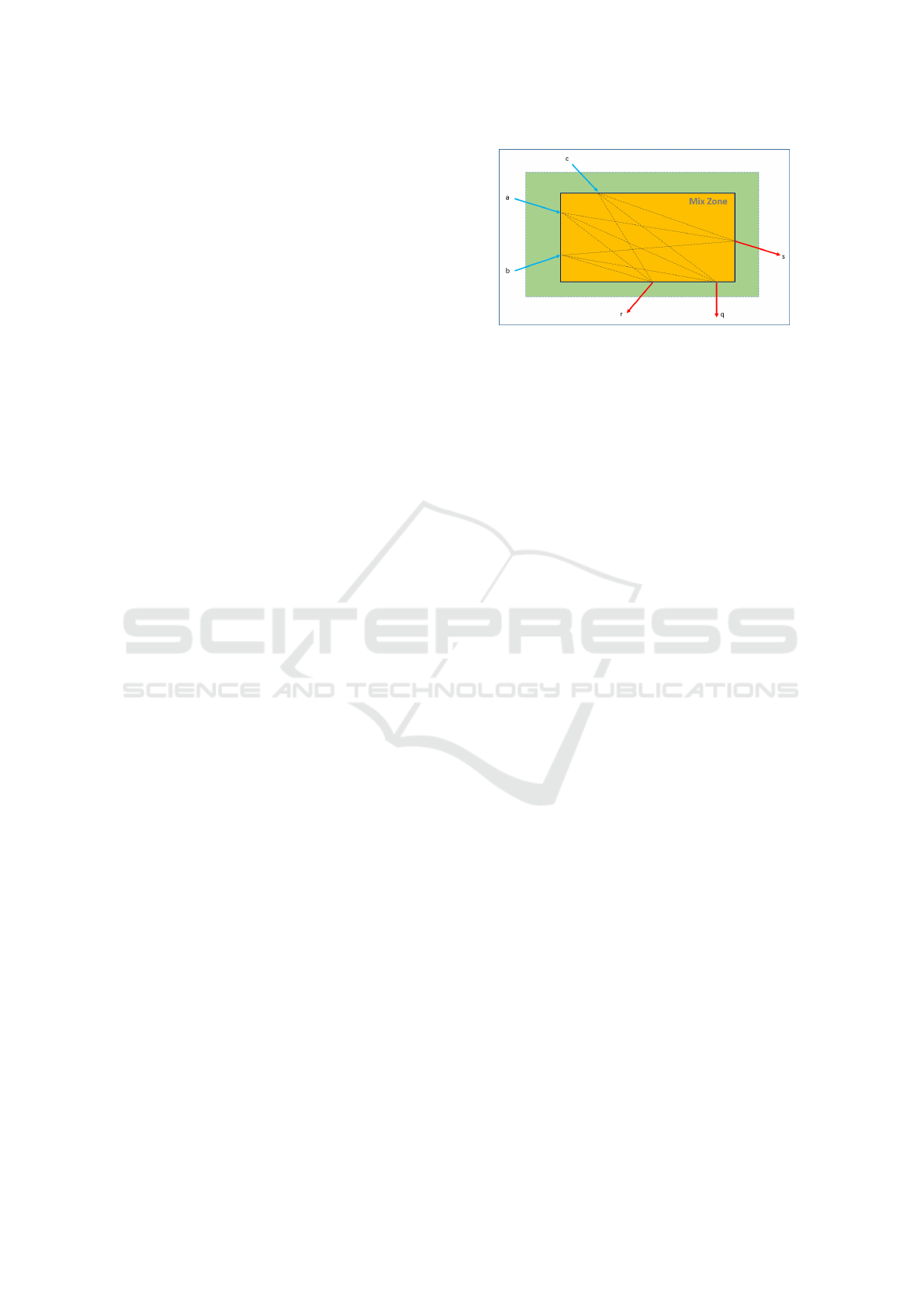

Figure 2: Example movement of three people through a

simple Mix-Zone.

of location information and provide this information

to the speciﬁc type of users/objects. As a result,

in the database of each user device; three location

data are generated, namely: high-precision, medium-

precision, and low-precision. When a highly trusted

object or user demands location, high-precise location

is provided. Low-precise location is provided to un-

trusted third party objects/applications/users.

2.3 Pseudonymization/Mix-Zone

In (Beresford and Stajano, 2004), authors proposed

the Mix-Zone concept for pervasive computing, in

which location of the users is masked by the “Mix-

Zone”. Mix-Zone provides a solution for user pri-

vacy in location-based services. It prevents track-

ing of long-term user movements but still allows the

short-term location data to be used by location-aware

applications.

After a user enters a Mix-Zone, the speciﬁc loca-

tion of the user right in the Mix-Zone is hidden from

the location-aware applications. This way, users in-

side a Mix-Zone will not be traceable and thereby

will have location privacy in that speciﬁc zone. These

zones may be assigned to a hospital, military facility,

etc., in which users do not want to be tracked.

As shown in Fig. 2, for the users a, b and c, the

location information is hidden in the Mix-Zone so that

they are untraceable. For example, the egress point of

user a may be either s, r or q.

2.4 Game Theoretical Approach

In (Freudiger et al., 2009) and (Humbert et al., 2010),

authors assume that the Mix-Zone concept of (Beres-

ford and Stajano, 2004) to be used by their system

(mobile networks) and they model the willingness

(cooperation) of their system users to participate Mix-

Zone as a “Game”, where each player aims at maxi-

mizing its location privacy at a minimum cost.

Location Privacy Assured Internet of Things

625

2.5 Other Approaches

In (Hu et al., 2011) authors proposed identity-based

personal location system with protected privacy for

IoT. Their proposed architecture includes a client-

server relation, which requires a server available all

the time and a communication back-haul to sup-

port all the transactions. Any location request goes

through the server with a classical authentication ser-

vice: Users with the required credentials are allowed

to acquire the personal location information of the

subject.

In (Skarmeta et al., 2014), authors proposed

capability-based distributed access-control scheme

for CoAP (Constrained Application Protocol is a

software protocol intended to be used in very sim-

ple electronics devices, allowing them to commu-

nicate interactively over the Internet) messaging of

IoT. This is a distributed approach, in which smart

things themselves are capable of making well-deﬁned

and context-aware access control decisions. Authors

achieved this by designing a lightweight token used

for access to CoAP Resources, and an optimized im-

plementation of the Elliptic Curve Digital Signature

Algorithm (ECDSA) inside the smart things (nodes).

3 DISCUSSIONS REGARDING

PREVIOUS WORK

As mentioned in Section 2, the solutions of (Ra-

jagopalan et al., 2011) and (Henze et al., 2014) do

not provide privacy for the location information and

therefore not promising for assuring location-privacy.

There are solutions in the literature to ensure loca-

tion privacy for mobile (cellular) networks. As men-

tioned in (Elkhodr et al., 2012), current privacy issues

in mobile platforms are more likely to be inherited if

not magniﬁed in the IoT. However, none of the solu-

tions to provide location-privacy to mobile platforms

(cellular networks) are tailored to the speciﬁc needs

and architecture of the IoT yet.

3.1 Context-awareness

The proposed context-aware privacy solution for IoT

of (Medaglia and Serbanati, 2010) is a good idea and

adopted by this paper. However, authors of the pro-

posal do not provide any algorithms, methods or func-

tions to be used for context-awareness. Therefore, this

is left for us as a challenge to tackle.

3.2 Location

Masking/Cloaking/Obfuscation

The Dynamic Disclosure Control Method (DDCM) of

(Elkhodr et al., 2013) provides six levels of obfus-

cation levels (from dummy location information to-

wards exact location information) in which different

location outputs are generated from the same location

information. For example, these ﬁve levels of obfus-

cation can be stated for an address information as fol-

lows: Level-0 Exact, Level-1 Street, Level-2 Suburb,

Level-3 State, Level-4 County, and Level-5 Dummy

(random). The proposed method is valid only for GPS

enabled mobile devices. Authors did not discuss the

applicability of this method to other IoT devices (with

or without GPS). Besides, authors also did not pro-

vide any cost analysis, which the proposed DDCM

would bring to the IoT systems.

3.3 Pseudonymization/Mix-Zone

As discussed in the literature (Freudiger et al., 2007;

Freudiger et al., 2009; Humbert et al., 2010), Mix-

Zone model of (Beresford and Stajano, 2004) is not

sufﬁcient alone to provide location-privacy. The

egress and ingress points of the users can be recorded

along with timing information to trace back each user

and precisely predict each user’s ﬁnal location af-

ter Mix-Zone and a highly correct estimate of the

route inside Mix-Zone. Besides, Mix-Zone concept

is based upon the collaboration of the users: Users in

the Mix-Zone collectively change their pseudonyms

to create confusion for the outside observers (attack-

ers). If some of the members selﬁshly avoid collab-

orating in the exchange process of pseudonyms, this

would decrease the level of conﬁdence in the system

(location-privacy).

3.4 Game Theoretical Approach

Although authors of (Alpcan and Bas¸ar, 2010) de-

scribed the zero-sum Nash Equilibrium game in

between “attacker” and the “defender”; (Freudiger

et al., 2009) and (Humbert et al., 2010) rather to

play the game in between “cooperative” and “non-

cooperative” users of a location-privacy assured mo-

bile networks. Therefore, application of game theory

to location-privacy assured mobile networks (espe-

cially the IoT networks) from the perspective of “de-

fender” - “attacker” game remains as a future work to

be done.

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

626

3.5 Other Approaches

As mentioned in (Notra et al., 2014), other prior

work either wrongly addresses the problem (Hu et al.,

2011) (classical client-server type authentication is

not convenient for highly dynamic and scalable IoT

architecture) or propose high-level security architec-

tures (Skarmeta et al., 2014) involving changes to the

way IoT devices are currently designed and commu-

nicating. With hundreds of IoT device manufacturers,

it is almost impossible to come up with a device em-

bedded security solution that caters to all the security

and privacy threats for a variety of IoT devices with

varying capabilities. Also due to the miniature size of

many IoT devices with limited computing capabilities

and power resources make it impossible to apply ex-

tensive computing-rich security algorithms. Authors

also believe that device embedded solutions require

all manufacturers to be on board which is a hard task.

Among all previous work in the literature,

(Elkhodr et al., 2013) provides a promising solution

for assuring location privacy for IoT applications. Al-

though the methodology of the presented work sounds

logical, here the problems it represents: It is proposed

for generic GPS bearing IoT networks and needs to be

tailored for the other kind of IoT networks (with the

location sensing devices other than the GPS). Once a

precise-data is generated, it is there for hackers and/or

high ability users (hired by advertisers, commercial

companies, etc.) to capture it. Algorithms and/or

methods need to be developed to assure location-

privacy, by securing the original precisely generated

location data.

3.6 The Distinctive Properties of IoT

from “Mobile Networks” and

“Vehicular Networks”

Most of the techniques in the literature for assuring

location privacy are either devised for “mobile net-

works” or “vehicular networks”. The distinctive prop-

erties of IoT from those mentioned networks are as

follows:

• Some of the “things” might be stationary, such

as sensing devices in the buildings; whereas the

other “things” might be mobile, such as devices

attached to the users. Hence constituting a hetero-

geneous structure in terms of mobility.

• Mobility in the IoT is not rapid as in the vehicu-

lar networks, hence the mobility mostly related to

pedestrians and their surrounding devices.

• The network in IoT needs to be scalable as the

number of users and the things might change sub-

stantially.

• GPS technology is always available in vehicular

networks whereas it might not be available in all

nodes of the IoT.

• Some of the “things” in IoT are super-tiny de-

vices, which are intended to save battery life to

serve a longer lifetime; hence, the algorithms need

to be devised by keeping “energy conservation”

in mind. This is not necessary for vehicular net-

works hence the vehicles have enough battery and

power supply all the time.

• In some cases, things of IoT might not be able

to connect to the Internet directly but via their

neighbors. This brings in the Ad-Hoc Network-

ing concept to the design criterion. Whereas,

the vehicular networks are highly connected to

Internet or Intranet via Road-Side-Units and/or

2G/3G/4G/5G cellular technology.

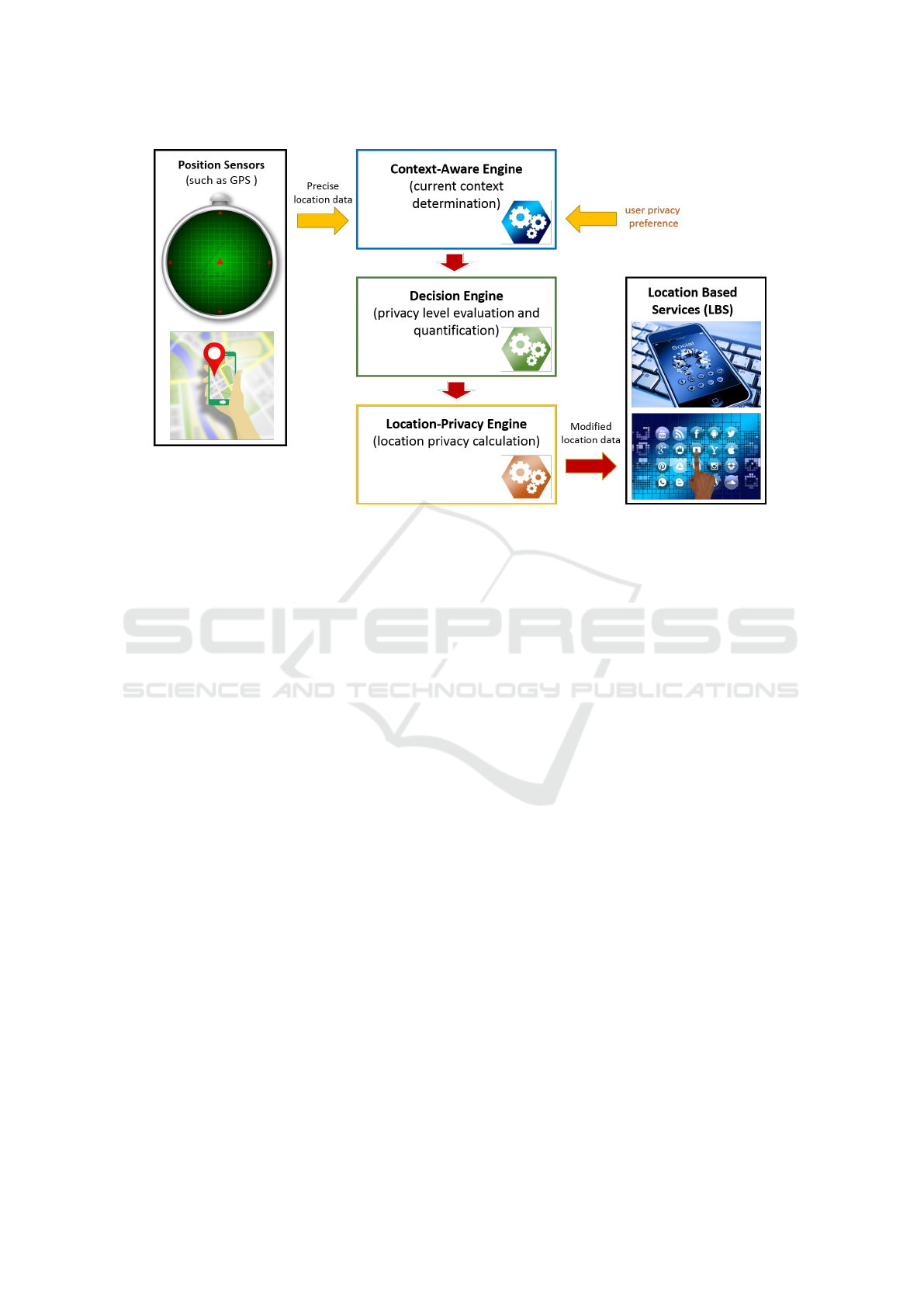

4 PROPOSED LOCATION

PRIVACY ASSURED INTERNET

OF THINGS (LPA-IoT) SCHEME

Context-awareness describes devices that can sense

and be aware of their environment to judge their next

movement or behavior accordingly. However, lo-

cation awareness is an also emerging ﬁeld in mo-

bile applications and portable devices which leads

to the introduction of location-based services (LBS)

and location-based applications. Location informa-

tion becomes highly sensitive when it is combined

with other contextual information such as the user’s

identity (Elkhodr et al., 2013).

Location-privacy can be deﬁned as the privacy

related to the individuals’ location-speciﬁc informa-

tion including their living patterns. As mentioned in

(Minch, 2004), usage of location-aware services will

arise following location-privacy related implications:

collection, retention, use, and disclosure of location

information. Extreme consumer proﬁling can be done

by the commercial companies related to shopping

and travel patterns of the consumers. Patients visit-

ing health services may be correlated to their health

condition which may be very valuable information

for health-insurance companies. Moreover, personal

safety may be compromised if the location informa-

tion of individuals is breached.

In an IoT network, location of the users can be

determined via one of the methods with the speciﬁc

ranges provided as follows: GPS (precise, 10 cm - 10

Location Privacy Assured Internet of Things

627

m range), RFID (near-proximity 1 m - 10 m range),

WiFi (mid-proximity 10 m - 100 m range), GSM tri-

angulation (far-proximity 100 m - 1,000 m range).

Hence the IoT consists of heterogeneous devices, the

precise location information as in mobile and cellular

networks will not be available all the time.

Mobile Target Tracking (MTT), proposed by Hoh

and Gruteser (Hoh and Gruteser, 2005), was able to

reconstruct the tracks of mobile devices in a network,

indicating that spatial and temporal correlation be-

tween successive locations of mobile devices should

be carefully eliminated to prevent attackers from com-

promising the user’s location privacy.

The location privacy algorithms provided in the

literature (summarized in Section 2) are proposed for

either mobile networks or vehicular networks. Hence

IoT have distinctive properties and features compared

to those mentioned networks (please see Section 3.6),

these algorithms cannot be adopted directly. They

need to be revised, re-modeled, re-constructed, re-

structured in order to fulﬁll the special requirements

of IoT and the users of the IoT.

The design (revising, re-modeling re-constructing,

re-structuring) phase of the location privacy algo-

rithm(s) should be followed by a thorough evaluation

phase. This evaluation phase should include all the

quantiﬁcation metrics (such as uncertainty, entropy,

confusion time, etc.) in order to provide veriﬁable

comparison results.

As mentioned above, location privacy is prevent-

ing other parties from a node’s past and current loca-

tion. Hence assuring the location privacy of the IoT

nodes is indispensable, the aim of this paper is to pro-

vide location privacy with a minimum cost to the IoT

nodes.

As discussed in (Medaglia and Serbanati, 2010),

location-based services may be provided in two basic

operation modes:

1. Public Mode: This operation mode would require

none or minimal user privacy for location-based

services.

2. Private Mode: This operation mode would re-

quire maximum user privacy for location-based

services. This can be achieved by using algo-

rithms to ensure user location privacy, such as the

Mix-Zones proposed in (Beresford and Stajano,

2004).

In order to apply this kind of (2-modes of opera-

tion: “Public” and “Private”) approach, the IoT sys-

tem needs to be “context-aware”, so that it can switch

operation mode according to the location the user is

visiting.

Our proposed Location-Privacy Assured IoT

(LPA-IoT) scheme architecture is shown as in Fig. 3.

It consists of mainly three blocks:

• Context-Aware Engine: As discussed above,

the ﬁrst block of the proposed LPA-IoT system

consists of a context-aware engine, which dis-

covers the current context by comparing the pre-

cise location information with the detailed context

database (DCDB). DCDB is constituted by the

system managers, depending on the applications

as well as the user needs. DCDB will be preloaded

on all IoT devices of the LPA-IoT system and will

be updatable by push-based patches if needed.

Patch management aspects of the DCDB is out-

side the scope of this text. Interested readers on

patch management systems may refer to (Al et al.,

2012). Our proposed context-aware engine will be

similar to the one in (Elkhodr et al., 2013), and ac-

cordingly, any context will be analyzed using the

following four contextual parameters: Network,

Location, Period and Request Owner.

• Decision Engine: After the context is speciﬁed

by the context-aware engine, the result is fed to

the decision engine among with the preselected

user privacy preferences, in order to conclude the

current Privacy Level (“Private” or “Public”) to

be used for location services. Here, the current

context is evaluated with the privacy selection of

the user and quantiﬁed to be processed by the next

block.

• Location-Privacy Engine: If the result of

the previous engine is “Private”, then this block

will work, otherwise will not. In order to pro-

vide location-privacy, this block uses Mix-Zone

concept of (Beresford and Stajano, 2004) and

location-obfuscation method of (Elkhodr et al.,

2013), both of which are mentioned earlier in this

text. According to our proposed LPA-IoT scheme,

the location-privacy assuring conﬁguration should

be dynamic. According to our proposed model,

there is a certain threshold level of the cost that

is associated with the number of users in the Mix-

Zone, which determines either usage of Mix-Zone

approach or not. If not, then the users in the

Mix-Zone will have to use location-obfuscation

method to attain their location-privacy. The men-

tioned threshold-level will be determined accord-

ing to analytical results. Total cost models of both

Mix-Zone and location-obfuscation will be deter-

mined. These models will include costs related to

packet transmissions between server and clients,

communications and processing. This will pro-

vide us metrics of total cost vs. the total num-

ber of users participating. Then, in the same

manner, privacy-risk models of both Mix-Zone

and location-obfuscation will be determined. This

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

628

Figure 3: Proposed system architecture for Location-Privacy Assured IoT (LPA-IoT) Scheme.

will provide us metrics of total privacy-risk vs.

the total number of users participating. Then by

using both obtained metrics, an optimization pro-

cess will be done to deduce the optimum num-

ber of users (N - the threshold-level) where the

location-privacy engine will be triggered to switch

the main algorithm for the location privacy (i.e.

either Mix-Zone approach or location-obfuscation

approach). Finally, the decision will be made ac-

cordingly on which approach to be used.

The resulting modiﬁed-location data from the

Location-Privacy Engine block is fed to the informa-

tion demanding LBS. Here, by modiﬁcation what au-

thors meant is, depending on the algorithm used in

the Location-Privacy Engine block, either the preci-

sion of the location (position) in meters (hundreds of

meters, etc.) will be changed or the pseudonyms of

each location-bearing user will be changed. As a re-

sult, the proposed LPA-IoT system assures location-

privacy of its users according to their user preference,

current context and the total number of users, by using

Context-Awareness, Location-Obfuscation and Mix-

Zone concepts all together in an ordered and layered

fashion.

5 CONCLUSIONS AND FUTURE

WORK

With the proliferation of IoT devices, the location pri-

vacy of the users will be one of the main concerns

related to security. Therefore, in this article, the au-

thors aim at providing a unique solution to address

this speciﬁc problem.

Several proposals in the literature are reviewed

that may be relevant to location-based privacy. Most

of the proposals for IoT are aimed at providing

different security services rather than location pri-

vacy, and a few provided speciﬁc solutions for net-

works other than IoT (e.g. vehicular networks, mo-

bile networks, etc.). Hence, an LBS-based privacy-

preserving scheme (LPA-IoT) has been proposed in

this paper. To the authors’ best knowledge, the pro-

posed LPA-IoT scheme is the ﬁrst location-based

privacy-preserving scheme for IoT that provides ﬂex-

ible privacy levels associated with the present con-

text of the user. The proposed LPA-IoT scheme uses

Mix-Zone algorithm for hiding the location informa-

tion in ﬁrst place. However, when the total number

of users in the zone decreases lower than a certain

minimum threshold level, the location privacy can-

not be assured. At that point, the proposed LPA-

IoT scheme uses the location-obfuscation algorithm.

Although this algorithm is most costly compared to

Mix-Zone, location privacy is assured by any means,

which might be very important in some scenarios.

In the future work, an optimization work (in terms

of performance, cost, and privacy) will be done in be-

tween Location-Obfuscation and Mix-Zone methods.

A threshold level (the total number of users) will be

determined according to this optimization result. Be-

sides, evaluation of the performance analysis of the

proposed scheme has been also left as a future work.

Location Privacy Assured Internet of Things

629

REFERENCES

Al, F., Dalloro, L., Ludwig, H., Claus, J., Fr

ohlich, R., and

Butun, I. (2012). Networking elements as a patch dis-

tribution platform for distributed automation and con-

trol domains. Patent App. PCT/US2012/043,084.

Alpcan, T. and Bas¸ar, T. (2010). Network security: A de-

cision and game-theoretic approach. Cambridge Uni-

versity Press.

Beresford, A. R. and Stajano, F. (2004). Mix zones: User

privacy in location-aware services. In Pervasive Com-

puting and Communications Workshops, 2004. Pro-

ceedings of the Second IEEE Annual Conference on,

pages 127–131. IEEE.

Butun, I. (2017). Privacy and trust relations in internet of

things from the user point of view. In Computing and

Communication Workshop and Conference (CCWC),

2017 IEEE 7th Annual, pages 1–5. IEEE.

Daubert, J., Wiesmaier, A., and Kikiras, P. (2015). A view

on privacy & trust in iot. In Communication Work-

shop (ICCW), 2015 IEEE International Conference

on, pages 2665–2670. IEEE.

Elkhodr, M., Shahrestani, S., and Cheung, H. (2012). A

review of mobile location privacy in the internet of

things. In ICT and Knowledge Engineering (ICT

& Knowledge Engineering), 2012 10th International

Conference on, pages 266–272. IEEE.

Elkhodr, M., Shahrestani, S., and Cheung, H. (2013). A

contextual-adaptive location disclosure agent for gen-

eral devices in the internet of things. In Local Com-

puter Networks Workshops (LCN Workshops), pages

848–855. IEEE.

Freudiger, J., Manshaei, M. H., Hubaux, J.-P., and Parkes,

D. C. (2009). On non-cooperative location privacy: a

game-theoretic analysis. In Proceedings of the 16th

ACM conference on Computer and communications

security, pages 324–337. ACM.

Freudiger, J., Raya, M., F

elegyh

azi, M., Papadimitratos,

P., and Hubaux, J.-P. (2007). Mix-zones for loca-

tion privacy in vehicular networks. In ACM Workshop

on Wireless Networking for Intelligent Transportation

Systems (WiN-ITS), number LCA-CONF-2007-016.

Henze, M., Hermerschmidt, L., Kerpen, D., H

außling, R.,

Rumpe, B., and Wehrle, K. (2014). User-driven pri-

vacy enforcement for cloud-based services in the in-

ternet of things. In Future Internet of Things and

Cloud (FiCloud), 2014 International Conf. on, pages

191–196. IEEE.

Hoh, B. and Gruteser, M. (2005). Protecting location pri-

vacy through path confusion. In Security and Privacy

for Emerging Areas in Communications Networks. Se-

cureComm 2005., pages 194–205. IEEE.

Hu, C., Zhang, J., and Wen, Q. (2011). An identity-based

personal location system with protected privacy in iot.

In Broadband Network and Multimedia Technology

(IC-BNMT), 2011 4th IEEE International Conference

on, pages 192–195. IEEE.

Humbert, M., Manshaei, M. H., Freudiger, J., and Hubaux,

J.-P. (2010). Tracking games in mobile networks. In

International Conference on Decision and Game The-

ory for Security, pages 38–57. Springer.

Kocakulak, M. and Butun, I. (2017). An overview of wire-

less sensor networks towards internet of things. In

Computing and Communication Workshop and Con-

ference (CCWC), 2017 IEEE 7th Annual, pages 1–6.

IEEE.

Medaglia, C. M. and Serbanati, A. (2010). An overview of

privacy and security issues in the internet of things. In

The Internet of Things, pages 389–395. Springer.

Minch, R. P. (2004). Privacy issues in location-aware mo-

bile devices. In System Sciences, 2004. Proceedings of

the 37th Annual Hawaii International Conf. on, pages

10–pp. IEEE.

Minch, R. P. (2015). Location privacy in the era of the in-

ternet of things and big data analytics. In System Sci-

ences (HICSS), 2015 48th Hawaii International Conf.

on, pages 1521–1530. IEEE.

Notra, S., Siddiqi, M., Gharakheili, H. H., Sivaraman, V.,

and Boreli, R. (2014). An experimental study of se-

curity and privacy risks with emerging household ap-

pliances. In Communications and Network Security

(CNS), Conf. on, pages 79–84. IEEE.

Rajagopalan, S. R., Sankar, L., Mohajer, S., and Poor,

H. V. (2011). Smart meter privacy: A utility-privacy

framework. In Smart Grid Communications (Smart-

GridComm), 2011 IEEE International Conference on,

pages 190–195. IEEE.

Skarmeta, A. F., Hernandez-Ramos, J. L., and Moreno,

M. V. (2014). A decentralized approach for security

and privacy challenges in the internet of things. In In-

ternet of Things (WF-IoT), 2014 IEEE World Forum

on, pages 67–72. IEEE.

Vasilomanolakis, E., Daubert, J., Luthra, M., Gazis, V.,

Wiesmaier, A., and Kikiras, P. (2015). On the secu-

rity and privacy of internet of things architectures and

systems. In Secure Internet of Things (SIoT), 2015

International Workshop on, pages 49–57. IEEE.

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

630
