Vision based ADAS for Forward Vehicle Detection using Convolutional

Neural Networks and Motion Tracking

Chen-Wei Lai

, Huei-Yung Lin

and Wen-Lung Tai

Department of Electrical Engineering, National Chung Cheng University,

168 University Road, Min-Hsiung, Chiayi 621, Taiwan

Department of Electrical Engineering and Advanced Institute of Manufacturing with High-Tech Innovation,

National Chung Cheng University, 168 University Road, Min-Hsiung, Chiayi 621, Taiwan

Create Electronic Optical Co., LTD, 868 Zhongzheng Road, Zhonghe, New Taipei 23557, Taiwan

Keywords:

Forward Vehicle Detection, Advanced Driving Assistance Systems, Convolutional Neural Networks, Motion

Tracking.

Abstract:

With the rapid development of advanced driving assistance technologies, from the very beginning of parking

assistance, lane departure warning, forward collision warning, to active distance control cruise, the active

safety protection of vehicles has gained the popularity in recent years. However, there are several important

issues in the image based forward collision warning systems. If the characteristics of vehicles are deﬁned

manually for detection, we need to consider various conditions to set the threshold to ﬁt a variety of the

environment change. Although the state-of-art machine learning methods can provide more accurate results

then ever, the required computation cost is far much higher. In order to ﬁnd a balance between these two

approaches, we present a detection-tracking technique for forward collision warning. The motion tracking

algorithm is built on top of the convolutional neural networks for vehicle detection. For all processed image

frames, the ratio between detection and tracking is well adjusted to achieve a good performance with an

accuracy/computation trade-off. Th experiments with real-time results are presented with a GPU computing

platform.

1 INTRODUCTION

This paper proposes an idea that effectively enables a

common network to achieve real-time computation on

the hardware that generally has GPUs. With the de-

velopment of Convolutional Neural Networks (CNN)

in recent years, the detection of objects has become

more and more accurate and faster. However, using

these network architectures in real time has a major

problem for computationally inefﬁcient platforms or

embedded boards. In order to deal with such prob-

lems, it is required to use the network to detect every

frame under the platform with poor computing power.

Thus, this becomes a severe issue to be solved.

This work is based on the concept that there is lit-

tle difference between the consecutive image frames.

In an image sequence, we can only detect some other

frames rather than each of them. The detection frame-

work is based on the sparsely detected bounding box,

in order to achieve the real-time performance of the

networks. In addition to the comparison on compu-

tation speed, we also conduct the experiments using

29,681 images recorded with a dashcam to verify the

reliability of the proposed method. On the platform

using a GPU GTX 950M, the average operation speed

is about 30–55 frames per second, and the accuracy is

76%. The results demonstrate that the technique pro-

posed in this work can be effectively applied to most

common platforms.

2 RELATED WORK

The early research on vehicle detection includes man-

ual detection and using the characteristics of the ve-

hicles (Sun et al., 2006b) . More recently, machine

learning techniques are widely adopted and many ap-

proaches have been proposed. The former methods

are usually to identify the features of the vehicles for

detection purposes, and one popular approach for the

latter case is the convolutional neural network based

methods.

Lai, C., Lin, H. and Tai, W.

Vision based ADAS for Forward Vehicle Detection using Convolutional Neural Networks and Motion Tracking.

DOI: 10.5220/0007626902970304

In Proceedings of the 5th International Conference on Vehicle Technology and Intelligent Transport Systems (VEHITS 2019), pages 297-304

ISBN: 978-989-758-374-2

297

2.1 Conventional Approaches

The conventional approaches for vehicle detection

commonly adopt the image feature extraction tech-

niques and classiﬁcation algorithms.

Vertical and Horizontal Edges. The edge has al-

ways been an important feature in computer vi-

sion applications. Srinivasa (Srinivasa, 2002) and

Sun em et al. (Sun et al., 2002) used this char-

acteristic to identify front vehicles. However, the

problem with the edge methods is how to set a

suitable threshold. Different thresholds must be

used for different application scenarios to obtain

the best results. Although the methods can be

improved in an adaptive manner, when the color

of the vehicle body is similar to the surrounding

environment, the edges cannot be detected easily

and correctly.

Shadow. Extracting features directly from the ob-

jects is sometimes not the best solution for ob-

ject detection. The information around the object

might be used effectively. One good example is

the shadow under the vehicle. Based on the ob-

servation, the darkest part of the image has a very

high probability of being located at the bottom of

the vehicle region. According to this characteris-

tic, Tzomakas and von eelen (Tzomakas and von

Seelen, 1998) proposed a way to effectively de-

termine the gray value threshold to detect the ve-

hicle. However, this method is prone to misjudge

the shadow regions in the night scenes.

Tail Light. To deal with the problem of detecting ve-

hicles at night, OMalley et al. (O’Malley et al.,

2008) used tail lights to identify the front vehicle

location. The core idea is that the tail lights are

red and easy to recognize. Since some vehicles

do not have red tail lights or have the lights on,

this does not guarantee that all true positives can

be considered.

Support Vector Machine. Through the characteris-

tics of vehicles, such as the simple features de-

scribed above, we are able to detect the vehicle

location under normal conditions. For more com-

plicated situations, it is difﬁcult to detect the ve-

hicles correctly. Some previous works proposed

to use Haar transform or HOG to extract textures,

and use support vector machines or simple neu-

ral networks for vehicle detection and veriﬁcation

(Ortega et al., 2013; Sun et al., 2006a). The re-

sults obtained from this approaches are generally

better, but the computation is the key issue. The

operation time is dramatically increased due to the

bounding box extraction using a sliding window.

It is thus fatal for real-time applications.

2.2 Convolutional Neural Networks

Since the year of 2012, the convolutional neural net-

works used for object detection and classiﬁcation

have gained a great success. The object detection

research is mainly divided into two categories: one-

stage and two-stage detectors.

Two-Stage Detector. The two-stage detector is the

ﬁrst development with a signiﬁcant detection rate

based on the recent deep learning framework. Its

architecture mainly consists of two parts: region

proposal and prediction of the content of the de-

tected bounding box (Girshick et al., 2014; Gir-

shick, 2015; Dai et al., 2016). Most region pro-

posals are designed to be very large in pursuit of

good results, and thus it slows down the comput-

ing speed of the network. In order to mitigate this

issue, Li et al. (Li et al., 2017) refer to the idea

of (Szegedy et al., 2015; Chollet, 2016) to reduce

the amount of calculation while keeping the re-

sults satisﬁed.

One Stage Detector. Even the two-stage detectors

have very good recognition rates, they are not suit-

able for many application scenarios in terms of the

execution speed. To deal with this problem, Red-

mon and Farhadi divide the input image into an

n ×n grid and use them to generate several dif-

ferent sizes of bounding boxes instead of using

the network with region proposal (Redmon and

Farhadi, 2016). In the proposed method, each grid

only predicts one object and the major cost is that

it does not work well for the detection of small

objects. To reduce the cost, Liu et al. propose a

method to forecast at different scales and this is

able to deal with the small size objects fairly well

(Liu et al., 2016).

3 METHOD

In the proposed technique, we ﬁrst use a machine

learning algorithm to detect the vehicles, and then

SVM is adopted as a veriﬁcation mechanism to ef-

fectively remove the non-vehicle bounding boxes. Fi-

nally, a tracking algorithm is carried out to reduce the

overall computation time. The real-time system can

be realized by adjusting the detection and tracking

rate. Figure 1 shows the ﬂowchart of the proposed

method.

VEHITS 2019 - 5th International Conference on Vehicle Technology and Intelligent Transport Systems

298

Load Image Any B-Box?

Display

Detection Validation

After Threshold

Frame?

Tracking

False

True

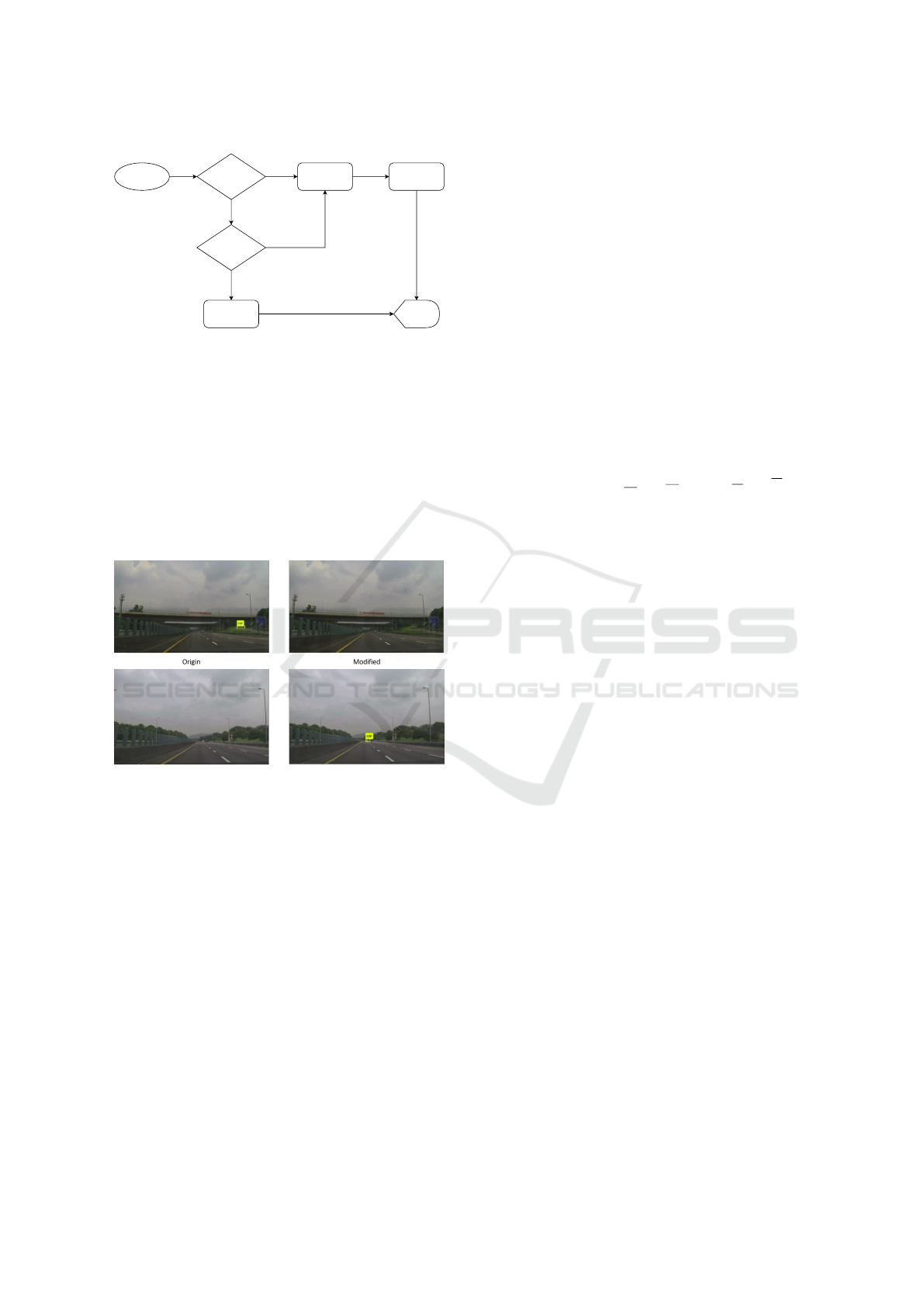

Figure 1: The ﬂowchart of the proposed method. It com-

bines the detection, veriﬁcation and tracking to improve the

overall performance.

3.1 Detection

The network architecture we adopt is YOLOv2. In

order to detect the location of the vehicle more cor-

rectly, we not only extract the features from the lower

layers, but also modify the category prediction part of

the cost function. Furthermore, the focal loss is added

to improve the overall accuracy.

Figure 2: The result comparison between the original

YOLO and ours. The left images are the original and the

right images are obtained from our modiﬁcation. After the

improvement, the false positive is removed and the small

object can be detected.

3.1.1 Extraction from Lower Layer

The detection of small objects is the most criticized

part of YOLO. In the existing literature, there are

three approaches to cope with this problems: 1. En-

large the images for the input network. 2. Increase

the number of the grid cell (Behrendt et al., 2017).

3. Extract features from the lower layers (Kong et al.,

2016). The third approach is adopted in this work be-

cause the ﬁrst two modiﬁcations are more computa-

tionally intensive for object detection. The main rea-

son that this method is effective is because the lower

layers pass fewer convolution layers. The character-

istics of the small objects do not cause the features to

disappear due to the convolution layers. In order to

avoid the network prediction part becomes too large,

we only combine the features extracted from the sixth

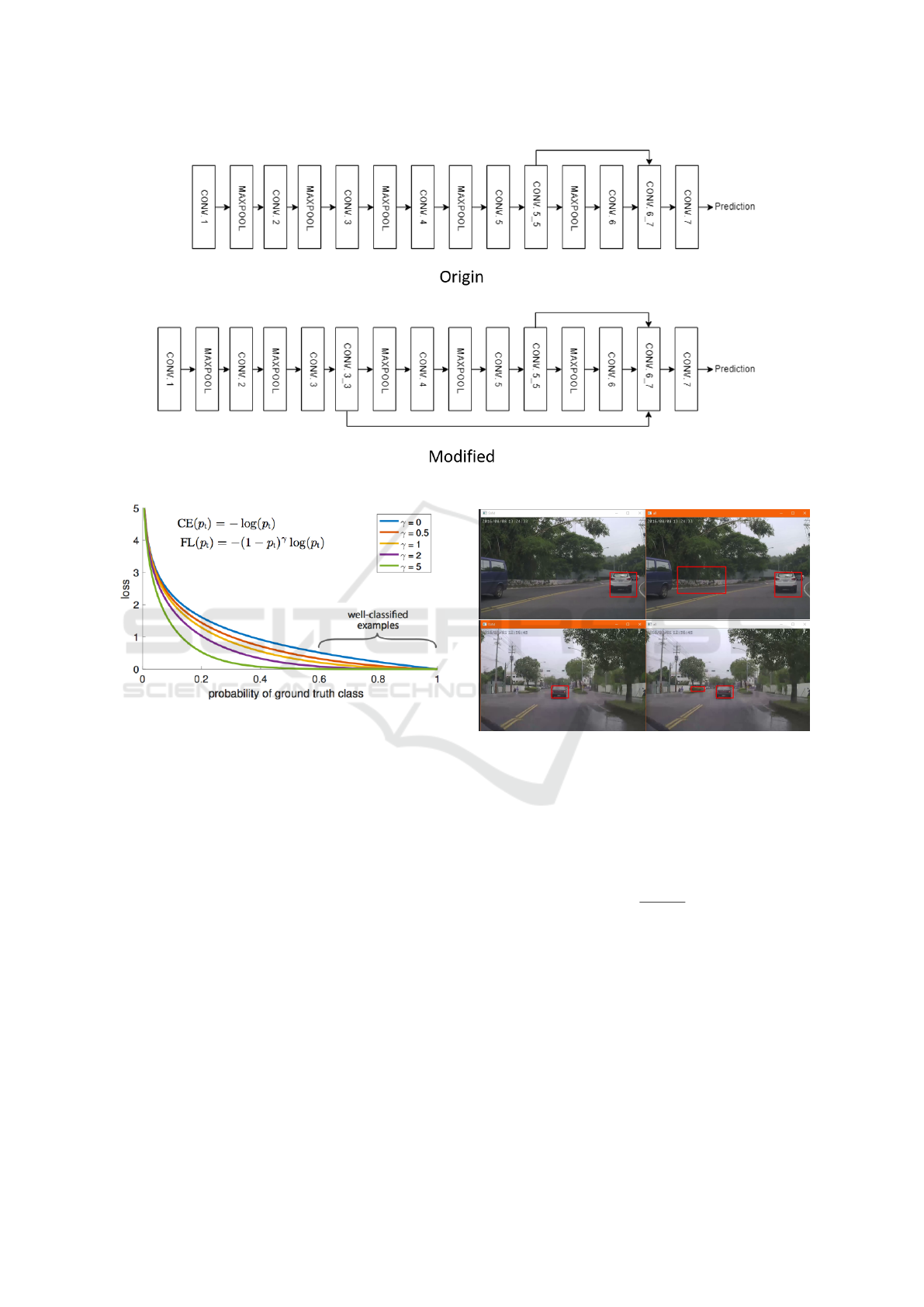

layer to the back-end for prediction. Figure 3 shows

the original architecture and the one with our modiﬁ-

cation.

3.1.2 Category Prediction Modiﬁcation

Another problem with YOLO is that many times the

position of the bounding box is correct but the cate-

gory prediction is not. In order to deal with such prob-

lems, we increase the penalty for the category predic-

tion. The following is the original cost function used

by YOLO.

coord

∑

i=0

∑

j=0

ob j

i j

− ˆx

)

+ (y

− ˆy

)

+ λ

coord

∑

i=0

∑

j=0

ob j

i j



√

−

ˆw





−



∑

i=0

∑

j=0

ob j

i j



−



+ λ

noob j

∑

i=0

∑

j=0

noob j

i j



−



∑

i=0

ob j

i j

∑

c∈classes

(c))

(1)

The ﬁrst two terms represent the position error of

the prediction and the training set respectively, and the

middle two terms represent how the predicted object

is compared with the training set in the grid cell. The

last item represents whether the predicted object’s cat-

egory is the same as the training set.

In the last part, the objective is to improve the pre-

diction by modifying the penalty function. To avoid

the situation of not converging when training the net-

work due to too many changes, we only double the

result of each calculation.

From such a modiﬁcation, we ﬁnd that the im-

provement is fairly limited. Thus, we refer to the

RetinaNet (Lin et al., 2017) and incorporate the fo-

cal loss as part of loss function. The RetinaNet has

put forward new ideas for the low accuracy issue of

one stage detectors. The work points out two major

reasons for poor detection: 1. Extremely uneven data

between the positive and negative samples. 2. The

loss function is easily affected by negative samples. In

order to deal with this situation, they modify the orig-

inal cross entropy, and the results are shown in Figure

4. Such a modiﬁcation really reduces the overall loss,

and it does have the same effect and improvement in

our experiments.

Vision based ADAS for Forward Vehicle Detection using Convolutional Neural Networks and Motion Tracking

299

Figure 3: The original YOLO network architecture (top) and the one with our modiﬁcation (bottom).

Figure 4: The comparison on the focal loss and the cross

entropy (Lin et al., 2017).

3.2 Validation

Even many changes have been made in Section 3.1 to

reduce the false positives, the mis-detection problem

still exists. To reduce the incorrect classiﬁcation more

effectively, we use HOG+SVM to remove the wrong

bounding boxes. Figure 5 shows an example that the

negative bounding box is removed after we add this

validation stage.

3.3 Tracking

In the existing literature, the tracking methods are

usually used to reinforce the results they have de-

tected, rather than improve the overall computation

time. The front vehicles in a common trafﬁc scene

recorded with 30 frames per second do not change too

much in the images. Thus, it is reasonable that per-

forming object detection for each image frame is not

necessary. In order to make the algorithm achieve the

Figure 5: The results from HOG+SVM. The right and left

images show the results before and after the veriﬁcation

mechanism is adopted.

overall real-time operation, we use only a few frames

for detection. The tracking algorithm is applied on

the remaining frames instead of frame-by-frame de-

tection. Eq. (2) indicates how the threshold, f

, is

deﬁned:

30 − f

− f

(2)

where f

is the detection speed and f

is the tracking

speed.

After the detection and veriﬁcation are completed,

we track the detected bounding box, switch to de-

tection veriﬁcation after the f

frame, and clear the

tracking bounding box. In this work, our tracking

algorithm is modiﬁed from the compressive tracking

(Zhang et al., 2012) with the multi-object tracker.

VEHITS 2019 - 5th International Conference on Vehicle Technology and Intelligent Transport Systems

300

Any B-Box?

Tracking

Clear B-Box

Position

B-Box Position

True

False

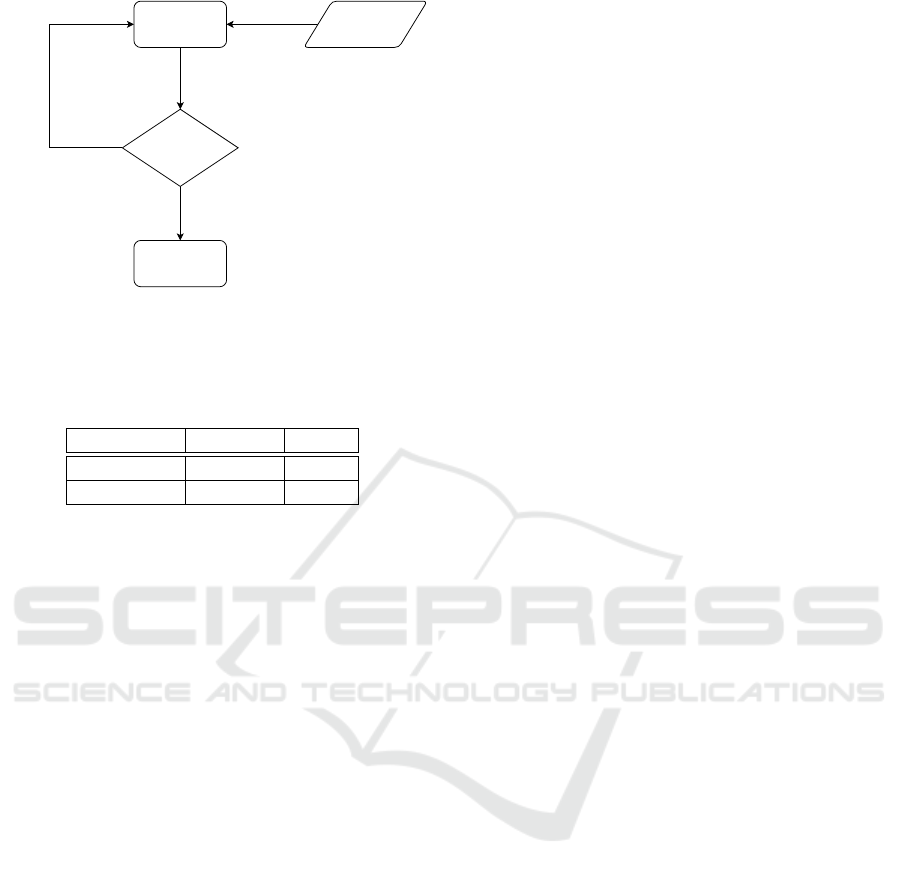

Figure 6: The ﬂowchart of our proposed method with the

tracking step.

Table 1: The comparison of our method and the original

YOLO algorithm on the KITTI dataset. The results are re-

ported with vehicle detection only.

Precision Recall

YOLOv2 0.55 0.49

Our method 0.64 0.47

4 EXPERIMENTS

Our training set for YOLO is the COCO (Lin et al.,

2014) dataset and the training sets for SVM are KITTI

(Geiger et al., 2012) and GTI (Arr

ospide et al., 2012).

The testing set is captured by a driving recorder

with the resolution is 1920 × 1080. The computa-

tion and evaluation are carried out on a laptop with

Nvidia GTX950M GPU and Intel i7-6700HQ CPU.

The processing speed for the original YOLO algo-

rithm, YOLO+SVM and YOLO+SVM+Tracking are

12 – 13 fps, 12 fps and 30 – 40 fps, respectively. It

shows that our method is capable of performing real-

time applications

We ﬁrst test the algorithms on the public datasets.

Table 1 shows the results (precision and recall) of

our method and the original YOLOv2 algorithm. We

can see that, after our modiﬁcation, the precision is

greatly improved even the recall rate is slightly re-

duced. The algorithms are then tested on the COCO

datasets. Table 2 presents the comparison on the

mean average precision (mAP) between the original

YOLOv2 and our technique. It shows that the results

in terms of mAP from our method are lower than the

original one. This is due to the modiﬁcation is mainly

for precision improvement and the recall rate is some-

how sacriﬁced (as illustrated in Table 1). We believe

that the precision is more important if the technique

aims to be used for forward vehicle collision detec-

tion. Table 3 shows the precision of the categories of

interests in the COCO dataset.

Finally, we test the algorithms using our own

dataset. Table 4 shows the comparison between our

method and others on far distance vehicles. Through

our modiﬁcations, the results of detecting vehicles at

longer distances are more precise. For the recall rate,

the result is much lower than YOLOv3. It shows that

our modiﬁcation is an effective method for the detec-

tion of long distance vehicles.

Table 5 tabulates the overall comparison between

other methods and ours. It can be seen that, with our

improvement, the precision is higher than the original

YOLOv2 and YOLOV3. The recall rate is the lowest

but very close to YOLOv2, which is considered ac-

ceptable. For the method of “Modiﬁcation + SVM”,

the recall is the lowest but it has the best precision.

There are two reason of the low recall:

Position/size of the Bounding Box. If the bounding

box contains part of the vehicles, in most case

SVM does not identify them correctly.

Training Set. In our training set, there are almost

no images of vehicles being obscured. Thus, the

bounding box with obscured vehicles will be re-

moved.

5 CONCLUSIONS

This paper proposes a solution that effectively imple-

ments the real-time operation of existing neural net-

works on low-computing GPU platforms. Compared

to the commonly used techniques to track the robust

detection results, we use it to speed up the overall

computation time. On the other hand, we modify

the network architecture of YOLOv2, add the ver-

iﬁcation mechanisms to reduce false positives, and

port the Darknet network architecture to Texas Instru-

ments TDA2 platform running on a CPU. In the fu-

ture, the TIDL development kit working on GPU will

be used to improve the detection speed.

ACKNOWLEDGMENTS

This work was ﬁnancially/partially supported by the

Advanced Institute of Manufacturing with High-tech

Innovations (AIM-HI) from The Featured Areas Re-

search Center Program within the framework of the

Higher Education Sprout Project by the Ministry of

Education (MOE) in Taiwan, the Ministry of Science

and Technology of Taiwan under Grant MOST 106-

2221-E-194-004 and Create Electronic Optical Co.,

LTD, Taiwan.

Vision based ADAS for Forward Vehicle Detection using Convolutional Neural Networks and Motion Tracking

301

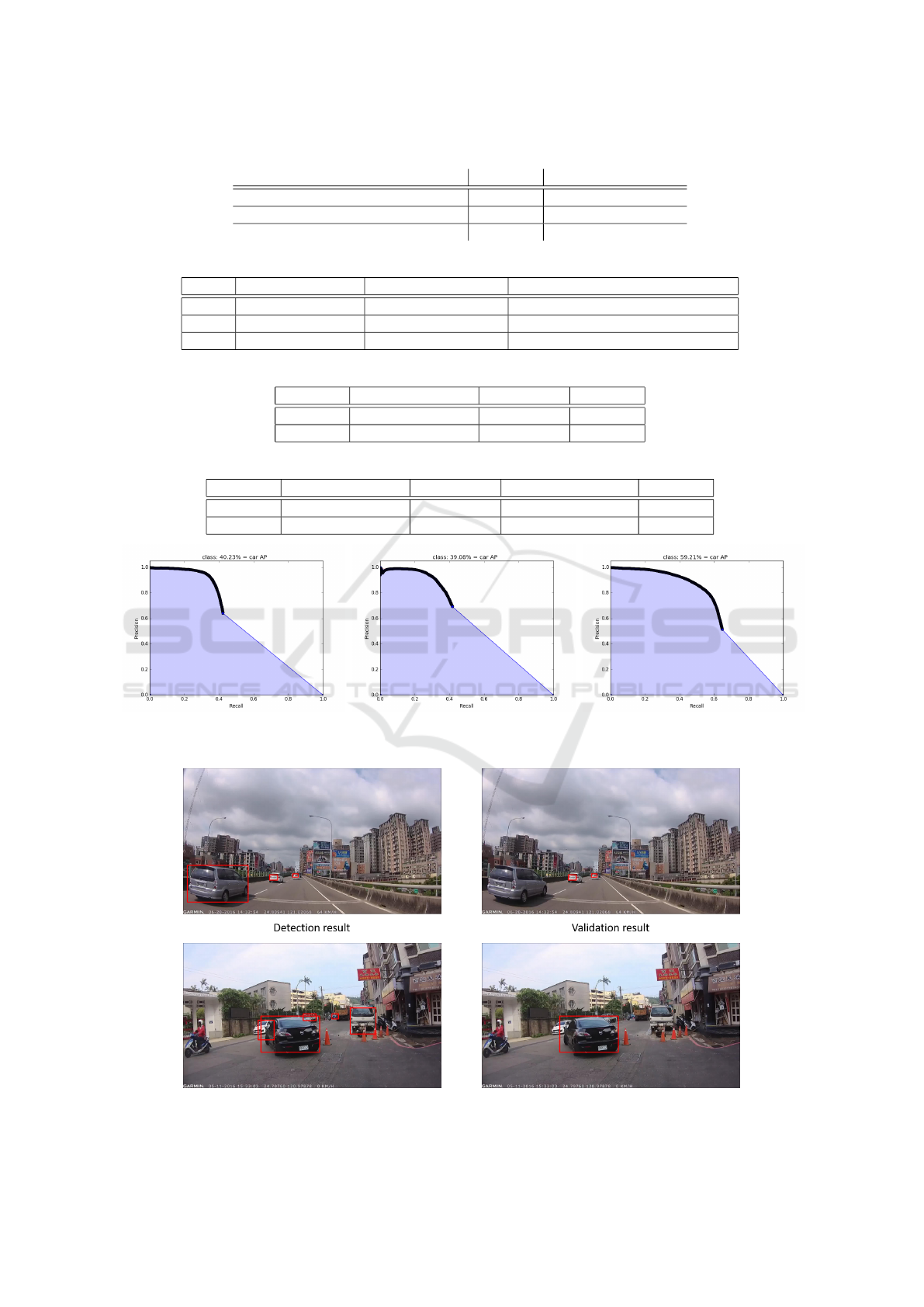

Table 2: The comparison on the mAP between YOLOv2 and our method.

YOLOv2 Our method

Low layer extraction

√ √

Low layer extraction with focal loss

√

mAP(%) 44.78 33.21 33.71

Table 3: The precision comparison on several interested categories.

Original YOLOv2 Low layer extraction Low layer extraction and focal loss

Car 0.61 0.6 0.68

Bus 0.84 0.82 0.86

Truck 0.71 0.67 0.68

Table 4: The comparison of far distance vehicle detection on our dataset.

Original YOLOv2 Our method YOLOv3

Recall 0.09 0.14 0.41

Precision 0.18 0.38 0.31

Table 5: The overall comparison of different approaches on our dataset.

Original YOLOv2 Our method Modiﬁcation+SVM YOLOv3

Recall 0.42 0.41 0.28 0.65

Precision 0.64 0.69 0.76 0.51

(a) Original YOLOv2 (b) Our method (c) YOLOv3

Figure 7: The comparison of average precision on different methods.

Figure 8: Incorrect detection from SVM.

VEHITS 2019 - 5th International Conference on Vehicle Technology and Intelligent Transport Systems

302

Figure 9: The detection results on our dataset.

REFERENCES

Arr

ospide, J., Salgado, L., and Nieto, M. (2012). Video

analysis-based vehicle detection and tracking using an

mcmc sampling framework. EURASIP Journal on Ad-

vances in Signal Processing, 2012(1):2.

Behrendt, K., Novak, L., and Botros, R. (2017). A deep

learning approach to trafﬁc lights: Detection, track-

ing, and classiﬁcation. In Robotics and Automa-

tion (ICRA), 2017 IEEE International Conference on,

pages 1370–1377. IEEE.

Chollet, F. (2016). Xception: Deep learning with depthwise

separable convolutions. CoRR, abs/1610.02357.

Dai, J., Li, Y., He, K., and Sun, J. (2016). R-FCN: object de-

tection via region-based fully convolutional networks.

CoRR, abs/1605.06409.

Geiger, A., Lenz, P., and Urtasun, R. (2012). Are we ready

for autonomous driving? the kitti vision benchmark

suite. In Conference on Computer Vision and Pattern

Recognition (CVPR).

Girshick, R. (2015). Fast r-cnn. arXiv preprint

arXiv:1504.08083.

Girshick, R., Donahue, J., Darrell, T., and Malik, J. (2014).

Rich feature hierarchies for accurate object detection

and semantic segmentation. In Computer Vision and

Pattern Recognition.

Kong, T., Yao, A., Chen, Y., and Sun, F. (2016). Hypernet:

Towards accurate region proposal generation and joint

object detection. CoRR, abs/1604.00600.

Li, Z., Peng, C., Yu, G., Zhang, X., Deng, Y., and Sun, J.

(2017). Light-head R-CNN: in defense of two-stage

object detector. CoRR, abs/1711.07264.

Lin, T., Goyal, P., Girshick, R. B., He, K., and Doll

ar, P.

(2017). Focal loss for dense object detection. CoRR,

abs/1708.02002.

Lin, T., Maire, M., Belongie, S. J., Bourdev, L. D., Girshick,

R. B., Hays, J., Perona, P., Ramanan, D., Doll

ar, P.,

and Zitnick, C. L. (2014). Microsoft COCO: common

objects in context. CoRR, abs/1405.0312.

Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S.,

Fu, C.-Y., and Berg, A. C. (2016). Ssd: Single shot

multibox detector. In European conference on com-

puter vision, pages 21–37.

Ortega, J. D., Nieto, M., Cortes, A., and Florez, J. (2013).

Perspective multiscale detection of vehicles for real-

time forward collision avoidance systems. In Interna-

tional Conference on Advanced Concepts for Intelli-

gent Vision Systems, pages 645–656. Springer.

O’Malley, R., Glavin, M., and Jones, E. (2008). Vehicle

detection at night based on tail-light detection. In 1st

international symposium on vehicular computing sys-

tems, Trinity College Dublin.

Redmon, J. and Farhadi, A. (2016). Yolo9000: Better,

faster, stronger. arXiv preprint arXiv:1612.08242.

Srinivasa, N. (2002). Vision-based vehicle detection and

tracking method for forward collision warning in au-

tomobiles. In Intelligent Vehicle Symposium, 2002.

IEEE, volume 2, pages 626–631. IEEE.

Vision based ADAS for Forward Vehicle Detection using Convolutional Neural Networks and Motion Tracking

303

Sun, Z., Bebis, G., and Miller, R. (2006a). Monocular pre-

crash vehicle detection: features and classiﬁers. IEEE

transactions on image processing, 15(7):2019–2034.

Sun, Z., Bebis, G., and Miller, R. (2006b). On-road vehicle

detection: A review. IEEE transactions on pattern

analysis and machine intelligence, 28(5):694–711.

Sun, Z., Miller, R., Bebis, G., and DiMeo, D. (2002). A

real-time precrash vehicle detection system. In null,

page 171. IEEE.

Szegedy, C., Vanhoucke, V., Ioffe, S., Shlens, J., and Wojna,

Z. (2015). Rethinking the inception architecture for

computer vision. CoRR, abs/1512.00567.

Tzomakas, C. and von Seelen, W. (1998). Vehicle detection

in trafﬁc scenes using shadows. In Ir-Ini, Institut fur

Nueroinformatik, Ruhr-Universitat. Citeseer.

Zhang, K., Zhang, L., and Yang, M.-H. (2012). Real-

time compressive tracking. In European conference

on computer vision, pages 864–877. Springer.

VEHITS 2019 - 5th International Conference on Vehicle Technology and Intelligent Transport Systems

304
