Phased Classroom Instruction: A Case Study on Teaching Programming

Languages

Sebastian Mader and Franc¸ois Bry

Institute of Informatics, Ludwig Maximilian University of Munich, Germany

Keywords: Technology-enhanced Learning, Active Learning, Flipped Classroom, Peer Review.

Abstract:

This article describes a novel educational format called “phased classroom instruction” and its enabling tech-

nology specially tuned to the effective learning of formal languages in tertiary STEM education. Like ﬂipped

classroom, phased classroom instruction aims at promoting active learning. In contrast to ﬂipped classroom,

phased classroom instruction scales to large classes thanks to its associated enabling technology. The arti-

cle reports on a real-life evaluation of the proposed format and of its enabling technology pointing to their

effectiveness.

1 INTRODUCTION

Programming languages and all formal languages

(like the language of chemical equations) used in

STEM education can only be learned by sufﬁciently

applying them. Language application, however,

mostly falls short in tertiary STEM education which

heavily relies on lectures (Stains et al., 2018) the large

audiences of which make an active participation of

students hardly possible. Even though lectures are

commonly decried, they persist in tertiary STEM ed-

ucation for pragmatical reasons: Lectures scale and

with steadily increasing numbers of students they of-

ten remain the last resort. As a consequence, “learn-

ing by applying” is delegated outside lectures leaving

the students mostly alone with problems and miscon-

ceptions.

The necessity of “learning by applying” and more

generally of “active learning” has often been stressed,

not only for learning formal languages. According to

Bonwell and Eison, in order to be actively involved

in their learning, students need to “engage in such

higher order thinking tasks as analysis, synthesis, and

evaluation” (Bonwell and Eison, 1991, p. iii). This

broad deﬁnition covers nearly every learning scenario

that goes beyond lecturing, and is restricted by Prince

to “activities that are introduced in the classroom”

(Prince, 2004, p. 233). The teaching format “ﬂipped

classroom” has been introduced so as to promote ac-

tive learning by ﬂipping the activities traditionally

performed during and outside classes: Students begin

with learning on their own, or “self-learning”, what

is followed by classroom sessions of active learning

(Bishop et al., 2013).

Flipped classrooms face two difﬁculties: First, the

creation of learning material suited to self-learning

is signiﬁcantly more time-consuming than creating

learning material for presence lectures (McLaughlin

et al., 2014; Stelzer et al., 2010). Self-learning mate-

rial must be more bulletproof and extensive than lec-

ture material because with self-learning, no lecturer

can provide complementary explanations. Second,

ﬂipped classrooms do not scale to several tens or even

hundreds of students. The role of lecturers in ﬂipped

classrooms is the role of a “guide on the side” (King,

1993) which requires of lecturers to be aware of ev-

ery students’ progress and difﬁculties – a manageable

task with twenty to thirty students that becomes more

and more impossible as the number of students in-

creases.

Building upon the experience gathered with

ﬂipped classrooms and exploiting possibilities of-

fered by technology, a novel teaching format, “phased

classroom instruction”, has been designed. Phased

classroom instruction fosters active learning like

ﬂipped classrooms but is, in contrast to ﬂipped class-

rooms, deployable in large classes thanks to its tech-

nological support. With phased classroom instruc-

tion, a classroom session consists of mini-lectures

lasting typically 15 to 25 minutes, followed by longer

phases devoted to application of the knowledge con-

veyed in the mini-lectures in practical exercises.

Phased classroom instruction’s practical exercises

are worked on in a browser-based environment which

Mader, S. and Bry, F.

Phased Classroom Instruction: A Case Study on Teaching Programming Languages.

DOI: 10.5220/0007655702410251

In Proceedings of the 11th International Conference on Computer Supported Education (CSEDU 2019), pages 241-251

ISBN: 978-989-758-367-4

241

is advantageous for lecturers and students alike. As

of lecturers, the browser-based environment makes

all currently worked on submissions available to the

lecturers and makes it possible to get assistance from

software for spotting students in need of help. As of

students, the browser-based environment provides ed-

itors customized to different types of exercises, such

as code editors with compiling functionality, editors

for logical proofs, detecting erroneous expressions or

even allowing only well-formed expressions. Such

editors are able to provide immediate feedback in-

stead – or in addition to – the lecturer, allowing short

feedback loops even in large classes. Furthermore,

the online availability of the students’ submissions

makes further work with the submissions easily pos-

sible, such as the lecturer referring to some of them

in following mini-lectures or students reviewing other

students’ submissions.

Phased classroom instruction is similar to Fred-

erick’s proposal to alternate “mini-lectures and dis-

cussions” (Frederick, 1986, p. 47). Both formats

differ inasmuch as Frederick’s format does not in-

clude written students’ submissions to exercises but

instead discussions on the mini-lectures’ content and

as with Frederick’s format active phases generally last

no more than 10 to 15 minutes. Furthermore, Freder-

ick’s proposal is to be deployed in a non-digital class-

room and does not discuss enabling technology.

The contributions of this article are threefold:

First, a novel course format lessening the workload of

teachers, second, the conception of a novel technol-

ogy enabling the proposed instruction format in large

classes, and third, a report on a real-life evaluation of

the format and its enabling technology in a university

computer science course pointing to their effective-

ness.

This article is structured as follows: Section 1 is

this introduction. Section 2 is devoted to related work.

Section 3 introduces the course format, its enabling

technology, and the implementation in a software de-

velopment practical. Section 4 reports on an evalua-

tion of course format and enabling technology. Sec-

tion 5 summarizes the article and gives perspectives

for future work.

2 RELATED WORK

The survey of ﬂipped classroom research by Bishop

et al. (Bishop et al., 2013) distinguishes two kinds

of teaching activities: Activities taking place in the

classroom and activities taking place outside of the

classroom. For their survey, to qualify as ﬂipped

classroom, classroom activities have to consist of

“interactive group learning activities” (Bishop et al.,

2013, p. 4), while outside classroom activities have to

consist of “direct computer-based individual instruc-

tion” (Bishop et al., 2013, p. 4). Their deﬁnition

excludes formats that do not use videos for outside

classroom activities as well as formats that include

traditional lectures among classroom activities. Thus,

according to their deﬁnition, the format proposed in

this article does not qualify as ﬂipped classroom even

though it incorporates components of that format.

Flipped classrooms have already been deployed

and evaluated in STEM education: Amresh et al.

(Amresh et al., 2013) introduced a ﬂipped classroom

in an introductory computer science class of 39 stu-

dents. Their evaluation shows that while the ﬂipped

classroom improved examination results, some stu-

dents were overwhelmed and intimidated by the for-

mat. Gilboy et al. (Gilboy et al., 2015) applied a

ﬂipped classroom to two classes on nutrition: Outside

of the classroom, students learned from mini-lectures

and written material while all of the in-classroom time

was devoted to active learning in form of a “jigsaw

classroom” (see (Aronson, 2002)). In an evaluation,

the majority of students preferred the classroom learn-

ing activities to a traditional lecture of similar dura-

tion.

While the aforementioned studies represent

ﬂipped classrooms adhering to Bishop et al.’s deﬁ-

nition, other studies examined ﬂipped classrooms in

which some kind of lecture took place during the

in-classroom activities: Stelzer et al. (Stelzer et al.,

2010) introduced ﬂipped classrooms in an introduc-

tory course in physics attended by 500 to 1,000 stu-

dents. Classroom activities were conducted in groups

of 24 students. At the beginning, the course for-

mat did not include any lectures among the class-

room activities, but it was later adapted to contain

a small lecture at the classroom sessions’ beginning

recapitulating the outside classroom activities. The

authors observed a positive inﬂuence of the educa-

tional format on examination results. Furthermore,

the course was perceived by the students as less difﬁ-

cult than the same course taught in a traditional man-

ner. McLaughlin et al. (McLaughlin et al., 2014) used

a ﬂipped classroom approach to teach pharmaceutics

to 162 students. Their approach included on-demand

micro-lectures to “reinforce and, if needed, redirect

students’ learning” (McLaughlin et al., 2014, p. 3).

The “Taxonomy of Educational Goals” by Bloom

(Bloom, 1956) deﬁnes a hierarchy of six educational

goals aimed at comparing and classifying of educa-

tional formats and content: Knowledge, Comprehen-

sion, Application, Analysis, and Evaluation. Each

of the aforementioned goals has all previously men-

CSEDU 2019 - 11th International Conference on Computer Supported Education

242

tioned goals as precondition, the rationale being that

nothing can be applied without ﬁrst being known and

comprehended. Every goal except Application is fur-

ther subdivided into more speciﬁc goals. The taxon-

omy was revised by Krathwhol (Krathwohl, 2002):

The goals are expressed as verbs and reordered re-

sulting in the goals Remember, Understand, Apply,

Analyze, Evaluate, and Create. In the revised tax-

onomy, Remember is not equal to Knowledge from

the original taxonomy, in fact Knowledge is bro-

ken up into four dimensions: Factual Knowledge,

Conceptual Knowledge, Procedural Knowledge, and

Metacognitive Knowledge. These knowledge dimen-

sions are considered orthogonal to the formerly men-

tioned goals, resulting in a two-dimensional taxon-

omy. This taxonomy makes possible to express dis-

tinct objectives such as “analyze factual knowledge”

and “analyze conceptual knowledge”.

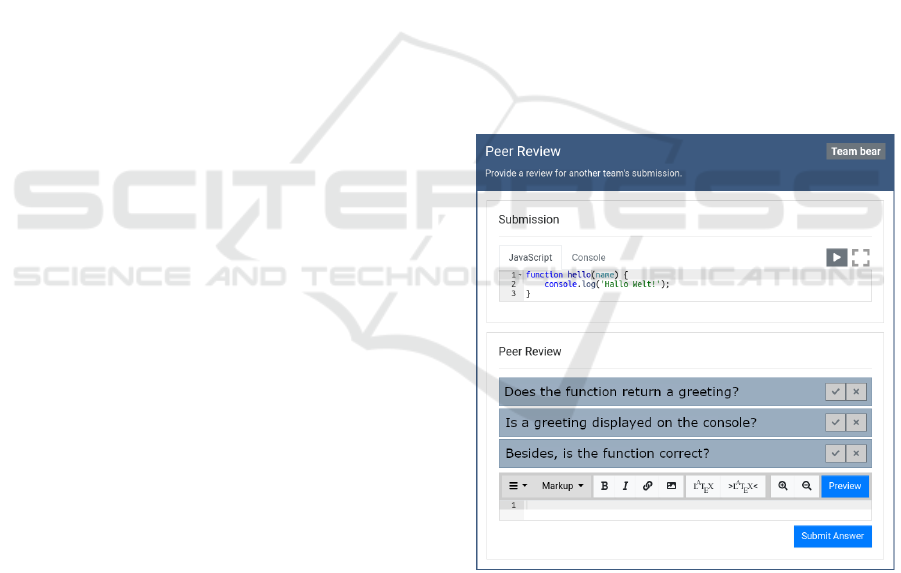

Peer review supports students in attaining parts of

the learning goal Analyze, as this goal concerns it-

self with “making judgements based on criteria and

standards” (Krathwohl, 2002, p. 215). Peer review

consists in students providing feedback on their peers’

work. This feedback can either replace the lecturer’s

feedback or extend it. Peer review is reﬂexive in

the sense of making reviewers reﬂect on their own

work (Topping, 1998; Lundstrom and Baker, 2009;

Williams, 1992) and has been shown to have a pos-

itive impact on reviewers’ own writing (Lundstrom

and Baker, 2009). In a study in tertiary STEM educa-

tion, Heller and Bry (Heller and Bry, 2018) used peer

review for providing feedback on coding assignments.

Their study showed that in the majority of cases, the

delivered peer review was correct and that the major-

ity of the students found helpful to deliver peer re-

views, but that they found only sometimes helpful the

peer reviews they received on their own work.

To support students giving peer review, scoring

rubrics can be provided to students (Cho et al., 2006).

A rubric is “a scoring guide to evaluate the quality

of students’ constructed responses” (Popham, 1997,

p. 72). Jonsson and Svingby (Jonsson and Svingby,

2007) conclude in their survey, that the use of scoring

rubrics in peer review can further support students’

learning.

According to Hattie and Timperley (Hattie and

Timperley, 2007), feedback is “information provided

by an agent (...) regarding aspects of one’s per-

formance and understanding” (Hattie and Timperley,

2007, p. 81) and effective feedback should answer

three questions (Hattie and Timperley, 2007, p. 87):

• “Where Am I Going?” (Hattie and Timperley,

2007, p. 88): With feed up, a task can be con-

textualized showing learners to what end a certain

concept should be learned.

• “How Am I Going?” (Hattie and Timperley, 2007,

p. 89): The feed back dimension gives informa-

tion about students’ performance on a task and

how their performance relates to some perfor-

mance goal.

• “Where to Next?” (Hattie and Timperley, 2007,

p. 90): With feed forward, learners’ can be given

an outlook where to next, e.g., by providing them

with further sources of information on concepts

not understood or on related concepts.

Feedback can be provided on four levels (Hattie

and Timperley, 2007):

• Task-level feedback is given pertaining students’

work on a task, e.g., the correctness of a mathe-

matical computation.

• Process-level feedback aims to give information

about the processes that are involved in achiev-

ing a goal, e.g., giving learners information about

what rules to apply to simplify a mathematical

equation.

• Self-regulation feedback aims to provide feed-

back about students’ self-regulation skills and

metacognitive knowledge, e.g., the skill to self-

evaluate one’s own work.

• Self-level feedback is unrelated to the task and

only pertains the student, e.g., “You are very tal-

ented.”

With the exception of self-level feedback, each of the

aforementioned feedback levels is effective depend-

ing on the learner and the situation in which the feed-

back is given. (Hattie and Timperley, 2007) As of

the timing of feedback, Hattie and Timperley con-

clude from surveying various studies that task-level

feedback should be provided as soon as possible and

process-level feedback should be delayed so as not to

inhibit the construction of the learners’ autonomy.

Scaffolding is deﬁned by Wood et al. (Wood et al.,

1976) as a “process that enables a child or novice to

solve a problem (...) which would be beyond his unas-

sisted efforts” (Wood et al., 1976, p. 90). One way

to provide scaffolding is by feedback. Merri

enboer

et al. (Van Merri

enboer et al., 2003) further specify

scaffolding as a combination of “performance sup-

port and fading” (Van Merri

enboer et al., 2003, p. 5),

the support ﬁrst being provided to the students while

they are working towards a goal and later being grad-

ually withdrawn, or “faded”. Scaffolding can be pro-

vided in person by instructors which generally re-

quires them to work with a single student or a small

group of students or provided by software what can

Phased Classroom Instruction: A Case Study on Teaching Programming Languages

243

accommodate more students and be used in out-of-

classroom learning scenarios. Automatic scaffold-

ing is often provided in form of feedback and can

be found in intelligent tutoring systems and adaptive

learning environments.

The “Test My Code” environment by Vihavainen

et al. (Vihavainen et al., 2013) provides feedback in

form of both automated tests and incremental exer-

cises, i.e., exercises partitioned into guidance-giving

subtasks. Pedro et al. (Sao Pedro et al., 2014) devel-

oped an automatic scaffolding system which supports

students in developing data collection skills by means

of simulations of scientiﬁc experiments. Their envi-

ronment detects off-track students and provides them

with feedback to help them get back on track. In their

study, they showed that the automatic scaffolding pro-

vided by their system helped students to develop data

collection skills.

Automatic scaffolding is explored for non-STEM

subjects as well: He et al. (He et al., 2009) pro-

pose a system for automatic assessment of text sum-

maries produced by students which provides feed-

back in the form of key points missing in students’

summaries. Yang (Yang, 2015) provides computer-

generated feedback about a concept map created by

students about a text’s content. Yang observed that the

feedback provided by their system had a positive im-

pact on the students’ reading comprehension as well

as on their summary-writing skills.

Didactic reduction is very similar to scaffolding

and fading. Didactic reduction is a term coined by

uner (Gr

uner, 1967) and refers to breaking down a

concept into its most basic parts (“scaffolding”) while

still retaining its functionality. Later on, the more ad-

vanced parts can be put back step by step (“fading”)

until the concept is available in its full complexity. In

tertiary STEM education, new concepts are often em-

bedded into other concepts making it hard for students

to grasp the actual concept to learn. With didactic re-

duction, other concepts can be omitted at ﬁrst, and

later on be reintroduced step by step.

The article Heller et al. (Heller et al., 2018) de-

scribes how various course formats can be realized by

Backstage.

Phased classroom instruction is brieﬂy

mentioned, however, without referring to its evalua-

tion and implementation ﬁrst reported about in this

article.

https://backstage2.pms.iﬁ.lmu.de:8080

3 PHASED CLASSROOM

INSTRUCTION AND ITS

ENABLING TECHNOLOGY

The following section introduces the course format,

its technological support, and the actual implementa-

tion in the accompanying lecture of a software devel-

opment practical.

3.1 Format

A session in the format consists of one or more blocks

each of them consisting of three phases:

1. a lecture (subsequently mini-lecture) of about 15

to 25 minutes introducing new concepts to the stu-

dents

2. an extensive practical exercise where students

work in groups of two to four students putting

the newly acquired concepts to use. During this

phase, the lecturer stands ready to provide strug-

gling teams with support

3. a peer review where each team is assigned another

team’s submission for review

Mini-lectures minimize the amount of passive lis-

tening and therefore counteract the problem of stu-

dents’ attention dropping during lectures after about

25 to 30 minutes (Stuart and Rutherford, 1978). To

restore students’ attention, Young et al. suggest that

“short breaks or novel activities may temporarily re-

store attention to normal levels” (Young et al., 2009,

p. 52), which leads to the next part of the format, the

exercise for students to work on in groups. Depending

on the subject taught, the exercise can take different

forms: From a larger coding exercise, a mathematical

proof, to the creation of a larger body of text about

some topic. Working on exercises in groups leverages

beneﬁts of collaborative learning, such as an improve-

ment in academic achievement (Prince, 2004).

The combination of lecture, exercise, and peer re-

view brings the majority of Bloom’s taxonomy (in the

revised form) into the classroom: For “Knowledge”,

the mini-lectures provide both the factual and con-

ceptual knowledge required for the exercise. If ex-

ercises are formulated in a scaffolded way, they can

provide procedural knowledge: Breaking a bigger ex-

ercise into smaller subtasks shows students the prob-

lems the bigger problem is composed of and by that

one possible approach to solve the problem. Peer re-

view teaches students the ability to evaluate and cor-

rect work of others, and therefore supports students’

meta-cognitive knowledge through its reﬂective na-

ture.

CSEDU 2019 - 11th International Conference on Computer Supported Education

244

The dimensions “Remember” and “Understand”

are covered by the mini-lectures, “Apply” and (parts

of) “Analyze” by exercises, and (parts of) “Analyze”

and “Evaluate” through peer review. Therefore, the

format should cover six of the seven steps of Bloom’s

taxonomy. The last of step, “Create”, would arguably

require more extensive problems and a longer dura-

tion, which can hardly be implemented in a lecture.

3.2 Enabling Technology

The enabling technology has to provide lecturers with

a group organization component and with means of

keeping an overview of the groups’ work even in

larger classes. The technology should make it easy for

lecturers to identify groups in need of support. To this

goal, all students’ submissions should be be available

to the software. This is achieved by providing stu-

dents with web-based editors integrated into the soft-

ware to work out their submissions.

The enabling technology is available in the learn-

ing and teaching platform Backstage which orches-

trates the process starting from assigning the exercises

to the teams, providing them with an appropriate edi-

tor for creating their submission, and ﬁnally randomly

assigning each team another team’s submission for

peer review. The number of participants is not limited

by the technology, as Backstage was built to support

a few hundred students, but by the format itself: It

is likely that after reaching a certain number of stu-

dents, collaboration will be heavily impaired due to

sheer number of students being present in the class-

room. With increasing number of students, the num-

ber of teams that require personal support through the

lecturer is bound to increase as well, which at some

point becomes too much for a single lecturer to han-

dle.

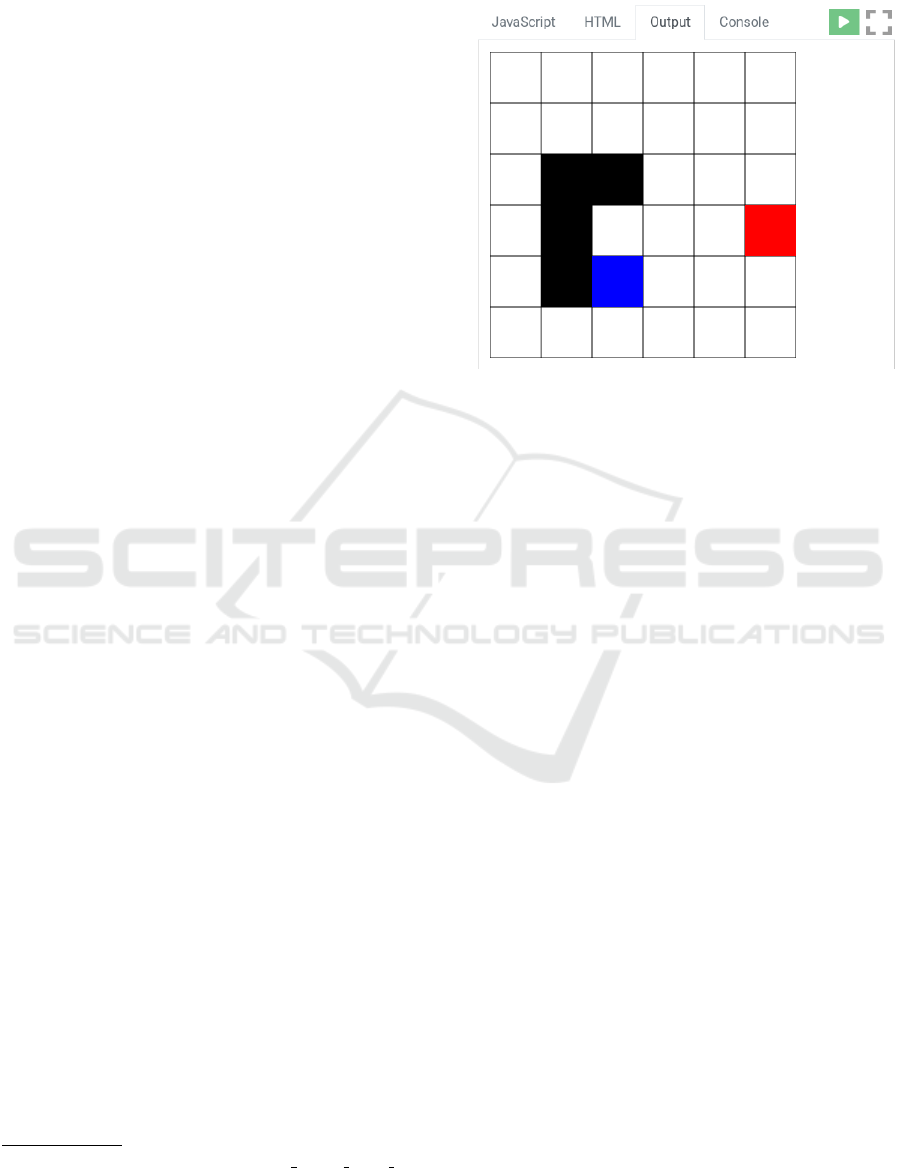

Backstage provides students with editors that sup-

port them in solving speciﬁc types of exercises, such

as a coding editor for programming tasks, a logic ed-

itor for creating logic proofs, and an editor for induc-

tion proofs. Each of the editors creates automated

feedback and in this way provides scaffolding to stu-

dents. The logic editor, e.g., disallows incorrect steps

in a proof and the code editor automatically runs tests

on the students’ submission. Didactic reduction is im-

plemented by focussing on the important concept to

be exercised: The code editor removes compiler and

ﬁle management from the equation and the proof ed-

itors focusses solely on which rules to apply, not on

the structure of the resulting proof. Groups choose

by themselves how to collaborate: Work together on

a single computer or split the task into subtasks and

work on those subtasks in smaller groups. When

working on two or more computers, Backstage sup-

ports students in quickly exchanging their worked on

artifacts and creating their ﬁnal group submission.

The feedback and the scaffolding provided by

those editors can potentially replace lecturer interven-

tions for advanced groups, which in turn, frees up the

lecturer’s time, allowing them to support groups that

need their help.

During the exercise phase, Backstage provides

lecturers with an overview of the currently worked-on

submissions, allowing them to stay on top of a larger

number of submissions and identify struggling groups

much faster as opposed to the alternative of walking

around glancing at screens and worksheets. In a large

classroom with extensive exercises, a more reduced

view on the classroom is required: Aggregated mea-

sures, such as the percentage of passing tests, can be

shown to the lecturer. After the exercise has been ﬁn-

ished, the online availability of all submissions allows

teachers to adapt their teaching to an exercise’s result:

Weaknesses and misconceptions as well as positives

can immediately be discussed by the means of stu-

dents’ submissions.

Figure 1: Interface in which a peer review is given: Another

group’s submission displayed in the same editor the sub-

mission was worked on (top), the checklist of conditions a

correct submission has to fulﬁll (middle), and a text area for

further comments (bottom). The checklist items have been

translated from German.

For peer review, Backstage provides the reviewing

team with the submission to review in a “try-out” en-

vironment (if applicable), and with a checklist of con-

ditions that a correct submission has to fulﬁll, such as

“Has each case of a proof by induction an induction

Phased Classroom Instruction: A Case Study on Teaching Programming Languages

245

hypothesis?” For each checklist item, the reviewing

team has to decide if the solution fulﬁlls the condition.

Those checklist items serve two purposes: First, they

act as a simpliﬁed scoring rubric which guides stu-

dents in giving feedback. Second, they allow to gener-

ate correctness feedback for exercises for which cor-

rectness cannot be automatically determined: If each

of the checklist items is marked as fulﬁlled, the sub-

mission is seen as correct. An example for the view

in which the peer review is conducted can be seen in

Figure 1: In the top, another teams solution can be

seen, the aforementioned checklist of conditions can

be seen in the middle, and in the bottom there is a text

area where further comments can be provided by the

reviewing team.

3.3 Implementation

A total of ﬁve sessions using the format described

above were developed for the accompanying lecture

of a software development practical. In this soft-

ware development practical, students are tasked to de-

velop a game in groups of four using the program-

ming language JavaScript. Each session was built

for a 135 minute lecture with a 15 minute break

halfway through. The lecture material was created

from scratch. The creation of eleven mini-lectures

and eleven exercises amounted to around 60 hours. A

ﬁrst evaluation took part in the winter term 2018/19.

For the initial iteration of the practical, only sixteen

students were admitted in order to initially test the

mini-lectures and exercises before using the course

format and material for a greater number of students.

Students worked in groups of four.

To teach students the techniques required for the

development of their own game, mini-lectures were

structured around the game “Snake”.

In each mini-

lecture, one technical aspect of game development

was explained using Snake and implemented in the

subsequent exercise in each group’s personal version

of Snake. Groups always worked on the same code,

so that at the end each group had implemented their

own version of Snake from scratch.

The exercises were worked on in a specialized

JavaScript editor which can be seen in Figure 2.

It enabled students to write and run code directly

from their web browser. The utilized version of the

JavaScript editor did not support unit tests, i.e., the

correctness of a submission was determined solely

by peer review or the students themselves. Indeed,

for the exercises at hand, groups could easily check

https://en.wikipedia.org/wiki/Snake (video game

genre)

for correctness themselves as the game can either be

played correctly or not.

Figure 2: The JavaScript editor used by the teams for creat-

ing their submissions showing the output of a group’s sub-

mission. The tabs at the top allow to switch between the ed-

itor’s functionalities. In the image, output is selected, which

shows the result of the program’s execution: The black rect-

angle is the snake’s body, the blue rectangle its head, and the

red rectangle the apple the snake has to eat.

Each mini-lecture began with a “why?” contex-

tualizing its content, providing the students with a

learning goal and why this learning goal should be

attained, acting as general feed forward. Each mini-

lecture closed with a review of the exercise that fol-

lowed, where the exercise and the steps it consists

of were reviewed. The exercise description shown to

students was structured in a similar way: The main

exercise and steps on the way providing a form of in-

structional scaffolding. Everything was displayed at

once, i.e., the visibility of a step was not dependent

on completing the preceding steps.

The exercises were worked on in groups of four

students sitting next to each other. Students could ei-

ther collaborate on a single computer or work on two

or more computers and bring their results together af-

terwards.

4 EVALUATION

Phased classroom instruction has been evaluated as

course format for a JavaScript software development

practical during the winter term 2018/19 (see Section

3.3).

The sessions took place during the ﬁrst ﬁve weeks

of the term. During the following weeks, the students

implemented a larger software project independently

CSEDU 2019 - 11th International Conference on Computer Supported Education

246

putting the concepts learned during the sessions to

use. During this phase, each team was supported by

weekly meetings with a teaching assistant.

4.1 Method

Data for the evaluation was collected using a survey

and taken directly from the Backstage system as well.

The survey was conducted during the ﬁnal session of

the practical and consisted of six parts:

1. Four questions referring to the students’ course

of study, current semester, gender, and team they

were in.

2. Six questions measuring the students’ attitude to-

wards the course format and its elements.

3. Six questions measuring the students’ attitude to-

wards the content and structure of mini-lectures

and exercises.

4. Six questions measuring the students’ attitude to-

wards the enabling technology.

5. Five questions measuring the students’ program-

ming proﬁciency using an adapted version of the

survey by Feigenspan et al. (Feigenspan et al.,

2012).

6. Three questions in form of free-text questions,

asking about what they liked most, what could be

done better and for further comments.

For parts (2), (3), and (4), a six-point Likert scale

from strongly agree to strongly disagree with no neu-

tral choice was utilized. All submissions and peer re-

views were retrieved directly from the Backstage sys-

tem. A single lecturer determined for each team and

exercise the point in time – if at all – in which the exer-

cise was solved correctly and whether the peer review

delivered was correct.

The correctness of an exercise was determined in

a strict way: A submission was seen as correct, if and

only if the whole task was solved correctly. For peer

review, the lecturer determined which of the checklist

items (see Section 3.2) the submission properly ful-

ﬁlled and compared their judgement to the group’s

review. A review was seen as correct if, and only

if, lecturer and group judgement were identical. The

written comments were not taken into account for de-

termining a peer review’s correctness.

Data from the ﬁrst lecture had to be excluded from

the evaluation, because internet connection broke

down during the lecture, making it nearly impossible

for students to turn in their submissions and provide

peer review.

4.2 Results

All of the sixteen students completed the question-

naire, six of whom were female, ten male. In each

session, at least three members of each team were

present and the majority of the time all of the par-

ticipants were present.

Figure 3 shows the students’ attitude towards the

course format: The vast majority of students strongly

agreed that the immediate exercise and the discussion

with their team mates helped their understanding of

the topic and none of the students would have pre-

ferred to have a traditional lecture. Regarding peer

review, students found their own reviewing of the sub-

missions of other teams more helpful than the reviews

they received for their own submission.

Figure 4 shows the students’ attitude towards the

content and structure of mini-lectures and exercises:

Most students agreed that the mini-lectures were suf-

ﬁcient to solve the exercises and preferred exercises

building upon each other to independent exercises.

The majority of the students’ did not ﬁnd the exer-

cises too difﬁcult or too big.

The results for the students’ attitude towards the

enabling technology can be seen in Figure 5: While

the majority of the students found that the JavaScript

editor helped them getting started with JavaScript, a

number of students thought the opposite. Further-

more, around a third of the students would have pre-

ferred to solve the exercises in a real development

environment as opposed to the JavaScript editor on

Backstage. Students thought that the views for sub-

mitting a solution and giving peer review were clearly

designed and the course format was supported well by

Backstage.

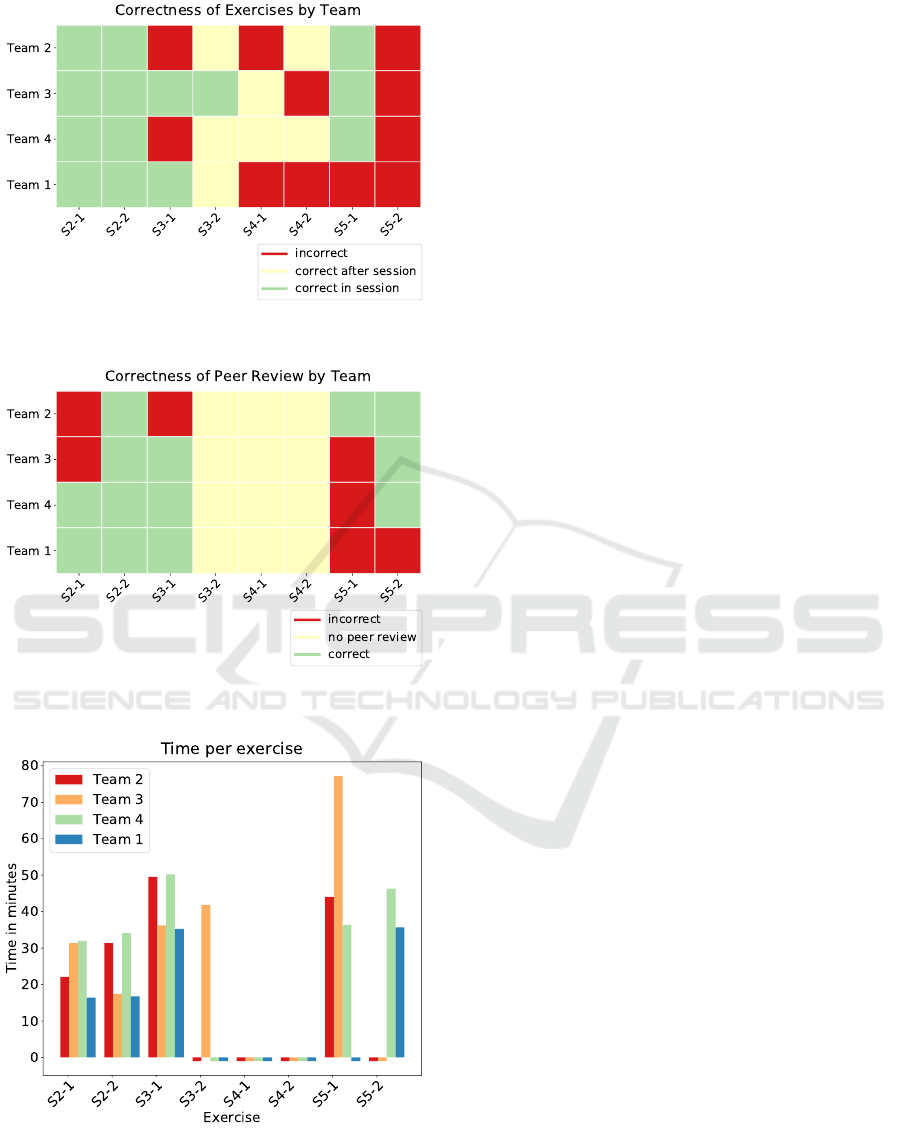

The overall correctness for each team’s submis-

sion for every exercise can be seen in Figure 6. If

a team failed to ﬁnish a task during the lecture, they

were tasked to complete it as a team outside class. A

correct task, ﬁnished outside class, is indicated by a

yellow square. Generally, the correctness of the sub-

missions decreases rapidly after the ﬁrst two lectures

and somewhat recovers for the last lecture.

The correctness of the peer reviews can be seen in

Figure 7: In the majority of cases, the peer review was

correct and there are no big differences in the num-

ber of correctly delivered peer reviews between the

groups.

Figure 8 shows how long each group took to turn

in a correct (or, otherwise ﬁnal) submission deter-

mined by the lecturer as described in Section 4.1.

Submissions that were submitted after 100 minutes

are omitted so that only submissions that were done

during the session are represented. Generally, dura-

Phased Classroom Instruction: A Case Study on Teaching Programming Languages

247

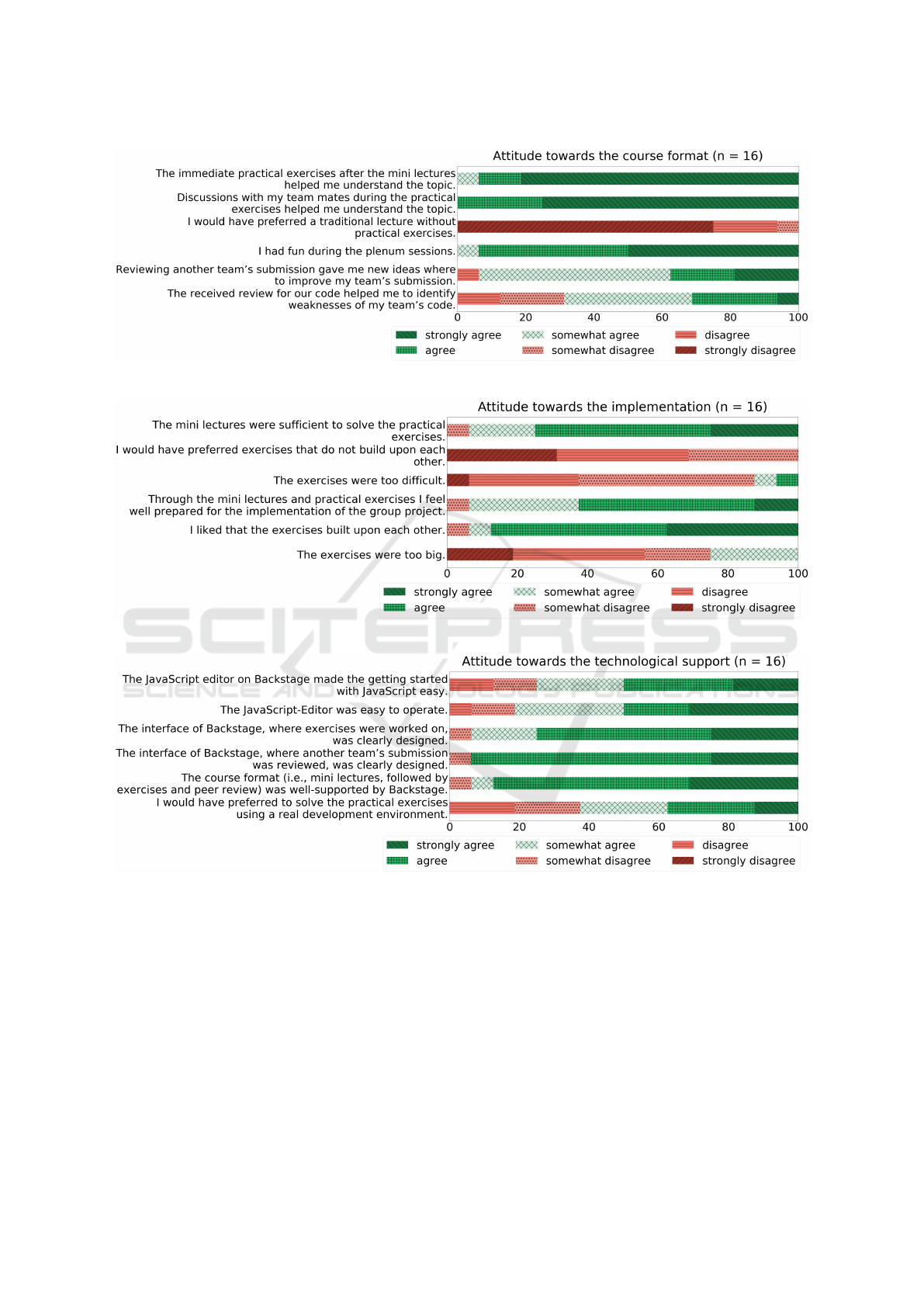

Figure 3: Students’ responses to the section referring to their attitude towards the course format.

Figure 4: Students’ responses to the section referring to their attitude towards the implementation of the course format.

Figure 5: Students’ responses to the section referring to their attitude towards the technological support.

tions for the ﬁrst two sessions ﬁt the duration pro-

posed by the course format. The exercises in the

fourth session were not solved by a single team in

time, with the times normalizing again for the ﬁnal

session.

On a scale from 0 to 9, the average coding pro-

ﬁciency was rated with 3.69 (Min: 1, Max: 9, Var:

7.30), participants reported a coding experience of in

average 3.47 years (min: 0, Max: 10, Var: 9.16).

Eight of the participants reported that they code in

their free time besides the assignments for the courses

they are attending.

4.3 Discussion

Generally, the course format was well-liked by the

students, with students preferring the mini-lectures

combined with practical exercises over the traditional

lecture and reporting better understanding through the

immediate practice and discussion with their team

mates. The results for peer review are as expected

from other studies on peer review: Students seem to

CSEDU 2019 - 11th International Conference on Computer Supported Education

248

Figure 6: Correctness of each team’s submission for each

exercise.

Figure 7: Correctness of each team’s peer review for each

exercise.

Figure 8: Time to submission for which correctness was

determined for each team.

proﬁt more from looking at other teams’ submissions

and providing review as from the review they receive

from other groups. While the provided peer reviews

seem to be mostly correct, a wrong review led to a

team’s submission being shown as incorrect, which

could have led to this attitude. To solve this, the qual-

ity of the peer review has to be improved, so that false

negatives are the exception. One way to increase the

quality of peer reviews and therefore the value for re-

viewees is proposed by Heller and Bry: Assigning

submissions of struggling students (here: groups) to

well-performing students (Heller and Bry, 2018). In

the present scenario, an imaginable assignment strat-

egy would be to assign submissions of teams who

failed the previous exercise to teams who successfully

solved said exercise.

The majority of students somewhat disagreed that

the exercises were too difﬁcult. This, in combination

with the fact that the exercises for the third session

were not solved by a single team during the desig-

nated time, could be an indicator that some of the ex-

ercises should be made easier for the next iteration of

the practical. During the third lecture, object-oriented

programming with JavaScript was introduced, which

is different to that of the Java programming language

taught earlier in the curriculum which the students

are accustomed to. This could possibly explain why

the students were struggling in this session. Subse-

quently, the next exercise could not be solved as well,

because it was dependent on a working submission

for the preceding task.

The results shown in Figure 5 show that Back-

stage supported the course format well and that the

views for submission and peer review were clearly

designed. While most of the students thought that the

JavaScript editor made their start with JavaScript eas-

ier, there are a few students who disagreed with this

statement and an even larger number of students who

would prefer to use a real development environment

for the exercises. The authors’ hypothesized that this

may be caused by previous experience and being ac-

customed to the feature set offered by full-ﬂedged de-

velopment environments. A correlation analysis be-

tween all values for coding proﬁciency and those two

questions did not reveal any correlation, which sug-

gests that the reason for this attitude most likely lies

somewhere else.

The previous experience of the participants varied

greatly, which is reﬂected in the completion times for

exercises as well: Groups’ completion times are often

differing in the amount of 10 to 15 minutes, which

opens up the possibility of further collaboration in the

class room: peer teaching. Groups who already com-

pleted their submission can support other groups in

solving the exercise.

Phased Classroom Instruction: A Case Study on Teaching Programming Languages

249

5 CONCLUSION AND

PERSPECTIVES

This article introduced a course format and its en-

abling technology which intends to bring active learn-

ing to large class tertiary STEM education. The for-

mat combines mini-lectures with extensive exercises

worked on in groups. The enabling technology sup-

ports the lecturer in staying on top of larger classes by

providing them the currently worked on submissions

and aggregated values about the groups’ submissions

for an easy overview. Students are supported by ed-

itors specialized to certain types of exercises which

can provide scaffolding in form of automated feed-

back.

An evaluation was carried out with a small number

of participants to ﬁrst collect feedback about format

and course material, improving both, before running

another iteration with a larger number of students in

the summer term 2019. The evaluation has shown that

students heavily favor the active approach with none

of them preferring a traditional lecture over the new

course format. A problem with the exercise design

was identiﬁed through the evaluation: For one ses-

sion, all teams failed to complete the exercises, most

likely due to a new, unclear subject matter and too

extensive exercises. The students found the enabling

technology to support the format well and its views

clearly designed.

To address the issue of teams not ﬁnishing ex-

ercises, two approaches are imaginable: Exercises

should be scaffolded in a way that shows teams the

steps to a complete solution, with the current step

in the best case always being an attainable step. In

the evaluated format, all steps were visible at once,

which most likely led groups to focus on more than

one step at once which could be solved by showing

students only one step at a time. Another approach is

to provide struggling groups (e.g., groups not solving

the previous exercise correctly) a more detailed tem-

plate or a smaller task to work on, so that at the end

of each session each group has achieved something

which provides a sense of achievement.

The format seems to have potential, but for the

format to work for large class teaching, the enabling

technology has to be able to reliably calculate aggre-

gated measures that allow lecturers to identify strug-

gling groups or general problems, because with in-

creasing exercise complexity and classroom size even

the most experienced lecturer can hardly have an

overview – and an understanding – of all submissions,

even if they are presented to them in an easy way.

How such an aggregated measure can be calculated

has to be examined in further studies.

ACKNOWLEDGEMENTS

The authors are thankful to Maximilian Meyer for the

implementation of the JavaScript editor as part of his

master’s thesis (Meyer, 2019).

REFERENCES

Amresh, A., Carberry, A. R., and Femiani, J. (2013). Evalu-

ating the effectiveness of ﬂipped classrooms for teach-

ing CS1. In Frontiers in Education Conference, 2013

IEEE, pages 733–735. IEEE.

Aronson, E. (2002). Building empathy, compassion, and

achievement in the jigsaw classroom. Improving aca-

demic achievement: Impact of psychological factors

on education, pages 209–225.

Bishop, J. L., Verleger, M. A., et al. (2013). The ﬂipped

classroom: A survey of the research. In ASEE

national conference proceedings, Atlanta, GA, vol-

ume 30, pages 1–18.

Bloom, B. S. (1956). Taxonomy of Educational Objectives,

Handbook 1: Cognitive Domain. Longmans.

Bonwell, C. C. and Eison, J. A. (1991). Active Learning:

Creating Excitement in the Classroom. 1991 ASHE-

ERIC Higher Education Reports. ERIC.

Cho, K., Schunn, C. D., and Wilson, R. W. (2006). Validity

and reliability of scaffolded peer assessment of writ-

ing from instructor and student perspectives. Journal

of Educational Psychology, 98(4):891.

Feigenspan, J., K

astner, C., Liebig, J., Apel, S., and Hanen-

berg, S. (2012). Measuring programming experience.

In Program Comprehension (ICPC), 2012 IEEE 20th

International Conference on, pages 73–82. IEEE.

Frederick, P. J. (1986). The lively lecture – 8 variations.

College teaching, 34(2):43–50.

Gilboy, M. B., Heinerichs, S., and Pazzaglia, G. (2015). En-

hancing student engagement using the ﬂipped class-

room. Journal of nutrition education and behavior,

47(1):109–114.

uner, G. (1967). Die didaktische Reduktion als Kernst

uck

der Didaktik. Die Deutsche Schule, 59(7/8):414–430.

Hattie, J. and Timperley, H. (2007). The power of feedback.

Review of educational research, 77(1):81–112.

He, Y., Hui, S. C., and Quan, T. T. (2009). Automatic

summary assessment for intelligent tutoring systems.

Computers & Education, 53(3):890–899.

Heller, N. and Bry, F. (25-28 September 2018). Peer

teaching in tertiary STEM education: A case study.

In The Challenges of the Digital Transformation in

Education - Proceedings of the 21st International

Conference on Interactive Collaborative Learning

(ICL2018), volume 2, page to appear. Springer.

Heller, N., Mader, S., and Bry, F. (2018). Backstage: A ver-

satile platform supporting learning and teaching for-

mat composition. In Proceedings of the 18th Koli

Calling International Conference on Computing Ed-

ucation Research, page 27. ACM.

CSEDU 2019 - 11th International Conference on Computer Supported Education

250

Jonsson, A. and Svingby, G. (2007). The use of scoring

rubrics: Reliability, validity and educational conse-

quences. Educational research review, 2(2):130–144.

King, A. (1993). From sage on the stage to guide on the

side. College teaching, 41(1):30–35.

Krathwohl, D. R. (2002). A revision of bloom’s taxonomy:

An overview. Theory into practice, 41(4):212–218.

Lundstrom, K. and Baker, W. (2009). To give is better

than to receive: The beneﬁts of peer review to the

reviewer’s own writing. Journal of second language

writing, 18(1):30–43.

McLaughlin, J. E., Roth, M. T., Glatt, D. M.,

Gharkholonarehe, N., Davidson, C. A., Grifﬁn, L. M.,

Esserman, D. A., and Mumper, R. J. (2014). The

ﬂipped classroom: a course redesign to foster learning

and engagement in a health professions school. Aca-

demic Medicine, 89(2):236–243.

Meyer, M. (2019). A browser-based development environ-

ment for javascript learning and teaching. Master the-

sis, Institute of Computer Science, LMU, Munich.

Popham, W. J. (1997). What’s wrong-and what’s right-with

rubrics. Educational leadership, 55:72–75.

Prince, M. (2004). Does active learning work? a review

of the research. Journal of engineering education,

93(3):223–231.

Sao Pedro, M. A., Gobert, J. D., and Baker, R. S. (2014).

The impacts of automatic scaffolding on students’ ac-

quisition of data collection inquiry skills. Roundtable

presentation at American Educational Research Asso-

ciation.

Stains, M., Harshman, J., Barker, M., Chasteen, S.,

Cole, R., DeChenne-Peters, S., Eagan, M., Esson,

J., Knight, J., Laski, F., et al. (2018). Anatomy of

STEM teaching in north american universities. Sci-

ence, 359(6383):1468–1470.

Stelzer, T., Brookes, D. T., Gladding, G., and Mestre, J. P.

(2010). Impact of multimedia learning modules on

an introductory course on electricity and magnetism.

American Journal of Physics, 78(7):755–759.

Stuart, J. and Rutherford, R. (1978). Medical stu-

dent concentration during lectures. The lancet,

312(8088):514–516.

Topping, K. (1998). Peer assessment between students in

colleges and universities. Review of educational Re-

search, 68(3):249–276.

Van Merri

enboer, J. J., Kirschner, P. A., and Kester, L.

(2003). Taking the load off a learner’s mind: Instruc-

tional design for complex learning. Educational psy-

chologist, 38(1):5–13.

Vihavainen, A., Vikberg, T., Luukkainen, M., and P

artel,

M. (2013). Scaffolding students’ learning using test

my code. In Proceedings of the 18th ACM conference

on Innovation and technology in computer science ed-

ucation, pages 117–122. ACM.

Williams, E. (1992). Student attitudes towards approaches

to learning and assessment. Assessment and evalua-

tion in higher education, 17(1):45–58.

Wood, D., Bruner, J. S., and Ross, G. (1976). The role of tu-

toring in problem solving. Journal of child psychology

and psychiatry, 17(2):89–100.

Yang, Y.-F. (2015). Automatic scaffolding and measure-

ment of concept mapping for eﬂ students to write sum-

maries. Journal of Educational Technology & Society,

18(4).

Young, M. S., Robinson, S., and Alberts, P. (2009). Students

pay attention! combating the vigilance decrement to

improve learning during lectures. Active Learning in

Higher Education, 10(1):41–55.

Phased Classroom Instruction: A Case Study on Teaching Programming Languages

251
