A MARTE-Based Design Pattern for Adaptive Real-Time Embedded

Systems

Ahmed Ben Mansour, Mohamed Naija and Samir Ben Ahmed

El Manar University, Faculty of Mathematical, Physical and Natural Sciences of Tunis Manar, Tunisia

Keywords:

Adaptability, Real-time & Embedded Systems, MDE, MARTE, Design Patterns.

Abstract:

The design of adaptive real-time & embedded systems (RTES) is a hard task due to the complexity of both soft-

ware/hardware features and the variability in the operational environment. This paper presents a new design

pattern intended to support and facilitate the co-modeling and scheduling analysis of RTES. The contribution

of this pattern is that is designed to i) support scheduling analysis allowing adaptation mechanisms ii) model

all the software/hardware features and allocation in the same view iii) annotate the system with functional

and non-functional properties using a high-level modeling language. The generated model from the pattern

contains all the needed information to perform the schedulability tests. As a proof of concepts, we present

experimental results for an automobile system.

1 INTRODUCTION

The modeling of Real-Time Embedded Systems

(RTES) may be stated as a crucial problem in the

software engineering domain with the current lack

of design models and tools. RTES are subject to a

multitude of constraints (e.g., battery, temperature)

and real-time requirements, and have to execute in

a highly variable environment (e.g., update avail-

able, hardware crash, position change). To retain the

system non-functional properties (NFPs) (e.g., dead-

lines), RTES must be able to adapt themselves to the

changes in their operating environment and context.

Lightening the task of adaptive systems designers and

reducing the development cost and time to market

represents a signiﬁcant challenge in the ﬁeld, which

requires the use of high-level approaches such as

MDE (Model Driven Engineering) (Schmidt, 2006)

and MARTE (Modeling and analysis of real-time em-

bedded systems) (OMG, 2008).

MDE is a way to beat the growing complexity

of adaptive systems by allowing reuse, portability,

and automation of the design models. In particular,

pattern-based development is becoming an increas-

ingly recognized solution in software engineering by

addressing new challenges to support the whole life-

cycle co-design of complex systems. In the RTES do-

main, its adoption is seen promising for several pur-

poses: allowing the reuse of models (Rohnert and

Stal, 1996), improving software process quality and

reducing the development cost of complex systems.

Design pattern development is a relatively old dis-

cipline that has been proven to be beneﬁcial for get-

ting fast and reusable designs (Gamma, 1995). Un-

fortunately, most of the patterns that are devoted to

adaptive systems are expressed as informal indica-

tions on how to solve some adaptive mechanisms.

These patterns do not include sufﬁcient semantic de-

scriptions, including those of adaptability concepts,

for automated processing and to extend their use. For

that, MDE can provide a solid basis for formulating

design patterns that can incorporate adaptability con-

cepts at several levels of abstraction.

In the present paper, we propose a design pat-

tern intended to guide the designer in the modeling

of adaptive real-time embedded systems. It repre-

sents a generic illustration backing the co-modeling

of features to be used in the context of modeling

adaptability and analysis time constraint in the real-

time embedded systems. This work is the result of

previous investigations and published work. Start-

ing from (Naija et al., 2015) a MARTE-based ap-

proach was proposed to concurrency model construc-

tion at early design stages. Notably, we perceive a

MARTE semantics limitation in modeling level. Ac-

cordingly, we have identiﬁed the needed of the new

version of the MARTE proﬁle supporting adaptation

mechanisms. In (Naija et al., 2016) and (Naija and

Ahmed, 2016a) we have proposed several extensions

in the UML MARTE proﬁle for supporting adapta-

242

Ben Mansour, A., Naija, M. and Ben Ahmed, S.

A MARTE-Based Design Pattern for Adaptive Real-Time Embedded Systems.

DOI: 10.5220/0007673102420248

In Proceedings of the 14th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2019), pages 242-248

ISBN: 978-989-758-375-9

tion mechanisms. In this paper, we present how to

use these extensions in a new design pattern.

Our contribution is to be integrated into a model-

based approach to guide RTES designers for build-

ing and analysing adaptive RTES models. It facili-

tates complex systems modeling, decreases the devel-

opment time and cost and increases software process

quality. The above beneﬁts have been demonstrated

through the application of our proposition to an adap-

tive system.

The remainder of this paper is organized as fol-

low. In Section II, we give background on related

concepts to the present article. Section III provides

a survey of some similar works. In Section IV, we

present an overview of the proposed design pattern.

Section V submits a case study application of the sug-

gested design pattern. Finally, this paper is concluded

with some outlined directions for future works.

2 THEORETICAL BACKGROUND

In this section, we present enough information about

UML MARTE proﬁle and adaptability concepts to

understand how and why we use them in our design

pattern.

2.1 UML/MARTE

The UML/MARTE proﬁle (Modeling and Analysis of

Real-Time and Embedded systems) (OMG, 2008) de-

ﬁnes a framework for annotating functional and non-

functional properties of embedded systems. MARTE

fosters the building of models that support the spec-

iﬁcation of scheduling analysis problem. This pro-

ﬁle can model tasks, dependencies between them and

events under shape a Workload Behavior and platform

of the system.

In particular, the Core Elements sub-proﬁle of

MARTE Foundations package deﬁnes the elements

needed to specify conﬁgurations, modal behavior and

their semantics of execution, as shown in Figure 1.

The modal behavior is strongly related to the no-

tion of mode, which can represent a state of the sys-

tem in which it must provide a set of features. The

mode is the abstract representation of a set of func-

tionalities afforded by a system or a subsystem. When

adapting to new operational requirements, a system

may have (i) to change from a source mode to a tar-

get mode, and (ii) to improve the software applica-

tion conﬁguration (e.g., by disabling or enabling com-

munication links between components). This design

model is used at runtime.

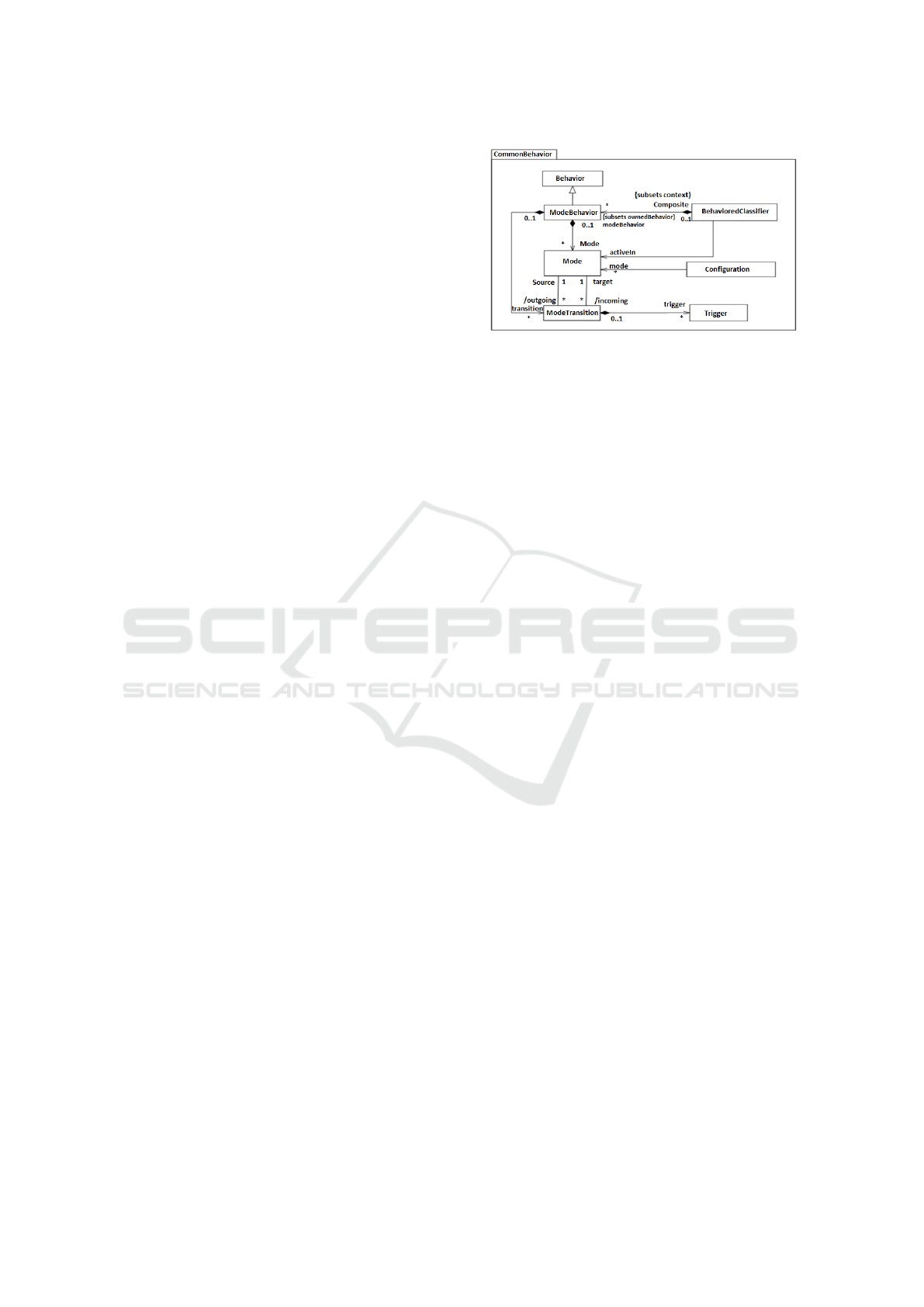

Figure 1: Modal behavior model of MARTE (OMG, 2008).

However, mutually exclusive modes are described

from the ModeBehavior model to clarify that only one

mode between them can be triggered at the same time.

Besides, an operational mode is characterized by a

given conﬁguration. This conﬁguration is deﬁned by

the allocation of all the elements of the software ar-

chitecture to the platform components. The transition

mode describes the mode change of a system. The

latter is invoked in response to an event that marks a

change in the execution context. Various criteria must

be considered in the context of adaptive real-time &

embedded systems during the speciﬁcation of the de-

sign pattern. Indeed, we must take into considera-

tion the different tasks features, execution modes, and

tasks/process execution, etc. MARTE does not enable

designers to encapsulate all these speciﬁcations in the

same model.

2.2 Adaptability

There are several deﬁnitions of adaptation in the lit-

erature. In our previous work (Naija et al., 2016), we

deﬁned adaptation as any modiﬁcation in the struc-

ture, behavior or architecture of the system to accom-

modate the external or internal change of their oper-

ating environment or context and according to pre-

deﬁned adaptation plan and rules (Naija and Ahmed,

2016b). In the adaptive system, additional informa-

tion has to be modeled such as adaptation rules, con-

text, transitional modes and adaptation plan to specify

both functional and non-functional properties. In the

following, we explain, the concepts of context, rules

and adaptation plan:

• Context: annotate the minimal representation of

the operational environment which is attached to

the functional mode.

• Rules: specify how the system should be adapted

to the new environment requirements.

• Adaptation Plan: is the process of taking ac-

tion to manage or reduce the consequences of a

changed conﬁguration.

A MARTE-Based Design Pattern for Adaptive Real-Time Embedded Systems

243

3 RELATED WORKS

The design of adaptive RTES is relatively old domain

and thus very rich. Unfortunately, this task presents

a challenge due to the complexity of the problem it

handles (Said et al., 2014). In this paper, we fo-

cus on approaches and design ﬂows that mainly deal

with high-level design and veriﬁcation of adaptive

systems, which are still not well tackled.

In (Said et al., 2014), the authors have proposed

ﬁve patterns representing generic modeling of the

adaptation loop modules. The patterns take into con-

sideration the real-time features of adaptation opera-

tion. These design patterns are presented in the static

view through class diagrams annotated with MARTE

proﬁle stereotyped. The adaptation is then considered

as a dynamic and partial change of the operation mode

without supporting platform resources.

In the same vein, (Ramirez and Cheng, 2010)

have proposed several patterns to design adapta-

tion process. However, the authors introduced

adaptation-oriented design patterns to support moni-

toring, decision-making, and reconﬁguration of adap-

tive systems. They extend the pattern templates

used by Gamma et al. (Gamma, 1995) for descrip-

tion design patterns with Behavioral and Constraints

ﬁelds. Unfortunately, real-time constraints allowing

the scheduling test, which is an ad-hoc test, are not

modeled.

The authors have proposed in (Supriana et al.,

2018), an approach through requirements modeling

languages directed to adaptation pattern. The model

is prepared through contextual conditions approach

that is integrated into MAPE-k (monitor analyze,

plan, execute - knowledge) pattern in goal-oriented

requirements engineering.

The author in (Hamerski et al., 2018) has intro-

duced a middleware to support the development of

self-adaptive management services and applications

for MPSoCs. The proposed middleware is heavily

based on object-oriented practices and design patterns

to present platform abstraction, modular design, and

decoupled distributed programming model. However,

the author discusses many import features of real-time

embedded systems such as performance and time con-

straint without taking into consideration the interac-

tion between the different components.

In (Abuseta and Swesi, 2015) a MAPE loop

(Monitor, Analyzer, Plan and Execute) design pro-

cess is proposed. However, the authors discuss the

interaction between the different components of the

loop without taking into consideration the essential

features of RTES, such as time constraint, scheduling

resource, etc.

Other efforts have been speciﬁcally tailored to

the partitioned and the global approaches. In

(Magdich et al., 2014) and (Magdich et al., 2015),

(Magdich et al., 2018), the authors proposed a new

UML/MARTE-based design patterns to supporting

semi-partitioned and global scheduling. The advan-

tage of these patterns is the automatic selection of

the scheduling algorithm and approach. The bene-

ﬁcial of all the earlier mentioned works is they can

facilitate the design of adaptive real-time systems.

They tackled only one speciﬁc adaptation mechanism,

which consequently compromises their reusability to

adapt the system to new system requirements and con-

straints. They assume that adaptability is a dynamic

change in the task allocation without taking into ac-

count operating mode adaptation which is an essential

ax of adaptation, unlike this approach. In this paper,

we suggest a design pattern providing support several

adaptability mechanisms and real-time constraint

4 PROPOSED DESIGN PATTERN

4.1 Real-Time Adaptive Pattern

Speciﬁcation

In this section, we present the description of our pat-

tern. We follow the pattern templates presented in

(Buschmann et al., 2007) for our description. Four

fundamental ﬁelds were detailed in this paper, with

are: Overview, Context, Problem, Solution. We

use UML MARTE based design pattern intended for

adaptability. Our pattern will be limited only to the

static view for UML MARTE.

1. Overview: Pattern is aimed to support the mod-

eling of adaptive real-time systems, and may be

used to design different systems in the same ﬁeld

without ever being adopted twice similarly. Ev-

ery pattern must deal with a well-deﬁned prob-

lem. It represents a solution that solves an issue

and supports the modeling of complex systems at

the early design stage.

2. Context: Our design pattern intends to guide de-

signers to specify all the properties to be used in

the context of an adaptive RTES allowing con-

trolled mode transitions.

3. Problem: MARTE provides support the model-

ing, speciﬁcation and early veriﬁcation of RTES,

unfortunately, it does not provide a solution for

modeling adaptability.

4. Solution: The purpose of the suggested pattern is

to support the modeling of software/hardware ar-

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

244

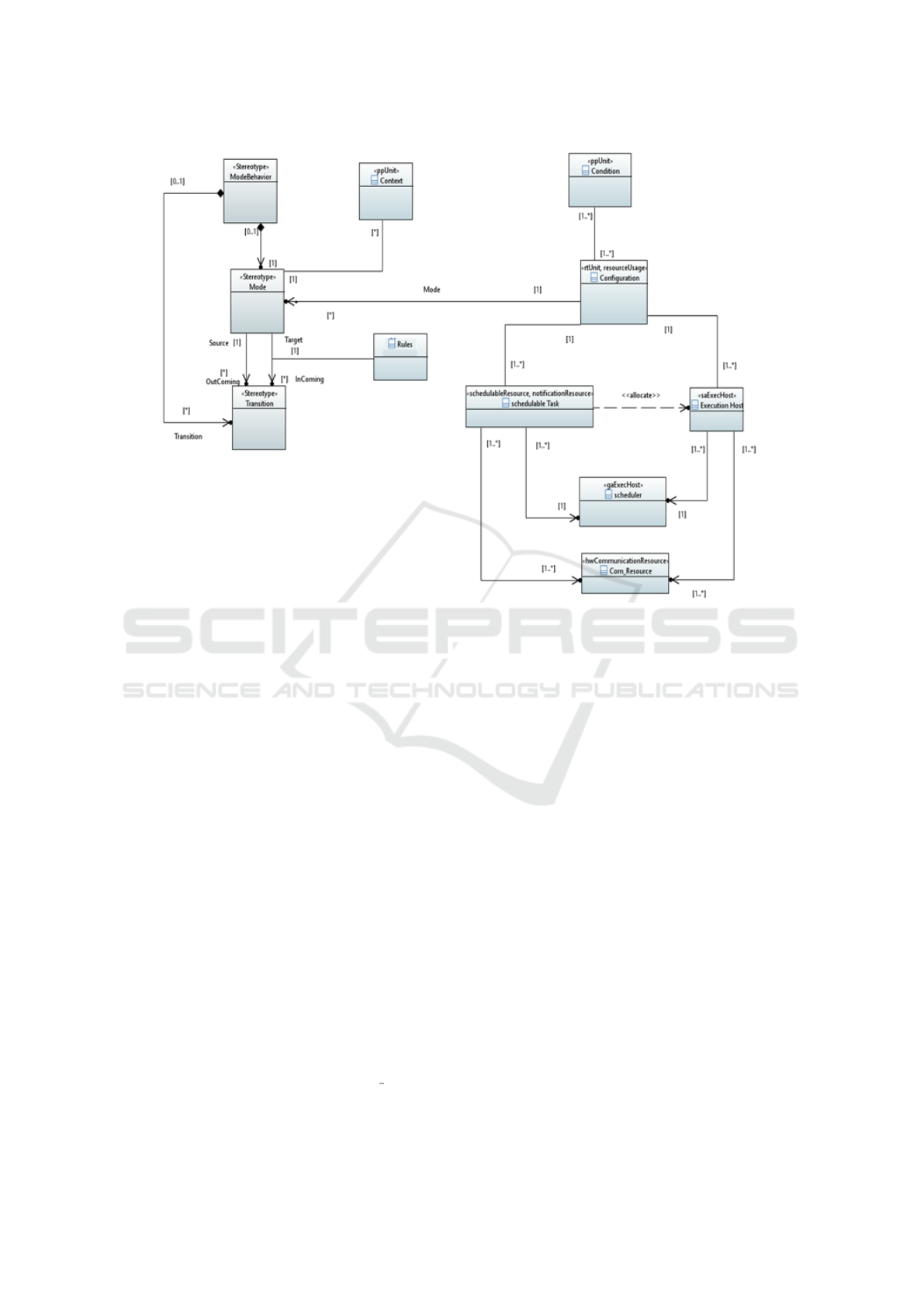

Figure 2: Static view of the proposed adaptive design pattern.

chitecture of the system with adaptive constraints

in the same view. The pattern modeling is based

on UML/MARTE as a high-level modeling lan-

guage that provides a big set of stereotypes to an-

notate the built views.

4.2 Proposed Design Pattern

Adaptation means changing the functionality of the

system to accommodate a change in the execu-

tion context. Our pattern is based on the MARTE

CoreElement sub-proﬁle, we propose to add some

classes to the base model to be compatible with the

requirements of adaptive systems. Then, we use some

stereotype of MARTE to support the conﬁguration

context.

As indicated in the CommonBehavior package,

the change from one mode to another will be done by

a transition. In the case of adaptive RTES, this change

must respect some rules. To manage this adaptability

mechanism, we propose to add an association class

Rules between the Mode and Transition classes. This

class is used to specify how the systems are adapted

to its environment changes.

This class Rules has two attributes, OP

RECONF

with the type NFP-Duration to indicate the duration

of a conﬁguration operation. The second one is Safe

State with the Boolean type, to indicate when the sys-

tem is in a stable state. This property ensures that

adaptation will not affect the proper functioning of the

systems.

RTES is mainly related to its runtime environment

for that we propose to add a class Context to represent

the operational environment. Context is a passive unit

that carries information about the status of a system

property. This active class, stereotyped as ppUnit, has

one attribute, Context with the String type to indicate

the context of activating mode.

In real-time embedded systems, a mode can be

started by one or more contexts, and a context can

launch only one mode. To manage adaptation ele-

ment, the class Conﬁguration is proposed to represent

the generalization of adaptation and the change of el-

ements. The NextMode method, allow the migration

of the system to a new mode that fulﬁlls the system

requirements. This active class is stereotyped as an

RtUnit and have the attributes extTime, memoryUsage

and DataSize.

Switching from one mode to another mode will

be through a conﬁguration. A condition of use is at-

tached to each conﬁguration of the system, since a

system can have several conﬁgurations in one mode,

the condition makes it possible to decide the choice of

the conﬁguration in a speciﬁc context. The conditions

A MARTE-Based Design Pattern for Adaptive Real-Time Embedded Systems

245

link the conﬁgurations and each variability of the en-

vironment. Every attribute of the Condition class cap-

tures an element of the environment. The attributes of

the condition class can be: battery which indicates the

remaining percentage of the battery, Memory which

represents the internal state of a memory in percent-

age. A conﬁguration is composed of one or many

schedulable tasks that will be allocated to one or many

execution processors.

schedulable Task is a class for modeling the soft-

ware resource managed by the OS, a task should

have a software synchronization resource used to

notify events. It is annotated with schedulableRe-

sources and NotiﬁcationResources. It has only one at-

tribute, DeadlineElements. The class Execution host,

is stereotyped SaExecuteHoste, annotate processing

unit. To partitioning tasks in the different scheduler,

we use a scheduler annotated GaExecHost. The dif-

ferent components of an RTES should be commu-

nicated; for that, we add a class communication re-

sources annotated with Hw- CommunicationResource

which may be a bus or Direct Memory Access.

5 CASE STUDY

To better explain our proposal, we use a UGV (Un-

manned Ground Vehicle) (Etienne, 2009) system as

an entire running application in this paper. We have

chosen this system which is particularly relevant for

the dynamic nature of its operational environment and

its ability to operate in several modes of operation.

The software architecture of the UGV consists of

several subsystems. The communicate between then

it will be with sending messages via their communi-

cation ports. Figure 3 shows the software architecture

of the system.

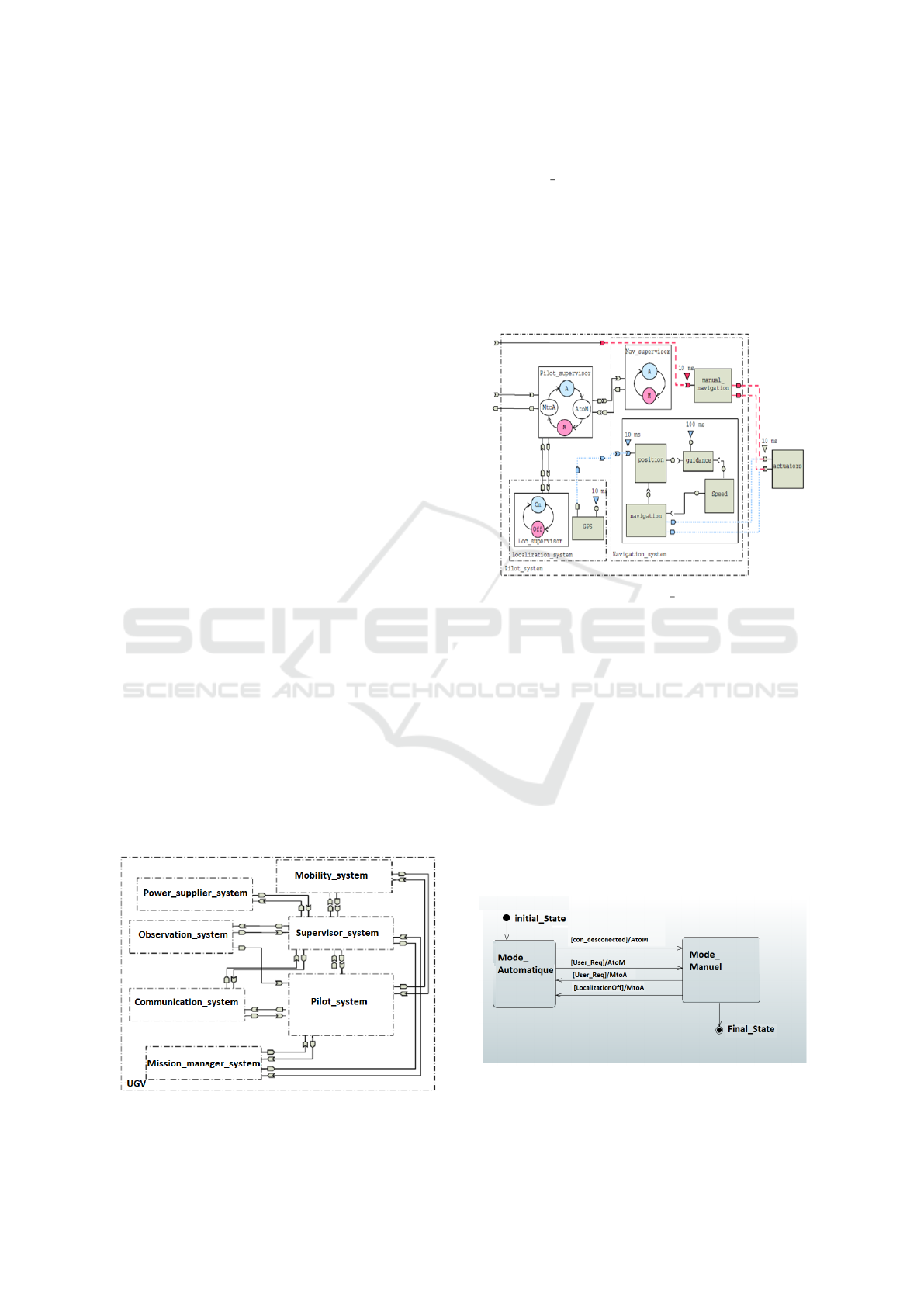

Figure 3: Software architecture UGV (Etienne, 2009).

We are interested in our study, within the robot

UGV, Pilot System0 on the control system that oper-

ates in two operational modes. An automatic mode,

where the subsystem calculates the steering com-

mands from its current position, its environment as

perceived by its sensors and a path that has been pre-

programmed. A manual mode, where the steering

system receives steering commands sent by an opera-

tor (Figure 4).

Figure 4: Architecture of the Pilot System (Etienne, 2009).

As indicated in ﬁgure 5, The UGV system is mod-

eled by two modes. The ﬁrst mode was represented

by M and indicate the manual mode and the second

mode is A represented the automatic mode of the vehi-

cle. The transition from the mode M to the mode A is

represented respectively by the two transitions MtoA

and AtoM. Since the system operates in the manual

mode, it can switch to automatic mode when the com-

munication system is disconnected or by user request.

However, if the location system is out of order, this

passage is not allowed. Besides, the system switches

from the mode A to the mode M if the location system

is not enabled or from user requirement. The avail-

ability of the communication system conditions this

transition.

Figure 5: Mode Behavior/Intra Mode.

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

246

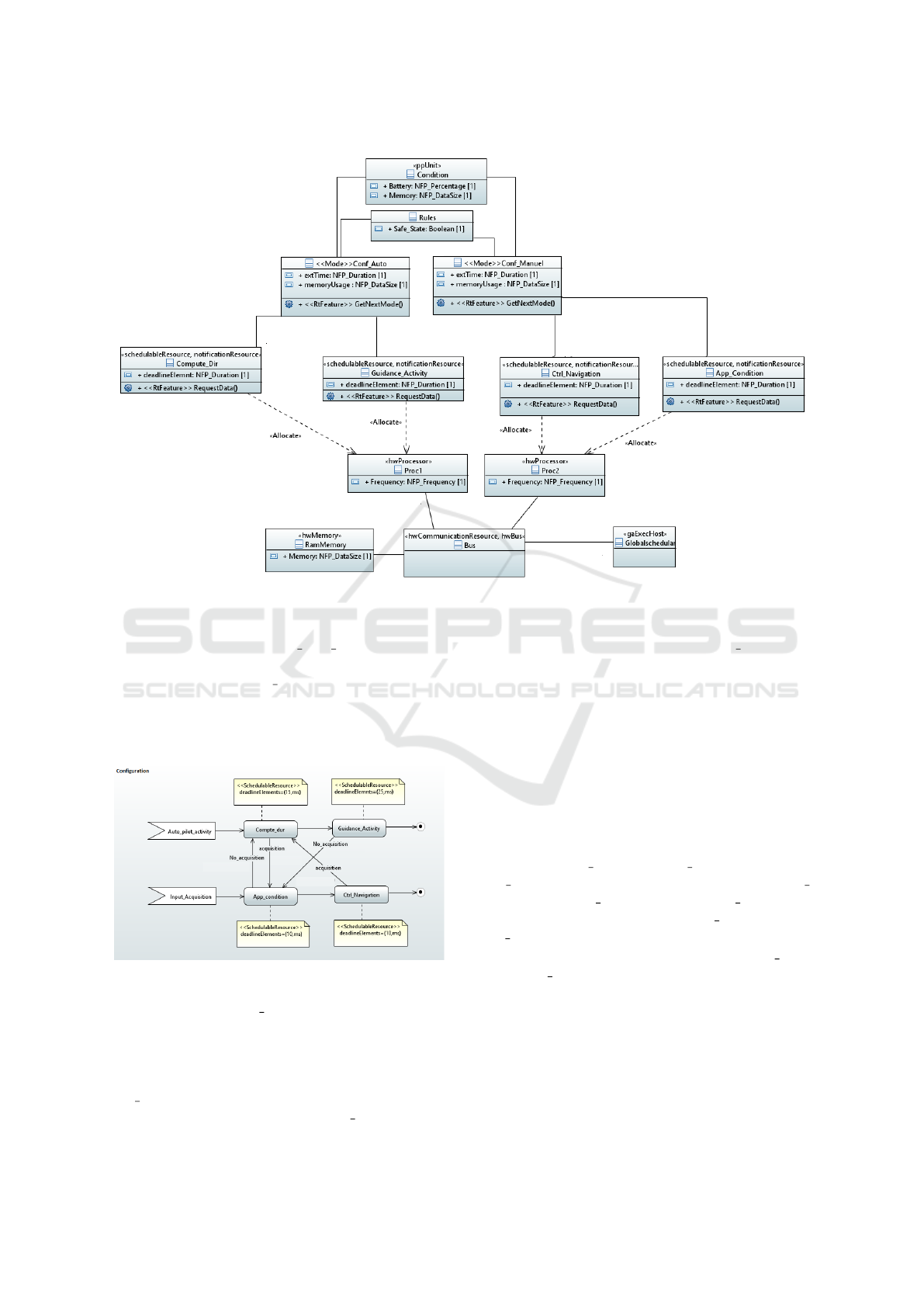

Figure 6: UGV Class Diagram.

In Figure 7, the automatic mode execution sce-

nario is triggered by the Auto pilot activity event re-

trieving the current vehicle position and invoking the

schedulable task Compte dur. This task calculates

the commands to be sent to the robot actuators, start-

ing from the current position and the last calculated

speed value, the time of this task is 15 ms.

Figure 7: Workload Model UGV system.

Then, the Guidance Activity task retrieves the last

ten saved positions to compute the current robot

speed, the time of this task is 25 ms. A follow-

ing link links operations in this mode. On the other

hand, the manual mode is activated by the input In-

put Acquisition which corresponds to an order issued

by the end user. Subsequently, the App condition task

calculates the guidance commands to be applied, the

time of this task is 10 ms. Finally, the Ctrl Navigation

action stores the last ten positions of the vehicle in

4ms.

For the automatic mode, we can change from any

task to the ﬁrst task of manual mode if a notiﬁcation of

acquisition found. The same for a switch from manual

to automatic mode, if notiﬁcation das not exist, we

can change from any task of the manual mode to the

ﬁrst task of the automatic mode.

As indicated in the ﬁgure 6, we have two con-

ﬁgurations, Automatic and Manuel conﬁguration;

they were presented respectively in the class di-

agram with Con Auto and Con Manuel. For the

Con Auto, we have two schedulable tasks: Compte

Dur and Guidance Activity. For the Con Manuel we

have two schedulable tasks too, App Condition and

Ctrl Navigation.

Each conﬁguration characterises with her ex Time

type (NFP Duration), and with her memory usage.

For the passage from one mode to another, a condi-

tion about the percentage of battery should be vali-

dated, in the same time an afﬁrmation about the state

of the system type Boolean should be veriﬁed (It’s

safe to change from a conﬁguration to another). A

schedulable task should be allocated to an execution

processor, in our study, we proposed two processor

proc1 and proc2, each processor for each conﬁgura-

A MARTE-Based Design Pattern for Adaptive Real-Time Embedded Systems

247

tion. Each execution processor needs same resource

to run such as hwMemory and a communication Bus

to relate resources.

6 CONCLUSIONS

Throughout this paper, we have proposed a new de-

sign pattern providing support for adaptive modeling

and time constraint for RTES. We used UML anno-

tated with the MARTE proﬁle to design our pattern in

a static view. The advantage of our approach is the

capability to model adaptive properties which will be

extracted, to serve during the scheduling step. Our

proposal has already been performed on the papyrus

tool, which is an editor of MARTE-based modeling,

and validated through a case study.

The future task we have assigned to ourselves is to

deﬁne empirical and comparative studies to provide

quality indicators to reduce the development risks of

Adaptive RTES and to measure the beneﬁts of our

proposal.

REFERENCES

Abuseta, Y. and Swesi, K. (2015). Design patterns for

self adaptive systems engineering. arXiv preprint

arXiv:1508.01330.

Buschmann, F., Henney, K., and Schimdt, D. (2007).

Pattern-oriented software architecture: on patterns

and pattern language. volume 5. John wiley & sons.

Etienne, B. (2009). Conﬁguration et reconﬁguration des

syst

emes temps-re

el r

epartis embarqu

es critiques et

adaptatifs. In T

ecom ParisTech.

Gamma, E. (1995). Design patterns: elements of reusable

object-oriented software. Pearson Education India.

Hamerski, J. C., Abich, G., Reis, R., Ost, L., and Amory, A.

(2018). A design patterns-based middleware for mul-

tiprocessor systems-on-chip. In 2018 31st Symposium

on Integrated Circuits and Systems Design (SBCCI),

pages 1–6. IEEE.

Magdich, A., Kacem, Y. H., Kerboeuf, M., Mahfoudhi, A.,

and Abid, M. (2018). A design pattern-based ap-

proach for automatic choice of semi-partitioned and

global scheduling algorithms. volume 97, pages 83–

98. Elsevier.

Magdich, A., Kacem, Y. H., Mahfoudhi, A., and Ker-

boeuf, M. (2014). A uml/marte-based design pat-

tern for semi-partitioned scheduling analysis. In

2014 IEEE 23rd International Workshops on Enabling

Technologies: Infrastructures for Collaborative En-

terprise (WETICE), pages 300–305. IEEE.

Magdich, A., Kacem, Y. H., Mahfoudhi, A., Kerboeuf, M.,

and Abid, M. (2015). Real-time design patterns: Ar-

chitectural designs for automatic semi-partitioned and

global scheduling. In International Conference on En-

terprise, Business-Process and Information Systems

Modeling, pages 447–460. Springer.

Naija, M. and Ahmed, S. B. (2016a). Extending

uml/marte-sam for integrating adaptation mechanisms

in scheduling view. In Proceedings of the 11th Inter-

national Conference on Evaluation of Novel Software

Approaches to Software Engineering, pages 84–90.

SCITEPRESS-Science and Technology Publications,

Lda.

Naija, M. and Ahmed, S. B. (2016b). A new marte ex-

tension to address adaptation mechanisms in schedul-

ing view. In International Conference on Evaluation

of Novel Approaches to Software Engineering, pages

27–43. Springer.

Naija, M., Ahmed, S. B., and Bruel, J.-M. (2015). New

schedulability analysis for real-time systems based on

mde and petri nets model at early design stages. In

Software Technologies (ICSOFT), 2015 10th Inter-

national Joint Conference on, volume 1, pages 1–9.

IEEE.

Naija, M., Bruel, J.-M., and Ahmed, S. B. (2016). To-

wards a marte extension to address adaptation mech-

anisms. In High Assurance Systems Engineering

(HASE), 2016 IEEE 17th International Symposium

on, pages 240–243. IEEE.

OMG (2008). Object management group. a uml proﬁle for

marte: Modeling and analysis of real-time embedded

systems. In Beta2, Object Management Group.

Ramirez, A. J. and Cheng, B. H. (2010). Design patterns

for developing dynamically adaptive systems. In Pro-

ceedings of the 2010 ICSE Workshop on Software En-

gineering for Adaptive and Self-Managing Systems,

pages 49–58. ACM.

Rohnert, F. B. R. M. H. and Stal, P. S. M. (1996). Pattern-

oriented software architecture: A system of patterns.

page 13.

Said, M. B., Kacem, Y. H., Kerboeuf, M., Amor, N. B., and

Abid, M. (2014). Design patterns for self-adaptive rte

systems speciﬁcation. International Journal of Recon-

ﬁgurable Computing, 2014:8.

Schmidt, D. C. (2006). Model-driven engineering. vol-

ume 39, page 25. Citeseer.

Supriana, I., Surendro, K., et al. (2018). Self-adaptive

software modeling based on contextual requirements.

Telkomnika, 16(3).

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

248
