Mapping of Quality of Service Requirements to Resource Demands for

IaaS

Ioannis Bouras

, Fotis Aisopos

, John Violos

, George Kousiouris

, Alexandros Psychas

Theodora Varvarigou

, Gerasimos Xydas

, Dimitrios Charilas

and Yiannis Stavroulas

Dept. of Electrical and Computer Engineering, NTUA, 9 Heroon Polytechniou Str, 15773 Athens, Greece

Cognity S.A., 42 Kiﬁssias Av., 15125 Marousi, Athens, Greece

Keywords:

Infrastructure as a Service, Cloud Computing, Quality of Service, Artiﬁcial Neural Networks, Resource

Selection.

Abstract:

Deciding and reserving appropriate resources in the Cloud, is a basic initial step for adopters when employing

an Infrastructure as a Service to host their application. However, the size and number of Virtual Machines used,

along with the expected application workload, will highly inﬂuence its operation, in terms of the observed

Quality of Service. This paper proposes a machine learning approach, based on Artiﬁcial Neural Networks, for

mapping Quality of Service required levels and (expected) application workload to concrete resource demands.

The presented solution is evaluated through a comercial Customer Relationship Management application,

generating a training set of realistic workload and Quality of Service measurements in order to illustrate the

effectiveness of the proposed technique in a real-world scenario.

1 INTRODUCTION

Cloud adoption, either through a Software as a Ser-

vice (SaaS), a Platform as a service (PaaS) or an

Infrastructure as a Service (IaaS) approach, enables

an application owner to take advantage of the Cloud

computing beneﬁts, such as stability and scalability.

However, a Cloud provider can act in a twofold man-

ner in this process, e.g. a SaaS provider can also act as

an adopter, deploying his software on an external IaaS

to further migrate instability risks. When it comes to

choosing an IaaS provider for the deployment of any

kind of application, a major consideration that Cloud

adopters have to take, relates to the amount of the re-

sources that should be reserved, in order to ensure the

smooth operation of the application. This is far from

a simple decision, as the resources selected and the

expected workload during a period are decisive for

many application-related Key Performance Indicators

(KPIs), such as HTTP API calls processing times.

Moreover, in the case of a SaaS application de-

ployed in an IaaS, keeping those KPIs in certain levels

is most important, given that the SaaS provider should

also keep its own Quality of Service (QoS), satisfy-

ing its customers SLAs. Despite the fact that, for

this process a number of approaches exist (e.g. con-

trol based loops to regulate resources based on KPI

levels), the overall deﬁnition of the various offered

SLAs (in comparison also to the cost) needs an a pri-

ori analysis of the QoS, based on anticipated appli-

cation workload and used resources. Thus, the need

for a mapping mechanism arises, which would trans-

late the applications high-level terms (Workload and

QoS parameters), to respective infrastructure-level re-

source requirements.

The current work evaluates the concept of Map-

ping Models, i.e. models based on Artiﬁcial Neu-

ral Networks (ANNs) taking care of the aforemen-

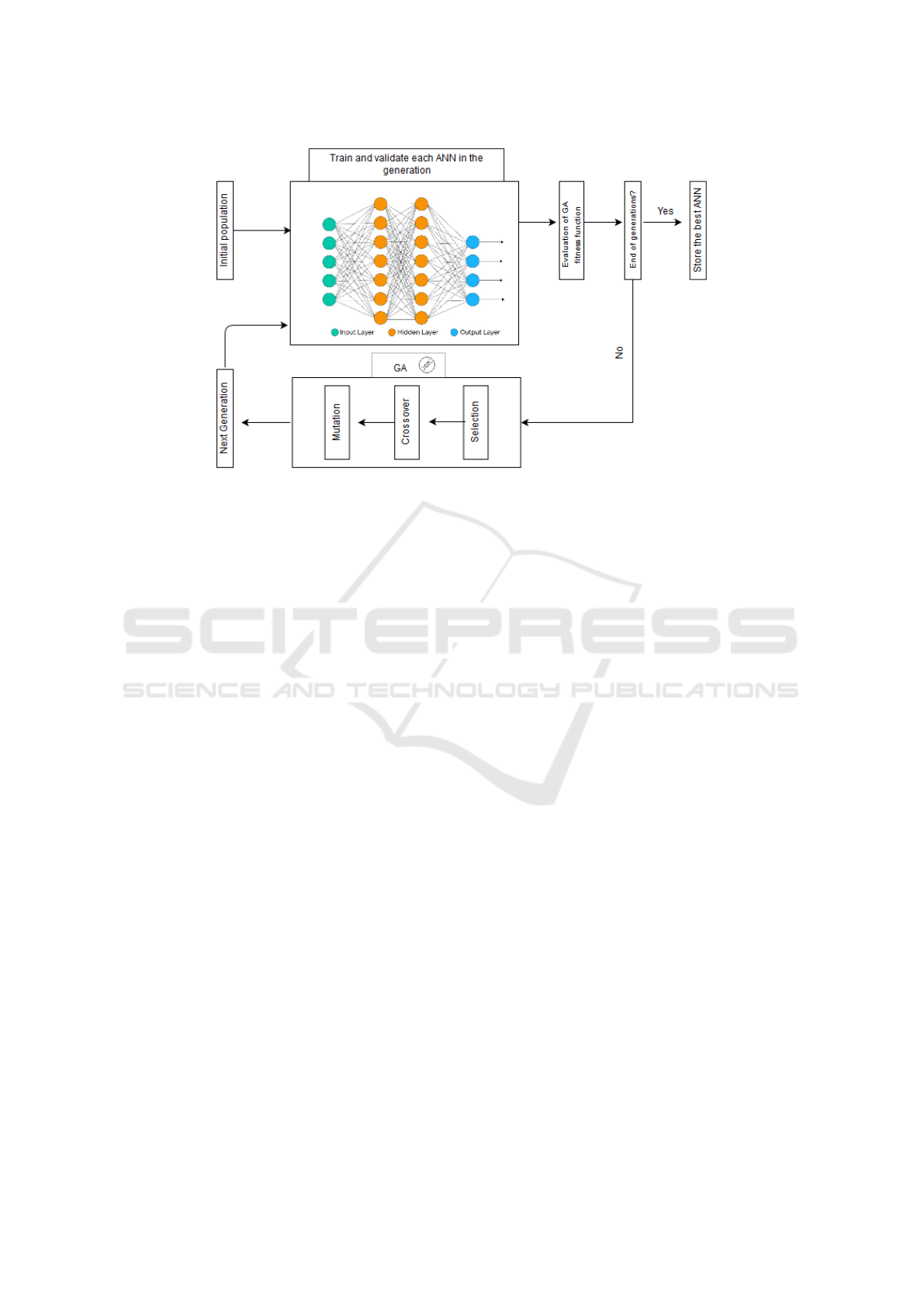

tioned parameter translation. The design parameters

of those models, are tuned employing a Genetic Algo-

rithm (GA) in order to generate an optimum or a close

to optimum ANN architecture, for the given dataset.

The training of the ANN models is performed using

detailed application and infrastructure data, such as

average application trafﬁc over a period, number of

requests, memory (RAM) allocated for an image etc.

This ensures the effectiveness of predictions, for var-

ious application and resource setups.

Therefore, this paper provides the following con-

tributions:

• A black box ANN-based model that maps high-

level IaaS adopter demands to low level parame-

ters, by predicting Quality of Service metrics of a

Bouras, I., Aisopos, F., Violos, J., Kousiouris, G., Psychas, A., Varvarigou, T., Xydas, G., Charilas, D. and Stavroulas, Y.

Mapping of Quality of Service Requirements to Resource Demands for IaaS.

DOI: 10.5220/0007676902630270

In Proceedings of the 9th International Conference on Cloud Computing and Services Science (CLOSER 2019), pages 263-270

ISBN: 978-989-758-365-0

263

deployed application of speciﬁc nature, based on

speciﬁc resource and expected workload setups.

• The generation of a representative, experimental

dataset, extracted from a real business Software

as a Service application from the Customer Rela-

tionship Management (CRM) domain.

• Evaluation of the aforementioned Mapping Mod-

els accuracy and comparison with mainstream

Machine Learning approaches in terms of effec-

tiveness, discussing also the efﬁciency dimension.

The rest of this document is organized as fol-

lows: Section 2 presents recent related works on map-

ping QoS to resource demands for clouds. Section 3

presents the ANN-approach followed in the current

work, explaining the Genetic Algorithm used, as well

as the Mapping Models inputs and outputs. Section

4 discusses the experimental CRM use case exam-

ined and the extraction of a meaningful dataset for

the Mapping Models, as well as the evaluation results.

Lastly, Section 5 concludes the current work.

2 RELATED WORK

Considering Cloud provisioning as a mean to opti-

mise an application performance and results, a ba-

sic preliminary step involves the selection of a ser-

vice provider. However, once selecting the appro-

priate provider, the most crucial step of the cloudi-

ﬁcation process is resource selection (Psychas et al.,

2018). Given some application runtime restrictions

(e.g. maximum HTTP API calls processing times),

certain Quality of Services requirements arise. The

problem concerning the decision on the amount of

resources to be reserved in the IaaS layer to satisfy

or ensure those QoS requirements has been raised

and thoroughly studied throughout the previous years

(Geeta and Prakash, 2017).

2.1 QoS-aware Resource Management

by IaaS

Starting from an IaaS provider perspective, work

in (Papagianni et al., 2013) attempted to tackle the

generic problem of providing an automated solution

for dynamically managing physical resources of a

data center used as substrate for IaaS platforms. The

authors employed a Self-Tuning Regulation (STR)

adaptation scheme, using an AutoRegressive with eX-

ogenous terms (ARX) model to dynamically anal-

yse resource and QoS monitoring values at run time.

This model was evaluated with a set of three distinct

multi-tier applications, assessing the performance of

the resource management framework by measuring

the number of violations with respect to the SLO

constraints. Authors in (Guazzone et al., 2011) pro-

posed a method for efﬁcient mapping of user requests

for virtual resources onto a shared substrate intercon-

necting previously isolated islands of computing re-

sources, based on hard and soft QoS provisioning

schemes. The approach promotes a uniﬁed man-

agement and control framework for delivering efﬁ-

ciently cloud IaaS, formulating the optimal networked

cloud mapping problem as a mixed integer program-

ming (MIP) problem with constrains related to cost

efﬁciency of the resource mapping procedure, while

abiding by user requests for QoS-aware virtual re-

sources.

Collazo-Mojica (Collazo-Mojica et al., 2012) pro-

posed a resource usage prediction engine based on

a multivariate linear regression model, which pro-

vides possible resource allocations in IaaS based on

heuristics. During runtime, the application perfor-

mance is being monitored, in order to provide scal-

ing suggestions. The approach is validated with a

CPU-bound cloud application running on Amazon

EC2 with a resulting average relative error of 17.49%.

Works in (Kritikos et al., 2016) and (Anastasi et al.,

2017) provide some interesting approaches on match-

ing resources offered by an IaaS to respective non-

functional parameters (like execution duration) for the

application. Lastly, (Ran et al., 2017) presents an on-

line overload probability estimation model aiming at

minimizing the total computing cost in IaaS, while

keeping the QoS levels agreed in customer SLAs

without any priori knowledge of the workload.

2.2 Predicting Resource Needs for SaaS

The issue of resource reservation from the perspec-

tive of SaaS providers, has also been extensively stud-

ied in numerous works which propose algorithms that

minimize infrastructure cost and SLA violations. Au-

thors in (Reig et al., 2010) used fast analytical and

adaptive predictors for resource needs in order to pre-

vent SLA violations concerning execution time. Au-

thors mainly target SaaS providers, handling hetero-

geneous workloads and attempt to predict the amount

of CPU and memory needed, based on reference exe-

cution times and using simple machine learning mod-

els, like Linear Regression and REPTree, aiming at

low computational complexity. Work in (Wu, 2011)

examines an EPR/CRM SaaS example, including pa-

rameters like Number of Records and Response time

in their respective SLAs. Authors aim at interpreting

customer requirements to infrastructure layer param-

eters, focusing on the VM level, similarly to the cur-

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

264

rent case study. They propose two SLA-based proﬁt

maximization algorithms, based on a plain Mapping

Strategy of customer QoS requirements to resources.

Moreover, (Sun et al., 2017) introduced ROAR

(Resource Optimization, Allocation and Recommen-

dation System), a modeling framework to simplify,

optimize, and automate SaaS resource allocation de-

cisions to meet QoS goals for web applications. A

textual domain-speciﬁc language (DSL) called the

Generic Resource Optimization for Web applications

Language (GROWL) is deﬁned to specify the high-

level and customizable load testing plan and QoS

requirements without low-level conﬁguration details.

ROAR derives the appropriate cloud resource con-

ﬁgurations to orchestrate tests against each resource

allocation option, before using the results to recom-

mend a cost-optimized resource allocation to meet the

QoS goals.

2.3 Mapping Models Approach

The Mapping Models tool, developed in the context

of the CloudPerfect Innovation action project (Cloud-

Perfect:, 2017), uses a sophisticated machine learn-

ing approach, employing genetically optimized Artiﬁ-

cial Neural Networks. This approach was selected, as

the relation between the parameters (inputs and out-

puts) of the problem are rather complex, presenting

non-linear behavior. Its goal is to translate high level

QoS requirements of a SaaS provider to low level re-

source demands for the IaaS layer. The current work

is based on (Kousiouris et al., 2011) and (Kousiouris

et al., 2014), aiming to provide an innovative solution,

tested using a CRM SaaS application deployed over a

commercial IaaS testbed.

3 MAPPING QUALITY OF

SERVICE TO RESOURCES

Mapping Models provide a generic supervised ma-

chine learning approach for correlating the deﬁned

requirements (QoS) of a SaaS application for vari-

ous workloads, to resource level attributes (as these

are needed to be expressed in the SLA with the

IaaS provider). Speciﬁcally, the number of resources

needed by a speciﬁc application instance can be es-

timated given the respective application level charac-

teristics, such as the deﬁned QoS restrictions and the

applied workload.

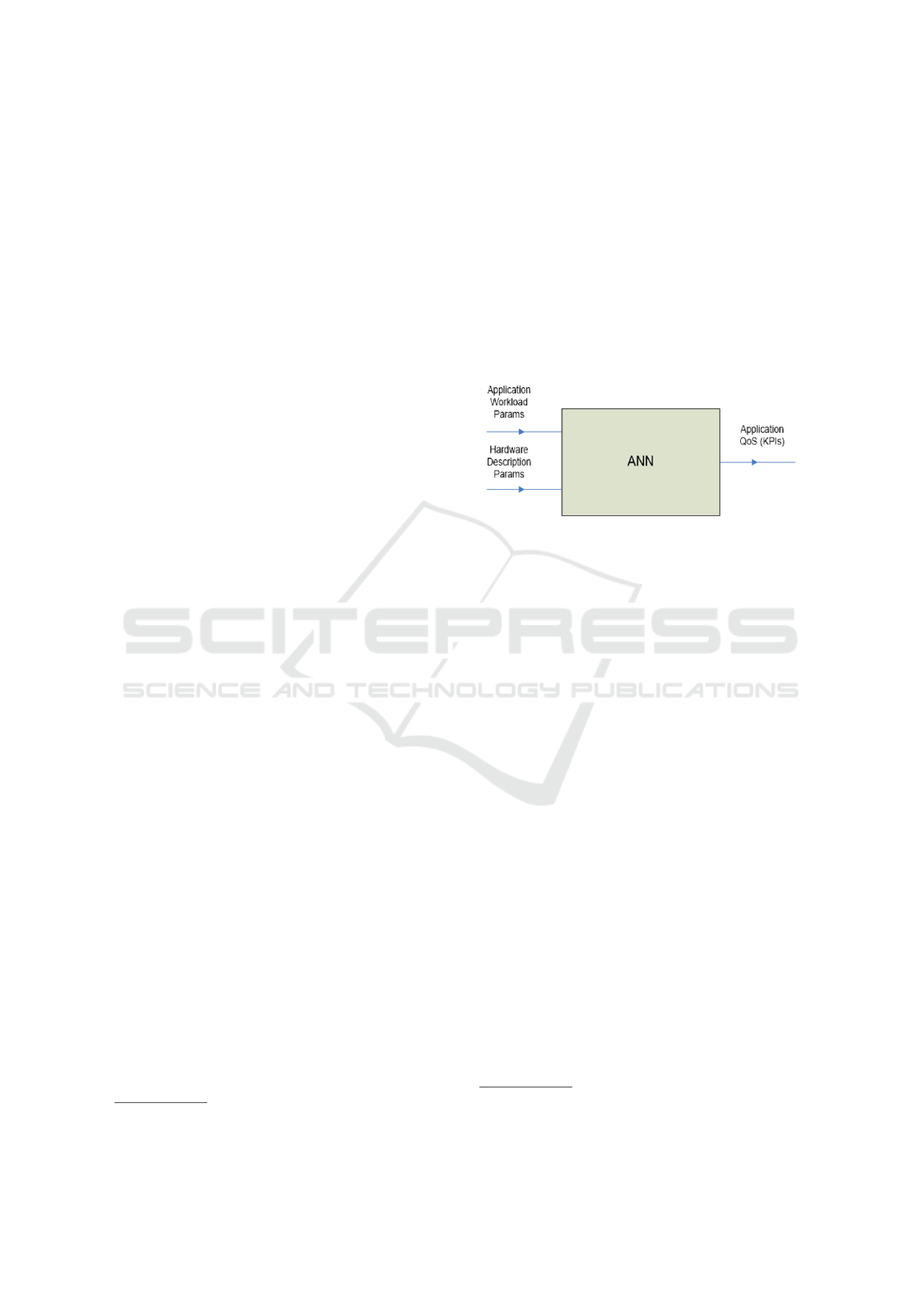

Mapping Models are based on Artiﬁcial Neural

Networks in GNU Octave

and built on a per soft-

https://www.gnu.org/software/octave/

ware component basis with application-speciﬁc terms

that vary depending on each use case and in different

hardware conﬁgurations available per Cloud Provider.

As a ﬁrst step, the SaaS application administrator

(IaaS adopter) needs to deﬁne the application param-

eters (workload, resources and KPIs) to be used as

model inputs and outputs respectively. This process

is necessary in order to adapt in each examined case.

ANNs are non-linear approximators that can be used,

in a black-box manner, to capture the dependency of

the output from the applied input, as shown in Figure

Figure 1: ANN black box approach inputs and outputs.

The implementation utilizes the GNU Octave ’newff’

function for ANN building, which is based on feed

forward back propagation networks trained with the

Levenberg-Marquardt algorithm. The core of the

Models Creation mechanism currently consists of an

ANN factory, based on Octave tool. For the training

phase, the ANN factory needs a representative dataset

of executions provided by the IaaS adopter in an Oc-

tave ﬁle format, which will be used from a macro-

scopic point of view. This training dataset will be

used to determine the network weights and identify

complex, linear or non-linear dependencies of the out-

put from the inputs.

The design parameters of the ANN are conﬁgured

by a Genetic Algorithm (GA), in order to optimize

their selection. In general, selecting these parame-

ters is a tedious process, based on human experience.

However, it can not be easily repeated and applied

in an automated environment, thus in the current ap-

proach the GA solution was followed. The design pa-

rameters that are included in the optimization process

include the number of hidden layers, the number of

neurons per hidden layer and the type of transfer func-

tions of each network layer, from the available three

types in Octave (tansig, logsig and purelin)

. As il-

lustrated in Fig. 2, the neuro-evolution process starts

with an intial population of random architectures of

ANNs. On each generation the GA selects the ﬁttest

http://radio.feld.cvut.cz/matlab/toolbox/nnet/backpr52

.html/

Mapping of Quality of Service Requirements to Resource Demands for IaaS

265

Figure 2: The neuro-evolution process employed by the Mapping Models.

ANNs to be crossovered based on a probability sys-

tem regarding their performance (Selection process).

From this procedure, new architectures of ANNs will

be created and after the necessary mutation process

(in order to maintain some amount of randomness in

the GA) a new generation of ANNs is produced, ready

to be trained and validated. This process continues

until the prediﬁned number of generations is reached.

Furthermore, proper data preprocessing ensures the

inclusion of the minimum and maximum values in the

training subset in order to avoid extrapolation risks.

The evolutionary performance criterion for the

GA i.e the Fitness Function, is the error on the train-

ing set. However, variations with the performance cri-

terion as the error on the intermediate validation set,

had been tried out in the original version of the algo-

rithm (Kousiouris et al., 2013), which seemed to yield

towards worse results. In each generation, the gener-

ated models are evaluated and selected, based on their

prediction performance on the intermediate validation

set, while the ﬁnal selection is performed according to

the prediction performance on the third and ﬁnal sub-

set (test set) of the initial data (approximately 30% of

them), which is not used during the training process.

The overall process of model creation consists of

the following steps:

• Create KPI monitoring endpoints in application

structure

• Deﬁne different types of used resources

• Gather dataset with rows including values for

workload, resource type and KPI values respec-

tively

• Feed the ﬁle in the tool UI

• Launch the training and validation phase for the

model

• Check prediction outcomes and save candidate

model

• Use model for prediction of new

cases/combinations

The Mapping Models tool consists of 3 main

scripts, the model-creator, the model-selection and

the ann-script, along with a number of helper func-

tions for e.g. (de)normalization. Inside the tool, the

process is as follows:

• The model-creator script is responsible for the

UI part, receiving input ﬁles and conﬁguration

paths from the user (e.g. path to model reposi-

tory, model ID, number of input columns of the

provided csv ﬁle etc). File manipulation as well

as identiﬁcation is based on the model ID, which

needs to be unique. Furthermore, the IaaS adopter

is asked whether the KPI is ascending or de-

scending and whether they prefer over or under-

provisioning, a feature that will be taken under

consideration in the selection of the ﬁnal model.

• Upon ﬁnalization of the setup, the model-

selection script is launched, which is responsible

for retrieving the data, normalizing them, splitting

them into three subsets (65% training, 15% inter-

mediate validation and 20% ﬁnal test set) and set-

ting up the GA part of the code before calling the

ann-script inside the GA function. Furthermore,

it is responsible for identifying, at the end of the

process, the best model by applying the test set

and concluding on the error.

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

266

• The ann-script is the core function that receives a

proposed ANN architecture by the GA (a chromo-

some) and is responsible for creating the respec-

tive network based on the parameters, as well as

training and measuring its error on the intermedi-

ate validation set.

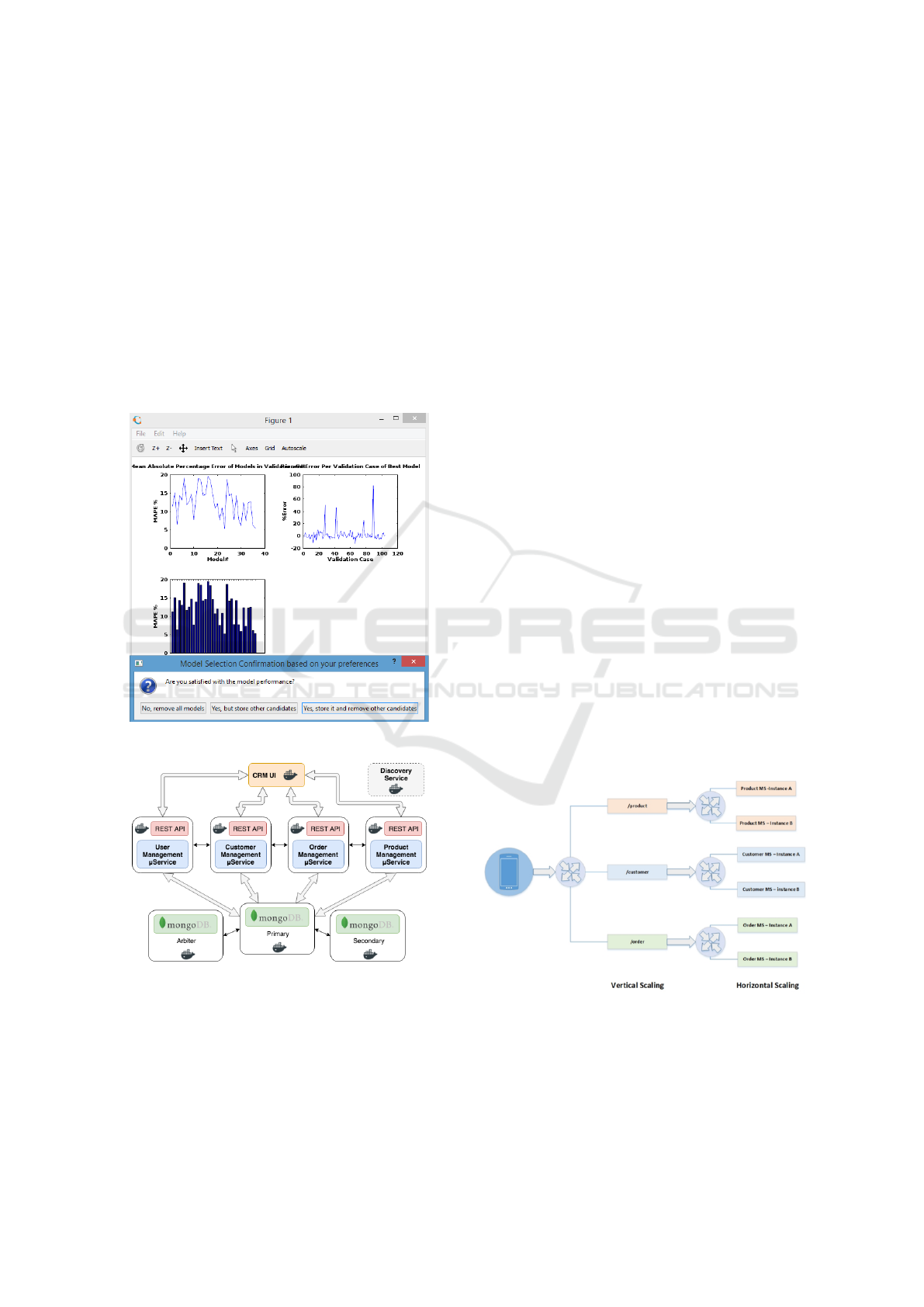

Upon ﬁnalization of the process, the UI part picks

up the control and presents the outcomes (error of all

the candidate models and detailed error of the best

model in all validation cases), asking the user whether

the outcome was satisfactory, in which case it stores

the model for future use. An example is illustrated in

Figure 3.

Figure 3: Mapping model performance.

Figure 4: Vertical structure of the CRM application.

4 PREDICTING QoS FOR A CRM

SaaS APPLICATION

For the purpose of validating the described mapping

approach, we employ a use case scenario involving

a multi-tenant SaaS application from the Customer

Relational Management (CRM) domain, deployed on

the Cloud at the IaaS level. This application, initially

deployed on a commercial on-premises infrastructure,

is moved to the IaaS layer in a horizontal manner. At

a glance, agents of the CRM application (users) log in

and perform customers, products and orders manage-

ment.

4.1 CRM Application Architecture

The CRM application follows the modern Microser-

vices architecture, according to which the application

logic is broken into several independent services, each

of which is charged with performing a speciﬁc task.

This allows for the application to be easily scalable

and become distributed in multiple hosting environ-

ments.

Figure 4 illustrates the application components,

along with their interconnections in a vertical struc-

ture. For the purposes of the current experimentation

we focus on the 4 Microservices that provide the core

functionality of the CRM application: Users, Prod-

ucts, Customers and Orders. Due to its nature, the

CRM application can be scaled up (modifying CPU

cores and memory) or out (adding more instances). In

the frame of this work, we experimented with various

test cases in order to assess a set of scalability scenar-

ios in terms of cost and performance. These scenarios

mainly considered scaling out, an example of which

is depicted in Figure 5.

In such cases, additional instances of degraded, in

terms of performance, components are deployed in or-

der to maintain the applications overall availability.

Figure 5: Scalability use of the CRM application.

A major performance indicator for any application

that users interact with in real-time, is the processing

time of user actions, i.e. the time that the system does

not allow further interactions until the previous action

is processed. In our case, the user does not interact

Mapping of Quality of Service Requirements to Resource Demands for IaaS

267

directly with the individual Microservices, but with

the UI one, which in turn spawns requests to the core

Microservices. Thus, we deﬁned as a KPI the average

processing time of each individual core Microservice:

Users, Products, Customers and Orders one.

Different workloads and host hardware conﬁgu-

ration mainly affect the processing time of each Mi-

croservice. To be able to predict processing time

based on given trafﬁc and hardware we utilized the

Mapping Models. For the following experiments, we

deployed all Microservices as docker containers in a

single dedicated host server.

4.2 Dataset Creation

Building a dataset for the Mapping Models required

the generation of enough paradigms of real user sce-

narios. For that purpose, we composed a simulation

of a common users scenario in the CRM (we call this

scenario lifecycle):

1. User logs in

2. User serves M customers

3. Each customer performs N orders

4. Each order is saved/updated K times

5. User logs out

We built a testbed application (the orchestrator)

based on a smooth combination of bash scripts, GO

and NodeJS codebase to load the CRM with a vari-

ety of lifecycle trafﬁc and retrieve statistical measure-

ments (memory usage, request execution time etc.)

from each individual CRM Microservice.

Table 1: Lifecycle script input parameters.

Parameter Values

experiment duration (sec) 30, 60, 120

#virtual users distributed

in the above duration

1, 10, 30, 50, 60, 90,

100, 120, 150, 200, 300

#customers (M) 2, 4

#orders per customer (N) 2, 4

#updates per order (K) 7

Table 2: Containers RAM (MB) per Service component per

batch execution.

Batch

Service 1 2 3 4

Orders 700 896 1384 1792

Customers 700 896 1384 1792

Products 1024 1596 2048 3096

Users 700 896 1384 1792

The script was executed by creating different

number of concurrent users each time. Table 1. shows

the parameter variations in the script conﬁguration.

All combinations of these values (132) formulated a

batch that was executed under a different hardware

setup each time. To achieve hardware variation in the

experiments, we modiﬁed the overall memory allo-

cated to each Docker container, creating four different

conﬁgurations for each batch Table 2.

Thus, the Mapping Models dataset was generated

by running the lifecycle batches (132) under the 4 dif-

ferent hardware proﬁles, providing 396 paradigms for

each Service component. Table 3 shows some indica-

tive values for the various Microservices, where:

• RAM: the overall memory allocated for the re-

spective docker container

• #Users: total number of virtual users created dur-

ing the scenario run

• #Request: the number of requests served by the

component

• #RPS: requests per second for the component

• Processing Avg: average Microservice process-

ing time

During the execution phase, we used the simplest

possible conﬁguration, i.e. a single instance of each

application Microservice. The Microservice perfor-

mance is monitored throughout the scenario execu-

tion time, and an average processing time is provided

as the ﬁnal Quality of Service meter. Each thread sim-

ulates the lifecycle scenario described in Section B of

the current document as UI actions, which are trans-

lated in a number of requests to the supporting service

components.

Figure 6: 3D view of the Customers service parameters.

As observed in the initial dataset results, most re-

quests during the lifecycle are generated in Orders

Microservice, while the RAM increment has a pos-

itive effect, only in Products and Users ones. Fig.

6 illustrates the main parameters of a Microservice

dataset in the 3D space.

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

268

Table 3: Mapping Models Dataset generated by the orchestrator.

Microservices RAM (MB) #Users #Requests RPS Processing Avg (msec)

Orders 700 10 70 3.04 23.59

Customers 700 10 70 3.04 23.59

Products 1024 10 20 0.87 104.70

Users 700 10 20 0.87 55.30

Orders 1792 10 70 2.92 23.03

Customers 1792 10 10 0.42 66.3

Products 3096 10 20 0.83 80.10

Users 1792 10 20 0.83 37.45

4.3 Evaluation of Experimental Results

To validate the accuracy of the Mapping Models ap-

proach, we compared them with three mainstream and

effective machine learning techniques, namely Sup-

port Vector Machines (SVMs), Random Forests (RFs)

and Linear Regression (LR). In order to achieve the

desired level of generalization and prediction perfo-

mance, the aforementioned models were tuned using

exhaustive Grid Search on a wide range of hyperpa-

rameter values, combined with k-fold cross-validation

as the model validation technique. In speciﬁc, for

the SVMs we used the RBF kernel, tuning the C and

gamma parameters. In Random Forests we tuned the

number of estimators, the maximum depth of the tree

and the minimum number of samples required to be at

a leaf node. Linear Regression, being a simple model,

performed poorly on the given dataset and its results

will not be presented. The code for these experiments

was written in python using the scikit-learn library

(Pedregosa et al., 2011).

Table 4: Percentage Errors Analytical Comparison.

Service ANN Random Forest SVM

Orders 9.6 18.17 20.83

Customers 6.22 10.51 9.33

Products 13.39 13.52 12.82

Users 8.37 9.38 9.38

The design parameters of each ANN model which

were conﬁgured, after 30 generations, by the Genetic

Algorithm (GA) with 3 candidate transfer functions

and a maximum of 10 layers and 30 neurons per layer

are illustrated in Table 5.

In order to keep the models simple, a different

model was built and trained for each different Mi-

croservice of the CRM application (given that they are

independent) resulting to better performance and to a

comprehensive insight of the behavior of each sepa-

rate Service Component. The validation metric for

these experiments was the Mean Absolute Percentage

Error (MAPE) of each model for the same test set.

An overview of the resulting MAPEs is illustrated

in Fig. 7, with the numbers for each Service sepa-

rately provided in Table 4. As it can be observed in

the provided results, the ANN, optimized by the Ge-

netic Algorithm, clearly outperforms the competition

for all services, being however less efﬁcient during

the training phase, due to the optimization step intro-

duced by the use of the GA.

Figure 7: Mapping Models, SVM and Random Forest Per-

formance Comparison.

5 CONCLUSIONS

This work presented a machine learning approach,

employing Artiﬁcial Neural Networks and a Genetic

Algorithm, in order to analyze resource, workload and

Quality of Service parameters trade-offs for a SaaS

application adopting resources from the IaaS layer.

This was evaluated using a real business CRM ap-

plication dataset, and compared to several existing

mainstream approaches. Evaluation results illustrated

the effectiveness of the ANN solution, in contrast

with other techniques. The application of the GA

makes the training of the current solution less efﬁ-

cient, adding an extra step, however during runtime

no signiﬁcant time deviation can be observed from

other approaches.

In terms of future work, the authors plan to in-

clude more hardware parameters (e.g. CPU cores)

Mapping of Quality of Service Requirements to Resource Demands for IaaS

269

Table 5: Neural Network parameters selected by GA.

Optimized ANN details Format

Service Layer Number Neuron per layer Transfer functions per Layer

Orders 4 5-3-2-1 tansig-logsig-logsig-purelin

Customers 3 5-3-1 tansig-logsig-purelin

Products 3 5-3-1 tansig-logsig-purelin

Users 3 5-3-1 tansig-tansig-purelin

and build an extended dataset for the aforementioned

application. This will provide a more thorough view

of resources and QoS relation and will result into a

more concrete analysis, taking into account also an

efﬁciency comparison of various approaches.

ACKNOWLEDGEMENTS

This work has been supported by the CloudPerfect

project and funded from the European Unions Hori-

zon 2020 research and innovation programme, topic

ICT-06-2016: Cloud Computing, under grant agree-

ment No 73225.

REFERENCES

Anastasi, G., Carlini, E., Coppola, M., and Dazzi, P. (2017).

Qos-aware genetic cloud brokering. In Future Gener-

ation Computer Systems 75, 1 - 13.

CloudPerfect: (2017). Enabling cloud orchestration, perfor-

mance and cost efﬁciency tools for qoe enhancement

and provider ranking. In http://cloudperfect.eu/.

Collazo-Mojica, X., Sadjadi, S., Ejarque, J., and Badia, R.

(2012). Cloud application resource mapping and scal-

ing based on monitoring of qos constraints. In SEKE.

Geeta and Prakash, S. (2017). A review on quality of service

in cloud computing. In Big Data Analytics, Advances

in Intelligent Systems and Computing. Springer Sin-

gapore, pp. 739 748.

Guazzone, M., Anglano, C., and Canonico, M. (2011).

Energy-efﬁcient resource management for cloud com-

puting infrastructures. In IEEE Third International

Conference on Cloud Computing Technology and Sci-

ence, pp. 424 431.

Kousiouris, G., Kyriazis, D., Gogouvitis, S., Menychtas, A.,

Konstanteli, K., and Varvarigou (2011). Translation

of application-level terms to resource-level attributes

across the cloud stack layers. In IEEE Symposium

on Computers and Communications (ISCC), pp. 153

160.

Kousiouris, G., Menychtas, A., Kyriazis, D., Gogouvitis,

S., and Varvarigou, T. (2014). Dynamic, behavioral-

based estimation of resource provisioning based on

high-level application terms in cloud platforms. In Fu-

ture Generation Computer Systems 32, 27 40.

Kousiouris, G., Menychtas, A., Kyriazis, D., Konstanteli,

K., Gogouvitis, S., Katsaros, G., and Varvarigou, T.

(2013). Parametric design and performance analy-

sis of a decoupled service-oriented prediction frame-

work based on embedded numerical software. In IEEE

Transactions on Services Computing 6, 511 524.

Kritikos, K., Magoutis, K., and Plexousakis, D. (2016).

Towards knowledge-based assisted iaas selection. In

IEEE International Conference on Cloud Computing

Technology and Science (CloudCom), pp. 431 439.

Papagianni, C., Leivadeas, A., Papavassiliou, S., M. V.,

Cervell-Pastor, C., and Monje, A. (2013). On the op-

timal allocation of virtual resources in cloud comput-

ing networks. In EEE Transactions on Computers 62,

1060 1071.

Pedregosa, F., Varoquaux, G., Gramfort, A., Michel, V.,

Thirion, B., Grisel, O., Blondel, M., Prettenhofer, P.,

Weiss, R., Dubourg, V., Vanderplas, J., Passos, A.,

Cournapeau, D., Brucher, M., Perrot, M., and Duch-

esnay, E. (2011). Scikit-learn: Machine learning in

python. In Journal of Machine Learning Research 12,

2825 2830.

Psychas, A., Violos, J., Aisopos, F., Evangelinou, A.,

Kousiouris, G.and Bouras, I. V. T., Xidas, G., Char-

ilas, D., and Stavroulas, Y. (2018). Cloud toolkit for

provider assessment, optimized application cloudiﬁ-

cation and deployment on iaas. In Future Generation

Computer Systems.

Ran, Y., Yang, J., and Zhang, S., X. H. (2017). ynamic

iaas computing resource provisioning strategy with

qos constraint. In IEEE Transactions on Services

Computing 10, 190 202.

Reig, G., Alonso, J., and Guitart, J. (2010). Prediction of

job resource requirements for deadline schedulers to

manage high-level slas on the cloud. In Ninth IEEE

International Symposium on Network Computing and

Applications, pp. 162 167.

Sun, Y., White, J., Eade, S., and Schmidt, D. (2017). Roar:

A qos-oriented modeling framework for automated

cloud resource allocation and optimization. In Jour-

nal of Systems and Software 116, 146 161.

Wu, L., G. S. B. R. (2011). Sla-based resource alloca-

tion for software as a service provider (saas) in cloud

computing environments. In Proceedings of the 2011

11th IEEE/ACM International Symposium on Cluster,

Cloud and Grid Computing, CCGRID 11. IEEE Com-

puter Society, Washington, DC, USA, pp. 195 204.

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

270
