2D-STR: Reducing Spatio-temporal Trafﬁc Datasets by Partitioning and

Modelling

Liam Steadman

, Nathan Grifﬁths

, Stephen Jarvis

, Stuart McRobbie

and Caroline Wallbank

Department of Computer Science, University of Warwick, Coventry, CV4 7AL, U.K.

TRL, Wokingham, RG40 3GA, U.K.

Keywords:

Spatio-temporal Data, Data Reduction, Data Partitioning.

Abstract:

Spatio-temporal data generated by sensors in the environment, such as trafﬁc data, is widely used in the

transportation domain. However, learning from and analysing such data is increasingly problematic as the

volume of data grows. Therefore, methods are required to reduce the quantity of data needed for multiple types

of subsequent analysis without losing signiﬁcant information. In this paper, we present the 2-Dimensional

Spatio-Temporal Reduction method (2D-STR), which partitions the spatio-temporal matrix of a dataset into

regions of similar instances, and reduces each region to a model of its instances. The method is shown to be

effective at reducing the volume of a trafﬁc dataset to <5% of its original volume whilst achieving a normalise

root mean squared error of <5% when reproducing the original features of the dataset.

1 INTRODUCTION

Spatio-temporal data generated by sensors in the en-

vironment is used widely in many domains. In the

transportation domain, trafﬁc data measures the speed

and ﬂow of a trafﬁc network at a speciﬁc location and

time. Analysing and learning from trafﬁc data allows

us to understand the relationship between different

roads or areas of a road network, as well as understand

the temporal characteristics of the network. Common

tasks in analysing trafﬁc data include: (i) imputing

missing instances, instances between sensors or time

intervals; (ii) identifying unusual behaviours, such as

sensors that perform unexpectedly or periods of time

wherein instances do not ﬁt expected trends; (iii) cal-

culating statistics, such as high and low values for a

time period or calculating the variance within a time

period from the expected trend; (iv) comparing time

periods or sensors, for example performing a month-

on-month time series analysis; and (v) predicting fu-

ture instances.

The volume of trafﬁc data in the transportation

domain has increased signiﬁcantly in recent years,

and this presents several challenges for data scien-

tists. Processing larger spatio-temporal datasets re-

quires more processing time and is sometimes infea-

sible entirely. Therefore, methods are required to re-

duce the volume of the data to be processed whilst

minimising the error introduced in later analysis or

modelling. The aim is not necessarily to compress the

data, since this may require decompression before the

data can be used again. Rather, we aim to summarise

the data in a manner such that analysis and processing

can be performed directly on the summarised data.

In this paper, we propose a new dataset reduc-

tion method, 2-Dimensional Spatio-Temporal Reduc-

tion (2D-STR), for decreasing the volume of a trafﬁc

dataset whilst minimising the information lost in the

process. The method uses the variance within the data

to partition the dataset, then models each resulting re-

gion using an appropriate modelling technique. The

algorithm iteratively trades information loss for quan-

tity of data output until an objective function is min-

imised. 2D-STR is designed to be extensible given the

uses of the reduced dataset in further analysis, and is

evaluated using data recorded from trafﬁc count sen-

sors within a motorway network in England.

The remainder of this paper is structured as fol-

lows. Section 2 reviews existing methods for reduc-

ing the volume of a trafﬁc dataset. Section 3 for-

malises the problem to be solved and introduces the

notation used in this paper, and Section 4 describes

the proposed data reduction method. Sections 5 and

6 evaluate the effectiveness of 2D-STR on a set of

trafﬁc datasets taken from locations in England and

compares it with other techniques. Finally, Section 7

concludes the paper and gives some future directions

of the work.

Steadman, L., Grifﬁths, N., Jarvis, S., McRobbie, S. and Wallbank, C.

2D-STR: Reducing Spatio-temporal Trafﬁc Datasets by Partitioning and Modelling.

DOI: 10.5220/0007679100410052

In Proceedings of the 5th International Conference on Geographical Information Systems Theory, Applications and Management (GISTAM 2019), pages 41-52

ISBN: 978-989-758-371-1

2 RELATED WORK

It is often infeasible to process a spatio-temporal

dataset in its raw form because of the volume of data

present. Therefore, several techniques exist for re-

ducing the quantity of data in order to facilitate faster

modelling and analysis. In this section, we give an

overview of existing methods for achieving this aim.

2.1 Selection and Engineering of

Features and Instances

Many existing methods for reducing datasets focus on

removing or retaining a subset of features or instances

from the original dataset. Feature selection tech-

niques can be separated into three categories. First,

ﬁlter methods rank features in the dataset according

to a relevancy criterion, such as Shannon entropy,

and remove any features which score below a deﬁned

threshold. Second, wrapper methods use search al-

gorithms to ﬁnd the optimal subset of features ac-

cording to an objective function. The third category,

embedded methods, incorporate feature selection as

part of the training process of machine learning tech-

niques. Several feature selection techniques for real-

valued data exist, and a number of reviews of these

can be found in related literature (Xue et al., 2016; Li

et al., 2017). Similar to feature selection, instance se-

lection techniques have been surveyed in the context

of different application domains (Garcia et al., 2012;

Acampora et al., 2016; Mukahar and Rosdi, 2018).

In contrast to selection techniques, feature engi-

neering techniques (often referred to as feature ex-

traction) project the original features of a dataset

onto a new feature space, often of a differing dimen-

sionality. Some feature engineering techniques map

the original dataset onto a smaller set of engineered

features, thus reducing the volume of the dataset.

The best mapping is that which optimises an objec-

tive criterion, such as explained variance or accu-

racy when combined with modelling. Feature extrac-

tion methods can be grouped into linear algorithms,

such as Principal Components Analysis (PCA) (Pear-

son, 1901) and Linear Discriminant Analysis (LDA)

(Martinez and Kak, 2001), and non-linear algorithms,

such as Isomap and Locally Linear Embedding (LLE)

(Tenenbaum et al., 2000; Roweis and Saul, 2000).

Instance engineering techniques (often referred to

as feature abstraction or prototyping) create a smaller

set of prototype instances which represent the origi-

nal instances. Prototyping has been shown to be ef-

fective in reducing the size of training sets required

for tasks such as k-Nearest Neighbour classiﬁcation

(Ougiaroglou and Evangelidis, 2012).

Whilst effective at reducing the volume of a

dataset, feature and instance selection techniques may

remove data and patterns that are signiﬁcant for sub-

sequent analysis. They fail to capture the spatial and

temporal nuances of the data and require the user

to have knowledge of the modelling or analysis they

will perform ahead of time. Instead, it may be more

beneﬁcial to retain information about all features and

instances. Furthermore, the features output by ex-

traction techniques are often incomprehensible to hu-

mans and require mapping back to the original fea-

ture space. The instances resulting from instance en-

gineering may not exist in the original dataset and this

may cause problems in later processing. Finally, se-

lection and engineering techniques do not take advan-

tage of the spatio-temporal correlations in the data.

2.2 Data Sketching

Data sketching techniques create query-speciﬁc sum-

maries using a ﬁxed number of passes over the data.

Many of these techniques require just one pass over

the data and so are very fast to compute.

Many sketching techniques focus on counting

items, such as the Count-Min sketch and its adap-

tation for real-valued data (Cormode and Muthukr-

ishnan, 2005; Sisovic et al., 2018), and determining

membership, such as the Bloom Filter (Bloom, 1970).

Other techniques, such as the HyperLogLog (HLL)

algorithm, focus on answering cardinality queries

(Flajolet et al., 2007). Most sketching techniques do

not consider the spatial and temporal nature of the

data and do not support analysis questions such as

those presented in Section 1.

In the spatio-temporal domain, methods have been

proposed that combine instance selection data sketch-

ing with the Kalman ﬁlter to track large-scale spatio-

temporal processes (Berberidis and Giannakis, 2015;

Berberidis and Giannakis, 2017). Furthermore, Tai et

al. presented a sketching method for building linear

classiﬁers over a spatio-temporal dataset (Tai et al.,

2018). This method destroys features which are not

heavily weighted by the linear classiﬁer and so pre-

vents analysis of all features. Sketching techniques

are still limited in the analyses or later modelling they

support (Cormode et al., 2012). They are created

speciﬁcally for particular queries and since the origi-

nal dataset is destroyed after the sketch is created, it

is not possible to recreate the data for other analyses.

2.3 Data Reduction by Modelling

Whilst the techniques discussed above result in the

loss of instances or features, some techniques have

GISTAM 2019 - 5th International Conference on Geographical Information Systems Theory, Applications and Management

been investigated for reducing a dataset using statis-

tical modelling. The IDEALEM algorithm partitions

a data stream into blocks of a ﬁxed size (Wu et al.,

2017). Key statistical properties about these blocks,

such as min, max and average values, are then used

to identify similar blocks which can be reduced to

the same model. By processing each of its proto-

type blocks, IDEALEM allows us to identify unusual

temporal periods that do not ﬁt expected trends. In

the same way, generating statistics over the stream is

faster when compared to processing the raw dataset.

IDEALEM also enables an element of time series

analysis and comparison of different sensors or time

periods. However, since prototype blocks are retained

in the form of raw data, and the method only consid-

ers the temporal nature of spatio-temporal data, IDE-

ALEM does not permit spatio-temporal imputation.

Similar to IDEALEM, the ISABELA algorithm

partitions each feature into ﬁxed size spatial windows

and sorts the instances into ascending order within

each window (Lakshminarasimhan et al., 2011). A

B-spline curve is then ﬁtted to each window and the

parameters for the curve of each window stored us-

ing temporal encoding. ISABELA permits the gener-

ation of statistics for given temporal and spatial pe-

riods, provided that those periods cover the spatial

and temporal windows used by ISABELA exactly

and, in the same way, partially permits identifying un-

usual spatio-temporal regions. However, since the in-

stances in each window are stored in ascending order

by value, a mapping from this ordering to the tem-

poral ordering also needs to be stored. Many sensor

datasets, such as trafﬁc datasets, are more smooth and

cyclic than the scientiﬁc data ISABELA was designed

for, and so can be modelled effectively without need-

ing to be sorted (Birvinskas et al., 2012).

Deep autoencoders have also been used to model

the temporal features of spatio-temporal datasets

(Wang et al., 2016). The Sparse Autoencoder (SAE)

has been used to reliably estimate missing data in

spatio-temporal sensor datasets (Wong et al., 2014).

This ﬁtting of a summary, which minimises the root

mean square error (RMSE) over instances in both the

discrete spatial and temporal dimensions, is able to

impute missing values given other instances from the

same time. It may be possible to adapt this approach

to incorporate multiple time instances, e.g. the whole

dataset, and store the autoencoder weights for the pur-

poses of reproducing the dataset. However, autoen-

coder weights can be difﬁcult to interpret and so pre-

vent manual analysis of the reduced dataset.

In the domain of trafﬁc dataset analysis, Pan et al.

have proposed a two-part algorithm that summarises

a spatio-temporal trafﬁc sensor dataset (Pan et al.,

2010). Their method creates a spatio-temporal signa-

ture of the dataset using a technique such as wavelet

decomposition, and probabilistically stores separately

the outliers that fall outside an acceptable error mar-

gin of this signature. Whilst this technique accounts

for the cyclic and seasonal natures of trafﬁc data, it

performs poorly in reducing regions containing many

outliers. For example, instances from national hol-

idays (temporal domain) and areas of construction

work (spatial domain) which are known to break reg-

ular trafﬁc cycles will be labelled as outliers. There-

fore, such instances will need to be stored in their raw

form thereby hindering the reduction of data volume.

The algorithm permits analysis of unusual periods, by

examining the signatures and outliers of the period,

comparison of time series, and statistics to be gener-

ated from the data in its reduced format.

In our review of literature these are the only ex-

amples of reduction by modelling for spatio-temporal

data, and the technique presented by Pan et al. is the

only example for trafﬁc data. This suggests that the

topic of reducing a dataset to a set of spatio-temporal

regions and models has yet to be explored deeply.

3 SPATIO-TEMPORAL DATASET

REDUCTION

Many spatio-temporal datasets, such as trafﬁc

datasets, contain spatial areas and temporal periods

which exhibit low amounts of change. That is, the

instances within these areas and periods have low

variance when compared to the variance of the entire

dataset. For example, a trafﬁc sensor may record sim-

ilar average speeds and vehicle counts for several con-

secutive 15-minute windows throughout the day. To

decrease the quantity of data to be analysed or mod-

elled in these cases, we can group similar consecutive

instances together to form spatio-temporal regions in

which the data exhibits low variance. We do not wish

to lose information of any features, sensors or time in-

tervals, however we do wish to decrease the quantity

of data present in the resulting dataset. It is desirable

to support many types of analysis or modelling, and

multiple passes of the dataset are permitted. By iden-

tifying regions of similar instances in the dataset and

reducing these regions to models, these requirements

are met. The nuances of the original instances can

be maintained and answering queries on the dataset is

still supported. This section formalises this approach

and the notation used in this paper.

A trafﬁc dataset D is a set of instances in the T × S

space, where T is a set of discrete time intervals and

S is a discrete set of spatially ﬁxed sensors along the

2D-STR: Reducing Spatio-temporal Trafﬁc Datasets by Partitioning and Modelling

road. We assert that D may contain missing instances,

i.e |D| ≤ |T | · |S|, and that T and S are ordered, thus it

is possible deﬁne ranges over them. We can view D as

a 2-dimensional matrix (Figure 1(a)), where columns

represent the ordered set of discrete sensors and rows

represent the ordered set of discrete time intervals. By

permitting missing instances we also allow for sen-

sors to be asynchronous.

Each instance d

t,s

is a vector of values over F ∈

N features, d

t,s

= (d

t,s

(1),...,d

t,s

(F)). For example,

these features may be vehicle count and average vehi-

cle speed. In this work, for the purposes of generality,

we assume the non-referencing features in D are real-

valued. Thus, D : T × S → R

. Techniques exist for

representing binary and categorical features as real-

valued data, and appropriate clustering algorithms can

be used for binary and categorical features.

We wish to ﬁnd the set R of non-overlapping re-

gions in the T × S space, where each region R

is a

rectangle (Figure 1(d)). Each region R

has a deﬁned

beginning and ending time, t

and t

, and a beginning

and ending sensor, s

and s

. Furthermore, we use r

to denote the subset of instances from dataset D that

belong to region R

, r

= {d

t,s

∈ D|t

≤ t ≤ t

≤ s ≤

: (t

) = R

Each region R

is associated with a model M

which is ﬁtted to the instances r

. The reduction uses

a single modelling technique, which is able to charac-

terise the spatio-temporal nuances of the dataset, for

all models. We refer to the set of summary models in

the reduction as M = (M

,...,M

|R|

), and denote |M

to be the number of coefﬁcients used to store model

. Finally, we use the term reduction to refer to a

pair of regions and their models (R, M). The notation

used in this paper is summarised in Table 1.

In reducing D to (R, M) we wish to minimise the

information lost. We refer to the information lost

by reducing D to reduction (R,M) as e(D,(R,M)).

One method of measuring information loss is to recre-

ate the dataset as D

using the set of region models

(R,M), and then use an appropriate measure of the

difference between each instance in D and its corre-

sponding instance in D

, i.e. e(D,(R,M)) = e(D,D

A simple example is the Mean Absolute Percentage

Error (MAPE) averaged across the dataset:

MAPE

(D,D

) =

|D| · F

∑

t,s

∈D

∑

j=1



t,s

( j) − d

t,s

( j)

t,s

( j)



(1)

An alternative measure is the Normalised Root

Mean Square Error (NRMSE) averaged across the

dataset:

NRMSE

(D,D

) =

∑

j=1

ψ( j,D,D

)

range( j)

(2)

Table 1: Notation used in this paper.

Symbol Deﬁnition

D Original dataset over the discrete or-

dered set of time intervals T and set

of sensors S

F The number of real-valued features

in D, excluding the referencing fea-

tures T and S

t,s

An individual instance in D

t,s

( j) Value of d

t,s

for feature j

R A set of non-overlapping spatio-

temporal regions on D

An individual spatio-temporal re-

gion in R

Set of instances of dataset D con-

tained in region R

M Set of summary models belonging to

regions R of dataset D

Summary model of region R

, ﬁtted

over the instances r

, with the num-

ber of coefﬁcients used to store M

represented as |M

(R,M) A reduction of dataset D

e(D,(R,M)) Error introduced after D is reduced

to regions R and their models M

q(D,(R,M)) Ratio of storage required for regions

R and summary models M compared

to the original dataset D

h(D,(R,M)) Objective function used to ﬁnd the

best reduction given parameter α,

the constant that prioritises between

e(D,(R,M)) and q(D,(R,M))

where,

ψ( j,D,D

) =

∑

t∈T

∑

s∈S

t,s

( j) − d

t,s

( j))

|D|

and range( j) = max

t,s

( j)) − min

t,s

( j)). It is

preferable to use the MAPE metric when the error of

an instance relative to its original values is important.

Conversely it is preferable to use the NRMSE metric

when the error of an instance relative to the range of

values observed for the feature is preferred.

Whilst minimising the information lost across D,

we also wish to minimise the storage cost of the data.

In the case of the original dataset this is given by the

number of instances multiplied by the number of fea-

tures including the spatial and temporal referencing

features, as shown in Equation 3. In the case of the re-

duced dataset, the data output is a start and end value

of each region in the spatial and temporal dimensions,

along with the coefﬁcients required to store the model

GISTAM 2019 - 5th International Conference on Geographical Information Systems Theory, Applications and Management

(a)

(b)

(c)

(d)

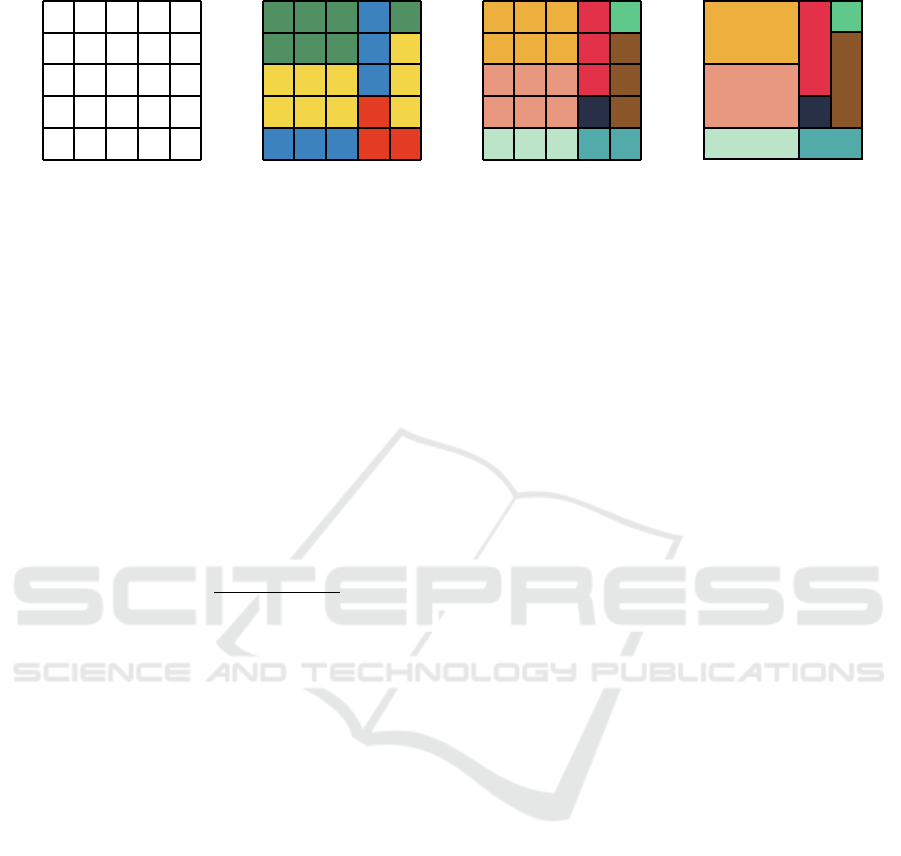

Figure 1: Stages of the hierarchical partitioning technique: (a) the raw data; (b) the data clustered into 4 clusters using

hierarchical clustering (clusters coloured green, yellow, blue and red); (c) rectangles of contiguous clusters are found in the

spatio-temporal feature space; (d) the resulting 8 regions, where instances within each region belong to the same cluster.

for each region. Since a single modelling technique is

assumed to be used throughout the dataset there is no

need to store the modelling technique used. The stor-

age required for a reduced dataset is shown in Equa-

tion 4, and we use the quotient of these two measures

to deﬁne the storage ratio, as shown in Equation 5.

storage(D) = |D| · (|F| + 2) (3)

storage((R,M)) =

|M|

∑

i=1

| + (4 · |R|) (4)

q(D,(R,M)) =

storage((R,M))

storage(D)

(5)

In data reduction, we require an objective func-

tion that guides the methodology and allows the user

to indicate their preference for the trade-off between

minimising storage cost and information loss. The

objective function used in this paper is the sum of the

information lost and the storage ratio, as used in (Guo

et al., 2012):

h(D,(R,M)) = e(D,R)+αq(D,R) (6)

Here, α is a user-deﬁned constant that weights the

importance of storage cost against information loss.

4 2D-STR

The 2-Dimensional Spatio-Temporal Reduction algo-

rithm, 2D-STR, is an iterative algorithm that begins

with a single rectangular region over the T ×S spatio-

temporal space deﬁned by D. A model, of the lowest

order, is ﬁtted to the instances in this region using a

predeﬁned modelling technique. On each iteration the

algorithm decides whether to partition the T ×S space

into more non-overlapping rectangular regions, or in-

crease the model complexity of one of the existing

regions, thereby aiming to improve its accuracy. The

decision made at each step is that which minimises

the objective function h(D,(R,M)). The function uses

the parameter α to weight the importance of storage

reduction and model accuracy.

4.1 Data Partitioning

To reduce a dataset, 2D-STR ﬁrst partitions the

dataset into regions of similar instances. Whilst meth-

ods exist for partitioning a dataset, such as quadtree

and octree (Samet, 1984), the number of new parti-

tions introduced by these methods at each level of de-

composition is ﬁxed. Instead, it is more beneﬁcial

to use the variance within the data to determine how

many partitions are introduced at each level. 2D-STR

uses a novel technique, based on the variance within

the data, to partition the data.

First, the instances in the dataset D are clustered

using hierarchical agglomerative clustering in the fea-

ture space (Figure 1(b)). By clustering instances us-

ing the F features in the dataset rather than clustering

in the T × S space, 2D-STR ﬁnds instances that have

similar feature values regardless of when and where

the instances were generated. Hierarchical clustering

is used as the clusters found in the feature space are

not expected to be globular and the resultant hierar-

chical tree permits fast retrieval as the number of clus-

ters required changes (Fahad et al., 2014).

After clustering, each instance in the T × S spatio-

temporal matrix is labelled with the cluster it has been

grouped into. To partition the T × S spatio-temporal

matrix into homogeneous rectangular regions, that is

regions containing instances belonging to the same

cluster, a Monte Carlo algorithm is used (Figure 1(c))

(Lemley et al., 2016). On each iteration, the regioning

algorithm randomly chooses an instance from the ma-

trix which has yet to be placed into a region and uses

it as a starting point for a new region. Starting with

this instance and whilst ensuring cluster homogeni-

ety, the algorithm iteratively adds instances with the

same time value from each preceding sensor along

the road to the region. When an instance belonging

2D-STR: Reducing Spatio-temporal Trafﬁc Datasets by Partitioning and Modelling

to a different cluster is about to be added to the re-

gion, the algorithm stops adding preceding sensors.

The same action is then repeated for sensors ahead of

the starting instance along the road, and the beginning

and ending time intervals of the region. This results

in rectangular regions of the form depicted in Figure

1(d), and rectangular regions are required to ensure

that the range of each region over space and time can

be easily deﬁned and stored.

As the number of clusters is increased, the hierar-

chical clustering decomposes just one branch of the

cluster tree. As a result, many clusters are unchanged

and retain the same instances. Therefore, the regions

deﬁned for these clusters remain the same. Retaining

regions between iterations is useful as it allows the

models for these regions to persist between iterations.

4.2 Region Modelling

After partitioning D into regions, a technique is re-

quired to model the instances within each region. A

model M

is ﬁtted to the instances in each region us-

ing the spatial and temporal values of the instances

in the region as the independent values of the model,

and the values of the real-valued features as depen-

dent values. To maximise the utility of the reduction,

we require the ability to reconstruct the instances of

the dataset after modelling is performed. However, if

the type of analysis to be performed after reduction

is already known and reconstruction is not required,

more appropriate modelling techniques may be used.

In this paper, we consider two illustrative mod-

elling techniques. First, we consider polynomial lin-

ear regression (PLR) because of its ability to ex-

plain trafﬁc sensor data well whilst remaining easy

to interpret and interpolate. Second, we consider

2-dimensional Discrete Cosine Transforms (DCT)

since, like trafﬁc datasets that have been reduced

in previous work (Birvinskas et al., 2012), the traf-

ﬁc data we consider is cyclic and can be explained

well using cosine waves. Each feature is modelled

independently and all features are therefore recon-

structable. In general, the modelling technique used

should allow for variable model complexities, such as

the number of terms used in regression or the number

of coefﬁcients stored for discrete cosine modelling.

4.3 Data Reduction

Before the algorithm can be initiated, a value for α

must be chosen which weights model accuracy, or er-

ror, against the storage ratio in the objective function

(Equation 6). 2D-STR is initiated by partitioning the

instances, as described in Section 4.1, using a single

cluster. Since there is just one cluster, only one region

is created, R

. This region is then modelled using the

simplest form of the modelling technique used: in the

case of polynomial regression a polynomial model of

order 0 (simply a mean) is constructed for each fea-

ture; in the case of DCT only the ﬁrst cosine coefﬁ-

cient is considered. After the model is ﬁtted to the

data the result of the objective function h(D, (R,M))

is calculated for this initialisation step.

After initialisation the algorithm iterates, at each

step deciding whether to increment the number of

clusters, and partition the T ×S spatio-temporal space

into more regions, or increase the complexity of one

of the existing models. When the number of clusters

is incremented, one of the existing clusters is split into

two new clusters whilst the other clusters remain the

same. The models for the regions in the unchanged

clusters persist, improving efﬁciency, whilst new re-

gions are found over the new clusters. Given a cur-

rent set of regions and their models, (R,M), the steps

taken on each iteration are as follows.

1. For each of the regions R

in R:

(a) Let M

be a duplicate of M

(b) Let M

∈ M be the current summary model ﬁt-

ted to instances in r

and M

be a new model

ﬁtted to the instances in r

with one degree of

complexity more than M

∈ M

with M

(d) Calculate h

= h(D,(R, M

))

2. Increase the number of clusters by 1 and then:

(a) Create the set of regions R

over the T × S

space. Let M

be a new set of models, where

clusters over the T × S space that remain un-

changed retain the same regions and models as

in R, and clusters that are split gain new regions

with these regions being marked as ‘new’

(b) For each of the regions R

∈ R

marked as

‘new’:

i. Fit model M

to the instances r

with degree 1

ii. Add M

to the set M

= h(D,(R

))

3. If step 2 minimised the objective function more

than step 1, i.e. h

> h

, and h(D,(R,M)) > h

the reduction (R

) is carried forward. Oth-

erwise, if h

> h

and h(D,(R,M)) > h

then

(R,M

) is carried forward to the next iteration. If

h(D,(R,M)) > h

, h(D,(R,M)) > h

and h

= h

the algorithm chooses arbitrarily

The algorithm stops when no future step can

minimise the objective function further, i.e. h

≥

h(D,(R,M)) and h

≥ h(D,(R, M)).

GISTAM 2019 - 5th International Conference on Geographical Information Systems Theory, Applications and Management

Table 2: Percentage completeness of the datasets used for

evaluating the performance of 2D-STR.

Apr ’17 Sep ’17 Nov ’17 Dec ’17

A30 81.0 79.1 71.1 85.9

A66 89.5 77.8 76.8 86.4

A69 88.1 82.3 82.2 89.8

M11 70.1 64.3 62.7 68.1

M1 83.0 86.5 78.5 80.0

M20 77.4 86.0 78.9 69.3

M23 91.3 89.2 79.9 85.7

M56 90.7 87.7 82.8 93.6

5 EXPERIMENTAL

METHODOLOGY

To evaluate the performance of 2D-STR, a set of

28 spatio-temporal datasets was used, consisting of

month-long surveys of trafﬁc counting sensors in

England. The datasets consisted of samples from the

A30, A66 and A69 trunk roads as well as the M1,

M11, M20, M23 and M56 motorways. These roads

were chosen for their differing spatial resolutions and

non-uniformly distributed sensors, as well as their dif-

fering trafﬁc characteristics. The datasets contained

values from sensors located on slip roads and main

carriageway, with differing quantities of the two types

of road. Furthermore, the distribution of slip roads

and main carriageway within the spatial feature space

was different for each road. We chose samples from

April, September, November and December 2017 to

include a range of different trafﬁc trends, i.e. pub-

lic holidays, and the end of the summer season when

many return to school or work from holiday. Each

of the datasets consisted of 30 sensors sampled at

15 minute intervals, yielding datasets containing be-

tween 54,180 and 83,549 instances. The percentage

completeness of the datasets, that is the number of in-

stances compared to the number of sensors and time

intervals, |D|/(|S| · |T |), can be seen in Table 2.

Each dataset contained 6 features, each exhibit-

ing different trends across the spatial and temporal di-

mensions. The features were:

1. Count of vehicles of length 0 – 520 cm

2. Count of vehicles of length 521 – 660 cm

3. Count of vehicles of length 661 – 1160 cm

4. Count of vehicles of length 1160+ cm

5. Total count of all vehicles

6. Average speed of all vehicles

To measure the performance of 2D-STR, we con-

sider NRMSE and storage ratio, as deﬁned in Equa-

tions 2 and 5. NRMSE was used as it indicates how

well each feature is recreated by the summary mod-

elling. Since it measures the modelling error as a per-

centage difference over the range of a feature, rather

than the feature-instance values themselves, NRMSE

was preferred over MAPE. Using NRMSE better re-

ﬂects the need to recreate each feature across all ob-

served values, rather than allowing errors of smaller

feature-instance values to dominate larger ones.

Four variations of 2D-STR were used: polynomial

linear regression modelling on each region (PLR-R),

polynomial linear regression modelling on each clus-

ter (PLR-C), discrete cosine modelling on each region

(DCT-R), discrete cosine modelling on each cluster

(DCT-C). Furthermore, 5 values for the parameter α,

which weights model accuracy against storage ratio

in the objective function (Equation 6) were evaluated,

namely α ∈ {0.01,0.1, 0.5,1.0, 2.0}.

To compare 2D-STR with other reduction meth-

ods, we considered IDEALEM (with default param-

eter settings), DEFLATE (Deutsch, 1996) and PCA.

The 2D-STR method is compared with IDEALEM

since both permit statistical analysis and modelling

to be performed without requiring a further transfor-

mation of the dataset. We compared our technique

with DEFLATE owing to its use in popular compres-

sion algorithms, and PCA owing to its popularity as a

feature engineering technique.

6 RESULTS AND DISCUSSION

In this section, we investigate the effect of the α pa-

rameter and choice of modelling technique, using the

datasets introduced in Section 5, and compare the per-

formance of 2D-STR with other techniques.

6.1 Analysis of Trafﬁc Data

One aim of 2D-STR is to enable analysis of the re-

duced dataset without requiring further data transfor-

mations. In this section, we analyse the partitioning

of the datasets introduced in Section 5 by 2D-STR.

We suggest that 2D-STR is able to identify structural

properties of the datasets.

2D-STR was found to distinguish between in-

stances from daytime and nighttime when two clus-

ters were selected. On motorways, 2D-STR also iden-

tiﬁed slip roads and placed them into the same cluster

as the nighttime instances, regardless of the time that

the slip road instance was recorded. As the number of

clusters was increased, the daytime cluster was bro-

ken into smaller clusters as this cluster contained the

highest variance. Successive clusters appeared around

2D-STR: Reducing Spatio-temporal Trafﬁc Datasets by Partitioning and Modelling

times of high change on the main carriageway sen-

sors, speciﬁcally the increase and decrease of total

trafﬁc volume around the beginning and ending of the

working day. Instances from slip roads remained in

the same cluster as nighttime instances.

It was observed that the number of regions was

a product of the number of clusters selected by 2D-

STR, the number of days in the data sample, and the

number of slip roads and their position on the road.

Thus, as the number of clusters was increased the

number of regions grew proportional to the number of

slip roads and number of days in the dataset. In partic-

ular, the difference in trafﬁc volume and type between

night and day creates regions that separate the night-

time and daytime of each new day in the dataset.

The position of regions in time was indicative of

temporal trends in the datasets. Public holidays were

observed to omit regions of high trafﬁc volume, indi-

cating unusual trafﬁc volumes during daytime. Peri-

ods of differing trafﬁc volumes were identiﬁed by the

partitioning method and accidents were easily iden-

tiﬁable by sudden changes of high trafﬁc volume re-

gions to low trafﬁc volume regions. Similarly, peri-

ods of high congestion or trafﬁc appeared as separate

clusters and regions.

6.2 Storage and Error Trade-off, and

Choice of Modelling Technique

The NRMSE, storage ratio and number of iterations

required to reach the stopping criterion, averaged over

the datasets, are shown in Figure 2. Each boxplot

shows the interquartile and median error values for

NRMSE and storage metrics of the best reduction for

each dataset. The whiskers on each boxplot show the

minimum and maximum reported of all results.

We can draw several conclusions regarding the ap-

plication of 2D-STR to the datasets considered in this

paper. First, more accurate summaries of the dataset

occurred when α was small (e.g. α ∈ {0.01,0.1})

and model accuracy was favoured over storage vol-

ume. Conversely the opposite was true when α was

large (e.g. α ∈ {1,2}). Second, DCT summaries

(DCT-R and DCT-C) tended to yield more accurate

summaries than polynomial regression (PLR-R and

PLR-C) given the same α parameter value. Third,

values for α in the middle of the range of those evalu-

ated tended to give less consistent results, as indicated

by the larger interquartile range and extreme values

shown. Finally, the lower NRMSE values reported

for modelling on regions (PLR-R and DCT-R) shows

that modelling on regions yielded slightly more accu-

rate representations than modelling on clusters.

As shown in Figure 2, summary modelling on

regions (PLR-R and DCT-R) required signiﬁcantly

fewer iterations to reach the stop criterion. Mod-

elling on clusters (PLR-C and DCT-C) required sig-

niﬁcantly more iterations, and the modelling process

took longer owing to the larger number of instances

within each model. It was noted that modelling on re-

gions yielded fewer regions for lower α values than

modelling on clusters because the latter method re-

sults in fewer models which in turn have a higher error

when compared to their instances. Polynomial regres-

sion modelling (PLR-R and PLR-C) resulted in many

models when α was small, each of which was simple,

and few models when α was large, all of which were

more complex. Discrete cosine modelling (DCT-R

and DCT-C) was found to behave similarly when α

was small, whilst at larger α values the best iteration

was often the ﬁrst, with one DCT coefﬁcient stored

for the entire dataset. For large values of α, neither

increasing the number of regions nor increasing the

complexity of the existing DCT model gave a lower

storage ratio (q(D,(R,M))) than the ﬁrst step. This re-

sult may help to explain why such models gave worse

NRMSE scores but yielded very low storage values.

Overall, these results show that it is possible to

reduce a spatio-temporal trafﬁc sensor dataset signif-

icantly whilst incurring tolerable errors. In different

scenarios, different choices of α and modelling tech-

nique may be desirable. When model accuracy is im-

portant, DCT modelling on either regions or clusters

(DCT-R or DCT-C) may be preferable. These meth-

ods gave between 2.4% and 5.5% NRMSE when α

was 0.01 and 0.1. When modelling on clusters (DCT-

C) with α = 0.1, less than 12% of the original data

volume was required to reach these error rates. Whilst

higher NRMSE values indicate that the modelling

does not ﬁt the instances so well, the smooth regres-

sions output captures the low-frequency trends of the

dataset well and removes some of the high-frequency

ﬂuctuations in the dataset. This smoothing effect can

be used as a way of reducing noise in the dataset.

When few output models are desired, modelling

on clusters (PLR-C and DCT-C) is useful. Polynomial

regression modelling on clusters (PLR-C) yielded a

maximum of 7 models per feature for the entire re-

duced dataset and DCT modelling (DCT-C) yielded a

maximum of 12 models per feature. This may be par-

ticularly useful for applications where interpretation

of the output models is desired.

A low number of regions can be found by us-

ing high α values across all of the modelling tech-

niques evaluated. In particular, DCT modelling on

regions (DCT-R) consistently yielded a low number

of regions for α = 0.5,1.0 and 2.0 whilst the aver-

age NRMSE error was less than 10%. Again, this

GISTAM 2019 - 5th International Conference on Geographical Information Systems Theory, Applications and Management

0.01 0.1 0.5 1.0 2.0

AverageNRMSEoverallfeatures(%error)

Valueofalphaparameter

(a) NRMSE for PLR-R

0.01 0.1 0.5 1.0 2.0

Storageofreduceddataset(%oforiginalvolume)

Valueofalphaparameter

(b) Storage ratio for PLR-R

100

0.01 0.1 0.5 1.0 2.0

Numberofiterationstomeetoptimalreduction

Valueofalphaparameter

0.01 0.1 0.5 1.0 2.0

AverageNRMSEoverallfeatures(%error)

Valueofalphaparameter

(d) NRMSE for PLR-C

0.01 0.1 0.5 1.0 2.0

Storageofreduceddataset(%oforiginalvolume)

Valueofalphaparameter

(e) Storage ratio for PLR-C

100

0.01 0.1 0.5 1.0 2.0

Numberofiterationstomeetoptimalreduction

Valueofalphaparameter

(f) Number of iterations for PLR-C

0.01 0.1 0.5 1.0 2.0

AverageNRMSEoverallfeatures(%error)

Valueofalphaparameter

(g) NRMSE for DCT-R

0.01 0.1 0.5 1.0 2.0

Storageofreduceddataset(%oforiginalvolume)

Valueofalphaparameter

(h) Storage ratio for DCT-R

100

0.01 0.1 0.5 1.0 2.0

Numberofiterationstomeetoptimalreduction

Valueofalphaparameter

(i) Number of iterations for DCT-R

0.01 0.1 0.5 1.0 2.0

AverageNRMSEoverallfeatures(%error)

Valueofalphaparameter

(j) NRMSE for DCT-C

0.01 0.1 0.5 1.0 2.0

Storageofreduceddataset(%oforiginalvolume)

Valueofalphaparameter

(k) Storage ratio for DCT-C

100

0.01 0.1 0.5 1.0 2.0

Numberofiterationstomeetoptimalreduction

Valueofalphaparameter

(l) Number of iterations for DCT-C

Figure 2: Reduction results over trafﬁc sensor datasets. Each sub-ﬁgure shows the results from 2D-STR using 5 values for

the parameter α, which weights model accuracy against storage ratio. The left column reports NRMSE averaged across the

features in the datasets. The middle column reports the quantity of data output by the reduction as a percentage of the original

data volume. The right column reports the number of iterations used by the algorithm. Results are shown for polynomial

regression on each region (PLR-R), polynomial regression on each cluster (PLR-C), discrete cosine modelling on each region

(DCT-R) and discrete cosine modelling on each cluster (DCT-C).

would be particularly useful for interpretability, in-

cluding fast visualisation of the whole dataset.

Finally, when a fast reduction is required, poly-

nomial and DCT modelling on regions (PLR-R and

DCT-R) is useful, particularly when α = 0.01 or 0.1.

These results showed small NRMSE error rates com-

pared to other techniques and parameter settings eval-

uated, whilst requiring signiﬁcantly fewer iterations.

As expected, the α parameter was shown to trade

summary model accuracy for volume reduction at a

2D-STR: Reducing Spatio-temporal Trafﬁc Datasets by Partitioning and Modelling

predictable rate. When α = 0.5 we observed higher

variance in each of the metrics used, indicating mixed

results may be seen for this setting. We suggest that

α = 0.5 is speciﬁc to trafﬁc data and may be different

for other types of spatio-temporal data.

6.3 Comparison with Other Techniques

For the datasets considered in this paper, IDEALEM

gave a high reduction in the data volume, achieving

an average NRMSE of 3.6% for A roads and 4.4%

for motorways. This reduction performed poorly

in error, however, with an average storage ratio of

47.4% achieved across all features for A roads and

52.1% NRMSE across all features for motorways.

These large NRMSE values may be attributed to the

diverse temporal patterns exhibited within the ﬁles.

Since IDEALEM replaces statistically similar tempo-

ral blocks with references to the ﬁrst occurrence of a

similar block, it fails to capture the nuances of trafﬁc

patterns that vary across different time periods.

A plot of storage ratio against NRMSE for IDE-

ALEM can be seen in Figure 3. Similar NRMSE val-

ues and storage ratios were achieved for datasets sam-

pled from the same road regardless of the time period.

As seen above, IDEALEM performed better on most

A roads compared to motorways, achieving lower

NRMSE and storage ratios. Conversely, NRMSE and

storage ratios were more varied for samples taken at

the same time from different roads. This implies that

the spatial nature of the data has a stronger inﬂu-

ence on the storage ratio and NRMSE than the tem-

poral nature, when using IDEALEM. Furthermore, it

may indicate that, whilst the raw values of instances

may change from month to month, the trafﬁc pat-

terns of each road remain the same across the different

monthly observations in the datasets.

Results for DEFLATE show similar groupings as

IDEALEM. Whilst the NRMSE for DEFLATE is al-

ways 0, since DEFLATE is a lossless compression

method, A roads tend to result in lower storage ratios

than motorways. DEFLATE compressed data from A

roads to 17.4% of their original data volume on av-

erage, whereas data from motorways were reduced to

18.9%. This higher value for motorways may be in-

dicative of a higher variance in the motorway data.

Similar to IDEALEM, DEFLATE also shows that in-

dividual roads exhibit more similar compression ra-

tios across different time periods than data taken from

different roads during the same time period.

Several observations can be made regarding the

results for PCA. First, like DEFLATE and IDE-

ALEM, the temporal window used for sampling has

little effect on the resulting NRMSE. Second, the road

0 10 20 30 40 50 60 70 80

AverageNRMSEoverallfeatures(%error)

StorageRatio(%)

PCA 1 ComponentPCA 1 ComponentPCA 1 ComponentPCA 1 ComponentPCA 1 ComponentPCA 1 Component

PCA 4 ComponentsPCA 4 ComponentsPCA 4 ComponentsPCA 4 ComponentsPCA 4 ComponentsPCA 4 Components

DEFLATEDEFLATEDEFLATEDEFLATEDEFLATEDEFLATE

IDEALEMIDEALEMIDEALEMIDEALEMIDEALEMIDEALEM

2D-STR (PLR-R, α=0.1)2D-STR (PLR-R, α=0.1)2D-STR (PLR-R, α=0.1)2D-STR (PLR-R, α=0.1)2D-STR (PLR-R, α=0.1)2D-STR (PLR-R, α=0.1)

2D-STR (DCT-C, α=1.0)2D-STR (DCT-C, α=1.0)2D-STR (DCT-C, α=1.0)2D-STR (DCT-C, α=1.0)2D-STR (DCT-C, α=1.0)2D-STR (DCT-C, α=1.0)

Figure 3: Comparison of storage ratio and NRMSE in-

troduced by IDEALEM, PCA (1 and 4 components), DE-

FLATE, 2D-STR using polynomial regression on regions

(PLR-R) when α = 1.0 and 2D-STR using discrete cosine

modelling on clusters (DCT-C) when α = 1.0. These mod-

elling methods and parameter values were chosen to repre-

sent the range of results observed. Results for data sampled

from motorways are shown in blue and data sampled from

A roads shown in red.

location has some effect on the error rate, with dif-

ferent time periods taken from the same road achiev-

ing similar error rates across all numbers of principle

components (PCs). Using a single PC, PCA achieved

a 6.3% error on A roads and 8.2% on motorways,

whilst it achieved 1.2% and 1.8% error respectively

when using 4 components. In achieving these error

rates, PCA used 37.5% of the original data volume to

store a single PC and 75% to store 4 PCs. Finally, as

the number of components increased the error rate de-

creased signiﬁcantly. When more than 5 components

were chosen the error rate was 0 or negligible across

all features and datasets. Furthermore, the spread of

error rates also decreased as the number of compo-

nents increased.

Figure 4 shows the NRMSE and storage used by

2D-STR when using polynomial regression on each

region (PLR-R) with α = 0.1. The class of road is

shown to impact the reduction achieved, as observed

with the previous techniques. Again, results were

clustered more by the road than time period, and simi-

lar results were observed for all modelling techniques

considered, except polynomial regression on regions

when α = 1.0 or 2.0. These results indicate that 2D-

STR is capable of achieving NRMSE rates similar

to those achieved by IDEALEM on 2-dimensional

spatio-temporal data. It is capable of achieving simi-

lar rates to PCA when a small number of components

is chosen, whilst achieving smaller storage ratios than

both PCA and IDEALEM.

Finally, a comparison of the time taken to re-

duce the datasets is shown in Table 3. These re-

sults indicate that whilst 2D-STR is capable of reduc-

ing 2-dimensional spatio-temporal data to a smaller

GISTAM 2019 - 5th International Conference on Geographical Information Systems Theory, Applications and Management

0 2 4 6 8 10 12 14

AverageNRMSEoverallfeatures(%error)

StorageRatio(%)

Apr '17

Sept '17

Nov '17

Dec '17

(a) Coloured by month

0 2 4 6 8 10 12 14

AverageNRMSEoverallfeatures(%error)

StorageRatio(%)

A Road

Motorway

(b) Coloured by road class

0 2 4 6 8 10 12 14

AverageNRMSEoverallfeatures(%error)

StorageRatio(%)

A30

A66

A69

M11

M20

M23

M56

Figure 4: Comparison of storage ratio and NRMSE intro-

duced by 2D-STR using polynomial regression on each re-

gion (PLR-R) with α = 0.1. Here, (a) presents the results

of these reductions coloured by the month the dataset was

sampled from, (b) presents the results coloured by the type

of road, and (c) presents the results coloured by the road the

samples were taken from.

data volume than established methods, and achieves a

smaller NRMSE in doing so, the computation time

is much greater. This suggests that existing meth-

ods may be more useful when a faster reduction is

required. However, 2D-STR is more effective when

longer running times are permitted for reduction. It is

important to note that the implementation of 2D-STR

may be optimised further, and the running time of the

algorithm reduced as a result.

Table 3: Running time (wall time, in minutes) of the algo-

rithms presented in Section 6, over all of the datasets intro-

duced in Section 5. Results are shown for 2D-STR when

α ∈ {0.01,0.1, 0.5,1.0,2.0}.

Min Avg Max

2D-STR using PLR-R <1 545 3,699

2D-STR using PLR-C 14 26 38

2D-STR using DCT-R 18.7 249 1,870

2D-STR using DCT-C 2,542 3,457 3,711

IDEALEM <1 <1 <1

DEFLATE <1 <1 <1

PCA <1 <1 <1

7 CONCLUSION

In this paper, we proposed a novel method, 2D-STR,

for reducing spatio-temporal trafﬁc datasets by ex-

ploiting regions of similar instances. The effective-

ness of 2D-STR has been demonstrated, in achiev-

ing a 96.3% reduction of the trafﬁc sensor data whilst

only introducing a small error (< 3.7%), sufﬁciently

low to make the resulting data useful for many trafﬁc

analysis tasks. We demonstrated 2D-STR on medium

sized trafﬁc datasets but we believe it could scale to

much larger datasets and enable faster processing for

queries and analysis. In comparison to other tech-

niques, 2D-STR is found to reduce the dataset to sizes

similar to the DEFLATE method whilst achieving

NRMSE error rates similar to IDEALEM and PCA.

2D-STR is therefore shown to perform comparably to

commonly used techniques whilst enabling a wider

range of queries to be answered on the reduced data.

Working with reduced datasets makes analysis

possible on modest hardware that would otherwise

require greater computational resources. The inter-

polation nature of the modelling we have adopted in

this paper permits many applications, such as spatio-

temporal data linkage. Future extensions of this work

could investigate reduction over the entire road net-

work, larger datasets, and other modelling techniques.

Furthermore, extensions of the technique for other

types of data should be explored.

ACKNOWLEDGEMENTS

The lead author gratefully acknowledges funding by

the UK Engineering and Physical Sciences Research

Council (grant no. EP/L016400/1), the EPSRC Cen-

tre for Doctoral Training in Urban Science. The lead

author also gratefully acknowledges funding by TRL.

2D-STR: Reducing Spatio-temporal Trafﬁc Datasets by Partitioning and Modelling

REFERENCES

Acampora, G., Tortora, G., and Vitiello, A. (2016). Com-

parison of Multi-objective Evolutionary Algorithms

for prototype selection in nearest neighbor classiﬁca-

tion. In SSCI 2016, pages 1–8.

Berberidis, D. and Giannakis, G. B. (2015). Data sketch-

ing for tracking large-scale dynamical processes. In

ACSSC 2015, pages 345–349.

Berberidis, D. and Giannakis, G. B. (2017). Data Sketching

for Large-Scale Kalman Filtering. IEEE Transactions

on Signal Processing, 65(14):3688–3701.

Birvinskas, D., Jusas, V., Martisius, I., and Damasevicius,

R. (2012). EEG Dataset Reduction and Feature Ex-

traction Using Discrete Cosine Transform. In 2012

Sixth UKSim/AMSS European Symposium on Com-

puter Modeling and Simulation, pages 199–204.

Bloom, B. H. (1970). Space/Time Trade-offs in Hash

Coding with Allowable Errors. Commun. ACM,

13(7):422–426.

Cormode, G., Garofalakis, M., Haas, P. J., and Jermaine,

C. (2012). Synopses for massive data: Samples, his-

tograms, wavelets, sketches. Foundations and Trends

in Databases, 4(1–3):1–294.

Cormode, G. and Muthukrishnan, S. (2005). An improved

data stream summary: the count-min sketch and its

applications. Journal of Algorithms, 55(1):58–75.

Deutsch, P. (1996). Deﬂate compressed data format speci-

ﬁcation version 1.3. Technical report.

Fahad, A., Alshatri, N., Tari, Z., Alamri, A., Khalil, I.,

Zomaya, A. Y., Foufou, S., and Bouras, A. (2014). A

Survey of Clustering Algorithms for Big Data: Tax-

onomy and Empirical Analysis. IEEE Transactions

on Emerging Topics in Computing, 2(3):267–279.

Flajolet, P., Fusy,

E., Gandouet, O., and Meunier, F. (2007).

Hyperloglog: the analysis of a near-optimal cardinal-

ity estimation algorithm. In Discrete Mathematics and

Theoretical Computer Science, pages 137–156.

Garcia, S., Derrac, J., Cano, J., and Herrera, F. (2012).

Prototype Selection for Nearest Neighbor Classiﬁca-

tion: Taxonomy and Empirical Study. IEEE Trans-

actions on pattern analysis and machine intelligence,

34(3):417–435.

Guo, T., Yan, Z., and Aberer, K. (2012). An Adaptive Ap-

proach for Online Segmentation of Multi-dimensional

Mobile Data. In Proceedings of the Eleventh ACM In-

ternational Workshop on Data Engineering for Wire-

less and Mobile Access, pages 7–14. ACM.

Lakshminarasimhan, S., Jenkins, J., Arkatkar, I., Gong, Z.,

Kolla, H., Ku, S. H., Ethier, S., Chen, J., Chang, C. S.,

Klasky, S., Latham, R., Ross, R., and Samatova, N. F.

(2011). ISABELA-QA: Query-driven analytics with

ISABELA-compressed extreme-scale scientiﬁc data.

In SC 2011, pages 1–11.

Lemley, J., Jagodzinski, F., and Andonie, R. (2016). Big

Holes in Big Data: A Monte Carlo Algorithm for De-

tecting Large Hyper-Rectangles in High Dimensional

Data. In COMPSAC 2016, pages 563–571.

Li, J., Cheng, K., Wang, S., Morstatter, F., Trevino, R. P.,

Tang, J., and Liu, H. (2017). Feature Selection: A

Data Perspective. ACM Comput. Surv., 50(6):94:1–

94:45.

Martinez, A. M. and Kak, A. C. (2001). PCA versus LDA.

IEEE Transactions on pattern analysis and machine

intelligence, 23(2):228–233.

Mukahar, N. and Rosdi, B. A. (2018). Performance com-

parison of prototype selection based on edition search

for nearest neighbor classiﬁcation. In Proceedings

of the 2018 7th International Conference on Software

and Computer Applications, ICSCA 2018, pages 143–

146. ACM.

Ougiaroglou, S. and Evangelidis, G. (2012). Efﬁcient

Dataset Size Reduction by Finding Homogeneous

Clusters. In Proceedings of the Fifth Balkan Confer-

ence in Informatics, pages 168–173. ACM.

Pan, B., Demiryurek, U., Banaei-Kashani, F., and Sha-

habi, C. (2010). Spatiotemporal Summarization of

Trafﬁc Data Streams. In Proceedings of the ACM

SIGSPATIAL International Workshop on GeoStream-

ing, pages 4–10. ACM.

Pearson, K. (1901). LIII. On lines and planes of closest ﬁt to

systems of points in space. The London, Edinburgh,

and Dublin Philosophical Magazine and Journal of

Science, 2(11):559–572.

Roweis, S. T. and Saul, L. K. (2000). Nonlinear dimension-

ality reduction by locally linear embedding. science,

290(5500):2323–2326.

Samet, H. (1984). The quadtree and related hierarchical

data structures. ACM Comput. Surv., 16(2):187–260.

Sisovic, S., Bakaric, M. B., and Matetic, M. (2018). Re-

ducing Data Stream Complexity by Applying Count-

Min Algorithm and Discretization Procedure. In 2018

IEEE Fourth International Conference on Big Data

Computing Service and Applications (BigDataSer-

vice), pages 221–228.

Tai, K. S., Sharan, V., Bailis, P., and Valiant, G. (2018).

Sketching Linear Classiﬁers over Data Streams. In

Proceedings of the 2018 International Conference on

Management of Data, pages 757–772. ACM.

Tenenbaum, J. B., De Silva, V., and Langford, J. C. (2000).

A global geometric framework for nonlinear dimen-

sionality reduction. science, 290(5500):2319–2323.

Wang, M., Li, H. X., and Shen, W. (2016). Deep auto-

encoder in model reduction of lage-scale spatiotempo-

ral dynamics. In 2016 International Joint Conference

on Neural Networks (IJCNN), pages 3180–3186.

Wong, L. Z., Chen, H., Lin, S., and Chen, D. C. (2014).

Imputing Missing Values in Sensor Networks Us-

ing Sparse Data Representations. In Proceedings of

the 17th ACM International Conference on Modeling,

Analysis and Simulation of Wireless and Mobile Sys-

tems, pages 227–230. ACM.

Wu, K., Lee, D., Sim, A., and Choi, J. (2017). Statistical

data reduction for streaming data. In 2017 New York

Scientiﬁc Data Summit (NYSDS), pages 1–6.

Xue, B., Zhang, M., Browne, W. N., and Yao, X. (2016). A

Survey on Evolutionary Computation Approaches to

Feature Selection. IEEE Transactions on Evolution-

ary Computation, 20(4):606–626.

GISTAM 2019 - 5th International Conference on Geographical Information Systems Theory, Applications and Management
