Build-Ship-Run Approach for a CORD-in-a-Box Deployment

Ferran Canellas, Nestor Bonjorn, Angelos Mimidis and Jose Soler

Denmarks Technical University, Building 343, Ørsteds Pl., Lyngby, Denmark

Keywords: CORD, CiaB, Cloudification.

Abstract: 5G is expected to provide high bandwidth and low latency communications, thus allowing Telco operators

to provide new services to their end customers. This increase in performance is achieved through the

migration of network functions from the core to the edge of the network and facilitated by the flexibility and

automation provided by Software Defined Networking (SDN) and Network Function Virtualization (NFV).

To pave the way to 5G, and simplify the management of 5G deployments a number of SDN/VNF platforms

has been developed in the recent years. However deploying and configuring the platforms themselves, is a

complex and time consuming task which can act as a barrier to their adoption by Telco operators. This is

because Telco Operators strife for fast provisioning times and zero-touch provisioning. Based on this

observation, this paper proposes a Build-Ship-Run platform deployment using Central Office Re-architected

as a Datacenter (CORD) as an exemplar platform. The proposed approach is based on the use of compressed

Virtual Machine snapshots, which allow preconfigured CORD-flavors to be fetched, uncompressed and

deployed on demand. Using the proposed workflow, a deployment time seven times better than the raw

installation is demonstrated.

1 INTRODUCTION

One of the most prominent Telco-oriented, 5G-edge

platforms is the Central Office Re-architected as a

Datacenter (CORD) (Peterson et al., 2016). CORD’s

mission is to provide a virtualized Central Office

(CO) for Telco Operators, by utilizing the Network

Function Virtualization (NFV) and Software

Defined Networking (SDN) paradigms. This

platform can be deployed in two ways, using either a

physical or a virtual deployment. A physical

deployment is often referred as a POD and consists

of a set of physical servers and switches. The virtual

deployment, which is usually referred as CORD-in-

a-Box (CiaB) is the equivalent of a POD, where the

servers and switches run in a single physical host as

Vagrant virtual machines (VMs) and Open vSwitch

(OvS) switches. The focus throughout the work

presented in this paper has been given in the CiaB

deployment of the CORD 4.1 version.

CiaB is, by default, deployed by means of

executing a set of scripts and makefiles that take care

of priming the target server and downloading,

installing and configuring the virtual machines that

comprise CORD. However, this process is very time

consuming, since it can take up to two hours to

complete, depending on the target server. Moreover,

bug-fixes or changes are often pushed to “stable”

CORD versions, meaning that the CORD code-base

might change from deployment to deployment

causing loss of control over the installation base.

To address this issue, this paper proposes a new

way to deploy CORD based on VM images and

configuration files instead of external repositories.

This new approach is named Build-Ship-Run (BSR)

and is based on InstaCORD (InstaCORD, 2017),

which proposed a way to export CORD VMs of a

CiaB 3.0 deployment. The core idea is to use images

of the VMs of a running and verified CORD

deployment and store them on an online or local

repository. These VM images, together with any

related configuration files and execution scripts will

later be used to bring up a CiaB onto a bare-metal

(Linux-based) server. This approach (1) provides

faster deployment times and (2) ensures that the

deployed CORD components are compliant with a

reference installation.

The rest of this paper is organized as follows.

Section 2 describes the “Build” process, i.e., how to

create a CORD backup, including all the necessary

configuration files. Section 3 describes the “Ship”

process, i.e., the different ways to move the CORD

Canellas, F., Bonjorn, N., Mimidis, A. and Soler, J.

Build-Ship-Run Approach for a CORD-in-a-Box Deployment.

DOI: 10.5220/0007685402870291

In Proceedings of the 9th International Conference on Cloud Computing and Services Science (CLOSER 2019), pages 287-291

ISBN: 978-989-758-365-0

287

backup into the target server. Section 4 describes the

“Run” process, i.e., how to fire up CORD based on

the output of the “Build” process. Section V presents

results comparing the raw installation of CORD with

different versions of the proposed Build-Ship-Run

approach. Finally, Section 5 provides the

conclusions of this work.

2 BUILD

The purpose of the build process is to create a

backup of the raw state of a CiaB deployment,

consisting of a copy of the CORD source tree, the

VM images as well as several configuration files.

Since the overall size of these files is around 60 GB,

they are compressed in order to facilitate shipping.

Thus, the build process is organized in the following

steps:

1) Get network configuration files: a CiaB

deployment defines four virtual networks, which

interconnect the virtual machines with the virtual

switches, namely cord0, cordmgmt, default and

vagrant-libvirt. In this step, an XML file that

contains the necessary information is generated

for each of these networks.

2) Get VM configuration files: a CiaB deployment

contains several VMs, namely head1, corddev

and a set of compute nodes. In this step, an XML

file that contains the necessary information is

generated for each of these VMs.

3) Bring down the VMs and stop the virtualization

service: all the running Vagrant VMs are stopped

as well as the virtualization service that manages

them.

4) Compression: both the CORD source tree and

the VMs are compressed.

The outcome of this script is a folder that contains

all the aforementioned files. This folder can be saved

either in an external hard drive or in the cloud to be

used for a fast deployment of CORD.

3 SHIP

As mentioned previously, there may be two different

scenarios of shipping CORD: using a local

repository or a remote repository. In this section, the

fastest way of shipping CORD is analyzed

considering both scenarios.

3.1 Local Repository

Depending on the available bandwidth the optimal

solution will be either to first transfer the files and

then decompress them, or to transfer and

decompress them at the same time. Equation (1)

shows the optimal ship time (



) depending on the

available bandwidth () assuming that the CORD

backup is compressed, where  is the total size of

the backup,  is the compressed size of the backup,

 is the decompression speed and  is the

compression ratio, which is defined as the ratio

between the uncompressed and compressed size.

















1

∗DS

,1

∗DSBWDS

DS

(1)

In the first interval, the bandwidth is so small that

the optimal ship time is given by transferring first

the compressed backup to the target server and then

decompressing it. In the other intervals the optimal

time is given by decompressing and transferring the

backup altogether. In the second interval, the

bottleneck is in the bandwidth and, thus, 



depends on , whereas in the third interval, the

bottleneck is in the decompression speed, and, thus,





depends on . In case the CORD backup was

not compressed, the time in the third interval would

be smaller, specifically  divided by  .

However, this scenario is discarded because of

storage limitations since the total size of the backup

would be much larger (around 57 GB) than by

compressing it (around 27 GB).

3.2 Remote Repository

If the backup is downloaded from an online

repository, the backup cannot be downloaded and

decompressed at the same time. Therefore, if we

assume compression, there is only the possibility to

first download the compressed backup and then

decompress it in the target server. However, if we

consider the possibility to not compress the backup,

then the following equation shows the optimal ship

time depending on the available bandwidth.

















,1



∗





,



1





∗

(2)

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

288

In the first interval, the bandwidth is small enough

so that it is worthier to first transfer the compressed

files and then decompress them. On the other hand,

in the second interval the bandwidth is large enough

so that it is better not to compress the files and avoid

the decompression time. Considering the results

discussed in Section V of this paper, only for the

scenarios with a very fast access to the Internet

(more than 1.5 Gbps of bandwidth) it is more

interesting not to use compression. However, the use

of compression is always more efficient in terms of

storage.

4 RUN

The purpose of the run process is to take the

generated files in the build process and obtain a

running CiaB instance. In order to do so, the

following steps are performed in sequence:

1) Bootstrap: it installs all the software needed to

run CORD, e.g., Vagrant, Ansible, Docker, etc.

This step is reused from the raw installation

process of CORD.

2) Decompress CORD source tree: it decompresses

the CORD source tree and saves the output in the

user’s home directory.

3) Prerequisites check: it runs an Ansible playbook

retrieved in step 2 that checks that the machine

where CORD is to be installed meets the

hardware requirements (available RAM, CPU

cores, etc.).

4) Decompress VM images: it decompresses the

VMs and saves them in the corresponding path.

5) Start virtualization service: it makes sure that the

virtualization service that manages the vagrant

VMs is up and running.

6) Define VMs and networks: it defines the VMs

and the virtual networks using the corresponding

configuration files. Note that a default network

already exists in the server before this step;

therefore, it has to be removed before defining

the default network configuration file generated

during the “Build” process.

7) CORD configuration: it defines the configuration

of the CiaB using the main makefile used in the

raw deployment.

8) Build OvS: it installs and configures the required

OvS switches.

9) Fire up VMs: it starts the Vagrant VMs.

These steps should be enough to get a fully-

functionall CORD instance. However, there are

some minor issues that still have to be fixed. These

issues result in the following steps:

10) SSH configuration: a file that is copied from the

CORD source tree is responsible for configuring

the secure shell (SSH) connectivity to the VMs,

which is specific to the user. Thus, if CORD is

being installed in a different machine than the

one the build process was performed on, the ssh

connectivity will not work. In this step, this file

is modified to make sure that it refers to the user

in the deployment machine.

11) Restart Apache: sometimes a component in the

head node called Keystone boots in a unstable

state. The way to fix it is to restart its Apache

server.

12) Fix iptables: sometimes, the connectivity

between the head and the compute nodes is lost.

This step fix this issue through an iptables

command.

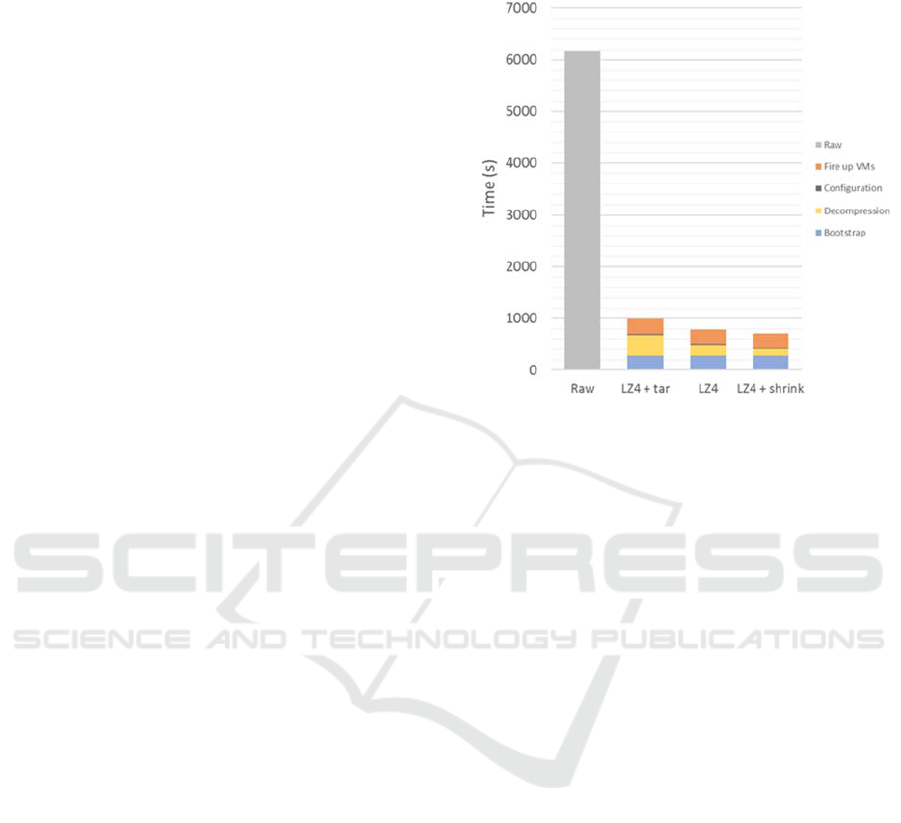

5 RESULTS

5.1 Compression Algorithms

Performance results of the proposed BSR approach

for deploying CORD compared to the raw approach

are analyzed in this section. The BSR approach has

been tested using different compression algorithms.

Traditional compression algorithms such as XZ

(Colin, 2018), BZIP2 (Seward, 1997) or GZIP

(Deutsch, 1996) try to achieve higher compression

rates at the cost of a lower decompression speed.

However, this work required a compression

algorithm with high decompression speeds that

could keep a similar compression rate as the

traditional algorithms since this would allow for fast

deployment. Compression times are not a strict

limitation as they are expected to influence only the

initial “packing” of the CiaB deployment. An

algorithm called LZ4 (Collet, 2013) meets these

requirements. Table 1 shows a comparison in terms

of compression rate and decompression speed

among the aforementioned algorithms based on the

compression of the CORD source tree.

Table 1: Compression algorithms comparison.

Compression

algorithm

Compression

ratio

Decompression speed

(MBps)

BZIP2 2,46 21,1

XZ 2,76 35,6

GZIP 2,33 79,1

LZ4-HC 2,01 371,8

Build-Ship-Run Approach for a CORD-in-a-Box Deployment

289

It can be observed that the LZ4 algorithms,

configured in its high-compression mode (LZ4-HC)

offers a decompression speed up to 5 times faster

than GZIP, the runner-up in decompression speed,

with a compression ratio a 27% worse than XZ,

which has the best compression ratio.

5.2 Compression Algorithms

Choosing LZ4 as the best compression algorithm

candidate, we performed different experiments with

it. The total deployment time of CiaB is depicted in

Fig. 1 for the different performed tests, as well as for

a raw deployment. The “Ship” time is “omitted” for

the BSR tests because it is assumed that the CORD

backup is placed in a local repository and the

transfer speed between this repository and the target

server is larger than the decompression speed of the

VMs (371.8 MBps), which reduces the shipping

time to the decompression time. This is a reasonable

assumption since, for example, SATA II (up to 3

Gbps (Serial ATA International Organization,

2007)) and USB 3.0 (up to 5 Gbps (Hewlett Packard,

2008)) support higher transfer speeds. If the backup

was to be obtained from an online repository, the

time to download it should be added into the

presented results.

As a first approach, both the CORD source tree

and the CORD VM images are first packed into a

file with tar (Gilmore, 2008), and then these files are

compressed with LZ4. The use of tar is necessary

since LZ4 only supports the compression of files,

and not folders or groups of files. However, since

CORD consists in only five VM images, we also

tested how our approach worked when

compressing/decompressing the CORD images

individually. These two approaches (called “LZ4 +

tar” and “LZ4”, respectively) are compared in Fig. 1,

where it can be seen that the decompression time

when not using tar for the VM images is clearly

lower. A third approach was also tested based on the

“LZ4” approach, i.e., without using tar for the

images. In this third approach, some images

(specifically, the “qcow2” format ones), are shrunk

with a “qemu-img” (Bellard, 2014) command before

being compressed. This reduces the disk space of the

image, deleting actual information/data. As depicted

in Fig. 1, this approach (called “LZ4 + shrink”) also

reduced the decompression time compared to the

previous ones, whereas the VMs’ firing up time kept

constant. Moreover, it can be seen that the total

deployment time of CiaB using the “LZ4 + shrink”

BSR approach is around 7 times faster than using a

raw installation, at about 12 minutes. The achieved

deployment time, is well below the threshold of 90

minutes imposed by 5G-PPP (Kennedy, 2017).

Figure 1: Results comparing a raw CiaB deployment time

with the time obtained using different BSR approaches.

6 CONCLUSIONS

This paper investigated the use of compressed, pre-

configured VM snapshots for the deployment of the

CORD platform. The proposed deployment

workflow follows a Build-Ship-Run approach and

allows for much faster deployment times (7x) while

also allowing for zero-touch configuration.

Moreover, the BSR approach increases the reliability

when deploying CiaB, meaning that the CORD

code-base will not change from deployment to

deployment, as it might happen among different raw

deployments. Finally, the presented approach is also

useful to save the state of a running CiaB

deployment, i.e., to create a backup of the entire

system. Then this backup can be restored at any time

in the same machine or a remote one. In addition to

the proposed workflow, this paper also investigated

the effects of different compression algorithms, with

respect to the final size of the archives and their

decompression times. The presented results show

that “trimming” the VM images and then using the

LZ4 compression provides with the best results. As

future work, the presented approach will be

extended to support newer CORD versions, as the

focus has been given to CORD 4.1 so far.

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

290

ACKNOWLEDGEMENTS

This work has been performed in the framework of

the NGPaaS project, funded by the European

Commission under the Horizon 2020 and 5G-PPP

Phase2 programmes, under Grant Agreement No.

761 557 (http://ngpaas.eu).

REFERENCES

Peterson, L. et al. 2016. "Central office re-architected as a

data center". IEEE Communications Magazine 54.10

96-101.

InstaCORD, 2017. Available at: https://wiki.opencord.org/

display/CORD/InstaCORD+on+CloudLab .

Collin, L., 2018. "XZ utils". Available at:

http://tukaani.org/xz/

Seward, J., 1997. "The bzip2 home page". Available at:

http://www.bzip.org

Deutsch, P., 1996. "GZIP file format specification version

4.3. No. RFC 1952".

Collet, Y., 2013. "LZ4-Extremely fast compression".

Serial ATA International Organization, 2007. Serial, A. T.

A. "revision 2.6".

Hewlett-Packard Company, Intel Corporation, Microsoft

Corporation, NEC Corporation, ST-NXP Wireless,

Texas Intruments, 2008, Bus, Universal Serial. "3.0

Specification", rev 1.

Gilmore, J., 2008. "Tar-GNU Project—Free Software

Foundation (FSF)." Available at: http://www.gnu.org/

software/tar

Bellard F., 2014. Ubuntu, “trusty (1) qemu-img.1.gz”.

Available at: http://manpages.ubuntu.com/manpages/

trusty/en/man1/qemu-img.1.html

Kennedy, D., 2017. “Euro-5g –Supporting the European

5G Initiative, D2.6 Finalreport on programme progress

and KPIs”.

Build-Ship-Run Approach for a CORD-in-a-Box Deployment

291
