Extending EAST-ADL for Modeling and Analysis of Partitions on

Functional Architectures

Christoph Etzel and Bernhard Bauer

Institute of Computer Science, University of Augsburg, Germany

Keywords:

System Architecture, Model-driven Systems Engineering, Automotive Systems Engineering, EAST-ADL.

Abstract:

The complexity in automotive systems engineering is increasing over the last decade. In particular, new

comfort functions as well as functions towards autonomous driving are reasons for this complexity. A new

dimension is introduced by the usage of multi-core processors since there is a shift from sequential to parallel

thinking in the different development phases. Therefore, in this paper we present an approach for supporting

the development process of distributed systems aligned with the EAST-ADL approach, by using partitioning.

We present an extension to EAST-ADL for partitioning and show ways how an automatic partitioning on

different levels of abstraction can be achieved. These partitions can support system designers during the

design process of functional architectures, by giving a ﬁrst insight how well the functional components can be

distributed on hardware in later stages of the development process.

1 INTRODUCTION

In recent years, automotive systems are containing an

increasing part of hard- and software systems result-

ing in huge distributed system. Already in 2007 an

BMW 7 contained 67 embedded devices providing

270 functions interacting with the user (Pretschner

et al., 2007). Up to 100 Electronic Control Units

(ECUs) have been placed in premium vehicles in

2013 (Lukasiewycz et al., 2013). With the develop-

ment of autonomous vehicles, the complexity will fur-

ther increase, assuring a safe and comfort driving ex-

perience. To lower the system complexity in vehicles,

multi-core systems each replacing several single-core

ECUs are an intensive discussed topic and ﬁrst ve-

hicles are on the road using multi-core architectures

(Arbeitskreis Multicore, BICCnet Innovationszirkel

Embedded Systems, 2011), (Macher et al., 2015).

The upcoming multi-core systems in the embedded

domain need a “parallel thinking” already from the

beginning of the system development. The hardware

and software for such systems have to be highly op-

timized, to be competitive. This makes it more im-

portant to have a proper design on early, more ab-

stract, design steps. To design embedded systems

many different models and stakeholders are neces-

sary and active during the design process (Gajski

et al., 2009). Concerning multi-core system devel-

opment, most projects use a bottom-up approach with

the shortcomings of understanding the big picture of

the system to allow a detailed analysis of the whole

system (Macher et al., 2015). Moreover, in such a de-

velopment process several stakeholders with different

views and concerns may be involved.

Using a model based approach to provide all

stakeholders with customized views during the devel-

opment process helps them in the course of achiev-

ing their engineering and optimization tasks. This

can be supported by using different abstraction levels,

starting with a high level view in the early stage to a

more detailed on a technical view in a later stage, to

manage complexity. The architecture description lan-

guage EAST-ADL supports such an approach by pro-

viding modeling means to express requirements, fea-

tures, functional components, timing and safety con-

straints and other engineering related information.

Our approach tries to support the system designer

during his architectural design decisions with a focus

on “parallel thinking”, starting from the requirements,

analyzing and parallelization of the logical and com-

ponent architectures to achieve partitions, based on

data dependencies, cycles etc. The partitioning shall

give the system designer a closer insight on how well

the architecture can be distributed, e.g., without hav-

ing a high communication overhead. This will be sup-

ported by calculating key ﬁgures of partitions. In ad-

dition, the set of components in a partition may be ex-

ecuted independently from components in other par-

Etzel, C. and Bauer, B.

Extending EAST-ADL for Modeling and Analysis of Partitions on Functional Architectures.

DOI: 10.5220/0007688301670176

In Proceedings of the 7th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2019), pages 167-176

ISBN: 978-989-758-358-2

167

titions. This allows the system designer to choose a

suitable hardware architecture for the developed log-

ical architecture. At current the EAST-ADL release

has no modeling notations to express partitions in-

dependent of the functional composition modeling.

Therefore, we introduce a possible extension of the

EAST-ADL and present two partitioning algorithms.

This paper is structured as follows. Section 2 gives

an introduction to EAST-ADL and the used partition-

ing algorithms to obtain parallel systems. In Section 3

we present our approach. This is followed (Section 4)

by the extension of EAST-ADL by meta-model ele-

ments to handle partitioning information. Section 5

shows how the algorithms are applied to our different

target abstraction levels to ﬁnd partitions and which

parameters can be extracted from the partitions. The

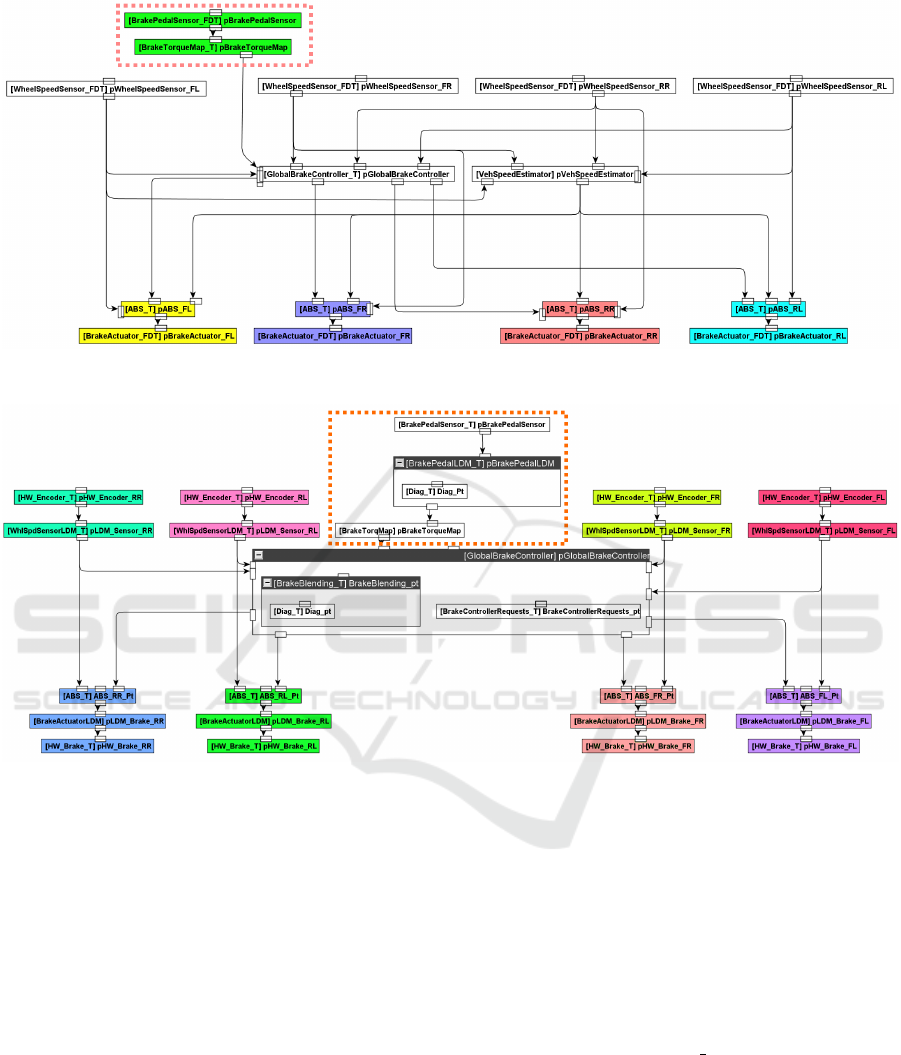

approach is evaluated in a case study showing a brake-

by-wire system example (Section 6). The paper com-

pletes with the conclusion and giving an outlook for

further research.

2 PRELIMINARIES

This section introduces already existing languages,

methods and algorithms used in this paper.

2.1 EAST-ADL

The EAST-ADL (Blom et al., 2016) is an Architec-

ture Description Language with the focuses on the

automotive embedded electronic system engineering

problem domain, currently developed by the EAST-

ADL Association (EAST-ADL Association, 2018).

It is aligned with the established AUTomotive Open

System ARchitecture (AUTOSAR) standard (AU-

TOSAR, 2018) and extends it with higher levels of ab-

straction. While AUTOSAR’s most abstract concept

is the software architecture, the EAST-ADL provides

means to model the system architecture and capture

essential engineering information on this stage.

For this purpose the current release of the EAST-

ADL2 (EAST-ADL Association, 2013) has four lev-

els describing the system on different abstraction lev-

els and viewpoints (see left hand side of Figure 1. The

Vehicle Level includes a Technical Feature Model

of the electric and electronic system. It is a soft-

ware product line architecture by using decomposi-

tion and variability to allow different feature conﬁgu-

rations. The Analysis Level includes the Functional

Analysis Architecture (FAA). Features of the Vehi-

cle Level are realized by abstract functions and con-

nected through devices (e.g., sensors or actuators) to

the vehicle environment. The Design Level includes

the Functional Design Architecture (FDA) and the

Hardware Design Architecture (HDA). On these level

the abstract functions of the FAA are decomposed

with implementation-oriented aspects including mid-

dleware and hardware abstraction. The hardware de-

sign deﬁnes physical resources and their connection.

Functions from the FDA are allocated on entities of

the HDA. The Implementation Level is the connec-

tion to the AUTOSAR system model. The elements

of the Design Level are mapped to AUTOSAR enti-

ties (Qureshi et al., 2011). This supports traceability

over the whole development process.

Beside these abstraction levels, EAST-ADL is ex-

tended by several cross-cutting concern extensions,

which span over these layers. Examples for these

extensions are Environment, Requirements, Variabil-

ity and Timing. Figure 1 shows the abstraction lev-

els with their models horizontal and the extensions

(cross-cutting concerns) are vertically aligned over

all levels. The red circled extension Partitioning and

methods on the right side of the ﬁgure is our contribu-

tion, which is subject of this paper. For this reason, a

short description how the Functional Analysis Archi-

tecture (FAA) and the Functional Design Architecture

(FDA) are structured is provided. Both architectures

contain a component based architecture model to de-

scribe the system. FunctionTypes are abstract func-

tion component types to structure the system. An

instance of a FunctionType is a FunctionPrototype.

A FunctionType contains FunctionPorts, which can

be connected together using FunctionConnectors. To

enable hierarchical architectures, the specializations

of FunctionType on the Analysis and Design Level

(FunctionAnalysisType and FunctionDesignType can

own parts in form of FunctionAnalysisPrototypes re-

spectively FunctionDesignPrototypes. The Function-

Connectors between owned prototypes are called as-

sembly connection, while a connection between a port

of the type itself and a prototype is called delegation

connection.

The Design Level includes information of the

hardware system in the Hardware Design Architec-

ture (HDA). The HDA deﬁnes the connectivity, ca-

pabilities and basic safety characteristics of technical

architectures, e.g., the number of processors, cores

and the communication matrix. These information

can be expressed using the following elements from

the EAST-ADL modeling language: An execution

unit (ECU) is a HardwareComponentType, typed as

a Node. Cores are modeled as contained Hardware-

ComponentTypes of type Node inside an ECU. The

bus system type and its speed is deﬁned using ports

(HardwarePortConnectors) on every ECU. The port

connectors are linked together using HardwareCon-

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

168

Environment Model

System Model

Vehicle Level

Analysis Level

Design Level

Implementation Level

Technical Feature Model

Functional Analysis Architecture

Functional Design Architecture Hardware Design Architecture

AUTOSAR

Application SW

AUTOSAR

Basic SW

AUTOSAR

Requirements

Variability

Timing

...

Extensions

Partitioning

Methods

Modeling:

- Sequnce Diagrams

- Communication Diagrams

Analysis:

- Partitioning with SSC, SER

Analysis:

- Partitioning with SCC, SER

Focus of

research

Analysis:

- Partitioning with SCC, SER

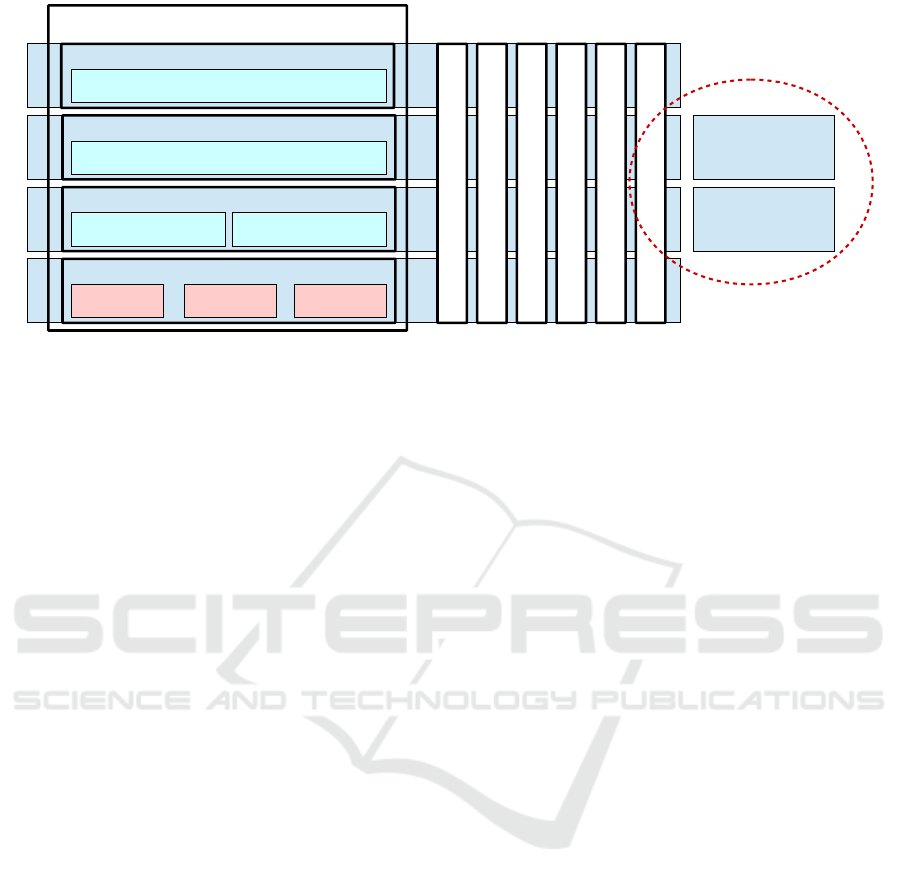

Figure 1: EAST-ADL abstraction levels with the containing models and cross cutting extensions. On the right hand side the

partitioning extension and methods provided in this research.

nectors forming the bus system.

The EAST-ADL supports a linking between ele-

ments of different abstraction levels using the Real-

ization relationship. This allows a full traceability

over all abstraction levels.

In addition, it should be noted that the levels of the

EAST-ADL can be seen as the equivalents to usual

developing phases. E.g., the correspondence to the

V-Modell XT (Weit e.V., 2018) is as follows: the Ve-

hicle Level, including its feature models, is part of

the systems requirements analysis; the Analysis and

Design Level are used in the system analysis, sys-

tem architecture and system design phase; the Imple-

mentation Level belongs to the software architecture

phase. This last phase is not part of the paper, but

listed to have a complete and sound overview. The

ATESST2 project released a methodology guideline

(The ATESST2 Consortium, 2010) for the develop-

ment with EAST-ADL2. It deﬁnes a top-down devel-

opment process and we embed our partitioning anal-

ysis into it.

2.2 Partitioning Algorithms

To partition the architectures, two different algorithms

have been chosen. The strongly connected compo-

nents algorithm is a classical algorithm from graph

theory, while the extended single entry region algo-

rithm is a more recent publication dedicated to AU-

TOSAR systems.

2.2.1 Strongly Connected Components

An algorithm to ﬁnd highly interconnected nodes in

directed graph is called strongly connected compo-

nents (SCC) analysis. A (sub-)graph is called strongly

connected if there exists a path between each pair of

nodes. A set of strongly connected components of

a graph form a partition representing a strongly con-

nected subgraph. Tarjan (Tarjan, 1972) presents deﬁ-

nitions for strong connectivity in graphs and an algo-

rithm for computing the strongly connected compo-

nents. An application of the SCC algorithm on system

of systems to support architectural decision making is

shown by (Potts et al., 2017). Since feedback loops

are a common pattern in designing control systems,

we see potential in applying the SCC on the EAST-

ADL architectures.

2.2.2 Single Entry Region

The Single Entry Region (SER) analysis is introduced

by Kienberger et al. in (Kienberger et al., 2014) and

further reﬁned in (Kienberger et al., 2016). It is based

on work of (Ottenstein and Ottenstein, 1984), (John-

son et al., 1994), (Tip, 1995) and (Gotz et al., 2009).

The idea is to identify regions having a loose coupling

to other parts of the system and therefore be kind of

isolated. Kienberger et al. describe SER as follows

for data dependencies between nodes:

• The number of nodes is greater or equal to two.

• All input dependencies from nodes outside the

SER are routed over a single “entry node”.

• Every node inside an SER is reachable from the

entry node, either direct or transitive.

It is performed on an AUTOSAR system description

model, namely on the component based architecture

formed by “Runnable Entities” (AUTOSAR’s atomic

executable and schedulable units) and their data de-

pendencies. From our point of view, the analysis

can be used for every appropriate type of dependency

in a graph. Since the AUTOSAR system descrip-

tion model is derived from the FDA on EAST-ADL’s

Extending EAST-ADL for Modeling and Analysis of Partitions on Functional Architectures

169

Design Level and the FDA and FAA are component

based architectures with data dependencies, we adopt

the SER analysis to EAST-ADL.

3 APPROACH

Our goal is to support the system designer during his

architectural design decisions in order to have an ar-

chitectural model, that is well suited for further ﬁne-

grained development. Partitioning, in our context, is

the process of grouping the system under develop-

ment (SUD) into different parts without changing its

functional component based architecture. Therefore,

modeling elements are deﬁned and used to structure

the system model elements based on the EAST-ADL

modeling concepts. The partitioning provides addi-

tional views on the SUD, depending on which criteria

it is performed. The main focus is on partitioning of

the Analysis Level as well as the Design Level.

Using the EAST-ADL, the goal is to keep the

EAST-ADL meta-model unchanged and extend it

only minimal invasive. This is achieved by introduc-

ing a new extension called “Partitioning” (see Fig-

ure 2), where meta-model elements are deﬁned to ex-

press partitions and store additional information help-

ful for an analysis of the SUD, while not modifying

the FAA on the Analysis Level or the FDA on the De-

sign Level. For example, on the Analysis Level, the

SUD is described by the FAA by using functional de-

vices and analysis functions. The functional devices

are the connection to the environment; using sensors

to get data from the environment and actuators to in-

teract with it. Typically AnalysisFunctions link sen-

sors to actuators, by performing calculations on the

sensors data and react accordingly through the actu-

ators. The connection between the devices and func-

tions is modeled by ports to provide and receive data,

which are linked together with function connectors.

This component based description of the architecture

together with additional data deﬁned in the extension

is used to determine partitions.

The extension of EAST-ADL and the analysis are

implemented in our tool. It is based on the Eclipse

Modeling Framework

, the Model Analysis Frame-

work

, EATOP

and Artop

Eclipse Modeling Framework (EMF) https://www.

eclipse.org/modeling/emf/

Model Analysis Framework - Data-ﬂow based

model analysis (MAF) https://www.informatik.uni-

augsburg.de/en/chairs/swt/ds/projects/mde/maf/

EATOP Project https://www.eclipse.org/eatop/

AUTOSAR Tool Platform (Artop) https://www.artop.

org/

4 EXTENDING EAST-ADL WITH

PARTITIONING MODELING

Our approach has a strong focus on partitioning of the

different abstraction levels provided by EAST-ADL.

Since EAST-ADL structures the system model into

different abstraction levels we introduce distinct par-

titioning models for all levels of abstraction. While

these models are different on every abstraction level,

the meta-model elements are shared to support a com-

mon handling of partitioning in every use case. The

newly introduced elements are derived from already

speciﬁed elements in the EAST-ADL to be compat-

ible with it. In the following deﬁnitions, most ele-

ments from the EAST-ADL meta-model can be iden-

tiﬁed by the preﬁx “EA”, for example, EAElement and

EANumericalValue from the EAST-ADL infrastruc-

ture package. If an element has no preﬁx, it will be

indicated in the text. Building up on basic elements

of the EAST-ADL, allows the use of EAST-ADL real-

ization links to connect elements across different ab-

straction levels to achieve full traceability.

The developed meta-model elements to capture

partitions are visualized in Figure 2. The root of the

new elements is PartitionModel which links the ar-

chitectural description of one EAST-ADL level to the

partitioning architecture. It is derived from EAEle-

ment, which is an abstract meta class of the EAST-

ADL meta-model, deﬁning an identiﬁable and named

element of the domain model. It can be identiﬁed by

using a global unique identiﬁer called UUID, has an

expressive name and can contain comments for ad-

ditional descriptions. The partition model contains

two associations the targetLevel and partitionArchi-

tecture. The targetLevel is used to link the parti-

tion model to the level it partitions; i.e., the analysis

or design level object which are of the EAST-ADL

meta-model type SystemModel. The association par-

titionArchitecture points to the root package of the

partition architecture. Since the partitioning is done

independently on every abstraction level, only ele-

ments which are part of the target level are allowed

to be linked in the partition architecture and its chil-

dren.

Name: PartitionModel

Description: The PartitionModel is used to organize

the partition architecture of an abstraction level.

Generalizations: EAElement

Attributes: No additional attributes.

Associations

• targetLevel: SystemModel [1]

• partitionArchitecture: PartitionPackage [1]

Constraints: All (nested) referenced elements in the

partitionArchitecture shall be part of the refer-

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

170

These classes are from

the EAST-ADL meta-model.

TimingConstraint

EstimatedExecutionTime

element : FunctionPrototype [1]

average : TimingExpression [1]

bestCase : TimingExpression [0..1]

worstCase : TimingExpression [0..1]

EstimatedMemorySize

element : FunctionPrototype [1]

average : EANumericalValue [1]

upperBound : EANumericalValue [0..1]

lowerBound : EANumericalValue [0..1]

EAElement

name : String

PartitionPackage

elements : EAPackageableElement [0..*]

PartitionModel

targetLevel : SystemModel [1]

subPackages

0..*

partitionArchitecture

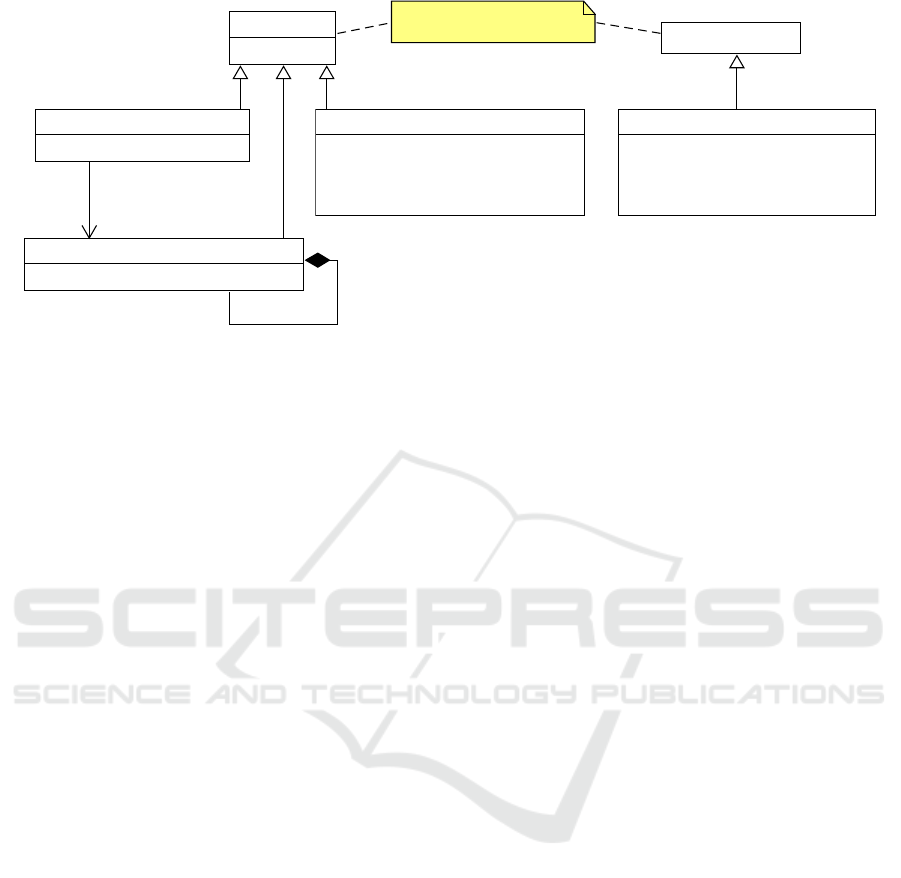

Figure 2: The “Partitioning” meta-model extension.

enced targetLevel.

Semantics: PartitionModel is the representation of a

nested set of partitions for a speciﬁc system de-

sign level.

PartitionPackages are used to assemble elements into

partitions. Even if it looks very similar to the descrip-

tion of the EAST-ADL meta-model element EAPack-

age, it cannot be derived from it. The reason is that an

EAPackage uses a composition to aggregate the con-

taining elements, while a PartitionPackage shall only

provide an association to the elements in the architec-

ture. The subPackages association contains sub parti-

tions and is realized using a composition. A Partition-

Package can contain multiple elements and packages

to achieve a hierarchical partition architecture.

Name: PartitionPackage

Description: The PartitionPackage is used to form

partitions of elements.

Generalizations: EAElement

Attributes: No additional attributes.

Associations

• elements: EAPackageableElement [0..*]

• subPackages: PartitionPackage [0..*] {comp.}

Constraints: No additional constraints

Semantics: PartitionPackages can be used to orga-

nize EAPackageableElements which form a par-

tition. The packages can be structured hierarchi-

cally, where each level may contain variable num-

ber of EAPackageableElements and sub packages

forming sub partitions.

In the EAST-ADL, the timing extension for exam-

ple, deﬁnes constraints and other modeling elements

to specify important requirements in the architecture.

Additionally to the structural description of the parti-

tioning, modeling elements are introduced to enrich

the functional architecture with information helpful

for analyzing in respect to partitioning. To allow a

more accurate partitioning of an architecture, two ad-

ditional elements are deﬁned, describing estimated

values of memory and execution time.

The estimated memory size can be captured by

using the newly introduced meta-model element Es-

timatedMemorySize. It has an association to an ele-

ment in the system model and three values describing

its estimated average memory size in bytes and op-

tional upper/lower bound values to deﬁne a spectrum

the memory size varies.

Name: EstimatedMemorySize

Description: The estimated size of memory used by

the function in bytes.

Generalizations: EAElement

Attributes: No additional attributes.

Associations:

• element: FunctionPrototype [1]

• average: EANumericalValue [1]

• upperBound: EANumericalValue [0..1]

• lowerBound: EANumericalValue [0..1]

Constraints: If set, the values shall comply to

lowerBound ≤ average ≤ upperBound.

Semantics: The EstimatedMemorySize stores the es-

timated or measured average memory size in

bytes and optional an upper/lower bound.

The EAST-ADL timing extension describes an exe-

cution time constraint specifying the upper and lower

bound run-time of an event. We introduce an Es-

timatedExecutionTime element, storing estimated or

measured average execution time of a function and

optionally a best and worst case value. It is derived

from the element TimingConstraint and uses Timing-

Expressions to express the containing values. Both

elements are from the EAST-ADL timing package.

Name: EstimatedExecutionTime

Description: The estimated execution time of the

function.

Extending EAST-ADL for Modeling and Analysis of Partitions on Functional Architectures

171

Generalizations: TimingConstraint

Attributes: No additional attributes.

Associations

• element: FunctionPrototype [1]

• average: TimingExpression [1]

• bestCase: TimingExpression [0..1]

• worstCase: TimingExpression [0..1]

Constraints: If set, the values shall comply to

bestCase ≤ average ≤ worstCase.

Semantics: The EstimatedExecutionTime stores the

estimated or measured values of the average exe-

cution time and optional a best/worst case value.

In a SUD all three values have be in line with already

deﬁned execution time constraints.

5 ANALYZING EAST-ADL

MODELS FOR PARTITIONS

In this section, we describe how the SCC and SER

algorithms are used to automatic search for partitions

on the architectures of the analysis and design level.

Partitions are formed by sets of functional compo-

nents and analysis is done independently on the anal-

ysis and design level. It is also possible to model par-

titions manually, by using the former described exten-

sion.

5.1 Parameters Inﬂuencing the Analysis

The analysis of the architectures can depend on more

than considering data dependencies. We identiﬁed

two different kinds of relevant clustering parameters

in our use cases: communication between functions

and resource usage of functions. Examples for the

communication perspective are the coupling between

functions or the utilization of connections. On the re-

source side execution time, execution frequency and

memory consumption are values of interest. The

newly introduced meta-model elements and already

available elements in the EAST-ADL enable to con-

sider these parameters in the analysis.

The Data Flow Weight describes the weight of

the data exchanged on one connection between two

nodes. Using EAST-ADL modeling language the

size of the transferred data can be provided via EA-

Datatype and the repetition of this transfer via func-

tion triggering stored in a FunctionTrigger. The

Function Computational Time Weight combines

our introduced EstimatedExecutionTime element to

estimate the computing time in conjunction with func-

tion triggering to get an idea how a processor is uti-

lized by a function. Using the newly speciﬁed Es-

timatedMemorySize, the Function Memory Weight

(either the binary size or the resource usage during

run-time including temporary memory usage) can be

used.

These parameters can either be used in partition

searching algorithms or to calculate key ﬁgures of

a partition. E.g., partitions can be rated by their

memory footprint summing up the Function Mem-

ory Weight of every component, or by their Function

Computational Time Weight, if it is assumed that

the set of one partition is executed sequentially. These

key ﬁgures are indicators for the system designer to

judge about the architecture and possibly perform a

refactoring.

5.2 Analysis Level

The analysis level includes an abstract functional rep-

resentation of the architecture captured in the FAA.

This architecture is designed very early in the devel-

opment process during the system analysis phase (The

ATESST2 Consortium, 2010). From a methodology

point of view, the partitioning shall be placed in the

development process after the task to specify the anal-

ysis function details. The result of partitioning analy-

sis can then be used to further reﬁne the architecture

in an iterative way.

Before starting the analysis on the FAA, we have

implemented multiple model pre-checks in our tool,

such as if all directions of the ports and the binding to

the function connectors are reasonable. For example,

if two functions are connected via “IN” ports a warn-

ing is raised. The same applies to “OUT” ports. Ad-

ditionally, it should be noted that a client-server con-

nection in the model is interpreted as a bi-directional

connection between the components.

5.2.1 SCC Analysis

The ﬁrst analysis implemented is the strongly con-

nected component search. The directed graph con-

sists of the analysis function prototypes as the vertices

and the function connectors as the directed edges be-

tween the vertices. Since the SCC algorithm analyzes

paths between the vertices only the communication

between the functions is used to form partitions.

The results of the strongly connected component

search is transferred into a partitioning model, where

a set of strongly connected functions forms a parti-

tion. For every detected set with more than one com-

ponent a PartitionPackage is created referring to the

containing functions. An example with three graphs

can be seen in Figure 3. The sets of strongly con-

nected components enclosing more than one element

are visualized with the same color. In the graph on

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

172

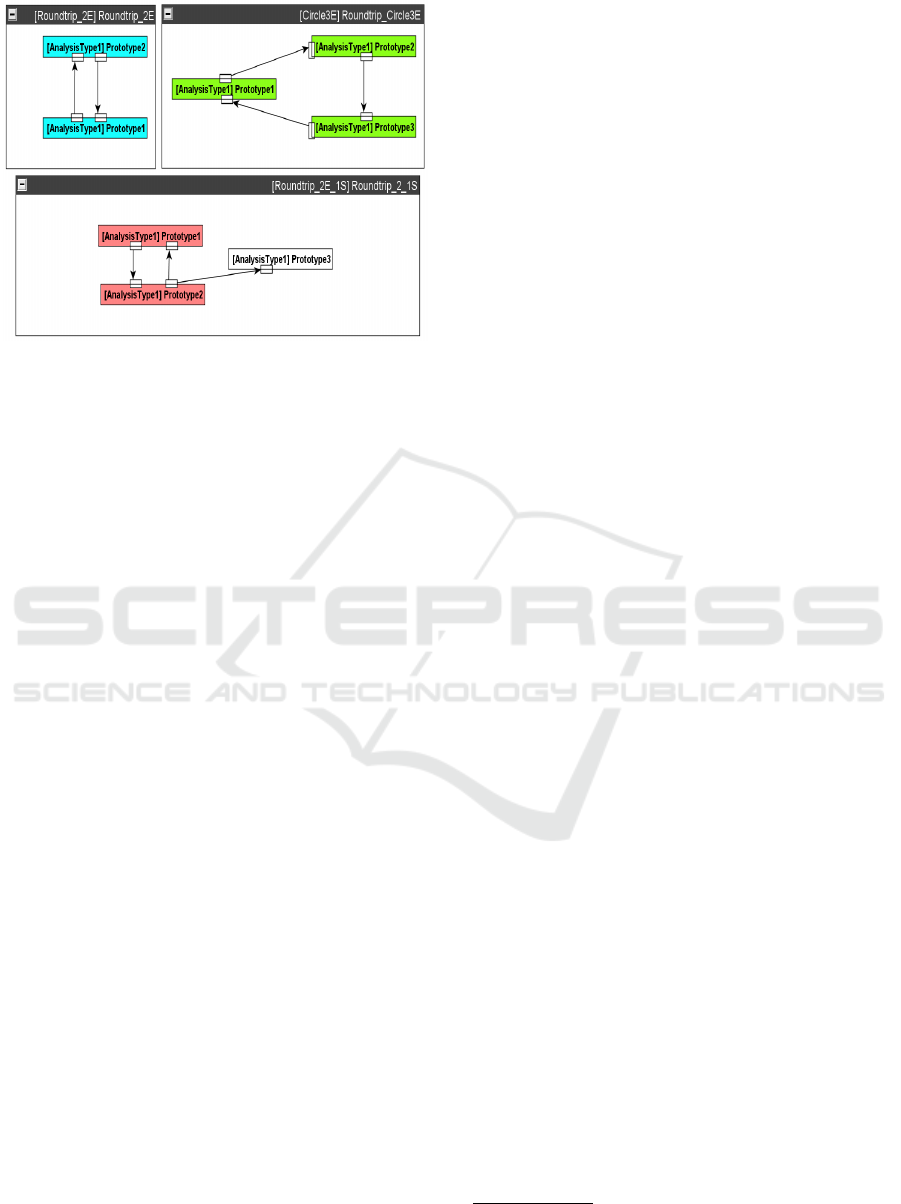

Figure 3: Three examples of graphs with strongly connected

components.

the bottom of the ﬁgure is a single element “Proto-

type3” not colored (white background), since it forms

a strongly connected set containing only itself and

sets with just one element do not need a distinct color.

5.2.2 SER Analysis

Another implemented algorithm is the Single Entry

Region (SER) analysis, which was developed for AU-

TOSAR system description models (Kienberger et al.,

2016). A brief general description can be found in

Section 2.2.2. We adapt the algorithm to ﬁt to the

EAST-ADL analysis level. For this purpose, every

AnalysisFunctionPrototype contained in the FAA rep-

resents a node. The dependencies between the nodes

are formed by the function connectors between the

prototypes. The dependency weights are calculated

by using the introduced Data Flow Weight param-

eter and summing it for every connection between a

pair of nodes. The output of the algorithm are regions

containing sets of AnalysisFunctionPrototypes. This

gets transferred into the partitioning model such that

every calculated region forms one partition.

5.3 Design Level

The design level includes an implementation-oriented

functional model of the architecture captured in the

FDA. Looking into the design process, the FDA is

speciﬁed during the design phase in parallel with the

HDA (The ATESST2 Consortium, 2010). This newly

introduced partitioning step, shall be placed in the de-

velopment process after the task to specify the design

details, but before the allocation the functions to the

HDA. The result of partitioning analysis can then be

used to further reﬁne the architecture in an iterative

way and as an input artifact to the HDA allocation

task.

Since the elements to model the FDA are very

similar to the ones used for the FAA, the SCC and

SER analysis are analogous to the analysis on the

FAA. The graphs are formed by function prototypes

and function connectors. Even the pre-checks and the

handling of client-server connections are identical.

By using a partition model of our analysis an en-

gineer can allocate functions to elements of the HDA.

Elements grouped into one partition by these two al-

gorithms are candidates to be allocated on one node,

because they communicate with each other. Placing

them on one node or closely connected nodes can re-

duce the communication overhead.

6 CASE STUDY -

BRAKE-BY-WIRE SYSTEM

EXAMPLE

To evaluate the proposed approach a case study on

an example architecture is carried out. Since space

is limited, only the SER analysis on the Analysis and

Design Level is shown in detail. It should be noted,

that the SCC analysis would not ﬁnd partitions with

more than one component in this particular example.

Nevertheless, we picked this model, because it illus-

trates the SER analysis and the partition transition

during the development process very clearly.

The “brake-by-wire for four wheel vehicles”

model is originally from the EAST-ADL Association

and published on their website

The analysis architecture (see Figure 4) con-

sists of 16 components and 26 connections between

these. The main function is a pGlobalBrakeCon-

troller, which gets data from 4 wheel speed sensors,

the vehicle speed and the requested brake force. The

vehicle speed is calculated by the pVehSpeedEstima-

tor getting data from the wheel speed sensors. The

vehicle speed is provided to the pGlobalBrakeCon-

troller and the four ABS controllers. The brake force

is calculated by the pBrakeTorqueMap with data from

the pBrakePedalSensor. The four ABS controllers are

sending data to each brake actuator.

The colored components in Figure 4 are pro-

posed partitions of the SER algorithm. The up-

per green colored partition consists of two compo-

nents (pBrakePedalSensor and pBrakeTorqueMap),

the lower partitions are each formed by the ABS and

the brake actuator of one wheel.

Brake-by-Wire System II (http://www.east-adl.info/

Resources.html) (accessed January 16, 2019)

Extending EAST-ADL for Modeling and Analysis of Partitions on Functional Architectures

173

Figure 4: Functional Analysis Architecture of Brake-by-Wire Example with SER partitions of maximum size (colored ele-

ments).

Figure 5: Functional Design Architecture of Brake-by-Wire Example with SER partitions of maximum size (colored ele-

ments).

The design architecture (see Figure 5) is derived

from the functional analysis architecture. It contains

28 components and 27 connections (some compo-

nents are for diagnoses, their connections outside the

scope of this model example have been omitted). For

example, a wheel speed sensor from the functional

analysis architecture is now more detailed by using

two components. One is a hardware encoder provid-

ing the digital hardware signal and the other is a local

device manager (LDM) encapsulating the hardware

device speciﬁc parts. On the actuator side, a similar

detailing is performed by using a LDM and a hard-

ware function component for the realization. Two

components for diagnose tasks are also embedded in

the example. One is a diagnose component in the

pBrakePedalLDM and the other one in the pGlobal-

BrakeController.

The partitions found using the SER algorithm are

very similar to the ones on the analysis architecture.

On the bottom, every ABS component together with

a LDM and the actuator form a partition. Four new

partitions are originated from the decomposition of

the wheel speed sensors into hardware encoders and

LDMs. A difference can be seen looking at the for-

mer partition of the pBrakePedalSensor and pBrake-

TorqueMap, which is for a better recognition marked

with a square of orange dots in both ﬁgures. Because

a diagnose component (Diag Pt), which provides data

to other components not visible in this ﬁgure, is em-

bedded in the pBrakePedalLDM, it is not marked as

a potential partition on this level. An option to in-

/excluding diagnose components in the analysis is

part of our framework. Turning it off, would clearly

mark it as a partition containing the components

pBrakePedalSensor, pBrakePedalLDM and pBrake-

TorqueMap. Since there is no ﬂag in the EAST-ADL

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

174

meta-model to identify diagnose components, we are

using a naming schema (the preﬁx “Diag ”) to recog-

nize these components. Using our analysis results an

engineer can check if the transition from the analysis

architecture to the design architecture is sound (e.g.,

having a closer look, why one partition is now miss-

ing) and link the partitioned elements to elements of

the HDA.

7 RELATED WORK

Marinescu et al. (Marinescu and Enoiu, 2012) pro-

pose a modeling extension for EAST-ADL and model

analysis with the focus on resource-usage. The anal-

ysis are applied on the FDA using a priced timed au-

tomata to predict resource usage and optimizing re-

source utilization. In contrast to our approach, theirs

is focusing on resource usage and allocation, while

ours is proposing a general extension to describe par-

titions and algorithms focusing on the analysis of data

dependencies. A mapping of parts of our extension to

theirs is possible, e.g., EstimatedMemorySize (ours)

to MemoryConstraint (theirs). In the development

process, their resource-usage analysis is placed after

ours during the development of the design level ele-

ments.

Automation of certain design processes steps en-

ables system designers to focus on the challenging

parts. Walker et al. (Walker et al., 2013) have de-

veloped a multi-objective optimization approach for

EAST-ADL system architectures. Our algorithms

could be connected into their framework by an Analy-

sis Wrapper and provide results to the optimization

engine. However, there has to be done further re-

search how to derive quantitative criteria for the op-

timizer from the partitioning models.

8 CONCLUSION AND FURTHER

RESEARCH

In this paper we presented an approach to support sys-

tem designers during the development process by do-

ing partitioning on functional architectures. There-

fore, we extended the EAST-ADL meta-model min-

imal invasive with an extension to capture partitions.

Beside the structural partitioning model, the extension

introduces two elements to improve the search and

rating of partitions. To support automated analysis,

we presented the SCC and SER algorithm to search

for partitions on the FAA and FDA. Both algorithms

may be used without the partitioning extension, if no

persistence of the partitions is needed to perform fur-

ther analysis. Moreover, we applied the new approach

to a small case study from the EAST-ADL consor-

tium.

The ﬁrst results concerning our approach are very

promising and in the next steps we will evaluate it

with additional scenarios. Moreover, we will de-

velop more sophisticated algorithms for partitioning

of functional models on these levels of abstraction.

We think the proposed approach is not limited to

the EAST-ADL modeling language and can be trans-

ferred to similar concepts even outside the automotive

domain. Examples for other languages are SysML

and AADL

, both strongly inﬂuenced the EAST-ADL

speciﬁcation (Blom et al., 2016).

ACKNOWLEDGEMENTS

This work was partially funded within the project

ARAMiS II by the German Federal Ministry for Edu-

cation and Research with the funding ID 01IS16025.

The responsibility for the content remains with the au-

thors.

REFERENCES

Arbeitskreis Multicore, BICCnet Innovationszirkel

Embedded Systems (2011). Relevanz eines

Multicore-

Okosystems f

ur k

unftige Embedded

Systems: Positionspapier zur Bedeutung, Bestand-

saufnahme und Potentialermittlung der Multicore-

Technologie f

ur den Industrie- und Forschungsstan-

dort Deutschland. URL: https://www.bicc-net.de/

workspace/uploads/subfeatures/downloads/positions

papier multicore oeko-53077aea8dd0c.pdf.

AUTOSAR (2018). AUTOSAR website. https://www.auto

sar.org/ (accessed January 16, 2019).

Blom, H., De-Jiu, C., Kaijser, H., L

A¶nn, H., Papadopou-

los, Y., Reiser, M.-O., Kolagari, R. T., and Tucci, S.

(2016). EAST-ADL: An architecture description lan-

guage for automotive software-intensive systems in

the light of recent use and research. International

Journal of System Dynamics Applications (IJSDA),

5(3):1–20.

EAST-ADL Association (2013). EAST-ADL Domain

Model Speciﬁcation. Version V2.1.12.

EAST-ADL Association (2018). EAST-ADL web-

site. http://www.east-adl.info/ (accessed January 16,

2019).

Gajski, D. D., Abdi, S., Gerstlauer, A., and Schirner, G.

(2009). Embedded system design: Modeling, synthe-

Issued by the OMG, http://www.omgsysml.org/

Issued by the SAE International, http://www.aadl.info/

Extending EAST-ADL for Modeling and Analysis of Partitions on Functional Architectures

175

sis and veriﬁcation. Springer, Dordrecht and New

York.

Gotz, M., Roser, S., Lautenbacher, F., and Bauer, B. (2009).

Token analysis of graph-oriented process models. In

13th Enterprise Distributed Object Computing Con-

ference Workshops, pages 15–24.

Johnson, R., Pearson, D., and Pingali, K. (1994). Program

structure tree: Computing control regions in linear

time. In Proceedings of the ACM SIGPLAN Confer-

ence on Programming Language Design and Imple-

mentation (PLDI), pages 171–185. ACM.

Kienberger, J., Minnerup, P., Kuntz, S., and Bauer, B.

(2014). Analysis and validation of AUTOSAR mod-

els. In Proceedings of the 2nd International Confer-

ence on Model-Driven Engineering and Software De-

velopment, MODELSWARD 2014, pages 274–281,

Portugal. SCITEPRESS - Science and Technology

Publications, Lda.

Kienberger, J., Saad, C., Kuntz, S., and Bauer, B. (2016).

Efﬁcient parallelization of complex automotive sys-

tems. In Balaji, P. and Leung, K.-C., editors, Pro-

ceedings of the 7th International Workshop on Pro-

gramming Models and Applications for Multicores

and Manycores, pages 40–49. ACM.

Lukasiewycz, M., Steinhorst, S., Andalam, S., Sagstetter,

F., Waszecki, P., Wanli Chang, Kauer, M., Mundhenk,

P., Shanker, S., Fahmy, S., and Chakraborty, S. (2013).

System architecture and software design for electric

vehicles. In IEEE, editor, Design Automation Confer-

ence (DAC), 2013 50th ACM / EDAC / IEEE, pages

1–6.

Macher, G., H

oller, A., Armengaud, E., and Kreiner, C.

(2015). Automotive embedded software: Migration

challenges to multi-core computing platforms. In

IEEE 13th International Conference on Industrial In-

formatics (INDIN), pages 1386–1393.

Marinescu, R. and Enoiu, E. P. (2012). Extending EAST-

ADL for modeling and analysis of system’s resource-

usage. In IEEE 36th Annual Computer Software and

Applications Conference Workshops, pages 532–537.

Ottenstein, K. J. and Ottenstein, L. M. (1984). The program

dependence graph in a software development environ-

ment. SIGPLAN Not., 19(5):177–184.

Potts, M., Sartor, P., Johnson, A., and Bullock, S. (2017).

Hidden structures: using graph theory to explore com-

plex system of systems architectures. International

Conference on Complex Systems Design & Manage-

ment. CSD & M.

Pretschner, A., Broy, M., Kruger, I. H., and Stauner, T.

(2007). Software engineering for automotive systems:

A roadmap. In Future of Software Engineering, pages

55–71.

Qureshi, T. N., Chen, D., L

onn, H., and T

orngren, M.

(2011). From EAST-ADL to AUTOSAR software

architecture: A mapping scheme. In Crnkovic, I.,

Gruhn, V., and Book, M., editors, Software Archi-

tecture, pages 328–335, Berlin, Heidelberg. Springer

Berlin Heidelberg.

Tarjan, R. (1972). Depth-ﬁrst search and linear graph algo-

rithms. SIAM Journal on Computing, 1(2):146–160.

The ATESST2 Consortium (2010). Methodology guideline

when using EAST-ADL2. Deliverable D5.1.1 V1.1.

Tip, F. (1995). A survey of program slicing techniques.

Journal of Programming Languages, 3:121–189.

Walker, M., Reiser, M.-O., Tucci-Piergiovanni, S., Pa-

padopoulos, Y., L

onn, H., Mraidha, C., Parker, D.,

Chen, D., and Servat, D. (2013). Automatic optimisa-

tion of system architectures using EAST-ADL. Jour-

nal of Systems and Software, 86(10):2467–2487.

Weit e.V. (2018). V-Modell XT: Das deutsche Referenz-

modell f

ur Systementwicklungsprojekte Version 2.2.

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

176
