An Ontology-based Web Crawling Approach for the Retrieval of

Materials in the Educational Domain

Mohammed Ibrahim

1 a

and Yanyan Yang

2 b

School of Engineering, University of Portsmouth, Anglesea Road, PO1 3DJ, Portsmouth, United Kingdom

School of Computing, University of Portsmouth, Anglesea Road, PO1 3DJ, Portsmouth, United Kingdom

Keywords: Web Crawling, Ontology, Education Domain.

Abstract: As the web continues to be a huge source of information for various domains, the information available is

rapidly increasing. Most of this information is stored in unstructured databases and therefore searching for

relevant information becomes a complex task and the search for pertinent information within a specific

domain is time-consuming and, in all probability, results in irrelevant information being retrieved. Crawling

and downloading pages that are related to the user’s enquiries alone is a tedious activity. In particular, crawlers

focus on converting unstructured data and sorting this into a structured database. In this paper, among others

kind of crawling, we focus on those techniques that extract the content of a web page based on the relations

of ontology concepts. Ontology is a promising technique by which to access and crawl only related data within

specific web pages or a domain. The methodology proposed is a Web Crawler approach based on Ontology

(WCO) which defines several relevance computation strategies with increased efficiency thereby reducing

the number of extracted items in addition to the crawling time. It seeks to select and search out web pages in

the education domain that matches the user’s requirements. In WCO, data is structured based on the

hierarchical relationship, the concepts which are adapted in the ontology domain. The approach is flexible

for application to crawler items for different domains by adapting user requirements in defining several

relevance computation strategies with promising results.

1 INTRODUCTION

Vast amounts of information can be found on the web

(Vallet et al. 2007) onsequently, finding relevant

information may not be an easy task. Therefore, an

efficient and effective approach which seeks to

organize and retrieve relevant information is crucial

(Yang 2010). With the rapid increase of documents

available from the complex WWW, more knowledge

regarding users’ needs is encompassed. However, an

enormous amount of information makes pinpointing

relevant information a tedious task. For instance, the

standard tools for web search engines have low

precision as, typically, some relevant web pages are

returned but are combined with a large number of

irrelevant pages mainly due to topic-specific features

which may occur in different contexts. Therefore, an

appropriate framework which can organize the

overwhelming number of documents on the internet

https://orcid.org/0000-0002-9976-0207

https://orcid.org/0000-0003-1047-2274

is needed (Pant et al., 2004). The educational domain

is one of the domains that have been affected by this

issue(Almohammadi et al. 2017). As the contents of

the web grow, it will become increasingly

challenging especially for students seeking to find

and organize the collection of relevant and useful

educational content such as university information,

subject information and career information(Chang et

al., 2016). Until now, there has been no centralized

method of discovering, aggregating and utilizing

educational content(Group 2009) by utilising a

crawler used by a search engine to retrieve

information from a massive number of web pages.

Moreover, this can also be useful as a way to find a

variety of information on the internet(Agre & Dongre

2015). Since we aim to find precise data on the web,

this comprehensive method may not instantly retrieve

the required given the current size of the web.

Most existing approaches towards retrieval tech-

900

Ibrahim M. and Yang Y.

An Ontology-based Web Crawling Approach for the Retrieval of Materials in the Educational Domain.

DOI: 10.5220/0007692009000906

In Proceedings of the 11th International Conference on Agents and Artiﬁcial Intelligence (ICAART 11th International Conference on Agents and Artiﬁcial Intelligence), pages 900-906

ISBN: 978-989-758-350-6

niques depend on keywords. There is no doubt that

the keywords or index terms fail to adequately

capture the contents, returning many irrelevant results

causing poor retrieval performance(Agre & Mahajan

2015). In this paper, we propose a new approach to

web crawler based on ontology called WCO, which is

used to collect specific information within the

education domain. This approach focuses on a

crawler which can retrieve information by computing

the similarity between the user’s query terms and the

concepts in the reference ontology for a specific

domain. For example, if a user seeks to retrieve all the

information about master’s courses in computer

science, the crawler will be able to collect all the

course information related to the specific ontology

designed for the computer science domain.

The crawling system described in this paper

matches the ontology concepts given the desired

result. After crawling concept terms, a similarity

ranking system ranks the crawled information. This

reveals highly relevant pages that may have been

overlooked by focused standard web crawlers

crawling for educational contents while at the same

time filtering redundant pages thereby avoiding

additional paths.

The paper is structured into sections. Section 2

reviews related work and background; Section 3

introduces the proposed approach to architecture. In

section 4 the experiment and the results are discussed.

Section 5 provides a conclusion and

recommendations for future work.

2 RELATED WORK

A web crawler is a software programme that browses

the World Wide Web in a systematic, automated

manner (Hammond et al., 2016). There has been

considerable work done on the prioritizing of the

URL queue to effect efficient crawling. However, the

performance of the existing prioritizing algorithms

for crawling does not suit the requirements of either

the various kinds or the levels of the users. The HITS

algorithm proposed by Kleinberg (Pant & Srinivasan

2006) is based on query-time processing to deduce

the hubs and authorities that exist in a sub graph of

the web consisting of both the results to a query and

the local neighbourhood of these results. The main

drawback of Kleinberg’s HITS algorithm is its query-

time processing for crawling pages. The best-known

example of such link analysis is the Pagerank

Algorithm which has been successfully employed by

the Google Search Engine (Gauch et al., 2003).

However, Pagerank suffers from slow computation

due to the recursive nature of its algorithm. The other

approach for crawling higher relevant pages was by

the use of neural networks (Fahad et al. 2014) but

even this approach has not been established as the

most efficient crawling technique to date. All these

approaches, based on link analysis, only partially

solve the problem. Ganesh et al.(Ganesh et al. 2004)

proposed a new metric solving the problem of finding

the relevance of pages before the process of crawling

to an optimal level. Researchers in (Liu et al., 2011)

present an intelligent, focused crawler algorithm in

which ontology is embedded to evaluate a page’s

relevance to the topic. Ontology is “a formal, explicit

specification of a shared conceptualization” (Gauch

et al., 2003). Ontology provides a common

vocabulary of an area and defines, with different

levels of formality, the meaning of terms and the

relationships between them (Krisnadhi 2015).

Ontologies were developed in Artificial Intelligence

to facilitate knowledge sharing and reuse. They have

become an interesting research topic for researchers

in Artificial Intelligence with specific reference to the

study domain regarding knowledge engineering,

natural language processing and knowledge

representation. Ontologies help in describing

semantic web-based knowledge management

architecture and a suite of innovative tools for

semantic information processing (Tarus et al., 2017).

Ontology-based web crawlers use ontological

concepts to improve their performance. Hence, it may

become effortless to obtain relevant data as per the

user’s requirements. Ontology is also used for

structuring and filtering the knowledge repository.

The ontology concept is used in numerous studies

(Gauch et al., 2003; Agre and Mahajan, 2015).

Gunjan and Snehlata (Agre & Dongre 2015) proposed

an algorithm for an ontology-based internet crawler

which retrieved only relevant sites and made the best

estimation path for crawling that helped to improve

the crawler performance. The proposed approach

deals with information path and domain ontology,

finding the most relevant web content and pages

according to user requirements. Ontology was used

for filtering and structuring the repository

information.

3 PROPOSED SYSTEM

Our proposed approach seeks to apply crawling to

educational content, such as university course

information, and sort it into a database through the

calculation of the hierarchy similarity between the

user query and the course contents. The crawler

An Ontology-based Web Crawling Approach for the Retrieval of Materials in the Educational Domain

901

consists of several stages; it begins with construction

domain ontology which it uses as a reference of

similarity between the user query and the web

contents. The user query adjusts to generate query

based ontology concepts and uses Term Frequency-

Inverse Document Frequency (TF-IDF) for

identifying terms for query expansion.

Firstly, we describe how information retrieval can

be achieved in the ontology. For instance, if D is the

number of documents annotated by concepts from an

ontology O, the document is represented by vector d

of concept weights. For each concept x  O

annotating d, dx is the importance of x in document

d. It can be computed by using the TF-IDF algorithm

as shown in Eq. 1:































(1)

Where freq

x,d

is the number of occurrences of x in

d, max

freq

y,d

is the frequency of the most repeated

instance in d, and nx is the number of documents

annotated by x, then cosine similarity between the

query and the document is used as the relevance score

for ranking the documents as shown in Eq.2.

 

































(2)

Where d the ith term in the vector for document and

q the ith term in the vector for the query. The

ontology-based query used as an input to the search

engine module. The output of this phase is a set of

documents which would be used for the crawling

system and furthermore operate as a way by which to

check all the web pages for validity (i.e. HTML, JSP

etc.). If it is valid, it is parsed, and the parsed content

is matched with the ontology and, if the page matches,

it will be indexed otherwise, it will be discarded.

Figure 1: WCO crawler main architecture.

architecture of the proposed approach is illustrated in

Fig.1. The user interacts with the crawler using a

simple interface designed to allow the user query

insert.

3.1 Ontology Model

This model consists of two main parts. Firstly, in

building reference ontology, a well-known open

source platform, Protégé (Ameen et al., 2012), is used

to build the reference ontology file. Protégé is a java

based tool providing a graphic user interface (GUI) to

define ontologies. The concepts in the user search

queries will be matched with the concepts in the

reference ontology file. The second aspect is to assign

weights to the concepts and their levels in the

ontology as shown in Table 1. A case study of a

computer sciences course hierarchy (Programs 2013)

is used. Computer sciences are the root class in our

ontology and has seven subclasses (information

system, computer science, are the root class in our

ontology, and with seven subclasses (Information

system, Computer science, Artificial intelligence,

Health information, Computer generated visual and

audio effects, Software engineering and Games) as

shown in Fig.2.

Each of the subclasses has a further subclass, for

instance artificial intelligent is further subdivided into

machine learning, cognitive modelling, neural

computing, knowledge representation, automated

reasoning, speech &natural language processing,

computer vision as shown in Fig. 3.

In order to clearly understand the relationship

between the ontology concept and their levels in the

ontology we apply the following definitions:

Definition 1: Let C be a concept, L the levels of the

concepts of an ontology and LW the weight of the

level. F is the frequency of the concept in the URL

parsed contents. The concept weight in each level can

be obtained using Eq. 3.

Concept Weight Level (CWL) = LW× F

(3)

Definition 2: Let SC be the set of concepts of an

ontology. We define the levels of a concept ci as:

levels(ci) = {l  SC|l  hyponyms(ci)  l is a level},

where l is a level if hyponyms(l) = .

The upper level in the ontology is given a higher

weight than the lower level, for example, the term

computer sciences in the URL is more specific to the

field of study than the term information system which

is also a field within the computer science domain

shown in Table 1.

ICAART 11th International Conference on Agents and Artiﬁcial Intelligence - 11th International Conference on Agents and Artiﬁcial

Intelligence

902

Table 1: Ontology weight table for Computer Sciences

courses.

Figure 2: OWL Viz view of Computer Science Classes

generated by Protégé.

Figure 3: OWL Viz view of Artificial Intelligent Classes

generated by Protégé.

Crawling Algorithm Implementation

The main source of educational information

regarding university courses in the United Kingdom

is UCAS (ucas.com 2018). Before we begin the

crawler process, it is necessary to identify the

information that needs to be crawled because each

URL contains much information that is not relevant.

In this paper, course information includes all the

important information that a student may require

relating to the course such as course title, the field of

study, major subject, level, fee, university location,

entry requirements and the language of the course).

Fig. 4 shows the crawling algorithm steps of the

crawler process:

1. User gives query terms through GUI of a crawler

2.Obtain the seed URL

3.If the webpage is valid, that is it of the defined type

4.Add the page to the queue.

5.Parse the contents.

6.Check the similarity of the parsed contents with the

reference ontology concepts by using Eq.1

7.If the page is relevant then

8. Add to the index

9. Otherwise the page does not need to be considered

further

10. Get the response from the server

11.Add the webpage to the index

12. Get the response from the server and, if it is OK,

then

13.Read the Protégé file of ontology and match the

content of a webpage with the terms of the ontology.

14. Count the Relevance Score of the web page as

defined by the algorithm and add the webpage to the

index and the cached file to a folder.

Level of

concepts

Ontology terms in the

course title

Weight

(W)

Computer sciences

0.5

Information systems

0.3

Software engineering

0.3

Artificial intelligence

0.3

Health informatics

0.3

Games

0.3

Computer architectures

0.2

Operating systems

0.2

Information modelling

0.2

Systems design

methodologies

0.2

Systems analysis & design

0.2

Databases

0.2

Computational science

foundations

0.2

Human-computer

interaction

0.2

Multimedia computing

science

0.2

Internet

0.2

e-business

0.2

Information modelling

0.2

Systems design

methodologies

0.2

Systems analysis & design

0.2

An Ontology-based Web Crawling Approach for the Retrieval of Materials in the Educational Domain

903

Figure 4: Crawling algorithm architecture.

3.2 Filtering Module

Although results are retrieved through centred

crawling, a mechanism is needed to verify the

relevance of those documents to the required domain

of interest. All pages stored within the repository will

be evaluated and their relevance scores calculated

thereby removing unrelated documents. A weight

table containing weights for every term within the

metaphysics is used. In the weight table, weights are

assigned to every term in our ontology. Terms

common to several domains are assigned a lower

weight, whereas terms that square measures specific

to bound domains take a higher weight. The task of

assigning the weight is established by knowledge

consultants. Using this approach, the link pages found

within the page repository which are examined and

crawled support the relevancy of domain ontology.

4 IMPLEMENTATION AND

EVALUATION

4.1 Experimental Setup

The system has been developed using a Java

framework (version JDK1.8) as well as the NetBeans

(version 8.02) being utilized as a development tool on

a Windows platform as shown in Fig.5. The system

runs on any standard machine and does not need any

specific hardware in order to run effectively. We

downloaded approximately 6000 webpages from

UCAS and recorded their links in our database. Our

experiment focuses on a crawling topic of a

“computer sciences course”. The reference ontology

model is created using a Protégé tool. A web based

user interface is used to prompt the user to give a

query as shown in Fig.6. In Table 2 a sample of

Figure 5: Snapshot of crawler code in NetBeans platform.

Table 2: Sample of results WCO Crawler for course

information.

Feature

Value

Course title

Artificial Intelligence

Course

qualification

MSc

Course URL

https://digital.ucas.com/courses/details?c

oursePrimaryId=7fea172a-efdd-4c02-995

0-edf34da09124&academicYearId =2018

Course

description

Artificial Intelligence (AI) forms part of

many digital systems. No longer is AI

seen as a special feature within software,

but as an important development

expected in modern systems. From

word-processing applications to gaming,

and from robots to the Internet of

Things, AI tends to be responsible for

controlling the underlying behaviour of

systems. Such trends are forecast to

grow further.

University

name

University of Aberdeen

Field of study

Information technology

Main subject

Computer science

Major subject

Artificial Intelligence

Course UK

Fee

£6,300

Course

location

University of Aberdeen, King's College,

Aberdeen,AB24 3FX

Entry

requirement

Our minimum entry requirement for this

programme is a 2:2 (lower second class)

UK Honours level (or an Honours degree

from a non-UK institution which is

judged by the University to be of

equivalent worth) in the area of

Computing Science. Key subjects you

must have covered: Java, C, C++,

Algorithms problem solving and Data

Structures.

information can be seen which has been crawled from

the UCAS website with reference to a computer

sciences master course entitled Artificial Intelligence.

ICAART 11th International Conference on Agents and Artiﬁcial Intelligence - 11th International Conference on Agents and Artiﬁcial

Intelligence

904

This information, stored in the MySQL database, will

be available to use for application in any research work.

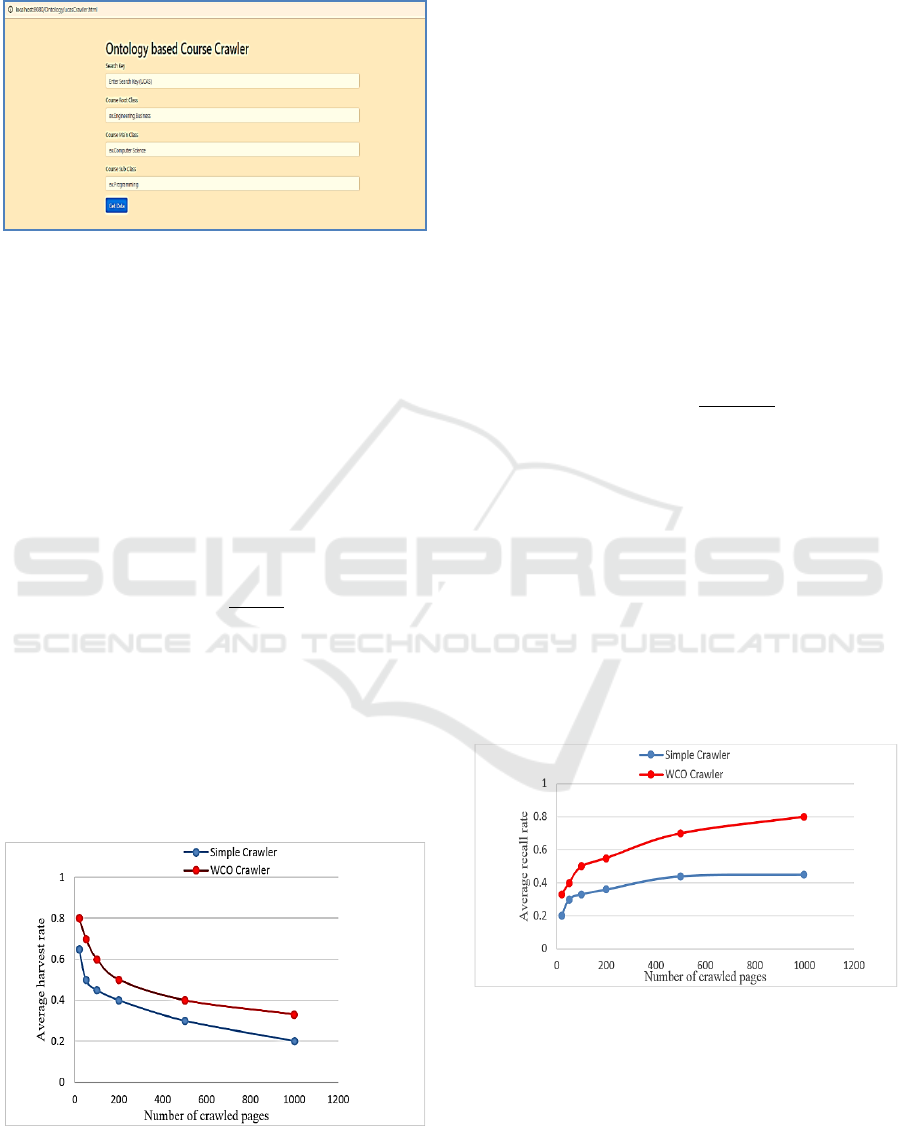

Figure 6: WCO crawler interface.

4.2 Evaluation Metrics

In order to measure the performance of the proposed

approach, a harvest rate metric has been used to

measure the crawler performance and a recall metric

has been used to evaluate the performance of the

webpage classifier.

The harvest rate, according (Pant & Menczer

2003)is defined as the fraction of the web pages

crawled that are relevant to the given topic. This

measures how well irrelevant web pages are rejected.

The formula is given by

 













(4)

where  is the number of web pages crawled by

the focused crawler in current;  is the relevance

between the web page  and the given topic, and the

value of  can only be 0 or 1. If relevant, then  = 1;

otherwise  = 0. in the Fig.7 performance

comparison between the proposed crawler which is

based ontology and a traditional crawler.

Figure 7: Performance comparison average harvest rate

between proposed crawler which is based ontology and

traditional crawler.

In Fig. 7, the -axis denotes the number of crawled

web pages and the -axis denotes the average harvest

rates when the number of crawled pages is .

According to Fig 7, the number of crawled web pages

increases and we see that the number of crawled web

pages of WCO is higher than that of a simple crawler

which has not used ontology in the crawling process.

Moreover, the harvest rate of a simple crawler is 0.42

at the point that corresponds to 100 crawled web page

in Fig 7. However, the values indicate that the harvest

rate of the WCO is 0.6 and 1.3 times larger than that

of the simple crawler.

The recall metric is the fraction of relevant pages

crawled and used to measure how well it is

performing in finding all the relevant webpages. To

further understand how we can apply the recall

metric, let RS be the relevant set in the web and St be

the set of the first pages crawled. The formula of the

recall metric will be as follows:

 



 









(5)

Fig. 8 presents a performance comparison of the

average recall metrics for a simple crawler and the

proposed crawler for 5 different topics. The -axis in

Fig.8 denotes the number of crawled web pages and

the -axis denotes the average recall metrics when the

number of crawled pages is . We realized that the

average recall of the WCO is higher than that of the

simple crawler.

Based on the performance evaluation metrics, the

harvest rate and the recall metrics, we can conclude

that the WCO has a higher performance level than

that of a simple crawler.

Figure 8: Performance comparison average recall metrics

rate between proposed crawler which is based ontology and

traditional crawler.

5 CONCLUSION

The main aim of our paper is to retrieve relevant web

An Ontology-based Web Crawling Approach for the Retrieval of Materials in the Educational Domain

905

pages and discard those that are irrelevant from an

educational web page. We have developed an

ontology-based crawler, called WCO, which retrieves

web pages according to relevance and which discards

the irrelevant web pages using an algorithm. In this

study, a concept of ontology provided a similarity

calculation of levels of the concepts in the ontology and

the user query and the relationship between them were

used. It is therefore intended that this crawler will not

only be useful in exploiting fewer web pages, such that

only relevant pages are retrieved, but will also be an

important component of the “Semantic Web”, an

emerging concept for future technology. The

evaluation results show that the ontology based crawler

offers a higher performance than that of a tradition

crawler. This improved crawler can also be applied to

areas such as recruitment portals, online music libraries

and so forth.

ACKNOWLEDGMENT

The authors wish to express their gratitude to the Iraq

government through the Higher Committee Education

Development program (HCED) for their financial

support in this study. Also, would like to thanks the

school of Engineering and school of computing at the

University of Portsmouth for their contribution to

participate in the experiment. Finally, the authors want

to thank the anonymous reviewers and editors, whose

insightful comment and corrections made a valuable

contribution to this article.

REFERENCES

Agre, G. and Dongre, S. 2015.A Keyword Focused Web

Crawler Using Domain Engineering and Ontology.

International Journal of Advanced Research in

Computer and Communication Engineering, vol. 4, no.

3, pp. 463–5.

Agre, G.H. and Mahajan, N. V. 2015. Keyword focused

web crawler. 2nd International Conference on

Electronics and Communication Systems, ICECS 2015,

pp. 1089–92.

Almohammadi, K., Hagras, H., Alghazzawi, D. and

Aldabbagh, G. 2017. A survey of artificial intelligence

techniques employed for adaptive educational systems

within e-learning platforms. Journal of Artificial

Intelligence and Soft Computing Research, vol. 7, no.

1, pp. 47–64.

Ameen, A., Khan, K.U.R. and Rani, B.P. 2012. Creation of

ontology in education domain. Proceedings - 2012

IEEE 4th International Conference on Technology for

Education, T4E 2012, no. May 2015, pp. 237–8.

Chang, P.C., Lin, C.H. and Chen, M.H. 2016. A hybrid

course recommendation system by integrating

collaborative filtering and artificial immune systems.

Algorithms, vol. 9, no. 3.

Fahad, A., Alshatri, N., Tari, Z., Alamri, A., Khalil, I.,

Zomaya, A.Y., Foufou, S. and Bouras, A. 2014. A survey

of clustering algorithms for big data: Taxonomy and

empirical analysis. IEEE Transactions on Emerging

Topics in Computing, vol. 2, no. 3, pp. 267–79.

Ganesh, S., Jayaraj, M., SrinivasaMurthy, V.K. and Aghila,

G. 2004. Ontology-based web crawler. International

Conference on Information Technology: Coding

Computing, ITCC, vol. 2, pp. 337–41.

Gauch, S., Chaffee, J. and Pretschner, A. 2003. Ontology-

based personalized search and browsing. Web

Intelligence and Agent Systems: An international

journal, vol. 1, pp. 219–34.

Group, D.E. 2009. Leveraging Content from Open Corpus

Sources for Technology Enhanced Learning. October,

viewed 12 November 2018,

<https://www.scss.tcd.ie/Seamus.Lawless/papers/thesis.

pdf>.

Hammond, D.A., Smith, M.N. and Meena, N. 2016. A Brief

History of Web Crawlers. Chest, vol. 149, pp. 1582–3.

Krisnadhi, A.A. 2015. Ontology Pattern-Based Data

Integration. Phd, p. 217.

Liu, Z., Du, Y. and Zhao, Y. 2011. Focused Crawler Based

on Domain Ontology and FCA. Journal of Information

and Computational Science, vol. 8, no. 10, pp. 1909–17.

Pant, G. and Menczer, F. 2003. Topical Crawling for

Business Intelligence. Proceedings of 7th European

Conference on Research and Advanced Technology for

Digital Libraries ECDL 2003, vol. 2769, Springer,

Berlin, Heidelberg, pp. 233–44, .

Pant, G. and Srinivasan, P. 2006. Link contexts in classifier-

guided topical crawlers. IEEE Transactions on

Knowledge and Data Engineering, vol. 18, no. 1, pp.

107–22 .

Pant, G., Srinivasan, P. and Menczer, F. 2004. Crawling the

Web. Web Dynamics .

Programs, U.D. 2013. Computer Science Curricula 2013:

Curriculum Guidelines for Undergraduate Degree

Programs in Computer Science.

Tarus, J.K., Niu, Z. and Mustafa, G. 2017. Knowledge-based

recommendation: a review of ontology-based

recommender systems for e-learning. Artificial

Intelligence Review, pp. 1–28.

Ucas.com 2018. The Universities and Colleges Admissions

Service in United Kingdom. viewed 15 October 2018,

<https://www.ucas.com/>.

Vallet, D., Castells, P., Fernández, M., Mylonas, P. and

Avrithis, Y. 2007. Personalized content retrieval in

context using ontological knowledge. IEEE Transactions

on Circuits and Systems for Video Technology, vol. 17,

no. 3, pp. 336–45.

Yang, S.Y. 2010. Developing an ontology-supported

information integration and recommendation system

for scholars. Expert Systems with Applications, vol. 37, no.

10, pp. 7065–79.

ICAART 11th International Conference on Agents and Artiﬁcial Intelligence - 11th International Conference on Agents and Artiﬁcial

Intelligence

906
