TriCePS: Self-optimizing Communication for Cyber-Physical Systems

Jia L. Du

, Stefan Linecker

, Peter Dorﬁnger

and Reinhard Mayr

Advanced Networking Center, Salzburg Research, Jakob Haringer Str. 5/3, Salzburg, Austria

COPA-DATA GmbH, Karolingerstrasse 7B, Salzburg, Austria

Keywords:

Cyber-Physical Systems, Internet of Things, Interoperability, Self-adaptation, Protocol Negotiation, Protocol

Optimization.

Abstract:

The progress in energy-efﬁcient, cost-effective and highly capable sensor-actuator electronics and data trans-

mission technologies has been triggering a new phase in the digital transformation with potentially billions

of cyber-physical systems connected in the Internet of Things in future. To fully harvest the potential of this

development, a strategy for efﬁcient, robust, interoperable and future-proof communication between a myriad

of different CPS in a global network is essential. Such a strategy will have to cope with the desire for com-

munication between potentially up front unknown systems using up front unknown communication networks

under unknown conditions. Within the TriCePS project a framework and missing building blocks for adap-

tive communication for cyber-physical systems are designed and developed. The three main pillars will be

Application Adaptation, Protocol Negotiation and Protocol Parameter Optimization. In this paper, the general

concept and architecture as well as ﬁrst results are presented.

1 INTRODUCTION

The term cyber-physical system (CPS) emerged

around 2006, when it was coined by Helen Gill at

the National Science Foundation in the United States

(Lee, 2015). A cyber-physical system is a system that

integrates computation with physical processes. Em-

bedded, networked computers use sensors and actua-

tors to interact with the physical world. Physical pro-

cesses then affect computation and vice versa. In con-

trast to traditional embedded systems, a CPS is a net-

work of interacting appliances instead of a standalone

device (Minerva et al., 2015).

The CPS concept is strongly connected to the no-

tion of the Internet of Things (IoT). IoT is a global in-

frastructure enabling advanced services and consist-

ing of networked everyday objects which are con-

nected through interoperable information and com-

munication technologies (Xia et al., ). As IoT is about

the interconnection of (everyday) objects (or things),

it can be seen as related to the idea of ubiquitous

computing that Mark Weiser came up with in 1988

(Weiser, 1999). IoT applications include smart home,

wearables, connected car, smart grid, and many more.

The concepts of CPS and IoT have become pos-

sible due to the progress in highly capable, of-

ten embedded, cost effective, energy-efﬁcient sensor-

actuator and computation electronics and data trans-

mission technologies.

1.1 Communication for CPS

With a myriad of network-connected entities, there

will also be an immense number of different commu-

nication connections with varying qualities of connec-

tivity. Caused by the stochastic behaviour of the un-

derlying wired or wireless (usually IP) networks and

applications that compete for bandwidth, the experi-

enced quality of service (QoS) can be volatile. The

size of the experienced variations depends on the ratio

between the application requirements and the granted

network resources. Managing this interdependence

successfully, is a main challenge in comparison to

existing systems, e.g. in the energy domain, which

rely on exclusive and over-provisioned communica-

tion infrastructures. In addition to different qualities

of connectivity, a multitude of used communication

standards and a wide variety of hardware capabilities

will also present a challenge.

A generally suitable CPS end system architecture

will require new approaches, which can fulﬁll the

adaptivity and openness needs for the integration of

highly different systems under varying conditions.

Du, J., Linecker, S., Dorﬁnger, P. and Mayr, R.

TriCePS: Self-optimizing Communication for Cyber-Physical Systems.

DOI: 10.5220/0007696402410247

In Proceedings of the 4th International Conference on Internet of Things, Big Data and Security (IoTBDS 2019), pages 241-247

ISBN: 978-989-758-369-8

241

1.2 Project Overview

The TriCePS project addresses the communication-

related challenges for future cyber-physical systems.

It aims for interoperable and efﬁcient communication

in such systems and uses adaptation and optimization

as its basic strategies. The missing building blocks for

adaptation and self-optimization that TriCePS aims to

contribute can be described in form of three compo-

nents (Figure 1):

• The ﬁrst TriCePS component, “Application Adap-

tion”, will inform the application layer about QoS

values. The application then has the chance to

adapt to the current conditions, e.g. by activating

local pre-processing.

• The second TriCePS component, “Protocol Ne-

gotiation”, enables interoperability and efﬁcient

communication between end systems by allowing

negotiating and choosing a communication pro-

tocol supported by all partners or even by down-

loading a protocol from a central repository.

• Finally, the third TriCePS component, “Protocol

Parameter Optimization”, optimizes the parame-

ters of the protocols in use for the current applica-

tion, content and infrastructure.

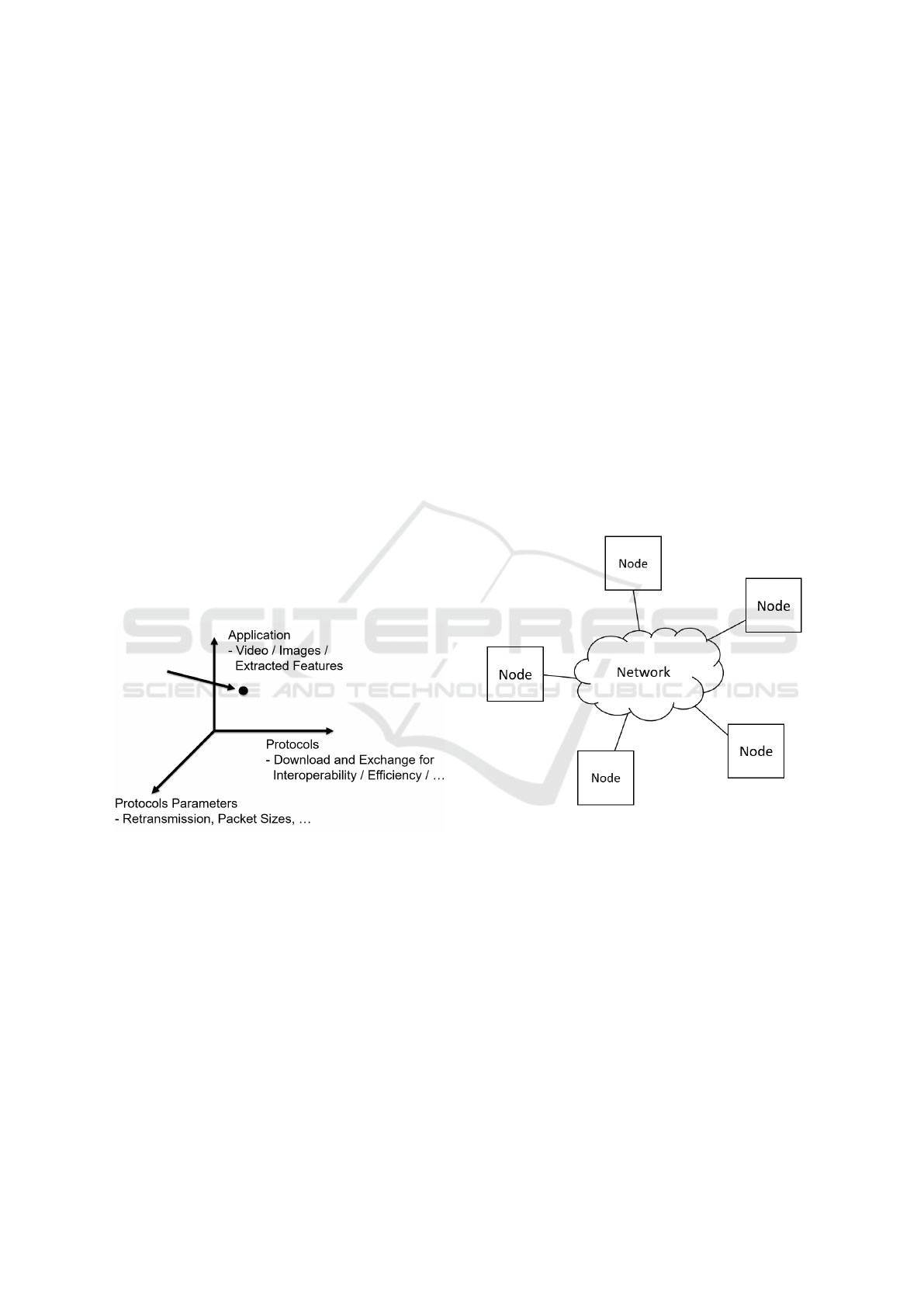

Figure 1: Illustration of TriCePS ”Optimization Space”.

Such a comprehensive approach with a combina-

tion of these three components will provide future in-

terconnected CPS with the means to establish interop-

erability and to efﬁciently and robustly communicate

with each other in the future Internet of Things.

2 REQUIREMENTS AND GOALS

In this chapter the assumptions, requirements and

adaptation mechanisms for TriCePS are presented

which have served as basis for the architectural de-

cisions in the next chapter.

2.1 Network Model, Constraints and

Requirements

TriCePS assume a very general network model (Fig-

ure 2). When thinking about general, adaptive and

future-proof CPS communication systems, we cannot

assume in advance too much about either the nodes

or the edges and have to be content with this very ba-

sic, abstract model. Potential communication nodes

in the network include all kinds of devices such as

servers, mobile devices, embedded devices. A given

network route may cross multiple underlying logical

and physical local or wide-area, wired or wireless net-

works. Every route can be thought of as having a va-

riety of properties including current available band-

width, round-trip time and number of hops. Some of

these properties might be mostly static (like the num-

ber of hops between two devices in a wired, local net-

work), whilst others may change continuously (like

the available bandwidth between two devices when

other network ﬂows are competing for resources).

Figure 2: TriCePS network model.

Additionally, some further general assumptions

and requirements are:

• There is no control over the network components,

features or settings between two nodes.

• The route between two nodes can be used by po-

tentially many other devices, components and ser-

vices too.

• There is no general possibility to control or mod-

ify node network stack behaviour.

• There is the possibility to inﬂuence user space ap-

plication behaviour on nodes.

• A focus will be put on TCP trafﬁc.

IoTBDS 2019 - 4th International Conference on Internet of Things, Big Data and Security

242

2.2 Adaptation Mechanisms

If network conditions vary and the current conditions

are not suitable, one can basically take three strategies

to cope with it.

First, one can simply wait until the data transfer

is done anyway. This strategy works well if it does

not really matter too much when the data actually ar-

rives. A background download for a software update

might be a good example where data integrity is very

important but there are usually no strict timing re-

quirements. Self-limiting the data rate for not time-

sensitive communication (which naturally increases

the duration a data transfer takes) may help to ease

overall network congestion.

Second, one can try to send less data. As an ex-

ample, a video surveillance camera could send a sin-

gle picture every few seconds instead of a full video.

This approach makes sense when outdated data has no

value and it is better to have a reduced amount of data

in time than the original data with a large delay. The

reduced data rate might help to ease overall network

congestion, too.

Third, one can try to transfer the data as efﬁciently

as possible through e.g. compression or other tech-

nical approaches like proper packaging or appropri-

ate protocol selection. These approaches can come

with various effects, e.g. data loss in case of lossy

compression or higher processing or memory require-

ments on the nodes.

Within TriCePS the following three approaches

will be supported.

• Time stretch – If two nodes want to exchange data

but there is no inherent urgency for the data to ar-

rive at a certain time.

• Payload adaptation – If the type of content can

be changed to adjust the data rate to the current

network conditions.

• Protocol adaptation – Protocol selection and/or

protocol parameter selection are used to react to

the current network conditions.

Of course, a combination of several or all of these

approaches is also possible. The goal of the TriCePS

project is to develop the architecture and components

necessary to support these adaptation mechanisms.

3 RELATED WORK

The TriCePS project touches several areas of research

in computer networking, especially network measure-

ment and monitoring, quality of service, transport

protocols and application layer protocols.

3.1 Network Measurement and

Monitoring

Generally, one can differentiate between active and

passive measurements and monitoring (Mohan et al.,

2011). With active monitoring, special probe packets

are used to measure certain metrics. Active measure-

ments create additional load. Passive measurements,

in contrast, does not insert packets but use existing

trafﬁc and facilities to gain insights.

With TriCePS, we need continuous feedback on

network state and potentially have to handle a huge

number of connections. Due to the intrusive nature

of active techniques, its bad scalability and infeasibil-

ity for continuous measurements on low-bandwidth

links, passive techniques are used.

As a further constraint, we do not assume to gen-

erally have access to available passive network mea-

surements on the path between two nodes (like router

or switch SNMP statistics). We therefore have to use

passive techniques that only rely on the end nodes of

a connection, passive, end-to-end network measure-

ments so to speak.

3.2 Quality of Service Metrics

The notion of quality of service (QoS) really has (at

least) two relevant meanings for this project.

First, more general and highly related to service-

level agreements (SLAs), a QoS attribute describes a

measurable, speciﬁc aspect of the quality of a service.

These aspects include metrics of performance, relia-

bility and availability and SLAs then deﬁne QoS tar-

gets, e.g. 99.9% of I/O operations take less then 100

ms when measured over a one-minute sliding win-

dow.

Second, in packet-switched networking, QoS

refers to a broad set of technologies that offer dif-

ferent types of service to different data packets, usu-

ally with the intent to provide guarantees with respect

to network performance. QoS techniques include for

example scheduling, resource reservation and trafﬁc

shaping.

While our generalized approach rules out both

forms of QoS (the networks and devices are unknown

a-priori so we cannot generally expect or enforce any

type of SLA, neither can we expect or enforce the use

of any of the mentioned QoS techniques), awareness

of the term is important and many QoS metrics are

directly relevant:

• One-way delay – Amount of time it takes for a

packet from the sending node to the receiving

node (in an end-to-end fashion).

TriCePS: Self-optimizing Communication for Cyber-Physical Systems

243

• Round trip time – Delay from sender to receiver

and back.

• Delay variation – Variation of packets’ one-way

delays.

• Throughput – Amount of data that is transferred

in a certain period of time. Usually measured in

bits per second.

• Goodput – Effective, application-level throughput

without protocol overhead.

3.3 Application Level Optimization

With application level optimization, the application

layer is informed about current QoS metrics and has

the chance to adapt accordingly. This is not a novel

approach; adaptive codecs have been around for quite

a while.

The Adaptive Multi-Rate (AMR) audio codec,

which is widely used in GSM and UMTS, is a promi-

nent example. With AMR, different coding schemes

can be used depending on link quality measurements

performed on the receiver side (Ekudden et al., 1999).

If conditions are good, AMR strives for speech qual-

ity (high speech bandwidth, low error protection). If

conditions are bad, AMR strives for robustness (com-

promising on speech quality but boosting error cor-

rection and limiting bandwidth needs).

Another prominent example for existing

application-level optimization is adaptive bitrate

streaming (ABS) for video. ABS detects the user’s

current bandwidth and adjusts the quality of the

video stream accordingly. One current ABS imple-

mentation is HTTP Adaptive Streaming (HAS). With

HAS, segments of content (in the size of seconds) are

encoded with different quality levels and made avail-

able over HTTP. The receiving side can then choose

segments according to current bandwidth estimates.

An interesting view into how YouTube is handling

Quality of Experience for video can be found in

(Sieber et al., 2016). NADA (Network-Assisted

Dynamic Adaptation) (Zhu et al., 2013) also suggests

adaptive real-time media applications in which adapt

their video target rate and thus their sending rate

based on explicit or implicit congestion signals.

In difference to the solutions above, TriCePS fol-

lows a more general approach by allowing the type

of content being transported to change. This is sup-

ported by protocol switching and protocol parameter

optimization mechanisms. However, approaches and

solutions developed for by the other solutions such as

NADA’s delay estimations could generally be reused

in TriCePS as components.

3.4 Protocol Switching

Protocol switching or, more speciﬁcally, time-

independent communication protocol (re-)negotiation

and switching enables two things: ﬁrst and foremost,

interoperability between a priori unknown end sys-

tems and second, further optimization of network us-

age through optimal protocol selection.

A recent, relevant work is Application-Layer Pro-

tocol Negotiation (ALPN), described in (Friedl et al.,

2014). ALPN is a TLS extension and allows for pro-

tocol negotiation within the TLS handshake. The

client sends a list of supported application protocols

with its TLS ClientHello message. The application

layer protocol to be used is then contained in the

server’s reply, the ServerHello message. For this, it

is assumed that the server supports a number of pro-

tocols that are ordered by preference. A process sim-

ilar to APLN will be implemented in TriCePS for

protocol negotiation. The Session Initiation Protocol

(SIP) with its Session Description Protocol (SDP) can

be seen as another example for protocol negotiation

(Rosenberg et al., 2002).

Finally, for a protocol repository an approach sim-

ilar to software repositories will be used which man-

age and store applications and software packages that

can be downloaded and installed on digital devices.

Various software application or packet managers exist

for speciﬁc operating systems (like Linux, Windows,

macOS, Android) or programming languages (such as

Maven for Java, PyPI for Python, CTAN for LaTeX).

3.5 Protocol Parameter Optimization

The parameter optimization for transmission proto-

cols has a long history for TCP retransmission time

out estimation (Paxson et al., 2011) based on heuristic

formulas. (Balandina et al., 2013; Betzler et al., 2016)

present the heuristic adaptation of the two CoAP pa-

rameters used for controlling the back-off mecha-

nism retransmission timeout (RTO) and retransmis-

sion counter. Additionally the problem of miss-

ing ACKs for NON(-conﬁrmable) messages leading

to sparse RTT measurements is solved by artiﬁcial

generated CON messages (“weak RTTs”). A new

so-called Organic Network Control-based systematic

learning approach is presented in (Kodama et al.,

2008). The situation for a sending entity in the CPS

is modelled as a competition between species in a

harsh environment with the Lotka-Volterra competi-

tion model. The population of the species is mapped

onto the TCP window size dependent on the received

ACKs. Especially this work has high relevance for

this project because its results were validated by a

IoTBDS 2019 - 4th International Conference on Internet of Things, Big Data and Security

244

real implementation and experiments in a wide area

network. The optimization of all ten TCP parame-

ters for Web over TCP applications (Tomforde et al.,

2015) has been developed to alter protocol conﬁgura-

tions at runtime. It is equipped with online learning

capabilities and safety considerations. The results are

validated through simulation.

4 ARCHITECTURE

With the requirements and relevant related work being

laid out in the former chapters, the proposed software

architecture for TriCePS is presented.

4.1 Basic Design Decisions

• Congestion-oriented – Generally, the main net-

work information required by TriCePS is whether

there is congestion on the used network paths and

the two main network-related metrics that are of

importance for the purposes of TriCePS are la-

tency and/or bandwidth. Changes in one or both

of these two main metrics will serve as potential

triggers for adaptations in the communication be-

havior of TriCePS-enabled CPS.

• Socket-level mode of operation – From a granu-

larity point of view, all adaptation mechanisms

are performed at socket level (as opposed to

application-level or device-level). This is a com-

paratively non-invasive approach as each data

ﬂow can be treated separately and gives CPS users

the means to prioritize individual data ﬂows as

necessary. Each application will also keep creat-

ing and controlling its communication sockets (as

opposed to letting TriCePS create and control all

sockets and passing the data back and forth to the

applications).

• Application-embedded – From a deployment

point view, the ﬁrst version of TriCePS is embed-

ded in the application process (as opposed to run-

ning in a separate process and accessed through

inter-process communication mechanisms or be-

ing integrated in the kernel or network driver).

This makes it easier to access socket information

and modify socket settings if necessary.

• In-band control – TriCePS control signals are

ideally be communicated in-band (i.e. over the

same communication connection through which

the payload is sent) to avoid creating additional

connections. However, it remains to be investi-

gated in the further course of the project if this

can be correctly handled by applications and if

there are any negative effects, e.g. caused by deep

packet inspection security systems.

• Non-collaborative – Finally, the TriCePS adapta-

tion mechanisms operates in a non-collaborative

manner. At ﬁrst, the Application Layer Optimiza-

tion will choose the type/amount of data to be

sent, then a suitable protocol is chosen, and ﬁ-

nally a suitable set of protocol parameters is cho-

sen (see ﬁgure 3). The application layer decisions

will have the biggest inﬂuence on the overall com-

munication and other adaptation mechanism will

depend on these decisions.

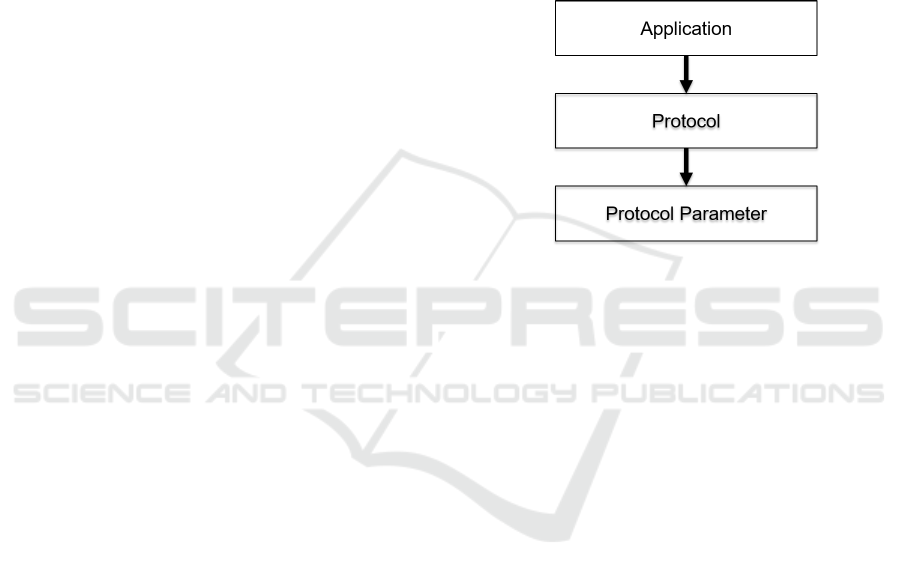

Figure 3: TriCePS Adaptation Components by Priority.

4.2 System Architecture Diagram

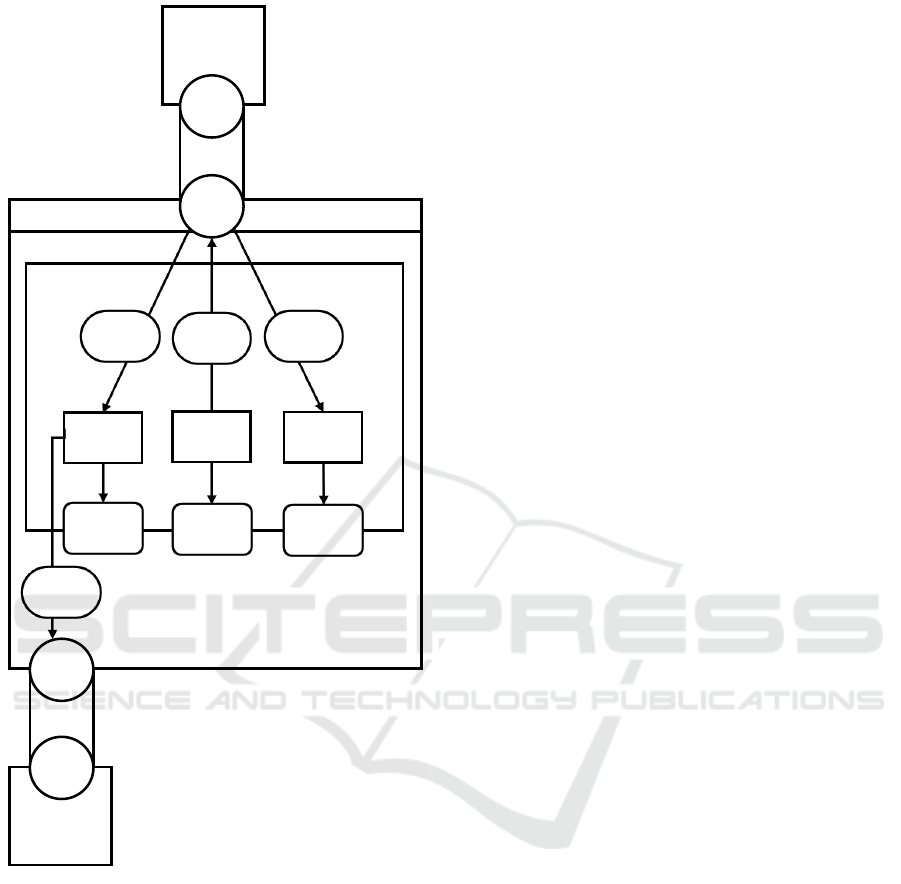

Figure 4 shows the TriCePS system architecture with

TriCePS nodes, socket connections between those

nodes and, for Node B, the internal TriCePS compo-

nents.

Two arbitrary nodes of a communication system

can be seen. Both nodes use TriCePS. Node A is

only depicted as a black box while Node B is depicted

with all the TriCePS components (Network Moni-

toring, Protocol Switching, Parameter Optimization)

as well as all relevant building blocks of the over-

all system (the application itself, the TriCePS library,

the network socket and the network). Note that the

TriCePS functionality Application Level Optimization

has no dedicated building block since it is imple-

mented within the Application (which therefore relies

on metrics gained by the Network Measurement com-

ponent).

4.3 Components

The Network Monitoring component provides contin-

uous feedback on network state (in the form of net-

work metrics) to both the application and the Protocol

Parameter Optimization component. It thereby uses

passive, end-to-end network measurement techniques

to obtain those metrics.

TriCePS: Self-optimizing Communication for Cyber-Physical Systems

245

Protocol

Switching

Network

Monitoring

Parameter

Optimization

Node A

Node B

Protocol

Repository

Socket

Network

Metrics

Tuning

Goals

Available

Protocols

Network

Socket

Network

Socket

Application

TriCePS

Tuning

Parameters

Socket

Information

Available

Protocols

Protocol

Updates

Figure 4: TriCePS nodes, components and interfaces.

The Protocol Switching component gathers infor-

mation about the available protocols on the counter-

part (node A) and the availability of new protocols on

the protocol repository. It forwards this information

to the application.

The Parameter Optimization component is set up

by the application to work towards certain goals (e.g.

low delay) and tries to tune certain socket parameters

towards those goals. It does so without further trig-

gering due to the application but solely on network

metrics, socket parameters and mentioned goals. The

work of the Network Parameter Optimization compo-

nent is transparent to the application.

An application that uses TriCePS gets network

metrics from the Network Management component,

uses the Protocol Switching component to exchange

information about available protocols (both at the

counterpart and the repository) and assistance for pro-

tocol (re-)negotiation and sets goals for the Protocol

Parameter Optimization component. It also controls

the socket(s) used to send application data and thus

the used congestion control algorithm.

5 DEMONSTRATION

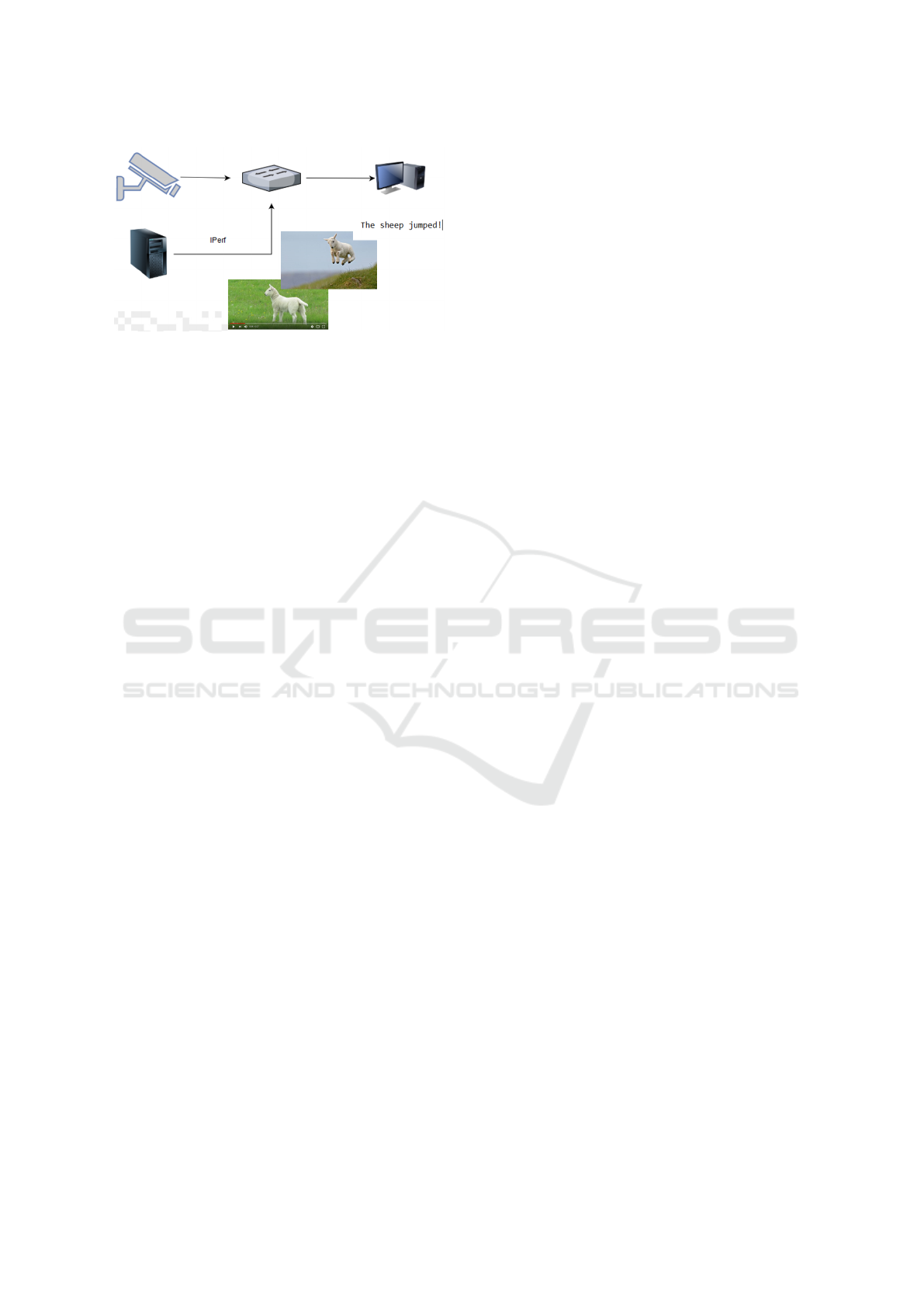

For demonstration purposes the following scenario

will be realized. A ”smart surveillance camera” needs

to transmit live digital footage over the communica-

tion network (see ﬁgure 5). The bandwidth require-

ments is signiﬁcant while the amount of available

bandwidth ﬂuctuates. Tackling this problem through

buffering is not sufﬁcient as the footage needs to be

transmitted and processed in real-time. To ensure

liveliness of data, it can be better to compromise on

video quality then to look at a stuttering and delayed

high quality video. The amount of transmitted data

will be adopted as shown in the following hierarchy

(from good to bad network quality):

• HD video, normal compression, normal frame

rate

• Individual images at low frame rate (<0.5 fps),

reduced quality

• Individual image features (using image feature ex-

traction)

The bandwidth requirements then vary between sev-

eral Mbit/s (for HD video) and several hundred Bits/s

(for textual descriptions of image features), that is a

factor of 10000.

This demonstrator will serve as an example ap-

plication and will make use of most or all TriCePS

adaptations mechanisms and components at once. It

will be adapted by industrial partner COPA-DATA for

industrial use cases where for example near real-time

availability of critical SCADA data is crucial.

6 CONCLUSION

Robust, interoperable, efﬁcient and future-proof com-

munication is essential for CPS. The architecture and

components developed in TriCePS will provide a

lightweight, practical solution for this purpose that

does not rely on certain technologies or conﬁgurations

of the network between two communicating CPS end

nodes.

IoTBDS 2019 - 4th International Conference on Internet of Things, Big Data and Security

246

Figure 5: Depending on the underlying network conditions

(controlled through the IPerf tool used to generate network

load), the “smart camera” on the left side changes the appli-

cation data that is sent. Either a full video stream, or only

high resolution images, or textual descriptions of events and

objects.

ACKNOWLEDGEMENTS

This project is partially funded by the Austrian Fed-

eral Ministry of Transport, Innovation and Technol-

ogy (BMVIT) under the program ”ICT of the Future”

(https://iktderzukunft.at/en/).

REFERENCES

Balandina, E., Koucheryavy, Y., and Gurtov, A. (2013).

Computing the retransmission timeout in coap. In In-

ternet of Things, smart spaces, and next generation

networking, pages 352–362. Springer.

Betzler, A., Isern, J., Gomez, C., Demirkol, I., and Pa-

radells, J. (2016). Experimental evaluation of conges-

tion control for coap communications without end-to-

end reliability. Ad Hoc Networks, 52:183–194.

Ekudden, E., Hagen, R., Johansson, I., and Svedberg, J.

(1999). The adaptive multi-rate speech coder. In

Speech Coding Proceedings, 1999 IEEE Workshop

on, pages 117–119. IEEE.

Friedl, S., Popov, A., Langley, A., and Stephan, E. (2014).

Transport layer security (tls) application-layer proto-

col negotiation extension. RFC 7301, RFC Editor.

Kodama, M., Hasegawa, G., and Murata, M. (2008). Imple-

mentation experiments of tcp symbiosis: bio-inspired

mechanisms for internet congestion control. Proceed-

ings of CQR 2008.

Lee, E. A. (2015). The past, present and future of cyber-

physical systems: A focus on models. Sensors,

15(3):4837–4869.

Minerva, R., Biru, A., and Rotondi, D. (2015). Towards a

deﬁnition of the internet of things (iot). IEEE Internet

Initiative, 1:1–86.

Mohan, V., Reddy, Y. J., and Kalpana, K. (2011). Active

and passive network measurements: a survey. Inter-

national Journal of Computer Science and Informa-

tion Technologies, 2(4):1372–1385.

Paxson, V., Allman, M., Chu, J., and Sargent, M. (2011).

Computing TCP’s retransmission timer. RFC 6298,

RFC Editor.

Rosenberg, J., Schulzrinne, H., Camarillo, G., Johnston, A.,

Peterson, J., Sparks, R., Handley, M., and Schooler, E.

(2002). Session initiation protocol. RFC 3261, RFC

Editor.

Sieber, C., Heegaard, P., Hoßfeld, T., and Kellerer, W.

(2016). Sacriﬁcing efﬁciency for quality of experi-

ence: Youtube’s redundant trafﬁc behavior. In IFIP

Networking 2016.

Tomforde, S., Kantert, J., von Mammen, S., and H

ahner, J.

(2015). Cooperative self-optimisation of network pro-

tocol parameters at runtime. In Informatics in Con-

trol, Automation and Robotics (ICINCO), 2015 12th

International Conference on, volume 1, pages 123–

130. IEEE.

Weiser, M. (1999). The computer for the 21st century. Mo-

bile Computing and Communications Review, 3(3):3–

11.

Xia, F., Yang, L. T., Wang, L., and Vinel, A. Internet of

things. International Journal of Communication Sys-

tems, 25(9):1101–1102.

Zhu, X., Pan, R., Ramalho, M., Mena, S., Jones, P., Fu, J.,

and D’Aronco, S. (2013). Nada: A uniﬁed congestion

control scheme for real-time media. Draft IETF.

TriCePS: Self-optimizing Communication for Cyber-Physical Systems

247
