A Feasibility Study of a Method for Identification and Modelling of

Cybersecurity Risks in the Context of Smart Power Grids

Aida Omerovic

, Hanne Vefsnmo

, Gencer Erdogan

, Oddbjørn Gjerde

Eivind Gramme

and Stig Simonsen

SINTEF Digital, Norway

SINTEF Energy, Norway

Skagerak Nett, Norway

Keywords: Cybersecurity, Cyber Risk, Smart Power Grids, Risk Identification, Risk Analysis, Vulnerabilities.

Abstract: Power grids are undergoing a digital transformation are therefore becoming increasingly complex. As a result

of this they are also becoming vulnerable in new ways. With this development come also numerous risks.

Cybersecurity is therefore becoming crucial for ensuring resilience of this infrastructure which is critical to

safety of humans and societies. Risk analysis of cybersecurity in the context of smart power grids is, however,

particularly demanding due to its interdisciplinary nature, including domains such as digital security, the

energy domain, power networks, the numerous control systems involved, and the human in the loop. This

poses special requirements to cybersecurity risk identification within smart power grids, which challenge the

existing state-of-the-art. This paper proposes a customized four-step approach to identification and modelling

of cybersecurity risks in the context of smart power grids. The aim is that the risk model can be presented to

decision makers in a suitable interface, thereby serving as a useful support for planning, design and operation

of smart power grids. The approach applied in this study is based on parts of the "CORAS" method for model-

based risk analysis. The paper also reports on results and experiences from applying the approach in a realistic

industrial case with a distribution system operator (DSO) responsible for hosting a pilot installation of the

self-healing functionality within a power distribution grid. The evaluation indicates that the approach can be

applied in a realistic setting to identify cybersecurity risks. The experiences from the case study moreover

show that the presented approach is, to a large degree, well suited for its intended purpose, but it also points

to areas in need for improvement and further evaluation.

1 INTRODUCTION

Advanced and innovative capabilities are steadily

emerging and being deployed on the top of the

traditional power grids. Such modern power grids are

often called smart grids. New kinds of software and

hardware technologies are enablers while increased

needs for power grid efficiency are the driving forces

for this development, which is characterized as power

grid digitalization. With this development come also

numerous cybersecurity risks that are more or less

specific to complex cyber-physical systems which

include many dependencies.

The smart grid vision implies extensive use of

"ICT", i.e. information and communication

technology, in the power system, enabling increased

flexibility and functionality and thereby meeting

future demands and strategic goals. Consequently,

power system reliability will increasingly depend on

ICT components and systems (Tøndel et al., 2017).

While adding functionality, ICT systems also

contribute to failures. To analyse the risks of this

complex and tightly integrated cyber-physical power

system, there is a need to identify the new

vulnerabilities that are introduced due to the

increasing usage of ICT technologies and their

interdependencies with the physical power grid.

The digitalization of the power system will

include new concepts based on intelligent sensors in

the grid and efficient communication between these

sensors and the Supervisory Control and Data

Acquisition (SCADA) system or distribution

management system (DMS) (Belmans, 2012). New

components and technologies, such as self-healing

grids, will enable automation of the power grid,

which will lead to reduced time for fault- and

Omerovic, A., Vefsnmo, H., Erdogan, G., Gjerde, O., Gramme, E. and Simonsen, S.

A Feasibility Study of a Method for Identiﬁcation and Modelling of Cybersecurity Risks in the Context of Smart Power Grids.

DOI: 10.5220/0007697800390051

In Proceedings of the 4th International Conference on Complexity, Future Information Systems and Risk (COMPLEXIS 2019), pages 39-51

ISBN: 978-989-758-366-7

interruption handling, but will at the same time

introduce new vulnerabilities and threat scenarios,

leading to unwanted incidents. One example of how

adversaries can exploit the new components and

technologies, is the cyber-attack against the

Ukrainian Power Grid in December 2015, where the

outages affected approximately 225 000 customers

that lost power across various areas (Lee et al., 2016).

The new architectures of the ICT dominated power

system will increase the complexity and therefore

calls for approaches to identify the cybersecurity risks

of the complex cyber-physical power system.

Risk modelling is a technique for risk

identification and assessment, and the state-of-the-art

offers several tree-based and graph-based notations.

Fault Tree Analysis (IEC, 1990), Event Tree Analysis

(IEC, 1995) and Attack Trees (Schneier, 1999) are

examples of the former and provide support for

reasoning about the sources and consequences of

unwanted incidents, as well as their likelihoods.

Cause-Consequence Analysis (Nielsen, 1971),

CORAS (Lund et al., 2010), and Bayesian networks

(Ben‐Gal, 2008) are examples of graph-based

notations. CORAS is a tool-supported and model-

driven approach to risk analysis that is based on the

ISO 31000 risk management standard (ISO, 2009). It

uses diagrams as a means for communication,

evaluation and assessment. Markov models (IEC,

2006), CRAMM (Barber and Davey, 1992),

OCTAVE (Alberts et al., 2003), Threat Modelling

(Microsoft, 2018) and a number of others, have also

been applied to support risk analysis. A framework

for studying vulnerabilities and risk in the electricity

supply, based on the bow-tie model, has been

developed and is published for instance in (Kjølle and

Gjerde, 2015, Kjølle and Gjerde, 2012, Hofmann et

al., 2012). As stated in (Tøndel et al., 2017) the

current methods for risk analysis of power systems

seem unable to take into account the full array of

intentional and accidental threats. In addition, they

found few methods and publications on identification

of interdependencies between the ICT and power

system (Tøndel et al., 2017). However, as they stand,

none of the existing approaches provides the support

that meets specific needs for cybersecurity risk

analysis of smart power grids. Power grids are namely

characterized by very high complexity and a

significant degree of interdependencies. As a critical

infrastructure which is undergoing a rapid digital

transformation, these cyber-physical systems are

safety critical and their cybersecurity is becoming

crucial. They include assets such as physical power

network, communication protocols, control systems,

human in the loop, and many emerging types of

hardware and software such as sensors, remote

decision support systems, algorithms for automatic

response to failures, load balancing, etc. These assets

constitute the building blocks for the on-going

digitalization efforts, as a means for enabling the

power grids of meeting the future needs in terms of

capacity, efficiency and reliability. Many of the

solutions are new to the domain and there is a lack of

formerly established experiences with regard to their

strengths and weaknesses. The complexity and the

lack of prior empirical knowledge contribute to the

inherent uncertainty and the overall risk picture.

Moreover, the interdisciplinary nature of such

systems poses requirements on comprehensibility of

the design of smart power grids and the

corresponding risk models. Since the emerging

solutions are at their early stages, there is a lack of

historical data and operational experiences that could

constitute relevant input to the risk models. Even if

such data exists, it is of a limited scope and precision

in the context of smart power grids. A smart grid

setting which includes a complex and critical cyber

physical system, human in the loop, uncertainty due

to lack of knowledge, many dependencies and

interdisciplinary aspects, challenges the state-of-the-

art on cybersecurity management within the power

distribution sector. This indicates a need for an

approach to cybersecurity risk identification which is

customized to meet the following requirements (the

ordering is arbitrary and does not express the relative

the importance of the requirements):

1. The approach is cost-effective and light-weight,

i.e. the benefits of using it are well worth the

effort.

2. The cyber risk model can be developed and easily

understood by the involved actors who represent

varying roles and background.

3. The risk model has sufficient expressive power to

capture relevant aspects of the cybersecurity risk

picture in the context of smart power grids.

4. The risk model facilitates inclusion of the

information that is available, while not requesting

unrealistic degree of precision.

5. The risk model can visualize the cybersecurity

relevant dependencies and sequence of

states/events both for the whole context and for

the detailed parts of the scope of analysis.

This paper proposes a customized four-step approach

to identification of cybersecurity risks in the context

of smart power grids. The aim is that the risk model

can be presented to human in a suitable interface,

thereby serving as a useful support for decision

making during design and operation.

COMPLEXIS 2019 - 4th International Conference on Complexity, Future Information Systems and Risk

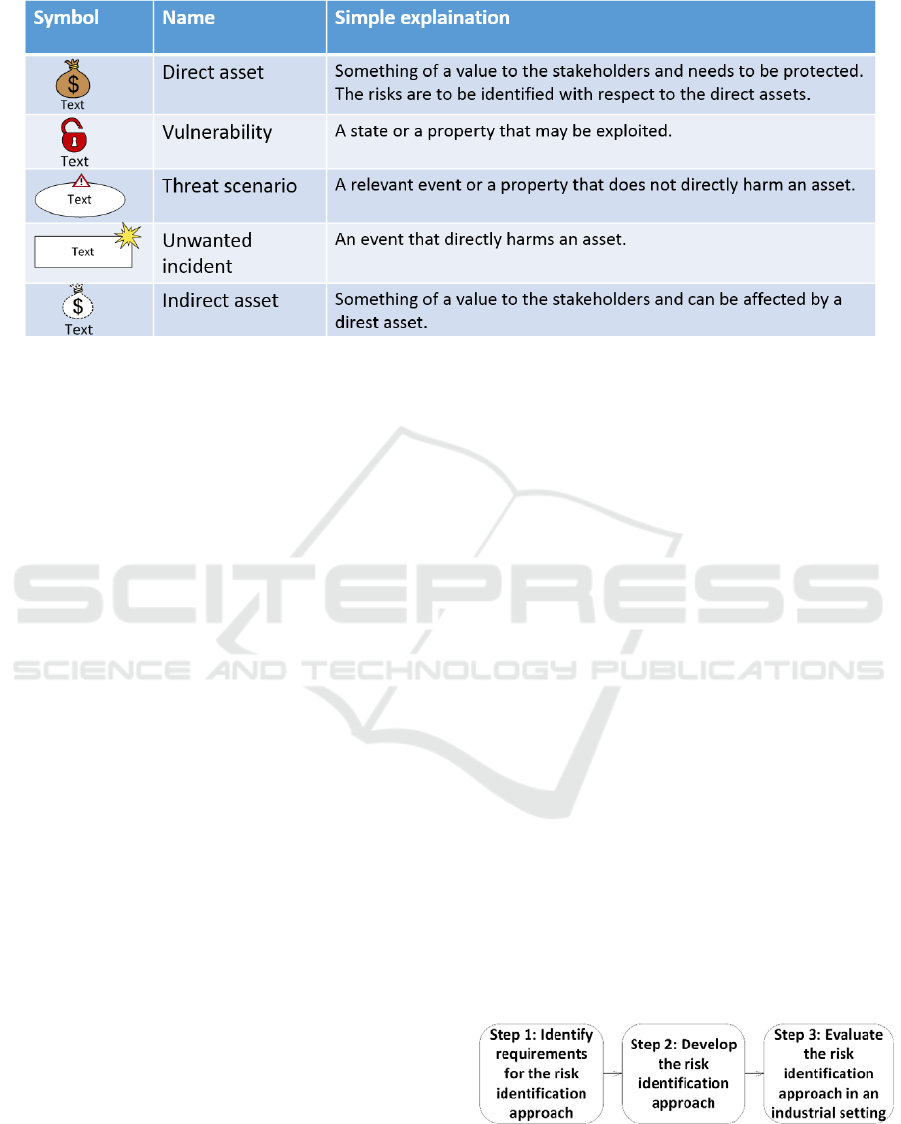

Table 1: Constructs of the cybersecurity risk modelling language.

The approach applied in this study is, to a high

degree, based on parts of the previously mentioned

CORAS method for model-based risk analysis.

Compared to CORAS, the process and the modelling

approach we have applied are simplified and partially

adapted in order to meet the five above specified

requirements.

The paper also reports on results and experiences

from applying the approach in a realistic industrial

case study together with a power distribution system

operator (DSO) responsible for hosting a pilot

installation of the self-healing functionality within a

medium voltage (MV) grid. The results indicate

feasibility and usefulness of the approach. Important

lessons have been learned on our approach to risk

identification as well as about the cybersecurity of the

power grid domain. This work has been carried out

within the CINELDI research centre (CINELDI,

2018) that performs research on the future intelligent

energy distribution grids. The centre gathers a

significant number of the major public and private

actors from the energy sector in Norway.

The rest of this paper is organized as follows: In

Section 2 we briefly present the research strategy

applied. Our method for cybersecurity risk

identification is presented in Section 3. The setup and

the results from the trial of the method are outlined in

Section 4. In Section 5 we discuss the results, before

concluding in Section 6.

2 RESEARCH STRATEGY

Figure 1 illustrates the steps of our research strategy,

which is in line with the design science approach

(Wieringa, 2014). Although

Figure 1 illustrates

sequential steps, the method was carried out

iteratively where some of the steps were revisited

during the process.

In Step 1, we identified the five requirements for

a model-based risk identification approach

customized for smart power grids based on the

background and needs as explained in Section 1. In

Step 2, we developed the risk identification approach

based on state-of-the-art approaches with respect to

the requirements identified in Step 1. The method

consists of four main phases, namely: context

establishment, risk identification, risk model

validation, and follow-up. The method is explained in

detail in Section 3.

Finally, in Step 3 we evaluated the approach in an

industrial setting together with a DSO that is currently

hosting a pilot on self-healing functionality in their

power grid. The evaluation was carried out as

follows. First, we established the context and gained

a deep understanding of the self-healing functionality,

based on reports on state of the practice, dialogue

with domain experts who participated in the analysis

group, as well as the documentation provided by the

DSO. Then, we developed a preliminary version of

the risk model which focused on cybersecurity

aspects of reliable energy supply. Thereafter, we

presented the preliminary version of the risk model to

the DSO, i.e. the power distribution company that was

the use case provider.

Figure 1: Research strategy.

The company provided their feedback to our risk

model. Next, the company presented results of a risk

A Feasibility Study of a Method for Identiﬁcation and Modelling of Cybersecurity Risks in the Context of Smart Power Grids

assessment that they had previously carried out. Their

assessment had focused on preservation of human

safety in the context of self-healing. Both the

feedback and the risk assessment of the company

were used as a basis to revise our risk model. This

feedback-correction interaction was carried out in

several iterations. This was followed by a final

revision that involved updating the model according

to the predefined scope. As the final step of the

evaluation, we exposed the model to a list of future

scenarios that had independently been developed in

two workshops by industry experts in the CINELDI

research centre. The complete evaluation process is

presented in Section 4.

3 METHOD FOR

CYBERSECURITY RISK

IDENTIFICATION – THE

MODELLING APPROACH AND

THE PROCESS

Our method for cybersecurity risk identification

consists of four main phases, inspired by the CORAS

method and modelling language, but simplified and

customized in order to address our specific

requirements listed in Section 1. The method is to be

carried out by an analysis group, consisting of

analysts and domain experts, representing

competence in risk analysis, cybersecurity, and smart

power grids. One individual may cover one or more

roles, and several individuals may represent a similar

role. Most importantly, the composition of the

analysis group needs to include the relevant

competence and ensure a sufficient degree of

continuity (with respect to attendance of some of the

participants) within the group. The four phases of the

process include:

1. Context establishment

2. Risk identification

3. Risk model validation

4. Follow-up

The objective of Phase 1 is to characterize the scope

and the target of the analysis. Stakeholders that the

analysis is being performed on behalf of, time

perspective, relevant terminology, assumptions, roles

and participants of the analysis group, as well as the

information sources are, moreover, specified. Assets,

that is the values that will drive the focus of the

analysis, are also defined. This phase produces

descriptions, insights and a common understanding of

the target of analysis. The target of the analysis is

specified and modelled with respect to capabilities,

structure, dataflow, workflow, etc. The existing target

specifications (i.e. those which are available prior to

the analysis) may be reused or referred to.

The objective of Phase 2 is to identify the relevant

risk model elements and develop a risk model. The

risk model elements may be of the following types:

vulnerabilities, threat scenarios and unwanted

incidents. The unwanted incidents are the elements

that may harm the assets defined during Phase 1. The

very first step of this phase is to introduce the types

of the model elements to the analysis group. A brief

introduction to the modelling constructs and their

simple explanations is illustrated in Table 1. The

explanations in the last column are simplified

wordings inspired by corresponding definitions from

CORAS. Note that the definition of vulnerability

from the energy sector is slightly different, namely

"Vulnerability is an expression for the problems a

system faces to maintain its function if a threat leads

to an unwanted event and the problems the system

faces to resume its activities after the event occurred.

Vulnerability is an internal characteristic of the

system" (Kjølle and Gjerde, 2015). Thereafter, the

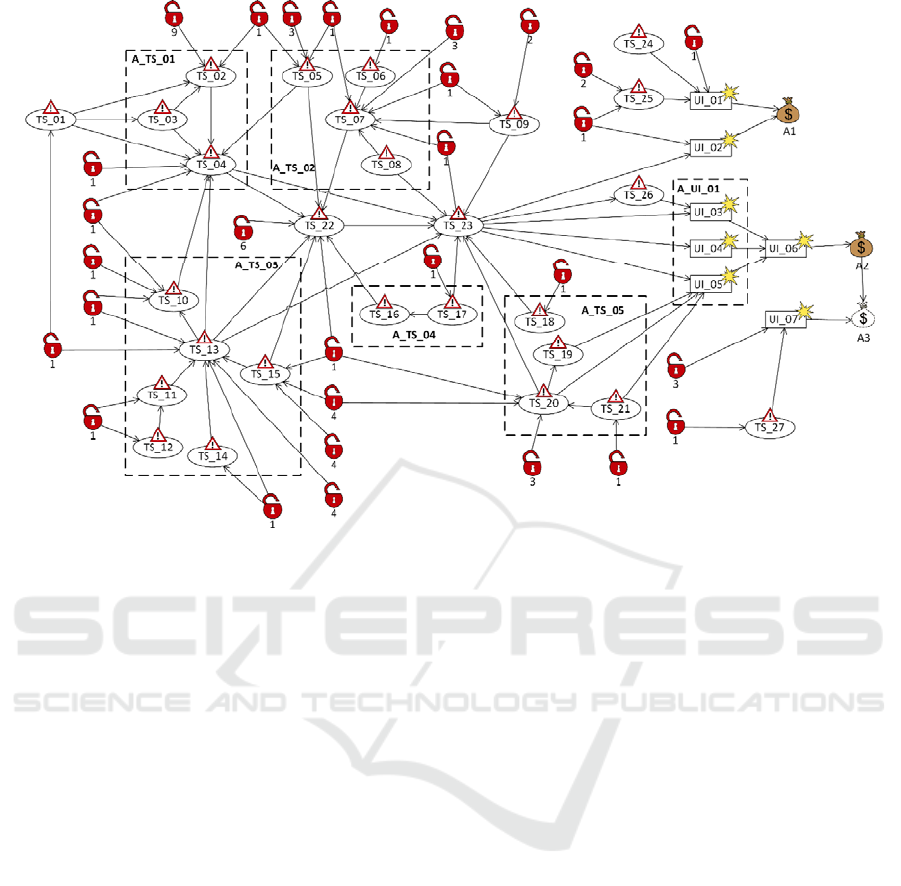

identification of risks through a risk modelling

activity using the constructs in Table 1, is initiated.

The constructs are, as a part of this process, annotated

with descriptive text. The relationships between the

model constructs are expressed with arcs connecting

the relevant elements, thus resulting in a risk model

shaped as an acyclic directed graph. The analysts

shall facilitate the model development by iteratively

posing questions on risks that may harm the assets

and the possible vulnerabilities and threat scenarios

that cause those risks. The analysts shall also

contribute with cybersecurity domain knowledge

during the risk modelling. The analysts shall,

moreover, ensure that the syntax of the risk model is

consistent. The domain experts shall, during the risk

modelling, contribute with the domain knowledge on

power grids. Discussion is facilitated in order to align

the different domains and reveal the relevant risks- At

the same time, the context description from Phase 1

is actively used. Moreover, if needed, refined

descriptions of selected model elements are provided.

For some parts of the risk model, it may be

appropriate to express uncertainties and assumptions,

in form of supplementary information or within the

model.

Phase 3 aims at validating the risk model

developed in the preceding phase. That is, the model

should be exposed to quality assurance based on

various and complementing kinds of empirical input,

in order to ensure an acceptable level of uncertainty.

COMPLEXIS 2019 - 4th International Conference on Complexity, Future Information Systems and Risk

The uncertainty may origin from insufficient

information or knowledge, or from variability in

context, usage, etc. This is followed by adjustments

of the model with respect to the structure and the

individual elements. Eventually, the model is

approved if the evaluation shows that the revised

version is sufficiently complete, correct and certain.

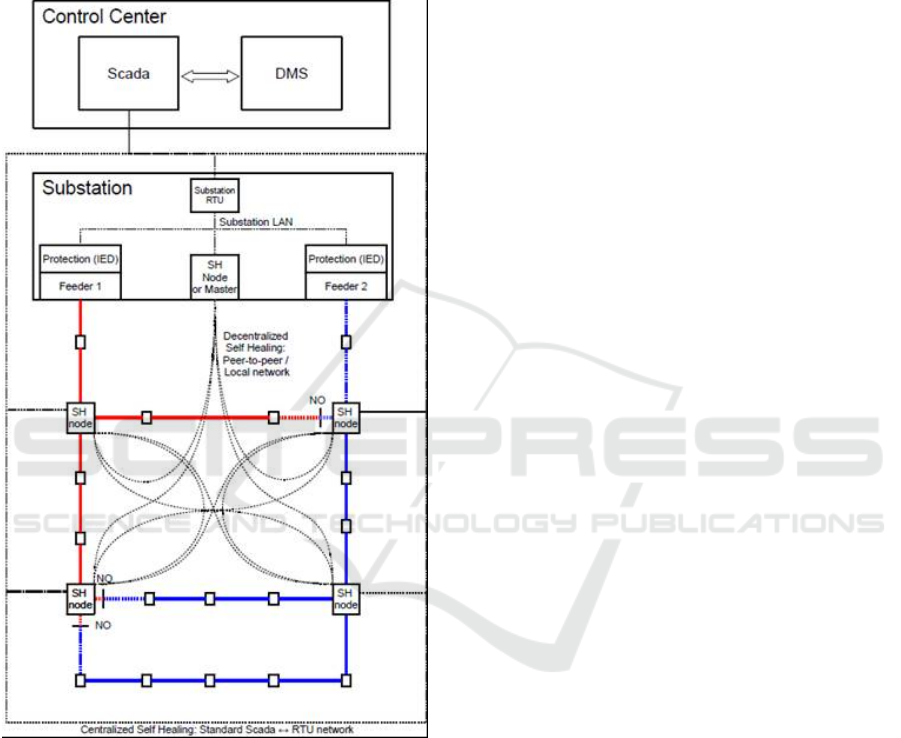

Figure 2: The centralized self-healing design studied. SH-

nodes are the self-healing nodes consisting of fault

indicators and remotely controlled switches.

The objective of Phase 4 is two-fold, namely

communication and maintenance of the results. The

specific tasks of this phase include summary of most

critical findings, evaluations of validity and reliability

of the risk model, recommendations of risk

treatments, summary of uncertainties in the findings,

communications of the results to the relevant

stakeholders. Maintenance of the risk model involves

monitoring of assumptions and the context changes

that require updates of the risk model.

4 TRIAL OF THE METHOD ON

AN INDUSTRY PILOT WITH

SELF-HEALING CAPABILITY

This section outlines the process undergone during

the industrial case, as well as the main properties and

examples of the modelling artefacts produced. We

also summarize the lessons learned. Note that the

process undergone is to a large degree but not fully an

instantiation of the approach presented in Section 3.

The reason is that the process has been simplified in

order to meet the most prevailing needs and to apply

as much as possible of the approach, within the

limited resources assigned.

4.1 Setting of the Case Study

New sensors and technologies give opportunities for

smarter fault- and interruption handling in the

distribution (medium voltage) grid through self-

healing grid functionality. At the same time these

technologies introduce new vulnerabilities to the

system. To study these vulnerabilities a case study has

been performed on detailed design of a realistic

centralized self-healing grid, owned by a Norwegian

DSO.

4.1.1 Centralized Self-healing Grid

With self-healing functionality the processes as fault

location, isolation and restoration (FLIR) (Siirto,

2016) are, in our context, assumed to be fully

automated. Centralized self-healing systems are

traditionally implemented in the control centre, but in

this case the logic and algorithm are implemented in

the "Master node" in the substation, as shown in

Figure 2. This Master node collects the information

from all self-healing nodes ("SH-nodes" in Figure 2)

and makes the best-effort decision based on this

information. The SH-nodes consist of fault indicators

and remotely controlled switches. The white

rectangles are nodes with load points. The red and

blue lines indicate the two feeders which are radially

operated power lines from the actual substation. The

"NO" in Figure 2 shows the shifts from feeder 1 and

feeder 2 and by that which loads are supplied from

which feeder. The Master node communicates with

the substation remote terminal unit (RTU), which

again communicates with the control centre. The

centralized self-healing system uses the same

communication network as SCADA/DMS to

communicate with remote devices such as substation

communication. As the system is normally inside the

same security zone as the control centre and the

A Feasibility Study of a Method for Identiﬁcation and Modelling of Cybersecurity Risks in the Context of Smart Power Grids

remote devices are normally on the outside,

communication must pass the barriers in and out of

the security zone (Tutvedt et al., 2017).

4.1.2 Scope of the Analysis

The focus of the analysis has been to protect the

following two assets: reliability of the electric power

system and human safety. The reliability of an electric

power system is defined as: "probability that an

electric power system can perform a required

function under given conditions for a given time

interval." (IEV 617-01-01).



When a fault occurs in a radially operated medium

voltage grid, all customers experience an interruption.

The goal of self-healing is not to avoid faults, but to

reduce the consequence in terms of interruption

duration, which is obtained when self-healing works

perfectly after a fault. When self-healing functionality

fails, the interruption duration increases and may also

be longer then without any self-healing solution. In

this case study, risks leading to longer interruption

durations are identified and modelled, together with

new vulnerabilities which may introduce new fault

types into the power system.

In addition, safety risks caused by security risk are

included in the analysis. This may cover safety

aspects related to personnel working close to the

power line or public safety, in order to ensure nobody

gets hurt during power restoration.

4.1.3 Assumptions and Delimitation of the

Industrial Case

The following assumptions were made in the case

study as part of context establishment:



The self-healing starts after a fault has occurred.





Self-healing session terminates when the fault is

isolated, and the power is resupplied to all

possible end-users. The repair of the fault is not a

part of the scope of the analysis.





Self-healing in the distribution grid is still at an

early stage and under implementation. The

centralized self-healing analysed is therefore

based on the version/design available at the time

of case execution.





Configuration of self-healing and fault handling

of the self-healing system (i.e. if the self-healing

functionality fails) is included in the scope.





It is assumed that self-healing is performed

autonomously (That is, automatically without an

operator involved) when the self-healing

functionality works as intended.





The operator is involved in the configuration and

the fault-handling part, i.e. if the self-healing

functionality fails.



4.1.4 Background of the Participants

Involved in the Analysis

The analysis was performed with a core team of four

people. The main analysis was performed by the two

analysts with 8-16 years of experience in software

engineering and cybersecurity risk management. In

addition, two domain experts with 6-18 years of

relevant experience within power system reliability

and security of electricity supply, have participated.

From the grid company, one manager and two domain

experts within grid operation and development, have

been involved. The manager has 3 years of experience

from the grid company and additional 9 years of

experience from a technology provider in the power

system. The operation and grid development experts

have more than 10 years of relevant experience from

power grid planning and operation.

4.2 Process Outline

The case study was conducted during the second half

of the year 2018. The analysis was performed in the

form of one physical and eight videoconference

meetings in a fully realistic setting in terms of the

scope, the objectives, the process, the risk models and

the participants. The cybersecurity risks of the self-

healing pilot were identified and modelled, with

respect to a specified scope and assets. The case study

was conducted first as a part of risk modelling with

context specification as a baseline, and then as a part

of method evaluation with an independent risk

analysis previously conducted by the power grid

operator as a baseline.

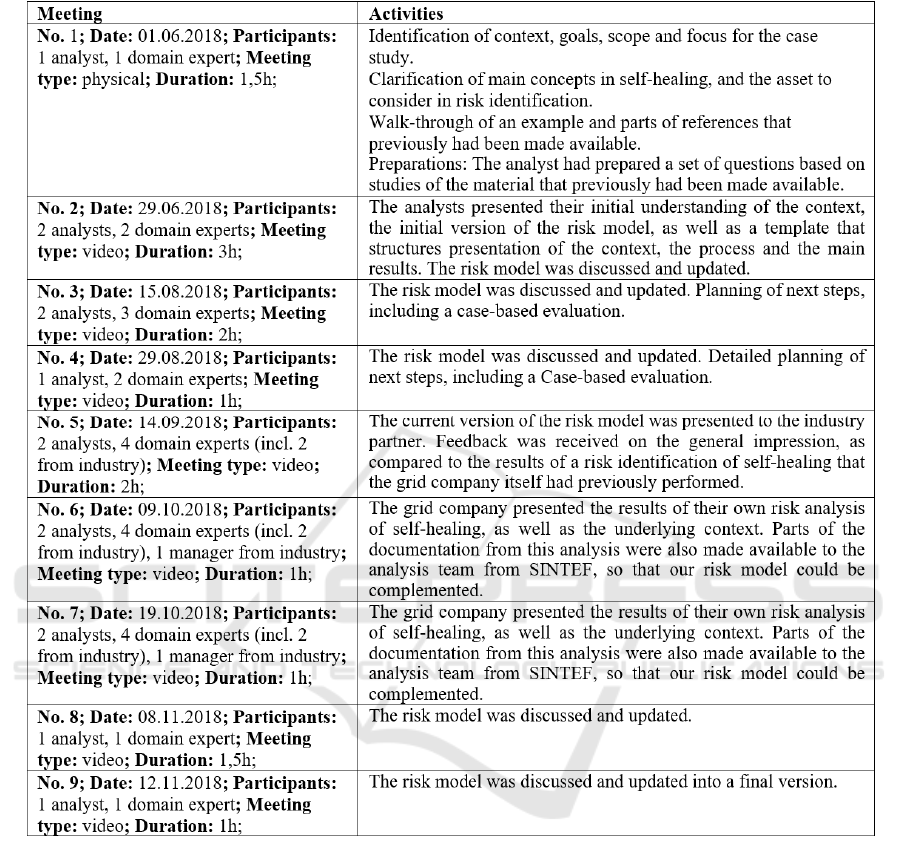

Table 2 summarizes the process undergone. For

each workshop, we list the meeting number, the date,

the participants, the meeting type, the meeting length,

and activities.

4.3 Results from the Case Study

Figure 3 illustrates a high-level view of the risk model

developed in the study. In the following we first

explain the textual notation used in the model as

shown in Figure 3 and then we explain the content of

the risk model by referring to its elements.

The risk model in Figure 3 has 27 threat scenarios

(TS_01 – TS_27), seven unwanted incidents (UI_01 –

UI_07), two assets (A1 and A2) and one indirect asset

(A3). The digit in each vulnerability indicates the

COMPLEXIS 2019 - 4th International Conference on Complexity, Future Information Systems and Risk

Table 2: The process undergone during the case.

number of vulnerabilities that may lead to one or

more threat scenarios and/or unwanted incidents. For

example, in the top-left corner of Figure 3, we see one

vulnerability that has the digit 9 conveying that there

are nine different vulnerabilities that may only lead to

threat scenario TS_02. Moreover, we see that there is

one vulnerability that may lead to both threat

scenarios TS_02 and TS_05. Thus, the risk model in

Figure 3 shows that there our final risk model

contained in total 62 vulnerabilities.

Some of the threat scenarios and unwanted

incidents are closely related and therefore aggregated

and illustrated by a dashed rectangle. For example,

the aggregated threat scenario A_TS_01 consists of

threat scenarios TS_02, TS_03 and TS_04. The model

also shows an aggregation of unwanted incidents that

are related (A_UI_01). In the following, we explain

the model by referring to its elements in Figure 3.

With respect to assets to protect, the model

captures the following:

 A_1: Human safety.

 A_2: Reliability of electricity supply.

 A_3: Security of other critical infrastructure.

With respect to threat scenarios, the model captures

the following:

 A_TS_01: Malicious users access SCADA via

underlying infrastructure or due to

misconfiguration of the power grid and carries out

cyber-attacks on services.

A Feasibility Study of a Method for Identiﬁcation and Modelling of Cybersecurity Risks in the Context of Smart Power Grids

Figure 3: High level view of the risk model. TS means Threat Scenario. UI means Unwanted Incident. A means Asset. A_TS

means Aggregated Threat Scenario.

 A_TS_02: The human operators and/or the

autonomous workflows misconfigures the grid

based on erroneous information.

 A_TS_03: Self-healing nodes produce erroneous

information due to failure of sensors and

communication channels or maliciously altered

sensor data.

 A_TS_04: Outdated information in the SCADA

system prohibits the operators in getting insight

into whether self-healing is taking place due to

disruption of communication between the

centralized communication unit and the SCADA

system.

 A TS_05: The protection/breaker is exposed to

missing or unwanted tripping due to technical

issues, lack of power supply from batteries,

insufficient maintenance, or wear and tear.

 TS_01: Unauthorized user accesses the

communications network from associated

infrastructure and uses that as a backdoor to

access the smart power grid.

 TS_22: The decision support system produces

inadequate or misleading information.

 TS_23: The switch links are erroneous or delayed.

 TS_24: Automatic remote control causes a

complex situation.

 TS_25: Unintentional voltage setting.

 TS_26: The self-healing connection sequence

does not lead to isolation of the erroneous

location.

 TS_27: Unauthorized user exploits granted access

to parts of the smart power grid as a backdoor.

With respect to unwanted incidents, the model

captures the following:

 A_UI_01: Delayed or prevented sectioning, or

sectioning of incorrect area.

 UI_01: Personnel are not safe while operating in

self-healing network.

 UI_02: The switching system is connected

automatically or remotely while there is ongoing

work on the grid.

 UI_06: Prolonged duration of interruption.

 UI_07: Unauthorized user gains access to smart

grid and further to other critical infrastructure.

Due to confidentiality aspects, the power grid

company involved in the case requested not to reveal

all details of the risk model. However, we can

illustrate a fragment of the model considering the

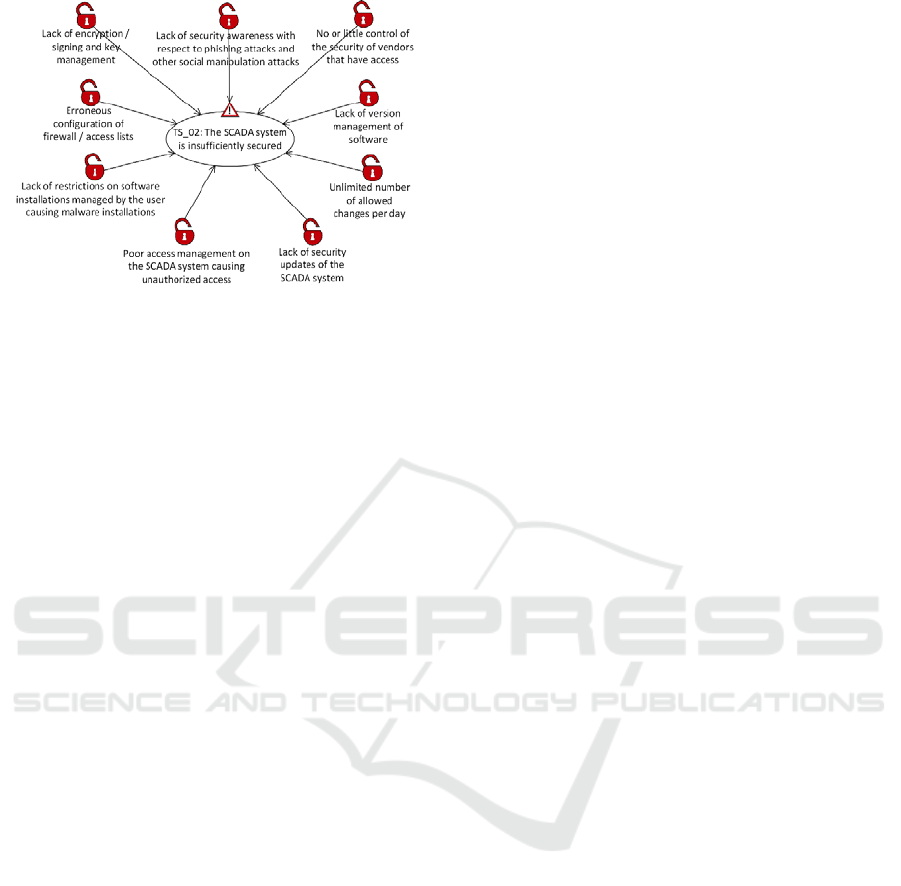

vulnerabilities. Figure 4 illustrates the threat scenario

TS_02 and the nine vulnerabilities that only lead to

TS_02.

COMPLEXIS 2019 - 4th International Conference on Complexity, Future Information Systems and Risk

Figure 4: The threat scenario TS_02 and the nine

vulnerabilities that only lead to TS_02.

4.4 Experiences and Lessons Learned

In the following, we summarize the experiences and

the lessons learned from applying our approach on the

aforementioned self-healing case.

A thorough understanding of the context is

crucial. In fact, a deep understanding of the self-

healing capability was gained by all analysis

participants including the analysts, which also

enabled an active participation in risk modelling and

development of the preliminary model by the

analysts. Such a deep insight into the domain is not

assumed by the method, but was in our case

experienced as beneficial, in spite of the additional

resources spent on that. It is generally crucial to

dedicate sufficient resources to context

establishment.

Regardless of how well the security risk analyst

understands the context, it is crucial that the analyst

does not develop the risk models alone. Risk

identification triggers many useful discussions

among the analysis participants, and helps reveal

inconsistencies and misunderstandings. In addition,

risk models are intended to be used by the industry

and the domain experts, who need to be able to

maintain the models. The optimal approach, in our

point of view, is that the analyst presents an initial

version of the risk model, which is then discussed,

corrected and further developed in the group. Errors

or missing parts in the initial models are often an

advantage, as they trigger the discussions in the

group.

The analyst has to be aware of the inconsistencies

of the terminology used in documents and the verbal

communication among the domain experts, as well as

between the overall stakeholders. Any such

inconsistencies should be clarified.

While the power grid company had considered the

incidents believed to be of less frequent nature, our

original model covered the incidents and

vulnerabilities of in principle more "known" nature.

While the grid company had applied a bottom-up

approach to risk identification in the sense that they

started at a lower level of abstraction driven by the

various threat scenarios associated with the new

capabilities in self-healing, our approach was of a

rather top-down nature and driven by the pre-

specified asset.

Being a driving force of the risk identification,

assets showed to be very beneficial in order to keep

focus on the relevant aspects of the risk model and

ensure the right abstraction level. While the grid

company had focused on safety, our asset was

reliability of electricity supply. This made it possible

to complement the originally separate results into a

merged and comprehensive model.

An important property of the model was that it

was possible to express all information into one

merged model, so that the complexity and all relevant

relationships were explicit and fully reflected in a

single comprehensive overview.

Our original model had explicitly focused on the

cybersecurity risks that could impact the reliability of

electric supply, while the risk model of the grid

company had addressed the risks of more general type

that could impact the safety. The final merged model

included all relevant aspects and showed how the

cybersecurity risks affect the assets concerning not

only the resilience of the power grid and the systems

associated, but also the human safety. This has

enabled us to explicitly visualize the dependencies

between the several types of risks, on all assets. As

such, the risk model has bridged the gap between

cybersecurity and safety within our context.

Several of the analysis participants did not have

prior experiences in either CORAS or graphical risk

modelling in general. Still, the risk model was

gradually updated into new versions through iterative

and thorough discussions among all the participants.

Our observation is that the model offered an adequate

level of abstraction that made it easy to understand

and contribute to.

Through the final risk model, we were able to

express all cybersecurity relevant risks and

dependencies among various risk elements that were

suggested by the analysis group, either based on own

knowledge, or based on the references provided

through context establishment.

The grid company expressed that the graphical

risk modelling was appropriate and enabled the model

to be significantly more structured and

comprehensible.

A Feasibility Study of a Method for Identiﬁcation and Modelling of Cybersecurity Risks in the Context of Smart Power Grids

Prior to and fully independently of our case study,

a set of so-called future scenarios, i.e. various

contexts that illustrate characteristics associated with

power grids of the future, had been brainstormed and

described through a workshop. The workshop

participants were system operators, technology

providers and researchers, all from the energy

domain. The future scenarios were, after our case

study, used for the purpose of the quality assurance of

the final risk model. At his stage, no further

modifications of the model were found necessary.

5 DISCUSSION

Based on our experience, we discuss and evaluate in

this section the fulfilment of the requirements one

through five defined in Section 1. The second part of

this section discusses the main threats to validity and

reliability of the results.

5.1 To What Degree Are the

Requirements Fulfilled?

Requirement 1: Our estimate based on the case study

indicates that the method for cybersecurity risk

identification described in this paper amounts to ca.

150 man-hours in total spent by the analysts. This

includes ca. 23 hours spent on meetings 1 to 9 as

described in Section 4.2. Ca. 127 man-hours were

spent on work between the meetings. That is, hours

spent by the analyst team before and after each

meeting including the process of establishing the

context, identifying risks, preparing the meetings, and

taking notes and correcting the model during and after

the meetings. The authors of the CORAS risk analysis

method state that the expected effort required to carry

out a CORAS analysis is typically from 150 to 300

hours (Lund et al., 2010), while in our case we spent

in total ca. 150 hours. This indicated that the amount

spent on carrying out the approach outlined in this

paper is reasonable. It should also be taken into

account that our analysts gained such a deep

understanding of the context, that they were enabled

to actively identify and model risks. This is not a

general assumption within the above mentioned

budgets. Our approach is light-weight in the sense

that it does not contain steps such as risk estimation,

evaluation and treatment, which are typically found

in full scale risk analysis methods. This also removes

the overhead in the context establishment phase

where, in our case, it is not necessary to define

likelihood and consequence scales often used to

estimate and evaluate risks. Of course, these are steps

that are necessary when there exists data to support

risk estimation and when the goal is to estimate and

evaluate risks. However, as pointed out in Section 1,

self-healing within smart power grids is a state-of-

the-art approach of limited maturity and empirical

evidence, which would be needed for risk estimation.

To fully justify Requirement 1, we would have to

quantify the benefit, as well as the cost. This is very

hard, and we have not attempted to do so. However,

the feedback received and the experiences indicate

that the benefit justifies the effort, meaning that our

customized method is reasonably cost effective as

well as light-weight.

Requirement 2: As outlined in Section 4.2, the

participants vary with respect to background. The

domain experts were experts in smart power grids and

had barely limited background in cybersecurity. Even

so, after a brief introduction of the cyber risk concepts

explained in Section 3, they quickly grasped the

concepts and were able to actively contribute to the

model development. Moreover, the comments,

suggestions and discussions throughout the process

demonstrated that all participants were able to

understand the details of the evolving model. This is

further substantiated by earlier studies which have

empirically shown that the graphical notation used in

our method is intuitively simple for stakeholders with

very different backgrounds (Volden-Freberg and

Erdogan, 2019, Solhaug and Stølen, 2013).

Requirement 3: Prior to the study reported in this

paper, it was not clear whether the modelling

language used in our method had sufficient

expressiveness in terms of capturing relevant risks of

smart power grids. As part of the study, we were able

to capture all vulnerabilities, threat scenarios,

unwanted incidents and assets identified by the

domain experts. Even if the various threat scenarios,

vulnerabilities, unwanted incidents and assets were

sometimes different in nature (technical versus

business risks), no relevant risks were left out. This

was pointed out by the case providers (the DSO) to be

an advantage because it helped understanding the

relationship between high-level business risks and

low-level technical risks. It is therefore reasonable to

argue that our risk modelling approach has sufficient

expressiveness to capture relevant aspects of the

cybersecurity risk picture in the context of smart

power grids.

Requirement 4: As discussed in the previous

sections, self-healing smart power grids are still

immature and advancing. Thus, there is little

experience in their usage including operational data.

There is also very little experience in terms of cyber

risk incidents in this context. Due to these factors, we

COMPLEXIS 2019 - 4th International Conference on Complexity, Future Information Systems and Risk

have deliberately designed our method to facilitate a

rather simple modelling language in which only the

necessary risk-related concepts are used: threat

scenarios, vulnerabilities, unwanted incidents and

assets to protect. As illustrated in Figure 3 and Figure

4, and explained in Section 3, these risk model

elements are left to the analyst to describe at a

qualitative level. No unavailable information of

unrealistic precision is demanded, unless possible and

desired to include. The analyst is therefore free to

choose the level of abstraction in which the threat

scenarios, vulnerabilities, and their relationships, are

described. This flexibility eases the risk identification

process and does not "lock" the analysts to think at

one level of abstraction (for example, identifying

risks only at technical level or only at business level,

or having to deal with quantitative risk estimates).

Requirement 5: As illustrated in Figure 3 and figure

4, the risk model produced by our method is capable

of illustrating the risk picture both for the whole

context and the detailed parts of the scope of analysis.

The risk model in Figure 3 illustrates a high-level

view of the risk picture in terms of threat scenarios

(including aggregated threat scenarios and

aggregated unwanted incidents), unwanted incidents

caused by threat scenarios, assets harmed, and the

number of vulnerabilities associated with the threat

scenarios and unwanted incidents. We could have

chosen to provide unique IDs for each vulnerability

and illustrate all in the high-level risk model in Figure

3. In that case, we would have had to add 62

vulnerability icons instead of the 30 shown. However,

to support scalability, we chose to aggregate the

vulnerabilities in the high-level risk model by only

illustrating the number of vulnerabilities associated

with the various elements of the risk model, as well

as illustrating aggregated threat scenarios and

aggregated unwanted incidents as explained in

Section 4.3. Figure 4, on the other hand, illustrates a

fragment of the detailed risk model in which we can

see all risk model elements including their

description.

The advantage of the high-level risk model in

Figure 3 is that the analysts as well as the domain

experts get a top-down view which helps obtaining an

overall risk picture by a quick glance. This helps

identifying the most vulnerable parts of the target

system, as well as understanding the chain of events

in how certain threat scenarios (or group of threat

scenarios) lead to other threat scenarios and/or

unwanted incidents, which ultimately harms the

assets. The advantage of the detailed risk model

(partly illustrated in Figure 4), on the other hand, is to

get a more refined view of the risk model and obtain

detailed description of the various aggregated

vulnerabilities, threat scenarios, and unwanted

incidents.

5.2 Threats to Validity and Reliability

Apart from certain parts of the follow-up phase, we

have, through the trial, instantiated the entire

approach. Application of the approach on a case with

limited empirical evidence, has clear limitations in

terms of representativeness of the target of the

analysis. Still, the results of the trial indicate

feasibility of applying the approach. The fact that new

knowledge was gained about the target of analysis

and its security risks, suggests usefulness of the

approach.

Correctness and relevance of the results are

partially evaluated through the close interaction with

the industry pilot, and through the future scenarios. A

retrospective evaluation would have been

appropriate, but the industry pilot has not been

running for long enough in order to have sufficient

retrospective picture of security risks. Instead, we

have relied on the analysis group as well as the

industry partner, together representing relevant and

broad domain knowledge.

It is, in terms of evaluation of performance of the

approach, a weakness that the analysts who tried out

the approach also participated in design of the

customized version of the approach. As such, it is also

a threat to reliability of the evaluation results, as we

cannot know to what degree another analysis group

would have obtained the same results.

There is a need for a baseline for comparing this

approach with the alternative risk identification

methods, in order to assess characteristics such as

usability, scalability, usefulness and cost-

effectiveness of our approach compared to the

alternative ones. We have already partially compared

the evaluation results with the performance of

CORAS. Further empirical evaluation in other

realistic settings is, however, still needed due to

threats to validity and reliability.

Overall, we have drawn important findings and

learned lessons from developing this smart-grid-

customized approach to cybersecurity risk

identification, and from trying it out in the industrial

case. Although the mentioned threats to validity and

reliability are present in the study, we argue that the

results indicate feasibility and usefulness of the

approach. Important findings are also obtained on

strengths and weaknesses of the approach, and they

will guide the directions for our future work.

A Feasibility Study of a Method for Identiﬁcation and Modelling of Cybersecurity Risks in the Context of Smart Power Grids

6 CONCLUSIONS AND FUTURE

WORK

Smart power grids are evolving into increasingly

complex cyber-physical systems that introduce

numerous kinds of interdependencies and

vulnerabilities. This poses new requirements to

cybersecurity management. As a result, state-of-the-

art to risk identification is being challenged. In this

paper we have proposed a customized four-step

approach for identification and modelling of

cybersecurity risks in the context of smart power

grids. Our approach is, to a high degree, based on

parts of the CORAS method for model-based risk

analysis. Compared to CORAS, the process and the

modelling approach we have applied are simplified

and partially adapted in order to meet the identified

requirements. The qualitative nature of the model

gave the needed simplicity. The approach has been

tried out on a realistic industrial case. The context of

the case was a centralized self-healing pilot (i.e. a

limited pilot installation of self-healing functionality

within a medium voltage power distribution grid). We

argue that our approach to some extent fulfils the pre-

identified requirements. However, there are at the

same time, clear limitations in terms of reliability of

the current results, due to e.g. bare evaluation of the

approach on one case with limited empirical

evidence. Although the mentioned threats to validity

and reliability are present in the study, we argue that

the results indicate feasibility and usefulness of the

approach.

The next step will be to test out the developed

approach on another case study in the smart grid

domain. This will give us the opportunity to further

analyse the scalability, performance, relevance and

representativeness of our approach. Another next step

is to develop recommendations and guidelines for

cybersecurity risk identification in the smart grid

domain based on our approach. This requires further

case studies and adjustments according to our

mentioned strengths and weaknesses.

ACKNOWLEDGEMENTS

This paper has been funded by CINELDI - Centre for

intelligent electricity distribution, an 8-year Research

Centre under the FME-scheme (Centre for

Environment-friendly Energy Research,

257626/E20). The authors gratefully acknowledge

the financial support from the Research Council of

Norway and the CINELDI partners.

REFERENCES

Alberts, C., Dorofee, A., Stevens, J. and Woody, C. (2003)

Introduction to the OCTAVE Approach: Carnegie

Mellon University.

Barber, B. and Davey, J. (1992) 'The use of the CCTA risk

analysis and management methodology CRAMM in

health information systems', Proceedings of the 7th

International Congress on Medical Informatics, pp.

1589-1593.

Belmans, R. (2012) Strategic Research Agenda for

Europe's Electricity Networks of the Future -

SmartGrids SRA 2035: European Technology Platform

SmartGrids.

Ben‐Gal, I. (2008) 'Bayesian networks', Encyclopedia of

statistics in quality and reliability, 1, pp. 1-6.

CINELDI (2018) CINELDI. Available at:

https://www.sintef.no/cineldi (Accessed: December

2018).

Hofmann, M., Kjølle, G. and Gjerde, O. (2012)

'Development of indicators to monitor vulnerabilities in

power systems.', Proceedings of the 11th International

Probabilistic Safety Assessment and Management

Conference and the Annual European Safety and

Reliability Conference 2012: Curran Associates, Inc.,

pp. 5869-5878.

IEC (1990): IEC 61025:1990 Fault tree analysis (FTA):

International Electrotechnical Commission.

IEC (1995): IEC 60300-3-9:1995 Dependability

management - Part 3: Application guide - Section 9:

Risk analysis of technological systems: International

Electrotechnical Commission.

IEC (2006): IEC 61165:2006 - Application of Markov

techniques: International Electrotechnical Commission.

ISO (2009): ISO 31000: Risk Management - Principles

and Guidelines: Geneva: International Organization for

Standardization.

Kjølle, G. and Gjerde, O. (2012) 'Risk Analysis of

Electricity Supply.', Risk and Interdependencies in

Critical Infrastructures: A Guideline for Analysis:

Springer, pp. 95-108.

Kjølle, G. and Gjerde, O. (2015) 'Vulnerability analysis

related to extraordinary events in power systems.',

Proceedings of the 2015 IEEE Eindhoven PowerTech:

IEEE, pp. 1-6.

Lee, R. M., Assante, M. J. and Conway, T. (2016) Analysis

of the Cyber Attack on the Ukrainian Power Grid:

Defense Use Case, Washington: Electricity -

Information Sharing and Analysis Center.

Lund, M. S., Solhaug, B. and Stølen, K. (2010) Model-

driven risk analysis: the CORAS approach. Springer.

Microsoft (2018) Security Development Lifecycle.

Available at: https://www.microsoft.com/en-us/SDL

(Accessed: November 2018).

Nielsen, D. S. (1971) The cause/consequence diagram

method as a basis for quantitative accident analysis,

Roskile, Denmark: Risø National Laboratory Risø-M,

No. 1374).

Schneier, B. (1999) 'Attack trees: Modeling security

threats',

Dr. Dobb's Journal, 24(12), pp. 21-29.

COMPLEXIS 2019 - 4th International Conference on Complexity, Future Information Systems and Risk

Siirto, O. (2016) Distribution automation and self-healing

urban medium voltage networks.

Solhaug, B. and Stølen, K. (2013) 'The CORAS Language

- Why it is designed the way it is', Proceedings of the

11th International Conference on Structural Safety and

Reliability: Taylor and Francis, pp. 3155-3162.

Tutvedt, K. A., Seguin, R., Kjølle, G., Simonsen, S.,

Hermansen, T. S. and Myhr, I. (2017) 'Smart fault

handling in medium-voltage distribution grids',

CIRED-Open Access Proceedings Journal, 2017(1),

pp. 1471-1474.

Tøndel, I. A., Foros, J., Kilskar, S. S., Hokstad, P. and

Jaatun, M. G. (2017) 'Interdependencies and reliability

in the combined ICT and power system: An overview

of current research', Applied Computing and

Informatics, 14(1), pp. 17-27.

Volden-Freberg, V. and Erdogan, G. (2019) 'An Empirical

Study on the Comprehensibility of Graphical Security

Risk Models Based on Sequence Diagrams',

Proceedings of the 13th International Conference on

Risks and Security of Internet and Systems: Springer,

pp. (To Appear).

Wieringa, R. J. (2014) Design science methodology for

information systems and software engineering.

Springer.

A Feasibility Study of a Method for Identiﬁcation and Modelling of Cybersecurity Risks in the Context of Smart Power Grids
