Design of an Example Network Protocol for Security Tests Targeting

Industrial Automation Systems

Steffen Pfrang

, Mark Giraud, Anne Borcherding, David Meier

and J

urgen Beyerer

Fraunhofer IOSB, Karlsruhe, Germany

Keywords:

Security Testing, Industrial Automation and Control Systems, IACS, Example Network Protocol, Packet

Structure, Protocol Behavior.

Abstract:

Emerging concepts like Industrial Internet of Things (IIOT) and Industrie 4.0 require Industrial Automation

and Control Systems (IACS) to be connected via networks and even to the Internet. These connections raise

the importance of security for those devices enormously. Security testing for IACS aims at searching for

vulnerabilities which can be utilized by attackers from the network. Once discovered, those gaps should be

closed with patches before they can get exploited. Different tools utilized for this kind of security testing are

dealing with network protocols. In practice, they suffer from peculiarities being present in common industrial

automation protocols like OPC UA and Proﬁnet IO. This paper tries to improve the situation by providing an

extensive overview of network packet structures and network protocol behavior. Based on this analysis, an

example protocol has been developed. The idea behind this artiﬁcial network protocol is that tools which are

able to handle all the specialties of this protocol, are able to handle every imaginable protocol. Finally, those

tools can be used to conduct exhaustive security tests for IACS.

1 INTRODUCTION

Security testing for industrial automation and cont-

rol systems is gaining more and more importance. As

emerging concepts and techniques from Industrial In-

ternet of Things and Industrie 4.0 require sensors, ac-

tuators and controllers to be connected via networks

and the Internet, security becomes a critical factor. In

former times, security did not play a major role in

industrial devices as they were run in separated net-

works. But since the adaption of Ethernet, IACS com-

ponents have to resist attacks originating from other

networks, such as ofﬁce networks or even the whole

world.

Security testing aims at discovering vulnerabilities

to enable IACS manufacturers to patch their devices

before attackers can exploit them. A common appro-

ach for security testing is fuzzing. Fuzzing network

protocols means sending meaningfully chosen input

as payload in network packets to a device under test

(DUT). Advanced fuzzing techniques take into ac-

count both packet structures and states of the protocol

to be fuzzed. This allows for choosing input with a

https://orcid.org/0000-0001-7768-7259

https://orcid.org/0000-0003-0660-8087

higher probability of being interpreted by the DUT.

Tools dealing with packet structures and states of

network protocols are usually developed for and tes-

ted with well-known protocols. Examples for such

tools are self-learning fuzzers which construct a pac-

ket and state model of a speciﬁc network protocol by

using packet captures. Other tools are meant for craf-

ting network packets or tracing the state of a stateful

network protocol. Since especially industrial proto-

cols like Proﬁnet IO or OPC UA use special concepts,

many of the tools lack functionality to deal with them.

An example for such a missing feature are inﬁnite re-

cursive data types which are used in OPC UA. There

is a lack of a common standard protocol which ﬁts all

the needs.

The idea to overcome this issue is the speciﬁca-

tion of an example protocol which makes use of all

the concepts discovered in both standard Internet pro-

tocols and real world industrial protocols. Tools to be

developed or maintained can be tested with this ex-

ample protocol. If the tool is able to handle all the re-

quirements of the example protocol, it should be able

to implement every industrial protocol.

This paper presents a requirement analysis for the

needs of common network protocols and the design of

such an example protocol. Additionally, a reference

Pfrang, S., Giraud, M., Borcherding, A., Meier, D. and Beyerer, J.

Design of an Example Network Protocol for Security Tests Targeting Industrial Automation Systems.

DOI: 10.5220/0007704907270738

In Proceedings of the 5th International Conference on Information Systems Security and Privacy (ICISSP 2019), pages 727-738

ISBN: 978-989-758-359-9

727

implementation is released to the public to enable se-

curity researchers to use it.

The paper is structured as follows: Starting with

introducing the background in Section 2, the analysis

in Section 3 presents three use cases for the example

protocol. Two common industrial protocols are ex-

amined more closely, before a packet ﬁeld categori-

zation prepares the collection of the requirements for

the example protocol. The example protocol is de-

signed in Section 4 with both protocol behavior and

packet structures. Finally, a case study in Section 5

illustrates the usage of the example protocol.

2 BACKGROUND

The research of this paper is located in different dom-

ains: Industrial automation, security testing and net-

work protocol design. All domains will be presented

shortly in the following.

2.1 Industrial Automation

Physical equipment in industrial environments is mo-

nitored and controlled by industrial automation and

control systems (IACS). With their reliance on pro-

prietary hardware, software, and networks, these sy-

stems have often been considered too complex to be

attacked. In addition, IACS have often been located

in local networks with no connection to the Internet.

As the systems and network protocols evolve,

these points are no longer valid. Systems and net-

works move towards open standards like Ethernet,

TCP/IP and web technologies. In addition, IACS are

more and more connected to the Internet. This de-

velopment makes the IACS more interesting for hac-

kers. The most popular example for a successful at-

tack on IACS is Stuxnet (see (L

uders, 2011)). The

effects of a successful attack on IACS range from a

manipulation or disruption of the production process

to personal or environmental damage or loss.

2.2 Security Testing

It is crucial to ensure the security of IACS to avoid the

effects of a successful attack. One aspect of this is to

identify vulnerabilities and to ensure security functio-

nality. It is called security testing and includes many

different techniques. These techniques may be classi-

ﬁed into four categories which are presented in Table

1. The classiﬁcation and the corresponding descripti-

ons are adapted from (Felderer et al., 2016) as long as

not stated otherwise.

Table 1: Classiﬁcation of security testing techniques (adap-

ted from (Felderer et al., 2016)).

model-based security testing

... for web applications

... for security policies

risk-based security testing

code-based testing and static analysis

manual code review

static application security testing

penetration testing and dynamic analysis

penetration testing

vulnerability scanning

dynamic taint analysis

fuzzing

security regression testing

test suite minimization

test case prioritization

test case selection

Model-based security testing presumes the exis-

tence of architectural and functional models of the sy-

stem under test. From these models, test cases for the

security test are derived systematically. Because of

the need of precise models, these techniques require

an early and explicit speciﬁcation. The models may

be driven by the concrete system, by security policies,

or by risks.

Code-based testing and static analysis focuses on

the code of a system. No running system is needed to

apply these techniques. The review of the code can

either be done manually or automatically.

Penetration testing and dynamic analysis can be

conducted if a running version of the system is availa-

ble. These techniques do not need access to the source

code of the system and are thus also called black box

testing. Security tests are performed by interacting

with the running system. This includes manual pene-

tration testing, automated scanning for known vulne-

rabilities, dynamic analysis of data sanitization, and

fuzzing. Fuzzing uses random or randomly modiﬁed

data and feeds it to the system. With this, the reaction

of the system to unexpected data can be investiga-

ted which may expose vulnerabilities (Pfrang et al.,

2018).

Security regression testing aims to ensure that a

change of a system does not downgrade the security

of the system. To be able to conduct these test efﬁ-

ciently, the test suite can be minimized, the test cases

can be prioritized and the test cases can be selected in

an optimized way.

Each of the presented techniques is located at dif-

ForSE 2019 - 3rd International Workshop on FORmal methods for Security Engineering

728

Analysis Design Devel. Depl.

Operation

model-

based

code-

based

pen-

tests

security

regr.

Security

Reqmts.

Risk

Analysis

External

Review

Risk

Analysis

Field

Feedback

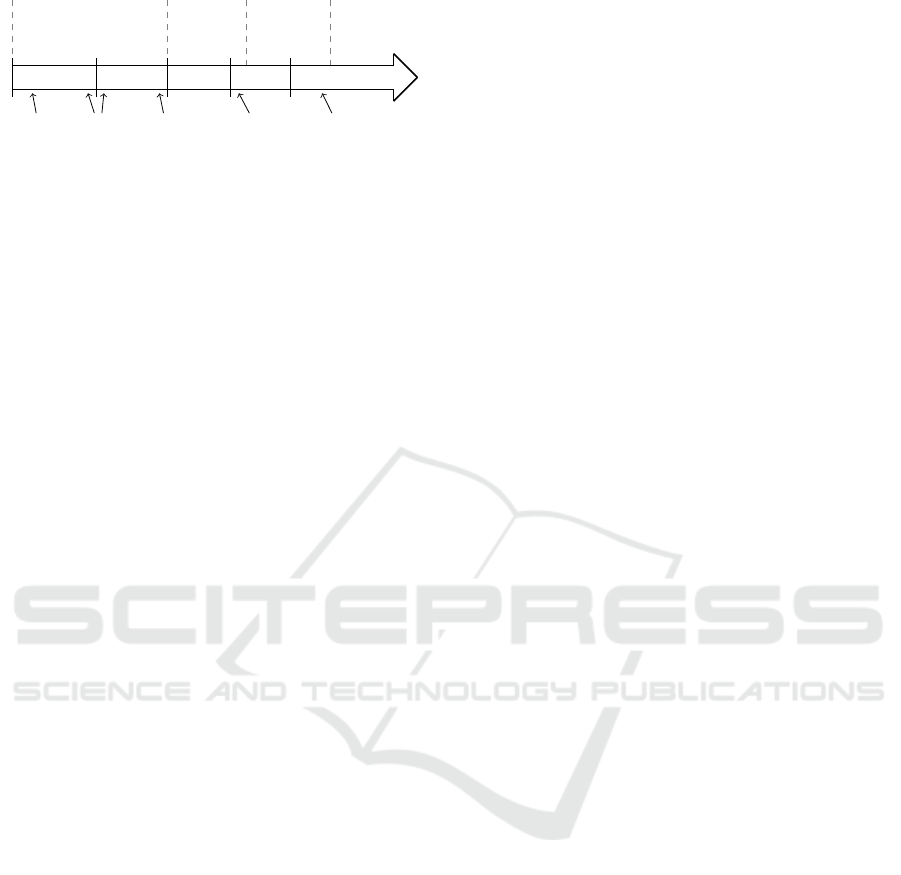

Figure 1: Security testing techniques at different stages of

the system development.

ferent stages of the system development. This is

shown in Figure 1. Presented are the stages of the

system development, adapted from (Felderer et al.,

2016): Analysis, Design, Development, Deployment,

and Operation (Maintenance). On top of the arrow,

the security testing techniques which may be used

in the respective stages are shown. Additional input

which may be used for testing is depicted underneath

the arrow (Potter and McGraw, 2004).

Next to the shown classiﬁcation, a classiﬁcation

using other dimensions is possible. For example, se-

curity testing techniques could be classiﬁed regarding

their accessibility (black-box vs. white box), scope

(component vs. integration vs. system), objective

(functional vs. non-functional), user interaction (ma-

nual vs. automated), and their practice (active vs. pas-

sive).

2.3 Network Protocol Design

Communication between programs and services of

host systems is commonly achieved through the usage

of network protocols.

2.3.1 Protocol Goals and Features

Network protocols provide features to achieve diffe-

rent communication goals. They have varying proper-

ties, that connected applications rely on, to achieve

these goals. These properties include (Peterson and

Davie, 2007):

• Message Delivery Guarantees: The protocol

makes sure that messages get delivered. If a mes-

sage is lost during transmission, the protocol can

initiate additional delivery attempts.

• Maintaining Data Order: A network protocol

can make sure that the receiving application gets

the data served in its original order, independent

from packet order changes that might happen du-

ring the transport.

• Filtering of Duplicates: During transport packets

can get duplicated, e.g. because of retransmissi-

ons or multi-path transmission. These duplicates

can be automatically identiﬁed and dropped by a

network protocol.

• Support of Large Messages: A sender might

want to transmit data that exceeds the frame limit

of the carried medium or link technology. A pro-

tocol could automatically split the message into

multiple smaller ones and reassemble them at the

receiver.

• Flow and Congestion Control: The maximal

data rate between sender and receiver is determi-

ned by different factors, like the maximum capa-

city of the communication channel and the resour-

ces of the receiver. Network protocols can auto-

matically adjust the sending rate accordingly.

• Application Separation: Protocols can help to

ensure that data from different applications stays

separated, even when transmitted via the same

communication link.

Most of these properties and features are provi-

ded transparently to the different layers of the proto-

col stack. This stack can be organized into layers to

achieve a high rate of adaptability. In this layer model,

each protocol layer is providing services other layer

can utilize (Kurose and Ross, 2013). The Open Sys-

tems Interconnection model (ISO, 1994), often called

ISO/OSI model, or the internet protocol stack (Bra-

den, 1989) formalize this approach.

Above the Physical layer, which handles the trans-

mission of information over a certain channel me-

dium, the Link layer deals with packet frames that are

transmitted from one node to another. Data transmis-

sion of datagrams over multiple nodes is handled by

the Network layer. It is also responsible for ﬁnding

appropriate routes between two nodes. The Transport

layer handles segments and transmits data between

two application instances. On the Application layer,

transmitted data is referred to as messages.

2.3.2 Protocol Deﬁnitions

Individual protocols are deﬁned by their multiple pro-

perties. The main properties of a protocol are the

structures of its protocol data units (PDU) and its be-

havioral description.

Because the actual transmission is carried out on

binary data, the data needs to be serialized at the sen-

der and parsed at the receiver to enable the proper pro-

cessing of the PDU. A basic division of a PDU can

be done by separating meta data (header) and the ac-

tual data that needs to be transmitted (payload): The

packet header will include all the information that is

needed by the protocol to perform its functions. It

can include information on the communication link as

Design of an Example Network Protocol for Security Tests Targeting Industrial Automation Systems

729

well as information on the appended payload. In the

protocol deﬁnition, the header is divided into packet

ﬁelds. These ﬁelds can represent different kinds of

information, like integer values or ﬂags for protocol

settings. The payload can then be further processed

by the following layer of the network stack. It is of-

ten appended to the end of the PDU, but can also be

integrated at different positions of the PDU.

Another part of a protocol deﬁnition is the descrip-

tion of the protocol behavior. This includes details on

how to establish and maintain a connection. The be-

havior also includes details on the determination of

packet ﬁelds, for example, how exactly a checksum

needs to be calculated. Part of the behavior descrip-

tion are the states a connection can be in. These states

and the transitions between the states can be represen-

ted by a state-transition diagram.

An example for a transport layer protocol is the

User Datagram Protocol (UDP). UDP is a simple,

efﬁcient and stateless protocol, meaning there is no

connection status established on the transport layer.

The Transmission Control Protocol (TCP) is a more

complex example on the transport layer. It provides

functions for ﬂow and congestion control and is state-

ful. Therefore, a connection establishment process is

needed and implemented in a three-way handshake.

3 ANALYSIS

The example protocol has to be an artiﬁcial network

protocol which makes use of any features observed in

existing network protocols. A special focus is laid on

industrial communication protocols.

This section starts with presenting use cases which

beneﬁt from the example protocol. Then, two popu-

lar industrial communication protocols are introduced

and examined regarding their characteristics in packet

deﬁnitions, states and transitions between states. Pe-

culiarities observed in some other network protocols

are added. A packet ﬁeld categorization is introduced

which leads to the formulation of the requirements for

the example protocol.

3.1 Use Cases

There are multiple use cases which beneﬁt from the

existence of an example protocol. Three of them are

depicted in this section. The ﬁrst one, protocol lear-

ning tools, will be used in a case study.

3.1.1 Protocol Learning Tools

Security testing in the operation phase of the life-

cycle of an IACS component employs fuzzing techni-

ques to generate input to be tested. In the case of

network packets, the exact knowledge of the protocol

deﬁnition helps in crafting input that pays attention to

ﬁeld borders, data types and check sums. This increa-

ses the probability that the device under test interprets

the fuzzed network packet instead of rejecting it im-

mediately.

Problems arise if the speciﬁcation of the network

protocol is not available. Reverse engineering is per-

formed by guessing both packet deﬁnitions and states

with a large sample of observed communication. (Du-

chene et al., 2018) gives a state of the art overview of

network reverse engineering tools. The evaluation of

those tools is performed by testing with well-known

internet protocols like DNS, NTP or DHCP. There is

neither a well-deﬁned test set of network protocols

nor a differentiation which kinds of packet ﬁeld deﬁ-

nition types are to be used. A well-deﬁned example

protocol would overcome this issue and make results

more comparable.

3.1.2 Protocol Implementation Frameworks

Software frameworks that are designed to handle ar-

bitrary network protocols need a baseline of features.

Scapy (Biondi, 2018), for example, is an interactive

packet manipulation program and library used very

often in the security testing domain. Amongst others,

it is able to decode packets of a wide number of pro-

tocols. A drawback is that Scapy is not designed for

implementing deep recursion in data types. Additi-

onally, it has problems with the dynamic creation of

data types. If there was an example protocol which

provided a guideline for features to be implemented,

the tools could be designed better.

Implementations of stateful network protocols uti-

lize state machines in order to model states. An auto-

mata framework to be developed would proﬁt from an

example protocol covering all needed features for sta-

tes, transitions and transition triggers. Implementing

the example protocol in the newly designed automata

framework could expose if all needed functionality is

available.

3.1.3 Meta Model Design

A meta model for network protocols allows for spe-

cifying arbitrary network protocols both formally and

technically. Again, if there was a baseline of featu-

res to support in packet structures and states, the meta

ForSE 2019 - 3rd International Workshop on FORmal methods for Security Engineering

730

model could be designed covering all needed functi-

onality. The example protocol aims at fulﬁlling this

requirement.

3.2 Industrial Protocols

Industrial protocols are used to automate the commu-

nication of IACS. Two common representatives in the

industrial area are OPC UA and Proﬁnet. Both will

be introduced with a focus on peculiarities in packet

deﬁnitions and protocol states. Additionally, special

ﬁndings from other protocols will be presented.

3.2.1 OPC UA

OPC Uniﬁed Architecture (OPC UA) is a machine-

to-machine communication protocol used in indus-

trial automation (OPC Foundation, 2017a). The pro-

tocol speciﬁes models for information, messages and

communication. It offers a built-in address space

and object model and follows a service-oriented de-

sign. While mainly relying on a Client/Server ar-

chitecture, it also provides functionalities for Publis-

her/Subscriber architectures.

The communication model is divided into three

layers, as shown in Figure 2: The transport layer, the

secure channel layer and the session layer. The trans-

port layer establishes the network connection between

client and server. The secure SecureChannel provides

a secured, long-running connection between the two

communication partners. These security features in-

clude encryption and integrity checking, and are de-

ﬁned by a security policy. The Session contains the

application-layer connection between two OPC UA

services and can only be accessed via a single Se-

cureChannel. Sessions are stateful and contain, for

example, linked authentication information like user

credentials. However, sessions are ultimately inde-

pendent from the underlying communication proto-

col, making it possible to transfer a session to another

SecureChannel.

OPC UA Client OPC UA Server

Communication Stack

Session Stack

Communication Stack

Session Stack

SecureChannel

Session

Transport

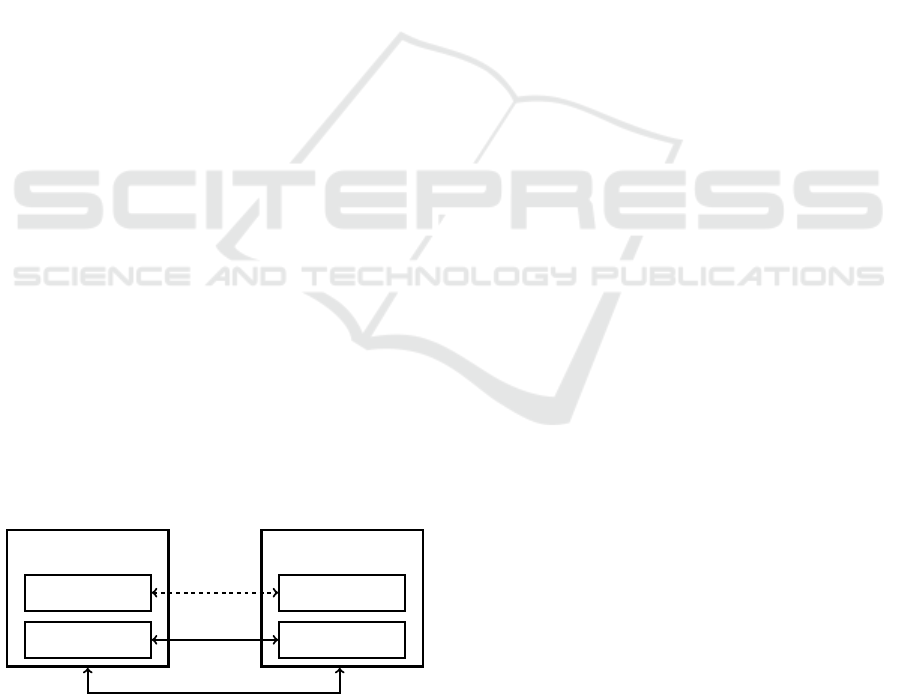

Figure 2: The OPC UA communication stack, adapted from

(OPC Foundation, 2017a, 20).

OPC UA has its own type system that is used to

send packets over the network. The corresponding

standard differentiates between simple and structured

data types (OPC Foundation, 2017b, 35).

Some data types that need to be implemented ma-

nually are called built-in data types. The simple data

types are subtypes of these built-in data types. They

cannot be differentiated from another when encoded

(OPC Foundation, 2017b, 35). These data types form

the base from which all other data types can be ge-

nerated (OPC Foundation, 2017c, 6). Parsing beha-

vior for built-in data types is speciﬁed in the standard

(OPC Foundation, 2017c, 6) and is ﬁxed unless the

standard is changed. Among other things, the built-

in data types contain so called Variants and Exten-

sionObjects (OPC Foundation, 2017c, 6). Variants

can contain other built-in data types or arrays of ot-

her built-in data types. The length of the contained

array is represented by a length ﬁeld in the Variant

(OPC Foundation, 2017c, 16). In contrast, Extensi-

onObjects are used to transmit an arbitrary data type

over the network. The sent data type is modeled in the

server’s address space. In order to achieve this, the

ExtensionObject contains the encoded data and the id

of the data type that was used to encode the data (OPC

Foundation, 2017c, 15).

Structured data types are modeled in a server’s

address space, where they can be retrieved in order

to parse incoming trafﬁc (OPC Foundation, 2017b,

35). These data types represent an aggregation of

other structured data types and/or simple data types

(OPC Foundation, 2017b, 69). When these data ty-

pes are sent over the network, the receiving end needs

to know how to parse them. This is achieved by en-

capsulating them in the aforementioned ExtensionOb-

jects. The receiving end can retrieve the parsing rules

with the information in the ExtensionObject for the

encapsulated type from the server in order to parse

the type (OPC Foundation, 2017b, 35).

Data types can be speciﬁed via XML schema ﬁ-

les, which can be parsed by OPC UA applications.

Commonly known data types can be found in a pu-

blicly available schema ﬁle, so that they do not have

to be read from a server each time (OPC Foundation,

2017b, 35).

Due to the way OPC UA enables arbitrary mo-

deling of data types, it is possible to deﬁne a type that

contains itself directly or indirectly through another

type.

3.2.2 Proﬁnet IO

Proﬁnet IO (PNIO) is a real-time enabled industrial

Ethernet standard deﬁned in IEC 61158-6-10. Accor-

ding to a study from 2017 (compared to 2016)(HMS

Industrial Networks, 2017), industrial Ethernet has a

market share of 46% (38%) in IACS, whereas clas-

sic ﬁeld buses have 48% (58%). 6% (4%) of the sold

Design of an Example Network Protocol for Security Tests Targeting Industrial Automation Systems

731

Ethernet

UDP

DCE/RPC

PNIO-CM

PNIO-RT

PNIO-AL DCP

Connection

Establishment

Cyclic

Communication

Connection

Establishment

Figure 3: Protocol stack of PNIO.

PNIO Master

MAC

PNIO Client

MAC

DCP IdentReq D

Name

DCP IdentOk D

Name

ARP “Who has?”

ARP “Is at ...!”

CM ConnReq

CM ConnResp

Figure 4: Begin of the regular startup process of a PNIO

network with a PNIO master and a PNIO client until the

ﬁrst RT packet, from (Pfrang and Meier, 2018).

communication devices use wireless protocols. Sie-

mens selling the Proﬁbus family is the market leader

in Europe and China.

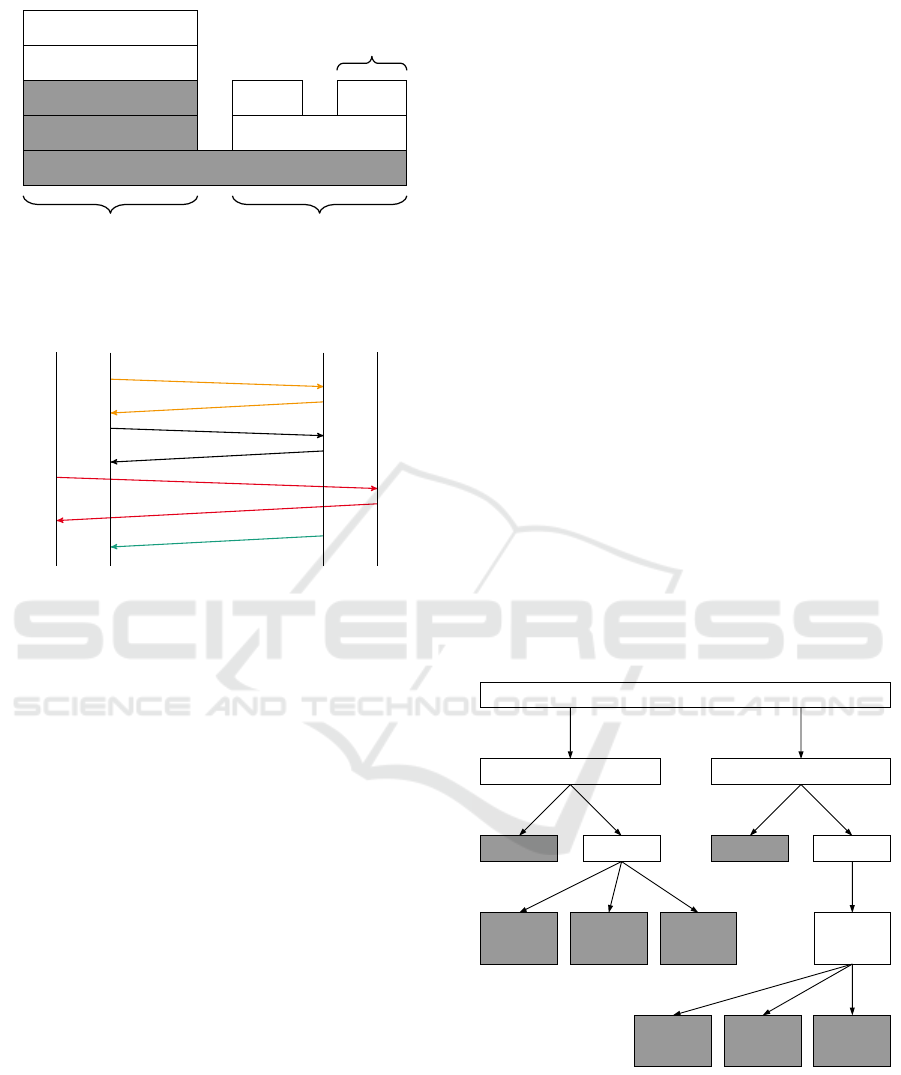

As depicted in Figure 3, the PNIO protocol stack

is based on Ethernet. For establishing a connection, it

uses both DCP (discovery and conﬁguration protocol)

and PNIO-CM (conﬁguration management). DCP is

based on PNIO-RT (real-time), whereas PNIO-CM

makes use of IP, UDP and DCE/RPC. In a nutshell,

PNIO communication is set up with different proto-

cols using different protocol stacks.

The interaction between the different protocols is

shown as a sequence diagram in Figure 4. A cha-

racteristic of PNIO-CM is that the type of a PNIO-

CM packet (Read, Write, Connect etc.) is deﬁned

by a ﬁeld within the underlying DCE/RPC protocol.

Within the connection establishment, the PNIO mas-

ter and PNIO client deﬁne variables and data types as

blocks which are exchanged later on as binary data.

Once a connection is established, PNIO devices trans-

fer real-time data via PNIO-RT.

While exchanging real-time data, timeouts are re-

set once a communication partner receives a valid RT

message. If the delay of a packet exceeds a conﬁgured

amount of time, RT communication is stopped and an

alarm packet is sent instead.

3.2.3 Other Protocols

DCE/RPC (Distributed Computing Environment /

Remote Procedure Calls) is the base of the PNIO-CM

protocol. It breaks with the traditional modeling of

states and transitions in network protocols as it deﬁ-

nes a maybe ﬂag. In a client to server communica-

tion, a client can issue a maybe request. This means

that the client does not expect a response and there-

fore cannot be sure if the server executes the request

or not.

ETSI TS 103 097 V1.2.1 (ETSI, 2015), a proto-

col for Intelligent Transport Systems, deﬁnes a packet

ﬁeld as variable-length vectors with variable-length

length encoding. This means that the length itself is

encoded with a number of 1 bits according to the ad-

ditional number of octets used to encode the length,

followed by a 0 bit and the actual length value.

3.3 Packet Field Categorization

According to the analysis of both common Internet

protocols like TCP and UDP and the aforementioned

industrial protocols, a characterization of packet ﬁelds

has been performed. Figure 5 depicts a tree-based

schema how packet ﬁelds can be categorized. Grey

boxes represent leaves. A packet ﬁeld consists of both

a length and a parsing rule.

Packet Field

Length Parsing Rule

Fixed Variable

Depends

on itself

Depends

on other

Field

Fixed Variable

Itself Other Field

Separate

Request

Switched or

Specified by

Separate

Request

Figure 5: Packet ﬁeld categorization.

3.3.1 Length

The length can be speciﬁed with a number of bytes or

a number of bits. The latter means that ﬁelds might

not be aligned to byte borders. Usually, if there are

ﬁelds that are not a multiple of 8 bits (a byte), they are

ForSE 2019 - 3rd International Workshop on FORmal methods for Security Engineering

732

laid out (ﬁlled up with a so-called padding of zeroes).

That results in ﬁelds always starting at a byte border

if they are a multiple of a byte. It is also possible, that

the length speciﬁes a number of ﬁelds that are present

in the packet. If that is the case, the parsing rule for

the ﬁeld that is repeated, is applied as often as the

length ﬁeld speciﬁes. An example of this would be an

array of ﬁelds.

The length of a ﬁeld can be either ﬁxed or varia-

ble. An example for a ﬁxed length ﬁeld is a ﬁeld that

contains an integer. The length of a variable length

ﬁeld can either depend on itself or depend on other

ﬁelds or been agreed on in a separate request.

An example for a dependance on itself is if the

length ﬁeld is inline, for example the number of 1

from the beginning until the ﬁrst 0 depicts the length

of the ﬁeld in bytes (see Section 3.2.3). In case of

a length determination from another ﬁeld, for exam-

ple a separate integer length ﬁeld depicts the length

of the ﬁeld in bytes. If the length of a speciﬁc ﬁeld

is already agreed on in the connection establishment

process, no indication of the length has to be transfer-

red in the particular packet.

3.3.2 Parsing Rule

The parsing rule deﬁnes the way the ﬁeld is to be par-

sed. In case of a ﬁxed parsing rule, it is deﬁned in

a standard and ﬁxed regardless the circumstances. A

variable parsing rule however requires a ﬁxed rule

that deﬁnes how the parsing rule is to be parsed. This

ﬁxed rule can either be switched or speciﬁed by itself,

by another ﬁeld or via a separate request. If a parsing

rule is switched, this can be done using an enumera-

tion. If the parsing rule is speciﬁed, for example shell

code is transferred which has to be evaluated in order

to parse the ﬁeld.

The parsing rules themselves can be distinguis-

hed between two types: Elementary types on the one

hand usually represent a value that can be stored in a

programming languages basic types, like for example

ints or ﬂoats. Compound types on the other hand re-

present a collection of other ﬁelds. These other ﬁelds

can either be of elementary or compound type.

An example for a compound type is shown in Fi-

gure 6. StringField is a compound ﬁeld consisting of

a length ﬁeld and a charlist ﬁeld. LengthField is a an

elementary ﬁeld which is parsed to an integer. It re-

presents the number of char ﬁelds that will be parsed

in the CharList. CharList is a compound ﬁeld, consis-

ting of multiple char ﬁelds. Finally, CharField is an

elementary ﬁeld which is parsed to a char.

Network layers according to the ISO/OSI model

can be modeled as compound types. The Ethernet

layer as a whole, for example, is a compound type

StringField -- Compound field

LengthField -- Elementary field (int)

CharList -- Compound field

CharField -- Elementary field (char)

Figure 6: String as an example for a compound type.

consisting of the source and destination MAC etc.

The payload contains a compound type that is deter-

mined by the type ﬁeld. Usually the payload is parsed

according to a ﬁxed parsing rule.

Compound types can be arranged in a way that

they allow direct or indirect recursion, which presents

a challenge for implementers. In Scapy for example,

in order to model direct recursion it is necessary to

modify an already created class. The Class has an at-

tribute that contains a list of ﬁelds. During the parsing

of the class, the class is not yet deﬁned, so it cannot

contain a reference to itself. In order to circumvent

this restriction the class has to be modiﬁed after its

creation.

Conditional ﬁelds, i.e. ﬁelds that are only present

depending on other parts of the packet, can be repre-

sented by ﬁelds with variable parsing rules. The par-

sing rule changes depending on a switch ﬁeld. If the

ﬁeld is present, it is parsed according to the ﬁelds rule.

If it is not present, the parser just parses zero bytes,

i.e. skips the ﬁeld.

3.4 Requirements

According to the analysis of the use cases, the com-

mon industrial protocols, and taking into account

the packet ﬁeld categorization, the following requi-

rements for the example protocol are inferred. They

are split in two categories: State requirements (preﬁx

SR) and packet requirements (preﬁx PR).

SR STATE. The example protocol is a stateful net-

work communication protocol. Its states are con-

nected via transitions.

SR TRIG. Transitions are triggered either by

(a) receiving network packets or

(b) temporal conditions.

SR EFFECT. Transitions trigger one or more of the

following effects:

(a) sending network packets,

(b) starting timeouts,

SR SEND. In at least one state, network packets are

being sent without any transition to another state.

SR STACK. The example protocol is based on exis-

ting protocol stacks. It uses more than one stack.

INFO. The example protocol makes use of un-

derlain protocol information.

SR TIMEOUT SM. The example protocol uses more

than one timeout in one state.

Design of an Example Network Protocol for Security Tests Targeting Industrial Automation Systems

733

SR TIMEOUT MS. At least one timeout is used in

more than one state.

PR DETERM. The example protocol comprises pac-

kets that contain at least one ﬁeld with each combi-

nation of length and parsing rule determination de-

picted in Figure 5.

4 DESIGN

The example protocol has to be an artiﬁcial network-

based communication protocol comprising every pe-

culiarity which can be observed in common existing

industrial communication protocols. In order to ful-

ﬁll that demand, the requirements regarding both the

protocol behavior and the packet ﬁeld deﬁnitions de-

termined in Section 3.4 have to be met.

Additionally, in order to support the use cases de-

picted in Section 3.1, the protocol has to be made pu-

blicly available. This allows security researchers for

implementing and evaluating tools and frameworks

dealing with network communication.

4.1 Protocol Behavior

The example protocol uses two layers which are stac-

ked upon TCP: A channel layer and a session layer.

Additionally, it provides regular services which can

be called in different connection states. A special ser-

vice which can be invoked only in the session layer

is exchanging RT (real-time) trafﬁc on top of UDP.

The layers are depicted in Figure 7. This basic setup

of the example protocol fulﬁlls the SR STATE., the

SR TRIG. (a), the SR EFFECT. (a) and the

SR STACK. requirements.

Ethernet

TCP

Channel

Session

Service

UDP

Service

Figure 7: The example protocol stack.

A channel is dependent on a TCP connection. To

establish a channel, a TCP connection needs to be es-

tablished ﬁrst. If a channel is closed, the TCP con-

nection remains active and can be reused. A session

may only be established on an existing channel but

can persist even if the channel is closed. To reuse an

existing session, it needs to be attached to a new chan-

nel.

The following explanation is intended to be an

overview over the features of the example protocol

and by no means a full protocol description. To show

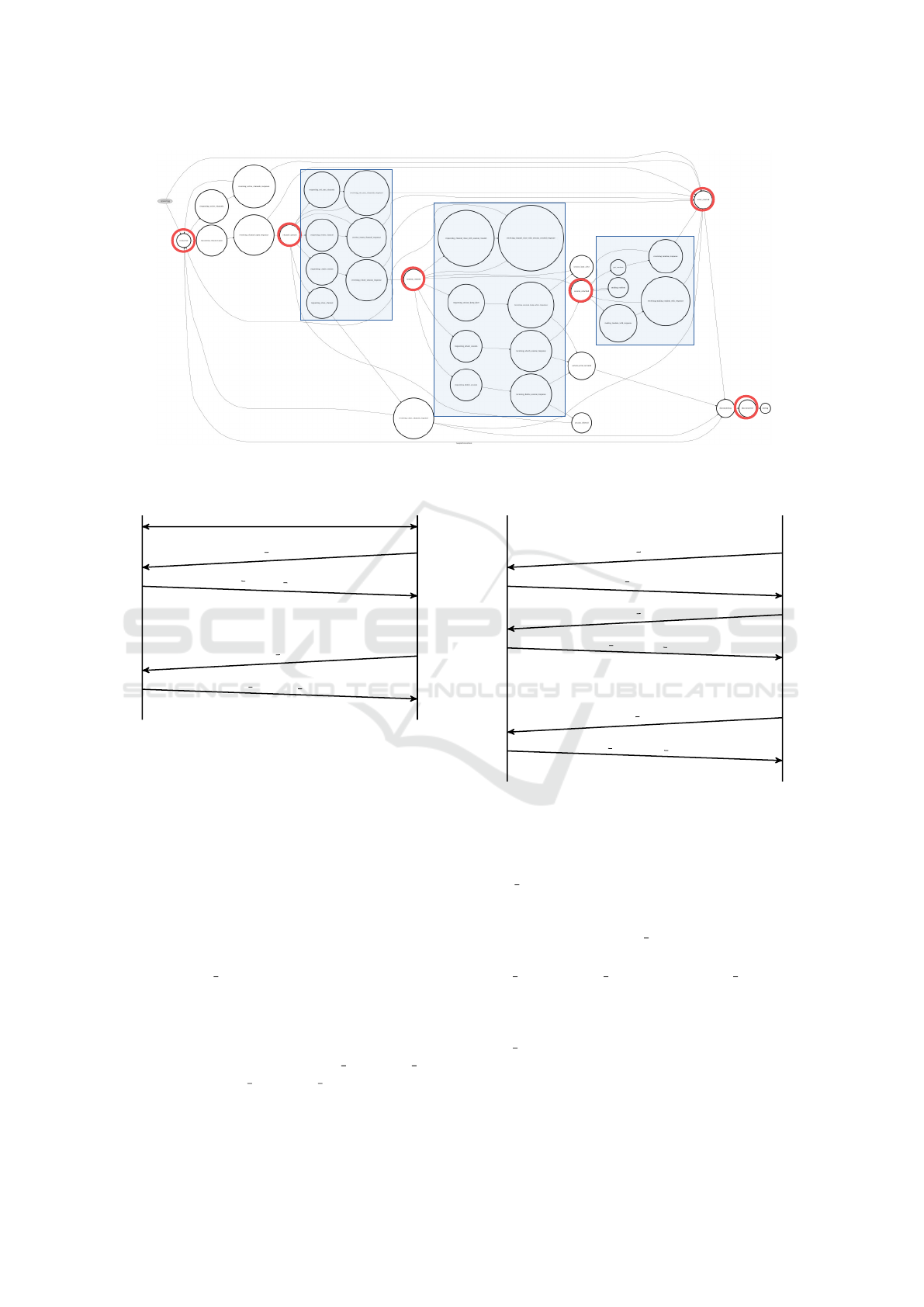

the complexity, Figure 8 pictures a state machine

graph of the example protocol. States are depicted

as circles, transitions as arrows. While the actual na-

mes of the states are not readable, special connection-

related states are highlighted: Connected (CON),

Channel opened (OPE), Session created(CRE), Ses-

sion attached (ATT), Disconnected (DIS) and Error

(ERR). Additionally, accumulations of states respon-

sible for providing the services, are marked using blue

boxes.

4.1.1 Channel Layer

As can be seen in Figure 7, the channel layer is built

upon TCP. The establishment of a channel is depicted

in Figure 9. To establish a new channel, ﬁrst a TCP

connection is established using a three-way hands-

hake.

When the TCP connection is established, the

client sends a CHANNEL OPEN request to the ser-

ver. The client may deﬁne a timeout after which

the establishment of the channel is canceled. The

server sends either a CHANNEL OPEN RESPONSE

or an ERROR response. These timeout deﬁni-

tion fulﬁlls the requirements SR TRIG. (b) and

SR EFFECT. (b).

Each message sent on a channel has a sequence

number which is incremented with each package sent.

The sequence number used by the client might be dif-

ferent to the sequence number of the server.

Each channel has an ID. With this, it is possible

to manage more than one channel at a time. This ID

needs to be transferred with each message sent on the

channel. Using the corresponding channel service, it

is possible to set the maximum number of channels

that can be open in parallel. Channel services can be

issued by the client with a NOACK ﬂag. If set, the ser-

ver will perform the action associated with the request

but will not send any response packet. This fulﬁlls the

SR EFFECT. (c) and SR SEND. requirements.

An active channel may be closed either by the ser-

ver or the client using CHANNEL CLOSE. With a

different request, it is also possible to renew the se-

quence numbers used. The underlain TCP connection

will stay alive allowing for both executing services or

creating a new channel.

The example protocol deﬁnes a service which pro-

vides the possibility to ﬁnd out the number of cur-

rently active channels (get active channels). It is pos-

sible to deﬁne a timeout for this request. After this

ForSE 2019 - 3rd International Workshop on FORmal methods for Security Engineering

734

CON

OPE

CRE

ATT

DIS

ERR

Figure 8: The state machine of the example protocol.

Server Client

TCP Handshake

CHANNEL OPEN(timeout)

CHANNEL OPEN RESPONSE(ID)

CHANNEL CLOSE(ID)

CHANNEL CLOSE RESPONSE

Figure 9: Channel handshake of the example protocol.

time runs out, a response to the request is no longer

processed.

4.1.2 Session Layer

As has been described before, a session is built upon

a channel but may persist after the channel is closed.

The establishment of a session is pictured in Figure

10.

For this, an existing TCP connection and an ex-

isting channel is required. First, a session is created

using SESSION CREATE. An optional timeout may

be sent with this request. The timeout indicates the

time-to-live of the session after the last package has

been sent. With this, it is possible for the session

to persist if a connection is aborted. The persistence

of the session timeout fulﬁlls the SR TIMEOUT MS.

requirement. The SR TIMEOUT SM. requirement is

fulﬁlled as well since there exists additionally the ti-

meout of the TCP connection.

Server Client

SESSION CREATE(ttl)

SESSION RESPONSE(ID)

SESSION ATTACH(ID)

SESSION ATTACH RESPONSE

SESSION DELETE(ID)

SESSION DELETE RESPONSE

Figure 10: Session handshake of the example protocol.

After the creation of the session, it is necessary

to attach it to an existing channel. For this, SES-

SION ATTACH needs to be requested. This message

includes the ID of the session that will be attached to

the channel the message is sent over. A session may

be deleted using SESSION DELETE.

The session layer deﬁnes three services:

make random, get random and send RT. These

services may only be used if an active session is

established. This is only the case if the session is

attached to the currently active channel. In short,

make random creates a random number and stores

it on the server. Similar to the channel service, it

provides a NOACK bit ﬂag. If this ﬂag is set, no

response is sent. The random number may be sent

back directly in a response or might be requested

Design of an Example Network Protocol for Security Tests Targeting Industrial Automation Systems

735

TCP

IsuProtoHeader

IsuProtoServices

IsuProtoChannelHeader

IsuProtoServices

IsuProtoSessionHeader

IsuProtoServices

Figure 11: Layering of example protocol packets.

through get random. This decision needs to be sent

with the request. send RT starts exchanging RT

packets via UDP with a conﬁgurable speed.

4.2 Packet Structures

The packet structure of the example proto-

col follows the layering depicted in Figure

11. An IsuProtoHeader can either con-

tain an IsuProtoService message or an

IsuProtoChannelHeader. The same goes for

the layers nested deeper with additional headers.

The determination which layer follows is done via

a type ﬁeld which fulﬁlls SR INFO.. Each service

has a request message and a response message. The

services are used to model the protocol behavior.

To fulﬁll the PR DETERM. requirements, some

custom ﬁelds were added and included in at least one

service packet. These special ﬁelds are explained in

the following.

The BitField is a ﬁeld with ﬁxed length and a

ﬁxed parsing rule. It can have a (ﬁxed) length speci-

ﬁed in bits.

The ﬁxed length with a parsing rule switched by

another ﬁeld is modeled implicitly by using the lay-

ering in the example protocol. The speciﬁed type in

the IsuProtoHeader determines whether the following

bytes have to be interpreted as IsuProtoServices or

as IsuProtoChannelHeader (see Figure 11).

FixedLengthVariableRuleFields contain bi-

nary data. The parsing rules that specify how

that data is to be parsed and encoded can be sent

with the packet, or be supplied separately, be-

cause they have been requested beforehand. A

FixedLengthVariableRuleField needs a parsing

and encoding rule, that speciﬁes how the data is par-

sed and encoded respectively. For the example proto-

col, any arbitrary Python code is allowed. The length

of the data is not speciﬁed and the parsing rule needs

to decide when to stop parsing.

The ByteListField has a ﬁxed parsing rule. The

ﬁeld consists of multiple bytes that comprise a list of

bytes. The length of this list is speciﬁed in an external

ﬁeld in the packet.

SwitchedArrays are arrays that can contain a

speciﬁed set of other ﬁelds that are switched by a type

ﬁeld. The type ﬁeld determines the type of all the con-

tained ﬁelds. The number of ﬁelds is determined by a

length ﬁeld.

DynamicLengthVariableRuleFields

have the same functionality as

FixedLengthVariableRuleFields except that

the length of the data that contains the value is

speciﬁed by another ﬁeld, and not ﬁxed.

VariableLengthLengthFields are similar to

variable-length vectors with variable-length length

encoding ﬁelds from ITS (see Section 3.2). The length

of the ﬁeld in bytes is determined by a sequence of

ones at the beginning of the ﬁeld, followed by a zero.

The remaining bits comprise the value of the ﬁeld.

The TerminatorStringField models a byte

string that is terminated by a speciﬁc byte. The byte

that terminates the string is speciﬁed in a separate

ﬁeld. Because the string is parsed until the terminator

byte is encountered, the ﬁeld can be categorized as a

ﬁeld whose length depends on its own data.

VariableRuleFields contain binary data. The

parsing rules that specify how that data is to be par-

sed and encoded can be sent with the packet, or be

supplied separately, because they have been requested

beforehand. A VariableRuleField needs a parsing

and encoding rule, that specify how the data is parsed

and encoded respectively. For the example protocol,

any arbitrary Python code is allowed. The length of

the data is not speciﬁed and the parsing rule needs to

decide when to stop parsing. It follows, that the length

depends on the ﬁelds own data, and the parsing rule is

variable.

5 CASE STUDY

The example protocol comprises the speciﬁcation, a

prototypical implementation using Python and Scapy

as well as several packet captures of the client server

communication. It is available online on GitHub.

In order to illustrate the usefulness of the example

protocol, the protocol learning use case described in

Section 3.1 will be applied in the following.

5.1 Scenario

There exist different tools for network protocol lear-

ning. Netzob (Bossert and Guih

ery, 2012) infers both

a vocabulary (packet structures) and a grammar (pro-

tocol behavior) from a given network communication.

NEMESYS (Kleber et al., 2018), a newer approach,

focuses on inferring packet structures from network

messages of binary protocols. All tools accept as in-

put packet captures (PCAP). As output, they provide

ForSE 2019 - 3rd International Workshop on FORmal methods for Security Engineering

736

different kinds of results which represent the inferred

protocol behavior and packet structures.

5.2 Example Protocol Usage

Network communication comprising the example

protocol can be generated by starting both a server

and a client running the prototypical implementation.

Packet captures can be recorded locally on either the

server or the client running tcpdump.

The listing in Figure 12 presents the example com-

munication of a client which ﬁrst opens a connection

to the server, retrieves 100 random numbers and clo-

ses the connection ﬁnally. In line 2, the TCP con-

nection is set up. Line 3 creates a channel, line 4 a

session. The session id is extracted in line 5 from the

response packet which is used for attaching the ses-

sion in line 6. In the lines 7 and 8, the get random()

service is being used for 100 times. Line 9 deletes the

session, line 10 closes the channel and line 11 discon-

nects from the server.

1 c = Client()

2 c.connect()

3 c.create_channel()

4 p = c.create_session("My Session")

5 session_id = p[SessionCreateResp].id

6 c.attach_session(session_id)

7 for i in range(0, 100):

8 c.get_random(session_id=session_id)

9 c.delete_session(session_id)

10 c.close_channel()

11 c.disconnect()

Figure 12: Example client source code for connecting to a

server using the example protocol.

The resulting PCAP ﬁle consists of 218 network

packets. While 2 times 100 contain the random num-

ber requests and responses, 11 are used to setup the

communication and 7 for their termination.

5.3 Discussion

NEMESYS compares the results of the inferred pac-

ket structure with the real packet structure extracted

via tshark from Wireshark dissectors. As long as no

Wireshark dissector for the example protocol exists,

the needed structures for this comparison have to be

written manually. Besides that issue, the prototypi-

cal implementation of the example protocol provides

a useful basis for training and the development of pro-

tocol learning tools dealing with both packet structu-

res and protocol behavior.

6 CONCLUSION

The design and publication of an example protocol

is a big advantage for the security testing domain in

IACS. Recent work in the creation of tools for dealing

with arbitrary network protocols suffered from mis-

sing complete knowledge about possibilities for both

packet structures and protocol behavior. With the ex-

ample protocol in mind, tool developers can improve

their tools accordingly.

In the case of protocol learning, tools can be

improved regarding their ability to recognize packet

ﬁelds. The variety of length and parsing rule determi-

nation described in the analysis is realized in the ex-

ample protocol prototypical client server implemen-

tation.

Future work includes implementing a Wireshark

dissector for the example protocol in order to allow

for automatic success veriﬁcation of protocol learning

tools. Additionally, the design of a meta model for

the description of network protocols which covers all

the observed peculiarities in the example protocol is a

great challenge. Applying this meta model approach

to the example protocol, a machine-readable deﬁni-

tion of the example protocol can be given.

Last but not least, packet crafting and processing

tools have to be improved or re-implemented by scra-

tch taking into account the results of this research.

ACKNOWLEDGEMENTS

We thank Andreas Fleig for ideas on requirements for

the example protocol and Mario Kaufmann for assis-

tance at implementing the example protocol.

This work was supported by the German Federal

Ministry of Education and Research within the frame-

work of the project KASTEL SKI in the Competence

Center for Applied Security Technology (KASTEL).

REFERENCES

Biondi, P. (2018). Scapy: Packet crafting for python2 and

python3. https://scapy.net/. [Online; accessed 2018-

12-23].

Bossert, G. and Guih

ery, F. (2012). Security evaluation of

communication protocols in common criteria. In Proc

of IEEE International Conference on Communicati-

ons.

Braden, R. (1989). Rfc-1122: Requirements for internet

hosts. Request for Comments, pages 356–363.

Duchene, J., Le Guernic, C., Alata, E., Nicomette, V., and

aniche, M. (2018). State of the art of network pro-

Design of an Example Network Protocol for Security Tests Targeting Industrial Automation Systems

737

tocol reverse engineering tools. Journal of Computer

Virology and Hacking Techniques, 14(1):53–68.

ETSI (2015). ETSI TS 103 097: Intelligent Transport Sys-

tems (ITS). ETSI, v 1.2.1 edition.

Felderer, M., B

uchler, M., Johns, M., Brucker, A. D., Breu,

R., and Pretschner, A. (2016). Security testing: A sur-

vey. In Advances in Computers, volume 101, pages

1–51. Elsevier.

HMS Industrial Networks (2017). Variantenvielfalt bei

Kommunikationssystemen. https://www.feldbusse.de/

Trends/trends.shtml. [Online; accessed 17-December-

2018].

ISO (1994). ISO/IEC 7498-1:1994 - Information techno-

logy – Open Systems Interconnection – Basic Refe-

rence Model: The Basic Model. International Orga-

nization for Standardization (ISO), Geneva, Switzer-

land.

Kleber, S., Kopp, H., and Kargl, F. (2018). NEMESYS:

Network message syntax reverse engineering by ana-

lysis of the intrinsic structure of individual messages.

In 12th USENIX Workshop on Offensive Technologies

(WOOT 18), Baltimore, MD. USENIX Association.

Kurose, J. F. and Ross, K. W. (2013). Computer networ-

king: a top-down approach: international edition.

Pearson Higher Ed.

uders, S. (2011). Stuxnet and the impact on accelera-

tor control systems. Proceedings of ICALEPCS2011,

Grenoble, France, pages 1285–1288.

OPC Foundation (2017a). OPC Uniﬁed Architecture Speci-

ﬁcation Part 1: Overview and Concepts. OPC Foun-

dation, version 1.04 edition.

OPC Foundation (2017b). OPC Uniﬁed Architecture Speci-

ﬁcation Part 3: Address Space Model. OPC Founda-

tion, version 1.04 edition.

OPC Foundation (2017c). OPC Uniﬁed Architecture Speci-

ﬁcation Part 6: Mappings. OPC Foundation, version

1.04 edition.

Peterson, L. L. and Davie, B. S. (2007). Computer net-

works: a systems approach. Elsevier.

Pfrang, S. and Meier, D. (2018). Detecting and preventing

replay attacks in industrial automation networks ope-

rated with proﬁnet io. Journal of Computer Virology

and Hacking Techniques, 14(4):253–268.

Pfrang, S., Meier, D., Friedrich, M., and Beyerer, J. (2018).

Advancing protocol fuzzing for industrial automation

and control systems. Proceedings of the 4th Internati-

onal Conference on Information Systems Security and

Privacy (ICISSP 2018), pages 570–580.

Potter, B. and McGraw, G. (2004). Software security tes-

ting. IEEE Security & Privacy, 2(5):81–85.

ForSE 2019 - 3rd International Workshop on FORmal methods for Security Engineering

738
