FUSE: A Microservice Approach to Cross-domain Federation using

Docker Containers

Tom Goethals

, Dwight Kerkhove, Laurens Van Hoye

, Merlijn Sebrechts

Filip De Turck

and Bruno Volckaert

Department of Information Technology, Ghent University - imec, IDLab,

Technologiepark-Zwijnaarde 126, 9052 Gent, Belgium

Keywords:

Collaboration, Uniﬁed Services, Microservices, Federation, Containers.

Abstract:

In crisis situations, it is important to be able to quickly gather information from various sources to form

a complete and accurate picture of the situation. However, the different policies of participating companies

often make it difﬁcult to connect their information sources quickly, or to allow software to be deployed on their

networks in a uniform way. The difﬁculty in deploying software is exacerbated by the fact that companies often

use different software platforms in their existing networks. In this paper, Flexible federated Uniﬁed Service

Environment (FUSE) is presented as a solution for joining multiple domains into a microservice based ad

hoc federation, and for deploying and managing container-based software on the devices of a federation. The

resource requirements for setting up a FUSE federation are examined, and a video streaming application is

deployed to demonstrate the performance of software deployed on an example federation. The results show

that FUSE can be deployed in 10 minutes or less, and that it can support multiple video streams under normal

network conditions, making it a viable solution for the problem of quick and easy cross-domain federation.

1 INTRODUCTION

In crisis situations, a crisis center is usually formed

which monitors the situation and takes suitable ac-

tions. It is important that crisis centers are able to

quickly gather information from various sources, for

example closed-circuit television (CCTV) or posi-

tional data, to get a complete and accurate overview of

the situation. When the required information sources

are owned by different companies, it is difﬁcult for

the crisis center to gain access to them or to interact

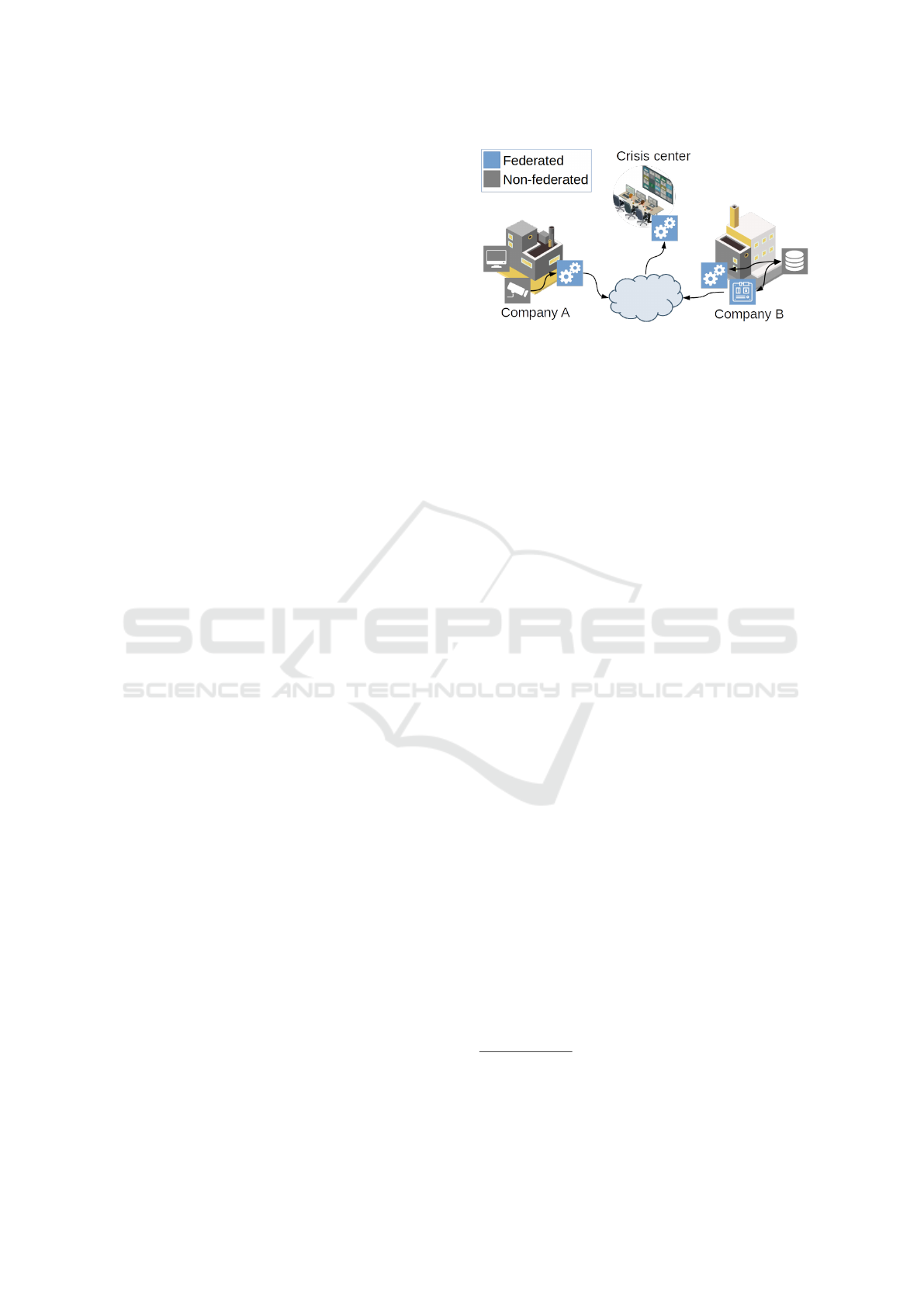

with them uniformly. Fig. 1 illustrates the concept

of joining companies and a crisis center into a single

virtual network, from now on referred to as a feder-

ation. Company A joins the federation, making its

IP cameras available for use by routing their streams,

and company B allows the use of both its servers and

sensory hardware. The crisis center gathers informa-

tion from the exposed devices of both companies and

https://orcid.org/0000-0002-1332-2290

https://orcid.org/0000-0003-1192-4631

https://orcid.org/0000-0002-4093-7338

https://orcid.org/0000-0003-4824-1199

https://orcid.org/0000-0003-0575-5894

transforms it into a dashboard for its operators. To

do this, a federation service environment is required

which supports a wide range of operating systems and

devices. Since containers are widely supported and

easy to deploy, a container-based service environment

is preferable.

In addition to varying devices and software plat-

forms, companies participating in a federation often

have different network and security policies, making

it difﬁcult to connect them quickly or to deploy soft-

ware in their networks (domains) in a uniform way.

Any solution to connect multiple domains should en-

sure that every company can choose exactly which re-

sources it makes available to the federation, and that

all communication between federated devices is se-

cure. Only devices that are part of the federation must

be visible from other domains, while devices from

each domain that are not part of the federation should

only be reachable from federated devices in the same

domain. For example, in Fig. 1 the data storage of

company B can be used by federation components de-

ployed in its own domain, but it is unavailable to the

rest of the federation. The same is true for the non-

federated device at company A, which is invisible to

the devices of company B and the crisis center.

Goethals, T., Kerkhove, D., Van Hoye, L., Sebrechts, M., De Turck, F. and Volckaert, B.

FUSE: A Microservice Approach to Cross-domain Federation using Docker Containers.

DOI: 10.5220/0007706000900099

In Proceedings of the 9th International Conference on Cloud Computing and Services Science (CLOSER 2019), pages 90-99

ISBN: 978-989-758-365-0

Apart from being cross-domain and ensuring se-

cure communications, a federation service environ-

ment focused on crisis situations must also be fast

and easy to set up. Joining a federation should only

take minutes, with minimal intervention from com-

pany administrators. Additionally, a company should

be able to join or leave a federation at any time with-

out destabilizing the federation, and after leaving a

federation no trace of the federation service environ-

ment should be left on a company’s devices. Further-

more, the components of a federation service environ-

ment should not interfere with other processes on a

device, which means that the entire federation service

environment and all its components should be isolated

as much as possible.

The challenges for building a federation service

environment using containers can thus be summarized

as follows:

1. Enabling and securing fast cross-domain commu-

nication while restricting access to non-federated

resources

2. Isolating the federation service environment from

other software

3. Ensuring fast and easy deployment of the federa-

tion service environment on a large range of de-

vices

This paper presents Flexible federated Uniﬁed

Service Environment (FUSE) to tackle these chal-

lenges. FUSE provides a microservice-oriented,

container-based service environment to deploy and

manage software on federated domains. It is designed

to quickly set up ad hoc federations with minimal

intervention, ensures secure communication between

domains and prevents non-federated devices from be-

ing visible from other domains.

Section II presents related work to the challenges

presented in this introduction, and Section III de-

scribes how they are solved in FUSE. Section IV de-

scribes the test setup for a basic FUSE federation,

while section V details the system requirements of

FUSE and presents performance results for a typical

use case. Section VI discusses the results and appli-

cations of FUSE, and suggests some topics for future

work. Finally, section VII concludes the paper.

2 RELATED WORK

Previous federation service environment projects

have resulted in frameworks such as Fed4Fire

(Wauters et al., 2014), Beacon (Moreno-Vozmediano

et al., 2016) and FedUp! (Bottoni et al., 2016).

Figure 1: Example federation.

Fed4Fire has a different use case from FUSE and re-

quires the implementation of an API to integrate de-

vices into a federation, which makes it inadequate

for the rapid ad hoc use cases of FUSE. BEACON

is focused on cloud federation and security as a func-

tion of cloud federation, but the use case of FUSE

requires it to work in company networks and around

existing and unchangeable security policies. FedUp!

is a cloud federation framework focused on improv-

ing the setup time for heterogenous cloud federations.

Unlike previously mentioned frameworks, FUSE op-

erates on company networks rather than cloud infras-

tructure and aims to cut down set-up time to minutes

or less with minimal intervention from system admin-

istrators, independent of target devices and operating

systems. Many tools have been created for the dif-

ferent aspects of federation, for example jFed (Ver-

meulen et al., 2014) (general lifecycle management),

OML

(measurement and monitoring) and OpenID

(Recordon and Reed, 2006) (trust, user authentica-

tion). Each of these tools only solves part of the prob-

lem FUSE faces and often requires the implementa-

tion of speciﬁc APIs to work with. For example jFed,

which was developed for the Fed4Fire project, pro-

vides high-level control over federated resources, but

it only works with known hardware types and pools

of pre-conﬁgured resources.

Container engines such as Docker

and rkt

have

been studied and evaluated extensively in literature

(Cailliau et al., 2016), for example in performance

reviews (Felter et al., 2015) and in overviews of vir-

tualization technology (Bernstein, 2014). Similarly,

the capabilities of container orchestration tools such

as Kubernetes

and its precursor Borg are explored

in various studies (Verma et al., 2015; Casalicchio,

2017). Microservice architectures using containers

have seen a lot of attention, speciﬁcally for their use

https://wiki.conﬁne-project.eu/oml:start

https://www.docker.com/

https://coreos.com/rkt/

https://kubernetes.io/

FUSE: A Microservice Approach to Cross-domain Federation using Docker Containers

in rapid and easy deployment of (cloud) applications

(Kratzke, 2017; Amaral et al., 2015). However, Ku-

bernetes by itself is insufﬁcient to build a federation

service environment when the devices in the federa-

tion are hidden from public view by ﬁrewalls or by

other means, which is often the case in company net-

works.

Docker security has been thoroughly studied (Bui,

2015), and there are security best practices for Kuber-

netes (Kubernetes, 2016). However, no work is found

on securing network trafﬁc speciﬁcally, which is re-

quired when sending valuable data between domains

over the internet. Kubernetes is capable of forming

federations of multiple Kubernetes clusters (Kuber-

netes, 2018), but to the best of our knowledge, no

work has been done on a single Kubernetes cluster

spanning multiple physical domains.

Certain studies investigate the usefulness of edge

computing and edge ofﬂoading (Shi and Dustdar,

2016; Samie et al., 2016), two concepts whereby

computing workload is moved from cloud hardware

to edge devices (or vice versa) based on hardware

load and service demand. Of particular interest are

studies where virtualization is employed for edge of-

ﬂoading purposes (Morabito et al., 2018). This work

is closely related to how and why federations could

include edge devices to serve as information sources

or processing hardware.

Various aspects of cloud resource management

have been studied (Jennings and Stadler, 2015), for

example the scalability of certain topologies. Stud-

ied topologies include a centralized controller (Atrey

et al., 2016), management hierarchies (Whaiduzza-

man et al., 2014; Wang and Su, 2015) and fully dis-

tributed approaches (Miraftabzadeh et al., 2017).

3 COMPONENTS AND

ARCHITECTURE

Within a single domain, a federation can easily be

formed using Docker containers and Kubernetes. The

use of Docker containers ensures that software can be

deployed to a wide variety of target devices, as long as

they support Docker. Kubernetes is used to join and

manage all the devices in the federation, and to deploy

software on those devices. The only downside to this

approach is that software needs to be containerized in

order to deploy it.

Kubernetes identiﬁes the roles of speciﬁc devices

in a cluster by making them either a master or a

worker node. FUSE, being built around Kubernetes,

adopts these two roles while giving them additional

responsibilities. Master nodes are the equivalent

of Kubernetes masters and consist of a Kubernetes

control plane and other services required for FUSE.

Worker nodes perform the function of Kubernetes

workers and generally only contain a kube-proxy and

deployed containers.

The rest of this section details how FUSE solves

the problems posed in the introduction and describes

how they ﬁt into the basic Docker and Kubernetes

setup described here.

3.1 Cross-domain Federation and

Security

Kubernetes deploys containers in groups called pods,

which have their own virtual network for communi-

cation between all devices that constitute a cluster.

This inter-pod communication is done with the aid of

a Container Network Interface (CNI) driver

, such as

Flannel

, which assigns an IP address from a conﬁg-

urable range to every pod running on the Kubernetes

nodes under its control. However, Flannel runs into

problems when a Kubernetes node is unreachable, for

example when it is hidden behind a ﬁrewall or when

no route to the target machine exists. Kubernetes, be-

ing primarily built for cloud environments, has no fa-

cilities to work around this problem.

In order to enable Flannel trafﬁc between do-

mains, and to secure that trafﬁc, OpenVPN tunnels

are created between FUSE worker nodes and the mas-

ter node. Every FUSE master node runs an OpenVPN

server, while all FUSE nodes (including the master)

have an OpenVPN client that connects to the VPN

server on the master node. Once a connection is es-

tablished, a FUSE node gets an IP address from a

conﬁgurable range of VPN addresses. This address

is added to routing tables in FUSE services, together

with the Flannel address range of a node. After this

initial setup, all of the ports on a node’s OpenVPN

interface are forwarded to Flannel. To optimize per-

formance, Flannel is run using the host-gw

back-end

instead of vxlan, which puts pod network packets di-

rectly on the OpenVPN interface instead of encapsu-

lating them. The downside of using only one Open-

VPN server, running on the master node, is that all

trafﬁc is routed via the master node, even if it is just

between worker nodes.

Apart from enabling cross-domain federation and

securing communications, FUSE also needs to en-

https://kubernetes.io/docs/concepts/extend-

kubernetes/compute-storage-net/network-plugins/

https://github.com/coreos/ﬂannel

https://openvpn.net/

https://github.com/coreos/ﬂannel/blob/master/

Documentation/backends.md

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

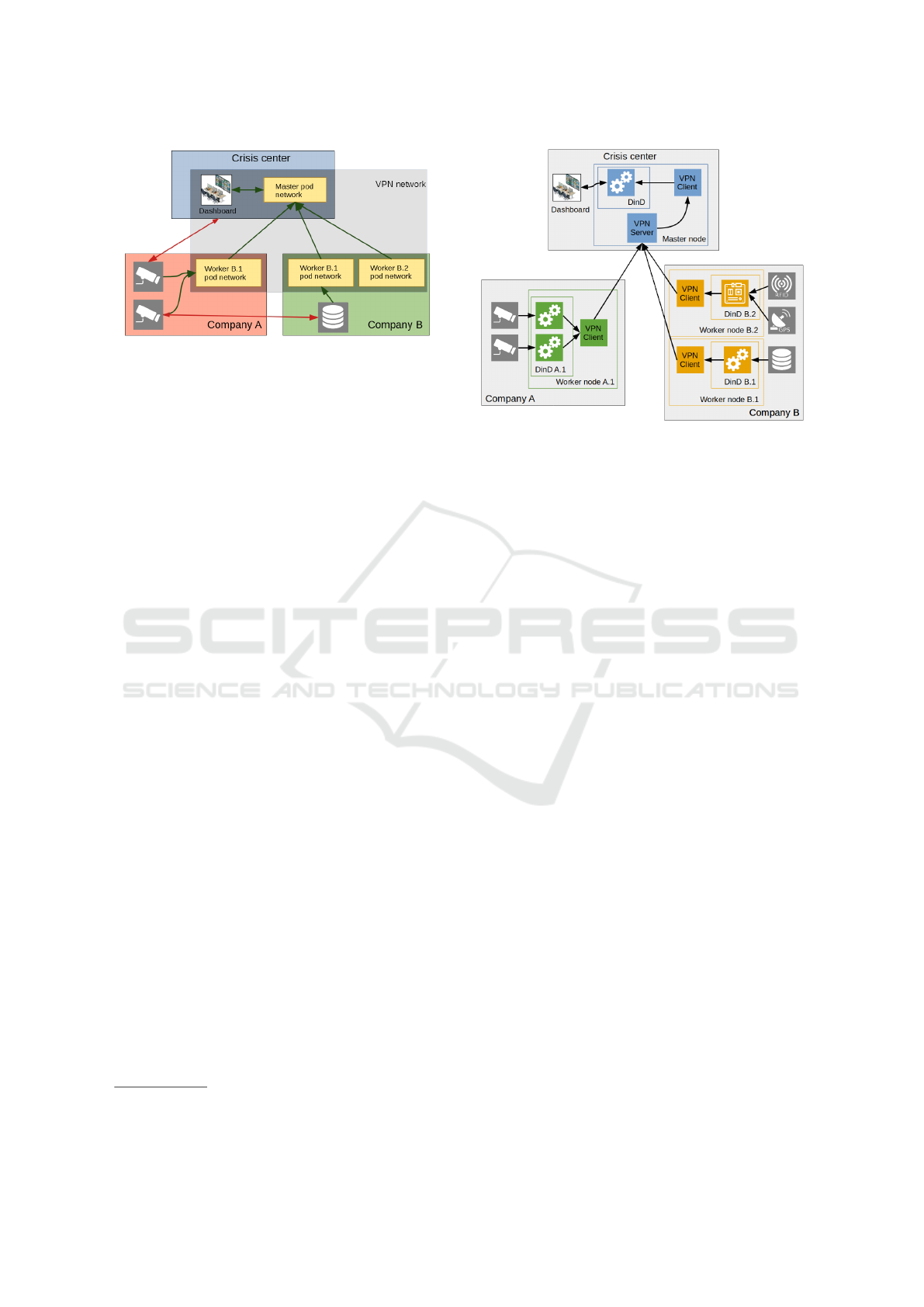

Figure 2: High-level network overview of an example

FUSE federation.

sure that non-federated devices can not be reached

from a domain other than the one they are in. This

is achieved by generating speciﬁc routing rules for

each node in a federation. The concept is shown in

Fig. 2, where a red, green or blue box represents a

company network (domain), yellow boxes represent

the distributed parts of the Kubernetes pod network

and the gray translucent box represents the VPN net-

work which connects all FUSE nodes. Green arrows

indicate which devices can interact with each other,

while red ones show which ones can not. In company

A, worker B.1 can receive camera streams from non-

federated devices in company A through its company-

assigned IP address, and it is also able to forward

the stream to the crisis center over its FUSE VPN-

assigned IP address. However, non-federated devices

in company A can not be reached by any devices from

either the crisis center or company B. This approach

solves the ﬁrst challenge posed in the introduction.

3.2 Encapsulation

To tackle the second challenge discussed in the in-

troduction, a solution is needed that isolates FUSE

components and minimizes the required software to

deploy FUSE. All services deployed on a FUSE

worker node are containerized, but the components

of FUSE should be isolated as well. Docker-in-

Docker (DinD

) enables the nesting of Docker envi-

ronments by deploying a containerized Docker envi-

ronment within another Docker environment. Using

a DinD approach, FUSE components and services are

deployed in the outer docker environment, while the

inner environment runs containers deployed on the

node by Kubernetes. Thus, FUSE processes remain

isolated from other processes and a Docker installa-

tion is the only requirement to start a FUSE node. Ad-

https://github.com/kubernetes-sigs/kubeadm-dind-

cluster

Figure 3: Nodes and information ﬂow of an example FUSE

federation.

ditionally, FUSE can ensure that none of its compo-

nents remain on a device after it leaves the federation.

However, both FUSE components and client software

must be containerized in order for this approach to

work. For OpenVPN, this means using an OpenVPN

server container on the master node and OpenVPN

client sidecars (Burns, 2018) on the worker nodes.

Using DinD creates an additional network layer

between the host OS and the Kubernetes node. As

previously mentioned, Flannel takes care of network

trafﬁc for the pods in the inner Docker environment,

but the outer Docker environment still needs an ad-

dressing scheme. For this layer, a static address was

chosen for each FUSE service, no matter which node

it runs on, so that a FUSE node always knows where

to reach a certain service running on it. For example,

a VPN server container IP address always ends in .2,

while a VPN client container address always ends in

.3.

Fig. 3 shows the federation illustrated in Fig. 1,

with the concepts discussed in this section. Fig. 3

shows that every node, even the master node, has a

VPN client which is connected to the master node’s

VPN server. Company A has a single worker node,

which is running multiple containers to forward video

streams to the crisis center through a single VPN

client. Company B, on the other hand, has two worker

nodes, each with their own VPN clients. Node B.1

has a single container which gives the crisis center

access to data from company B, and node B.2 gath-

ers positional data from various sources and makes it

available to the crisis center.

FUSE: A Microservice Approach to Cross-domain Federation using Docker Containers

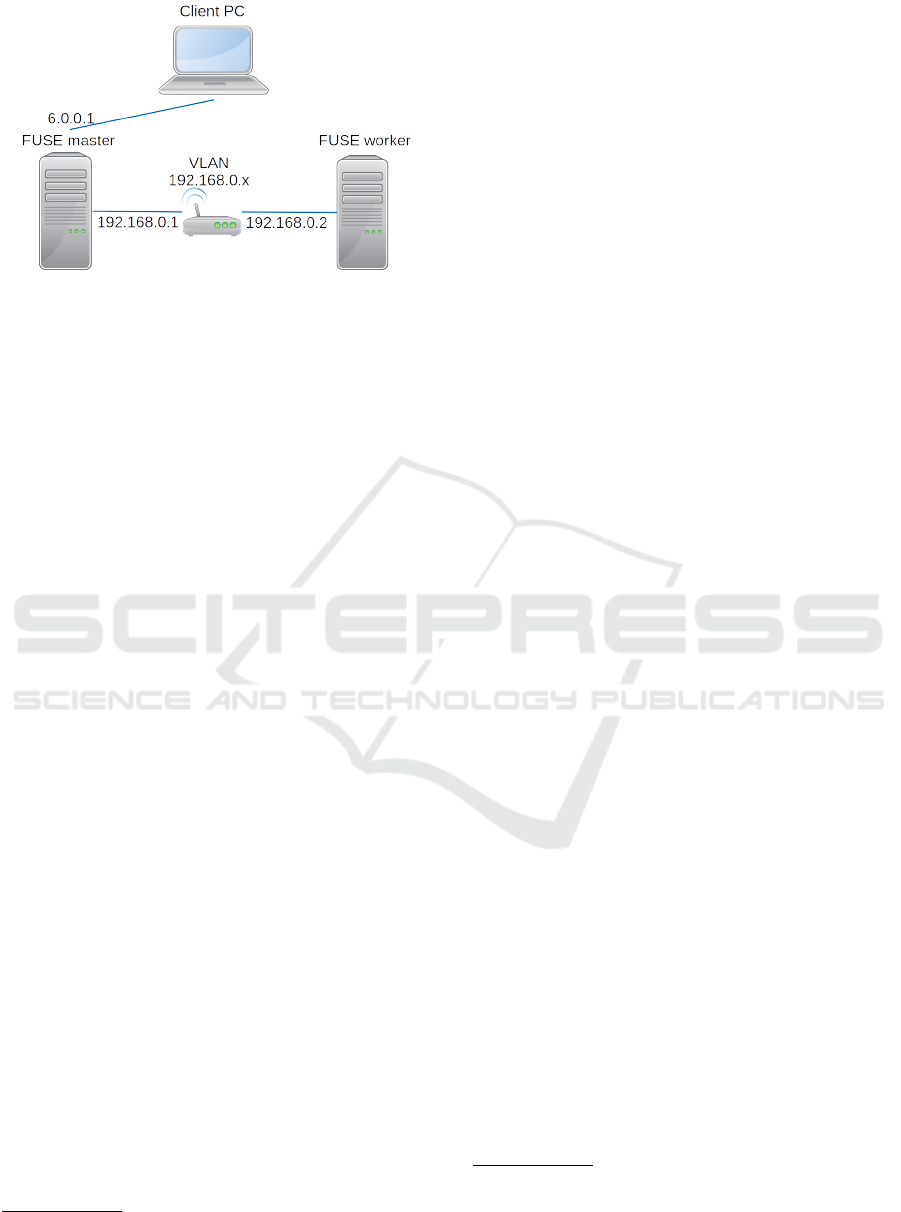

Figure 4: Test setup overview.

3.3 Fast and Easy Deployment and

Teardown

The DinD solution from the previous subsection en-

ables easy deployment and teardown of FUSE. Since

all FUSE components are running in containers, only

a single startup script is needed to deploy FUSE on a

node or to remove it from a node, with any required

containers being pulled from a remote or local Docker

registry. Thus, DinD also satisﬁes the third require-

ment from the introduction, but tests are needed to

conﬁrm that this solution can run on a wide range of

devices.

4 TEST SETUP

Considering the use cases of FUSE, it is important

that it can be deployed on a large range of devices and

that both master and worker nodes can quickly join

the federation when needed. These requirements are

also part of the challenges stated in the introduction,

of which the ﬁrst one demands that FUSE has good

network performance, and the third one demands that

FUSE is fast to set up and tear down on a wide range

of devices.

To conﬁrm that FUSE meets these requirements,

measurements were performed to determine memory

consumption, required hard disk space, deploy times

for nodes and network performance of the federation.

Being able to run FUSE on a Raspberry Pi 3 is set as

a concrete goal for low-end devices. All tests were

performed on the imec/IDLab Virtual Wall environ-

ment

using bare metal servers. Special care was

taken to ensure that the hardware of all servers was

identical for every test run. The hardware conﬁgura-

http://doc.ilabt.iminds.be/ilabt-documentation/

virtualwallfacility.html

tion used for every device consists of two Intel Xeon

E5620 processors clocked at 2.4 GHz, 12GiB DDR3

memory and a 16GiB partition on a 160GiB WDC

WD1600AAJS-0 hard drive.

Fig. 4 shows the test setup. The fuse master and

worker nodes are connected by a VLAN which al-

lows setting speciﬁc amounts of packet loss and de-

lay. Meanwhile, a client PC is connected to the FUSE

VPN and interacts with Kubernetes services via the

VPN IP address assigned to the master node. By de-

fault, the 6.0.0.x address range is used, but it is conﬁg-

urable. While the client PC is not a part of the virtual

wall environment, it is directly connected over LAN,

with a ping time of only 0.24 +- 0.01ms.

The required hard disk space for a node was mea-

sured by summing the disk usage of all the required

containers and FUSE scripts. Memory consumption

was determined by comparing available memory as

reported by the free command

, before and after de-

ploying FUSE. Network throughput was determined

with iperf3

in the DinD container on both FUSE

nodes and running it in both TCP and UDP mode.

The resulting physical trafﬁc is thus TCP-on-TCP and

UDP-on-TCP, respectively.

To determine how quickly FUSE can set up a

federation and how quickly worker nodes can join

or leave the federation, the time command was used

to measure the duration of the relevant FUSE com-

mands. The ﬁnal results were calculated from ten suc-

cessful runs of each test.

As a test of FUSE performance in a typical use

case, a container is deployed to the worker node

which simulates a camera stream by looping a 720p

video ﬁle, recorded from a security camera, to a web-

socket using ffmpeg

. The video has mostly static

images with little movement and is encoded at 2

Mbits/s. The frame rate of the recording is 25 frames

per second (FPS), but the output frame rate is not lim-

ited. Because the frame rate is not limited and the

video stream consists of mostly static scenery, this

is a good test of FUSE network performance. How-

ever, in real crisis situations, there would likely be

a lot of activity on camera streams, possibly inﬂu-

encing the frame rate from one moment to the next.

Since this would be harder to quantify, the FPS test is

only meant as an indication of FUSE bandwidth. A

dashboard application container, consisting of a web

page with a Node.js

back-end, is deployed on the

master node. The dashboard back-end receives the

worker node’s stream via a websocket and sets up a

http://www.linfo.org/free.html

https://iperf.fr/iperf-download.php

https://www.ffmpeg.org/

https://nodejs.org/en/

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

proxy websocket, which in turn sends the data to the

web page opened by the client PC. The proxy web-

socket acts as an aggregator for multiple streams, but

for the tests below only one stream was used. The

web page itself plays the video using jsmpeg

. The

results, measured in fps, were calculated by hooking

into jsmpeg’s render loop and calculating the average

and standard deviation over 70 seconds of streamed

video.

5 RESULTS

5.1 Hardware Requirements

Worker nodes require 529 MiB of disk space and are

small enough that they can be deployed on a Rasp-

berry Pi 3 or similar devices. However, in order to

have enough room to deploy software, several giga-

bytes of free space would be recommended. Master

nodes require 1576 MiB of disk space, which is about

three times as much as a worker node. This makes

sense, since they need to deploy all FUSE compo-

nents, a VPN server and a Kubernetes master. Consid-

ering their role as communications and management

hubs for the federation, master nodes will usually be

deployed on hardware with orders of magnitude more

free space than the required amount, so this should

not be a problem.

Concerning memory consumption, a worker node

could easily be deployed on a Raspberry Pi 3, since

it needs only about 228 MiB free memory. Master

nodes need around 851 MiB free memory, which is

almost four times more than a worker node. Again,

this is due to having to run Kubernetes and all FUSE

services. It would be very hard to deploy a master

node on hardware with 1 GiB RAM, even with an ex-

tremely slimmed down host OS.

5.2 Federation Setup and Teardown

Since master nodes can be started up front and kept

ready-to-go, their start times are less important than

those of worker nodes. They have no interaction with

any other devices while deploying, so no special cases

need to be examined.

Table 1 shows the minimum, median and maxi-

mum observed times it takes to set up a FUSE master

node or tear it down. A master node takes only about

6 to 6.5 minutes to set up from scratch, while it can

be removed from a device in about 8 to 9 seconds.

https://github.com/phoboslab/jsmpeg

Table 1: FUSE master node create and leave times.

Create Leave

Min time (s) 356 7.87

Median time (s) 374 7.90

Max time (s) 381 8.90

For worker nodes, the quality of the network con-

nection to the master node is important for federation

setup and tear down. To examine the impact of the

connection quality, a range of combinations of com-

munication delay and packet loss were simulated. De-

lay ranges from 0ms to 400ms in 100ms steps, while

packet loss ranges from 0% to 20% in 5% steps.

Considering all the network layers in the FUSE ar-

chitecture, it is hard to model performance using ex-

isting research. FUSE trafﬁc consists of TCP or UDP

packets from containers wrapped in TCP packets by

OpenVPN. A worker attempting to join a federation

performs a number of requests. The execution time of

a single request over TCP is

= (w

+ d

)

1 − l

) (1)

where l is packet loss, d

is network delay, d

delay resulting from handling network operations in

software, w

is work not inﬂuenced by network activ-

ity (for example, parsing JSON response data), and

represents work that depends on network perfor-

mance.

However, this only works for a single request. A

federation operation, for example joining a federa-

tion, requires several calls to web services. This intro-

duces another factor caused by service call timeouts,

which in turn can cause a retry of the entire operation:

total

(1 − max(min(

−d

, 1), 0))(1 − l)

(2)

Where d

is the delay threshold below which no

operation should time out and d

is the critical de-

lay threshold above which every operation results in a

timeout. For this equation, delay is in the denomina-

tor because its effect is no longer linear. The constants

in Eq. 1 and Eq. 2 have to be determined empirically

and are different for every hardware setup, but with

the results in Fig. 5 the most important effects on the

test setup can be identiﬁed.

Fig. 5 shows the time it takes to join a federation

for several combinations of delay and packet loss. In

case of smooth network performance, meaning less

than 100ms delay or less than 10% packet loss, join-

ing a federation only takes as much as 1 to 4 minutes.

As the model predicts, packet loss has a strong hyper-

bolic effect on the time it takes to join a federation, but

FUSE: A Microservice Approach to Cross-domain Federation using Docker Containers

0 100 200 300 400

200

400

600

800

Delay (ms)

Join time (s)

0 5 10 15 20

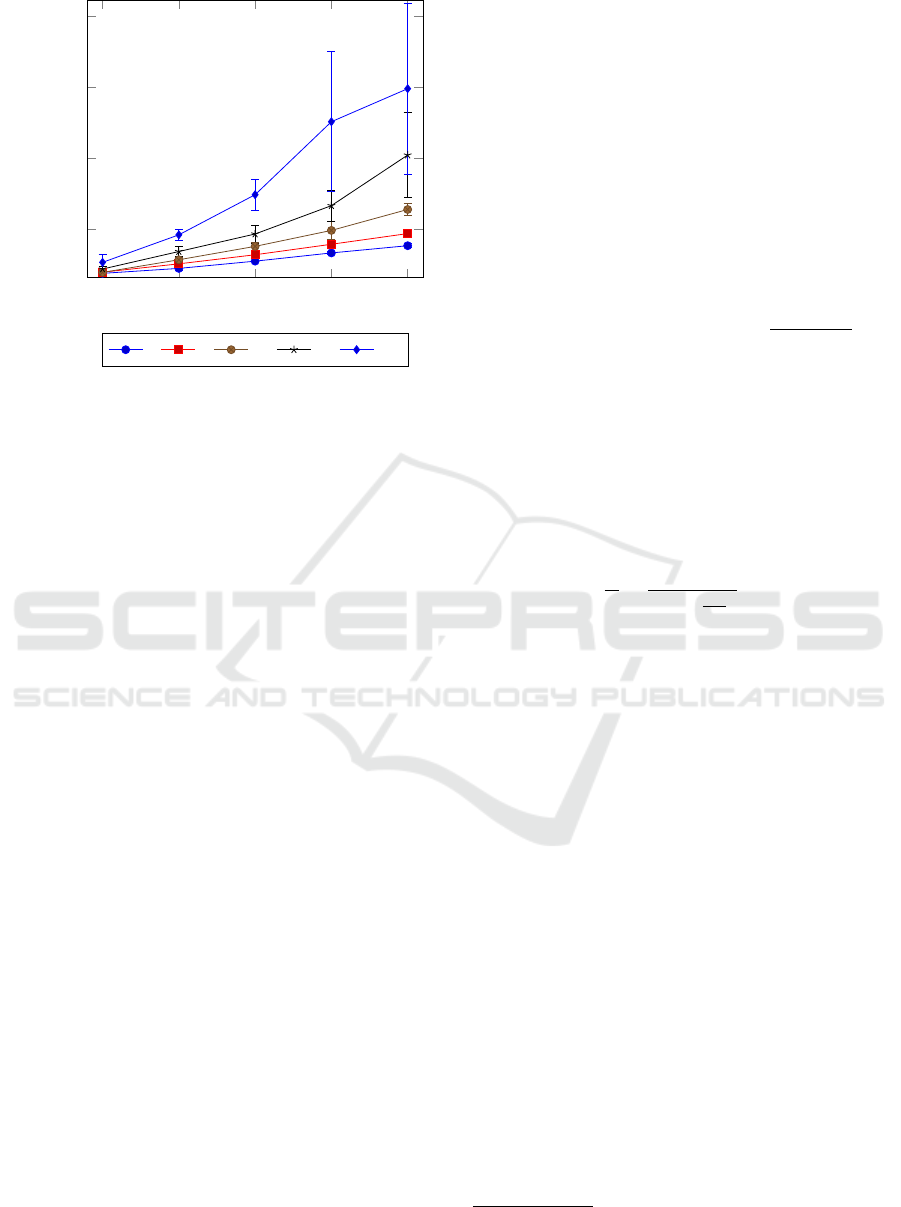

Figure 5: Federation join time for increasing delay at sev-

eral percentages of packet loss.

it is still doable even with high rates of packet loss and

high delay. Delay has a mostly linear effect, as shown

by Eq. 1. Only for combinations of high delay and

a lot of packet loss does it turn to a slight hyperbolic

effect, explained by its term in Eq. 2. Further model-

ing is unreliable because of the large error margins on

these data points. Eventually, around 20% packet loss

and 400ms delay joining becomes so slow and erratic

that it is unlikely to still be practical. The error margin

on this data point shows that join attempts may take

anywhere from 6 to 14 minutes.

5.3 FUSE Network Performance

Fig. 6 shows the communication speed between a

FUSE master node and a worker node with packet

loss and delay set to zero. While TCP performance

is only 109 Mbits/s, the test setup has no support

for hardware encryption using the AES-NI instruction

set, which would give much better results (OpenVPN,

2018). UDP performance is very low with only 11.7

Mbits/s, meaning any FUSE trafﬁc should be kept to

TCP as much as possible. During the tests, OpenVPN

used between 60% and 100% of a single CPU core.

Since OpenVPN runs on a single thread, these results

are about as good as they can get without optimiza-

tions. This means that communication alone takes a

large part of the total processing power of a node.

For the video streaming test, the delay between

the FUSE nodes was set from 0 to 100ms in steps of

25ms, while the effect of packet loss was examined

for 0%, 0.2%, 1% and 2%. Because the software in-

volved in this test does not use buffering, the results

are a good reﬂection of network performance.

Since a TCP video stream is one-way trafﬁc that

requires no response, a different model is used to pre-

dict performance than for joining a federation. Only

packets that do not make it on the ﬁrst send incur a

penalty on the rendering process. Uniform delay has

no effect on the quality of video, merely delaying the

rendering of each frame by the same amount of time,

resulting in Eq. 3 for the time to transmit and render

a frame. In this case n is the number of packets that

need to be sent for a frame, d is the network delay,

and l is the packet loss. d

is an intrinsic delay that

occurs from endpoint handling of network trafﬁc and

the speed limit of electronic communication.

= d

n +

∞

∑

i=1

n(d + d

= d

n −

(d + d

)ln

l − 1

(3)

For a d

that is sufﬁciently small compared to the

delay caused by network problems and bad connec-

tions, Eq. 3 can be reduced to Eq. 4 to estimate

FPS for video throughput. Since n can not be rea-

sonably estimated for any frame, it is replaced by t

which represents the time it takes to transmit an aver-

age frame under ideal circumstances (no packet loss,

only d

delay).

f =

≈

(1 −

l−1

)

, d

 d (4)

Fig. 7 shows the results of the video throughput

test, for which 24 FPS is set as the minimum accept-

able framerate. Despite the static bit rate of the source

video, the standard deviation at every data point is

nearly always over 20% of the average at that point,

showing that there is a large ﬂuctuation in perfor-

mance. During testing, it was veriﬁed that this is not

a side effect of the rendering process of jsmpeg, but

because jsmpeg actually receives variable amounts of

data each second. This variation is directly related to

FPS variation.

From the simpliﬁed model, performance for 0%

packet loss would be expected to remain level instead

of slowly declining, but this is the result of a tiny

amount of packet loss intrinsic in all systems. Even

for as little as 0.05% packet loss, Eq. 4 shows a

signiﬁcant decline, which seems locally linear rather

than hyperbolic for the examined range of delay. It

was veriﬁed with tcpdump

and Wireshark

that a

minute amount of packet loss was indeed present.

Similarly, the data points for 0ms delay for the dif-

ferent levels of packet loss do not all have the same

value because of the intrinsic delay d

. Since in this

case the conditions for Eq. 4 are violated, it is better

to go with Eq. 3.

http://www.tcpdump.org/

https://www.wireshark.org/

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

TCP

UDP

108.75

11.74

Throughput (Mbits/s)

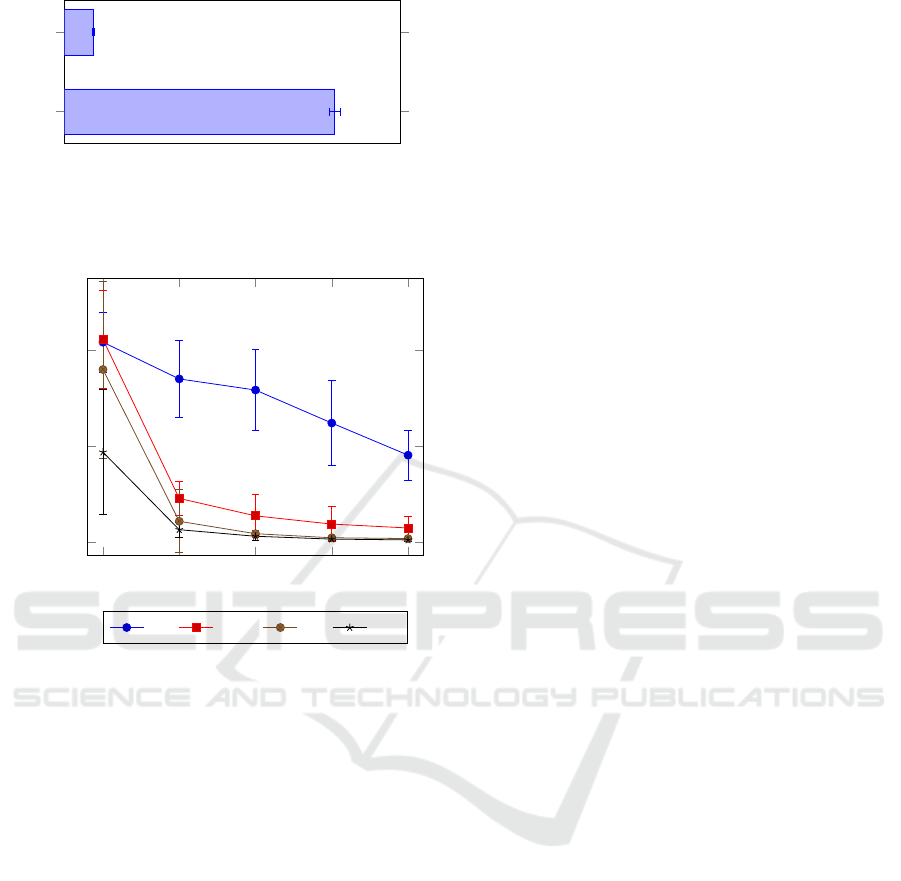

Figure 6: FUSE network throughput for UDP and TCP net-

work trafﬁc.

25 50 75

100

200

400

Delay (ms)

Video throughput (fps)

0% 0.2% 1% 2%

Figure 7: 720p video streaming performance between

FUSE nodes for increasing delay at several levels of packet

loss.

The rest of the chart follows the general shape pre-

dicted by the model. A roughly hyperbolic shape,

with an increase in packet loss causing a faster degra-

dation than an increase in delay. The general result

is that performance quickly drops to a useless level,

unless special care is taken to avoid noticeable packet

loss. While 0.2% loss combined with 100ms delay

still results in a useful stream at 29fps, as little as 1%

loss combined with 50ms delay results in only 17fps.

The only other good results were all obtained at 0ms

delay (0.25ms counting d

), but those are unrealis-

tic in practical federations, even if the nodes are very

close to each other geographically.

6 DISCUSSION AND FUTURE

WORK

A containerized approach makes FUSE easy to de-

ploy on any device that supports Docker. Addition-

ally, leveraging Kubernetes makes sure that container-

ized software can be deployed using familiar and reli-

able methods. However, FUSE can only be deployed

on devices that support Docker, and existing software

has to be containerized in order to be deployed in a

FUSE federation.

The introduction puts forth three challenges in

creating a federation service environment for crisis

situations:

1. Enabling and securing fast cross-domain commu-

nication while restricting access to non-federated

resources

2. Isolating the federation service environment from

other software

3. Ensuring fast and easy deployment of the federa-

tion service environment on a large range of de-

vices

It is shown that the FUSE architecture solves these

challenges by using OpenVPN to enable and secure

cross-domain trafﬁc, and by using DinD to isolate

FUSE from other software running on a device and

simplifying deployment.

Tests are performed to empirically conﬁrm the

parts of the challenges related to FUSE performance

and resource consumption.

The memory consumption and required disk space

tests conﬁrm that FUSE can be deployed on a wide

range of devices, according to the third challenge.

However, master nodes have to process a lot of Open-

VPN trafﬁc, which is CPU intensive, so devices with

at least 2 available cores and hardware encryption

such as AES-NI (Intel, 2018) are recommended.

Starting a FUSE federation is shown to be fast,

taking only 5 to 6 minutes. The time to join a fed-

eration is dependent on network quality, but barring

extremely hostile network conditions, a worker node

should take about 1 to 4 minutes to join a federation.

These numbers show that in most circumstances, it is

possible to set up an entire federation in 10 minutes or

less, which is enough to complete the third challenge.

Because the resource requirements for master nodes

are relatively low and every minute counts in crisis

situations, it could be a good idea to keep a master

node running at all times. This approach would cut

response time to just 1 to 4 minutes when a situation

arises.

The network performance of a FUSE federation

is explored by both measuring pure throughput and

by using a video streaming setup which mimics a

client PC viewing a security camera stream. The re-

sults of the throughput test suggest that most of the

performance limitations are due to OpenVPN. For

TCP trafﬁc the network speed is acceptable and sat-

urates a 100 Mbit/s network. UDP is almost 10 times

slower, so applications running on a FUSE federa-

FUSE: A Microservice Approach to Cross-domain Federation using Docker Containers

tion should consider using TCP. Importantly, since

OpenVPN performance is CPU bound, not connec-

tion bound, this bandwidth has to be shared by all

worker nodes connected to the same master, which

needs to be taken into account when setting up a fed-

eration.

The video streaming test shows the performance

of streaming services under a variety of network con-

ditions. If 24 FPS is taken as a minimum requirement

for a smooth 720p video stream, performance is good

enough to handle 17 video streams simultaneously

under ideal circumstances, which is sufﬁcient for the

ﬁrst challenge. However, performance drops quickly

with increasing packet loss. Around 1% packet loss

and 50ms delay, UDP is likely a better choice, since

packet loss will only result in image corruption, but

no frame rate decrease. A simple mathematical model

has been worked out to predict FUSE TCP perfor-

mance, which could help evaluate the choice for ei-

ther TCP or UDP under a given set of circumstances.

In future work, OpenVPN performance could

likely be improved (OpenVPN, 2018), especially

since the test results show that FUSE throughput only

reaches about 10% of the capacity of the gigabit line

used for the tests. While improving OpenVPN per-

formance may not help for scenarios with low net-

work quality, it would at least increase throughput un-

der optimal network conditions, reduce CPU load, or

make larger worker pools practical. Alternatives to

OpenVPN, such as Wireguard

, are also considered.

A high availability mechanism should also be im-

plemented in the future. In the test setup, only one

master node is used, but a failure of the master node

would disrupt the entire federation. Some of the chal-

lenges are minimizing the number of hops for pod

trafﬁc between master nodes, handling the indepen-

dent VPN networks started by each master, keeping

conﬁguration information up to date over the entire

high availability network and making sure nodes get

delegated to a new master when one of them fails.

The creation of multiple master nodes can also re-

duce OpenVPN CPU load compared to a single mas-

ter, and optimize trafﬁc ﬂow. In a single master setup,

there is not only a centralized controller for the feder-

ation, but since all trafﬁc between worker nodes has to

go via the master node’s VPN server, it ﬂows accord-

ing to a star topology. In a high availability setup,

each master node would have its own star topology

formed by its set of worker nodes. Only when worker

nodes with different masters need to communicate

does any trafﬁc ﬂow between the master nodes, and

this sort of trafﬁc could be minimized by planning or

reassigning worker nodes to a different master.

https://www.wireguard.com/

Kubernetes pods can be moved from one node

to another to ensure the load is distributed across

all nodes in the cluster. For stateless microservices

this poses no problem but services such as databases

or queues require backing storage that needs to per-

sist across the same instances regardless where they

run. This storage is typically conﬁgured in advance

and a Kubernetes volume plugin is deployed to al-

low for dynamic volume provisioning. In the context

of FUSE, further research can be done to automate

this deployment and dynamically increase the storage

through simple node labeling.

7 CONCLUSION

FUSE is introduced as a federation service environ-

ment to create and manage federations across do-

mains. Its architecture is shown to fulﬁll the require-

ments stated in the introduction. Tests show that

FUSE is fast and easy to deploy and that its hard-

ware requirements allow for deployment on low-end

hardware. Furthermore, FUSE is shown to be fast

enough for high quality video streaming, an impor-

tant practical use case. Note that the test is primarily

aimed at measuring FUSE network performance and

stability, while camera streams in real crisis situations

may have more varying results. Potential future work

is discussed to improve the speed and reliability of

FUSE, which includes optimizing or replacing Open-

VPN, adding support for a high availability setup and

managing storage.

ACKNOWLEDGMENT

FUSE is a project realized in collaboration with imec.

Project partners are Barco, Axians and e-BO Enter-

prises, with project support from VLAIO (Flanders

Innovation & Entrepreneurship).

REFERENCES

Amaral, M., Polo, J., Carrera, D., Mohomed, I., Unuvar,

M., and Steinder, M. (2015). Performance evalua-

tion of microservices architectures using containers.

In 2015 IEEE 14th International Symposium on Net-

work Computing and Applications, pages 27–34.

Atrey, A., Moens, H., Seghbroeck, G. V., Volckaert, B., and

Turck, F. D. (2016). Design and evaluation of au-

tomatic workﬂow scaling algorithms for multi-tenant

SaaS. In Proceedings of the 6th International Con-

ference on Cloud Computing and Services Science.

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

SCITEPRESS - Science and and Technology Publi-

cations.

Bernstein, D. (2014). Containers and cloud: From LXC

to docker to kubernetes. IEEE Cloud Computing,

1(3):81–84.

Bottoni, P., Gabrielli, E., Gualandi, G., Mancini, L. V.,

and Stolﬁ, F. (2016). FedUp! cloud federation as a

service. In Service-Oriented and Cloud Computing,

pages 168–182. Springer International Publishing.

Bui, T. (2015). Analysis of docker security.

Burns, B. (2018). Designing distributed systems (the side-

car pattern).

Cailliau, E., Aerts, N., Noterman, L., and De Groote, L.

(2016). A comparative study on containers and related

technologies.

Casalicchio, E. (2017). Autonomic orchestration of con-

tainers: Problem deﬁnition and research challenges.

In Proceedings of the 10th EAI International Confer-

ence on Performance Evaluation Methodologies and

Tools. ACM.

Felter, W., Ferreira, A., Rajamony, R., and Rubio, J. (2015).

An updated performance comparison of virtual ma-

chines and linux containers. In 2015 IEEE Interna-

tional Symposium on Performance Analysis of Sys-

tems and Software (ISPASS). IEEE.

Intel (2018). Intel data protection technology with aes-ni

and secure key.

Jennings, B. and Stadler, R. (2015). Resource management

in clouds: Survey and research challenges. Journal of

Network and Systems Management, 23(3):567–619.

Kratzke, N. (2017). About microservices, containers and

their underestimated impact on network performance.

Kubernetes (2016). Security best practices for kubernetes

deployment.

Kubernetes (2018). Kubernetes federation.

Miraftabzadeh, S. A., Rad, P., and Jamshidi, M. (2017).

Distributed algorithm with inherent intelligence for

multi-cloud resource provisioning. In Intelligent De-

cision Support Systems for Sustainable Computing,

pages 77–99. Springer International Publishing.

Morabito, R., Cozzolino, V., Ding, A. Y., Beijar, N., and

Ott, J. (2018). Consolidate IoT edge computing with

lightweight virtualization. IEEE Network, 32(1):102–

111.

Moreno-Vozmediano, R., Huedo, E., Llorente, I. M., Mon-

tero, R. S., Massonet, P., Villari, M., Merlino, G., Ce-

lesti, A., Levin, A., Schour, L., V

azquez, C., Melis, J.,

Spahr, S., and Whigham, D. (2016). Beacon: A cloud

network federation framework. In Celesti, A. and Leit-

ner, P., editors, Advances in Service-Oriented and

Cloud Computing, pages 325–337, Cham. Springer

International Publishing.

OpenVPN (2018). Openvpn optimizing performance on gi-

gabit networks.

Recordon, D. and Reed, D. (2006). Openid 2.0: A platform

for user-centric identity management. In Proceed-

ings of the Second ACM Workshop on Digital Identity

Management, DIM ’06, pages 11–16, New York, NY,

USA. ACM.

Samie, F., Tsoutsouras, V., Bauer, L., Xydis, S., Soudris, D.,

and Henkel, J. (2016). Computation ofﬂoading and

resource allocation for low-power IoT edge devices.

In 2016 IEEE 3rd World Forum on Internet of Things

(WF-IoT). IEEE.

Shi, W. and Dustdar, S. (2016). The promise of edge com-

puting. Computer, 49(5):78–81.

Verma, A., Pedrosa, L., Korupolu, M., Oppenheimer, D.,

Tune, E., and Wilkes, J. (2015). Large-scale cluster

management at google with borg. Proceedings of the

10th European Conference on Computer Systems, Eu-

roSys 2015.

Vermeulen, B., Van de Meerssche, W., and Walcarius, T.

(2014). jfed toolkit, fed4ﬁre. In Federation. In: GENI

Engineering Conference, volume 19.

Wang, Z. and Su, X. (2015). Dynamically hierarchical

resource-allocation algorithm in cloud computing en-

vironment. J. Supercomput., 71(7):2748–2766.

Wauters, T., Vermeulen, B., Vandenberghe, W., Demeester,

P., Taylor, S., Baron, L., Smirnov, M., Al-Hazmi, Y.,

Willner, A., Sawyer, M., Margery, D., Rakotoarivelo,

T., Lobillo Vilela, F., Stavropoulos, D., Papagianni,

C., Francois, F., Bermudo, C., Gavras, A., Davies, D.,

Lanza, J., and Park, S.-Y. (2014). Federation of inter-

net experimentation facilities: architecture and imple-

mentation. In European Conference on Networks and

Communications, Proceedings, pages 1–5.

Whaiduzzaman, M., Haque, M., Karim Chowdhury, R., and

Gani, A. (2014). A study on strategic provisioning of

cloud computing services. The Scientiﬁc World Jour-

nal, 2014.

FUSE: A Microservice Approach to Cross-domain Federation using Docker Containers
