Metadata Management for Textual Documents in Data Lakes

Pegdwend

e N. Sawadogo

, Tokio Kibata

and J

ome Darmont

Universit

e de Lyon, Lyon 2, ERIC EA 3083, 5 avenue Pierre Mend

es France, F69676, Bron, France

Universit

e de Lyon, Ecole Centrale de Lyon, 36 avenue Guy de Collongue, F69134, Ecully, France

Keywords:

Data Lakes, Textual Documents, Metadata Management, Data Ponds.

Abstract:

Data lakes have emerged as an alternative to data warehouses for the storage, exploration and analysis of big

data. In a data lake, data are stored in a raw state and bear no explicit schema. Thence, an efﬁcient metadata

system is essential to avoid the data lake turning to a so-called data swamp. Existing works about managing

data lake metadata mostly focus on structured and semi-structured data, with little research on unstructured

data. Thus, we propose in this paper a methodological approach to build and manage a metadata system that

is speciﬁc to textual documents in data lakes. First, we make an inventory of usual and meaningful metadata

to extract. Then, we apply some speciﬁc techniques from the text mining and information retrieval domains to

extract, store and reuse these metadata within the COREL research project, in order to validate our proposals.

1 INTRODUCTION

The tremendous growth of social networks and the In-

ternet of Things (IoT) brings various organisms ex-

ploit more and more data. Such amounts of so-called

big data are mainly characterized by high volume, ve-

locity and variety, as well as a lack of veracity, which

together exceed the capacity of traditional process-

ing systems (Miloslavskaya and Tolstoy, 2016). To

tackle these issues, Dixon introduced the concept of

data lake, a large repository of raw and heterogeneous

data, fed by external sources and allowing users to ex-

plore, sample and analyze the data (Dixon, 2010).

In a data lake, original data are stored in a raw

state, without any explicit schema, until they are

queried. This is known as schema-on-read or late

binding (Fang, 2015; Miloslavskaya and Tolstoy,

2016). However, with big data volume and velocity

coming into play, the absence of an explicit schema

can quickly turn a data lake into an inoperable data

swamp (Suriarachchi and Plale, 2016). Therefore,

metadata management is a crucial component in data

lakes (Quix et al., 2016). An efﬁcient metadata sys-

tem is indeed essential to ensure that data can be ex-

plored, queried and analyzed.

Many research works address metadata manage-

ment in data lakes. Yet, most of them focus on

structured and semi-structured data only (Farid et al.,

2016; Farrugia et al., 2016; Madera and Laurent,

2016; Quix et al., 2016; Klettke et al., 2017). Very

few target unstructured data, while the majority of big

data is unstructured and mostly composed of textual

documents (Miloslavskaya and Tolstoy, 2016). Thus,

we propose a metadata management system for tex-

tual data in data lakes.

Our approach exploits a subdivision of the data

lake into so-called data ponds (Inmon, 2016). Each

data pond is dedicated to a speciﬁc type of data (i.e.,

structured data, semi-structured data, images, textual

data, etc.) and involves some speciﬁc data prepro-

cessing. Thus, we propose in this paper a textual data

pond architecture with processes adapted to textual

metadata management. We notably exploit text min-

ing and information retrieval techniques to extract,

store and reuse metadata.

Our system allows two main types of analyses.

First, it allows OLAP-like analyses, i.e., documents

can be ﬁltered and aggregated with respect to one

or more keywords, or by document categories such

as document MIME type, language or business cate-

gory. Filter keys are comparable to a datamart’s di-

mensions, and measures can be represented by statis-

tics or graphs. Second, similarity measures between

documents can be used to automatically ﬁnd clusters

of documents, i.e., documents using approximately

the same lexical ﬁeld, or to calculate a document’s

centrality. We demonstrate these features in the con-

text of the COREL research project.

Our contribution is threefold. 1) We propose the

ﬁrst thorough methodological approach for managing

Sawadogo, P., Kibata, T. and Darmont, J.

Metadata Management for Textual Documents in Data Lakes.

DOI: 10.5220/0007706300720083

In Proceedings of the 21st International Conference on Enterprise Information Systems (ICEIS 2019), pages 72-83

ISBN: 978-989-758-372-8

unstructured, and more speciﬁcally textual, data in a

data lake. 2) We introduce a new type of metadata,

global metadata, which had not been identiﬁed as

such in the literature up to now. 3) Although we artic-

ulate existing techniques (notably standards) to build

up our metadata management system, adaptations are

required. We especially combine a graph model and

a data vault (Linstedt, 2011) for metadata represen-

tation, and extend an XML representation format for

metadata storage.

The remainder of this paper is organized as fol-

lows. Section 2 surveys the research related to meta-

data management in data lakes, and especially tex-

tual metadata issues. Section 3 presents our metadata

management system. In Section 4, we apply our ap-

proach on the COREL data lake as a proof of concept.

Finally, Section 5 concludes the paper and gives an

outlook on our research perspectives.

2 RELATED WORKS

2.1 Metadata Management in Data

Lakes

2.1.1 Metadata Systems

There are two main data lake architectures, each

adopting a particular approach to organize the meta-

data system. We call the ﬁrst architecture storage-

metadata-analysis (Stein and Morrison, 2014; Quix

et al., 2016; Hai et al., 2017), where the metadata

system is seen as a global component for the whole

dataset. Every analysis or query is then performed

through this component.

The second architecture structures the data lake

into data ponds. A data pond is a subdivision of a

data lake, dealing with a speciﬁc type of data (In-

mon, 2016). In this approach, storage, metadata man-

agement and querying are speciﬁc to each data type

(voluminous, structured data from applications; ve-

locious, semi-structured data from the IoT; various,

unstructured textual documents). This organization

helps conform to data speciﬁcity.

2.1.2 Metadata Generation

There are many techniques in the literature to extract

metadata from a data lake. For instance, generat-

ing data schemas or column names make formulat-

ing queries and analyses easier (Quix et al., 2016; Hai

et al., 2017). In the same line, integrity constraints

can be deduced from data (Farid et al., 2016; Klettke

et al., 2017). However, such operations are not appli-

cable to textual data.

There are three main ideas in the literature for

building and managing metadata that are appropri-

ate for textual data. The ﬁrst proposal consists in in-

dexing the documents. This is notably applied in the

CoreDB data lake to support a keyword querying ser-

vice (Beheshti et al., 2017).

The second idea, called semantic annotation (Quix

et al., 2016), semantic enrichment (Hai et al., 2017) or

semantic proﬁling (Ansari et al., 2018), adds a con-

text layer to the data, which deﬁnes the meaning of

data. This is done using World Wide Web Consor-

tium standards such as OWL (Laskowski, 2016). It is

used for enriching a couple of data lakes (Terrizzano

et al., 2015; Quix et al., 2016).

Finally, the third proposal applies a textual disam-

biguation process before document ingestion in the

data lake (Inmon, 2016). Textual disambiguation con-

sists in, on one hand, providing context to the text,

e.g., using taxonomies; and on the other hand, trans-

forming the text into a structured document.

2.2 Discussion

Current metadata management techniques for textual

data (Section 2.1.2) are all relevant. Each brings in a

crucial feature: indexing permits ﬁltering data with

one or more keywords; semantic enrichment com-

plements data with domain-speciﬁc information; and

textual disambiguation makes the automatic process-

ing of textual data easier.

To achieve an efﬁcient metadata system, an idea

can be to take advantage of these three techniques,

combining them into a global metadata management

system. However, it is not so simple.

A ﬁrst problem is that textual disambiguation im-

plies that the original data are transformed before be-

ing fed to the data lake (Inmon, 2016). Thus, raw data

are lost during this process, which contradicts the def-

inition of data lakes (Dixon, 2010).

A second problem also concerns textual disam-

biguation. We need to deﬁne concrete examples of

structured formats in which textual data can be con-

verted to be easily analyzed. This remains an open

issue as far as we know.

A third problem is that seeking for semantic en-

richment via all possible semantic technologies seems

illusory. There are indeed many semantic enrichment

methods, which limits user ﬂexibility.

Eventually, current metadata management tech-

niques do not consider an important type of metadata,

i.e., relational metadata. Relational metadata, also

called inter-dataset metadata (Section 3.1.2), express

Metadata Management for Textual Documents in Data Lakes

tangible or intangible links between datasets or data

ponds (Maccioni and Torlone, 2017). Obtaining rela-

tional metadata indeed allow advanced analyses such

as centrality and community detection proposed in a

semi-structured data context (Farrugia et al., 2016),

and that could be extended to unstructured docu-

ments. In the context of textual documents, a com-

munity typically means sharing a lexical ﬁeld, and can

serve to automatically classify documents by topics.

3 TEXTUAL METADATA

MANAGEMENT SYSTEM

3.1 Metadata Identiﬁcation

A categorization of metadata in data lakes (Maccioni

and Torlone, 2017) distinguishes intra-dataset (Sec-

tion 3.1.1) and inter-dataset metadata (Section 3.1.2).

In addition, we propose a third category: global meta-

data (Section 3.1.3).

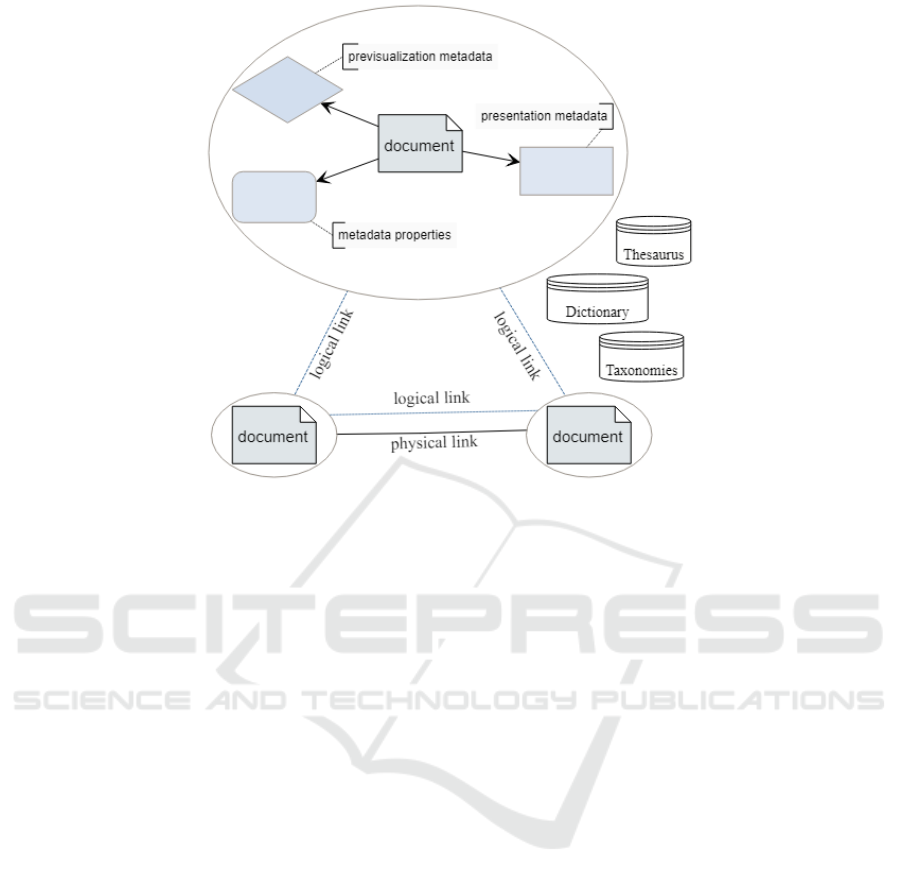

3.1.1 Intra-dataset Metadata

This category is composed of metadata concerning

only one dataset (a textual document in our context) in

a data pond. Three subcategories are relevant to tex-

tual documents. The ﬁrst category is made of prop-

erties that take the form of key-value pairs and pro-

vide information about data (Quix et al., 2016), e.g.,

document creation date, document creator, document

length, etc.

The second category of intra-dataset metadata is

called previsualization metadata. They consist of a

summary of the document through a visualization or

a set of descriptive tags (Halevy et al., 2016). Their

role is to provide users with an idea of the document’s

contents.

Finally, the last category concerns version meta-

data. These metadata are inspired from the idea of

keeping different versions of each document in the

data pond (Halevy et al., 2016), e.g., a lemmatized

version, a version without stopwords, etc.

To enhance version metadata, we introduce the

notion of presentation metadata. Presentation meta-

data are obtained by applying two operations to the

original data. The ﬁrst is a transformation operation

to get a cleaned or enriched version of a document,

e.g., stopwords removal, lemmatization, etc.

The second operation consists in giving a struc-

tured format to the transformed document to actually

achieve the presentation as, e.g., a bag of words, a

term-frequency vector or a TF-IDF vector.

The generation of presentation metadata is similar

to text disambiguation (Inmon, 2016), except that our

proposal does not involve any data loss. Original data

are retained.

3.1.2 Inter-dataset Metadata

Inter-dataset or relational metadata specify relation-

ships between different documents (Maccioni and

Torlone, 2017). There are two subcategories of inter-

dataset metadata: physical and logical links (Farrugia

et al., 2016).

Physical links represent a clear (tangible) connec-

tion between documents. Such connections are typ-

ically induced by the belonging to some natural or

business clusters, e.g., creation by the same person

or belonging to the same business category, etc. In

contrast, logical (intangible) links highlight similari-

ties between documents from their intrinsic character-

istics, such as common word rate or inherent topics.

3.1.3 Global Metadata

This category of metadata covers the whole data lake.

Global metadata may be used and reused to enrich

documents or to perform more advanced analyses.

They generally include semantic data such as thesauri,

dictionaries, ontologies, etc.

Such metadata can be exploited to create enriched

or contextualized documents through semantic en-

richment (Hai et al., 2017), annotation (Quix et al.,

2016) or proﬁling (Ansari et al., 2018). This process

is then the ﬁrst part of presentation metadata genera-

tion (Section 3.1.1) .

Global metadata can also serve to enrich data

querying, e.g., a thesaurus can be used to expand a

keyword-based query with all the synonyms of the

initial keywords.

Eventually, semantic resources such as ontologies

and taxonomies can also help classify documents into

clusters (Inmon, 2016; Quix et al., 2016). For exam-

ple, Inmon uses two taxonomies of positive and nega-

tive terms to detect whether a text brings out a positive

or negative sentiment, respectively.

3.2 Metadata Representation

A data lake or data pond can be viewed as a graph,

where nodes represent documents and edges express

connections or similarities between documents (Far-

rugia et al., 2016; Halevy et al., 2016). Such a repre-

sentation allows to discover communities or to cal-

culate the centrality of nodes and, thus, to distin-

guish documents sharing the same lexical ﬁeld from

those with a more speciﬁc vocabulary (Farrugia et al.,

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

2016). We adopt this approach because it is relevant

to inter-dataset metadata (Section 3.1.2).

Moreover, to handle the changing number and

form of intra-dataset metadata, we combine the graph

view of metadata with data vault modeling. Data

vaults are alternative logical models to data ware-

house star schemas that, unlike star schemas, allow

easy schema evolution (Linstedt, 2011). They have

already been adopted to represent a data lake’s meta-

data (Nogueira et al., 2018), but retaining a relational

database structure that does not exhibit an explicit

graph representation.

In contrast, we associate data vault satellites rep-

resenting intra-dataset metadata with graph nodes. In

our context, a satellite stores descriptive information,

i.e., a set of attributes associated with one speciﬁc

document. Yet, a document may be described by sev-

eral satellites (Hultgren, 2016). Then, with the help

of this one-to-many relationship, we can easily asso-

ciate any new intra-dataset metadata with any docu-

ment by creating new satellites attached to the docu-

ment’s node.

Figure 1 shows an example of metadata represen-

tation for three documents. Visualization metadata,

presentation metadata and properties are associated

with each document. The association arrow from a

document to metadata indicates that it is possible to

associate several instances of every type of metadata

with a document.

Inter-dataset metadata are subdivided into logical

links represented by dotted edges and physical links

represented by solid edges. It is also possible to de-

ﬁne several instances of inter-dataset metadata. The

only constraint that we introduce is that each logi-

cal link, when deﬁned, should be generated between

every couple of documents, which is not the case of

physical links. That is, we assume that there is al-

ways some similarity between two documents. The

question is then to know the strength of this similar-

ity. For physical links, the question is simply whether

the link exists.

Finally, global metadata are not as such part of the

graph, because they are not directly connected to any

document. This is why they are isolated.

3.3 Metadata Storage

To efﬁciently store the metadata identiﬁed in Sec-

tion 3.1, we adopt the idea to associate an XML meta-

data document with each document. This XML docu-

ment serves as the textual document’s “identity card”

and permits to store and retrieve all its related meta-

data. This approach has notably been used to build a

data preservation system for the French National Li-

brary (Fauduet and Peyrard, 2010). Each digital doc-

ument is ingested in their system as a set of infor-

mation pieces represented by an XML manifest (Sec-

tion 3.3.1) that can be viewed as a metadata package

(Fauduet and Peyrard, 2010).

Depending on the type of metadata, we pro-

pose three storage modes: integrally within, par-

tially within and independent from a manifest (Sec-

tions 3.3.2, 3.3.3 and 3.3.4, irrespectively).

3.3.1 XML Manifest Structure

The manifest XML document associated with each

textual document is composed of three sections,

each dedicated to a speciﬁc metadata type. The

ﬁrst two sections are deﬁned by the Metadata En-

coding & Transmission Standard (METS) (The Li-

brary of Congress, 2017).

The ﬁrst section, named dmdSec, stores atomic

metadata in a mdWrap subsection (Section 3.3.2).

The second section is another dmdSec section where

non-atomic metadata are referenced by a pointer in

mdRef XML elements (Section 3.3.3).

The third section is our proposal, which we name

prmSec for physical relational metadata section. It

stores physical links in prm elements.

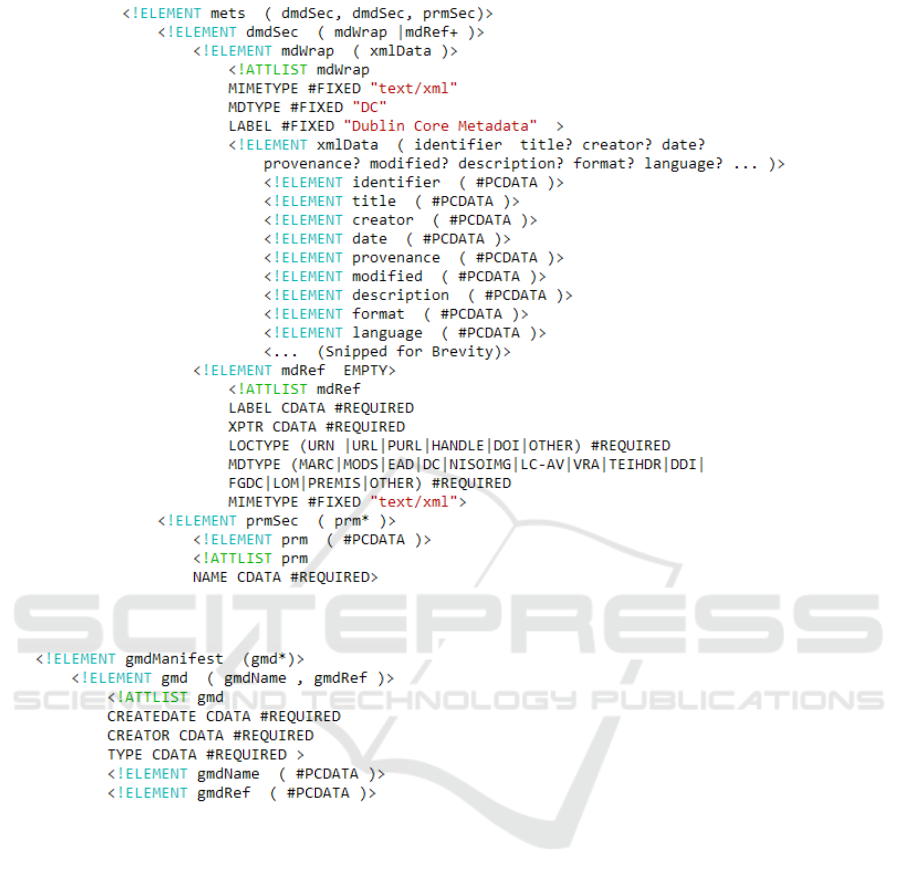

Figure 2 shows the document manifest schema

as an XML DTD, which we choose because it is

more humanly understandable than an XML Schema.

Eventually, to make exploring and querying meta-

data easier, we strongly advocate for storing the set

of XML manifest documents into an XML DBMS.

3.3.2 Atomic Metadata Storage

Metadata in an atomic or near-atomic form are di-

rectly included in the XML manifest. It is gener-

ally the case of properties, e.g., the document’s iden-

tiﬁer, its creation or last modiﬁcation timestamp, its

creator’s name, etc. More precisely, such metadata

are stored in a dmdSec section/mdWrap subsection.

In this subsection, atomic metadata are represented

by XML elements from the (standard) Dublin core

namespace (Dublin Core Metadata Initiative, 2018).

However, the proposed namespace can easily be re-

placed by a customized namespace.

3.3.3 Non-atomic Metadata Storage

Several types of metadata bear a format that requires a

speciﬁc storage technology. Therefore, such metadata

cannot be stored internally in the manifest like atomic

and near-atomic metadata. They are thus stored in a

speciﬁc format in the ﬁlesystem. Yet, to make the

Metadata Management for Textual Documents in Data Lakes

Figure 1: Sample metadata representation.

retrieval of this kind of metadata easier, they are ref-

erenced in the second mdRef section of the manifest,

through URIs.

Presentation and previsualization metadata fall in

this category. The original data must also be refer-

enced this way, to allow users easily retrieve the raw

data whenever necessary.

Global metadata are also stored using speciﬁc

technologies and externally referred to. However, as

they do not concern a speciﬁc document, they can-

not be included in a document manifest. Thus, we

propose the use of a special XML manifest document

for all global metadata. This manifest contains a set

of global metadata for which the name, location and

type (e.g., thesaurus, dictionary, stopwords, etc.) are

speciﬁed. The global manifest’s schema is provided

in Figure 3 as a DTD.

3.3.4 Relational Metadata

Inter-dataset metadata have some speciﬁc require-

ments because they concern two documents. It is

thus difﬁcult to include them in a document mani-

fest. Hence, we propose to include physical links in

the prmSec section of all concerned document mani-

fests. The physical link’s name must be speciﬁed. Its

value represents a cluster name, e.g., for a physical

link expressing the document’s language, the link’s

name can be ”language” and possible values ”fr”,

”en”, ”de”, etc. Thus, clusters can be reconstituted by

grouping all documents of equal value with respect to

a speciﬁc physical link.

Unlike physical links, logical links cannot be de-

ﬁned internally within a manifest, since they materi-

alize between each couple of documents with a given

strength. Thus, to store logical links, we propose to

use a graph DBMS such as Neo4j (Neo4J Inc., 2018),

which allows to easily store link strengths and to con-

form to the graph view from Figure 1. In this ap-

proach, each node represents a document by the same

identiﬁer as the one in the manifest. Each type of log-

ical link is then deﬁned between every couple of doc-

uments as an edge labeled with its name and strength.

3.4 Metadata Extraction

Several techniques can be applied to generate meta-

data. We categorize them with respect to the type of

metadata in the following sections. Moreover, here,

we redeﬁne intra and inter-dataset metadata as intra

and inter-document metadata, respectively, to ﬁt our

textual document data pond context.

3.4.1 Intra-document Metadata Extraction

Properties can be obtained from the ﬁlesystem, e.g.,

document name, size, length, location or date of last

modiﬁcation (Quix et al., 2016). Once metadata are

extracted, they are inserted into the manifest docu-

ment, into the corresponding element from the Dublin

Core’s namespace. Moreover, to conform to our

metadata storage system, an ID must be generated

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

Figure 2: Document manifest DTD.

Figure 3: Global manifest DTD.

for each document. ID generation can be based ei-

ther on the document’s URI, if any (Suriarachchi and

Plale, 2016), or on the document manifest’s genera-

tion timestamp. We choose to use the manifest’s gen-

eration timestamp to avoid possible conﬂicts resulting

from moving or changing the name of the document.

Then, there are two ways to generate previsualiza-

tion metadata. The ﬁrst is manually adding a set of

tags to a document, in the form of atomic metadata.

The second is automatically generating metadata by

applying, e.g., topic modeling techniques.

Presentation metadata generation requires two ad-

vanced operations. The ﬁrst operation consists in ei-

ther data cleaning (e.g., stopwords removal, lemmati-

zation, ﬁltering on a dictionary, etc.) or data enrich-

ment (e.g., adding context using taxonomies, transla-

tions, etc.). At this stage, a transformed version of

the document is obtained. The second operation, e.g.,

presentation as a bag of words or a term-frequency

vector, is then applied on the transformed document

to generate presentation metadata.

Generated metadata can then be stored either in

the ﬁlesystem, possibly with an indexing technology

such as Elasticsearch (Elastic, 2018) on top, or within

a DBMS. We opt for a hybrid storage solution exploit-

ing the ﬁlesystem and Elasticsearch for metadata in a

raw format (e.g., original documents), and a relational

DBMS for metadata in structured format, with respect

to metadata type. This allows to take advantage of

each storage mode’s speciﬁc features.

Metadata are also referred to through an mdRef el-

ement in the manifest document. The XPTR attribute

of the mdRef element is set with the metadata piece’s

URI, while its LABEL attribute is set to the concate-

nation of the names of the two operations used for

generating presentation metadata.

Table 1 presents a short list of sample operations

for generating presentation metadata. To the transfor-

mation operations, we add a special operation with a

neutral effect named original version. It is equiva-

lent to a “no transformation” operation on the origi-

nal document. We also deﬁne a presentation opera-

tion with a neutral effect, classic presentation, which

Metadata Management for Textual Documents in Data Lakes

leaves the transformed document in its raw format.

When these two special operations are applied to a

document, presentation metadata are exactly identical

to the original data. These two special, neutral oper-

ations actually allow to retain original documents in

the data lake as presentation metadata.

Eventually, we assume that previsualization meta-

data represent a special case of presentation metadata.

An example of presentation metadata can be obtained

by ﬁltering the original document on most frequent

terms and presenting the result in a tag (term) cloud.

3.4.2 Inter-document Metadata Extraction

Some physical links can be automatically generated,

e.g., the Apache Tika framework (The Apache Soft-

ware Foundation, 2018) permits to automatically de-

tect document MIME type and language (Quix et al.,

2016). Once the MIME type or language is detected,

documents of same type or language can be consid-

ered physically linked, respectively.

However, other physical links must be deﬁned

through human intervention. It is the case of links

expressing documents belonging to the same business

category. For example, in a corpus composed of a

company’s annual reports, the department to which

each document belongs must be deﬁned either by the

document’s folder name or by a tag.

Finally, we propose to generate logical links by

computing document similarity measures represent-

ing the similarity strength between each couple of

documents. Some examples of textual data simi-

larity measures include the cosine similarity (Allan

et al., 2000), the chi-square similarity (Ibrahimov

et al., 2002) and Spearman’s Rank Correlation Coef-

ﬁcient (Kilgarriff, 2001). Such similarity measures

have a high score for documents sharing the same

terms and a low score for documents using different

terms. Moreover, many different logical links can be

obtained by applying the same measure on different

presentations of the documents.

3.4.3 Global Metadata

Global metadata generation generally needs human

intervention, because such metadata are domain-

speciﬁc and must be designed by a domain expert

(Quix et al., 2016). Global metadata may also be de-

rived from pre-existing metadata, e.g., a list of stop-

words can easily be found on the Web and then com-

plemented or reduced.

4 PROOF OF CONCEPT

Since there is no such systems as ours currently avail-

able, we put the metadata management system from

Section 3 in practice within a research project related

to management sciences, and more speciﬁcally strate-

gic marketing, as a proof of concept. This project is

named COREL (“at the heart of customer relation-

ship”) and aims to study, analyze and compare cus-

tomer policies between and within companies.

We ﬁrst present COREL’s corpus in Section 4.1.

Section 4.2 is dedicated to the corresponding data

lake’s architecture. Then, we explain in Section 4.3

how we build the metadata system. Finally, Sec-

tion 4.4 shows how our metadata system is exploited

to perform analyses.

4.1 COREL Corpus

The COREL corpus is composed of 101 tex-

tual documents from 12 different companies

from various business domains. Documents

are categorized in 3 business categories: inter-

views, annual reports and press articles. The

documents bear 2 different MIME types (appli-

cation/pdf and application/vnd.openxmlformats-

ofﬁcedocument.wordprocessingml.document) and 2

different languages (French and English).

Although the COREL corpus does not fall in the

big data category in terms of volume (the size of raw

documents is 0.15 GB), it does in terms of variety,

with signiﬁcant variations in annual reports with re-

spect to companies, various sponsors in interviews

(CEOs, marketers...) and a variety of press releases.

4.2 Data Lake Architecture

To allow various analyses on the COREL corpus,

we build a data lake called CODAL (COrel DAta

Lake) that is composed of one single data pond, since

the whole corpus is purely textual. To ﬁt CODAL

within our metadata management system, we adopt

the architecture and technologies shown in Figure 4.

This architecture conforms to the storage-metadata-

analysis system presented in Section 2.1.1.

The lowest-level component in this architecture

is dedicated to document and metadata storage. It

is hybrid and exploits the following technologies:

the ﬁlesystem to store presentation metadata, Elastic-

search to index presentation metadata and Neo4j to

store logical links. To speed up queries, we plan to

replace the ﬁlesystem by a relational DBMS, but we

currently keep it as is for simplicity’s sake.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

Table 1: Transformation and presentation operations.

Transformation operation (to) Presentation operation (to) Resulting metadata

Original version Classic presentation Original document

Original version Term-frequency vector Term-frequency vector

Original version TF-IDF vector TF-IDF vector

Lemmatized version Classic presentation Lemmatized document

Lemmatized version Term-frequency vector Term-frequency vector

of lemmatized document

Lemmatized version TF-IDF vector TF-IDF vector of lemmatized document

Figure 4: Architecture of CODAL.

The second component stores XML manifest doc-

uments that contain atomic metadata, physical links

and pointers to non-atomic metadata. The set of XML

manifest documents is stored in BaseX, an XML-

native DBMS (BaseX GmbH, 2018).

Finally, the top-level component in the CODAL

architecture is a layer that allows OLAP-like analyses

through a Web platform. In addition, CODAL users

can access the metadata system through BaseX to ex-

ecute ad-hoc queries or to extract data.

4.3 Metadata Extraction

The metadata extraction process is composed of two

phases. The ﬁrst consists in generating the set of

XML manifest documents (Section 4.3.1) and all rel-

evant metadata, while the second is logical link gen-

eration (Section 4.3.2).

4.3.1 Intra-document Metadata and Physical

Links

For each document, we generate an XML manifest

document bearing the format deﬁned in Section 3.3.1.

Properties are an identiﬁer, the document’s title, its

creator, the creation and the last modiﬁcation date.

These metadata are then stored as elements in the

manifest ﬁrst dmdSec section/mdWrap subsection.

Presentation metadata are each generated by ap-

plying a transformation followed by a presentation

operation. The different transformation operations

applied are stopwords removal, lemmatization, ﬁlter-

ing on a dictionary and preservation of the original

version. The operations retained for presentation are

term-frequency vector format, TF-IDF vector format

and classic presentation (raw format).

Once presentation metadata are generated, they

are stored in the ﬁlesystem as either simple text ﬁles

or in CSV format (for TF-IDF or term-frequency vec-

tors). They are then referred to in the corresponding

XML manifest document. Presentation metadata in

classic presentation are also indexed in Elasticsearch.

Presentation metadata extraction is achieved using

global metadata such as a list of stopwords and a dic-

tionary. These global metadata are manually created

and then referred to in the global XML manifest.

In the context of the COREL project, we retain

four physical links: belonging to the same company,

Metadata Management for Textual Documents in Data Lakes

document type (business category), MIME type and

language. The ﬁrst two links are obtained via the doc-

uments’ directory structure in the ﬁlesystem. The last

two are extracted with Apache Tika.

Once all the XML manifest documents are cre-

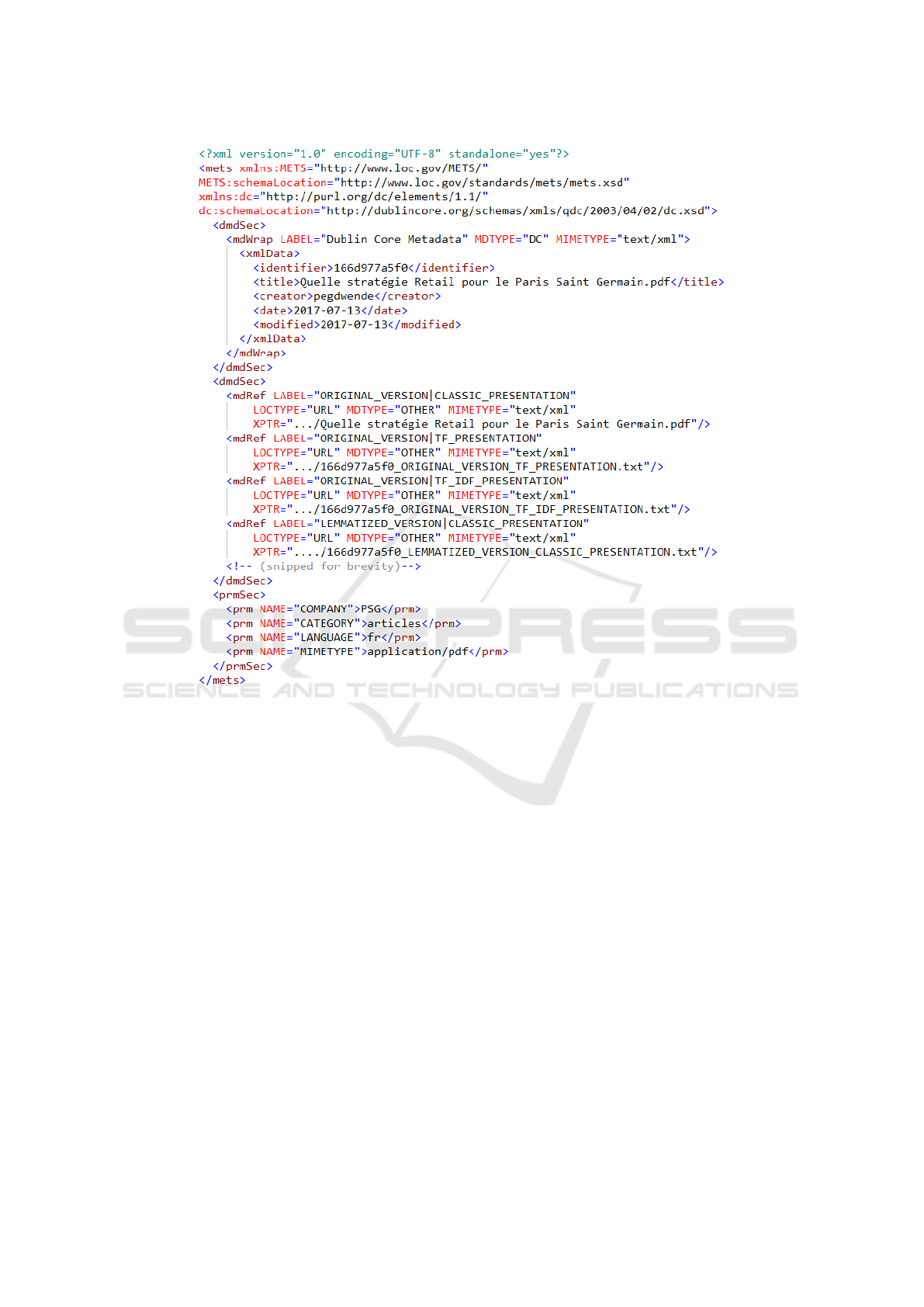

ated, they are inserted in a BaseX database. Figure 5

shows an example of XML manifest document.

4.3.2 Logical Links

To generate logical links, we calculate the cosine sim-

ilarity of each couple of documents using as presen-

tation metadata TF-IDF or term-frequency vectors,

since the cosine similarity can only be calculated with

such vectors.

To store the generated measures, a node is created

in Neo4j for each document. The different measures

are then integrated into the database as edges carry-

ing the similarity’s strength. Each edge is named by

concatenating the presentation metadata piece’s name

with the similarity measure’s name.

4.4 Possible Queries and Analyses

Authorized users can freely access the CODAL meta-

data management system to perform either ad-hoc

queries or analyses through the BaseX and the Neo4j

DBMSs. All the generated metadata can be ﬁltered,

aggregated and extracted through these interfaces.

However, some advanced data management skills are

required, which are not possessed by researchers in

management sciences.

Thence, we developed an intuitive platform to al-

low some recurrent analyses, i.e., OLAP-like analyses

(Section 4.4.1), document proximity analyses (Sec-

tion 4.4.2) and document highlights (Section 4.4.3).

4.4.1 OLAP-like Analyses

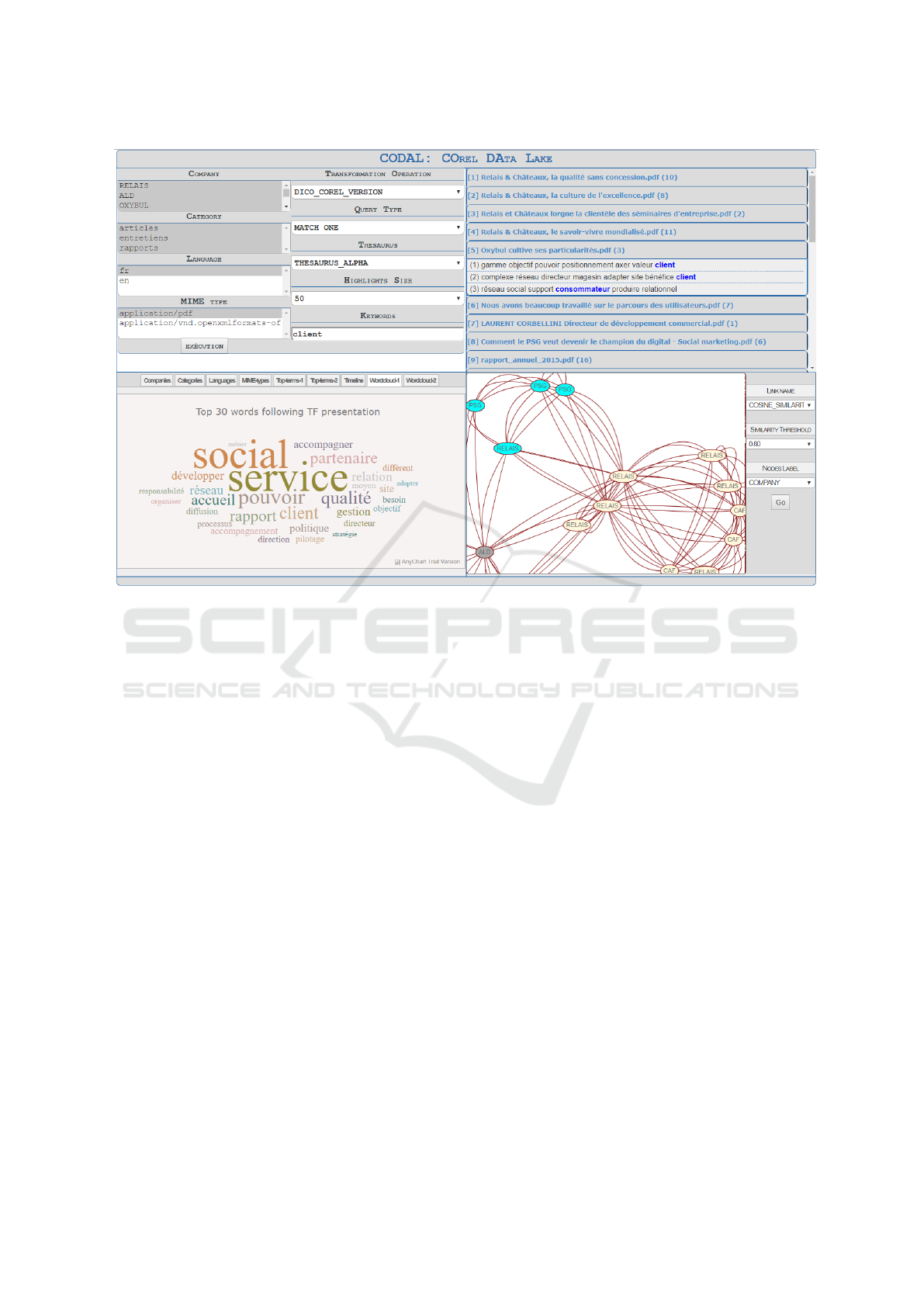

These analyses are done through the left-hand side

of our Web interface (Figure 6). A set of multiple

choice boxes allows documents ﬁltering and aggrega-

tion with respect to physical links.

Documents can also be ﬁltered and aggregated us-

ing keyword-based queries. Here, a transformation

operation must be speciﬁed and ﬁltering operates us-

ing the classic document presentation resulting from

this transformation. Another option allows to ex-

tend keyword ﬁltering with all synonyms of the given

terms through a thesaurus. The ﬁltering options serve

as analysis axes that are much similar to OLAP di-

mensions. Thus, ﬁltering the corpus on a set of physi-

cal links is similar to OLAP slice and dice operations.

The characteristics of the aggregated documents

are provided through statistics and visualizations.

These visualizations can be compared to OLAP mea-

sures, because they also provide some aggregated in-

formation about documents. We propose four types of

visualizations: 1) distribution of documents through

clusters induced by physical links, e.g., displaying

what companies provide documents in English (ﬁlter

documents on the English language and then observe

the results’ distribution with respect to companies);

2) timeline created from the document’s creation or

last modiﬁcation date, which provides a temporal dis-

tribution of documents; 3) most common terms (plot-

ted as a bar graph); 4) average term frequencies (de-

picted as a tag cloud).

The left-bottom part of Figure 6 displays a visu-

alization of the most common terms in the selected

documents with a tag cloud where the size of terms

represents their weight.

As the analysis platform is a Web application, dif-

ferent ﬁltering can be performed simultaneously in

different windows, to compare a given visualization

with respect to various ﬁlter values. Similarly, the

same ﬁlter can be set to observe simultaneously two

or more visualizations.

4.4.2 Proximity Analyses

The right-bottom side of the analysis platform (Fig-

ure 6) is dedicated to proximity analyses on, and prox-

imity visualizations of, selected documents. To show

what documents are similar or different, we cluster

them automatically by applying the Walktrap com-

munity detection algorithm (Pons and Latapy, 2006)

on the sub-graph induced by the selected documents,

given a similarity measure and a user-deﬁned thresh-

old. Walktrap’s time complexity is O(n

log n) in

most cases, where n is the number of nodes. The

result of clustering allows identifying the documents

that form groups with strong internal links, while

links with documents outside of the group are weak.

Then, we represent the documents in a graph with

a different color for each cluster. In Figure 6, we ob-

serve in the yellow-colored cluster documents from

two distinct companies. This can be interpreted as a

similarity in the vocabulary used by these companies

in some of their documents and, thence, a potential

similarity in their marketing strategy.

Another relevant technique for proximity analy-

sis is documents centrality calculation (Farrugia et al.,

2016), which can be applied in the context of textual

documents to identify the documents bearing a spe-

ciﬁc or common vocabulary. Documents with a spe-

ciﬁc vocabulary are weakly linked to others, which

implies a low centrality. In contrast, documents with

a common vocabulary are highly connected together

and have a high centrality.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

Figure 5: Sample XML manifest.

Centrality can also be interpreted as the docu-

ment’s importance in the graph. Thus, documents

with a high centrality can be considered essential be-

cause they are involved in a large number of links.

Such documents should then be handled carefully, so

as not to be destroyed. However, this technique is not

implemented yet in our analysis platform.

4.4.3 Highlights

These visualizations are provided in the right-top part

of the CODAL analysis interface (Figure 6). Af-

ter keyword-based ﬁltering, the corresponding docu-

ments are listed. In addition, we show, for each result-

ing document, a set of highlights where the keywords

appear. This constitutes a summary of the document

”around” one or more keywords.

Moreover, advanced options in the left-top side

of the interface allow to customize highlight display.

The highlights size option can be used to increase or

decrease the highlight’s length. The thesaurus option

allows to expand the given keywords with all their

synonyms, with the help of a previously selected the-

saurus. For example, we observe in Figure 6 that a

query on the term “client” also returns a highlight on

the term “consommateur”, i.e, consumer in French.

5 CONCLUSION

We propose in this article the ﬁrst, to the best of

our knowledge, complete methodological approach

for building a metadata management system for data

lakes or data ponds storing textual documents. To

avoid the data swamp syndrome, we identify rele-

vant metadata extraction, structuring, storage and pro-

cessing techniques and tools. We notably distinguish

three types of metadata, each of which having its own

extraction and storage techniques: intra-document

metadata, inter-document metadata and global, se-

mantic metadata (which we introduce). Eventually,

we extend the XML manifest metadata representation

to suit textual document-related metadata storage.

Metadata Management for Textual Documents in Data Lakes

Figure 6: CODAL analysis interface.

We apply and validate the feasibility of our meta-

data management system on a real-life textual cor-

pus to build the CODAL data lake. As a result,

non-specialist users (i.e., with no data management

knowledge) can perform OLAP-like analyses. Such

analyses consist in ﬁltering and aggregating the cor-

pus with respect one or more terms, and in navigat-

ing through visualizations that summarize the ﬁltered

corpus. Users can also cluster documents to identify

groups of similar documents.

In future works, we ﬁrst plan to replace the

ﬁlesystem by a relational DBMS to store structured

presentation metadata, and thus allow easier and

faster queries and analyses. We shall also improve

our platform by integrating centrality analyses (Sec-

tion 4.4.2). Finally, since our current test corpus is

small-sized, we plan to apply our method on a bigger

one from a new project in management sciences and

test its scalability.

Moreover, our objective is to turn the speciﬁc CO-

DAL platform into a generic (i.e., not tied to the

COREL project) analysis platform that implements

the metadata management system we propose, and

make it available to the community. This would allow

non-computer scientists to easily exploit any textual

data pond.

Eventually, in the long run, we aim at designing a

metadata management system that would help query-

ing data ponds storing different types of data (struc-

tured, semi-structured, unstructured – textual and pos-

sibly multimedia) altogether.

ACKNOWLEDGEMENTS

The research accounted for in this paper has been

funded by the Universit

e Lumi

ere Lyon 2 through

the COREL project. The authors would like to thank

Angsoumailyne Te and Isabelle Prim-Allaz, from the

COACTIS management science research center, for

their constant input and feedback.

REFERENCES

Allan, J., Lavrenko, V., Malin, D., and Swan, R. (2000).

Detections, bounds, and timelines: Umass and tdt-3.

In Topic Detection and Tracking Workshop (TDT-3),

Vienna, VA, USA, pages 167–174.

Ansari, J. W., Karim, N., Decker, S., Cochez, M., and

Beyan, O. (2018). Extending Data Lake Metadata

Management by Semantic Proﬁling. In 2018 Extended

Semantic Web Conference (ESWC 2018), Heraklion,

Crete, Greece, ESWC, pages 1–15.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

BaseX GmbH (2018). BaseX – The XML Framework.

http://basex.org/.

Beheshti, A., Benatallah, B., Nouri, R., Chhieng, V. M.,

Xiong, H., and Zhao, X. (2017). CoreDB: a Data Lake

Service. In 2017 ACM on Conference on Informa-

tion and Knowledge Management (CIKM 2017), Sin-

gapore, Singapore, ACM, pages 2451–2454.

Dixon, J. (2010). Pentaho, Hadoop, and Data Lakes.

https://jamesdixon.wordpress.com/2010/10/14/

pentaho-hadoop-and-data-lakes/.

Dublin Core Metadata Initiative (2018). Dublin Core.

http://dublincore.org/.

Elastic (2018). Elasticsearch. https://www.elastic.co.

Fang, H. (2015). Managing Data Lakes in Big Data Era:

What’s a data lake and why has it became popular in

data management ecosystem. In 5th Annual IEEE In-

ternational Conference on Cyber Technology in Au-

tomation, Control and Intelligent Systems (CYBER

2015), Shenyang, China, IEEE, pages 820–824.

Farid, M., Roatis, A., Ilyas, I. F., Hoffmann, H.-F., and

Chu, X. (2016). CLAMS: Bringing Quality to Data

Lakes. In 2016 International Conference on Manage-

ment of Data (SIGMOD 2016), San Francisco, CA,

USA, ACM, pages 2089–2092.

Farrugia, A., Claxton, R., and Thompson, S. (2016). To-

wards Social Network Analytics for Understanding

and Managing Enterprise Data Lakes. In Advances

in Social Networks Analysis and Mining (ASONAM

2016), San Francisco, CA, USA, IEEE, pages 1213–

1220.

Fauduet, L. and Peyrard, S. (2010). A data-ﬁrst preservation

strategy: Data management in spar. In 7th Interna-

tional Conference on Preservation of Digital Objects

(SPAR 2010), Vienna, Autria, pages 1–8.

Hai, R., Geisler, S., and Quix, C. (2017). Constance: An

Intelligent Data Lake System. In 2016 International

Conference on Management of Data (SIGMOD 2016)

,San Francisco, CA, USA, ACM Digital Library, pages

2097–2100.

Halevy, A., Korn, F., Noy, N. F., Olston, C., Polyzotis,

N., Roy, S., and Whang, S. E. (2016). Managing

Google’s data lake: an overview of the GOODS sys-

tem. In 2016 International Conference on Manage-

ment of Data (SIGMOD 2016), San Francisco, CA,

USA, ACM, pages 795–806.

Hultgren, H. (2016). Data Vault modeling guide: Intro-

ductory Guide to Data Vault Modeling. Genessee

Academy, USA.

Ibrahimov, O., Sethi, I., and Dimitrova, N. (2002). The Per-

formance Analysis of a Chi-square Similarity Mea-

sure for Topic Related Clustering of Noisy Tran-

scripts. In 16th International Conference on Pattern

Recognition, Quebec City, Quebec, Canada, pages

285–288.

Inmon, B. (2016). Data Lake Architecture: Designing the

Data Lake and avoiding the garbage dump. Technics

Publications.

Kilgarriff, A. (2001). Comparing Corpora. International

Journal of Corpus Linguistics, 6(1):97–133.

Klettke, M., Awolin, H., St

url, U., M

uller, D., and

Scherzinger, S. (2017). Uncovering the Evolution His-

tory of Data Lakes. In 2017 IEEE International Con-

ference on Big Data (BIGDATA 2017), Boston, MA,

USA, pages 2462–2471.

Laskowski, N. (2016). Data lake governance: A big data do

or die. https://searchcio.techtarget.com/feature/Data-

lake-governance-A-big-data-do-or-die.

Linstedt, D. (2011). Super Charge your Data Warehouse:

Invaluable Data Modeling Rules to Implement Your

Data Vault. CreateSpace Independent Publishing.

Maccioni, A. and Torlone, R. (2017). Crossing the ﬁnish

line faster when paddling the data lake with KAYAK.

VLDB Endowment, 10(12):1853–1856.

Madera, C. and Laurent, A. (2016). The next information

architecture evolution: the data lake wave. In 8th

International Conference on Management of Digital

EcoSystems (MEDES 2016), Biarritz, France, pages

174–180.

Miloslavskaya, N. and Tolstoy, A. (2016). Big Data, Fast

Data and Data Lake Concepts. In 7th Annual Interna-

tional Conference on Biologically Inspired Cognitive

Architectures (BICA 2016), NY, USA, volume 88 of

Procedia Computer Science, pages 1–6.

Neo4J Inc. (2018). The Neo4j Graph Platform.

https://neo4j.com.

Nogueira, I., Romdhane, M., and Darmont, J. (2018). Mod-

eling Data Lake Metadata with a Data Vault. In 22nd

International Database Engineering and Applications

Symposium (IDEAS 2018), Villa San Giovanni, Italia,

pages 253–261, New York. ACM.

Pons, P. and Latapy, M. (2006). Computing Communities

in Large Networks Using Random Walks. Journal of

Graph Algorithms and Applications, 10(2):191–218.

Quix, C., Hai, R., and Vatov, I. (2016). Metadata Extrac-

tion and Management in Data Lakes With GEMMS.

Complex Systems Informatics and Modeling Quar-

terly, (9):289–293.

Stein, B. and Morrison, A. (2014). The enterprise data lake:

Better integration and deeper analytics. PWC Tech-

nology Forecast, (1):1–9.

Suriarachchi, I. and Plale, B. (2016). Crossing Analytics

Systems: A Case for Integrated Provenance in Data

Lakes. In 12th IEEE International Conference on e-

Science (e-Science 2016), Baltimore, MD, USA, Octo-

ber 23-27, 2016, pages 349–354.

Terrizzano, I., Schwarz, P., Roth, M., and Colino, J. E.

(2015). Data Wrangling: The Challenging Journey

from the Wild to the Lake. In 7th Biennial Conference

on Innovative Data Systems Research (CIDR 2015),

Asilomar, CA, USA, pages 1–9.

The Apache Software Foundation (2018). Apache Tika – a

content analysis toolkit. https://tika.apache.org/.

The Library of Congress (2017).

METS: An Overview and Tutorial.

http://www.loc.gov/standards/mets/METSOverview.

v2.html.

Metadata Management for Textual Documents in Data Lakes
