A Real-time Big Data Framework for Network Security

Situation Monitoring

Guanyao Du, Chun Long, Jianjun Yu, Wei Wan, Jing Zhao and Jinxia Wei

Computer Network Information Center, Chinese Academy of Sciences, 4 Zhongguancun Nansijie,

Haidian District Beijing 100190, China

Keywords: Network Security Situation Monitoring, Big Data, Real Time Computation, Visualization.

Abstract: In this paper, we provide a real-time calculation and visualization framework for network security situation

monitoring based on big data technology, and it mainly realizes the real-time massive multi-dimensional

network attack dynamic display with Data-Driven Documents (D3). Firstly, we propose an integration and

storage management mechanism of massive heterogeneous multi-source data for the network security data

fusion. Then, we provide a general real time data computation and visualization framework for massive

network security data. Based on the framework, we use the real security data of the network security cloud

service platform of Chinese Academy of Sciences (CAS) to realize the visualization monitoring of network

security dynamic attacks nationwide and worldwide, respectively. Experiment results are given to analyze the

performance of our proposed framework on the efficiency of the data integration and computation stages.

1 INTRODUCTION

With the increase of the amount of network security

devices, the collected network traffic is also growing,

and the requirement of the network security situation

monitoring is becoming much higher. Although the

extensive security systems, devices and platforms

deployed in the network are able to provide a large

number of data which can be used to analyze the

network security situation, these data are usually

widely distributed, heterogeneous, and in large

volume (Álvarez et al., 2018). This brings great

challenges to monitor the network security situation

in real time, accurately and steadily.

How to calculate and analyze the massive network

security data from the tremendous amount of real-

time heterogeneous data sources efficiently, so as to

monitor the real-time network security situation,

becomes a critical technical problem. Network

security situation monitoring aims to intuitively

reflect the network security situation, help the

administrators forecast the trend of the network

security situation, send warnings and take

corresponding measures (Huffer et al., 2017).

To monitor the network security situation, it

requires effective integration of heterogeneous multi-

source security data and efficient calculation

capability of big data technology. There are three key

issues that need to be addressed:

Firstly, how to converge and store mass

heterogeneous network security data in real time from

multiple sources. As the real-time network security

information can be obtained from widely distributed

security equipment, e.g. the intrusion prevention

system (IPS), firewalls, mail protection system, and

so on. The security information is a typical “Big Data”

which is in high-volume and in great variety. So, it is

important to use distributed real-time data collection

tools to realize the access of heterogeneous multi-

source data, and the unified format pre-processing on

different kinds of the integrated data. Besides, the

real-time data cache and the distributed storage

system are also needed to manage the historical data

classification storage.

Secondly, how to realize the real time

computation effectively for the real-time network

security data. As the security information is in high-

volume and in great variety, it is necessary to design

a real-time data distributed computer system to

execute the real time extraction and the classified

storage for the unified formatting pre-processed data

from different sources.

Thirdly, how to realize the real time data driven

visualization for the real-time network security data.

In the field of network security monitoring, it will

Du, G., Long, C., Yu, J., Wan, W., Zhao, J. and Wei, J.

A Real-time Big Data Framework for Network Security Situation Monitoring.

DOI: 10.5220/0007708301670175

In Proceedings of the 21st International Conference on Enterprise Information Systems (ICEIS 2019), pages 167-175

ISBN: 978-989-758-372-8

167

produce a large number of network security data

every day, such as the system logs of multiple

network security equipment and the alarm

information. To efficiently visualize the dynamic

network attack, can not only help reflect the network

security situation vividly, but also help the

administrators forecast the trend of the network

security situation, find the implicit patterns and rules

send warnings and take corresponding measures.

Thus, in this paper, we investigate the integration

and storage management mechanism of massive

multi-source heterogeneous data, and propose a

general framework of the real time data computation

and visualization. Based on the framework, we realize

the visualization monitoring of network security

dynamic attacks nationwide and worldwide,

respectively. It supports the display of the TOP N

attackers, targets, attack types and so on. The

contributions can be summarized as follows.

 We propose an integration and storage

management mechanism of the massive

heterogeneous multi-source data for the security

data fusion. We use the distributed real-time data

collection tool Flume for the massive multi-

source heterogeneous data aggregation, and

realize the access of heterogeneous multi-source

network security data. Then, do the unified format

pre-processing on all kinds of data integration,

and a data stream is performed based on the

extraction time.

 We provide a general real time data computation

and visualization framework to realize the real-

time computing. For different sources of security

data, such as the IPS, or the firewall data, we

design different data access method to make the

real time extraction and classification of storage

for unified formatting pre-processed data. The

data stream is calculated and buffered by the

cache mechanism, which is convenient for the

subsequent visualization application.

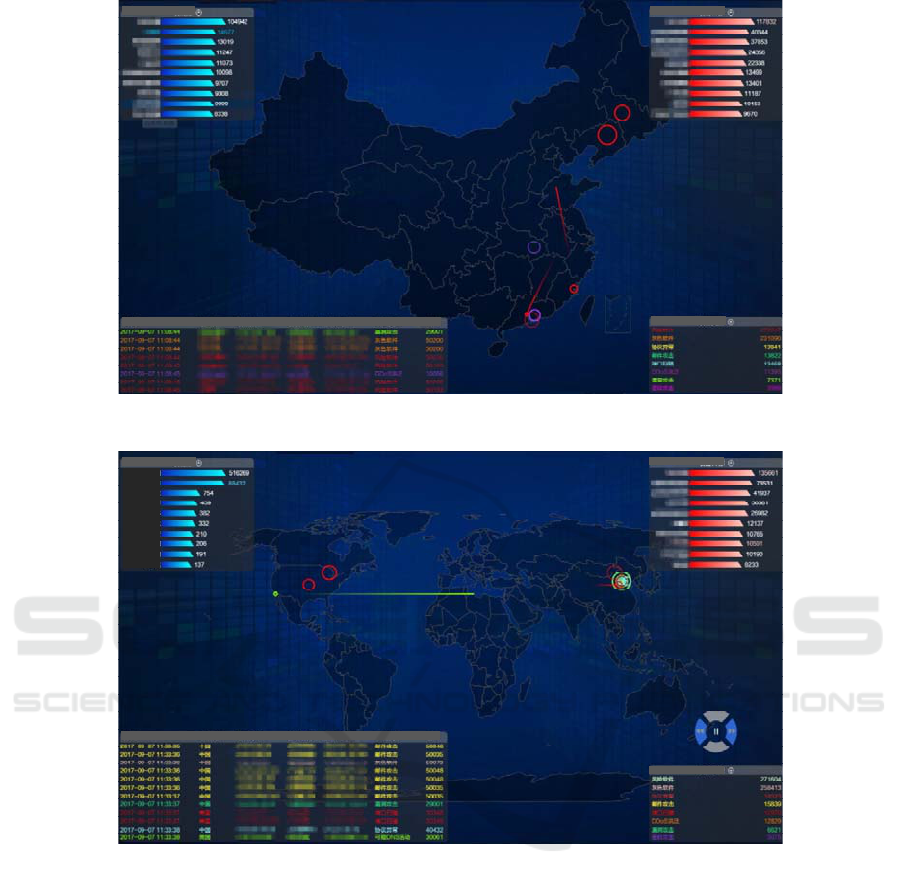

 With the proposed real time data computation and

visualization framework, we use the real security

data of the network security cloud service

platform of Chinese Academy of Sciences (CAS),

and realize the real-time massive multi-

dimensional network attack display with Data-

Driven Documents (D3).

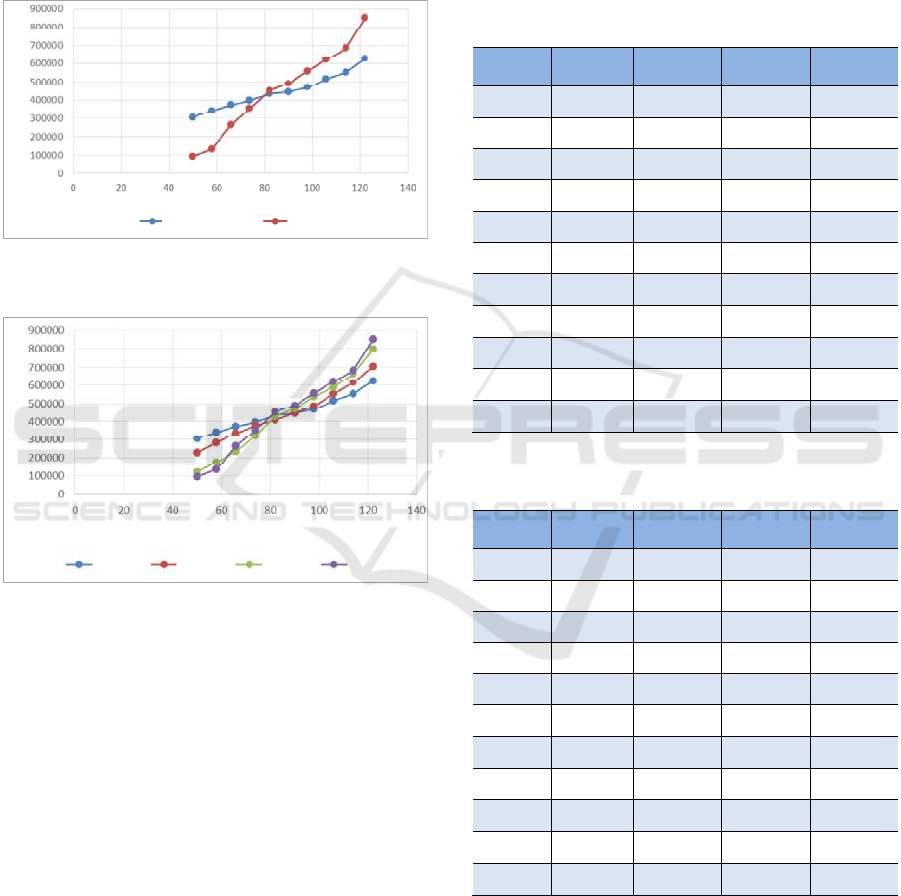

 Experiment results are given to analyze the

performance of our proposed framework on the

efficiency of data integration stage and

computation stage. We also analyze the overall

efficiency of the real-time calculation and

visualization framework.

2 RELATED WORK

This paper mainly involves the real-time data

processing (which is based on the stream processing)

and the network security information processing and

visualization. In the following, we would separate the

related work into these two parts.

The real time stream data processing can be

applied in various applications, such as social

networks (Kulkarni et al., 2015), Web Observatory

(Tinati et al., 2015), business decision (Pareek et al.,

2017), etc. The performances of the data capture, data

storage, and data computation in real time can all

affect the performance of the stream data processing.

In recent years, the study of the streaming data

processing has attracted much attention. In

(Toshniwal et al., 2014), it described the architecture

of Storm, and introduced its application in Twitter,

where Apache Storm is an open source, fault-tolerant

and distributed real-time stream data processing

system. In (Kulkarni et al., 2015), a real-time stream

data processing system for large data scale named

Heron was proposed, which was also the stream data

processing engine used inside Twitter due to its better

debug-ability and scalability. In (Yang et al., 2018), a

robust, scalable and real-time event time series

aggregation framework called TimeSeries

AggregatoR (TSAR) was presented to realize the

engagement monitoring. In (Pareek et al., 2017), a

data management platform named Striim was

described for the end-to-end stream processing,

which could enable business users to easily develop

and deploy analytical applications over real-time

streaming data by using a SQL-like declarative

language.

As for the network security information

processing and visualization, some works can be

found. In (Fischer et al., 2014), a visual analytics

system, called NStreamAware was proposed to gain

situational awareness and enhance the network

security, where distributed processing technologies

were used to analyze streams with stream slices, and

NStreamAware was also presented to analysts in a

web-based visual analytics application named

NVisAware. In (Mckenna et al., 2015), three design

methods, the qualitative coding, personas, and data

sketches were described to inform the real-world

cyber security visualization projects from a user-

centered perspective. In (Mckenna et al., 2016), a

dashboard BubbleNet was provided to visualize

patterns in cyber security data by incorporating user

feedback throughout the design.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

168

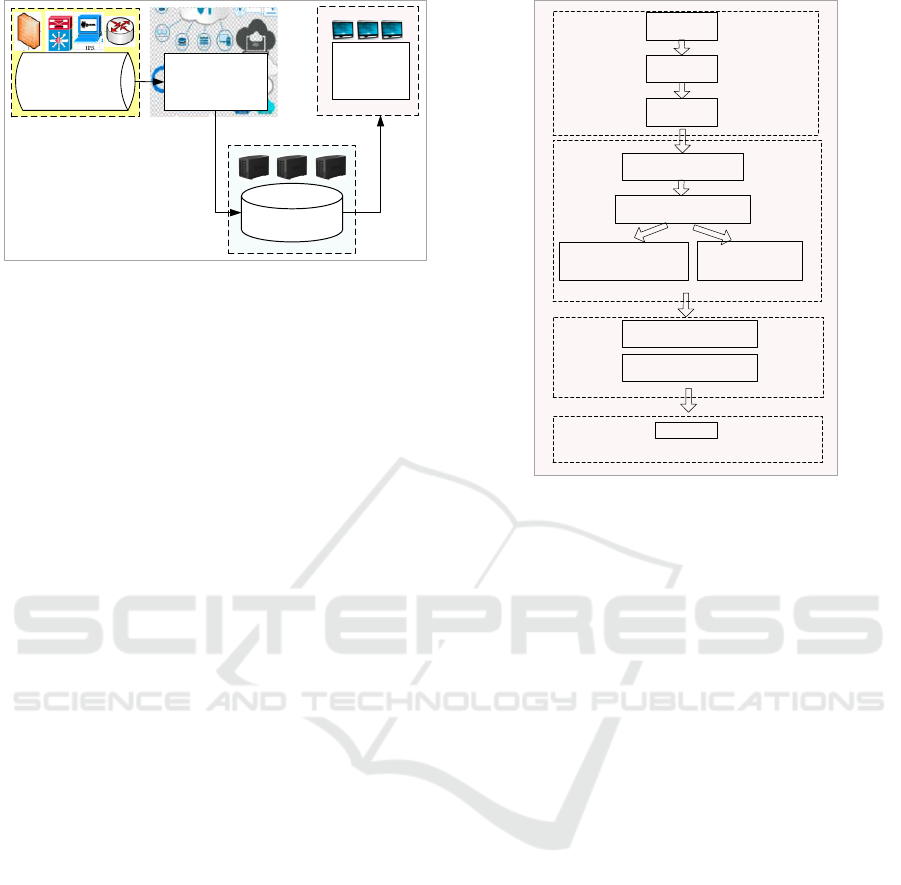

Figure 1: The overall framework of the real time data

computation and visualization.

Although the area of stream processing systems is

active and evolves fast, in this work, we choose Storm

as the tool to process our network security data in real

time because it is mature, extensible, fault-tolerant,

and suitable for our data scale.

3 THE REAL TIME DATA

COMPUTATION AND

VISUALIZATION

FRAMEWORK

3.1 The Overall Framework

Description

The overall framework of the proposed real time data

computation and visualization is showed in Figure 1.

In the module of data fusion, according to the

characteristics of real-time heterogeneous data, we

build and deploy a distributed data collection

platform. By collecting the multi-source real-time

data and import it to the middleware, it realizes the

aggregation and access of massive heterogeneous

real-time data. Besides, the unified format processing

is implemented for different kinds of collected data,

and a time queue of data streams is formed according

to the extraction time.

In the module of real time data computation for

massive data, we design a real-time big data

distributed computing mechanism. For different

sources of data, such as Syslog, customized data flow,

it can extract and realize the classified storage for

unified formatting pre-processed data by different

data access methods. The data stream is calculated

and cached by the cache mechanism, which is

convenient for the subsequent visualization.

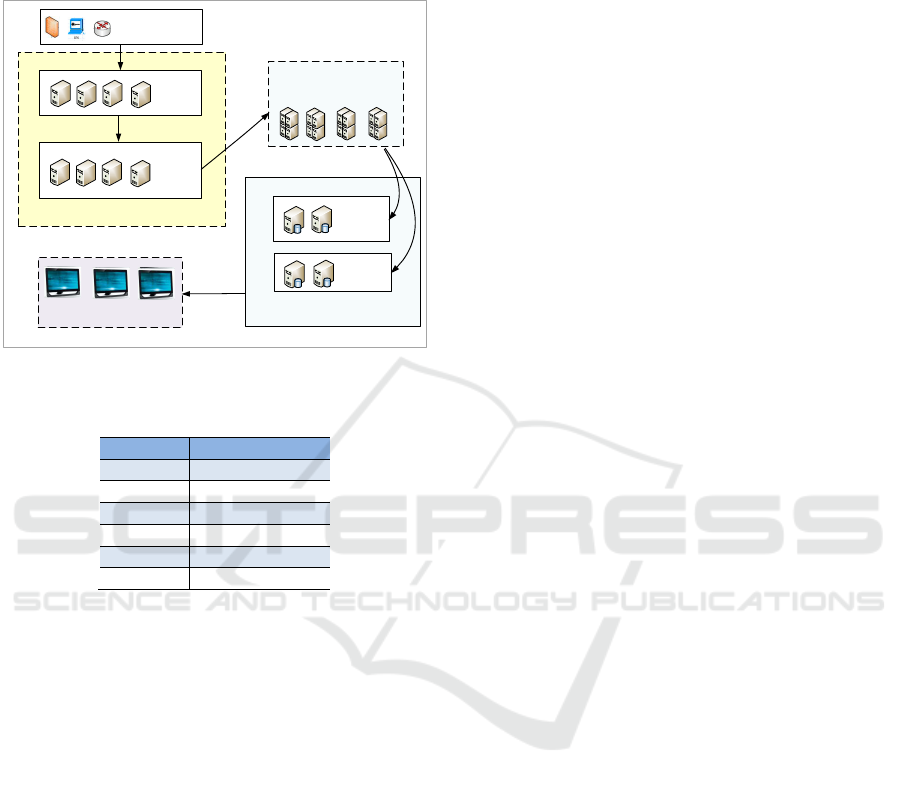

Figure 2: The architecture of the network security situation

monitoring.

In the module of the real-time data driven

visualization, it dynamically displays the mass multi-

dimension data with D3. The real-time transmission

data is received through the data service interface

DataService. As for the dynamic display of data,

other tools such as Web GIS, Echarts, and ArcGIS

can also be used.

In the module of data storage for multi-source

heterogeneous data, we build the Redis memory

database for real time data cache, and construct the

distributed platform HDFS (Hadoop distributed file

system) or storing historical data. Redis is an open

source (BSD licensed), in-memory data structure

store, used as a database, cache and message broker.

It supports data structures such as strings, hashes,

lists, sets, sorted sets with range queries, bitmaps,

hyperloglogs and geospatial indexes with radius

queries. In addition, the middleware Kafka is built

and configured for the data collection and data

calculation. The real-time data cache and the

distributed storage system are establishment to meet

the classification, storage and management of all

kinds of historical data.

Real Time Data

Computation Of

Massive Data

Data Fusion of Real

Time Multi-Source

Heterogeneous Data

Visualization

of Real Time

Massive Data

Data Storage based on

Memory

Data sending

Converting IP address into

longitude and latitude

Information extraction

Storm receives data

Kafka topic

Flume

Visualization of Real Time Data

Redis

Hdfs

Real Time Computation

Top N computation

Data Storage

Data Fusion

A Real-time Big Data Framework for Network Security Situation Monitoring

169

3.2 The Realization of Network

Security Attack Display for

Real-time Multi-source

Heterogeneous Data

We use the Flume-Kafka-Storm framework to realize

the acquisition, buffer and process for the real-time

data in the network security situation monitoring.

Specifically, Flume is responsible for the real-time

data acquisition of each node, and Kafka is used as

the message middleware to buffer the data that Flume

push. Then, the collected data is imported to Storm to

be processed. Finally, the processed data which is

needed to be exhibited will be imported to Redis for

fore-end display. The architecture is shown in Figure

 The real time multi-source heterogeneous data

aggregation module: Flume is used to collect the

logs from massive probes (e.g., the IPS and the

firewalls). We compile the configuration file of

Flume to configure the sources, sinks and

channels. System logs of IPS are used to simulate

the real-time network attack data, and the

collected data is sent to the corresponding

TOPICs of Kafka.

 The real time heterogeneous data computation

module: Storm receives the data that sent to the

TOPICs of Kafkaspout, and transports the raw

data to the Bolt. The raw data is processed and

archived in ReadBolt. It extracts the IP address of

the attacker, the IP address of the target, the type

of attack, and sends them to the ConversionBolt

and CountBolt. In ConversionBolt, the IP

addresses of the attackers and the targets will be

converted into the longitudes and latitudes of

them, then, all the information of IP addresses, the

longitudes and latitudes will be passed to the

Redis for display. Finally, the top N of the

attackers, targets and the type of attack are

calculated in CountBolt, RankBolt and

MergeBolt, and the results are also imported to

Redis.

 The real time heterogeneous data storage module:

the real-time data which is needed to be displayed

is pushed to Redis for cache, and the historical

data is put into HDFS for storage.

 The real time data driven visualization module:

D3 is used to realize the visualization. We use

DataService to extract the data transferred to

Redis, and use Websocket to display it.

3.3 The Realization of the Storm

Topology for the Network Security

Situation Monitoring

In this paper, we use the real log data obtained from

the network security equipment belonged to the cloud

service platform of the research institutes of CAS and

other national scientific research institutions.

According to the collection time in the log, the actual

traffic data can be simulated. The topology of

function modules for the network security situation

monitoring is shown in Figure 3.

Figure 3: The topology for the network security situation

monitoring.

 The data collected by Flume is sent to Kafka to

buffer and form the data flow with time sequence.

So Spout in Storm can read the real time data by

connecting Kafka, and transport the raw data to

the Bolt for further process.

 The original data stream is sent to ReadBolt to be

processed and archived. The string is divided into

many fields, including the IP address of the

attacker, the IP address of the target, the type of

attack, the affected port numbers, attack time and

so on, which are stored in HDFS as historical data.

Three fields are extracted and generate the

outputs, i.e., “src” (which is the IP address of the

attacker), dst (which is the IP address of the

target), and type (which denotes the type of

attack).

 In ConversionBolt, the IP addresses of the

attackers and targets are converted into the

latitudes and longitudes by querying the

conversion table in the database. The results of

latitudes and longitudes are output in the form of

JSON, and imported to Redis to be displayed in

the front-end.

 In CountBlot, the data flow output from ReadBolt

is received to count the numbers of the IP address

of the attacker, the IP address of the target and the

type of attack. We use fieldsGrouping to process

the fields of “dst”, “src” and“type” to ensure that

the same attacker (or target, or type) will be sent

to the same Bolt. The counts will be generated and

output as the data flow “srccount”, “dstcount”,

and “typecount”.

 In RankBolt, according to the incoming flow

“srccount”,

“dstcount”, and “typecount”, it

CountBolt

ReadBoutKafkaspout

ConversionBolt

RankBolt

MergeBolt

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

170

Figure 4: Real-time network attack monitoring visualization based on D3 (nationwide).

Figure 5: Real-time network attack monitoring visualization based on D3 (worldwide).

computes and stores the Top N attack types, IP

addresses of the attackers and the targets in the

lists. When an attack type or IP address from the

incoming flow enters Top N, it will delete the last

items in the list, and insert the new coming item

in the appropriate position. A new ordered data

stream is output in fields of “srclist”, “dstlist”, and

“typelist”.

 In MergeBolt, the outputs “srclist”, “dstlist”, and

“typelist” from RankBolt are received, which will

be processed by globleGrouping. The results from

all the RankBolts are converged into the same

Bolt, and the final Top N will be obtained.

3.4 Visualization Implementation of

the Network Security Situation

Real-time network attack display is an important

reflection of the network security situation. We use

D3 to realize the visualization. DataService is used to

extract real-time data transferred to Redis, and

Websocket is used to display the real-time data. The

display effect is shown in Figure 4 and 5. Here, we

set the number of TOP N as 10. As is shown, each

network attack can be monitored in real time, by

showing the IP information of the attacker and the

attack target, as well as their specific country and

location. And the information of the attackers and the

targets can be updated in real time.

Attack Source

Time Attacker Attacker IP Target Target IP Attack Type Port

Attack Targets

Attack Types

Attack Source

Attack Targets

Attack Types

Time Attacker Attacker IP Target Target IP Attack Type Port

China

USA

Netherlands

Russia

Japen

Canada

India

Germany

Turkey

A Real-time Big Data Framework for Network Security Situation Monitoring

171

4 EXPERIMENTAL SETUP

4.1 Data Sources

Figure 6: The hardware topology.

Table 1: Software versions.

Software version

Jdk Java 1.7

Flume Flume 1.5.2.2.2

Kafka Kafka 0.8.1

Storm storm 0.9.3

HDFS hadoop 2.6.0.2.2

Redis Redis 3.0.1

CAS has deployed a network security cloud service

platform to improve the network security

infrastructure of the China Scientific and

Technological Network (CSTNet). The platform

centralizes and unifies the monitoring and

management of related network security systems, and

collects, aggregates and processes the decentralized

security information. The security data used in this

paper come from the cloud service platform of the

research institutes of CAS and other national

scientific research institutions, which provides a good

data base for us.

According to the statistics of the information

quantity of the existing network security cloud

service platform, the original log volume of ten sets

of equipment systems in one research institute is

about 177,778 in 24 hours per day. After processing

and merging, it becomes about 116,667, and the

number of security incidents is about 20,000. The

original 24-hour log volume of 200 research institutes

is about 3.553 million, after processing and merging,

it becomes about 2.333 million, and the number of

security incidents is about 400,000, which provides a

good data foundation for this paper.

4.2 Hardware and Software

Environment

Real-time multi-source heterogeneous data

aggregation: We use 4 servers configured with Flume

to consolidate the system logs of network security

devices in real time. Then, Kafka is used as the

middleware to form the time queue of data streams,

and publish the streams of the records.

Data computation: 4 servers equipped with Storm

cluster are used for the real-time calculation of big

data, where 1 server acts as Nimbus, and the

remaining 3 servers as supervisors.

Data storage: Among the 3 supervisor's servers

which is used for the data computation, 2 servers of

them are installed HDFS for storing historical data,

and the remaining one installs Redis for storing real-

time data.

The network bandwidth in our experiment

environment is Gigabit. All the servers we used are

configured with 500G disk and 8GB memory. The

hardware topology is displayed in Figure 6, and the

versions of the software are shown in Table 1.

5 PERFORMANCE

EVALUATION

5.1 The Performance of Multi-Source

Heterogeneous Data Collection

Logs of the security equipment are used to simulate

the real-time network attack data. Each piece of data

in a log has eight fields, including ID, the attacker, the

IP address of the attacker, the target, the IP address of

the target, the type of attack, the time of the attack

occurs, and the port number. We measure the amount

of data collected by Flume clusters in one second. We

choose the collected data in 60s~120s after the

experiment starts, which is in a minute, and 10

experiments are carried out to take the average. The

results of the experiment are shown in Table 2.

Another advantage of Flume is that it can directly

collect data through simple configuration, and the

data acquisition and transmission can be realized by

compiling the configuration file.

The module of the real-time

data driven visualization

The data Fusion of Real Time Multi-Source

Heterogeneous Data

The storage module of real time

multi-source heterogeneous data

Fume

The big data processing

module for real time

computing

Kafka

HDFS

Redis

Data Sources

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

172

5.2 The Performance of Real-Time

Processing for Network Security

Big Data

5.2.1 Comparison of Computing Efficiency

between Storm Cluster and Single

Machine

Figure 7: Processing efficiency between single machine and

cluster.

Figure 8: Computing efficiency versus the machine

number.

We will calculate the amount of the network security

data which is processed during a certain period of

time, and compare the data processing efficiency

between the single machine and the Storm clusters.

We guarantee that the data in the collection phase is

larger than the data in the real-time processing phase.

As is shown in Figure 7, in the first 80 seconds, the

single machine can process more pieces of network

security data than the Storm cluster. But 80 seconds

later, the cluster can compute more pieces of data than

the single machine, and the gap between them is

constantly growing as the time increases.

The reason is that, the Storm cluster takes longer

time to start up than the single machine. We found

that, when it uses the single machine to process the

data, the results will be output in 10 seconds after the

system starts, whereas when it uses the Storm cluster,

it needs 40 seconds to output the processed results.

That is to say, the start-up time of the Storm cluster

has an effect on the calculation efficiency. So, it is not

a wise decision to use clusters all the time, but to

choose the single machine or the clusters according to

the data size, requirements of the computational

efficiency and the project cost.

Table 2: Collection efficiency of Flume (pieces of data

collected per second).

Machine

Machines

3001 5679 8571 11435

2656 5345 8799 11567

2755 5576 8321 11234

2832 5879 8543 11992

2933 5788 8875 11076

3098 5699 8700 11334

2865 5488 8602 11748

2588 5788 8761 12409

2754 5572 8430 10990

2872 5720 8616 10823

Average

2835.4 5653.4 8621.8 11460.8

Table 3: Computational efficiency (pieces of data computed

per second).

Machine

Machines

4462 6642 9442 10497

5098 7008 10080 11920

3889 6854 8790 11234

4078 6293 9234 10989

5123 6473 11220 11234

4788 6778 9188 10567

4323 6522 9509 12190

4611 6688 10098 11908

4512 6712 9637 10501

4416 6570 10334 10708

Average

4530 6654 9753.2 11174.8

The amount of data (piece)

Time (Second)

Singlemachine Cluster

The amount of data (piece)

Time (Second)

Machine1 Machine2 Machine3 Machine4

A Real-time Big Data Framework for Network Security Situation Monitoring

173

Table 4: Data acquisition and computation efficiency

(pieces of data per second).

Collection

Efficiency in Data

Collection

Computational

Efficiency in Data

Processing

1 Machine

2835.4 4530

2 Machines

5653.4 6654

3 Machines

8621.8 9753.2

4 Machines

11460.8 11174.8

5.2.2 Computational Efficiency of Clusters

of Different Machine Numbers

We can also observe in Figure 8 that, although the

start-up time increases as the machine numbers grow,

the amount of the processed data also increases. In

order to further study the influence of machine

number on data processing efficiency, we calculate

the amount of data that cluster can be processed in

one second. We choose the collected data in 60s after

the experiment starts to eliminate the influence of the

start-up time, and we calculate the amount of data that

can be calculated per second of different number of

machines.

5.2.3 The Performance of Real-time

Calculation and Visualization

Framework

In Table 3, we can observe the amount of processed

data in one second. Specifically, we choose the

processed data in 60s~120s after the experiment starts,

which is in a minute, and 10 experiments are carried

out to take the average. It can be seen that, the amount

of the calculated data in a second increases

significantly as the number of machines grows.

In Table 4, we compare the data acquisition

efficiency and the computing efficiency of the two

phases, i.e., the data collection stage and real time

data processing stage by exhibiting the number of

pieces of data that are collected and processed

respectively in one second. It can be observed that,

when the machine number of the Storm cluster is less

than 4, the data computing efficiency is higher than

the data collection efficiency, and there is no problem.

But when the number of machines increases to 4, the

cluster collect more data than that it can process,

which means that, the data processing speed cannot

keep up with the speed of the data collection. In order

to avoid the data congestion and make the real-time

framework operate normally, it is necessary to

configure more machines to calculate the collected

data.

6 CONCLUSIONS

In this paper, we realized the visualization monitoring

for the network security situation monitoring based

on the proposed real-time calculation and

visualization framework. Experiment results showed

that, the calculation efficiency of the proposed real-

time calculation framework has been greatly

improved compared with traditional single machine.

The proposed real-time calculation and visualization

framework can also be applied to other areas which

require information visualization of massive multi-

source heterogeneous data.

ACKNOWLEDGEMENTS

This work was supported by the Construction Project

of Network Security System (XXH13507);

(XDC02000000).

REFERENCES

Álvarez, R. P., Giraldo-Rodríguez, C., Chaves-Diéguez, D.,

2018. Large scale anomaly detection in data center logs

and metrics. In ECSA '18 Proceedings of the 12th

European Conference on Software Architecture. ACM.

Fischer, F., Keim, D. A., 2014. Nstreamaware: real-time

visual analytics for data streams to enhance situational

awareness. In VizSec '14, Proceedings of the Eleventh

Workshop on Visualization for Cyber Security. ACM.

Huffer, K. M. T., Reed, J. W., 2017. Situational awareness

of network system roles (SANSR). In CISRC '17,

Proceedings of the 12th Annual Conference on Cyber

and Information Security Research. ACM.

Kulkarni, S., Bhagat, N., Fu, M., Kedigehalli, V., Kellogg,

C., Mittal, S., et al., 2015. Twitter Heron: Stream

Processing at Scale. In SIGMOD '15, Proceedings of

the 2015 ACM SIGMOD International Conference on

Management of Data. ACM.

Mckenna, S., Staheli, D., Meyer, M., 2015. Unlocking user-

centered design methods for building cyber security

visualizations. 2015 IEEE Symposium on Visualization

for Cyber Security. IEEE.

Mckenna, S., Staheli, D., Fulcher, C., Meyer, M., 2016.

Bubblenet: a cyber security dashboard for visualizing

patterns. Computer Graphics Forum, 35(3), 281-290.

ACM.

Pareek, A., Khaladkar, B., Sen, R., Onat, B., Nadimpalli, V.,

et al., 2017. Striim: A streaming analytics platform for

real-time business decisions. In BIRTE '17,

Proceedings of the International Workshop on Real-

Time Business Intelligence and Analytics. ACM.

Tinati, R., Wang, X., Brown, I., Tiropanis, T., Hall, W.,

2015. A Streaming Real-Time Web Observatory

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

174

Architecture for Monitoring the Health of Social

Machines. In WWW 2015, International Conference on

World Wide Web. ACM.

Toshniwal, A., Taneja, S., Shukla, A., Ramasamy, K., Patel,

J. M., Kulkarni, S., et al., 2014. Storm@twitter. In

SIGMOD '14, Proceedings of the 2014 ACM SIGMOD

International Conference on Management of Data.

ACM.

Yang, P., Thiagarajan, S., Lin, J., 2018. Robust, Scalable,

Robust, Scalable, Real-Time Event Time Series

Aggregation at Twitter. In SIGMOD '18, Proceedings

of the 2015 ACM SIGMOD International Conference

on Management of Data. ACM.

A Real-time Big Data Framework for Network Security Situation Monitoring

175
