NETHIC: A System for Automatic Text Classiﬁcation using Neural

Networks and Hierarchical Taxonomies

Andrea Ciapetti

, Rosario Di Florio

, Luigi Lomasto

, Giuseppe Miscione

, Giulia Ruggiero

and Daniele Toti

1,2 a

Innovation Engineering S.r.l., Rome, Italy

Department of Sciences, Roma Tre University, Rome, Italy

Keywords:

Machine Learning, Neural Networks, Taxonomies, Text Classiﬁcation.

Abstract:

This paper presents NETHIC, a software system for the automatic classiﬁcation of textual documents based

on hierarchical taxonomies and artiﬁcial neural networks. This approach combines the advantages of highly-

structured hierarchies of textual labels with the versatility and scalability of neural networks, thus bringing

about a textual classiﬁer that displays high levels of performance in terms of both effectiveness and efﬁciency.

The system has ﬁrst been tested as a general-purpose classiﬁer on a generic document corpus, and then applied

to the speciﬁc domain tackled by DANTE, a European project that is meant to address criminal and terrorist-

related online contents, showing consistent results across both application domains.

1 INTRODUCTION

With the increasing use of social networks and with

the digitalization of governmental structures, com-

puter scientists are facing new challenges and needs.

Usually, ofﬁcial communications and documentations

are stored in the form of electronic textual docu-

ments. The rest of the personal communications ex-

changed by single individuals is represented by chat

messages, tweets, e-mails, blog entries, etc. This

leads to an increased volume of textual information

that may consequently bring about increasing confu-

sion and hinder the effectiveness of the communica-

tion itself. Understanding the subject category each

data item falls into and the topics discussed has be-

come paramount for an effective management and

analysis of this deluge of information. Indeed, dur-

ing the latest years, signiﬁcant effort and consider-

able resources have been spent to satisfy this need

within the context of governmental and commercial

projects (Dalal and Zaveri, 2011). One of the poten-

tial techniques to be used in this regard is the auto-

matic text classiﬁcation, which falls into the category

of supervised machine learning tasks. Such a process

is meant to automatically assign a set of pre-deﬁned

classes by using a machine learning technique (Sebas-

tiani, 2002). This paper describes NETHIC, an auto-

https://orcid.org/0000-0002-9668-6961

matic text classiﬁcation system based on a hierarchi-

cal taxonomy and artiﬁcial neural networks (ANNs).

Taxonomies represent knowledge in a structured and

human-readable manner. Their hierarchical structure

enables an efﬁcient and automated content classiﬁ-

cation. (Wetzker and et al., 2008). Artiﬁcial neural

networks, on the other hand, have some interesting

properties that make this family of machine learn-

ing algorithms very appealing when facing difﬁcult

pattern-discovery tasks. This combined approach is

especially useful when a large amount of data is used

during the training phase, and can be easily imple-

mented in parallel architectures (i.e., with multi-core

processors or systems with dedicated GPUs). This

may drastically reduce the processing time compared

to other kinds of algorithms, while achieving similar

results in terms of effectiveness (Hermundstad et al.,

2011). In this work, the NETHIC system is detailed,

showing how it displays a signiﬁcant level of perfor-

mance by using different taxonomies. First, a generic

taxonomy is used in order to obtain a general-purpose

text classiﬁer. Then, a speciﬁc taxonomy to tackle

domain-speciﬁc texts and concepts from the DANTE

Horizon 2020 project is introduced, so that it could be

used to classify documents dealing with terrorist and

criminal activities as well, the latter being the very

objects of the DANTE project itself.

This paper is structured as follows. In Section 2,

296

Ciapetti, A., Di Florio, R., Lomasto, L., Miscione, G., Ruggiero, G. and Toti, D.

NETHIC: A System for Automatic Text Classiﬁcation using Neural Networks and Hierarchical Taxonomies.

DOI: 10.5220/0007709702960306

In Proceedings of the 21st International Conference on Enterprise Information Systems (ICEIS 2019), pages 296-306

ISBN: 978-989-758-372-8

the DANTE project is introduced and related work is

discussed. Section 3 introduces the building blocks

of the system in terms of the taxonomies and datasets

used. Section 4 describes the actual solution created

for text classiﬁcation, in terms of its system architec-

ture and classiﬁcation process. Section 5 shows the

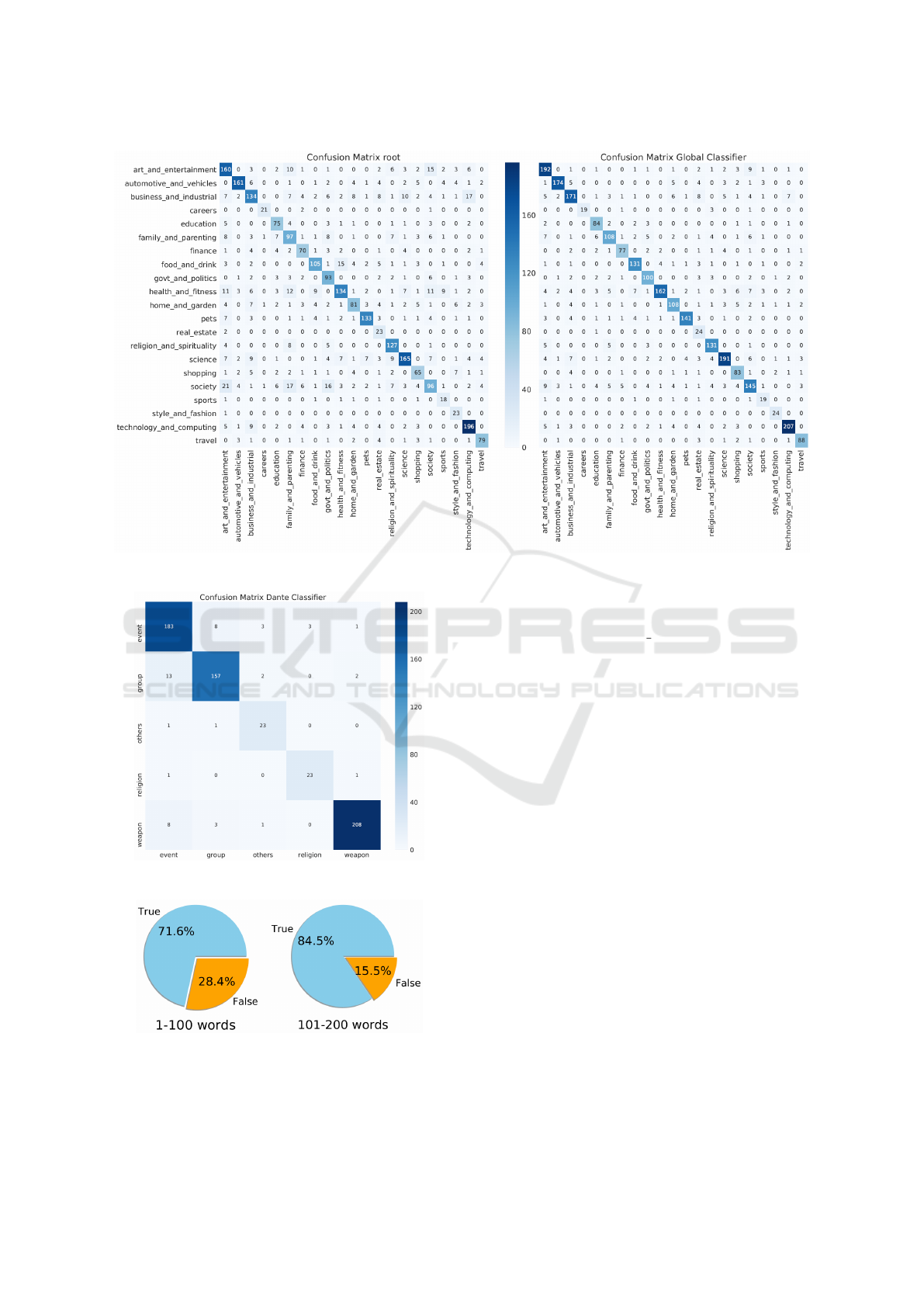

experimentation carried out for the system and its per-

formance in terms of accuracy and efﬁciency. Finally,

Section 6 concludes the paper and provides pointers

to future work.

2 CONTEXT AND RELATED

WORK

The problem of the automatic classiﬁcation of textual

documents is one of the important tasks solved by text

mining methods. A number of diverse applications of

text classiﬁcation were reported in literature, ranging

from subject categorization (Sebastiani, 2002), analy-

sis of sentiment of reviews or opinions, to authorship

recognition of documents (Wang and Manning, 2012;

Koppel and Winter, 2014), etc. Standard methods of

text classiﬁcation represent documents with usually

high-dimensional feature vectors, and then train clas-

siﬁers such as SVM, Naive Bayes, k-NN (Vidhya and

Aghila, 2010; Wang and Zhao, 2012), etc. Although

several ways of representing documents with feature

vectors were proposed (e.g. (Forman, 2003)), a com-

monly used approach consists of building feature vec-

tors which represent (potentially weighted) frequen-

cies of selected words or collections of words (bi-

grams, n-grams, phrases) that appear in subsequent

documents. These approaches can be broadly named

as bag-of-words methods. In the traditional bag-of-

words approach the keywords are ﬁltered from train-

ing data. Usually, some Natural Language Process-

ing methods can be involved such as: Segmentation,

Tokenization, POS Tagging, Entity Detection, Re-

lation Detection (Bird et al., 2009); these methods

are broadly used in several general-purpose and/or

domain-speciﬁc applications and solutions (Toti et al.,

2012; Atzeni et al., 2011c; Atzeni et al., 2011a;

Atzeni et al., 2011b; Toti and Rinelli, 2016). Cre-

ating such objects from text can give a lot of informa-

tion about its content. The appearance and frequen-

cies of speciﬁc tokens or entities are used as a basis

for bag-of-words model. However, the number of this

kind of objects can be very large. Therefore, meth-

ods to reduce dimensionality of data are needed, for

instance TF-IDF, PCA, LDA, SVD, t-SNE (Li et al.,

2015; Lamar et al., 2010; Kowsari et al., 2017), etc.

to keep only the most important words for classiﬁ-

cation. In this work, the purpose is to investigate

the feasibility of a conceptually different approach,

by representing documents with feature vectors, and

training classiﬁers. Two different ways of represent-

ing sequences of words for training are used: with

a simple encoding of words, and with the Word2Vec

method which represents words in vector space (Ku-

mar et al., 2015). An initial veriﬁcation of this ap-

proach is provided based on a collection of Wikipedia

articles representing subject categories, with 500 ar-

ticles per category (for a general-purpose taxonomy).

The idea behind this paper is to show how to build an

effective text classiﬁer by using state-of-the-art ma-

chine learning methods and tools and what issues can

arise during this procedure. NLTK (Natural Language

Processing Toolkit) algorithms have been used here

for tokenization. For feature extraction, instead, a dif-

ferent approach has been adopted: rather than encod-

ing the frequencies of keywords, the words from sen-

tences have been directly transformed into sequences

of encoding vectors and have been used for training

deep learning methods. This approach shares a com-

mon factor with probabilistic models such as n-grams,

conditional random ﬁelds and other Markov-models,

which also use sequences and are based on the proba-

bility of appearance of speciﬁc words. This approach

has been then verticalized onto a speciﬁc domain

given by the DANTE project. DANTE (Detecting

and ANalysing TErrorist-related online contents and

ﬁnancing activities - project id: 700367) is an ongoing

innovation project funded by the European Commu-

nity under the Horizon 2020 grant framework, whose

purpose is to deliver efﬁcient and automatic solutions

for data mining, analytics, as well as an integrated

platform to detect, retrieve, and analyze huge amounts

of heterogeneous and complex multimedia and multi-

language terrorist-related contents from both the Sur-

face and the Deep/Dark Web. Its ultimate goal is

to discover, analyze and monitor potential terrorist-

related activities and people, with a focus on online

fund raising, propaganda, training and communica-

tion activities.

3 NETHIC’S BUILDING BLOCKS:

TAXONOMIES AND DATASETS

This section describes the building blocks of the sys-

tem, by detailing the structure of the hierarchical

taxonomies needed for the system to work and the

datasets used.

NETHIC: A System for Automatic Text Classiﬁcation using Neural Networks and Hierarchical Taxonomies

297

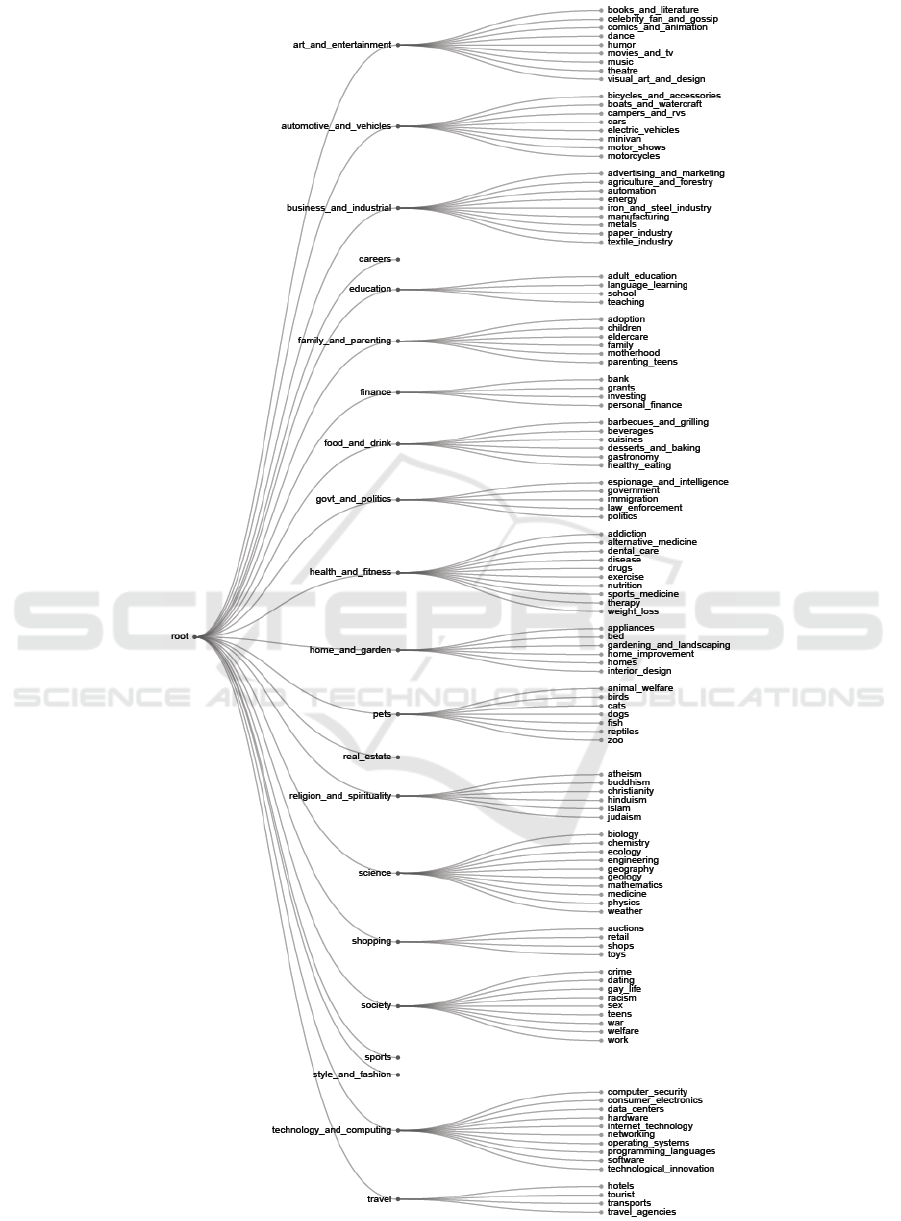

Figure 1: General-purpose taxonomy.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

298

3.1 Hierarchical Taxonomies

Taxonomies play a core role within NETHIC, be-

cause a taxonomy is needed to assign the pre-deﬁned

classes for the system’s neural networks and to build

and organize the required dataset (Dalal and Zaveri,

2011). Taxonomies, as they stand, are tree-like struc-

tures meant as effective means to put a certain degree

of order upon unstructured information and thus to

more easily access it. Logical categories are used to

classify such information in order for users to con-

veniently browse this information. They are also

often employed in conjunction with search and re-

trieval tools, with the purpose of restricting the scope

of the search (Lamont, 2003); as such, they enable

users/systems to focus on a speciﬁc area of inter-

est (Tang et al., 2006).

In NETHIC two taxonomies have been deﬁned.

The ﬁrst is a general-purpose taxonomy, and as

such is able to cover a wide range of general top-

ics; it is made up of a root node and 21 top-level

child categories, 17 of which with a number of sub-

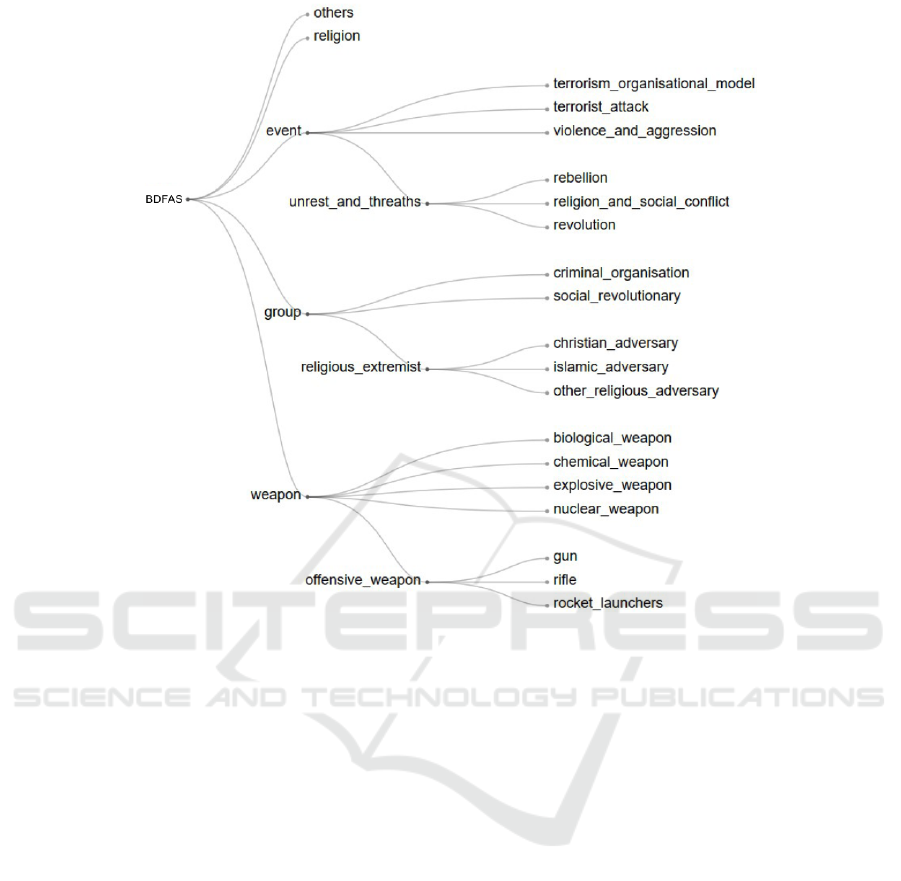

categories/leaves Figure 1. The second taxonomy is

instead domain-speciﬁc and has been put in place to

tackle the terrorist/criminal domain of the DANTE

project; it includes a root node, 4 top-level child cat-

egories, and several sub-categories and leaves (Fig-

ure 2). By using the structure given by each taxon-

omy, two datasets have been built, with 57,304 and

12,512 documents, respectively. In Section 4.3, how

these datasets have been used to build the training and

test sets is described.

3.2 Dataset Construction

The main issue to be faced, when creating a mod-

ular, general and hierarchical classiﬁer, is the avail-

ability of the datasets with which to train the un-

derlying neural networks. In order to make up for

this, a number of documents have been collected from

Wikipedia (Alarc

on et al., 2009), due to the latter be-

ing the largest data knowledge archive openly avail-

able on the Internet nowadays. Wikipedia’s freely ac-

cessible APIs have been used to query it in order to

gather the documents needed. This process is as fol-

lows. Firstly, Wikipedia’s whole category graph, i.e.,

the knowledge base’s internal structure used to orga-

nize its massive amount of data, is queried. Then,

from each of its categories, the list of subcategories

and the documents belonging to it are retrieved. This

results in a graph containing about 1.5 million cat-

egories. The subsequent step is to extensively use

a word embedding model (Mikolov et al., 2013) to

calculate the vector for each category, saving this in-

formation in a database. Using these vectors it is

possible to weight the links between a parent cate-

gory and their children using the inverse cosine sim-

ilarity formula (Lahitani et al., 2016). By having a

graph weighted according to the semantic value of

its categories, it is then possible to take advantage of

the properties of Dijkstra’s algorithm (Chen, 2003).

Therefore, starting from a category and using Dijk-

stra, documents can be collected from Wikipedia by

following a semantic path. This process ends ei-

ther when the desired number of documents are col-

lected, or when a given category does not have any

other subcategories. Finally, the hierarchical taxon-

omy mentioned in Section 3.1 is merged with the cat-

egory graph, by mapping each leaf of the taxonomy

to a Wikipedia category, creating a structure of folder

and sub-folder that possesses the same structure of the

taxonomy and where documents are contained only in

the leaf folders. In 4.3 further details will be provided

about how many documents are collected and how

they have been divided into training and test datasets.

4 NETHIC’S ARCHITECTURE

AND CLASSIFICATION

MECHANISM

In this section NETHIC’s architectural model is de-

scribed, along with the motivation and the choices

made to obtain a neural network hierarchy. The data

pre-processing and training algorithms implemented

to bring about the neural networks will be described

as well.

4.1 Architecture

The general structure of NETHIC’s architectural

model is based on a neural network classiﬁer, whose

categories are the concepts contained in the hierarchi-

cal taxonomy shown in Section 3.1. A neural net-

work hierarchy has been used to increase the sys-

tem’s accuracy for a single application domain. For

example, in order to classify a paper that talks about

kitchens, it may make sense to use a neural network

trained only on documents focused on interior deco-

ration and house supplies, instead of a more heteroge-

neous or too general neural network. In this way, a lot

of unnecessary words will not be considered and the

noise on the classiﬁcation function will be reduced.

In the proposed implementation, for each taxonomy

concept, except for the leaves, a neural network is

trained and a dictionary of words is built. In the ﬁrst

levels, the trained neural networks are characterized

NETHIC: A System for Automatic Text Classiﬁcation using Neural Networks and Hierarchical Taxonomies

299

Figure 2: DANTE-related taxonomy.

by a horizontal view, which divides documents into

global concepts like Sports, Science, Economy, Re-

ligion, whereas in the nested levels the neural net-

works tend to assume a more vertical division and

classify the documents inside a speciﬁc category of

the general concept (here: Sports), for example Bas-

ketball, Combat Sports, Football, Swimming, Tennis,

Volleyball, etc. Thus, the classiﬁcation function used

in the neural networks, located at different levels in

the hierarchy, is trained with a vocabulary and a set

of words, which have a different logical structure and

granularity. The upper levels are trained with generic

words, similar to general “concepts”, and the vocab-

ulary used does not contain the complete glossary of

words, associated with the context. Descending to-

wards the deeper levels, instead, the need to differen-

tiate between semantically similar concepts increases.

Therefore, the glossary used in the training process

is structured with more speciﬁc words, because the

classiﬁcation function now needs to acquire further

knowledge of the speciﬁc area of interest, in order to

effectively classify the textual contents. As such, the

classiﬁcation process follows an iterative approach —

very suitable for systems based on ANNs — descend-

ing to the deeper and more speciﬁc levels of classi-

ﬁcation. This allows the system to avoid semantic

errors with words that belong to several conceptual

areas like, for example, the word tail (used for de-

scribing both a body part of an animal and a particular

data structure in computer science). This also means

that in some cases the iteration should be stopped ear-

lier, before reaching the deepest levels, when deal-

ing with generic texts, as it is better explained in the

following paragraphs. These observations are very

important, since they are the basis of the following

optimizations: (1) Noise reduction by using appro-

priate glossaries of words for training; (2) Smaller

dimensional space to build vectors from documents

(described in the next section) that increases com-

putational performance. As shown in Figure 3, the

main roles in this architectural structure are played by

the Pre-Processing and Categorizer modules. Start-

ing from a textual content to be classiﬁed, each neural

network uses the associated dictionary to transform

the text into a numeric vector, evaluates the most ap-

propriate category for the classiﬁcation (at the current

stage of iteration at this level of the hierarchy) and

calls the next neural network associated with it, which

iteratively performs the same operation. To improve

the performances, neural networks and dictionaries

are loaded at the beginning and kept in memory until

the end of the process. This choice may involve the

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

300

usage of conspicuous amounts of memory.

4.2 Data Pre-processing

The ﬁrst step of the classiﬁcation mechanism is rep-

resented by data pre-processing. Several studies show

different approaches (Sebastiani, 2002) for the text

mining process. In NETHIC, standard steps have

been chosen to transform non-structured text into

structured data. First of all, text is cleaned from

stop-words and numbers; afterwards, stemming and

lemmatization algorithms are applied on the remain-

ing words. The outcome of this process is a num-

ber of cleaned sentences. After this cleaning step, the

next one is to transform unstructured data in struc-

tured form. To do that, the CountVectorizer function

of the scikit-learn Python library is used to generate a

vector of word counts for each document. Dictionar-

ies are created in the training step, with a set of words

collected from the corpus used to train the model, so

that it is possible to ensure that a particular neural net-

work is linked with a correct dictionary that contains

the main words for the speciﬁc context.

4.3 Training

As explained in the previous subsection, in order to

obtain a high accuracy level, a crucial part of the

classiﬁcation process is represented by the training

process and by the construction of appropriate glos-

saries at the different levels of the hierarchy. For

the general-purpose taxonomy, a vectorized dataset is

obtained that contains 57,304 documents, about 500

documents for each leaf category of the taxonomy.

The dataset has been split into training and test sets

with a ration of 95% and 5%, respectively, thus a

training-dataset with 54,439 documents and a test-

dataset with 2,843 documents have been produced.

The subdivision uses the same proportion for each

category. This is a good way to verify the model’s

accuracy. Since they are driven by the structure of

the hierarchical tree of the taxonomy and by the num-

ber of its nodes, exactly 18 neural networks (17 for

the categories that have subcategories, and 1 for the

root node) have been trained. Since NETHIC’s model

has a hierarchical structure, while the dataset contains

documents for leaf concepts only, a bottom-up ap-

proach to build intermediate datasets for training the

neural networks becomes necessary. A document that

belongs to a speciﬁc concept (e.g., chemistry), intu-

itively belongs at the linked generic concept (e.g., sci-

ence): therefore, initially, at the n-1 level, documents

are used for the child concepts. However, in order to

successfully train the neural networks for the highest

Table 1: Conﬁguration details.

Function Solver

Accuracy(%)

Training Test Model

tanh sgd 22.83 25.33

identity adam 97.31 83.68 76.74

identity lbfgs 96.74 82.15 67.56

relu lbfgs 97.02 80.52 68.65

logistic sgd 18.13 18.48

logistic adam 96.66 83.58 77.87

tanh lbfgs 96.87 80.76 66.16

relu sgd 20.63 19.99

relu adam 97.31 83.32 77.06

tanh adam 97.32 83.91 76.46

logistic lbfgs 25.06 27.31

identity sgd 23.32 29.07

levels, it is necessary to build a dataset with at least

500 documents for each concept. To do this, docu-

ments from sub-categories in the dataset are used. For

example, to build the science dataset to train the root

neural network, 50 documents for each sub-category

are taken (biology, chemistry, ecology, engineering,

geography, geology, mathematics, medicine, physics,

weather).

Each neural network has only one hidden layer

with 60 neurons since it has been observed by manual

experimentation that this choice is the best in terms of

accuracy and complexity. In order to choose the best

settings, a combination of function-solver (featured

in the sklearn.neural network.MLPClassiﬁer library)

with highest accuracy has been selected. Activation

function is used by the neurons to calculate the value

to be sent to the next level. Solver is used for weights

optimization. In Table 1, results with all combinations

are shown, where each accuracy value is the average

value of all neural networks’ accuracy. logistic-adam

pair was chosen because it returns the best accuracy

for the root NN level, which in NETHIC’s approach is

the the most inﬂuential level. This conﬁguration has

resulted in good levels of performance with the data

used for training. More than half of the distribution is

over 96%, the lowest value is near 95% and the low

variance as well indicates how the model is a good ﬁt

for the problem tackled. A similar process has been

used for training the system with DANTE’s domain-

speciﬁc taxonomy (omitted here for brevity).

4.4 Algorithm to Build Paths

NETHIC’s model is based on two main parameters:

• cutoff — This parameter is used by any single

neural network to decide how many categories to

consider. Its initial value is 0.8, and in each itera-

tion it is decremented by 0.1. For a single classiﬁ-

cation process, categories are kept until the cutoff

is reached;

NETHIC: A System for Automatic Text Classiﬁcation using Neural Networks and Hierarchical Taxonomies

301

Figure 3: Architecture.

• tolerance — Represents the threshold to be

reached to deem the set of the results produced as

valid. This value has been set to 0.7, and for each

occurrence the currente tolerance is calculated as

the average of the path scores and compared with

tolerance.

For each returned path, the average between all the

single scores for any corresponding category is com-

puted. For example, given the following path: P

= C1/C2/C3 with its respective scores SC1, SC2

and SC3, its corresponding path score is: SP =

(SC1+SC2+SC3)/3. In Algorithm 1 the pseudo-code

that chooses the categories to return for the next level

of the hierarchy is shown. Basically, the system keeps

considering categories until the probabilities returned

by the current neural networks (a value between 0

and 1) reach a threshold. If after the ﬁrst classiﬁca-

tion a good current tolerance is obtained, it will con-

sequently lead to a good classiﬁcation; otherwise, if

such a value is low, it means that there are paths with

a low score. In this case, the cutoff is decremented to

consider less categories in every neural network and a

second classiﬁcation iteration is run. In general, this

algorithm allows the system to select the highest-level

categories and concepts when the textual content ex-

amined contains only generic terms, whereas it is pos-

sible to select more detailed and low-level categories

and concepts by examining texts that are very speciﬁc,

technical or focused on a speciﬁc topic.

5 EXPERIMENTAL RESULTS

This section describes NETHIC’s experimental

results.

Algorithm 1: Classiﬁcation.

1: procedure GETRESULTS(cutoff, tolerance, textToClassify)

2: cutoff ← 0.8

3: tolerance ← 0.7

4: results ← {

0}.

5: while cutoff <= 0.4 AND current

tolerance < tolerance do

6: current tolerance ← 0

7: raw results ← {

0}.

8: raw results ← classi f ication(cutoff, textToClassify)

9: cutoff ← cutoff − 0.1

10: results ← computeResults(raw results)

11: for i in results do

12: current tolerance ← current tolerance +

results[i]/max(results)

5.1 Accuracy and Performance with a

General-purpose Taxonomy

To evaluate NETHIC’s classiﬁcation accuracy, tests

have been performed that consider both the single

neural networks and the general model that takes into

account the whole general-purpose taxonomy (hereto-

fore referred to as “global” model). In order to do

this, a dataset with 2,843 documents has been used.

Firstly, for each neural network trained, as previously

stated, a small dataset has been used to test the 18 neu-

ral networks. To build datasets for categories deeper

down into the hierarchy, the same training procedure

has been used. For evaluating the accuracy, only the

ﬁrst category returned has been considered, given the

fact that each neural network could return a variable

number of category labels. The ﬁrst thing to be no-

ticed is that the model does not suffer from overﬁtting,

i.e. training and test results show consistent levels of

accuracy, since each neural network is apparently able

to generalize well in terms of predictions against new

data. The lowest results are returned by the root neu-

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

302

ral network, which represents an outlier in this regard.

Given the high number of labels in this classiﬁcation,

an accuracy of 72.31%, considering only the ﬁrst la-

bel returned, can be considered a satisfactory result.

In order to better clarify this concept, the correspond-

ing confusion matrix has been provided to highlight

the causes of the errors. In the left side of Figure 4,

the diagonal matrix is immediately apparent. By ob-

serving the high values out of the diagonal, the confu-

sion is caused by semantically-close classes such as:

arts and entertainment and society, or technology and

computing and business and industry, or health and

ﬁtness and food and drink. In fact, classes semanti-

cally distant such as sports and shopping, or style and

fashion and automotive and vehicles do not display

confusion. Afterwards, all the neural networks have

been merged together to classify textual contents by

using the whole hierarchical structure. In this case it

was chosen to return the ﬁrst three paths/labels given

by the classiﬁer. The reason for this choice is that a

textual content can belong to more than one concept

or topic. In a hierarchy where the leaf concepts are

119, it is in principle correct to assign multiple labels.

By using this assumption, the same 2,843 documents,

earlier classiﬁed with a single real label, have been

classiﬁed again, and an accuracy equal to 77.87% has

been obtained. By looking at the global confusion

matrix for these results (right side of Figure 4), it is

possible to notice how the error is lower then in the

previous results. In this case, in fact, there are less er-

rors due to the semantic proximity. As proof of this, a

general example is provided below.

To evaluate the performance based on the length

of the text, the dataset has been split into two subsets:

(without considering repetitions): (1) 1 - 100 words

(1553 documents); (2) 101 - 200 words (1254 docu-

ments).

The pie charts in Figure 6 show a performance im-

provement when more words are used. Obviously if

more words are used to build a vector, more words

are found in the dictionaries, thus there will be more

items in the vectors greater than 0.

General Example: Racism in sports has been a

prevalent issue throughout the world, and in partic-

ular racism towards African-Americans has been es-

pecially bad over the course of the history of sports in

the United States and around the world. [. . . ]

Results: society/racism/: 0.5580656885761913;

sports: 0.4927055063449122

In the dataset this document is marked as sports,

whereas the ﬁrst label returned by the classiﬁer is

racism, thus it can be deemed an error. If the cor-

rect label is to be found within the ﬁrst three labels

returned instead (in this speciﬁc case only two are re-

turned), then the classiﬁcation process can be deemed

successful.

5.2 Results with a DANTE-speciﬁc

Taxonomy

To perform the classiﬁcation process on DANTE-

related contents a different taxonomy, shown in Fig-

ure 2, has been used. Before analyzing the domain-

speciﬁc contents, the system has been tested against

Wikipedia documents. Results, shown in the box-plot

of Figure 5, display a good overall performance. The

greatest confusion is found at the top of the matrix

between the similar concepts group and event. The

global accuracy obtained for this model is 87% on 642

test documents. The single neural networks produced

show good accuracy with values between 77% and

94%. All observations made for the global model are

valid also in this case. Afterwards, to assess the ef-

fectiveness of the system on real, DANTE-related use

cases, a speciﬁc dataset has been used for the test. Us-

ing DANTE-related contents (a collection of terrorist-

related documents), a small document set made up of

20 documents has been built, 5 for each of the follow-

ing categories: Weapon, Other, Religion, Religious

Extremist. The main goal here is to detect criminal

and terrorist contents (weapons, religious extremism)

and distinguish them from harmless elements (other,

religion). On this data the system has shown an accu-

racy equal to 95%. A couple of excerpts are presented

below.

Religious Extremist Example: The death of a single

Muslim, no matter his role in society, is more grave to

the believer than the massacre of every k

afr on earth.

And while the Shar

i’ah calls for the invasion of all

afr lands, certainly the aggressors are dealt with be-

fore those nations not actively waging war against the

Khil

afah. This is an obvious reality. Any disbeliever

standing in the way of the Islamic State will be killed,

without pity or remorse, until Muslims sufer no harm

and governance is entirely for Allah. Brussels, the

heart of Europe, has been struck. The blood of its vi-

tality spilled on the ground, trampled under the feet

of the muj

ahid

ın. Flames ignited years ago in Iraq

have now scorched the battleground of Belgium, soon

to spread to the rest of crusader Europe and the West.

Paris was a warning. Brussels was a reminder. What

is yet to come will be more devastating and more bit-

ter by the permission of Allah, and Allah prevails.

Results: event/violence and aggression/: 0.53;

group/religious extremist/islamic adversary/: 0.52;

event/unrest and threaths/religion and social conﬂict/:

0.47

Weapon Example: 5.4 Fusogen (Nerve Gas) It can

NETHIC: A System for Automatic Text Classiﬁcation using Neural Networks and Hierarchical Taxonomies

303

Figure 4: Confusion matrix for the root and the global neural network.

Figure 5: Confusion matrix for the DANTE model.

Figure 6: Test accuracy with different sizes.

be obtained by heating CCl4 with any metal. 5.5 Ni-

trous Oxide: N2O (Laughing gas) Can be obtained by

heating Ammonium Nitrate (a well known fertiliser

and explosive compound) between 250

-260

. In a

closed room, your victims will laugh to death. [. . . ]

Results: weapon/chemical weapon/: 0.83

Religion Example: “Who is a Jew?” is a basic ques-

tion about Jewish identity and considerations of Jew-

ish self-identiﬁcation. The question is based on ideas

about Jewish personhood, which have cultural, eth-

nic, religious, political, genealogical, and personal

dimensions. Orthodox Judaism and Conservative Ju-

daism follow the Halakha, deeming a person to be

Jewish if their mother is Jewish or they underwent

a proper conversion. Reform Judaism and Recon-

structionist Judaism accept both matrilineal and pa-

trilineal descent. Karaite Judaism predominantly fol-

lows patrilineal descent. Jewish identity is also com-

monly deﬁned through ethnicity. Opinion polls have

suggested that the majority of Jews see being Jewish

as predominantly a matter of ancestry and culture,

rather than religion. Ashkenazi Jews, being the most

numerous Jewish ethnic division, have been the sub-

ject of numerous genealogical studies and have been

found to be a distinct, homogeneous ethnic group.

Results: religion/: 0.91

Other Example: The Pet Travel Scheme (“PETS”)

is a system which allows animals to travel easily be-

tween member countries without undergoing quar-

antine. A Pet Passport is a document that ofﬁcially

records information related to a speciﬁc animal, as

part of that procedure. The effect is to drastically

speed up and simplify travel with and transport of an-

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

304

imals between member countries, compared to previ-

ous procedures, if the regulations are followed.

Results: other/: 0.96

5.3 Hardware and Implementation

The hardware used to run the tests includes a In-

tel(R) Core(TM) i7-6700HQ CPU @ 2.60 GHz with

16 GB RAM. The actual classiﬁer has been developed

in Python with the scikit-learn, CountVectorizer and

Multi-layer Perceptron (MLP) libraries used to build

vectors and for creating the neural networks. The

pickle library has been used to persist the neural net-

works and to load them in memory. In general, with

this hardware the time taken to classify a document is

less than 25 milliseconds.

6 CONCLUSION AND FUTURE

WORKS

This paper presented NETHIC, a classiﬁer for textual

contents based on hierarchical taxonomies and neural

networks. The results reported showed that this com-

bined approach has several advantages for tackling

the given task, including modularity, scalability and

overall performance. The system has proved itself to

be successful both on a general and a speciﬁc, terrorist

and crime-related domain. As far as the latter is con-

cerned, future developments may include the possibil-

ity of applying the classiﬁcation process for enhanc-

ing other components of the DANTE project itself,

especially related to the discovery of criminal and ter-

rorist networks from social media via the analysis of

the textual contents shared and discussed online. Ad-

ditional improvements may also involve the introduc-

tion of deep learning algorithms in order to increase

NETHIC’s global accuracy, for example by introduc-

ing more hidden layers for each neural network and

different activation functions (e.g. via frameworks

like TensorFlow (Abadi et al., 2015)); this may lead to

further reﬁnements of NETHIC’s classiﬁcation mech-

anism.

REFERENCES

Abadi, M., Agarwal, A., Barham, P., Brevdo, E., Chen, Z.,

Citro, C., Corrado, G. S., Davis, A., Dean, J., Devin,

M., Ghemawat, S., Goodfellow, I., Harp, A., Irving,

G., Isard, M., Jia, Y., Jozefowicz, R., Kaiser, L., Kud-

lur, M., Levenberg, J., Man

e, D., Monga, R., Moore,

S., Murray, D., Olah, C., Schuster, M., Shlens, J.,

Steiner, B., Sutskever, I., Talwar, K., Tucker, P., Van-

houcke, V., Vasudevan, V., Vi

egas, F., Vinyals, O.,

Warden, P., Wattenberg, M., Wicke, M., Yu, Y., and

Zheng, X. (2015). TensorFlow: Large-scale machine

learning on heterogeneous systems. Software avail-

able from tensorﬂow.org.

Alarc

on, R., S

anchez, O., and Mijangos, V. (2009). Ex-

ploiting Wikipedia as a knowledge base: Towards an

ontology of movies. 534:8–16.

Atzeni, P., Polticelli, F., and Toti, D. (2011a). An auto-

matic identiﬁcation and resolution system for protein-

related abbreviations in scientiﬁc papers. In Lec-

ture Notes in Computer Science, volume 6623 LNCS,

pages 171–176.

Atzeni, P., Polticelli, F., and Toti, D. (2011b). Experimenta-

tion of an automatic resolution method for protein ab-

breviations in full-text papers. In 2011 ACM Confer-

ence on Bioinformatics, Computational Biology and

Biomedicine, BCB 2011, pages 465–467.

Atzeni, P., Polticelli, F., and Toti, D. (2011c). A framework

for semi-automatic identiﬁcation, disambiguation and

storage of protein-related abbreviations in scientiﬁc

literature. In Proceedings - International Conference

on Data Engineering, pages 59–61.

Bird, S., Klein, E., and Loper, E. (2009). Natural Language

Processing with Python - Analyzing Text with the Nat-

ural Language Toolkit. O’Reilly.

Chen, J.-C. (2003). Dijkstra’s shortest path algorithm. J. of

Form. Math., 15.

Dalal, M. K. and Zaveri, M. (2011). Automatic text classi-

ﬁcation: A technical review. 28.

Forman, G. (2003). An extensive empirical study of feature

selection metrics for text classiﬁcation. The Journal

of machine learning research, 3:1289–1305.

Hermundstad, A., Brown, K., Bassett, D., and Carlson, J.

(2011). Learning, memory, and the role of neural net-

work architecture. 7.

Koppel, M. and Winter, Y. (2014). Determining if two doc-

uments are written by the same author. J. of the Assoc.

for Information Science and Technology, 65:178–187.

Kowsari, K., Brown, D. E., Heidarysafa, M., Meimandi,

K. J., Gerber, M. S., and Barnes, L. E. (2017). Hdltex:

Hierarchical deep learning for text classiﬁcation. 2.

Kumar, A., IRsoy, O., Su, J., Bradbury, J., English, R.,

Pierce, B., Ondruska, P., Gulrajani, I., and Socher, R.

(2015). Ask me anything: Dynamic memory networks

for natural language processing. In CoRR.

Lahitani, A. R., Permanasari, A. E., and Setiawan, N. A.

(2016). Cosine similarity to determine similarity mea-

sure: Study case in online essay assessment. In 2016

4th International Conference on Cyber and IT Service

Management, pages 1–6.

Lamar, M., Maron, Y., Johnson, M., and Bienenstock, E.

(2010). SVD and clustering for unsupervised POS

tagging. In ACL.

Lamont, J. (2003). Dynamic taxonomies: keeping up with

changing content. KMWorld, 12.

Li, J., Chen, X., Hovy, E., and Jurasky, D. (2015). Visu-

alizing and understanding neural models in NLP. In

CoRR.

NETHIC: A System for Automatic Text Classiﬁcation using Neural Networks and Hierarchical Taxonomies

305

Mikolov, T., Chen, K., Corrado, G., and Dean, J. (2013).

Efﬁcient estimation of word representations in vector

space. CoRR, abs/1301.3781.

Sebastiani, F. (2002). Machine learning in automated text

categorization. ACM Computing Surveys, 34:1–47.

Tang, L., Zhang, J., and Liu, H. (2006). Acclimatizing tax-

onomic semantics for hierarchical content classiﬁca-

tion. In Proc. of the 12th ACM SIGKDD, pages 384–

393.

Toti, D., Atzeni, P., and Polticelli, F. (2012). Automatic

Protein Abbreviations Discovery and Resolution from

Full-Text Scientiﬁc Papers: The PRAISED Frame-

work. Bio-Algorithms and Med-Systems, 8.

Toti, D. and Rinelli, M. (2016). On the road to speed-

reading and fast learning with CONCEPTUM. In Pro-

ceedings - 2016 International Conference on Intelli-

gent Networking and Collaborative Systems, IEEE IN-

CoS 2016, pages 357–361.

Vidhya, K. and Aghila, G. (2010). A survey of naive bayes

machine learning approach in text document classiﬁ-

cation. Int. J. of Com. Sc. and Inf. Sec., 7:206–211.

Wang, L. and Zhao, X. (2012). Improved k-nn classiﬁca-

tion algorithm research in text categorization. In Proc.

of the 2nd Int. Conf. on Comm. and Net. (CECNet),

pages 1848–1852.

Wang, S. and Manning, C. (2012). Baselines and bigrams:

Simple, good sentiment and topic classiﬁcation. In

Proc. of the 50th Annual Meeting of the ACL: Sh. P.

Vol. 2, pages 90–94. ACL.

Wetzker, R. and et al. (2008). Tailoring taxonomies for ef-

ﬁcient text categorization and expert ﬁnding. 3:459–

462.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

306
