Accuracy Assessment of a Photogrammetric UAV Block by using

Different Software and Adopting Diverse Processing Strategies

Vittorio Casella

, Filiberto Chiabrando

, Marica Franzini

and Ambrogio Maria Manzino

Department of Civil Engineering and Architecture, University of Pavia, Pavia, Italy

Department of Architecture and Design, Polytechnic of Turin, Turin, Italy

Department of Environment, Land and Infrastructure Engineering, Polytechnic of Turin, Turin, Italy

Keywords: UAV, Bundle Block Adjustment, Accuracy Evaluation, Open Source Software and Point Clouds.

Abstract: UAVs systems are heavily adopted nowadays to collect high resolution imagery with the purpose of docu-

menting and mapping environment and cultural heritage. Such data are currently processed by programs based

on the Structure from Motion (SfM) concept, coming from the Computer Vision community, rather than from

classical Photogrammetry. It is interesting to check whether some widely accepted rules coming from old-

fashioned photogrammetry still holds: the relation between accuracy and GSD, the ratio between the altimetric

and planimetric accuracy, accuracy estimated on GCPs vs that estimated with CPs. Also, not all the SfM

programs behave in the same way. To face the envisaged aspects, the paper adopts a comparative approach,

as several programs are used, and numerous configurations considered. The University of Pavia established a

test field at a sandpit located in the Province of Pavia, in northern Italy, where several flights were performed

by the multi-rotor HEXA-PRO UAV, equipped with a 24 MP Sony Alpha-6000. One of these blocks has been

extensively analysed in the present paper. The paper illustrates the dataset adopted, the carefully-tuned pro-

cessing strategies and BBA (Bundle Block Adjustment) results in terms of accuracy for both GCPs and CPs.

1 INTRODUCTION

The use of UAV for surveying purposes (mapping, 3D

modelling, point cloud extraction, orthophoto genera-

tion) has become a standard operation for the

knowledge of the environment and of the built-up ar-

eas. The high quality of COTS (Commercial Off-The-

Shelf) cameras, easily implemented in UAV platforms,

and the development of new programs for image pro-

cessing created, in the last years, an important revolu-

tion in the Geomatics field. We are assisting to a trans-

formation in the photogrammetric community even

more connected to the Computer Vision one in terms

of algorithms and rules for data processing. Starting

from these assumptions, the aim of the paper is to ana-

lyse from a photogrammetric point of view (according

to the forma mentis of the authors) the performance of

some programs which are today generally employed

for processing the data acquired by UAV using the

Structure-from-Motion-oriented approach. The tests

were performed to carefully assess the accuracies of

the final products and to examine the processing steps

that usually characterize a traditional photogrammetric

workflow such us the Interior Orientation (IO), results

of the Bundle Block Adjustment (BBA), the residuals

on the Ground Control Points (GCPs) and Check

Points (CPs).

Several papers are connected to the employment of

UAV for mapping purpose such us (Zongjian, 2008;

Remondino et al., 2011; Lucieer et al., 2014; Samad et

al., 2013; Nex and Remondino, 2014) and some analy-

sis of the Bundle Block Adjustment (BBA) connected

to traditional photogrammetry are reported in Gini et

al. (2013), Nocerino et al. (2013), Benassi et al. (2017)

and Verykokou et al. (2018). GCPs configuration also

plays a key-role as theirs number and distribution in-

fluence final accuracy as explored by several authors

such as Rangel et al. (2018), James et al. (2017) and

Tahar (2013).

According to those analysis the paper needs to go

in deeper when is possible in the processing steps and

in the delivered results connected to the actual software

that are commonly used for processing the UAV data

for mapping purpose.

The work deals with the data acquired by an UAV

flight performed over a sandpit where several points

were measured to use within the BBA operation to per-

form independent check, afterwards. The different fol-

lowed strategies are accurately described in terms of

Casella, V., Chiabrando, F., Franzini, M. and Manzino, A.

Accuracy Assessment of a Photogrammetric UAV Block by using Different Software and Adopting Diverse Processing Strategies.

DOI: 10.5220/0007710800770087

In Proceedings of the 5th International Conference on Geographical Information Systems Theory, Applications and Management (GISTAM 2019), pages 77-87

ISBN: 978-989-758-371-1

weights of the observations used in the adjustment,

strategies for tie point extraction and number of GCPs

and CPs. Finally, an accurate analysis of the achieved

results is reported to understand which are the prob-

lem that could be founded during the data-processing

and which strategy should be the most suitable for the

survey purpose.

2 DATA ACQUISITION

The test-site is a part of a large sandpit located in the

Province of Pavia, in northern Italy. The selected area

roughly has a horseshoe configuration and is consti-

tuted by two flat regions connected by the excavation

front, being 10 meters high and having a slope be-

tween 30° and 90°. The upper flat zone and the scarp

are mainly bare, while the lower one shows a large

vegetated area (Figure 1). The surveyed surface is ap-

proximal 2 hectares.

Figure 1: Overview of the test site.

Figure 2: The markers.

Before the flights, 18 markers (Figure 2) were po-

sitioned and surveyed by an integrated use of classical

topography and GNSS, in a redundant way. The

GCPs' proper names range from CV1 to CV18. Their

coordinates were obtained by least-squares adjust-

ment and their precision is around 0.5 cm for the pla-

nimetric components and 1 cm for altimetry. Several

photogrammetric blocks were acquired by a UAV

equipped with a Sony A6000 camera (Figure 3), un-

der different configurations. The vehicle was made by

an Italian craftsman and has the following main char-

acteristics: 6 engines, Arducopter-compliant flight

controller, maximum payload of 1.5 kg (partly used

by the gimbal, weighting 0.3 kg), autonomy of ap-

proximately 15 minutes.

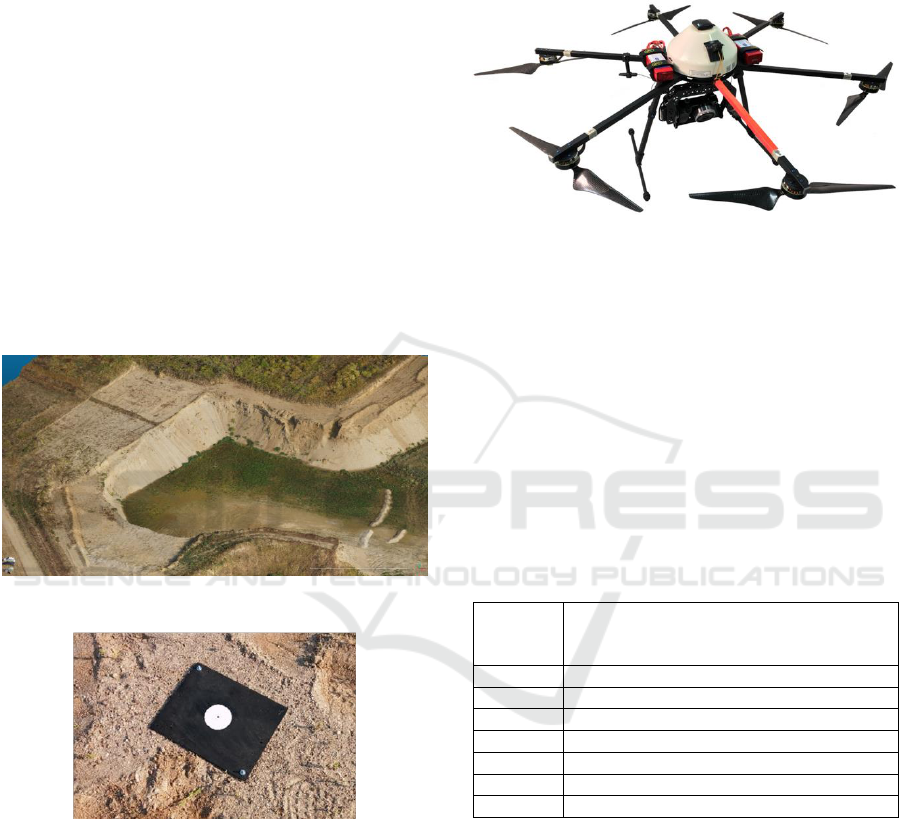

Figure 3: The HEXA-PRO UAV system operated by the

Laboratory of Geomatics at the University of Pavia.

The camera has 24 MP, a focal length of 16 mm

and a 17.5 mm GSD at the 70 m flying height. The

blocks carried out over the area are all listed in Table

1; the present paper only concerns a dataset coming

from the union of blocks 1 and 2, constituted by seven

strips. Flying height was about 70 m on average; end

lap (longitudinal) and side lap (lateral) were 77% and

60% respectively; more details can be found in (Ca-

sella and Franzini, 2016).

The Pavia group carried out the installation of the

markers, their measurement and the UAV missions.

Table 1: List of the various blocks acquired.

Block 1

North-South linear strips, at 70 metres fly-

ing height (with respect to the upper part

of the site), vertical images

Block 2

East-West linear strips, 70 m, vertical

Block 3

Radial linear strips, 70 m, vertical

Block 4

Radial linear strips, 70 m, 30° inclined

Block 5

Circular trajectory, 30 m, 45° inclined

Block 6

North-South linear strips, 40 m, vertical

Block 7

East-West linear strips, 40 m, vertical

Block 8

Radial linear strips, 40 m, vertical

3 DATA PROCESSING

The University of Pavia and the Polytechnic of Turin

decided to process the same dataset with different

software they are expert on. The Pavia unit used

Agisoft Photoscan and Trimble UAS Master, while in

Turin Pix4D, Context Capture by Bentley and Mic-

Mac were used. GCPs/CPs configuration was dis-

cussed in advance and kept fixed by both groups.

Three scenarios were considered, shown by (Figure

5, 6 and 7), according to the criteria listed below;

GISTAM 2019 - 5th International Conference on Geographical Information Systems Theory, Applications and Management

GCPs are shown in red and CPs in blue:

 Configuration 1 - all the markers are used as

GCPs, to perform robust camera calibration (18

GCPs / 0 CPs);

 Configuration 2 - an intermediate setup with

strong ground control and still some check points

(11 GCPs / 7 CPs);

 Configuration 3 - only 6 points are used as GCPs,

that is realistic for routine surveying (6 GCPs /

12 CPs).

Other parameters and configurations were managed

independently by the two groups, namely: image

alignment, camera calibration and the adjustment

weighing. More details can be found in the next sec-

tions.

Figure 4: The block structure with three North-South and

four East-West linear strips. The images also show black

lines accounting for the main morphological features of the

sandpit.

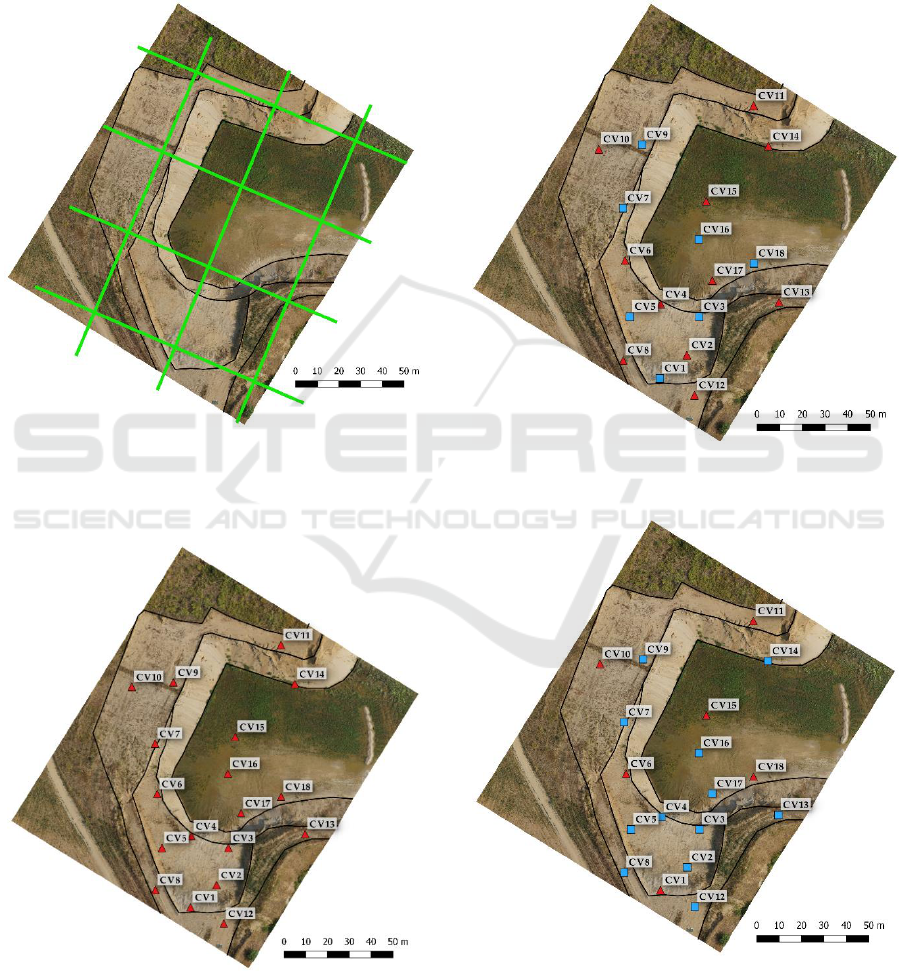

Figure 5: Configuration 1: all the GCPs used for BBA (red

triangles).

Figure 6: Configuration 2: 11 GCPs for BBA (red triangles)

and 7 CPs for quality assessment (blue squares).

Figure 7: Configuration 3: 6 GCPs for BBA (red triangles)

and 12 CPs for quality assessment (blue squares).

Accuracy Assessment of a Photogrammetric UAV Block by using Different Software and Adopting Diverse Processing Strategies

3.1 The Unit of the University of Pavia

Data processing was performed with two software:

Agisoft Photoscan (rel. 1.2.4) and Inpho UAS Master

(rel. 7.0.1). The Photoscan processing will be ad-

dressed first.

 When executing the photo alignment, the “High

accuracy” setup was chosen, in which tie points

were extracted from the full resolution images,

while the “Pair preselection” parameter was set

on “Generic” since no a-priori information about

imagery positions was available.

 Image-point measurement was carried out in a

conservative way, meaning that, for each image,

only clearly visible points were measured. The

average number of measurements per marker

was 15 with a minimum of 9 for CV7 and a max-

imum of 29 for CV17.

 Concerning camera self-calibration, after some

testing, it was decided to re-estimate camera in-

terior orientation and to adopt the parameter set

proposed as a default by the program. It is con-

stituted by the focal length (f), the corrections for

the principal point position (cx and cy), the first

three coefficients of radial distortion (K1, K2 and

K3) and the first two of tangential distortion (P1

and P2). We didn’t insert any approximate values

for the camera model, as that didn’t apparently

give any benefit.

 Concerning the BBA (Bundle Block Adjust-

ment) weighting strategy, accuracy of ground-

coordinates of markers was set at 0.5 cm for the

planimetric components and 1 cm for altimetry.

For image-coordinates of manually-measured

markers, accuracy was set at ¼ of the pixel size.

Finally, for automatically-measured image-coor-

dinates of tie points, accuracy was set at 1.5 pix-

els, corresponding to three-times the overall re-

projection error. In doing so, we followed the

suggestions of the program developers, to be

adopted in the case of blurred images; we also

verified that the implemented strategy gave the

best results in terms of residuals for the CPs.

When UAS Master was used, the same setup was

used, with some exceptions. First, the program needs

to know approximate external orientation parameters:

we supplied the values calculated by PhotoScan. Tie

point extraction was performed with the “Full resolu-

tion” mode. Image-coordinates of markers were

measured by a different operator, with the same style

of being conservative and measuring only well visible

targets: the mean number of observations was 15 with

a minimum of 9 measurements on CV8 and a maxi-

mum of 26 on CV17. The parameters for camera self-

calibration are the same as those adopted for Pho-

toScan. Object-coordinates of markers were weighted

as illustrated above, but we were not able to find any

interface allowing us to fix the uncertainty of image-

coordinates of markers and tie points: we infer that

the program applies default values. We must declare

that, while we are good experts of Photoscan, we

could only use UAS Master for a few months, due to

an evaluation license. Even though maximum care

was taken, some features of the program could have

been overlooked.

3.2 The Unit of the Polytechnic of

Turin

The processing was realized using three well known

software in the scientific community: the commercial

programs Pix4D (2.1.61), Context Capture

(4.3.0.507) and the open-source tool MicMac.

The first processing was carried out using Pix4D,

where, to follow the most similar approach of the

processing steps achieved by the Pavia unit, the

following set-up was used:

 For the key point extraction in the initial

processing the “Full” option was employed, this

settings means that the images were used at the

full scale, the matching image pairs according to

the input data was set-up for aerial grid and

finally, in the calibration options, the parameters

were used in the automatic/standard

configuration (automatic way to select which

key-points are extracted, standard calibration

method with an optimization of all the internal

parameters (since is well known that the camera

used with UAVs, are much more sensitive to

temperature or vibrations, which affect the

camera calibration, as a consequence it is

recommended to select this option when

processing images taken with such cameras)).

Finally, the rematch option that allows to add

more matches after the first part of the initial

processing, which usually improves the quality

of the reconstruction was used as well (this part

is important not in the first alignment but for

improving it after the GCPs measurements);

 Image-point measurement was carried out

according to the strategy followed by Pavia unit,

in this case the average number of measurements

per marker was 26 with a minimum of 15 for

CV10 and a maximum of 40 for CV17.

 The next step was the BBA (bundle block

adjustment), for this step-in order to fix a

weighting for the two components, according to

the accuracy of the measured coordinates of the

GISTAM 2019 - 5th International Conference on Geographical Information Systems Theory, Applications and Management

markers the horizontal accuracy was set at 0.5 cm

while the vertical accuracy was fixed at 1 cm. It

is not possible in Pix4D to set the accuracy of the

measurement on the images, probably this value

as commonly used is fixed at ½ of the pixel size.

During the BBA the camera self-calibration is

calculated as well, in this case the parameter set

as default has been used. The final results of the

camera calibration in Pix4D could be extracted

from the final report and are related to the focal

length (f), the corrections for the principal point

position (cx and cy), the first three coefficients of

radial distortion (K1, K2 and K3 called R1 R2

and R3 in Pix4d) and the first two of tangential

distortion (P1 and P2 called T1 and T2 in Pix4d).

The second commercial employed software was

Context Capture by Bentley System, the approach

followed by this program is similar to the one

described above and is summarized in the following

points:

 The first alignment has been performed using the

default setting with “High” density in the key

point extraction (scale image size), in this first

step the software starting from the information

derived by the EXIF file adjust the camera

internal parameters as well (f, cx, cy, K1, K2, K3,

P1 and P2).

 After the first processing step the camera pose

were estimated in an arbitrary coordinate system,

the next step was the image-point measurements.

In order to help the operator in the measurement

phase this part was performed first of all using

three GCPs in three different images and then a

rigid registration was performed. Starting from

this first results an accurate measurement of the

other points has been achieved, the average

number of measurements per marker was 15 with

a minimum of 9 for CV10 and a maximum of 33

for CV17.

 The BBA weighting for the two components, was

in the horizontal component 0.5 cm while the

vertical one was fixed at 1 cm (the same settings

of the other employed commercial software).

During the BBA the camera optimization has

been performed as well to define the internal

parameters of the employed camera.

Furthermore, according to the actual trend in the

Geospatial information area that even more move the

attention to the open-source software and tools in the

presented test the open source software MicMac has

been employed. The software has been developed by

the MATIS laboratory (IGN France) and it has been

delivered as open source in 2007, usable in different

contexts (satellite, aerial, terrestrial) for extracting

point clouds from images (Pierrot-Deseilligny and

Clery, 2011). The pipeline of the software (Rupnik et

al., 2017) is quite different comparing to the

commercial one since all the commands in the

employed version (5348 for Ubuntu) need to be

inserted by the terminal. In the following points, a

short list of the used simplified tools is reported :

 The first used tool was Tapioca, with this

command MicMac computing the tie points on

the images. The options that could be used in

Tapioca are the strategy for extracting the

information from the images (All, MulScale

etc..) and the number of pixel that we need to use

for extracting the tie points. In the present test all

the possible pairs were analysed (options All)

and in order to speed up the process the images

were resampled at 1500 pixel (another option

decided during the process).

 After Tapioca only the tie points are extracted, to

align the images according to the extracted points

another tool need to be launch: Tapas. This

command allows to calibrate the images and to

align it in a local reference system according to

several parameters. A simple use of Tapas has

been carried out using as calibration model the

Fraser approach (Fraser, 1997). This is a radial

model, with decentric and affine parameters the

model has 12 degrees of freedom: 1 for focal

length, 2 for principal point, 2 for distortion

centre, 3 for coefficients of radial distortion (r3,

r5, r7), 2 for decentric parameters, 2 for affine

parameters, in this calibration model the PPA

(Principal Point of Autocollimation) and PPS

(Principal Point of Simmetry) are considered not

equal. The next step was the image-point

measurements. This part was performed in two

steps using an approach similar to the one used

in Context Capture: first of all, using three GCPs

in three different images a rigid registration was

performed (using SaisieAppuisInit for image

measurements and GCPBascule for the rigid

registration). Starting from this first results an

accurate measurement of the other points has

been achieved (SaisieAppuisPredict), the

average number of measurements per marker

was 18 with a minimum of 12 for CV10 and a

maximum of 30 for CV17.

 Finally, for performing the BBA the weighting

factor for the two components was fixed at 1 cm

(is not possible in MicMac adopt different weight

for the horizontal and vertical components). For

image-coordinates of manually-measured

markers the accuracy was set at ½ of the pixel

size. During the BBA in MicMac as interior

Accuracy Assessment of a Photogrammetric UAV Block by using Different Software and Adopting Diverse Processing Strategies

calibration parameters the ones derived from the

first orientation process were used.

4 BUNDLE BLOCK

ADJUSTMENT RESULTS

The quality of aerial triangulation was mainly

evaluated by assessing the differences between the

photogrammetrically-measured and the ground-

surveyed object-coordinates of GCPs and CPs.

Outlier rejection was preliminary performed, based

on robust statistics, by means of an in-house Matlab

tool developed at the University of Pavia. For each

component, X, Y and Z, the average value 𝑚 of the

residual was determined by means of the median

operator. The standard deviation 𝜎 was also

estimated, by multiplying the MAD (Mean Absolute

Deviation) of the residuals by the factor 1.4826

(Hampel, 1974). The confidence interval was

determined, having the form [𝑚 − 𝑛 ∙ 𝜎, 𝑚 + 𝑛 ∙ 𝜎],

where the 𝑛 coefficient was set at 2.5758,

corresponding to the 99% probability under the

normality condition. It must be said that all the

measurements considered resulted to be inliers.

Table 2: Main statistical figures for GCP/CP residuals for Configuration 1.

Config 1: GCP 18

GCP

X [m]

Y [m]

Z [m]

X [m]

Y [m]

Z [m]

Photoscan

mean

0.000

std

0.003

0.009

rmse

0.003

0.009

UAS Master

mean

0.000

std

0.003

0.002

0.008

rmse

0.003

0.002

0.008

Pix4D

mean

0.000

-0.001

std

0.004

0.005

0.010

rmse

0.004

0.005

0.010

Context Capture

mean

0.000

std

0.004

0.009

rmse

0.004

0.009

MicMac

mean

0.000

std

0.002

rmse

0.002

Table 3: Main statistical figures for GCP/CP residuals for Configuration 2.

Config 2: GCP 11/CP 7

GCP

X [m]

Y [m]

Z [m]

X [m]

Y [m]

Z [m]

Photoscan

mean

0.000

-0.001

std

0.003

0.009

0.004

0.005

0.013

rmse

0.003

0.009

0.004

0.005

0.013

UAS Master

mean

0.000

0.002

-0.001

0.010

std

0.003

0.008

0.007

0.004

0.017

rmse

0.003

0.008

0.007

0.004

0.020

Pix4D

mean

0.000

-0.001

0.002

0.003

std

0.004

0.005

0.008

0.005

0.007

0.015

rmse

0.004

0.005

0.008

0.005

0.007

0.015

Context Capture

mean

0.001

-0.001

0.000

0.001

-0.002

-0.003

std

0.005

0.004

0.009

0.007

0.012

rmse

0.005

0.004

0.009

0.007

0.012

MicMac

mean

0.000

0.002

-0.004

0.005

0.047

std

0.005

0.006

0.010

0.007

0.011

0.083

rmse

0.005

0.006

0.011

0.008

0.012

0.096

GISTAM 2019 - 5th International Conference on Geographical Information Systems Theory, Applications and Management

Table 4: Main statistical figures for GCP/CP residuals for Configuration 3.

Config 3: GCP 6/CP 12

GCP

X [m]

Y [m]

Z [m]

X [m]

Y [m]

Z [m]

Photoscan

mean

0.000

-0.001

-0.005

-0.007

std

0.001

0.004

0.006

0.004

0.016

rmse

0.001

0.004

0.006

0.004

0.006

0.017

UAS Master

mean

0.000

-0.001

0.002

0.001

0.00

0.007

std

0.007

0.005

0.015

0.005

0.004

0.023

rmse

0.007

0.005

0.015

0.005

0.004

0.024

Pix4D

mean

0.000

0.001

-0.001

0.001

0.002

std

0.004

0.008

0.005

0.014

rmse

0.004

0.008

0.005

0.014

Context Capture

mean

-0.003

0.002

0.011

-0.007

0.000

0.020

std

0.007

0.005

0.027

0.009

0.007

0.037

rmse

0.008

0.005

0.029

0.011

0.007

0.042

MicMac

mean

0.000

-0.001

0.002

0.000

0.003

0.056

std

0.003

0.005

0.012

0.015

0.017

0.090

rmse

0.003

0.005

0.012

0.015

0.017

0.106

Table 5: Main statistical figures for GCP/CP residuals for Photoscan.

Photoscan

GCP

X [m]

Y [m]

Z [m]

X [m]

Y [m]

Z [m]

Config 1

[GCP:18/18]

mean

0.000

std

0.003

0.009

rmse

0.003

0.009

Config 2

[GCP:11/11;

CP:7/7]

mean

0.000

-0.001

std

0.003

0.009

0.004

0.005

0.013

rmse

0.003

0.009

0.004

0.005

0.013

Config 3

[GCP:6/6;

CP:12/12]

mean

0.000

-0.001

-0.005

-0.007

std

0.001

0.004

0.006

0.004

0.016

rmse

0.001

0.004

0.006

0.004

0.006

0.017

Table 6: Main statistical figures for GCP/CP residuals for UAS Master.

UAS Master

GCP

X [m]

Y [m]

Z [m]

X [m]

Y [m]

Z [m]

Config 1

[GCP:18/18]

mean

0.000

std

0.003

0.002

0.008

rmse

0.003

0.002

0.008

Config 2

[GCP:11/11;

CP:7/7]

mean

0.000

0.002

-0.001

0.010

std

0.003

0.008

0.007

0.004

0.017

rmse

0.003

0.008

0.007

0.004

0.020

Config 3

[GCP:6/6;

CP:12/12]

mean

0.000

-0.001

0.002

0.001

0.00

0.007

std

0.007

0.005

0.015

0.005

0.004

0.023

rmse

0.007

0.005

0.015

0.005

0.004

0.024

Table 7: Main statistical figures for GCP/CP residuals for Pix4D.

Pix4D

GCP

X [m]

Y [m]

Z [m]

X [m]

Y [m]

Z [m]

Config 1

[GCP:18/18]

mean

0.000

-0.001

std

0.004

0.005

0.010

rmse

0.004

0.005

0.010

Config 2

[GCP:11/11;

CP:7/7]

mean

0.000

-0.001

0.002

0.003

std

0.004

0.005

0.008

0.005

0.007

0.015

rmse

0.004

0.005

0.008

0.005

0.007

0.015

Config 3

[GCP:6/6;

CP:12/12]

mean

0.000

0.001

-0.001

0.001

0.002

std

0.004

0.008

0.005

0.014

rmse

0.004

0.008

0.005

0.014

Accuracy Assessment of a Photogrammetric UAV Block by using Different Software and Adopting Diverse Processing Strategies

Table 8: Main statistical figures for GCP/CP residuals for Context Capture.

zContext Capture

GCP

X [m]

Y [m]

Z [m]

X [m]

Y [m]

Z [m]

Config 1

[GCP:18/18]

mean

0.000

std

0.004

0.009

rmse

0.004

0.009

Config 2

[GCP:11/11;

CP:7/7]

mean

0.001

-0.001

0.000

0.001

-0.002

-0.003

std

0.005

0.004

0.009

0.007

0.012

rmse

0.005

0.004

0.009

0.007

0.012

Config 3

[GCP:6/6;

CP:12/12]

mean

-0.003

0.002

0.011

-0.007

0.000

0.020

std

0.007

0.005

0.027

0.009

0.007

0.037

rmse

0.008

0.005

0.029

0.011

0.007

0.042

Table 9: Main statistical figures for GCP/CP residuals for MicMac.

MicMac

GCP

X [m]

Y [m]

Z [m]

X [m]

Y [m]

Z [m]

Config 1

[GCP:18/18]

mean

0.000

std

0.002

rmse

0.002

Config 2

[GCP:11/11;

CP:7/7]

mean

0.000

0.002

-0.004

0.005

0.047

std

0.005

0.006

0.010

0.007

0.011

0.083

rmse

0.005

0.006

0.011

0.008

0.012

0.096

Config 3

[GCP:6/6;

CP:12/12]

mean

0.000

-0.001

0.002

0.000

0.003

0.056

std

0.003

0.005

0.012

0.015

0.017

0.090

rmse

0.003

0.005

0.012

0.015

0.017

0.106

Results are shown here, grouped in two different

ways, to favourite analysis and comparisons. Tables

2-4 group results per configuration. Table 2 shows,

for instance, results concerning GCPs and CPs for all

the programs considered and only for Configuration

1. We show the name of the program used, the mean,

standard deviation and RMSE of the difference

between the photogrammetrically-obtained object-

coordinates of markers and those determined by

surveying; the analysis is performed for all the X, Y

and Z components of GCPs and CPs, if any

Tables 5-9 illustrate the behaviour of the same

program through the configurations depicted. Table 5

shows, for instance, results concerning Photoscan for

all the three scenarios. We report the name of the

configuration with the number of the GCPs and CPs

used, the mean, standard deviation and RMSE values

as explained above.

Figure 8 graphically summarizes results for the

three configurations and five programs, in terms of

RMSE. For readability reason, the axis of ordinates

of the second and third graph is limited to 4.5 cm,

while altimetric results for MicMac are larger, around

10 cm.

The figures shown suggest several remarks, some

straightforward and others surprising.

 Horizontal components always perform better

than Z. The only exception is constituted by Mic-

Mac in Configuration 1, where all coordinates

show the same accuracy.

 It is well known that BBA estimates the orienta-

tion parameters in order to reach the best fitting

between the photogrammetric and topographic

coordinates of GCPs. A widely accepted rule

states that accuracy figures for GCPs underesti-

mate the actual ones. Therefore, it is useful and

recommended to use independent check points in

order to perform a reliable accuracy assessment.

Our results confirm the mentioned general rule,

but discrepancies between GCPs and CPs (for

Configuration 2 and 3, only) are less evident than

expected, especially for the planimetric compo-

nents. This probably means that the statistics on

GCPs can be considered a good quality estima-

tor, at least for X and Y coordinates.

 The decreasing number of GCPs influences re-

sults, as expected. The different programs con-

sidered behave in a different way, according to

this aspect. Photoscan, UAS Master and Pix4D

always show good results while Context Capture

has significant quality degradation in the altimet-

ric component when passing from 11 to 6 GCPs

(Table 8). Furthermore, the program shows

anomalous values for Z in Configuration 3. Mic-

GISTAM 2019 - 5th International Conference on Geographical Information Systems Theory, Applications and Management

Mac presents good results for X and Y compo-

nents but large residuals for Z, probably this

aspect is connected to the calibration model used

in MicMac. A strategy more similar to the one

performed by the other used programs, like the

FraserBasic model with PPA=PPS, should be

reconsider as a best option where a little number

of GCPs are used for the BBA.

 The GSD for the considered imagery is around

1.8 cm and is represented with a red dashed line

in the figures. RMSE values are almost always

below the GSD value, thus highlighting that re-

sults are good in general. In Configuration 1,

RMSE figures are all below the GSD threshold,

for all the components and the programs adopted.

Configuration 2 shows similar results also for al-

timetric component with an exception for Mic-

Mac software. In Configuration 3, all RMSE fig-

ures are within the GSD threshold apart from the

Z component for ContextCapture (for both GCPs

and CPs) and the Z of CPs for MicMac.

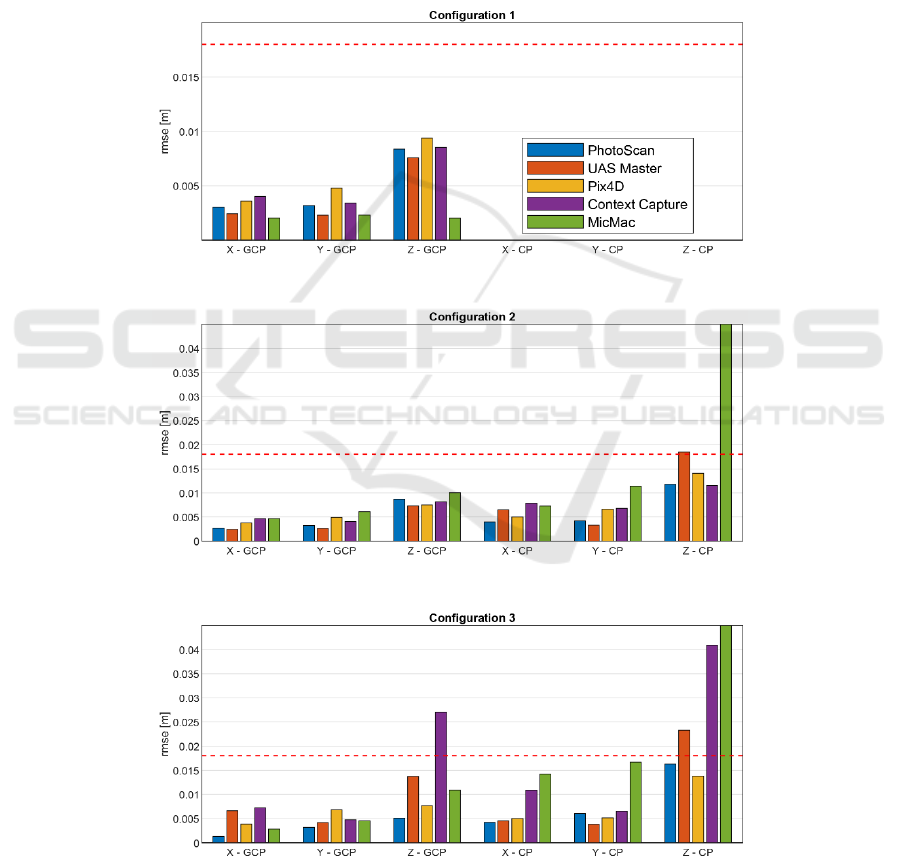

Figure 8: A summary of the obtained results. Histograms show the RMSE for the three-considered configurations; bars are

coloured according to the software and the red dashed line represents the GSD value. The y-axis of Configuration 2 and 3 is

limited to 4.5 cm for readability reason while the altimetric results on CPs for MicMac are larger.

Accuracy Assessment of a Photogrammetric UAV Block by using Different Software and Adopting Diverse Processing Strategies

5 CONCLUSIONS AND FURTHER

ACTIVITIES

A significant part of a sandpit was surveyed by a

UAV equipped with a Sony A6000 camera. A set of

ground points were measured and used either for

block orientation or quality assessment.

Five software were compared: Photoscan, UAS

Master, Pix4D, Context Capture and MicMac. They

were used to perform BBA in three configurations

characterized by a different ratio between GCPs and

CPs. In Configuration 1, markers were all used as

GCPs to perform robust camera calibration; Configu-

ration 2 deals with an intermediate setup with strong

ground control and some check points; Configuration

3 is the more realistic one and simulates a routine sur-

veying.

For each program, BBA strategy was carefully

studied and final settings, described in Section 3,

were tuned to optimize results. Residuals between the

photogrammetrically-obtained object-coordinates of

markers and those determined by surveying were

formed and analysed.

Results for Photoscan, Pix4D and UAS Master

are good, less than 1 GSD for the planimetric compo-

nents and less than 1.5 GSD, at worst, for the altimet-

ric one. Context Capture shows similar results for X

and Y while the Z coordinate presents larger residuals

especially for Configuration 3. Finally, MicMac

shows anomalous residuals in the altimetric compo-

nent for both Configuration 2 and 3; such values will

be further investigated, using different calibration

strategies to better evaluate the results in more similar

conditions.

The decreasing number of GCPs influences re-

sults, as expected. Photoscan, UAS Master and Pix4D

always show good results while Context Capture and

MicMac present good results for X and Y compo-

nents but large residuals for Z.

Further activities will follow two directions. On

one hand, the other flights described in Table 1 will

be processed with attention on oblique blocks to in-

vestigate their influence on final accuracy. On the

other, final products, such as dense point clouds, will

be assessed to explore the influence of BBA parame-

ters in their generation. Several check points (more

than 250) were already measured with a topographic

total station on the upper flat area and on the scarp of

the sandpit. An accurate comparison between the

achieved point clouds and these points will be per-

formed. Finally, an evaluation of point density will be

realized comparing the clouds obtained in flat or

scarp areas.

ACKNOWLEDGEMENT

The VAGA Srl company, being the owner of the sur-

veyed sandpit, is here acknowledged for hosting the

test. We are pleased to mention Eng. Emanuele Della

Pasqua, Dr. Enrico Parmini, Dr. Maurizio Visconti,

Surveyor Andrea Montemartini.

We are also pleased to thank two technicians of

the Laboratory of Geomatics, Paolo Marchese and

Giuseppe Girone for strongly supporting some phases

of the described test: the manufacturing, placing and

surveying of the markers, UAV management and data

acquisition.

The authors' contribution was equal in the defini-

tion and drafting of the article. The processing was

conducted in a coordinated but independent way by

the two universities involved, as illustrated in Section

REFERENCES

Benassi, F., Dall’Asta, E., Diotri, F., Forlani, G., Morra di

Cella, U., Roncella, R., Santise, M., 2017. Testing

accuracy and repeatability of UAV blocks oriented with

GNSS-supported aerial triangulation. In Remote

Sensing, 9(2), 172.

Casella, V., Franzini, M., 2016. Modelling steep surfaces

by various configurations of nadir and oblique

photogrammetry. In ISPRS Annals of Photogrammetry,

Remote Sensing and Spatial Information Sciences, 3(1).

Fraser, C., 1997. Digital camera self-calibration. In ISPRS

Journal of Photogrammetry and Remote Sensing, vol.

52, issue 4, pp. 149-159

Gini, R., Pagliari, D., Passoni, D., Pinto, L., Sona, G.,

Dosso, P., 2013. UAV photogrammetry: Block

triangulation comparisons. In Int. Arch. Photogram.

Remote Sens. Spat. Inf. Sci, 1, W2.

Hampel, F.R., 1974. The influence curve and its role in

robust estimation. In Journal of the American statistical

association, 69(346), 383-393.

James, M. R., Robson, S., d'Oleire-Oltmanns, S.,

Niethammer, U., 2017. Optimising UAV topographic

surveys processed with structure-from-motion: Ground

control quality, quantity and bundle adjustment. In

Geomorphology, 280, 51-66.

Lucieer, A., Jong, S.M.D., Turner, D., 2014. Mapping

landslide displacements using Structure from Motion

(SfM) and image correlation of multi-temporal UAV

photography. In Progress in Physical Geography,

38(1), 97-116.

Nex, F., Remondino, F., 2014. UAV for 3D mapping

applications: a review. In Applied geomatics, 6(1), 1-

15.

Nocerino, E., Menna, F., Remondino, F., Saleri, R., 2013.

Accuracy and block deformation analysis in automatic

UAV and terrestrial photogrammetry-Lesson learnt. In

GISTAM 2019 - 5th International Conference on Geographical Information Systems Theory, Applications and Management

ISPRS Annals of the Photogrammetry, Remote Sensing

and Spatial Information Sciences, 2(5/W1), 203-208.

Pierrot-Deseilligny, M., Clery, I., 2011. APERO, an Open

Source Bundle Adjusment Software for Automatic

Calibration and Orientation of a Set of Images. In

ISPRS Archives, International Workshop 3D-ARCH,

on CD-ROM, Trento, Italy

Rangel, J. M. G., Gonçalves, G. R., Pérez, J. A., 2018. The

impact of number and spatial distribution of GCPs on

the positional accuracy of geospatial products derived

from low-cost UASs. In International journal of remote

sensing, 39(21), 7154-7171.

Remondino, F., Barazzetti, L., Nex, F., Scaioni, M.,

Sarazzi, D., 2011. UAV photogrammetry for mapping

and 3d modeling–current status and future perspectives.

In International Archives of the Photogrammetry,

Remote Sensing and Spatial Information Sciences,

38(1), C22.

Rupnik, E., Daakir, M., Deseilligny, M. P., 2017. MicMac–

a free, open-source solution for photogrammetry. In

Open Geospatial Data, Software and Standards, 2(1),

14.

Samad, A.M., Kamarulzaman, N., Hamdani, M.A., Mastor,

T. A., Hashim, K.A., 2013. The potential of Unmanned

Aerial Vehicle (UAV) for civilian and mapping

application. In System Engineering and Technology

(ICSET), 2013 IEEE 3rd International Conference on,

313-318.

Tahar, K. N., 2013. An evaluation on different number of

ground control points in unmanned aerial vehicle

photogrammetric block. In Int. Arch. Photogramm.

Remote Sens. Spat. Inf. Sci, 40, 93-98.

Verykokou, S., Ioannidis, C., Athanasiou, G., Doulamis,

N., Amditis, A., 2018. 3D reconstruction of disaster

scenes for urban search and rescue. Multimedia Tools

and Applications, 77(8), 9691-9717.

Zongjian, L.I.N., 2008. UAV for mapping-low altitude

photogrammetric survey. In International Archives of

Photogrammetry and Remote Sensing, Beijing, China,

37, 1183-1186.

Accuracy Assessment of a Photogrammetric UAV Block by using Different Software and Adopting Diverse Processing Strategies
