A Model-based Framework to Automatically Generate Semi-real Data

for Evaluating Data Analysis Techniques

Guangming Li

1,3

, Renata Medeiros de Carvalho

and Wil M. P. van der Aalst

2,1

Eindhoven University of Technology, P.O. Box 513, 5600 MB, Eindhoven, The Netherlands

RWTH Aachen University, 1 Thørv

ald Aachen, Germany

Science and Technology Laboratory on Information Systems Engineering, National University of Defense Technology,

410073 Changsha, China

Keywords:

Automatic Data Generation, Business Process Model, Process Mining, ERP.

Abstract:

As data analysis techniques progress, the focus shifts from simple tabular data to more complex data at the level

of business objects. Therefore, the evaluation of such data analysis techniques is far from trivial. However,

due to conﬁdentiality, most researchers are facing problems collecting available real data to evaluate their

techniques. One alternative approach is to use synthetic data instead of real data, which leads to unconvincing

results. In this paper, we propose a framework to automatically operate information systems (supporting

operational processes) to generate semi-real data (i.e., “operations related data” exclusive of images, sound,

video, etc.). This data have the same structure as the real data and are more realistic than traditional simulated

data. A plugin is implemented to realize the framework for automatic data generation.

1 INTRODUCTION

Most enterprises are employing information systems,

such as enterprise resource planning (ERP), e.g.,

SAP, customer relationship management (CRM), e.g.,

salesforce, to handle their business transactions. The

amount of data being stored about the transactions is

rapidly growing. In order to discover insights from

the data, various data analysis techniques (such as

data mining and process mining) have been proposed.

Accordingly, the evaluation of these techniques be-

comes a signiﬁcant task.

Data exist everywhere but it does not mean that

we can get appropriate data easily for the evaluation

of data analysis techniques. Most of the time, data of

enterprises are conﬁdential due to data privacy regula-

tion, e.g., the EU General Data Protection Regulation

(“GDPR”). The owners cannot provide the data or

can only provide incomplete data (after deleting sen-

sitive information to preserve privacy). Besides, orig-

inal raw data from information systems usually con-

tain a lot of irrelevant data elements such that data

pre-processing is time-consuming.

For this reason, most researchers use synthetic

data to evaluate data analysis techniques. However,

synthetic data are often generated by simulation (ac-

cording to the rules deﬁned by users) rather than be-

ing derived from operating any real information sys-

tem (Gray et al., 1994; Hoag and Thompson, 2009).

As a result, the evaluation based on such data is not

convincing since synthetic data may be quite different

from the data generated by real information systems.

In order to solve these problems, this paper pro-

poses a framework to generate “semi-real” data,

which is easier to collect than real-life data and is

more “realistic” than synthetic data. The basic idea

is to (i) derive a log of click events by simulating a

designed model and (ii) transform click events into

real operations on information systems which support

operational process, e.g., BPM, ERP, etc. Note that,

the generated data are “operations related data” con-

sisting of the business process transactions, which do

not include images, sound, video, etc.

Figure 1 presents the framework of our approach

and the context of evaluating data analysis techniques

(Mans et al., 2010). First, a model is designed in

CPN Tools (cf. Section 2) to indicate how an infor-

mation system should be operated, which implicitly

decides the proﬁle of generated data.

By simulating

the model, a simulation log consisting of click events

is generated. The click events control the information

system execution by transforming each click event

http://www.cpntools.org.

Li, G., Medeiros de Carvalho, R. and van der Aalst, W.

A Model-based Framework to Automatically Generate Semi-real Data for Evaluating Data Analysis Techniques.

DOI: 10.5220/0007713702130220

In Proceedings of the 21st International Conference on Enterprise Information Systems (ICEIS 2019), pages 213-220

ISBN: 978-989-758-372-8

213

Data

generate

control

Designed model

Information system

Data Generation Framework

input

Data Analysis

Techniques

simulate

Simulation log

Process mining

compare

pay

create

invoice

create

order

deliver

order

line

order

customer

element

relation

payment

line

shipment

invoice

Insights

derive

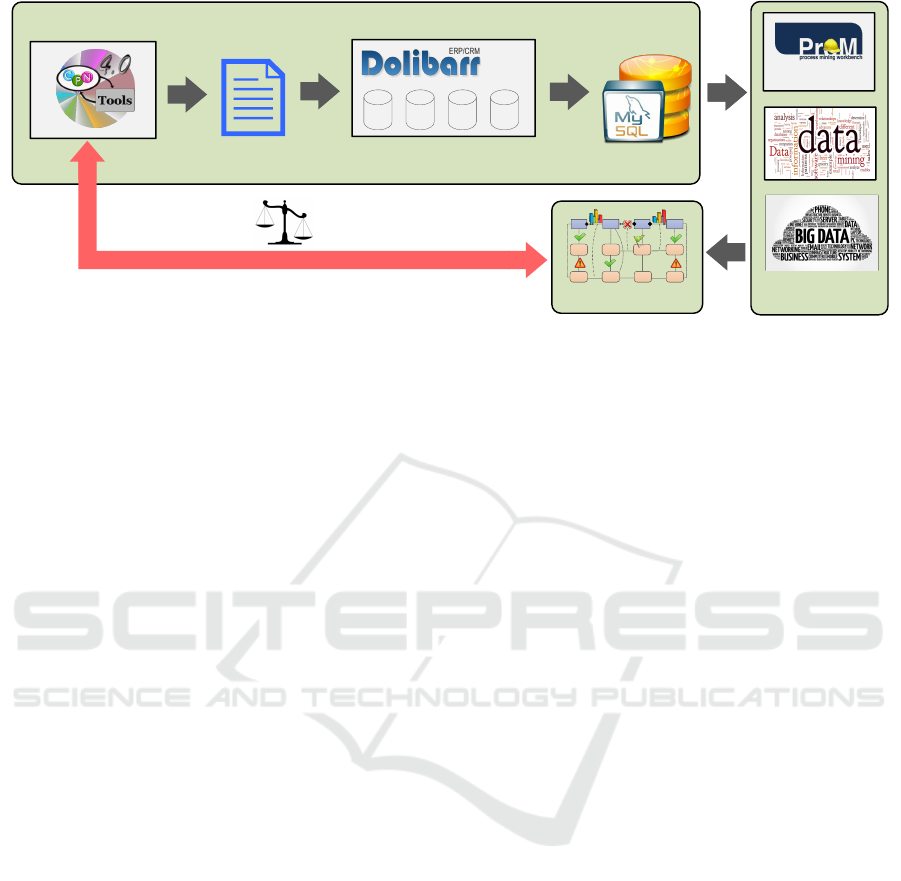

Figure 1: The framework for automatically generating data in the context of evaluation of data analysis techniques.

into a real click on the interfaces of the information

system. In this way, the designed model is automat-

ically executed in the information system, which re-

sults in a large set of data in the corresponding data

repository, e.g., databases. Considering a Data Sci-

ence context, various techniques can be employed to

derive insights using the generated data as input (Li

et al., 2018b; van der Aalst et al., 2017). By compar-

ing the derived insights with the knowledge from the

designed model, the techniques can be evaluated.

Our approach has the following contributions

compared with existing approaches: (i) Simulation

logs rather than humans are used to control the ex-

ecution of information systems. As a result arbitrary

amounts of data can be generated. This is not possible

when the system is operated manually. (ii) Data are

generated by real information systems and they can

capture the complex structures of the real systems as

the real-life data. Using existing approaches, it is im-

possible to recreate such rich data without coding the

information systems in the simulation model, since

the data inside such systems are collections of inter-

related tables rather than simple tabular data.

The remainder is organized as follows. Section 2

brieﬂy introduces how to design and simulate a model

in CPN Tools. Using the simulation log derived by

simulating the model, Section 3 illustrates how to au-

tomatically operate information systems and gener-

ate semi-real data. The framework is implemented

as a ProM plugin, which is introduced through a case

study in Section 4. Section 5 discusses the related

work and Section 6 concludes the paper.

2 MODEL SIMULATION

As shown in Figure 1, in order to automatically oper-

ate the information systems in a customized manner,

one ﬁrst needs to design a model and derive a simula-

tion log by simulating the model. In this section, we

explain how to accomplish these two tasks using the

CPN Tools.

2.1 CPN Tools

Petri nets are probably among the best studied process

modeling languages and allow for describing systems

involving communication, concurrency, synchroniza-

tion and resource sharing (Murata, 1989). They are

more expressive than other modeling languages such

as FSMs, and have been successfully used for speci-

ﬁcation of workﬂow processes (van der Aalst, 1998).

A Petri net is a directed bipartite graph which uses

a very simple notation of circles representing places

and squares representing transitions with arrows con-

necting them. Although the graphical notation is in-

tuitive and simple, Petri nets are executable and many

analysis techniques can be used to analyze them.

Colored Petri nets (CPNs or CP-nets) extend Petri

nets with data. Tokens may have data values, often re-

ferred to as “color”, which describes the properties of

the object modeled by a token (Jensen, 2013; Jensen

and Kristensen, 2009; Zervos, 1977). Besides, each

token has a timestamp, which indicates the earliest

time at which the token may be consumed. Transi-

tions can assign a delay to produced tokens, and wait-

ing and service times can be modeled in this way. Due

to the extension, CPNs can deal with data-related and

time-related aspects.

CPN Tools is a toolset providing support for edit-

ing, simulating, and analyzing CPNs. It basically

comprises two main components, a graphical editor

and a backend simulator component. Next, we illus-

trate how to edit and simulate a CPN using these two

components, respectively.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

214

2.2 Designing Models

In this section, we describe how to design the model

in terms of a CPN using CPN Tools. The model spec-

iﬁes the scenario in which the information system is

operated and decides what kinds of data are gener-

ated. For instance, if one wants to generate data in-

cluding transactions such as “create order”, “create

invoice” and “create payment”, a model to specify an

Order-to-Cash (OTC) scenario can be designed.

Figure 2 presents a CPN to describe the OTC sce-

nario of an open source ERP system Dolibarr.

CPN can have a hierarchal multiple-level structure

(i.e., transitions depicted by doubled squares). For in-

stance, Figure 2 shows the business process on the top

level and Figure 3 shows a sub-process for the “create

order” transition in Figure 2. In order to control the

CPN in Figure 2, we ﬁrst assign an initial token with

an attribute id = 1 to the “start” place. This token

enables the “generator” transition to generate sched-

uled orders if its condition is satisﬁed, i.e., id < 50.

In other words, this condition can be used to control

the number of scheduled orders. Besides, we assign

proper time delay between each two scheduled orders.

The function delay attached to the “generator” transi-

tion controls the frequency of scheduled orders. For

instance, delay(week/100.0) means that 100 orders

are scheduled in one week.

create

order

create order

scheduled

order

generator

start

@ ++ delay(week/100.0)

[id<50]

validate

order

validate order

create

shipment

create shipment

created

order

add

order line

add order line

validated

order

preprocess

order

order for

shipment

created

shipment

validate

shipment

validate shipment

create

invoice

create invoice

order for

invoice

created

invoice

create

payment

create payment

id+1

validated

shipment

created

payment

indicating

frequency

indicating

numbers

initial

token id=1

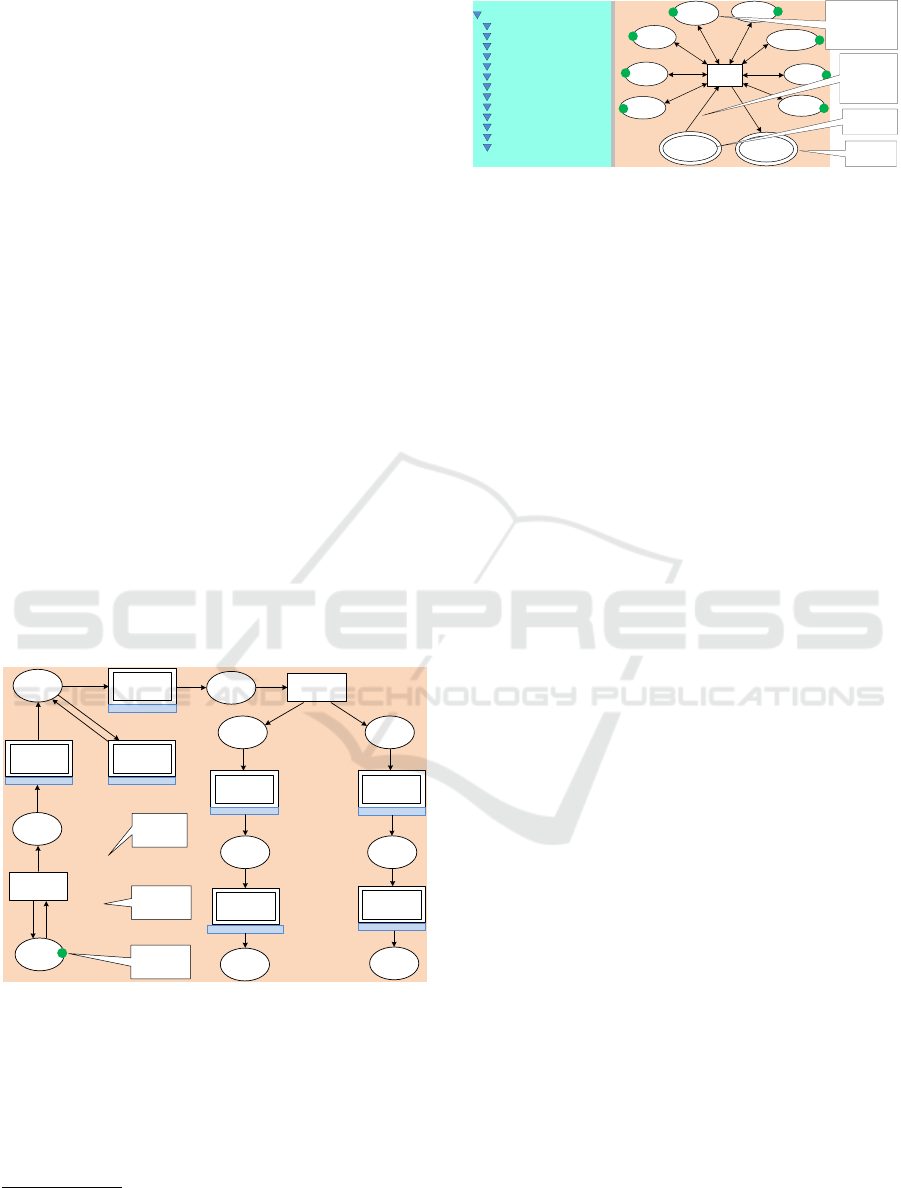

Figure 2: A CPN describing the OTC scenario.

In a CPN, each token has a corresponding class,

which indicates the colors (i.e., attributes) added on

the token. Therefore, some classes are created for the

involved entities in the business process, such as “or-

der”, “invoice”, etc. Note that, the attributes of each

class conform to the attributes of its corresponding

Dolibarr ERP/CRM is an open source (webpage-

based) software package for small and medium companies

(www.dolibarr.org).

Order class

colset RefC = string

colset Customer = string

colset CreationDate = REAL

colset DeliveryDate = REAL

colset PayTerms = string

colset PayType = string

colset DelayType = string

colset ShipMethod = string

colset Source = string

colset Incoterms = string

colset Model = string

colset PublicNote = string

colset PrivateNote = string

create

order

scheduled

order

delay

type

created

order

pay

type

ship

method

source

model

incoterms

output an

order

two predefined

values: “Catch

by customer”,

“Transporter”

pay

terms

note

input

information

input (order);output ();

action(record(order));

action is

executed as

transition is

triggered

Figure 3: The order class and its attributes in the sub-

process for the “create order” transition in Figure 2.

entity in the interface. Consider for example the in-

terface for creating an order in Figure 5. An order has

attributes such as “Ref.customer”, “Customer”, etc.

Accordingly, we build an “order” class with the same

attributes as shown in Figure 3.

In order to make the generated data as realistic

as possible, we predeﬁned possible values for some

attributes. For instance, the “ship method” attribute

has two predeﬁned values: “Catch by customer” and

“Transporter” (referring to the values in Dolibarr).

During the simulation, one value is randomly selected

as the attribute value. Differently, the time attributes

(e.g., “CreationDate”) derive their values based on the

timestamps of tokens. For instance, when the “create

order” transition is triggered, the current timestamp is

assigned to the “CreationDate” attribute.

2.3 Simulating Models

In order to generate data on a large scale, we need a

“robot” to automatically operate the information sys-

tem (e.g., ﬁll in attributes and click buttons) like a hu-

man. Our approach (as shown in Figure 1) supports to

control the operation of the “robot” in a customized

manner. More precisely, by simulating the designed

CPN in Section 2.2, a simulation log consisting of a

list of click events (with attributes) is derived, which

tells the robot how to operate the system.

The simulation process is reﬂected by the ﬂow of

tokens through a CPN, governed by the ﬁring rules il-

lustrated next. A transition can represent a task and

when triggered it consumes one token from each of

its input places and produces a token in each of its

output places. In this way, tokens are moved between

places to trigger transitions. Note that, each transition

may have a corresponding function. When the tran-

sition is triggered, the function is executed which can

output some information in a simulation log. Con-

sider for example the “create order” transition in Fig-

ure 3. When it is triggered, the “record” function is

executed, which writes a click event in the simulation

log, as shown in Figure 4.

Based on the rules explained above, the simula-

tion process is described next. The initial token en-

A Model-based Framework to Automatically Generate Semi-real Data for Evaluating Data Analysis Techniques

215

<log>

<event>

<activity>create order</activity>

<refCustomer>customer 1</refCustomer>

<customer>Sander</customer>

<payType>Check</payType>

<availabilityDelay>3 weeks</availabilityDelay>

<shipMethod>Transporter</shipMethod>

<source>Sponsorship</source>

<model>einstein</model>

<publicN>customer order</publicN>

<privateN>VIP membership</privateN>

</event>

...

</log>

Figure 4: A segment of a simulation log.

ables the “generator” transition. When it is triggered,

it produces a scheduled order. Then an order is cre-

ated by the “create order” transition, and one or more

order lines are added into the order by the “add or-

der line” transition. After validating the order by

the “validate order” transition, the “create shipment”

transition packs the orders and “create invoice” tran-

sition creates invoices for the orders in parallel. Note

that, there exists a one-to-many relation between or-

ders and shipments (Dolibarr does not support creat-

ing a shipment for multiple orders), and a many-to-

many relation between orders and invoices. At last,

the shipments are validated and invoices are paid. By

repeating the above process, a simulation log is de-

rived as shown in Figure 4.

3 AUTOMATIC DATA

GENERATION

In general, it is impossible or at least time-consuming

to create a large enough data by manually clicking

buttons in information systems. Therefore, Section 2

presented a method to derive a simulation log (by de-

signing and simulating a CPN) for controlling auto-

matic execution of information systems. In this sec-

tion, we illustrate how to transform click events from

the simulation log into real clicks in information sys-

tems to generate data. Note that, we call this kind of

data “semi-real” because it has the same structure as

real data generated by the same information system,

but with different attribute values.

3.1 Identifying Interface Elements in

Information Systems

A large variety of information systems one encoun-

ters in companies nowadays are webpage-based (or

browser-based) systems. A webpage-based applica-

tion is any program that runs inside a web browser.

web browser can have a graphical user interface, like

Internet Explorer / Microsoft Edge, Mozilla Firefox,

Google Chrome, Safari. The webpage usually is writ-

ten in HTML or a comparable markup language. Web

browsers coordinate various web resource elements,

such as style sheets and images, to present webpages.

Dolibarr is a webpage-based information system

and Figure 5 shows its interface for creating orders.

As one can see on the menu bar, Dolibarr has mod-

uels such as “Products”, “Commercial” and “Finan-

cial” to support functionalities such as sales, ﬁnance

& billing, product & stock, etc. The “Create Order”

interface has different interface elements, such as la-

bels, input ﬁelds, drop-down menu and buttons. One

can manually ﬁll in the required attributes and create

an order by clicking the “Create draft” button. How-

ever, it is impossible to generate large-scale data in a

short time by manually interacting with the system.

A method to solve this problem is to ﬁll in attributes

and click buttons automatically by searching interface

elements, as explained as follows.

Each element on webpages has some properties

(on the source code perspective) such as “name”,

“type” and “value”, which can be used to identify

the element.

Consider for example the input ﬁeld

highlighted in the red square in Figure 5. The bot-

tom panel, in the blue square, presents the source

code of the input ﬁeld. More precisely, it has three

attributes “name”, “type” and “value”, whose values

are “ref client”, “text” and “”, respectively. These at-

tribute names and values can be used to identify inter-

face elements through some functions. For instance,

the PHP language is widely used to encode webpage

interfaces and it provides functions such as “getEle-

mentsByTagName” to return an element by inputting

the tag name.

Our plugin (cf. Section 4.1) employs the above

functions to identify elements based on tag names

conﬁgured by users. If information systems are not

webpage-based, robotic process automation (RPA)

techniques (van der Aalst et al., 2018) can be em-

ployed to identify interface elements. For instance,

the company “UiPath” develops a platform “UiPath

Robot” to automatically execute business processes

http://www.businessdictionary.com/deﬁnition/browser-

based-applications.html.

https://www.w3schools.com/html/html elements.asp.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

216

webpage-based

information

system

different modules

of the ERP system

Dolibarr

an interface

element of an

input field

the interface of

creating orders

each click in a

simulation log

corresponds to a

button

source code panel

of the interface

each interface

element having

attributes such as

name, type

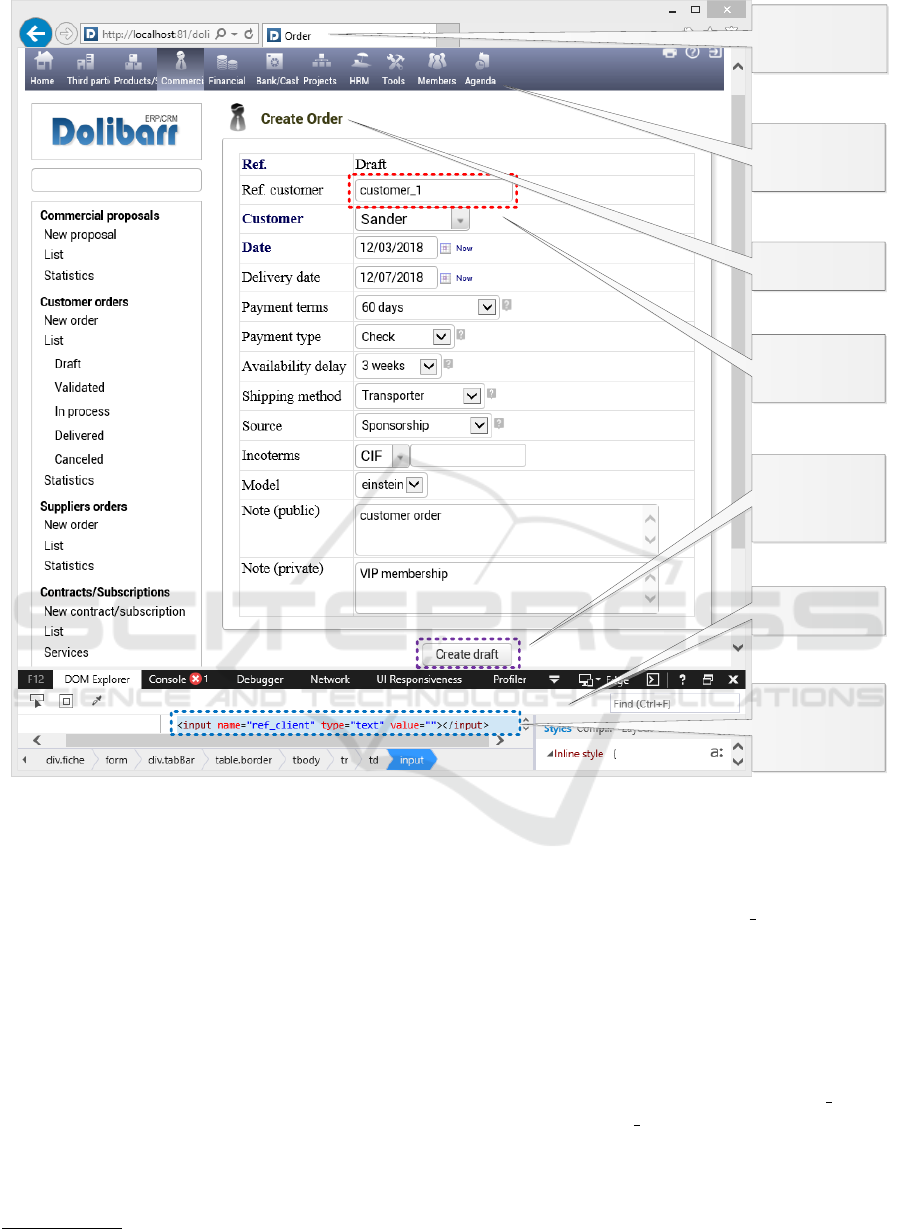

Figure 5: The interface for creating a customer order in Dolibarr.

on common information systems (including non-

webpage-based systems).

These techniques can be

referred to apply our approach to more general infor-

mation systems.

3.2 Replaying Simulation Logs onto

Interfaces

Section 3.1 proposed a method to identify the inter-

face elements based on the source code and functions.

It builds a mapping between click events (and their at-

tributes) in the simulation log and buttons (and their

attributes) on the interfaces. In this part, we illus-

trate how to replay a simulation log onto the interfaces

of information systems, i.e., ﬁlling in attribute values

and triggering buttons.

https://www.uipath.com.

Consider for example the click event in Figure 4

and the interface in Figure 5 to understand the replay-

ing process. The click event has a special attribute

“activity” with a value of “create order”, which in-

dicates that this event is replayed onto the “Create

Order” interface. After entering the corresponding

interface, the attribute values of the click event are

ﬁlled into the corresponding interface elements. This

can be automatically done by the implemented plu-

gin (cf. Section 4.1) because PHP provides a function

setAttribute to ﬁll a value into an interface element,

e.g., RefC.setAttribute(“Value”, “customer 1”) ﬁlls

the value “customer 1” into the input ﬁeld “RefC” in

the red square in Figure 5.

Based on the method introduced above, all the at-

tribute values of the event click are ﬁlled into corre-

sponding interface elements, resulting in the ﬁlled in-

terface in Figure 5. Then the “Create draft” button

A Model-based Framework to Automatically Generate Semi-real Data for Evaluating Data Analysis Techniques

217

can be triggered using the function click provided by

PHP, just like a real person clicking the button. After-

wards, another interface pops up, on which the next

click event is replayed. Note that, the order of click

events in the simulation log should totally match the

order of interfaces in the information system.

Information systems have data sources to store the

executed business processes in the interfaces, e.g.,

Dolibarr has a corresponding database which stores

information of all created objects. When the inter-

faces of the information system are operated auto-

matically, the corresponding tables in the database

are populated. For instance, when the “Create draft”

button is triggered in the interface (i.e., an order is

created), a new row is immediately added into the

“llx commande” table to record the information ﬁlled

in the interface. By replaying the simulation log, an

arbitrarily large amount of records can be added into

different tables in the database.

4 IMPLEMENTATION AND CASE

STUDY

We have now introduced all the involved ingredients

in the data generation framework shown in Figure 1.

In this section, we show how to generate semi-real

data using a case study based on Dolibarr.

4.1 Data Generator

The part of the framework in Figure 1 which controls

the automatic execution of information systems based

on the simulation log, has been realized as a plugin

named Data Generator in ProM.

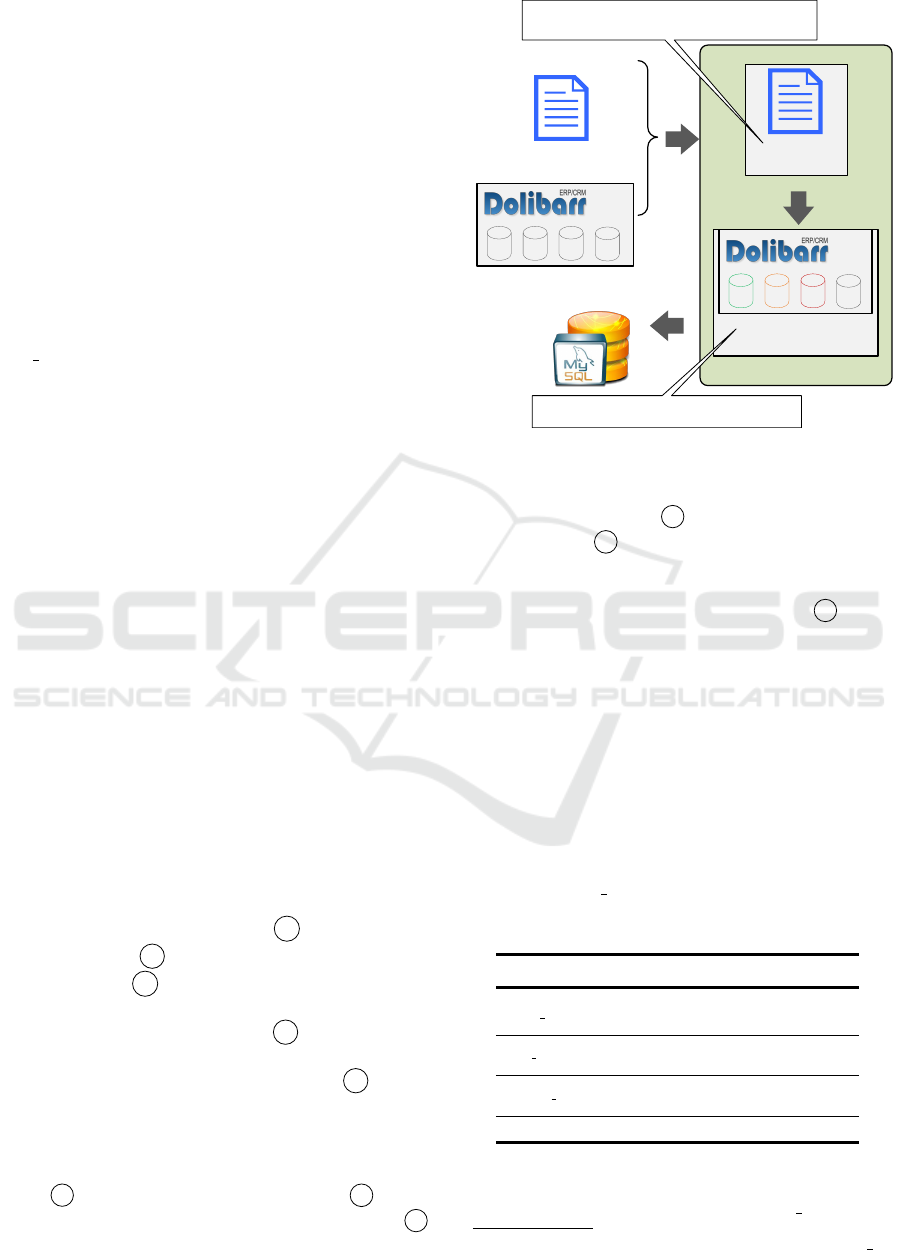

Basically, the generator takes a simulation log and

a webpage-based information system as input and

generates data in the database connected to the sys-

tem as shown in Figure 6. It consists of two inter-

faces: “Build Clicks” (denoted as A ) and “Run Sys-

tem” (denoted as B ) as shown in Figure 7. More pre-

cisely, interface A builds an executable list of clicks

by mapping click events in simulation logs onto but-

tons in interfaces, while interface B runs the system

by triggering buttons based on the executable list.

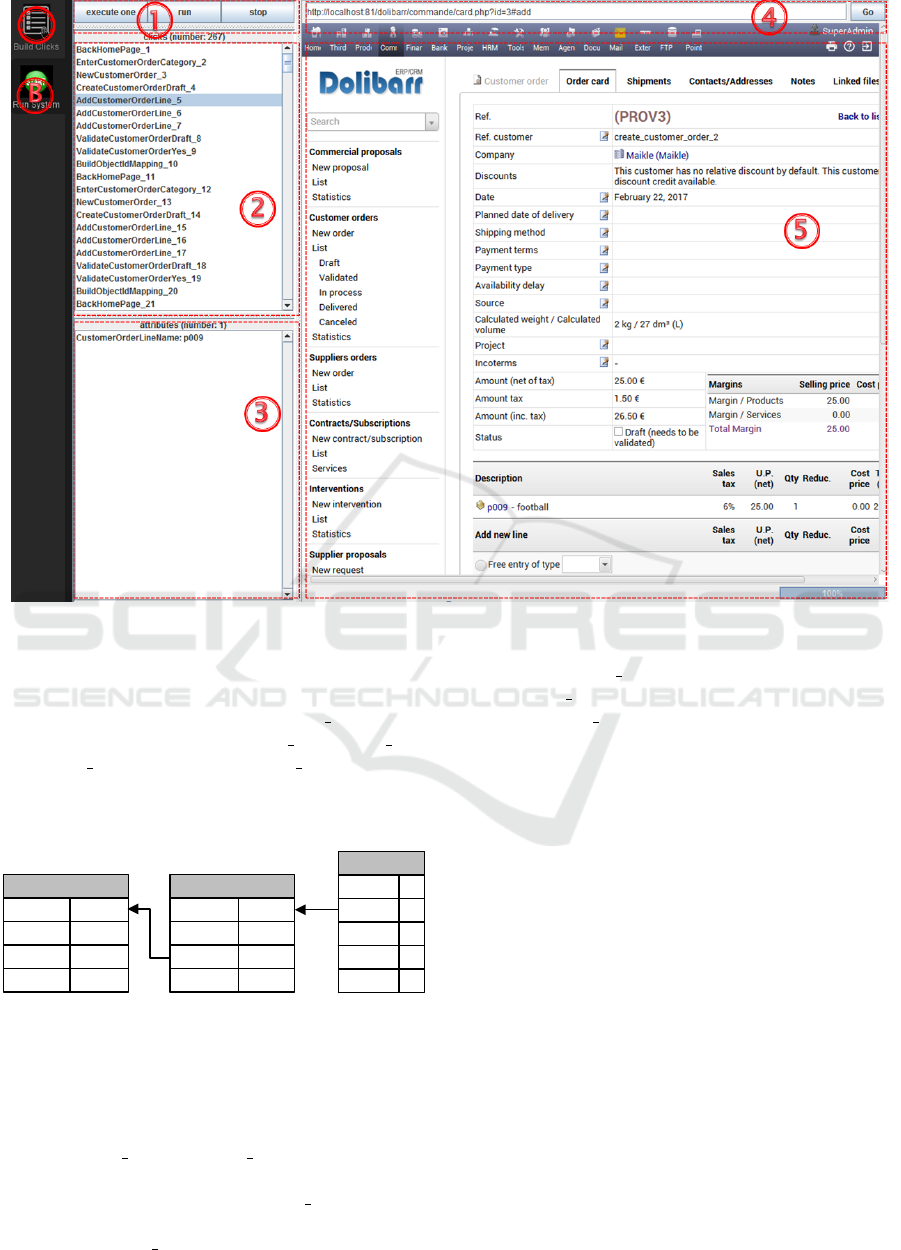

Figure 7 shows the details of interface B , which

is the main component to control the execution of the

information system. The basic idea is to embed the

system into the interface, and control the execution

of the system based on the click list. More precisely,

panel 2 presents the click list while panel 3 shows

the related attribute for the focused click. Panel 4

is used to ﬁll in the website address and login. After

Data

Data Generator

Interface A

Build Clicks

Interface B

Run System

Simulation log

Information system

mapping click events in simulation logs onto buttons

in interfaces to build an executable list of clicks

running system by triggering buttons based on

the executable list of clicks

input

output

Figure 6: The architecture of the data generator.

providing the home page of the system, one can press

“run” button in panel 1 to start running Dolibarr

system. Panel 5 displays the state of Dolibarr sys-

tem after each click, which is the same as operating

Dolibarr in a browser. It is possible to suspend the

execution using the “stop” button in panel 1 and re-

suming the execution using the “run” button. In order

to investigate the details, one can press the “execute

one” button to execute the click one by one.

4.2 Generated Data

After running Dolbiarr system, the corresponding

database is populated with the generated data. In the

database, there are in total 148 tables involved in all

business processes (e.g., OTC and PTP) supported by

the Dolibarr system. All the table names have the

same preﬁx “llx ”.

Table 1: A segment of the tables in the Dolibarr system.

Index

Table name Alias

Description

llx commande order

record order information, such

as customer, time, note

llx commandedet order line

record items information, such

as product, quantity, price

llx societe customer

record customer information,

such as name, phone, address

...

... ...

...

Table 1 presents some database tables involved in

the OTC scenario. For instance, the “llx commande”

https://wiki.dolibarr.org/index.php/Category:Table SQL.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

218

Figure 7: The “Run System” interface of the Data Generator.

table records all information related to customer or-

ders. Each table has some columns to store the input

attribute values in interfaces, e.g., “llx commande”

has columns such as “rowid”, “ref client”, “fk soc”

and “date creation”, and the “ref client” column

stores the input values in the “Ref.customer” ﬁled in

Figure 5.

llx_commande (order)

rowid

ref_client

fk_soc

date_creation

232

customer_1

2017-12-22

16:04:50

llx_commandedet

(order line)

rowid

fk_commande

fk_product

675

232

qty

price

900

llx_societe (customer)

rowid

nom

phone

date_creation

Maikle

0687979632

2017-02-16

15:30:41

Figure 8: A segment of the data model of the generated data

in Table 1.

Figure 8 presents a segment of the data model of

the generated data, which speciﬁes the table columns

and reference relations between tables. For instance,

the column “fk soc” in the “llx commande” table cor-

responds to a foreign key which references the pri-

mary key (i.e., “rowid”) of the “llx societe” table.

Each table in Figure 8 has an example record. The

record in the “llx commande” table references the

record in the “llx societe” table, as the value of the

column “fk soc” is equal to the value of the column

“rowid” in “llx societe”.

The generated data have the same structure as the

real-life data and contain complex relations such as

the many-to-many relation between orders and de-

liveries. Therefore, the data can support the evalua-

tion of data analysis techniques (Li et al., 2017; Mans

et al., 2010; Li et al., 2018a).

5 RELATED WORK

In this section, we review the existing approaches

used to generate data in both commercial and aca-

demic ﬁelds.

Commercial synthetic data generation products

(Centre, 2018; Global Software Applications, 2018;

IRI, 2018) do a good job producing moderate amounts

of simply deﬁned data through polished and intuitive

user interfaces. However, they have limited range of

representation and are not easy to describe some types

of functional dependencies, relations and intra- and

inter-table constraints (Hoag, 2008).

Data generation tools have been developed in the

A Model-based Framework to Automatically Generate Semi-real Data for Evaluating Data Analysis Techniques

219

academic world as well (Scott and Wilkins, 1999;

Lin et al., 2006). These present new concepts in

the form of graph- and language-oriented synthetic

data description, providing greater ﬂexibility in the

description and generation of synthetic data. An ap-

proach was proposed in (Gray et al., 1994) to generate

special-purpose data sets in parallel. It converts a sim-

ple sequential load into a parallel load, which turns a

two-day task into a one-hour task. (Bruno and Chaud-

huri, 2005) introduces a Data Generation Language

(DGL), to generate databases with complex synthetic

distributions and inter-table correlations. (Mans et al.,

2010) proposed experimental frameworks to generate

event data and specify, develop, test, and validate the

operational performance of systems.

Our approach differs from previously published

approaches in some aspects. First, the data are gener-

ated by real information systems, such that it always

has the same structure as the real-life data. Exist-

ing approaches can also generate the “semi-real” data,

but they require more efforts such as investigating the

data schema and how operations in the information

system change the database. Second, the user can de-

sign a business process to control the execution of in-

formation systems.

6 CONCLUSION

This paper proposes a framework to automatically

generate semi-real data. Indicated by the name, the

generated data are located between real-life data and

purely synthetic data. More precisely, it is generated

by automatically operating real information systems,

e.g., an ERP system Dolibarr. Therefore, it has the

same data structure as real-life data. The attribute

values in the data are created based on domain knowl-

edge and these may not be as precise as the values in

real-life data.

The framework is implemented as a ProM plu-

gin to support automatically operating on information

systems based on a simulation log (derived by simu-

lating a design model). Based on the generated data

and the designed model, various analysis techniques

can be veriﬁed.

REFERENCES

Bruno, N. and Chaudhuri, S. (2005). Flexible database gen-

erators. In Proceedings of the 31st international con-

ference on Very large data bases, pages 1097–1107.

VLDB Endowment.

Centre, P. B. (2018). DTM Database Tools.

http://www.sqledit.com/. Accessed: 2018-12-05.

Global Software Applications, L. (2018). GSAPPS.

http://www.gsapps.com/. Accessed: 2018-12-05.

Gray, J., Sundaresan, P., Englert, S., Baclawski, K., and

Weinberger, P. J. (1994). Quickly generating billion-

record synthetic databases. In Acm Sigmod Record,

volume 23, pages 243–252. ACM.

Hoag, J. E. (2008). Synthetic data generation: Theory, tech-

niques and applications. University of Arkansas.

Hoag, J. E. and Thompson, C. W. (2009). A parallel

general-purpose synthetic data generator1. In Data

Engineering, pages 103–117. Springer.

IRI, T. C. C. (2018). IRI RowGen.

http://www.iri.com/products/rowgen. Accessed:

2018-12-05.

Jensen, K. (2013). Coloured Petri nets: basic con-

cepts, analysis methods and practical use, volume 1.

Springer Science & Business Media.

Jensen, K. and Kristensen, L. M. (2009). Coloured Petri

nets: Modelling and validation of concurrent systems.

Springer Science & Business Media.

Li, G., de Carvalho, R. M., and van der Aalst, W. M. P.

(2017). Automatic Discovery of Object-Centric Be-

havioral Constraint Models. In BIS 2017, June 28–30,

2017, Proceedings, pages 43–58. Springer.

Li, G., de Carvalho, R. M., and van der Aalst, W. M. P.

(2018a). Conﬁgurable event correlation for pro-

cess discovery from object-centric event data. In

2018 IEEE International Conference on Web Services

(ICWS), pages 203–210. IEEE.

Li, G., de Murillas, E. G. L., de Carvalho, R. M., and van der

Aalst, W. M. P. (2018b). Extracting object-centric

event logs to support process mining on databases. In

CAiSE Forum, pages 182–199. Springer.

Lin, P. J. et al. (2006). Development of a synthetic data set

generator for building and testing information discov-

ery systems. In Information Technology: New Gener-

ations, 2006. ITNG 2006. Third International Confer-

ence on, pages 707–712. IEEE.

Mans, R. S., Russell, N. C., van der Aalst, W. M. P., Mole-

man, A. J., and Bakker, P. J. (2010). Schedule-aware

workﬂow management systems. In Transactions on

Petri nets and other models of concurrency IV, pages

121–143. Springer.

Murata, T. (1989). Petri nets: Properties, analysis and ap-

plications. Proceedings of the IEEE, 77(4):541–580.

Scott, P. D. and Wilkins, E. (1999). Evaluating data

mining procedures: techniques for generating artiﬁ-

cial data sets. Information and software technology,

41(9):579–587.

van der Aalst, W. M., Bichler, M., and Heinzl, A. (2018).

Robotic process automation.

van der Aalst, W. M. P. (1998). The application of petri

nets to workﬂow management. Journal of circuits,

systems, and computers, 8(01):21–66.

van der Aalst, W. M. P., Li, G., and Montali, M. (2017).

Object-Centric Behavioral Constraints. Corr techni-

cal report, arXiv.org e-Print archive. Available at

https://arxiv.org/abs/1703.05740.

Zervos, C. (1977). Coloured Petri nets: Their properties

and applications. PhD thesis, University of Michigan,

Michigan.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

220
