Modeling Traceability in Software Development: A Metamodel and a

Reference Model for Traceability

Bruno Azevedo and Mario Jino

School of Electrical and Computer Engineering, University of Campinas, Brazil

Keywords:

Traceability, Traceability Model, Software Quality, Requirements Engineering, Software Development.

Abstract:

Many traceability models lack well-deﬁned traceability link types, provide incomplete coverage of situations,

do not provide mechanisms to ensure consistency of traceability, and consider only requirements traceability

ignoring other activities of development. We propose a set of basic concepts for traceability, a reference

model, and a comprehensive metamodel for traceability created using this reference model. The reference

model deﬁnes: basic elements for traceability, basic actions to be done on artifacts, basic properties that sets

of link types and artifact types should have, basic categories that should be realized regarding these sets,

and basic set of processes for traceability. The metamodel is composed of a visual model deﬁning how its

elements interact, the deﬁnition and semantic description of link types and artifact types which realize the

categories of the reference model, and a set of detailed processes describing the steps to maintain traceability

and system consistency. Our proposal aims to reduce the problems identiﬁed; the reference model provides

directions to help the creation, or evaluation, of a traceability model; the metamodel provides semantically

described traceability link types, coverage of the most common situations, mechanisms to ensure consistency

of traceability, and covers the most common activities in software development.

1 INTRODUCTION

Traceability is the ability to keep track of elements of

a system throughout its life cycle (Gotel and Finkel-

stein, 1994); this involves the knowledge of the origins

of each element and the rationale for its existence. El-

ements relate to other elements in many ways; to add

traceability information is to expose such relations.

Traceability is advantageous for both the business

and the development sides of software development: it

facilitates the alignment of the customers needs with

the product, enables the correct assessment of the im-

pact of changes, satisﬁes compliance for regulatory

standards by delivering audit-ready products, avoids

loss of design decisions by keeping development his-

tory, avoids dependency issues by preventing the re-

moval of necessary elements, enables the identiﬁca-

tion of the actors involved in actions performed in the

system (accountability), among many other beneﬁts.

Succintly, traceability allows the generation of a bet-

ter quality product.

Traceability in software development has been a

focus of interest for at least forty years. Several au-

thors have contributed to a better understanding of

traceability: Ramesh and Edwards (Ramesh and Ed-

wards, 1993) highlight several important issues in

the subject; Gotel and Finkelstein (Gotel and Finkel-

stein, 1994) analyze the problem, identifying the

need for pre-requirements traceability; Pﬂeeger and

Bohner (Pﬂeeger and Bohner, 1990) propose trace-

ability graphs and metrics for vertical and horizontal

traceability in the context of impact analysis; Goknil

et al. (Goknil et al., 2011) provides a formal ap-

proach to the deﬁnition of traceability links; M

ader

et al. (M

ader et al., 2009) highlight a few basic con-

cepts which traceability models should take into ac-

count; among many others.

Still, the adoption of traceability by the industry

is hindered by the lack of consensus on how and what

should be traced. Traceability models aim to solve this

issue by providing a standard to be used as a guide in

software development projects.

1.1 Motivation

Based on an extensive literature review we have per-

ceived that traceability models for software develop-

ment: (i) lack well-deﬁned traceability link types, i.e.,

a traceability link type is shown, or named, but never

described semantically, making difﬁcult or impossi-

ble to use; (ii) provide incomplete coverage of situa-

tions, i.e., link types do not model the most common

322

Azevedo, B. and Jino, M.

Modeling Traceability in Software Development: A Metamodel and a Reference Model for Traceability.

DOI: 10.5220/0007715103220329

In Proceedings of the 14th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2019), pages 322-329

ISBN: 978-989-758-375-9

relations such as dependency, accountability, or au-

thorization; (iii) do not provide mechanisms to ensure

consistency of traceability, i.e., processes are not pro-

vided to keep traceability and system consistency after

system changes; (iv) and consider only requirements

traceability, ignoring other activities of the develop-

ment process such as design or implementation, i.e.,

artifact types do not model the most common artifacts.

A comprehensive model for traceability is needed to

address these issues.

1.2 Contribution

Given the deﬁciencies discussed in the previous sec-

tion, we propose: (i) a reference model for traceabil-

ity, and (ii) a metamodel for traceability created using

(i). The ﬁrst part aims to provide a better understand-

ing of traceability and allows the creation and evalu-

ation of traceability models; the second part provides

a semantically described metamodel for traceability in

software development projects.

A set of basic concepts for traceability is proposed

and a reference model is built on top of this concep-

tual framework; our reference model deﬁnes the basic

elements for traceability, the basic actions to be done

on artifacts, the basic properties that sets of link types

and artifact types should have, the basic categories that

should be realized regarding these sets, and the basic

set of processes for traceability.

Using the reference model as a basis, we created a

traceability metamodel composed of: a visual model

deﬁning how the elements interact, the deﬁnition and

semantic description of link types and artifact types

which realize the categories of the reference model,

and a set of processes detailing the steps to maintain

traceability and system consistency.

This contribution aims to solve the problems we

identiﬁed in our literature review, mentioned previ-

ously. Our reference model provides directions to

help the creation of a traceability model without these

problems and our metamodel provides semantically

described traceability link types, provides coverage of

the most common situations, provides mechanisms to

ensure consistency of traceability, and takes into ac-

count the most common activities in software devel-

opment.

1.3 Structure

The paper is structured as follows. In Section 2, we

summarize the most closely related papers we found

in the literature. In Section 3, we propose a conceptual

framework and present our reference model for trace-

ability built using these concepts. In Section 4, we

provide our metamodel for traceability built using the

reference model shown previously. In Section 5, we

conclude the paper and discuss ideas for future work.

2 RELATED WORK

A literature review was performed to ﬁnd out the cur-

rent state of research in modelling traceability for soft-

ware development. We looked for papers propos-

ing traceability models, traceability link types, artifact

types, and processes for traceability, plus conceptual

papers. We found a total of 223 papers of direct in-

terest; we performed a deeper inspection on these pa-

pers to study the concepts and elements for traceabil-

ity found in the current state of the art. These were

used as the starting point to create the reference model.

From this selection, the following 23 papers were con-

sidered the most relevant to the work discussed in this

paper; these propose traceability concepts, models,

links, and applications to speciﬁc domains.

Concepts and important issues to be taken into

account when developing a model for traceability

are highlighted in (Ramesh and Edwards, 1993)

and (M

ader et al., 2009).

Many works in this selection contain models for

traceability: a model derived from a real case sce-

nario is presented in (Ramesh et al., 1995b); empir-

ical approaches were used in (Ramesh et al., 1995a)

and (Ramesh and Jarke, 2001) to create models; a

case study was used to develop a model integrat-

ing traceability and Software Conﬁguration Manage-

ment in (Mohan et al., 2008); a model integrating

different modeling techniques is described in (Beren-

bach and Wolf, 2007); in (Dermeval et al., 2013),

a model relating the requirements model to the ar-

chitecture model is proposed; a model and an ap-

proach for automatic generation of link types is de-

scribed in (Jirapanthong and Zisman, 2005); a trace-

ability management method for modelling traceability

with Multi perspectives View is proposed in (ghazi,

2008); a feature-oriented traceability model for soft-

ware product line development is presented in (Shen

et al., 2009); a four step traceability management pro-

cess having four steps and a model for traceability are

proposed in (Haidrar et al., 2016); in (Dubois et al.,

2010), a model for requirement traceability linking

the requirement model, the solution model, and the

V&V model is described; a model which integrates

textual speciﬁcations with UML speciﬁcations is pro-

posed in (Letelier et al., 2005); a model-driven ap-

proach for supporting the evolution of design deci-

sions is described in (Malavolta et al., 2011); a link

model for the Uniﬁed Process and a set of link ver-

iﬁcation rules are proposed in (Maeder et al., 2007).

In (Goknil et al., 2008), a metamodel having a set of

Modeling Traceability in Software Development: A Metamodel and a Reference Model for Traceability

323

formalized link types is proposed and is used in sub-

sequent work to support different goals: consistency

checking (Goknil et al., 2011), reasoning about re-

quirements (Goknil et al., 2013), validation of traces

between requirements and architecture (Goknil et al.,

2014a), and change impact analysis (Goknil et al.,

2014b).

A couple of works propose frameworks, given spe-

ciﬁc contexts: a framework containing mechanisms

for model slicing and a model for traceability, and a

view-based model-driven framework supporting semi-

automatically eliciting and semi-formalizing trace de-

pendencies among process development artifacts are

presented in (Nejati et al., 2012) and (Tran et al.,

2011), respectively.

3 A REFERENCE MODEL FOR

TRACEABILITY

In this section we propose a conceptual basis for trace-

ability and a reference model built on top of this basis.

We identify the basic elements of traceability; pro-

pose the set of basic actions that should be consid-

ered when tracing actions on artifacts; propose three

basic properties that sets of traceability link types

and artifact types should have; propose sets of cate-

gories for link types and artifact types, respectively,

that should be satisﬁed, and propose the set of basic

processes needed to mantain traceability and system

consistency.

3.1 Basic Elements in a Traceability

Model

There are three basic elements to be considered when

tracing software; these are: artifacts, links and pro-

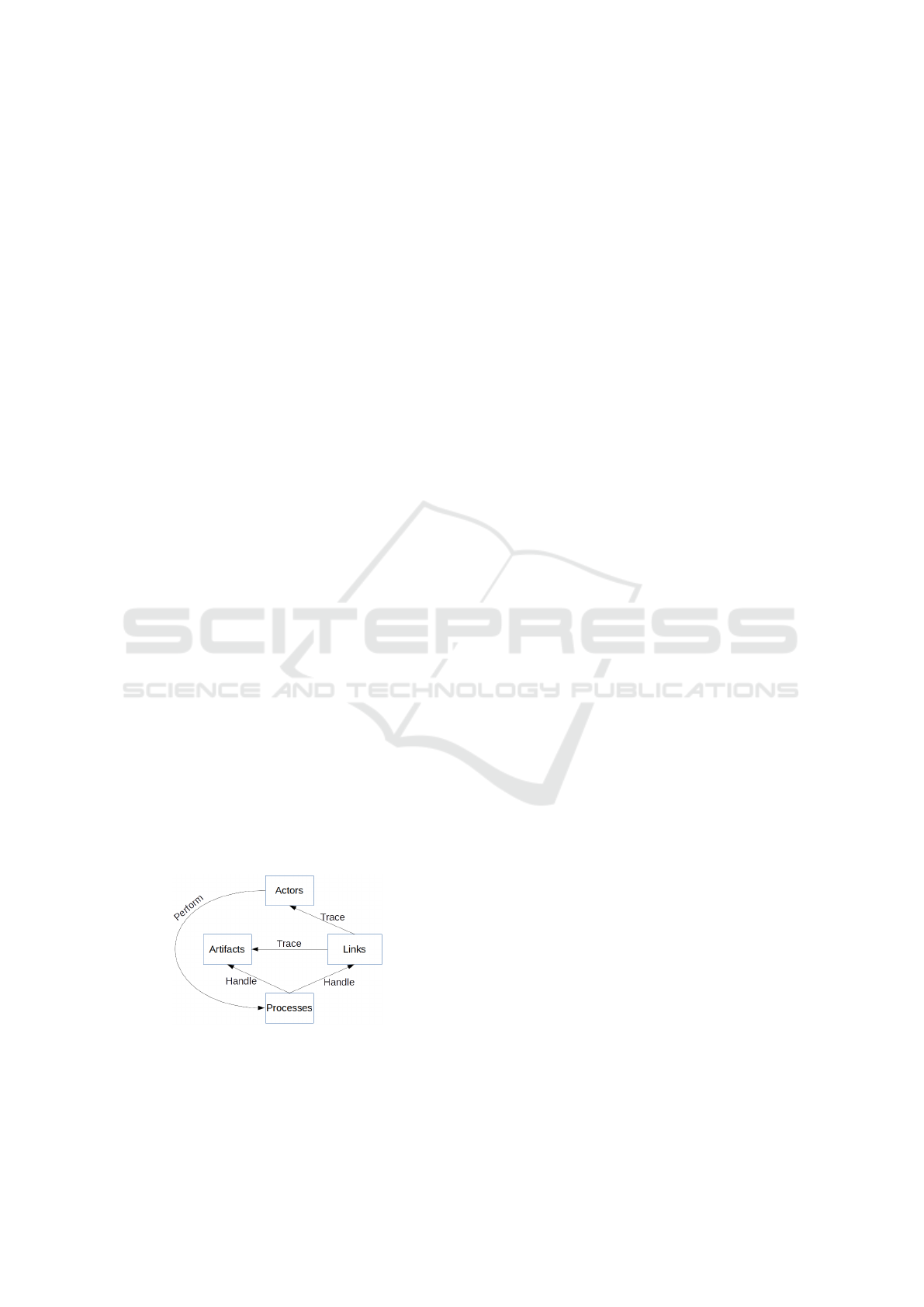

cesses. The model depicted in Figure 1 show how

these elements relate to each other.

Figure 1: Conceptual model.

Artifacts are the workproducts of the software devel-

opment process (Tekinerdo

gan et al., 2007). Actors

are representations of agents interacting with the soft-

ware system. Links represent relationships between

artifacts and actors; links can be classiﬁed into differ-

ent types, each one having a speciﬁc semantics con-

cerning the relationship between the elements it con-

nects. Processes aim to maintain consistency of trace-

ability information in the software system; whenever

an action happens, a process provides the set of steps

needed to maintain consistency.

3.2 Basic Actions Regarding Artifacts

We deﬁne six basic actions that should be taken into

account when tracing actions on artifacts. Creation is

the action through which an artifact comes into exis-

tence. Modiﬁcation is the action of changing an ar-

tifact. Removal is the action of removing an artifact

from the working project. Homologation is the action

of adding an artifact to the working project. Decom-

position is the action of decomposing an artifact into

two, or more, artifacts. Application is the action of ex-

ecuting a procedure, deﬁned in an artifact, on another

artifact.

3.3 Properties of Link Types and

Artifact Types

We propose three basic properties which the set of

link types and the set of artifact types in a traceabil-

ity model should have; these are Comprehensiveness,

Speciﬁcity, and Coverage. Speciﬁcally, the set of link

types should have the properties of Comprehensive-

ness, Speciﬁcity, and Coverage. The set of artifact

types should have the properties of Comprehensive-

ness and Speciﬁcity.

3.3.1 Comprehensiveness

Comprehensiveness is the property of taking into ac-

count a wide range of situations. For instance, a set of

link types having Comprehensiveness is able to model

the most common relationships between elements in a

project.

3.3.2 Speciﬁcity

Speciﬁcity is the property of being capable of express-

ing particular situations. For instance, consider a set

of link types having only one link type named ’Trace’

which will represent all relationships in a project. This

set has Comprehensiveness but fails to characterize

each speciﬁc situation it is modelling. It is able to

model both a dependency and an accountability rela-

tionship, but we are unable to identify which one is

being modelled; therefore there is loss of traceability

information.

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

324

3.3.3 Coverage

Coverage is the property in which the set of link types

cover all the artifact types they should cover. For in-

stance, a set of link types having a link expressing au-

thorship of artifacts should cover all artifact types in

the model; there should not be an artifact type which

it is not possible to identify its author.

3.4 Basic Categories for Link Types

We propose seven basic categories in which link types

may be classiﬁed into: Accountability, Constraint,

Permission, Characterize action, Evolution, Action

outcome, and Composition. These categories cover

the link types found in the literature which we identi-

ﬁed as essential.

A model should satisfy these categories, i.e., there

should be link types embodying the roles described by

each category.

A brief summary of the categories is shown next.

3.4.1 Accountability

Link types within this category are used to assign au-

thorship to actions. The subset of link types in this

category should have link types that assign authorship

to at least the six basic actions previously deﬁned.

3.4.2 Constraint

Link types within this category are used to convey that

one artifact constrains another artifact. The subset of

link types in this category should have link types that

convey at least the following roles: that one artifact is

required by another artifact and that one artifact is in

conﬂict with another artifact.

3.4.3 Permission

Link types within this category are used to convey

information on authorization to perform actions con-

cerning artifacts. The subset of link types in this cat-

egory should have link types that convey information

on authorization to perform at least the six basic ac-

tions.

3.4.4 Characterize Action

Link types within this category are used to convey the

rationale and/or the description (who, what, and how)

concerning an action. The subset of link types in this

category should at least have link types – for each of

the six basic actions – that: (i) justify and describe

an action, (ii) solely justify an action, and (iii) solely

describe an action.

3.4.5 Evolution

Link types within this category are used to convey that

information is changed and propagated from one arti-

fact to another. The subset of link types in this cat-

egory should at least have link types that: (i) convey

that an artifact was reﬁned into other artifacts, and (ii)

convey historical information on a given artifact, i.e.,

to enable version control of artifacts.

3.4.6 Action Outcome

Link types within this category are used to convey the

outcome of an action, e.g., a set of test cases applied

on a program produces a test log containing the results

of the test.

3.4.7 Composition

Link types within this category are used to convey

the information that an artifact was, or is, part of an-

other artifact. The subset of link types in this category

should at least have link types that: (i) convey that

an artifact was decomposed into two or more artifacts,

and (ii) convey that an artifact is part of another arti-

fact.

3.5 Basic Categories for Artifact Types

We considered the most common activities in soft-

ware development (IEEE Computer Society et al.,

2014) to deﬁne the basic categories for artifact types:

Pre-requirements, Requirements, Design, Implemen-

tation, Veriﬁcation & Validation and Testing, and Ra-

tionale. There are development approaches which do

not use all these activities, such as agile approaches;

in this case, a user may ignore the categories which

model the unused activities.

The activities considered are well known with the

exception of Rationale.

3.5.1 Rationale

Artifact types within this category are created to jus-

tify and/or describe actions concerning artifacts. The

subset of artifact types in this category should have ar-

tifact types that provide rationale for at least the six

basic actions.

3.6 Basic Processes

The purpose of a traceability process is to maintain

traceability and system consistency. Consistency may

be broken by actions performed throughout the devel-

opment process. For instance, suppose an artifact α

Modeling Traceability in Software Development: A Metamodel and a Reference Model for Traceability

325

is dependent on another artifact β. If β is removed,

the system becomes inconsistent because α has an un-

solved dependency; the traceability information also

becomes inconsistent because α has a traceability link

to a nonexistent artifact. Hence, processes are neces-

sary to correct inconsistencies caused by actions.

Given the set of basic actions which may affect a

system, a model should at least have a process for each

of the six basic actions deﬁned in Section 3.2.

3.7 Why a Model for Traceability

Should Have these Characteristics?

We argue that a model for traceability lacking these

characteristics is incomplete and, we believe, this is

self-evident in most cases. For instance, a model lack-

ing Accountability link types can not record who mod-

iﬁed or created an artifact; a model having speciﬁcity

but lacking comprehensiveness will fail to represent

relations between elements in a project; a model with-

out artifacts to represent requirements can not trace

such artifacts; etc.

4 A METAMODEL FOR

TRACEABILITY

In this section we present our metamodel for trace-

ability constructed using the reference model deﬁned

in Section 3. It is composed of a visual model deﬁning

how the elements interact, 57 link types semantically

described, 12 artifact types, and 7 detailed processes

to maintain traceability and system consistency during

changes. Each of these sets satisfy the categories and

properties of the reference model.

4.1 Traceability Space

We organize the elements of our metamodel in a

Traceability Space composed of four subspaces. The

Actors Space contains abstractions of the agents that

interact with the project. The Rules Space contains the

rules deﬁning the actions which can be performed by

the actors. The System Space is the collection of prod-

ucts of the development process. The Processes Space

contains the set of processes used to maintain consis-

tency. Links and artifacts are also part of the Trace-

ability Space; these are instances of link types and in-

stances of artifact types, respectively. Link types con-

nect: (i) artifacts to other artifacts within the System

Space, and (ii) artifacts in the System Space to actors

in the Actors Space.

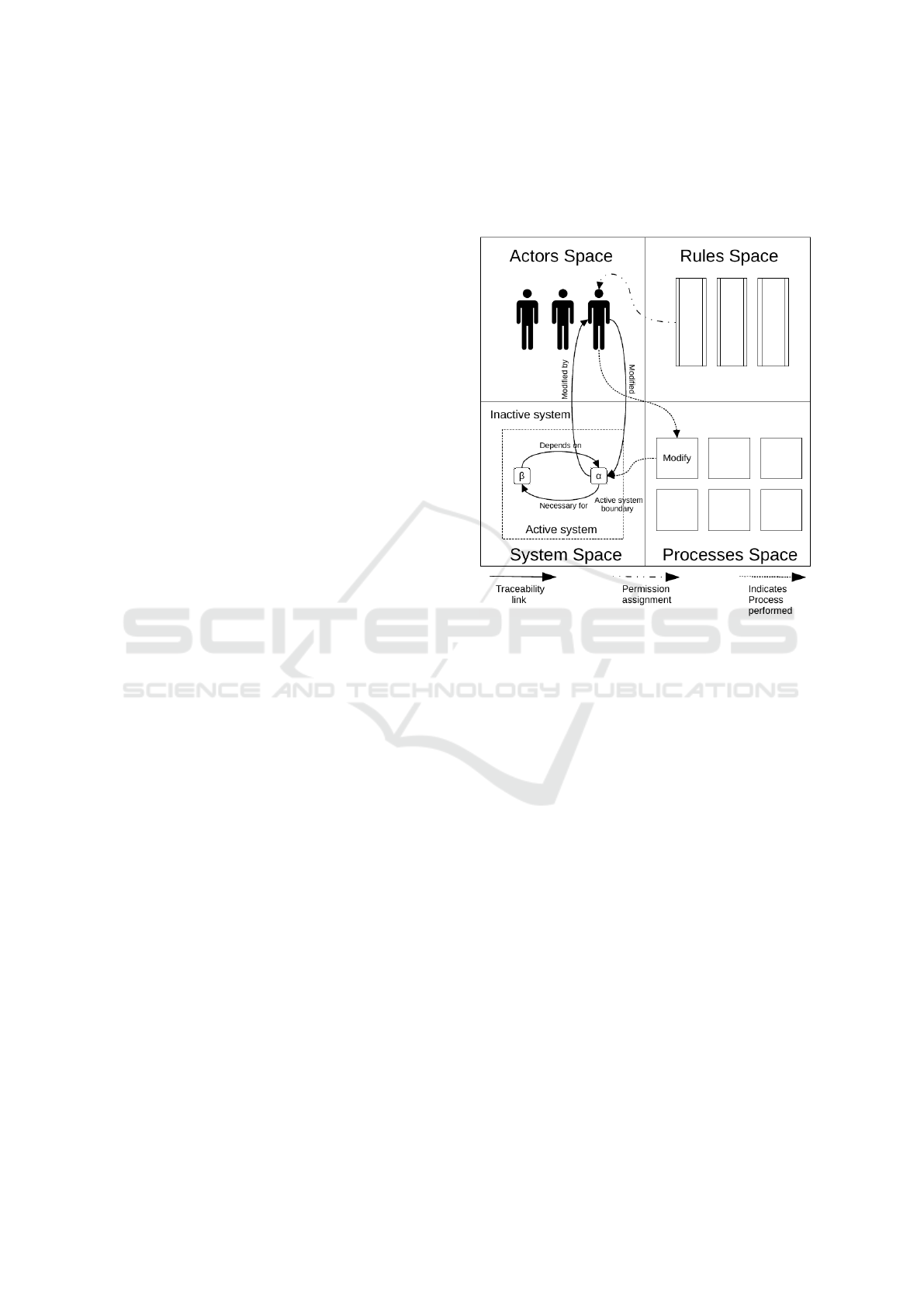

An example Traceability Space is depicted in Fig-

ure 2. It shows an actor who performed the Modiﬁ-

cation Process on artifact α. Permission to do so was

assigned by the Rules Space. The resulting Account-

ability links connect the actor and the artifact. Con-

straint links connect artifacts α and β.

Figure 2: A Traceability Space.

4.2 Link Types

We have created 57 link types satisfying the roles of

the seven categories for link types of the reference

model. Each link type was semantically described

to: (i) enable its mapping to real life projects and (ii)

avoid ambiguities during its use. Table 1 shows the

complete set of link types arranged by category.

Two link types are shown next to give a general

idea of how each link type in the table was described.

4.2.1 Link Type ReifedFrom

The link type ReiﬁedFrom, an Evolution link type, has

the following description:

Deﬁnition 4.1. An artifact α is reiﬁed from an artifact

β if part of, or all of, α was constructed in a structured

way from all of, or part of, β. Implicit information

from β may be made explicit in α and/or new informa-

tion may be added.

Let α and β be two artifacts and let e be a link

starting in α and having β as its destination. The link e

is a ReiﬁedFrom link type if it conveys the information

that α was reiﬁed from β.

For instance, let α

and α

be requirements and let

β be a design artifact. Let all of α

and part of α

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

326

Table 1: Categories × Link types.

Accountability HomologatedBy, Homologated, RejectedBy,

Rejected, CreatedBy, Created, ModiﬁedBy,

Modiﬁed, AppliedBy, Applied, Decom-

posedBy, Decomposed, RemovedBy, and

Removed.

Constraint DependsOn, NecessaryFor and Con-

ﬂictsWith.

Permission MayHomologate, MayBeHomologatedBy,

MayModify, MayBeModiﬁedBy, MayRe-

move, MayBeRemovedBy, MayDecompose,

MayBeDecomposedBy, MayApply, May-

BeAppliedBy, MayActivate, and MayBeAc-

tivatedBy.

Characterize Action DeﬁnesModiﬁcationOf, ModiﬁcationDe-

ﬁnedBy, DeﬁnesDecompositionOf, Decom-

positionDeﬁnedBy, DeﬁnesActivationOf,

ActivationDeﬁnedBy, DeﬁnesRemovalOf,

RemovalDeﬁnedBy, JustiﬁesHomologa-

tionOf, HomologationJustiﬁedBy, Jus-

tiﬁesRejectionOf, RejectionJustiﬁedBy,

DeﬁnesCreationOf, CreationDeﬁnedBy, De-

ﬁnesApplicationOf, ApplicationDeﬁnedBy,

SubjectToApplicationOf, and AppliesTo.

Evolution ReiﬁedFrom, ReiﬁedInto, ModiﬁedFrom,

and ModiﬁedInto.

Action Outcome ApplicationProduces, and ProducedByAp-

plicationOf.

Composition DecomposedFrom, DecomposedInto,

PartOf, and ComprisedOf.

used in the construction of β, i.e., information written

in natural language from α

and α

was transformed

into information written in a design representation lan-

guage in β. Two ReiﬁedFrom link types starting in β

and having α

and α

as its destination models this

relation.

4.2.2 Link Type DependsOn

The link type DependsOn, a Constraint link type, has

the following description:

Deﬁnition 4.2. An artifact β satisﬁes an artifact α if

a condition required by α is fulﬁlled by β.

Let α and β be two artifacts and let e be a link

starting in α and having β as its destination. The link e

is a DependsOn link type if it conveys the information

that β satisﬁes α.

There are several types of dependencies, such as:

the application of an artifact may depend on the previ-

ous application of other artifacts (dependency of pre-

vious actions) or an artifact may depend on character-

istics of another artifact to run correctly (existencial

dependency).

4.3 Artifact Types

We have deﬁned 12 artifact types satisfying the six

categories for artifact types of the reference model;

seven artifact types for the Rationale category to al-

low the justiﬁcation and/or description of the six ba-

sic actions plus an extra action (Activation), and one

generic artifact for each remaining category: Pre-

Requirements Engineering Artifact (PREA), Require-

ments Engineering Artifact (REA), Design Artifact

(DA), Implementation Artifact (IA), Veriﬁcation &

Validation and Testing Artifact (VVTA), Rationale for

Creation (RC), Rationale for Modiﬁcation (RM), Ra-

tionale for Removal (RR), Rationale for Decomposi-

tion (RD), Rationale for Activation (RAc), Rationale

for Application (RAp), and Rationale for Homologa-

tion or Rejection (RHR).

4.3.1 On Rationale Types

A rationale type provides rationale and/or the descrip-

tion concerning an action. A rationale is a justiﬁca-

tion (why) for an action; a description deﬁnes who,

what, and how, concerning an action. An explanation

on each rationale type is given below.

RCs provide rationale for the creation of an arti-

fact but it can also provide more information about

the artifact being created; for instance, an RC for an

IA could explain its utility and describe how it can be

used. RMs provide rationale for modiﬁcation of an ar-

tifact and describes the modiﬁcations to be made. RRs

provide rationale for removal of an artifact; i.e., given

an artifact, an RR argues for its removal from the Ac-

tive System. RDs provide rationale for decomposition

of an artifact but can also deﬁne how the decomposi-

tion should be done. RAcs provide rationale for acti-

vation

of an artifact but it can also deﬁne modiﬁca-

tions that should be done before it is activated. RAps

provide rationale for application of an artifact but can

also deﬁne how the application should be done. RHRs

provide rationale for homologation or rejection of an

artifact; for instance, after a failed attempt to remove

an artifact, an RHR would be created explaining the

reasons for the rejection of the proposed removal.

4.4 Processes

We have created 7 processes satisfying the six basic

processes required by the proposed reference model

plus an extra process (Activation). A very brief ex-

planation of the Homologation Process is shown next.

Permissions are assumed to be checked for actions in

the process.

The process of trying to activate an artifact previously

rejected or removed.

Modeling Traceability in Software Development: A Metamodel and a Reference Model for Traceability

327

4.4.1 Homologation Process

Every newly created artifact starts off in the Inactive

System; it must go through the Homologation Process

to become part of the Active System. Let α be an ar-

tifact which goes through the Homologation Process

and A be the group of actors who created it. Let B be

a group of actors disjoint from A which performs the

homologation process on α. The group B evaluates

the artifact α to determine whether it is added to the

Active System. There are two possible outcomes: α

is homologated becoming active, or it is rejected re-

maining inactive.

Why is the Homologation Process Useful? Ho-

mologation avoids the introduction of inconsistencies

in the Active System; e.g., if the evaluation by the Ho-

mologation Process is not performed, a necessary ar-

tifact could be removed, leaving the system inconsis-

tent. Furthermore, it allows the evaluation of the im-

pact of an action before it is done. Therefore, the deci-

sion whether to proceed with an action may be guided

through the assessment of its impact; e.g., during the

homologation process it may be found that the cost of

the removal of an artifact outweighs its beneﬁts.

Issues when Homologating a Rationale for Modiﬁ-

cation or Removal. The decision to homologate a

Rationale for Modiﬁcation (RM) or a Rationale for

Removal (RR) is contingent upon the impact in the

Active System; it may be necessary to perform a se-

quence of actions to deal with the problems arisen

from the actions of modiﬁcation or removal. Hence,

the homologation may not occur if the impact is unde-

sirable.

To exemplify the role of the Homologation Pro-

cess, consider the situation where an RM α is up for

homologation, β is the target of α, and β has Neces-

saryFor link types starting from it; the implementation

of the modiﬁcation described in α could cause exist-

ing dependencies to become unfulﬁlled. Therefore,

each NecessaryFor link type should be taken into ac-

count and solutions should be provided for each pos-

sible problem. The same is true for DependsOn link

types starting from β; the modiﬁcation described in α

could eliminate the need for these link types, or even

create new dependencies. The Homologation Process

provides the steps to check for problems and its possi-

ble solutions.

4.5 Customizing the Metamodel

The metamodel may be customized according to the

speciﬁc needs of a project. Some projects may need

a leaner approach, choosing not to use certain link

types, artifact types, and processes. Such customiza-

tions may be implemented at the expense of loss of

traceability information.

5 CONCLUSIONS

We identiﬁed a series of issues with the current trace-

ability models; to address these issues we have pro-

posed a reference model and a metamodel for trace-

ability. The reference model, deﬁned by the concep-

tual basis, may be used in the creation of traceabil-

ity approaches; it also allows the evaluation of ap-

proaches, checking whether an approach fulﬁlls ba-

sic properties and categories of link types, artifact

types, and processes. The reference model was used

to develop a metamodel composed of: a Traceability

Space, showing how the elements interact with each

other; a set of link types and artifact types fulﬁlling all

the categories; a set of processes detailing the steps to

maintain traceability and system consistency.

The models may be customized according to the

speciﬁc needs of a project; some projects may need

a leaner approach, choosing not to use certain link

types, artifact types, and processes.

Our proposal may be extended in several ways, as

follows.

Investigate new concepts and mechanisms to en-

rich the conceptual basis, aimed at reducing subjectiv-

ity in traceability-related tasks.

Extend the set of link types, artifact types, and pro-

cesses to cover additional domains, such as security-

focused projects, or to to increase the comprehensive-

ness and speciﬁcity of the current sets.

Investigate additional properties of the link types

to improve our proposal expressiveness. For exam-

ple, the addition of different levels of dependency

strength would provide more information when per-

forming modiﬁcations on the System Space; it would

also be useful for change impact analysis.

The link types and processes may be formalized

using an existing language or by describing each ele-

ment using ﬁrst-order logic.

The development of tools to support the use of the

reference model and metamodel. The reference model

tool will support the evaluation of approaches and fa-

cilitate the creation of approaches. The metamodel

supporting tool will provide semi-automated use of

the processes. It will also be useful for impact anal-

ysis.

We are currently using the metamodel to trace the

elements in a software development project.

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

328

REFERENCES

Berenbach, B. and Wolf, T. (2007). A uniﬁed requirements

model; integrating features, use cases, requirements,

requirements analysis and hazard analysis. In ICGSE

2007, pages 197–203.

Dermeval, D., Castro, J., Silva, C., Pimentel, J. a., Bitten-

court, I. I., Brito, P., Elias, E., Ten

orio, T., and Pedro,

A. (2013). On the use of metamodeling for relating re-

quirements and architectural design decisions. In Pro-

ceedings of the 28th Annual ACM Symposium on Ap-

plied Computing, SAC ’13, pages 1278–1283. ACM.

Dubois, H., Peraldi-Frati, M. A., and Lakhal, F. (2010). A

model for requirements traceability in a heterogeneous

model-based design process: Application to automo-

tive embedded systems. In 2010 15th IEEE Interna-

tional Conference on Engineering of Complex Com-

puter Systems, pages 233–242.

ghazi, H. E. (2008). Mv - tmm: A multi view traceability

management method. In 2008 32nd Annual IEEE In-

ternational Computer Software and Applications Con-

ference, pages 247–254.

Goknil, A., Kurtev, I., Berg, K., and Veldhuis, J.-W. (2011).

Semantics of trace relations in requirements models

for consistency checking and inferencing. SoSyM,

10(1):31–54.

Goknil, A., Kurtev, I., and Millo, J.-V. (2013). A metamod-

eling approach for reasoning on multiple requirements

models. In EDOC ’13, pages 159–166, Washington,

DC, USA. IEEE Comp. Soc.

Goknil, A., Kurtev, I., and van den Berg, K. (2008).

A Metamodeling Approach for Reasoning about Re-

quirements, pages 310–325. Springer Berlin Heidel-

berg, Berlin, Heidelberg.

Goknil, A., Kurtev, I., and Van Den Berg, K. (2014a).

Generation and validation of traces between require-

ments and architecture based on formal trace seman-

tics. Journal of Sys. and Soft., 88:112–137.

Goknil, A., Kurtev, I., van den Berg, K., and Spijkerman, W.

(2014b). Change impact analysis for requirements: A

metamodeling approach. Inf. & Soft. Tech., 56(8):950–

972.

Gotel, O. C. Z. and Finkelstein, A. C. W. (1994). An analysis

of the requirements traceability problem. In Require-

ments Engineering, Proceedings of the First Interna-

tional Conference on, pages 94–101.

Haidrar, S., Anwar, A., and Roudies, O. (2016). Towards a

generic framework for requirements traceability man-

agement for sysml language. In CiSt 2016, pages 210–

215.

IEEE Computer Society, Bourque, P., and Fairley, R. E.

(2014). Guide to the Software Engineering Body of

Knowledge (SWEBOK(R)): Version 3.0. IEEE Com-

puter Society Press, 3rd edition.

Jirapanthong, W. and Zisman, A. (2005). Supporting

product line development through traceability. In

APSEC’05, pages 9 pp.–.

Letelier, P., Navarro, E., and Anaya, V. (2005). Customiz-

ing traceability in a software development process.

In Information Systems Development, pages 137–148.

Springer US.

ader, P., Gotel, O., and Philippow, I. (2009). Getting back

to basics: Promoting the use of a traceability informa-

tion model in practice. In TEFSE ’09, pages 21–25.

Maeder, P., Philippow, I., and Riebisch, M. (2007). A trace-

ability link model for the uniﬁed process. In SNPD,

volume 3, pages 700–705.

Malavolta, I., Muccini, H., and Smrithi Rekha, V. (2011).

Supporting architectural design decisions evolution

through model driven engineering. In Troubitsyna,

E. A., editor, Software Engineering for Resilient Sys-

tems, pages 63–77, Berlin, Heidelberg. Springer Berlin

Heidelberg.

Mohan, K., Xu, P., Cao, L., and Ramesh, B. (2008). Improv-

ing change management in software development: In-

tegrating traceability and software conﬁguration man-

agement. Decision Support Systems, 45(4):922 – 936.

Nejati, S., Sabetzadeh, M., Falessi, D., Briand, L., and Coq,

T. (2012). A sysml-based approach to traceability

management and design slicing in support of safety

certiﬁcation: Framework, tool support, and case stud-

ies. Inf. & Soft. Tech., 54(6):569 – 590.

Pﬂeeger, S. L. and Bohner, S. A. (1990). A framework for

software maintenance metrics. In Proceedings. Con-

ference on Software Maintenance, pages 320–327.

Ramesh, B., Dwiggins, D., DeVries, G., and Edwards, M.

(1995a). Towards requirements traceability models.

In Systems Engineering of Computer Based Systems,

Proceedings of the 1995 International Symposium and

Workshop on, pages 229–232.

Ramesh, B. and Edwards, M. (1993). Issues in the develop-

ment of a requirements traceability model. In Require-

ments Engineering, Proceedings of IEEE International

Symposium on, pages 256–259.

Ramesh, B. and Jarke, M. (2001). Toward reference models

for requirements traceability. Software Engineering,

IEEE Transactions on, 27(1):58–93.

Ramesh, B., Powers, T., Stubbs, C., and Edwards, M.

(1995b). Implementing requirements traceability: a

case study. In Requirements Engineering, Proceed-

ings of the Second IEEE International Symposium on,

pages 89–95.

Shen, L., Peng, X., and Zhao, W. (2009). A comprehensive

feature-oriented traceability model for software prod-

uct line development. In Australian Software Engi-

neering Conference, pages 210–219.

Tekinerdo

gan, B., Hofmann, C., Aks¸it, M., and Bakker, J.

(2007). Metamodel for tracing concerns across the life

cycle. In Early Aspects: Current Challenges and Fu-

ture Directions, pages 175–194. Springer Berlin Hei-

delberg.

Tran, H., Zdun, U., and Dustdar, S. (2011). Vbtrace: using

view-based and model-driven development to support

traceability in process-driven soas. SoSyM, 10(1):5–

29.

Modeling Traceability in Software Development: A Metamodel and a Reference Model for Traceability

329
