Red-Zone: Towards an Intrusion Response Framework for Intra-vehicle

System

Mohammad Hamad, Marinos Tsantekidis and Vassilis Prevelakis

Institute of Computer and Network Engineering, TU Braunschweig, Germany

Keywords:

Security, Automotive Security, Intrusion Response System, Insrution Detection System, Red-Zone.

Abstract:

Modern vehicles are increasingly equipped with highly automated control systems both for driving and for

passenger comfort. An integral part of these systems are the communication channels that allow the on-board

systems to interact with passenger devices (e.g. tablets), ITS systems (e.g. road-side units), and other vehicles.

These advances have signiﬁcantly enlarged the attack surface and we already have numerous instances of

successful penetration of vehicular networks both from inside the vehicle and from the outside. Traditional

mechanisms for detecting and responding to such attacks are ill-suited to the vehicular domain mainly due to

the fact that the entire process of dealing with an attack must be handled automatically and in a way that does

not affect safety or severely impacts the continued availability of the vehicle or its key systems. Once a security

breach is suspected, the system must evaluate the circumstances in order to determine whether the threat is

real (and not a false positive) and select the optimal response through the use of an Intrusion Response System

(IRS). Although IRSs have been adopted in other domains, there is a lack of such systems in the vehicular

ﬁeld. In this paper, we investigate the challenges and requirements for integrating such a mechanism inside a

vehicle. In addition, we present an Intrusion Response System based on the Red-Zone principle which meets

the identiﬁed requirements. Finally, we discuss the integration of IRS through the vehicle system development

and the different aspects which support such a process.

1 INTRODUCTION

Recently, vehicle manufacturing has changed signif-

icantly. These changes were clearly reﬂected by the

increasing complexity of the modern vehicle system.

Nowadays, vehicles are becoming like a network of

connected computers on wheels. A contemporary

vehicle contains more than 70 microcontroller-based

computers known as Electronic Control Units (ECUs)

which are distributed all over the vehicle, intercon-

nected via different types of networks such as Con-

troller Area Network (CAN), Flexray, and Ethernet

(Broy, 2006). In addition, the software in each car

comprises millions of lines of code (LOC) (Charette,

2009) which are integrated within the various ECUs

to implement the different functions in the car, rang-

ing from very simple ones such as controlling cour-

tesy lights to highly critical ones such as engine con-

trol. Modern vehicles also rely on many external in-

terfaces, such as bluetooth, WiFi, GPS, etc, to in-

teract with the outside world and communicate with

other vehicles, passenger devices and road side units

to improve vehicle and road safety, trafﬁc efﬁciency,

as well as comfortability of both drivers and passen-

gers.

However, the enormous growth of vehicle func-

tionalities, capabilities and connectivity was accom-

panied by new security vulnerabilities which ex-

panded the vehicle’s attack surface and made it a

very attractive target to adversaries (Koscher et al.,

2010; Checkoway et al., 2011; Hamad et al., 2016a).

Attackers were able to exploit these vulnerabilities

mounting serious attacks without the need of physi-

cal access to the vehicle (Ishtiaq Roufa et al., 2011).

Therefore, developing mechanisms to prevent and/or

detect such attacks became a very crucial require-

ment (Larson and Nilsson, 2008). As a ﬁrst line of

defense, many prevention mechanisms were adopted

to guarantee data conﬁdentiality and integrity and to

prevent unauthorized third parties from accessing ser-

vices and communication channels within the vehi-

cle. Since security can never be absolute, Intrusion

Detection Systems (IDSs) were introduced as a sec-

ond layer of defense. The IDS is used to monitor the

vehicular system and its network to detect any viola-

tion of a predeﬁned security policy or any malicious

148

Hamad, M., Tsantekidis, M. and Prevelakis, V.

Red-Zone: Towards an Intrusion Response Framework for Intra-vehicle System.

DOI: 10.5220/0007715201480158

In Proceedings of the 5th International Conference on Vehicle Technology and Intelligent Transport Systems (VEHITS 2019), pages 148-158

ISBN: 978-989-758-374-2

behavior of the system components during operation

(Hamad et al., 2016b; Larson et al., 2008). Whenever

an attack is detected, the IDS has to alert the system

in order to react accordingly.

The embedded nature as well as the safety-critical

aspects of the vehicle make the response to the

detected attack as critical as the detection of the

attack itself. The typical system response when

detecting an attack to a component is, optionally,

to restart that component (Strasburg et al., 2009)

in the hope that the failure, which was caused by

the attack, was a transient one. For critical-safety

systems, this default response is not satisfactory or

even desired because it may cause an accident if a

certain component stops working (Le Lann, 1996).

The security policy of the vehicle has to imple-

ment different strategies in order to react to an attack,

strategies which need to ensure high system resilience

and safety. The response strategies are implemented

through a so-called Intrusion Response System (IRS).

Generally - and even more so in the vehicular domain

- IRSs have received less attention and research effort

compared to IDSs (Stakhanova et al., 2007) until now.

Contribution: In this paper, we discuss the main re-

quirements and challenges that the adoption of an IRS

within the vehicular domain faces. In addition, we

propose an Intrusion Response Framework for intra-

vehicle systems based on the Red-Zone principle. We

discuss the different aspects that need to be consid-

ered during the development of such a framework.

The rest of the paper is organized as follows. Sec-

tion 2 mentions the current state of affairs concerning

Is. In Section 3, we present the challenges IRSs face

in a vehicular context and the requirements of such a

system. In Section 4, we present a general overview

of the Red-Zone principle and the IRS based on that

principle. The development of the IRS and the differ-

ent related aspects are explained in Section 5. In Sec-

tion 6, we discuss the development process as well as

the proposed responses using autonomous driving as

a use-case. Finally, we conclude our paper in Section

2 INTRUSION RESPONSE

SYSTEMS

The growth of hacker knowledge, expertise and tools

put cyber systems in continuous danger, as indi-

cated by the increasing incidents of attacks each year.

Consequently, intrusion prevention mechanisms (ﬁre-

walls, cryptography, access control, etc.) alone are

not sufﬁcient to mitigate these attacks. IDSs were

widely developed to detect, analyze and report in-

trusions in a computing system. Whenever a task

behaves abnormally or violates a predeﬁned secu-

rity policy, the IDS considers this task as a mali-

cious one. Some IDSs have already implemented

limited static responses, such as generating an alarm

or report (Kemmerer and Vigna, 2002). However,

with increasing levels of attacks’ complexity and tar-

geted domains, more comprehensive response strate-

gies are required. These strategies could be imple-

mented through Intrusion Response Systems (IRS).

Authors in (Stakhanova et al., 2007; Shameli-

Sendi et al., 2012; Inayat et al., 2016) have surveyed

the existing IRSs. They have proposed a taxonomy of

these systems according to different characteristics:

Time of Response: this aspect determines when the

responding action should take place. IRSs ei-

ther activate the response after the occurrence of

the attack (delayed response), or take action be-

fore the attack has affected the system resources

(proactive response).

Nature of Response: Determines the activity of the

selected response. IRSs can issue a response

which aims to limit the effect of the attack (active

response). Another response could only notify the

system (passive response) without any further ac-

tions.

Degree of Automation: This characteristic deﬁnes

how the response is taking place. Some IRSs re-

quire the interference of the system administrator

in order to apply the predeﬁned response (man-

ual response), while others are totally independent

and do not require any human interaction to react

to an intrusion (automatic response).

Response Selection: Authors distinguish between

the different IRSs based on the way these systems

choose the applied responses. Most of the IRSs,

such as (Locasto et al., 2005), are using a ﬁxed

predeﬁned response for a certain alert (static re-

sponse). A number of IRSs choose the response

based on attack metrics, therefore the response for

the same attack could be different from one in-

stance to another (dynamic response).

3 IRS FOR VEHICLES

Most of the existing IRSs are mainly deployed for

normal network systems or usual computer systems

(e.g. (Sterne et al., 2001),(Herold, 2017), etc.).

Within the vehicular domain, very few authors have

investigated the design of an IRS. Even in these few

proposals, authors have looked at the response as

Red-Zone: Towards an Intrusion Response Framework for Intra-vehicle System

149

a part of the intrusion detection framework (Hoppe

et al., 2008). Recently, V

olep et al. (V

oelp and

Esteves-Verissimo, 2018) have proposed an intrusion-

tolerant architecture to tolerate partial compromise

of software components of autonomous vehicle. In

other case, e.g. (Nadeem and Howarth, 2014), intru-

sion detection and adaptive response mechanism were

designed to detect a range of attacks and to provide

an effective response for Mobile Ad hoc Networks

(MANETs). However, the vehicle, which is consid-

ered as a safety-critical system, has its own special

properties and restrictions which limit the adoption of

the existing IRS of the other domains. In the next sub-

section we explain some of these challenges which

affect the design of any intrusion response framework

for the intra-vehicle system.

3.1 Challenges

Highly Interconnected Architecture: As we men-

tioned in the intro, a vehicle contains a huge num-

ber of ECUs which are supplied by different ven-

dors with widely varying degrees of security aware-

ness. These ECUs need to collaborate with each

other, therefore many of them are connected with var-

ious sub-networks and share the same bus system with

each other. The unrestricted interaction among those

ECUs puts the whole system in danger. Any attack

on one of these ECUs could cause a domino effect of

attacks on the whole system (Koscher et al., 2010).

Consequently, any response or mitigation mechanism

should consider the highly interconnected and dis-

tributed nature of a vehicular environment.

Ever-changing Scenery: Cars are designed to work

for an average of 12 years (Markit, 2016). So, a car

in its lifespan may have updates in both its hardware

and software components. This means that the rules

of the security policies in an IRS cannot be static, but

must be deﬁned as dynamic and changing in order to

accommodate the behavior of the newly introduced

components as well as the new discovered threats.

Autonomous and Semi-autonomous Nature: Un-

like in a traditional IT environment where a human

administrator would be expected to approve and ap-

ply the response, in the vehicular environment this

may not always be applicable in the case of an au-

tonomous car. Nowadays, some might consider the

driver as the administrator of the vehicular environ-

ment. This assumption is not preferable because the

driver’s attention must not be diverted while driving,

for safety reasons. Moreover, she may not have the

technical knowledge about the attack and the required

response.

3.2 Requirements

The existing IRSs, which are deployed on the other

domains, fulﬁll only a subset of the aforementioned

challenges. Therefore, based on both the challenges

of the vehicular domain and the general IRS tax-

onomies (see Sec. 2), we propose here the desired

properties for any IRS which is developed for the

intra-vehicle system. The proposed IRS should be:

Proactive: An IRS should be designed to predict an

attack on the system and not wait until after the

attack takes place to detect it. Early prediction

provides the system with a sufﬁcient amount of

time to respond in an effective manner. However,

complications arise from the possibility that we

are responding to a false positive. Unfortunately,

as the security constraints are tightened, the like-

lihood of false positives increases.

Active: The proposed system should react in a way

that mitigates the damage caused by the attack

and prevents its propagation to other subsystems.

In addition, it must consider issues such as con-

tainment, continued availability, interaction with

other subsystems and, in certain cases, latency.

These requirements are in many cases in conﬂict

with each other; for example, security and avail-

ability often work against one another) (Tryfonas

et al., 2000).

Correct: The IRS should react properly, based on the

type and target of a potential attack. In a case

if the IRS detects that a component is acting off-

nominally, it responds to that behavior by termi-

nating (killing) the running process and executing

a new instance of it. However, such response is

not preferable because it may cause an accident.

On the other hand, because of the lack of direct

interaction with the driver to solve the security is-

sue, terminating the malicious task without any

relevant information about the vulnerability may

not be the right choice, as an attacker could use

the same obscure vulnerability to break the newly

instantiated task repeatedly.

Heterogeneous: The IRS should be designed to re-

spond in multiple ways, including a fully auto-

mated response. When a task is terminated, re-

gardless of the cause of termination, security re-

lated or otherwise, the system should respond to

the failure by, (i) using an alternate system to pro-

vide the functionality that is lost by the demise of

the failed task, (ii) determining whether the sys-

tem can continue running without this functional-

ity (fail-continue), or (iii) forcing the system into a

fail-safe condition, i.e. it goes into a mode where

VEHITS 2019 - 5th International Conference on Vehicle Technology and Intelligent Transport Systems

150

the safety of the vehicle and passengers is assured

even if the system can no longer continue to oper-

ate. Although there are regulations which ensure

that the safety decisions must be taken only by the

driver (Hoppe et al., 2009), the situation has to

change to reﬂect the rise of the autonomous and

self-driving technology. In the meantime, a semi-

automated response which requires partial inter-

action with the driver could be adopted.

Dynamic: The IRS may need to react dynamically.

The system must react to the same attack in a dif-

ferent way based on many factors, such as the

contextual information during the different oper-

ational modes of the vehicle, the attack severity,

the targeted subsystem and other systems depen-

dent on it. However, expressing all these different

speciﬁcations using static security rules or deci-

sion table is not a trivial task. Therefore, the use of

a dynamic security policy to express these param-

eters could be a preferable solution (Debar et al.,

2007b; Hamad et al., 2017).

Deactiveable: A response to a malicious attempt,

like any other security countermeasure, comes

with a price. The IRS introduces extra over-

head on the system’s performance, based on the

type and duration of the response. To minimise

this overhead, the IRS should be able to deacti-

vate the response mechanism when speciﬁc, pre-

deﬁned conditions within the security policy are

met (Kanoun et al., 2013).

Distributed: Each ECU should have its own IRS.

When a component is potentially under attack, the

corresponding IRS detects the malicious attempt

and decides locally on how to deal with the at-

tack. Although this decision may respond to the

attack against the speciﬁc component, it may not

be optimal for the overall system. This is why

a global response strategy may need to be imple-

mented which is enforced by each individual com-

ponent.

Efﬁcient: Activating the response action should take

place immediately after the attack is detected. In

a different case, if a signiﬁcant amount of time

passes, the damage might already be done, negat-

ing the purpose of existence of the IRS. Therefore,

the proposed IRS should evaluate the security pol-

icy as well as any other inputs in a very efﬁcient

way.

Detected behavior

Intended behavior

Unanticipated behavior

Termination Zone

Normal Zone

Red-Zone

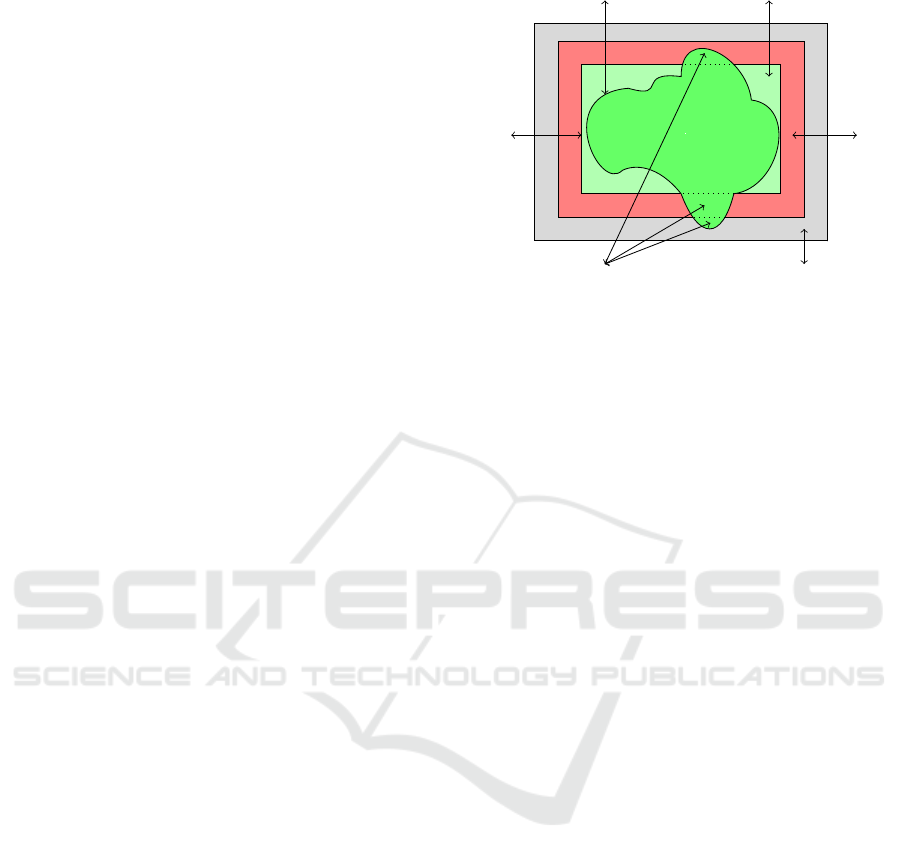

Figure 1: Red-Zone Principle.

4 RED-ZONE FRAMEWORK

Improving the response strategies of any secure mech-

anism is dependent on early detection (i.e. early pre-

diction) of a potential attack. Early prediction pro-

vides the system with a sufﬁcient amount of time to

initiate recovery actions to respond in an effective

manner. Our strategy to solve this conundrum in-

volves using the principle of Red-Zone which we in-

troduced in (Prevelakis and Hamad, 2015).

4.1 Red-Zone Principle

Every task, in a given system, is usually designed to

accomplish a certain job and behave in a well-deﬁned

way. The task is considered normal as long as it keeps

complying with the predetermined execution proﬁle.

However, at run-time, a task may not exercise all the

intended functionality and, in some circumstances, it

may stray outside its planned operational proﬁle and

become abnormal, for many reasons, such as it is

under attack, it includes a bug, or it behaves legally

but the security policy is incomplete. The sudden ex-

change between the normal and abnormal state of the

task may leave the system without sufﬁcient time to

recover which, in critical-safety systems, could lead

to catastrophic consequences.

Therefore, instead of having only the two states

for any task (i.e. normal and abnormal), we introduce

a window of observation called the Red-Zone. The

aim of this window is (a) to permit the task to overrun

its designed operational proﬁle until an ultimate limit,

but in an observed mode and (b) to give the system a

sufﬁcient amount of time to initiate recovery actions

while the task is in the Red-Zone and before it ex-

ceeds the ultimate limit, which then causes a security

failure in the system. Figure 1 illustrates the possible

Red-Zone: Towards an Intrusion Response Framework for Intra-vehicle System

151

Failure

BehaviourTimeTechnology

Attack

IDS IRS

Error

Red-Zone

Correct

Suspicious Wrong

Alarm

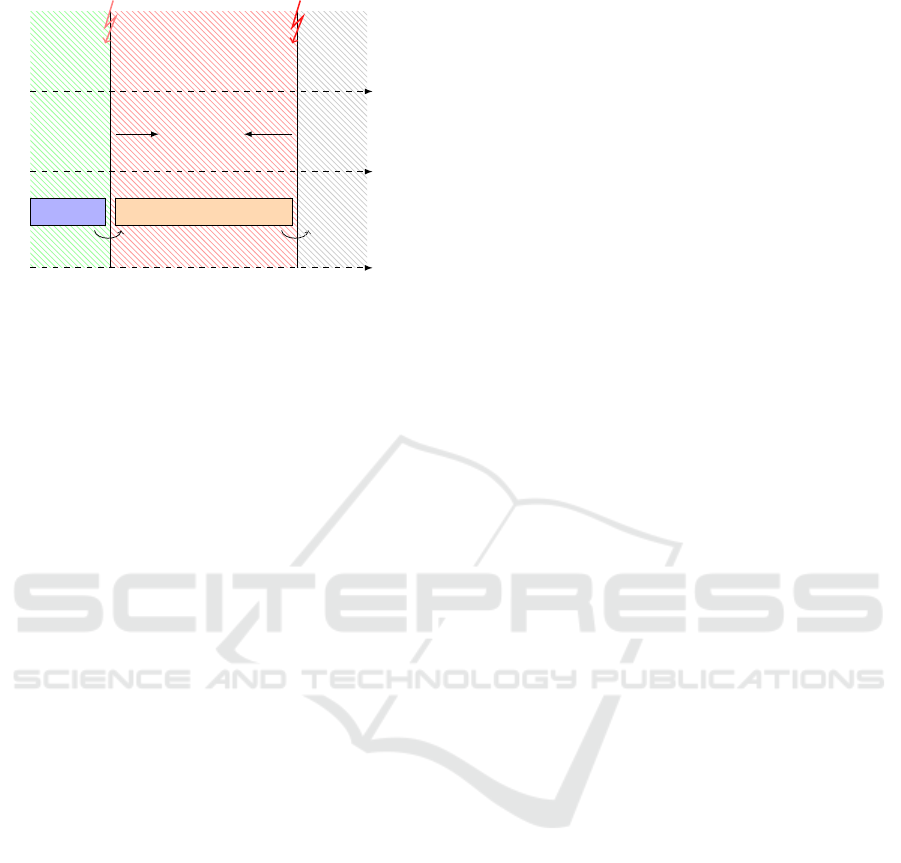

Figure 2: IRS based on Red-Zone Principle.

behavior of a given task and how it could be placed

within the different operational zones.

4.2 Red-Zone as an IRS

Figure 2 shows how we can use the Red-Zone princi-

ple as a base to develop an IRS and how it could be

used to manage the interaction with the IDS. Based on

this principle, the IDS is used to monitor and evaluate

the behavior of the different vehicle software compo-

nents within each ECU depending on predeﬁned se-

curity policies. Each policy speciﬁes the correct be-

havior of the given component. Any violation of this

policy is used as a prediction of a potential security

breach. At this point, the task enters the Red-Zone

area and becomes suspicious. The activation of any

response mechanism is triggered as soon as it receives

an alarm about a detected potential attack from the

IDS.

During the Red-Zone window, the IRS is respon-

sible for activating multi-level responding strategies:

(a) Local tactics to respond to the misbehaving com-

ponent as well as other components on the same ECU,

(b) System-wide responses which are implemented

by an other IRS on a different dependent ECU within

the vehicle. Such responses are activated as soon as a

notiﬁcation from the IRS where the suspicious com-

ponent exists, is initiated. This alert includes all re-

quired information (such as the infected ECU, the at-

tack details, and attack detection time) and transmit-

ted using a predeﬁned format similar to the format

proposed in (Debar et al., 2007a). All these responses

are deﬁned within the security policy as we will see

later. The local response of the malicious component

can be:

• Suspicious\Malicious Operational (S\MO):

Although the task is considered malicious, the

IRS leaves the task running until a certain limit.

While it is executing, the component could be iso-

lated and its communication with the other com-

ponents on the same ECU or with other sub-

systems becomes very limited and traced. The

logged information can be used later to design a

proper mitigation mechanism. Moreover, the trust

level of the component is degraded, so other com-

ponents become more cautious about the informa-

tion delivered from this component.

• Suspicious\Malicious Silent (S\MS): The IRS

kills the process whenever it exceeds the ultimate

bound since the component will suffer from a se-

curity failure at this point (Avizienis et al., 2004).

Although the IRS may stop the component at the

end, which could be the goal of the attacker by

causing a denial-of-service, the IRS has plenty of

time to activate other response strategies ahead of

this point.

Other responses could be also adopted by the IRS

which will affect the whole system’s conﬁguration.

Here we summarize some of these possible responses:

• Reallocation: Ensuring the availability of the dif-

ferent components is a high priority. The IRS can

implement a response which ensures that a new

healthy instance of the malicious component is

initiated. The new instance is mapped to another

ECU, thus other components that depend on the

misbehaving one need to communicate with the

newly initiated component instead. This requires

the use of a new communication conﬁguration to

adjust the reallocation.

• Degradation and Propagation: Some less criti-

cal services which are mapped to the same ECU

where the malicious component is running on,

will have to become silent\inactive to save re-

sources for the system to audit and to recover.

Consequently, the same strategy will have to be

applied to other interrelated ECUs which include

components dependent on the silent ones.

• Preparedness: The IRS applies very strict re-

strictions on the ECUs which host the malicious

component. This could include performing more

security auditing operations on the communica-

tions of this ECU to prevent any stepping stone

attacks. In case the attack was propagated across

the whole ECU, total isolation of the ECU could

be adopted.

• Combination: The IRS could adopt a combina-

tion of the aforementioned tactics to achieve the

best possible protection before delivering the con-

trol to the human actor.

VEHITS 2019 - 5th International Conference on Vehicle Technology and Intelligent Transport Systems

152

5 IRS DEVELOPMENT

Developing the response strategies to cover the large

number of distributed components is a difﬁcult task,

requiring detailed knowledge of possible interaction

paths and the dependencies among all those compo-

nents, as well as the security threats that could target

them along with the possible attack scenarios. When

considering an evolving system, which shall be updat-

able (whereby component interactions may change),

this task becomes even more difﬁcult and requires a

framework which offers IRS support under concur-

rent change. Therefore, the planning for the response

strategies has to be integrated through the design and

life-cycle of the system (i.e V-model).

In this section we show how to integrate the de-

velopment of the IRS within the whole development

process of the vehicle system. In addition, we discuss

the various aspects of the system which affect the de-

sign and implementation of the IRS. Figure 3 shows

the general scheme to develop the IRS. It depicts the

interaction with the existing IDS system, as well as

the role of the security policy which is used to specify

the appropriate response. Here, we explain the dif-

ferent aspects which need to be considered during the

development of the different responses.

5.1 Threat Model

Threat modeling is a systematic approach for describ-

ing and classifying the security threats which affect a

system. Moreover, it provides signiﬁcant information

that would help to safeguard the target system and to

develop effective response strategies against any at-

tacks. During the design stage of the V-model, secu-

rity requirements are deﬁned to address all existing

vulnerabilities identiﬁed by the threat model. At the

same time, the response actions for violating these

requirements are deﬁned in an abstract view. At a

later stage (i.e. implementation and integration) the

response actions become more detailed to reﬂect the

ﬁnal system architecture and keep complying to the

initial actions.

Generally, an attacker aims to violate one or more

of the next requirements:

• Integrity: unauthorized change of the software

component itself, the run-time environment, saved

data, or exchanged messages among the different

components.

• Conﬁdentiality: unauthorized disclosure of the

content of data (i.e. saved data or exchanged mes-

sages) by unauthorized actors.

• Availability: loss of the ability to reach a compo-

nent or service as a result of malicious actions.

In addition, threat modeling provides us with a

good comprehension about the prospective attackers,

their capabilities and their objectives. This informa-

tion is used by the attack tree to perform a risk assess-

ment of each attack which affects the selection of the

response strategy based on the attack severity.

5.2 Attack Tree

As we mentioned above, the main goal of the attack-

ers is violating the security requirements via different

tools and scenarios. An attack tree (Schneier, 1999)

is used to investigate most of these scenarios in a tree

structure as shown in Figure 3. The root of the tree

represents the attacker’s essential goal (e.g. Denial-

of-service against one component), while the inter-

mediate nodes of the tree (sub-goals) deﬁne different

stages to achieve this goal. Each node in an attack tree

could require achieving all of its sub-goals. In this

case, the sub-goals are interconnected with an AND

gate, while an OR gate is used when an upper node

requires achieving at least one of its sub-goals. Leaf

nodes represent atomic attacks. Attack scenarios are

generated from the attack tree by traversing the tree

in a depth-ﬁrst method. Each attack scenario contains

the minimum combination of leafs. The success of an

attack depends on the subsequent success of interre-

lated attack steps.

The attack tree is created off-line for each sys-

tem asset (e.g. hardware, software, data). Then, the

deﬁned attack trees are used to evaluate the security

risks, to calculate the probability of a successful at-

tack and to measure the defense (local response) cost

(Edge et al., 2006). Calculating these metrics depends

on different aspects (ISO/IEC 18045:2008, 2008), as

well as the information provided by the threat model.

The attack information, which is delivered by the IDS

to the IRS after detecting the security violation, is

used as an input for the IRS to choose the appropriate

response.

5.3 Dependency Analysis

Another important aspect of implementing the re-

sponse mechanism is to determine all dependency re-

lations between other components and the malicious

one. We call a task dependent on another task when it

uses a service provided by that task. These relation-

ships can be denoted in a dependency tree (Toth and

Kruegel, 2002). Then the direct and indirect depen-

dencies are speciﬁed. Moestl et al. (Moestl and Ernst,

2015) have proposed a cross-layer dependency analy-

sis to detect dependencies between the different com-

ponent across the different architectural model lay-

Red-Zone: Towards an Intrusion Response Framework for Intra-vehicle System

153

Attack

Goal

IDS

Attack

Attack Tree Threat Model

V-Model

Policy

Response Policy

Run-Time Infomation(e.g Mode)

Attack Information

Response

Design

Imple

ment

ation

Integration

Dependency Analysis

Internal-Online

Soft. comp

Oﬄine

External-Online

Conﬁdentiality

Integrity

Availability

Attack

Severity

Mode

Response Cost

Action

OR OR

AND

PEM

IRS

Notify

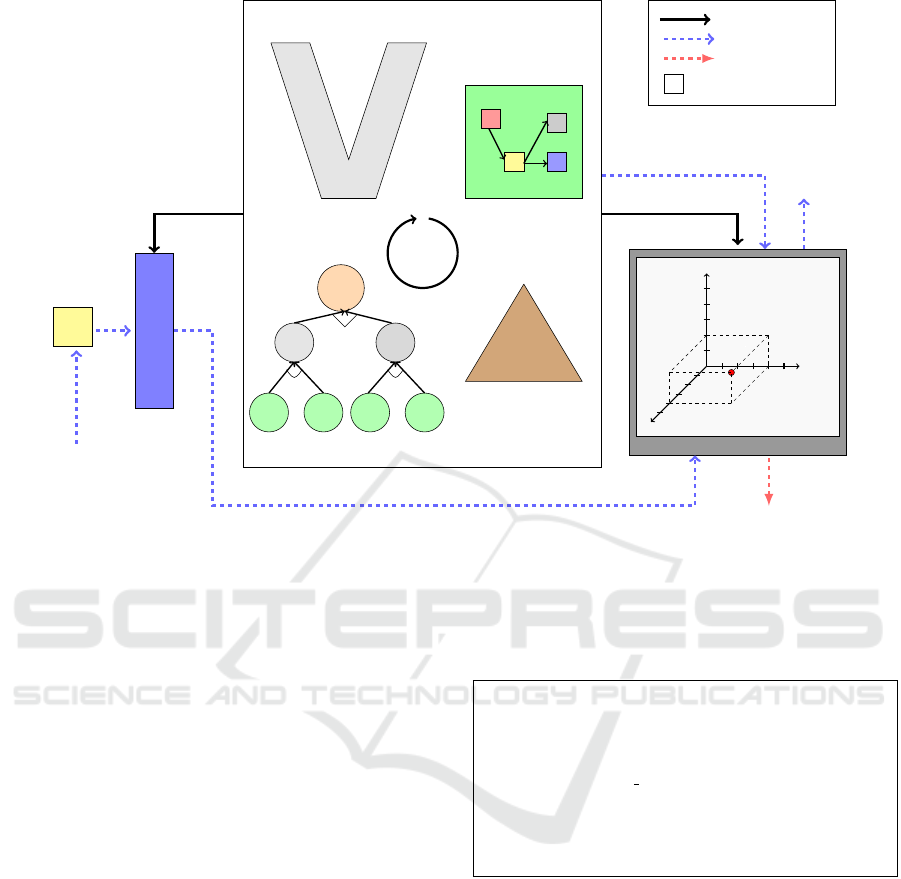

Figure 3: General Scheme of IRS Development.

ers in the safety-critical systems such as a vehicle.

By deﬁning the dependencies, the IRS on the local

platform can notify all other dependent sub-systems

about the attack, thus response mechanisms on other

platforms are also deployed. In addition, the system-

based response cost can be evaluated by using the de-

pendency analysis.

5.4 Security Policy

A security policy is used to deﬁne the response of

the system when a task enters the Red-Zone, the

conditions under which a Red-Zoned task may re-

turn to normal state and, ﬁnally, the response to a

task breaching its ultimate limit. The main challenge

in this context is to deﬁne a comprehensive security

policy to manage the various responses in the intra-

vehicle system after the ﬁnal integration phase in a

development process. This challenge originates from

the high number of integrated ECUs in the vehicle, the

complexity of the dependencies between the different

components on each ECU and the various actors who

participate the development process of these compo-

nents. On the other hand, another challenge comes

from the need to update the response strategies in a

later stage to reﬂect the changes on the actual sys-

tem architecture after the system update or upgrade.

Therefore, the response policy is developed in an ab-

stract way and is gradually detailed during the dif-

ferent development phases (design, implementation,

integration) similar to (Hamad et al., 2017). The de-

ﬁned policy is separated from the service itself which

facilitates the independent update of both.

Listing 1: Security Policy Structure.

i f ( p r o p e r t y == n orm al )

do ( a l l ow )

e l s e / / Red−Zone

i f ( p r o p e r t y == m a l i c i o u s )

i f ( a t t a c k s e v e r i t y == h i g h )

i f ( mode == s t a r t u p )

do ( r e s p o n s e )

e l s e / / f a u l t

do ( r e s p o n s e )

Listing 1 shows the structure of the security pol-

icy. Based on a certain property of a component,

such as execution time, power consumption, system

call distribution or bit-rate of message exchange, the

boundary of the Red-Zone is determined in the pol-

icy and the response action within each zone is de-

ﬁned. Other properties such as the system operational

modes (e.g. vehicle at startup mode) as well as the

attack severity could affect choosing the response ac-

tion. All this information is collected while the sys-

tem is running and evaluated using the Policy Evalua-

tion Module (PEM) to choose an action dynamically.

VEHITS 2019 - 5th International Conference on Vehicle Technology and Intelligent Transport Systems

154

6 USE-CASE

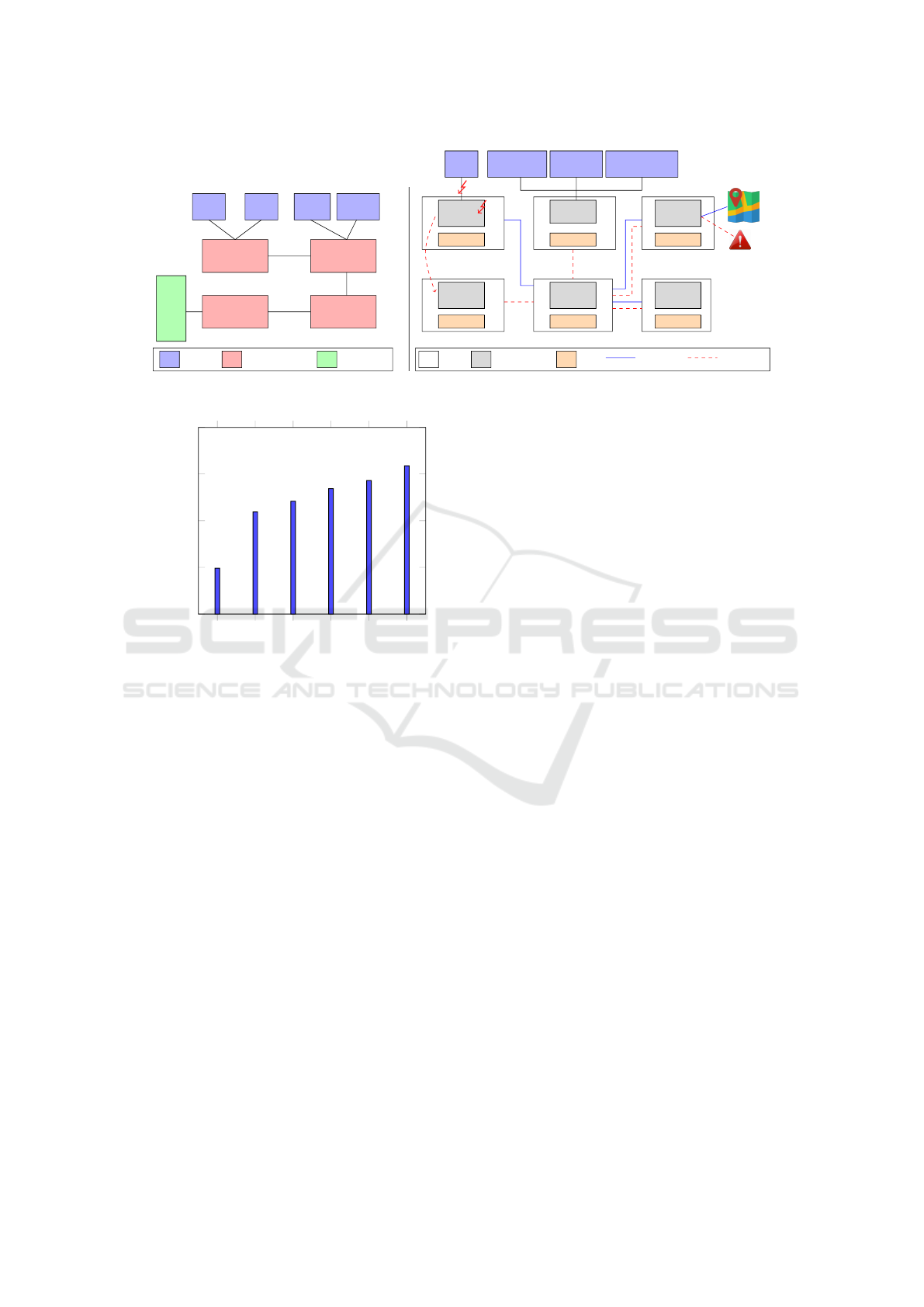

Autonomous driving has seen huge progress and in-

terest in recent years. Figure 4-(left) shows the typi-

cal autonomous vehicle system overview where many

functionalities are collaborating and many sensors

and actuators are involved. Figure 4-(right) shows the

ﬁnal integration of these functionalities on the actual

ECUs. One important functionality within this archi-

tecture is the vehicle localization functionality which

aims to give the vehicle the ability to determine its

position with respect to the environment. The main

information resource for this functionality is provided

by the Global Position System (GPS). By looking at

this functionality speciﬁcally, we want to show how

we could develop response strategies when a security

violation occurs against it and discuss all the aspects

presented in Section 5.

In the ﬁrst stage, threat modeling is performed and

the security requirements for the localization func-

tionality and other ones are deﬁned: (a) availability:

the vehicle needs to be always aware of its current

position and (b) integrity: other system components

which use the position information need to be sure

that the data was received from an authenticated com-

ponent and the position data has not been tampered

with. Any violation of these requirements demands

the adoption of the proper responses. Attack trees are

developed to identify all the attack scenarios which

could violate these two requirements. Attacks such

as spooﬁng data attack, jamming attack, and many

others are deﬁned (Carroll, 2003; Nighswander et al.,

2012). Based on the attacks details, detection mecha-

nisms are deﬁned and stated in the security policy to

detect those attacks while the system is on-line.

The responses to these attacks also are expressed

within the security policy. One response is receiving

the service from anther source. Inertial Navigation

System (INS) could be used as a temporary resource

for providing localization information. Another re-

sponse option is to reallocate the GPS module (in case

of the Receiver Software Attack (Nighswander et al.,

2012)) either within the same ECU or on another one

(ECU

on our use-case). Both strategies require the

communication reconﬁguration for the direct depen-

dent components. Dependencies analysis shows that

Local. component, which is mapped on ECU

, di-

rectly depends on the GPS module. Therefore, the

security policy related to Local. component on ECU

should enable two communication paths with ECU

and ECU

whenever the GPS Module is behaving ma-

liciously. It can also disable the link with ECU

prevent the attack propagation, while HMI compo-

nent, which is mapped on ECU

and indirectly de-

pendent on the GPS module, can keep displaying the

given data on the map, but with an alarm sign acti-

vated to express the low level of GPS data trust as

shown in Figure 4-(right).

Implementation: We implemented a prototype of

our IRS on a single platform. We used a Raspberry

Pi 3 (RPI) running mickrokernel operating system to

give us more capabilities to control the communi-

cation among the different components on the same

platform as well as the isolation mechanism for the

tasks. We used KeyNote policy deﬁnition language

(Blaze et al., 1999) to express the security policy and

Keynote Trust management to implement the PEM

which is used to evaluate these security policies at

run-time.

We measured the required time for choosing the

proper response when one component becomes mali-

cious. This time includes the evaluation time of the

security policies of all dependent components in the

same platform. Figure 5, shows the measured time

when 1 to 5 components are involved.

7 DISCUSSION AND

CONCLUSION

We propose to use the Red-Zone principle as a base to

develop an IRS framework. Whenever a component

is under a cyber-attack, the IDS notiﬁes the IRS to be

activated. The IRS uses the Red-Zone time period to

implement response strategies. Based on this design,

our proposed IRS meets the proactive requirement.

There is a period before the task reaches its ultimate

bound and causes any harm. How long this period is,

is based on the selection of the boundary of the nomi-

nal behavior as well as the monitored property. In our

previous work (Hamad et al., 2018), we have shown

how the temporal property can be used as an indica-

tion to predict an attack at an early stage, before vio-

lating the ultimate temporal boundary (i.e. deadline).

However, false positives can be a side effect when in-

creasing the Red-Zone time window.

During this Red-Zone period, the IRS is able to

activate a ﬁrst level of response. We have already im-

plemented many response strategies (Hamad et al.,

2018) e.g. system notiﬁcation. The IRS can, subse-

quently, apply a second set of actions such as plac-

ing the task under supervision. Another level of re-

sponse can be applied when the task enters the termi-

nation zone (i.e. system failure). All these different

response venues attest to how our system can be het-

erogeneous and active complying with the respective

requirements.

Red-Zone: Towards an Intrusion Response Framework for Intra-vehicle System

155

GPS IMU Camera

Lider

Localization

Perception

Control

Planning

Sensor

Functiomality

Actuator

Act

GPS

ECU

Soft.Comp

IRS

GPS

Module

Wheelspeed

Gyroscope

Accelerometers

INS

Local.

Planning

GPS

Module

HMI

ECU

Reallocate

Normal

Response

Figure 4: Response strategies in the presence of security attack on localization functionality of autonomous vehicle use-case.

1 2 3 4

5 6

Number of Policies

Evaluation Time(ms)

Figure 5: Required evaluation time for dependent compo-

nents on the same RPI.

The proposed framework is integrated within each

ECU in the system (i.e. distributed). Our pre-

liminary measurement results have shown how even

resource-limited platforms are (efﬁcient) to imple-

ment such a framework. IRSs are designed to use a

predeﬁned security policy in different strategies. We

have extended the security policy, which was used in

our previous work (Hamad et al., 2017) to include

these strategies. We use the policy evaluation frame-

work to evaluate the policies and to enforce the cho-

sen response.

The role of the security policy is to deﬁne the

proper response (correct) of the system when a task

enters the Red-Zone, based on (i) the system states as

well as the attack severity which could be calculated

from the attack metrics in conjunction with a refer-

ence to the attack (dynamic), (ii) the conditions un-

der which a Red-Zoned task may return to the normal

state (deactivatable) and, ﬁnally, (iii) the response to

a task breaching its ultimate limit.

As future work, we plan to concentrate on imple-

menting system-wide IRS on multiple RPIs and ex-

periment further in order to get more complete and

comprehensive measurements to check the required

time for the whole system to recover. The communi-

cation protocol between the different IRSs is another

open topic for further research.

ACKNOWLEDGEMENTS

This work is supported by the DFG Research Unit

Controlling Concurrent Change (CCC) project, fund-

ing number FOR 1800. Additionally, it is supported

by the European Commission through the follow-

ing projects: project H2020 THREAT-ARREST un-

der Grant Agreement No. 786890, project H2020

CIPSEC under Grant Agreement No. 700378 and

project H2020 CONCORDIA under Grant Agree-

ment No. 830927.

REFERENCES

Avizienis, A., Laprie, J.-C., Randell, B., and Landwehr, C.

(2004). Basic concepts and taxonomy of dependable

and secure computing. IEEE transactions on depend-

able and secure computing, 1(1):11–33.

Blaze, M., Feigenbaum, J., Ioannidis, J., and Keromytis, A.

(1999). The keynote trust-management system ver-

sion 2. Technical report.

Broy, M. (2006). Challenges in automotive software engi-

neering. In Proceedings of the 28th international con-

ference on Software engineering, pages 33–42. ACM.

Carroll, J. V. (2003). Vulnerability assessment of the us

transportation infrastructure that relies on the global

positioning system. The Journal of Navigation,

56(2):185–193.

Charette, R. (2009). This car runs on code.

http://www.spectrum.ieee.org/feb09/7649.

Checkoway, S., McCoy, D., Kantor, B., Anderson, D.,

Shacham, H., Savage, S., Koscher, K., Czeskis, A.,

Roesner, F., Kohno, T., et al. (2011). Comprehensive

VEHITS 2019 - 5th International Conference on Vehicle Technology and Intelligent Transport Systems

156

experimental analyses of automotive attack surfaces.

In USENIX Security Symposium.

Debar, H., Curry, D., and Feinstein, B. (2007a). The in-

trusion detection message exchange format (idmef).

Technical report.

Debar, H., Thomas, Y., Cuppens, F., and Cuppens-Boulahia,

N. (2007b). Enabling automated threat response

through the use of a dynamic security policy. Jour-

nal in Computer Virology, 3(3):195–210.

Edge, K. S., Dalton, G. C., Raines, R. A., and Mills, R. F.

(2006). Using attack and protection trees to analyze

threats and defenses to homeland security. In Military

Communications Conference, 2006. MILCOM 2006.

IEEE, pages 1–7. IEEE.

Hamad, M., Hammadeh, Z. A., Saidi, S., Prevelakis, V.,

and Ernst, R. (2018). Prediction of abnormal temporal

behavior in real-time systems. In Proceedings of the

33rd Annual ACM Symposium on Applied Computing,

pages 359–367. ACM.

Hamad, M., Nolte, M., and Prevelakis, V. (2016a). Towards

comprehensive threat modeling for vehicles. In 1st

Workshop on Security and Dependability of Critical

Embedded Real-Time Systems (CERTS).

Hamad, M., Nolte, M., and Prevelakis, V. (2017). A frame-

work for policy based secure intra vehicle communi-

cation. In Vehicular Networking Conference (VNC),

2017 IEEE. IEEE.

Hamad, M., Schlatow, J., Prevelakis, V., and Ernst, R.

(2016b). A communication framework for distributed

access control in microkernel-based systems. In 12th

Annual Workshop on Operating Systems Platforms

for Embedded Real-Time Applications (OSPERT16),

pages 11–16.

Herold, N. (2017). Incident Handling Systems with Auto-

mated Intrusion Response. Dissertation, Technische

Universit

at M

unchen, M

unchen.

Hoppe, T., Kiltz, S., and Dittmann, J. (2008). Adaptive dy-

namic reaction to automotive it security incidents us-

ing multimedia car environment. In Information As-

surance and Security, 2008. ISIAS’08. Fourth Interna-

tional Conference on, pages 295–298. IEEE.

Hoppe, T., Kiltz, S., and Dittmann, J. (2009). Applying

intrusion detection to automotive it-early insights and

remaining challenges. Journal of Information Assur-

ance and Security (JIAS), 4(6):226–235.

Inayat, Z., Gani, A., Anuar, N. B., Khan, M. K., and Anwar,

S. (2016). Intrusion response systems: Foundations,

design, and challenges. Journal of Network and Com-

puter Applications, 62:53–74.

Ishtiaq Roufa, R. M., Mustafaa, H., Travis Taylora, S. O.,

Xua, W., Gruteserb, M., Trappeb, W., and Seskarb, I.

(2011). Security and privacy vulnerabilities of in-car

wireless networks: A tire pressure monitoring system

case study. In 19th USENIX Security Symposium.

ISO/IEC 18045:2008 (2008). nformation technology – Se-

curity techniques – Methodology for IT security eval-

uation. Standard, International Organization for Stan-

dardization.

Kanoun, W., Samarji, L., Cuppens-Boulahia, N., Dubus, S.,

and Cuppens, F. (2013). Towards a temporal response

taxonomy. In Di Pietro, R., Herranz, J., Damiani, E.,

and State, R., editors, Data Privacy Management and

Autonomous Spontaneous Security, pages 318–331,

Berlin, Heidelberg. Springer Berlin Heidelberg.

Kemmerer, R. A. and Vigna, G. (2002). Intrusion detection:

a brief history and overview. Computer, 35(4):supl27–

supl30.

Koscher, K., Czeskis, A., Roesner, F., Patel, S., Kohno,

T., Checkoway, S., McCoy, D., Kantor, B., Anderson,

D., Shacham, H., et al. (2010). Experimental security

analysis of a modern automobile. In Security and Pri-

vacy (SP), 2010 IEEE Symposium on, pages 447–462.

IEEE.

Larson, U. E. and Nilsson, D. K. (2008). Securing vehicles

against cyber attacks. In Proceedings of the 4th an-

nual workshop on Cyber security and information in-

telligence research: developing strategies to meet the

cyber security and information intelligence challenges

ahead, page 30. ACM.

Larson, U. E., Nilsson, D. K., and Jonsson, E. (2008). An

approach to speciﬁcation-based attack detection for

in-vehicle networks. In Intelligent Vehicles Sympo-

sium, 2008 IEEE, pages 220–225. IEEE.

Le Lann, G. (1996). The ariane 5 ﬂight 501 failure-a case

study in system engineering for computing systems.

PhD thesis, INRIA.

Locasto, M. E., Wang, K., Keromytis, A. D., and Stolfo,

S. J. (2005). Flips: Hybrid adaptive intrusion preven-

tion. In International Workshop on Recent Advances

in Intrusion Detection, pages 82–101. Springer.

Markit, I. (2016). Vehicles getting older: Av-

erage age of light cars and trucks in u.s.

rises again in 2016 to 11.6 years, ihs markit

says. https://news.ihsmarkit.com/press-

release/automotive/vehicles-getting-older-average-

age-light-cars-and-trucks-us-rises-again-201.

Moestl, M. and Ernst, R. (2015). Cross-layer dependency

analysis for safety-critical systems design. In ARCS

2015-The 28th International Conference on Architec-

ture of Computing Systems. Proceedings, pages 1–7.

VDE.

Nadeem, A. and Howarth, M. P. (2014). An intrusion detec-

tion & adaptive response mechanism for manets. Ad

Hoc Networks, 13:368–380.

Nighswander, T., Ledvina, B., Diamond, J., Brumley, R.,

and Brumley, D. (2012). Gps software attacks. In Pro-

ceedings of the 2012 ACM conference on Computer

and communications security, pages 450–461. ACM.

Prevelakis, V. and Hamad, M. (2015). Extending the oper-

ational envelope of applications. In 8th International

Conference on Trust & Trustworthy Computing

(TRUST 2015).

Schneier, B. (1999). Attack Trees - Modeling security

threats. Dr. Dobb’s Journal.

Shameli-Sendi, A., Ezzati-Jivan, N., Jabbarifar, M., and Da-

genais, M. (2012). Intrusion response systems: sur-

vey and taxonomy. Int. J. Comput. Sci. Netw. Secur,

12(1):1–14.

Stakhanova, N., Basu, S., and Wong, J. (2007). A tax-

onomy of intrusion response systems. International

Red-Zone: Towards an Intrusion Response Framework for Intra-vehicle System

157

Journal of Information and Computer Security, 1(1-

2):169–184.

Sterne, D., Djahandari, K., Wilson, B., Babson, B.,

Schnackenberg, D., Holliday, H., and Reid, T. (2001).

Autonomic response to distributed denial of ser-

vice attacks. In International Workshop on Re-

cent Advances in Intrusion Detection, pages 134–149.

Springer.

Strasburg, C., Stakhanova, N., Basu, S., and Wong, J. S.

(2009). A framework for cost sensitive assessment of

intrusion response selection. In Computer Software

and Applications Conference, 2009. COMPSAC’09.

33rd Annual IEEE International, volume 1, pages

355–360. IEEE.

Toth, T. and Kruegel, C. (2002). Evaluating the impact of

automated intrusion response mechanisms. IEEE.

Tryfonas, T., Gritzalis, D., and Kokolakis, S. (2000). A

qualitative approach to information availability. In

IFIP International Information Security Conference,

pages 37–47. Springer.

oelp, M. and Esteves-Verissimo, P. (2018). Intrusion-

tolerant autonomous driving. In 2018 IEEE 21st Inter-

national Symposium on Real-Time Distributed Com-

puting (ISORC), pages 130–133.

VEHITS 2019 - 5th International Conference on Vehicle Technology and Intelligent Transport Systems

158
